Plasma TV user manual

SUPPORT

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Model ____ Serial No. ____

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

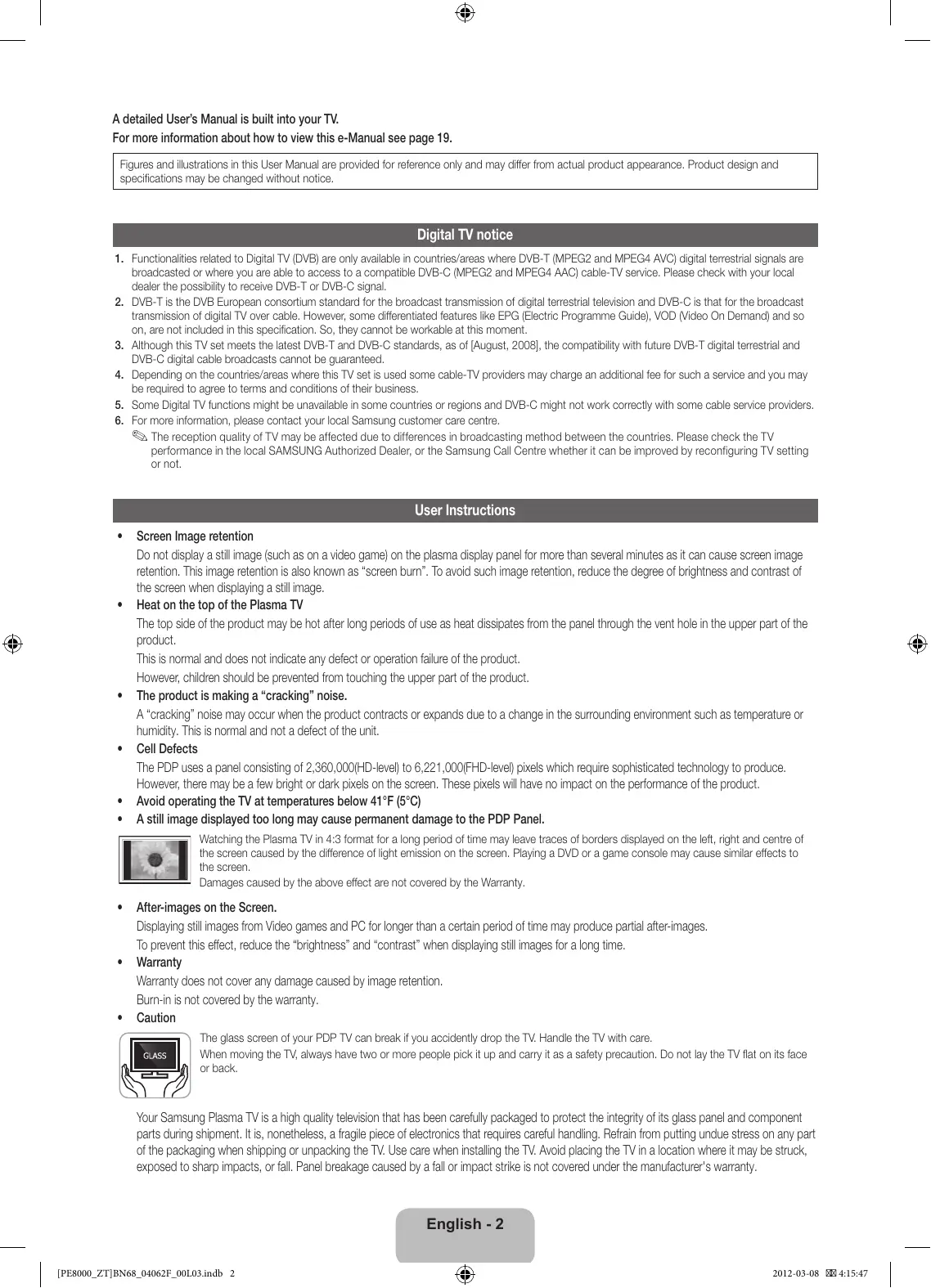

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product.

This is normal and does not indicate any defect or operation failure of the product.

However, children should be prevented from touching the upper part of the product.

- The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

- Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

- Avoid operating the TV at temperatures below 41°F (5°C)

- A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

- Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

- Caution

The glass screen of your PDP TV can break if you accidentally drop the TV. Handle the TV with care. When moving the TV, always have two or more people pick it up and carry it as a safety precaution. Do not lay the TV flat on its face or back.

Your Samsung Plasma TV is a high quality television that has been carefully packaged to protect the integrity of its glass panel and component parts during shipment. It is, nonetheless, a fragile piece of electronics that requires careful handling. Refrain from putting undue stress on any part of the packaging when shipping or unpacking the TV. Use care when installing the TV. Avoid placing the TV in a location where it may be struck, exposed to sharp impacts, or fall. Panel breakage caused by a fall or impact strike is not covered under the manufacturer's warranty.

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts provided by Samsung Electronics only.

- If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury caused by the product falling.

Installation with a stand.

10 cm 10 cm 10 cm

Installation with a wall-mount.

10 cm 10 cm 10 cm 10 cm

Other Warnings

The actual appearance of the TV may differ from the images in this manual, depending on the model.
Be careful when you touch the TV. Some parts can be somewhat hot.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

• An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual)
- (b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).

- The amount of such administration charge will be advised to you before any work or home visit is carried out.

List of Features

• 3D: This exciting new feature enables you to view 3D content from some broadcasting or 3D BD players.
• SMART HUB: The Gateway to all content integrated in one place

• It's all integrated to guide you to easier and diverse entertainment choices
• Control your entertainment life with easy and simple user friendly UI
• Access to diverse Apps that are adding up every day

• Customize your TV, by App grouping & sorting to your taste

• AllShare Play: AllShare Play lets you access, view, or play photos, videos, or music located on USB devices, digital cameras, cell phones, and PCs. PCs, cell phones, and other compatible devices can be accessed wirelessly, through your wireless network.

• Anynet+ (HDMI-CEC): Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV's remote.
  • e-Manual: Allows you to read on screen full manual. (p. 19)

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
The items' colours and shapes may vary depending on the models.
Cables not included in the package contents can be purchased separately.
Check that there is no accessory hidden behind packing materials when you open the box.

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

• Smart Touch Control & Batteries (AA x 2)
• IR Blaster & Batteries (AA x 4)
• Remote Control & Batteries (AAA x 2)
• Warranty Card (Not available in some locations) / Safety Guide

• Power Cord
• Cleaning-Cloth
  • Samsung 3D Active Glasses
• User Manual

Scart Adapter

CI Card Adapter

Ferrite Core (2EA)

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

• A Maximum distance between the ferrite core and the end of the cord inserted in the TV: 3/4 inches

Ferrite Core : The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

Power Cord

LAN Cable (sold separately)

Wireless Keyboard (Sold Separately)

SAMSUNG +: 0 - + ? ^ - Ⓧ

Wireless Keyboard

Using the TV's Controller (Panel Key)

TV Controller is a multi directional button that helps navigate without remote control.

Some functions which require a PIN code may not be available.
The product colour and shape may vary depending on the model.
Exits the menu when pressing the controller more than 1 second.
When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first, you cannot operate it to move the up/down/left/right directions.

Function menu Remote control sensor Up(Rear) Left Down(Front) Right TV Controller Camera SAMSUNG

Follow these instructions facing the front of your TV.
When you use a TV camera, you should check whether a tape attached or not in rear of the TV camera, and then you can use a TV camera after adjust a camera angle. If you do not intend to use the TV camera, move the camera lens upwards so that the lens is not revealed. In this case, Face recognition and Motion control are not available.

Power on	Turn the TV on by pressing the Controller when the TV is in standby mode.
Adjusting the volume	Adjust the volume by moving the Controller from side to side when the power is on.
Selecting a channel	Select a channel by moving the Controller upwards and downwards when the power is on.
Using the Function menu	To view and use the Function menu, press and release the Controller when the power is on. To close the Function menu, press and release the Controller again.
Selecting the MENU (☐)	With the Function menu visible, select the MENU (☐) by moving the Controller to the left. The OSD (On Screen Display) Menu appears. Select an option by moving the Controller to the right. Move the Controller to the right or left, or backwards and forwards to make additional selections. To change a parameter, select the it, and then press the Controller. additional selections. To change a parameter, select the it, and then press the Controller.
Selecting the SMART HUB (☐)	With the Function menu visible, select SMART HUB (☐) by moving the Controller upwards. The SMART HUB main screen appears. Select an application by moving the Controller, and then pressing the Controller.
Selecting a Source (☐)	With the Function menu visible, open the Source (☐) by moving the Controller to the right. The Source screen appears. To select a Source, move the Controller back and forth. When the source you want is highlighted, press the Controller.
Power off (☐)	With the Function menu visible, select Power off (☐) by moving the Controller downwards, and then press the Controller.

To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.

Connecting to an Aerial

Plug the power cord into a wall outlet only after you have made all other connections.
If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite connections, you do not need to connect the ANT IN jack to an aerial or a cable connection.
Using two-way radio mobile and portable units or amateur radio or AM radio near your TV may cause the TV to malfunction.
Use caution when you move or swivel the TV if the aerial cable is tightly connected. You could break the aerial jack off the TV.

For more detailed information about Smart Touch Control, see "Using the Smart Touch Control" in e-Manual.

Smart Touch Control

Turns the TV on and off. Displays a list of recently used functions. You can select a function again using the Touch Pad easily and quickly. - Adjusts the Volume. Displays the shortcut functions list. You can select a function using the Touch Pad. RETURN: Returns to the previous menu. VOICE↓: Lets you access the Voice Control function. When you press the button, the TV displays the command list. You can speak using the microphone embedded in your remote. For more detailed information about the Voice Control function, see "SMART Interaction" in the e-manual or see page 14. NUMBER: Displays the Number button screen. You can select a number using the Touch Pad. SAMSUNG YOU CAN SAVY A VOICE COMMAND DISPLAY TO THE TV USING MIC. TO USE MIC, press the VOICE↓ button on your remote. Voice Control function can be affected recognition by unclear pronunciation, voice level, or surrounding noise. LED TO show the active device. Displays Colour and playing control functions. You can select a function using the Touch Pad. ●○○○: Use these buttons according to the directions on screen. playing control buttons: Use these buttons in a specific feature. For details, refer to the e-Manual. □: Quickly select frequently used functions. Use this button in a specific feature. For details, refer to e-Manual. △P▼: Changes channels. Touch Pad • You can use the Touch Pad in the same way you use the Touch Pad on a laptop. • If you don't press any button within 30 seconds, the Smart Touch Control is set to Sleep mode automatically. • To wake up the Smart Touch Control, press the Touch Pad. • If you press the Touch Pad for 2 seconds, it has the same effect as pressing the MUTE← button on your remote. (Available only when Source is set to TV.) Brings up the Smart Hub applications. See the e-Manual chapter Advanced Features → Smart Hub. To exit an application that is running as well as phone → button

Installing batteries (Battery size : AA)

Diagram illustrating battery charging process with labeled components and directional arrows

1. Press the back of the remote at the very bottom with both thumbs, and then slide the battery cover up in the direction of the arrow.
2. Install two batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.
3. Slide the cover down in the direction of the arrow to close the battery cover.

IR Blaster

To control to external devices connected to your TV, setting up the Universal Remote.

If you control Smart Touch Control to adjust to the external device, the IR Blaster will send the IR signal to an external device.

Pairing Button

Power Switch ON OFF OPEN PASEING N340 Device Indicator LED IR Blaster shows the pairing state. SAMSUNG

Installing batteries (Battery size : AA)

Three-step diagram showing a cylindrical device with internal components and a separate view of the internal structure (no text or symbols)

1. Hold the both sides of the battery holder and pull it out.
2. Install four batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.
3. Push it back.

Initial Pairing

When you connect an IR Blaster with your TV, you can control connected external devices with your TV using the Smart Touch Control.

Smart Touch Control

After you have run the Initial Setup on your TV, you should connect your Smart Touch Control to your TV.

1. Turn the TV on by pressing the ⏻ button on.
2. The connection icons appear on the bottom left of the screen, and the TV connects to your Smart Touch Control automatically.
   If you want to perform the pairing process again, press the reset button in the centre of the back cover using a pin or the tip of an unbent paper clip. The Smart Touch Control will be initialized.

PASSING

• Smart Touch Control PAIRING Reset button

IR Blaster

ON OFF OFF FABING

1. Turn on the IR Blaster. When Indicator LED blinks, you should connect IR Blaster to TV.
2. Move the IR Blaster to the direction of your TV's IR receiver, and then press the PAIRING button once shortly on the bottom of the IR Blaster.
3. The connection icons appear on the bottom left of the screen, and the TV connects to IR Blaster automatically.
   If the connection process failed, please turn off and on the IR Blaster, try again from step2.

Calibrating the Touch Pad

To calibrate the touch pad on the Smart Touch Control, follow these steps:

1. Press the NUMBER button for 3 seconds. The calibration starts.
2. When done, all the LEDs on the top of the Smart Touch Control blink twice simultaneously.
   While calibrating, don't touch the touch pad.
   If the touch pad looses accuracy, re-calibrate the touch pad by repeating Steps 1 and 2.

Using the Touch Pad

To display the shortcut functions list on the bottom of the screen, press the ⬆ button at the bottom of the touch pad. This list includes Menu, Source, CH List, 3D, AllShare Play, Support, and a number of other functions.

To display the colour and playing control functions on the top of the screen, press the ● ● ○ ● button on the top of the touch pad.

Diagram illustrating finger movement with labeled buttons: RETURN, VOICE, NUMBER, and directional arrows

To Move the Highlight: Rest your finger on the touch pad, and then slide it from one side to the other, from top to bottom, or bottom to top.

To move the Highlight continuously, flick your finger across the touch pad from right to left, left to right, top to bottom, or bottom to top.

Hand gesture icon with navigation buttons including RETURN, VOICE, NUMBER, and directional icons

To Select an item: Press the Touch Pad.

Using the Scroll mode

If you press the Touch Pad when using Smart Hub, Web Browser, and AllShare Play, the Touch Pad switches to the Scroll mode.

In the Scroll mode, slide your finger in the Touch Pad from one side to the other, the highlight moves page units.

To return to the general mode of the Touch Pad, press the Touch Pad or RETURN button on your Smart Touch Control.

To Enter a channel number through Smart Touch Control

1. While watching a broadcast, press the NUMBER button on the Smart Touch Control. The TV displays the number button screen.
2. Using the touch pad, highlight a number, and then press the touch pad. The TV displays a list of channels that start with the number you selected.
3. Using the touch pad, highlight the channel in the list you want, and then press the touch pad.
   You can also change the channel by touching the up or down channel icon on the touch pad. If you touch the touch pad immediately after, the TV displays the list of memorized channels. Select a channel by moving or flicking your finger up or down, and then pressing the touch pad.

To Display the Tools Menu

Press the ➕ button on the right side of the touch pad.

To Display a History of the Channels You Watched

Press the Ⓧ button on the left side of the touch pad.

Setting up Smart touch control to use as a Universal Remote Control

Lets you control a Set-Top-Box (STB) or a BD player or both connected to the TV using your Smart Touch Control. After you connect the device to the TV, the Smart Touch Control can control the navigation, number, and other keys needed to operate and control the device.

The Universal Remote Control can adjust TV's volume, but STB's volume cannot be adjusted. Watch STB after adjusting STB's volume to appropriate level.
Depending on the version of an application, the Universal remote setup instructions may differ. In this case, please follow the instructions on the screen.

To connect the external device to your Smart Touch Control, follow these steps:

1. Select Set up a device to control, and then press the Touch Pad.
2. Select an external device from the connected devices, and then press the Touch Pad.
3. Select the port used to connect the external device, and then press the Touch Pad.

Make sure that the selected device is on. If it is turned off, turn the power on and press Refresh.

1. Select Search brands/TV service providers, and then press the Touch Pad. A keyboard and an entry field appear. Enter the first few letters of the brand name of your device using the Smart Touch Control, and then select Done at the bottom of the keyboard. In the list that appears below the entry field, select the brand name of your device, and then press the Touch Pad.

If you want to search the brand of STB (Set-Top box), you can search the STB by using the brand name or a cable provider.

1. Select Search model, and then press the Touch Pad. A keyboard and an entry field appear. Enter the first few letters and numbers of the model name of your device using the Touch Control, and then select Done at the bottom of the keyboard. In the list that appears below the entry field, select the model name of your device, and then press the Touch Pad.

If the search for model name does not work properly, search with a part of the model name or use the search for recommended model code.

1. Select Download, and then press the Touch Pad. Download the configuration data for the IR Blaster in the same way.

2. When all the settings are complete, select the Complete button and press the Touch Pad.

To reset IR Blaster and Smart Touch Control, press the ● button on Smart Touch Control, and then select Universal remote setup.

Using the Search for recommended model code.

1. In the Search model name step in the integrated remote control setup, select the Recommended model and press the Touch Pad.
2. Select Download to download the recommended model code.
3. Point the Smart Touch Control forward to the IR sensor of the external device and press the Touch Pad to test if the device works.
4. If the downloaded recommended model code does not work, repeat the steps from step 3.
   When you use the BD home theater by using Universal Remote, some buttons may not be supported. In this case, we recommend to use Anynet+ (HDMI-CEC) function.

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.

Turns the TV on and off. Displays and selects the available video sources. (p. 14) Have direct access to channels. Alternately select Teletext ON, Double, Mix or OFF. Adjusts the volume. Brings up the Smart Hub applications. See e-Manual chapter Advanced Features → Smart Hub. Opens the OSD. Quickly select frequently used functions. Use this button in a specific feature. Selects the on-screen menu items and changes the values seen on the menu. Returns to the previous menu. Use these buttons according to the direction on screen. Use these buttons in a specific feature. For details, refer to e-Manual. SAMSUNG TURNS: remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to On will reduce the battery usage time.) 1 abc def 2 3 qh1 jkl mno 4 5 6 pqra 7 tuv xyz 7 8 9 Text TTX/MIX 0 PRE-CH MUTE CH LIST GUIDE CH LIST CUTS OFF the sound temporarily. Changes channels. Displays channel lists on the screen. Displays the EPG (Electronic Programme Guide). TOOLS INFO IOI OK ▶ BACK RETURN EXIT A B C D HISTORY CAMERA AD/SUBT. SUPPORT D ← ← ← ← ● ▶ ▶ ■ HISTORY: Displays a list of recently used functions. CAMERA: Connect to Camera application. AD/SUBT.: Turns the audio description on and off (not available in some locations). / Displays digital subtitles. See e-Manual chapter Other Features → Subtitle. SUPPORT: Lets you use various support functions including e-Manual. (p. 19) D : Use this button when using data broadcast service. This function is available when Auto RunData Service is set to Off. D : Turns the 3D image on or off. See e-Manual chapter Advanced Features → 3D.

Match the polarity of the batteries to the symbols in the battery compartment.

Technical diagram showing five-step assembly of a device with labeled parts and directional arrows indicating motion or assembly.

NOTE

• Install the batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.
• Use the remote control within 23 feet of the TV.
- Bright light may affect the performance of the remote control. Avoid using when near special fluorescent lights or neon signs.
- The colour and shape may vary depending on the model.

Setup (Initial Setup)

When you turn the TV on for the first time, a sequence of prompts and screens will assist you in configuring basic settings. To begin Setup, press the ⏻ button on your remote.

Setup is available only when the input source is set to TV. See "Changing the Input Source" (p. 14).
To return to the previous step in the Setup sequence, Select Previous.
Before you begin, make sure you have connected the TV to an aerial or a cable connection and that the TV is plugged in. (p. 5).
To start the Setup select Start.

1

Menu Language:

Select a Language.

Select a menu language you want using your remote, and then select Next. The TV will be displayed a menu using the selected language since next step.

2

Use Mode: Select the Home

Use Mode.

Select Home Use using your remote, and then select Next.

Store Demo mode is for retail environments.

3

Network Settings: Configure network settings

To connect later, select Skip.

To set up your network connection, select Start using your remote. If you do not know your network set up information or want to set to it later, select Skip. For more detailed information, refer to “Setting up the Wired or Wireless Network” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (p. 18). You can set up the network connection later using the Network menu.

4

Software Upgrade: Upgrading the software to latest version

To upgrade later, select Skip.

Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to Software Upgrade (Preference Features → Support Menu) in the e-Manual.

This may take some time, depending on network status.

5	Terms of Service Agreement	When theNetwork Settingsis completed, TheTerms of Service Agreementscreen appears.The screen can take a few seconds to appear.TheGeneral Disclaimerscreen appears. SelectAgree. ThePrivacy policyscreen appears. Select Agree.To use theSmart Hub, you should selectAgreefrom the Terms of Service Agreement.
6	Select Country.(Depending on the country)	Select the appropriate country.After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.
7	Auto Tuning(1): Selecting how you watch your TV	Let's find and store channels on your TV. Do you need to search for channels?Yes, I need to.: All the channels available will be found and stored on your TV.No, I don't need to.: My set-top box provides all the channels that are available, so I don't need to search for channels.
8	Auto Tuning(2):Selecting a search options andRegion Selection(Depending on the country)	Select the channel source to memorise. When setting the aerial source toCable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer toAuto Tuning(Channel Menu → Memorizing Channels) in the e-Manual.WhenAir or Cableis selected first: After allAir or Cablechannels are stored, the step for storingSatellitechannels is displayed.WhenSatelliteis selected first: After allSatellitechannels are stored, the step for storingAir or Cablechannels is displayed.SelectStopat any time to interrupt the memorization process.
9	Clock: Setting the Clock Mode	Auto: Set the current time automatically.Manual: Allows you to manually set the current date and time.
10	Time Zone(Depending on the country):Setting the your Time Zone	This step is only available when the clock mode is set toAuto.Auto: Set the time zone automatically.Manual: Set the time zone manually.If you selectedManual, you can select whether to turn DST (Daylight Savings Time)On or Off. (Depending on the country)
11	Voice and motion control:Setting the Voice and Gesture Control function.	You can turn theVoice and motion controlfunctionOn or Off. Select Off or On, and then selectNext. For more detailed information, refer to “SMART Interaction” (p.14)
12	Setup Complete	SelectCloseto finish.The completed settings are displayed.

If You Want to Reset This Feature...

Menu → System → Setup

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "1-1-1-1". If you want to change the PIN number, use the Change PIN function.

You should do Setup (Menu → System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to "1-1-1-1": MUTE → 8 → 2 → 4 → POWER (on).

For more information, refer to Connecting the TV in the e-Manual.

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

• Maximum thickness - 0.55 inches (14mm)

Changing the Input Source

Source

→ Source

When you are watching TV and you want to watch a movie on your DVD player or Blu-ray player or switch to your cable box or STB satellite receiver, you need to change the Source.

TV / Ext. / HDMI1/DVI / HDMI2 / HDMI3 / AV / Component

1. Press the ⏻ button on your remote. The Smart Hub screen appears.
2. Select Source. The Source screen appears.
3. Select a desired external input source.
   Alternatively, you can access the Source screen by selecting the Source → button on your standard remote or selecting Source with the Smart Touch Control (see page 6).
   You can only choose external devices that are connected to the TV. In the displayed Source list, connected inputs are highlighted.

How to Use Edit Name

Edit Name lets you associate a device name to an input source. To access Edit Name, open the Tools menu when the Source list is displayed. The following selections appear under Edit Name:

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Select an input jack, and then select the name of the device connected to that jack from the list that appears. For example, if you have your Blu-ray player attached to HDMI IN 2, select Blu-ray for that input.

If you connect a PC to the HDMI IN 1 (DVI) port with an HDMI cable, assign PC to HDMI1/DVI in Edit Name.
If you connect a PC to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, assign DVI PC to HDMI1/DVI in Edit Name.
If you connect an AV device to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, assign DVI Devices to HDMI1/DVI in Edit Name.

Information

You can see detailed information about the selected external device.

Refresh

If the external devices are not displayed in the Source list, open the Tools menu, and then select Refresh. The list will display all connected devices.
Alternatively, you can refresh the Source list screen by selecting A using your remote.

SMART Interaction

Using this function, you can access and control menu options and functions using speech, gestures or face recognition.

INFORMATION BOOKLET DISCLAIMER

• Face Recognition Log-in In order for Face recognition to function, a thumbnail image of your face will be stored in your TV for logging-in purposes. Logging into the Smart Hub using Face recognition may be less secure than using an ID and password.
• TV Camera Usage Before using the TV Camera, you should be aware that under some circumstances and under certain legal conditions your misuse of the TV Camera can result in legal liability for you. By using the TV Camera, you agree that you will not use the camera (i) in locations where cameras are generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner that will result in an invasion of a person's privacy or (iii) in violation of any applicable laws, regulations or statutes.

Voice Control

Menu → System → Voice and motion control → Voice Control

Enable or disable the voice recognition function. Lets you access and control menu options and functions using speech.

Voice Control function can be affected recognition by unclear pronunciation, voice level, or surrounding noise.
To use Voice Control, you must pronounce words and phrases clearly and correctly in the language you selected in Language.
Ambient noise may cause Voice Control to malfunction.

Your TV can "hear" your voice commands in two ways:

• Using the TV's microphone. (Distant Recognition)
  We are recommended using Voice Control function within about 13 ft with your TV. You can check the usable distance by using Voice Control Environment Test (System → Voice and motion control → Voice Control → Voice Control Environment Test).

- Using the VOICE button on your remote. (Close Proximity Recognition)

When you use the TV's microphone, the words may not be recognized because of ambient noise. If this occurs, try using the VOICE button on your remote. The TV will be able to recognize a voice command more easily.
The VOICE button on your remote is always activated. If you want to use the TV's microphone, turn on Voice Control (System → Voice and motion control → Voice Control).
If a menu option or function is not supported by the Voice Control function, we suggest trying the Motion control function. To use gestures, spread your hand in the direction of the camera, and shake it three or four times from a side to side.

■ Voice Control

Turns the Voice Control function on or off.

The VOICE button on your remote is always activated.

Language

Select the recognition language you want to use.

Trigger words

You can select the Trigger words that start the Voice Control function. Alternatively you can turn on your TV using the Trigger words if Voice Control function is set to On.

If the Trigger words is set to Hi TV, say Hi TV Power On.

If the Trigger words is set to Smart TV, say Smart TV Power On.

■ Voice command bar size

Set the Voice command bar size mode to Minimum or Full.

Minimum displays the least number of words and phrases you can use.

Full displays all the words and phrases.

■ Voice Sensitivity

Set the sensitivity of Voice recognition.

- Howling: Set echo level.

- Recognition responsiveness: Set the responsiveness level of Voice recognition.

■ Voice Control Environment Test

You can test the noise level on the TV microphone.

- Noise Test: This test checks the noise level of the TV microphone. Select Next using your remote. The test will start and should only take a few seconds. Please keep as quiet as possible during the test.

- Mic & Speaker Test: This test checks the noise level of the TV microphone and speaker. Select Start using your remote. The test will start and should only take a few seconds. Please keep as quiet as possible during the test.

Available only when Speaker Select is set to TV Speaker.

- Voice Control Test: This test checks the volume level and clarity of your voice when using Voice Control. Select Start using your remote. The test will start. Please say a guide message as loud and clearly as you can to complete this test.

If the test is not completed, select Retest, and then say a guide message loudly and clearly again.

To use the Voice Control function, follow these steps:

If Voice Control function is set to On, the TV may be turned on automatically by effect of the ambient environment.

1. Speak the Trigger words that you selected using the microphone embedded in the TV or press and hold the VOICE button on your remote. The TV displays the Voice Control Environment Test.

If you use the Voice Control, the volume will be set to 5 automatically.

1. Speak a word or phrase listed in the Voice Control Environment Test. If you use the VOICE button on your remote, release the button.

Pronounce the word or phrase clearly and correctly in the language you selected in Language.

1. Wait until recognition is complete, and then speak the next command.

To exit the Voice Control mode, speak a Trigger words or "Cancel" using the TV's microphone, or press the VOICE button on your remote again.

Using the Voice Text Input Mode

1. Speak "Search All" while in the Voice Control mode.

When you use a QWERTY keypad screen, you can use the Voice Text Input Mode. Speak the Trigger words that you selected using the microphone embedded in the TV or press and hold the VOICE button on your remote.

1. Say the word or phrase you wish to search for.

2. The TV executes the spoken function.

Voice Control performance levels will vary based on the language spoken.

Motion control

Menu → System → Voice and motion control → Motion control

Enable or disable the Motion control function. Lets you control your TV by moving the TV cursor using specific gestures.

Some applications may not support Motion control.

We are recommended using Motion control function within about 5 - 13 ft with your TV. TV Camera's recognition range may differ depending on the angle of camera or other conditions. You can check the recognition range of TV camera by using Motion control environment test (System → Voice and motion control → Motion control → Motion control environment test).

■ Motion control

Turns the Motion control function on or off.

■ Motion guide bar size

Set the Motion guide bar size mode between Minimum or Full.

■ Motion control environment test

You can test the brightness of room and the camera angle.

- Brightness Test: This test checks to see if your room is bright enough for Motion control to work properly. Select Start using your remote. The test will start and should take only a few seconds.

- Camera Angle Test: Start Camera Angle Test Select Start using your remote. Please put yourself in the rectangle on the screen by adjusting the camera or moving around. If you are not located in the correct position, the test may not work properly. When done, please spread your hand in the direction of the camera, and shake it three or four times from a side to side.

To use the Motion control function, follow these steps:

1. To use the Motion control, raise your hand while opening it toward the screen, hold it for a moment and then wave it 3 – 4 time to the left and right. Motion control starts. If the Motion control starts, the cursor is displayed at the center of the screen and the Motion guide bar size is at the bottom of the screen.

2. Control the TV using your hands.

Note that the Motion control function closes if your hands go out of the camera range.

While using the Motion control, if you use the other device (i.e. remote control, keyboard, etc.), Motion control closes.

Controlling the TV with your hands using Motions

■ Access Motion Control

- Action: Spread your hand in the direction of the camera, and shake it three or four times from a side to side.

- Pointing Navigation

Moves the cursor to the position you want.

- Action: Spread your hand and guide the cursor to position you want.

Run

Selects an item or executes a command that is indicated by the cursor or is highlighted.

- Action: Clench your fist.

■ Back

Return to the previous menu.

– Action: Spread your hand and rotate it counter clockwise.

■ Channel / Volume Control

Changes the channel or adjust the volume.

If you use the Motion control function while watching a channel, the channel / volume control screen appears.

- Action: Use the Pointing Navigation gesture to move the cursor to the channel or volume controller, and then uses the Run gesture to adjust the channel or volume.

If you use the Run gesture once, it has the same effect as pressing a button on your remote. If you hold the Run gesture, it has the same effect as pressing and holding a button on your remote.

Scroll

Scroll the page in the direction you want. For example, suppose that you want to scroll down.

Some applications may not support this function.

1. Move the cursor to the bottom of the screen (page scroll zone) using the Pointing Navigation gesture.

2. Move the cursor to the centre of the screen using the Pointing Navigation gesture.

3. The page will move down.

Face recognition

→ Tools → Settings → Account Manager → Change account information → Register face

Enable or disable the Face recognition function. Lets you register your face in your Samsung account. Also, you can log in to the Samsung account using the Face recognition function without inputting your account ID or your account password.

You can register your face in only one account.

To register your face in your Samsung account, follow these steps:

To use this function, you must log into Smart Hub. If you don't have a Samsung Account, you should create one before using this function. To create your Samsung Account, refer to "Creating an Account" (Advanced Features → Smart Hub) in the e-Manual.

1. On the Smart Hub screen, open the Tools menu using your remote, and then select Settings.

2. Select Account Manager. The Account Manager screen appears.

3. Select Change account information. The Change account information screen appears.

4. Select Register face. If you agree to use facial recognition, select OK.

5. Enter your account password.

6. Move your face into the facial lines at the centre of the screen, and then wait until the facial lines changes from red to green.

If Face recognition fails, select Retry and try again.

1. When finished, your face is now registered in your Samsung account.

To log in to your Samsung account using Face recognition, follow

these steps:

If you use Face recognition to log into Smart Hub, it may be less secure than logging in with a password.

1. With the Smart Hub screen displayed, select A using your remote. The ID/password screen appears.

2. Select Face Recognition Mode. The Face recognition screen appears.

To return to the ID/password screen, select Password mode.

1. The TV starts Face recognition. Face the front of the TV screen. The TV will recognize your face automatically.

If the TV fails to recognize your face, try again.

1. The TV logs you into your Samsung account automatically.

If the TV recognizes two or more registered faces, the Samsung account list appears. Select your account to log in.

If your face is unregistered, you can register your face in your Samsung account. Follow steps 4 through 5 in the “To register your face to your Samsung account” procedure above.

If you have no account, you can create one. For more detailed information, refer to "Creating an Account" (Advanced Features → Smart Hub) in the e-Manual.

Attaching the CI Card Adapter

Attach the adapter as shown below.

To connect the CI CARD Adapter, follow these steps.

We recommend attaching the adapter before installing the wall mount, or inserting the "CI or CI+ CARD".

To install the CI card adapter, please remove the sticker attached to the TV.

1. Insert the CI CARD Adapter into the two holes on the product ①.

Please find a two holes on the rear of the TV. A two holes is beside the COMMON INTERFACE port.

1. Connect the CI CARD Adapter into the COMMON INTERFACE port on the product ②.

2. Insert the "CI or CI+ CARD".

5V L LED OPTION METER ①

To install the CI card adapter, please remove the sticker attached to the TV.

We recommend that you insert the CI card before you mount the TV on a wall. It may be difficult to insert after the mounting. Insert the card after attaching the CI Card Adapter on TV. It is difficult to attach the module if you insert the card before attaching.

Using the "CI or CI+ CARD"

To watch paid channels, the "CI or CI+ CARD" must be inserted.

• If you don't insert the "CI or CI+ CARD", some channels will display the message "Scrambled Signal".
• The pairing information containing a telephone number, the "CI or CI+ CARD" ID the Host ID and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.
• When the configuration of channel information has finished, the message "Updating Completed" is displayed, indicating the channel list is updated.

NOTE

• You must obtain a "CI or CI+ CARD" from a local cable service provider.
• When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.
• Insert the "CI or CI+ CARD" in the direction marked on the card.
• The location of the COMMON INTERFACE slot may be different depending on the model.
• “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.
  • If you have any problems, please contact a service provider.
• Insert the "CI or CI+ CARD" that supports the current aerial settings. The screen will be distorted or will not be seen.

COMMON INTERFACE 5V ONLY CI CARD™

The Evolution Kit Slot (Kit Sold Separately)

TV Rear

This socket is designed to accept an extension device called Evolution Kit. The Evolution Kit enables the TV to run a variety of the latest applications for a better user experience.

The Evolution Kit, which may not be available depending on the product, will be sold separately in 2013 or later.

Network Connection

You can set up your TV so that it can access the SMART TV applications. through your local area network (LAN) using a wired or wireless connection.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

The LAN Port on the Wall Wireless IP sharer (Router having DHCP server) LAN Cable TV

Samsung's Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:

The Modem Port on the Wall External Modem (ADSL / VDSL / Cable TV) Modem Cable LAN Cable TV Rear Panel

The TV does not support network speeds less than or equal to 10Mbps.
Use Cat 5 or 6 (STP Type*) cable for the connection. (*Shielded Twisted Pair)

How to view the e-Manual

You can find instructions for your TV's features in the e-Manual. To open the e-Manual, press the SUPPORT button on your standard remote or select Support using the Smart Touch Control.

You can also access it through the menu:

Menu → Support → e-Manual

Access the e-Manual

To use the e-Manual, follow these steps:

1. When you need to help, select Support using your remote. The Support screen appears.
2. Select e-Manual using your remote. The e-Manual screen appears.
3. Select a desired category.
4. Select a desired topic. The e-Manual displays the page you want to see.
   Blue words in e-Manual refer to menu options or selections in the TV's on screen menu.
   Green icons in the e-Manual refers to a button on your remote.
   Arrow steps (e.g. Menu → Support → e-Manual) in the e-Manual signify the sequence of steps required to access an option or activate a function.

How to toggle between an e-Manual topic and the corresponding OSD menu(s).

This function is not enabled in some menus.
You can't use the Try now function if the menu is not available.

1. To go to the topic's corresponding menu option, select A using your remote.

2. To return to the e-Manual screen, select Support using your remote.

Using the coloured and function buttons with the e-Manual

• Scroll bar: Scroll the e-Manual screen up or down.
  • ◀ / ▶: Moves to the previous or next chapter.
  • A Try now: Move the OSD menu that corresponds to the topic. To return to the e-Manual screen, select Support using your remote.
  • B Home: Moves to the e-Manual home screen.
• C Position: Each time you select C, using your remote, you change the position of the e-Manual screen.
  • D Index: Displays the Index screen.
• Return: Return to the previous screen.

How to search for a topic on the index page

1. Select D using your remote. The Index screen appears.
2. To search for a topic, select a letter. The Index displays a list of topics and keywords that begin with the letter you selected.
3. Select a topic or keyword you want.
4. The e-Manual page with the topic appears.

To close the Index screen, press the RETURN5 button.

To Change the screen position of the e-Manual

If the e-Manual screen is not invisible well because the OSD Menus screen, you can change the e-Manual screen's position.

1. Move the Highlight to the e-Manual screen by pressing the SUPPORT button on your standard remote or select Support using the Smart Touch Control.
2. Press the C button on your standard remote, or select C using the Smart Touch Control. Each time you select C using your remote, the position of the e-Manual will change.

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. We do not advice you to do it yourself.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

• Standard dimensions for wall mount kits are shown in the table below.
• When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
• Do not use screws that do not comply with the VESA standard screw specifications.
• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
• Do not mount the TV at more than a 15 degree tilt.
  • Always have two people mount the TV on a wall.

Product Family	inches	VESA Spec. (A * B)	Standard Screw	Quantity
PDP-TV [Ultra-Slim]	51	400 X 400	M8	4
	59~64	600 X 400

A B

Unscrew the hole around before installing Wall-Mount on the wall.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

Illustration of a hand cleaning a tablet with a spray bottle symbol (no text or labels)

Do not spray water directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Illustration of a hand cleaning a tablet with a magnified inset showing a close-up of the device (no text or symbols present)

Clean the product with a soft cloth dapped in a small amount of water. Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.

Securing the TV to the Wall

Prohibition symbol showing a TV with a diagonal line crossing over it, no text or symbols present.

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the included Safety Flyer with your TV. For added stability and safety, you can purchase and install the anti fall device as described below.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.
Screw Specifications

• For a 19 \~ 27 inch: M4
• For a 32 \~ 75 inch: M8

1. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.

NOTE

• Install the TV near to the wall so that it does not fall backwards.
- It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
• Untie the string before moving the TV.

Illustration of a mechanical device with scissors and a magnified inset showing a coiled spring (no text or symbols)

Technical line drawing of a mechanical device with a pull rod and magnified inset showing a coiled spring (no text or symbols)

1. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues	Solutions and Explanations
The TV won’t turn on.	Make sure the AC power cord is securely plugged in to the wall outlet and the TV.Make sure the wall outlet is working.Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.
There is no picture/video.	Check cable connections (remove and reconnect all cables connected to the TV and external devices).Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.Make sure your connected devices are powered on.Reboot the connected device by reconnecting the device’s power cable.
The remote control does not work.	Replace the remote control batteries with the poles (+/−) in the right direction.Clean the sensor’s transmission window on the remote.Try pointing the remote directly at the TV from 5~6 feet away.
The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.	Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

Some of above pictures and functions are available at specific models only.
You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com → Support → Downloads) by USB.

Display Resolution

Mode	Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H / V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
MAC	640 x 480	35.000	66.667	30.240	-/-
	832 x 624	49.726	74.551	57.284	-/-
	1152 x 870	68.681	75.062	100.000	-/-
VESA DMT	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.861	72.809	31.500	-/-
	640 x 480	37.500	75.000	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	48.077	72.188	50.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1152 x 864	67.500	75.000	108.000	+/+
	1280 x 720	45.000	60.000	74.250	+/+
	1280 x 800	49.702	59.810	83.500	-/+
	1280 x 1024	63.981	60.020	108.000	+/+
	1280 x 1024	79.976	75.025	135.000	+/+
	1366 x 768	47.712	59.790	85.500	+/+
	1440 x 900	55.935	59.887	106.500	-/+
	1600 x900RB	60.000	60.000	108.000	+/+
	1680 x 1050	65.290	59.954	146.250	-/+
	1920 x 1080	67.500	60.000	148.500	+/+

NOTE

• The interlace mode is not supported.
- The set might operate abnormally if a non-standard video format is selected.

Specifications

Display Resolution	1920 x 1080
Environmental Considerations
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing
TV System	Analogue: B/G, D/K, L, I (Depending on your country selection)Digital: DVB-T/DVB-C/DVB-S2
Colour/Video System	Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0
Sound System	BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC.
HDMI IN	Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480pAudio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	PS51E8000	PS64E8000
Screen Size	51 inches	64 inches
Sound (Output)	10 W X 2
Dimensions (WxHxD)
Body	1193.0 x 713.0 x 55.1 mm	1485.0 x 882.8 x 55.1 mm
With stand	1193.0 x 806.3 x 309.3 mm	1485.0 x 971.8 x 351.7 mm
Weight
Without Stand	21.3 kg	34.5 kg
With Stand	23.6 kg	37.7 kg

Smart Touch Control

Model Name	RMCTPE1
Power	Source	Battery (AA x 2)
		To extend the battery life, use of alkaline battery is recommended
Input	Button	14 Keys
	Touch Pad	Capacitive Touch Sensor (45mmx55mm)
Output	Indicator	Device Indicator LED x 3
	IR	Infrared Emitting Diode x 1
Features	Touch Control	Absolute Coordinate
	MBR	Universal Control
	Voice	Voice Transfer via Bluetooth
	Bluetooth	Bluetooth 2.1 Supported
MBR	MBR Database Coverage	Global
	Supported Device Mode	3 Mode (TV, STB, BD)
	Maximum Working Distance	12m
Voice	Voice Transfer	Bluetooth HID protocol
	Supported Audio Data Rate	16KHz, 16bit
	Suggested Sound Level	-15.5dB (from 0dB Full-scale)
Bluetooth	RF	2.4GHz, CSM Band
	Pairing Method	IR Triggered Standard Pairing
	Maximum Pairing Distance	4m (Line of Sight, Targeting IR Receiver on TV)
	Maximum Working Distance	10m (Line of Sight)
Setup	Pairing with TV	Yes
	Programming MBR	TV Widget needed
Operating	Operating Temperature	32°F to 104°F (0°C to 40°C)
	Working Distance	IR : Normal 10m, Max 12m / BT : 10m
	Working Hours	3 month (200 times button pressed / day)
Compatibility	LED TV	Above LED E7000
	PDP TV	E8000
Dimension	Set (mm)	154x52x19.5
Weight	Set (without Batteries)(g)	119
	Set (Including Batteries)(g)	165
Accessory		Batteries (AAx2)

IR Blaster

Model Name	VG-IRB2000
Power	Source	Battery (AA x 4)
		To extend the battery life, use of alkaline battery is recommended
Input	Button	2 Keys (Pairing, Power on/off)
Output	Indicator	Indicator LED x 1
	IR	Infrared Emitting Diode x 5
	MBR	Universal Control
	Bluetooth	Bluetooth 2.1 Supported
MBR	MBR Database Coverage	Global
	Supported Device Mode	3 Mode (TV, STB, BD)
	Maximum Working Distance	8m
Bluetooth	RF	2.4GHz, CSM Band
	Pairing Method	IR Triggered Standard Pairing
	Maximum Pairing Distance	4m (Line of Sight, Targeting IR Receiver on TV)
	Maximum Working Distance	10m (Line of Sight)
Setup	Pairing with TV	Yes
	Programming MBR	TV Widget needed
Operating	Operating Temperature	32°F to 104°F (0°C to 40°C)
	Working Distance	IR : Normal 10m, Max 12m / BT : 10m
	Working Angle	360 degree
	Working Hours	3 month (200 times button pressed / day)
Compatibility	LED TV	Above LED E7000
	PDP TV	E8000
Dimension	Set (mm)	W95×D79×H65
(WxDxH)	Package (mm)	W88×D71×H102
Weight	Set (without Batteries)(g)	86.5
	Set (Including Batteries)(g)	178.5
	Package(g)	30.6
Accessory		Batteries (AAx4)

Design and specifications are subject to change without prior notice.
For information about power supply, and more about power consumption, refer to the label attached to the product.
Typical power consumption is measured according to IEC 62087 Ed.2

Recommendation - EU Only

• Hereby, Samsung Electronics, declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
• The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
  • This equipment may only be used indoors.
  • This equipment may be operated in all EU countries.

Licence

DIGITAL PLUS

PULSE

Premium Audio

HD

guide

Nucleo in ferrite (2EA)

Diagram showing three-step battery shipment process with labeled parts and directional arrows

Three-step diagram showing a cylindrical device with internal components and a separate view of its internal structure (no text or symbols)

ON OFF ON OFF FABING

Diagram illustrating finger movement and navigation controls with icons for return, voice, and number

Hand gesture icon with navigation buttons including RETURN, VOICE, NUMBER, and directional symbols

Technical diagram showing four-step assembly of a device with labeled parts and directional arrows indicating motion or assembly.

NOTA

Pure mechanical component diagram without any text, numbers, or symbols

Illustration of a hand cleaning a tablet with a spray bottle symbol (no text or labels)

Illustration of a hand cleaning a tablet with a magnified inset showing a close-up of the device (no text or symbols present)

Prohibition symbol showing a TV with a diagonal line crossing over it, no text or symbols present.

Illustration of a mechanical tool with pins and a magnified inset showing a threaded component (no text or symbols)

Diagram showing a mechanical setup with a vertical rod and a magnified inset of a cable assembly (no text or symbols)

Diagram illustrating the step-by-step installation of a remote control panel, showing battery and switch mechanism with directional arrows.

Three-step diagram showing a cylindrical device with internal components and directional arrows, no text or symbols present.

Diagram showing hand gesture with icons for return, voice, and number, overlaid on a smartphone screen interface.

Technical diagram showing five-step assembly of a device with labeled parts and directional arrows indicating motion or assembly.

HINWEISE

Illustration of a hand cleaning a tablet with a spray bottle (no text or symbols)

Illustration of a hand cleaning a tablet with a magnified inset showing a close-up of the device (no text or symbols present)

Prohibition symbol showing a TV set and a chair, enclosed in a circle (no text or symbols)

Illustration of a mechanical tool with pins and a magnified inset showing a coiled spring (no text or symbols)

Diagram showing a mechanical setup with a vertical rod and a magnified inset of a spring-loaded component (no text or symbols)

HINWEISE
