Product Type	58-inch Plasma TV (58-inch diagonal)
Brand and Model	Samsung PS58A676T1M
Dimensions (W x H x D) without stand	1418 x 866 x 100 mm
Dimensions (W x H x D) with stand	1418 x 928 x 345 mm
Weight without stand	58.8 kg
Weight with stand	64.0 kg
Power Supply	220-240 V, 50/60 Hz (power cord included)
Audio Power	15 W x 2 (built-in speakers)
PC Resolution	1920 x 1080 @ 60 Hz
Connectivity	HDMI (4 inputs), HDMI/DVI, Component, PC, SCART (2), USB (WISELINK), optical audio output, headphone jack
Main Features	Plug & Play, WISELINK (photos/music), Anynet+ (HDMI-CEC), teletext, PIP, EPG, parental lock

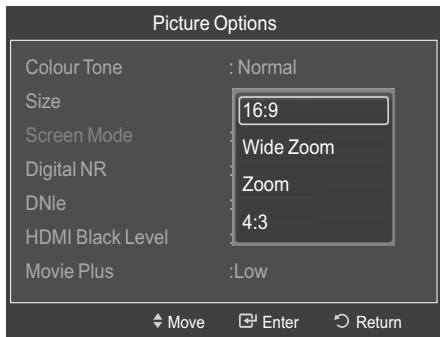

Image Formats	16:9, Auto Wide, Zoom Wide, Zoom, 4:3, Just Scan
Image Settings	Modes Dynamic, Standard, Movie; detailed settings (black tone, dynamic contrast, gamma, color space, white balance)
Audio Settings	Sound Mode (Standard, Music, Movie, etc.), SRS TS XT, Dual I II
Care and Cleaning	Clean with provided soft cloth; avoid prolonged static images; do not expose to temperatures below 5°C
Safety	Do not install above 2000 meters altitude; top part may heat up; use only wall mounts compliant with VESA standards

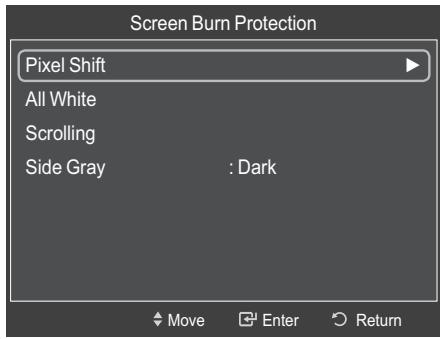

Screen Protection	Anti-burn-in function (pixel shift, white screen, scrolling)
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80% (non-condensing)
DVB Compatibility	DVB-T (MPEG2) - depending on country

Frequently Asked Questions - PS58A676T1M SAMSUNG

How to turn on the TV for the first time?

Plug in the power cord, then press the POWER button on the remote control or the Power button on the front panel. The Plug & Play function starts automatically to set the language, channels and clock.

What to do if the remote control does not work?

Check that the batteries are inserted correctly (+ and - terminals), not discharged, and that no obstacle blocks the sensor. Replace the batteries if necessary. Try pointing the remote directly at the TV's front sensor.

How to avoid screen burn-in (image retention)?

Do not leave static images (video games, PC) displayed for more than two hours. Reduce contrast and brightness. Use the Screen Burn Protection function in the Image > Picture Options menu to enable pixel shift.

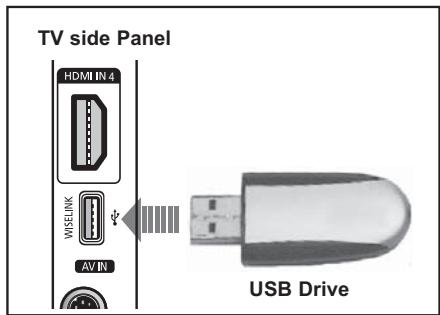

How to connect a USB device to view photos or play music?

Connect your USB device to the WISELINK port on the side panel. Press the W.LINK button on the remote to access files. You can view JPEG photos and listen to MP3 music.

How to set the clock automatically?

During initial setup (Plug & Play), select Auto for the clock. If you receive a digital signal, the time will synchronize automatically. You can also set it manually in the Setup > Clock menu.

What to do if the picture is distorted or edges are cut off?

Check the picture format by pressing the P.SIZE button on the remote. Choose 16:9 for full screen display or Just Scan for HDMI/Component sources at 1080i. If the problem persists, adjust settings in Image > Picture Options > Format.

How to lock certain channels for children?

Go to Channel > Parental Lock. Enter the PIN code (default 0000). Enable the lock, then select Channel List to choose channels to block. Press TOOLS and select Lock.

The TV makes a clicking sound. Is this normal?

Yes, a clicking sound may occur when the TV expands or contracts due to temperature or humidity changes. This is normal and does not indicate a defect.

How to use the Anynet+ (HDMI-CEC) function?

Connect a compatible device via an HDMI cable (version 1.3). In the Setup > Anynet+ menu, activate the option. Press TOOLS to access the Device List and control devices with the TV remote.

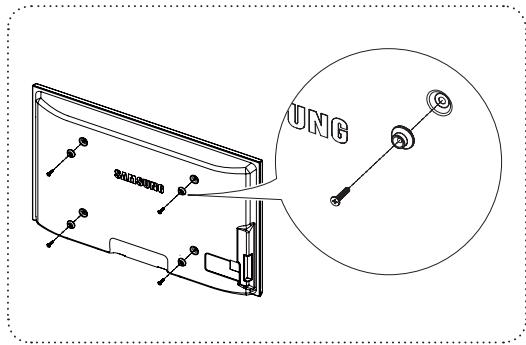

Where to find VESA specifications for wall mounting?

For the PS58A676T1M model, VESA specifications are 400 x 400 mm or 600 x 400 mm depending on version. Use M8 screws. Refer to the table on page 70 of the manual for details.

USER MANUAL PS58A676T1M SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre	Web Site
AUSTRIA	0800-SAMSUNG(726-7864)	www.samsung.com/at
BELGIUM	0032 (0)2 201 24 18	www.samsung.com/be
CZECH REPUBLIC	844 000 844	www.samsung.com/cz
	Distributor pro Českou republiku: Samsung Zrt., Česka organizační složka Vyskočilova 4, 14000 Praha 4
DENMARK	70 70 19 70	www.samsung.com/dk
EIRE	0818 717 100	www.samsung.com/ie
ESTONIA	800-7267	www.samsung.ee
FINLAND	030-6227 515	www.samsung.com/fi
FRANCE	"3260 SAMSUNG (€ 0,15/Min) 08 25 08 65 65 (€ 0,15/Min)"	www.samsung.com
GERMANY	01805 - SAMSUNG(726-7864 € 0,14/Min)	www.samsung.com
HUNGARY	06-80-SAMSUNG(726-7864)	www.samsung.com
ITALIA	800-SAMSUNG(726-7864)	www.samsung.com
KAZAKHSTAN	8-10-800-500-55-500	www.samsung.kz
KYRGYZSTAN	00-800-500-55-500	-
LATVIA	800-7267	www.samsung.com/lv
LITHUANIA	8-800-77777	www.samsung.lt
LUXEMBURG	0035 (0)2 261 03 710	www.samsung.com/be
NETHERLANDS	0900-SAMSUNG (726-7864 € 0,10/Min)	www.samsung.com/nl
NORWAY	815-56 480	www.samsung.com/no
POLAND	"0 801 801 881 022-607-93-33"	www.samsung.com/pl
PORTUGAL	80820-SAMSUNG(726-7864)	www.samsung.com/pt
RUSSIA	8-800-555-55-55	www.samsung.com
SLOVAKIA	0800-SAMSUNG(726-7864)	www.samsung.com/sk
SPAIN	902 10 11 30	www.samsung.com
SWEDEN	0771-400 200	www.samsung.com/se
SWITZERLAND	0800-SAMSUNG(726-7864)	www.samsung.com/ch
TURKEY	444 77 11	www.samsung.com
TADJIKISTAN	8-10-800-500-55-500	-
U.K	0845 SAMSUNG (7267864)	www.samsung.com
UKRAINE	8-800-502-0000	www.samsung.com
UZBEKISTAN	8-10-800-500-55-500	www.samsung.uz

Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please

register your product at

www.samsung.com/global/register

Model ____ Serial No. ____

◆ Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Height

The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.

◆ Heat on the top of the PDP TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

◆ The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

Cell Defects

The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

◆ Avoid operating the TV at temperatures below 5°C(41°F)

◆ A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

◆ Afterimage on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Warranty

• Warranty does not cover any damage caused by image retention.
• Burn-in is not covered by the warranty.

Installation

Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

Contents

General Information

◆ User Instructions....2
◆ Checking Parts......4
◆ Using the Stand-Base 4
◆ Control Panel 5
◆ Connection Panel....6
◆ Viewing the Remote Control 8

Operation

◆ Switching Your Television On and Off ...... 9
◆ Viewing the Menus....9

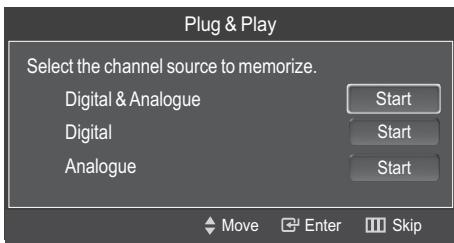

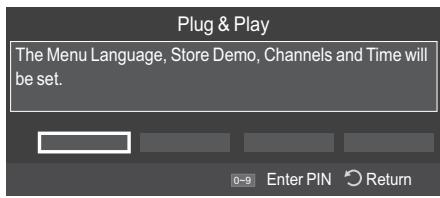

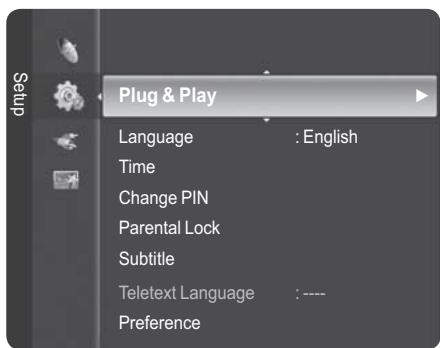

◆ Plug & Play Feature 10

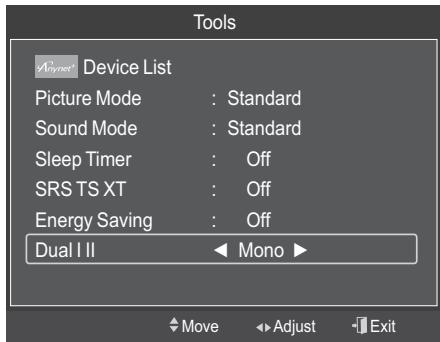

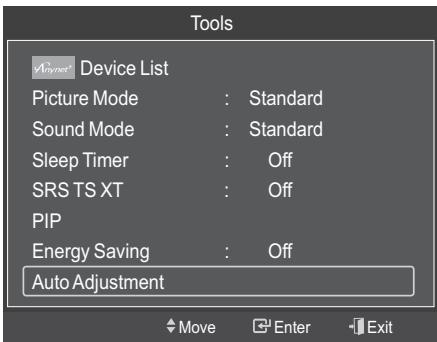

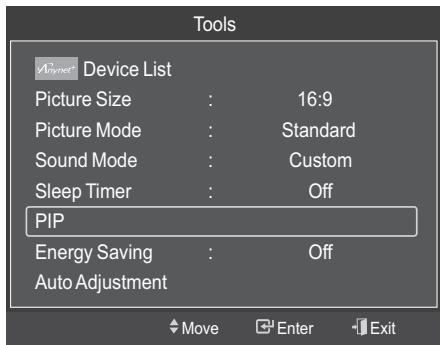

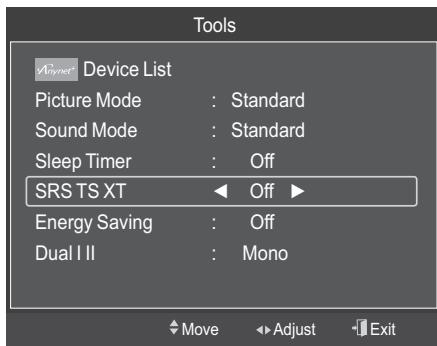

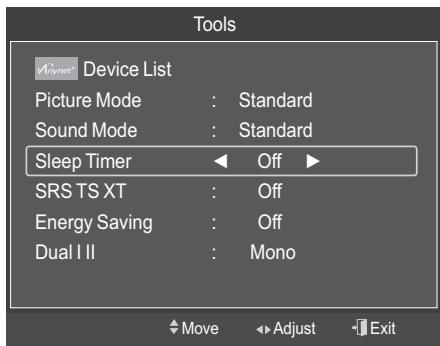

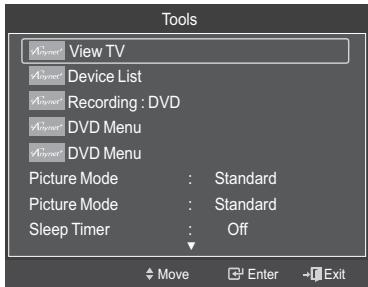

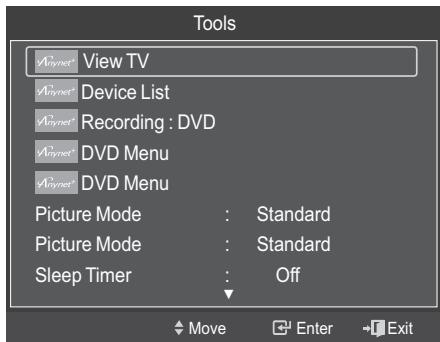

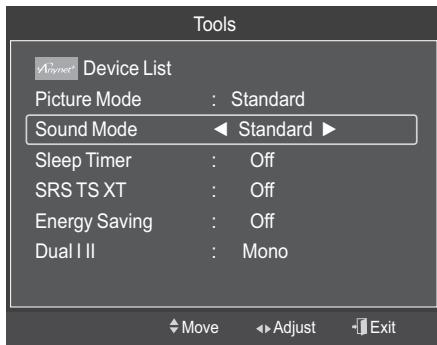

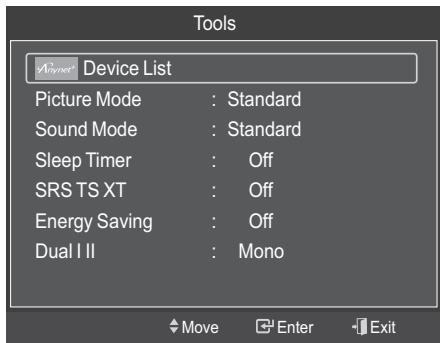

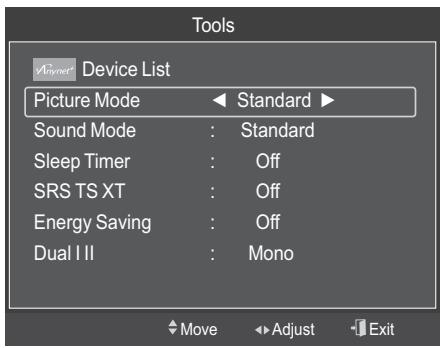

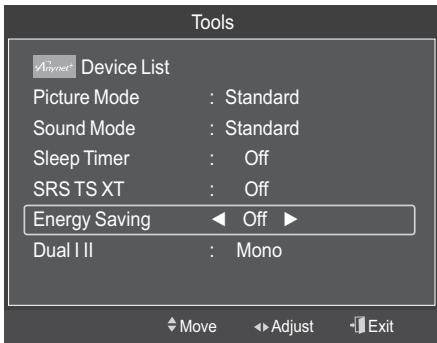

◆ Using the TOOLS Button 12
◆ Viewing External Signal Sources ...... 12

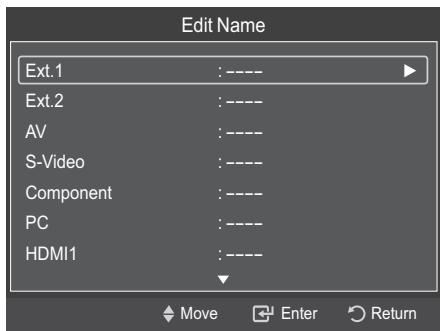

◆ Editing Device Names....13

Channel Control

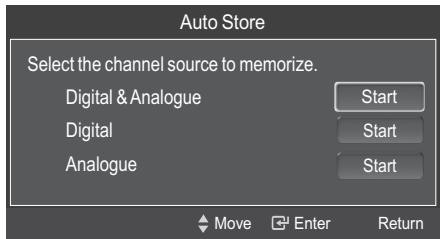

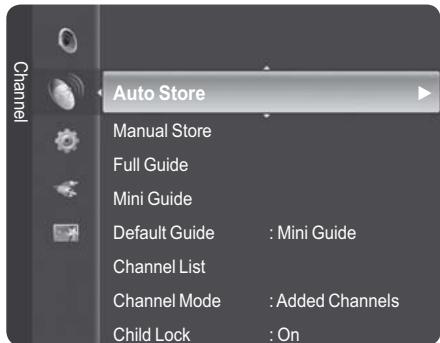

◆ Storing Channels Automatically .... 14

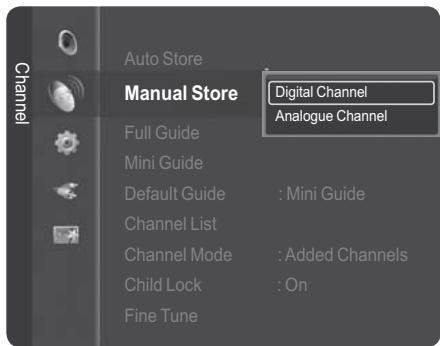

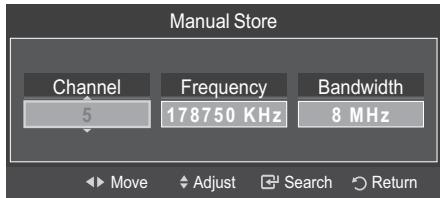

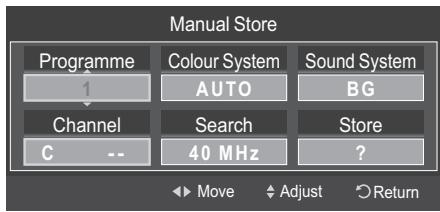

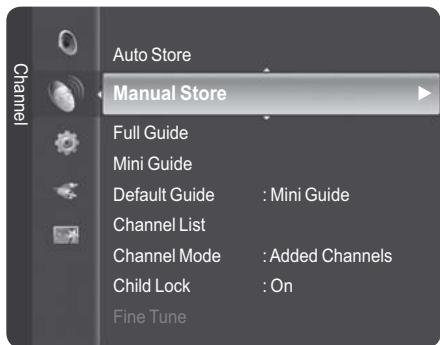

◆ Storing Channels Manually 15
◆ Viewing the EPG (Electronic Programme Guide) Information 16

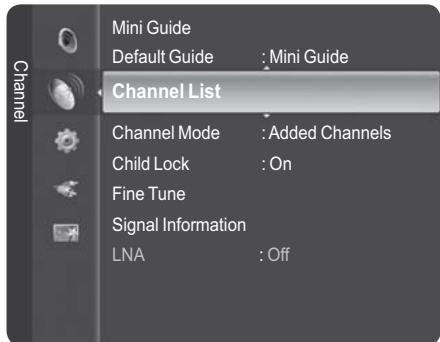

◆ Viewing All Channels 17

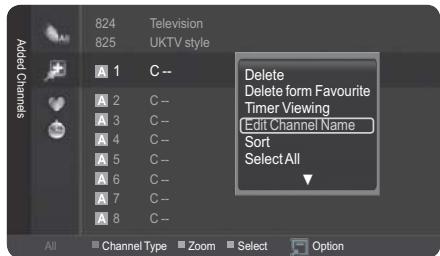

◆ Erasing and Adding Channels.... 18
◆ Setting Your Favourite Channels ...... 19

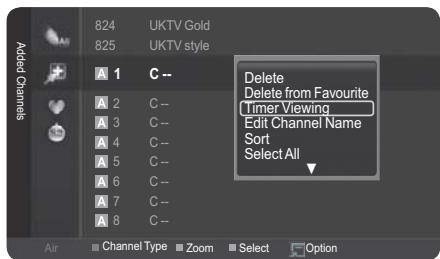

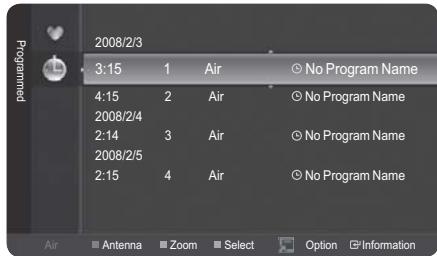

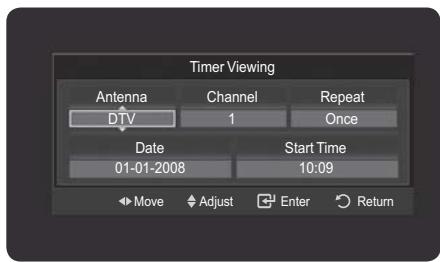

◆ Reserving a Program (Time Viewing) ...... 20
◆ Confirming a Viewing Reservation......21

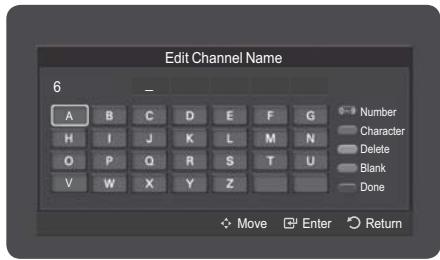

◆ Assigning Names to Channels....22
◆ Sorting the Stored Channels - Analogue...... 23
◆ Selecting and Deselecting All Channels ..... 24
◆ Storing Channels in Memory (Auto Store) .... 24

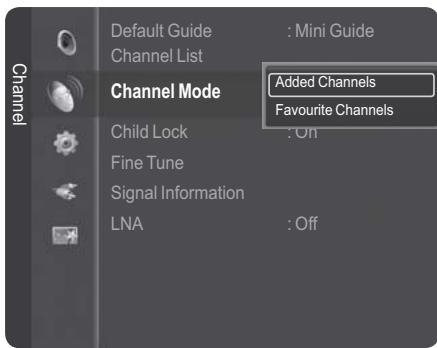

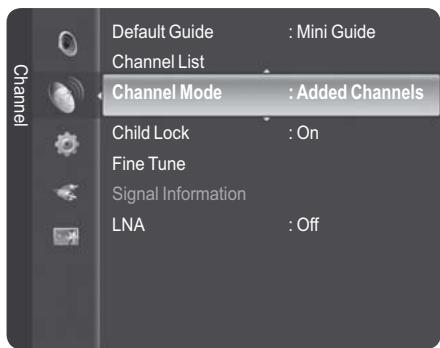

Setting the Channel Mode 24

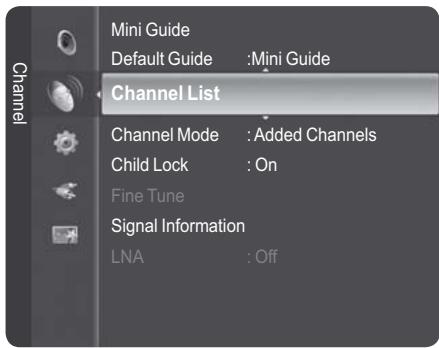

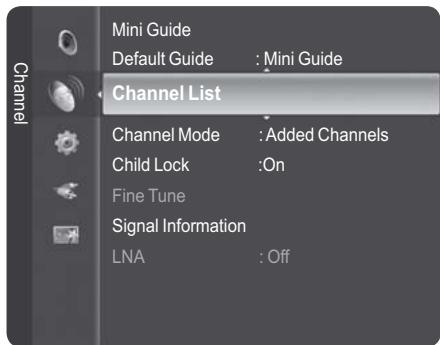

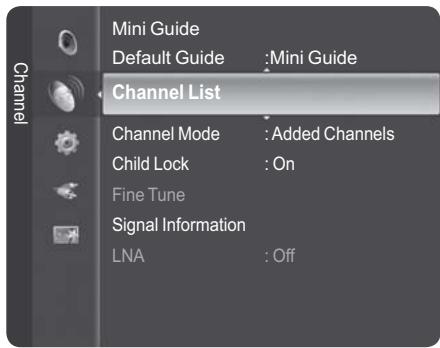

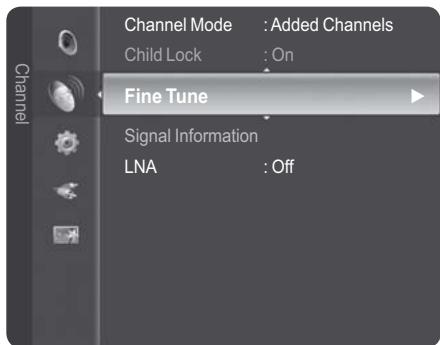

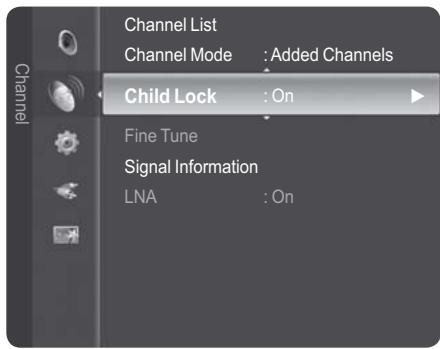

◆ Locking Channels 25
◆ Fine Tuning Analogue Channels ...... 25

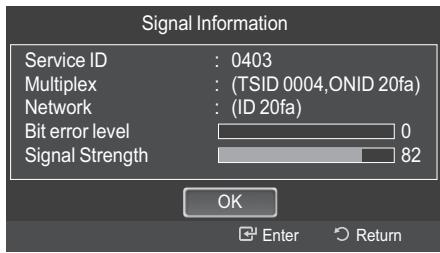

◆ Viewing Signal Information ...... 26
◆ LNA (Low Noise Amplifier) 26

Picture Control

◆ Changing the Picture Standard....27
◆ Customizing the Picture Settings......27

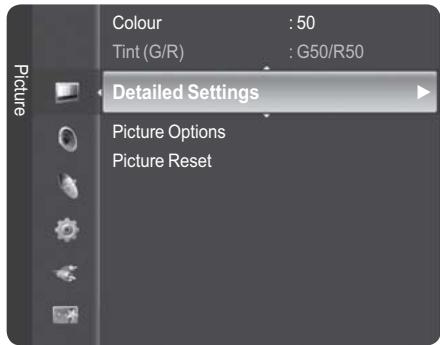

◆ Configuring Detailed Settings on the Picture 28

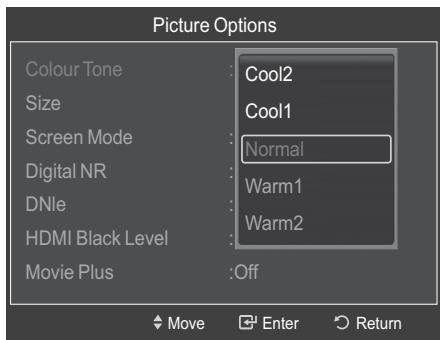

◆ Picture Options ...... 29
◆ Resetting the Picture Settings to the Factory Defaults....31

Sound Control

◆ Sound Features .... 32
◆ Selecting the Sound Mode (depending on the model)....34
◆ Connecting Headphones (Sold separately) .. 34

Function Description

◆ Time Features....35

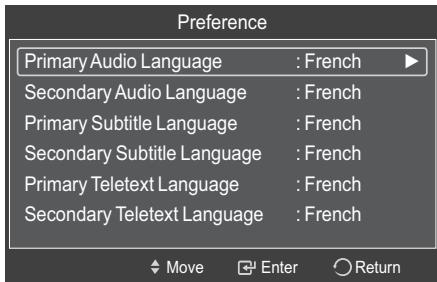

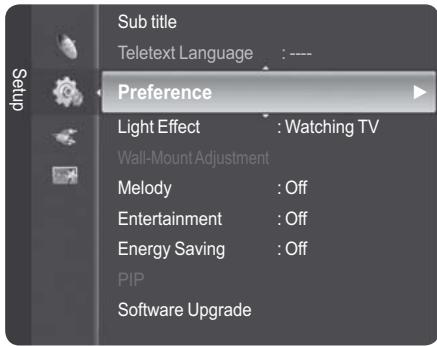

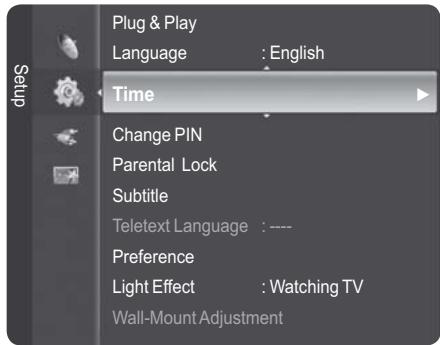

◆ Language / Change PIN / Parental Lock / Subtitle / Teletext Language / Preference / Light Effect / Melody/ Entertainment / Energy Saving / PIP 36

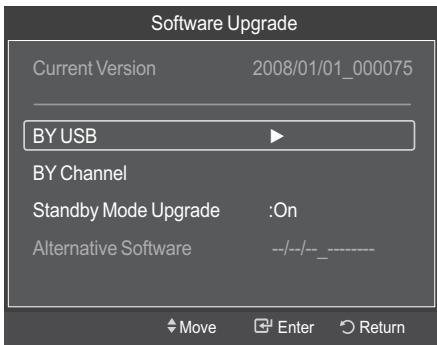

◆ Upgrading the Software 39

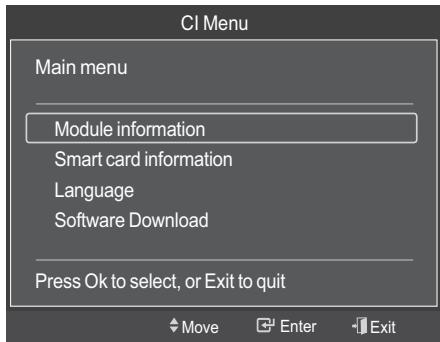

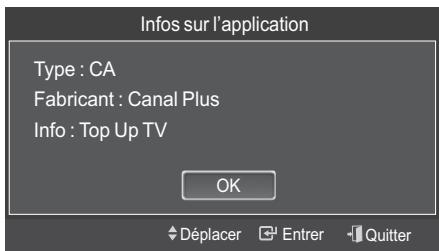

◆ Common Interface 40

PC Display

Setting up Your PC Software (Based on Windows XP)....41
◆ Input Mode (PC)......42

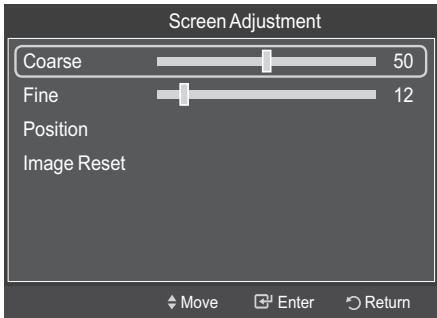

Setting the PC 43

WISELINK

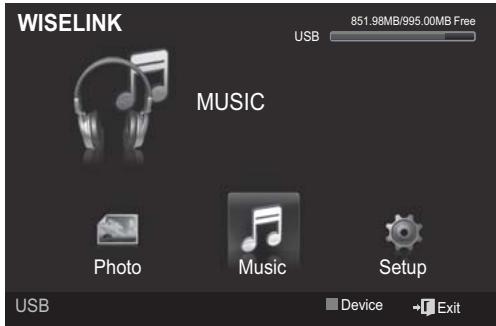

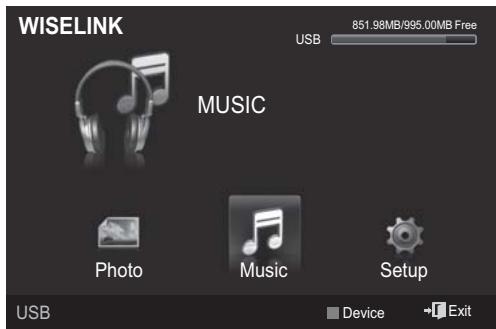

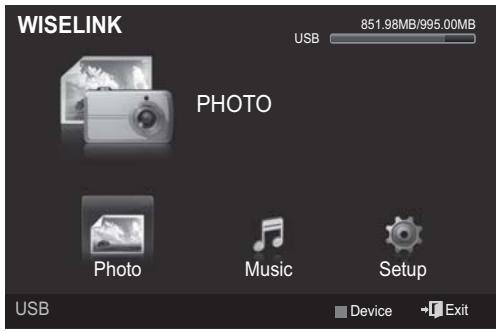

◆ Using the WISELINK Function...... 45

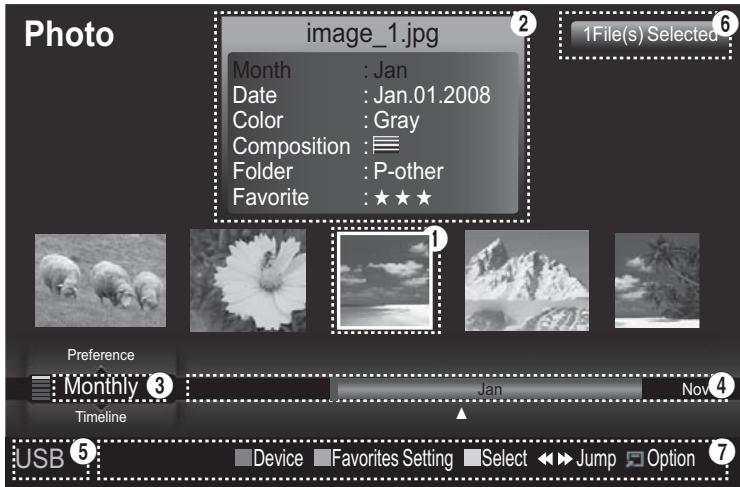

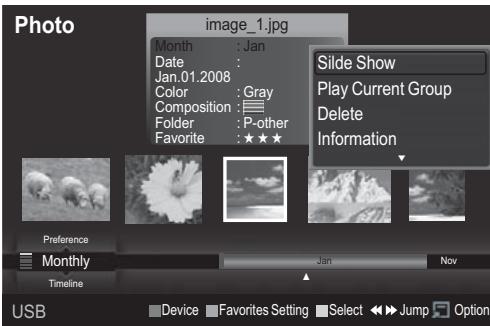

◆ Using the Photo List......46

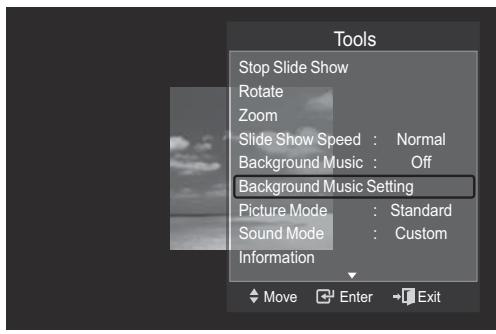

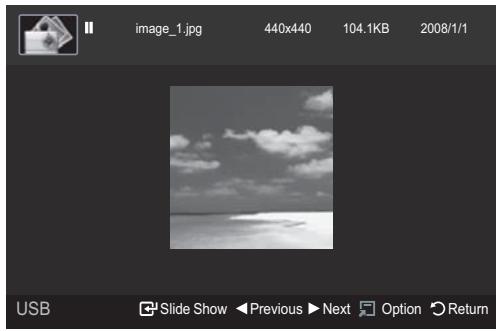

◆ Viewing a Photo or Slide Show....52

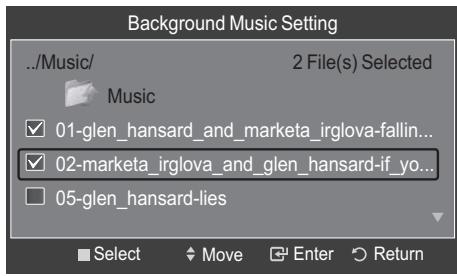

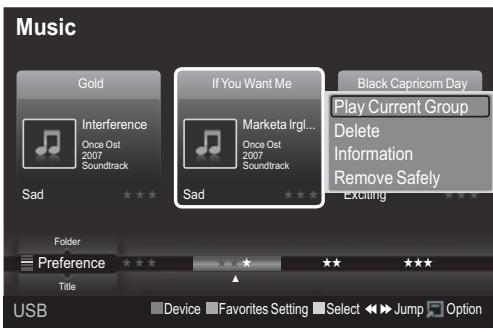

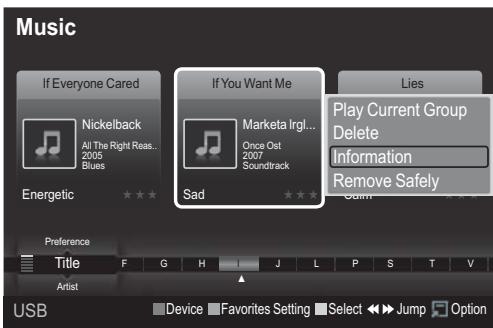

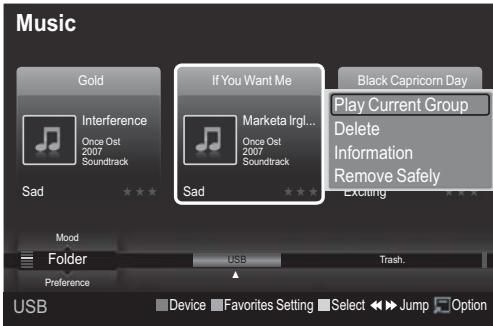

◆ Using the Music List....56
◆ Playing a Music File 61

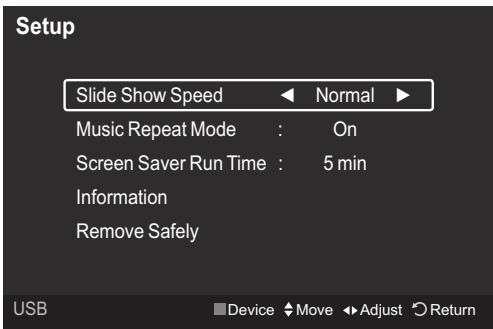

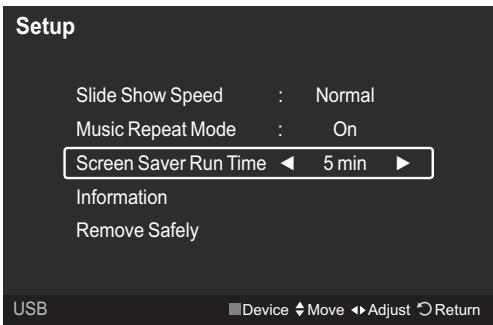

◆ Using the Setup Menu 63

About Anynet+

◆ What is Anynet+? 64

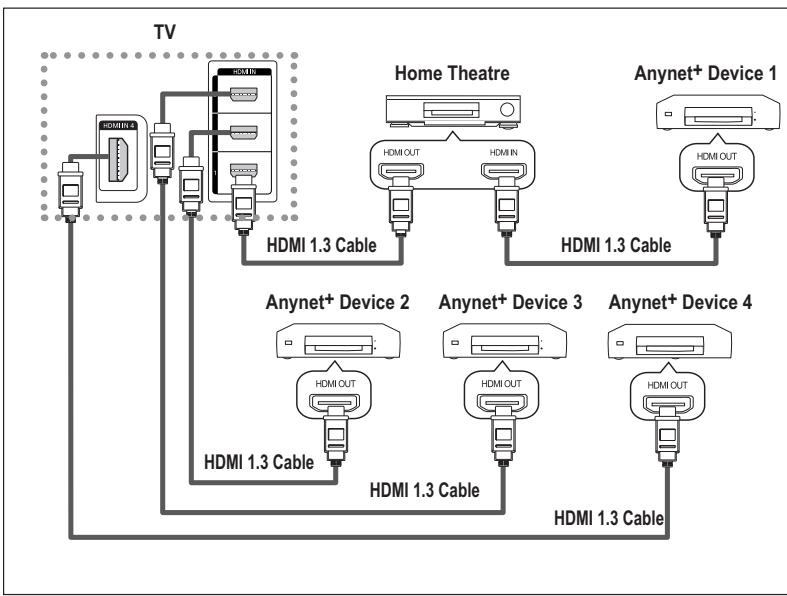

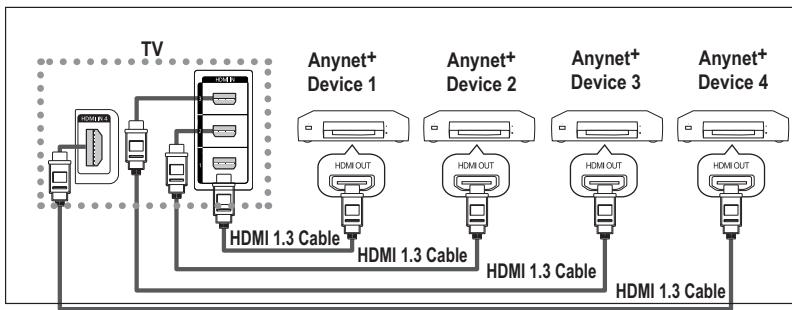

◆ Connecting Anynet+ Devices 64
Setting Up Anynet+ 65
◆ Scanning and Switching between Anynet+ Devices....65
◆ Recording......66
◆ Listening through a Receiver 67
◆ Check Points before Requesting Service ..... 67

Appendix

◆ Teletext Feature (depending on the model)..68

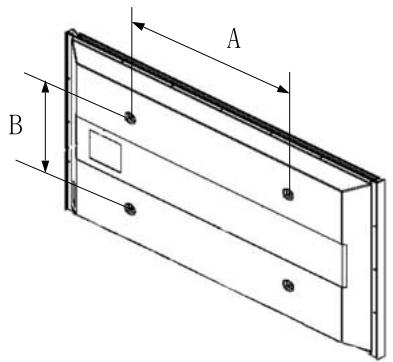

◆ Wall Mount Kit Specifications (VESA)...... 70
◆ Auto Wall - mount adjustment (Sold separately)....71
◆ Preparing before installing Wall-Mount on the wall....72
◆ How to assemble the Stand-Base (depending on the model)....72
◆ Troubleshooting 73
◆ Specifications....74

Symbols

Press

Important

Note

Owner's Instructions

Remote Control/AAA Batteries

Power Cord

Cloth-Clean

Warranty Card/ Safety Guide Manual (Not available in all locations)

Cover-Bottom / Screws (2ea) (Refer to page 71)

Ferrite Core for Power Cord

Ferrite Core for S-Video

Ferrite Core for Component

Sold Separately

Antenna Cable

Component Cables

Audio Cables

PC Cable

Scart Cable

PC Audio Cable

HDMI Cable

HDMI/DVI Cable

Ferrite Core (Power Cord, S-Video, Component)

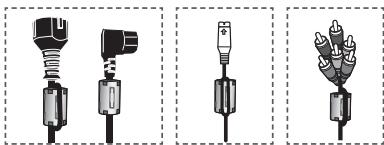

The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug.

Four different types of electrical connectors shown in line drawings (no text or symbols)

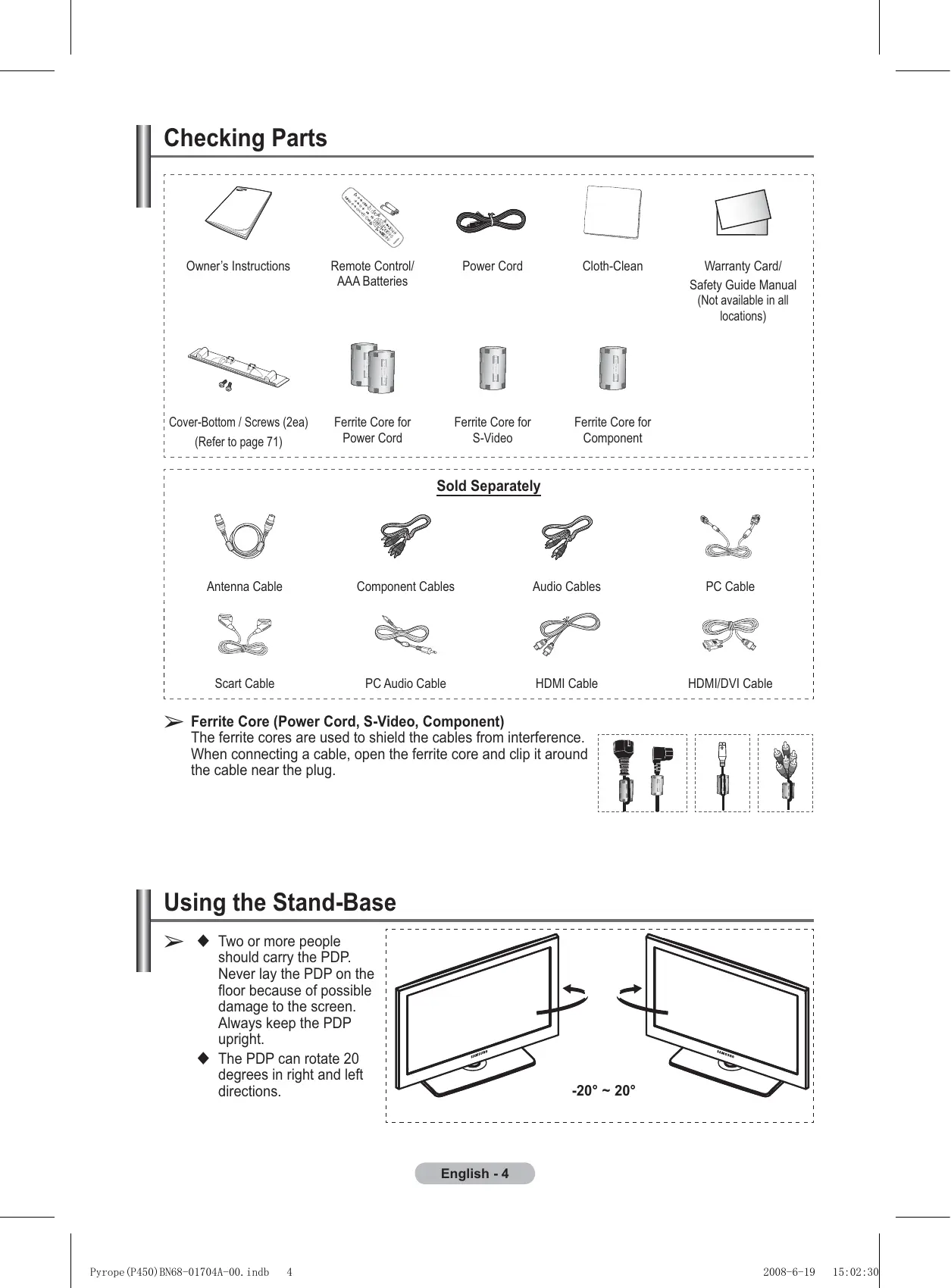

Using the Stand-Base

◆ Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage to the screen. Always keep the PDP upright.

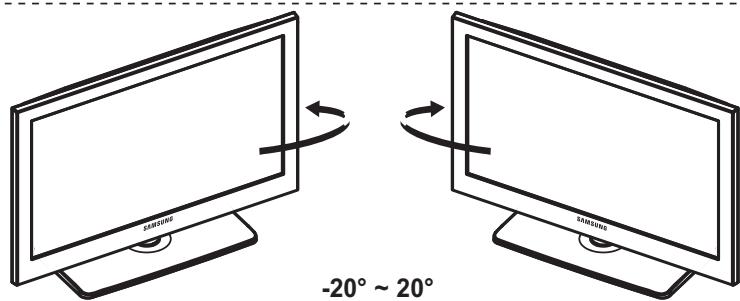

◆ The PDP can rotate 20 degrees in right and left directions.

Front Panel

The product colour and shape may vary depending on the model.

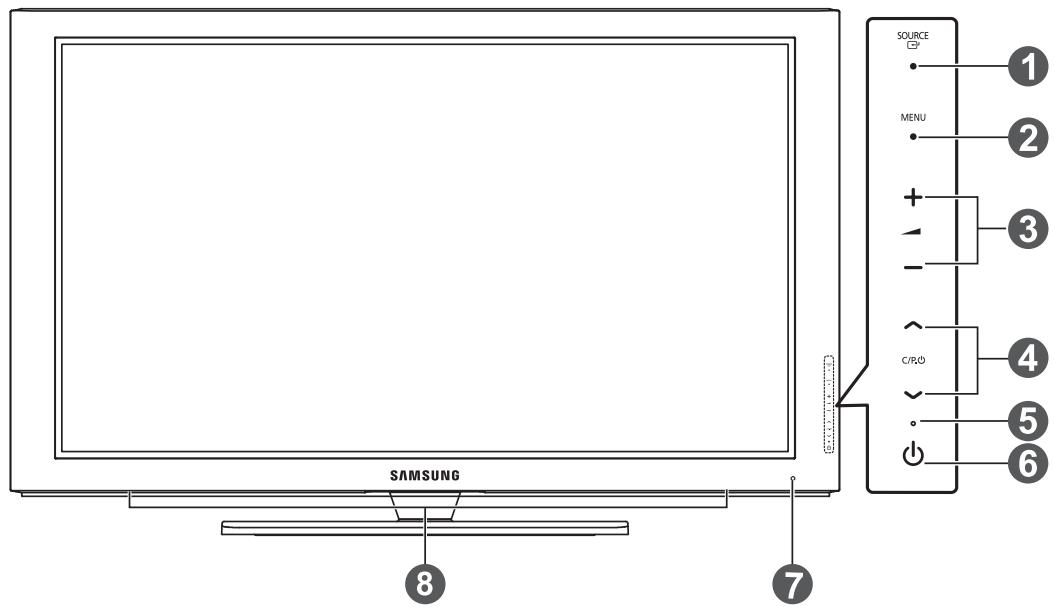

Front Panel buttons

Touch each button to operate.

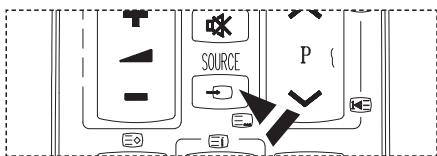

① SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB).

In the on-screen menu, use this button as you would use the ENTER button on the remote control.

② MENU

Press to see an on-screen menu of your TV's features.

③ - +

Press to increase or decrease the volume. In the on-screen menu, use the - + buttons as you would use the ◀ and ▶ buttons on the remote control.

4 ∧ C/P.⏻ √

Press to change channels. In the on-screen menu, use the ▲ C/P.○▽ buttons as you would use the ▲ and ▼ buttons on the remote control.

⑤ Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

6 POWER

Press to turn the TV on and off.

⑦ Remote Control Sensor

Aim the remote control towards this spot on the TV.

8 Speakers

The product colour and shape may vary depending on the model.

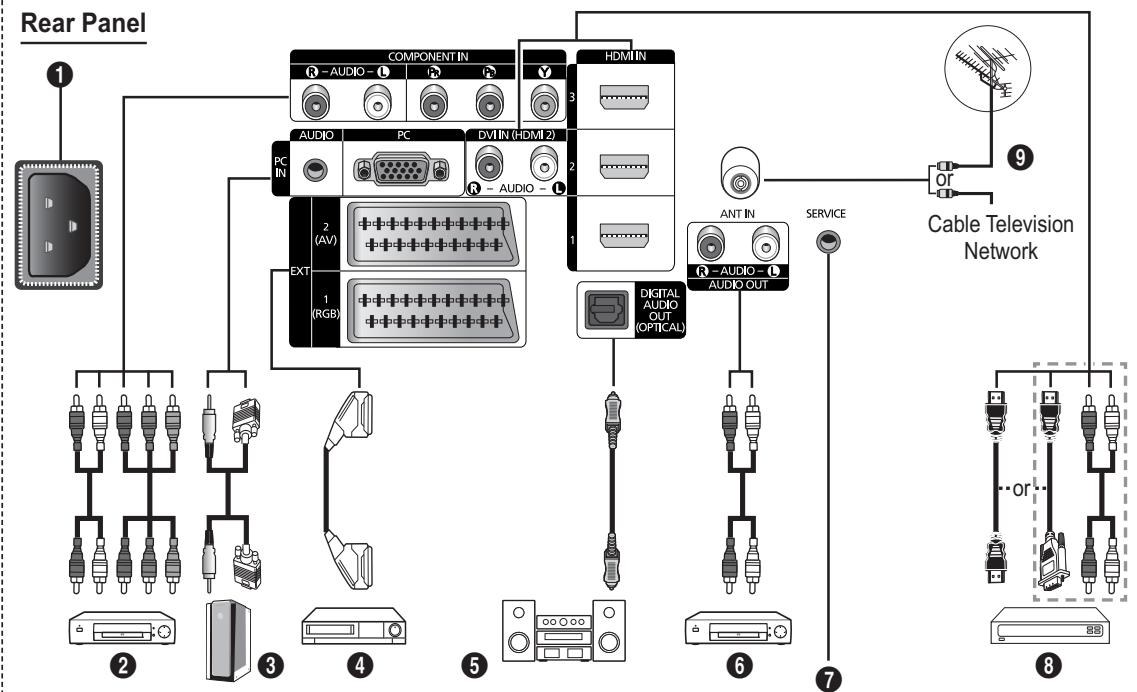

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.
When connecting an external device, match the colour of the connection terminal to the cable.

1 POWER IN

Connect the supplied power cord.

② COMPONENT IN

Audio (AUDIO L/R) and video (Y/PB/PR) inputs for Component.

③ PC IN(PC) / AUDIO

Connect to the video and audio output jack on your PC.

4 EXT 1, EXT 2

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Input/Output Specification

Connector	Input			Output
	Video	Audio(L/R)	RGB	Video + Audio(L/R)
EXT 1	√	√	√	Only TV or DTV output is available.
EXT 2	√	√		Output you can choose.

5 DIGITAL AUDIO OUT (OPTICAL)

Connect to a Digital Audio Component.

6 AUDIO OUT(AUDIO R/L)

Connect RCA audio signals from the TV to an external source, such as Audio equipment.

7 SERVICE

• Connector for service.

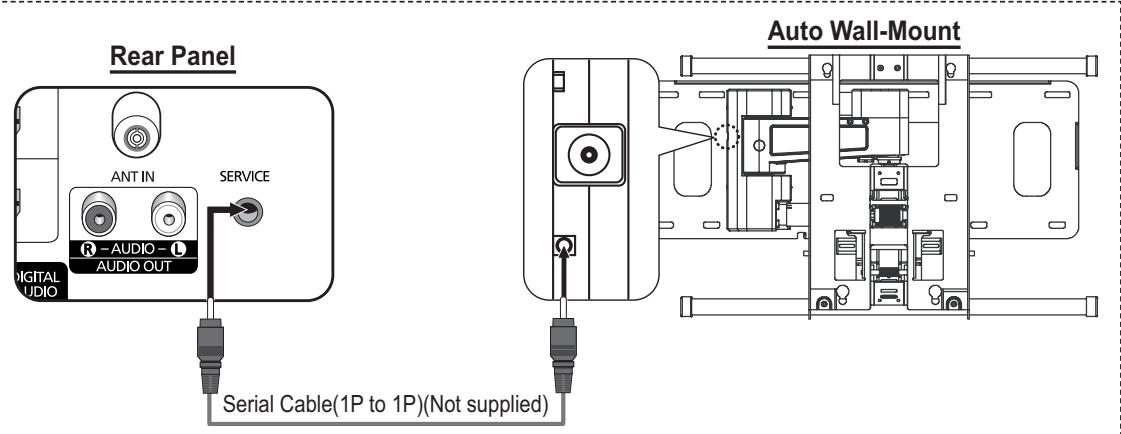

• Connect the serial jack between the electro-motion wall mount bracket and your TV when you want to adjust the TV viewing angle using your remote control.

⑧ HDMI IN 1, 2, 3

• No additional Audio connection is needed for an HDMI to HDMI connection.
• When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

- “High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio.

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI audio outputs for external devices.

⑨ ANT IN

75Ω Coaxial connector for Aerial/Cable Network.

Supported modes for HDMI/DVI and Component

	480i	480p	576i	576p	720p	1080i	1080p
HDMI/DVI 50Hz	X	X	X	O	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O	O
Component	O	O	O	O	O	O	O

Side Panel

2

4

3

AV IN

Simple line drawing of a black earbuds with a cable, no text or symbols present

5

The product colour and shape may vary depending on the model.

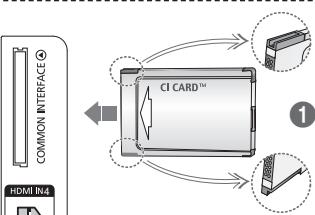

① COMMON INTERFACE Slot

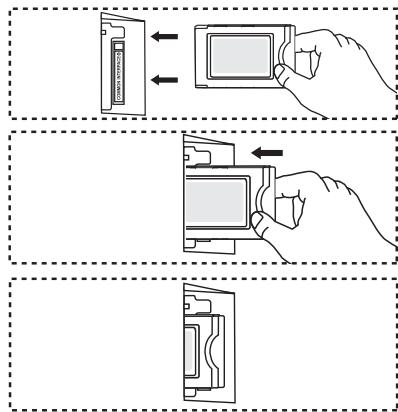

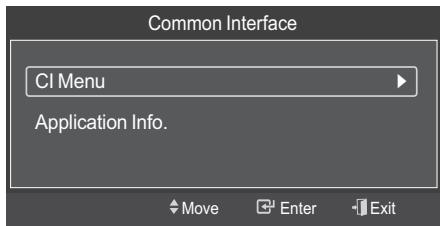

Insert CI (Common Interface) card into the slot. (refer to page 40)

• When 'CI Card' isn't inserted in some channels, "Scramble Signal" is displayed on the screen.
• The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.
• When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated.
  Insert the CI-Card in the direction marked on it.

② HDMI IN 4

Connect to the HDMI jack of a device with HDMI output.

③ WISELINK

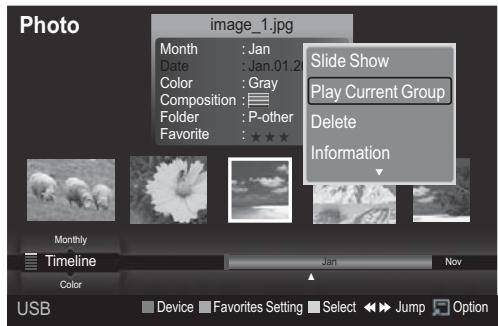

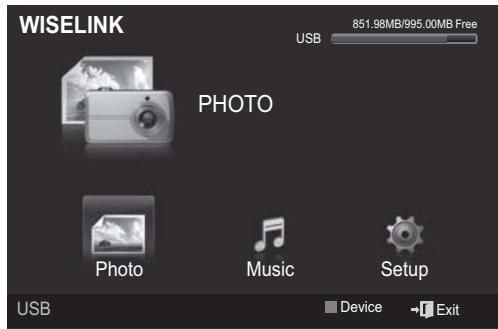

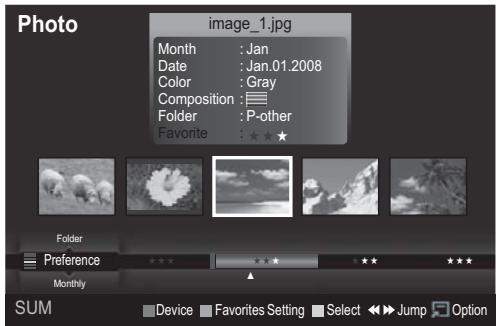

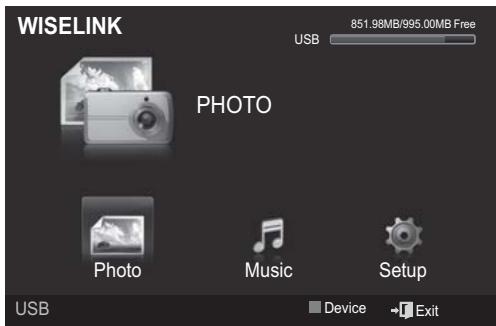

Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3).

Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

⑤ HEADPHONES JACK

You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room.

➢ Prolonged use of headphones at a high volume may damage your hearing.

The performance of the remote control may be affected by bright light.

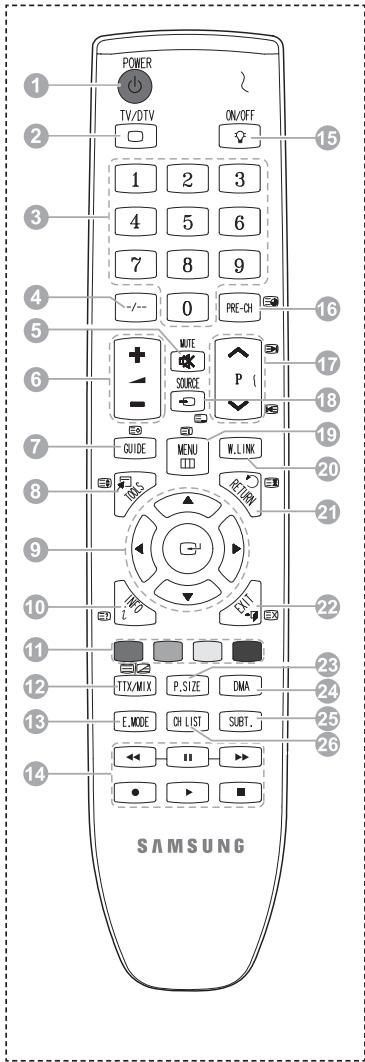

1 POWER button (turns the TV on and off)

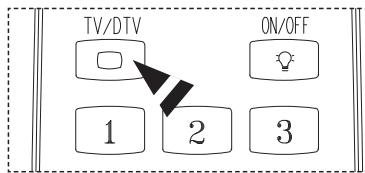

② Selects the TV and DTV mode directly

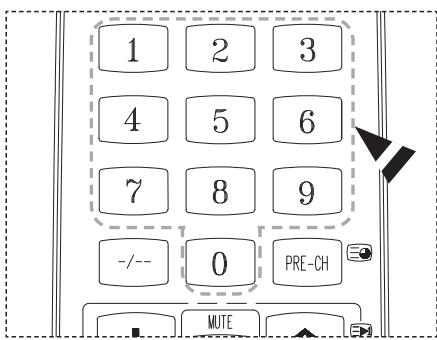

③ Number buttons for direct channel access
4 One/Two-digit channel selection
5 Temporary sound switch-off
6 + Volume increase - Volume decrease

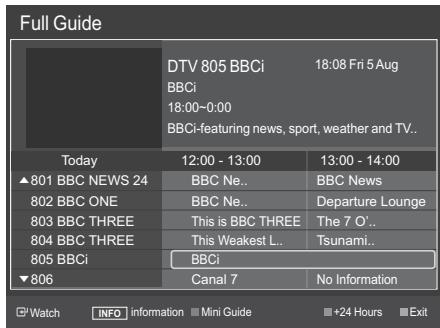

⑦ Electronic Program Guide (EPG) display
⑧ Use to quickly select frequently used functions.
9 Control the cursor in the menu
10 Use to see information on the current broadcast
11 Use these buttons in the Channel list and WISELINK, etc.

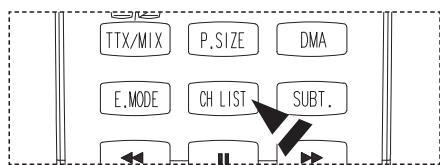

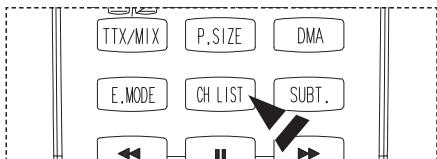

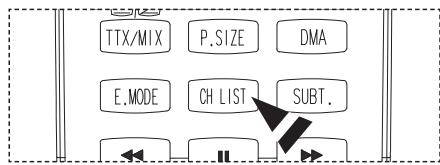

13 Press to select the optional display and sound modes for sports, cinema and games.
14 VCR/DVD Function (Rewind, Stop, Play/Pause, Fast/Forward)
15 ON/OFF

Press to backlight the buttons on the remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF(💡) light button set to On will reduce the battery usage time.

16 Previous channel
17 Next channel Previous channel
18 Available source selection
19 Displays the main on-screen menu

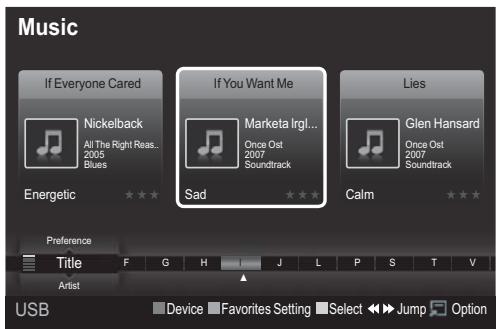

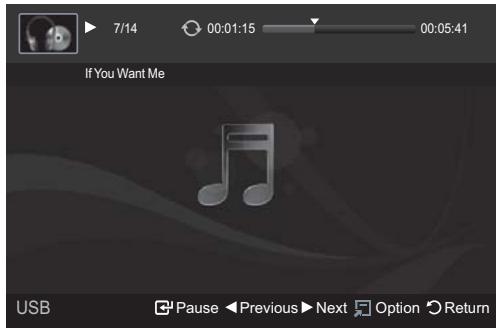

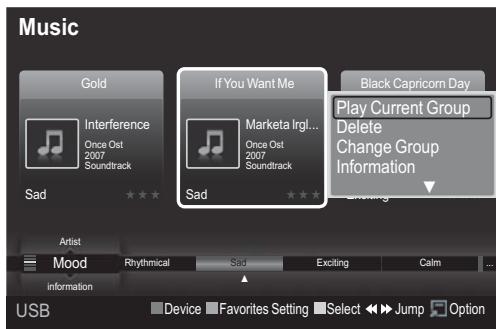

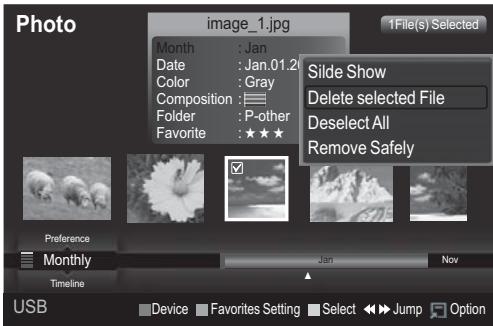

20 This function enables you to view and play photo (JPEG) and audio files (MP3) from an external device. (See page 46 (JPEG), 56 (MP3))
21 Returns to the previous menu

22 Exit the on-screen menu

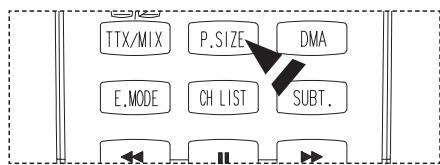

23 Picture size selection
24 Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode.(The DMA button is optional.)

For more information on the operating procedures, refer to the user manual of the DMA. This button is available when "Anynet+(HDMI-CEC)" is "On" (see page 65)

25 Digital subtitle display
26 Channel control button (Refer to page 17\~19)

Teletext Functions

(Refer to page 68)

② Exit from the teletext display (depending on the model)
7 Teletext store
8 Teletext size
10 Teletext reveal

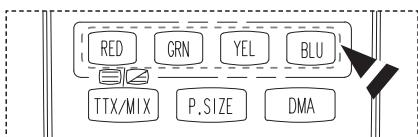

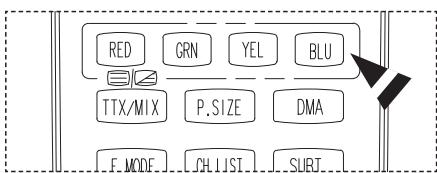

11 Fastext topic selection
12 Teletext display/mix both teletext information and the normal broadcast
16 Teletext sub page
17 P ▲ :Teletext next page P ▼ :Teletext previous page
18 Teletext mode selection (LIST/FLOF)
19 Teletext index
21 Teletext hold
22 Teletext cancel

Continued...

Installing Batteries in the Remote Control

1 Lift the cover at the back of the remote control upward as shown in the figure.
2 Install two AAA size batteries.

Make sure to match the “+” and “−” ends of the batteries with the diagram inside the compartment.
◆ Using the remote control with the ON/OFF(💡) light button set to On will reduce the battery usage time.

3 Close the cover as shown in the figure.

Remove the batteries and store them in a cool and dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work! Check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power cut, or is the power cord unplugged?
5. Is there a special fluorescent light or a neon sign nearby?

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical lever assembly (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Switching Your Television On and Off

The mains lead is attached to the rear of the television.

1 Plug the mains lead into an appropriate socket.
The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz.
2 Press the ⏻ (Power) button (On/Off) on the front of the television or press the POWER button on the remote control to switch the television on. The channel that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically” on page 14 or “Storing Channels Manually” on page 15.
If the television is initially powered on, several basic customer settings proceed automatically. Refer to “Plug & Play Feature” on page 10.
3 To switch the television off, press the ⏻ (Power) button (On/Off) on the front of the television or press the POWER button on the remote control.
4 To switch the TV on, press the ⏻ (Power) button (On/Off) on the front of the TV or press the POWER button or number buttons on the remote control.

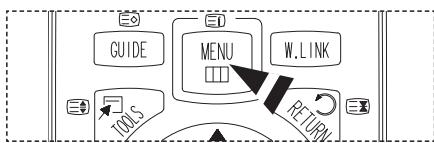

Viewing the Menus

1 Press the MENU button.

The main menu is displayed on the screen.

Its left side has six icons: Picture, Sound, Channel, Setup, Input, and Application

2 Press the ▲ or ▼ button to select one of the icons.

Press the ENTER button to access the icon's sub-menu.

3 Press the ▲ or ▼ button to move to items in the menu.

Press the ENTER button to enter items in the menu.

4 Press the ▲/▼/◄/► button to change the selected items.

Press the RETURN button to return to the previous menu.

5 Press the EXIT button to exit from the menu.

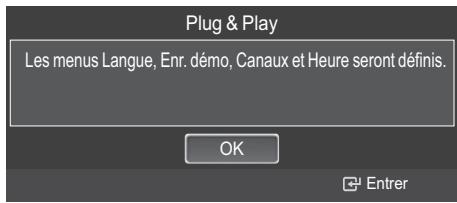

When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available.

If you accidentally select the wrong country for your TV, the characters on the screen may be wrongly displayed.
Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.
The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is running.

1 If the television is in standby mode, press the POWER button on the remote control. The message Les menus Langue, Enr. démo, Canaux et Heure seront définis. is displayed.
2 Press the ENTER button, Select the OSD Language menu is automatically displayed. Press the ENTER button.
3 Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice. The message Select 'Home Use' when installing this TV in your home. is displayed.
4 Press the ◀ or ▶ button to select Store Demo or Home Use, then press the ENTER button. The message to check the connected status of the antenna is displayed.

The default selection is Home Use.

We recommend setting the TV to Home Use mode for the best picture in your home environment.

Store Demo mode is only intended for use in retail environments.

If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

5 Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER button to select Start.

Digital & Analogue: "Digital" and "Analogue" channels. Digital: "Digital" channels.

Analogue: "Analogue" channels.

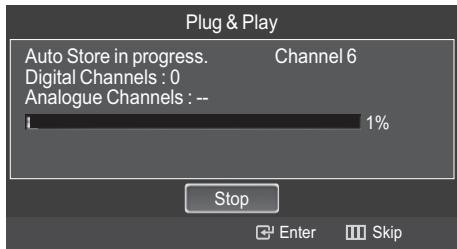

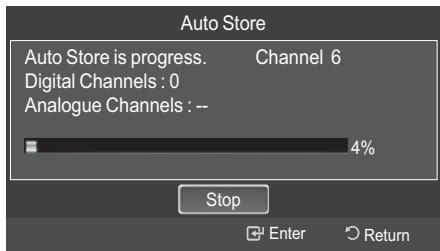

The channel search will start and end automatically. Press the ENTER button at any time to interrupt the memorization process.

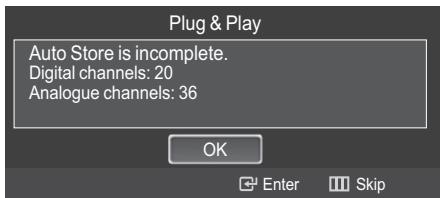

After all the available channels are stored, the message Set the Clock Mode is displayed.

To stop the search before it has finished, press the ENTER button with stop selected.

Press the ◀ or ▶ button to select Yes, then press the ENTER button. The Auto Store menu then reappears. Press the ENTER button when channel memorization is completed.

6 The message Set the Clock Mode is displayed. Press the ENTER button. Press the ▲ or ▼ button to select Manual for setting the current time manually, then press the ENTER button. The message Set current date and time. is displayed.

If you select Auto, the message Enjoy your viewing is displayed. If you have received a digital signal, the time will be set automatically.

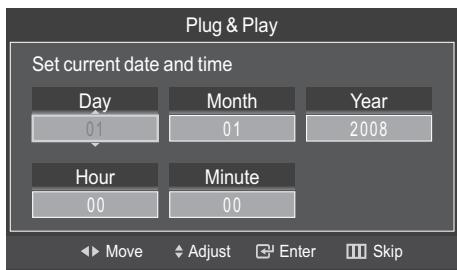

7 Press the ◀ or ▶ button to move to Day, Month, Year, Hour or Minute. Set the date and time you want by pressing the ▲ or ▼ button, then press the ENTER button.

You can set the Day, Month, Year, Hour and Minute directly by pressing the number buttons on the remote control.

8 The message Enjoy your viewing. is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

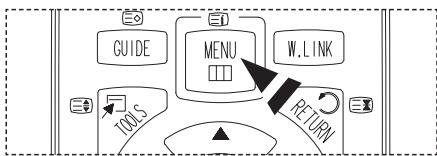

If you want to reset this feature ...

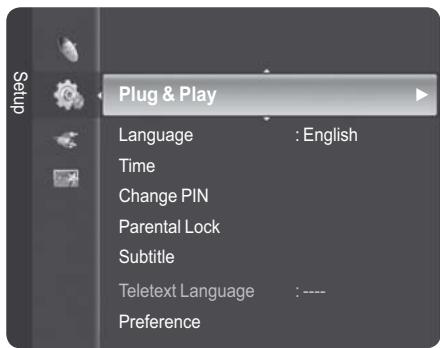

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the ENTER button.
3 Press the ENTER button again to select Plug & Play.
4 Enter your 4 digit PIN number. The default PIN number of a new TV set is "0-0-0-0".

For further details on setting up options, refer to the pages 10-11.
The Plug & Play feature is only available in the TV mode.

You can use the TOOLS button to select your frequently used functions quickly and easily. The "TOOLS" menu changes depending on which external input mode you are viewing.

1 Press the TOOLS button.
The Tools menu will appear.
2 Press the ▲ or ▼ button to select a menu, then press the ENTER button.
3 Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items.
For a more detailed description of each function, refer to the corresponding page.

• Device List, see page 65
• Picture Mode, see page 27
• Sound Mode, see page 32
- Sleep Timer, see page 35
• SRS TS XT, see page 32
• Energy Saving, see page 38
• Dual I II, see page 34

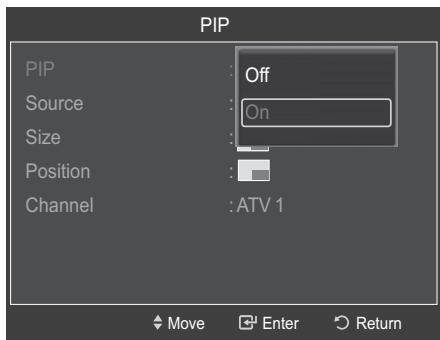

- PIP, see page 38
• Auto Adjustment, see page 43

Viewing External Signal Sources

You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV source.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Input, then press the ENTER button.
3 Press the ENTER button again to select Source List.
4 Press the ▲ or ▼ button to select the signal source, then press the ENTER button.
Available signal sources: TV, Ext1, Ext2, AV, S-Video, Component, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB

You can choose only those external devices that are connected to the TV.

Using the Color buttons on the remote with the Source list.

• Red (Refresh): Refreshes the connecting external devices.
• (Option): Displays the Edit Name and Information menus.

You can select these options simply by pressing the SOURCE button on the remote control.

To watch television programme again, press the TV/DTV button and select the channel number required.

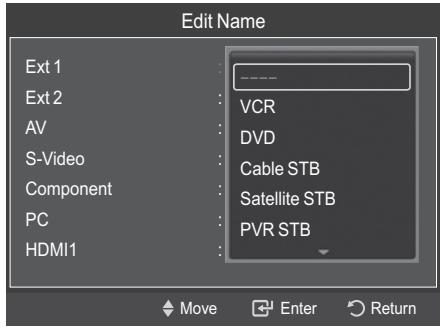

Editing Device Names

You can give a name to the external source.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Input, then press the ENTER button.
3 Press the ▲ or ▼ button to select Edit Name, then press the ENTER button.
4 Press the ▲ or ▼ button to select the external source to be edited, then press the ENTER button.
5 Select the required device by pressing ▲ or ▼, then press the ENTER button.
Available device names: VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, Digital Media Adapter.
6 Press the EXIT button to exit.

Storing Channels Automatically

You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch.

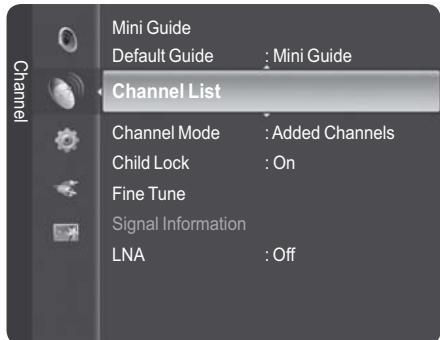

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.

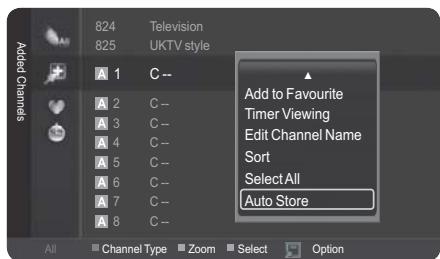

3 Press the ▲ or ▼ button to select Auto Store, then press the ENTER button.
4 Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER button to select Start.

Digital & Analogue: "Digital" and "Analogue" channels. Digital: "Digital" channels.
Analogue: "Analogue" channels.

➢ Scans for all channels with active broadcast stations and stores them in the TV’s memory.

If you want to stop Auto Store, press the ENTER button.

The Stop Auto Store? message will be displayed. Select Yes by pressing the ◀ or ▶ button, then press the ENTER button.

5 Press the EXIT button to exit.

When there is a locked channel by Channel Lock setting, PIN input screen appears. (refer to page 25)

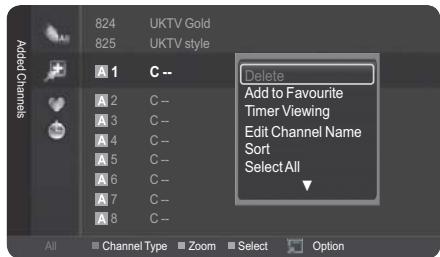

You can store television channels, including those received via cable networks.

When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found.
◆ The programme number of each stored channel which you wish to identify.

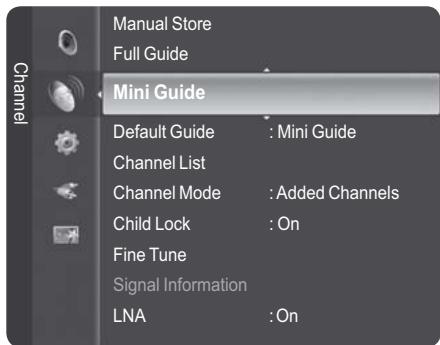

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3 Press the ▲ or ▼ button to select Manual Store, then press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.

Digital Channel

Channel

Press the ▲, ▼ or numeric buttons (0\~9) to select a channel. The available channels are 5\~69. The corresponding frequency for the selected channel is automatically set

Frequency

You can specify the frequency (KHz) using the numeric buttons (0\~9). If you do not know the exact frequency, follow the above step to select the frequency automatically using channel.

Bandwidth

Press the ▲ or ▼ button to select a bandwidth. The available bandwidths are 7 and 8 MHz.

Analogue Channel

◆ Programme (Programme number to be assigned to a channel)

Press the ▲ or ▼ button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0\~9).

◆ Colour System: Auto/PAL/SECAM/NTSC4.43

Press the ▲ or ▼ button to select the required colour standard.

◆ Sound System: BG/DK/I/L

Press the ▲ or ▼ button to select the required sound standard.

◆ Channel (When you know the number of the channel to be stored) Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

Press the ▶ button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0\~9).
If there is abnormal sound or no sound, re-select the sound standard required.

◆ Search (When you do not know the channel numbers)

Press the ▲ or ▼ button to start the search.

The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

◆ Store (When you store the channel and associated programme number)

Set to OK by pressing the ENTER button.

Channel mode

• P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.
• C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
• S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

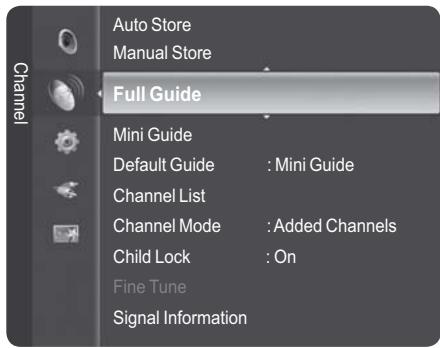

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3 Press the ▲ or ▼ button to select Full Guide, Mini Guide or Default Guide then press the ENTER button.

Full Guide

For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information.

One hours of programme information is displayed which may be scrolled forwards or backwards in time.

Mini Guide

The information of each program is displayed by each line on the current channel Mini Guide screen from the current program onwards according to the program starting time order.

▲/▼/◄/►, (ENTER)	Select a programme by pressing the ▲/▼/◄/► button.If the next programme is selected,it is scheduled with the clock icondisplayed. If the ENTER button ispressed again, press the ▲/▼/◄/►button to select Cancel Schedules,the scheduling is canceled with theclock icon gone.For details about schedulingprogrammes, refer to the section.
RED	Toggle between the Mini Guide orFull Guide.
GREEN	Full Guide: Scroll backwards quickly(24 hours).Mini Guide: Display next page quickly.
YELLOW	Full Guide: Scroll forwards quickly(24 hours).Mini Guide: Display previous pagequickly.
BLUE	Exit the guide.
INFO	INFO button for the detailedinformation. Channel Number,Running Time, Status Bar, ParentalLevel, Video Quality Information(HD/SD), Sound Modes, Subtitle orTeletext, languages of Subtitle orTeletext and brief summary of thehighlighted programme are includedon the detailed information. “...” willbe appeared if the summary is long.

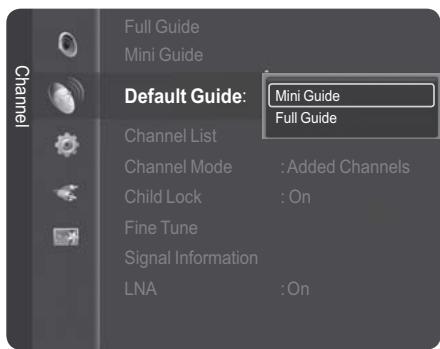

◆ Default Guide: Mini Guide/Full Guide

Press the ▲ or ▼ button to select Mini Guide or Full Guide. Press the ENTER button. The selected guide menu is displayed.

You can also display the guide menu simply by pressing the GUIDE button.

Show all currently available channels. To use the Channel List function, first run Auto Program.

1 Press the MENU button.

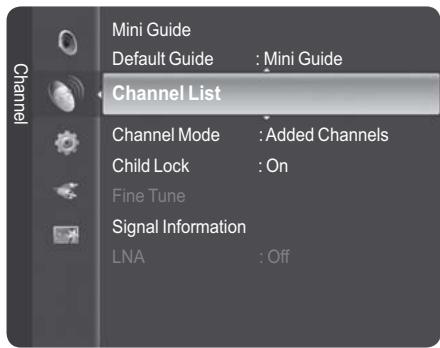

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

2 Press the ◀ button to select Added Channels.

3 Press the ▲ or ▼ button to select All Channels, then press the ENTER button. Shows all currently available channels.

4 Press the ▲ or ▼ button to select a channel to view, then press the ENTER button.

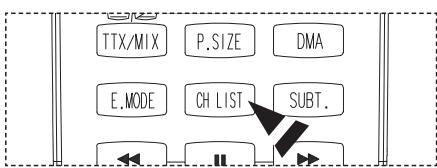

Press the CH LIST button on the remote control to bring up the channel lists.

Using the Color buttons on the Remote with the Channel List

• Red (Channel Type): Toggle between your "TV", "Radio", "Data/Other" and "All".
• Green (Zoom): Enlarges or shrinks a channel number.
• Yellow (Select): Selects multiple channel lists.

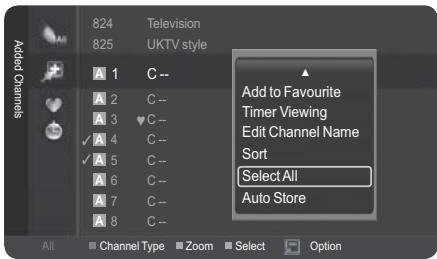

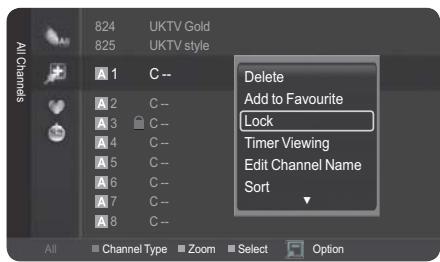

• (Option): Displays the “Delete”(or “Add”), “Add to Favourite”(or “Delete from Favourite”), “Lock”, “Timer Viewing”, “Edit Channel Name”, “Sort”, “Edit Channel Number”, “Select All”, “Deselect All” or “Auto Store” menu. (The Options menus may differ depending on the situation.)

A gray-colored channel indicates the channel has been deleted. The Add menu only appears for deleted channels.
A channel marked with ♥ mark means the channel has been set as a Favourite. The Delete from Favourite menu only appears for channels with the ♥ mark.

You can delete or add a channel to display the channels you want.

1 Press the MENU button.

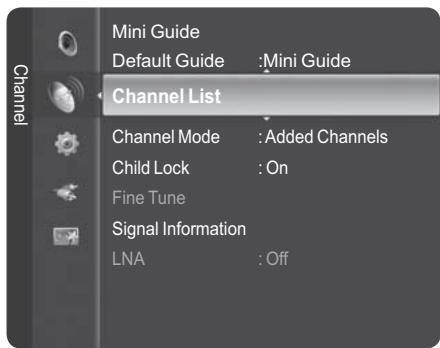

Press the ▲ or ▼ button to select Channel, then press the ENTER button.
Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
2 Press the ◀ button to select Added Channels.
3 Press the ▲ or ▼ button to select All Channels.
Shows all currently available channels. Press the ENTER button.
4 Press the ▲ or ▼ button to select a channel to delete, then press the TOOLS button.
5 Press the ENTER button to select Delete.
All deleted channels will be shown on All Channels menu.
6 Press the EXIT button to exit.
You can also add a channel to the All Channels menu in the same manner.
A channel must be deleted before it can be added back to the Added Channels list.
To Add (Restore) a channel back to the Added Channel List, follow steps 1-3 above, press the ▲ or ▼ button to select a channel to add, the press the TOOLS button. Press the ENTER button to select Add.

➢ Press the CH LIST button on the remote control to bring up the channel lists.

You can set channels you watch frequently as Favourite.

1 Press the MENU button.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

2 Press the ◀ button to select Added Channels.

3 Press the ▲ or ▼ button to select All Channels, then press the ENTER button.

Shows all currently available channels.

4 Press the ▲ or ▼ button to select a channel as a favourite channel.

Adding multiple channels to Favourite.

Press the ▲ or ▼ button to select the desired channel in the channel list. Then press the yellow button.

Repeat the above operation to select multiple channels. The √ mark appears to the left of the selected channels.

5 Press the TOOLS button.

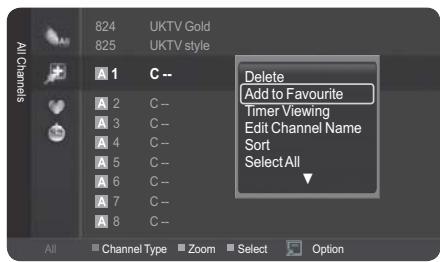

6 Press the ▲ or ▼ button to select Add to Favourite, then press the ENTER button.

The “♥” symbol will be displayed and the channel will be set as a favourite.

7 To cancel your favourite channel selection, press the TOOLS button when a favourite channel is selected. Press the ▲ or ▼ button to select Delete from Favourite, then press the ENTER button. The channel is deleted from Favourites and the “♥” mark disappears.

Press the EXIT button to exit.

You can also Add or Delete a channel from Favourite in the Added Channels menu in the same manner.

All favourite channels will be shown on Favourite menu.

➢ Press the CH LIST button on the remote control to bring up the channel lists.

If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel.

To reserve a program, set the current time first. See pages 35.

Reserved channels can only be set if they are in the Channel List (See page 17).

1 Press the MENU button.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

2 Press the ▲ or ▼ button to select a channel, then press the TOOLS button.

3 Press the ▲ or ▼ button to select Timer Viewing, then press the ENTER button.

The Reserve a Program (Timer Viewing) screen appears.

4 Press the ▲/▼/◄/► buttons to reserve a program and then press the ENTER button.

Reserving a program has been completed.

Press the EXIT button to exit.

You can also reserve a program in the All Channels or Favourites menus using the same procedures.

For information on how to confirm a viewing reservation, refer to page 21. Only memorized channels can be reserved.

You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control.

Press the CH LIST button on the remote control to bring up the channel lists.

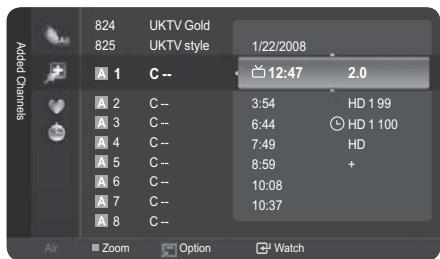

Digital Program Guide and Viewing Reservation

When a digital channel is selected, and you press the ▶ button, the Program Guide for the channel appears. You can reserve a program according to the procedures described above.

☐: A program currently being broadcast.
Ⓐ: A reserved program.

Continued...

You can view, modify or delete a reservation.

1 Press the MENU button.
Press the ▲ or ▼ button to select Channel, then press the ENTER button.
Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
2 Press the ◀ button to select Added Channels.
3 Press the ▲ or ▼ button to select Programmed, then press the ENTER button.
You can view the program reservations.

Modifying a viewing reservation

4 To select a reservation item to be modified, press the ▲ or ▼ button and then press the TOOLS button.
5 Press the ENTER button to select Change Info.
6 Press the ▲/▼/◄/► buttons to change a reservation setting and then press the ENTER button.
The reservation modification is applied.

Canceling a reservation

4 To select a reservation item to be canceled, press the ▲ or ▼ button, and then press the TOOLS button.
5 Press the ▲ or ▼ button to select Cancel Schedules, then press the ENTER button.
6 Press the ◀ or ▶ button to select OK, then press the ENTER button.
The viewing reservation has been canceled.
Press the EXIT button to exit.

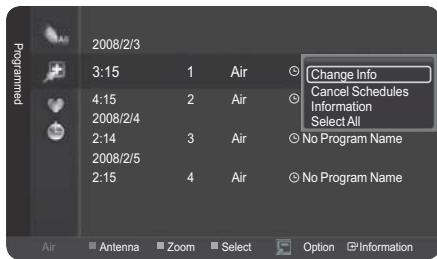

Programmed Menu

• Change Info: Select to change a viewing reservation.
• Cancel Schedules: Select to cancel a viewing reservation.
  • Information: Select to view a viewing reservation.
• Select All / Deselect All: You can select(or Deselect) all channel in the channel list.

Press the CH LIST button on the remote control to bring up the channel lists.

Assigning Names to Channels

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

Editing the Channel Name-Analogue

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
4 Press the ▲ or ▼ button to select the channel to be assigned to a new name, then press the TOOLS button.

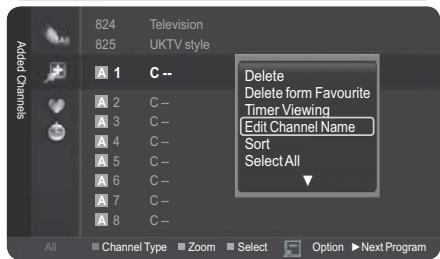

5 Press the ▲ or ▼ button to select Edit Channel Name, then press the ENTER button.
6 Press the ▲/▼/◄/► button to select a letter, a number, or a symbol, then press the ENTER button.
• Number buttons: You can enter numbers.
- Red button: You can switch between English and Characters.
- Green button: You can delete an already entered character.
- Yellow button: You can enter a blank space.
- Blue button: Press this button to finish renaming a channel.

7 Repeat steps 5 to 6 for each channel to be assigned to a new name.

8 Press the EXIT button to exit.

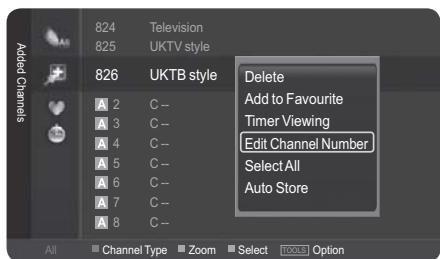

Editing the Channel Number-Digital

1 Press the MENU button.
Press the ▲ or ▼ button to select Channel, then press the ENTER button.
Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
2 Select the channel number that you wish to edit by pressing the ▲ or ▼ button repeatedly, then press the TOOLS button.
3 Press the ▲ or ▼ button to select Edit Channel Number, then press the ENTER button.
4 Then you can edit the Channel Number pressing the ▲ or ▼ button repeatedly. You can also edit the channel number by pressing the number buttons on the remote control.

Sorting the Stored Channels - Analogue

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
4 Press the TOOLS button.
5 Press the ▲ or ▼ button to select Sort, then press the ENTER button.
6 Select the channel that you wish to move by pressing the ▲ or ▼ button, then press the ENTER button.
7 Select the number of the programme to which the channel is to be moved by pressing the ▲ or ▼ button.
Press the ENTER button. The channel is moved to its new position and all other channels are shifted accordingly.
8 Repeat steps 4 to 7 until you have moved all the channels to the required programme numbers.
9 Press the EXIT button to exit.

1 Press the MENU button.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

2 Press the ▲ or ▼ button to select the Channel to be assigned a new name, then press the TOOLS button.

3 Press the ▲ or ▼ button to select Select All or Deselect All, then press the ENTER button.

You can select(or Deselect) all channel in the channel list.

The √mark appears to the left of the selected channels.

Storing Channels in Memory (Auto Store)

1 Press the MENU button.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

2 Press the ▲ or ▼ button to select the channel to be assigned a new name, then press the TOOLS button.

3 Press the ▲ or ▼ button to select Auto Store, then press the ENTER button.

For further details on setting up options, refer to page 14.

When there is a locked channel by Channel Lock setting, PIN input screen appears. (refer to page 25)

Setting the Channel Mode

You can display either the added channels list or the favourite channels list when the CH LIST button on the remote control is pressed.

1 Press the MENU button.

Press the ▲ or ▼ button to select Channel, then press the ENTER button.

Press the ▲ or ▼ button to select Channel Mode, then press the ENTER button.

2 Press the ▲ or ▼ button to select Added Channels or Favourite Channels, then press the ENTER button.

3 Press the EXIT button to exit.

Locking Channels

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

◆ Locking channels

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3 Press the ▲ or ▼ button to select Child Lock, then press the ENTER button.

Enter your 4 digit PIN number.

The default PIN number of a new TV set is "0-0-0-0".
If you want to change PIN number, refer to page 36.

4 Press the ▲ or ▼ button to select On, then press the ENTER button.

5 Press the ▲ or ▼ button to select Channel List, then press the ENTER button.

6 Press the ▲ or ▼ button to select a channel to be locked, then press the TOOLS button.

The 🔒 symbol will be displayed and the channel will be locked.

◆ Unlocking channels

7 Press the ▲ or ▼ button to select Unlock, then press the ENTER button.

Enter your 4 digit PIN number.

The channel is unlocked and the (lock icon) mark also disappears.
The default PIN number of a new TV set is "0-0-0-0".

Fine Tuning Analogue Channels

Use fine tuning to manually adjust a particular channel for optimal reception.

1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button.
2 Press the ▲ or ▼ button to select Fine Tune, then press the ENTER button.
3 Press the ◀ or ▶ button to adjust the fine tuning. To store the fine tuning setting in the TV's memory, press the ENTER button.

If you do not store the fine-tuned channel in memory, adjustments are not saved.

4 To reset the fine tuning setting, press the ▼ button to select Reset, then press the ENTER button.

Press the EXIT button to exit.

Only Analogue TV channels can be fine tuned.
“*” will appear next to the number of fine-tuned channels.

Viewing Signal Information

You can get information about the signal status.

1 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button.
2 Press the ▲ or ▼ button to select Signal Information, then press the ENTER button.
3 Press the EXIT button to exit.

If the signal status is poor, the No Signal. message is displayed.

➢ While viewing a Digital channel, this function can be selected.

This function is very useful in the situation that the TV is used in weak signal.

LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the ENTER button.
3 Press the ▲ or ▼ button to select LNA, then press the ENTER button.
4 Select Off or On by pressing the ▲ or ▼ button, then press the ENTER button.
5 Press the EXIT button to exit.
While viewing an Analogue channel, this function can be selected.

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ENTER button again to select Mode.
4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button.
Available modes: Dynamic, Standard, Movie

The settings values may vary depending on the input source.

5 Press the EXIT button to exit.

Choose Dynamic for viewing the TV during the day or when there is bright light in the room.
◆ Choose Standard for general TV watching mode.
◆ Choose Movie when viewing the movie.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Picture Mode.
3 Press the ◀ or ▶ button to select the required option.

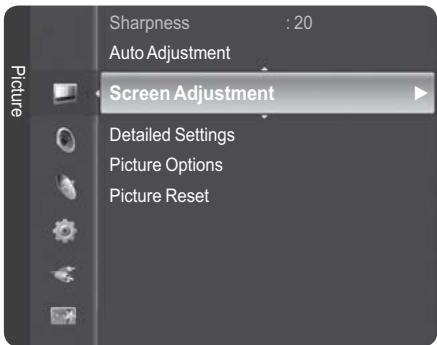

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality.

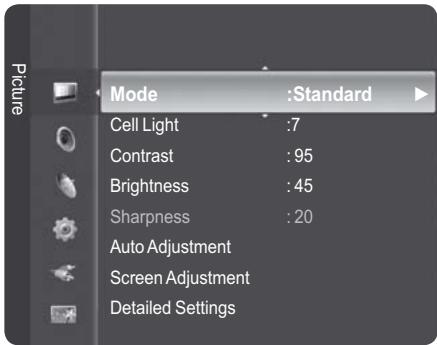

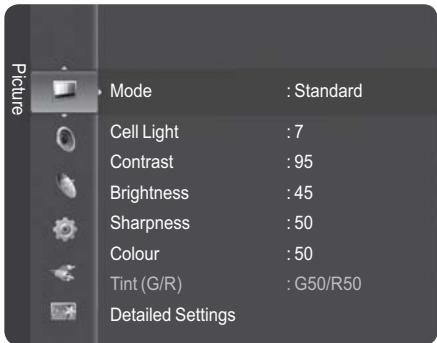

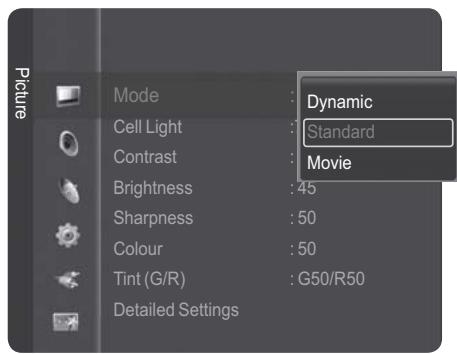

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ENTER button again to select Mode.
4 Select the required mode by pressing the ▲ or ▼ button, then press the ENTER button.
Available modes: Dynamic, Standard, Movie

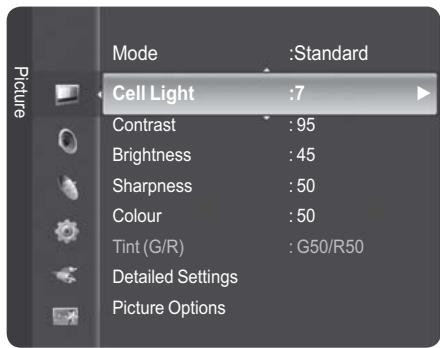

5 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
6 When you are satisfied with your setting, press the ENTER button.
7 Press the EXIT button to exit.

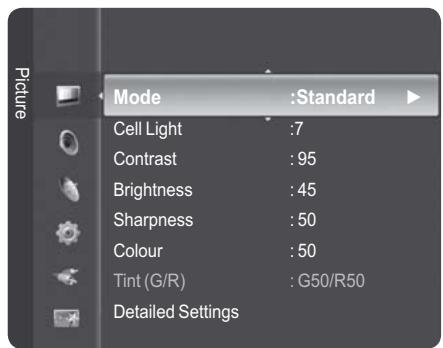

◆ Cell Light – Contrast – Brightness – Sharpness – Colour – Tint(G/R)

In TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function.

In PC mode, you can only make changes to Contrast and Brightness.

Press the ◀ or ▶ button until you reach the optimal setting.

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ▲ or ▼ button to select Detailed Settings, then press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

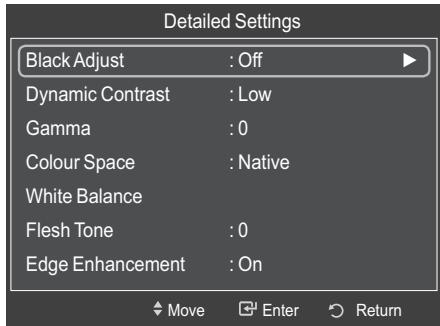

Available options: Black Adjust, Dynamic Contrast, Gamma, Colour Space, White Balance, Flesh Tone, Edge Enhancement, xvYCC
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.

Detailed Settings is available in Standard or Movie mode.

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance from among the Detailed Settings items.

◆ Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth.

◆ Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.

◆ Gamma: -3 \~ +3 You can adjust the middle brightness of pictures. Press the ◀ or ▶ button until you reach the optimal setting.

◆ Colour Space : Auto/Native/Custom Colour space is a colour matrix composed of red, green and blue colours. Select your favourite colour space to experience the most natural colour.

• Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources.
• Native: Native Colour Space offers deep and rich colour tone.
• Custom: Adjusts the colour range to suit your preference. (see "Customizing the Colour Space")

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

Colour is available when Colour Space is set to Custom.

Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta.

Press the ENTER button.

• Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour.
  Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button.
  Press the ◀ or ▶ button to decrease or increase the value of a particular item.
  Press the ENTER button.

- Reset: Resets the colour space to the default values.

◆ White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◀ or ▶ button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

◆ Flesh Tone:-15\~+15

You can emphasize the pink tone in the picture.

Press the ◀ or ▶ button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

◆ Edge Enhancement: Off/On

You can emphasize object boundaries.

◆ xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.

The xvYCC function works only in Component or HDMI mode

If xvYCC function is active, PIP cannot be selected.

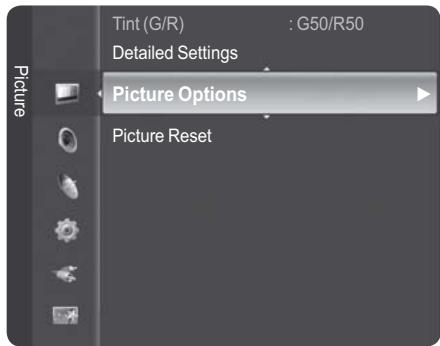

Picture Options

You can set detailed picture settings.

1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ▲ or ▼ button to select Picture Options, then press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.
In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection from among the items in Picture Options.
◆ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.

◆ Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

- Auto Wide: Expanding and pulling up the picture from 4:3 to 16:9 ratio.

➢ Auto Wide function is available only in TV, Ext.1, Ext.2, AV and S-Video mode.

• 16:9: Sets the picture to 16:9 wide mode.
• Wide Zoom: Magnify the size of the picture more than 4:3. Move the screen up/down using the ▲ or ▼ button after selecting the Position by pressing the ▶ or ENTER button.
• Zoom: Magnify the size of the picture vertically on screen.
• 4:3: Sets the picture to 4:3 normal mode.
• Just Scan: Use this function to see the full image without any cutoff when HDMI(720p/1080i/1080p), Component(1080i/1080p) signals are input.

After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Press the ◀ or ▶ button to select Position, then press the ENTER button. Press the ▲, ▼, ◀ or ▶ button to move the picture.

Reset: Press the ◀ or ▶ button to select Reset, then press the ENTER button. You can initialize the setting.

With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off or a specific colour appears on the screen.
For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p) connection of 50 and 60Hz, only the input source is supported.

You can change the picture size simply by pressing the P.SIZE button on the remote control.
▶ Depending on the input source, the picture size options may vary.
The items available may differ depending on the selected mode.
When Double (☐, ☐) mode has been set in PIP, the Picture Size cannot be set.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.
If you use the “Just Scan” function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

Positioning and Sizing the screen using Zoom

• Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction using the ▲ or ▼ button as well as the screen size.
• Move the screen up/down using the ▲ or ▼ button after selecting the Position by pressing the ◀ or ▶ button.
• Resize the screen vertically using the ▲ or ▼ button after selecting the Size by pressing the ◀ or ▶ button.

◆ Screen Mode: 16:9/Wide Zoom/Zoom/4:3

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

• 16:9: Sets the picture to 16:9 wide mode.
• Wide Zoom: Magnify the size of the picture more than 4:3.
• Zoom: Magnify the size of the picture vertically on screen.

- 4:3: Sets the picture to 4:3 normal mode.

This function is available in Auto Wide mode.

This function is not available in PC, Component or HDMI mode.

◆ Digital NR: Off/Low/Medium/High/Auto

If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNIe: Off/Demo/On

This TV includes the DNle function so as to provide a high visual quality. If you set DNle to on, you can view the screen with the DNle feature activated. If you set the DNle to Demo, you can view the applied DNle and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNle™ (Digital Natural Image engine) DNle™

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNle™ technology will fit every signal into your eyes.

This function is available only in Dynamic mode.

◆ HDMI Black Level: Normal/Low

Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low colour, etc.) is encountered by the HDMI input for RGB limited range (16 to 235).

This function is active only when the external input connects to HDMI(RGB signals).

◆ Movie Plus: Off/Low/Medium/High/Demo

You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.
This function is not available in Wide Zoom and Zoom modes.
This function is not available when PIP is set to On.
It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode.

◆ Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

Blue Only Mode is available when the picture mode is set to Movie or Standard.

Screen Burn Protection

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.

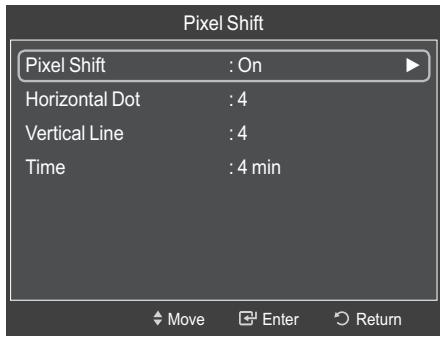

- Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

• Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button.
• Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Available options: Horizontal Dot, Vertical Line, Time

▶ Optimum condition for pixel shift;

	PC	TV/Ext/AV/Component/HDMI
Horizontal Dot	4	4
Vertical Line	4	4
Time (minute)	4	4 min

The Pixel Shift value may differ depending on the monitor size (inches) and mode.
This function is not available in the Just Scan mode.

• All White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.
• Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.
• Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.

Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

To remove after images on the screen, use either White or Scrolling function. Although both of the two functions remove after images on the screen, Scrolling is more effective.
The after image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after images on the screen. If after image is not improved after the execution of the function, repeat the function again.
➢ Press any button on the remote control to cancel this feature.

Resetting the Picture Settings to the Factory Defaults

1 To select the desired picture mode, follow the “Changing the Picture Standard” instructions numbers 1 and 2. (see page 26)
2 Press the ▲ or ▼ button to select Picture Reset, then press the ENTER button.
3 Press the ▲ or ▼ button to select OK or Cancel then press the ENTER button.

▶ Each mode can be reset.

1 Press the MENU button to display the menu.

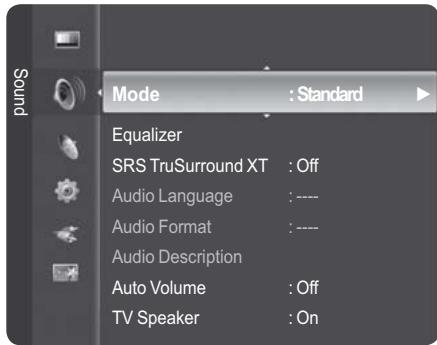

2 Press the ▲ or ▼ button to select Sound, then press the ENTER button.
3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
Available options: Mode, Equalizer, SRS TruSurround XT, Audio Language, Audio Format, Audio Description, Auto Volume, TV Speaker, Sound Select, Sound Reset
4 When you are satisfied with your setting, press the ENTER button.
5 Press the EXIT button to exit.
◆ Mode: Standard/Music/Movie/Speech/Custom
You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Sound Mode.
3 Press the ◀ or ▶ button to select the required option.
4 Press the EXIT or TOOLS button to exit.

◆ Equalizer: Mode/Balance/100Hz/300Hz/1kHz/3kHz/10kHz/Reset

You can select a sound mode to suit your personal preferences.

The television has several settings which allow you to control the sound quality.

The adjusted values are stored according to the selected Sound mode.

- Reset : Resets the equalizer settings to the default values.

◆ SRS TruSurround XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select SRS TS XT.
3 Press the ◀ or ▶ button to select Off or On.
4 Press the EXIT or TOOLS button to exit.

TruSurround XT, SRS and (●) Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

◆ Audio Language

You can change the default value for audio languages. Displays the language information for the incoming stream.

While viewing a Digital channel, this function can be selected.
You can only select the language among the actual languages being broadcast.

◆ Audio Format: MPEG/Dolby Digital

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

While viewing a Digital channel, this function can be selected.
You can only select the language among the actual languages being broadcast.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

◆ Audio Description: Audio Description/ Volume

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the Audio Description, when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

- Audio Description : On/Off

- Volume : 0\~100

Volume is active when Audio Description is set to On.
While viewing a Digital channel, this function can be selected.

◆ Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The - +, MUTE buttons do not operate when the TV Speaker is set to Off.
When TV Speaker is set to Off, you can operate only Audio Language, Audio Format, Audio Description, Sound Select(in PIP mode), Sound Reset(in digital TV mode) and Sound Reset(in analogue TV mode) in Sound menu.

	TV's Internal Speakers			Audio Out (Optical, L/R Out) to Sound System
	TV	AV, S-Video	Component, PC, HDMI	TV	AV, S-Video	Component, PC, HDMI
TV Speaker On	Speaker Output	Speaker Output	Speaker Output	Speaker Output	Speaker Output	Speaker Output
TV Speaker Off	Mute	Mute	Mute	Speaker Output	Speaker Output	Speaker Output
Video No Signal	Mute	Mute	Mute	Mute	Mute	Mute

◆ Sound Select: Main/Sub

When the PIP feature is activated, you can listen to you can operate only Sound Select (in PIP mode) in Sound menu.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture.

◆ Sound Reset: Reset All/Reset Sound Mode/Cancel

You can restore the Sound settings to the factory defaults.

• Reset All: All the sound values return to default settings.
• Reset Sound Mode: Currently set values return to default settings.

The DUAL I-II button displays/controls the processing and output of the audio signal. When power is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the current transmission.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Dual I-II.
3 Press the ◀ or ▶ button to select the required option.

	Type of broadcast	On-screen indication
NICAM Stereo	Regular broadcast (Standard audio)	Mono (Normal use))
	Regular + NICAM Mono	NICAM ↔ Mono (Normal)
	NICAM-Stereo	NICAM ↔ Mono (Normal)
	NICAM Dual-I/II	NICAM Dual-1 → NICAM Dual-2 → Mono (Normal)
A2 Stereo	Regular broadcast (Standard audio)	Mono (Normal use))
	Zweisprachig oder Dual-I/II	Dual I ↔ Dual II
	Stereo	Stereo ↔ Mono (Forced mono)

If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono.
◆ If the stereo signal is weak and automatic switching occurs, switch to Mono.
◆ This function is only available in Analogue TV mode.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.

When you insert the head set jack into the corresponding port, you can operate only
DTV : Audio Language, Audio Format, Audio Description, TV Speaker, Sound Reset
ATV : TV Speaker, Sound Reset
PIP : Sound Select, Sound Reset in Sound menu.

➢ Prolonged use of headphones at a high volume may damage your hearing.
➢ You will not hear sound from the speakers when you connect headphones to the TV.
The headphone volume and TV volume are adjusted separately.

TV Side Panel

Illustration of a pair of headphones connected to an earplifier (no text or symbols visible)

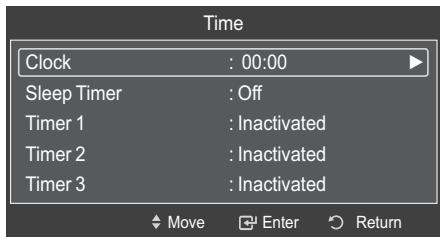

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the ENTER button.
3 Press the ▲ or ▼ button to select Time, then press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Available options: Clock, Sleep Timer, Timer 1, Timer 2, Timer 3

5 When you are satisfied with your setting, press the ENTER button.

6 Press the EXIT button to exit.

Clock

You can set the television clock so that the current time is displayed when pressing the INFO button on the remote control. You must also set the time if you wish to use the automatic on or off timers.

Option 1: Setting the Clock Manually

- Clock Mode Press the ENTER button to select Clock Mode. Press the ▲ or ▼ button to select Manual, then press the ENTER button

- Clock Set

Press the ◀ or ▶ button to select Day, Month, Year, Hour, Minute or am/pm. Set these by pressing the ▲ or ▼ button.

You can set the Day, Month, Year, Hour, or Minute directly by pressing the numeric buttons on the remote control.

Option 2: Setting the Clock Automatically

- Clock Mode

Press the ENTER button to select Clock Mode.

Press the ▲ or ▼ button to select Auto, then press the ENTER button.

Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

- Select the preset time interval (Off, 30, 60, 90, 120, 150, or 180) for staying on by pressing the ▲ or ▼ button.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Sleep Timer.
3 Press the ◀ or ▶ button to select the minute, then press the ENTER button.
4 Press the EXIT or TOOLS button to exit.

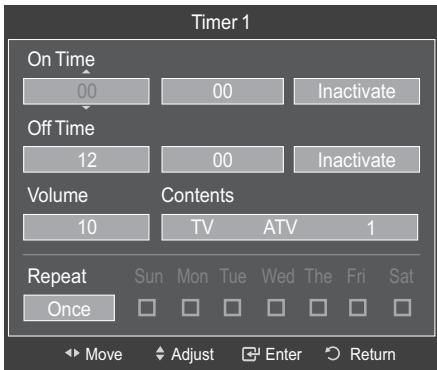

◆ Timer 1 / Timer 2 / Timer 3

You can set the On/Off timers so that the television will switch on or off automatically at the time you select.

You must set the clock first.

- Press the ◀ or ▶ button to select the required item below.

Press the ▲ or ▼ button to adjust to the setting satisfied.

On Time : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.)

Off Time : Select hour, minute, and Inactivate/Activate. (To activate timer with the setting satisfied, set to Activate.) Contents: You can select the content to be played when the TV turns on automatically.

Volume : Select the required volume level.

Repeat : Select Once, Everyday, Mon\~Fri, Mon\~Sat, Sat\~Sun or Manual.

When Manual is selected, Press the ▶ button to select the desired day of the week. Press the ENTER button over the desired day and the mark (V) will appear.

You can set the hour, minute, directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may occur if a TV is on for too long time.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the ENTER button.
3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
Available options: Language, Change PIN, Parental Lock, Subtitle, Teletext Language, Preference, Light Effect, Melody, Entertainment, Energy Saving, PIP
4 When you are satisfied with your setting, press the ENTER button.
5 Press the EXIT button to exit.

Language

It is variable depending on the model. When you start using the television for the first time, you must select the language which will be used for displaying menus and indications.

Change PIN

Press the ▲ or ▼ button to select Change PIN, then press the ENTER button. The Enter PIN is displayed. Enter your current 4-digit PIN code by using the numeric buttons (0\~9).

The Enter New PIN and Confirm New PIN is displayed.
If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:POWER (Off), MUTE, 8, 2, 4, POWER (On).

◆ Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1 Enter your 4-digit PIN by using the numeric buttons (0\~9).

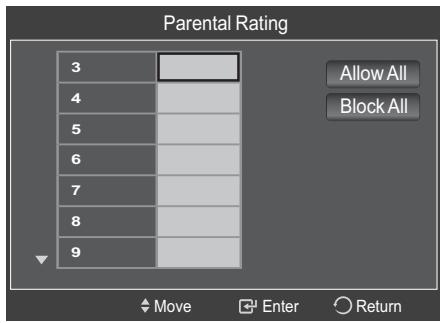

2 Press the ENTER button to select Parental Rating.

3 Press the ▲ or ▼ button to select an appropriate restriction, then press the ENTER button.

The “ 🔒 ” symbol is indicated.

While “ 🔊 ” is selected, press the ENTER button to block or unblock the category.

▶ Allow All: Press to unlock all TV ratings.

Block All: Press to lock all TV ratings.

The default PIN code for a new TV set is 0000.

Subtitle

Subtitle : On / Off

- You can select these options simply by pressing the SUBT. button on the remote control.

While viewing a programme, the subtitle can be selected.

➢ Mode : Normal (basic subtitle) / Hard of hearing (subtitle for a hearing-impaired person)

- If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even though Hard of hearing mode is selected.

While viewing a programme, audio languages can be selected.

Subtitle Language : You can change the default value for subtitle languages.

◆ Teletext Language

You can set the Teletext language by selecting the language type.

➢ English is the default in cases where the selected language is unavailable in the broadcast.

Preference

This menu consists of 6 sub-menus:

Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, and Secondary Teletext Language (depending on the Country).

Using this feature, users can select one of the languages (English, German, Italian, Swedish, French, Welsh, Gaelic, Irish, Danish, Finnish, Spanish, Dutch). The language selected here is the default when the user selects a channel.

➢ Press the ▲ or ▼ button to select required menu (Primary Audio Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, or Secondary Teletext Language), then press the ENTER button.

The options of the selected menu are displayed.

Press the ▲ or ▼ button to select required option (Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French, Gaelic, German, Greek, Hungarian, Irish, Italian, Norwegian, Polish, Portuguese,

Romanian, Russian, Serbian, Spanish, Swedish, Turkish, Welsh), then press the ENTER button.

• If you change the language setting, the Audio Language, Subtitle Language, and the Teletext Language of the Language menu are automatically changed to the selected language.
• The Audio Language, Subtitle Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Audio Language, Primary Subtitle Language, or the Primary Teletext Language of the Preference menu.

◆ Light Effect: Off/In Standby/Watching TV/Always

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

• Off: The blue LED is always off.
• In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on.
• Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off.
• Always: The blue LED always lights.
  Set the Light Effect to Off to reduce the power consumption.

◆ Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

• When no sound is output from the TV because the MUTE button has been pressed.
• When no sound is output from the TV because the - ▲ (Volume) button has been pressed.
• When the TV is turned off by Sleep Timer function.

◆ Entertainment: Off/Sports/Cinema/Game

Entertainment mode enables you to select the optimal display and sound for sports, cinema and games.

• Off: Switches the Entertainment function off.
• Sports: Provides the optimal picture and sound quality for sports.
• Cinema: Provides the optimal picture and sound quality for movie watching. You can experience a richer picture and enhanced sound.
• Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three Entertainment modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode must be turned off.

The Entertainment settings are saved for each input source.

.Continued...

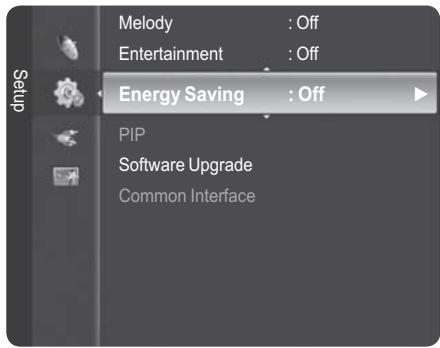

◆ Energy Saving: Off/Low/Medium/High

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

• Off: Switches off the Energy Saving mode.
• Low: Operates in standard mode regardless of the surrounding illumination.
• Medium: Enters Medium power saving mode regardless of the surrounding illumination.
• High: Enters maximum power saving mode regardless of the surrounding illumination.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Energy Saving.
3 Press the ◀ or ▶ button to select the required option.
4 Press the EXIT or TOOLS button to exit.

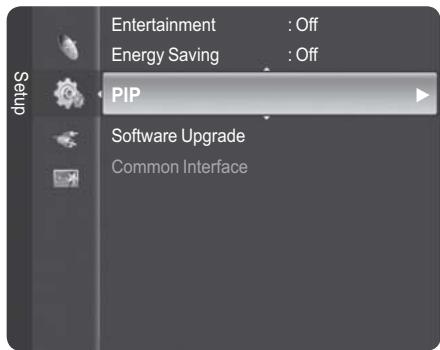

◆ PIP (Picture in Picture):

You can display a sub picture within the main picture. In this way you can watch TV programme or monitor the video input from any connected devices.

- PIP: On/Off

You can activate or deactivate the PIP function.

Table of PIP Settings

Main Picture	Sub Picture
ComponentHDMI1, HDMI2/DVI, HDMI3,HDMI4, PC	TV, Ext1, Ext2, AV

- Source

You can select a source of the sub-picture.

- Size: □ / □ / □

You can select a size of the sub-picture.

If main picture is in PC and Component mode, Size is not available.

- Position: □ / □ / □ / □

You can select a position of the sub-picture.

In Double(□, □) mode, Position cannot be selected.

- Channel

You can select a channel of the sub-picture only when the Source is set to TV.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select PIP, then press the ENTER button.

Upgrading the Software

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

1 Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the side of the TV.

2 Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button.

3 Press the ▲ or ▼ button to select Software Upgrade, then press the ENTER button.

4 Press the ▲ or ▼ button to select "BY USB", "BY Channel" or "Standby Mode Upgrade". Press the ENTER button.

BY USB :

- Preset : Insert a USB drive containing the firmware upgrade into TV.

➢ Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the firmware upgrade.

Please check the firmware version after the upgrades are complete. When software is upgraded, video and audio settings you have made will return to their default (factory) settings.

We recommend you write down your settings so that you can easily reset them after the upgrade.

BY Channel :

Upgrades the software using the broadcasting signal.

Standby Mode Upgrade :

To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

Alternative Software :

To display the software version information.

This contains information on CAM inserted in the CI slot and displays it.

You can install the CAM anytime whether the TV is ON or OFF.

◆ Installing the CI Card

a. Purchase the CI CAM module by visiting your nearest dealer or by phone.
b. Insert the CI CARD into the CAM in the direction of the arrow until it fits.
c. Insert the CAM with the CI CARD installed into the common interface slot.
Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.
d. Check if you can see a picture on a scrambled signal channel.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the ENTER button.
3 Select the Common Interface by pressing the ▲ or ▼ button, then press the ENTER button.

◆ CI Menu This helps the user select an item from the CAM-supported menu.

➢ Press the ENTER button. The options of the selected menu are displayed.
Press the ▲ or ▼ button to select the required option, then press the ENTER button.

◆ Application Info. This contains information on CAM inserted in the CI slot and displays it.

➢ Press the ENTER button to display the information for your application.

Select the CI Menu based on the PC Card menu.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

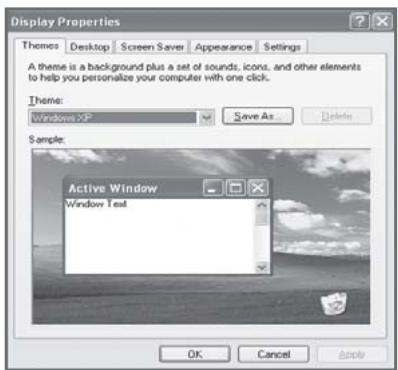

1 Right click the mouse on the Windows Desktop, then click on Properties.
The Display Properties will be displayed.
2 Click on Settings tab, then set the Display Mode with reference to the Display Modes Table. You do not need to change the Colours settings.
3 Click on Advanced. A new settings dialog box will be displayed.
4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of setting the Screen refresh rate.
5 Click on OK to close the window, then Click on OK button to the Display Properties window. Automatic re-booting may commence at this moment.

Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported:

D-Sub Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 350	31.469	70.086	25.175	+ / -
	720 x 400	31.469	70.087	28.322	- / +
VESA	640 x 480	31.469	59.940	25.175	- / -
	640 x 480	37.861	72.809	31.500	- / -
	640 x 480	37.500	75.000	31.500	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	800 x 600	48.077	72.188	50.000	+ / +
	800 x 600	46.875	75.000	49.500	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1024 x 768	60.023	75.029	78.750	+ / +
	1280 x 1024	63.981	60.020	108.000	+ / +
	1280 x 1024	79.976	75.025	135.000	+ / +
	1360 x 768	47.712	60.015	85.500	+ / +
	1600 x 1200	75.000	60.000	162.000	+ / +
CVT	1920 x 1080RB	66.587	59.934	138.500	+ / -

HDMI/DVI Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
VESA	640 x 480	31.469	59.940	25.175	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1280 x 1024	63.981	60.020	108.000	+ / +
	1360 x 768	47.712	60.015	85.500	+ / +
	1600 x 1200	75.000	60.000	162.000	+ / +
CEA	1920 x 1080p	67.500	60.000	148.500	+ / +

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
◆ The interlace mode is not supported.
◆ The set might operate abnormally if a non-standard video format is selected.
◆ Separate and Composite modes are supported. SOG is not supported.

Setting the PC

▶ Preset to the PC mode by pressing the SOURCE button.

1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Picture, then press the ENTER button.
3 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
4 When you are satisfied with your setting, press the ENTER button.
5 Press the EXIT button to exit.

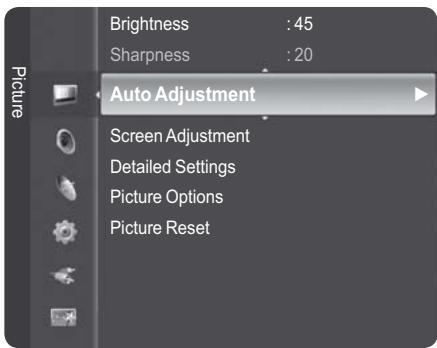

- Auto Adjustment : Auto adjustment allows the PC screen to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Easy Setting

1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Auto Adjustment, then press the ENTER button.

◆ Screen Adjustment: Coarse/Fine/Position/Image Reset

- Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise.

If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again.

After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

1 Press the ▲ or ▼ button to select Coarse or Fine, then press the ENTER button.
2 Press the ◀ or ▶ button to adjust the screen quality, vertical stripes may appear or the picture may be blurry. Press the ENTER button.

- Position

Adjust the PC's screen positioning if it does not fit the TV screen.

1 Adjust the position by pressing the ▲/▼/◄/► button.
2 Press the ENTER button.

- Image Reset

You can replace all image settings with the factory default values.

This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

1 Press the POWER button on the remote control or front panel. The TV is powered on.
2 Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device connected the message "No external storage device found. Check the connection status." will appear. In this case, insert the USB device, exit the screen by pressing

TV Side Panel

the W.LINK button on the remote control and enter the WISELINK screen again.

MTP (Media Transfer Protocol) is not supported.
The file system only supports FAT16/32 (The NTFS file system is not supported).
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Wiselink only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)
Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.
Do not disconnect the USB device while it is loading.
MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only.
The sequential jpeg format is supported.
➢ Photo and audio files must be named in English, French or Spanish. If not, the files can not be played. Change the file names to English, French or Spanish if necessary.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEG resolution is 15360x8640 pixels.
For unsupported or corrupted files, the "Not Supported File Format" message is displayed.

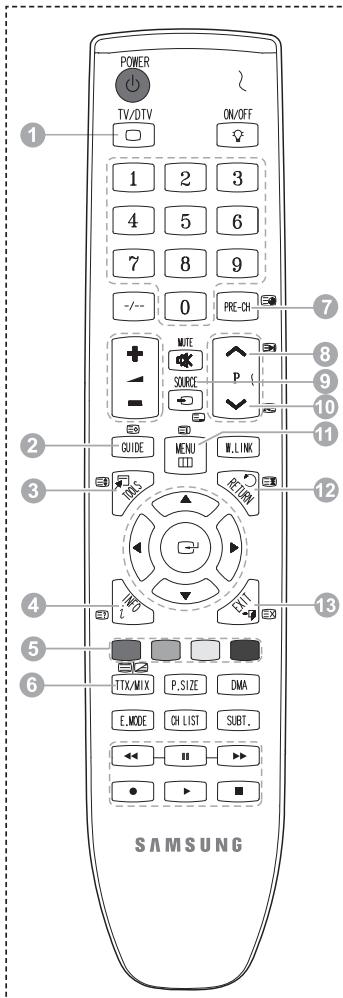

Using the Remote Control Button in WISELINK Menu

Button	Operations
	Move the cursor and select an item.
	Select the currently selected item.During a Slide Show or Music Play:- Pressing the ENTER button during play pauses the play.- Pressing the ENTER button during pause resumes the play.
	Play or pause the Slide Show or Music file.
	Return to the previous menu.
	Run various functions from the Photo and Music menus.
	Stop the current slide show or Music file.
	Jump to previous group / Jump to next group.
[4TDO]	Show file information.
	Exit WISELINK mode.
	Stop WISELILNK mode and Returns to TV mode.
	Stop the current function and return to the WISELINK main menu.

Using the WISELINK Menu

1 Press the MENU button. Press the ▲ or ▼ button to select Application, then press the ENTER button.
2 Press the ▲ or ▼ button to select WISELINK, then press the ENTER button.

The WISELINK menu is displayed.

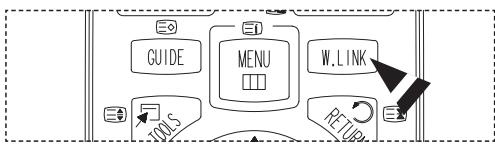

Press the W.LINK button on the remote control to display the WISELINK menu.

Press the SOURCE button on the remote control repeatedly to select USB, then press the ENTER button.
3 Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory Device. (i.e.

WiseLink does not support the use of a usb hub.) Press the ENTER button.

This function differs depending on the USB Memory Device connected to TV.
The selected USB device name appears at the bottom left of the screen.

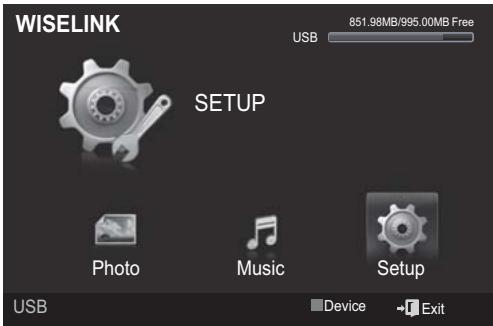

4 Press the ◀ or ▶ button to select an icon (Photo, Music, Setup), then press the ENTER button.

To exit WISELINK mode, press the W.LINK button on the remote control.

Using the Photo List

This menu shows Photo files saved on an USB memory device.

Photo List

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to select Photo, then press the ENTER button.

This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed.
Photo files are displayed.
Press the ▶ (Play)/ENTER button to start the Slide Show.
When moving to a photo, loading may take a few seconds. At this point, the loading icon will appear at the screen.
It takes some time to load photo files as Thumbnail images.
➢ Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution.
To move to the previous / next group, press the (REW) or (FF) button.

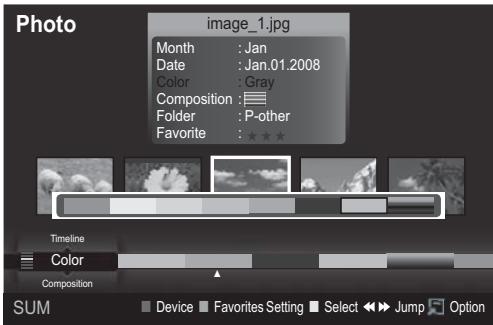

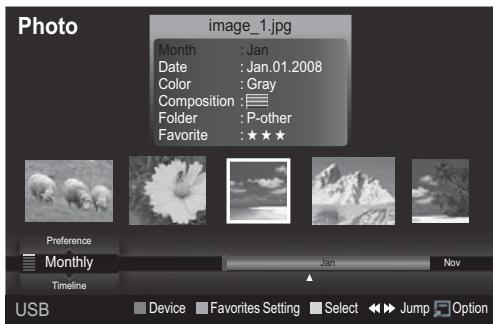

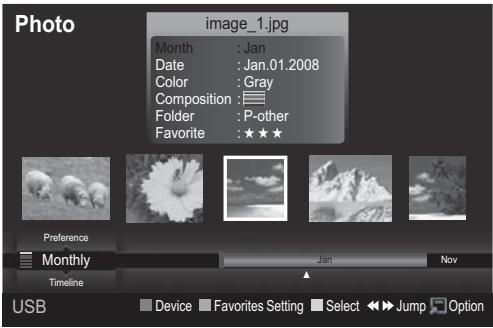

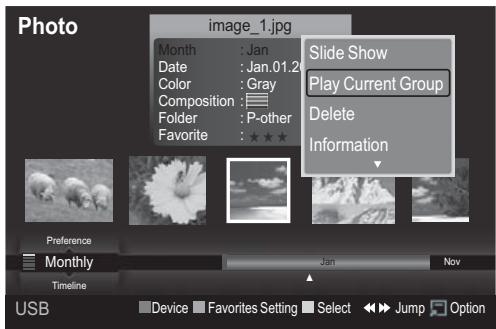

Screen Display

1 Currently selected photo Shows the currently selected photo.

2 Photo Information Window Shows information about the currently selected photo. You can change the Color, Compositon, and Favorite.

3 Current Sort Standard Press the ▲ or ▼ button to

change the standard for sorting photos.

(Monthly, Timeline, Color, Composition, Folder, Preference)

The item that is selected as the sorting standing is highlighted in the Photo Information Window.

4 View Groups

Shows the sorting groups. The sorting group including the currently selected photo is highlighted.

5 Current Device

Shows the currently selected device name. Press the Red button to select a device.

6 Item Selection Information

Shows the number of photos that are selected by pressing the Yellow button.

7 Help Items

• Red(Device) button: Selects a connected device.
• Green(Favorites Setting) button: Changes the favorites setting for the selected photo. Press this button repeatedly until the relevant value appears.
• Yellow(Select) button: Selects photos from the photo list. Selected photos are marked with a symbol (√) on the left.

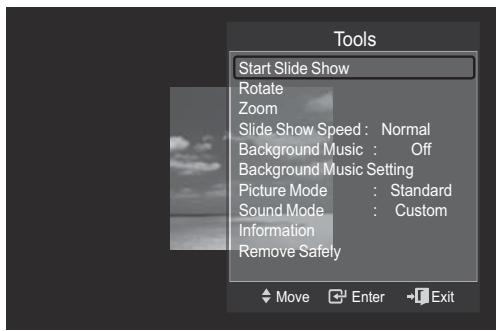

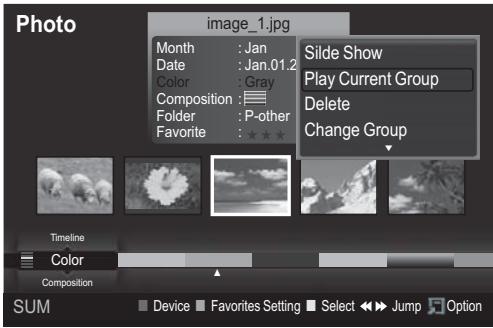

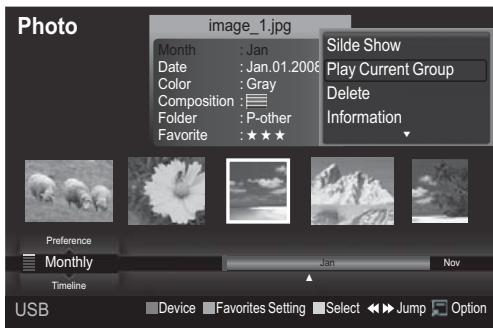

• TOOLS(Option) button: Displays the Slide Show, Play Current Group, Delete, Change Group info (in Color or Composition group), Information or Remove Safely menus.
• button: Jumps to the previous sorting group / Jumps to the next sorting group.

Continued...

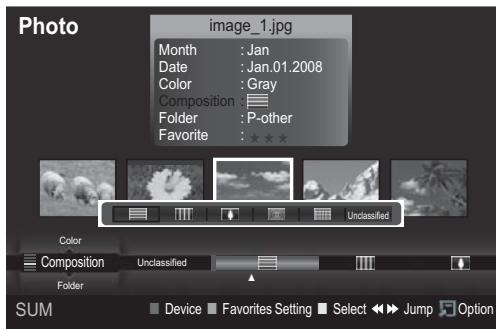

Sorting Photo List

You can sort photos in the Photo List by a particular standard.

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to select Photo, then press the ENTER button.
▶ Photo files are displayed.
3 Press the ▲ or ▼ button to select a sorting standard. (Monthly, Timeline, Color, Composition, Folder,

Preference)

4 Press Enter to start the Slide Show in the order selected by the user.

➢ Wiselink identifies the color and composition of images and groups them accordingly by analyzing images on the USB device.
The Composition and Color information extracted from a photo file may be different from what you selected.

➢ Photo information is automatically set. You can change the Color, Composition, and Favorite.

➢ Photos for which information cannot be displayed are set as Unclassified.

PTP does not support folder sort mode.

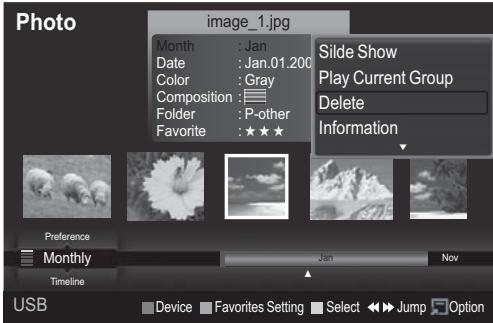

Monthly

Sorts photos by month.

It sorts and shows photos in the file by month. It sorts only by month (from January to December) regardless of year.

1 Select Monthly as the sorting standard in the Photo List.
2 Press the ◀ or ▶ buttons to select from the sublist of files grouped by Month.

To move to the previous / next group, press the ← (REW) or ▶ (FF) button.

3 Press the TOOLS button. Press the ▲ or ▼ button to highlight Play Current Group.

4 Press ENTER button to play the the selected group of photo files from the sublist.

Timeline

Sorts photos by time.

It sorts and shows photos by date. It sorts by year and month from the earliest photo.

1 Select Timeline as the sorting standard in the Photo List.

2 Press the ◀ or ▶ buttons to select from the sublist of files grouped by Timeline.

To move to the previous / next group, press the (REW) or (FF) button.

3 Press the TOOLS button. Press the ▲ or ▼ button to highlight Play Current Group.

4 Press ENTER button to play the the selected group of photo files from the sublist.

Color

Sorts photos by color.

You can change the photo color information.

1 Select Color as the sorting standard in the Photo List.
2 Press the ◀ or ▶ button to select from the sublist of files grouped by color.
To move to the previous / next group, press the (REW) or (FF) button.
3 Press the TOOLS button. Press the ▲ or ▼ button to select Change Group.
4 Press ENTER to play the selected group of photo files from the sublist.

Changing the color information

1 Select Color as the sorting standard in the Photo List and press the ◀ or ▶ button to select a photo.

Changing the information of multiple files Press the ◀ or ▶ button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The √ mark appears to the left of the selected photo.

2 Press the TOOLS button.
3 Press the ▲ or ▼ button to select Change Group. Press the ENTER button.
4 Press the ◀ or ▶ button to select the desired option, then press the ENTER button.

The group information of the current file is updated and the file is moved to the new group.
Color options: Red, Yellow, Green, Blue, Magenta, Black, Gray, Unclassified.

Composition

Sorts photos by composition.

You can change the compositional information of photos.

1 Select Composition as the sorting standard in the Photo List.
2 Press the ◀ or ▶ button to select from the sublist of files grouped by composition.

To move to the previous / next group, press the (REW) or (FF) button.

3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group.
4 Press ENTER to play the selected group of photo files from the sublist.

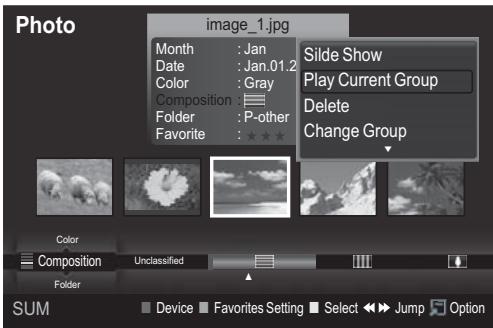

Changing the composition information

1 Select Composition as the sorting standard in the Photo List and press the ◀ or ▶ button to select a photo.

Changing the information of multiple files

Press the ◀ or ▶ button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The √ mark appears to the left of the selected photo.

2 Press the TOOLS button.
3 Press the ▲ or ▼ button to select Change Group. Press the ENTER button.
4 Press the ◀ or ▶ button to select the desired option, then press the ENTER button.

The group information of the current file is updated and the file is moved to the new group.
Composition options: ≡ (horizontal), ▪ (vertical), ◀ (object), ▽ (perspective), ▼ (pattern), Unclassified.

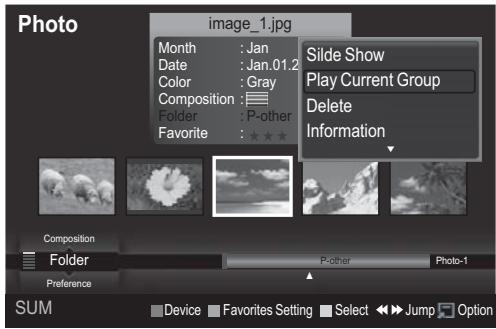

Folder

Sorts photos by folder.

If there are many folders in USB, the photos files are shown in order in each folder. The photo file in the Root folder is shown first and the others are shown in alphabetical order by name.

1 Select Folder as the sorting standard in the Photo List.

2 Press the ◀ or ▶ button to select from the sublist of files grouped by folder.

To move to the previous / next group, press the (REW) or (FF) button.

3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group.

4 Press ENTER to play the selected group of photo files from the sublist.

Preference

Sorts photos by preference. (Favorite)

You can change the photo preferences.

1 Select Preference as the sorting standard in the Photo List.

2 Press the ◀ or ▶ button to select from the sublist of files grouped by preference.

To move to the previous / next group, press the ◀ (REW) or ▶ (FF) button.

3 Press the TOOLS button. Press the ▲ or ▼ button to select Play Current Group.

4 Press ENTER to play the selected group of photo files from the sublist.

Changing the Favorites setting

1 Press the ◀ or ▶ button to select the desired photo in the Photo list.

Changing the information of multiple files Press the ◀ or ▶ button to select the desired photo in the Photo list. Then press the yellow button. Repeat the above operation to select multiple photos. The √ mark appears to the left of the selected photo.

2 Press the Green button repeatedly until the desired setting appears.

▶ Favorites settings change completed.

Favorite options: ★★★, ★★★, ★★★, ★★★

Users can select the number of stars (up to 3) according to their preference.

The stars in the Favorite options have no effect on priority. They are simply for grouping purposes. For example, files stored in the 3 star option do not have priority over files saved in the 1 star option.

Deleting the Photo files

1 Press the ◀ or ▶ button to select the desired photo in the Photo list.

2 Press the TOOLS button.

3 Press the ▲ or ▼ button to select Delete, then press the ENTER button.

The Selected Files : Delete this file? message appear.

4 Press the ◀ or ▶ button to select OK, then press the ENTER button.

The photo is deleted.

When a read-only file is deleted, the “Read-only file(s). Delete the files?” message appear.

If you select Cancel, the deletion is cancelled.

5 To exit WISELINK mode, press the W.LINK button on the remote control.

You cannot remove the PTP-connected digital camera picture files.

While removing files, don't remove the USB memory device.

You cannot recover a deleted photo file.

Deleting Multiple Photos

1 Press the ◀ or ▶ button to select the desired photo in the Photo list.

Then press the yellow button.

▶ Repeat the above operation to select multiple photos.

The (√) mark appears to the left of the selected photo.

2 Press the TOOLS button.

3 Press the ▲ or ▼ button to select Delete selected File, then press the ENTER button.

The Selected Files: image... 2 Files Delete the selected files? message appear.

4 Press the ◀ or ▶ button to select OK, then press the ENTER buttons.

The selected photos are deleted.

If you select Cancel, the deletion is cancelled.

5 To exit WISELINK mode, press the W.LINK button on the remote control.

You cannot remove the read-only files from the selected ones.

You cannot recover a deleted photo file.

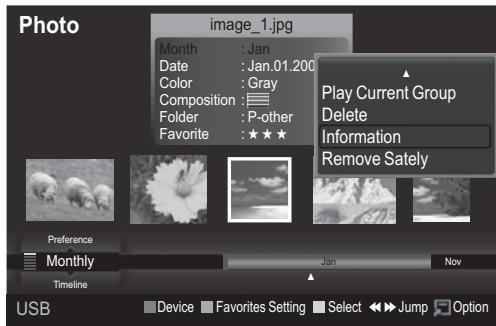

Viewing the Photo Information

The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed.

1 Press the ◀ or ▶ button to select the desired photo in the Photo list.

2 Press the TOOLS button.

3 Press the ▲ or ▼ button to select Information, then press the ENTER button.

The information on the selected photo appears.

Press the INFO button to viewing the information.

Viewing a Slide Show

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to move to Photo, then press the ENTER button.

➢ Photo files are displayed.

3 Press the ◀ or ▶ button to select the desired photo in the Photo list.
4 Press the TOOLS button.
5 Press the ▲ or ▼ button to select Slide Show, then press the ENTER button.

All files in the photo list will be used for the Slide Show.
During the slide show, files are displayed in order from the currently shown file.
The Slide Show progresses in the order sorted in the Photo list.
Music files can be automatically played during the Slide Show if the Background Music is set to On. (Refer to page 54)

While a photo list is displayed, press the ▶ (Play)/ENTER button on the remote control to start slide show.

To perform a SlideShow with only the selected files

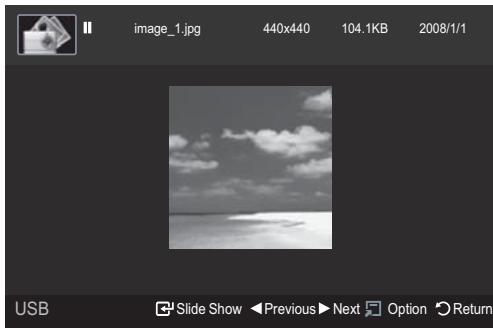

Black-and-white photo of a beach scene with clouds and water, displayed in an image editing interface (no text or symbols on the scene itself)

1 Press the ◀ or ▶ button to select the desired photo in the Photo list.

Then press the yellow button. Repeat the above operation to select multiple photos.

The mark appears to the left of the selected photo.
If you select one file, the SlideShow will not be performed.

2 Press the ▶ (Play)/ ENTER button

The selected files will be used for the Slide Show.
If you have selected files, only the selected files will be used for the Slide Show.

Playing current group

1 Press the ▲ or ▼ button to select a sorting standard. ("Monthly", "Timeline", "Color", "Composition", "Folder", "Preference")
2 Press the ◀ or ▶ button to select the desired photo in the Photo list.

To move to the previous / next group, press the (REW) or (FF) button.

3 Press the TOOLS button.
4 Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button. Only the photos in the sorting group including the selected files will be used for the Slide Show.

5 To exit WISELINK mode, press the W.LINK button on the remote control.

Slide show function information icon (Displayed at the top left of the screen).

Icon	Current OSD	Function
	(Photo) SlideShow	Photo Slide Show is in progress.
	Photo Pause	You can pause a SlideShow and Music by pressing the (pause) / ENTER button on the remote control during a Slide Show.To resume the SlideShow, press the (play) / ENTER button on the remote control again.

Viewing a photo

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to move to "Photo", then press the ENTER button.
Photo files are displayed.
3 Press the ◀ or ▶ button to select the desired photo in the Photo list.
Then Press the Yellow button to select only one file.

4 Press the ENTER button over a photo icon.

The currently selected photo is displayed in full screen.

Black-and-white photo of a beach scene with clouds and water, displayed in an image editing interface (no text or symbols on the scene itself)

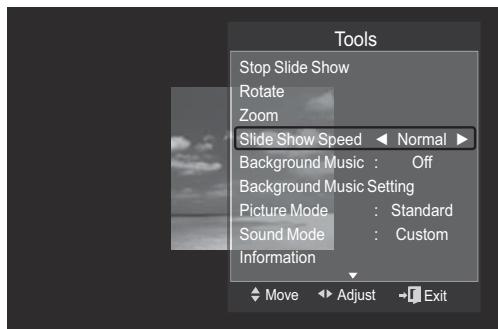

Using the option menu during a slide show (or Viewing a Photo)

1 During a slide show(or viewing a photo), Press the TOOLS button to set the option.
2 Press the ▲ or ▼ button to select the desired option. Then press the ENTER button.

Start Slide Show (Stop Slide Show)

You can start or stop a Slide Show.

Press the ▲ or ▼ button to select Start Slide Show

(or Stop Slide Show), then press the ENTER button.

Rotate

You can rotate images in full screen mode.

Press the ▲ or ▼ button to select Rotate, then press the

ENTER button. Press the ◀ or ▶ button repeatedly to rotate the photo by the desired amount.

Grayscale image of a landscape with wind patterns and a 90° rotation indicator (no text or symbols in the main image area)

Whenever you press the ◀ button, it rotates by 270^ , 180^ , 90^ , and 0^ .
Whenever you press the ▶ button, it rotates by 90°, 180°, 270°, and 0°.

If you have select Zoom, the Rotate function is deactivate

The rotated file is not saved.

The Rotating function information icon is displayed at the top right of the screen

Icon	Current OSD	Function
0°	Rotating (0°)	This rotates a photo to its original position
90°	Rotating (90°)	This rotates a photo by 90 degrees
180°	Rotating (180°)	This rotates a photo by 180 degrees
270°	Rotating (270°)	This rotates a photo by 270 degrees

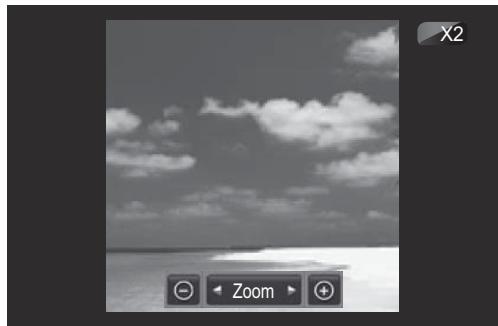

Zoom

You can zoom into images in full screen mode.

Press the ▲ or ▼ button to select Zoom, then press the ENTER button.

Press the ◀ or ▶ button repeatedly to increase or decrease the Zoom effect.

$$ (x 1 \rightarrow x 2 \rightarrow x 4) $$

To move the enlarged photo image, press the ENTER button, then press the ▲/▼/◄/► buttons.

Note that when the enlarged picture is smaller than the original screen size, the location change function doesn't work.
The enlarged file is not saved.
If you have select Rotate, the Zoom function is deactivate
➢ Zoom function information icon is displayed at the top right of the screen.

Icon	Current OSD	Function
	Zoom (x 1)	Restore a photo to its original size.
	Zoom (x 2)	Zoom-into a photo at 2x.
	Zoom (x 4)	Zoom-into a photo at 4x.
[YY∅2]	Pan Down	Pan down to view the lower part of a zoomed-in photo.
	Pan Up	Pan up to view the upper part of a zoomedin photo.
	Pan Right	Pan right to view the right side of a zoomed-in photo.
	Pan Left	Pan left to view the left side of a zoomed-in photo.

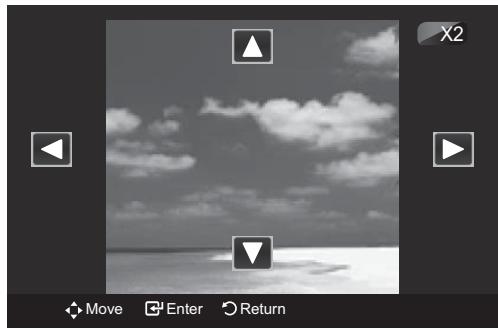

Black-and-white landscape photo of a body of water with scattered clouds and a blue horizon (no text or symbols)

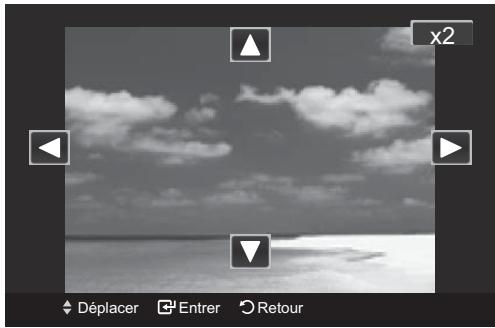

Black-and-white landscape photo of a cloudy sky with water and clouds, no text or symbols visible

Slide Show Speed

You can select the slide show speed.

Press the ▲ or ▼ button to select Slide Show Speed.

Press the ◀ or ▶ button to select the desired option.

(Normal → Fast → Slow)

You can select the Slide Show speed only during a slide show.

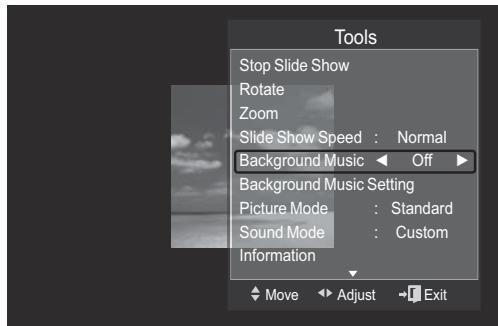

Background Music

If you set Background Music On, the background music will be played when viewing photos one by one or in a Slide Show.

Press the ▲ or ▼ button to select Background Music.

Press the ◀ or ▶ button to select On or Off.

If you set Background Music to On, a screen appears immediately where you can set the Background Music.

• On: When the background music is available, if you select On, the music is played back. To use this feature, there must be music and photo files stored on the USB device.
• Off: Background music is not played.

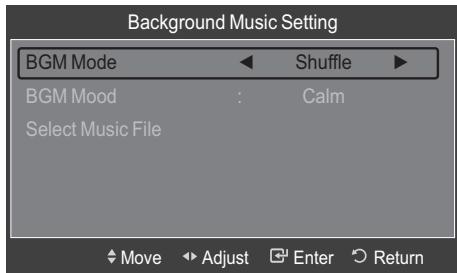

Background Music Setting

You can set the background music.

Press the ▲ or ▼ button to select Background Music Setting, then press the ENTER button.

If you turn off the Background Music, even if the Background Music Settings have been set up, the background music will not be played.
Loading music files is needed to change BGM Mode. Play music files in music category to load.
➢ Background Music setting menu is displayed. Press the ◀ or ▶ button to select the desired BGM (Background music) mode. (Shuffle, Selected file, Mood)

• Shuffle: Plays music file in random order.
• Selected file: Plays a selected music file.
• Mood: Plays music file of a particular mood only.

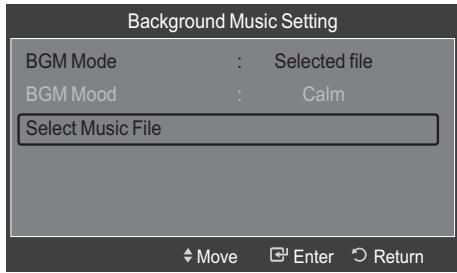

Selecting the background music file Set BGM Mode to Selected file in the Background Music Settings menu.

Press the ▲ or ▼ button to select Selected Music File, then press the ENTER button.

Press the ▲ or ▼ button to select a music file, then press the yellow button.

The (√) mark appears to the left of the selected music. Repeat the above operation to select multiple music files. Press the ENTER button.

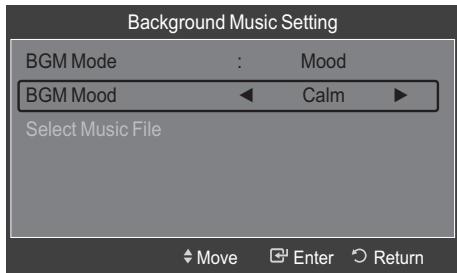

Selecting the background music file mood Press the ◀ or ▶ button to set BGM Mode to Mood. Press the ▲ or ▼ button to select BGM Mood. Then press ◀ or ▶ button to select the desired BGM mood. Press the ENTER button.

BGM Mode option: Energetic, Rhythmical, Sad, Exciting, Calm

Wiselink identifies the mood of the music files and groups them accordingly be analyzing the music files on the USB device.

Picture Mode

You can set the Picture mode. (Refer to page 27)

Sound Mode

You can set the Sound mode. (Refer to page 32)

Information

The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date modified and the path is displayed. (Refer to page 50)

Remove Safely

You can remove the device safely from the TV.

Press the ▲ or ▼ button to select Remove Safely, then press the ENTER button.

The Safely removing USB device. message appears and then the USB device can now be safely removed from TV. appears.

Remove the USB device from the TV.

This menu shows MP3 files from among the files saved on a USB memory device.

1 Press the W.LINK button on the remote control to display the WISELINK menu.

2 Press the ◀ or ▶ button to select Music, then press the ENTER button.

➤ Music files are displayed.
➢ Press the ▶ (Play)/ ENTER button over a music icon to play the music.
To select a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

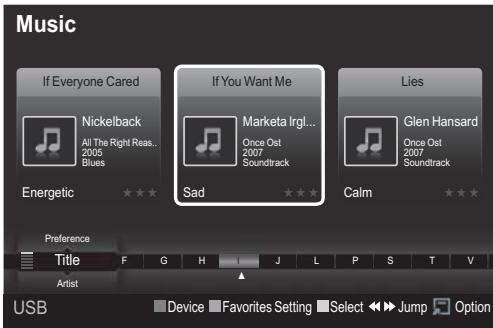

Screen Display

1 Currently selected music Shows the currently selected music.
2 Current Sort Standard

Press the ▲ or ▼ button to change the standard for sorting music files. (Title, Artist, Mood, Genre, Folder, Preference)

3 View Groups

Shows the sorting groups. The sorting group including the currently selected music file is highlighted.

4 Current Device

Shows the currently selected device name.

Press the Red button to select a device.

5 Item Selection Information
Shows the number of music files that are selected by pressing the Yellow button.
6 Help Items

• Red(Device) button: Selects a connected device.
• Green(Favorites Setting) button: Changes the favorites setting for the selected music. Press this button repeatedly until the relevant value appears.
• Yellow(Select) button: Selects music files from the music list. Selected music files are marked with a symbol (√) on the left.
• button: Jumps to the previous sorting group / Jumps to the next sorting group.
• TOOLS(Option) button: Displays the Play Current Group, Delete, Change Group info(in Mood group), Information or Remove Safely menus.

Continued...

Sorting Music List

You can sort music files in the Music List by a particular standard.

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to select Music, then press the ENTER button.
➤ Music files are displayed.
3 Press the ▲ or ▼ button to select a sorting standard. (Title, Artist, Mood, Genre, Folder, Preference)
➢ Music files are sorted according to the newly selected sorting standard.

4 Press ENTER button to start playing music in the order selected.

➢ Music information is set automatically and you can change the Favorite information.
Music files for which information cannot be displayed are set to “Unclassified”.
If there is no title information for a music file, the filename is displayed.
If no information is available for the Genre, Artist, Album, or Year, the corresponding item is displayed as blank.

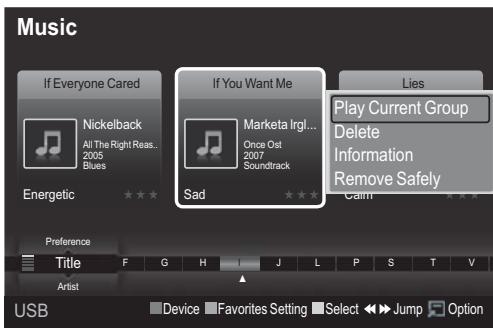

Title

Sorts music files by the title.

It sorts the Music titles in alphabetical order, and shows the music file.

1 Select Title as the sorting standard in the Music List.
2 Press the ◀ or ▶ buttons to select from the sublist of files grouped in alphabetical order.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

3 Press the TOOLS button.

4 Press the ▲ or ▼ buttons to select Play Current Group.

5 Press ENTER button to play the selected group of music files from the sublist.

Artist

Sorts music files by the artist.

It sorts the music file by artist in alphabetical order.

1 Select Artist as the sorting standard in the Music List.

2 Press the ◀ or ▶ button to select from the sublist of files grouped by artist.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

3 Press the TOOLS button.

4 Press the ▲ or ▼ buttons to select Play Current Group.

5 Press ENTER button to play the selected group of music files from the sublist.

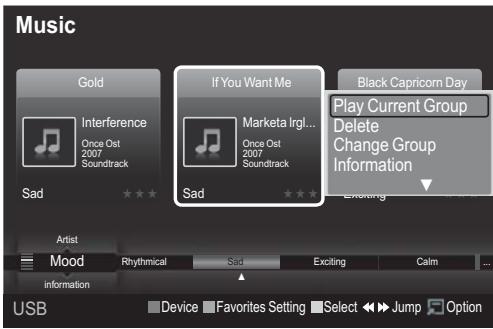

Mood

Sorts music files by the mood.

You can change the music mood information.

1 Select Mood as the sorting standard in the Music List.

2 Press the ◀ or ▶ buttons to select from the sublist of files grouped in alphabetical order.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

3 Press the TOOLS button.

4 Press the ▲ or ▼ buttons to select Play Current Group.

5 Press ENTER button to play the selected group of music files from the sublist.

Changing the Mood information

1 Select Mood as the sorting standard in the Music List and press the

◀ or ▶ button to select a music file.

2 Press the TOOLS button.

3 Press the ▲ or ▼ button to select Change Group.

Press the ENTER button.

Wiselink identifies the mood of the music files and groups them accordingly by analyzing the music files on the USB device.

The Mood information extracted from a music file may differ from what you selected.

4 Press the ◀ or ▶ button to select the desired option, then press the ENTER button.

The group information of the current file is updated and the file is moved to the new group.
Mood option: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassified

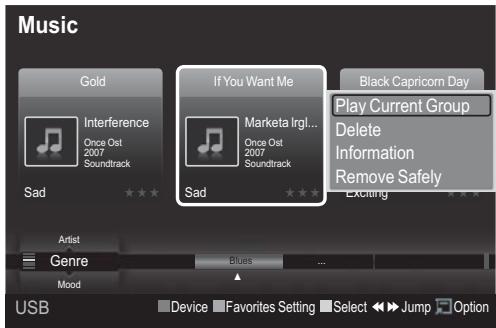

Genre

Sorts music files by the genre.

1 Select Genre as the sorting standard in the Music List.
2 Press the ◀ or ▶ button to select from the sublist of files grouped by genre.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

3 Press the TOOLS button.
4 Press the ▲ or ▼ buttons to select Play Current Group
5 Press ENTER button to play the selected group of music files from the sublist.

Folder

Sorts music files by the folder.

If there are many folders in USB, the files are shown in order in each folder. The music file in the Root folder is shown first and the others are shown in alphabetical order by name.

1 Select Folder as the sorting standard in the Music List.
2 Press the ◀ or ▶ button to select from the sublist of files grouped by folder.
To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.
3 Press the TOOLS button.
4 Press the ▲ or ▼ buttons to select Play Current Group.
5 Press ENTER button to play the selected group of music files from the sublist.

Preference

Sorts music files by preference. (Favorite)

You can change the music files preferences.

1 Select Preference as the sorting standard in the Music List.
2 Press the ◀ or ▶ button to select from the sublist of files grouped by folder.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

3 Press the TOOLS button.
4 Press the ▲ or ▼ buttons to select Play Current Group.
5 Press ENTER button to play the selected group of music files from the sublist.

Changing the Favorites setting

1 Press the ◀ or ▶ button to select the desired music in the Music List.

Changing the information of multiple files Press the ◀ or ▶ button to select the desired music in the Music List. Then press the yellow button. Repeat the above operation to select multiple music. The √ mark appears to the left of the selected music.

2 Press the Green button repeatedly until the desired setting appears.

▶ Favorites settings change completed.
Favorite option: ★★★, ★★★, ★★★, ★★★
Users can select the number of stars (up to 3) according to their preference.

3 Press the ENTER button to start playing music.

The stars in the Favorite options have no effect on priority. They are simply for grouping purposes. For example, files stored in the 3 star option do not have priority over files saved in the 1 star option.

Deleting the Music files

1 Press the ◀ or ▶ button to select the desired music in the music list.
2 Press the TOOLS button.
3 Press the ▲ or ▼ button to select Delete, then press the ENTER button.

The (for example) Selected Files: Delete this file? message appear.

4 Press the ◀ or ▶ button to select OK, then press the ENTER button.

The music is deleted.
When a read-only file is deleted, the Read-only files. Delete the files? message appear.
If you select Cancel, the deletion is cancelled.

5 To exit WISELINK mode, press the W.LINK button on the remote control.

While removing files, don't remove the USB memory device.
You cannot recover a deleted music files.

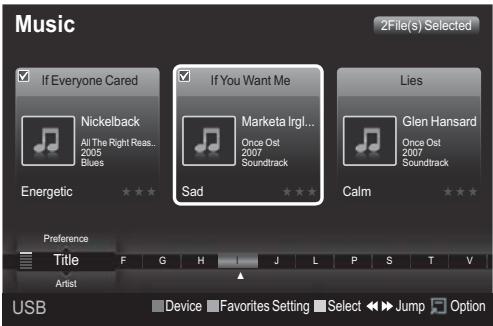

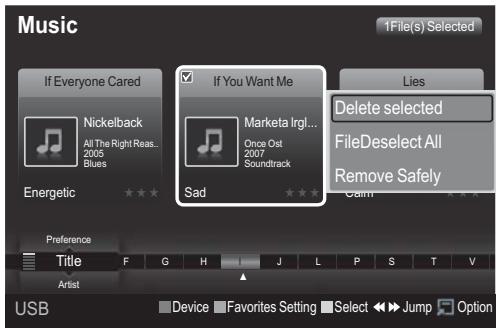

Deleting Multiple Music files

1 Press the ◀ or ▶ button to select the desired music in the music list. Then press the yellow button.

Repeat the above operation to select multiple music files.
The (√) mark appears to the left of the selected music files.

2 Press the TOOLS button.

3 Press the ▲ or ▼ button to select Delete selected File, then press the ENTER button.

The (for example) Selected Files: Delete the selected files? message appear.

4 Press the ◀ or ▶ button to select OK, then press the ENTER button.

The selected music files are deleted.
If you select Cancel, the deletion is cancelled.

5 To exit WISELINK mode, press the W.LINK button on the remote control.

You cannot remove the read-only files from the selected ones.
You cannot restore the deleted music files.

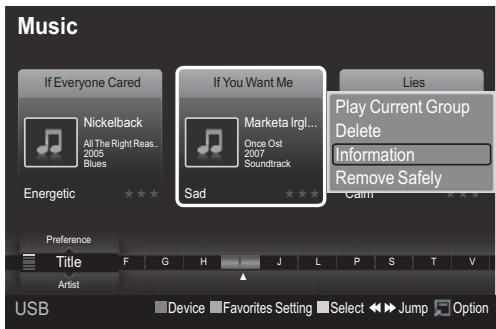

Viewing the Information

The music file information including the order of the file in the current directory, the name, the size, the date modified and the path is displayed.

1 Press the ◀ or ▶ button to select the desired photo in the Music list.
2 Press the TOOLS button.
3 Press the ▲ or ▼ button to select Information, then press the ENTER button.

The information on the selected file appears.

Press the INFO button to viewing the information.

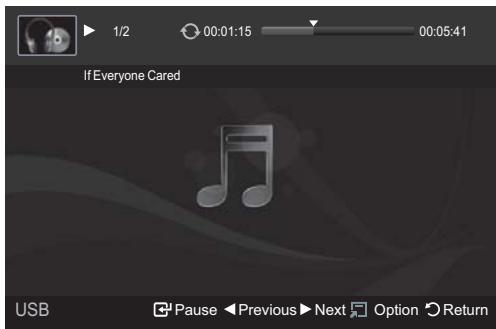

Playing a music file

1 Press the W.LINK button on the remote control to display the WISELINK menu.

2 Press the ◀ or ▶ button to select Music, then press the ENTER button.

➤ Music files are displayed.

3 Pressing the ◀ or ▶ button to select a music file to be played, then press the ENTER button.

This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device.
➢ Press the ▶ (play) / ENTER button over a music icon to play the music.
➢ (REW) or (FF) buttons do not function during play.
➢ Press the ☐ (pause) / ENTER button while playing a MP3 file to pause the file. Press the ☐(stop) button to exit Play mode.
The selected file is displayed at the top with its playing time.
To adjust the music volume, press the VOL + or VOL - button on the remote control. To mute the sound, press the MUTE button on the remote control.
The playing duration of a mp3 file may be displayed as '00:00:00' if its playing time information is not found at the start of the file.

4 To exit WISELINK mode, press the W.LINK button on the remote control.

Playing the music group

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to select Music, then press the ENTER button.

To move a file on the previous / next group, press the (REW) or (FF) button to move to the previous / next group.

3 Press the ◀ or ▶ button to select the desired music file.

4 Press the TOOLS button.

5 Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button.

The music files in the sorting group including the selected file are played.

6 To exit WISELINK mode, press the W.LINK button on the remote control.

Playing the selected music files

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to select Music, then press the ENTER button.
3 Press the ◀ or ▶ button to select the desired music file, then press the yellow button.

Repeat the above operation to select multiple music.

The (√) mark appears to the left of the selected music files.

4 Press the ▶ (Play) / ENTER button.

▶ Only the selected file is played.
➢ Press the ■ button while playing to stop the current item and to return to the music list.

5 To exit WISELINK mode, press the W.LINK button on

Music function information icon (Displayed at the top left of the screen).

Icon	Current OSD	Function
	(Music) Repeat	When all music fi les in the folder(or the selected file) are repeated.Repeat Mode is On.
	(Music) One	When all music fi les in the folder(or the selected file) are played once.Repeat Mode is Off.
	(Music) Play/Pause/Enter	When pressing the ▶ (play) / ■ (pause) / ←(enter) button on the remote control while music is playing.

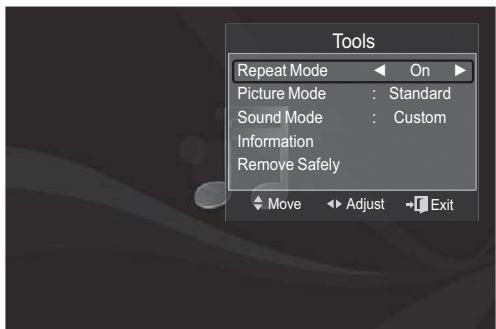

Repeating Music Play

1 While a Music file is playing, press the TOOLS button.
2 Press the ▲ or ▼ button to select Repeat Mode.
3 Press the ◀ or ▶ button to select On or Off.

• On: Plays back all music files in the folder (or the selected file) repeatedly.
• Off: Doesn't play back repeatedly.

4 To exit WISELINK mode, press the W.LINK button on the remote control.

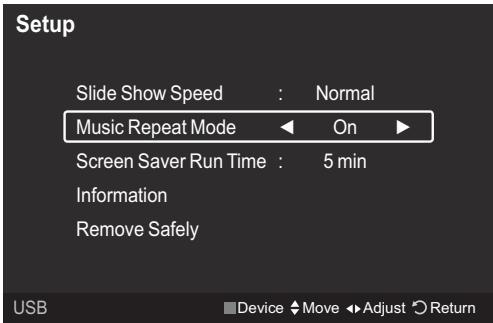

Setup displays the user settings of the WISELINK menu.

1 Press the W.LINK button on the remote control to display the WISELINK menu.
2 Press the ◀ or ▶ button to select Music, then press the ENTER button.
3 Press the ▲ or ▼ button to select the desired option.
(Slide Show Speed, Music Repeat Mode, Screen Saver Run Time, Information, Remove Safely)
4 Press the ◀ or ▶ button to select the option, then press the ENTER button.

Slide Show Speed

Select to control the slide show speed.

Press the ▲ or ▼ button to select Slide Show Speed. Press the ◀ or ▶ button to select Fast, Normal or Slow.

Music Repeat Mode

Select to repeatedly play music files.

Press the ▲ or ▼ button to select Music Repeat Mode.

Press the ◀ or ▶ button to select On or Off.

Screen Saver Run Time

Select to set the waiting time before the screen saver appears.

Press the ▲ or ▼ button to select Screen Saver Run Time.

Press the ◀ or ▶ button to select 1 min, 3 min or 5 min.

Information

Select to viewing the information of the connected device.

Press the ▲ or ▼ button to select Information, then press the ENTER button.

Remove Safely

You can remove the device safely from the TV. (Refer to page 52)

To exit WISELINK mode, press the W.LINK button on the remote control.

What is Anynet+?

Anynet ^+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet ^+ menu when Samsung Electronics AV devices are connected.

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only.

Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To directly connect to TV

Connect the [HDMI IN 1], [HDMI IN 2], [HDMI IN 3] or [HDMI IN 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet ^+ device using the HDMI cable.

To connect to Home Theatre

1 Connect the [HDMI IN 1], [HDMI IN 2], [HDMI IN 3] or [HDMI IN 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.
2 Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the receiver.
Connect only one receiver.
You can listen to 5.1 channel sound through the home theatre's speakers. Otherwise, you can only listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre.
You can connect an Anynet ^+ device using the HDMI cable. Some HDMI cables may not support Anynet ^+ functions.
▶ Anynet ^+ works when the AV device supporting Anynet ^+ is in the Standby or On status.
Anynet+ supports up to 10 AV devices in total. Note that you can connect up to 3 devices of the same

The following settings are to use Anynet+ functions.

Using the Anynet+ Function

1 Press the MENU button. Press the ▲ or ▼ button to select Application, then press the ENTER button.
2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the ENTER button.
3 Press the ▲ or ▼ button to select On, then press the ENTER button.
The Anynet+ (HDMI-CEC) function is enabled.
If you select Off, Anynet+ (HDMI-CEC) is disabled.
When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Turning an Anynet+ Device Off Automatically when the TV

is Turned Off

2 Press the ▲ or ▼ button to select Auto Turn Off, then press the ENTER button.
3 Press the ▲ or ▼ button to select Yes, then press the ENTER button.
The Auto Turn Off function is enabled.
If you select No, the Auto Turn Off function is canceled. Press the EXIT button to exit.
The active source on the TV remote must be set to TV to use the Anynet+ function.
If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned off. If an external device is still recording, it may or may not turn off.

Scanning and Switching between Anynet+ Devices

1 Press the TOOLS button.
Anynet+ devices connected to the TV are listed.
If you cannot find a device you want, press the red button to scan for devices.
2 Press the ▲ or ▼ button to select a particular device and press the ENTER button. It is switched to the selected device.
Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.
3 If you cannot find a device you want, press the ▲ or ▼ button to select Searching Connections, then press the ENTER button. The meassage Configuring Anynet+ connection... is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.

The time required to scan for devices is determined by the number of connected devices.

When the device scan is complete, the number of found devices is not displayed.

Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select Searching Connections menu to search devices.

If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu	Description
View TV	Switches from Anynet+ to TV broadcast mode.
Select Device	Your TV connects to the corresponding device.
Record	Starts a recording. (This menu works only for a device supporting recording.)
Menu on Device	Shows the menu of the connected device.Example. When a DVD Recorder is connected, the DVD Recorder's title menu appears.
Device Operation	Shows the play control menu of the connected device.Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears.
Receiver	Sound is output through the receiver.
Setup	You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type	Operating Status	Available Buttons
Anynet+ Device	After switching to the device, when the menu of the corresponding device is displayed on the screen.	Numeric buttons▲/▼/◄/►/ENTER buttonsColour buttonsEXIT button
	After switching to the device, while playing a file	◀ (Backward search)▶ (Forward search)■ (Stop)▶ / ▪ (Play/Pause)
Device with built-in Tuner	After switching to the device, when you are watching a TV programme	P ∧ / √ button
Audio Device	When a Receiver is activated	▲ + / - buttonMUTE button

The Anynet+ function only works when the remote control is set to TV.
The REC button works only while in the recordable state.
You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+ devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, reselect the Anynet+ device.
The Anynet+ functions don't operate for the products from other manufacturers.
In Anynet+ mode, the colour buttons may not work properly.
The ←, ▶ operations may differ depending on the device.

Recording

You can make a recording of a TV programme using a recorder.

Press the REC button.

Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded.
You can also record the source streams by selecting Record after pressing the TOOLS button.
Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker.

1 Press the TOOLS button.

Press the ▲ or ▼ button to select Receiver, then press the ENTER button.

2 Press the ◀ or ▶ button to select to On, then press the ENTER button.

Now you can listen to sound through the receiver.

3 Press the EXIT button to exit.

When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.

If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the Optical IN jack of the receiver to the Optical Out jack of the TV.
When listening through the receiver, there are restrictions for using the PIP and audio-related(MTS, Preferred language) menus.
If there is a power interruption to the TV when the Receiver is On (by disconnecting the power cord or a power failure), the TV Speaker may be set to Off when you turn the TV on again.

Check Points before Requesting Service

Symptom	Solution
Anynet+ does not work.	Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Connect only one receiver.Check if the Anynet+ device power cord is properly connected.Check the Anynet+ device's Video/Audio/HDMI 1.3 cable connections.Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.Check whether the TV remote control is in TV mode.Check whether it is Anynet+ exclusive remote control.Anynet+ doesn't work at a certain condition. (Searching channels)When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV.Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	Select View TV in Anynet+ menu.Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.Press any of CH, CH LIST, and PRE-CH to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The message Connecting to Anynet+ device... appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.	You cannot use the play function when Plug & Play is in progress.
The connected device is not displayed.	Check whether or not the device supports Anynet+ functions.Check whether or not the HDMI 1.3 cable is properly connected.Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.Search Anynet+ devices again.You can connect an Anynet+ device using the HDMI cable only. Some HDMI 1.3 cables may not support Anynet+ functions.
The TV programme cannot be recorded.	Check whether the antenna jack on the recording device is properly connected.
The TV sound is not output through the receiver.	Connect the optical cable between TV and the receiver.

Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

① (exit) Exit from the teletext display (depending on the model)

② (store) Used to store the teletext pages.

③ (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

4 ☐? (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

⑤ Coloured buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

6 ☐ (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

⑦ (sub-page) Used to display the available sub-page.

8 (page up) Used to display the next teletext page.

9 ☐ (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the ☐ (store) button.

10 11 (page down) Used to display the previous teletext page.

11 31 (index) Used to display the index (contents) page at any time while you are viewing teletext.

12 ☑ (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

13 ☒ (cancel) Used to display the broadcast when searching for a page.

You can change teletext pages by pressing the numeric buttons on the remote control.

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.FASTEXT information.

➢ Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

◆ Entering the page number
◆ Selecting a title in a list
◆ Selecting a coloured heading (FASTEXT system)

▶ Press the TV/DTV button to exit from the teletext display.

Install your wall mount on a solid wall perpendicular to the floor.

When attaching to other building materials, please contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

Product Family	inch	VESA Spec. (A * B)	Standard Screw	Quantity
LCD-TV	23 ~ 26	200 * 100	M4	4
	32 ~ 40	200 * 200	M6
	46 ~ 52	400 * 400600 * 400	M8
	57	700 * 400(No VESA)
	57 ~ 70	800 * 400
	80 ~	1400 * 800
PDP-TV	42 ~ 58	400 * 400600 * 400	M8	4
	63	676 * 407(No VESA)		6
	63 ~ 70	800 * 400		4
	80 ~	1400 * 800		4

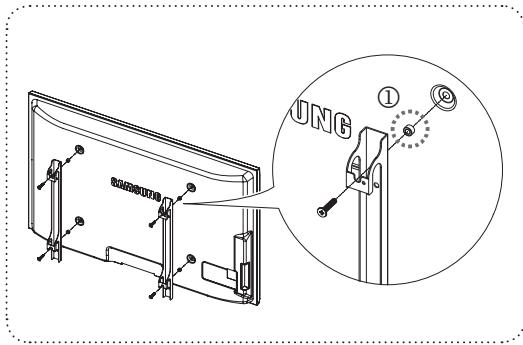

We provided the standard dimensions for wall mount kits as shown in the table above.
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.

Do not use fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

Our 57" and 63" models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.

Do not exceed 15 degrees tilt when mounting this TV.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Once the auto wall mount is installed, the position of your TV can be easily adjusted.

Entering the menu

1 Press the ▲, ▼, ◀ or ▶ button on your remote control.

The Wall Mount Adjustment screen is displayed.
If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

- Press the MENU button to display the menu. Press the ▲ or ▼ button to select Setup, then press the ENTER button.

- Press the ▲ or ▼ button to select Wall-Mount Adjustment, then press the ENTER button.

Remembering the Position

2 Adjust to the desired position using the ▲, ▼, ◀, ► buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.
➢ Press the INFO button to reset. Press the ◀ or ▶ button to select Yes, then press the ENTER button. The position is initialized to the default setting.

3 Press the blue button.

Press the ▲ and ▼ buttons to select a save mode from either Position1, Position2 or Position3 in order to save the current position.

To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Color buttons.

4 Press the ENTER button to save.

When Position1 is selected, the message Current position saved as Position1 is displayed.

5 Press the ENTER button.

The saved Position appears on the left side of the OSD.

Moving to the remembered position

1 Complete Step 1 of Entering the menu.
2 Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
If you adjust the positon after moving to a pre-set position, the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
The auto wall mount will not work when Anynet+ or WISELINK is operating.

Preparing before installing Wall- Mount on the wall

Case A. Installing SAMSUNG Wall-Mount

Case B. Installing other company's Wall-Mount

1 Install Wall Mount with the torque range of 15kgf·cm or less. Make sure that parts can be damaged if the torque is out of the specified range.
2 Accessory Kit contains Holder–Ring [①] for installing other company's Wall-Mount on Samsung TV. (Case B)

How to assemble the Stand-Base (depending on the model)

Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.)

Warning

Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

Two or more people should carry the TV. Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright.

In case of installing your TV on the wall, close the cover (1) on the stand-base connection part using two screws for hiding.

Troubleshooting

Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer.

No sound or picture

◆ Check that the mains lead has been connected to a wall socket.
◆ Check that you have pressed the ⏻ (Power) button (On/Off) on the front panel or press the POWER button on the remote control.
◆ Check the picture contrast and brightness settings.
◆ Check the volume.
◆ Check if TV Speaker is set to Off.

Normal picture but no sound

◆ Check the volume.
◆ Check whether the volume MUTE button on the remote control has been pressed.

No picture or black and white picture

◆ Adjust the colour settings.
◆ Check that the broadcast system selected is correct.

Sound and picture interference

◆ Try to identify the electrical appliance that is affecting the television, then move it further away.
◆ Plug the television into a different main socket.

Blurred or snowy picture, distorted sound

◆ Check the direction, location and connections of your aerial. This interference often occurs due to the use of an indoor aerial.

Remote control malfunctions

◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control (transmission window).
◆ Check that the “+” and “−” ends of the batteries are inserted correctly.
◆ Check that the batteries are drained.

Screen is black and power indicator light blinks steadily

◆ On your computer check; Power, Signal Cable.
◆ The TV is using its power management system.
◆ Move the computer’s mouse or press any key on the keyboard.
◆ On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
◆ The TV is using its power management system.
◆ Press the Source button on the panel or remote control.
◆ Turn the TV off and on.

The damaged picture appears in the corner of the screen.

If Just Scan is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.

The "Resets all settings to the default values" message appears.

This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

Specifications

The descriptions and characteristics in this booklet are given for information purposes only and are subject to modification without notice.

Model Name	PS50A676	PS58A676
Screen Size (Diagonal)	50 inch	58 inch
PC Resolution (Optimum)	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz
Sound (Output)	10 W x 2	15 W x 2
Dimension (WxHxD)
Body	1240 x 766 x 96 mm	1418 x 866 x 100 mm
With stand	1240 x 836 x 320 mm	1418 x 928 x 345 mm
Weight
Body	39.2 kg	58.8 kg
With stand	43.5 kg	64.0 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5% to 95%, non-condensing

◆ This device is a Class B digital apparatus.
◆ Design and specifications are subject to change without prior notice.
◆ For the power supply and Power Consumption, refer to the label attached to the product.

This page is intentionally left blank.

Symbol of a trash bin crossed with no text or labels, representing no waste or elimination (no text present)

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Line drawing of a flat-screen monitor with an arrow indicating rotation (no text or symbols)

Line drawing of a flat-screen monitor with a 20-degree rotation indicator (no text or symbols on the screen)

5 DIGITAL AUDIO OUT (OPTICAL)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with an open lid and mounting bracket (no text or symbols)

Simple line drawing of a curved object with an arrow indicating rotation (no text or symbols)

Illustration of a pair of headphones connected to a handheld electronic device (no text or symbols visible)

Fonctions d'horloge

Contents : You can select the content to be played when the TV turns on automatically.

Black-and-white beach scene with cloud reflections and a small icon, displayed in a photo editing interface (no readable text or symbols on the scene itself)

Grayscale image of a landscape with wind patterns and cloud formations, displayed in a control panel interface (no text or symbols on the landscape itself)

Black-and-white landscape photo showing a cloudy sky over water with no visible text or symbols

Black-and-white landscape photo showing clouds over water with no visible text or symbols

Avertissement

Dépannage

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)
