Product type	LCD TV
Brand	Samsung
Model	LE46A559P4F
Screen size	46 inches (117 cm) diagonal
Resolution	1920 x 1080 pixels (Full HD)
Sound output	2 x 10 W
Dimensions (without stand)	1186 x 111 x 686 mm
Dimensions (with stand)	1186 x 260 x 749 mm
Weight (with stand)	27 kg
Power supply	220-240 V AC, 50/60 Hz
Power consumption	Approximately 200 W (estimated)
Connectivity	3 HDMI inputs, 1 component input, 1 PC input (D-Sub), 2 SCART inputs (EXT1/EXT2), optical audio output, headphone jack, WISELINK port (USB)
Main functions	Remote control, automatic channel memorization, WISELINK (photos/music), Anynet+ (HDMI-CEC), fine tuning of image, Cinema mode, parental lock, sleep timer
Maintenance and cleaning	Use a soft dry cloth. Do not use chemical products.
Safety	Parental lock on channels, Kensington lock (depending on model)
Operating temperature	10 °C to 40 °C
Operating humidity	10% to 80% (without condensation)

Frequently Asked Questions - LE46A559P4F SAMSUNG

How to connect a HDMI device to the TV?

Connect the HDMI cable to one of the HDMI IN ports (1, 2 or 3) at the back of the TV. Press the SOURCE button on the remote control and select the corresponding HDMI input.

How to automatically store channels?

Press MENU, select Channel then Auto Store. Choose your country and press ENTER. The search starts automatically.

What to do if the image is blurry or badly adjusted?

Use the Picture menu to adjust contrast, brightness, sharpness and color. You can also choose a preset mode (Dynamic, Standard, Cinema) via the E.MODE button on the remote control.

How to use the WISELINK function to view photos or play music?

Connect a USB flash drive to the WISELINK port (located on the side). Press the WLINK button on the remote control. Use the directional keys to navigate and ENTER to open a file.

The TV does not turn on, what to check?

Make sure the power cord is properly plugged in and the wall outlet works. Also check that the remote control batteries are in good condition. If the red (standby) indicator is lit, press POWER or a numeric button.

How to set the time and sleep timer?

Go to MENU > Setup > Clock. Set the month, date, hour and minutes. For the timer, use Sleep Timer in the Setup menu or via TOOLS.

How to lock channels for children?

Press MENU > Channel > Channel Manager > Parental Lock. Set it to On, then select the channels to lock with ENTER.

What does the 'Plug & Play' message mean on first power-on?

It is the initial setup assistant. It guides you to choose the language, country, launch the automatic channel search, and set the clock. Follow the on-screen instructions.

How to use the Anynet+ (HDMI-CEC) function?

Make sure Anynet+ (HDMI-CEC) is set to On in the Setup menu. Connect a compatible device (e.g., Samsung Blu-ray player) via HDMI. You can then control it with the TV remote control.

Can I mount the TV on the wall?

Yes, use a compatible wall mount (sold separately). Follow the instructions provided with the kit. Unplug the TV before installation and consult a professional if necessary.

USER MANUAL LE46A559P4F SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
  To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents

CONNECTING AND PREPARING YOUR TV

< List of Parts .... 3
< Installing the Stand.... 3
< Installing the Wall Mount Kit.... 3
< Viewing the Control Panel 4
< Viewing the Connection Panel .... 5

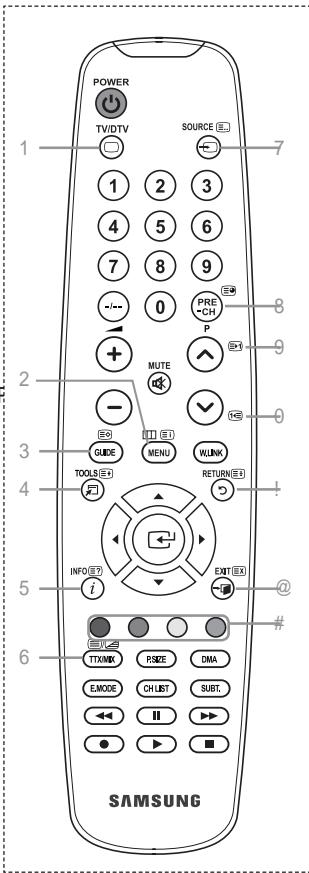

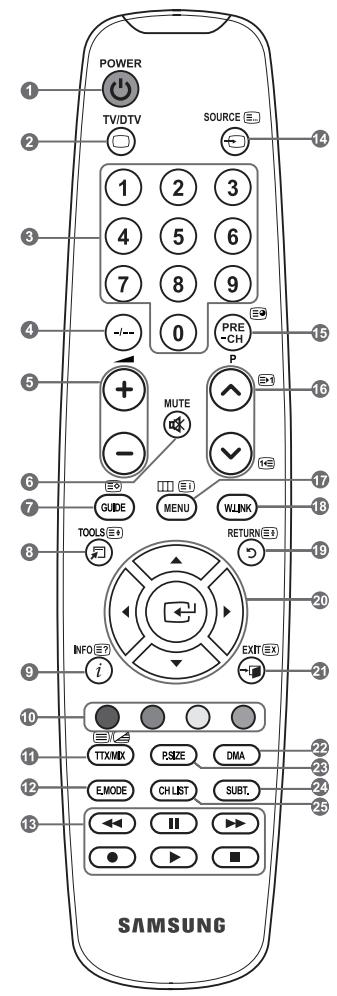

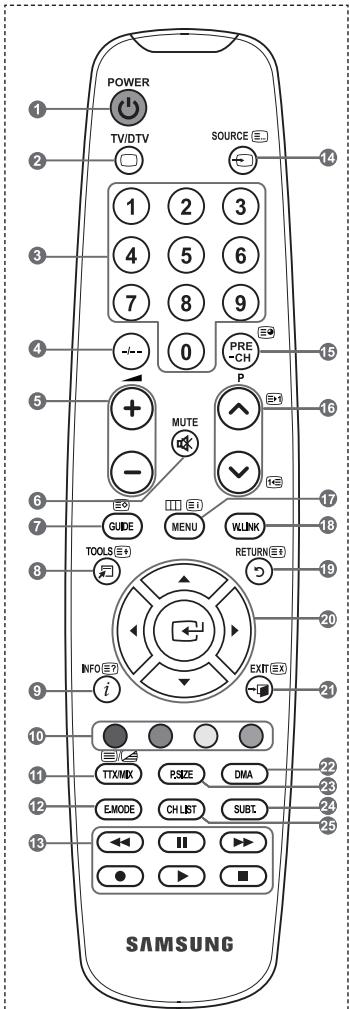

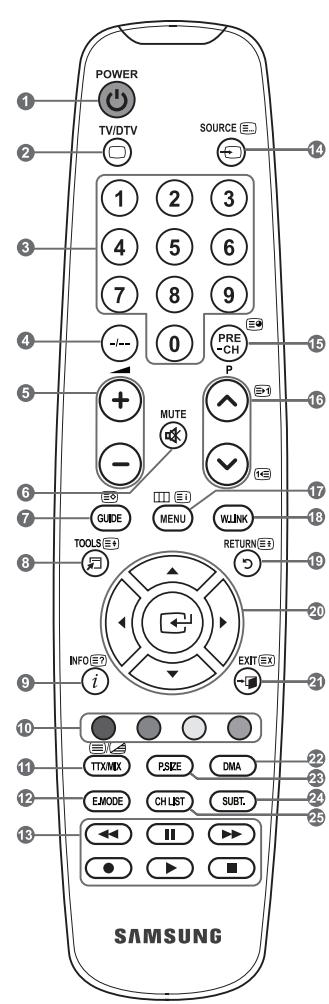

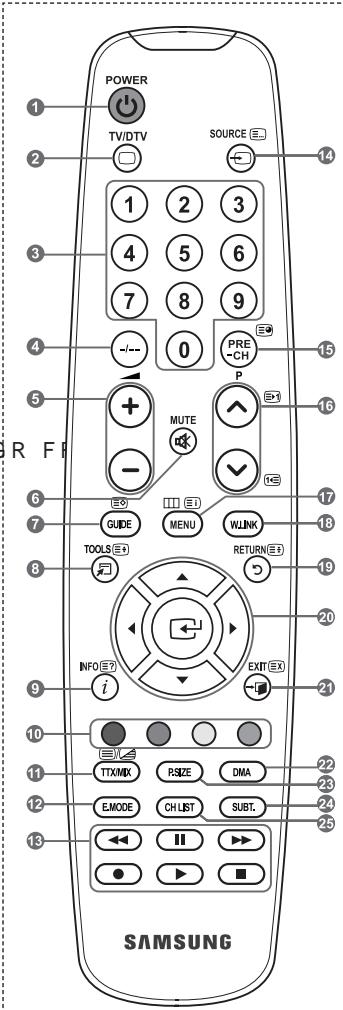

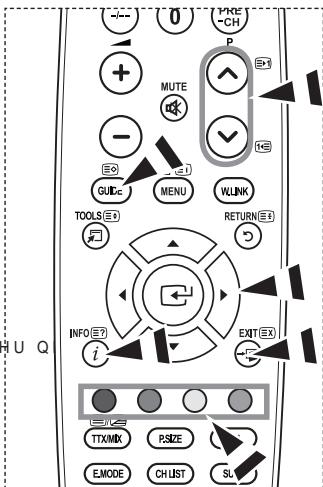

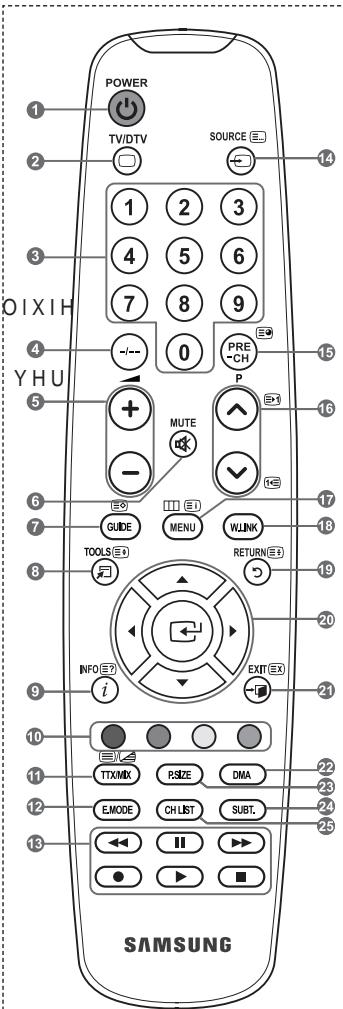

< Viewing the Remote Control...... 8
< Installing Batteries in the Remote Control...... 9
< Switching On and Off 9
< Placing Your Television in Standby Mode...... 9

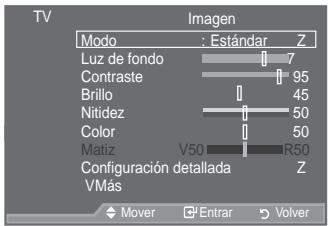

< Viewing the Menus.... 10

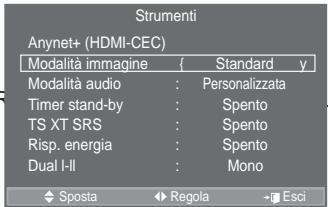

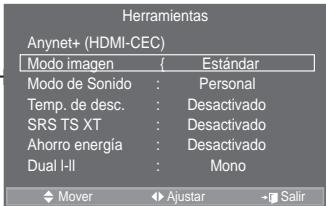

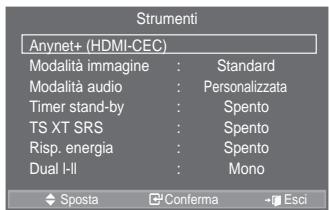

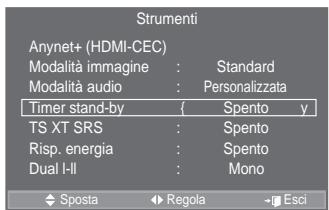

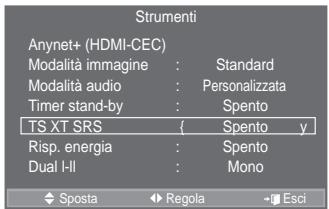

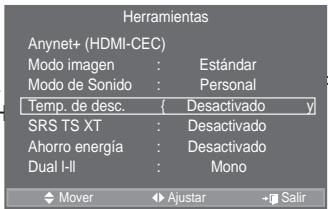

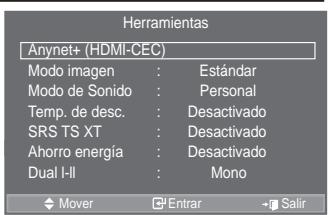

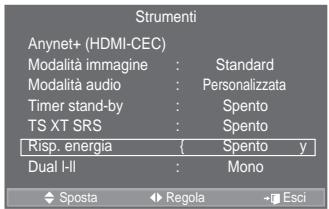

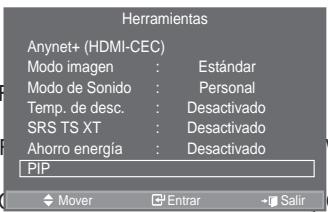

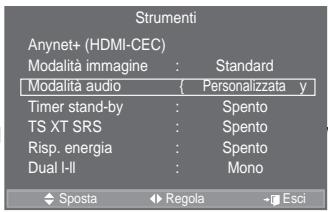

< Using the TOOLS Button.... 10
< Plug & Play....11

SETTING THE CHANNELS

< Storing Channels Automatically 12
< Storing Channels Manually 13

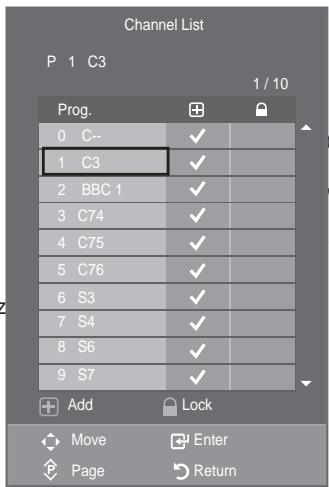

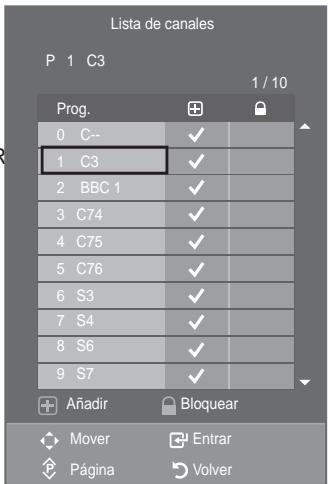

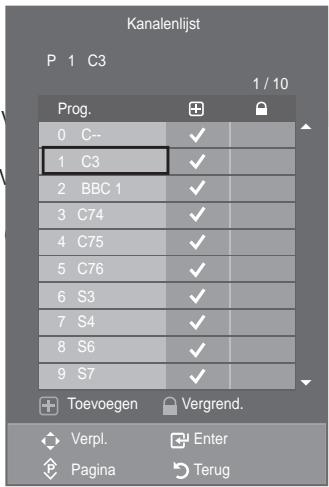

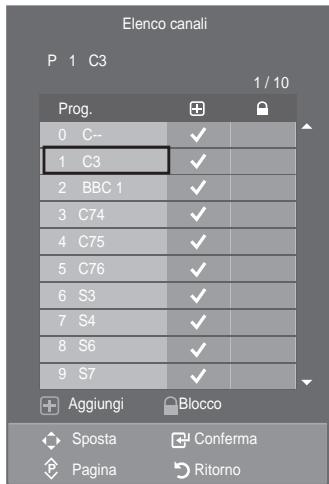

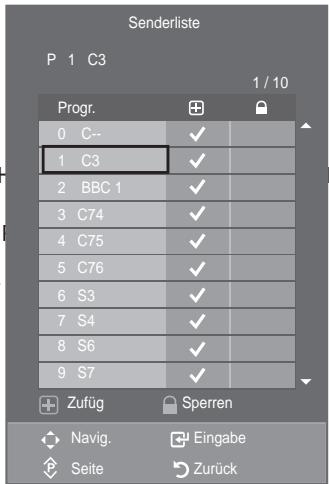

< Adding / Locking Channels 14

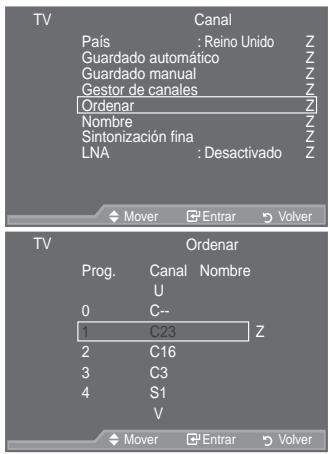

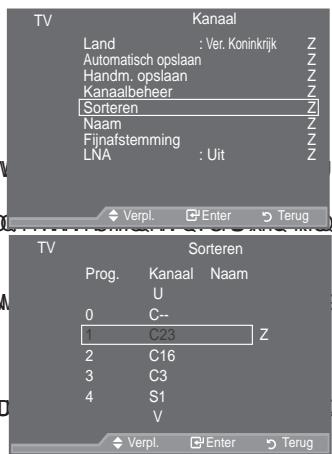

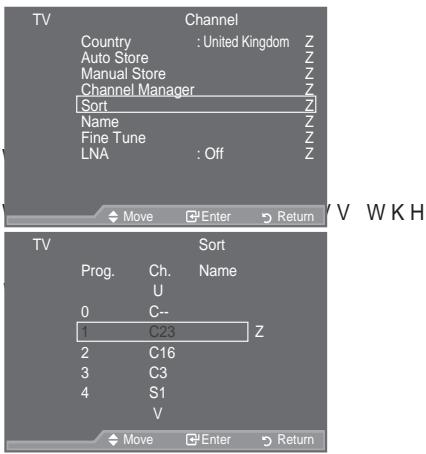

< Sorting the Stored Channels 15

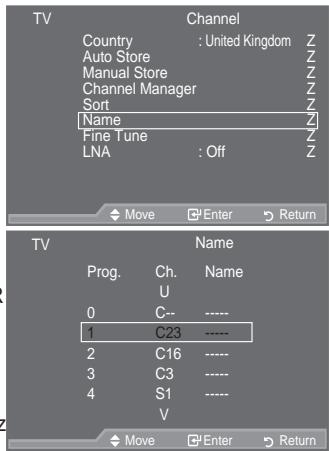

< Assigning Channels Names 15

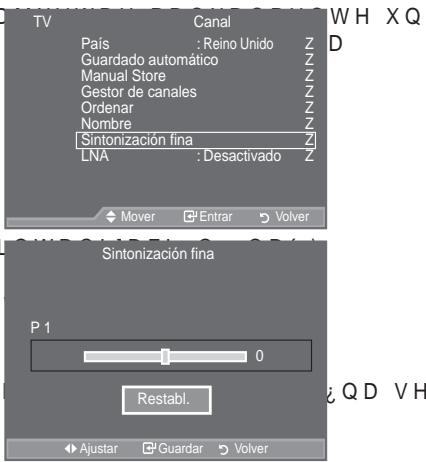

< Fine Tuning Channel Reception.... 16
< /1\/RZ 1RLVH \.P.S.O.L.¿H.U..... 16

SETTING THE PICTURE

< Changing the Picture Standard 17

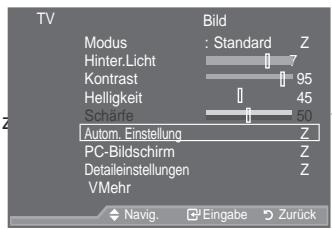

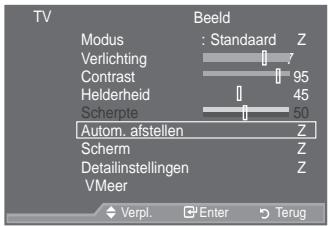

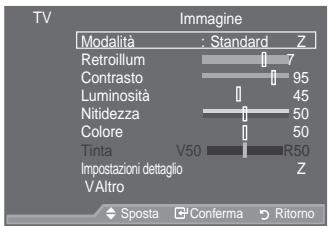

< Adjusting the Custom Picture.... 18

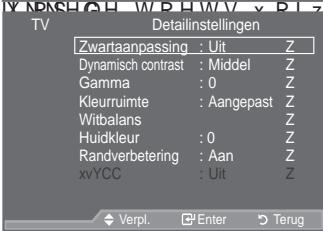

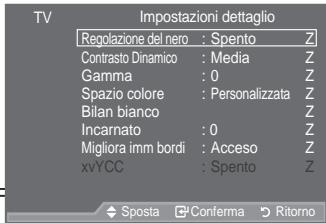

< &RQ¿JXULQJ 'HWDLOHG 6H.W8VL
< Resetting the Picture Settings to the Factory Defaults .... 19

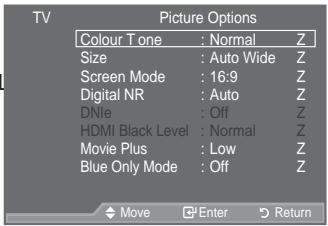

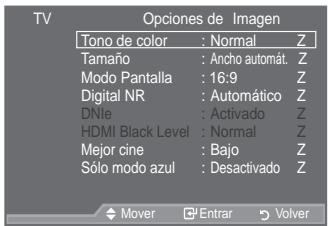

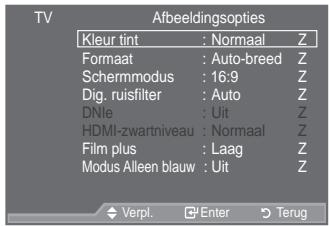

&RQ;JXULQJ 3L F.W.X.U.H...2.S.W.I2R Q

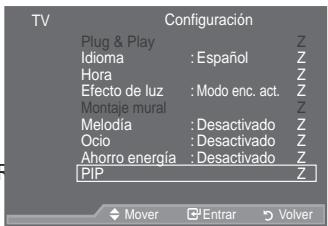

< Viewing the Picture In Picture (PIP) 22

SETTING THE SOUND

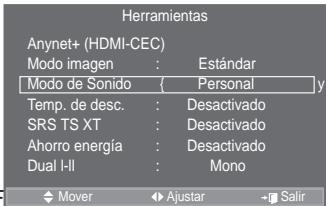

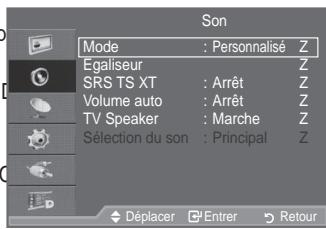

< Sound Features.... 23

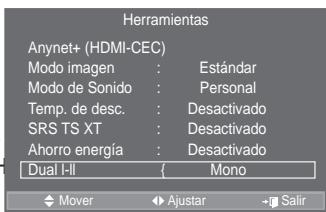

< Selecting the Sound Mode 24
< Connecting Headphones (Sold separately) ..... 24

SETTING THE TIME

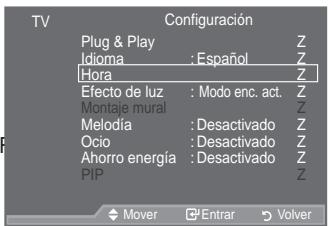

< Setting and Displaying the Current Time...... 25
< Setting the Sleep Timer 25

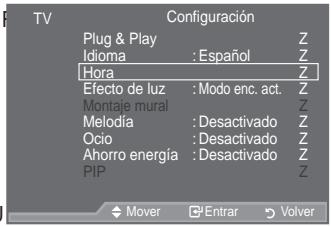

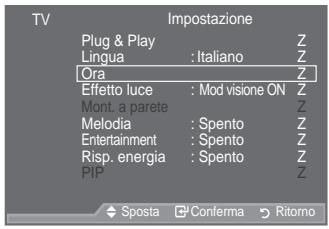

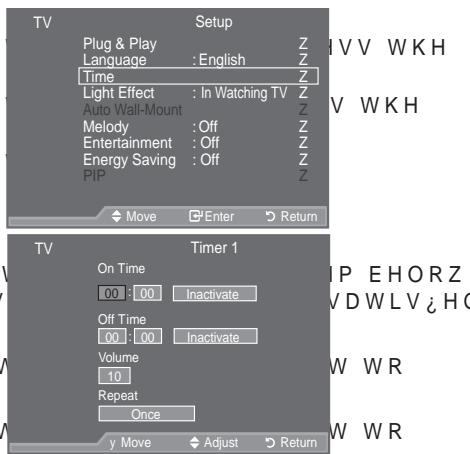

< Switching the Television On and Off Automatically 26

FUNCTION DESCRIPTION

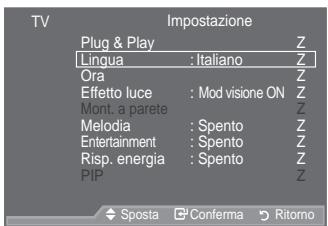

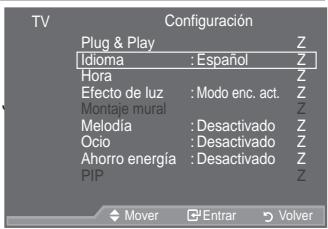

< Choosing Your Language.... 26

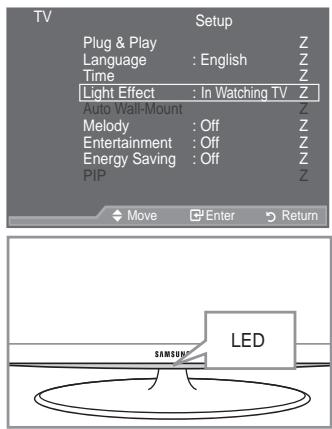

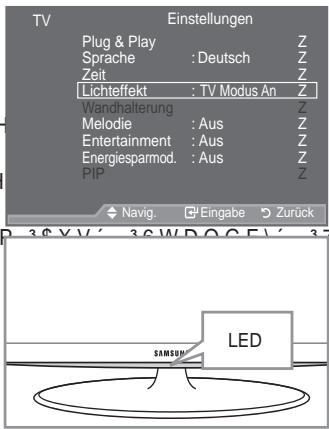

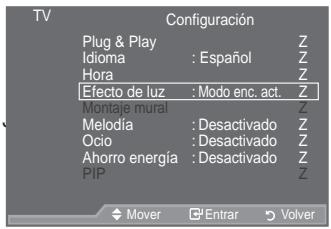

< Setting the Light Effect (depending on the model) 27

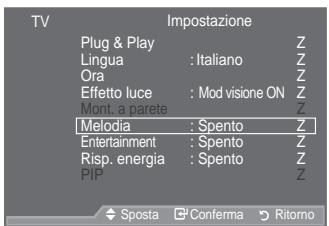

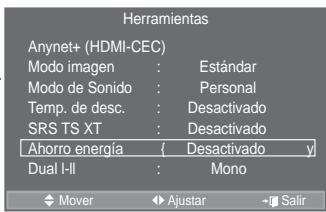

< Melody / Entertainment / Energy Saving ...... 27

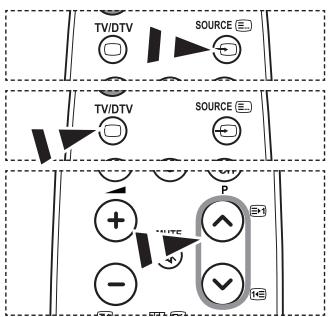

< Selecting the Source 29
< Editing the Input Source Names ...... 29

USING THE DTV FEATURE

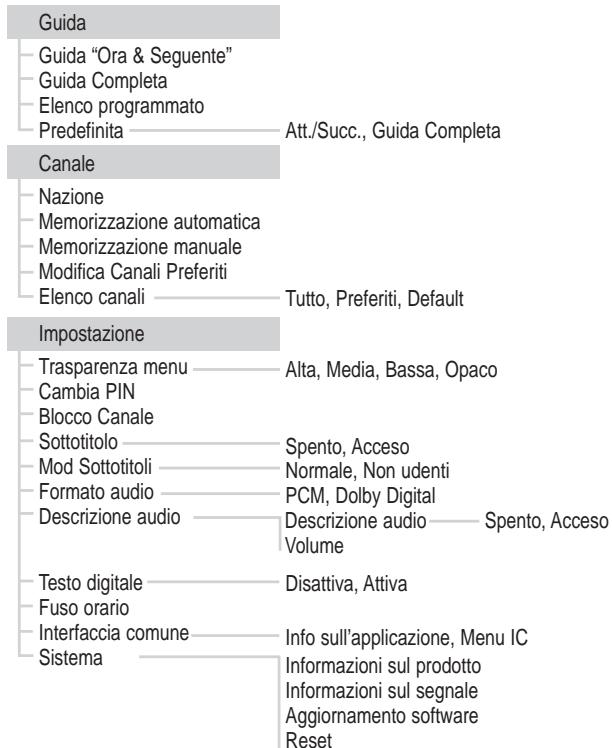

< Previewing the DTV Menu System ...... 30
< Updating the Channel List Automatically...... 31
< Updating the Channel List Manually .... 31

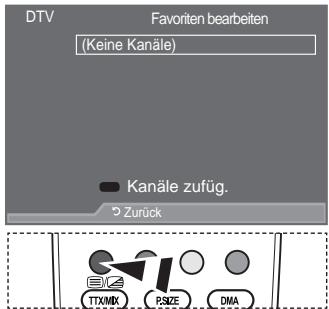

< Editing Your Favourite Channels.... 32

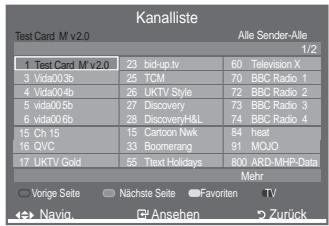

< Selecting Channel List 34
< Displaying Programme Information.... 34

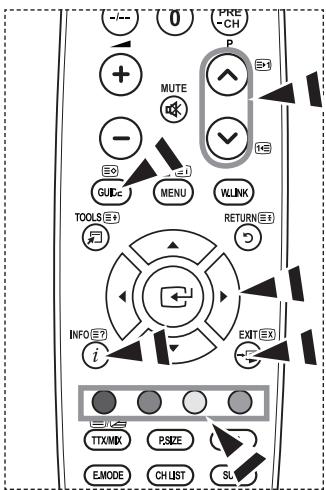

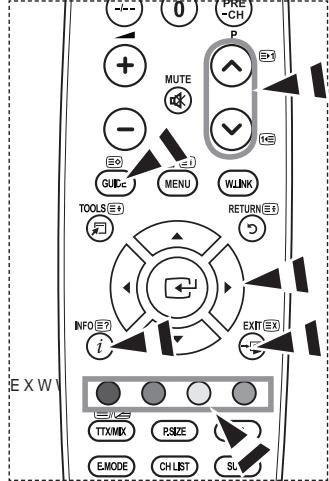

Viewing the EPG (Electronic Programme Guide) Information 35
< Using the Scheduled List 36
< Setting the Default Guide 36

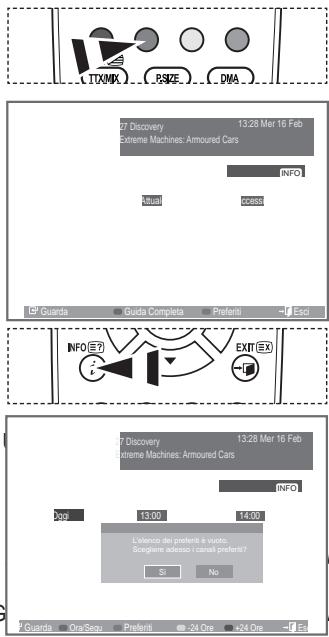

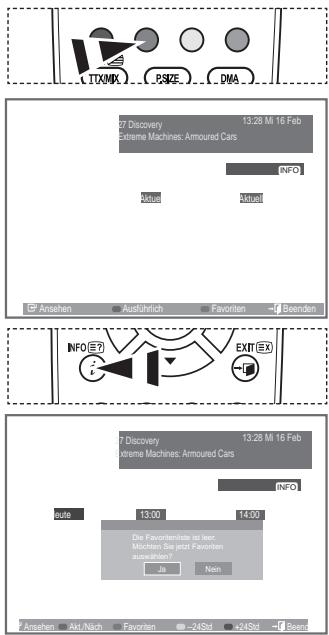

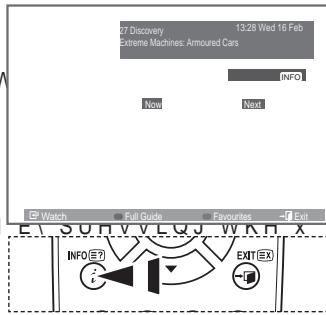

< Viewing All Channels and Favourite Channels 37
< Adjusting the Menu Transparency.... 37

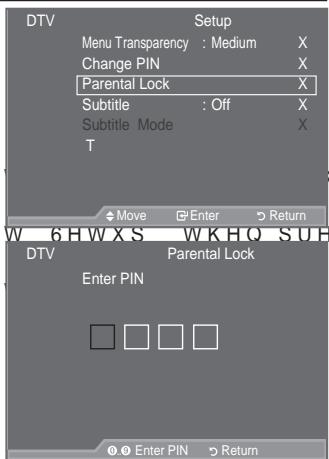

< Setting up the Parental Lock 38
< Setting the Subtitle 39
< Setting the Subtitle Mode 39
< Selecting the Audio Format 39

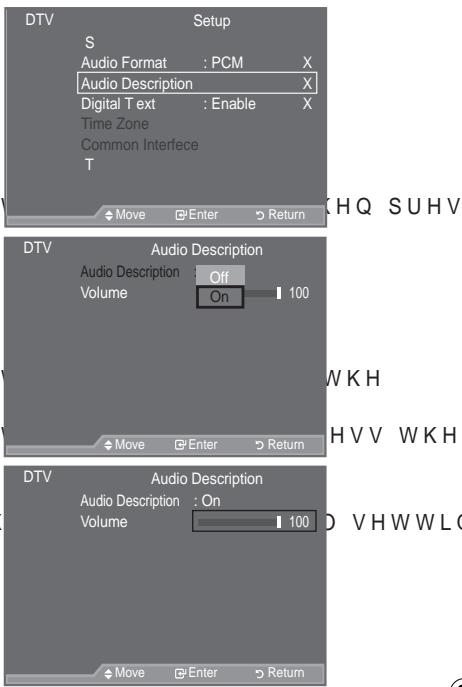

< Selecting the Audio Description .... 40
< Selecting the Digital Text (UK only) 40
Q-JSelecting the Time ZlonFeV(S)aihOnly) 41
< Viewing Product Information .... 41

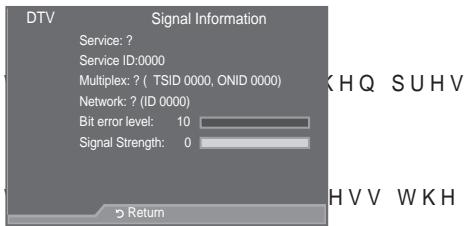

< Checking the Signal Information 42
< Upgrading the Software 42

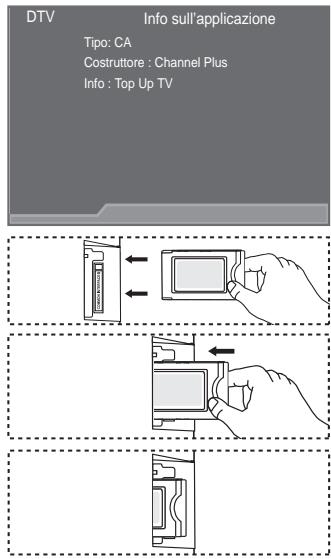

< Viewing Common Interface 43
< Selecting the CI (Common Interface) Menu..... 43

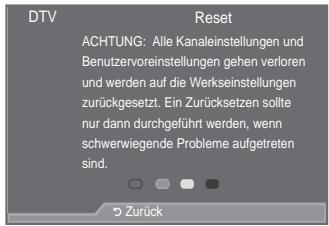

< Resetting 44
< Selecting the Preferred Language (Subtitle, Audio or Teletext) 44
< Preference.... 45

SETTING THE PC

< Setting up Your PC Software (Based on Windows XP) 46
< Display Modes.... 46

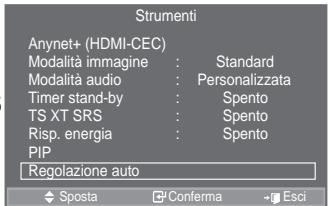

< Setting up the TV with your PC 47

WISELINK

< Using the WISELINK Function 48
< Using the WISELINK Menu.... 49

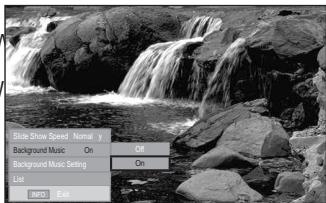

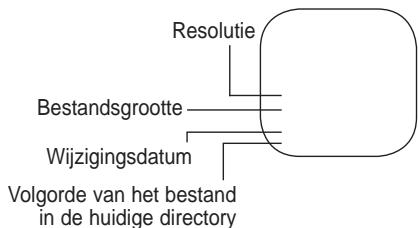

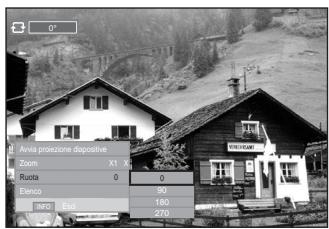

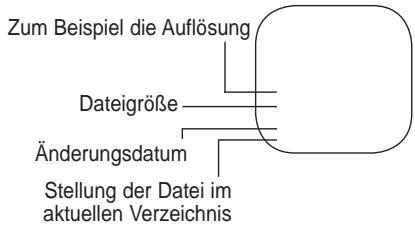

< Using the PHOTO (JPEG) List.... 50
< Using the MP3 List 53

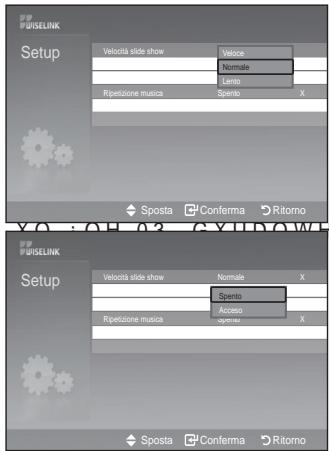

< Using the Setup Menu....54

ABOUT ANYNET ^+

< What is Anynet+? 55

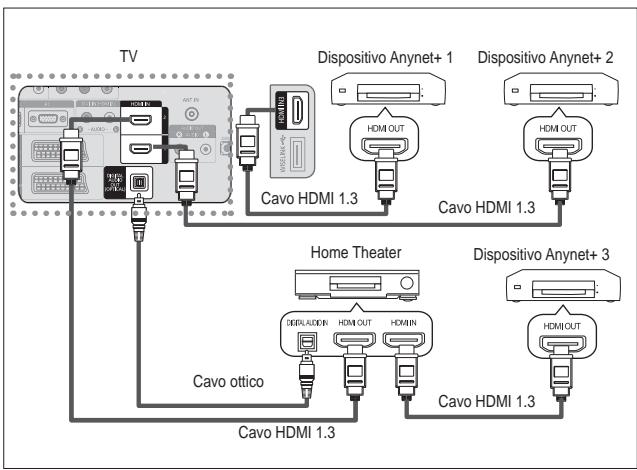

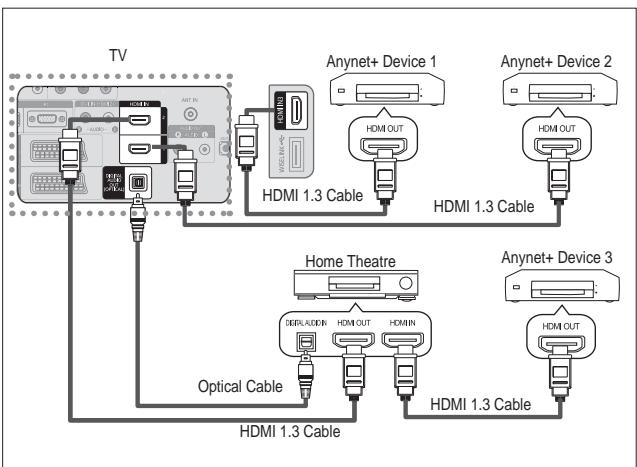

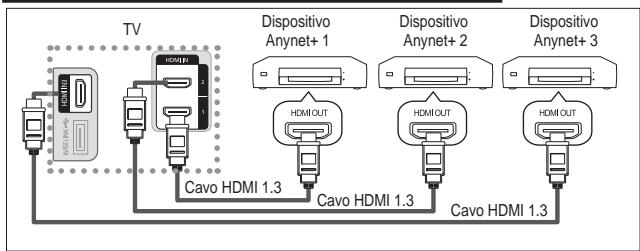

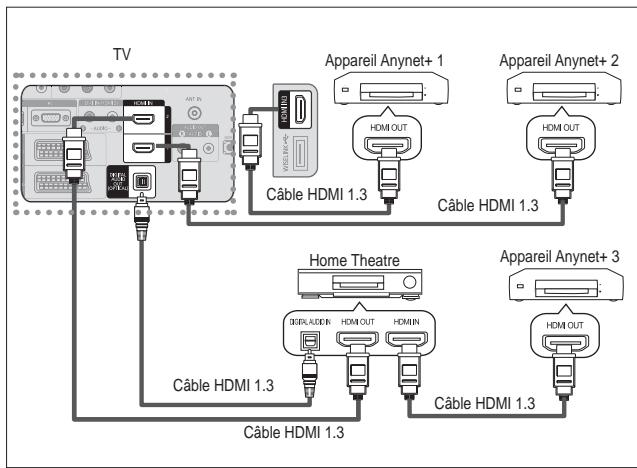

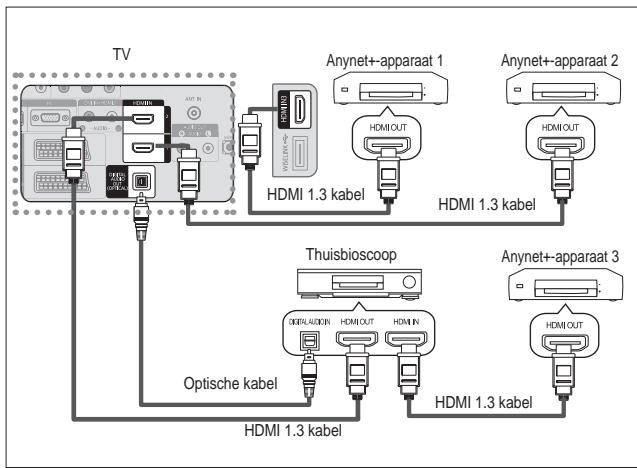

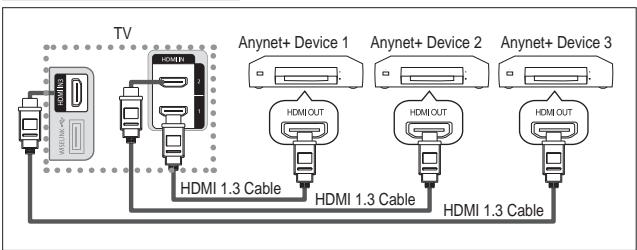

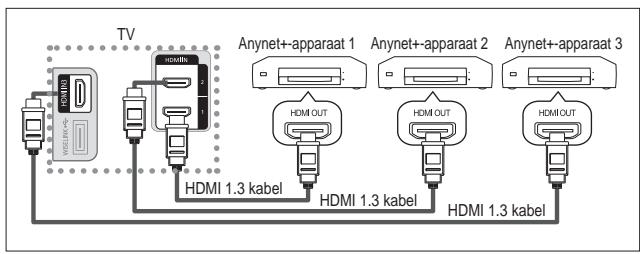

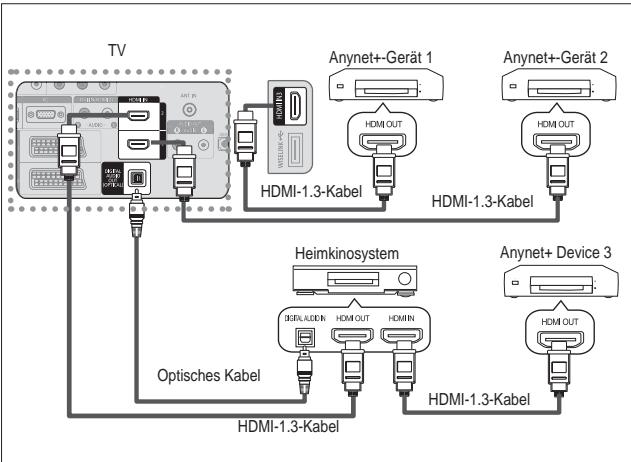

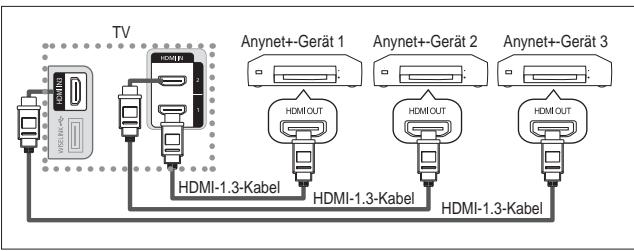

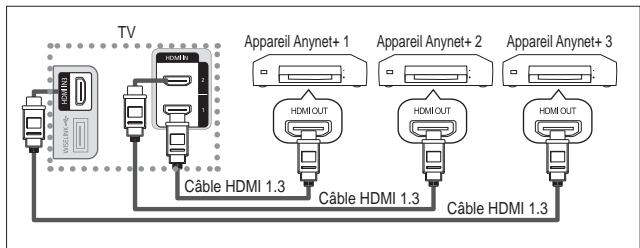

< Connecting Anynet+ Devices 55
< Setting Up Anynet+ 56
< Scanning and Switching between Anynet+ Devices .... 57
< Recording....59
< Listening through a Receiver 59
< Check Points before Requesting Service...... 60

RECOMMENDATIONS FOR USE

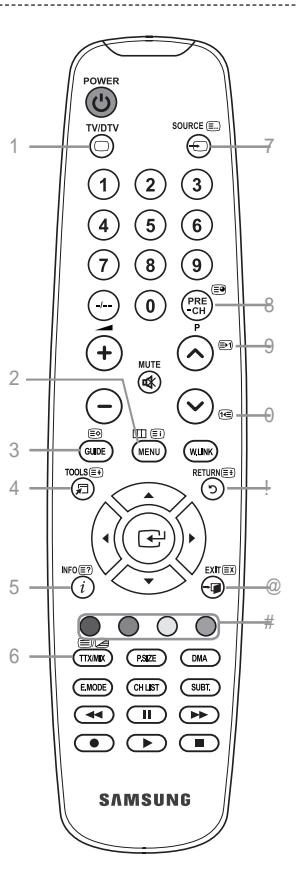

< Teletext Feature 61

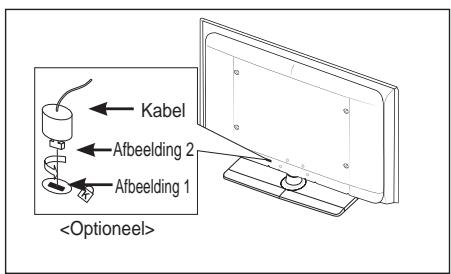

< Auto Wall-Mount (Sold separately)...... 63

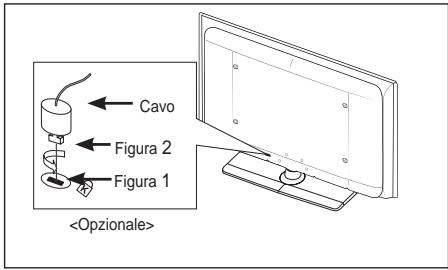

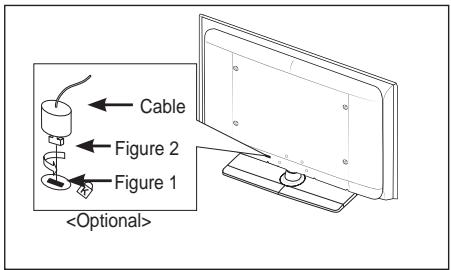

< Using the Anti-Theft Kensington Lock (depending on the model) 64
< Troubleshooting: Before Contacting Service Personnel 65
< 7HFKQLFDO DQG (QYLURQP..H6QWDO 6SHF

Symbol

Press

Note

One-Touch Button

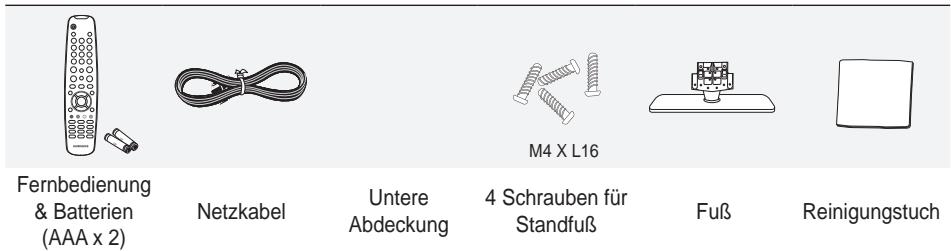

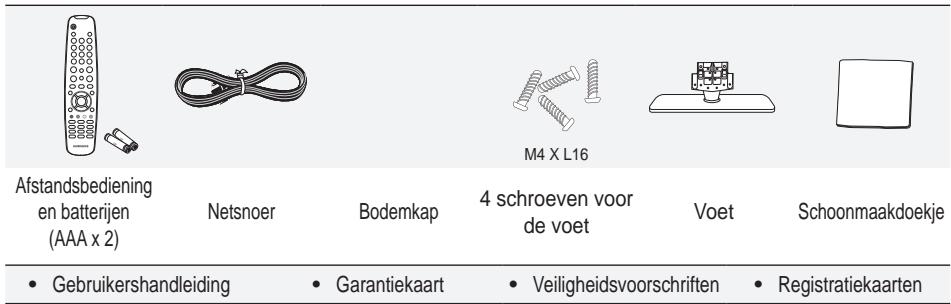

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

			M4 X L16
Remote Control & Batteries (AAA x 2)	Power Cord	Cover-Bottom	Stand Screw X 4	Stand	Cleaning Cloth
Owner's Instructions		Warranty card	Safety Guide		Registration Cards

° Warranty card / Safety Guide / Registration Cards (Not available in all locations)
° The stand and stand screw may not be included depending on the model.

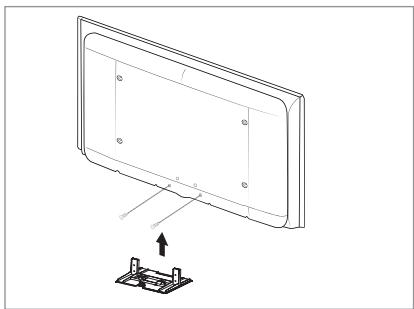

Installing the Stand

Technical line drawing of a monitor with a base, showing mounting holes and a small component (no text or symbols)

Technical line drawing of a monitor with labeled components (no text or symbols present)

1. Connect your LCD TV and the stand.

° Two or more people should carry the TV.
° Make sure to distinguish between the front and back of the stand when assembling them.

1. Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.
° The stand is installed for models with the screen size of 37 inch and above.

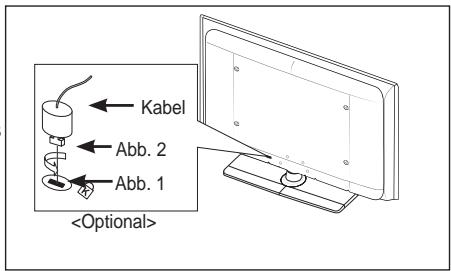

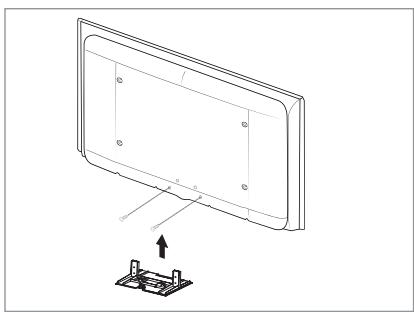

Installing the Wall Mount Kit

Technical line drawing of a monitor with mounting base and labeled components (no text or symbols)

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

° Remove the stand and cover the bottom hole with a cap and fasten with two screws.

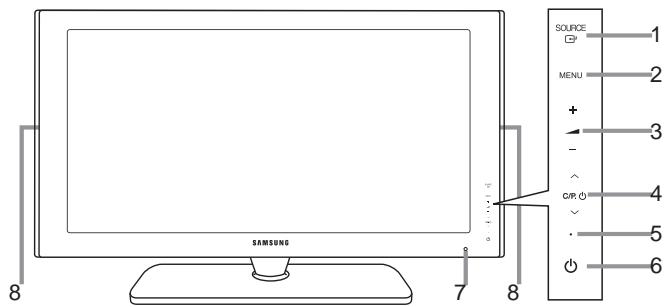

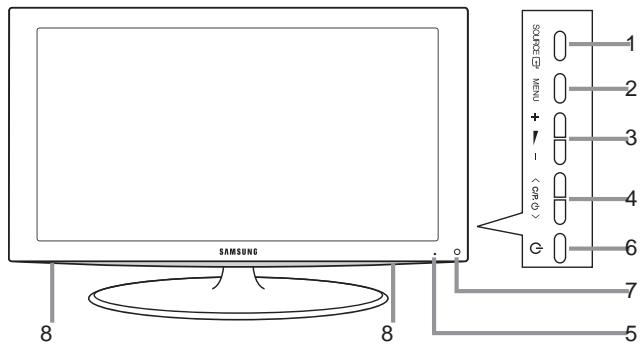

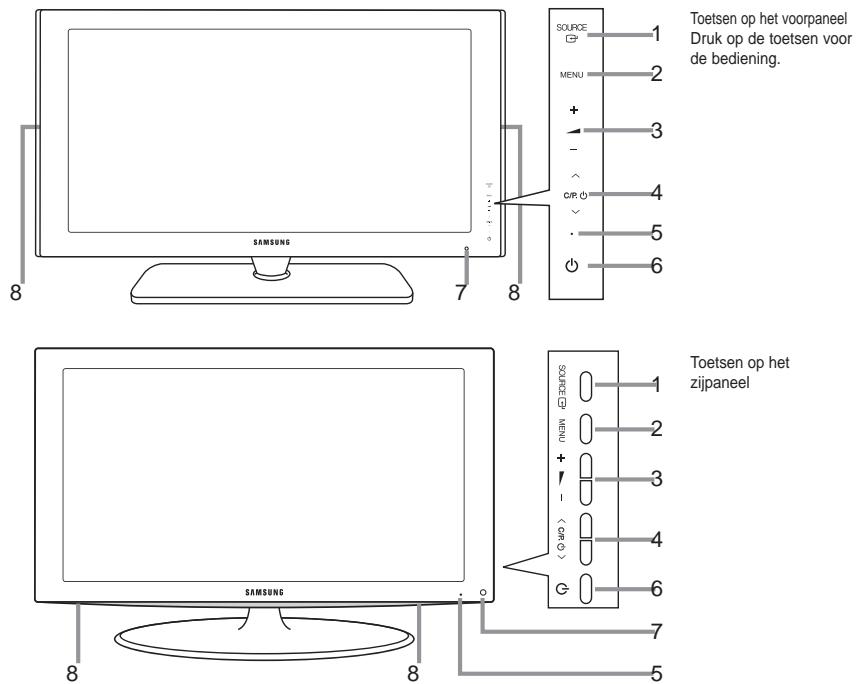

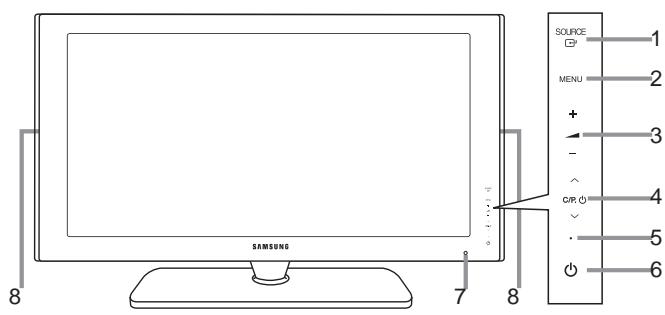

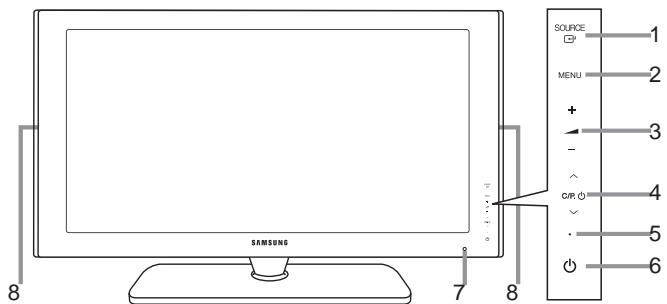

Viewing the Control Panel

SOURCE 1 MENU 2 + - 3 4 C/R: 5 6 SAMSUNG 7 8

Front Panel buttons Touch each button to operate.

SAMSUNG 8 8 1 2 3 4 6 7 5 SOPSO CLEM + - < exp (G)

Side Panel buttons
° The product colour and shape may vary depending on the model.

1 SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3, DTV). In the on-screen menu, use this button as you use the ENTER button on the remote control.

2 MENU

Press to see an on-screen menu of your TV's features.

3 - ▲ +

Press to decrease or increase the volume. In the on-screen menu, use the - + buttons as you

Blinks and turns off when the power is on and lights up in stand-by mode.

6 ⏻ (Power)

Press to turn the TV on and off.

7 Remote Control Sensor

Aim the remote control towards this spot on the TV.

8 Speakers

4 ∨ C/P. ⊙ ∧

Press to change channels.

In the on-screen menu, use the ∨ C/P. ⊙ ∧

buttons as you use the z and x buttons on the remote control.

(Without the Remote Control, you can turn on the TV by using the Channel buttons.)

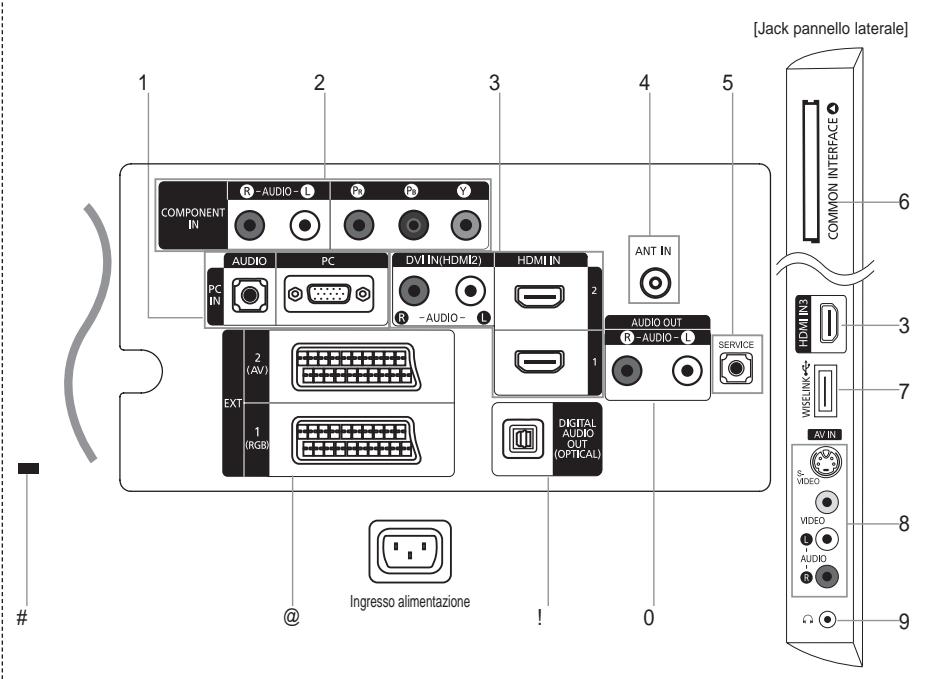

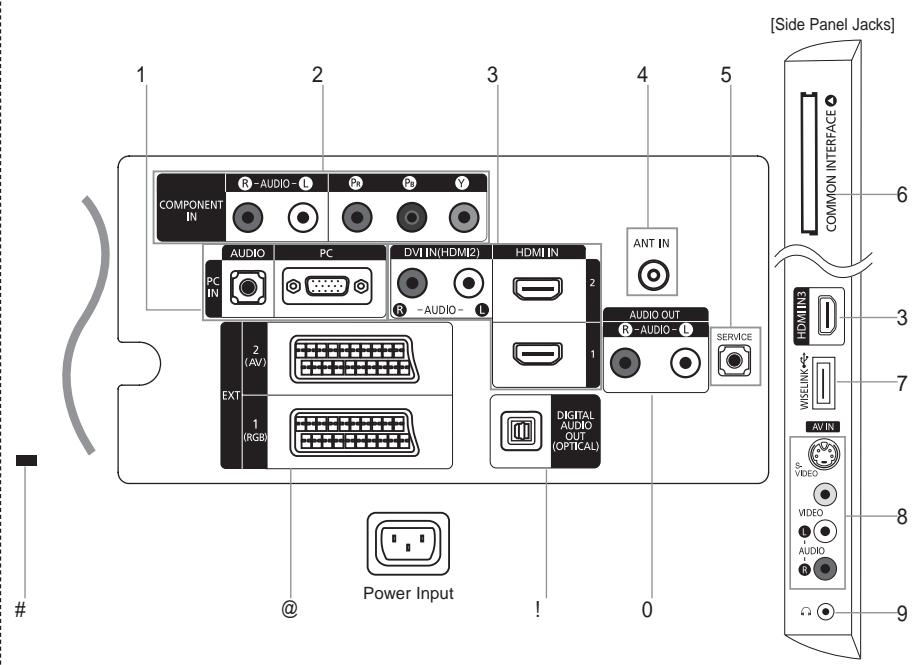

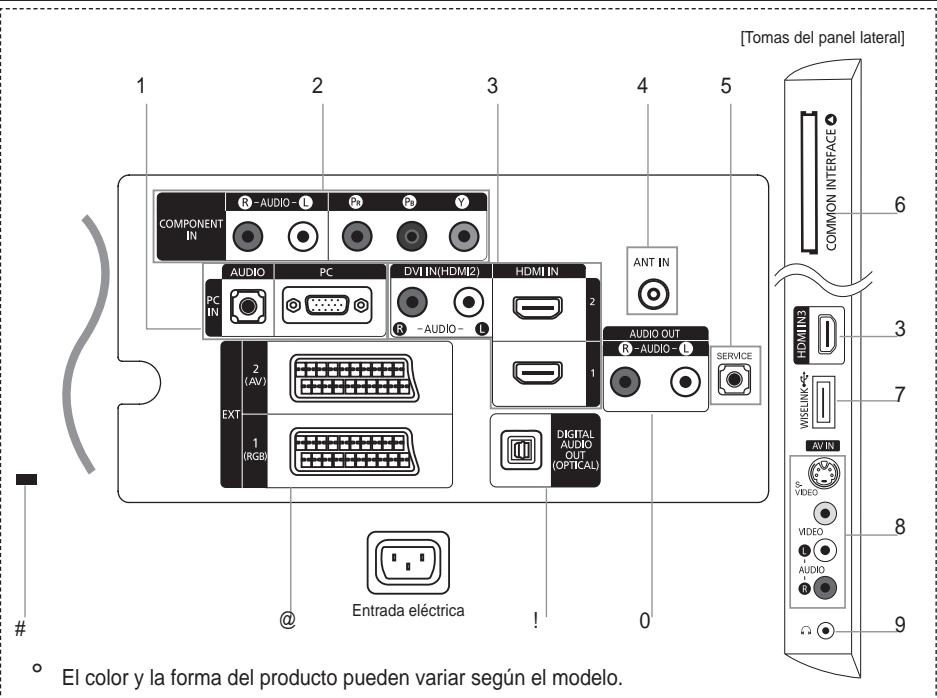

Viewing the Connection Panel

[Side Panel Jacks] 1 2 3 4 5 COMPONENT IN R-AUDIO-L R V AUDIO PC DV1 IN(HDMI2) HDMI IN ANT IN PC IN R-AUDIO-L AUDIO OUT R-AUDIO-L SERVICE EXT 2 (AV) 1 (RGB) DIGITAL AUDIO OUT (OPTICAL) Power Input @ ! 0 #

The product colour and shape may vary depending on the model.

° Whenever you connect an external device to your TV, make sure that power on the unit is turned off
° When connecting an external device, match the colour of the connection terminal to the cable.

1 PC IN [PC] / [AUDIO]

- Connect to the video and audio output jack on your PC.

2 COMPONENT IN

• Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.
• If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("PR", "PB", "Y") on your set.
• The PR, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
• Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

3 HDMI IN 1, HDMI IN 2, HDMI IN 3

• Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
• No additional Audio connection is needed for an HDMI to HDMI connection.
• When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

° What is HDMI?

- ^3 +LJK 'H¿QLWLRQ 0XOWLPHGLD LQWHUIDFH' DO∅IRVZ DOWYKHGW B DGODWP and multiple channels of digital audio.

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite UHFHLYHU WR FRQ;UP WKH +'0, YHUVLRQ WKHQ HUHTWXHDWW DU HUQPRV PD\FDXVH DQQR\LQJ ÀLFNHU RU QR VFUHHQ GLVSOD\

DVI IN(HDMI2) [R-AUDIO-L]

- DVI audio outputs for external devices.

° Supported modes for HDMI/DVI and Component

	480i	480p	576i	576p	720p	1080i	1080p
HDMI/DVI 50Hz	X	X	X	O	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O	O
Component	O	O	O	O	O	O	O

4 ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

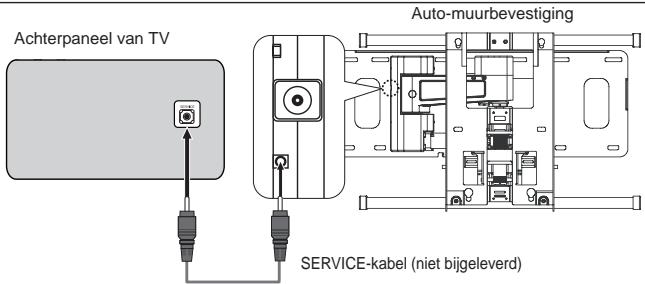

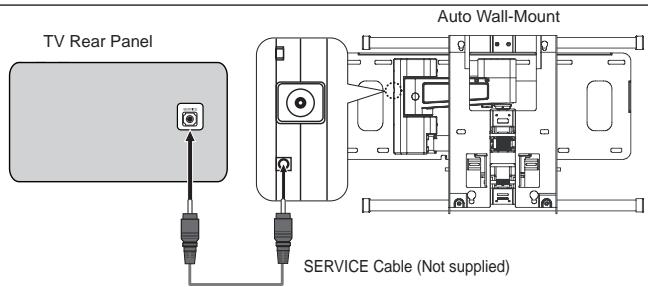

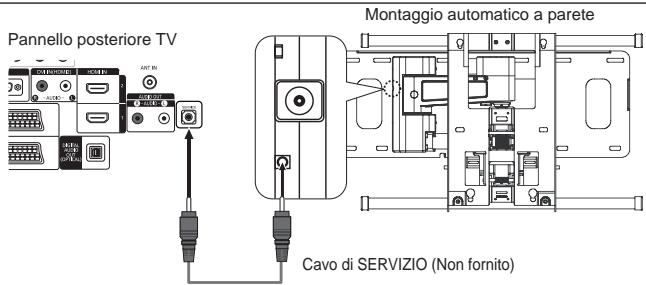

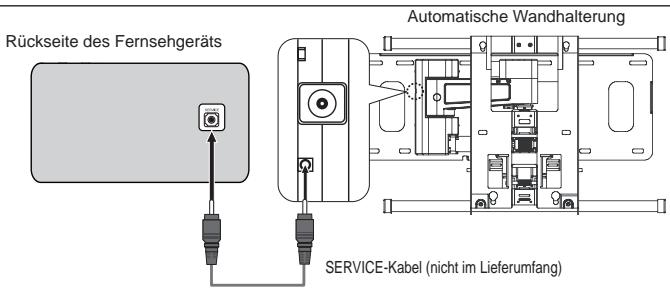

5 SERVICE

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

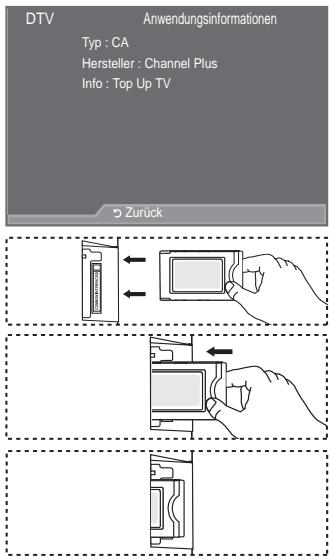

6 COMMON INTERFACE Slot

• When not inserting "CI CARD" in some channels, "Scrambled Signal" is displayed on the screen.
• The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.

- :KHQ WKH FKDQQHO LQIRUPDWLRQ message "Updating Completed" is displayed, indicating that the channel list is now updated.

° You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it.

° Insert the CI-Card in the direction marked on it.

° The place of the COMMON INTERFACE Slot may be different depending on its model.

7 WISELINK

- &RQQHFW D 86% PDVV VWRUDJH GHYLFH WR YLHZ SOKRWR ¿OHV -3(*

8 S-VIDEO or VIDEO / R-AUDIO-L

• Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
• Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device.

9 Headphones jack

- Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

0 AUDIO OUT [R-AUDIO-L]

- Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to FRUUHVS RQGLQJ DXGLR LQ FRQQHFWRUV RQ WKH \$PSOL¿HU RU '9' +R

! DIGITAL AUDIO OUT (OPTICAL)

- Connect to a Digital Audio Component.

When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on WKH '9' SOD\HU RU &DEOH 6DWHOOLWH %R[ GLUHFWO\ WR DQ \$PSC

@ EXT 1, EXT 2

Connector	Input			Output
	Video	Audio (L/R)	RGB	Video + Audio (L/R)
EXT 1	O	O	O	Only TV or DTV output is available.
EXT 2	O	O		Output you can choose.

- Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

# Kensington Lock (depending on the model)

• 7KH .HQVLQJWRQ ORFN RSWLRQDO LV D GHYLFM VXHG QWDR SSKEOILFD place.
• If you want to use a locking device, contact the dealer where you purchased the TV.
• The location of the kensington lock may be different depending on its model.

Viewing the Remote Control

1 Television Standby button

2 Selects the TV and DTV mode directly

3 Number buttons for direct channel access

4 One/Two-digit channel selection

5 : Volume increase : Volume decrease

6 Temporary sound switch-off

7 Electronic Program Guide (EPG) display

8 Use to quickly select frequently used functions.

9 Use to see information on the current broadcast

0 Colour buttons : Use these buttons in the Channel list and WISELINK, etc.

@ Press to select the optional display and sound modes for sports, cinema and games.

# Use these buttons in the DMA, WISELINK, and Anynet+.

(●: This remote can be used to control recording on Samsung recorders with the Anynet ^+ feature)

\$ Available source selection

% Previous channel

^ P : Next channel P : Previous channel

& Displays the main on-screen menu

* This function enables you to view and play photo and music files from an external device.

(Returns to the previous menu

) Control the cursor in the menu

a Exit the on-screen menu

b Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when "Anynet+(HDMI-CEC)" is 32Q' VHH SDJH

c Picture size selection

d Digital subtitle display

e It display "Channel List" on the screen.

Teletext Functions

2 Exit from the teletext display

7 Teletext store

8 Teletext size selection

9 Teletext reveal

0 Fastext topic selection

! Alternately select Teletext, Double, or Mix.

\$ Teletext mode selection (LIST/FLOF)

% Teletext sub page

^ P : Teletext next page P : Teletext previous page

& Teletext index

( Teletext hold

a Teletext cancel

POWER TV/DTV SOURCE 1 2 3 4 5 6 7 8 9 - - - 0 PRE-CH P MUTE - GUIDE MENU WLINK TOOLS RETURN INFO → EXIT → i TTX/MIX PSIZE DMA E.MODE CH LIST SUBT. SAMSUNG

° The performance of the remote control may be affected by bright light.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the J X U H

2. Install two AAA size batteries.

° Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

° Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time.

° If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

,V WKHUH D VSHFLDO ÀXRUHVFHQW OLJKW F

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical lever handle with no text or symbols

Simple line drawing of a curved arrow pointing to a button on a rectangular object (no text or symbols)

QHDUE\

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

° The standby indicator lights up on your set.

1. Press the button on your set.

° You also can press the POWER ⏻ button or the TV/DTV button on the remote control to turn the TV on.
° The programme that you were watching last is reselected automatically.

1. Press the numeric button (0\~9) or channel up/down ( / ) button on the remote control or ∨C/P. ⊕∧ button on your set.

° :KHQ \RX VZLWFK WKH VHW RQ IRU WKH YHU\ ¿UVW WLPH \RX ZLOO EH menus are to be displayed.

1. To switch your set off, press the POWER ⏻ button again.

Placing Your T elevision in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

° The screen is turned off and a red standby indicator appears on your set.

1. To switch your set back on, simply press the POWER∅, numeric buttons (0\~9), TV/DTV button or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial.

Viewing the Menus

1. With the power on, press the MENU button.
   The main menu appears on the screen. The menu's left side has icons: Picture, Sound, Channel, Setup, Input, Digital Menu.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF Then press the ENTER button to access the icon's sub-menu.
3. Press the EXIT button to exit.
   ° The on-screen menus disappear from the screen after about one minute.

TV Picture Mode : Standard Z Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings Z VMore Move Enter Return

Using the T OOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1. Press the TOOLS button.
   7KH 37RROV' PHQX ZLOO DSSHDU
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF
3. 3 U H V V W K H ENTER button to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

≠Anynet+ (HDMI-CEC), see page 56

Picture Mode, see page 17

‡Sound Mode, see page 23

‡Sleep Timer, see page 25

‡SRS TS XT, see page 23

Energy Saving, see page 28

‡Dual I-II, see page 24

PIP, see page 22

‡Auto Adjustment, see page 47

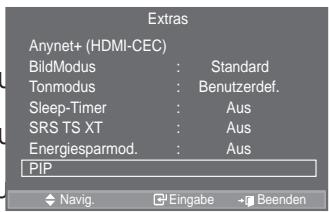

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Enter Exit

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

° The Screen Saver is activated if there is no remote control key input for longer than 1 minute while "Plug & Play" is running.
° The Screen Saver is activated if there is no operating signal for longer than 15 minutes.
° Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2) digital terrestrial

Plug & Play Start Plug & Play. OK Enter

VLJQDOV DUH EURDGFDVWHG 3OHDVH FRQ UP Z9%W R VRLX10 DORVFDO GHI\$OWKRXJK WKLV 79 VHW IROORZV WKH '9% 7 VSHFLi FDWLRQ PDLQWD DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be available in some countries.

1. Press the POWER button on the remote control.
   The message "Start Plug & Play" is displayed with "OK" selected.
2. Select the appropriate language by pressing the x or z button.
   Press the ENTER EXWWRQ WR FRQ ; UP \RXU FKRLFH

3. Press the { or y button to select 36 W R U H óH³P-R' P H 8 then the ENTER button.
   We recommend setting the TV to "Home Use" mode for the best picture in your home environment.
   ° "Store Demo" mode is only intended for use in retail environments.
   ° If the unit is accidentally set to ^3 6 W R U H mde and you want to return to ^3 + R P H 8 V H (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.
   "Store Demo" mode is only intended for use in retail environments. If the unit is accidentally set to ^3 6 W R U H mode and you want to return to ^3 + R P H 8 V H (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

4. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button.

° Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the x or z button.

Press the ENTER EXWWRQ WR FRQ ; UP \RXU FKRLFH

1. 7KH PHVVDJH ^3 6RPH '79 IXQFWLRQV PD\ QRW EID\HYDLODEOH 'LJLWDC

Press the { or y EXWWRQ WR VHOHFW 3<H VENTRERG1bRfton.W KHQ SUHVV WKH

‡Yes: First an ATV search is performed and then a DTV ch. auto search is performed. ‡No: Only an ATV search is performed.

° This function is supported for all countries except for the following countries: France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria.

1. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

° The channel search will start and end automatically.
The DTV channel scan menu appears and the DTV channel is automatically updated.
° If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV. After all the available channels are stored, the "Clock Set" menu appears.

° Press the ENTER button at any time to interrupt the memorization process.

For detailed descriptions about DTV channel update, refer to page 31 of this manual. After all the available digital channels are stored, the screen to select a time zone is displayed depending on the country.

1. Press the ENTER button.

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the { or y button.

Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the x or z button.

<RX FDQ DOVR VHW WKH 30RQWK 'Minute"by pressing the number ButtonsD QG on the remote control.

1. Press the ENTER EXWWRQ WR FRQ UP \RXU VHWWLQJ 7KH PHVVDJH ^3 (QM : KHQ \RX KDYH iQLV ENTER Uthon/ WKH

° Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

Language: Select your language.

‡Country: Select your country.

Auto Store: Automatically scans for and stores channels available in the local area.

Clock Set: Sets the current time for the TV clock.

If you want to reset this feature...

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

1. Press the ENTER button again, to select "Plug & Play".

For further details on setting up options, refer to the page 11.

° 7KH ^3 3OXJ 3OD\ 'IHDWXUH LV RQO\

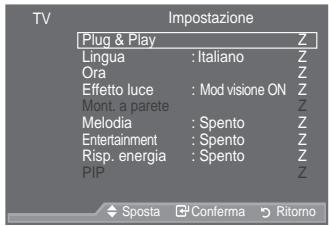

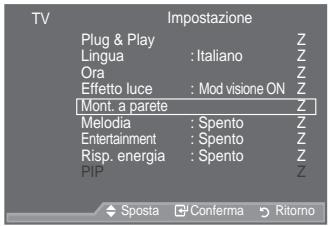

TV Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return

VV WKH

79 PRGH

Plug & Play Start Plug & Play. OK Enter Return

• Storing Channels Automatically
• Storing Channels Manually

TV Channel Country : United Kingdom Z Auto Store Z Manual Store Z Channel Manager Z Sort Z Name Z Fine Tune Z LNA : Off Z Move Enter Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXCMMeR',QhwRes theOENTER button.
2. Press the ENTER button to select "Country".
3. Select the appropriate country by pressing the x R U button.

Press the ENTER EXWWRQ WR FRQ ; UP \RXU FKRLFH

° Even though you have changed the country setting in this menu, the country setting for DTV is not changed. (Refer to page 31)

1. Press the x R U button to select "Auto Store", then press the ENTER button.
2. Press the ENTER button.

° The TV will begin memorizing all of the available channels.

Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Sort" menu appears. (refer to page 15)

Storing Channels Manually

° Not available in DTV or external input mode.

You can store television channels, including those received via cable networks.

When storing channels manually, you can choose:

‡ :KHWKHU RU QRW WR VWRUH HDFK RI

‡ 7KH SURJUDPPH QXPEHU RI HDFK VWR to identify.

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXCMMeR',QhenVResc theO HF ENTER button.

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.

2. 6 HOHFW WKH UHTXLUHG RSWLRQ E\SU press the ENTER button.

3. :KHQ \RX DUH VDWLV¿HG ZLWK \RXU V ENTER button.

4. Press the EXIT button to exit.

‡ Programme (Programme number to be assigned to a channel)

- 3UHVV WKH x RU z EXWWRQ XQWLO \RX ¿QG WKH FRUUHFW QXPEHU ° You can also select the channel number directly by pressing the numeric buttons (0\~9).

‡ Colour System: Auto/PAL/SECAM/NTSC4.43

- 3UHVV WKH x RU z EXWWRQ WR VHOHFW WKH UHTXLUHG FRORXU VW

‡ Sound System: BG/DK/I/L

- 3UHVV WKH x RU z EXWWRQ WR VHOHFW WKH UHTXLUHG VRXQG VWI

‡ Channel (When you know the number of the channel to be stored)

- 3UHVV WKH x RU z EC (AimVchRanel)VoRS (CalbDehFahnel).

- 3UHVV WKH y EXWWRQ WKHQ SUHVV WKH x RU z EXWWRQ WR VHOH

° You can also select the channel number directly by pressing the numeric buttons (0\~9).

° If there is abnormal sound or no sound, re-select the sound standard required.

‡ Search (When you do not know the channel numbers)

- 3UHVV WKH x RU z EXWWRQ WR VWDUW WKH VHDUFK

- 7KH WXQHU VFDQV WKH IUHTXHQF\ UDQJH XQW LXD WMKHH FZWMG IEKDQQ received on the screen.

‡ Store (When you store the channel and associated programme number)

- Set to "OK" by pressing the ENTER button.

° Channel mode

- P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

- C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.

- S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

TV Channel Country : United Kingdom Z Auto Store Manual Store Channel Manager Z Sort Z Name Z Fine Tune Z LNA : Off Z

TV Manual Store Programme : P 2 Colour System : Auto Z Sound System : BG Z Channel : C 3 Search : 77 MHz Store : ?

Adding / Locking Channels

° Not available in DTV or external input mode.

Using the Channel Manager, you can conveniently lock or add channels.

1. Press the MENU button to display the menu.
   Press the x or z button to select "Channel", then press the ENTER button.
2. Press the x or z button to select "Channel Manager", then press the ENTER button.

‡ Adding channels Using the Channel List, you can add channels.

1. Select Channel List by pressing the ENTER button.

2. Move to the (⊕ ¿HOG E\ SUHVVLQJ WKH x z button, select a channel to be added, and press the ENTERG button to add the channel.

° If you press the ENTER button again, the (√) symbol next to the channel disappears and the channel is not added.

° “☐ ’ LV DFWLYH ZKHQ &KLOG /RFN LV VHOHFWHG WR 2Q

TV Channel Country : United Kingdom Z Auto Store Z Manual Store Z Channel Manager Z Sort Z Name Z Fine Tune Z LNA : Off Z Move Enter Return

TV Channel Manager Channel List Z Child Lock : Off Z Move Enter Return

‡ /RFNLQJ FKDQQHOV

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. 6 HOHFW 2Q E\ SUHVVLQJ WKH x RU z ENTER button.

3. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.

4. Move to the ( 🔍 ¿HOG E\ SUHVVLQJ WKH x z select a channel to be locked, and press the ENTER button.

° If you press the ENTER button again, the (√) symbol next to the channel disappears and the channel lock is cancelled.
° A blue screen is displayed when "Child Lock" is activated.

Channel List P 1 C3 1 / 10 Prog. 0 C-- 1 C3 2 BBC 1 3 C74 4 C75 5 C76 6 S3 7 S4 8 S6 9 S7 Add Lock Move Enter Page Return

1. Press the EXIT button to exit.

° Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "🔒" to be active or inactive.

You can select these options by simply pressing the CH LIST button on the remote control

TTX/MIX PSIZE DMA E.MODE CH LIST ← II →

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

° Not available in DTV or external input mode.

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXCMAMER, QhwResc theO HF ENTER button.

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. Select the channel number that you wish to change by SUHVV LQJ WKH x RU z EXWWRQ UHSHD Press the ENTER button.

° The selected channel number and name are moved to right side.

1. Press the x R U button to move to the position in which you would like to change and then press the ENTER button.

° The selected channel is exchanged with the one previously stored to the chosen number.

1. Repeat steps 3 to 4 for another channel to be sorted.

2. Press the EXIT button to exit.

TV Channel Country : United Kingdom Z Auto Store Z Manual Store Z Channel Manager Z Sort Z Name Z Fine Tune Z LNA : Off Z Move Enter Return TV Sort Prog. Ch. Name U 0 C-- 1 C23 Z 2 C16 3 C3 4 S1 V Move Enter Return

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

° Not available in DTV or external input mode.

1. Press the MENU button to display the menu. Press the x R U button to select "Channel", then press the ENTER button.

2. Press the x R U button to select "Name", then press the ENTER button.

3. If necessary, select the channel to be assigned to a new QDPHE\SUHVVLQJ WKH x RUENTEGRWWR button

° The selection bar is displayed around the name box.

To...	Then...
Select a letter, number or symbol	3 U H V V W K H x R U z
Move on the next letter	3 U H V V W K H y E X W
Move back the previous letter	3 U H V V W K H { E X W
& R Q ¿ U P W K H Q D P H	Press the ENTER button

TV Channel Country : United Kingdom Z Auto Store Z Manual Store Z Channel Manager Z Sort Z Name Z Fine Tune Z LNA : Off Z Move Enter Return TV Name Prog. Ch. Name U 0 C-- ---- 1 C23 ---- 2 C16 ---- 3 C3 ---- 4 S1 ---- V Move Enter Return

° The following characters are available: Letters of the alphabet (A\~Z) / Numbers (0\~9) / Special characters (+, -, *, /, space)

1. Repeat steps 3 to 4 for each channel to be assigned to a new name.

2. Press the EXIT button to exit.

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

° Not available in DTV or external input mode.

1. Use the number buttons to directly select the channel that \RX ZDQW WR ¿QH WXQH

2. Press the MENU button to display the menu. Press the x R U button to select "Channel", then press the ENTER button.

3. Press the x R U button to select "Fine Tune", then press the ENTER button.

4. Press the { R U yEXWWRQ WR DGMXVW WKH Press the ENTER button.

5. Press the EXIT button to exit.

° Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

5HVHW E\ SUHVVLQJ WKH

/1\/RZ 1RLVH \PSOL¿HU

If the TV is operating in a weak-signal area, the LNA function

FDQ LPSURYH WKH UHFHSWLRQ D ORZ Q incoming signal).

° Not available in DTV or external input mode.

1. Press the MENU button to display the menu. 3 U H V V W K H x R U z E X W W R Q W R V H O H F ENTER G button.

2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

3. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

4. Press the EXIT button to exit.

TV Channel Country : United Kingdom Z Auto Store Z Manual Store Z Channel Manager Z Sort Z Name Z Fine Tune Z LNA : Off ZJ Move Enter Return

TV Country : United Kingdom Auto Store Manual Store Channel Manager Sort Name Fine Tune LNA : Off On Move Enter Return

RRVWV W

SUHVV WK

WKH

/ WKH

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. Press the ENTER button again, to select "Mode".
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF Press the ENTER button.
4. Press the EXIT button to exit.

Dynamic : Selects the picture for high-definition in a bright room.

Standard : Selects the picture for optimum display in a normal environment.

Movie: Selects the picture for comfortable display in a dark room.

° The Picture mode must be adjusted separately for each input source.

TV Picture Mode : Standard Z Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings Z VMore Move Enter Return

VXUH HIIH

TV Mode : Dynamic Backlight Standard Contrast Movie 50 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings VMore Move Enter Return

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF
3. 3UHVV WKH { RU y EXWWRQ WR VHOHF
4. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode { Standard y Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

VXUH PRG

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
3. 3UHVV WKH { RU y EXWWRQ WR GHFUH particular item. Press theENTER button.
4. Press the EXIT button to exit.

Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0\~10)

Contrast: Adjusts the lightness and darkness between objects and the background.

Brightness: Adjusts the brightness of the whole screen.

Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.

Colour: Adjusts the colours, making them lighter or darker.

‡Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

TV Mode : Standard Z Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings Z VMore Move Enter Return

HP 3UHVV
H YDOXH

x Backlight z_ 7 Move Adjust Return

° The adjusted values are stored according to the selected Picture mode.
° ,Q 3& PRGH \RX FDQ RQO\ PDNH FKDQJHV WR %/D/FNOLJKW' ³&RQWUI
° In Analogue TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.
° You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 19)

&RQ¿JXULQJ 'HWDLOHG 6HWWLQJV RQ WKH 3

You can set detailed picture settings.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. Press the ENTER EXWWRQ WR VHOHFW 30R 3UHVV WKH x RU z EXWWRQ WR VHOHF press the ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.
4. 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SU press the ENTER button.
5. :KHQ \RX DUH VDWLV¿HG ZLW ENTERG VH button.
6. Press the EXIT button to exit.
   ° "Detailed Settings" is available in "Standard" or "Movie" mode. ° ,Q 3 & PRGH \RX FDQ RQO\ PDNH FKDQ, ³* DPPD' DQG ³: KLWH %DODQFH' IURP D 6 HWW LQJV' LWHPV

TV Mode : Standard Z Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50 Tint G50 R50 Detailed Settings Z VMore Move Enter Return

RYLH' WK
QJV WKH
XWWRQ V

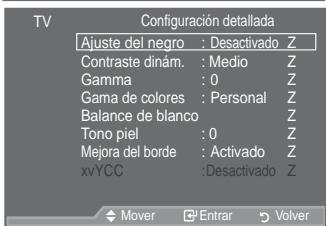

TV Detailed Settings Black Adjust : Off Z Dynamic Contrast : Medium Z Gamma : 0 Z Colour Space : Custom Z White Balance : Z Flesh Tone : 0 Z Edge Enhancement : On Z xvYCC : Off Z Move Enter Return

WUDVW'

‡ Black Adjust: Off/Low/Medium/High
You can directly select the black level on the screen to adjust the screen depth.
‡ Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.

‡ Gamma: -3 \~ +3

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

3UHVV WKH { RU y EXWWRQ XQWLO \RX UHDFK WKH RSWLPDO VHWWLG

‡ Colour Space: Auto/Native/Custom

&RORXU VSDFH LV D &RORXU PDWUL[ FRPSRVHG RI 35HG' 3*UHHQ'DQ

Select your favourite Colour space to experience the most natural Colour.

Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.

Native: Native Color Space offers deep and rich color tone.

‡Custom: Adjusts the color range to suit your preference.

° Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

^3 &RORXU' LV DYDLÓDEOH ZKHQ ^3 &RORXU 6SDFH' LV VHW WR ^3 &XVW

3UHVV WKH x RU z EXWWRQ WR VHOHFW ^3 5HG' ^3 *UHHQ' ^3 %OXH' ^3

Press the ENTER button.

Red/Green/Blue: ,Q ³ & RORXU' \RX FDQ DGMXVW WKH 5* % YDOXHV IRU W

3UHVV WKH x RU z EXWWRQ WR VHOHFW 5HG *UHHQ RU %OXH

Press the ENTER← button.

3UHVV WKH { RU y EXWWRQ WR GHFUHDVH RU LQFUHDVH WKH YDO

ENTER button.

Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

6HOHFW WKH UHTXLUHG RSWLRQ E\ SUHVVLEQJERG button.RU z EXWWRQ V

3UHVV WKH { RU y EXWWRQ XQWLO \RX UHDFK WKH RSWLPDO VHWWL

Reset: The previously adjusted white balance will be reset to the factory defaults.

‡ Flesh Tone: -15 \~ +15

You can emphasize the pink 'flesh tone' in the picture.

3UHVV WKH { RU y EXWWRQ XQWLO \RX UHDFK WKH RSWLPDO VHWWLG

° Changing the adjustment value will refresh the adjusted screen.

‡ Edge Enhancement: Off/On

You can emphasize object boundaries in the picture.

‡ xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.

Only available in "HDMI" and "Component" on "Movie" mode.

° If xvYCC function is active, PIP cannot be selected.

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 (On page 17).

2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

3. Press the x R U button to select "OK" or "Cancel". Press the ENTER button.

4. Press the EXIT button to exit.

° The "Reset" will be set for each "Picture" mode.

TV Picture UMore Picture Options Reset OK Cancel Move Enter Return

HVV WKH

&RQ;JXULQJ 3LFWXUH 2SWLRQ

1. Press the MENU button to display the menu. Press the ENTER button, to select "Picture".
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.
3. 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SU press the ENTER button.
4. :KHQ \RX DUH VDWLV ¿HG ZLW ENTERV button.
5. Press the EXIT button to exit.
   ° In PC mode, you can only make changes to the "Colour 7RQH'DQG ^3 6L]H'IURP DPRQJ WKH

TV Picture UMore Picture Options Z Reset : OK Z Move Enter Return

TV Picture Options Colour Tone : Normal Z Size : Auto Wide Z Screen Mode : 16:9 Z Digital NR : Auto Z DNle : Off Z HDMI Black Level : Normal Z Movie Plus : Low Z Blue Only Mode : Off Z Move Enter Return

‡ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

° The adjusted values are stored according to the selected "Picture" mode.
° 3:DUP ' RU 3:DUP ' LV RQO\ DFWLYDWHG ZKHQ WKH SLFWXUH PRGH

‡ Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

Wide Zoom: Magnify the size of the picture more than 4:3.

±Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.

4:3 : This is the default setting for a video movie or normal broadcasting.

‡Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p) or Component (1080i/1080p) signals are input.

° "Auto Wide" function is available only in "TV", "DTV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.
° In PC Mode, only "16:9" and "4:3" mode can be adjusted.
° Settings can be adjusted and stored for each external device you have connected to an input of the TV.
° Temporary image retention may occur when viewing a static image on the set for more than two hours.
° :LGH =RRP 0RYH WKH VFUHHQ XS GRZQ XVLQJWV by x RU z EXWWI SUHVVLQJ ENKEHR botton.
"Zoom": Select E\ SUHVVLQJ WKH { RU yEXWWRQ 8VH WKH x RU z EXW' and down. After selecting XVH WKH x RU z EXWWRQ WR PDJQLI\ RU UHGXF vertical direction.
° When Double (□□, □□) mode has been set in PIP, the Picture Size cannot be set.
After selecting "Just Scan" in HDMI (1080i/1080p) or Component (1080i/1080p) mode : Select E\ SUHVVLQJ WKH { RU yEXWWRQ 8VH WKH x z { RU y EXW } Reset: 3UHVV WKH { RU y EXWWRQ WR VHEENTER, button.VHW' WKHQ SUHV' You can initialize the setting.

You can select these options by simply pressing the P.SIZE button on the remote control.

E:\Z TTX\MIX P.SIZE E.MODE CH LIST SUBT.

‡ Screen Mode: 16:9/Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

‡16:9: Sets the picture to 16:9 wide mode.

Wide Zoom: Magnify the size of the picture more than 4:3.

±Zoom: Magnify the size of the picture vertically on screen.

‡4:3: Sets the picture to 4:3 normal mode.

° This function is available in "Auto Wide" mode.
° This function is not available in "PC", "Component" or "HDMI" mode.

‡ Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

° When the signal is weak, select one of the other options until the best picture is displayed.

‡ DNle: Off/ Demo/On

This TV includes the DNle function so as to provide a high visual quality. If you set DNle to on, you can view the screen with the DNle feature activated. If you set the DNle to Demo, you can view the applied DNle and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

° DNle™ (Digital Natural Image engine)
This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNle™ WHFKQRORJ\ ZLOO ¿WHYHU\ VLJQD eyes.
° This function is not available in "Movie" and "Standard" mode.

‡ HDMI Black Level: Normal/Low

You can directly select the black level on the screen to adjust the screen depth.

° This function is active only when the external input connects to HDMI(RGB signals).

‡ Movie Plus: Off/Low/Medium/High/Demo

You can view more natural skin and clear text even in fast moving scenes.

° Use this function when watching movies.
° 7KLV IXQFWLRQ LV QRW DYDLODEOH LQ ^3 :LGH =RRP'DQG ^3 =RRP'PI
° This function is not available when "PIP" is set to "On".
° It is not supported in HDMI 1080p/24Hz mode.

‡ Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

° 3%OXH 2QO\ 0RGH' LV DYDLODEOH ZKHQ WKH SLFWXUH PRGH LV VH

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3UHVV WKHx RU z EXWWRQ WR VHOHFW ENTER button.
3. 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SU press the ENTER button.
4. When you are satisfied with your setting, press the ENTER button.
5. Press the EXIT button to exit.
6. You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

TV Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return

VV WKH

TV PIP PIP : On Z Source : TV Z Size : Z Position : Z Programme : P 1 Z Move Enter Return

XWWRQ V

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOF ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOF
4. 3UHVV WKH { RU y EXWWRQ WR VHOU
5. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP Move Enter Exit

V WKH
WHP SWLRQ

PIP PIP : { On y Source : TV Programme : P 1 Size : Position : Move Adjust Return

‡ PIP: On/Off

You can activate or deactivate the PIP function.

You can select a source of the sub-picture.

‡ Size: □ / □ / □□

You can select a size of the sub-picture.

° If main picture is in "HDMI" mode, "Size" is available.

‡ Position: □/□/□/□

You can select a position of the sub-picture.

° In Double (□□, □□) mode, "Position" cannot be selected.

‡ Programme

You can select a channel of the sub-picture only when the "Source" is set to "TV" or "DTV".

Sound Features

1. Press the MENU EXWWRQ WR GLVSOD\WKHP button to select "Sound", then press the ENTER button.
2. 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SU press the ENTER button.
3. :KHQ \RX DUH VDWLV ¿HG ZLW ENTERG VH button.
4. Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOK
3. 3UHVV WKH { RU y EXWWRQ WR VHOF
4. Press the EXIT or TOOLS button to exit.

TV Sound Mode : Custom Z Equalizer SRS TS XT : Off Z Auto Volume : Off Z TV Speaker : On Z Sound Select : Main Z Move Enter Return

XWWRQ V

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode { Custom y Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

‡ Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal preferences.

° If you make any changes to these settings, the sound mode is automatically switched to "Custom".

TV Equalizer R + 0 - L Balance 100Hz 300Hz 1kHz 3kHz 10kHz Move Adjust Return

‡ SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOK
3. 3UHVV WKH { RU y EXWWRQ WR VHOU
4. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off [ SRS TS XT { Off y ] Energy Saving : Off Dual I-II : Mono Move Adjust Exit

TruSurround XT, SRS and (●) Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

‡ Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

‡ TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

° The ▲+, ▲- and MUTE buttons do not operate when the "TV Speaker" is set to Off.
° : KHQ 379 6SHDNHU' LV VHW WR 32II' \RX FDQ RSHUDWH RQO\ 36RXC menu.

‡ Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

í Main: Used to listen to the sound of the main picture.

í Sub: Used to listen to the sound of the sub picture.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Selecting the Sound Mode

You can set the sound mode in the "T ools" menu.

When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF
3. 3UHVV WKH { RU y EXWWRQ WR VHOHF
4. Press the ENTER← button.

	Audio Type	Dual 1/2	Default
A2 Stereo	Mono	MONO	Automatic change
	Stereo	STEREO <MONO
	Dual	DUAL <DUAL 2	DUAL 1
NICAM Stereo	Mono	MONO	Automatic change
	Stereo	MONO <STEREO
	Dual	MONO <DUAL 1 DUAL 2	DUAL 1

Tools
Anynet+ (HDMI-CEC)
Picture Mode	:	Standard
Sound Mode	:	Custom
Sleep Timer	:	Off
SRS TS XT	:	Off
Energy Saving	:	Off
Dual I-II	{	Mono y

° If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.
° This function is only activated in stereo sound signal. It is deactivated in mono sound signal.
° This function is only available in Analogue TV mode.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

° When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu.
° Prolonged use of headphones at a high volume may damage your hearing.
° You will not receive sound from the speakers when you connect headphones to the system.
° The headphone volume and TV volume are adjusted differently.

TV Side Panel

Setting and Displaying the Current Time

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

3. Press the ENTER button to select "Clock Set".

To...	Press the....
Move to "Month", "Day", "Year", "Hour" or "Minute"	{ RU y EXWWRQ
Set the "Month", "Day", "Year", "Hour" or "Minute"	x RU z EXWWRQ
& R Q ¿UP WKH V HWW L Q	J ENTER∅ button

TV Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return

IVV WKH

V WKH

TV Clock Set Month S 01 T Hour 00 Day 01 Minute 00 Year 2008 Move Adjust 5 Return

1. Press the EXIT button to exit.

° The current time will appear every time you press the INFO button.

° You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.
4. 3UHVV WKH x RU z EXWWRQ UHSHDWHG appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER button.
5. Press the EXIT button to exit.
   ° The TV automatically switches to standby mode when the timer reaches 0.

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF
3. 3UHVV WKH { RU y EXWWRQ WR VHOHF
4. Press the EXIT or TOOLS button to exit.

TV Setup Plug & Play Z Language : English Z Time Z Light Effect : In Watching TV Z Auto Wall-Mount Z Melody : Off Z Entertainment : Off Z Energy Saving : Off Z PIP Z Move Enter Return TV Time Clock Set : 00:00 Sleep Timer : Off Timer 1 : 30 Timer 2 : 60 Timer 3 : 90 120 150 180 Move Enter Return

IVV WKH

V WKH

HQ SUHVV

JHG WLPH

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer { Off y SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Adjust Exit

Switching the T television On and Off Automatically

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF "Timer 3", then press the ENTER button.
   Three different On/Off Timer Settings can be made.

° You must set the clock first.

1. 3UHVV WKH { RU y EXWWRQ WR VHOHF\ 3UHVV WKH x RU z EXWWRQ WR DGMXV

‡ On Time : Select hour, minute and "Activate"/"Inactivate". 7R DFWLYDWH WLPHU ZLWK WActivatel.W

‡ Off Time : Select hour, minute and "Activate"/"Inactivate". 7R DFWLYDWH WLPHU ZLWK VActivateV.HW

‡ Volume : Select the desired turn on volume level.

‡ Repeat : Select "Once", "Everyday", "Mon\~Fri", "Mon\~Sat" or "Sat\~Sun".

° You can set the hour and minute directly by pressing the number buttons on the remote control.

° Auto Power Off

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

TV Setup Plug & Play Z Language : English Z Time Z Light Effect : In Watching TV Z Auto Wall-Mount Z Melody : Off Z Entertainment : Off Z Energy Saving : Off Z PIP Z Move Enter Return TV Timer 1 On Time 00 : 00 Inactivate Off Time 00 : 00 Inactivate Volume 10 Repeat Once y Move Adjust Return IVV WKH V WKH IP EHORZ VDWLV i HC W WR W WR

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the x R U button to select "Setup", then press the ENTERG button.
2. Press the x R U button to select "Language", then press the ENTER button.
3. Select a particular language by pressing the x R U button repeatedly. Press the ENTER button.
4. Press the EXIT button to exit.

TV Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return

Setting the Light Effect (depending on the model)

You can turn on/off the LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

1. Press the MENU button to display the on-screen menu. Press the x R U button to select "Setup", then press the ENTER button.
2. Press the x R U button to select "Light Effect", then press the ENTER button.
3. Press the x R U button to select "Off", "In Standby", "In Watching TV" or "Always". Press the ENTER button.

‡Off: LED will not come on. ‡In Standby: Turns the LED on in standby mode. ‡In Watching TV: Turns the LED on while watching TV. ‡Always: LED is always on.

° Set the "Light Effect" to "Off" to reduce the power consumption.

1. Press the EXIT button to exit.

TV Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return LED

Melody / Entertainment / Energy Saving

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SUPress the ENTER button.
3. :KHQ \RX DUH VDWLV¿HG ZLW ENTERRG V button.
4. Press the EXIT button to exit.

TV Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return

‡ Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

í : KHQ QR VRXQG LV RXWSXW I W RTE ButtonHhas been Profed V H WKH

í : KHQ QR VRXQG LV RXWSXW IUR(Polume) Button has been pressed W K H

í When the TV is turned off by the Sleep Timer function.

HVV WKH

XWWRQ

‡ Entertainment: Off/Sports/Cinema/Game

7KH 3(QWHUWDLQPHQW' PRGH HQDEOHV \RX WR VHOHFW WKH RSWLPD and games.

í Off: Switch the "Entertainment" function off.
í Sports : Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound.
í Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound.
í Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.
, I \RX VHW DQ\ RI WKH WKUHH ^3 (QWHUWDLQPHQWD QG GFDVQ VQR WQE HM DGMXVWHG ,I \RX ZDQW WR PDNH 3LFWXUH DQ G GFRHXQVG ' PPRGGH DGM must be turned off.
° 7KH ^3 (QWHUWDLQPHQW' VHWWLQJV DUH VDYHG IRU HDFK LQSXW VI
° ,I \RX VHW DQ\ RI WKH WKUHH 3(QWHUWDLQPHQW' PRGHV WR 2Q 3

You can press the E.MODE button on the remote control UHSHDWHGO\WRFKDQJHWKH ^3 (QWHUV

HUV T12 TTXMIX PSIZE DMA E.MODE SUBT W L Q J

‡ Energy Saving: Off/Low/Medium/High/Auto

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

í Off: Turns off the energy saving function.
í Low: Sets the TV to low energy saving mode.
í Medium : Sets the TV to medium energy saving mode.
í High: Sets the TV to high energy saving mode.
í Auto : Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHO
3. 3UHVV WKH { RU y EXWWRQ WR VHOF "High" or "Auto".
4. Press the EXIT or TOOLS button to exit.

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving { Off y Dual I-II : Mono Move Adjust Exit

0HGLXP

Selecting the Source

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. Press the ENTER button again, to select "Source List".
   When no external device is connected to your set, only "TV", "Ext.1", "Ext.2", "DTV" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2", "HDMI3" are activated only when they are connected to your set.

3. 6 HOHFW WKH UHTXLUHG GHYLFH E\ SU Press the ENTER button.

TV Source List : TV Z Edit Name Z Anynet+(HDMI-CEC) WISELINK

VV WKH

TV Source List TV Ext.1 : ---- Ext.2 : ---- AV : ---- S-Video : ---- Component : ---- PC : ---- VMore Move Enter Return

XWWRQ

Press the SOURCE button on the remote control to toggle between all the available source.
TV mode can be selected by pressing the TV/DTV button, number buttons(0\~9), and the P / button on the remote control.

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. Press the x R U button to select "Edit Name", then press the ENTER button.

3. Press the x R U button to select the device that you wish to edit.

Press the ENTER button.

1. Press the x R U button to select the required device. Press the ENTER button.

2. Press the EXIT button to exit.

° When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

TV Source List : TV Z Edit Name Z Anynet+(HDMI-CEC) WISELINK Move Enter Return

VV WKH

TV Ext.1 Ext.2 AV S-Video Component PC HDMI1 HDMI2 HDMI3 Edit Name : .... : VCR : DVD : Cable STB : Satellite STB : PVR STB : AV Receiver : V : ---- Move Enter Return

Previewing the DTV Menu System

‡The company does not guarantee the normal operation of the DTV menu for countries other than the supported countries (France, Germany, Italy, Netherlands, Spain, Switzerland, United Kingdom, Austria) because only these country standards are supported.

In addition, when the country of the broadcast stream differs from the country selected by the current user, the string appearing in the channel banner, Info, Guide, Channel Manager, etc. may not be displayed properly.

‡Available in DTV mode. Preset to the DTV mode by using the TV/DTV button on your remote control. To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration.

Press the MENU button to display the menu.

3UHVV WKH x RU z EXWWRQ WR VHOHFW ENTER button.

Guide

Now & Next Guide

Full Guide

Scheduled List

Default Guide —— Now/Next, Full Guide

Channel

Country

Auto Store

Manual Store

Edit Favourite Channels

Channel List — All, Favourites, Default

Setup

Menu Transparency — High, Medium, Low, Opaque

Change PIN

Parental Lock

Subtitle Off. On

Subtitle Mode — Normal, Hard of hearing

Audio Format — PCM, Dolby Digital

Audio Description——Audio Description——Off, On Volume

Digital Text —— Disable, Enable

Time Zone

Common Interface — Application Info, CI Menu

System Product Information

Signal Information

Software Upgrade

Reset

Language

Audio Language | Primary Audio Language

Subtitle Language Secondary Audio Language

Teletext Language Primary Subtitle Language

Preference Secondary Subtitle Language

Primary Teletext Language

Secondary Teletext Language (Depending On the Country)

TV Guide Digital Channel Setup Language Digital Menu Move Enter Return

DTV Guide Now & Next Guide Full Guide Scheduled List X Default Guide : Full Guide X Move Enter Return

DTV Channel Country :United Kingdom X Auto Store Manual Store Edit Favourite Channels Channel List Move Enter Return

DTV Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode T Move Enter Return

DTV Language Audio Language Subtitle Language Teletext Language Preference X Move Enter Return

° The sub-items of the CI Menu may vary depending on the CAM model.

Updating the Channel List Automatically

You can update the channel list when the broadcaster adds new Services or if you move the TV to a new location.

1. Press the MENU button to display the menu. 3UHVV WKH x RU z EXWWRQ WR VHOP the ENTER button.
2. Press the x R U button to select "Channel", then press the ENTER button.
3. Press the ENTER button again, to select "Country".
4. 6 HOHFW WKH DSSURSULDWH FRXQWU\ Press the ENTER EXWWRQ WR FRQjUP \RXU

° Even though you have changed the country setting in this menu, the country setting for Analogue TV is not changed. (Refer to page 12)

1. Press the x R U button again, to select "Auto Store". Press the ENTER button.

° : KHQ LW KDV ¿QLVKHG WKH QXPE be displayed.
° The existing favourite channel list will not be deleted when the channel list is updated.
° 7R VWRS WKH VFDQ EHIRUH LEWTERG button WHK"STGP" Selected.V WKH

1. Press the EXIT button to exit.

° If the signal status is poor, the "No Service found! Check the aerial connection" message is displayed.

DTV Channel Country :United Kingdom X Auto Store X Manual Store X Edit Favourite Channels X Channel List X Move Enter Return

WKHQ SI

DTV Auto Store Scanning for digital services... 35% Services found: 24 Channel: 38 Stop 5 Return

Updating the Channel List Manually

You can specify the channel for a fast channel search.

1. Press the MENU button to display the menu. 3UHVV WKH x RU z EXWWRQ WR VHOL the ENTER button.
2. Press the x R U button to select "Channel", then press the ENTER button.
3. Press the x R U button to select "Manual Store", then press the ENTER button.
4. Press the x R U button to select the required option, then press the ENTER button.

° í Channel : Channel "5" to "69" in sequence are displayed (depending on the country)

í Frequency : The frequency available in the Channel group is displayed.

í Bandwidth : The available bandwidths are 7 and 8 MHz.

° Press the red button to start the scan for digital services. When it has finished, channels are updated in the channel list.

1. :KHQ LW KDV ¿QLVKHG WKH QXPEHU RI VFDQQHG VHUYLFHV ZLOO EH
2. Press the EXIT button to exit.

DTV Channel x 5 Frequency Bandwidth 177500 KHz 7 MHz z Search Adjust Return

WKHQ SI

Editing Your Favourite Channels

You can edit your favourite channels using the four colour buttons.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF then press the ENTER button.
4. Press the red button to display all currently stored channels.
5. 3UHVV WKH x RU z EXWWRQ WR VHOHF Press the ENTER button.

° A " • " icon is shown next to the selected channel and the channel will be added to the favourite channel list.
• To undo, press the ENTER button again.
- Select All : Select all channels currently displayed.
- Select None : Deselect all selected channels.
- Preview: Displays (a) currently selected channel(s).
° The Favourite Channels settings have been completed.

1. Press the EXIT button to exit.

DTV Edit Favourite Channels (no channels) Add Channels Return

DTV Edit Favourite Channels 2 BBC TWO 5 Five 7 BBC THREE 15 abc1 16 QVC Select All Select None Preview Move Select Return

‡Add

You can use this function when one or more favourite channels have been selected.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF then press the ENTER button.
4. Press the red button in the "Edit Favourite Channels" menu.

To add more channels, refer to the step 5 on the previous description.

1. If you want to check the channel to be stored, press RETURN button.

Press the EXIT button to exit.

• To add all channels to the favourite channel list, press the red button.
- To remove all channels, press the green button.
- Preview : Displays (a) currently selected channel(s).
- Press the CH LIST button to display the favourite channel manager.

DTV Edit Favourite Channels 2 BBC TWO V 7 BBC THREE V 15 abc1 V Add Renumber Preview Delete Move Return

DTV Edit Favourite Channels 2 BBC TWO V 5 Five 7 BBC THREE V 15 abc1 V 16 QVC Select All Select None Preview Move Select 5 Return

‡Renumber (depending on the country)

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHFW ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHFW ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHFW then press the ENTER button.

4. 6 HOHFW WKH UHTXLUHG FKDQQHO XVLQJ

5. Press the green button.

° The space for entering the number is a blank.

1. Enter the new channel number. Press ENTER button to store or RETURN button to cancel.

° 3UHVV WKH { EXWWRQ WR GHOHWH DQ HQWHUHG GLJLW

° If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel.

3UHVV WKH { EXWWRQ WR GHOHWH DQ HQWHUHG GLJLW If you enter a number already assigned to another channel, the number is assigned to the selected channel and the previous number assigned to the selected channel is assigned to the other channel.

That is, the two numbers are exchanged.

° The Favourite Channels are automatically sorted in ascending order of channel numbers.

1. Press the EXIT button to exit.

DTV Edit Favourite Channels 2 BBC TWO V ... BBC THREE V 15 abc1 V Edit Return & R Q L W 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 TOMX PSIZE DMA

Q SUHVV

HVV WKH

DQQHOV

W R Q ITX/MIX P-SIZE DMA

‡Preview

1. In the "Edit Favourite Channels" menu, select the channel to be SUHYLHZHG E\ SUHVVLQJ WKH x RU z EX

2. Press the yellow button.

3. In the "Edit Favourite Channels" menu, select the channel to be SUHYLHZHG E\ SUHVVLQJ WKH x RU z EXY

4. Press the yellow button.

° The selected channel is displayed on the screen.

DTV Edit Favourite Channels 2 BBC TWO V 7 BBC THREE V 15 abc1 V Add Renumber Preview Delete Move Return

TTX/MX PSIZE DMA

‡Delete

1. In the "Edit Favourite Channels" menu, select the channel to be deleted from the favourite channels list by pressing the x R U z E X W W R Q

2. Press the blue button.

3. In the "Edit Favourite Channels" menu, select the channel to be deleted from the favourite channels list by pressing the x R U z E X W W R Q

4. Press the blue button.

° The selected channel and number will be deleted.

° To add a deleted channel back in to the favourite channel list, see "Add" on page 32.

- The selected channel and number will be deleted. - To add a deleted channel back in to the favourite channel list, see "Add" on page 32.

DTV Edit Favourite Channels 2 BBC TWO V 7 BBC THREE V Add Renumber Preview Delete Move Return

Selecting Channel List

You can exclude the channels you have chosen from the channels you have scanned. When you scan through the stored channels, those you have chosen to skip are not displayed. All channels that you do not specifically choose to skip are displayed during scanning.

1. Press the MENU button to display the menu. 3 U H V V W K H x R U z E X W W R Q W R V H O H F the ENTER button.
2. Press the x R U button to select "Channel", then press the ENTER button.
3. Press the x R U button to select "Channel List". Press the ENTER button.
4. 3UHVV WKH x RU z EXWWRQ WR VHOHF Press the ENTER button.
5. Press the yellow button to toggle between your favourite channels and all channels.

- Your favourite channels are only displayed if they were previously set in the "Editing Your Favourite Channels" menu (refer to page 32).

1. Press the red or green button to display the previous or next channel List page.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHFW D FKDQQHO WR EH WXQHG Press the ENTER button.

The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a • icon if the channel is one of the favourite channels.

1. Press the blue button to toggle between your "TV", "Radio", "Data/Other" and "All".
2. Press the CH LIST button to exit from the channel List.

Displaying Programme Information

While viewing a channel, additional information about the current programme may be displayed.

1. While viewing a programme, press the INFO button.

° The programme information is displayed.

1. To exit from banner information, press the INFO button.

° The information is displayed:

í 3DUHQWDO 5DWLQJ

í 9LGHR 7\SH 6' +' 5DGLR

í \$XGLR 7\SH 0RQR 6WHUHR 'XDO

í ([LVWHQFH RI 7HOHWH[W RU '9% 6)

í \$XGLR /DQJXDJH

14:30 Sat 1 Sep All Channels A 14:30-14:33 Contains video with AFD O; coded frame is 16:9 1 AFDO,16:9 AFDO 16:9 No Block SD Stereo Subtitle English Exit

Viewing the EPG (Electronic Programme Guide) Information

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

‡1 RZ 1 H [W \* XLGH

For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information.

‡)XOO \*XLGH

Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which may be scrolled forwards or backwards in time.

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

1. Press the ENTER button, to select "Guide".

2. 3UHVV WKH x RU z EXWWRQ WR VHOHF "Full Guide".

Press the ENTER← button.

° You can also display the guide menu simply by pressing the GUIDE button.

4.

To...	Then...
Watch a programme in the EPG list	Select a programme by pressingW K H x z { y E X W W R C• Press the ENTER button.

If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, the scheduling is cancelled with the clock icon gone. For details about scheduling programmes, refer to the next page.

View programme information	Select a programme of your choice by S U H V V L Q J W K H x z {Press the INFO button when the programme of your choice is highlighted.
Toggle between the "Now & Next Guide" or "Full Guide"	Press the red button repeatedly.
Display the "Favourites" and the "All Channels" list	Press the green button repeatedly.
Scrolls backwards quickly (24 hours).	Press the yellow button repeatedly.
Scrolls forward quickly (24 hours).	Press the blue button repeatedly.
Exit the guide	Press the EXIT button.

27 Discovery 13:28 Wed 16 Feb Extreme Machines: Armoured Cars INFO New Next @ Watch Full Guide Favourites Exit

KHQ SUHV

W 1RZ 1HIW *XLGH RU

MUTE P EXIT WLINK MENU RETURN(EXIT) GUIDC TOOLS(EXIT) INFO(EXIT) EXIT(EXIT) TTX/MX RSIZE EMODE CH LIST SL EX W

The programme title is on the upper part of the screen center. Please click on INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information(HD/SD), Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and brief summary of the highlighted programme are included on the detailed information. "..." will be appeared if the summary is long.

Six channels are displayed. To scroll between channels, move to a channel using the x R U button. To display page by page, use the P or P button.

Using the Scheduled List

If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled programme at the scheduled time even if you are watching another programme.

1. Press the MENU button to display the menu. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the ENTER button, to select "Guide".
3. Press the x R U button to select "Scheduled List", then press the ENTER button.
4. Press the red button. The channel will be switched to the scheduled programme.
5. Press the ENTER button to select an item and adjust with the x R U button.

° You can also set hour and minute by pressing the number buttons on the remote control.

• Channel: Set the channel.
- Time: Set the time.
• Date: Set Year, Month and Day.
• Frequency: Set the frequency.

("Once", "Daily", or "Weekly")

1. After setting the schedule, Press the red button.

2. Press the EXIT button to exit.

3. Save: Save the adjusted schedule.

4. Cancel: Cancel the adjusted schedule.
5. Add Programme : Add a new schedule.
6. Edit: Readjust the selected schedule.
7. Delete: Delete the selected schedule.

DTV Scheduled List (No programmes) Add Programme Return

KHQ SUHV

TTX/MX . SIZE DMA

DTV Scheduled List Tuesday 22 Apr 15:30 ~ 16:00 Once 801 RaiTre Add Programme Edit Delete Move Return

TTX/MX . SIZE DMA

DTV Scheduled List Channel 802 RaUno Time 15:20 to :-- Date Tue 22 Apr 2008 Frequency Once Save Cancel Adjust Move Return

Setting the Default Guide

You can preset the default guide style.

1. Press the MENU button to display the menu. 3 UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the ENTER button, to select "Guide".
3. Press the x R U button to select "Default Guide", then press the ENTER button.
4. Select "Now/Next" or "Full Guide" using the x R U button, and press the ENTER button.
5. Press the EXIT button to exit.

DTV Guide Now & Next Guide Full Guide Scheduled List Default Guide : Now/Next Full Guide Move Enter Return

KHQ SUHV

You can select these options by simply pressing the GUIDE button on the remote control.

Viewing All Channels and Favourite Channels

In the EPG menu, you can display all channels or favourite channels.

1. Press the MENU button to display the menu. 3 U H V V W K H x R U z E X W W R Q W R V H O H F W ENTER button.
2. Press the ENTER button again, to select "Guide".
3. Select the your required guide ("Now & Next Guide" or "Full *XLGH E\ SUHVVLQJ WKH x RU z EXWW
4. Press the ENTER button.
5. Press the green button. All the channel lists and the Favourite Channel lists will be toggled.
6. 6HOHFW D SURJUDPPH RI \RXU FKRLFH y EXWWRQ
7. Press the INFO button to display information about the highlighted programme.
8. When the Edit Favourite Channels list has not been set up:

• "The favourites list is empty."

Would you like to choose your favourites now?" message is displayed.

- Select "Yes".

The "Edit Favourite Channels" menu is displayed.

If you select "No", all channels will remain unchanged.

- To edit the favourite channels, refer to page 32 for more details.

1. Press the EXIT button to exit.

° "All Channels" is the list of channels that have been scanned by the channel list update. All channels are displayed in the all channel mode.
"Favourites" (favourite channels) is the list of channels that has been set in the "Edit Favourite Channels" menu (refer to page 32).

W TTX/MIX PSIZE DMA W K

WKHQ SUHV

07 Discovery Extreme Machines: Armoured Cars 13-28 Wed 16 Feb INFO New Next E:\T\SOH\V\QL\J\W\K\F\X INFO(?) EXIT(EX)

z { RU

7 Discovery Extreme Machines: Armoured Cars 13:28 Wed 16 Feb INFO Today The favourites list is empty. Would you like to choose your favourites now? Yes No P Watch Now/Next Favourites -248hours +248hours +LE

Adjusting the Menu T transparency

You can set the Transparency of the menu.

1. Press the MENU button to display the menu. 3 U H V V W K H x R U z E X W W R Q W R V H O H F ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF press the ENTER button.
4. Select the required option ("High", "Medium", "Low", or 2 SD TX H E \ SU HV VL Q J W K H x R U z EX W W R Q D Q G SU HV V W K H ENTER ☐ button to change the setting.
5. Press the EXIT button to exit.

DTV Menu Transparency : High Change PIN : Medium Parental Lock : Low Subtitle : Opaque Subtitle Mode V Move Enter Return

KHQ SUHV
IVV WKH
F\ WKHQ

Setting up the Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF press the ENTER button.
3. The "Enter PIN" is displayed.
4. Enter your current 4-digit PIN code by using the numeric buttons (0\~9).

° The default PIN code for a new TV set is 0000.

° If you enter an invalid PIN code, the "Invalid PIN code.

Please try again." message is displayed.

1. Press the ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF lock out.

Press the ENTER← button.

DTV Setup Menu Transparency : Medium X Change PIN X Parental Lock X Subtitle : Off X Subtitle Mode X T Move Enter Return W 6 HW XS WKHQ SUH DTV Parental Lock Enter PIN Enter PIN Return

KHQ SUHV

WKHQ

DTV Parental Lock Parental Rating: N No Block 3 4 5 6 7 z Move Enter Return

RX ZDQW \

‡ Change PIN

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF press the ENTER button.

° The "Enter PIN" is displayed.

1. Enter your current 4-digit PIN code by using the numeric buttons (0\~9).

° 7KH ^3 (QWHU 1HZ 3,1' LV GLVSOD\HG

1. Enter your new PIN code by using the numeric buttons (0\~9)

° 7KH &RQ¿UP 1HZ 3,1 LV GLVSOD\HG

1. 5 H HQ WHU \RXU QHZ 3,1 FRGH WR FRQ buttons (0\~9).

° The Your PIN code has been changed successfully message is displayed.

1. Press the ENTER← button.
2. Press the EXIT button to exit.

° If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:POWER (Off), MUTE, 8, 2, 4, POWER (On).

DTV Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode T Move Enter Return

KHQ SUHV

I V V

DTV Change PIN Confirm New PIN ! Your PIN code has been changed successfully. OK Enter PIN 5 Return

PHULF

Setting the Subtitle

You can activate and deactivate the subtitles.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the x R U button to select "Setup", then press the ENTER button.
3. Press the x R U button to select "Subtitle", then press the ENTER button.
4. Select "On" by pressing the x R U button. Press the ENTER button.
5. Press the EXIT button to exit.

You can select these options simply by pressing the SUBT. button on the remote control.

DTV Menu Transparency : Medium Change PIN Parental Lock Subtitle : Off Subtitle Mode : On T Move Enter Return

KHQ SUHV

Setting the Subtitle Mode

Use this menu to set the Subtitle Mode. "Normal" under the menu is the basic subtitle and "Hard of hearing" is the subtitle for a hearing-impaired person.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the x R U button to select "Setup", then press the ENTER button.
3. Press the x R U button to select "Subtitle Mode", then press the ENTER button.

4. Press the EXIT button to exit.

5. Press the x R U button to select "Normal" or "Hard of hearing". Press the ENTER button.

° If the programme you are watching does not support the "Hard of hearing" function, "Normal" automatically activates even though "Hard of hearing" mode is selected.

DTV Menu Transparency : Medium Change PIN Parental Lock Subtitle : On Subtitle Mode Normal T Hard of hearing Move Enter Return

KHQ SUHV

Selecting the Audio Format

You can only hear Dolby Digital sound through the audio receiver connected through an optical cable. You can only hear PCM sound through the main speaker.

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the internal mute function.

DTV Setup S Audio Format : PCM X Audio Description X Digital Text : Enable X Time Zone Common Interfece T Move Enter Return

KHQ SUHV

1. Press the MENU button to display the menu. 3 UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. Press the x R U button to select "Setup", then press the ENTER button.

3. Press the x R U button to select "Audio Format", then press the ENTER button.

4. Press the x R U button to select "PCM" or "Dolby Digital". Press the ENTER button.

5. Press the EXIT button to exit.

The Audio Format appears according to the broadcasting signal. Dolby digital sound is only available when the TV is connected with an external speaker using an optical cable.

Selecting the Audio Description

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the x R U button to select "Setup", then press the ENTER button.
3. Press the x R U button to select "Audio Description", then press the ENTER button.
4. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
5. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
   ° "Volume" is active when "Audio Description" is set to "On".
6. 3UHVV WKH { RU y EXWWRQ XQWLO \RX Press the ENTER button.
7. Press the EXIT button to exit.

DTV Setup S Audio Format : PCM X Audio Description X Digital Text : Enable X Time Zone Common Interfece T Move Enter Return DHQ SUHV DTV Audio Description Audio Description : Off Volume On 100 Move Enter Return DTV Audio Description Audio Description : On Volume 100 Move Enter Return WKH HVV WKH D VHWWLC

Selecting the Digital Text (UK only)

If the programme is broadcast with digital text, this feature is enabled.

1. Press the MENU button to display the menu. 3 U H V V W K H x R U z E X W W R Q W R V H O H F ENTER button.

2. Press the x R U button to select "Setup", then press the ENTER button.

3. Press the x R U button to select "Digital Text", then press the ENTER button.

4. Press the x R U button to select "Disable" or "Enable". Press the ENTER button.

5. Press the EXIT button to exit.

MHEG(Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games.

DTV Setup S Audio Format : PCM Audio Description Digital Text : Disable Time Zone Enable Common Interfece T Move Enter Return

KHQ SUHV

Selecting the Time Zone (Spain only)

Select the local time zone.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. 3 U H V Vx WRUHz xERKUNSEVERXGBWPR, OnePressSHEGIFT W > ENTER button.
3. 3 U H V Vx WRKUHbuteRKUWSEVERXCTMMEFZdell,ORer7pheGsRlterPH ENTER button.
4. Select the time zone where you locate by pressing the x R U button.
   Press the ENTER← button.

° The following options are available The Iberian Peninsula and Balearic Islands - Canary Islands

1. Press the EXIT button to exit.

DTV Setup S Audio Format : PCM X Audio Description X Digital Text : Enable X Time Zone Common Interfece T Move Enter Return

HQ SUHV

WKH

HKVHV W K H

DTV Time Zone The Iberian Peninsula and Balearic Islands Canary Islands Adjust Enter Return

Viewing Product Information

You can view your product information. For service or repair, please contact a Samsung approved dealer.

1. Press the MENU button to display the menu. 3 UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. Press the x R U button to select "Setup", then press the ENTER button.

3. Press the x R U button to select "System", then press the ENTER button.

4. Press the ENTER button again, to select "Product Information".

° The Product Information menu is selected. - Software Version, Firmware Version

1. Press the EXIT button to exit.

DTV Product Information Software Version: T-PERLDEUC-0202 Firmware Version: T-EMMA2DEUB-0106 Return

(HQ SUH)

Checking the Signal Information

You can get information about the signal status.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the x R U button to select "Setup", then press the ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
4. 3UHVV WKH x RU z EXWWRQ WR VHOHFW
5. Press the EXIT button to exit.
   ° If the signal status is poor, the "No signal." message is displayed.

DTV Signal Information Service: ? Service ID:0000 Multiplex: ? ( TSID 0000, ONID 0000 ) Network: ? (ID 0000) Bit error level: 10 Signal Strength: 0 5 Return KHQ SUHV HVV WKH

ENTERQ OuttoQ.I RUPDWLRQ WKH

Upgrading the Software

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal.

It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

1. Press the MENU button to display the menu. 3 UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the x R U button to select "Setup", then press the ENTER button.
3. Press the x R U button to select "System", then press the ENTER button.
4. Press the x R U button to select "Software Upgrade", then press the ENTER button.
5. Press the x RU EXWWRQ WR VHOHFW 36RIWZD 30DQXDO 8SJUDGH'RU 36WDQGE\0RGHX Press the ENTER button.

‡ Software Information

Press the ENTER button, then the current software version is shown. To display the software version information, press the ENTER button again.

To switch to an alternative version, press the red button.

Press the blue button to reset, activate the upgrade and restart.

‡ Manual Upgrade

Press the ENTER button to search for new software from the currently broadcasting channels.

‡ Standby Mode Upgrade: On / Off

Press the ENTER button. To continue software upgrade with master power on, Select On

E\ SUHVVLQJ WKH x RU z EXWWRQ PLQXWHV DIWHU HQWHULQJ VWI automatically conducted. Since the power of the unit is turned on internally, the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

1. Press the EXIT button to exit.

DTV System Product Information Signal Information Software Upgrade Reset X X X Move Enter Return KHQ SUHV

DTV Software Upgrade Software Information X Manual Upgrade X Standby Mode upgrade : On X Move Enter Return

Viewing Common Interface

This contains information on CAM inserted in the CI slot and displays it.

1. Press the MENU button to display the menu.
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the x R U button to select "Setup", then press the ENTER button.
3. Press the x R U button to select "Common Interface", then press the ENTER button.

4. Press the ENTER button to display the information for your application.

5. Press the EXIT button to exit.

The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer or by phone.
2. Insert the CI CARD into the CAM in the direction of the arrow until it fits.
3. Insert the CAM with the CI CARD installed into the common interface slot.
   (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)
4. Check if you can see a picture on a scrambled signal channel.

DTV Application Info Type : CA Manufacturer : Channel Plus Info : Top Up TV 5 Return

KHQ SUHV

Diagram showing a hand inserting a device into a device with bidirectional arrows indicating internal structure.

Illustration of a hand inserting a device into a folder (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Selecting the CI (Common Interface) Menu

This enables the user to select from the CAM-provided menu.

1. Press the MENU button to display the menu. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

2. Press the x R U button to select "Setup", then press the ENTER button.

3. Press the x R U button to select "Common Interface", then press the ENTER button.

4. Select to "CI Menu" by pressing the x R U button, and press the ENTER button.

5. Select the required option by pressing the x R U button, and press the ENTER button.

6. Press the EXIT button to exit. ° Select the CI Menu based on the menu PC Card.

CI Menu Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Move Enter Exit

KHQ SUHV

Resetting

You can reset the values stored to the factory default values.

° The Reset operation deletes all channel information and user preferences returning all values to their default factory state.

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

1. Press the x R U button to select "Setup", then press the ENTER button.

2. Press the x R U button to select "System", then press the ENTER button.

3. Press the x R U button to select "Reset", then press the ENTER button.

4. The "Enter PIN" screen will appear.

5. Enter your current 4-digit PIN code by using the numeric buttons (0\~9).

° The warning message is displayed. All values will be reset by pressing the coloured buttons (red, green, yellow, and blue) in turn.

1. Press the EXIT button to exit.

DTV Enter PIN Reset Enter PIN Return

KHQ SUHV

DTV Reset WARNING: All channel settings and user preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced. > Return

Selecting the Preferred Language (Subtitle, Audio or T eletext)

You can change the default value for subtitle, audio teletext languages.

Displays the language information for the incoming stream.

1. Press the MENU button to display the menu.

3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

1. Press the x R U button to select "Language", then press the ENTER button.

2. Press the x R U button to select "Audio Language", "Subtitle Language" or "Teletext Language".

Press the ENTER← button.

1. Select a particular language by pressing the x R U button repeatedly.

Press the ENTER button.

° English is the default in cases where the selected language is unavailable in the broadcast.

1. Press the EXIT button to exit.

° While viewing a programme, the subtitle can be selected. While viewing a programme, audio languages can be selected.

DTV Language Audio Language Subtitle Language Teletext Language Preference Move Enter Return

KHQ SUHV

DTV Language Audio Language Subtitle Language Teletext Language Preference X Move Enter Return

DTV Language Audio Language Subtitle Language Teletext Language Preference X Move Enter Return

Preference

This menu consists of 6 sub-menus:

Primary Audio Language, Secondary Audio Language, Primary

Subtitle Language, Secondary Subtitle Language, Primary

Teletext Language, Secondary Teletext Language.

Using this feature, users can select one of the languages

(English, German, Italian, Swedish, French, Welsh, Gaelic, Irish,

Danish, Finnish, Spanish, Dutch). The language selected here is the default when the user selects a channel.

DTV Language Audio Language Subtitle Language Teletext Language Preference X Move Enter Return

‡ 3UHVV WKH x RU z EXWWRQ WR VHOHFW UHTXLUNG PHQX 3ULPDU\ \$>

Language, Secondary Audio Language, Primary Subtitle Language, Secondary Subtitle Language, Primary Teletext Language, Secondary Teletext Language), then press the ENTER button. The options of the selected menu are displayed.

‡ 6 HOHFW WKH DSSURSULDWH ODQJXDJH E\ SUHVVLQJ WKH x RU z EXW Press the ENTER button to confirm your choice.

° If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu (refer to page 44) are automatically changed to the selected language.
The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum-1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

° D-Sub Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 350	31.469	70.086	25.175	+ / -
	720 x 400	31.469	70.087	28.322	- / +
VESA	640 x 480	31.469	59.940	25.175	- / -
	640 x 480	37.861	72.809	31.500	- / -
	640 x 480	37.500	75.000	31.500	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	800 x 600	48.077	72.188	50.000	+ / +
	800 x 600	46.875	75.000	49.500	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1024 x 768	60.023	75.029	78.750	+ / +
	1280 x 1024	63.981	60.020	108.000	+ / +
	1280 x 1024	79.976	75.025	135.000	+ / +
	1360 x 768	47.712	60.015	85.500	+ / +
	1600 x 1200	75.000	60.000	162.000	+ / +
CVT	1920 x 1080RB	66.587	59.934	138.500	+ / -

° HDMI/DVI Input

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
VESA	640 x 480	31.469	59.940	25.175	- / -
	800 x 600	37.879	60.317	40.000	+ / +
	1024 x 768	48.363	60.004	65.000	- / -
	1280 x 1024	63.981	60.020	108.000	+ / +
	1360 x 768	47.712	60.015	85.500	+ / +
	1600 x 1200	75.000	60.000	162.000	+ / +
CEA	1920 x 1080p	67.500	60.000	148.500	+ / +

° When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
° The interlace mode is not supported.
° The set might operate abnormally if a non-standard video format is selected.
° Separate and Composite modes are supported. SOG is not supported.
° Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).

Setting up the TV with your PC

° Press the SOURCE button to select PC mode.

1. Press the MENU button to display the menu.
   Press the ENTER← button, to select "Picture".
2. 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SU then press the ENTER button.
3. :KHQ \RX DUH VDWLV iHG ZLW ENTERG V button.
4. Press the EXIT button to exit.

TV Picture Mode : Standard Z Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Auto Adjustment Z Screen Z Detailed Settings Z VMore Move Enter Return

XWWRQ

‡ Auto Adjustment

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Auto Adjustment in progress Please wait.

Q W' W K F

Easy Setting

1. Press the TOOLS button on the remote control.
2. 3UHVV WKH x RU z EXWWRQ WR VHOF press the ENTER button.

Tools Anynet+ (HDMI-CEC) Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off PIP Auto Adjustment Move Enter Exit

‡ Screen:

Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen.

3UHVV WKH x RU z EXWWRQ WR VHOHF\ the ENTER button.

3UHVV WKH { RU y EXWWRQ WR DGMXV\ Press the ENTER button.

TV Screen Coarse 50 Fine 93 Position Z Image Reset Z Move Enter Return

WKHQ S
W\

Position

Adjust the PC's screen positioning if it does not fit the TV screen.

3UHVV WKH x RU z EXWWRQ WR DGMXV

3UHVV WKH { RU y EXWWRQ WR DGMXV

Press the ENTER← button.

3RVLWLR RVLWLRQ

Image Reset

You can replace all image settings with the factory default values.

TV Screen Coarse 50 Fine 93 Position Z Image Reset Z Move Enter Return

Using the WISELINK Function

This function enables you to view and listen to photo (JPEG) DQG DXGLR ; OHV 03 V DY HG R Q D 86 (MSC) device.

Press the POWER button on the remote control or your set. & RQQHFW D 86% GHYLFH FRQWDLQLQJ WISELINK jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device FRQQHFWHG WKHPHVVDJH ^37 KHUH LV appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again.

% 0 D V H 6 W R U D J H & O D V V - 3 TV Side Panel G R U 0 3 U S B D H V W R W K H Q I WISELINK L F H F R Q Q H F W H G ' Z L O O A V I N 2

Only alphanumeric characters must be used as a folder name or filename (photo, music).

The file system only supports FAT16/32 (The NTFS file system is not supported)

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.SAMSUNG is not responsible for any data file damage or data loss.

Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.

Only MP3 and JPEG file formats are supported.

The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz).

We recommend the sequential jpeg format. Progressive jpeg uses a lot of memory and decoding may fail.

Do not disconnect the USB device while it is loading.

MTP (Media Transfer Protocol) is not supported.

The playing duration of an mp3 file may be displayed as '00:00:00' if its playing time information is not found at the start of the file.

The higher the resolution of the image, the longer it takes to display on the screen.

The Photo or Music List displays up to 300 folders or files.

Loading may take some time depending on the size of the file.

Using the WISELINK Menu

1. Press the MENU EXWWRQ 3UHVV WKH x RU ³, Q S X W' WK HEN TBR G N UtonW K H
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.

TV Source List : TV y Edit Name y Anynet+ (HDMI-CEC) WISELINK Move Enter Return

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF Memory Device, then press the ENTER button.

° The "WISELINK" menu differs depending on the USB Memory Device connected to TV.
° Some devices may not be supported due to compatibility problems.

W WKH FRUUHVSRQGL STORAGE DEVICE

° To exit WISELINK mode, press the W.LINK button on the remote control.

W R D Q L F R Q W K H Q S U

Press the W.LINK button on the remote control to display a WISELINK menu.

GUIDE MENU VLINK TOOLS RETURN

Using the Remote Control Button in WISELINK Menu

Button	Operations
x z { y	Move the cursor and select an item.
ENTER	Select the currently selected item.
	Play the Slide Show or MP3 file.
	Pause the Slide Show or MP3 file.
RETURN	Return to the previous menu.
INFO	Run various functions from the Photo and Music menus.
	Stop the current slide show or MP3 file.
	Page Up or Down (file list item)
EXIT	Stop the current function and return to the previous high-level menu.

Using the PHOT O (JPEG) List

To exit WISELINK mode, press the W.LINK button on the remote control.

° 0RYLQJ WR D SKRWR PD\WDNH D IH At this point, the Loading icon will appear at the top left of the screen.

Photo Z VHFRQGV W R ORDG info

WKH ¿OH

° ,W WDNHV WLPH WR VKRZ -3(* ;OHV DV 7KXPEQDLO LPDJHV
° 7 KLV PHQX RQO\ VKRZV i OHV ZKRVH i OH H[WHQVLVR G PLS/ RMUS JW L]II O H will not be displayed.
° 7KH ¿OHV DUH GLVSOD\HG RQ D SDJH WKXPEQDLO SKRWRV DUH
° The thumbnails are numbered from left to right and from top to bottom, from 1 to 15.
° Certain types of USB Digital camera and audio devices may not be compatible with this TV.
° )ROGHUV DUH GLVSOD\HG ¿UVW DQG WKH\ DUH IRKORZKHG E\ DOO IROGHUV DQG -3(* ¿OHV DUH VRUWHG LQ DOSKDEHWLFDO RUGHU
° If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen.
° :KLOH D IXOO VFUHHQ LV GLVSOD\HG { RU y EXWALRQQVZKLIDQDDPHW folder.
° Press the ▶ button when a Photo icon is selected to start a Slide Show.
° Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution.

Viewing a Slide Show

1. Press the INFO button to display the option("Start Slide Show", "Select All").
2. 3UHVV WKH x RU z EXWWRQ WR VHOHF press the ENTER button.

° 'XULQJ WKH VOLGH VKRZ ¿OHV DUH FXUUHQWO\ VKRZQ ¿OH
° 03 ¿OHV FDQ EH DXWRPDWLFDOO\ Show if the Default Background Music is set to On. To HQDEOH WKLV IXQFWLRQ 03 ¿OHV be located in the same folder on the USB Memory Device.

1. Press the INFO button during the slide show to set the following options ("Slide Show Speed", "Background Music", "Background Music Setting" / L V W 3 U H V V W K H to select the option, then press the ENTER button.

- After setting the option press the ENTER button to make a change.

Photo W 36WDUW 6OLGH 6KR GLVSODHG LQ RUGH G GXULQJ WKH INFO Exit Start Slide Show Select All INFO INFO

Z' W K H Q

U IURP W

OLGH

DQG RWKHU SKRWR ¿

OHV PXVV

EXWWRQ

Using the Menu during a Slide Show

Slide Show Speed:

Select to control the slide show speed.

3UHVV WKH x RU z EXWWRQ WR VHOHFW ("Fast", "Normal", "Slow"), then press the ENTER button.

Slide Show Speed Normal Background Music On Background Music Setting Last Normal Show INFO Help

LRQ

Background Music:

6 HÖHFW WR FKRRVH ZKHWKHU \RX ZDQV slide show.

3UHVV WKH x RU z EXWWRQ WR VHOHFW then press the ENTER button.

Slide Show Speed Normal y Background Music On Background Music Setting On List IMPORT Next

GXULQJ
R Q 2 Q

Background Music Setting:

:KLOH WKH VOLGH VKRZ LV LQ SURJUHV the same directory are displayed.

6 HOHFW D IROGHU XVLQJ WKH xENTERGEX button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played.

° If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played.

To exit WISELINK mode, press the W.LINK button on the remote control.

° : KHQ VHOHFWLQJ D SKRWR ¿OH WKH displayed on the left side of the TV screen, such as the UHVROXWLRQ WKH GDWH PRGL ¿HG D current directory (e.g. 10th out of 15).

V D IROGHU RU-3(* & SKRW R &OH LQIRUPD INFO

WLRQ LV

H ¿OH LQ

Q G W K H R U G H U R I W K Photo INFO

H ¿OH LQ

: Folder icon

: Photo icon

: Move to the previous folder stage icon

Such as the resolution

File Size

Date modified

Order of the file in the current directory

Simple rounded rectangle outline with three horizontal lines inside, no text or symbols present.

Using the Option Menu

1. & RPSOHWH 6WHSV WR RI ^3 8VLQJ W (Refer to page 49)
2. 3UHVV WKH { RU y EXWWRQ WR PRYH ENTERG EXWWRQ 7KH VDYHG iOH LQIR IROGHU RU iOH
3. 3UHVV WKH x z { DQG y EXWWRQ WR the ENTER button. Pressing the button over a photo thumbnail displays the photo in full screen.
4. Press the INFO button to display the option("Start Slide Show", "Zoom", "Rotate", "List")

KH :,6(/,1. 0HQX' WR 33KRWR' WKHQ SUHVV WKH UPDWLRQ LV GLVSOD\HG DV D Start Slide Show Zoom X1 y Avote 0 y Last arcn End

Zoom:

• 3UHVV WKH x RU z EXWWRQ WR VHOHF [x1] RRP' WKHQ SUHVV WKH ENTERG button.
• 6HOHFW WKH UHTXLUHG RSWLRQ E\ SUHVVLQJ WKH x RU z EXWWRQ press the ENTER button. (X1, X2, X4)

° To pan up/down/left/right in the zoomed-in photo, press the INFO EXWWRQ WRH[LW RSWLRQ PHQX y EXWWRQV

° "Start Slide Show" or "Rotate" is disabled when the "Zoom" option is selected.

° " x1 " : Restore a photo to its original size.

" x2 " : Zoom-in to a photo x2.

" x4": Zoom-in to a photo x4.

x1 RRP' WKHQ SUH VV WKH UHVVLQJ WKH x RU z EXWWRQ Start Slide Show Zoom X1 x1 Frame 0 y z2 List z4 ARC End VV WKH x z { DQG

▼ / ▲ / ◀ / ▶ : Move the zoomed-in photo up/down/right/left.

Rotate:

‡ 3UHVV WKH x RU z EXWWRQ WR VHOHFW ^35 RWDWH' WKHQ SUHVV WKH ENTER button.

- 6 HOHFW WKH UHTXLUHG RSWLRQ E\ SUH press the ENTER button. (0°, 90°, 180°, 270°)

° 7KH URWDWHG ¿OH LV QRW VDYHG
° 6 W D U W 6 O L G H 6 K R Z R U = R R P L V G L option is selected.
° "0°": This rotates a photo to its original position

"90°": This rotates a photo by 90 degrees

"180°": This rotates a photo by 180 degrees

"270°": This rotates a photo by 270 degrees

W 3 5 R W D W H ' W K H Q S U H V V W K H V V L Q J W K H x R U z E X W W R Q W Start Slide Show Zoom X1 y Rotate 0 List 90 Info Exit 180 270 K H Q W K H 3 5 R W D W H'

Using the MP3 List

- Pressing the ENTER button over a folder icon shows the PXVLF OHV LQFOXGHGLQ WKHIROGHU

- 7R VHOHFW D ¿OH RQ WK←→orH→V butnJ H to move to the next page.

1. 7R VHOHFW DOO i Old NFR button to display the H Music menus. Press the ENTEREXWWRQ WR VHC ^3 5HSHDW 0XVLF'RU ^3 6HOHFW \$OO'

To exit WISELINK mode, press the W.LINK button on the remote control.

Music U SUHVV WKH Play Repeat Music Off x y Select All INFO Exit INFO

: Folder icon

: Music icon

Using the Option Menu

: Move to the previous folder stage icon

Play:

Select to play MP3 files.

° Press the ☐ EXWWRQ ZKLOH SOD\LQJ DQ 03 ¿OH WR SDXVH WKH ¿OH
° Press the ☐ button to exit Play mode.
° 7 KLV PHQX RQO\ VKRZV i OHV ZLWK WKH 03 i OHL RQWHEQUHL RQR WLOHV displayed, even if they are saved on the same USB device.
° 7KH VHOHFWHG ;OH LV GLVSOD\HG RQ WKH WRS ZLWK LWV SOD\LQJ
° To adjust the music volume, press the VOL , VOL button on the remote control. To mute the sound, press the MUTE button on the remote control.

Repeat Music:

6 HOHFW WR UHSHDWHGO\ SOD\ 03 ¿OHV LQ WKH FXUUHQW IROGHU You can select On or Off.

Music function information icon

:KHQ DOO PXVLF ¿OHV DUH EHLQJ SOD\HG

: When pressing the ▶ / [icon] button on the remote control while music is playing.

: When pressing the ☐ button on the remote control when music is stopped.

Using the Setup Menu

Setup displays the user settings of the WISELINK menu.

1. &RPSOHWH 6WHSV WR RI ^3 8VLQJ WKH :,6(/,1.0HQX' (Refer to page 49)
2. 3UHVV WKH { RU y EXWWRQ WR PRYENTWRG ^3 bultbWXS' WKHQ SUHVV WKH
3. 3UHVV WKH x RU z EXWWRQ WR VHOHFWENTQRG/Buhtn. (SIDEZDoQW WKHQ S 6SHHG' 3%DFNJUBackGroundXMusicSetting'Repeat Music' 36FUHHQ 6DYHU'
4. 3UHVV WKH x RU z EXWWRQ WR VHOENTBRGvckthon.RSWLRQ WKHQ SUHVV To exit WISELINK mode, press the W.LINK button on the remote control.

Slide Show Speed:

6HOHFW WR FRQWURO WKH VOLGH VKRZ ^3 1RUPDO' RU ^3 6ORZ'

VSHHG Background Music : Select to determine whether to play an MP3 file during a slide show. 211' Setup Off On

Background Music Setting:

While a slide show is in progress, use the "Background Music Setup" to select a music file to listen to. Select an MP3 file as the background music.

Simple diagram with five black squares arranged vertically on a white background, no text or symbols present.

Repeat Music :

Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played.

Setup Off On

Screen Saver:

Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes.

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only.

Check if there is an Anynet+ mark on the AV device to be connected to the T V.

To directly connect to TV
Device1["Anynet+ Device 1"]
    TV -->|HDMI 1.3 Cable| Anynet+
Device2["Anynet+ Device 2"]
    TV -->|HDMI 1.3 Cable| Anynet+
Device3["Anynet+ Device 3"]
    Anynet+
Device1 --> HDMI_OUT["HDMI OUT"]
    Anynet+
Device2 --> HDMI_OUT
    Anynet+
Device3 --> HDMI_OUT

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

To connect to Home Theater

1. Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.
2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

° Connect only the optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the receiver.
° Connect only one receiver.
° You can listen to 5.1 channel sound through the home theatre's speakers. Otherwise, you can only listen to 2 channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theatre and the TV correctly to listen to TV sound through the home theatre. However, you cannot listen to sound from the BD recorder that is sent to the home theatre via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound. Please see the manual for the home theatre.
° You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.
° Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
° Anynet+ supports up to 8 AV devices in total.

Setting Up Anynet+

The following settings are to use Anynet+ functions.

Using the Anynet+ Function

1. Press The TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)".
   3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
2. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button.
3. 3UHVV WKH x RU z EXWWRQ WR VHOHF ENTER button.
   ° The "Anynet+ (HDMI-CEC)" function is enabled.
   ° If you select "Off", "Anynet+ (HDMI-CEC)" is disabled.
   ° When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated.

Tools [Anynet+ (HDMI-CEC)] Picture Mode : Standard Sound Mode : Custom Sleep Timer : Off SRS TS XT : Off Energy Saving : Off Dual I-II : Mono Move Enter Exit

View TV

Anynet+ (HDMI-CEC) Off On

Turning an Anynet+ Device Off Automatically when the TV is T urned Off

1. Pre V V W K H x R U z E X W W R Q W R V H O H F W the ENTER button.
2. 3UHVV WKH x RU z E Yes"WhenPressRhe/ HOHF ENTER button.

° The Auto turn off function is enabled.

° If you select "No", the Auto turn off function is cancelled.

Press the EXIT button to exit.

° The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function.

° If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

$XWR 7XUQ 211 WKHQ SUHVV W Auto Turn Off No Yes

Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button.

Then press the ENTER button to select "Anynet+(HDMI-CEC)".

View TV

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF the ENTER button.

W 6 HOHFW |HYLFH WKHQ SUH

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF press the ENTER button. It is switched to the selected device.

W WR D SDU WLFXODU GHYLFH [

1. ,I \RX FDQQRW ¿QG D GHYLFH \RX ZDC select "Setup", then press the ENTER button.

W SUHVV WKH x RU z EXWWRQ

1. 3UHVV WKH x RU z EXWWRQ WR VHOHF then press the ENTER button.

W 6HDUFKLQJ &RQQHFWLRQV

7 KH PHVVDJH &RQ;JXULQJ \$Os\Displayed.F

RQQHFWLRQ

When searching devices completes, the connected devices are listed in the Anynet+ menu.

° Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.
° The time required to scan for devices is determined by the number of connected devices.
° When the device scan is complete, the number of found devices is not displayed.
Although the TV automatically scans devices when it is turned on using the POWER button, devices FRQQHFWHG ZKHQ WKH 79 LV RQ RU XQGHU D VSHFLiF FLUFXPVWDQF Therefore select "Searching Connections" menu to search devices.
° If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu	Description
View TV	Switches from Anynet+ to TV broadcast mode.
Select Device	Your TV connects to the corresponding device.
Record	Starts a recording. (This menu works only for a device supporting recording.)
Menu on Device	Shows the menu of the connected device.Example. When a DVD Recorder is connected, the DVD Recorder's title menu appears.
Device Operation	Shows the play control menu of the connected device.Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears.
Receiver	Sound is output through the receiver.
Setup	You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type	Operating Status	Available Buttons
Anynet+ Device	After switching to the device, when the menu of the corresponding device is displayed on the screen.	Numeric buttonsx z { y ENTER☑ buttonsColour buttonsEXIT button
	After switching to the device, while playing a file	◀◀ (Backward search)/▶▶ (Forward search)/■ (Stop)/▶ (Play)/■ (Pause)
Device with built-in T uner	After switching to the device, when you are watching a TV programme	P / button
Audio Device	When Receiver is activated	VOL / buttonMUTE button

° The Anynet+ function only works when the remote control is set to TV.

The ● button works only while in the recordable state.

- You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control.

The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device.

° The Anynet+ functions don't operate for the products from other manufacturers.

° In Anynet+ mode, the colour buttons may not work properly.

° The ◀◀, ▶▶ operations may differ depending on the device.

Recording

You can make a recording of a TV programme using a recorder.

Press the ● button.

Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded.
° You can also record the source streams by selecting Record after pressing the TOOLS button.
Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)".

3UHVV WKH x RU z EXWWRQ WR VHOHFW 5HFHLYHU WKHQ SUHVV W ENTER button.

1. 3UHVV WKH { RU y EXWWRQ WR VHOHFW WR 2Q WKHQ SUHVV WKH ENTER button.

Now you can listen to sound through the receiver.

1. Press the EXIT button to exit.

° When the receiver is set to On, you can listen to the TV sound through the 2-channel receiver.

° If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list.
Only when you have connected the optical jack of the TV and the receiver properly, does Receiver work.
° In case of a content with copyright problem, listening through the receiver may not properly operate.
° ,I WKHUH LV D SRZHU LQWHUUXSWLRQ WR WKH 79 ZKHQ WKH ^3 5HFHLY SRZHU FRUG RU D SRZHU IDLOXUH WKIH ZK9HQSHRDXNW MU Q DW KEHH 70HRQV (see page 24)

Check Points before Requesting Service

Symptom	Solution
Anynet+ does not work.	v & K H F N L I W K H G H Y L F H L V D Q Q H W G H Y L F H 7 K H Q H devices only.v & R Q Q H F W R Q O R Q H U H F H L Y H UV & K H F N L I W K H \(Q H W G H Y L F H S R Z H U F R U G L V S U R S H U O & K H F N W K H \(Q H W G H M D M I H V a b e L o n H e r t i o X G L Rv & K H F N Z K H W K H U \(Q H W +'0, & (\& L V V H W R 2 Q L Q W K Hv & K H F N Z K H W K H U W K H 79 U H P R W H F R Q W U R O L V L Q 79 P R GHv & K H F N Z K H W K H U L W L V \(Q H W H [FOX V L Y H U H P R W H F R Q W v \(Q H W G R H V Q W Z R U N D Searching H u M o d L O p e F a R q G L W L R QWISELINK, Plug & Play, etc.)v : K H Q F R Q Q H F W L Q J R H D M U 1:3 C a b l P d e a s m k h e sure to searchdevices again or restart your TV.v & K H F N L I W K H \(Q\Q H W )X Q F W L R Q R I\(Q\Q H W G H Y L F H L V '
I want to start Anynet+.	v & K H F N L I W K H \(Q\Q H W G H Y L F H L V S U R S H U O\ F R Q Q H F W H G Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu.v 3 U H V VT W D K H button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	v 6 H O H F W T V in Anynet+ menu.v 3 U H V V S O W R C E button on the TV remote control and select a device other than Anynet+ devices.v 3 U H V V D Q/∅R O H LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The Connecting to Anynet+ device...message appears on the screen.	v < R X F D Q Q R W X V H W K H U H P R W H F R Q W U R O Z K H Q \RX D U H F switching to a view mode.v 8 V H W K H U H P R W H F R Q W U R O Z K H Q W K H \(Q\Q H W V H W W L Q J complete.
The Anynet+ device does not play.	You cannot use the play function when Plug & Play is in progress.
The connected device is not displayed.	v & K H F N Z K H W K H U R Q R W W K H G H Y L F H V X S S R U W V \(Q\Q H Wv & K H F N Z K H W K H U D M I U 3 Q A B I W s w p p e r l y c o n n e d e d.v & K H F N Z K H W K H U \(Q\Q H W +'0, & (\& L V V H W R 2 Q L Q W KHv 6 H D U F K \(Q\Q H W G H Y L F H V D J D L Qv < R X F D Q F R Q Q H F W D Q \(Q\Q H W I 1.6 d a b l e L o n l y S o m L H D M I W K HCables may not support Anynet+ functions.v If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3 cable or power cord or a power failure, please repeat the device scan.
The TV programme cannot be recorded.	Check whether the antenna jack on the recording device is properly connected.
The TV sound is not output through the receiver.	Connect the optical cable between TV and the receiver.

Teletext Feature

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

° For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

1. □ (exit)

Exit from the teletext display

2 (index)

Used to display the index (contents) page at any time while you are viewing teletext.

3 (store)

Used to store the teletext pages.

4 (size)

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

5 (reveal)

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

6 (teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

7 (mode)

Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button.

8 (sub-page)

Used to display the available sub-page.

9 (page up)

Used to display the next teletext page.

0 (page down)

Used to display the previous teletext page.

! (hold)

Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

@ (cancel)

Used to display the broadcast when searching for a page.

# Colour buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

° You can change teletext pages by pressing the numeric buttons on the remote control.

POWER TV/DTV SOURCE 1 2 3 4 5 6 7 8 9 - - - 0 PRE CH P MUTE - GUIDE MENU KLINK TOOLS RETURN(E) 4 INFO(E) i EXIT(E) @ SAMSUNG

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.FASTEXT information.

° Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

< Entering the page number

< Selecting a title in a list

Selecting a coloured heading (FASTEXT system)

° Press the TV/DTV button to exit from the teletext display.

A B C D E F

TV/DTV SOURCE E

Auto Wall-Mount (Sold separately)

Once the auto wall mount is installed, your TV's position can be easily adjusted.

TV Rear Panel Auto Wall-Mount SERVICE Cable (Not supplied)

Entering the menu

° The Auto Wall-Mount screen is displayed.
° If the Auto Wall-Mount screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

- Press the MENU butt on to display the menu. 3 U H V V W K H x R U z E X W W R Q W R V H O I ENTER G button.

‡3 U H V V W K H x R U z E A u b W B I Q M o l n R' V W Q H Q W ³ press the ENTER button.

TV Plug & Play Language : English Time Light Effect : In Watching TV [Auto Wall-Mount] Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return

UHVV WKI

Remembering the Position

1. \$GMXVW WR WKH GHVLUHG SRVLWLRQ

° If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.
° Press the INFO EXWWRQ WR UHVHW 3UHV VHOHFW ^3 <HV' VEKTERG-SOuItdn/V WKH The position is initialized to the default setting.

1. Press the blue button.

3 U H V V W K H x D Q G z E X W W R Q V W R V H O Position 1, Position 2 or Position 3 in order to save the current position.

° To not save the current position, press the RETURN button.
° When selecting a save mode, you cannot use the Colour buttons.

1. Press the ENTER button to save.

° When Position1 is selected, the message "Current position saved as Position1" is displayed.

1. Press the ENTER← button.

° The saved Position appears on the left side of the OSD.

XVLQJ WKH x z { y EX WWRQV Position1 Q WR Position 1 2 3 Adjust Save INFO Center

H F V TTX/MX P/SIZE DMA I U R P H L W K H

Select a mode to Save. Position1 Position2 Position3 Adjust Enter Return

Moving to the remembered position

1. &RPSOHWH 6WHS RI ^3 (QWHULQJ WKH

2. Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount to the saved position.

3. You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
   ° If you adjust the position after moving to a pre-set position, the position display will disappear.

PHQX' Position1 Position 1 2 3 Adjust Save INFO Center

° For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
° This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
° The auto wall mount will not work when Anynet+ and WISELINK are operating.
37, 40 and 46 inch models are not compatible with the old electrically powered wall mount model (WMN5090A*).

Using the Anti-Theft Kensington Lock (depending on the model)

7KH .HQVLQJWRQ ORFN LV D GHYLFH XVHG WR SQK\VLMFDQCD S K EWOKLHF V\VW place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington lock for proper use. The locking device has to be purchased separately.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

2. Connect the Kensington lock cable.

3. Fix the Kensington lock to a desk or a heavy stationary object.

° The place of the Kensington Lock may be different depending on its model.

Cable Figure 2 Figure 1

Troubleshooting: Before Contacting Service Personnel

No sound or picture	‡Check that the mains lead has been connected to a wall socket.‡Check that you have pressed the ⏻ button on your set.‡Check the picture contrast and brightness settings.‡Check the volume.
Normal picture but no sound	‡Check the volume.‡Check whether the MUTE ticket button has been pressed on the remote control.‡Check if "TV Speaker" is on
Screen is black and power indicator light blinks steadily	‡On your computer check; Power, Signal Cable.‡The TV is using its power management system.‡Move the computer's mouse or press any key on the keyboard.
No picture or black and white picture	‡Adjust the colour settings.‡Check that the broadcast system selected is correct.
Sound and picture interference	‡Try to identify the electrical appliance that is affecting the set and move it further away.‡Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound	‡Check the direction, location and connections of your aerial.This interference is often due to the use of an indoor aerial.
Remote control malfunctions	‡Replace the remote control batteries.‡Clean the upper edge of the remote control (transmission window).‡Check the battery terminals.
"Check signal cable." message is displayed	‡& K H F N W K D W W K H V L J Q D O F D E O H L V ¿U P O \ F I‡Check that the PC or video sources are turned on.
On PC mode, "Not Supported Mode." message is displayed	‡Check the maximum resolution and the frequency of the video adaptor.‡Compare these values with the data in the Display Modes.
The damaged picture appears in the corner of the screen	If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.
The "Resets all settings to the default values" message appears.	This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.

The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Model Name	LE46A558	LE52A558
Screen Size (Diagonal)	46 inch	52 inch
PC Resolution	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz
Sound Output	10 W X 2	10 W X 2
Dimensions (WxDxH)
Body	1127 X 100 X 700 mm	1269 X 109 X 791 mm
With stand	1127 X 280 X 767 mm	1269 X 326 X 857 mm
Weight With stand	28 kg	32 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	Û a Û

Model Name	LE32A559	LE37A559	LE40A559
Screen Size (Diagonal)	32 inch	37 inch	40 inch
PC Resolution	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz
Sound Output	10 W X 2	10 W X 2	10 W X 2
Dimensions (WxDxH)
Body	801 X 88 X 524 mm	918 X 92 X 601 mm	997 X 92 X 638 mm
With stand	801 X 252 X 574 mm	918 X 300 X 650 mm	997 X 300 X 686 mm
Weight With stand	13 kg	18 kg	21 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	a

Model Name	LE46A559	LE52A559
Screen Size (Diagonal)	46 inch	52 inch
PC Resolution	1920 x 1080 @ 60 Hz	1920 x 1080 @ 60 Hz
Sound Output	10 W X 2	10 W X 2
Dimensions (WxDxH)
Body	1127 X 100 X 710 mm	1269 X 109 X 800 mm
With stand	1127 X 280 X 767 mm	1269 X 326 X 857 mm
Weight
With stand	28 kg	32 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel(Left / Right)	Û a Û

° Design and specifications are subject to change without prior notice.
° This device is a Class B digital apparatus.
° For the power supply and Power Consumption, refer to the label attached to the product.

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Sommaire

BRANCHEMENT ET INSTALLATION DE VOTRE TELEVISEUR

< &RQ;JXUDWLRQ GX E.R.Q.W.U.{38H SDUHQW

< &RQ;JXUDWLRQ G.H.V...V.R.X.V...W9L WUHV

< &RQ;JXUDWLRQ GX 0.R.G.H...6.RXV WLWUHV

< 9pUL;FDWLRQ GHV LQIRUPDWLRQV UHO signal....42

< 6pOHFWLRQ GH OD ODQJXH 6RXV WLWL youTeletext)......44

× Preference.... 45

G

REGLAGE DU PC

Technical line drawing of a monitor with a base, showing mounting holes and a small knob (no text or symbols)

Technical line drawing of a monitor with base mount and mounting bracket (no text or symbols)

Installation du support mural

Technical line drawing of a monitor with labeled components and an arrow pointing to a base mount (no text or symbols present)

- \$XFXQH FRQQH[LRQ DXGLR VXSSOpPHQWDLUH Q¶HVW QpFHVVDLUH SRXU

- &RQQHFWH] XQ SpULSKpULTXH GH VWRFNDJH GH PDVVH 86% SRXU DI;FKH GHV;FKLHUV DXGLR 03

8 S-VIDEO ou VIDEO / R-AUDIO-L

0 AUDIO OUT[R-AUDIO-L]

! DIGITAL AUDIO OUT (OPTICAL)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

SRQGHQW

Line drawing of a mechanical lever handle with no text or symbols

UDLV HW '

Simple line drawing of a curved arrow pointing to a rectangular object with a small circular mark (no text or symbols)

U V p H V "
W LO XQF
SUR[LPL

0LVH HQ PRGH YHLOOH GH YRWUH WpOpYLVf

9RXV SRXYH] PHWWUH YRWUH WpOpYLVHXU HQ PRGH 9HLOOH DiQ GH Up /H PRGH YHLOOH SHXW rWUH XWLOH VL YRXV VRSKKDDWUH] PPHQHWL QSHUGIGDRQ un repas par exemple).

\(Q\QHW +'0, &(\& 5HSRUWH] YRXV DX[\0RGH ,PDJH 5HSRUWH] YRXV DX[ SDJHV \0RGH 6RQ 5HSRUWH] YRXV DX[ SDJHV \9HLOOH 5HSRUWH] YRXV DX[ SDJHV \656 76 ;7 5HSRUWH] YRXV DX[ SDJHV \0RGH pFR 5HSRUWH] YRXV DX[ SDJHV \'XDO O OO 5HSRUWH] YRXV DX[ SDJHV \3,3 5HSRUWH] YRXV DX[ SDJHV \5pJODJH $XWRPDWLTXH 5HSRUWH] YRXV

9RXV SRXYH] FKHUFKHU OHV SODJHV GH IUpTXHQFH GLVSRQLEOHV SDU GH YRWUH SD\V

9RWUH WpOpYLVHXU GLVSRVH GH SOXVLH TV: Image Mode : Standard Z

9RXV SRXYH] UpJOHU OD WHPSpUDWXUH GHV FRXOHXUV SRXU TXH FH

\M 5RXJH \M 9HUW \$M %OHX 5HJO 5R/ADJ HP R5GUQF DYMMLURAQ 5GHH∅ YEDOOHHXX L

/D PRGL;FDWLRQ GHV YDOHXUV GH UpJODJH SHUBHWUIGWRXWKBDOLVHU

GH FRPSRVDQW 9RXV GHYH] Gp¿QLU OH PRGH ,PDJH VXU &LQpPD SRX

5HLQLWLDOLVDWLRQ GHV SDUDPqWUHV G¶LPDJH j

9RXV SRXYH] UpLQLWLDOLVHU OD YDOHXU SDU GpIDXW GHV SDUDPqWUH d'image.

° /D IRQFWLRQ ³5pLQLWLDOLVHU' HVW FRQ¿JXUpH SRXU WRXV OHV P

U SDU G pIDXW GHV SD TV Image UPlus Options d'image Réinitialiser : OK Annuler Déplacer Entrer Retour

&RQ;JXUDWLRQ GH O¶RSWLRQ 3LFWXUH

9RXV SRXYH1 VpOHFWLRQQHU OD WDLOOH OTLPRWLYFPRWUVSRQG OF

PLHX[ ] YRV EHVRLQV G¶DI;FKDJH

6pOHFWLRQQH] OTRSWLRQ UHTXLS\OU THQ SXLV DSSX\H] VXENTERG ERXWRQ

/ RUVTXH YRXV rWHV VDWLVIDLW GH OD bouton ENTER

TV ,PDJH U3OXV 2SWLRQV G LPDJH Z 5pLQLWLDOLYHU Z RXWRQ X\H] VXU

TV 2SWLRQV G LPD 1XDQFH &RXORUPDOZ 7DLOOH DXWR 0RGH pFUDQ Z 15 QXPPULTXGKWR Z '1,H 0DUFKHZ 1LYHDX QRLURUPDOZ 0RYLH 3OXV %DV Z 0RGH EOHX XQL$XUHPHQW Z 'pSODFWQWUHD 5HWR / LPDJH' OXV DJUp

‡ 1XDQFH &RXO )URLGH )URLGH 1RUPD 9RXV SRXYH] VpOHFWLRQQHU OD QXDQ DX UHJDUG

° /HV YDOHXUV UpJOpHV VRQW PpPRULVpHV HQ IRQFWLRQ GX PRGH ,I ° ³&KDXGH ' RX ³&KDXGH ' HVW DFWLYp XQLTXHPHIQWXQR³&LTOHP DO'H PF

‡ 7DLOOH DXWR =RRP ODUJH =RRP 6FDQ XQLTXHPHQW 9RXV SRXYH] VpOHFWLRQQHU OD WDLOOH G¶LPDJH TXL FRUUHVSRQG

‡ DXV#RJOH DXWRPDWLTXHPHQW OD WDLOOH GH O¶LPDJH DX IRUPDW ³ ‡ 5qJOH OD WDLOOH GH O¶LPDJH VXU GH ID&RQRDSSMRISWPdHWSRXU OHV FLQpPDVFRSH ‡=RRP OD'URJQHQH] j O¶LPDJH XQH WDLOOH VXSpULHXUH j ‡=RRP$JUDQGLW O¶LPDJH HQ GDQV OD GLUHFWLRQ YHUWLFDOH SRXU O# ‡ &#HVW OH SDUDPqWUH SDU GpIDXW SRXU XQ iOP FLQpPD RX GH OD GLIIX ‡6FDQ XQLTX8PHLOWVH] OD IRQFWLRQ SRXU YRLU O¶LQWpJUDOLWp GH O¶LPDJ S L S RX &RPSRVLDQWS VRQW HQWUpV 3. Drücken Sie die Taste S oder T, um "Favoriten bearbeiten" auszuwählen, und drücken Sie dann die Taste ENTER". 4. Wählen Sie mit der Taste S oder T den gewünschten Kanal aus. 5. Drücken Sie die grüne Taste. ° Der Bereich zur Eingabe der Nummer ist leer. 6. Geben Sie die neue Kanalnummer ein. Drücken Sie die ENTER®, um sie zu speichern, oder die RETURN, um abzubrechen. ° 'U•FNHQ 6LH GLH 7DVWH { XP HLQH HLQJHJHEHQH =DKO ]X löschen. ° Wenn Sie eine Zahl eingeben, die bereits zuvor einem anderen Kanal zugewiesen wurde, so wird die Zahl dem ausgewählten Kanal zugeordnet, und die zuvor dem ausgewählten Kanal zuwiesene Nummer wird dem anderen Kanal zugeordnet. Das bedeutet, dass die beiden Zahlen ausgetauscht werden. ° Die bevorzugten Kanäle werden automatisch in aufsteigender Reihenfolge der Kanalnummern sortiert. 7. Drücken Sie zum Beenden die Taste EXIT.

° /D IRQFWLRQ 3 DXWR' HVW XQLTXHPHQW GLVSRQ\$E'OHHWHQ6 P9RGHR3'79'

° (Q PRGH 3& VHXOV OHV PRGHV ^3 ' HW ^3 ' SHXYHQW rWUH VpOHFWLF

° 9RXV SRXYH] HIIHFWXHU GHV UpJODJHV SRXU FKDTXH DSSDUHLO H[WHU OHV HQUHJLVWUHU

8QH UpPDQHQFH WHPSRUDLUH SHXW VH SURGXLUH SHROGDQMW XPOHV RDX ¿F GHX[ KHXUHV VXU O¶pFUDQ GX WpOpYLVHXU

^3 =RRP ODUJH ' 'pSODFH] O¶LPDJH YHUV OH KDXW RX qYHDV RQLW EDV j O¶I VpOHFV QRQQ DSSX\DQW VXU ENTERG XWRQ y RX

=RRP 6pOHEWHRQQDSHX\DQW VXU OHERXWRQ { RX y 8WLOLVH} OHER) OILPDJH HQ KDXW HW HQ EDV\$ SXUVIVOD VRI LION pEORXFWRLQR QQRx z SRXU DJI UpGXLUH OD KDXWHXU GH OILPDJH

° /RUVTXH OH PRGH RXE DHp Wp Gp i QL VXU 3,3 OH SDUDPqWUH 3LFWXUH QH SHXW SDV rWUH UpJOp

\$SUqV DYRLU VpOHFWLRQQp O¶RSWLRQ 36FDQ XQLTXXHPBQWSRHDQGWGH+ L S6pOHFWQRQQHDLGH GX ERXWRQ { RX y 8WLOLVH} OH ERXW GpSODFHU O¶LPDJH 5pLQLWLDOLVHU DSSX\H] VXU OH ERXWRQ { RX y SRXU QpOHFWLRQ ENTERG 9RXV SRXYH] LQLWLDOLVHU OH UpJODJH

9RXV SRXYH] VpOHFWLRQQHU FHV RSWERQ sur le bouton 3 6,=( GH YRWUH WpOpFRPPDQGH ] HQ DSSX\DC

R Q H T12 TTXMIX P.SIZE E.MODE CH_LIST SUBL DMA

Français - 20

‡ Mode écran: 16:9/Zoom large/Zoom/4:3

Lorsque vous fixez la taille de l'image à 16/9 auto sur un téléviseur 16:9, vous pouvez déterminer la taille selon laquelle vous voulez afficher une image 4:3 WSS (Wide Screen Service, service d'écran large) ou rien. Chaque pays européen emploie une taille d'image ; cette fonction permet aux utilisateurs de sélectionner la leur.

16:9 : Pour régler l'image en mode 16:9 large.

‡Zoom large: Donnez à l'image une taille supérieure à 4:3.

±Zoom: Agrandit la taille de l'image sur l'écran dans le sens vertical.

‡4:3: 5qJOH O¶LPDJH HQ PRGH 1RUPDO F¶HVW j GLUH HQ

° Cette fonction est uniquement disponible en mode "16/9 auto".
° Cette fonction n'est pas disponible en mode "PC", "Composant" ou "HDMI".

‡ 15 QXPpULTXH \UUrW %DV 0R (OHYp \XWR

Si le signal de radiodiffusion reçu est faible, vous pouvez activer la fonction Digital Noise Reduction

SRXU IDYRULVHU OD UpGXFWLRQ G¶LPDJHV IDQW{PHV RX VWDWLTXHV

Lorsque le signal est faible, sélectionnez une autre option jusqu'à obtention de la meilleure image possible.

‡ DNle: Arrêt/ Démo/Marche

Pour offrir une grande qualité d'image, ce téléviseur est doté de la fonction DNle. Si vous activez l'option DNle, la fonction DNle sera activée à l'écran. Lorsque vous activez le mode Démo de la fonction DNle, une image normale et une image avec la fonction DNle appliquée s'affichent à l'écran à des fins de démonstration. Cette fonction vous permet de constater la différence de qualité d'affichage.

° DNle™ 'LJLWDO 1DWXUDO, PDJH HQJLQH 0RWHXU G¶LPDJHV QXPpUL Cette fonction vous apporte une image plus détaillée tout en permettant une réduction de bruit 3D et une amélioration des détails, des contrastes et des blancs. Le nouvel algorithme de compensation d'images vous offre une image plus lumineuse, plus claire et plus détaillée. La technologie DNle™ adaptera tous les signaux à votre vue, quels qu'ils soient.

° Cette fonction n'est pas disponible dans les modes "Cinéma" et "Standard".

‡ 1LYHDX QRLU +'0, 1RUPDO %DV

Vous pouvez directement choisir le niveau de noir sur l'écran pour régler la profondeur de l'écran.

° Cette fonction n'est active que lorsque l'entrée externe se connecte à HDMI (signaux RVB).

‡ 0RYLH 3OXV \$UUrW %DV 0R\HQ (OHYp 'pPR

Vous pourrez apprécier des images plus naturelles et des textes plus nets et ce, même dans les scènes rapides.

° 8WLOLVH] FHWWH IRQFWLRQ ORUVTXH YRXV UHJDUGH] XQ ;OP

° Cette fonction n'est pas disponible dans les modes "Zoom large" et "Zoom".

° &HWWW IRQFWLRQ Q¶HVW SDV GLVSRQLEOH ORUVTXH ³3,3′ HVW Gp;

° Cette élément n'est pas pris en charge en mode HDMI 1080p/24 Hz.

‡ Mode bleu uniquement: Arrêt/Marche

Cette fonction est destinée aux spécialistes de mesure des appareils AV. Cette fonction affiche le signal bleu en supprimant simplement les signaux rouge et vert du signal vidéo, de manière à fournir un effet Filtre bleu utilisé pour régler la couleur et la teinte de l'équipement vidéo, tel que des lecteurs de DVD, systèmes de cinéma à domicile, etc.

Cette fonction permet de régler la couleur et la teinte sur des valeurs appropriées au niveau de signal de chaque dispositif vidéo à l'aide des modèles de barres de couleurs Rouge/Vert/Bleu/Cyan/Magenta/Jaune, sans utiliser de filtre bleu supplémentaire.

° /¶RSWLRQ ³0RGH EOHX XQLTXHPHQW' Q¶HVW GLVSRQLEOH TXH VL O "Standard".

\$I ¿FKDJH 3LFWXUH ,Q 3LFWXUH 3,3Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTER. 2. Drücken Sie die Taste S oder T, um "Kanal" auszuwählen, und drücken Sie dann die Taste ENTERG. 3. Drücken Sie die Taste S oder T, um "Kanalliste" auszuwählen, und drücken Sie dann die Taste ENTERG. 4. Drücken Sie die Taste S oder T, um "Alle", "Favoriten" oder "Standard" auszuwählen, und drücken Sie dann die Taste ENTER. 5. Drücken Sie die gelbe Taste, um zwischen den bevorzugten Kanälen (Favoriten) und der Liste mit allen Kanälen umzuschalten.

9RXV SRXYH] DI¿FKHU XQH LPDJH VHFRQQ SULQFLSDOH GX SURJUDPPH WpOpYLVp RX PDQLqUH YRXV SRXYH] UHJDUGHU RX VX WpOpYLVp RX O¶HQWUpH YLGpR GHSXLV Q branché tout en regardant l'image principale.

1. Appuyez sur le bouton MENU SRXU DI¿FKHU OH PH Appuyez sur le bouton S ou T SRXU VpOHFWLRQQH puis appuyez sur le bouton ENTER∅.
2. Appuyez sur le bouton S ou T pour sélectionner "PIP" puis appuyez sur le bouton ENTER.
3. Sélectionnez l'option désirée en appuyant sur le bouton x RX z SXLV DSSX\H] ENTERG.H ERXWRQ
4. Lorsque vous êtes satisfait du réglage, appuyez sur le bouton ENTER☐.
5. Appuyez sur le bouton EXIT pour quitter le menu. ° Il est possible que l'image dans la fenêtre PIP devienne légèrement moins naturelle lorsque vous utilisez l'écran principale pour un jeu ou un karaoké.

TV Configuration Plug & Play Z Langue : Français Z Horloge Z Effet lumineux : LED act. marche Z Fixation murale Z Mélodie : Arrêt Z 'L Y H U W L V V H S R H Q W Z Mode éco. : Arrêt Z PIP Z Déplacer Enterr Retour

R 'H FHW OPPH LSHPHQW

‡ PIP: Marche/Arrêt

Vous pouvez activer ou désactiver la fonction PIP.

Image principaleden angezeigt. 2. Zum Verlassen der Bannerinformationen drücken Sie die Taste INFO. ° Die Informationen werden angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH 	Image secondaireVerlassen der Bannerinformationen drücken Sie die Taste INFO. ° Die Informationen werden angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH  ssen der Bannerinformationen drücken Sie die Taste INFO. ° Die Informationen werden angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH
Composanttionen drücken Sie die Taste INFO. ° Die Informationen werden angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH 	TV, Ext.1, Ext.2, AV, DTV ° Die Informationen werden angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH  Die Informationen werden angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH
HDMI 1, 2, 3 angezeigt: í 6LFKHUXQJVVWXIH í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH 	TV, Ext.1, Ext.2, AV, DTV í 9LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH  LGHRW\S 6' +' 5DGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH
PCDGLR í \$XGLRPRGXV 0RQR 6WHUHR 'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH 	TV, Ext.1, Ext.2, AV, DTV'XDO í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH  í \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH  \$Q]HLJH YRQ 9LGHRWH[W RGHU '9% í :LHGHUJDEHVSUDFKH  ‡ Source Vous pouvez sélectionner la source de l'image secondaire. ‡ Taille: □ / □□ / □□ Vous pouvez sélectionner la taille de l'image secondaire. Si l'image principale est en mode "HDMI", l'option "Taille" est disponible. ‡ Position: □/□/□/□ Vous pouvez sélectionner la position de l'image secondaire. ° En mode Double (□□, □□), l'option "Position" ne peut pas être sélectionnée. ‡ Programme: Vous ne pouvez sélectionner une chaîne de l'image secondaire que si la “Source” est définie sur “TV” ou “DTV”. Fonctions audiorch Drücken der Taste GUIDE aufrufen. 4. Appuyez sur le bouton MENU pour afficher le menu. \$SSX\H] VXU OH ERXWRQ x RX z SRXU Vp appuyez sur le bouton ENTER. 6pOHFWLRQQH] O¶RSWLRQ GpVLUpH HQ puis appuyez sur le bouton ENTERG. /RUVTXH YRXV rWHV VDWLVIDLW GX UpJC ENTERQ. Appuyez sur le bouton EXIT pour quitter le menu. Son Mode : Personnalisé Z Egaliseur SRS TS XT : Arrêt Z Volume auto : Arrêt Z TV Speaker : Marche Z Sélection du son : Principal Z  XLV WRQ x RX ERXWRQ ±Mode: Standard/Musique/Cinéma/Parole/Personnalisé 9RXV SRXYH] VpOHFWLRQQHU OH W\SH YRXV UHJDUGH] XQ SURJUDPPH GRQQp Réglage simple Appuyez sur le bouton TOOLS GH OD Wp Op FRPPD \$SSX\H] VXU OH ERXWRQ x RX z SRXU \$SSX\H] VXU OH ERXWRQ { RX y SRXU VRQ VRXKDLWp Appuyez sur le bouton EXIT ou TOOLS pour quitter le menu. ‡Egaliseur: Balance/100Hz/300Hz/1kHz/3kHz/10kHz /H WpOpYLVHXU GLVSRVH GH SOXVLHXU SHUPHWWHQW GH UpJOHU OD TXDOLWp 6L YRXV PRGL¿H] GH TXHOTXH IDoRQ SDUDPqWUHV OH PRGH GH VRQ EDVF 3HUVRQQDOLVp' 0509a4052278bac8075a0229ea1b700efd44c1a9e8b323f49264dc5f81e29.jpg) Type Audioa0229ea1b700efd44c1a9e8b323f49264dc5f81e29.jpg) DUAL 1/2c1a9e8b323f49264dc5f81e29.jpg) Par défautf81e29.jpg) 9.jpg) Stéréo A2äle-und-der-bevorzugten-kanäle"> Monoevorzugten-kanäle"> MONOnäle"> Changement automatiquegten KanäleKanäle Stéréoü des elektronischen Programmführers können Sie alle Kanäle oder die bevorzugten Kanäle anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  STEREO QMONOProgrammführers können Sie alle Kanäle oder die bevorzugten Kanäle anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  ammführers können Sie alle Kanäle oder die bevorzugten Kanäle anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Dual Sie alle Kanäle oder die bevorzugten Kanäle anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  DUAL 1 QDUAL 2ie bevorzugten Kanäle anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  DUAL 1Kanäle anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  e anzeigen. 1. Drücken Sie die Taste MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  NICAM Stéréo MENU, um das Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Mono Menü anzuzeigen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  MONOgen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Changement automatiquegitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  menü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Stéréound drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  MONO QSTEREOdie Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  aste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Dual. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  0 2 1 2 < '8 $ / -DUAL 2←gramm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  DUAL 1len. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  Si le signal stéréo est faible et qu'une permutation automatique se produit, passez alors en Mono. Cette fonction n'est activée qu'en son stéréo. Elle est désactivée en mode mono. ° Cette fonction est uniquement disponible en mode TV analogique. Branchement du casqueen. Drücken Sie die Taste S oder T, um "Digitalmenü" auszuwählen, und drücken Sie dann die Taste ENTERG. 2. Drücken Sie die Taste ENTER←, um "TV-Programm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  YHQGX VpSDUpPHQWogramm" auszuwählen. 3. Drücken Sie die Taste S oder T, um den gewünschten Programmführer ("Heute & Morgen" oder "Ausführlich") auszuwählen. 4. Drücken Sie die Taste ENTER. 5. Drücken Sie die grüne Taste. Zwischen den Listen mit allen Kanälen und den bevorzugten Kanälen können Sie umschalten. 6. Wählen Sie mit der Taste S, T, W oder X ein Programm Ihrer Wahl aus. 7. Drücken Sie die Taste INFO, um Informationen über das markierte Programm anzuzeigen. 8. Wenn Sie die Favoritenliste der Kanäle noch nicht angelegt haben: y "Die Favoritenliste ist leer. Möchten Sie jetzt Ihre Favoriten auswählen?" wird als Meldung angezeigt. y Wählen Sie "Ja". Das Menü "Favoriten bearbeiten" wird angezeigt. Wenn Sie Nein wählen, bleiben alle Kanäle unverändert. y Einzelheiten über das Bearbeiten der Favoritenliste erfahren Sie auf Seite 32.  9RXV SRXYH] EUDQFKHU XQ FDVTXH j YRWUH: WpOpYLVHXU---VL: YRXV VRXKDLWH] UHJDUGHU XQ SURJUDPPH VXU YRWUH WpOpYLVHXU---VL: YRXV Ponnageatéral du télévisant les autres personnes présentes dans la pièce. Lorsque vous insérez la prise casque dans le port correspondant, vous pouvez utiliser uniquement les options "Volume auto" et "Sélection du son" (en mode PIP) du menu Sound. ° L'utilisation prolongée d'un casque à un niveau sonore élevé peut endommager l'ouïe. ° Aucun son n'est émis depuis les enceintes lorsque vous connectez le casque à l'appareil. ° Le volume du casque et celui du téléviseur sont réglés différemment. 5pJODJH HW DI;FKDJH GH O¶KHXUH DFWXHOAktual Aktual Ansehen Ausführlich Favonten Beenden INFO (E) EXIT (E) 7 Discovery 13.28 Mi 16 Feb Extreme Machines: Armoured Cars INFO Route 13.00 14.00 Die Favorstellen at beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten > 9RXV SRXYH] UpJOHU O¶KRUORJH GX WpO pYlVHYU GH WHOOH VRUWH TX O¶KHXUH DFWXHOOH V¶DI¿FKH ORUVTXH TV Configuration Plug & Play Z Langue :Français Z Horloge Z 1)2 9RXV GHYH] pJDOHPHQW UpJOHU O¶ utiliser les minuteurs de mise sous/hors tension. Appuyez sur le bouton MENU SRXU DI FKHU OH PH Appuyez sur le bouton S ou T SRXU VpOHFWLRQQH puis appuyez sur le bouton ENTERG. Appuyez sur le bouton S ou T pour sélectionner "Horloge" puis appuyez sur le bouton ENTER. Appuyez sur le bouton ENTER pour sélectionner l'élément "Réglage Horloge". Pour...vonten Beenden INFO (E) EXIT (E) 7 Discovery 13.28 Mi 16 Feb Extreme Machines: Armoured Cars INFO Route 13.00 14.00 Die Favorstellen at beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten > $ S S X \ H ] V X U (E) 7 Discovery 13.28 Mi 16 Feb Extreme Machines: Armoured Cars INFO Route 13.00 14.00 Die Favorstellen at beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten >7 Discovery 13.28 Mi 16 Feb Extreme Machines: Armoured Cars INFO Route 13.00 14.00 Die Favorstellen at beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten > Naviguer entre les “Mois”, “Date”, “Année”, “Heure” ou “Minute” 14.00 Die Favorstellen at beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten > Bouton Wou Xen at beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten > beer. Möchen Sie jetzt Favoriten auswerten? Jb Nein Ansehen Akt/Nach Faveriten > Régler les “Mois”, “Date”, “Année”, “Heure” ou “Minute”h Faveriten > Bouton S ou TS/d Beend eend & R Q ¿ U P H U O H S D U D P qTaste EXIT. ° Bei "Alle Sender" handelt es sich um die Liste aller Kanäle, die beim Sendersuchlauf zwecks Listenaktualisierung gefunden wurden. Im Modus für alle Kanäle werden alle Kanäle angezeigt. Die Liste “Favoriten” enthält die Kanäle, die mit dem Menü “Favoriten bearbeiten” (siehe Seite 32) festgelegt wurden. Woutch ENTERG.e Sender" handelt es sich um die Liste aller Kanäle, die beim Sendersuchlauf zwecks Listenaktualisierung gefunden wurden. Im Modus für alle Kanäle werden alle Kanäle angezeigt. Die Liste “Favoriten” enthält die Kanäle, die mit dem Menü “Favoriten bearbeiten” (siehe Seite 32) festgelegt wurden. der" handelt es sich um die Liste aller Kanäle, die beim Sendersuchlauf zwecks Listenaktualisierung gefunden wurden. Im Modus für alle Kanäle werden alle Kanäle angezeigt. Die Liste “Favoriten” enthält die Kanäle, die mit dem Menü “Favoriten bearbeiten” (siehe Seite 32) festgelegt wurden. handelt es sich um die Liste aller Kanäle, die beim Sendersuchlauf zwecks Listenaktualisierung gefunden wurden. Im Modus für alle Kanäle werden alle Kanäle angezeigt. Die Liste “Favoriten” enthält die Kanäle, die mit dem Menü “Favoriten bearbeiten” (siehe Seite 32) festgelegt wurden.
