USER MANUAL LE40R73BD SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Owner's Instructions

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

ON-SCREEN MENUS

PC DISPLAY

PICTURE IN PICTURE (PIP)

TELETEXT

This device is a Class B digital apparatus.

Register your product at www.samsung.com/global/register

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

- Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn".

To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

- Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

CONNECTING AND PREPARING YOUR TV

■ List of Parts.... 2
■ Installing the Stand 2
■ Installing the Wall Mount Kit.... 2
■ Viewing the Control Panel 3
■ Viewing the Connection Panel.... 4
■ Viewing the Remote Control.... 6
■ Installing Batteries in the Remote Control.... 6
■ Switching On and Off.... 7
■ Placing Your Television in Standby Mode.... 7

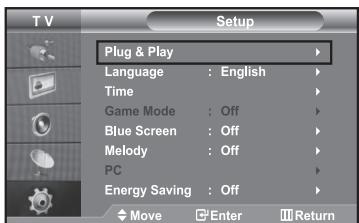

■ Plug & Play 7

SETTING THE CHANNELS

■ Storing Channels Automatically.... 8

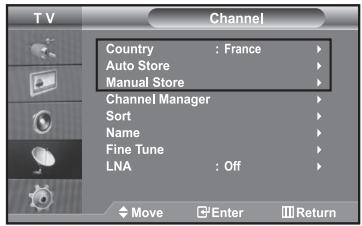

■ Storing Channels Manually.... 8

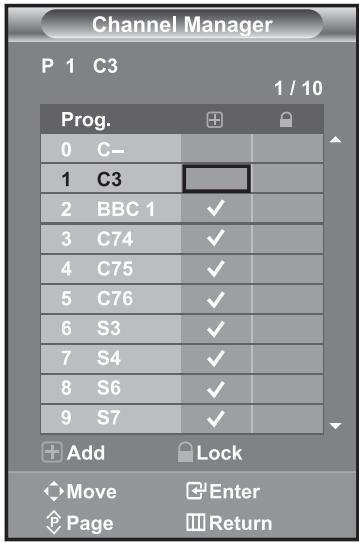

■ Setting the Channel Manager.... 9
■ Activating the Child Lock.... 9
■ Sorting the Stored Channels .... 10
■ Assigning Channels Names .... 10
■ Fine Tuning Channel Reception 10
■ LNA (Low Noise Amplifier).... 11

SETTING THE PICTURE

■ Changing the Picture Standard 11
■ Adjusting the Custom Picture 11

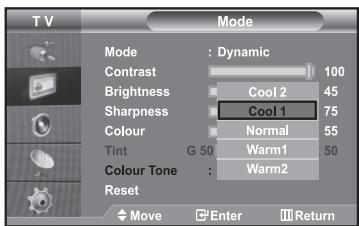

■ Changing the Colour Tone....11

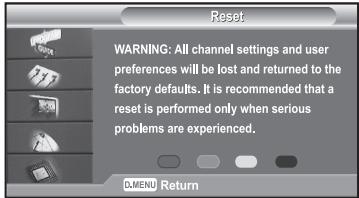

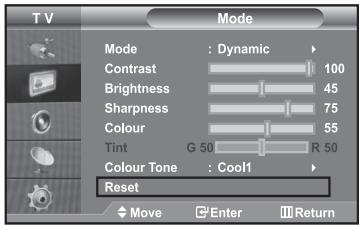

■ Resetting the Picture Settings to the Factory Defaults....12
■ Changing the Picture Size....12
■ Freezing the Current Picture 12
■ Digital Noise Reduction 12
■ DNle Demo (Digital Natural Image engine)....13
■ Viewing the Picture In Picture (PIP)....13
■ PIP Settings....14

SETTING THE SOUND

■ Changing the Sound Standard.... 14

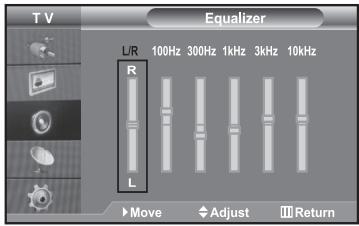

■ Adjusting the Sound Settings.... 14
■ Connecting Hheadphones.... 14

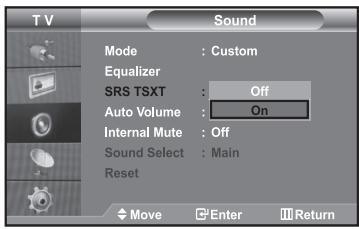

■ Setting the TruSurround XT (SRS TSXT) 15
■ Adjusting the Volume Automatically 15

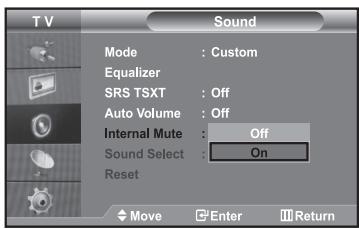

■ Selecting the Internal Mute 15
■ Listening to the Sound of the Sub Picture 15

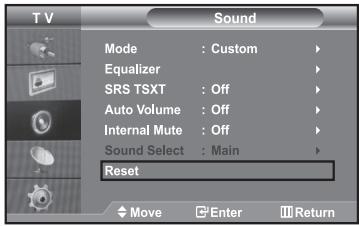

■ Resetting the Sound Settings to the Factory Defaults..... 16

SETTING THE TIME

■ Setting and Displaying the Current Time 16

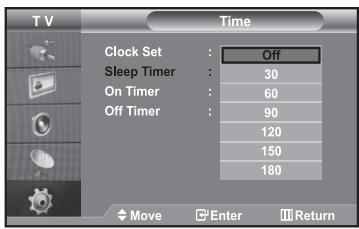

■ Setting the Sleep Timer.... 16
■ Switching the Television On and Off Automatically .... 16

SETTING THE OTHERS

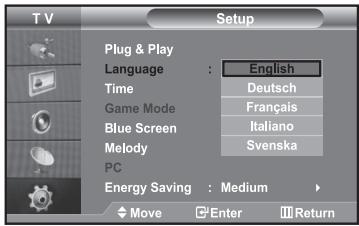

■ Choosing Your Language.... 17

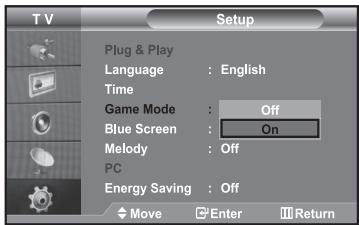

■ Using Game Mode 17

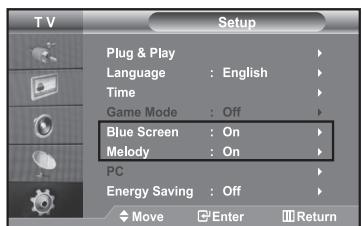

■ Setting the Blue Screen Mode / Selecting the Melody 17

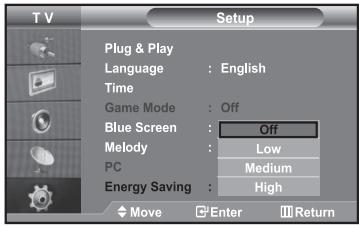

■ Using the Energy Saving Feature.... 18
■ Selecting the Source.... 18

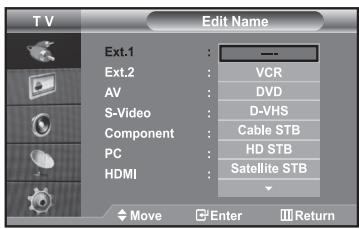

■ Editing the Input Source Names 18

USING THE DTV FEATURE

■ Previewing the DTV Menu System....19
■ Updating the Channel List Automatically.... 19
■ Updating the Channel List Manually 20

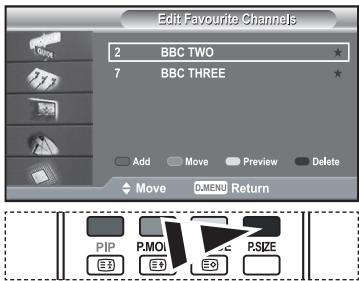

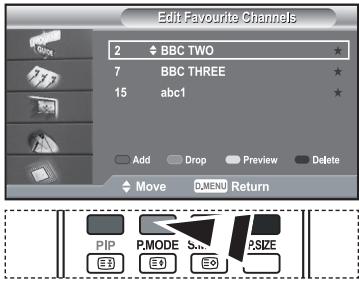

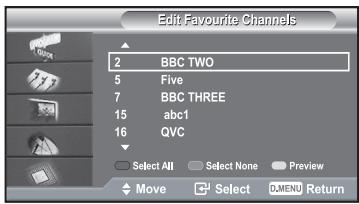

■ Editing Your Favourite Channels....20

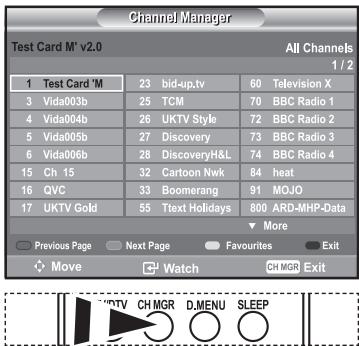

■ Selecting Channel Manager 21

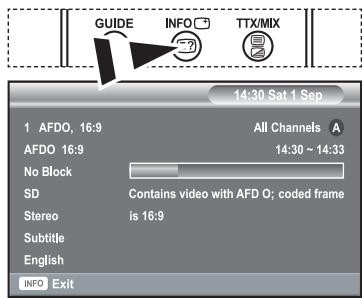

■ Displaying Programme Information 22

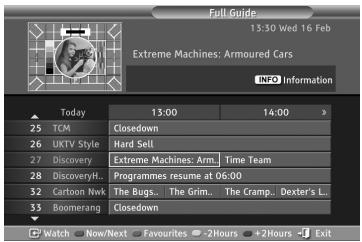

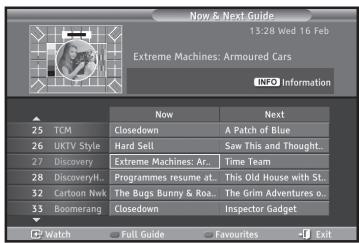

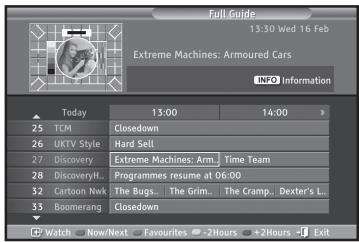

■ Viewing the EPG (Electronic Programme Guide) Information......22

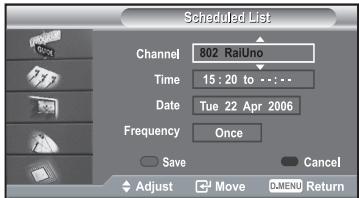

■ Using the Scheduled List....23
■ Setting the Default Guide 23

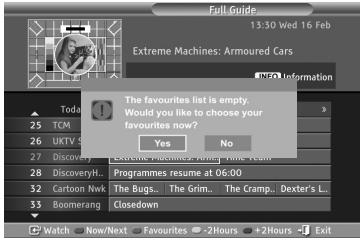

■ Viewing All Channels and Favourite Channels....24
■ Choosing Your Language ....24
■ Adjusting the Translucency Level 25
■ Setting up the Parental Lock 25
■ Setting the Subtitle 26
■ Selecting the Preferred Language (Subtitle or Audio)......26
■ Viewing Product Information....26
- Checking the Signal Information ....26

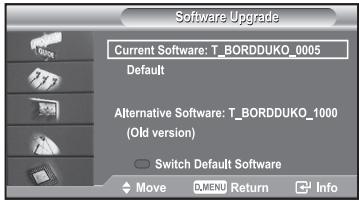

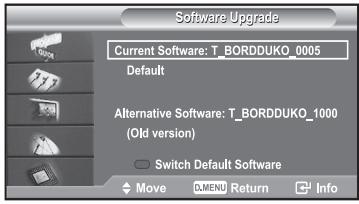

■ Upgrading the Software (Option)......27
■ Viewing Common Interface ......27

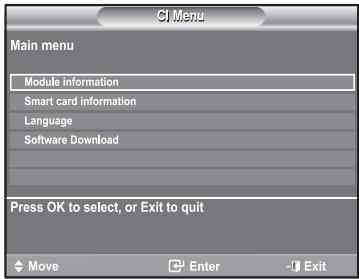

■ Selecting the CI (Common Interface) Menu....28
■ Resetting....28

USING THE TELETEXT FEATURE

■ Teletext Decoder 28
■ Displaying the Teletext Information 29
■ Selecting a Specific Teletext Page.... 29

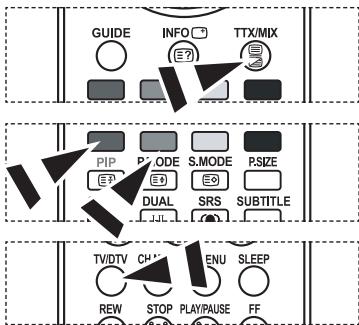

■ Using Fastext to Select a Teletext Page 30

SETTING THE PC

■ Setting up Your PC Software (Based on Windows XP).... 30
■ Display Modes.... 30
■ Setting the PC....31

RECOMMENDATIONS FOR USE

■ Using the Anti-Theft Kensington Lock.... 32
■ Troubleshooting: Before Contacting Service Personnel.... 32
■ Technical and Environmental Specifications .... 33

Press

Important

Note

One-Touch Button

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries (AAA x 2)

Power Cord

Cover-Bottom

M4 X L16

Stand

Cleaning Cloth

Warranty card / Service Network Card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.

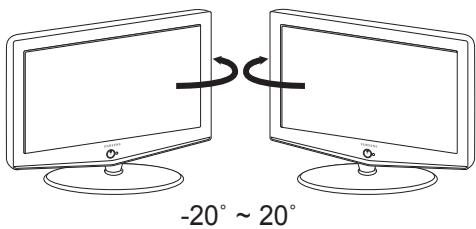

Installing the Stand

Diagram showing a device with a screen and an external speaker emitting sound waves (no text or symbols present)

< 2 >

Diagram of a camera setup with a projector, lens, and screen (no text or symbols)

< 3 >

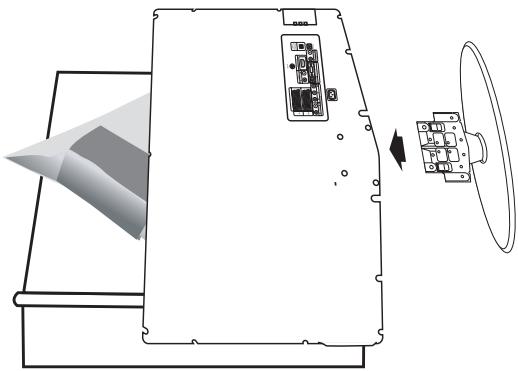

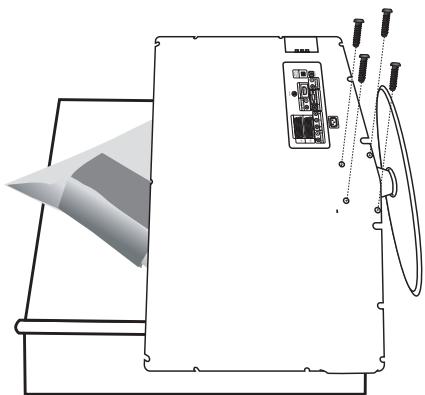

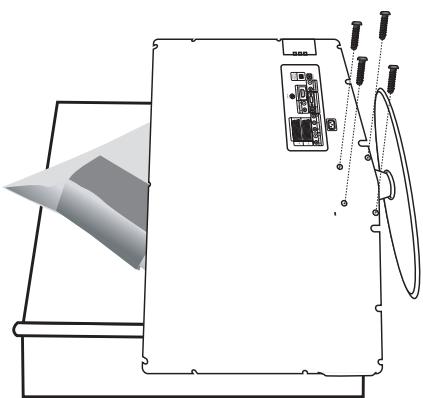

1. Place the TV faced down on a soft cloth or cushion on a table.
2. Put the stand into the hole at the bottom of the TV.
3. Insert screw into the hole indicated and tighten.
   The stand is installed for models with the screen size of 40 inch and above.

Installing the Wall Mount Kit

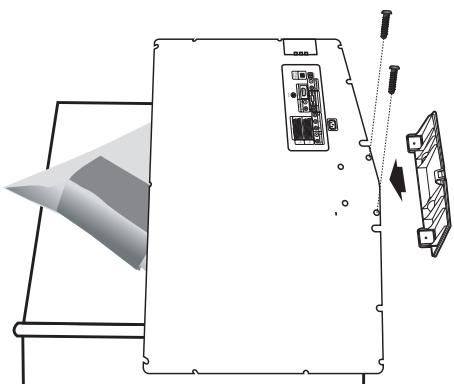

Diagram showing a device with a screen and a separate screen, connected to a panel with a close-up view (no text or symbols present)

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

➢ Remove the stand and cover the bottom hole with a cap and fasten with two screws.

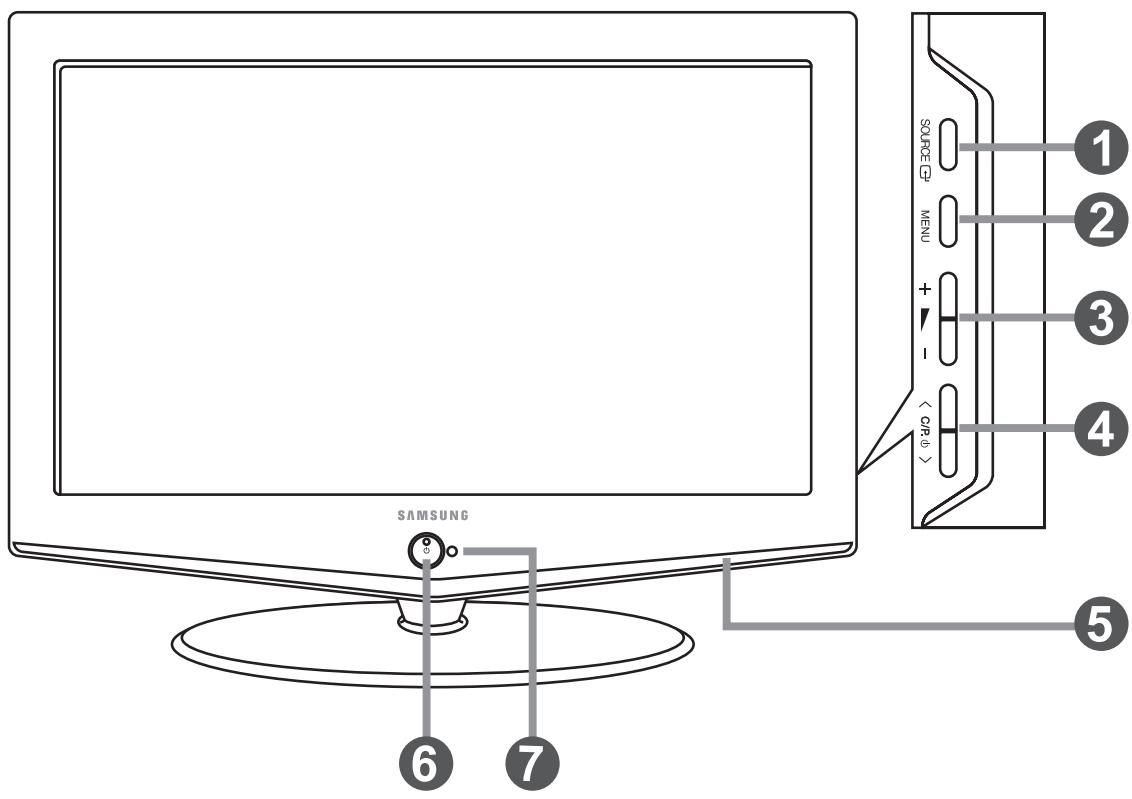

SAMSUNG 1 2 3 4 5 SOURCE Q MENU + - ⟨ CIR 0 » 6 7

The product colour and shape may vary depending on the model.

1 SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI, DTV). In the on-screen menu, use this button as you use the ENTER button on the remote control.

② MENU

Press to see an on-screen menu of your TV's features. In case of DTV mode, the DTV menu appears.

Press to decrease or increase the volume. In the on-screen menu, use the + ▶ - buttons as you use the ◀ and ▶ buttons on the remote control.

4 < C/P. ⊙ >

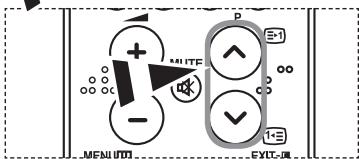

Press to change channels.

In the on-screen menu, use the buttons as you use the ▲ and ▼ buttons on the remote control.

(Without the Remote Control, you can turn on the TV by using the Channel buttons.)

⑤ Speakers

6 Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

(Power)

Press to turn the TV on and off.

⑦ Remote Control Sensor

Aim the remote control towards this spot on the TV.

[Rear Panel Jacks] (32 inch, 37 inch, 40 inch) [Side Panel Jacks] (26 inch model does not have the side panel jacks.) Component IN EXT 2 (AV) 1 (RGB) ANT IN DVI IN HDMI/DVI IN DIGITAL AUDIO OUT (OPTICAL) COMPONENT IN AUDIO PC AUDIO OUT SERVICE Power Input 9 8 7 6 5 4 AV IN S-VIDEO VIDEO AUDIO R [Rear Panel Jacks]

[Rear Panel Jacks] (26 inch)

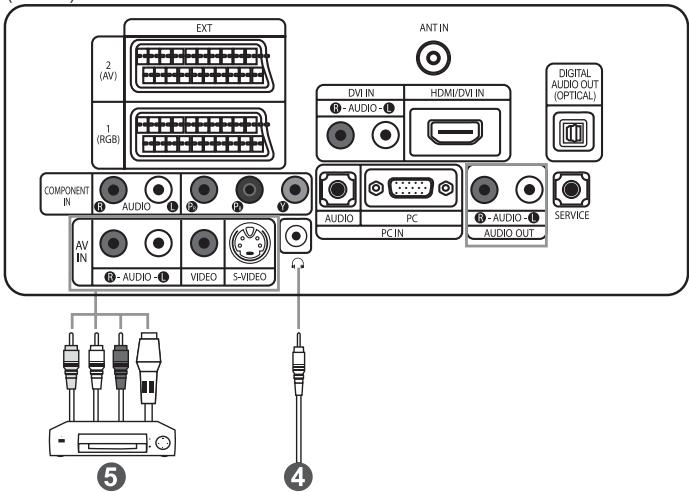

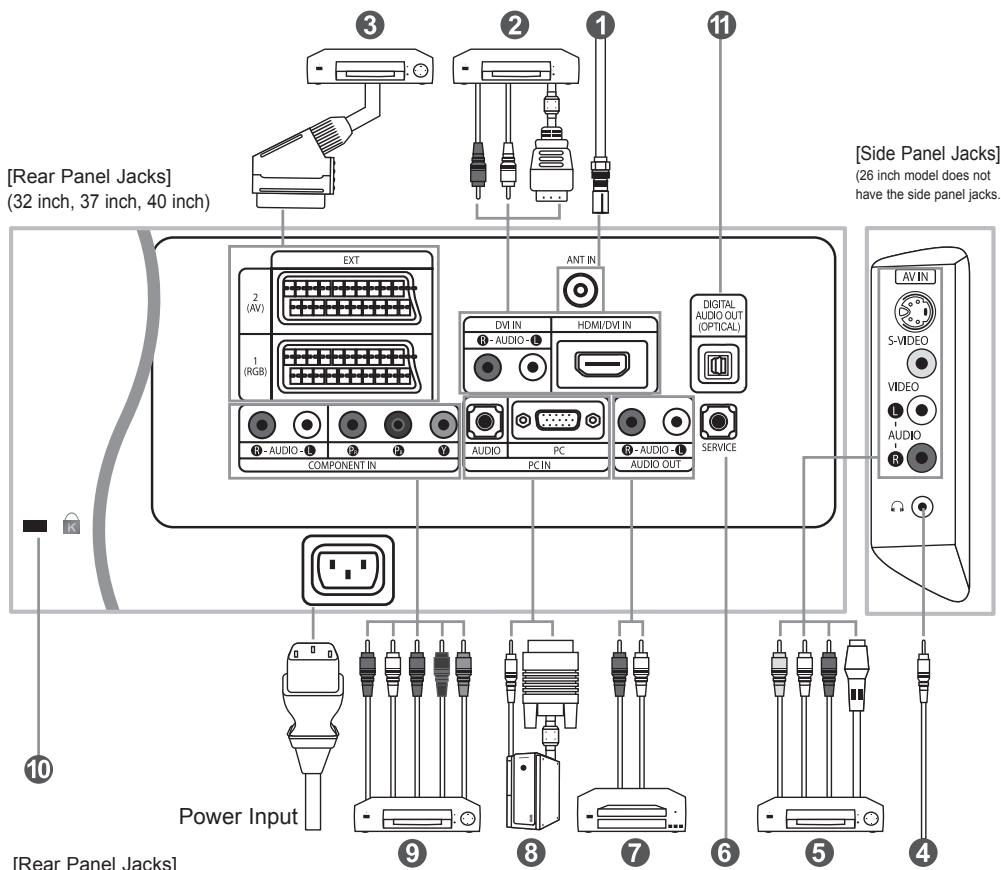

EXT 2 (AV) 1 (RGB) COMPONENT IN AV IN R-AUDIO-L VIDEO S-VIDEO ANT IN DVI IN HDMI/DVI IN DIGITAL AUDIO OUT (OPTICAL) AUDIO PC AUDIO AUDIO -L AUDIO OUT SERVICE 5 4

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

When connecting an external device, match the colour of the connection terminal to the cable.

① Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial / A cable television network / A satellite network

② Connecting HDMI/DVI

- Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).

- No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

- "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio (5.1 channels).

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP

(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

➢ You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the "R - AUDIO - L" terminal on DVI for sound output.

- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture.

▶ Supported modes for DVI or HDMI

- Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card. (This will result in a blank screen being displayed)

③ Connecting Set-Top Box, VCR or DVD

Connector	Input			Output
	Video	Audio (L/R)	RGB	Video + Audio (L/R)
EXT 1	√	√	√	Only TV or DTV output is available.
EXT 2	√	√		Output you can choose.

- Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

⑤ Connecting External A/V Devices

• Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
• Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the A/V device.
• Headphone may be connected to the headphone output (④) on the rear of your set. While the headphone is connected, the sound from the built-in speakers will be disabled.

6 SERVICE

- Service connection for qualified service engineer.

7 Connecting AUDIO

- Connect RCA audio cables to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theater.

8 Connecting Computer

• Connect the D- Sub cable (optional) to "PC (PC IN)" on the rear of your set and the other end to the Video Card of your computer.
• Connect the stereo audio cable (optional) to "AUDIO (PC IN)" on the rear of your set and the other end to "Audio Out" of the sound card on your computer.

9 Connecting Component Devices (DTV/DVD)

• Connect component video cables (optional) to component connector ("P R ", "P B ", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD.
• If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("P R ", "P B ", "Y") on your set.
• The P_R , P_B and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
• Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.
• This LCD TV displays its optimum picture resolution in 720p mode.
• This LCD TV displays its maximum picture resolution in 1080i mode.

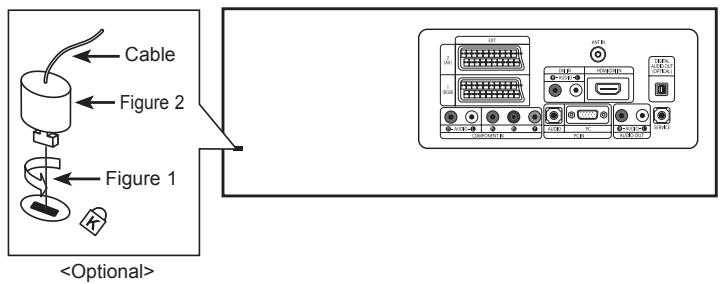

⑩ Kensington Lock

• The Kensington lock (optional) is a device used to physically fix the system when used in a public place.
• If you want to use a locking device, contact the dealer where you purchased the TV.
• The place of the Kensington Lock may be different depending on its model.

⑪ DIGITAL AUDIO OUT (OPTICAL)

- Connect to a Digital Audio Component.

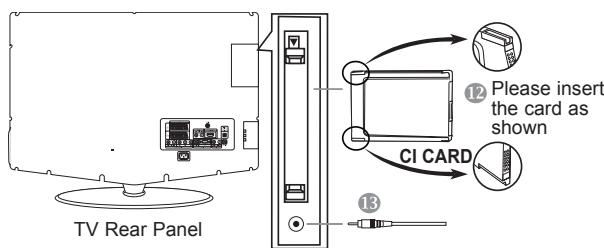

⑫ Connecting CI (Common Interface) CARD

TV Rear Panel ⑫ Please insert the card as shown ⑬ CI CARD

• When not inserting "CI CARD" in some channels, "Scrambled Signal" is displayed on the screen.
• The pairing information containing a telephone number, CI CARD ID, Host ID, and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.
• When the channel information configuration has finished, the message "Updating Completed" is displayed, indicating that the channel list is now updated.

  You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it.

⑬ Service Port

- Service connection for qualified service engineer.

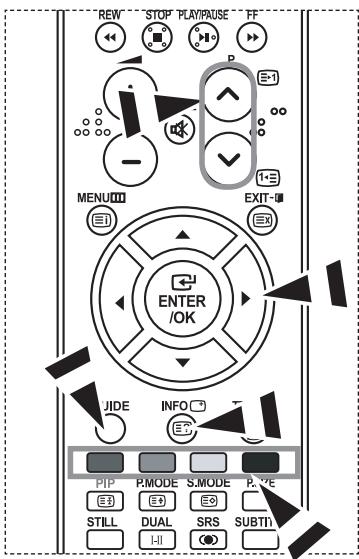

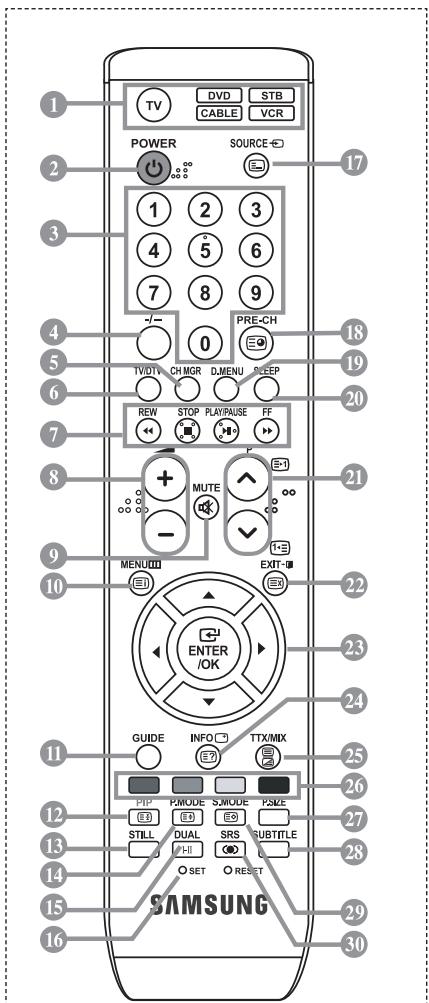

TV DVD STB CABLE VCR POWER SOURCE- 1 2 3 4 5 6 7 8 9 -/- 0 PRE-CH TV/DT VCH MGR D-MENU S/EEP REW STOP PLAY/PAUSE FF MUTE - MENU EXIT- ENTER /OK GUIDE INFO TTX/MIX PIP FMODE SMODE PSKE STILL DUAL SRS SUBTITLE SET RESET SAMSUNG

① Selects a target device to be controlled by the Samsung remote control (TV, DVD, STB, CABLE, VCR)
② Television Standby button
③ Number buttons for direct channel access
4 One/Two-digit channel selection

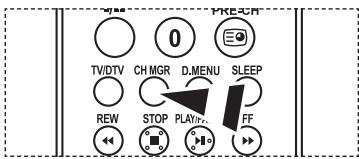

⑤ It display "Channel Manager" on the screen.
6 Selects the TV and DTV mode directly
⑦ VCR/DVD Functions Rewind, Stop, Play/Pause, Fast/Forward
8 + Volume increase - Volume decrease
⑨ Temporary sound switch-off
10 Menu display and change confirmation
11 Electronic Program Guide (EPG) display
12 Picture-In-Picture On / Off
13 Picture freeze
14 Picture effect selection
15 Sound effect selection
16 Adjusts 5 separate devices - TV, DVD, STB, CABLE, or VCR.
17 Available source selection
18 Previous channel
19 DTV menu display

20 Automatic Power-off
21 P ⬇: Next channel P ⬇: Previous channel
22 Exit the OSD
23 Control the cursor in the menu
24 Use to see information on the current broadcast
27 Picture size selection
28 Digital subtitle display
29 Sound mode selection
30 SRS TSXT selection

Teletext Functions

⑥ Exit from the teletext display
10 Teletext index
⑫ Teletext hold
14 Teletext size selection
17 Teletext mode selection (LIST/FLOF)
18 Teletext sub page
21 P Ⓧ: Teletext next page P Ⓧ: Teletext previous page
22 Teletext cancel
24 Teletext reveal
25 Alternately select Teletext, Double, or Mix.
26 Fastext topic selection
29 Teletext store

The performance of the remote control may be affected by bright light.
This is a special remote control for the visually impaired, and has Braille points on the Power, Channel and Volume buttons.

Installing Batteries in the Remote Control

Three-step diagram showing a mechanical assembly with a clip, a bracket, and a battery (no text or symbols)

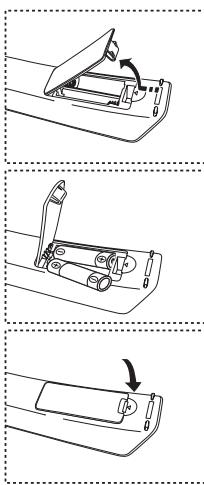

1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AAA size batteries.

➢ Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on the front of the set.

1. Press the ⏻ button on the front of the set.

➢ You also can press the POWER ⏻ button or the TV/DTV button on the remote control to turn the TV on.

The programme that you were watching last is reselected automatically.

1. Press the numeric button (0\~9) or channel up/down (○/▽) button on the remote control or button on the right side of the set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

1. To switch your set off, press the POWER ⏻ button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on the front of your set.

1. To switch your set back on, simply press the POWER ⏻, numeric buttons (0\~9), TV/DTV button or channel up/down (ⓧ/⓪) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial.

Plug & Play

Plug & Play Démarrer Plug & Play OK Entrer Ignorer

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

1. Press the POWER button on the remote control. The message "Démarrer Plug & Play" is displayed with "OK" selected.

2. Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

3. The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.

➢ Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

2. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically. After all the available channels are stored, the "Clock Set" menu appears. Press the ENTER button at any time to interrupt the memorization process.

1. Press the ENTER button. Select the "Hour" or "Minute" by pressing the ◀ or ▶ button.

Set the "Hour" or "Minute" by pressing the ▲ or ▼ button. ➢ You can also set the hour and minute by pressing the number buttons on the remote control.

1. Press the ENTER button to confirm your setting.

The DTV channel scan menu appears and the DTV channel is automatically updated.

If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to DTV.

For detailed descriptions about DTV channel update, refer to page 27 of this manual.

♦ Language: Select your language.
- Country: Select your country.
- Auto Store: Automatically scans for and stores channels available in the local area.
♦ Clock Set: Sets the current time for the TV clock.

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off PC Energy Saving : Off Move Enter Return

If you want to reset this feature...

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ENTER button again, to select "Plug & Play".
3. The message to "Start Plug & Play" is displayed.

TV Channel Country : France > Auto Store > Manual Store > Channel Manager > Sort > Name > Fine Tune > LNA : Off > Move Enter Return

• Storing Channels Automatically
• Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
2. Press the ENTER button to select "Country".
3. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.
4. Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.
5. Press the ENTER button.

The TV will begin memorizing all of the available channels.

➢ Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Sort" menu appears.

Storing Channels Manually

You can store up to 100 channels, including those received via cable networks. When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found.
◆ The programme number of each stored channel which you wish to identify.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.

1. Press the ▲ or ▼ button to select "Manual Store", then press the ENTER button.
2. Press the ENTER button to select "Programme".
3. To assign a programme number to a channel, find the correct number by pressing the ▲ or ▼ button and then press the ENTER□ button.

➢ You can also set a programme number by pressing number buttons on the remote control.

1. Press the ▲ or ▼ button to select "Colour System", then press the ENTER button.
2. Select the colour standard required by pressing the ▲ or ▼ button then, press the ENTER button.
3. Press the ▲ or ▼ button to select "Sound System", then press the ENTER← button.
4. Select the sound standard required by pressing the ▲ or ▼ button, then press the ENTER button.

➢ If there is an abnormal sound or no sound, re-select the sound system required.

1. If you know the number of the channel to be stored, press the ▲ or ▼ button to select "Channel". Press the ENTER button. Select C (Air channel) or S (Cable channel) by pressing the ▲ or ▼ button. Press the ▶ button to select channel.

Select the required number by pressing the ▲ or ▼ button and then press the ENTER button.

➢ Channel mode: P (Programme mode), C (Air channel mode), S (Cable channel mode)
➢ You can also set a channel number by pressing number buttons on the remote control.

1. If you do not know the channel numbers, press the ▲ or ▼ button to select "Search".

Press the ENTER button. Search by pressing the ▲ or ▼ button and then press the ENTER button.

1. Press the ▲ or ▼ button to select "Store". Press the ENTER← button to select "OK".

2. Repeat steps 3 to 11 for each channel to be stored.

3. Programme: Selects a program number for the channel.
   ♦ Colour System: Sets the colour supporting system.
   ♦ Sound System: Sets the sound supporting system.

4. Channel: Selects a channel.

5. Search: Scans for the frequency value for the channel.
6. Store: Saves your settings.

Setting the Channel Manager

Channel Manager P 1 C3 1 / 10 Prog. 0 C- 1 C3 2 BBC 1 ✓ 3 C74 ✓ 4 C75 ✓ 5 C76 ✓ 6 S3 ✓ 7 S4 ✓ 8 S6 ✓ 9 S7 ✓ Add Lock Move Enter Page Return

Set the channels according to your preference.

You can easily delete, add, or lock the channel you want.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
3. Press the ENTER button again, to select "Channel Manager".
4. Press the ▶ button to select "⊕".
5. Press the ▲ or ▼ button to select the undesired channel, then press the ENTER◀ button to cancel.
6. Repeat steps 5 for each channel to be selected or canceled
7. Press the EXIT button to exit.
   "> " 🔒 " is active when "Child Lock" is selected to "On".

TV/TV 0 PRE-CH CH MGR D.MENU SLEEP REW STOP PLAY FF

You can select these options by simply pressing the CH MGR button on the remote control.

Activating the Child Lock

TV Channel Manager Channel Manager Child Lock : Off On Move Enter Return

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

Child Lock cannot be released using the buttons on the side.

Only the remote control can release the Child Lock setting, so keep the remote control away from children.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Child Lock", then press the ENTER← button.
4. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
5. Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.
6. Press the ▶ button to select " 🔊" line.
7. Press the ▲ or ▼ button to select the channels you want to lock, then press the ENTER button.
8. Repeat steps 7 for each channel to be locked or unlocked.
9. Press the EXIT button to exit.

   Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " 🔒" to be active or inactive.

Sorting the Stored Channels

TV Sort Prog. Ch. Name 0 C- 1 C23 2 C16 3 C3 4 S1 Move Enter Return

You can exchange the numbers of two channels, in order to:

- Modify the numeric order in which the channels have been automatically stored. - Give easily remembered numbers to the channels that you watch most often.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Sort", then press the ENTER← button.
3. Select the channel number that you wish to change by pressing the ▲ or ▼ button repeatedly. Press the ENTER button. ➢ The selected channel number and name are moved to right side.
4. Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER button. ▶ The selected channel is exchanged with the one previously stored to the chosen number.
5. Repeat steps 3 to 4 for another channel to be sorted.
6. Press the EXIT button to exit.

Assigning Channels Names

TV Prog. Ch. Name 0 C------------------- 1 C23------------------ 2 C16------------------ 3 C3------------------ 4 S1------------------ Move Enter Return

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Name", then press the ENTER button.
3. If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button. ➢ The selection bar is displayed around the name box.

To...	Then...
Select a letter, number or symbol	Press the ▲ or ▼ button
Move on the next letter	Press the ▶ button
Move back the previous letter	Press the ◀ button
Confirm the name	Press the ENTER button

The characters available are: Letters of the alphabet (A\~Z) / Numbers (0\~9) / Special characters (-, space)

1. Repeat steps 3 to 4 for each channel to be assigned to a new name.
2. Press the EXIT button to exit.

Fine Tuning Channel Reception

Fine Tune P 1 0 Reset Adjust Save Return

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button.
4. Press the ◀ or ▶ button to adjust the fine tuning. Press the ENTER button.
5. Press the EXIT button to exit.

➢ Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal).

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
2. Press the ▲ or ▼ button to select "LNA", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.

Changing the Picture Standard

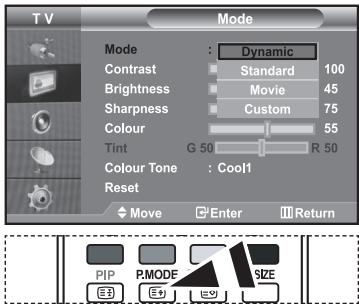

TV Mode Mode : Dynamic Contrast Standard 100 Brightness Movie 45 Sharpness Custom 75 Colour 55 Tint G 50 R 50 Colour Tone Cool1 Reset Move Enter Return PIP PMODE SIZE

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ENTER button again, to select "Mode".
3. Press the ENTER← button again, to select "Mode".
4. Press the ▲ or ▼ button to select the desired picture effect. Press the ENTER button.
5. Press the EXIT button to exit.

You can also press the P.MODE button on the remote control to select one of the picture settings.

• Dynamic: Selects the picture for high-definition in a bright room.
• Standard: Selects the picture for optimum display in a normal environment.
  ♦ Movie: Selects the picture for comfortable display in a dark room.
• Custom: Select to view your favorite display settings. (Refer to "Adjusting the Custom Picture")

The Picture mode must be adjusted separately for each input source.
You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 12)

Adjusting the Custom Picture

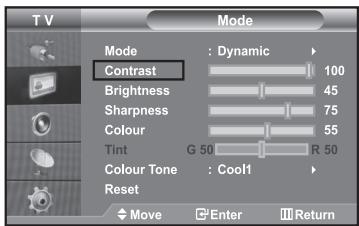

TV Mode Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Reset Move Enter III Return

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 4.
2. Press the ▲ or ▼ button to select a particular item. Press the ENTER◀ button.
3. Press the ◀ or ▶ button to decrease or increase the value of a particular item. Press the ENTER button.

4. Press the EXIT button to exit.

5. Contrast: Adjusts the lightness and darkness between objects and the background.
   ♦ Brightness: Adjusts the brightness of the whole screen.

6. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
   ♦ Colour: Adjusts the colours, making them lighter or darker.
7. Tint (NTSC only): Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.
In PC Mode, Only "Contrast", "Brightness" and "Colour" can be adjusted

Changing the Colour Tone

T V Mode Dynamic Contrast 100 Brightness Cool 2 45 Sharpness Cool 1 75 Colour Normal 55 Tint G 50 Warm1 50 Colour Tone : Warm2 Reset Move Enter Return

You can select the most comfortable colour tone to your eyes.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 4.
2. Press the ▲ or ▼ button to select "Colour Tone", then press the ENTER button.

3. Press the ▲ or ▼ button to select the desired colour tone setting. Press the ENTER button.

4. Press the EXIT button to exit.

• Cool2: Makes the colour temperature bluer than "Cool1" menu.
• Cool1: Makes whites bluish.
♦ Normal: Keeps whites white.
♦ Warm1: Makes whites reddish.
♦ Warm2: Makes the colour temperature redder than "Warm1" menu.

The adjusted values are stored according to the selected Picture mode.

Resetting the Picture Settings to the Factory Defaults

TV Mode Mode : Dynamic Contrast 100 Brightness 45 Sharpness 75 Colour 55 Tint G 50 R 50 Colour Tone : Cool1 Reset Move Enter Return

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 4 on page 11.
2. Press the ▲ or ▼ button to select "Reset", then press the ENTER button.
3. Press the EXIT button to exit.
   The "Reset" will be set for each picture mode.

Changing the Picture Size

T V Size Auto Wide 16 : 9 Zoom 4:3 Move Enter Return

You can select the picture size which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Size", then press the ENTER← button.
3. Select the required option by pressing the ▲ or ▼ button. Press the ENTER← button.
4. Press the EXIT button to exit.

PIP P.MODE S.MODE P.SIZE STILL DUAL I-II SUBTITLE

• Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.
  ♦ 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
• Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
  ♦ 4:3: This is the default setting for a video movie or normal broadcasting.

You can select these options by simply pressing the P.SIZE button on the remote control.

➢ “Auto Wide” function is available only in “TV”, “Ext1”, “Ext2”, “AV”, and “S-Video” mode.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.
Select by pressing the ◀ or ▶ buttons. Use the ▲ or ▼ button to move the picture up and down. After selecting [icon], use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

Freezing the Current Picture

PIP P.MODE S.MODE P.SIZE E3 E4 E5 STILL DUAL SRS SUBTITLE

Press the STILL button to freeze a moving picture into a still one. Press again to cancel.

Digital Noise Reduction

TV Picture Mode : Dynamic Size : Auto Wide Digital NR : Off DNle Demo : On PIP Move Enter Return

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Digital NR", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.

DNle Demo (Digital Natural Image engine)

TV Picture Mode : Dynamic Size : Auto Wide Digital NR : On DNie Demo : Off PIP On Move Enter Return

Samsung's new technology brings you more detailed images with contrast and white enhancement. A new image compensation algorithm gives viewers brighter and clearer images. DNle technology will match every signal to your eyes. You can see how DNle improves the picture by setting DNle Demo mode to On.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Picture", then press the ENTER button.
2. Press the ▲ or ▼ button to select "DNle Demo", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.
   These functions don't work in PC mode.
   The DNle Demo is designed to show the difference between the regular and DNle pictures.
   By default, the product displays the picture with DNle applied.

Viewing the Picture In Picture (PIP)

T V PIP PIP : On Source : HDMI Swap Size : Position : Programme : P 1 Move Enter Return

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

PIP PMODE S.MODE PSIZE STILL I-II SRS SUBTITLE

Press the PIP button on the remote control repeatedly to activate or deactivate the "PIP".

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Picture", then press the ENTER◀ button.
2. Press the ▲ or ▼ button to select "PIP", then press the ENTER← button.

3. Press the ENTER← button again.
   Press the ▲ or ▼ button to select "On", then press ENTER← button.
   If the PIP is activated, the size of the main picture turns to "16:9".

4. Press the ▲ or ▼ button to select "Source", then press ENTER button. Select a source of the sub picture by pressing the ▲ or ▼ button and press the ENTER button.

The sub picture can serve different source selections based on what the main picture is set to.

1. Press the ▲ or ▼ button to select "Swap".

To interchange the main picture and the sub picture, select "Swap" option and press the ENTER button.

The main picture and the sub picture are interchanged.

If main picture is in "PC" mode, "Swap" is not available.

1. Press the ▲ or ▼ button to select "Size" of the sub picture and then press the ENTER☐ button. Select a size of the sub picture by pressing the ▲ or ▼ button and then press the ENTER☐ button.

➢ If main picture is in "PC" mode, "Size" is not available.

1. Press the ▲ or ▼ button to select "Position", then press the ENTER button.

Select the position of the sub picture by pressing the ▲ or ▼ button and then press the ENTER button.

1. Press the ▲ or ▼ button to select "Programme" and then press the ENTER button. You can select the channel that you want to view through sub picture by pressing the ▲ or ▼ button. Press the ENTER button.

The "Programme" can be active when the sub picture is set to TV.

1. Press the EXIT button to exit.

➢ You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

• Source: Used to select a source of the sub picture.
• Swap: Used to interchange the main picture and the sub picture.
  ♦ Size: Used to select a size of the sub picture.
  ♦ Position: Used to move the sub picture.
  ♦ Programme: Used to Change the sub picture.

PIP Settings

O: PIP operates, X: PIP doesn't operate

Main\Sub	TV	Ext.1	Ext.2	AV	S-Video	Component	PC	HDMI	DTV
TV	X	X	X	X	X	X	X	O	X
Ext.1	X	X	X	X	X	X	X	O	X
Ext.2	X	X	X	X	X	X	X	O	X
AV	X	X	X	X	X	X	X	O	X
S-Video	X	X	X	X	X	X	X	O	X
Component	X	X	X	X	X	X	X	O	X
PC	O	O	O	O	X	X	X	X	X
HDMI	O	O	O	O	O	O	X	X	X
DTV	X	X	X	X	X	X	X	X	X

Changing the Sound Standard

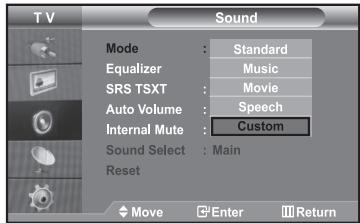

TV Sound Mode : Standard Equalizer : Music SRS TSXT : Movie Auto Volume : Speech Internal Mute : Custom Sound Select : Main Reset Move Enter Return

PIP EID STILL HI SRS SUBTITLE

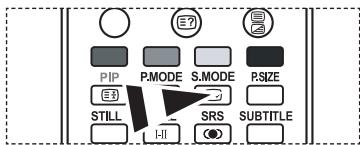

You can also select these options by simply pressing the S.MODE button on the remote control.

You can select the type of the special sound effect to be used when watching a given broadcast.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER← button.
2. Press the ENTER← button again, to select "Mode".
3. Select the required sound effect by pressing the ▲ or ▼ button repeatedly and then press the ENTER button.

4. Press the EXIT button to exit.

5. Standard: Selects the normal sound mode.
   ♦ Music: Emphasizes music over voices.
   ♦ Movie: Provides live and full sound for movies.
   ♦ Speech: Emphasizes voices over other sounds.

6. Custom: Selects your custom sound settings. (Refer to "Adjusting the Sound Settings")

Adjusting the Sound Settings

T V Equalizer L/R 100Hz 300Hz 1kHz 3kHz 10kHz R L Move Adjust Return

The sound settings can be adjusted to suit your personal preferences.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Equalizer", then press the ENTER button.
3. Press the ◀ or ▶ button to select a particular item. Press the ENTER button.
4. Press the ▲ or ▼ button to reach the required setting. Press the ENTER button.
5. Press the EXIT button to exit.
   If you make any changes to these settings, the Sound Mode is automatically switched to "Custom".

Connecting Hheadphones

Illustration of a pair of headphones connected to a lock (no text or symbols)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "Internal Mute" and "Sound Select" (in PIP mode) in Sound menu.
➢ Prolonged use of headphones at a high volume may damage your hearing.
You will not receive sound from the speakers when you connect headphones to the system.

Setting the TruSurround XT (SRS TSXT)

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : On Internal Mute : Off Sound Select : Main Reset Move Enter Return

PIP MODE S.MODE P.SIZE E3 E9 STILL SRS I-II SUBTITLE

You can also set these options simply by pressing the SRS button on remote control.

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers.

TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "SRS TSXT", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

TruSurround XT, SRS and ⬆ symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Adjusting the Volume Automatically

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : Off Internal Mute : On Sound Select : Main Reset Move Enter Return

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature allows you to automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Auto Volume", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

Selecting the Internal Mute

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : Off Internal Mute : Off Sound Select : On Reset Move Enter Return

If you want to hear the sound through separate speakers, cancel the internal amplifier.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Sound", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Internal Mute", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.
4. Press the EXIT button to exit.
   When "Internal Mute" is set to "On", the Sound menus except for "Sound Select" (in PIP mode) cannot be adjusted.

Listening to the Sound of the Sub Picture

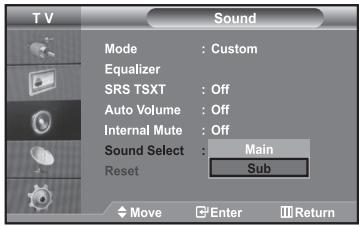

TV Sound Mode : Custom Equalizer SRS TSXT : Off Auto Volume : Off Internal Mute : Off Sound Select : Main Reset Sub Move Enter Return

During the PIP features activation, you can listen to the sound of the sub picture.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Sound", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Sound Select", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Sub". Press the ENTER button.
4. Press the EXIT button to exit.

- Main: Used to listen to the sound of the main picture.

Sub: Used to listen to the sound of the sub picture.

➢ You can select this option when the "PIP" is set to "On". (refer to page 13)

Resetting the Sound Settings to the Factory Defaults

TV Sound Mode : Custom > Equalizer > SRS TSXT : Off > Auto Volume : Off > Internal Mute : Off > Sound Select : Main > Reset Move Enter Return

If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Sound", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Reset", then press the ENTER← button.
3. Press the EXIT button to exit.
   You can select this option when the "Game Mode" is set to "On".

Setting and Displaying the Current Time

T V Clock Set Hour Minute 00 00 Move Adjust Return

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER◀ button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER← button.
3. Press the ENTER← button to select "Clock Set".

4.

To...	Press the...
Move to "Hour" or "Minute"	◀ or ▶ button.
Set the "Hour" or "Minute"	▲ or ▼ button.
Press the ENTER ⬆ button.

1. Press the EXIT button to exit.

If you disconnect the power cord, you have to set the clock again.
You can also set hour and minute by pressing the number buttons on the remote control.

Setting the Sleep Timer

TV Clock Set : Off Sleep Timer : 30 On Timer : 60 Off Timer : 90 120 150 180 Move Enter Return

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Time", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER← button.
4. Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180). Press the ENTER← button.
5. Press the EXIT button to exit.
   The TV automatically switches to standby mode when the timer reaches 0.

Press the SLEEP button on the remote control repeatedly until the appropriate time interval appears.

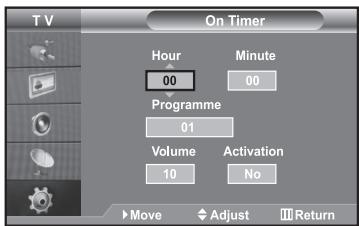

Switching the Television On and Off Automatically

TV On Timer Hour 00 Minute 00 Programme 01 Volume 10 Activation No Move Adjust Return

You can set the On/Off timers so that the set will:

◆ Switch on automatically and tune to the channel of your choice at the time you select.

◆ Switch off automatically at the time you select.

The first step is to set the television's clock.

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Time", then press the ENTER← button.

3. Press the ▲ or ▼ button to select "On Timer", then press the ENTER button.

TV Off Timer Hour 00 Minute 00 Activation No Move Adjust Return

1. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.
2. Press the ▲ or ▼ button to select "Off Timer", then press the ENTER button.
3. Press the ▲ or ▼ button to adjust "Hour", then press the ▶ button to move to the next step. Set other items using the same method as above. When finished, press the ENTER button to return.
4. Press the EXIT button to exit.

➢ You can also set hour and minute by pressing the number buttons on the remote control.

The "Activation" setting must be set to "Yes" in order for the timers to work.

Choosing Your Language

TV Setup Plug & Play Language : English Time Game Mode Blue Screen Melody PC Energy Saving : Medium Move Enter Return

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.

2. Press the ▲ or ▼ button to select "Language", then press the ENTER← button.

3. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button. ▶ You can choose one of 5 languages.

4. Press the EXIT button to exit.

Using Game Mode

TV Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : On Melody : Off PC Energy Saving : Off Move Enter Return

When connecting to a game console such as PlayStation ^TM or Xbox ^TM , you can enjoy a more realistic gaming experience by selecting game menu.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER button.
2. Press the ▲ or ▼ button to select "Game Mode", then press the ENTER button.
3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER← button.
4. Press the EXIT button to exit.

To disconnect the game console and connect another external device, cancel game mode in the picture menu.

➢ If you display the TV menu in Game mode, the screen shakes slightly.

Game Mode is not available in TV mode.

If Game Mode is On:

• Picture Mode and Sound Mode are automatically changed to Custom and users cannot change the mode.

- Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.

- The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the equalizer setting to the factory defaults.

Setting the Blue Screen Mode / Selecting the Melody

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : On Melody : On PC Energy Saving : Off Move Enter Return

Blue Screen:

If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture background. If you wish to continue viewing the poor picture, you must set the "Blue Screen" mode to "Off".

Melody:

You can hear melody sound when the television is powered on or off.

1. Press the MENU button to display the menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the ▲ or ▼ button to select "Blue Screen" or "Melody". Press the ENTER button.

3. Press the ▲ or ▼ button to select "On" or "Off". Press the ENTER button.

4. Press the EXIT button to exit.

Using the Energy Saving Feature

T V Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Low PC : Medium Energy Saving : High Move Enter Return

This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving" mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption.

1. Press the MENU button to display the on-screen menu.
   Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.
2. Press the ▲ or ▼ button to select "Energy Saving", then press the ENTER button.
3. Select the required option (Off, Low, Medium, High) by pressing the ▲ or ▼ button. Press the ENTER button.
4. Press the EXIT button to exit.

Selecting the Source

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Input".
2. Press the ENTER← button again, to select "Source List".
   When no external device is connected to your set, only "TV", "Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI", "DTV" are activated only when they are connected to your set.
3. Select the required device by pressing the ▲ or ▼ button. Press the ENTER◀ button.

Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV/DTV button, number buttons(0\~9), and the P@ button on the remote control. But it cannot be selected using the SOURCE button.

MUTE ← P 3-1 - EXIT-B

Editing the Input Source Names

T V Edit Name Ext.1 : —— Ext.2 : VCR AV : DVD S-Video : D-VHS Component : Cable STB PC : HD STB HDMI : Satellite STB Move Enter Return

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu. Press the ENTER button, to select "Input".
2. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER button.
3. Press the ▲ or ▼ button to select the device that you wish to edit. Press the ENTER button.
4. Press the ▲ or ▼ button to select the required device. Press the ENTER button.
5. Press the EXIT button to exit.

Previewing the DTV Menu System

Guide Now & Next Guide Full Guide Scheduled List Default Guide : Full Guide Move Enter 0.MENU Exit

To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration.

Available in the Digital TV mode.

Press the D.MENU button.

Guide

Now & Next Guide

Full Guide

Scheduled List

Default Guide

Now/Next, Full Guide

Preference

OSD Language

English, Deutsch, Italiano, Français, Svenska

Translucency Level

High, Medium, Low, Opaque

Parental Lock

Parental Rating

Change PIN

Preference OSD Language : English ▶ Translucency Level : Medium ▶ Parental Lock ▶ Move Enter DIMENU Exit

Feature Subtitle : On Subtitle Language Audio Language Move Enter DMENU Exit

Feature

Subtitle

On, Off

Subtitle Language

Audio Language

Channel

Auto Store

Manual Store

Edit Favourite Channels

Channel Manager

Channel Auto Store Manual Store Edit Favourite Channels Channel Manager Move Enter O.MENU Exit

System

Product Information

Application Info

Signal Information

CI Menu

Module Information

Smart card information

Language

Software Download

System Product Information Signal Information Software Upgrade Common Interface Reset Move Enter O.MENU Exit

The sub-items of the CI Menu may vary depending on the CAM model.

TV/ L CH MGR D. MENU SLEEP

You can select these options by simply pressing the D.MENU button on the remote control.

Updating the Channel List Automatically

Auto Store Scanning for digital services... 35% Services found: 24 Channel: 38 Stop 0.MENU Return

You can update the channel list when the broadcaster adds new Services or if you move the TV to a new location.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
3. Press the ENTER← button again, to select "Auto Store".
4. When it has finished, the number of scanned services will be displayed.

The existing favourite channel list will not be deleted when the channel list is updated.
To stop the scan before it has finished, press the ENTER button with "STOP" selected.

1. Press the EXIT button to exit.

If the signal status is poor, the "No Service found! Check the aerial connection" message is displayed.

Updating the Channel List Manually

Manual Store Channel Frequency Bandwidth 65 826000 KHz 8 MHz Search Adjust Move D.MENI Return

PIP P... MODE P.SIZE

You can specify the channel or frequency for a fast channel search.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Manual Store", then press the ENTER← button.

To...	Then...
Move to "Channel", "Frequency", or "Bandwidth"	◀ or ▶ button
Set the "Channel", or "Bandwidth"	▲ or ▼ button
Set the "Frequency"	Numeric button (0~9)

• Channel: Channel "21" to "68" in sequence are displayed in UK.
  • Frequency: The frequency available in the Channel group is displayed.
  • Bandwidth: The available bandwidths are 7 and 8 MHz.

• Press the red button to start the scan for digital services.

When it has finished, channels are updated in the channel list.

1. Press the EXIT button to exit.

You can input by pressing the button on the remote control.
You can not change only Frequency and when changing a channel, the Frequency will be automatically changed.

Editing Your Favourite Channels

Edit Favourites Channels (no Channels) Add Channels 0_MENU Return

PIP E3 P_in E4 MODE E5 P.SIZE

Edit Favourites Channels 2 BBC TWO 5 Five 7 BBC THREE 15 abc1 16 QVC Select All Select None Preview Move Select D:\MENU Return

You can edit your favourite channels using the four colour buttons.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Channel", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Edit Favourite Channels", then press the ENTER← button.
4. Press the red button to display all currently stored channels.
5. Press the ▲ or ▼ button to select a channel you want. Press the ENTER← button.

A "★" icon is shown next to the selected channel and the channel will be added to the favourite channel list.
• To undo, press the ENTER button again.
- Select All: Select all channels currently displayed.
- Select None: Deselect all selected channels.
- Preview: Displays (a) currently selected channel(s).
The Favorite Channels settings have been completed.

1. Press the EXIT button to exit.

Add

You can use this function when one or more favourite channels have been selected.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Edit Favourite Channels", then press the ENTER← button.
4. Press the red button in the "Edit Favourite Channels" menu. To add more channels, refer to the step 5 on the previous description.
5. If you want to check the channel to be stored, press D.MENU button. Press the EXIT button to exit.

• To add all channels to the favourite channel list, press the red button.

• To remove all channels, press the green button.
• Preview : Displays (a) currently selected channel(s).
• Press the CH MGR button to display the favourite channel manager.

Move

Edit Favourite Channels 2 ← BBC TWO 7 BBC THREE 15 abc1 Add Drop Preview Delete Move DMENU Return PIP PMODE S.H. P.SIZE E3 E4 E0

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Edit Favourite Channels", then press the ENTER← button.
4. Select the required channel using the ▲ or ▼ button.
5. Press the green button.
   A "◆" icon is displayed on the left side of the channel name.
6. Press the ▲ or ▼ button to select the channel that you want to move, and press the green or ENTER← button.
7. Press the EXIT button to exit.

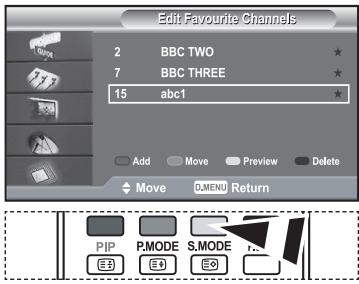

Edit Favourite Channels 2 BBC TWO * 7 BBC THREE * 15 abc1 * Add Move Preview Delete Move DMEN Return PIP P.MODE S.MODE E3 E4 E0

Preview

1. In the "Edit Favourite Channels" menu, select the channel to be previewed by pressing the ▲ or ▼ button.

2. Press the yellow button.

The selected channel is displayed on the screen.

Edit Favourite Channels 2 BBC TWO ★ 7 BBC THREE ★ Add Move Preview Delete Move DMENU Return PIP P.MOL P.SIZE E3 E4 E5

Delete

1. In the "Edit Favourite Channels" menu, select the channel to be deleted from the favourite channels list by pressing the ▲ or ▼ button.
2. Press the blue button.
   The selected channel and number will be deleted.
   To add a deleted channel back in to the favourite channel list, see "Add" on page 20.

Selecting Channel Manager

Channel Manager Test Card M' v2.0 All Channels 1 / 2 1 Test Card 'M' 23 bid-up.tv 60 Television X 3 Vida003b 25 TCM 70 BBC Radio 1 4 Vida004b 26 UKTV Style 72 BBC Radio 2 5 Vida005b 27 Discovery 73 BBC Radio 3 6 Vida006b 28 DiscoveryH&L 74 BBC Radio 4 15 Ch 15 32 Cartoon Nwk 84 heat 16 QVC 33 Boomerang 91 MOJO 17 UKTV Gold 55 Text Holidays 800 ARD-MHP-Data ▼ More Previous Page Next Page Favourites Exit Move Watch CHMGR Exit

You can exclude the channels you have chosen from the channels you have scanned. When you scan through the stored channels, those you have chosen to skip are not displayed. All channels that you do not specifically choose to skip are displayed during scanning.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Channel", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Channel Manager". Press the ENTER◀ button.

4. Press the yellow button to toggle between your favourite channels and all channels. ➢ Your favourite channels are only displayed if they were previously set in the "Editing Your Favourite Channels" menu (refer to page 20\~21).

5. Press the red or green button to display the previous or next channel manager page.

6. Press the ▲ or ▼ button to select a channel to be tuned.

Press the ENTER← button.

The channel number, name and an icon are displayed in the top left corner while changing the channel. The channel number and name are displayed if the channel is one of the all channels, and a icon if the channel is one of the favourite channels.

1. Press the blue or CH MGR button to exit from the channel manager.

You can select these options by simply pressing the CH MGR button on the remote control.

Displaying Programme Information

GUIDE INFO TTX/MIX 14:30 Sat 1 Sep 1 AFDO, 16:9 All Channels A AFDO 16:9 14:30 ~ 14:33 No Block SD Contains video with AFD O; coded frame Stereo is 16:9 Subtitle English INFO Exit

While viewing a channel, additional information about the current programme may be displayed.

1. While viewing a programme, press the INFO (☐+) button.
   The programme information is displayed.
2. To exit from banner information, press the INFO (☐) button.

Viewing the EPG (Electronic Programme Guide) Information

Now & Next Guide 13:28 Wed 16 Feb Extreme Machines: Armoured Cars INFO Information Now Next 25 TCM Closedown A Patch of Blue 26 UKTV Style Hard Sell Saw This and Thought.. 27 Discovery Extreme Machines: Ar.. Time Team 28 Discoveryk.. Programmes resume at...This Old House with SL.. 32 Cartoon Nwk The Bugs Bunny & Roa...The Grim Adventures o.. 33 Boomerang Closedown Inspector Gadget Watch Full Guide Favourites Exit

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

Now & Next Guide
For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information.

Full Guide

Displays the programme information as time ordered One hour segments.

Two hours of programme information is displayed which may be scrolled forwards or backwards in time.

Full Guide 13:30 Wed 16 Feb Extreme Machines: Armoured Cars INFO Information Today 13:00 14:00 25 TCM Closedown 26 UKTV Style Hard Sell 27 Discovery Extreme Machines: Arm Time Team 28 DiscoveryK... Programmes resume at 06:00 32 Cartoon Nwk The Bugs... The Grim... The Cramp... Dexter's L... 33 Boomerang Closedown Watch Now/Next Favourites -2Hours +2Hours Exit

1. Press the D.MENU button to display the DTV menu.
2. Press the ENTER button, to select "Guide".
3. Press the ▲ or ▼ button to select "Now & Next Guide" or "Full Guide". Press the ENTER button.
   You can also display the guide menu simply by pressing the GUIDE button.

REW STOP PLAY/PUASE FF MENU EXIT-1 ENTER /OK JIDE INFO PIP P.MODE S.MODE P.VE E3 E4 E5 STILL DUAL SRS SUBTTI I-II

To...	Then...
Watch a programme in the EPG list	Select a programme by pressing the ▲, ▼, ◀, ▶ button.Press the ENTER button.
If the next program is selected, it is scheduled with the clock icon displayed.If the ENTER button is pressed again, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the next page.
View programme information	Select a programme of your choice by pressing the ▲, ▼, ◀, ▶ button.Press the INFO (☐) button when the programme of your choice is highlighted.
Toggle between the "Now & Next Guide" or "Full Guide"	Press the red button repeatedly.
Display the "Favourites" and the "All Channels" list	Press the green button repeatedly.
Scrolls backwards quickly (2 hours).	Press the yellow button repeatedly.
Scrolls forward quickly (2 hours).	Press the blue button repeatedly.
Exit the guide	Press the EXIT button.

The programme title is on the upper part of the screen center.
Please click on INFO (☐) button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information(HD/SD),
Sound Modes, Subtitle or Teletext, Languages of Subtitle or Teletext, and brief summary of the highlighted programme are included on the detailed information. "..." will be appeared if the summary is long.

➢ Six channels are displayed.

To scroll between channels, move to a channel using the ▲ or ▼ button. To display page by page, use the P ⬤ or Ⓧ button.

Using the Scheduled List

Scheduled List (No programmes) Add Programme 0,MENU Return

Scheduled List Tuesday 22 Apr 15:30 ~ 16:00 Once 801 RaiTre Add Programme Edit Delete Move D.MENU Return

Scheduled List Channel 802 RaiUno Time 15:20 to --:-- Date Tue 22 Apr 2006 Frequency Once Save Cancel Adjust Move QMENU Return

If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled program at the scheduled time even if you are watching another program.

1. Press the D.MENU button to display the DTV menu.
2. Press the ENTER← button, to select "Guide".
3. Press the ▲ or ▼ button to select "Scheduled List", then press the ENTER← button.
4. Press the red button.

The channel will be switched to the scheduled program.

1. Press the ENTER button to select an item and adjust with the ◀ or ▶ button.

You can also set hour and minute by pressing the number buttons on the remote control.

• Channel: Set the channel.
• Time: Set the time.
• Date: Set Year, Month and Day.
• Frequency: Set the frequency. ("Once", "Daily", or "Weekly")

1. After setting the schedule, Press the red button.

2. Press the EXIT button to exit.

The Scheduled list may be displayed in the EPG menu.
• Save: Save the adjusted schedule.

• Cancle: Cancel the adjusted schedule.
• Add Programme: Add a new schedule.
  • Edit: Re-adjust the selected schedule.
• Delete: Delete the selected schedule.

Setting the Default Guide

Guide Now & Next Guide Full Guide Scheduled List Default Guide : Now/Next Full Guide Move Enter O.MENU Return

You can select these options by simply pressing the GUIDE button on the remote control.

You can preset the default guide style.

1. Press the D.MENU button to display the DTV menu.
2. Press the ENTER← button, to select "Guide".
3. Press the ▲ or ▼ button to select "Default Guide", then press the ENTER button.
4. Select "Now/Next" or "Full Guide" using the ▲ or ▼ button, and press the ENTER← button.
5. Press the EXIT button to exit.

Viewing All Channels and Favourite Channels

Full Guide 13:30 Wed 16 Feb Extreme Machines: Armoured Cars INFO Information Today 13:00 14:00 25 TCM Closedown 26 UKTV Style Hard Sell 27 Discovery Extreme Machines: Arm Time Team 28 DiscoveryL... Programmes resume at 06:00 32 Cartoon Nwk The Bugs... The Grim... The Cramp... Dexter's L... 33 Boomerang Closedown Watch Now/Next Favourites -2Hours +2Hours Exit

Full Guide 13:30 Wed 16 Feb Extreme Machines: Armoured Cars Toda! 25 TCM 26 UKTV S 27 Discovery 28 DiscoveryH... 32 Cartoon Nwk 33 Boomerang The favourites list is empty. Would you like to choose your favourites now? Yes No Programmes resume at 06:00 The Bugs... The Grim... The Cramp... Dexter's L... Closedown Watch Now/Next Favourites -2Hours +2Hours Exit

In the EPG menu, you can display all channels or favourite channels.

1. Press the D.MENU button to display the DTV menu.
2. Press the ENTER← button again, to select "Guide".
3. Select the your required guide ("Now & Next Guide" or "Full Guide") by pressing the ▲ or ▼ button.
4. Press the ENTER← button.
5. Press the green button. All the channel lists and the favorite channel lists will be toggled.
6. Select a programme of your choice by pressing the ▲, ▼, ◀, or ▶ button.
7. Press the INFO (☐+) button to display information about the highlighted programme.
8. When the Edit Favourite Channels list has not been set up:

- "The favourites list is empty. Would you like to choose your favourites now?" message is displayed.

- Select "Yes". The "Edit Favourite Channels" menu is displayed. If you select "No", all channels will remain unchanged. - To edit the favourite channels, refer to page 20 for more details.

1. Press the EXIT button to exit.

"All Channels" is the list of channels that have been scanned by the channel list update. All channels are displayed in the all channel mode.
Favourites" (favourite channels) is the list of channels that has been set in the "Edit Favourite Channels" menu (refer to page 20).

Choosing Your Language

Preference OSD Language Translucency Level Parental Lock English Deutsch Italiano Français Svenska Move Enter Q MENU Return

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Preference", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "OSD Language", then press the ENTER← button.
4. Select a particular language by pressing the ▲ or ▼ button repeatedly. Press the ENTER button.

You can choose one of five languages.

1. Press the EXIT button to exit.

Adjusting the Translucency Level

Preference OSD Language : High Translucency Level : Medium Parental Lock : Low Opaque Move Enter O/MENU Return

You can set the translucency of the menu.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Preference", then press the ENTER◀ button.
3. Press the ▲ or ▼ button to select "Translucency Level", then press the ENTER← button.
4. Select the required option ("High", "Medium", "Low", or "Opaque") by pressing the ▲ or ▼ button, and press the ENTER← button to change the setting.
5. Press the EXIT button to exit.

Setting up the Parental Lock

Parental Lock Parental Rating: No Block Change PIN 3 4 5 6 7 Move Enter QMENU Return

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Preference", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Parental Lock.", then press the ENTER← button.
4. The "Enter PIN" is displayed.
5. Enter your current 4-digit PIN code by using the numeric buttons (0\~9). The options available in the "Parental Lock" group are displayed with the "Parental Rating" selected.
   The default PIN code for a new TV set is 0000.
   If you enter an invalid PIN code, the "Invalid PIN code. Please try again." message is displayed.

Change PIN Enter New PIN OK Enter PIN 0.MENU Return

1. Press the ENTER← button.

2. Press the ▲ or ▼ button to select the age rating you want to lock out. Press the ENTER← button.

3. If you want to change the PIN code, select "Change PIN" by pressing the ▲ or ▼ button. Press the ENTER← button.

The "Enter New PIN" is displayed.

1. Enter your new PIN code by using the numeric buttons (0\~9). ➤ The "Confirm New PIN" is displayed.

2. Re-enter your new PIN code to confirm by using the numeric buttons (0\~9). The Your PIN code has been changed successfully message is displayed.

3. Press the ENTER← button.

4. Press the EXIT button to exit.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On).

Change PIN Confirm New PIN 0.0 Enter PIN DMENU Return

Change PIN Confirm New PIN You PIN code has been changed successfully. OK

Setting the Subtitle

Feature Subtitle : Off Subtitle Language On Audio Language Move Enter O/MENU Return

You can activate and deactivate the subtitles.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Feature", then press the ENTER← button.
3. Press the ENTER← button again, to select "Subtitle".
4. Select "On" by pressing the ▲ or ▼ button. Press the ENTER← button.
5. Press the EXIT button to exit.

Selecting the Preferred Language (Subtitle or Audio)

Feature Subtitle : On Subtitle Language Audio Language Move Enter O.MENU Return

You can change the default value for subtitle and audio languages. Displays the language information for the incoming stream.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "Feature", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Subtitle Language" or "Audio Language". Press the ENTER← button.
4. Select the required option by pressing the ▲ or ▼ button, and press the ENTER☑ button to change the setting. ➢ English is the default in cases where the selected language is unavailable in the broadcast.

Feature Subtitle : On Subtitle Language Audio Language Move Enter O.MENU Return

1. Press the EXIT button to exit.

While viewing a programme, the subtitle can be selected. While viewing a programme, audio languages can be selected.

Viewing Product Information

Product Information Software Version: T_BORDDUKO_0005 Firmware Version: T_BORDDUK7_1000 D.MENU Return

You can view your product information. For service or repair, please contact a Samsung approved dealer.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "System", then press the ENTER← button.
3. Press the ENTER button again, to select "Product Information".
   The Product Information menu is selected.
4. Software Version, Firmware Version
5. Press the EXIT button to exit.

Checking the Signal Information

Signal Information Service: Test Card 'M' v2.0 Service ID: 1041, running Multiplex: 65C (TSID 1001, ONID 233a) Network: Test Card 'M',(ID 3Off) Bit Error Level: 0 Signal Strength: 97 OK/MENU Return

You can get information about the signal status.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "System", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Signal Information", then press the ENTER◀ button.
4. Press the EXIT button to exit.
   If the signal status is poor, the "No signal." message is displayed.

Upgrading the Software (Option)

Software Upgrade An upgrade is available for your TV and is ready for installation. Upgrade Now Upgrade Later Don't Upgrade

To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal.

It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade.

Software Upgrade Current Software: T_BORDDUKO_0005 Default Alternative Software: T_BORDDUKO_1000 (Old version) Switch Default Software Move QMENU Return Info

◆ Upgrade Now

If you select "Upgrade Now", the "iDTV" immediately installs the new upgrade and then restarts.

◆ Upgrade Later

If you select "Upgrade Later", the upgrade is postponed until the next restart or channel change some 90 minutes later, when the upgrade dialog appears again.

- Don't Upgrade

If you select "Don't Upgrade", the "iDTV" does not perform the upgrade and the software upgrade banner is not displayed again.

The upgrade is still stored internally, to subsequently upgrade to the new version then the following sequence of steps are performed.

PIP E3 E4 MODE E9 P.SIZE

Software Upgrade Current Software: T_BORDDUKO_0005 Default Alternative Software: T_BORDDUKO_1000 (Old version) Switch Default Software Move QMENI Return Info

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "System", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Software Upgrade", then press the ENTER◀ button.
4. To switch to an alternative version, press the red button. Press the blue button to reset, activate the upgrade and restart.
5. Press the EXIT button to exit.

Viewing Common Interface

Application Info Type: CA Manufacturer: Canal Plus Info: Top Up TV 0.MENU Return

This contains information on CAM inserted in the CI slot and displays it.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "System", then press the ENTER button.
3. Press the ▲ or ▼ button to select "Common Interface", then press the ENTER← button.
4. Press the ENTER← button to display the information for your application.
5. Press the EXIT button to exit.

The Application Info inserting is about the CI CARD.
You can install the CAM anytime whether the TV is ON or OFF.

1. Purchase the CI CAM module by visiting your nearest dealer or by phone.
2. Insert the CI CARD into the CAM in the direction of the arrow until it fits.
3. Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)
4. Check if you can see a picture on a scrambled signal channel.

Diagram showing a hand holding a device with bidirectional arrows indicating movement or change in the device's internal structure.

Line drawing of a hand pressing a button on a device (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Selecting the CI (Common Interface) Menu

Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Move Enter Exit

This enables the user to select from the CAM-provided menu.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "System", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Common Interface", then press the ENTER← button.
4. Select to "CI Menu" by pressing the ▲ or ▼ button, and press the ENTER← button.
5. Select the required option by pressing the ▲ or ▼ button, and press the ENTER button.
6. Press the EXIT button to exit.
   Select the CI Menu based on the menu PC Card.

Resetting

Reset Enter PIN 0-0 Enter PIN 0-MENU Return

You can reset the values stored to the factory default values.

The Reset operation deletes all channel information and user preferences returning all values to their default factory state.

1. Press the D.MENU button to display the DTV menu.
2. Press the ▲ or ▼ button to select "System", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "Reset", then press the ENTER← button.
4. The "Enter PIN" screen will appear.

5. Enter your current 4-digit PIN code by using the numeric buttons (0\~9). The warning message is displayed. All values will be reset by pressing the coloured buttons (red, green, yellow, and blue) in turn.

6. Press the EXIT button to exit.

Reset WARNING: All channel settings and user preferences will be lost and returned to the factory defaults. It is recommended that a reset is performed only when serious problems are experienced. D.MENU Return

Teletext Decoder

A B C D E F

Most set channels carry "teletext", pages of written information that provide information such as:

♦ Television programme times.
◆ News bulletins and Weather forecasts.
♦ Sports results.
◆ Subtitles for the hard of hearing.

The teletext pages are organized according to six categories:

Part	Contents
A	Selected page number.
B	Broadcasting station identity.
C	Current page number or search status.
D	Date and time.
E	Text.
F	Status information.

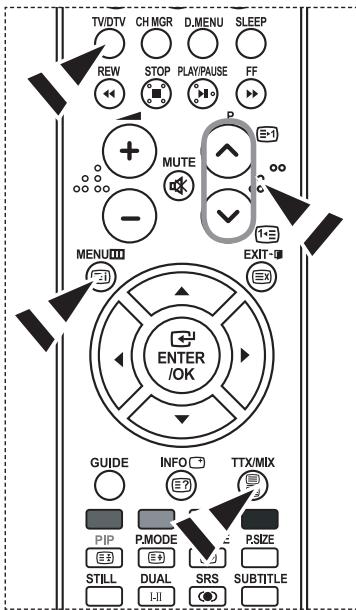

TV/DTV CH MGR D.MENU SLEEP REW STOP PLAY/PAUSE FF MUTE P E-1 - EXIT- MENU ENTER /OK GUIDE INFO TTX/MIX PIP P.MODE P.SIZE STILL DUAL SRS SUBTITLE LII

You can display teletext information at any time, but signal reception must be good. Otherwise:

◆ Information may be missing.
◆ Some pages may not be displayed.

To activate the teletext mode and display the contents page:

1. Using the P ⬇ (≡1) or P ⬇ (1≡) button, select the channel providing the teletext service.

2. Press the TTX/MIX (☐/☐) button to activate the teletext mode.

The contents page is displayed. It can be redisplayed at any time by pressing the MENU (≡i) button.

1. Press the TTX/MIX (☐/☐) button again.

The actual broadcast will be displayed with "Teletext", "Double", and "Mix" in order on the screen.

1. Press the TV/DTV button to exit from the Text display.

If any broken character appears while Text is being viewed, make sure that the Text language is identical with the language in the "Setup" menu mode. If both languages are different, select the same language with the Text language on the "Setup" menu.

Selecting a Specific Teletext Page

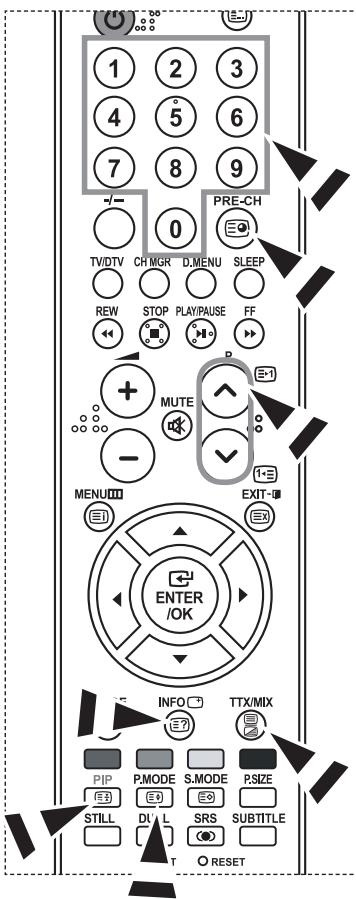

1 2 3 4 5 6 7 8 9 - 0 PRE-CH TVDTV CH MGR D.MENU SLEEP REW STOP PLAY/PAUSE FF MUTE - MENU EXIT- ENTER /OK INFO TTX/MIX PIP P.MODE S.MODE RSIZE STILL DULL SRS SUBTITLE T RESET

Press the number buttons on the remote control to enter the page number directly:

1. Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons.
2. If the selected page is linked with several secondary pages, the secondary pages are displayed in sequence. To freeze the display on a given page, press the PIP (≡) . Press the PIP (≡) button again to resume.
3. Using the various display options:

To display...	Press the...
Both teletext information and the normal broadcast	TTX/MIX (☐/☐)
Hidden text (answers to quiz games, for example)	INFO (☐?)
The normal screen	INFO (☐?)
A secondary page, by entering its 4-digit number	PRE-CH (☐)
The next page	P ☑ (☐1)
The previous page	P ☑ (☐3)
Double-size letters in the:	P.MODE (☐4)
♦ Upper half of the screen	♦ Once
♦ Lower half of the screen	♦ Twice
Normal screen	♦ Three times

Using Fastext to Select a Teletext Page

GUIDE INFO TTX/MIX PIP PMODE SMODE PSIZE DUAL SRS SUBTITLE TV/DTV CH ENU SLEEP REW STOP PLAY/PAUSE FF

The various topics included in the teletext pages are colour-coded, and can be selected by pressing the coloured buttons on the remote control.

1. Display the teletext contents page by pressing the TTX/MIX (☐/☑) button.
2. Press the coloured button corresponding to the topic that you wish to select (The available topics are listed on the status information line).
3. Press the Red button to display the previous page. Press the Green button to display the next page.
4. Press the TV/DTV button to exit from the Text display.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases.

(If not, contact your computer manufacturer or Samsung Dealer.)

Display Properties Thems Desktop Screen Save Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Screen resolution Less 1360 by 768 pixels More Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Baby

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.
   The correct size setting (resolution): Optimum- 1360 X 768
   If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution.

The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

Mode	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 480	31.469	59.940	25.175	- / -
	720 x 400	31.469	70.087	28.322	- / +
VESA	640 x 480	37.861	72.809	31.500	- / -
	640 x 480	37.500	75.000	31.500	- / -
	800 x 600	37.879	60.317	40.000	+ /+
	800 x 600	48.077	72.188	50.000	+ /+
	800 x 600	46.875	75.000	49.500	+ /+
	1024 x 768	48.364	60.000	65.000	- / -
	1024 x 768	56.476	70.069	75.000	- / -
	1024 x 768	60.023	75.029	78.750	+ /+
	1360 x 768	47.712	60.015	85.800	+ /+

The interface mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

DVI does not support PC function.

Separate and Composite modes are supported. SOG is not supported.

TV Image Lock Coarse 50 Fine 0 Move Enter Return

Coarse and Fine Tuning of the Image (Image Lock):

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

1. Preset: Press the SOURCE button to select PC mode.
2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Setup", then press the ENTER← button.
3. Press the ▲ or ▼ button to select "PC", then press the ENTER← button.
4. Press the ENTER← button to select "Image Lock".
5. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER← button.
6. Press the ◀ or ▶ button to adjust the screen quality. Press the ENTER◀ button.
7. Press the EXIT button to exit.

TV Position Move Enter Return

Changing the Image Position (Position):

Adjust the PC's screen positioning if it does not fit the TV screen.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Position", then press the ENTER← button.

3. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◀ or ▶ button to adjust the Horizontal-Position. Press the ENTER◀ button.

4. Press the EXIT button to exit.

TV PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

Adjusting the PC Screen Automatically (Auto Adjustment):

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Auto Adjustment", then press the ENTER← button.
3. Press the EXIT button to exit.

T V PC Image Lock Position Auto Adjustment Image Reset Move Enter Return

Initializing the Image Settings (Image Reset):

You can replace all image settings with the factory default values.

1. Follow the "Coarse and Fine Tuning of the Image (Image Lock)" instructions number 1 to 3.
2. Press the ▲ or ▼ button to select "Image Reset", then press the ENTER← button.
3. Press the EXIT button to exit.

Using the Anti-Theft Kensington Lock

The Kensington lock is a device used to physically fix the system when using it in a public place.

The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

Cable Figure 2 Figure 1 (Optional>

The place of the Kensington Lock may be different depending on its model.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).
2. Connect the Kensington lock cable.
3. Fix the Kensington lock to a desk or a heavy stationary object.

Troubleshooting: Before Contacting Service Personnel

No sound or picture	♦ Check that the mains lead has been connected to a wall socket.♦ Check that you have pressed the POWER ⏻ buttons on the front of the set.♦ Check the picture contrast and brightness settings.♦ Check the volume.
Normal picture but no sound	♦ Check the volume.♦ Check whether the MUTE ⏻ button has been pressed on the remote control.♦ Check if "Internal Mute" is off
No picture or black and white picture	♦ Adjust the colour settings.♦ Check that the broadcast system selected is correct.
Sound and picture interference	♦ Try to identify the electrical appliance that is affecting the set and move it further away.♦ Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound	♦ Check the direction, location and connections of your aerial.This interference is often due to the use of an indoor aerial.
Remote control malfunctions	♦ Replace the remote control batteries.♦ Clean the upper edge of the remote control (transmission window).♦ Check the battery terminals.
"Check signal cable." message is displayed.	♦ Check that the signal cable is firmly connected to the PC or video sources.♦ Check that the PC or video sources are turned on.
On PC mode, "Not Supported Mode." message is displayed.	♦ Check the maximum resolution and the frequency of the video adaptor.♦ Compare these values with the data in the Display Modes.

The TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require sophisticated technology to produce.
However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model Name	LE26R73BD	LE32R73BD	LE40R73BD
Screen Size (Diagonal)	26 inch	32 inch	40 inch
Power Supply	AC220-240V 50 Hz	AC220-240V 50 Hz	AC220-240V 50 Hz
Power Consumption	120 W	152 W	190 W
PC Resolution	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound Output	5 W X 2	10 W X 2	10 W X 2
Dimension (WxDxH)
Body	675.0 X 75.0 X 475.5 mm	800.0 X 80.0 X 548.5 mm	991.5 X 87.0 X 658.5 mm
With stand	675.0 X 215.5 X 530.0 mm	800.0 X 252.0 X 603.0 mm	991.5 X 326.0 X 713.0 mm
Weight
With stand	10.55 kg	15.45 kg	24.0 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing

Model Name	LE26R74BD	LE32R74BD	LE37R74BD	LE40R74BD
Screen Size (Diagonal)	26 inch	32 inch	37 inch	40 inch
Power Supply	AC220-240V 50 Hz	AC220-240V 50 Hz	AC220-240V 50 Hz	AC220-240V 50 Hz
Power Consumption	120 W	152 W	170 W	190 W
PC Resolution	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz	1360 x 768 @ 60 Hz
Sound Output	5 W X 2	10 W X 2	10 W X 2	10 W X 2
Dimension (WxDxH)
Body	675.0 x 75.0 x 475.5 mm	800.0 x 80.0 x 548.5 mm	923.0 x 87.0 x 618.5 mm	991.5 x 87.0 x 658.5 mm
With stand	675.0 x 215.5 x 530.0 mm	800.0 x 252.0 x 603.0 mm	923.0 x 326.0 x 676.5 mm	991.5 x 326.0 x 713.0 mm
Weight
With stand	10.55 kg	15.45 kg	22.8 kg	24.0 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing

Stand Swivel (Left / Right)

-20° ~ 20°

LE26R73BD/LE26R74BD/LE32R73BD/LE32R74BD/LE37R74BD/LE40R73BD/LE40R74BD

Yes

➢ Design and specifications are subject to change without prior notice.

This page is intentionally left blank.

Table des matières

CONNEXION ET PREPARATION DE VOTRE TELEVISEUR

Diagram showing a device with a screen and a speaker emitting sound waves (no text or symbols present)

< 2 >

Diagram of a projector setup with a screen, lens, and control panel (no text or symbols)

< 3 >

Diagram showing a device with a screen and a separate panel, connected by wires (no text or symbols present)

TV/DTV 0 PRE-CH CH MGR D.MENU SLEEP REW STOP PLAY FF

Principal\Secondaire	TV	Ext.1	Ext.2	AV	S-Viséo	Composant	PC	HDMI	DTV
TV	X	X	X	X	X	X	X	O	X
Ext.1	X	X	X	X	X	X	X	O	X
Ext.2	X	X	X	X	X	X	X	O	X
AV	X	X	X	X	X	X	X	O	X
S-Viséo	X	X	X	X	X	X	X	O	X
Composant	X	X	X	X	X	X	X	O	X
PC	O	O	O	O	X	X	X	X	X
HDMI	O	O	O	O	O	O	X	X	X
DTV	X	X	X	X	X	X	X	X	X

Illustration of a pair of headphones connected to a small plug (no text or symbols)

POWER SOURCE

TV/DTV CH MGR D.MENU SLEEP REW STOP PLAY/PAUSE FF

Smart card information

Language

Software Download

Diagram showing a hand inserting a card into a device, with arrows indicating the process.

Illustration of a hand inserting a device into a folder (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit Déplacer Entrer - Quit

Display Properties Themes Desktop Screen Server Appearance Settings Display: Default Monitor on NVIDIA GeForce FX 5200 Screen resolution More Low 1360 by 768 pixels Color quality Highest (32 bit) Troubleshoot Advanced OK Cancel Apply

Câble Figure 2 Figure 1

Simple line drawing of a trash bin with two crossed lines (no text or symbols)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Symbol of a trash bin crossed out by a diagonal line, representing no waste or elimination (no text or labels present)
