Product Type	Digital Camera
Brand	SAMSUNG
Model	WB1000
Sensor	CCD 1/2.33" (1.09 cm), 12.2 effective megapixels
Lens	Schneider-KREUZNACH, focal length 4.3-21.5 mm (equiv. 24-120 mm), aperture F2.8 (W) - F5.8 (T)
Display	3.0" (7.62 cm) AMOLED, 518,400 pixels
Focus	Auto TTL (multi-zone, center, selection, manual)
Shutter Speed	Auto 1/8 - 1/2000 s, Program 1 - 1/2000 s, Priority and Manual 16 - 1/2000 s, Night 8 - 1/2000 s, Fireworks 4 s
Internal Storage	76 MB
External Storage	SD card (max 4 GB), SDHC (max 8 GB), MMC Plus (max 2 GB)
Battery	Rechargeable lithium-ion SLB-11A, 1130 mAh
Dimensions (L x H x W)	97 x 61 x 21 mm
Weight	160 g (without battery and memory card)
Operating Temperature	0 - 40 °C
Operating Humidity	5 - 85 %
Connectivity	USB, Audio/Video, HDMI (via optional docking station)
Power Supply	DC 4.4 V, 34-pin AC adapter
Main Features	Auto, Program, Aperture Priority, Shutter Priority, Manual, Night, Fireworks modes; video recording; built-in flash; self-timer; optional IR remote control
Maintenance and Cleaning	Clean the lens with a soft cloth; avoid humidity and dust; remove battery if not used for a long time
Safety	Do not use near flammable gases; keep out of reach of children; do not use flash within 1 m of eyes
Spare Parts and Repairability	Rechargeable battery SLB-11A; charger; USB/Audio-Video cables; optional HDMI docking station

Frequently Asked Questions - WB1000 SAMSUNG

How to charge the camera battery?

Use the provided AC adapter. Plug it into the camera; red indicator means charging, green means the battery is fully charged.

What types of memory cards are compatible?

The camera accepts SD cards (up to 4 GB), SDHC (up to 8 GB), and MMC Plus (up to 2 GB). Insert the card with the chip facing up.

How to take a photo in auto mode?

Turn the dial to AUTO mode. Frame the subject, press the shutter button halfway to focus (green frame), then press fully to take the photo.

How to transfer photos to a Windows computer?

Insert the installation CD, connect the camera via USB, turn it on. On the computer, go to My Computer > Removable Disk > DCIM > 100SSCAM, then copy the files.

How to set the date and time?

Turn on the camera, press [?] to select Language then Date & Time. Use the navigation keys to change values and confirm with [OK].

Can I use the camera with a remote control?

Yes, the camera has an IR receiver. You can use the optional remote control (not supplied) for remote shutter release.

How to clean the lens?

Use a soft, dry cloth to gently wipe the lens. Avoid solvents. If the lens is dirty, an optics cleaner can be used carefully.

What if the camera does not turn on?

Check that the battery is charged and properly inserted. If the problem persists, remove the battery, wait a few seconds, then reinsert and try again.

How to record a video?

Turn the dial to video mode (camera icon). Frame, press the shutter button to start, press again to stop. Use [OK] to pause.

What is the internal memory capacity?

The camera has about 76 MB of internal memory. This can store a few photos, but using a memory card is recommended.

USER MANUAL WB1000 SAMSUNG

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-sales service or inquiries.

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

Setting up your camera 5

Unpacking 5 11

Inserting the battery and memory card 6

Charging the battery 6

Turning on your camera. 7

Selecting options 7 16

Capturing photos or videos 8 25

Playing files 9 58

Transferring files to a PC

(Windows) 10 72

Specifications 11 93

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets. Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Caracteristiques

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

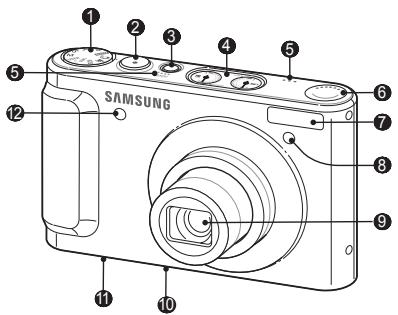

Camera layout

1 Mode dial
2 Shutter button
3 POWER button
4 Mini dashboard
5 Microphone
Speaker
7 Flash
3 AF-assist light/timer lamp
Lens
10 USB and AV port

1 Battery chamber cover
Remote control sensor
Zoom button
Smart Control Dial (Navigation button)
15 Function button
16 Playback button
17: MENU button
Status lamp
19 Tripod mount
20 Display

Setting up your camera

Unpacking

Camera

Rechargeable battery

Software CD-ROM (User manual included)

AC adapter/ USB cable
Strap

Quick Start Manual

Optional accessories

Camera case

Memory cards

AV cable

Sold as a set

HDMI cradle manual

Remote control

Cradle

HDMI cable

Setting up your camera

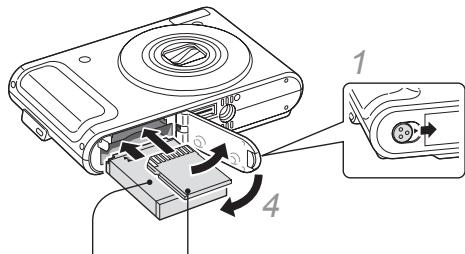

Inserting the battery and memory card

2 With the 3 With the gold-coloured Samsung logo contacts facing up facing up

Removing the battery

Removing the memroy card

Push gently until the card disengages from the camera and then pull it out of the slot.

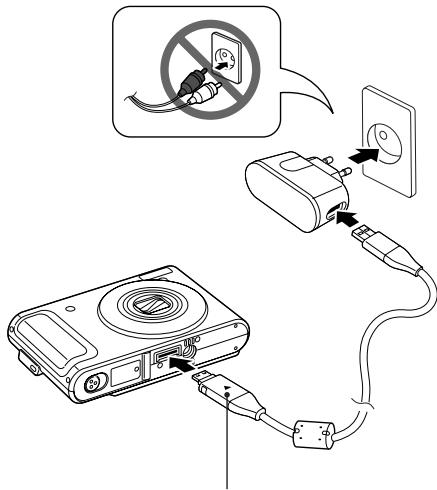

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears.

2 Press [O] to select Language and press [O].
3 Press [DISP] or [ ] to select a language and press [OK].
4 Press [DISP] or [ ] to select Date & Time and press [].
5 Press [or to select an item.
6 Press [DISP] or [ ] to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Rotate or press the navigation button to scroll to an option or menu

• Press [DISP] or [ ] to move up or down; press [ ] or [ ] to move left or right.

• Rotate the navigation button any direction.

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Rotate the mode dial to
2 Align your subject in the frame.
3 Press [Shutter].

• Press [OK] to pause or resume.
  4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12M	4000 x 3000	142	274	389
10M	3984 x 2656	162	302	426
9M	3968 x 2232	195	355	509
8M	2976 x 2976	195	355	509
5M	3264 x 2448	204	361	518
3M	2592 x 1944	327	547	764
2M	2048 x 1536	514	774	1,028
1M	1920 x 1080	840	1,104	1,387
IM	1024 x 768	1,420	1,612	1,807

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [D].
2 Press [4] or [O] to scroll through files. Press and hold to view files quickly.

Viewing videos

1 Press [D].
2 Press [OK].

3 Use the following buttons to control playback.

[4]	Scan backward
[OK]	Pause or resume playback
[Shift]	Scan forward
[Zoom] up or down	Adjust the volume level

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Disconnecting safely (for Windows XP)

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100SSCAM.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	• Type: 1/2.33" (approx. 1.09 cm) CCD • Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels
Lens	• Focal length: Schneider-KREUZNACH lens f = 4.3 - 21.5 mm (35 mm film equivalent: 24 - 120 mm) • F-stop range: F2.8 (W) - F5.8 (T)
Display	3.0" (7.62 cm) hVGA+ (518,400 dots), AMOLED
Focusing	TTL auto focus (Multi AF, Center AF, Selection AF, Manual Focus)
Shutter speed	• Auto: 1/8 - 1/2,000 sec. • Program: 1 - 1/2,000 sec. • Aperture Priority, Shutter Priority, Manual: 16 - 1/2,000 sec. • Night: 8 - 1/2,000 sec. • Firework: 4 sec.
Storage	• Internal memory: approx. 76 MB • External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed, 4 bit 20 MHz) Internal memory capacity may not match these specifications.
DC power input connector	34 pin, 4.4 V
Rechargeable battery	Lithium-ion battery (SLB-11A, 1,130 mAh)
Dimensions (W x H x D)	97 x 61 x 21 mm
Weight	160 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
