Quick Start Manual ST50

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

Contents

Health and safety

information. 2

Camera layout 4 8

Setting up your camera 5

Unpacking 5 7

Inserting the battery and memory card 6 14

Charging the battery 7 12

Selecting options 7 31

Capturing photos or videos 8 19

Playing files 9 53

Transferring files to a PC (Windows) 10 94

Specifications 11 87

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m / 3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Camera layout

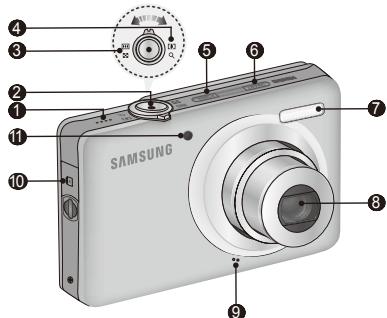

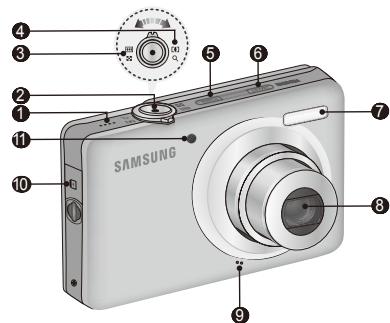

1 Speaker
2 Shutter button
3 Zoom W Lever (Thumbnail)
4 Zoom T Lever (Digital zoom)
⑤ POWER button
Smart button
7 Flash
Lens / Lens cover
9 Microphone
10 USB / AV / DC terminal
1 AF-assist light/timer lamp

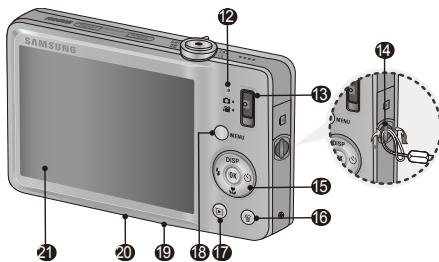

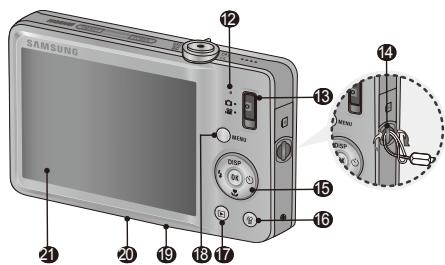

12 Status lamp
13 Mode switch
14 Strap eyelet
15 Navigation button/OK button
16:Delete button
17 Playback button
13 MENU button
19 Battery chamber cover
20 Tripod mount
LCD monitor

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Camera

Rechargeable Battery

AC adapter/ USB cable

Camera strap

Quick Start Manual

Software CD-ROM (User manual included)

Optional accessories

Memory cards
Camera case

AV cable

Inserting the battery and memory card

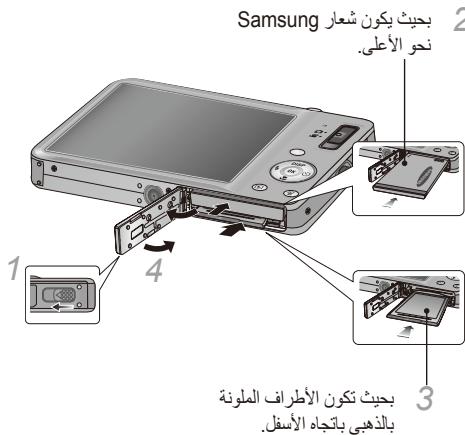

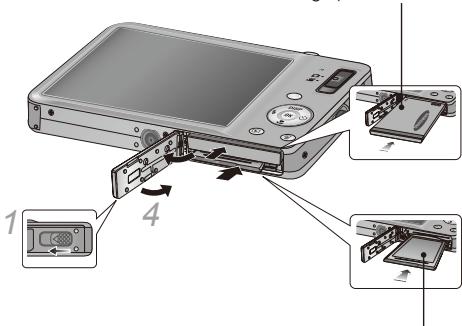

2 With the Samsung logo facing up

3 With the gold-coloured contacts facing down

Removing the battery

Removing the memroy card

Push gently until the card disengages from the camera and then pull it out of the slot.

Charging the battery

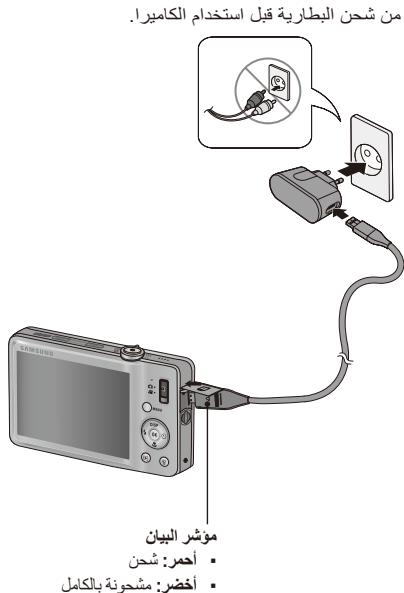

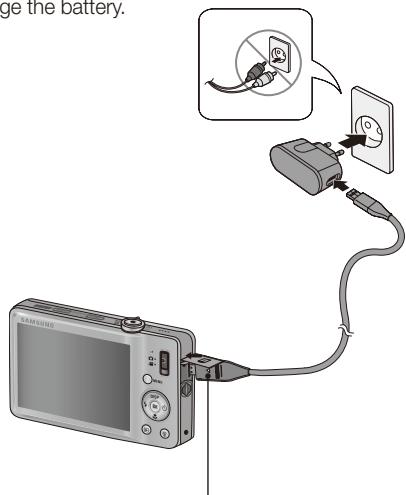

Before using the camera for the first time, you must charge the battery.

Indicator light
Red:Charging
- Green: Fully charged

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

• To move left or right, press [4] or [6].
• To move up or down, press [DISP] or [].

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Push the Mode switch to (O).
(Press [SMART] to select (SMART).)
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.
- A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Push the Mode switch to ( ).
(Press [SMART] to select (SMRT)
2 Align your subject in the frame.
3 Press [Shutter].
- Press [OK] to pause or resume.
4 Press [Shutter] again to stop the recording.

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12M	4000 x 3000	169	240	365
10M	3984 x 2656	196	270	411
9M	3968 x 2232	231	308	481
8M	3264 x 2448	246	328	519
5M	2592 x 1944	365	493	705
3M	2048 x 1536	548	680	759
1M	1024 x 768	986	1,095	1,232

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [D].
2 Press [4] or [6] to scroll through files.

• Press and hold to view files quickly.

Viewing videos

1 Press [B].
2 Press [OK].

3 Use the following buttons to control playback.

[4]	Scan backward
[0K]	Pause or resume playback
[◎]	Scan forward
[Zoom] up or down	Adjust the volume level

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Disconnecting safely (for Windows XP)

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100SSCAM.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	• Type: 1/2.33" (approx. 1.09 cm) CCD • Effective pixels: approx. 12.2 mega-pixels • Total pixels: approx. 12.4 mega-pixels
Lens	• Focal length: Samsung lens f = 6.3 - 18.9 mm (35 mm film equivalent: 35 - 105 mm) • F-stop range: F3.0 (W) - F5.6 (T)
Display	2.7" (6.9 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF)
Shutter speed	• Smart Auto: 8 ~ 1/1,500 sec., • Program: 1 ~ 1/1,500 sec. (AEB, Continuous: 1/4 ~ 1/1,500 sec.)
Storage	• Internal memory: approx. 31 MB • External memory (Optional): SD card (up to 4 GB guaranteed), SDHC card (up to 8 GB guaranteed), MMC Plus (up to 2 GB guaranteed) Internal memory capacity may not match these specifications.
DC power input connector	4.2 V
Rechargeable battery	SLB-07A, 3.7V (720mAh)
Dimensions (W x H x D)	94.2 x 55.7 x 16.6mm (excluding protrusions) 94.2 x 55.7 x 14.2mm (Minimum thinness)
Weight	121.4 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
