LANDIAO M310W - Camera SAMSUNG - Free user manual and instructions

Product type	Compact digital camera
Brand	Samsung
Model	LANDIAO M310W
Image sensor	CCD 1/1.72", 13.6 effective megapixels
Lens	Samsung f=6.0-21.6 mm (equiv. 28-102 mm), F2.8-5.7
Digital zoom	Up to 5x (photo), 13.2x (playback)
LCD screen	2.7" color TFT, 230,000 pixels
Focus	TTL Automatic (multi, center, face detection)
Shutter	1/1500 to 1 second (manual: 8 to 1/1500 second)
Exposure	Program AE, compensation ±2 EV, ISO 80-3200
Flash	Built-in, modes: auto, red-eye reduction, slow sync, etc. Range 0.5-4.6 m (wide-angle)
Stabilization	Dual IS (optical and digital stabilization)
Shooting modes	Auto, Program, Manual, Dual IS, Photo Help, Beauty, Scene, Video
Video recording	AVI MPEG-4, resolutions up to 800x592 at 20 fps
Storage	Internal memory 30 MB, SD/SDHC/MMC Plus cards (up to 8 GB)
Power	Rechargeable lithium-ion battery SLB-10A (3.7 V, 1050 mAh), AC adapter
Dimensions (L x H x D)	91.6 x 61 x 22.45 mm
Weight	135.5 g (without battery or card)
Interface	High-speed USB 2.0, NTSC/PAL video output
Safety	Do not use flash near eyes, avoid extreme temperatures, keep out of reach of children
Maintenance	Clean with a soft dry cloth; store in a dry, cool place
Supplied accessories	Wrist strap, video cable, AC adapter, USB cable, CD-ROM, user manual

Frequently Asked Questions - LANDIAO M310W SAMSUNG

How to charge the battery of the Samsung LANDIAO M310W?

Use the included SAC-47 AC adapter and SUC-C3 USB cable. Plug the adapter into a wall outlet, then connect the cable to the camera. The SLB-10A battery fully recharges in approximately 2 hours.

How to set the date and time on the device?

Upon first power-on, a menu appears. Use the Up/Down keys to select Date&Time, then press Right. Use the Up/Down/Left/Right keys to change values. Confirm with the OK key.

What shooting modes are available?

Modes include: Auto, Program, Manual, Dual IS, Photo Help, Beauty, Scene (Night, Portrait, etc.) and Video. Select them with the mode dial on top of the device.

How to use the flash?

Press the Flash button to cycle through modes: auto, red-eye reduction, slow sync, etc. The flash has a range of 0.5 to 4.6 m in wide-angle and recharges in less than 4 seconds.

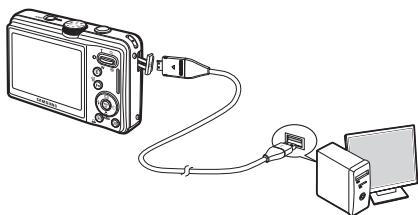

How to transfer photos to a computer?

Install the Samsung Master software from the CD-ROM. Connect the camera to the computer with the included USB cable. On the camera screen, select Computer. Images can be downloaded via the software.

How to delete photos?

In playback mode, use the Left/Right keys to select a photo. Press the Delete button. Confirm by selecting YES with the OK button to delete the image.

Which memory card is compatible?

The device accepts SD (up to 4 GB), SDHC (up to 8 GB), and MMC Plus (up to 2 GB) cards. Internal memory is 30 MB.

How to activate Dual IS stabilization?

Turn the mode dial to DUAL IS. This function combines optical stabilization (OIS) and digital stabilization (DIS) to reduce camera shake in low light.

What to do if the camera overheats?

Prolonged use may cause heating. Turn off the device and let it cool for a few minutes. Avoid covering the device during use and do not expose it to direct sunlight.

Where to find the complete user manual?

The full manual in PDF format is on the included CD-ROM. You can also download it for free from notice-facile.com or via the link in the online manual.

USER MANUAL LANDIAO M310W SAMSUNG

Getting to know your camera

• Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries
• All brand and product names appearing in this manual are registered trademarks of their respective companies.
• The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions.
  Refer to the user manual included on the Software CD for more information.
• PDF documents of user manual are included in the Software CD-ROM supplied with this camera. Search the PDF files with Windows explorer.

Before opening the PDF files, you must install the Adobe Reader included in the Software CD-ROM.

Contents

Getting to know your camera 1

Correct Disposal of This Product 1

Identification of features / Contents of camera 4

Battery life & Number of shot (Recording time) 5

When Using the Camera for the First Time 6

LCD monitor indicator 7

Mode dial 8

Taking a picture 9

Playingback, Deleting and Protecting Images 10

Downloading images 11

Specifications 12

Correct disposal of batteries in this product 14

Correct Disposal of This Product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life.

To prevent possible harm to the environment or

human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

Getting to know your camera

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. To do so may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fire or electric shock.

Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

EN-2

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject's eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

• Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.
• There is the possibility of injury from the camera's moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Remove the battery when not planning to use the camera for a long period of time.

Otherwise the battery may leak corrosive electrolyte and permanently damage the camera's components.

Leaking, overheating, or damaged battery could result in fire or injury.

• Use battery with the correct specification for the camera.
• Do not short circuit, heat or dispose of battery in fire.
• Do not insert the battery with the polarities reversed.

Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns.

Credit cards may be demagnetized if left near a camera case.

Avoid leaving magnetic strip cards near the case.

Do not move the camera while it is switched on when you are using the AC Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Avoid obstructing the lens or the flash when you capture an image.

Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera.

It is highly likely to result in computer malfunctions when the 20 pin connector is connected to the USB port of a PC. Never connect the 20 pin connector to USB port of a PC.

Do not insert the memory card the wrong way round.
Doing so may cause damage to the camera.

Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions.

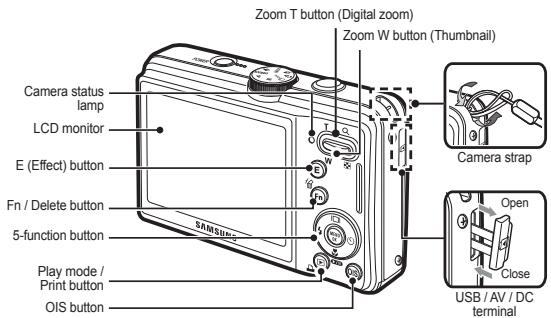

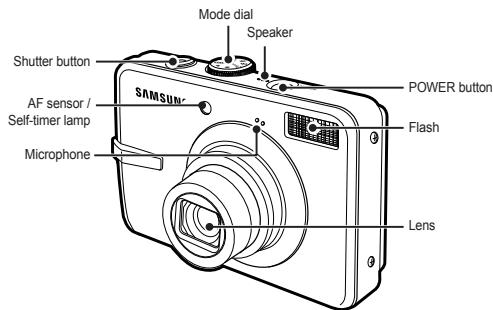

Identification of features / Contents of camera

Contents Package

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Camera

User manual, Product warranty

Camera strap

AV cable

Rechargeable battery (SLB-10A)

AC adapter (SAC-47)/USB cable (SUC-C3)

Software CD

Sold Separately

SD/SDHC memory card/MMC

Camera case

Battery life & Number of shot (Recording time)

Number of images and battery life: Using the SLB-10A

	Battery life /Number of images	Conditions
Still image	Approx. 120 MIN/ Approx. 240 shots	Using the fully charged battery, Auto mode, 13M image size, Fine image quality, Shot to shot interval: 30Sec. Changing the zoom position between the Wide and the Tele after every shot. Using the flash on every second shot. Using the camera for 5 minutes and then Powering it off for 1 minute.
Movie	Approx. 120 MIN	Using the fully charged battery 640x480 image size 30fps frame rate

• These figures are measured under Samsung's standard conditions and shooting conditions and may vary depending on the user's methods.

• These figures are measured under OIS shooting condition.

• When using a 1GB SD memory, the specified shooting capacity will be as follows. These figures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Recorded image size		Super Fine	Fine	Normal	30FPS	20FPS	15FPS
Still image	13M	147	284	418	-	-	-
	12M	167	315	465	-	-	-
	10M	199	384	547	-	-	-
	8M	246	462	680	-	-	-
	5M	379	720	1015	-	-	-
	3M	601	1067	1510	-	-	-
	IM	1876	2814	2948	-	-	-
* Movie clip	800	-	-	-	-	about 35 MIN	-
	640	-	-	-	about 36 MIN	-	about 70 MIN
	320	-	-	-	about 120 MIN	-	about 120 MIN

• The recording times can be changed by the zoom operation.
  The zoom button doesn't function during the movie recording.

When Using the Camera for the First Time

• Charge the rechargeable battery fully before using the camera for the first time.
• When the camera is turned on for the first time, a menu will be displayed in the LCD monitor to set date, time and language. This menu will not be displayed again after setting up the date, time and language. Set up the date, time and language before using this camera.

Setting up the language

1. Select the [Language] menu by pressing the Up/Down button and press the Right button.
2. Select the desired sub menu by pressing the Up/Down button and press the OK button. You can select one of 25 languages. These are listed below:

English, Korean, French, German, Spanish, Italian, T.Chinese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai, Bahasa (Malay / Indonesian), Arabic, Czech, Polish, Hungarian, Turkish, Estonian, Lithuanian, Latvian and Persian.

Setting up the date, time and date type

1. Select the [Date&Time] menu by pressing the Up/Down button and press the Right button.
2. Select the desired sub menu by pressing the Up/Down/Left/Right button and press the OK button.

Right button: Selects world time/year/ month/ day/hour/ minute/date type

Left button: Moves the cursor to the [Date&Time] main menu if the cursor is at the first item of the date and time setup. In all other instances, the cursor will be shifted to the left of its current position.

Up/Down button: Changes the value of each item.

For more information on setting World Time, please refer to the documentation included with the software CD.

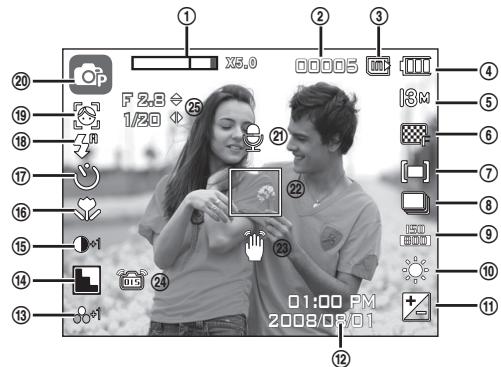

LCD monitor indicator

The LCD monitor displays information about the shooting functions and selections. Refer to the user manual included on the Software CD for more information.

No.	Description	Icons
1	Optical/Digital Zoom bar/Digital Zoom rate	☐ ☐ ☐ x 5.0
2	Number of available shotsremaining/Remaining time	00005/00:00:00
3	Memory card icon/Internal memory icon	☐ / ☑ ☐
4	Battery	☐ ☐ ☐ ☐ ☐
5	Image Size	13M 12x12 8M 5M 3M 1M800 640 320

No.	Description	Icons
6	Image Quality/Frame Rate	35 30 20
7	Metering/Stabiliser	[=][·][=]/[=]
8	Drive mode	[ ] [ ] [ ]
9	ISO	[ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]
10	White Balance	[ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]
11	Exposure compensation	[ ]
12	Date/Time	2008/08/01 01:00 PM
13	Saturation	[ ] - 2 [ ] - 1 [ ] - 1 [ ] - 2
14	Sharpness/Mic. off	[ ] [ ] [ ] / [ ]
15	Contrast	[ ] - 2 [ ] - 1 [ ] - 1 [ ] - 2
16	Macro	[ ]
17	Self-timer	[ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] ([ ])
18	Flash	[ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ][ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]]
19	Face Detection · Self Portrait · Smile Shot · Blink Detection /Colour	[ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] []
20	Recording mode	[ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ]M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] M [ ] [ ] [ ]]
21	Voice Memo	[ ]]
22	Auto Focus Frame	[ ]]
23	Camera shake Warning	[ ]]
24	OIS (Optical Image tabilization)	[ ]]
25	Aperture Value/Shutter Speed	F 2.8 1/20

EN-7

Mode dial

• You can select the desired shooting mode by using the mode dial on the upper body of your camera.

Auto

Selects this mode for quick and easy picture taking with minimal user interaction. In this mode, you can select the basic menus.

To select an advanced menu, select the other camera mode.

Program

Selecting the automatic mode will configure the camera with optimal settings. You can still manually configure all functions except the aperture value and shutter speed.

Manual

The user can manually set both the aperture value and the shutter speed.

DUAL IS

This mode will reduce the effect of camera shake and help you get a well-exposed image in dim conditions.

Photo Help Guide

Helps the user learn the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures.

Beauty Shot

Take a photo of portraits by setting options to clear facial imperfections.

SCENE

回回

Use the menu to easily configure optimal settings for a variety of shooting situations.

Movie

For taking a movie

EN-8

How to take a picture

1. Turn on the POWER button and then select the desired shooting mode by using the mode dial on the upper body of your camera.

1. Hold the camera as shown.

1. Confirm the composition.

1. Take a picture

Pressing halfway down Focus and Flash status are checked.

Pressing fully Image is taken.

How to record a movie.

Select the Movie Clip mode by using the mode dial on the upper body of your camera.

1. Confirm the composition.

1. Start the recording. Press the Shutter button and the recording starts and press the Shutter button again to stop the recording

Playingback, Deleting and Protecting Images

Playingback the images

The last image stored on the memory is displayed.

Press the Play mode (▶) button.

Select an image that you want to play back by pressing the Left/Right button

Delete button

This deletes images stored on the memory card.

1. Select an image that you want to delete by pressing the Left/Right button and press the Delete (留) button.

EN-10

1. To add images to delete, press the T button.

2. Left/Right button: Selects images

3. T button: Checks for deletion
4. OK button: Deletes the selection

1. Select the submenu values by pressing the Up/Down button and then press the OK button.

2. If [No] is selected: Cancels "Delete Image".

3. If [Yes] is selected: Deletes the selected images.

Protecting images

This is used to protect specific shots from being accidentally erased.

[Select]: Selected images are protected or unprotected.

[All]: All stored images are protected or unprotected.

× If you protect an image, the protect icon will be displayed on the LCD monitor.
An image in LOCK mode will be protected from the delete function, but will NOT be protected from the [Format] function.

System Requirements

	For Windows	For Macintosh
USB support environment	PC with processor better than Pentium III 500MHz(Pentium III 800MHz recommended)Windows 2000 / XP / Vista Minimum 256MB RAM(Over 512MB recommended)	Power Mac G3 or later, or Intel ProcessorMac OS 10.3 or laterMinimum 256MB RAM(Over 512MB recommended)
Software support environment	250MB of available hard-disk space(Over 1GB recommended)1024×768 pixels, 16-bit color display compatible monitor(24-bit color display recommended)Microsoft DirectX 9.0 or later	Not supported

× It is not compatible with Windows XP and Vista 64-bit Edition.
Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC.

PC connection mode

1. Install the supplied Software.

1. Download the images

• Connect the camera and Computer with supplied USB cable and download the image on your computer to save them.

EN-11

Specifications

Image Sensor	- Type: 1/1.72" CCD - Effective Pixel: Approx. 13.6 Mega-pixel - Total Pixel: Approx. 13.9 Mega-pixel
Lens	- Focal Length: Samsung lens f = 6.0 ~ 21.6mm (35mm film equivalent: 28~102 mm) - F No.: F2.8(W) ~ F5.7(T) - Digital Zoom: Still Image mode: 1.0X ~ 5.0X Play mode: 1.0X ~ 13.2X (depends on image size)
LCD Monitor	- 2.7" color TFT LCD (230,000 pixel)
Focusing	- Type: TTL auto focus (Multi-AF, Center AF, Face Detection AF) - Range
	Normal	Macro	Auto Macro
Wide	80cm ~ Infinity	5cm ~ 80cm	5cm ~ Infinity
Tele		50cm ~ 80cm	50cm ~ Infinity
Shutter	- Speed 1 ~ 1/1,500 sec. (Manual: 8 ~ 1/1,500 sec.) - AEB, continuous : 1/4 ~ 1/1,500 sec.
Exposure	- Control: Program AE - Metering: Multi, Spot, Center-weighted, Face Detection AE - Compensation: ±2EV (1/3EV steps) - ISO: Auto, 80, 100, 200, 400, 800, 1600, 3200 (Selectable 3M or under)

Flash	- Modes: Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red-eye Fix - Range: Wide: 0.5 ~ 4.6m, Tele: 0.5 ~ 2.3 m (ISO Auto) - Recharging Time: Approx. under 4 seconds (new battery)
Shake Reduction	- Dual IS (OIS + DIS) * OIS (Optical Image Stabilization), DIS (Digital Image Stabilization)
Sharpness	- Soft+, Soft, Normal, Vivid, Vivid+
White Balance	- Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom
Voice Recording	- Voice Recording (max 10 hours) - Voice Memo in Still Image (max. 10 sec.)
Date Imprinting	- Date, Date & Time, Off (user selectable)
Shooting	- Still Image • Mode: Auto, Program, Manual, Dual IS, Photo Help Guide, Beauty Shot, Scene • Scene: Nightscene, Portrait, Children, Landscape, Text, Close-up, Sunset, Dawn, Backlight, Fireworks, Beach & Snow • Shooting: Single, Continuous, AEB, Motion Capture • Self-timer: 2 sec., 10 sec., Double (10 sec, 2 sec), Motion Timer

MovieClip

• With Audio or without Audio (user selectable, recording time: Memory capacity dependent, max 2hours)
  Size: 800x592(20FPS), 640x480 (30FPS,15FPS), 320x240(30FPS,15FPS)
  Frame rate: 15FPS, 20FPS, 30FPS
• Optical Zoom up to 3.6X (Sound goes mute when operating the zoom function)
• Movie Editing (Embedded):
• Movie Stabilization, Pause during recording, Still Image Capture Time Trimming

Storage

Media

Internal memory: 30MB
- External Memory (Optional)
MMC Plus (Up to 2GB, guaranteed, 4bit 20MHz)
SD (up to 4GB guaranteed)
SDHC (up to 8GB guaranteed)
* Internal memory capacity is subject to change without prior notice.

- File Format

• Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0
  Movie Clip:AVI (MPEG-4)
  Audio:WAV

• Image Size and Capacity (1GB Size)

	13M	12M	10M	8M	5M	3M	IM
	4224x3168	4224x2816	4224x2376	3264x2448	2592x1944	2048x1536	1024x768
Super Fine	147	167	199	246	379	601	1876
Fine	284	315	384	462	720	1067	2814
Normal	418	465	547	680	1015	1510	2948

These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

E Button

• Recording Effect:

Color Effect: Normal, B&W, Sepia, Red, Blue, Green, Negative, Custom Color

Image Adjust: Saturation, Contrast, Sharpness

-Playback Effect:

Image Edit: Resize, Rotate, Trimming

Color Effect: Normal, B&W, Sepia, Red, Blue, Green, Negative, Custom Color

Image Adjust: ACB, Red Eye Fix, Brightness, Contrast, Saturation, Face Retouch

Image Play

• Single image, Thumbsils, Slide show, Movie clip

• Slide show : Slide show with Effect & Music

Specifications

Interface	- Digital output connector: USB 2.0 High Speed 20 pin connector - Audio: Mono (Speaker, Microphone) - Video output: NTSC, PAL (user selectable) - DC Adapter: 4.2V, 20 pin connector
Power Source	- Rechargeable battery: SLB-10A, 3.7V (1,050mAh) - Adaptor: SAC-47, SUC-C3 × Included battery may vary depending on sales region.
Dimensions (WxHxD)	- 91.6 X 61 X 22.45mm (excluding protrusions)
Weight	- 135.5g (without batteries and card)
Operating Temperature	- 0 ~ 40°C
Operating Humidity	- 5 ~ 85%
Software	- Application: Samsung Master, Adobe Reader

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

× Specifications are subject to change without prior notice.
× All trademarks are the property of their respective owners.

EN-14

Batterie rechargeable (SLB-10A)

Edition d'image: REDIMENSION, ROTATION, RECADRAGE

Couleur: NORMALE, NOIR & BLANC, SÉPIA, ROUGE, BLEU, VERT, NÉGATIF, COULEUR, PERSO.

Réglage Image: ACB, Supp. Yeux Rouges, Luminosité, Contraste, Saturation, Retouche Visage
