USER MANUAL BCSA 285K3SN - BCSA285E4SN BEKO

BCSA285E4SN EN-DE-FR-NL-HU Please read this user manual first Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well. The user manual will help you use the product in a fast and safe way. • Read the manual before installing and operating the product. • Make sure you read the safety instructions. • Keep the manual in an easily accessible place as you may need it later. • Read the other documents given with the product. • Remember that this user manual is also applicable for several other models. • Differences between models will be identified in the manual. Explanation of symbols Throughout this user manual the following symbols are used:

C Important information or useful tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage.

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules: • Do not hinder the free circulation of the air around the appliance. • Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer. • Do not destroy the refrigerating circuit. • Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended by the manufacturer. This product is supplied with the selective sorting symbol for waste electrical

Recycling and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

Control panel 11 Defrost 12 Zero temperature compartment12

Intended use 4 General safety 4 For products with a water dispenser ...6 Child safety 6 HCA warning 6 Things to be done for energy saving .. 6

Points to be paid attention to when the relocation of the refrigerator 7 Before you start the refrigerator. 7 Electrical connection 7 Disposing of the packaging 8 Disposing of your old refrigerator 8 Placing and Installation 8 Replacing the interior lamp 8 Reversing the doors 9

6 Maintenance and cleaning

Protection of plastic surfaces 13

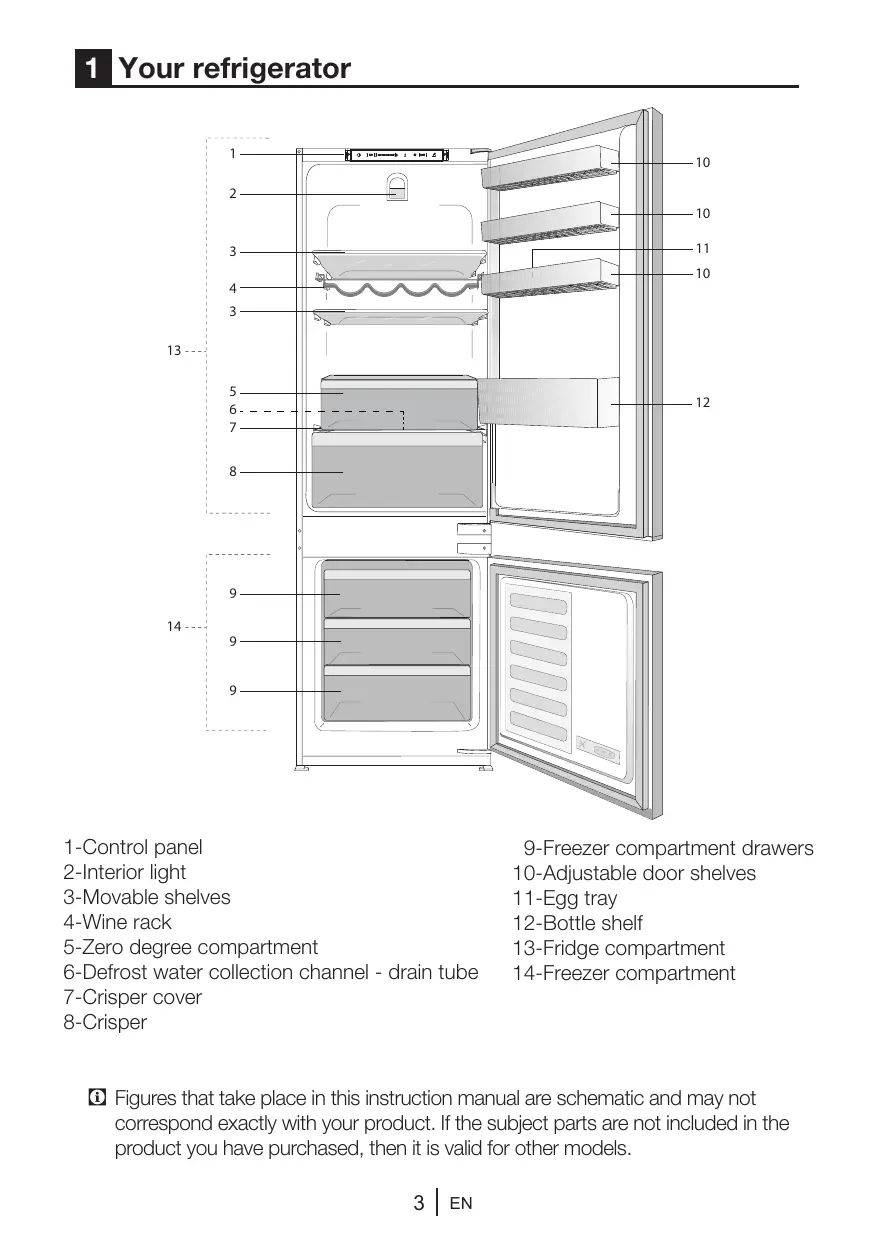

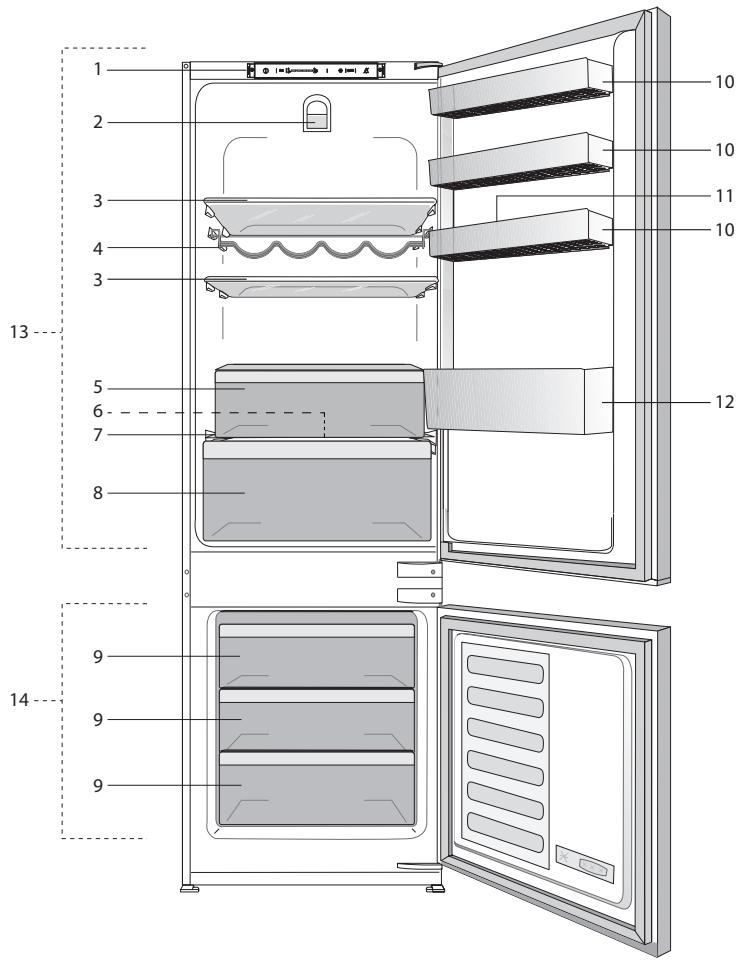

1-Control panel 2-Interior light 3-Movable shelves 4-Wine rack 5-Zero degree compartment 6-Defrost water collection channel - drain tube 7-Crisper cover 8-Crisper

9-Freezer compartment dra ers 10-Adjustable door shelves 11-Egg tray 12-Bottle shelf 13-Fridge compartment 14-Freezer compartment

C Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. 3

2 Important Safety Warnings • Do not touch frozen food by hand; they may stick to your hand. • Unplug your refrigerator before cleaning or defrosting. • Vapor and vaporized cleaning materials should never be used in Original Spare parts will be provided cleaning and defrosting processes of for 10 years, following the product your refrigerator. In such cases, the purchasing date. vapor may get in contact with the electrical parts and cause short circuit Intended use or electric shock. This product is intended to be used: • Never use the parts on your • indoors and in closed areas such as refrigerator such as the door as a homes; means of support or step. • in closed working environments such • Do not use electrical devices inside as stores and offices; the refrigerator. • in closed accommodation areas such • Do not damage the parts, where as farm houses, hotels, pensions. the refrigerant is circulating, with • It should not be used outdoors. drilling or cutting tools. The refrigerant that might blow out when the gas General safety channels of the evaporator, pipe • When you want to dispose/scrap extensions or surface coatings are the product, we recommend you to punctured causes skin irritations and consult the authorized service in eye injuries. order to learn the required • Do not cover or block the ventilation information and authorized bodies. holes on your refrigerator with any • Consult your authorized service for material. all your questions and problems • Electrical devices must be repaired related to the refrigerator. Do not by only authorised persons. Repairs intervene or let someone intervene to performed by incompetent persons the refrigerator without notifying the create a risk for the user. authorised services. • In case of any failure or during • For products with a freezer compartment; Do not eat cone ice a maintenance or repair work, cream and ice cubes immediately disconnect your refrigerator’s mains after you take them out of the freezer supply by either turning off the compartment! (This may cause relevant fuse or unplugging your frostbite in your mouth.) appliance. • For products with a freezer • Do not pull by the cable when pulling compartment; Do not put bottled and off the plug. canned liquid beverages in the • Place the beverage with higher proofs freezer compartment. Otherwise, tightly closed and vertically. these may burst. Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

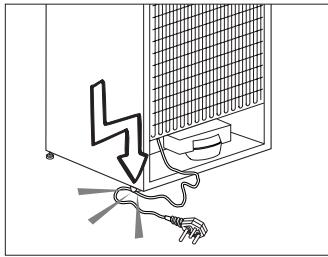

• Never store spray cans containing • This operation manual should be flammable and explosive substances handed in to the new owner of the product when it is given to others. in the refrigerator. • Avoid causing damage on power • Do not use mechanical devices cable when transporting the or other means to accelerate the refrigerator. Bending cable may defrosting process, other than those cause fire. Never place heavy recommended by the manufacturer. objects on power cable. • This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product. • Do not operate a damaged • Do not touch the plug with wet refrigerator. Consult with the service hands when plugging the product. agent if you have any concerns. • Do not plug the refrigerator if the • Electrical safety of your refrigerator wall outlet is loose. shall be guaranteed only if the earth • Water should not be sprayed on system in your house complies with inner or outer parts of the product standards. for safety purposes. • Exposing the product to rain, snow, • Do not spray substances containing sun and wind is dangerous with inflammable gases such as propane respect to electrical safety. gas near the refrigerator to avoid fire • Contact authorized service when and explosion risk. there is a power cable damage to • Never place containers filled with avoid danger. water on top of the refrigerator; in • Never plug the refrigerator into the event of spillages, this may the wall outlet during installation. cause electric shock or fire. Otherwise, risk of death or serious • Do not overload the refrigerator with injury may arise. food. If overloaded, the food items • This refrigerator is intended for only may fall down and hurt you and storing food items. It must not be damage refrigerator when you open used for any other purpose. the door. • Label of technical specifications is • Never place objects on top of the located on the left wall inside the refrigerator; otherwise, these refrigerator. objects may fall down when you • Never connect your refrigerator to open or close the refrigerator's electricity-saving systems; they may damage the refrigerator. door. • If there is a blue light on the • As they require a precise refrigerator, do not look at the blue temperature, vaccines, heatlight with optical tools. sensitive medicine and scientific • For manually controlled refrigerators, materials and etc. should not be wait for at least 5 minutes to start the kept in the refrigerator. refrigerator after power failure. 5

• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire. • The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire. • Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move. • When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped. • When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8 cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars. • Use only potable water.

• If the door has a lock, the key should be kept away from reach of children. • Children must be supervised to prevent them from tampering with the product.

If your product's cooling system contains R600a: This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a. Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator. Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time. • Do not put hot food or drinks in your refrigerator. • Do not overload your refrigerator so that the air circulation inside of it is not prevented. • Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30 cm away from heat emitting sources and at least 5 cm from electrical ovens. • Pay attention to keep your food in closed containers. • For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen. • Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation B In case the information which are

given in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator

1. Your refrigerator should be unplugged. Before transportation of your refrigerator, it should be emptied and cleaned. 2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed. 3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the refrigerator

Check the following before you start to use your refrigerator: 1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it? 2. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section. 3. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.

4. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal. 5. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important: The connection must be in compliance with national regulations. • The power plug must be easily accessible after installation. • Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards. • The voltage stated on the label located at left inner side of your product should be equal to your network voltage. • Extension cables and multi plugs must not be used for connection. B A damaged power cable must be replaced by a qualified electrician. B Product must not be operated before it is repaired! There is the risk of electric shock!

EN Disposing of the packaging

Placing and Installation

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities. The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment. • You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator. Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

A If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door. 1. Install your refrigerator to a place that allows ease of use. 2. Keep your refrigerator away from heat sources, humid places and direct sunlight. 3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet. 4. Place your refrigerator on an even floor surface to prevent jolts. 5. Do not keep your refrigerator in ambient temperatures under 10°C.

Replacing the interior lamp

To change the Bulb/LED used for illumination of your refrigerator, call your Authorised Service. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20°C.

4 Preparation • Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight. • The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency. • Please make sure that the interior of your refrigerator is cleaned thoroughly. • If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them. • When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours. • The door should not be opened frequently. • It must be operated empty without any food in it. • Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Troubleshooting” section. • Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator Control Panel

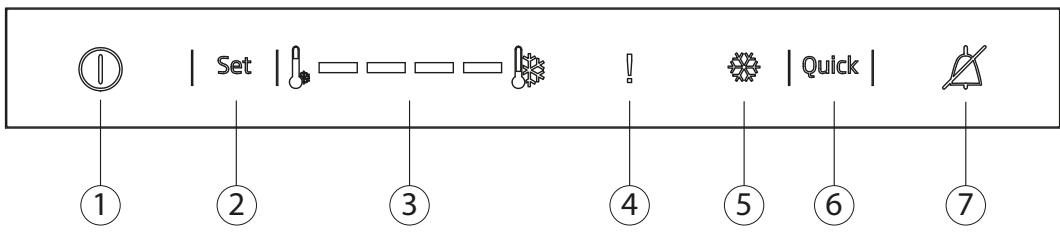

1- On/Off function Press the On/Off button for 3 seconds to turn off or turn on the fridge. 2- Fridge Set Function This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to - (warmest), --, ---, ----, ----- (coldest) respectively. 3- Fridge Compartment Temperature Setting Indicator Indicates the temperature set for the Fridge Compartment. Settings are (warmest), --, ---, ----, ----- (coldest). 4- High Temperature Error / Warning Indicator This light comes on during high temperature failures and error warnings. 5- Quick Fridge Indicator This icon lits when the Quick Fridge function is active.

6- Quick Fridge Function When you press Quick Fridge button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food placed in the fridge compartment and required to be cooled down rapidly. If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge. Quick Fridge indicator will remain lit when the Quick Fridge function is enabled. To cancel this function press Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings. If you do not cancel it, Quick Fridge will cancel itself automatically after 8 hours or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure. 7- Alarm Off When the fridge door is opened for 2 minutes or when there is a sensor failure, a sound alarm turns on. Alarm can be turned off by pressing "Alarm Off" button. Sensor failure alarm will not sound till power failure. If you close the door and then open again "Door open alarm" will be activated again after 2 minutes later.

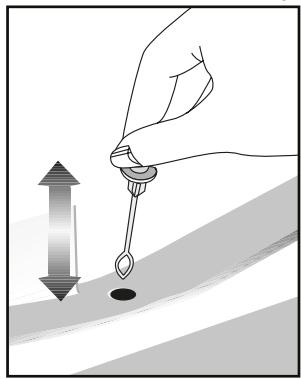

A) Fridge compartment Fridge compartment performs fullautomatic defrosting. Water drops and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. Such formation is normal as a result of the cooling system. The frost formation is defrosted by performing automatic defrosting with certain intervals thanks to the automatic defrosting system of the rear wall. User is not required to scrape the frost or remove the water drops. Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself. Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

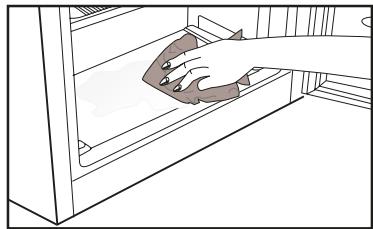

Do not use pointed or sharp-edged objects, such as knives or forks to remove the frost. Never use hair dryers, electrical heaters or other such electrical appliances for defrosting. Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly. Insert the plug into the wall socket and switch on the electricity supply.

Zero temperature compartment B) Freezer compartment Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food. Defrosting is very straightforward and without mess, thanks to a special defrost collection basin. Defrost twice a year or when a frost layer of around 7 (1/4”) mm has formed. To start the defrosting procedure, switch off the appliance at the socket outlet and pull out the mains plug. All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder). Containers of warm water may be placed carefully in the freezer to speed up the defrosting. 12

This compartment has been designed to store frozen food which would be thawed slowly (meat, fish, chicken, etc.) as required. The Zero temperature compartment is the coldest place of your refrigerator in which dairy products (cheese, butter), meat, fish or chicken may be kept at ideal storage conditions. Vegetables and/or fruits must not be placed in this compartment.

6 Maintenance and cleaning A Never use gasoline, benzene or

similar substances for cleaning purposes. B We recommend that you unplug the appliance before cleaning. B Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. C Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. C Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. B Make sure that no water enters the lamp housing and other electrical items. B If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. C Check door seals regularly to ensure they are clean and free from food particles.

A To remove door racks, remove all the contents and then simply push the door rack upwards from the base. ANever use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Protection of plastic surfaces C Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate. • The plug is not inserted into the socket correctly. >>>Insert the plug into the socket securely. • The fuse of the socket which your refrigerator is connected to or the main fuse have blown out. >>>Check the fuse. Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE). • Ambient is very cold. >>>Do not install the refrigerator in places where the temperature falls below 10°C. • Door has been opened frequently. >>>Do not open and close the door of refrigerator frequently. • Ambient is very humid. >>>Do not install your refrigerator into highly humid places. • Food containing liquid is stored in open containers. >>>Do not store food with liquid content in open containers. • Door of the refrigerator is left ajar. >>>Close the door of the refrigerator. • Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level. Compressor is not running. • Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period. • The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically. • The refrigerator is not plugged into the socket. >>>Make sure that the plug is fit into the socket. • Temperature settings are not made correctly. >>>Select the suitable temperature value. • There is a power outage. >>>Refrigerator returns to normal operation when the power restores.

EN The operation noise increases when the refrigerator is running. • The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault. The refrigerator is running frequently or for a long time. • New product may be wider than the previous one. Larger refrigerators operate for a longer period of time. • The room temperature may be high. >>>It is normal that the product operates for longer periods in hot ambient. • The refrigerator might be plugged in recently or might be loaded with food. >>>When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal. • Large amounts of hot food might be put in the refrigerator recently. >>>Do not put hot food into the refrigerator. • Doors might be opened frequently or left ajar for a long time. >>>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently. • Freezer or fridge compartment door might be left ajar. >>>Check if the doors are closed completely. • The refrigerator is adjusted to a very low temperature. >>>Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved. • Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>>Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature. Freezer temperature is very low while the fridge temperature is sufficient. • The freezer temperature is adjusted to a very low value. >>>Adjust the freezer temperature to a warmer degree and check. Fridge temperature is very low while the freezer temperature is sufficient. • The fridge temperature is adjusted to a very low value. >>>Adjust the fridge temperature to a warmer degree and check. Food kept in the fridge compartment drawers is frozen. • The fridge temperature is adjusted to a very high value. >>>Adjust the fridge temperature to a lower value and check.

EN Temperature in the fridge or freezer is very high. • The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature. • Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently. • Door is ajar. >>>Close the door completely. • The refrigerator is plugged in or loaded with food recently. >>>This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. • Large amounts of hot food might be put in the refrigerator recently. >>>Do not put hot food into the refrigerator. Vibrations or noise. • The floor is not level or stable. >>> If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level. • The items put onto the refrigerator may cause noise. >>>Remove the items on top of the refrigerator. There are noises coming from the refrigerator like liquid flowing, spraying, etc. • Liquid and gas flows occur in accordance with the operating principles of your refrigerator. It is normal and not a fault. Whistle comes from the refrigerator. • Fans are used in order to cool the refrigerator. It is normal and not a fault. Condensation on the inner walls of refrigerator. • Hot and humid weather increases icing and condensation. It is normal and not a fault. • Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently. Close them if they are open. • Door is ajar. >>>Close the door completely. Humidity occurs on the outside of the refrigerator or between the doors. • There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear. Bad odour inside the refrigerator. • No regular cleaning is performed. >>>Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water. • Some containers or package materials may cause the smell. >>>Use a different container or different brand packaging material. • Food is put into the refrigerator in uncovered containers. >>>Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours. • Remove the foods that have expired best before dates and spoiled from the refrigerator. The door is not closing. • Food packages are preventing the door from closing. >>>Replace the packages that are obstructing the door. • The refrigerator is not completely even on the floor. >>>Adjust the feet to balance the refrigerator. • The floor is not level or strong. >>>Make sure that the floor is level and capable to carry the refrigerator. Crispers are stuck. • The food is touching the ceiling of the drawer. >>>Rearrange food in the drawer.
