USER MANUAL 7343 DOLCEVITA BL4 IMETEC

Downloaded from www.Manualslib.com manuals search engine

GB ES PT Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Tel. +39.035.688.111

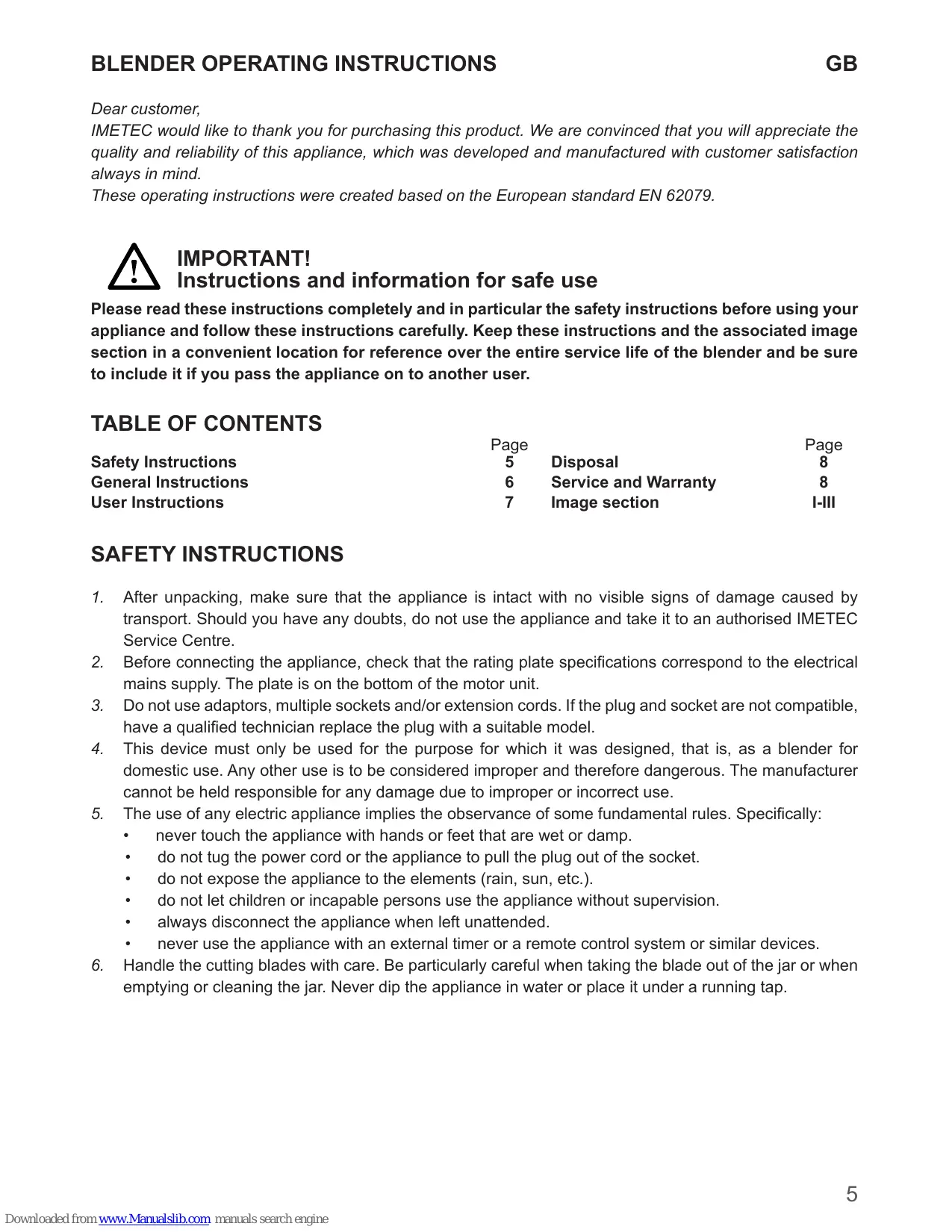

IMETEC would like to thank you for purchasing this product. We are convinced that you will appreciate the quality and reliability of this appliance, which was developed and manufactured with customer satisfaction always in mind. These operating instructions were created based on the European standard EN 62079.

Instructions and information for safe use Please read these instructions completely and in particular the safety instructions before using your appliance and follow these instructions carefully. Keep these instructions and the associated image section in a convenient location for reference over the entire service life of the blender and be sure to include it if you pass the appliance on to another user.

TABLE OF CONTENTS Safety Instructions

General Instructions User Instructions

Service and Warranty Image section

I-III SAFETY INSTRUCTIONS

After unpacking, make sure that the appliance is intact with no visible signs of damage caused by transport. Should you have any doubts, do not use the appliance and take it to an authorised IMETEC Service Centre.

Before connecting the appliance, check that the rating plate specifications correspond to the electrical mains supply. The plate is on the bottom of the motor unit. Do not use adaptors, multiple sockets and/or extension cords. If the plug and socket are not compatible, have a qualified technician replace the plug with a suitable model. This device must only be used for the purpose for which it was designed, that is, as a blender for domestic use. Any other use is to be considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage due to improper or incorrect use. The use of any electric appliance implies the observance of some fundamental rules. Specifically: • never touch the appliance with hands or feet that are wet or damp. • do not tug the power cord or the appliance to pull the plug out of the socket. • do not expose the appliance to the elements (rain, sun, etc.). • do not let children or incapable persons use the appliance without supervision. • always disconnect the appliance when left unattended. • never use the appliance with an external timer or a remote control system or similar devices. Handle the cutting blades with care. Be particularly careful when taking the blade out of the jar or when emptying or cleaning the jar. Never dip the appliance in water or place it under a running tap.

Downloaded from www.Manualslib.com manuals search engine

Before cleaning or servicing the appliance, disconnect it from the mains by removing the plug.

Should the appliance break down and/or fail to work properly, turn it off and do not tamper with it. If it needs repairing, take it to an authorised IMETEC Service Centre. 9. Do not attempt to replace the power cord. If it is damaged or needs replacing, contact an authorised IMETEC Service Centre. 10. Should you decide not to use the appliance any more, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it. 11. This appliance should not be used by children or persons with partially reduced physical, sensorial or mental faculties, and in any case not without specific knowledge and experience, or without the supervision or instructions for use provided by a responsible person. 12. Children must not be allowed to play with the appliance.

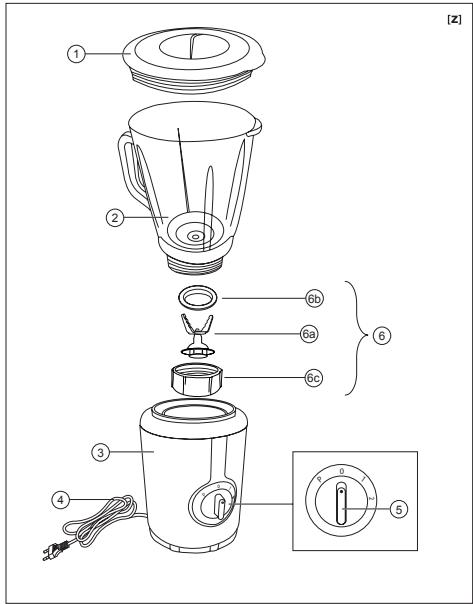

GENERAL INSTRUCTIONS DESCRIPTION OF THE APPLIANCE AND ACCESSORIES [Fig. Z]

Please consult Figure [Z] in the image section to check the content of the packaging. All figures can be found on the inside pages of the cover. 1 Lid

Stainless steel blades

SPEED SELECTOR The blender has 2 speeds selection and a pulse mode.

Maximum speed setting

P Pulse action setting

This setting creates a burst of power for instant control. The Pulse operates only as long as the selector is held at position “P”. The motor stops when the selector is released.

Downloaded from www.Manualslib.com manuals search engine

GB SAFETY SYSTEM FOR IMMEDIATE MOTOR SHUTDOWN A safety system stops the appliance from functioning in the following cases:

• if the glass jar is not correctly or properly seated in the motor unit • if the glass jar is removed from the motor unit during operation Please note: Do not use the safety system as a way of starting or stopping the appliance instead of the Speed selector. MAXIMUM WORKING QUANTITIES AND TIMES When using, make sure you do not put in more than 800 ml of ingredients. In particular, for processing hard food, put smaller quantities of solid ingredients and a large percentage of liquid ingredients in the jar (2) and carry out the operation several times. After one minute of continuous processing, leave the appliance to cool down for a few minutes. Please note: Avoid using the appliance with only solid ingredients.

USER INSTRUCTIONS FIRST USE

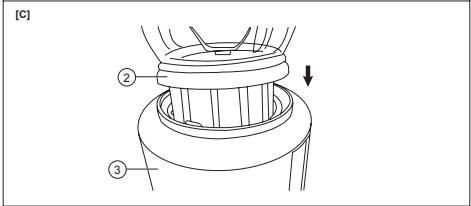

• Make sure the appliance is not plugged in. • CAUTION: Make sure the ring nut (6c) is firmly screwed onto the jar. If not, it may cause liquid leakage during the use. • Slide the assembled jar into the motor unit (3) following the interlocking slot [Fig. C]. BLENDING WARNING: Do not operate the appliance without ingredients. • Put the liquid and solid ingredients into the jar without going over the maximum level indicated. • Cover the jar (2) tightly with the lid (1). The lid (1) must always be in place when the appliance is in operation. The hole on the lid can be useful to add liquid ingredients during the use. • Plug in the appliance. • Start the blender by setting the speed selector (5) to the desired speed position (1/2/P). • To stop the appliance, turn the selector (5) back to position “0”. • ALWAYS turn the blender off (set the speed selector (5) to position “0”) and wait until the blades (6a) have stopped rotating before removing the jar (2). • To remove jar (2) after blending is complete, lift the jar (2) straight up. Do not twist. DISMANTLING • Disconnect the appliance plug (4) from the socket. • Lift the glass jar (2) from the motor unit (3). • Unscrew the ring nut (6c). • Remove the blades (6a) and the gasket (6b) from the glass jar (2).

Downloaded from www.Manualslib.com manuals search engine

• Disconnect the appliance plug (4) from the socket and follow the dismantling sequence in exactly the opposite order. CLEANING • Disconnect the appliance plug from the socket. • Clean the motor unit and the cord with a damp and well-wrung sponge. • Remove the blade assembly (6) (refer to the Dismantling section above). All the accessories can be washed: • By hand: wash with water and detergent. Handle the blades (6a) with care to avoid getting cut or damaging the blades. After washing, rinse and dry them thoroughly. • In the dishwasher: make sure that the water does not exceed the maximum temperature of 60°C. • All the parts intended to come in contact with food during the use must be well cleaned before use. • Do not leave food inside or in contact with the appliance for a time longer than what is necessary for its preparation. Please note: Never immerse the motor unit (3), cord or plug (4) in water.

DISPOSAL The product packaging consists of recyclable materials. Dispose of these in an environmentally appropriate manner.

In accordance with EU directive 2002/96/EC, the appliance must be disposed of properly at the end of its service life. This involves the recycling of valuable substances contained within the appliance and reduces the impact on the environment. For more information, contact your local disposal company or the store where you purchased the appliance.

SERVICE AND WARRANTY If repairs are required, contact a customer service centre authorised by IMETEC (see enclosed After Sales

Service sheet), indicating the product model. A manufacturer warranty is provided for the appliance. Details can be found on the enclosed warranty sheet.

Tel. +39.035.688.111
