| Product type | Built-in refrigerator with freezer compartment |
| Brand | NEFF |
| Model | KI18423D30 |
| Climate categories | SN, N, ST, T (from +10 °C to +43 °C) |
| Adjustable refrigerator temperature | +3 °C to +8 °C |
| Freezer temperature | Down to -18 °C |
| Super freezing | Yes, activate 6 hours before for max capacity |
| Door alarm | Yes, after 2 minutes of opening |
| Lighting | LED, replacement by customer service only |
| Refrigerator defrost | Automatic |
| Freezer defrost | Manual |
| Maximum freezing capacity | Indicated on rating plate (24 h) |
| Freshness compartment | Yes, temperature close to 0 °C |
| Vegetable drawer humidity control | Yes, adjustable |
| Power supply | 220-240 V ~, 50 Hz, fuse 10-16 A |
| Recommended niche depth | 560 mm (min. 550 mm) |
| Refrigerant | R600a (flammable, eco-friendly) |
| Cleaning | Soft cloth, warm water, mild pH-neutral detergent |
| Spare parts | Use only genuine NEFF parts |
| Repairs | Reserved for manufacturer, customer service or qualified person |
Frequently Asked Questions - KI18423D30 NEFF
User questions about KI18423D30 NEFF
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Built-in refrigerator in PDF format for free! Find your manual KI18423D30 - NEFF and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KI18423D30 by NEFF.
USER MANUAL KI18423D30 NEFF
Safety and warning information 24
Information concerning disposal 26
Scope of delivery 27
Room temperature, ventilation and cavity depth 27
Installation location 28
Connecting the appliance 28
Getting to know your appliance 29
Switching the appliance on 30
Setting the temperature 30
Alarm function 31
Super freezing 31
Usable capacity 31
Refrigerator compartment 31
The "cool-fresh" compartment 32
The freezer compartment 33
Max. freezing capacity 33
Freezing and storing food 33
Freezing fresh food 34
Thawing frozen food 35
Interior fittings 35
Switching off and disconnecting
the appliance 35
Defrosting 36
Cleaning the appliance 36
Light (LED) 37
Tips for saving energy 38
Operating noises 38
Eliminating minor faults yourself 39
Appliance self-test 41
Customer service 41
fr Table des matieres

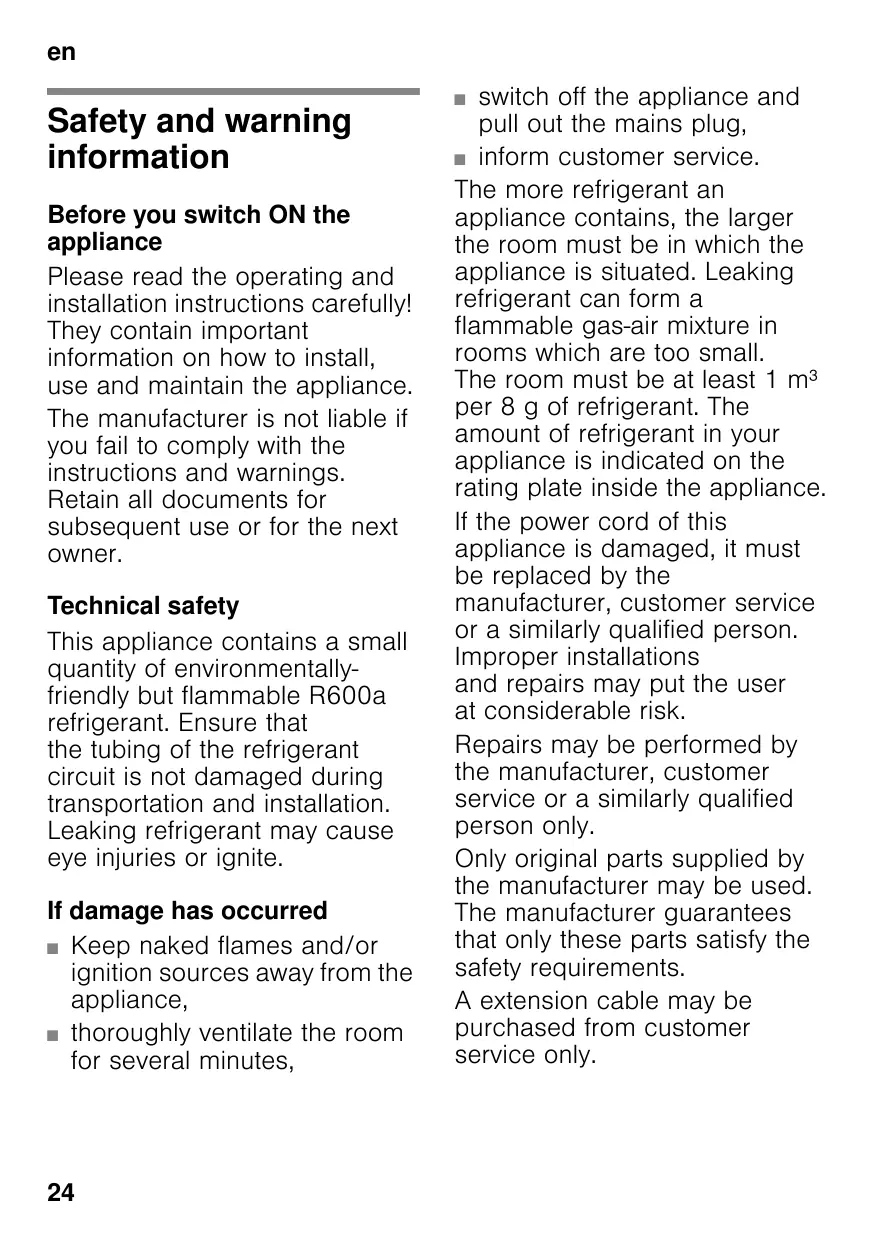

Safety and warning information
Before you switch ON the appliance
Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.
Technical safety
This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.
If damage has occurred
-
Keep naked flames and/or ignition sources away from the appliance,
thoroughly ventilate the room for several minutes, -
switch off the appliance and pull out the mains plug,
inform customer service.
The more refrigerant an
appliance contains, the larger
the room must be in which the
apppliance is situated. Leaking
refrigerant can form a
flammable gas-air mixture in
rooms which are too small.
The room must be at least 1m^3 per 8 g of refrigerant. The
amount of refrigerant in your
applpliance is indicated on the
rating plate inside the appliance.
If the power cord of this
applpliance is damaged, it must
be replaced by the
manufacturer, customer service
or a similarly qualified person.
Improper installations
and repairs may put the user
at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
A extension cable may be purchased from customer service only.
Important information when using the appliance
- Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
- Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
- Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
-
Do not stand on or lean heavily against base of appliance, drawers or doors, etc
For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord.
Store high-percentage alcohol tightly closed and standing up. -
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
-
Never cover or block the ventilation openings of the appliance!
Avoiding placing children and vulnerable people at risk:
At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
Ensure that children and vulnerable people have understood the hazards.
A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.
Only children from 8 years and above may use the appliance.
Supervise children who are cleaning and maintaining the appliance.
Never allow children to play with the appliance.
en
- Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
- Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!
- Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!
Children in the household
- Keep children away from packaging and its parts.
Danger of suffocation from folding cartons and plastic film! - Do not allow children to play with the appliance!
If the appliance features a lock: keep the key out of the reach of children!
General regulations
The appliance is suitable
for refrigerating and freezing food,
for making ice.
This appliance is intended for use in the home and the home environment.
The appliance is suppressed according to EU Directive 2004/108/EC.
The refrigeration circuit has been checked for leaks.
This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
Disposal of your old appliance
Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Warning
Redundant appliances
- Pull out the mains plug.
- Cut off the power cord and discard with the mains plug.
- Do not take out the trays and receptacles: children are therefore prevented from climbing in!
- Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!
Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any damage in transit.
If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.
The delivery consists of the following parts:
Built-in appliance
Interior fittings (depending on model)
Bag containing installation materials
Operating instructions
Installation manual
Customer service booklet
Warranty enclosure
Information on the energy consumption and noises
Room temperature, ventilation and cavity depth
Ambient temperature
The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures.
The climate class can be found on the rating plate. Fig. 16
| Climate class | Permitted ambient temperature |
| SN | +10 °C to 32 °C |
| N | +16 °C to 32 °C |
| ST | +16 °C to 38 °C |
| T | +16 °C to 43 °C |
en
Note
The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5^ .
Ventilation
The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!
Cavity depth
A cavity depth of 560~mm is recommended for the appliance. If the cavity depth is smaller - at least 550~mm - the energy consumption increases slightly.
Installation location
Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e. g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:
3 cm to electric or gas cookers.
30 cm to an oil or coal-fired cooker.
Connecting the appliance
After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.
Before switching on the appliance for the first time, clean the interior of the appliance (see chapter "Cleaning the appliance").
Electrical connection
The socket must be near the appliance and also freely accessible following installation of the appliance.
The appliance complies with the protection class I. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.
For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply. This information can be found on the rating plate. Fig. 16
Warning
Never connect the appliance to electronic energy saver plugs.
Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.
Getting to know your appliance
Please fold out the illustrated last page. These operating instructions refer to several models.
The features of the models may vary. The diagrams may differ.
Fig. 1
- Not all models.
A Freezer section
B Refrigerator compartment
C Cool-fresh compartment
1-5 Controls
6 Light, refrigerator compartment
7 Glass shelf
8 Vario shelf
9 Extendable glass shelf
10 Partition with humidity controller
11 Vegetable container
12 "Cool-fresh" container
13 Butter and cheese compartment
14 Door shelf
15 Vario door shelf
16* Bottle holder
17 Shelf for large bottles
Controls
Fig. 2
1 On/Off button
Serves to switch the whole appliance on and off.
2 "super" button
Serves to switch the "super" freezing function on and off (see chapter entitled "Super freezing").
3 Temperature selection button
Press this button to set the temperature.
4 Temperature display
The numbers correspond to the set refrigerator compartment temperatures in ^ C
5 Alarm button
Used to switch off the warning signal, see chapter "Alarm function".
Switching the appliance on
Fig. 2
Switch on the appliance with the On/Off button 1.
The temperature display 4 indicates the set temperature.
The appliance begins to cool. Light is switched on when the door is open.
We recommend a factory setting of +4 ^ C in the refrigerator compartment.
Do not store perishable food warmer than +4^ C .
Operating tips
After the appliance has been switched on, it may take several hours until the set temperatures have been reached. Do not put any food in the appliance beforehand.
The temperature in the freezer compartment depends on the temperature in the refrigerator compartment. Warmer refrigerator compartment temperatures also cause warmer freezer compartment temperatures.
The sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.
Setting the temperature
Fig. 2
Freezer compartment
The temperature in the refrigerator compartment will affect the temperature in the freezer compartment. Change the temperature in the refrigerator compartment in order to change the temperature in the freezer compartment. Temperatures which are set higher in the refrigerator compartment will increase temperatures in the freezer compartment.
Refrigerator compartment
The temperature can be set from +3^ to +8^ .
Keep pressing temperature setting button 3 until the required refrigerator compartment temperature is set.
The value last selected is saved. The set temperature is indicated on temperature display 4.
Cool-fresh compartment
The temperature in the cool-fresh compartment is about 0^ C .
Note
If frost forms on the refrigerated food in the "cool-fresh" compartment, increase the temperature (see chapter Eliminating minor faults yourself).
Alarm function
Door alarm
The door alarm (continuous sound) switches on if the appliance door is open for longer than two minutes. Close the door to switch off the warning signal.
Switching off the alarm
Fig. 2
Press the alarm button 5 to switch off the warning signal.
Super freezing
Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.
Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.
If the max. freezing capacity is to be used, super freezing must be switched on for 6 hours before the fresh produce is placed in the freezer compartment.
Smaller quantities of food can be frozen without super freezing.
Note
When super freezing is switched on, increased operating noises may occur.
Switching on and off
Fig. 2
Press "super" button 2.
If the super freezing has been switched on the button is lit.
Super freezing automatically switches off after approx. 1 12 days.
Usable capacity
Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 16
Refrigerator compartment
The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk and hard cheese.
Storing food
Store fresh, undamaged food. The quality and freshness will then be retained for longer.
In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer.
To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment.
- Allow warm food and drinks to cool down before placing in the appliance.
en
Note the chill zones in the refrigerator compartment
The air circulation in the refrigerator compartment creates different chill zones.
The coldest zone is on the partition and on the shelf for large bottles.
Warmest zone is at the very top of the door.
Notes
Store e.g. hard cheese and butter in the warmest zone. Cheese can then continue to release its flavour and the butter will still be easy to spread.
Store perishable food (e.g. fish, sausage, meat) in the "cool-fresh" compartment (see chapter The "coolflesh" compartment).
The "cool-fresh" compartment
The temperature in the fridge is about 0^ . The low temperature and the optimum moisture provide ideal storage conditions for fresh food.
Food can be kept fresh up to three times longer in the "cool-fresh" compartment than in the normal cooling zone - for even longer freshness, nutrient retention and flavour.
Vegetable container with humidity controller
Fig. 3
The vegetable container is the optimum storage location for fresh fruit and vegetables. A humidity controller and a special seal can be used to adjust the air humidity in the vegetable container.
The air humidity in the vegetable container can be set according to the type and amount of products to be stored:
Mainly fruit as well as for a large load - lower air humidity
Mainly vegetables as well as for a mixed load or small load - higher air humidity
Notes
Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside the refrigerator at temperatures of approx. +8^ to +12^ for optimum preservation of quality and flavour.
- Condensation may form in the vegetable container depending on the type and quantity of products stored. Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller.
"Cool-fresh" container
Fig. 1/12
The storage climate in the "cool-fresh" container offers ideal conditions for the storage of fish, meat, sausage, cheese and milk.
Storage times (at 0^ )
| Depending on the initial quality | |
| Fresh fish, seafood | up to 3 days |
| Poultry, meat (boiled/fried) | up to 5 days |
| Beef, pork, lamb, sausage (cold meat) | up to 7 days |
| Smoked fish, broccoli | up to 14 days |
| Salad greens, fennel, apricots, plums | up to 21 days |
| Soft cheese, yoghurt, quark, buttermilk, cauliflower | up to 30 days |
The freezer compartment
Fig. 4
Is used to:
store deepfrozen food,
make ice cubes,
- freeze small quantities of food.
Notes
You can tell from the handle whether the freezer compartment door is closed properly.
The freezer compartment door engages audibly.
If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice.
Also: waste of energy due to high power consumption!
Max. freezing capacity
Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig. 16
Prerequisites for max. freezing capacity
Freeze fresh food as close as possible to the side panels.
- Switch on super freezing before placing fresh products in the compartment (see chapter entitled "Super freezing").
Freezing and storing food
Purchasing frozen food
- Packaging must not be damaged.
Use by the "use by" date.
Temperature in the supermarket freezer must be -18 ^ C or lower.
If possible, transport deep-frozen food in a cool bag and place quickly in the freezer compartment.
Freezing fresh food
Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Literature on freezing and blanching can be found in bookshops.
Note
Keep food which is to be frozen away from food which is already frozen.
The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, souffles and desserts.
The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.
Packing frozen food
To prevent food from losing its flavour or drying out, place in airtight containers.
- Place food in packaging.
- Remove air.
- Seal the wrapping.
- Label packaging with contents and date of freezing.
Suitable packaging:
Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets.
Unsuitable packaging:
Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.
Items suitable for sealing packaged food:
Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.
Bags and tubular film made of polyethylene can be sealed with a film heat sealer.
Shelf life of frozen food
Storage duration depends on the type of food.
At a temperature of -18^ :
Fish, sausage, ready meals and cakes and pastries: up to 6 months
Cheese, poultry and meat: up to 8 months
Vegetables and fruit: up to 12 months
Thawing frozen food
Depending on the type and application, select one of the following options:
at room temperature
in the refrigerator
in an electric oven, with/without fan assisted hot-air
in the microwave
Caution
Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.
No longer store the frozen produce for the max. storage period.
Interior fittings
(not all models)
Glass shelves
Fig. 5
If required, you can vary the shelves inside the appliance: To do this, pull out shelf, lift at the front and take out.
Extendable glass shelf
Fig. 6
The extendable glass shelf can be pulled out for a better overview of the food.
Vario shelf
Fig. 7
To facilitate the storage of tall items (e.g. cans or bottles), the front part of the Vario shelf can be taken out and pushed under the rear part.
Butter and cheese compartment
Fig. 8
To open the butter compartment, gently press in the middle of the butter compartment flap.
Vario door shelf
Fig. 9
The position of the Vario door shelf can be moved to the side so that tall bottles can be stored on the lower shelf.
Bottle holder
Fig. 10
The bottle holder prevents bottles from falling over when the door is opened and closed.
Switching off and disconnecting the appliance
Turn off appliance
Fig. 2
Press the On/Off button 1.
Temperature display 4 goes out, refrigeration unit switches off.
Disconnecting the appliance
If you do not use the appliance for a prolonged period:
- Switch off the appliance.
- Pull out mains plug or switch off fuse.
- Clean the appliance.
- Leave the appliance door open.
Defrosting
Refrigerator compartment
Defrosting is actuated automatically.
The condensation runs through the drainage hole into an evaporation pan on the rear of the appliance.
Freezer compartment
The freezer compartment does not defrost automatica
A layer of hoarfrost in the freezer compartment will impair refrigeration of the frozen food and increase power consumption. Regularly defrost the freezer compartment.
Caution
Do not scrape off hoarfrost or ice with a knife or pointed object. You could damage the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.
Proceed as follows:
Note
Switch on the Super function approx. 4 hours before defrosting. As a result, the food will drop to a very low temperature and can therefore be stored for longer at room temperature.
- Remove the frozen food and place temporarily in a cool location. Place ice pack (if available) on the frozen food.
- Switch off the appliance.
-
Pull out the mains plug or remove the fuse.
-
To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.
- Wait until the layer of frost has thawed.
- Wipe up condensation with a cloth or sponge.
- Wipe dry the freezer compartment.
- Switch the appliance on again.
- Put the frozen food back in the freezer compartment.
Cleaning the appliance
Caution
- Do not use abrasive, chloride or acidic cleaning agents or solvents.
- Do not use scouring or abrasive sponges. The metallic surfaces could corrode.
- Never clean shelves and containers in the dishwasher. The parts may become deformed!
Proceed as follows:
- Before cleaning: Switch off the appliance.
- Pull out the mains plug or switch off the fuse!
- Take out the food and store in a cool location.
- Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
- Wipe the door seal with clear water only and then wipe dry thoroughly.
- After cleaning reconnect and switch the appliance back on.
- Put the food back into the appliance.
Interior fittings
All variable parts of the appliance can be taken out for cleaning.
Taking out the extendable glass shelf Fig. 6
Hold down levers on the underside on both sides, pull glass shelf forwards, lift and swivel out to the side.
Take out shelves in the door
Fig. 11
Lift shelves upwards and take out.
Removing the container
Fig. 12 Raise container at the rear and lift off the extension rails.
To insert the container, place on the retracted extension rails and engage.
Taking out the partition
Fig. 13
Press levers on the underside on both sides, pull partition forwards, lift and swivel out to the side.
Taking out the vegetable container cover
Lift cover, pull forwards and swivel out to the side.
Inserting vegetable container cover and partition
Fig. 14
- Insert vegetable container cover.
- Insert partition.
Note
Before the partition can be inserted, the humidity controller must be set to low air humidity.
Remove telescopic rails
Fig. 15
- Pull out the telescopic rail.
- Push lock in the direction of the arrow.
- Detach telescopic rail from the rear pin.
- Push telescopic rail together, push backwards above the rear pin and disengage.
Installing telescopic rails
- Place the extended telescopic rail on the front pin.
- Pull the telescopic rail forwards slightly until it engages.
- Place telescopic rail on the rear pin.
- Push lock backwards.
Light (LED)
Your appliance features a maintenance-free LED light.
These lights may be repaired by customer service or authorised technicians only.
Tips for saving energy
Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).
If required, use an insulating plate.
Select 560 mm cavity depth.
A smaller cavity depth will result in a higher energy consumption.
- Allow warm food and drinks to cool down before placing in the appliance.
Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
- Open the appliance as briefly as possible.
- Regularly defrost the freezer compartment to remove the layer of frost!
A layer of hoarfrost will impair refrigeration of the frozen food and increase power consumption.
Ensure that the freezer compartment door has been closed properly.
- To avoid increased power consumption, occasionally clean the back of the appliance.
The arrangement of the fittings does not affect the energy rating of the appliance.
Operating noises
Quite normal noises
Droning
Motors are running (e.g. refrigerating units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are switching on/off.
Preventing noises
The appliance is not level
Please align the appliance with a spirit level. If required, place something underneath.
Containers or storage areas wobble or stick
Please check the removable parts and re-insert them correctly if required.
Bottles or receptacles are touching each other
Move the bottles or receptacles slightly away from each other.
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following information.
Customer service will charge you for advice - even if the appliance is still under guarantee!
| Fault | Possible cause | Remedial action |
| Temperature differs greatly from the set value. | In some cases it is adequate to switch off the appliance for 5 minutes. If the temperature is too high wait a few hours and check whether the temperature has approached the set value. If the temperature is too low check the temperature again the next day. | |
| The temperature in the refrigerator compartment is too cold. | Freezer compartment door is open. | Close the freezer compartment door. The freezer compartment door engages audibly. |
| Temperature has been set too low. | Increase the temperature. | |
| The Super function is switched on. | Switch off Super function. | |
| There is a thick layer of frost in the freezer compartment. | Defrosting the freezer compartment (see chapter Defrosting). Always ensure that the freezer compartment door is closed properly. | |
| The refrigerating unit is switching on more frequently and for longer. | Appliance opened frequently. | Do not open the appliance unnecessarily. |
| The ventilation openings have been covered. | Remove obstacles. | |
| Appliance has no refrigeration capacity. The light does not work. The display does not illuminate. | Appliance has been switched off. | Press the On/Off button. |
| Power failure. | Check whether the power is on. | |
| The fuse has been switched off. | Check the fuse. | |
| The mains plug has not been inserted properly. | Check whether the mains plug is secure. |
en
| Fault | Possible cause | Remedial action |
| Temperature display indicates “E..”. | Electronics have detected a fault. | Call customer service. |
| The “cool-fresh” compartment is too warm or too cold. | The standard setting has been set too high or too low (e.g. if there is frost in the “cool-fresh” compartment). | The temperature in the “cool-fresh” compartment can be set to be 3 steps warmer and/or colder, Fig. 2. If the temperature in the refrigerator compartment is set to 0, the temperature in the “cool-fresh” compartment is almost 0 °C. Note A change to the standard setting will affect the temperature in the refrigerator compartment and freezer compartment. 1. Hold down “super” button 2 for 3 seconds until temperature display 4 flashes. 2. Change the setting using the temperature setting button 3. Setting -3 corresponds to the coldest setting Setting +3 corresponds to the warmest setting The selected setting is saved after one minute. |
| Appliance is not cooling, temperature display and light are lit. | Showroom mode is switched on. | Hold down alarm button, Fig 2/5, for 10 seconds until an acknowledgement signal sounds. After a short time check whether your appliance is cooling. |
| The light does not function. | The LED light is defective. | See chapter “Light (LED)” section. |
| Appliance was open too long. | When the appliance is closed and opened, the light is on again. | |
| Light is switched off after approx. 10 min. |
Appliance self-test
Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.
Starting the appliance self-test
- Switch off the appliance and wait 5 minutes.
- Switch on appliance and hold down the super button, Fig. 2/2, for 3-5 seconds within the first 10 seconds until an acoustic signal sounds.
The self-test programme starts.
While the self-test is running, a long acoustic signal sounds.
When the self-test ends and an acoustic signal sounds twice, your appliance is in working order.
If the Super button flashes for 10 seconds and 5 acoustic signals sound, there is a fault. Inform customer service.
Ending the appliance self-test
When the programme has ended, the appliance switches over to normal operation.
Customer service
Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD).
These specifications can be found on the rating plate. Fig. 16
To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.
Repair order and advice on faults
Contact information for all countries can be found on the enclosed customer service list.
GB 0844 892 8989
Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.
IE 014502655
0.03 € per minute at peak. Off peak 0.0088 € per minute.
