USER MANUAL DRC96AQ50 BOSCH

your new devic e on MyBosch now and get free b enefits:

Ceiling-mounted ventilation system DRC96AQ50

User manual and assembly instructions

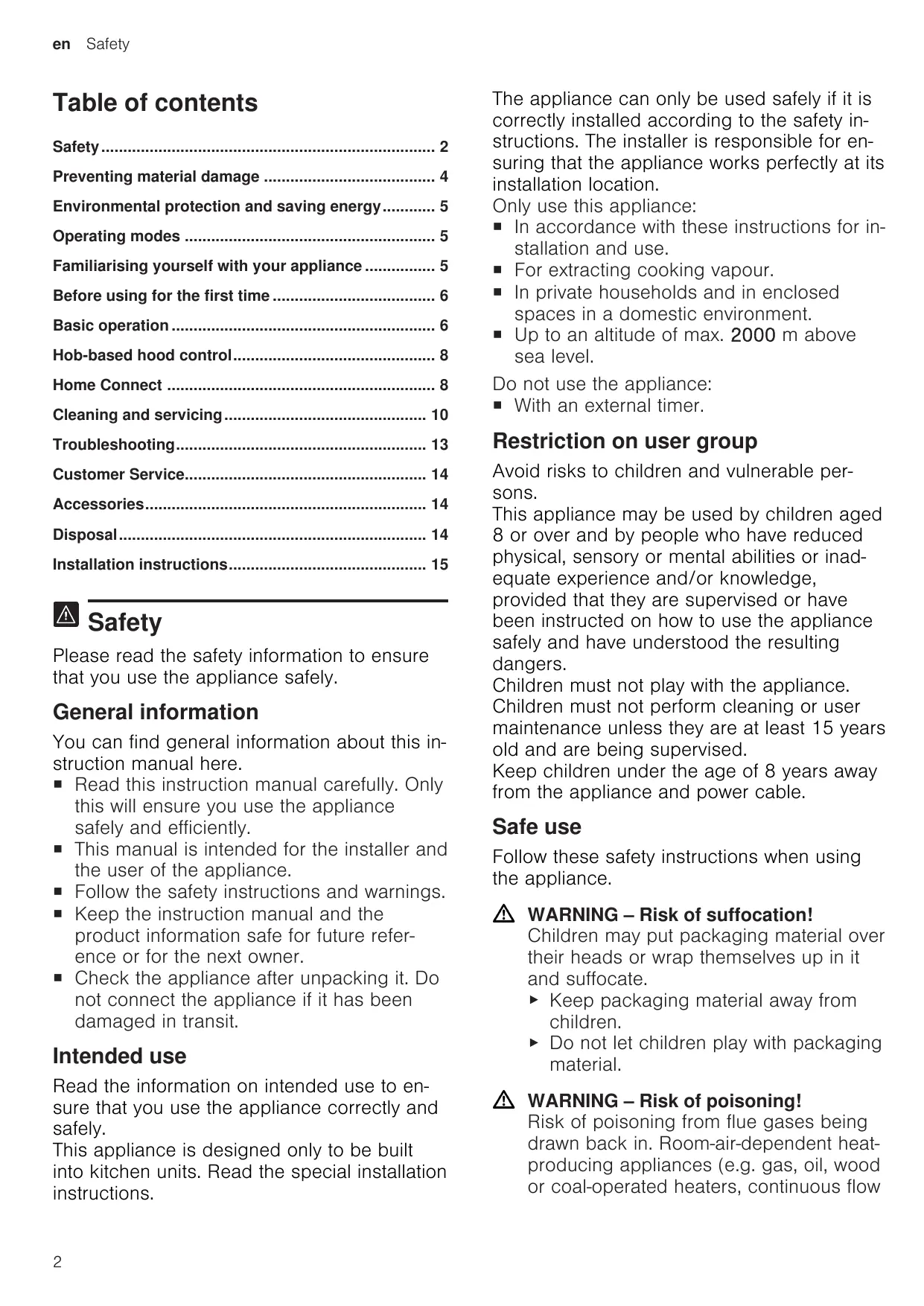

Table of contents Safety 2 Preventing material damage 4 Environmental protection and saving energy 5 Operating modes 5 Familiarising yourself with your appliance 5 Before using for the first time 6 Basic operation 6 Hob-based hood control 8 Home Connect 8 Cleaning and servicing 10

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location. Only use this appliance: ¡ In accordance with these instructions for installation and use. ¡ For extracting cooking vapour. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 2000 m above sea level. Do not use the appliance: ¡ With an external timer.

Restriction on user group

Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable.

Accessories 14 Disposal 14 Installation instructions 15

Safety Please read the safety information to ensure that you use the appliance safely.

General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡ This manual is intended for the installer and the user of the appliance. ¡ Follow the safety instructions and warnings. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit.

Safe use Follow these safety instructions when using the appliance.

WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material.

Read the information on intended use to ensure that you use the appliance correctly and safely. This appliance is designed only to be built into kitchen units. Read the special installation instructions.

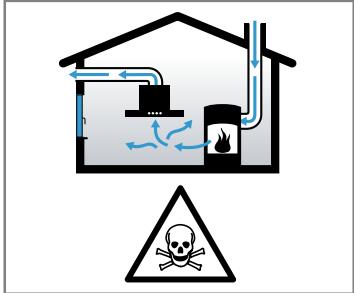

WARNING ‒ Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air-dependent heatproducing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow

heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

▶ Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room air-dependent heat-producing appliance is being operated. ▶ It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, in conjunction with incoming/exhaust air wall boxes or by other technical means. An incoming/ exhaust air wall box alone does not ensure compliance with the limit. ▶ In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. ▶ Unrestricted operation is possible if the appliance is operated exclusively in air recirculation mode. WARNING ‒ Risk of fire! ¡ Fatty deposits in the grease filters may catch fire. ▶ Never operate the appliance without a grease filter.

▶ Clean the grease filters regularly. ▶ Never work with naked flames close to the appliance (e.g. flambéing). ▶ Do not install the appliance near a solid fuel heating appliance (e.g. woodor coal-burning) unless the heating appliance has a sealed, non-removable cover. There must be no flying sparks. ¡ Hot oil or grease ignites very quickly. ▶ Always supervise hot oil and fat. ▶ Never extinguish burning oil or fat with water. Switch off the cooking zone. Extinguish flames carefully using a lid, fire blanket or something similar. ¡ When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. ▶ Only operate the gas burners with cookware on them. ¡ Gas burners can build up a lot of heat while operating. A ventilation appliance installed above the cooker may become damaged or catch fire. ▶ Only operate the gas burners with cookware on them. ▶ Set at least fan setting 3. ▶ Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok. WARNING ‒ Risk of burns! The accessible parts of the appliance become hot during operation. ▶ Never touch these hot parts. ▶ Keep children at a safe distance. WARNING ‒ Risk of injury! ¡ Components inside the appliance may have sharp edges. ▶ Carefully clean the appliance interior. ¡ Items placed on the appliance may fall off. ▶ Do not place any objects on the appliance. ¡ Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions. ▶ Do not make any changes to the electrical or mechanical assembly. ¡ The filter cover may swing out. ▶ Open the filter cover slowly. 3

▶ Take hold of the filter cover after opening until it no longer swings out. ▶ Close the filter cover slowly. Risk of injury when opening and closing the hinges. ▶ Keep your hands away from the hinges. The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). ▶ Do not look directly into the switchedon LED lights for longer than 100 seconds. Children may swallow batteries. ▶ Keep batteries out of the reach of children. ▶ Keep an eye on any children when you are replacing batteries. Batteries may explode. ▶ Do not charge the batteries. ▶ Do not short-circuit the batteries. ▶ Do not throw batteries into a fire. Risk of falling when working on the appliance

▶ Use a stable stepladder. ▶ Do not lean over the hob. ▶ Do not step on the hob or the work surface. ¡ It may create an increased risk of injury if the appliance is operated by another person via the Home Connect app during cleaning. ▶ Before cleaning, disconnect the appliance from the Home Connect app. WARNING ‒ Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box. 4

▶ Call Customer Service. → Page 14 ▶ Repairs to the appliance should only be carried out by trained specialist staff. ¡ Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff. ¡ An ingress of moisture can cause an electric shock. ▶ Before cleaning, pull out the mains plug or switch off the fuse in the fuse box. ▶ Do not use steam- or high-pressure cleaners to clean the appliance. WARNING ‒ Risk of explosion! Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods.

Preventing material damage Follow these instructions to prevent material damage to your appliance, accessories or other objects in your kitchen.

General Follow these instructions when using the appliance. ATTENTION! ¡ Condensate may cause corrosion damage. ▶ To prevent condensation from building up, switch on the appliance during cooking. ¡ If moisture gets into the controls, this may result in damage. ▶ Never clean controls with a wet cloth. ¡ Incorrect cleaning damages the surfaces. ▶ Follow the cleaning instructions. ▶ Do not use harsh or abrasive detergents. ▶ Clean stainless steel surfaces in the direction of the finish only. ▶ Never clean controls with stainless steel cleaners.

Environmental protection and saving energy ¡ Condensation that flows back in may damage the appliance. ▶ The air extraction duct must be installed with a gradient of at least 1° from the appliance. ¡ If you put incorrect stress on the design elements, they may break off. ▶ Do not pull design elements. ▶ Do not place objects on the design elements or hang objects from them. ¡ Leaking batteries may damage the remote control. ▶ Remove the batteries if you are not using the remote control. ▶ Safely dispose of the empty or defective batteries in an environmentally friendly manner. ¡ There is a risk of surface damage if you do not peel off the protective film. ▶ Remove the protective film from all parts of the appliance before using for the first time.

Clean or replace the filters at regular intervals. The effectiveness of the appliance is increased. Put the cooking lid on. The cooking vapours and condensation are reduced.

Operating modes Air extraction mode The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). ¡ If the exhaust air is to be conveyed into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible. ¡ If the exhaust air is conveyed through the external wall, a telescopic duct should be used.

Environmental protection and saving energy Help protect the environment by using your appliance in a way that conserves resources and by disposing of reusable materials properly.

Disposing of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately. Information about current disposal methods are available from your specialist dealer or local authority.

Air recirculation mode The air which is drawn in is cleaned by the grease filters and an odour filter, and conveyed back into the room. To bind odours in circulating-air mode, you must install an odour filter. The different options for operating the appliance in circulating-air mode can be found in our catalogue. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.

Saving energy If you follow these instructions, your appliance will use less power. Ensure that there is sufficient ventilation when cooking. The appliance works more efficiently and with fewer operating noises. Adjust the fan speed to the amount of steam produced during cooking. The lower the fan speed, the less energy is consumed. Only use intensive mode when required. If cooking produces large amounts of steam, select a higher fan speed in good time. The odours are distributed around the room less. Switch the appliance off when you are not using it. The appliance does not consume any energy. Switch off the lighting if you no longer require it. The lighting does not consume any energy.

Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance.

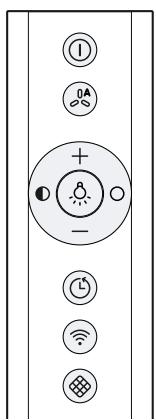

Controls Use the remote control to set all of the functions of your appliance. Tip: Align the remote control as precisely as possible to the infrared receiver for the LED display.

en Before using for the first time

Setting an operating mode Your appliance is set to air extraction mode by default. To use it in circulating-air mode, you must set the operating mode. Note: For use in circulating-air mode, you require additional Accessories → Page 14. Requirement: The appliance is switched off. 1. Press and hold

and for approx. three seconds. To set circulating-air mode (non-regenerable filter), press ⁠/ until LED 2 lights up in the LED display. ‒ To set circulating-air mode (non-regenerable filter), press ⁠/ until LED 3 lights up in the LED display. ‒ To convert the electronic control back to operation without the air recirculation filter, press ⁠/ until LED 1 lights up on the LED display. 2. To save the setting, press and hold and for approx. three seconds. Or wait approx. 10 seconds until the setting is saved automatically. To cancel the setting, press ⁠. a A signal tone sounds as soon as the selected setting is saved. ‒

Switch the appliance on or off Switch on automatic mode1 Increase the fan setting Decrease the fan setting Switch the lighting on or off Reduce the brightness Increase the brightness Switch the fan run-on on or off Switch Home Connect on or off Reset the filter saturation indicator 1

Depending on the appliance specifications

LED display Die LED-Anzeige zeigt eingestellte Werte und Funktionen.

Fan setting 1/grease filter saturation display Fan setting 2/odour filter saturation indicator Fan setting 3 Intensive mode 1 Intensive mode 2 Automatic mode 1/fan run-on time/interval ventilation Home Connect Infrared receiver

Depending on the appliance specifications

Before using for the first time Configure the settings for initial start-up. Clean the appliance and accessories.

Basic operation You can find out everything you need to know about operating your appliance here.

Switching on the appliance Requirement: Align the remote control as precisely as possible to the infrared receiver for the LED display. ▶ Press to switch on the appliance. a The appliance starts at fan setting 2. a The LED for the set fan setting lights up in the LED display.

Switching off the appliance Switch the appliance off when you are not using it. ▶ Press to switch the appliance off. a The appliance switches off. Any functions currently in progress are cancelled.

Selecting a fan setting ▶ Press or ⁠. a The LED for the set fan setting lights up in the LED display.

Switching on intensive mode If particularly strong odours or vapours develop, you can use intensive mode. 1. Press repeatedly until LED 4 lights up in the LED display for intensive mode 1.

Basic operation 2. Press

repeatedly until LED 5 lights up in the LED display for intensive mode 2. a After approx. 6 minutes, the appliance automatically switches to fan setting 3.

Switching off intensive mode ▶ To select a fan setting of your choice, press ⁠. a After approx. 6 minutes, the appliance automatically switches to fan setting 3.

Switching on the fan run-on ▶ Press ⁠. a LED 1 for the fan setting lights up in the LED display. LED 6 flashes for the fan run-on. a The appliance switches off automatically after approx. 10 minutes.

Switching off the fan run-on ▶ Press ⁠. a This immediately stops the fan run-on. a The appliance switches to the fan setting that was previously selected.

Switch on automatic mode1 The optimum fan setting is set automatically using a sensor. ▶ Press ⁠. a In the LED display, LED 6 lights up for automatic mode.

Sensor control In automatic mode, a sensor in the appliance detects the intensity of the cooking and roasting fumes. Depending on the setting of the sensor sensitivity, the optimum fan setting automatically switched on. If the sensor control system reacts too weakly or too strongly, the setting for the sensor sensitivity may change. ¡ Default setting: Fan setting 3 ¡ Lowest setting: Fan setting 1 ¡ Highest setting: Fan setting 5

Setting the sensor control Requirement: The appliance is switched off. 1. Press and hold

and for approx. three seconds. or to change the setting. To cancel the setting, press ⁠. 3. To save the setting, press and hold and for approx. three seconds. Or wait approx. 10 seconds until the setting is saved automatically. a A signal tone sounds as soon as the selected setting is saved. 2. Press

Setting the saturation indicator The saturation indicator must be adjusted depending on the filter used. Requirement: The appliance is switched off. 1. Press and hold

and for approx. three seconds. To set circulating-air mode (non-regenerable filter), press ⁠/ until LED 2 lights up in the LED display. ‒ To set circulating-air mode (non-regenerable filter), press ⁠/ until LED 3 lights up in the LED display. ‒ To convert the electronic control back to operation without the air recirculation filter, press ⁠/ until LED 1 lights up on the LED display. 2. To save the setting, press and hold and for approx. three seconds. Or wait approx. 10 seconds until the setting is saved automatically. To cancel the setting, press ⁠. a A signal tone sounds as soon as the selected setting is saved. ‒

Switch off automatic mode 1 ▶ Press ⁠. a The appliance switches to the fan setting that was previously set. a The ventilation is automatically ended when the sensor detects no further change in the room air quality. a Automatic mode runs for a maximum of four hours.

Intermittent ventilation With interval ventilation, the ventilation system switches on and off in the selected setting for the selected time. Note: This function is only available via a mobile device with the Home Connect app. If the interval ventilation is switched on, LED 6 continuously flashes in the LED display for the interval ventilation and the LED for the selected fan setting lights up. As soon as the ventilation time ends, the LED for the fan setting you have selected goes out. LED 6 continues to flash.

Resetting the saturation indicator After cleaning the grease filter or after changing the odour filter, the saturation indicator can be reset. Requirements ¡ After the appliance has been switched off, LED 1 flashes in the LED display for the grease filter saturation display and/or LED 2 flashes for the saturation indicator for the odour filter. ¡ A repeated signal tone sounds. ▶ Press . a The saturation indicator is reset.

Depending on the appliance specifications 7

en Hob-based hood control

Switching on the lighting ▶ Press

to switch on the lighting.

Note: Colour temperature settings are available in the Home Connect app provided the appliance has this function.

Setting the brightness ▶ Press and hold

Note: Colour temperature settings are available in the Home Connect app provided the appliance has this function.

Switching on the button tone The button tones can be switched on. Requirement: The appliance is switched off. 1. Press and hold

and for approx. three seconds. In the LED display, the LED for the setting that is currently selected lights up. Press or until LED 1 lights up in the LED display. To cancel the setting, press ⁠. To save the setting, press and hold and for approx. three seconds. Or wait approx. 10 seconds until the setting is saved automatically. A signal tone sounds as soon as the selected setting is saved.

Switching the button tone off The button tones can be switched off. Note: Signal tones for the appliance are always switched on and cannot be switched off. Requirement: The appliance is switched off. 1. Press and hold and for approx. three seconds. a In the LED display, the LED for the setting that is currently selected lights up. 2. Press or until LED 2 lights up in the LED display. To cancel the setting, press ⁠. 3. To save the setting, press and hold and for approx. three seconds. Or wait approx. 10 seconds until the setting is saved automatically. a A signal tone sounds as soon as the selected setting is saved.

Hob-based hood control You can connect your appliance to a suitable hob and, in this way, control the functions of your appliance via the hob.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

You have the following options for connecting the appliances with each other: ¡ Connecting the appliance via the Home Connect app. If both appliances are Home Connect-compatible, they can be connected using the Home Connect app. Follow the instructions in the app. ¡ Connecting appliances directly with each other. ¡ Connecting appliances via the Wi-Fi home network. Note: Please note the safety precautions in the instruction manual for your appliance and ensure that they are also observed when operating the appliance via the hob-based hood control. Tip: Operating your appliance always takes priority. It is not possible to use the hood controls on the hob during this time.

Connecting directly Requirements ¡ Your appliance is now switched off. ¡ Before connecting the appliances, reset all connections to your home network or other appliances. If your appliance is connected directly to the hob, it cannot be connected to your home network as well and you will not be able to use Home Connect. 1. Note: Refer to the section entitled "Hob-based hood control" in the instruction manual for your hob. Switch on the hob and select the search mode. 2. Press and hold the button until the LED for Home Connect flashes in the LED display. a The appliance is connected to the hob if the LED for Home Connect no longer flashes and lights up permanently.

Connecting via your home network 1. Follow the instructions in

→ "Automatically connecting the appliance to the WLAN home network (Wi-Fi)", Page 9 or → "Manually connecting the appliance to the WLAN home network (Wi-Fi)", Page 9. 2. As soon as the appliance is connected to the home network, establish the connection to the hob via the Home Connect app. 3. Follow the instructions on your mobile device.

Home Connect This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi1) and to the Home Connect app.

Home Connect ¡ Automatically connecting appliance to WLAN home network (Wi-Fi) → Page 9 ¡ Connecting appliance to WLAN home network (WiFi) manually → Page 9 The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings. If the appliance is not connected to your home network, it functions as an appliance with no network connection and can still be operated via the display. Tips ¡ Please consult the documents supplied by Home Connect. ¡ Please also follow the instructions in the Home Connect app. Notes ¡ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 2 ¡ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app. ¡ In networked standby mode, the appliance requires a maximum of 2 W. ¡ If you need your device's MAC address to connect to your home network, you can find this next to the rating plate → Page 14 inside the appliance. To do this, Remove the filter → Page 11.

Automatically connecting the appliance to the WLAN home network (Wi-Fi) If your router has a WPS function, you can connect the appliance to your WLAN home network (Wi-Fi) automatically. Note: The appliance cannot be switched on during the connection process. Press to cancel the process. Requirements ¡ Wi-Fi on the router is activated. ¡ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location. ¡ The Home Connect app is installed on your mobile device. ¡ The appliance and the light are switched off. 1. Press and hold the 2.

button until LED 7 flashes in the LED display. Press . LED 1 and LED 7 flash in the LED display. Press the WPS button on the router within the next 2 minutes. If the connection has been established, the appliance automatically connects to the Home Connect app. LED 3 and LED 7 flash in the LED display. If no connection can be established, the appliance automatically switches to the manual connection to the home network, LED 2 and LED 7 flash in the

LED display. Log the appliance manually into the home network or press in order to restart the login. 5. On your mobile device, follow the instructions for automatic network login. a The login process is complete when LED 7 stops flashing and remains continuously lit.

Manually connecting the appliance to the WLAN home network (Wi-Fi) Note: The appliance cannot be switched on during the connection process. Press to cancel the process. Requirement: The appliance and the light are switched off. 1. Press and hold the button until LED 7 flashes in the LED display. 2. Press twice to start logging into your home network manually. a LED 2 and LED 7 flash in the LED display. 3. Follow the instructions in the app. a If the connection has been established, the appliance automatically connects to the Home Connect app. LED 3 and LED 7 light up in the LED display. 4. On your mobile device, follow the instructions for manually logging into your network. a The login process is complete when LED 7 stops flashing and remains continuously lit.

Connecting the appliance to the Home Connect app Requirements ¡ The Home Connect app is installed on your mobile device. ¡ The Home Connect app is opened. 1. Press and hold the

button until LED 3 and LED 7 flash in the LED display. 2. Follow the instructions for the Home Connect app on the mobile device. a The login process is complete when LED 7 stops flashing and remains continuously lit.

Software update Your appliance's software can be updated using the software update function, e.g. for the purposes of optimisation, troubleshooting or security updates. To do this, you must be a registered Home Connect user, have installed the app on your mobile device and be connected to the Home Connect server. As soon as a software update is available, you will be informed via the Home Connect app and will be able to start the software update via the app. Once the update has been successfully downloaded, you can start installing it via the Home Connect app if you are in your local area network. The Home Connect app will inform you once installation is successful.

en Cleaning and servicing Notes ¡ You can continue to use your appliance as normal while updates are downloading. Depending on your personal settings in the app, software updates can also be set to download automatically. ¡ We recommend that you install security updates as soon as possible.

Resetting the connection Saved connections to the home network and to Home Connect can be reset. ▶ Press and hold

and until LED 7 goes out in the LED display. a An audible signal sounds.

Remote diagnostics Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed). ¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ¡ The current software and hardware version of your appliance. ¡ Status of any previous reset to factory settings. This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time. Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

Declaration of Conformity Robert Bosch Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality meets the essential requirements and other relevant provisions of the Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance.

Please see the information on data protection.

2.4 GHz band: 100 mW max. 5 GHz band: 100 mW max. BE ES HU SK 5 GHz WLAN (Wi-Fi): For

BG CZ FR HR MT NL FI SE indoor use only.

DK IT AT UK Cleaning and servicing To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning products You can obtain suitable cleaning products from aftersales service or the online shop. WARNING ‒ Risk of electric shock! An ingress of moisture can cause an electric shock. ▶ Before cleaning, pull out the mains plug or switch off the fuse in the fuse box. ▶ Do not use steam- or high-pressure cleaners to clean the appliance.

DE CY PL NO EE LV PT CH IE LT RO TR EL LU SI ATTENTION! Unsuitable cleaning products may damage the surfaces of the appliance. ▶ Do not use harsh or abrasive detergents. ▶ Do not use cleaning products with a high alcohol content. ▶ Do not use hard scouring pads or cleaning sponges. ▶ Do not use any special cleaners for cleaning the appliance while it is hot. ▶ Do not use limescale remover on the door handle or control panel, as it may leave permanent staining. ▶ Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part. ▶ Wash sponge cloths thoroughly before use.

Cleaning and servicing

Cleaning the stainless steel surfaces

¡ Risk of falling when working on the appliance

1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 2. Clean using a sponge cloth and hot soapy water in the direction of the finish. 3. Dry with a soft cloth. 4. Apply a thin layer of the stainless steel cleaning product with a soft cloth. Tip: You can obtain stainless steel cleaning products from after-sales service or the online shop.

Cleaning painted surfaces

▶ Use a stable stepladder. ▶ Do not lean over the hob. ▶ Do not step on the hob or the work surface. 1. Press the lock on the filter cover.

1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 2. Clean using a sponge cloth and hot soapy water in the direction of the finish. 3. Dry with a soft cloth.

Cleaning plastic 1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 2. Clean with a soft cloth and glass cleaner.

Cleaning glass 1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 2. Clean with a soft cloth and glass cleaner.

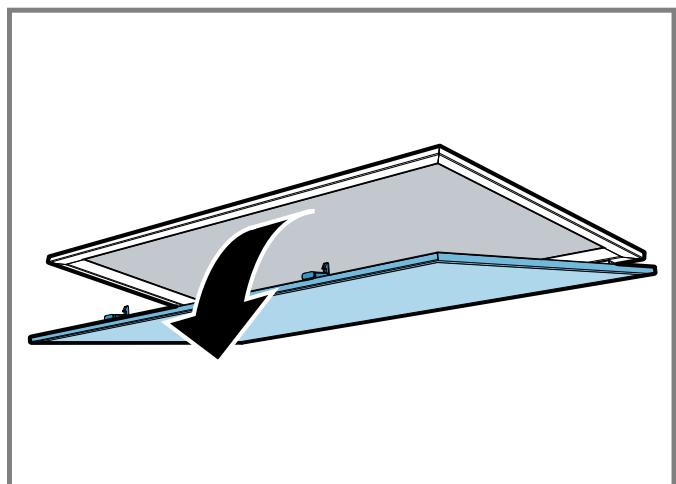

To prevent the filter cover from swinging down suddenly, hold onto the filter cover firmly with two hands. 2. Open the filter cover by pulling it downwards.

Cleaning controls WARNING ‒ Risk of electric shock! Penetrating moisture may cause an electric shock. ▶ Do not use wet sponge cloths. 1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 2. Clean using a damp sponge cloth and hot soapy water. 3. Dry with a soft cloth.

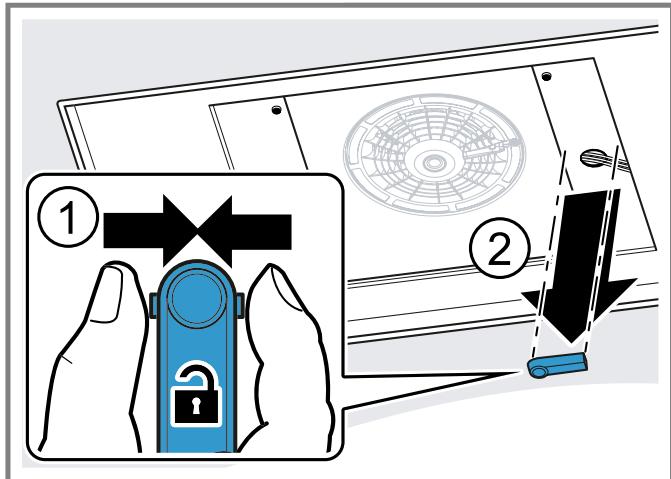

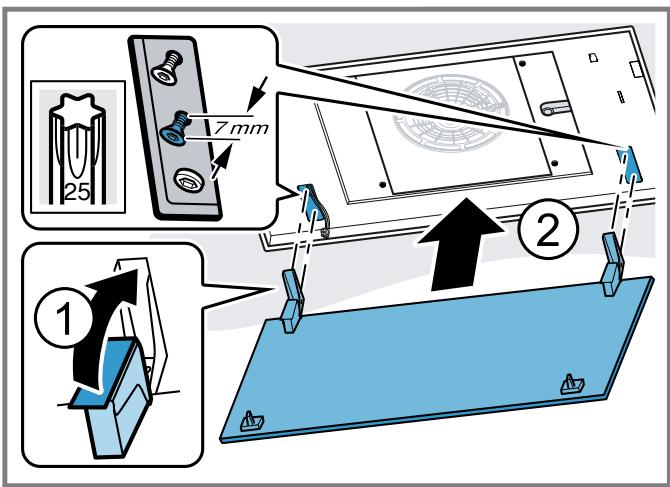

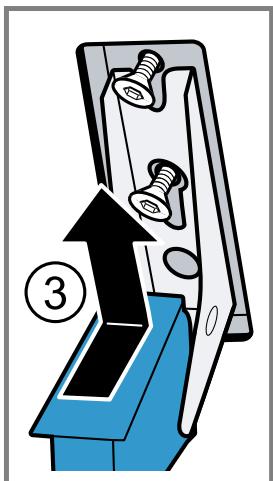

Removing the grease filter WARNING ‒ Risk of injury! ¡ The filter cover may swing out. ▶ Open the filter cover slowly. ▶ Take hold of the filter cover after opening until it no longer swings out. ▶ Close the filter cover slowly.

en Cleaning and servicing 3. ATTENTION! Falling grease filters may damage the

hob below. ▶ Grip below the grease filter with one hand. Open the locks on the grease filters.

WARNING ‒ Risk of fire! Fatty deposits in the grease filters may catch fire. ▶ Clean the grease filters regularly. Requirement: The grease filters have been removed. 1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 Soak the grease filter in hot soapy water. Use special grease solvent for stubborn dirt. You can obtain grease solvents from after-sales service or the online shop. Use a brush to clean the grease filters. Rinse the grease filters thoroughly. Allow the grease filters to drain.

Fitting grease filters 4. Remove the grease filters from the holders.

To prevent grease from dripping, hold the grease filter horizontally.

Cleaning grease filters in the dishwasher The grease filters filter the grease from the cooking vapour. Regularly cleaned grease filters guarantee a high level of grease removal. WARNING ‒ Risk of fire! Fatty deposits in the grease filters may catch fire. ▶ Clean the grease filters regularly. ATTENTION! The grease filters may become damaged if they are squeezed. ▶ Do not squeeze the grease filters. Note: When cleaning the grease filter in the dishwasher, light discolouration may occur. This discolouration has no effect on the performance of the metal grease filters. Requirement: The grease filters have been removed. 1. Observe the information regarding the cleaning

agents. → "Cleaning products", Page 10 2. Place the grease filters loosely into the dishwasher. Do not clean heavily soiled grease filters with utensils. Use special grease solvent for stubborn dirt. You can obtain grease solvents from after-sales service or the online shop. 3. Start the dishwasher. Select a temperature of no more than 70 °C. 4. Allow the grease filters to drain.

ATTENTION! Falling grease filters may damage the hob below. ▶ Grip below the grease filter with one hand. 1. Fit the grease filters. 2. Fold the grease filters upwards and engage the

locks. 3. Make sure that the locks engage. 4. Fold the filter cover upwards to close it. 5. Make sure that the filter cover locks engage correctly.

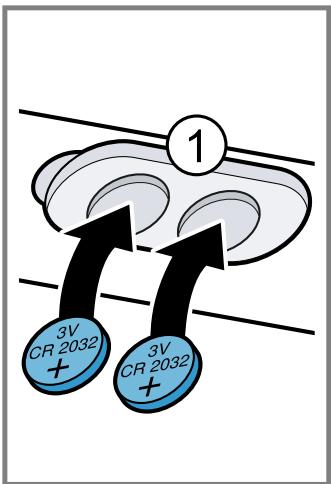

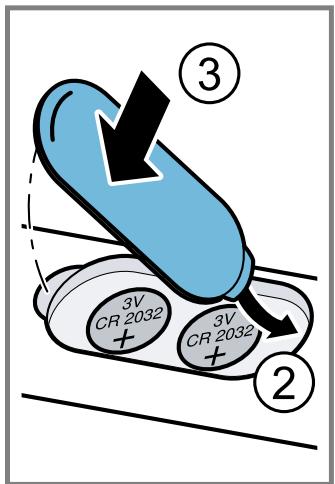

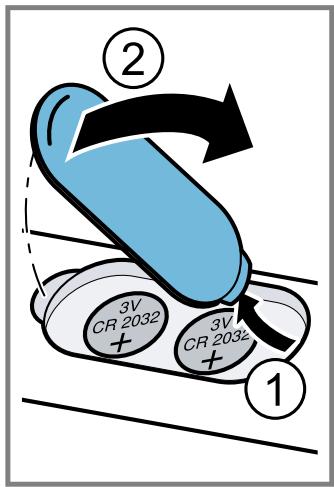

Replacing the batteries in the remote control WARNING ‒ Risk of injury! ¡ Children may swallow batteries. ▶ Keep batteries out of the reach of children. ▶ Keep an eye on any children when you are replacing batteries. ¡ Batteries may explode. ▶ Do not charge the batteries. ▶ Do not short-circuit the batteries. ▶ Do not throw batteries into a fire. ATTENTION! ¡ Improper handling of batteries. ▶ Do not short-circuit the terminals. ▶ Use the specified type of batteries only. ▶ Do not use different battery types together. ▶ Do not use new and used batteries together. ▶ Do not use rechargeable batteries. ¡ Leaking batteries may damage the remote control. ▶ Remove the batteries if you are not using the remote control. ▶ Safely dispose of the empty or defective batteries in an environmentally friendly manner. 1. Remove the cover.

Cleaning grease filters manually The grease filters filter the grease from the cooking vapour. Regularly cleaned grease filters guarantee a high level of grease removal.

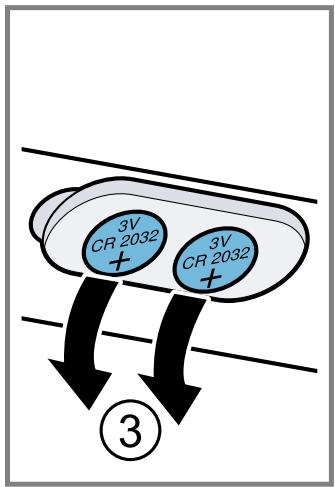

Troubleshooting 2. Remove the empty batteries.

4. Close the cover. 5. Dispose of the empty batteries in an environmentally

Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs. WARNING ‒ Risk of injury! Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ If the appliance is defective, call Customer Service. 3. Insert the new batteries (3 V CR 2032).

WARNING ‒ Risk of electric shock! Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.

Malfunctions Fault The appliance is not working.

Cause The mains plug of the power cord is not plugged in. The circuit breaker is faulty. There has been a power cut.

The lighting does not work.

Different causes are possible.

Remote control not working.

The batteries are flat.

In the LED display, the LEDs flash The batteries are almost empty. one to five times after the appliance is switched off. LED 1 flashes in the LED display. The grease filters are saturated.

troubleshooting ▶ Connect the appliance to the power supply. ▶ Check the circuit breaker in the fuse box. ▶ Check whether the lighting in your kitchen or other appliances are working. ▶ Call the after-sales service. → "Customer Service", Page 14 ▶ → "Replacing the batteries in the remote control", Page 12 ▶ → "Replacing the batteries in the remote control", Page 12 ▶ → "Cleaning grease filters in the dish-

washer", Page 12 ▶ → "Cleaning grease filters manually",

LED 2 flashes in the LED display. The odour filters are saturated. HomeConnect is not working cor- Different causes are possible. rectly.

Page 12 ▶ Change the odour filter. ▶ Go to www.home-connect.com.

Customer Service If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. You can solve many problems yourself by consulting the information on eliminating faults in this instruction manual or on our website. If this is not the case, contact our Customer Service. We will always find an appropriate solution and try to avoid unnecessary visits being made by a Customer Service technician. With any warranty claims we will make sure that your appliance is repaired by trained Customer Service technicians using original spare parts, including after the manufacturer's warranty has expired. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area. Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge. Detailed information on the warranty period and terms of warranty in your country is available from our Customer Service, your retailer or on our website. If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Product number (E-Nr.) and production number (FD) You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate. Depending on the model, the rating plate can be found: ¡ Inside the appliance (remove grease filters for access). ¡ On top of the appliance. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Accessories Only use original accessories. These have been made especially for your appliance. Here you can find an overview of your appliance's accessories and how to use them. accessories CleanAir recirculation module, flat with easychange filter (cannot be regenerated), stainless steel

Order number DIZ1JX5C1

accessories Order number DIZ1JX2C1 CleanAir recirculation module, flat with easychange filter (can be regenerated), white DSZ1JC1B1 Filter for air recirculation module, flat (cannot be regenerated)

Disposal Find out here how to dispose of old appliances correctly.

Disposing of old appliance Valuable raw materials can be reclaimed by recycling. 1. Unplug the appliance from the mains. 2. Cut through the power cord. 3. Dispose of the appliance in an environmentally friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish. ▶ Dispose of batteries in an environmentally friendly manner. Only for EU countries: According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Installation instructions

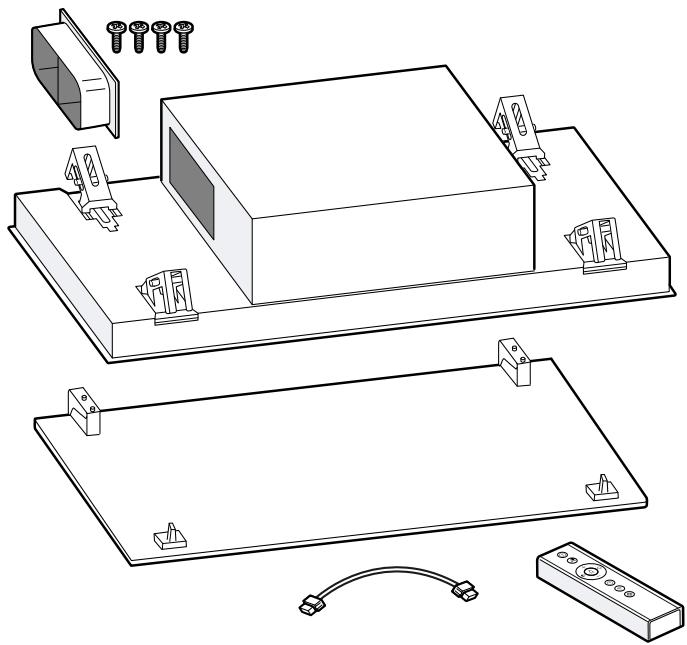

Installation instructions Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

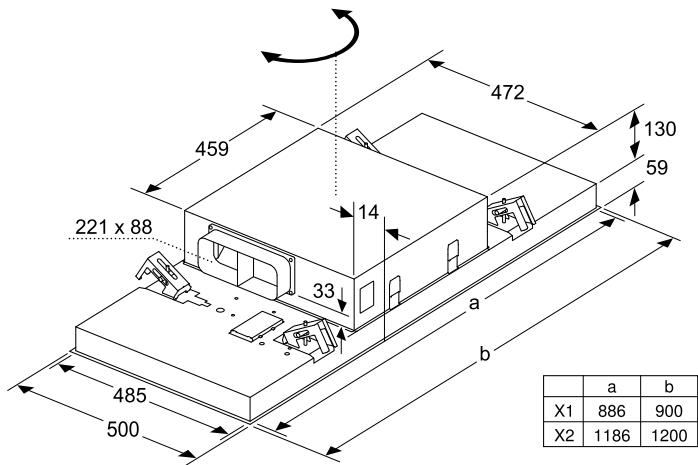

Dimensions You will find the dimensions of the appliance here

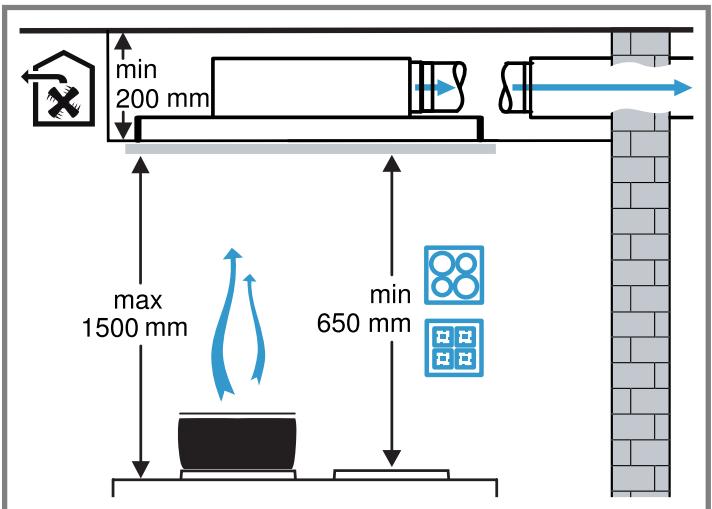

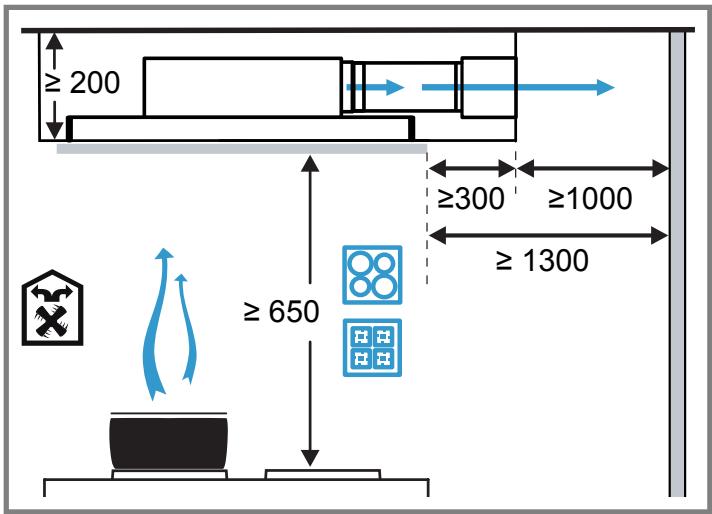

Safety clearances Comply with the safety clearances for the appliance.

Secure installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure.

en Installation instructions Toxic gases from the flue or the extraction shaft are sucked back into the living space.

▶ Always ensure adequate fresh air in the room if the

appliance is being operated in exhaust air mode at the same time as a room air-dependent heat-producing appliance is being operated. ▶ It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, in conjunction with incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit. ▶ In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. ▶ Unrestricted operation is possible if the appliance is operated exclusively in air recirculation mode. WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. WARNING ‒ Risk of fire! ¡ Grease deposits in the grease filter may catch fire. ▶ The specified safety clearances must be complied with in order to prevent a build-up of heat. ▶ Observe the specifications for your cooking appliance. If gas and electric hobs are being operated together, the largest specified clearance applies. ¡ Grease deposits in the grease filter may catch fire. ▶ Never work with naked flames close to the appliance (e.g. flambéing). ▶ Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks. WARNING ‒ Risk of injury! ¡ Components inside the appliance may have sharp edges. ▶ Wear protective gloves. ¡ The appliance may fall down if it has not been properly fastened in place. ▶ All fastening components must be fixed firmly and securely in place.

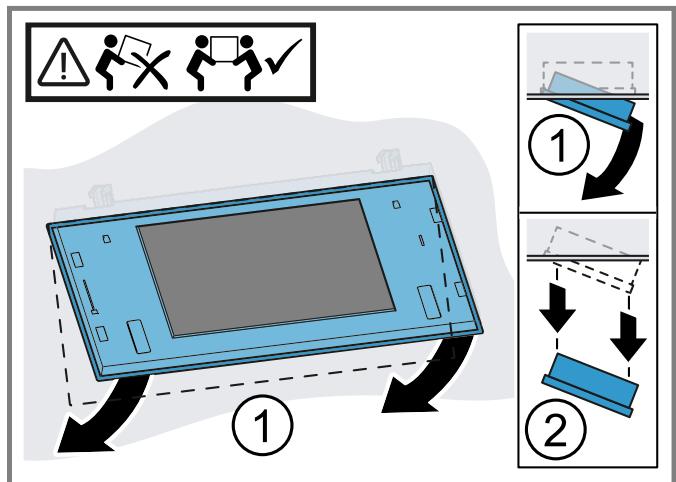

¡ The appliance is heavy. ▶ To move the appliance, two people are required. ▶ Use only suitable tools and equipment. ¡ The appliance is heavy. ▶ The appliance must not be fitted directly onto plasterboard or similar lightweight materials. ▶ To ensure correct installation, you must use a material which is sufficiently stable and suitable for both the structural conditions and the weight of the appliance. ¡ Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions. ▶ Do not make any changes to the electrical or mechanical assembly. ¡ Risk of falling when working on the appliance

▶ Use a stable stepladder. ▶ Do not lean over the hob. ▶ Do not step on the hob or the work surface.

¡ The filter cover may swing out. ▶ Open the filter cover slowly. ▶ Take hold of the filter cover after opening until it no longer swings out. ▶ Close the filter cover slowly. ¡ Risk of injury when opening and closing the hinges. ▶ Keep your hands away from the hinges. WARNING ‒ Risk of electric shock! ¡ Sharp-edged components inside the appliance may damage the connecting cable. ▶ Do not kink or trap the connecting cable. ¡ If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box. ▶ Call Customer Service. → Page 14 ▶ Repairs to the appliance should only be carried out by trained specialist staff. ¡ Improper repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff. ¡ Improper installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

Installation instructions ▶ The protective conductor system of the domestic

electrical installation must be properly installed. ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control. ▶ When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the conditions of Overvoltage Category III and according to the installation regulations. ▶ When installing the appliance, check that the power cable is not trapped or damaged.

Information on the installation situation ¡ Install this appliance on the kitchen ceiling or a stable suspended ceiling. ¡ The surfaces of the appliance are sensitive. Avoid damaging them during installation.

Instructions for the exhaust air pipe The appliance manufacturer does not provide any warranty for faults attributable to the pipeline. ¡ Use a short, straight exhaust air pipe with as large a pipe diameter as possible. ¡ Long, rough exhaust air pipes, many pipe bends or small pipe diameters reduce the suction power and increase the fan noise. ¡ An exhaust air pipe that is made of non-combustible material. ¡ To prevent condensate from returning, fit the exhaust air pipe from the appliance with a 1° gradient.

Round pipes Round pipes with an inner diameter of 150 mm.

Flat ducts Use flat ducts whose inner cross-section corresponds to the diameter of the round pipes: ¡ Diameter of 150 mm corresponds to approx. 177 cm². ¡ Use sealing strips for different pipe diameters. ¡ Do not use any flat ducts with sharp bends.

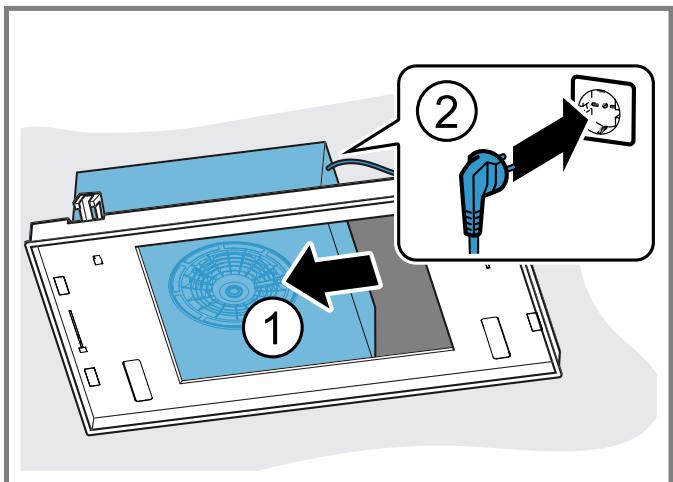

Instructions for the electrical connection In order to be able to safely connect the appliance electrically, follow these instructions. WARNING ‒ Risk of electric shock! ¡ It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket that has been correctly installed. ▶ The mains plug for the mains power cable must be easily accessible after the appliance is installed.

▶ If this is not possible, an all-pole isolating switch

must be integrated into the permanent electrical installation according to the conditions of overvoltage category III and according to the installation regulations. ▶ The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit. ¡ Sharp-edged components inside the appliance may damage the connecting cable. ▶ Do not kink or trap the connecting cable. ¡ The connection data can be found in the rating plate inside the appliance. ¡ To see the rating plate, remove the odour filter. ¡ The connecting cable is approx. 1.30 m long. ¡ This appliance complies with the EC interference suppression regulations. ¡ The appliance corresponds to protection class 1. Therefore, only use the appliance with a protective earth connection. ¡ Do not connect the appliance to the power supply during installation. ¡ Only a licensed professional may connect appliances without plugs. They are subject to the requirements of the local electricity provider.

General information ¡ The appliance finds it more difficult to draw in the cooking vapours the further away they are from the hob. Therefore maintain a distance of at least 700 mm and a maximum of 1500 mm. ¡ To optimally detect the cooking vapours, install the appliance in the middle of the cooktop. ¡ In order to freely access the appliance for servicing, select an easy-to-reach installation site. ¡ The surfaces of the appliance are sensitive. Avoid damaging them during installation.

Installation Checking the ceiling 1. Check whether the ceiling is horizontal and ad-

equately load-bearing. The max. weight of the appliance is 40 kg. Do not fit the appliance directly onto plasterboard (or similar lightweight materials) in a suspended ceiling. 2. Drill the borehole depth in accordance with the length of the screws. 3. Install the appliance with a material which is sufficiently stable and has been adjusted accordingly for both the structural conditions and the weight of the appliance. 4. Check the cut-out area for existing cables of other appliances.

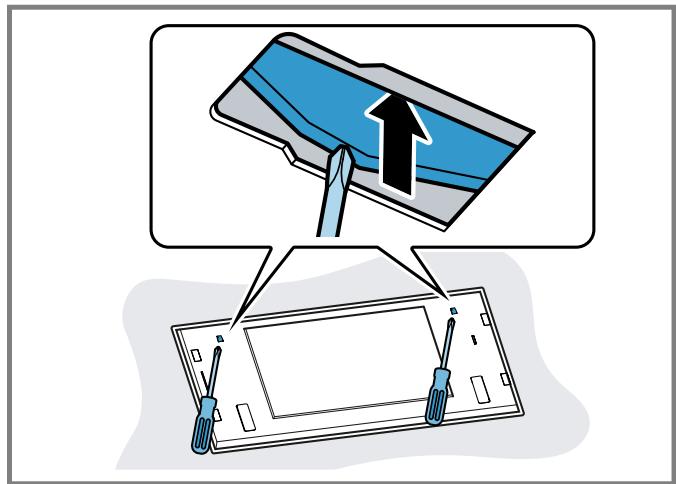

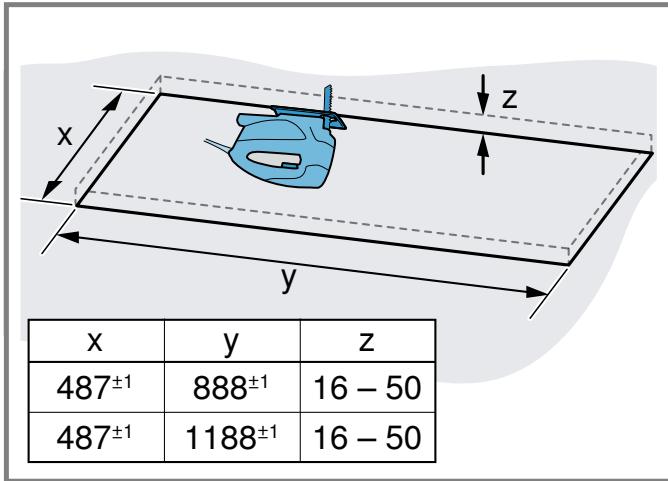

Preparing the ceiling 1. Ensure that the stability of the ceiling is guaranteed

after the cut-outs have been made. 2. Cover the hob to prevent damage.

en Installation instructions 3. Saw a cut-out into the ceiling.

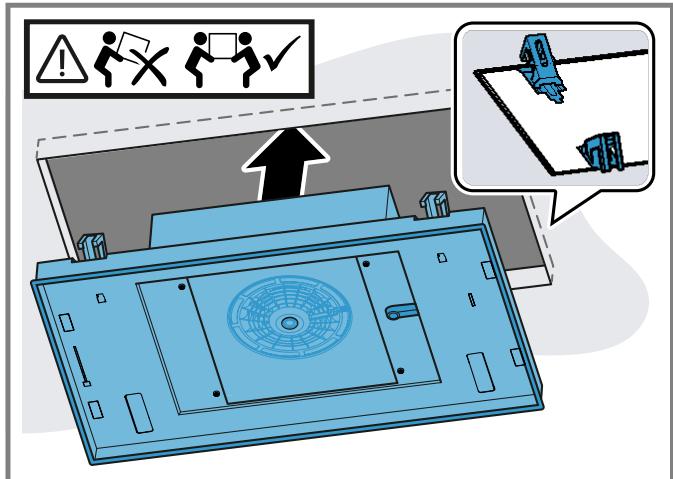

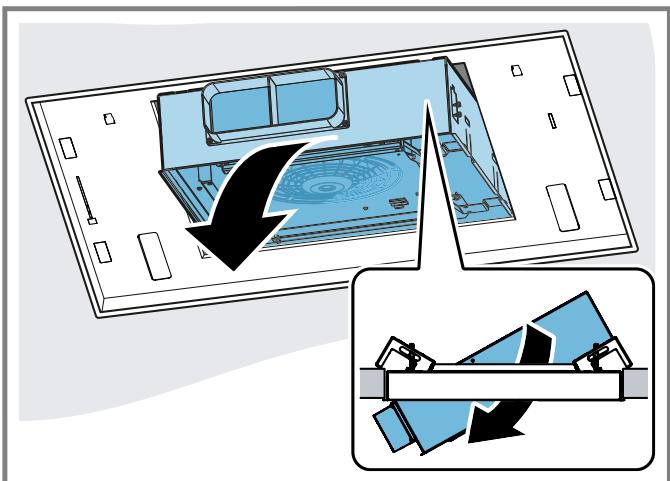

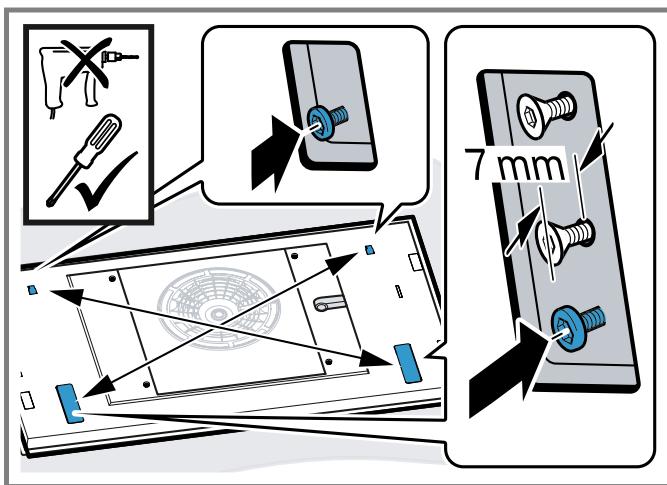

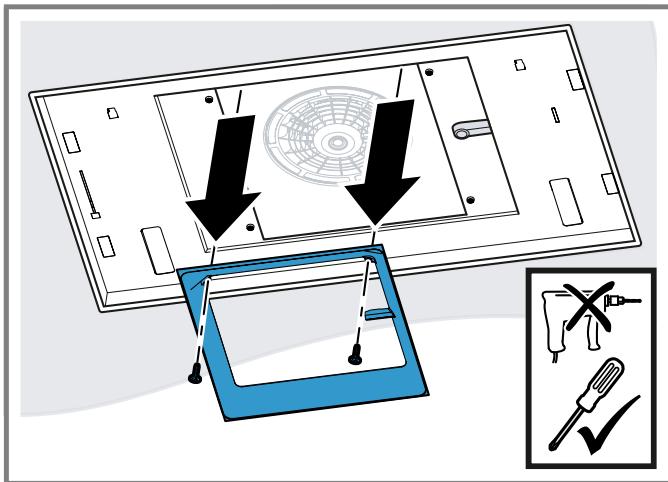

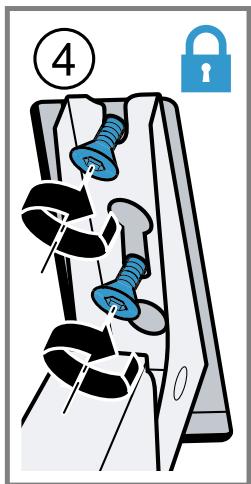

1. Insert the appliance into the cut-out until you hear

the mounting brackets engage.

y z ±1 888 16 – 50 1188±1 16 – 50

4. Remove any shavings.

Preparing the appliance

2. Carefully screw in diagonally opposite screws.

1. Remove the grease filters.

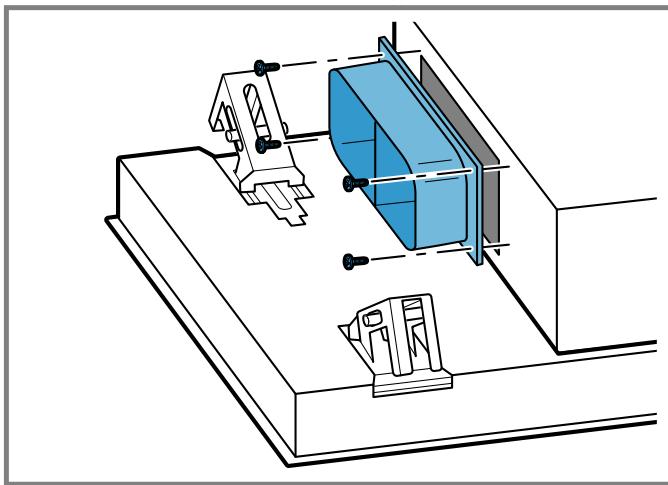

To avoid causing damage, do not bend the grease filters. 2. Screw the flat duct connection onto the fan group.

Tighten the screws one at a time so that the appliance is not wedged in the cut-out. 3. Note: To ensure that the appliance is not damaged, do not overtighten the screws. Carefully tighten screws in succession until the appliance is flush-mounted on the ceiling.

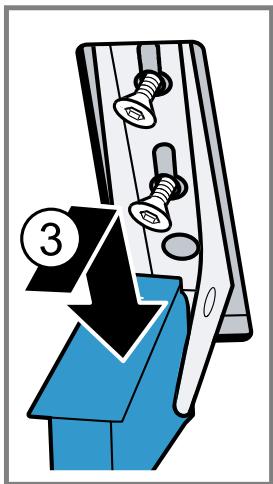

Installing the appliance WARNING ‒ Risk of injury! ¡ Components inside the appliance may have sharp edges. ▶ Wear protective gloves. ¡ The appliance is heavy. ▶ To move the appliance, two people are required. ▶ Use only suitable tools and equipment.

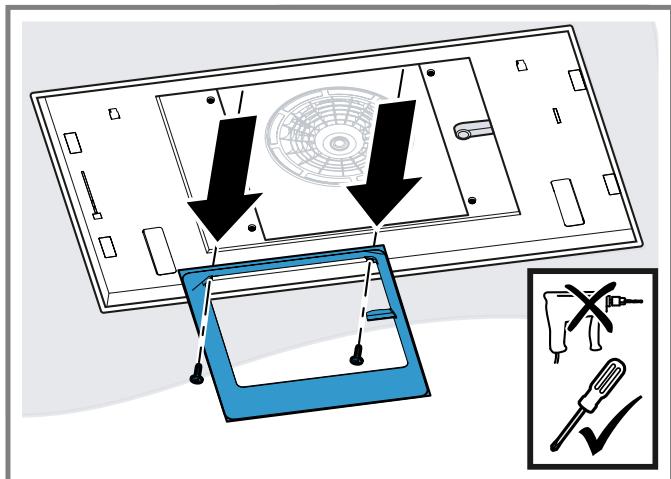

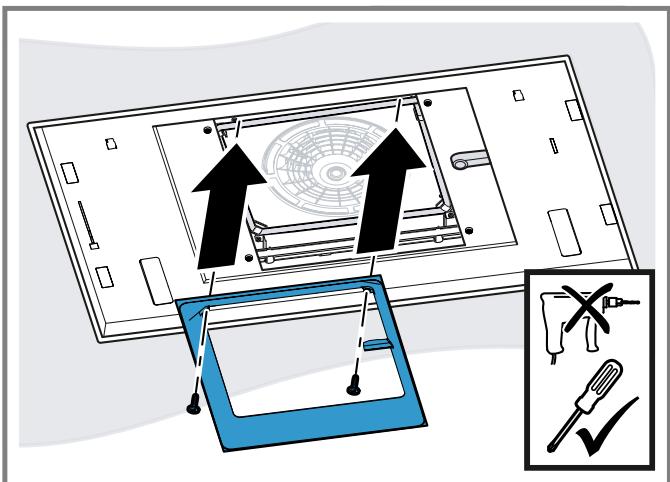

Connecting the appliance 1. Undo the screws on the top frame assembly using a

screwdriver and remove the top frame assembly.

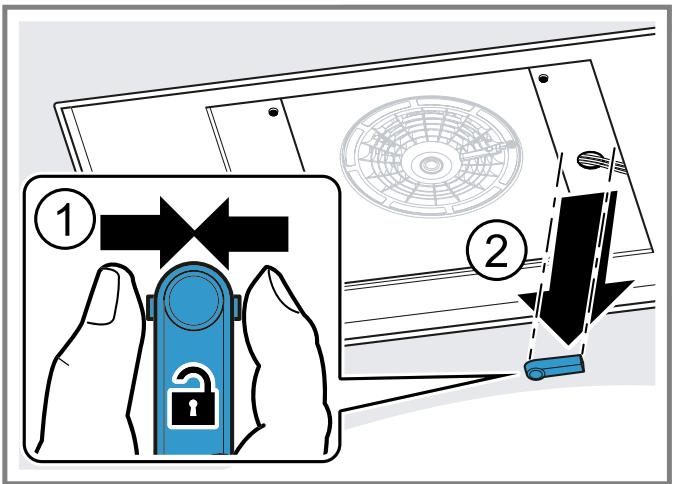

Installation instructions 2. Press together the cable duct at the sides and re-

5. Undo the opposite screws to loosen the fan box.

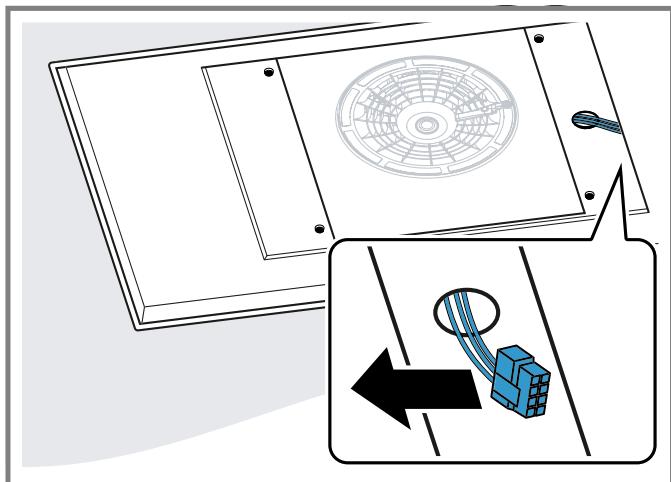

6. Push the fan box to the side and connect the appli3. Disconnect the cable at the appropriate point.

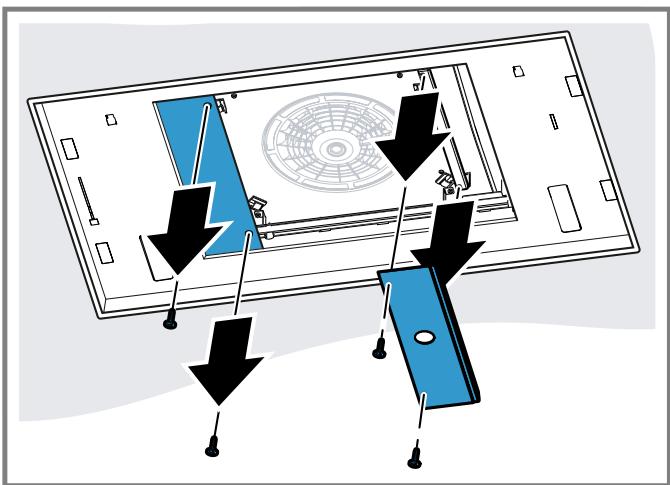

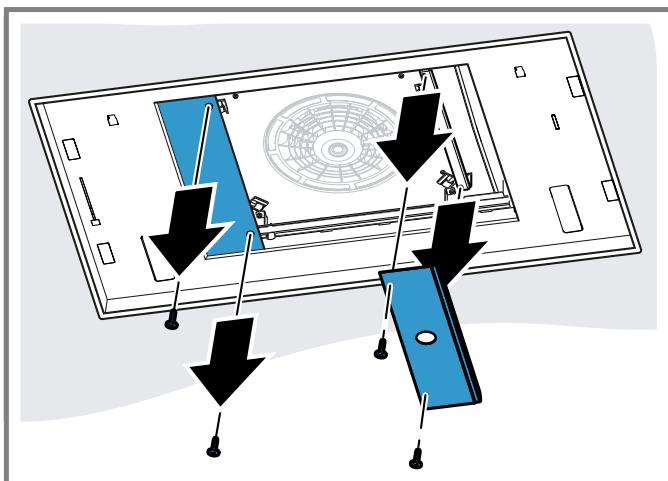

4. Loosen the screws on the side covers and remove

ance to the power supply.

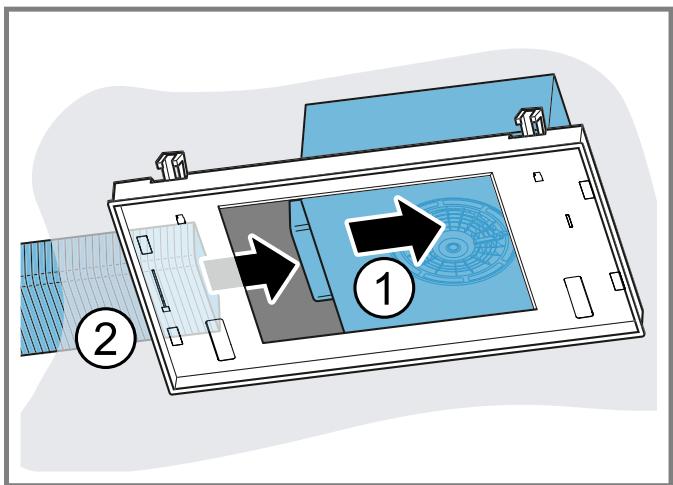

7. Push the fan box to the other side and connect the

8. Position the fan box in the centre and screw it firmly

Installation variants of the fan box The fan box can be rotated according to the installation situation.

en Installation instructions Turning the air outlet to the back 1. Starting with the delivery condition, turn the fan box clockwise so that the air outlet is pointing to the back. 2. Insert the extension cable. 3. Hook the cable into the cable guides 1 and 2.

2. Undo the screw on the metal hook.

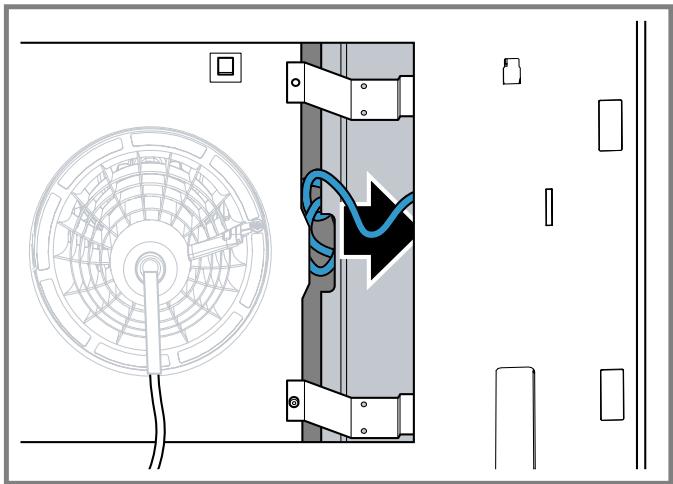

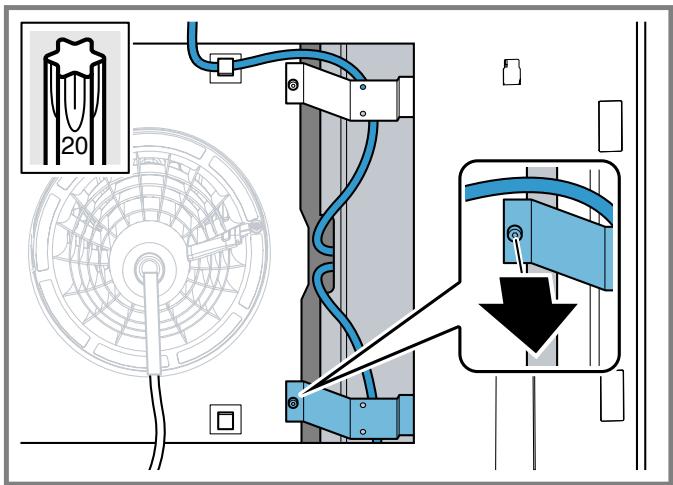

Turning the air outlet to the front 1. Starting with the delivery condition, turn the fan box anti-clockwise so that the air outlet is pointing to the front. 2. Undo the screw on the metal hook.

3. Das Kabel durch den Metallhaken ziehen. 4. Das Kabel in die Kabelführung 4 einhängen. 5. Tighten the screw on the metal hook so that it is

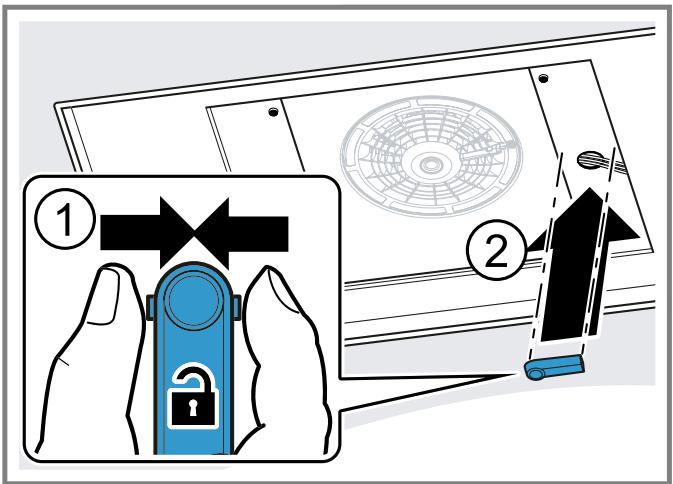

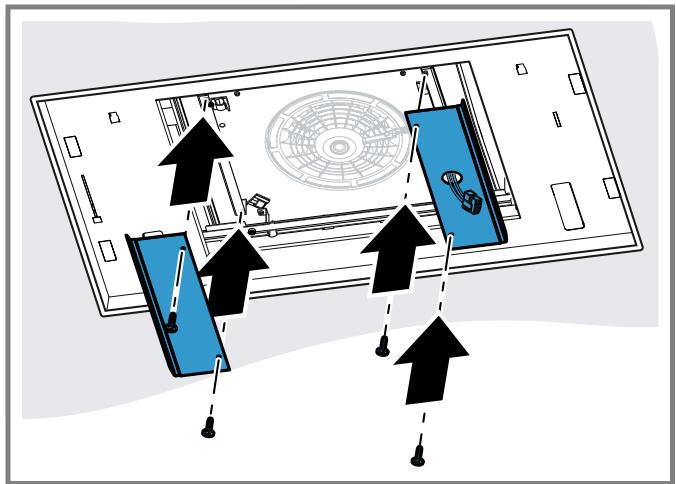

Finishing connecting the appliance 1. Guide the cable through the opening in the side

cover. 2. Insert the side covers and screw them firmly in place. 3. Pull the cable through behind the metal hook and

hook it in the cable guides. 4. Store the remaining cable in the gap.

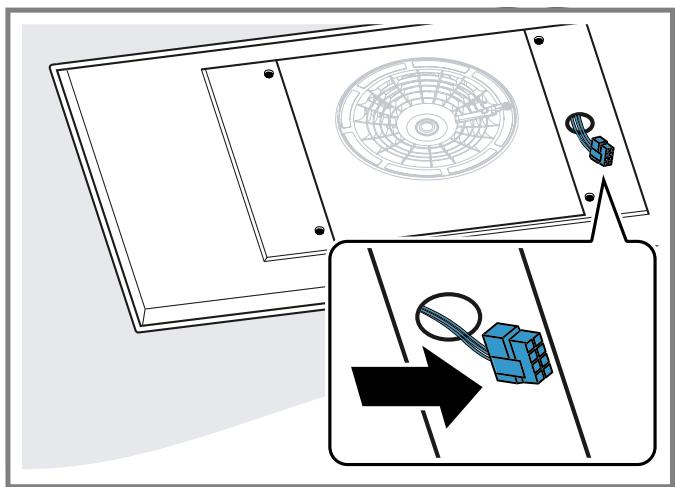

3. Connect the cable.

5. Tighten the screw on the metal hook so that it is

firmly in place. Turning the air outlet clockwise 1. Ausgehend vom Auslieferungszustand, den Lüfterkasten im Uhrzeigersinn drehen, sodass der Luftauslass nach rechts zeigt.

Installation instructions 4. Press together the cable duct at the sides and at-

2. Mount the filter cover on the designated screws and

push it backwards/forwards depending on the key hole opening into the narrow section.

5. Fit the cover frame and screw it firmly in place.

Fitting the filter cover

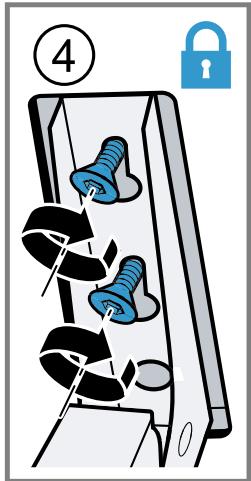

3. Tighten the fastening screws on the hinges. 4. Check whether the appliance frame is lying flush.

WARNING ‒ Risk of injury! ¡ Components inside the appliance may have sharp edges. ▶ Wear protective gloves. ¡ Risk of injury when opening and closing the hinges. ▶ Keep your hands away from the hinges. 1. Open the hinges on the filter cover.

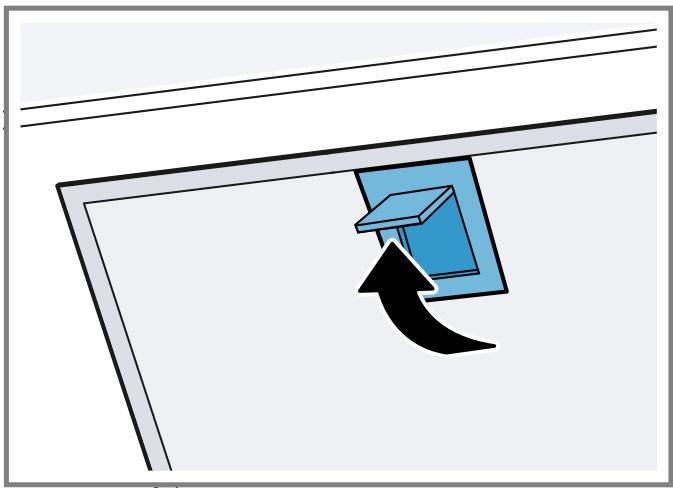

Tighten the screws once again if necessary. 5. Insert the grease filters. To avoid causing damage, do not bend the grease filters. 6. Swing the filter cover up and ensure that it engages.

en Installation instructions

Removing the appliance

8. Press together the cable duct at the sides and re-

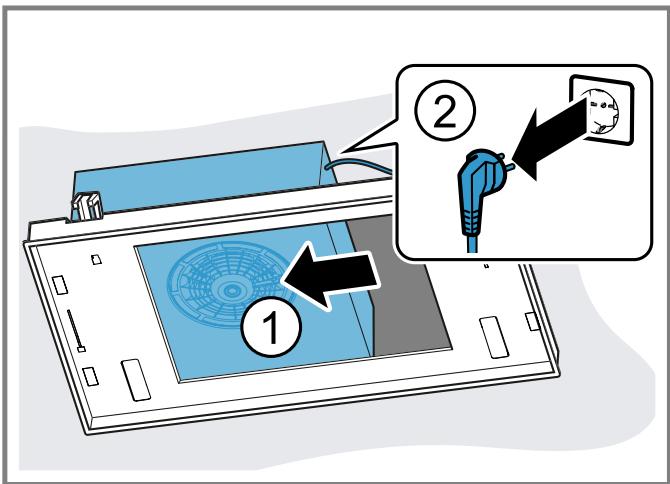

WARNING ‒ Risk of injury! ¡ The appliance is heavy. ▶ To move the appliance, two people are required. ▶ Use only suitable tools and equipment. ¡ Components inside the appliance may have sharp edges. ▶ Wear protective gloves. ¡ Risk of injury when opening and closing the hinges. ▶ Keep your hands away from the hinges. 1. Disconnect the appliance from the power supply. 2. Remove the grease filters.

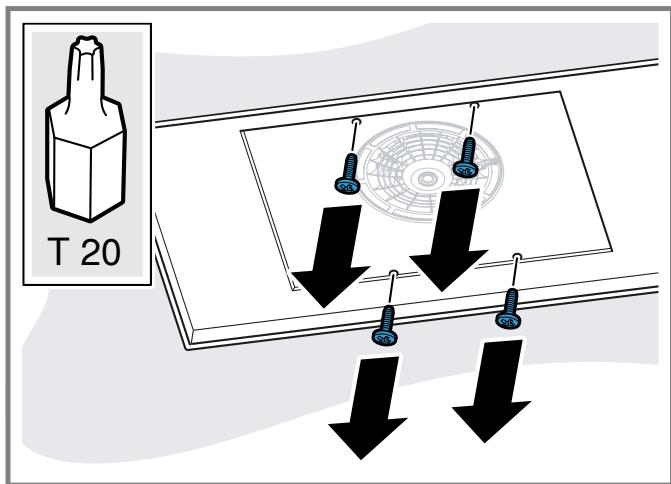

To avoid causing damage, do not bend the grease filters. Open the cable duct on the filter cover and loosen the cable. Undo the screws on the hinges up to approx. 7 mm. Do not loosen the screws fully. Unhook and remove the filter cover. Undo the screws on the top frame assembly using a screwdriver and remove the top frame assembly.

9. Disconnect the cable at the appropriate point.

10. Undo the opposite screws to loosen the fan box.

7. Loosen the screws on the side covers and remove

Installation instructions 11. Push the fan box to the side and release the pipe-

12. Push the fan box to the other side and pull out the

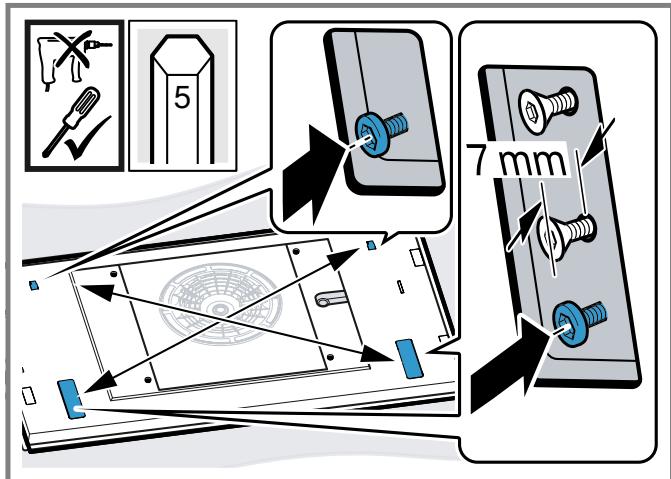

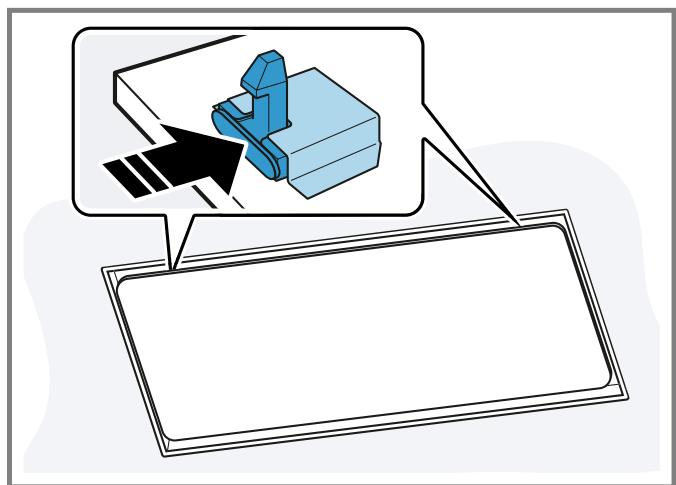

15. Loosen the mounting brackets on the appliance us-

16. Slowly take the appliance out of the cutout.

13. Rotate the fan box in such a way that the air outlet

14. Remove the fan box.

Thank you for buying a Bosch Home Appliance! Register your new device on MyBosch now and profit directly from:

Expert tips & tricks for your appliance Warranty extension options Discounts for accessories & spare-parts Digital manual and all appliance data at hand Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

Looking for help? You'll find it here. Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.

Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.bosch-home.com
