CONTENTS

Installation and Operation of your Refrigerator....4

Before Starting to Operate Your Refrigerator 4

Information on No-Frost technology 5

USAGE INFORMATION......6

Display....6

Switching on the appliance....7

MODE button....7

Super freezing mode 8

Super cooling mode....9

Turbo mode 10

Holiday mode....11

Economy mode....12

Child lock function.... 13

No light mode.... 13

Screen saving mode....14

Freezer compartment temperature adjustment 15

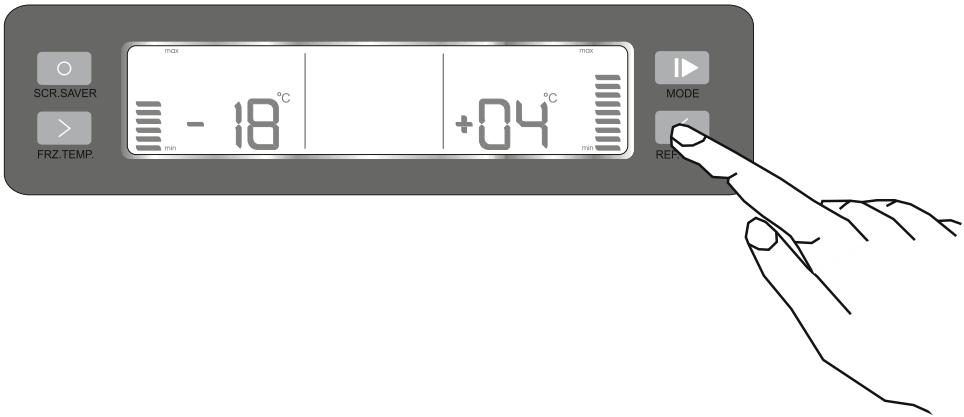

Cooler compartment temperature adjustment....16

Warnings about temperature adjustments....16

Accessories 17

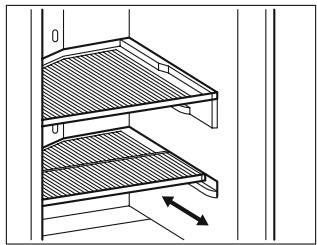

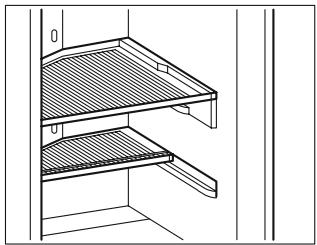

Magic Shelf....17

Making Ice Cubes....17

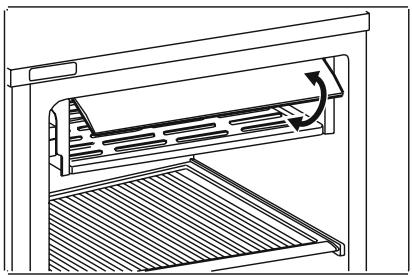

Fast Freezing Shelf.... 18

Chiller Shelves....18

Crisper and Crisper Shelf 18

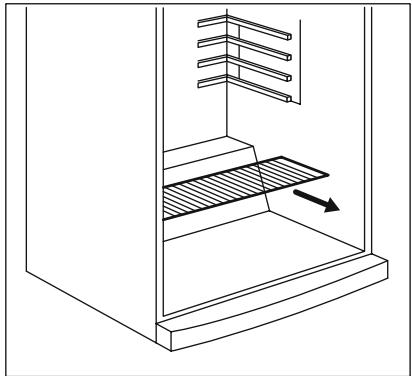

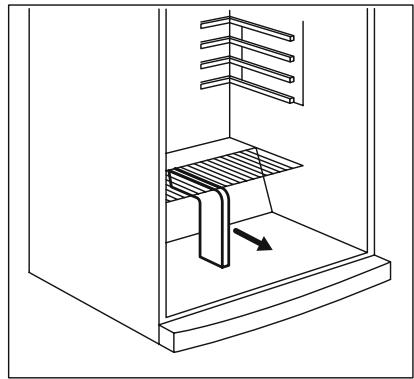

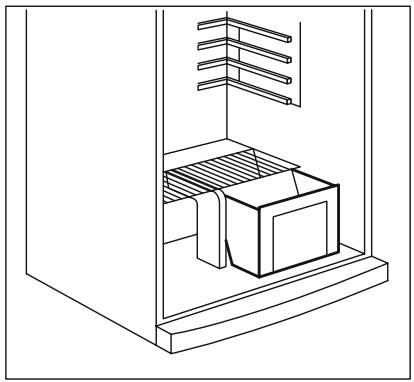

REMOVING THE CRISPER COVER....19

FOOD PLACEMENT....20

Cooling Compartment....20

Deep Freeze Compartment....21

CLEANING AND MAINTENANCE 25

Defrosting 25

Replacing the refrigerator and freezer light bulb 26

SHIPMENT AND REPOSITIONING....26

Repositioning the Door 26

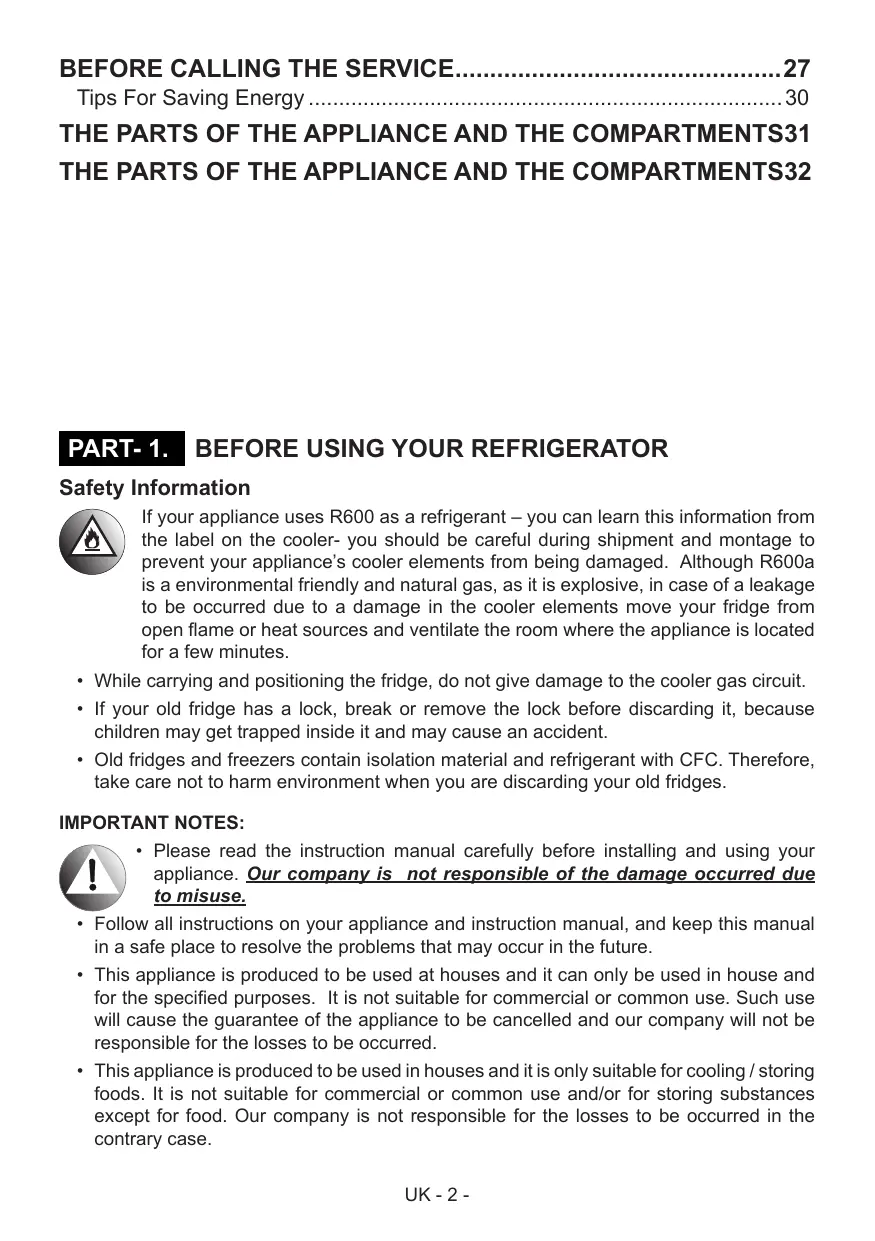

BEFORE CALLING THE SERVICE....27

Tips For Saving Energy 30

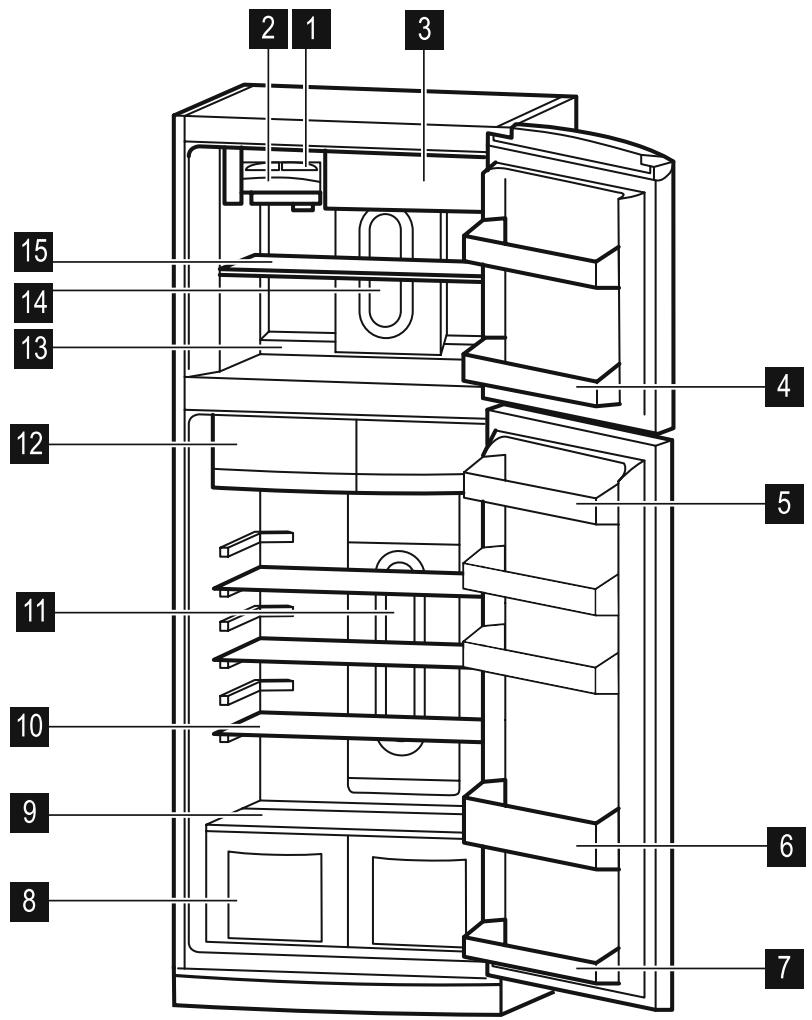

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS31

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS32

If your appliance uses R600 as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance's cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

IMPORTANT NOTES:

- Please read the instruction manual carefully before installing and using your appliance. Our company is not responsible of the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Security warnings

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Please do not use a multi-way socket or an extension cable.
• Please do not insert a plug whose cable is damaged, torn or worn-out into the socket.
• Please never pull, bend or damage the cable.

Illustration of three hands performing a manual tool manipulation technique (no text or symbols present)

• This product has been designed for utilization by adults; please do not let children play with the device and dangle their body by hanging on the door.
• Never ever take out the plug from the socket with wet hands in order not to cause any electrical shock!
• Please do not ever place acidic drinks in glass bottles and cans in the deep-freeze compartment of your refrigerator. Bottles and cans may burst out.
• For your safety, please do not place any explosive and flammable materials in the refrigerator. Place the drinks with high alcohol content into the cooling compartment of the device with their lids tightly closed and in a vertical position.
• Avoid any manual contact as you take out the ice made in the deep freeze compartment; the ice may cause burns and/or cuts.
• Never ever touch the frozen food with bare hands! Do not eat the ice cream and ice cubes immediately after you taken them out of the deep freeze compartment!

- Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.

- Please do not cover the body and/or top of the refrigerator with cloth, table cover etc. This will negatively affect the performance of the refrigerator.

- Secure the accessories inside the appliance in order to prevent them get damaged while moving.

- The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

se do hanging

Illustration of a hand holding a smiling emoji next to a prohibition symbol (no text or numbers present)

Illustration of a bottle and glass with explosion effects (no text or symbols)

Installation and Operation of your Refrigerator

- The operation voltage of your refrigerator is 220-240 V and 50 Hz.

- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- Our company shall not be held responsible for damages that may arise due to utilization with no grounding installation.

- Place your refrigerator in a suitable spot that it will not be exposed to direct sunlight.

- It should be at least 50 cm away from heat sources such as cookers, ovens, wing radiators and stoves and at least 5 cm away from electrical ovens.

- Your refrigerator should not be used in the open air and should not remain under the rain.

- If your refrigerator is juxtaposed with a deep freeze, it is necessary to leave a space of at least 2 cm between them in order to prevent condensation on the outer surfaces.

- Please do not place any heavy objects on your refrigerator and place your refrigerator in a suitable spot in such a way that there will be a free space of minimum 15 cm on the top.

- If your are going to place the refrigerator beside your kitchen cabinets then you should keep a clearance of at least 2 cm's between them.

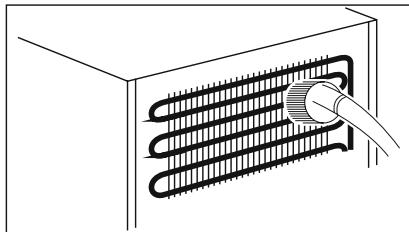

- To prevent the condenser (the black backside component with fins) from touching the wall, put on the plastic distance guide in its place rotating 90^ .

- To ensure smooth and vibration-free operation of your refrigerator, the adjustable front feet must be set at the suitable height and mutually balanced. You can ensure this by turning the adjustable feet clockwise (or counter-clockwise). This process should be performed before the food is placed in the refrigerator.

- Before using your refrigerator, wipe all its parts with warm water in which you shall add one teaspoon of food soda, then rinse it with clean water and dry it. After the cleaning process is completed, place all the parts back.

Before Starting to Operate Your Refrigerator

- During the first operation or to ensure the efficient operation of the device following the relocation processes, allow your refrigerator to remain idle for 3 hours (in a vertical position), then insert the plug to the socket. Otherwise, you may damage the compressor.

- The first time you operate your refrigerator, an odor might be smelt. This odor shall disappear once your refrigerator starts cooling.

Cartoon illustration of a refrigerator with a character holding a 'KG' and a smiling refrigerator with a bag, accompanied by a bowl and utensils (no text or symbols)

Two schematic diagrams of a coiled structure with internal channels and directional arrows, no text or symbols present.

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Information on No-Frost technology

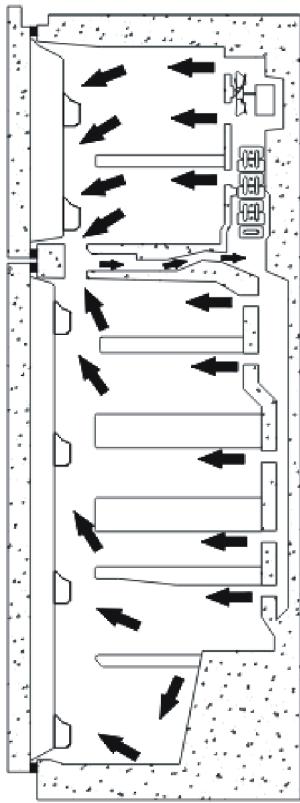

No-frost refrigerators differ from other static refrigerators in their operating principle.

In normal fridges, the humidity entering the fridge due to door openings and the humidity inherent in the food causes freezing in the freezer department. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in a separately cooled container, and remove the ice gathered in the freezer department.

The situation is completely different in no-frost fridges. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost fridge allows you ease of use, in addition to its huge capacity and stylish appearance.

PART-2. USAGE INFORMATION

Display

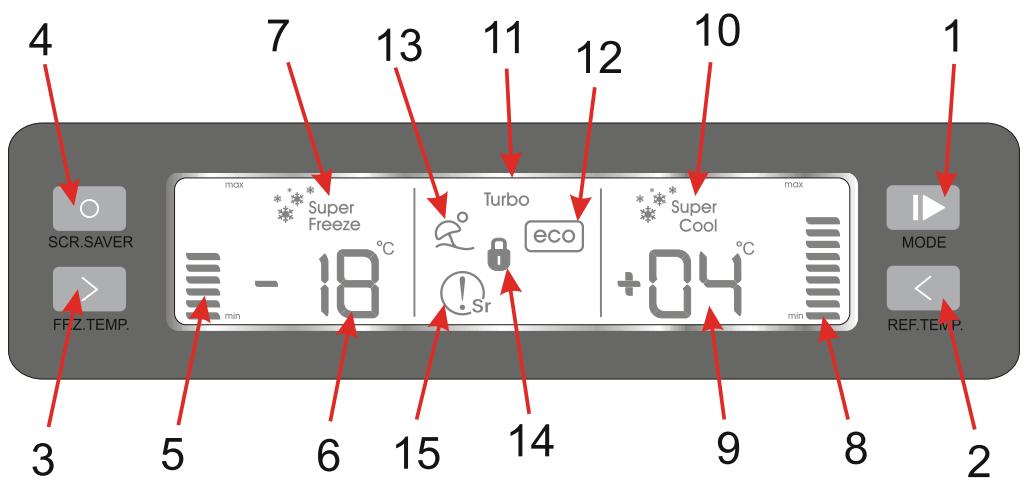

4 SCR.SAVER FFZ.TEMP. 3 5 6 7 13 11 12 10 1 max Super Freeze Turbo eco +04 °C min super Cool MODE REF.TEMP. 9 8 2

1. MODE button

Thanks to this button you can select the different modes: Economy, Super Freezing, Turbo, Super Cooling, Holiday.

2. REF. TEMP. button

Set the cooler compartment temperature.

3. FRZ.TEMP. button

Set the feezer compartment temperature.

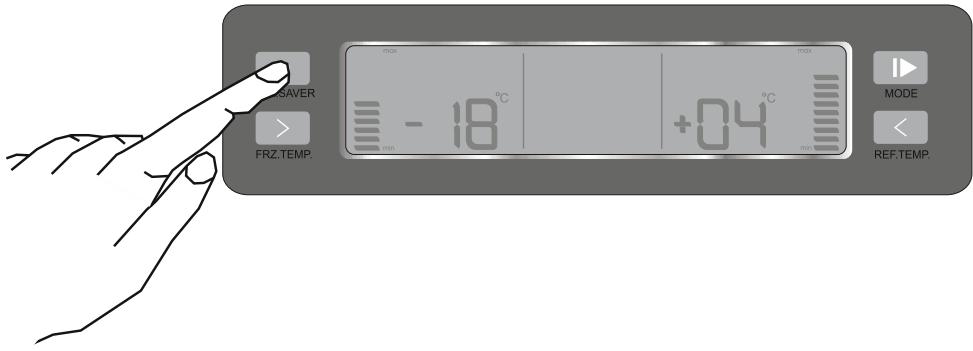

4. SCR.SAVER button

All lights on the screen are turned off when you hold this button pressed for 5 seconds. Screen lights are turned on again when you press any button.

5. Freezer compartment temperature bar graphic

Shows the temperature value set for the freezer compartment. 3 bars at -16^ , 6 bars at -18^ , 8 bars at -20^ , 10 bars at -22^ , 12 bars at -24^ . The highest number of bars is displayed at the coolest setting.

6. Freezer compartment adjusted temperature indicator

Shows the temperature value set for the freezer compartment.

7. Symbol of Super Freezing Mode

It is super Freeze mode symbol.

8. Cooler compartment temperature bar graphic

Shows the temperature value set for the cooling compartment. 3 bars at 8^ C, 6 bars at 6^ C, 9 bars at 4^ C, 12 bars at 2^ C. The highest number of bars is displayed at the coolest setting.

9. Cooler compartment adjusted temperature indicator

Shows the temperature value set for the cooling compartment.

10. Symbol of Super Cooling Mode

It is Super Cooling Mode symbol.

11. Symbol of Turbo Mode

It is Turbo Mode symbol.

12. Symbol of Economy Mode

It is Economy Mode symbol.

13. Symbol of Holiday Mode

It is Holiday Mode symbol.

14. Symbol of Child Lock Function

To lock or unlock the control panel, hold down at the same time the buttons of freezer compartment (3) and cooler compartment (2). When the function is engaged, the lock symbol is displayed.

15. Indicates a failure.

Will light together with the SR sign.

Information: When you function is selected, the corresponding symbol lights.

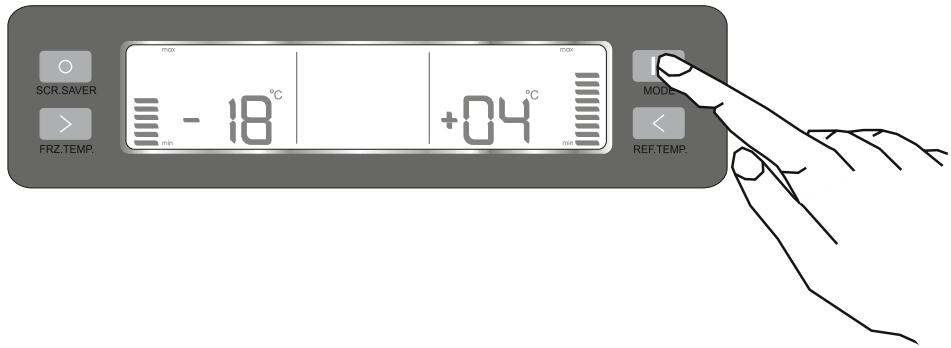

Switching on the appliance

After the appliance is plugged, all symbols will appear for 2 seconds, and then the startup values will appear as -18^ on freezer setting indicator and +4^ on cooler setting indicator.

MODE button

SCR.SAVER FRZ.TEMP. max - 18 °C min +04 °C min MODE REF.TEMP.

• The functions are selected by pressing on the “Mode” button until the desired function starts to blink.
• The function selection sequence is always the same: Super Freezing, Holiday, Economy, Super Cooling. After the 5th pushing, no function is selected and no symbols lights.

Information: When convenient symbol starts to light, symbol will blink 3 times and a beep of confirmation will sound if user does not push any button within 2 seconds.

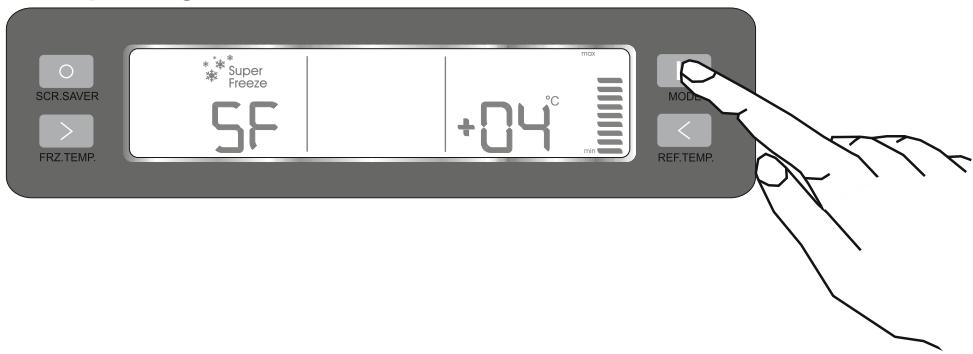

Super freezing mode

SCR.SAVER FRZ.TEMP. * * * Super Freeze SF +04 °C MAX MODEL REF.TEMP.

When will apply;

• To freeze lots of food that cannot fit into "Fast Freezing Shelf".
  • To freeze prepared foods
• To freeze faster
  • To conceal fresh foods and vegetables

How to use ;

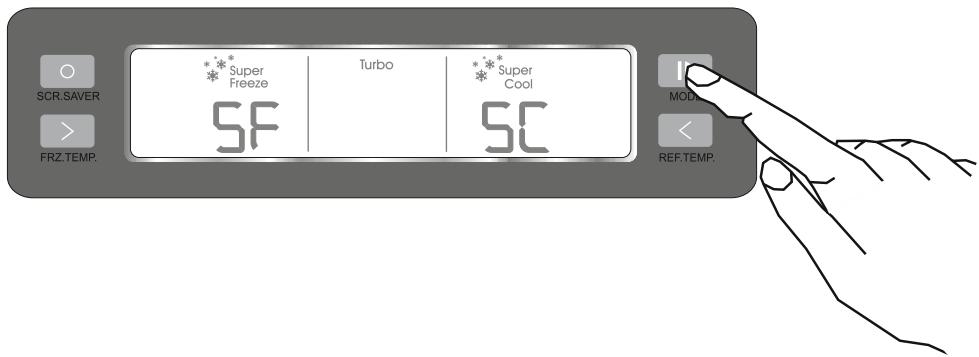

• Press mode buton until Super Freezing symbol will light.
• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.

Freezer temperature segment will show "SF" during this mode.

• Freezer bar graphic lights will be off.
• 3 hours after being activated, your refrigerator starts giving signals. This signal tells that the quickfreezer compartment is ready for the foods to be placed in it. Your refrigerator will give intermittent beep sounds for 1 minute in every 5 minutes; provided that the doors are not opened, this signal giving will last 1 hour. When this sound is heard, foods to be frozen must be placed away from the already frozen ones. When the door of the freezer or cooler is opened, this signal stops. When your foods are cooled enough, your refrigerator will automatically go out of the quick freezing mode. After a period of maximum 24 hours after the function is activated, the freezing process will be completed.
• Holiday and Economy modes will not work until Super Freezing mode finishes.
• Super cooling and refrigerator temperature adjusting can be enabled.
• Freezer temperature adjusting can be done but will not be active until super freezing finishes.
• Mode will be cancelled if selected super freezing mode symbol again.

Note: “SUPER FREEZE” will be cancelled automatically after 24 hour or when freezer Sensor <-32°C

Super cooling mode

SCR.SAVER FRZ.TEMP. max - 18 °C * super Cool 5°C MO. < REF.TEMP.

When will apply;

• To cool the prepared foods.
• To cool and conceal a lots of food in refrigerator compartment.
• To cool the drinks more quickly

How to use;

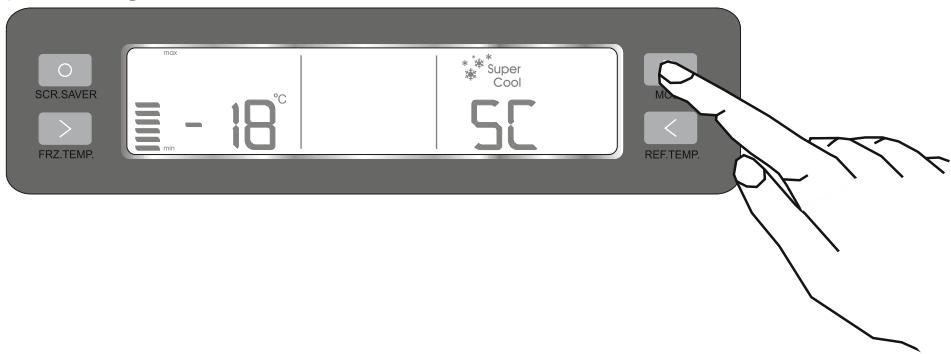

• Press mod button until super cooling symbol will light.
• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.
• Refrigerator temperature segment will show "SC" during this mode.
• Refrigerator bar graphic lights will be off.
• Holiday and Economy modes will not work until super cooling mode finishes.
• Super Freezing and Freezer temperature adjusting can be enabled.
• Refrigerator temperature adjusting can be done but will not be active until super cooling finishes.
• Mode will be cancelled if selected super cooling mode symbol again

Note: When the sensor of the refrigerator compartment reaches -4^ or the function stops automatically after 8 hours. The reason of this time period was restricted as 8 hours is to prevent food freezing risks which can be occurred by powerful cooling attribute.

Turbo mode

SCR.SAVER * * * Super Freeze SF Turbo * * * Super Cool MODI FRZ.TEMP. SC REF.TEMP.

"Turbo" mode cannot be selected individually.

When will apply;

Turbo symbol will light when both Super cooling and super freezing symbol is selected

How to use ;

• Press Mode button until Super Freezing symbol will light. Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.
• Please repeat the same operation to set "Super Cooling"
• After the two functions are selected, you will see “Turbo” symbol which is displayed automatically between super freezing and super cooling
• When “Turbo” mode is on, Frzeer temperature segment will show “SF” and Refrigerator temperature segment will show “SC”.
• Freezer and refrigerator bar graphic lights will be off.
• Holiday and Economy modes will not work until “Turbo” mode finishes.
• Freezer and refrigerator temperature's adjusting can be done but will not be active until super freezing and super cooling are deactivated.
• Turbo symbol will be off as soon as one of the modes (super freezing or super cooling) is cancelled manually or automatically

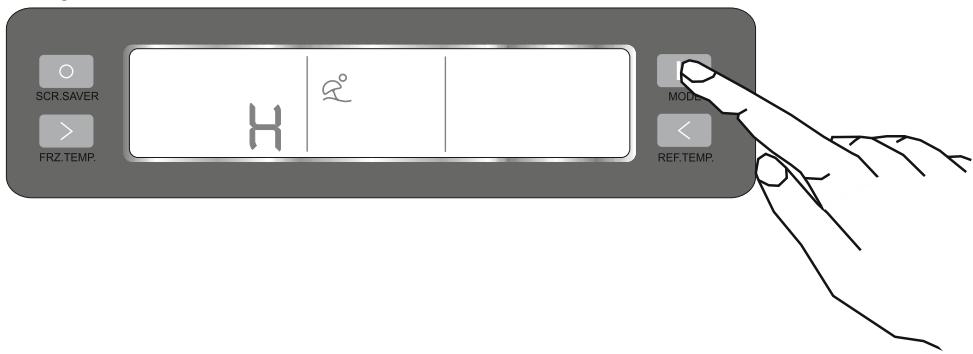

Holiday mode

You can activate the function if you go to holiday and if you use only the freezer compartment.

How to use ;

• Press mod button until Holiday symbol will light.
• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.
• Freezer compartment will go on working with the set value defined on the control circuit during the holiday mode.
• Freezer temperature segment will show "H" during this mode.
• Refrigerator temperature segment and bar graphic lights will be off.
• Mode will be cancelled if selected holiday symbol again.
• Appliance will go on to work with previous manually adjusted values. If no temperature values have been adjusted manually, it will go on with initial values (Freezer Compartment -16°C and Refrigerator Compartment +8°C)

Economy mode

SCR.SAVER E eco MOD FRZ.TEMP. E E REF.TEMP.

When will apply;

• If you want to use at a set value is defined on the control circuit
• Both compartments will work in the normal regulation with the set values

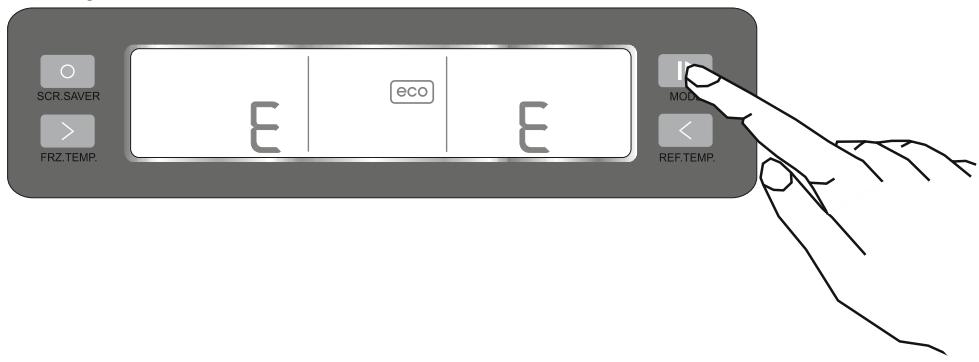

How to use ;

• Press Mode button until Super Freezing symbol will light.
• Symbol will blink 5 times and a beep of confirmation will sound if user does not push any button within 2 seconds.
• During mode economy symbol will light, freezer/refrigerator temp. segments will show "E". Bars will be off.
• Freezer and refrigerator bar graphic lights will be off.
• The other modes will not work till economy mode finishes.
• Mode can be cancelled by selecting symbol again.

Child lock function

SCR.SAVER TEMP - 18 °C +04 °C MODE REF.0

When will apply;

- This refrigerator is equipped with a lock system for protection against children's misusing.

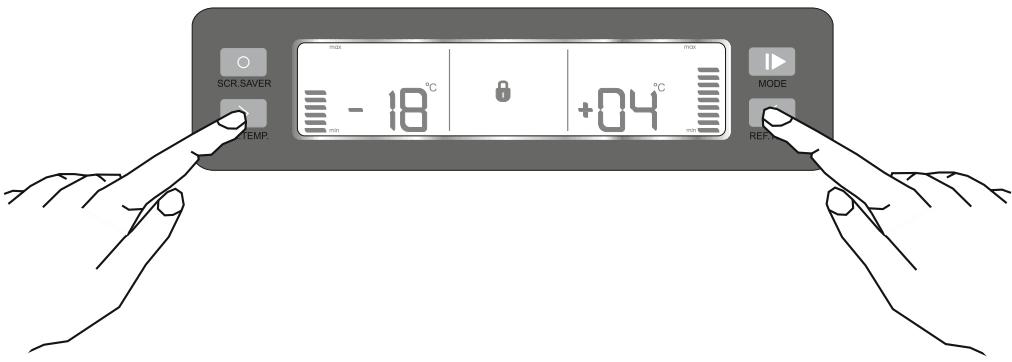

Setting The Child Lock

- Press the "FRZ.TEMP." and "REF.TEMP" buttons continuously for 5 sec at the same time. When the function is engaged, the lock symbol will light.

Cancelling The Child Lock

- Press the "FRZ.TEMP." and "REF.TEMP" buttons continuously for 5 sec at the same time. Lock symbol will cancel.

Note: When there is a power failure, the "Child Lock" will cancel automatically.

No light mode

When will apply;

If you want to disable lamps for both of compartments, you can choose this mode. Lamps will not light till mode is cancelled.

Setting This Mode;

Push both refrigerator and freezer button at the same time, open and close freezer door 3 times.

Cancelling This Mode;

Function can be cancelled by the same way or after 24 hours appliance will directly cancel it.

Screen saving mode

SAVER FRZ.TEMP. max -18 °C +04 °C max MODE REF.TEMP.

When will apply;

If you do not want the control panel lights to be on and consume energy unnecessarily while you have not made any changes in your settings, you may activate this mode.

How to use ;

• When you press and hold "SCR. SAVER" button for 5 seconds, this mode will be activated.
• While this mode is activated, if no key is pressed and if doors are not opened for 10 seconds, lights of the control panel will go off.
• If you press on any key when the control panel's light's are off, current settings appear on the display to let you make any change you wish. If you do not cancel the screen saving mode or press any key for 10 seconds, control panel will dim again.
• To cancel the screen saving mode, press and hold the screen saving mode button again for 5 seconds.
• When the screen saving mode is activated, you can also activate child lock function.
• If you do not touch the keys for 10 seconds after activating the child lock function, control panel's lights will go off. When you press any key following this, you can view previous settings and the activated child lock and you can cancel the child lock function as described in that mode above.

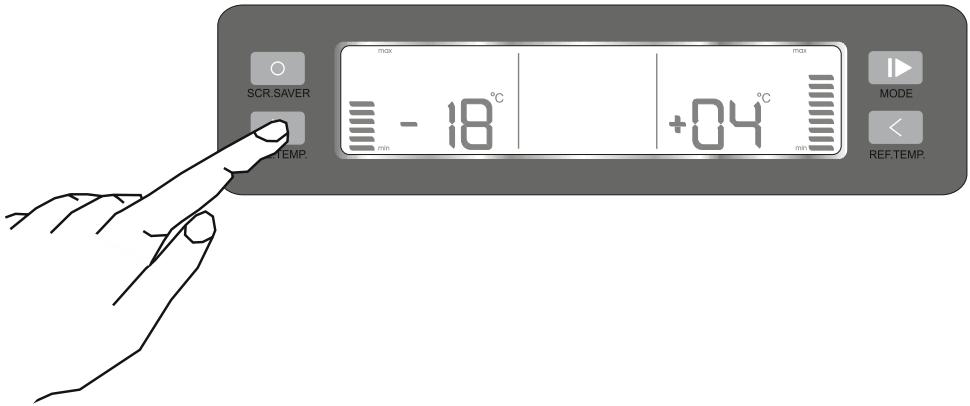

Freezer compartment temperature adjustment

SCR.SAVER - 18 °C +04 °C MODE REF.TEMP.

• At first the freezer display will show -16^ .
• Press once "FRZ.TEMP." button.
• The first pushing will make flashing on the freezer bar graphic display, if press “FRZ. TEMP.” button within 2 sec. Number segment will show -18°C.
• With each pushing on this button, the temperature decreases of 2 degrees. (-16°C, -18°C, -20°C, -22°C, -24°C) Number segment and bar will blink 5 times and a beep of confirmation will sound.
• When number segment is -24°C. , If you push “FRZ.TEMP.” button, the number segment will go on from -16°C.
• If appliance was set to holiday, super freeze, super cool or economy mode before temp. adjusting , appliance will go on to work in previous mode. When previous mode is cancelled / finished manually or automatically appliance will start to work in adjusted values.

Note**: If Ambient sensor is >38^ then user will not be able to adjust freezer Compartment's temp. to -22^ and -24^ . Then only -16^ , -18^ , -20^ will be available.

Recommended settings for freezer compartment temperature

Temperature bar	Freezer cabinet inside temperature	When to use it
3 bars	-16 °C	For little amount stoking
8 or 12 bars	-18 °C or -20 °C	Normal stoking
16 or 20 bars	-22 °C or -24 °C	For lots of food stoking

Cooler compartment temperature adjustment

SCR.SAVER FRZ.TEMP. - 18 °C +04 °C MODE REF.

• At first the refrigerator display will show +6°C.
• Press once "REF.TEMP" button.
• The first pushing will make flashing on the cooler bar graphic display, if press “REF. TEMP” button within 2 sec. Number segment will show +6°C.
• With each pushing on this button, the temperature decreases of 2 degrees. (+8°C, +6°C, +4°C, +2°C) Number segment and bar will blink 5 times and a beep of confirmation will sound.
• When number segment is +2°C., If you push “REF.TEMP” button, the number segment will go on from +8°C.
• If appliance was set to holiday, super freeze, super cool or economy mode before temp. adjusting, appliance will go on to work in previous mode. When previous mode is cancelled / finished manually or automatically appliance will start to work in adjusted values.

Recommended settings for cooler compartment temperature:

Temperature bar	cooler cabinet inside temperature	When to use it
12 bars	+2 °C	For lots of food stoking
9 or 6 bars	+4 °C or +6 °C	Normal stoking
3 bars	+8 °C	For little amount stoking

Warnings about temperature adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.

- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period. - A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature °C
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Accessories

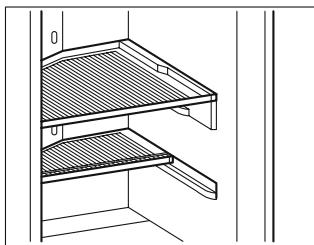

Magic Shelf (In some models)

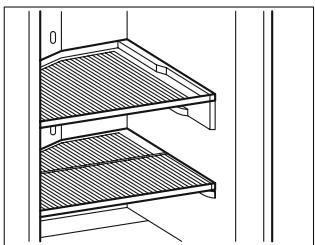

Technical line drawing of a two-tiered shelving unit (no text or symbols)

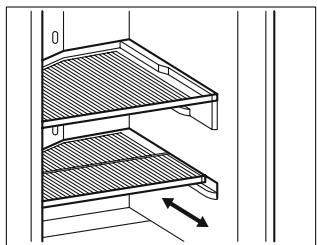

Diagram of two stacked storage racks with labeled sections (O, I, U) and an arrow indicating direction (no text or symbols beyond labels)

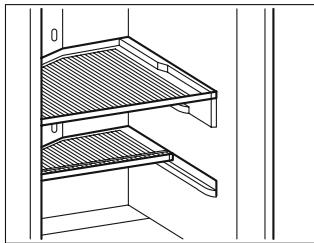

Technical line drawing of a two-tiered shelving unit with labeled sections (O, F, U) and no readable text or symbols.

Magic shelf, which is on the crisper cover, was designed to give you more place and comfort placing the things in the appliance. This shelf is mobile so you can arrange long or big containers on the crisper cover.

Making Ice Cubes (In some models)

Technical line drawing of a mechanical component with no visible text or symbols

• Take out the ice making tray
- Fill the water in level of line.
- Place the ice making tray in its original position
- When ice cubes are formed, twist the lever to drop off ice cubes into the icebox.

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Do not fill the icebox with water in order to make ice. It can be broken.

Fast Freezing Shelf

Technical line drawing of a door handle with an arrow indicating rotation (no text or symbols)

- Use the fast freezing shelf to freeze home cooking (and fresh foods which is wanted to freeze) more quickly because of the freezing room's greater freezing power. - For opening the shelf pull the cover up, and slide it in to the shelf. You can close it in the same way

Note that; be sure that the cover of fast freezing shelf is closed before closing the compartment door. If not, it can not show its fast freezing power.

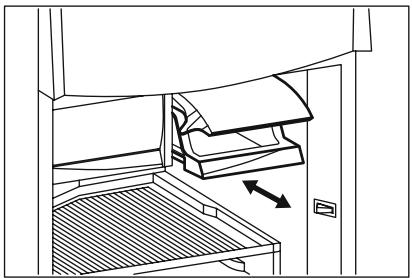

Chiller Shelves

Technical line drawing of a door with a gridded base and an open door, showing internal components and a directional arrow (no text or symbols)

Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water.

(Water freezes at 0^ C, but foods containing salt or sugar freeze at temperature lower than that)

Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

Crisper and Crisper Shelf (In some models)

The crisper compartment absorbs and decomposes ethylene gas (*) emitted from fruits and vegetables with a “FILTER” in the crisper shelf, keeping fruits and vegetables fresh. The filter also eliminates unpleasant odours from inside the crisper, and control the excess water released by the vegetables, maintaining a high humidity environment inside the crisper. When the crisper shelf become dirty, remove the filter by taking out the filter cover and wash the crisper cover with water.

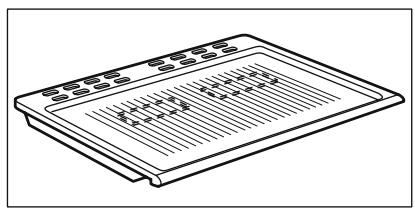

Line drawing of a flat electronic device with ventilation grilles (no text or symbols)

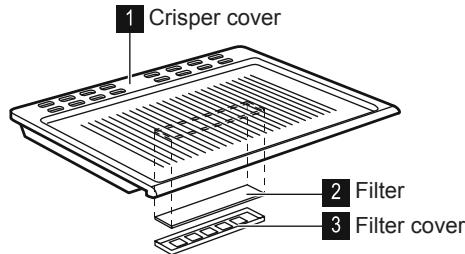

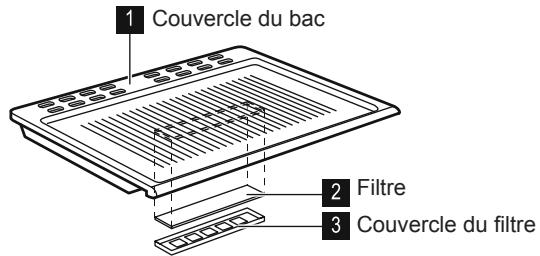

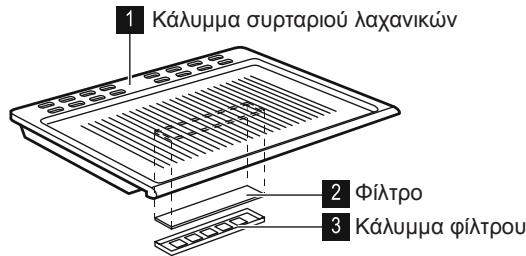

1 Crisper cover 2 Filter 3 Filter cover

! Do not wash the “Humidity-Control Filter” with water.

(*)NOTE; Ethylene gas is a gas, produced from fruits and vegetables, which accelerates the ageing of fruits and vegetables. For example, spinach and broccoli turn to yellow colour easily in places where ethylene gas is abundant.

First Step: Removing the crispers

• It is easy to pull out the crisper because of the crisper has rollers.
• Pull the crisper out as far as possible and pull the front part up and out

Line drawing of a mechanical assembly or enclosure with a box and ladder, no text or symbols present

Second Step: Taking out the partition crisper center between the crispers.

• Bend the Partition toward left from the bottom of the part
  • Take out the Partition crisper

Technical line drawing of a mechanical assembly with a lever and base, showing no text or symbols

Third Step: Taking out the crisper cover

• Pull out the crisper cover until the nails of the cover come on the cavities (right and left side) of the cabinet.
• When the nails comes into the cavities pull up and take out the crisper cover

Technical line drawing of a mechanical assembly with a ladder and base plate (no text or symbols)

NOTE: Make the inverse of the same operation for the resetting the crisper cover.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

PART- 3. FOOD PLACEMENT

Cooling Compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to +4^ / +6^ will be enough.
• To prevent humidification and odor formation, the food should be placed in the refrigerator in enclosed cups or with their top being covered.
• The hot food and drinks should also be cooled in the room temperature before being placed in the refrigerator.
• Please do not prop the packaged food and containers against the lamp and cover of the cooling compartment.
• Fruits and vegetables: Can be placed in the crisper directly without wrapping them.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Food	Storing time	Where to place in the fridge department
Vegetables and fruits	1 week	In the Crisper (without being wrapped)
Meat and fish	2 to 3 days	Covered with plastic folio and bags or in a meat box (on the glass shelf)
Fresh cheese	3 to 4 days	In the special door shelf
Butter and Margarine	1 week	In the special door shelf
Bottled product, Milk and Yoghurt	Until the expiry date recommended by the producer	In the special door shelf
Eggs	1 month	In the egg shelf
Cooked food		All shelves

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

Deep Freeze Compartment

• For normal operating conditions, adjusting the temperature value of the freezer partition of the fridge to -18 / -20^ will be enough.
• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• Do not put fresh and warm foods to the freezer door shelves to be frozen. Only use for storage of frozen foods.
• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.
• Use the fast freezing shelf to freeze home cooking (and the foods which is wanted to freeze) more quickly because of the freezing room's greater freezing power.
• While freezing fresh foods (i.e. meat, fish and mincemeat) divide them in parts you will use in one time.
• While freezing fresh foods; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, turn the freezer thermostat knob to position max 24 hours before placing fresh food inthe freezer.
• After placing fresh food in the freezer, 24 hours on max position is generally sufficient, After 24 hours, don not need to set the freezer thermostat knob to position max.
• Attention; In order to save energy, When freezing small amounts of food, don not need to set the freezer thermostat knob to position max.
• For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Some recommendations have been specified on pages 22, 23 and 24 for the placement and storage of your food in the deep freeze compartment.

Fish and Meat		Preparation	Storage Duration (months)	Thawing period at room temperature -hours-
Beef Steak		Packed for freezing in convenient portions	6-10	1-2
Lamb Meat		Packed for freezing in convenient portions	6-8	1-2
Calf Roast		Packed for freezing in convenient portions	6-10	1-2
Calf Cubes		In small pieces	6-10	1-2
Sheep Cubes		In pieces	4-8	2-3
Minced meat		In convenient portions, packaged without being spiced	1-3	2-3
Offal (piece)		In pieces	1-3	1-2
Sausage/Salami		Must be packed even if it is film-coated		Until thawed
Chicken and turkey		Packed for freezing in convenient portions	7-8	10-12
Goose / Duck		Packed for freezing in convenient portions	4-8	10
Deer - Rabbit - Boar		Portions of 2.5 kg and with no bones	9-12	10-12
Freshwater fish (Trout, Carp, Northern Pike, Cat, Fish)		It should be washed and dried after it is well cleaned inside and scaled, the tail and head parts should be cut off where necessary.	2	Until it is well thawed
Lean fish (Sea Bass, Turbot, Sole)	4-8		Until it is well thawed
Fatty fish (Bonito, Mackerel, Blue Fish, Anchovy)	2-4		Until it is well thawed
Crustaceans		Cleansed and put into bags	4-6	Until it is well thawed
Caviar		In its package, inside an aluminum or plastic cup	2-3	Until it is well thawed
Snail		In salty water, inside an aluminum or plastic cup	3	Until it is well thawed
Vegetables and Fruits		Preparation	Storage Duration (months)	Thawing period at room temperature -hours-
Cauliflower		Remove the leaves, divide the core into parts and keep it waiting in water containing a little amount of lemon	10 - 12	It may be used in frozen form
Green Beans, French Beans		Wash them and cut into small pieces.	10 - 13	It may be used in frozen form
Peas		Shell and wash them	12	It may be used in frozen form
Mushrooms and Asparagus		Wash them and cut into small pieces	6 - 9	It may be used in frozen form
Cabbage		In a cleaned fashion	6 - 8	2
Eggplant		Cut it into pieces of 2cm after washing it	10 - 12	Separate plates from each other
Corn		Clean it and pack it with its cob or in grains	12	It may be used in frozen form
Carrot		Clean them and cut into slices	12	It may be used in frozen form
Pepper		Remove the stem, divide it into two and separate the seeds	8 - 10	It may be used in frozen form
Spinach		Washed	6 - 9	2
Apple and Pear		Slice it by peeling its rind	8 - 10	(In freezer) 5
Apricot and Peach		Divide it into half and remove the seeds	4 - 6	(In freezer) 4
Strawberry and Raspberry		Wash and clean them	8 - 12	2
Cooked fruits		Inside a cup with addition of 10% of sugar	12	4
Plums, Cherries, Sour Cherries		Wash them and remove the stems	8 - 12	5 - 7
Dairy Products and Pastries		Preparation	Storage Duration (months)	Storage Conditions
Packaged (Homogenised) Milk		In its own package	2 - 3	Homogenised Milk only
Cheese (except white cheese)		In the form of slices	6 - 8	They may be left in their original packages for short time storage. They should also be wrapped in plastic folio for long term storage.
Butter, Margarine		In its own package	6
Egg (*)	Egg White		10 - 12	30 gr of it Equals to one egg yolk.	In a closed cup
	Egg mixture (White-Yolk)	It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick	10	50 gr of it Equals to one egg yolk.
	Egg Yolk	It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick	8 - 10	20 gr of it Equals to one egg yolk.

(*) It should not be frozen with its shells. The white and yolk of the egg should be frozen separately or as having been well mixed.

	Storage Duration (months)	Thawing period at room temperature (hours)	Thawing duration in the oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 - 1,5	5-8 (190-200 °C)
Pie	1 - 3	2 - 3	5-10 (200-225 °C)
Tart	1 - 1,5	3 - 4	5-8 (190-200 °C)
Filo Pastry	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

PART-4. CLEANING AND MAINTENANCE

Disconnect unit from the power supply before cleaning.

Cartoon illustration of a hand using a tool to clean or store items from a refrigerator (no text or symbols present)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

• Do not clean the appliance by pouring water.
• The refrigerator and freezer compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

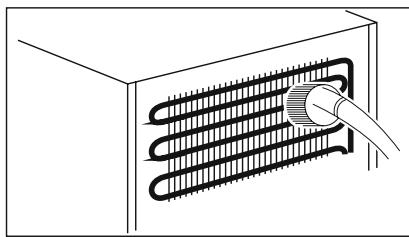

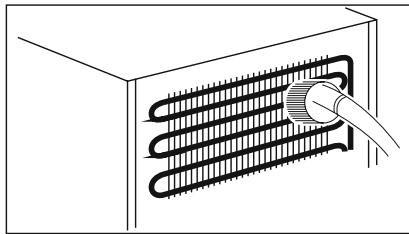

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Cartoon illustration of a smiling refrigerator with a hand holding a tool, accompanied by a small bottle and a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of cleaning items (no text or symbols)

Cartoon illustration of a smiling refrigerator and two smaller figures (no text or symbols)

Diagram of a heat exchanger with a coiled tube inserted into a housing (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

Defrosting occurs fully automatically during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

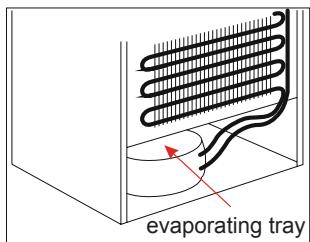

evaporating tray

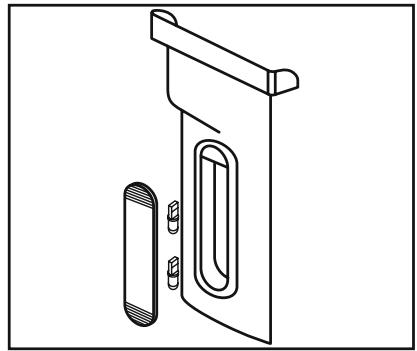

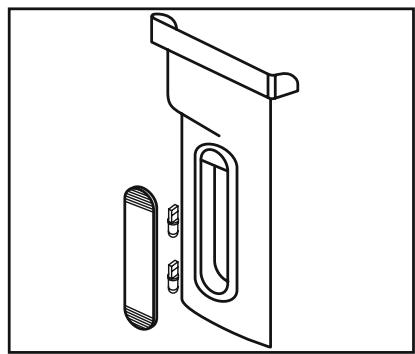

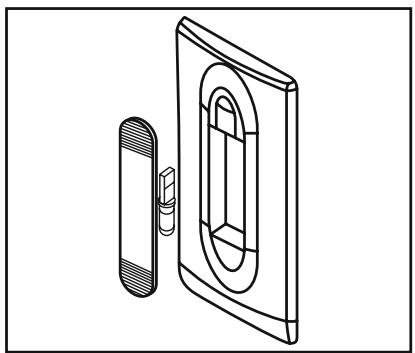

Replacing the refrigerator and freezer light bulb

1. Unplug the unit from the power supply,

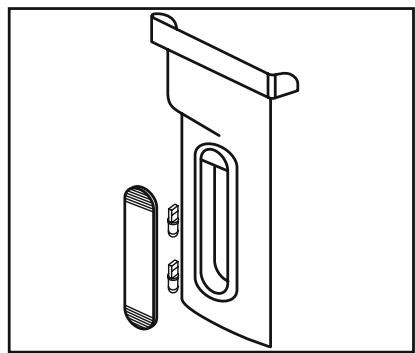

2. Remove the refrigerator light cover with a minus screw driver, and take out the cover.
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

Technical line drawing of a door with an open lid and a side panel (no text or symbols)

Freezer compartment

Line drawing of a door handle with a side panel and handle (no text or symbols)

Cooler compartment

PART-5. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

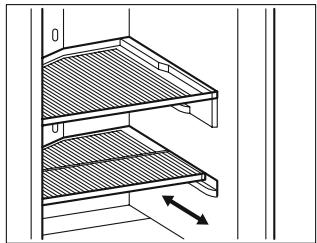

• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Carry your fridge in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Repositioning the Door (In some models)

You can reposition the doors of your fridge. Contact nearest authorized service for this.

PART-6. BEFORE CALLING THE SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and Money.

What to do if your refrigerator does not operate ;

Check that; There is no power, the general switch in your home is disconnected, the socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

WARNINGS FOR USER: The appliance will warn you by the sign on the Electronic panel whether there is a problem in settings of the compartment temperatures.

ERROR TYPE	MEANING	WHY?	WHAT TO DO?
SR	"Failure Warning"	There is/are some part(s) Out of order or there is a failure in cooling process	Call Service for assistance as soon as possible.
LF	Freezer comp. Not Cold enough	This caution will be seen especially after long term of power failure	1. Do not freeze the foods that are thaw and use in short time period.2. Set the freezer temperature to colder values or set the super freeze, until the compartment gets to normal temperature.3. Do not put fresh food until this failure is off.
LC	Refrigerator comp. Not Cold enough	Ideal temperature for Ref. Compartment is +4 °C. If you see this warning your foods have risk of spoiling.	1. Set the refrigerator temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.2. Do not open the door much until this failure is off.
LF and LC	not cold enough	It is the combination of LF and LC Error type	You will see this failure when first starting the appliance. It will be off after the compartments gets normal temperature
HC	Refrigerator comp. too Cold	The foods starts to freeze because of the too much cold temperature	1. Check if the “Super cooling mode” is on2. Decrease the refrigerator temperature values
LOPO	Low voltage Warning	When the power supply gets lower than 170 V the appliance gets to steady position.	This not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level

Check Warnings ;

If your refrigerator does not operate

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your refrigerator is operating noisily;

Normal Noises

Crackling (Ice Cracking) Noise

• It is heard during the automatic defrosting process.
• Once the device has been cooled or heated (expansions in the device material).

Short Cracking Noise: It is heard when the thermostat turns on and off the compressor.

Compressor Noise: It is the normal engine noise. This noise indicates that the compressor is operating normally. As the compressor is being introduced, it might operate a little bit more noisily for a short period of time.

Bubbling and burbling sound: This noise is emitted as the coolant fluid flows through the pipes within the system.

Water flowing sound: This is the normal sound of water flowing into the evaporation container during the defrosting process. This sound may be heard during the defrosting process performed in the device.

Air blowing sound: It is the normal fan sound. This sound may be heard due to air circulation in No Frost refrigerators as the system is operating normally.

If the edges of the refrigerator cabin contacted by the door seal are hot;

- Especially in summer months (in hot weathers), there might be heating on the surfaces contacted by the seal on the refrigerator when the compressor is operating and this is quite normal.

If there is humidification in the inner parts of your refrigerator;

• Has the food been properly packaged? Have the cups been well dried before they were put into the refrigerator?
• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.

If the doors are not being properly opened and closed:

• Are the food packages preventing the doors from being closed?
• Have the door compartments, shelves and drawers been properly placed?
• Have the door seals been defective or torn?
  • Is your refrigerator standing on an even ground?

If dripping occurs;

Check that;

• The tap is well assembled.
- The tap gaskets are well assembled.

IMPORTANT NOTES:

- Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Department of the Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance).

Conformity Information

• Tropical Class is defined for the environment temperatures between 16°C and 43°C in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips For Saving Energy

1- Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

Pure electrical circuit lines without any symbols

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

2 1 3 15 14 13 12 4 5 11 10 9 6 8 7

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Ice box
2) Ice tray
3) Fast freezing shelf
4) Freezer door shelf
5) Top shelf

6) Bottle shelf
7) Bottom shelf
8) Crisper
9) Crisper cover
10) Refrigerator shelves

11) Refrigerator lamp box / cover
12) Chiller shelves
13) Freezer compartment
14) Freezer lamp box / cover
15) Freezer shelf

Sommaire

AVANT D'UTILISER CET APPAREIL....33

Mode Super congélation....39

TRANSPORT ET DEPLACEMENT ....59

Illustration of hands performing a manual tool manipulation technique (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and warning symbol (no text or labels)

Cartoon illustration of a person inside a door, showing a wide smile and legs (no text or symbols)

Illustration showing a hand holding a smiling face icon, a crossed-out prohibition symbol, and a figure with crossed-out fingers.

Simple line drawing of a bottle and glass with cracks, no text or symbols present

Cartoon illustration of a distressed refrigerator with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Cartoon illustration of a smiling character giving thumbs up next to a window with a mortar and pestle (no text or symbols)

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Cross-sectional diagram of a building interior with directional arrows indicating flow or movement (no text or symbols)

SECTION- 2.

LES DIFFERENTES FONCTION ET POSSIBILITES

Affichage

4 SCR.SAVER FFZ.TEMP. 3 5 6 15 14 12 10 1 7 13 11 12 max * * * Super Freeze Turbo eco * * * Super Cool +04 °C min MODE REF.TEMP. 9 8 2

1. Bouton MODE

Mode Super congélation

SCR.SAVER FRZ.TEMP. * * * Super Freeze SF +04 °C MAX MODEL REF.TEMP.

Ce mode sert à :

Warning sign with black circle, warning symbol, and warning label

Technical line drawing of a two-tiered shelving unit (no text or symbols)

Diagram of two stacked shelves with shading and directional arrows indicating movement (no text or symbols)

Line drawing of a two-tiered shelving unit with no text or symbols

Technical line drawing of a door handle with an arrow indicating rotation (no text or symbols)

Line drawing of a door with a gridded base and an open shelf, showing no text or symbols

Line drawing of a rectangular electronic device with ventilation grilles (no text or symbols)

Line drawing of a mechanical assembly or enclosure with a box and ladder, no text or symbols present

Technical line drawing of a mechanical assembly inside a housing, showing a bracket and structural components (no text or symbols)

Technical line drawing of a door or cabinet interior with a ladder and slatted floor, showing no text or symbols.

Illustration showing a hand holding a smiling face next to a computer with a cartoon character, and another hand inserting a fan (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a spoon and a small bottle beside it (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a bowl with food items (no text or symbols)

Cartoon illustration of a smiling bottle and two small syringes next to a large rectangular box (no text or symbols)

Diagram of a heat exchanger with a tube inserted into the chamber (no text or symbols)

Dégivrage

Technical line drawing of a door with an open lid and internal structure (no text or symbols)

BOITIER/COUVERCLE DE L'AMPOULE

Line drawing of a door with handle and side panel, no text or symbols present

BOITIER/COUVERCLE DE L'AMPOULE

SECTION- 5. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children playing a large block together (no text or symbols)

Illustration of three hands performing a manual tool manipulation technique (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and a lightning bolt, no text or symbols present

Cartoon illustration of a person inside a door, showing arms and legs (no text or symbols)

Safety warning illustration showing a smiling face, a crossed-out hand holding a phone, and a hand waving.

Simple line drawing of a bottle and glass with explosion effects (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling emoji icon (no text or symbols)

Cross-sectional diagram of a building interior with directional arrows indicating airflow or movement (no text or symbols)

Technical line drawing of two stacked metal shelving units with no text or symbols

Technical line drawing of a two-tiered shelving unit with an arrow indicating direction (no text or symbols)

Line drawing of a two-tiered shelving unit with no text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Technical line drawing of a door with ventilation duct and airflow direction arrow (no text or symbols)

Line drawing of a door with a gridded base and an open shelf, showing no text or symbols

Line drawing of a flat electronic device with ventilation grilles (no text or symbols)

Line drawing of a cabinet interior with a rack and vent, no text or symbols present

Technical line drawing of a mechanical assembly with a bracket and support structure (no text or symbols)

Technical line drawing of a mechanical assembly with a base and clamping element (no text or symbols)

Cartoon illustration of a hand using a tool to clean or store items from a refrigerator (no text or symbols present)

v τον καθαρισ

Cartoon illustration of a smiling refrigerator with a hand holding a tool, accompanied by a small bottle and a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of cleaning items (no text or symbols)

Cartoon illustration of a smiling refrigerator and two smaller figures (no text or symbols)

Diagram of a heat exchanger with a coiled tube inserted into a housing (no text or symbols)

Technical line drawing of a door with an open lid and internal structure (no text or symbols)

Θάλαμος κατάψυξης

Line drawing of a door handle assembly with two side panels and a handle (no text or symbols)

Θάλαμος συντήρησης

Simple line drawing of two children playing a large block, no text or symbols present

Pure diagram of a trash bin with no text, numbers, or symbols

Abstract geometric composition with three overlapping white circles on a gray background (no text or symbols)
