USER MANUAL LFP536X ELECTROLUX

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure without any text or symbols.

Technical diagram of a mechanical component with labeled parts 1 and 2, showing internal structure and rotation arrows.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical diagram of an electric motor showing stator and rotor components with labeled parts 1 and 2

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Refer to the separate

Installation Instructions

booklet for Safety

Information and Installation.

Read carefully the Safety

chapters before any use or

maintenance of the

appliance.

2. PRODUCT DESCRIPTION

2.1 Control panel overview

	Function	Description
1	Lamp	Turns the lights on and off.
2	First speed / Off	The motor switches to first speed level. Second press turns off the appliance.
3	Second speed	The motor switches to second speed level.
4	Third speed	The motor switches to third speed level.

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

Y_0-1	While heating up food, cooking with covered pots.
Y_2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
Y_3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

1. Press the first speed button 🎨0-1 to switch on the appliance.
2. If needed, change the speed by pressing the desired button.

The hoods light works independently to other hood functions. To illuminate the cooking surface press the light button ⚙️.

To turn off the appliance press the first speed button 🎨0-1 again.

4. CARE AND CLEANING

4.1 Notes on cleaning

Cleaning Agents	Do not use abrasive detergents and brushes.Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
	Clean stains with a mild detergent.
Keep the hood clean	Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
	Grease filters can be washed in a dishwasher.The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
Charcoal filter	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

4.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

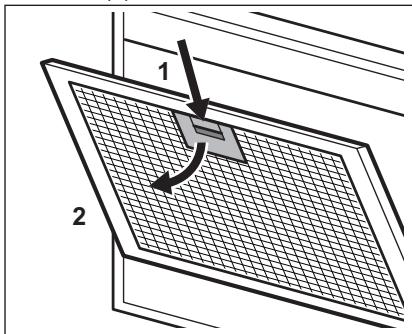

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1 2

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter

WARNING!

The charcoal filter is NON-washable! The filter cannot be regenerated!

To replace the charcoal filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.

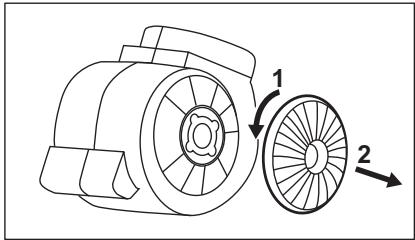

2. Turn the filter counterclockwise (1) and then pull (2).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

To mount the filters back follow the steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

5. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📊. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.
