RHC6380/1RB - RHC6380PN - RHC6380RB - RHC638GR - Air-conditioner ROSIERES - Free user manual and instructions

Brand	ROSIERES
Models	RHC6380/1RB, RHC6380PN, RHC6380RB, RHC638GR
Product type	Range hood
Use	Domestic, above a cooktop
Dimensions (estimated)	Width 60 cm, Depth 50 cm, Height depending on installation
Weight (estimated)	15 kg
Power supply	220-240 V, 50 Hz, grounded plug
Motor power	Not specified, motor with centrifugal fan
Lighting	LED, max 1.5/2 W (complete block with sockets)
Speeds	3 speeds (Low, Medium, High) + Boost function (speed 4)
Functions	Timer (5 minutes), on/off button, digital display
Grease filter	Anti-stick filter, monthly cleaning
Activated carbon filter	For recirculation mode, change every 3 months or 120 hours, non-washable
Evacuation mode	External extraction or internal recirculation
Extraction duct diameter	150 mm (not supplied)
Minimum distance from cooktop	65-75 cm
Installation	Wall-mounted or under cabinet, with anti-backdraft flap
Maintenance	Clean with soft cloth and mild detergent; replace LED bulb and filters
Safety	Do not use with naked flames, disconnect before maintenance, adequate ventilation required
Environment	WEEE recycling, do not dispose with household waste

Frequently Asked Questions - RHC6380/1RB - RHC6380PN - RHC6380RB - RHC638GR ROSIERES

What is the recommended mounting height for the hood?

The hood should be placed at a distance of 65 to 75 cm above the cooking surface for optimal efficiency.

How to install the hood in external extraction mode?

Drill the fixing holes, secure the hood with screws, then connect an extraction duct of 150 mm diameter (not supplied) to the outlet. Turn the adjustment device to the external position.

How to use recirculation mode?

Install the activated carbon filter (not supplied) on the back of the grille, turn the adjustment device to the internal position and install the outlet cover. The carbon filter must be changed every 3 months or after 120 hours of use.

How to clean the grease filter?

Clean the grease filter every month with a household detergent. Use a soft cloth soaked in warm soapy water. Never use abrasives or hard brushes.

How to replace the LED bulb?

Turn off and unplug the appliance. Unscrew the 2 screws of the lamp cover, disconnect the lighting block (bulb, sockets and wiring) and replace it with an identical block (max 1.5/2 W). Reconnect and screw back.

What to do if the hood vibrates strongly?

Check if the fan blade is damaged or if the motor is poorly fixed. Make sure the hood is properly suspended on the bracket. If the problem persists, call a qualified technician.

How to activate the boost function?

Press the + button until speed 4 is reached. The hood will run at maximum power for 5 minutes before returning to the previous speed.

How to set the timer?

Press the + and - buttons simultaneously for 1 second. The digital display will blink, then the motor and light will automatically turn off after 5 minutes.

The hood is not extracting well, what to check?

Make sure the distance between the hood and the cooktop is 65-75 cm. Check that the grease filters are clean and that the extraction duct is not blocked. In recirculation mode, the carbon filter must be replaced regularly.

Can I install the hood without an external duct?

Yes, by using recirculation mode. You must install an activated carbon filter (not supplied) and turn the adjustment device to the internal position. The air will be filtered then returned to the room.

USER MANUAL RHC6380/1RB - RHC6380PN - RHC6380RB - RHC638GR ROSIERES

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION. 2
SAFETY PRECAUTION 2-3
PREPARE FOR INSTALLATION 4
INSTALLATION 5-6
AIR VENTILATION SETTING 7
DESCRIPTION OF COMPONENTS. 8-9
MAINTENANCE 10
TROUBLESHOOTING 11
ENVIRONMENTALPROTECTION 11

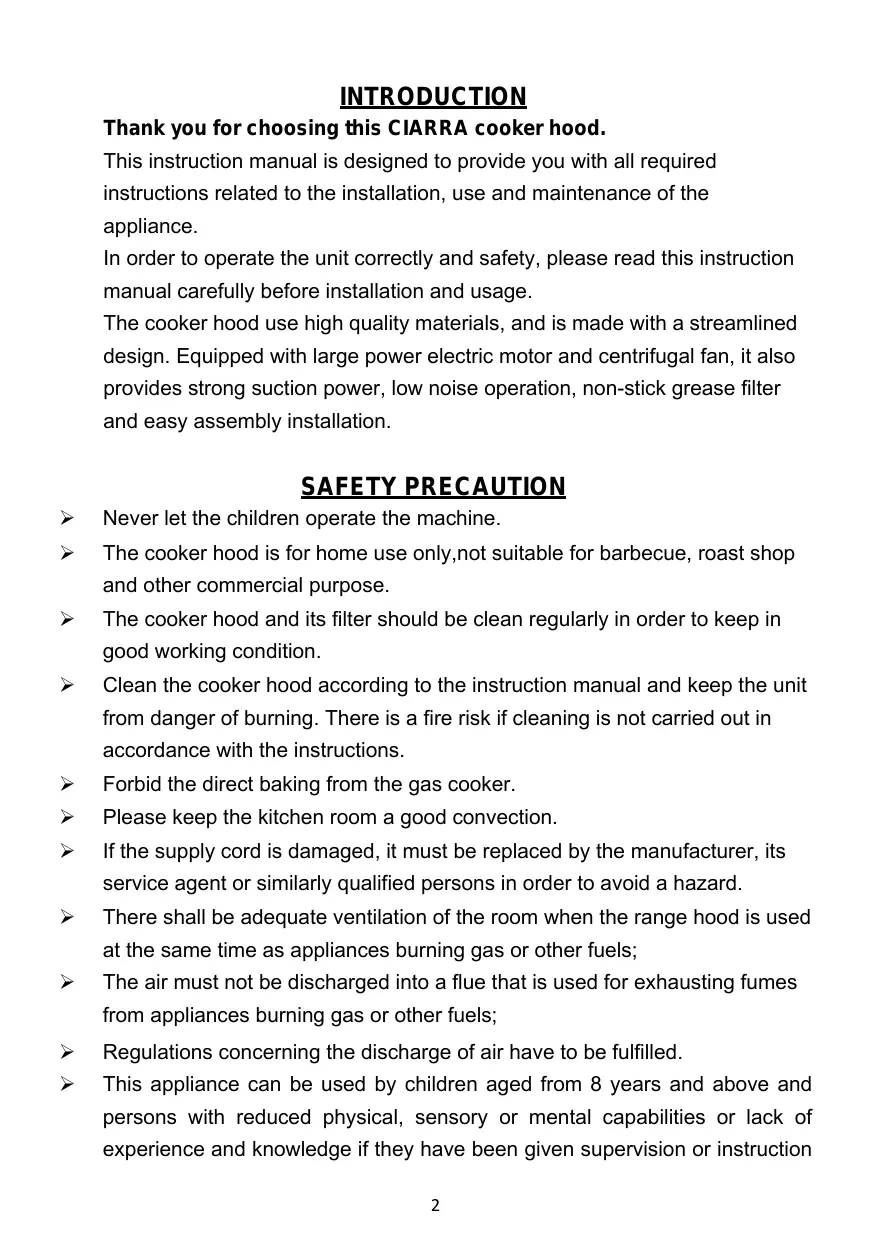

INTRODUCTION

Thank you for choosing this CIARRA cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to keep in good working condition.
Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions.
forbid the direct baking from the gas cooker.
Please keep the kitchen room a good convection.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
Regulations concerning the discharge of air have to be fulfilled.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

Do not flame under the range hood.
CAUTION: Accessible parts may become hot when used with cooking appliance.
The warning shall be in the same part of the instructions that include details of how to mount the equipment.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or electrical shock.

PREPARE FOR INSTALLATION

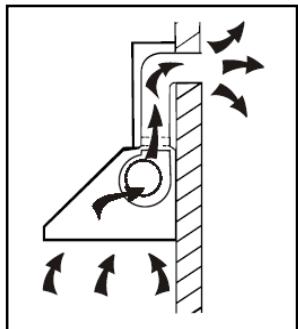

a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

b. Before installation, turn the unit off and unplug it from the outlet.

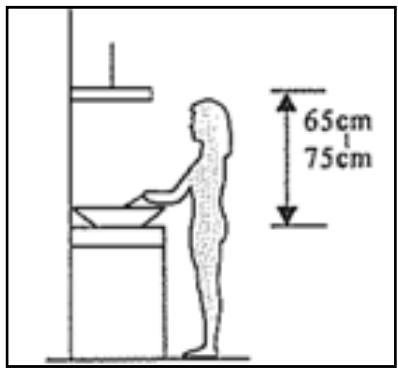

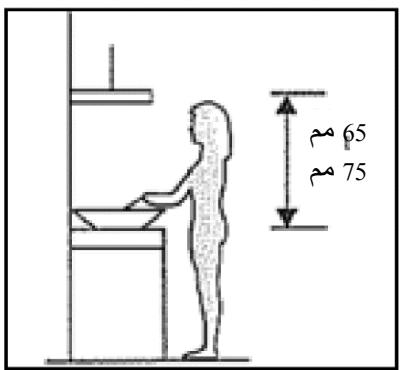

c. The cooker hood should be placed at a distance of 65 75cm above the cooking plane for best effect.

INSTALLATION

Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.

When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4Pa ( 4 × 10^-5Bar )

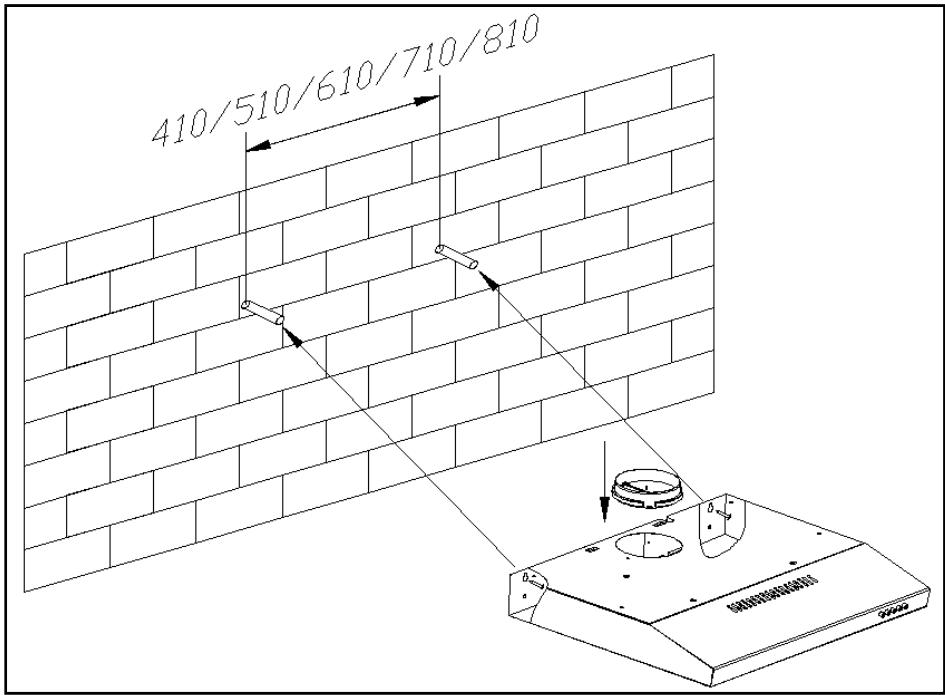

Way one:

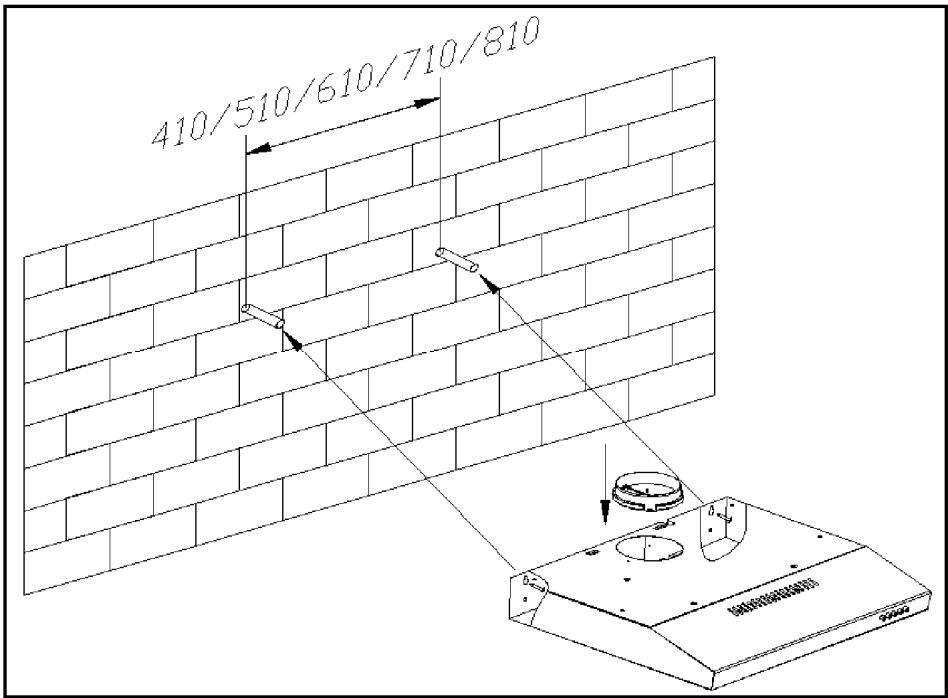

To install onto the wall drill 2 holes of 8mm on a suitable place according with the centre distance of hole in the back of the cooker hood.
Insert the nut into the holes.

Insert the screws into the nuts and tight. Put the cooker hood onto the tighten screws.

Fix the cooker hood with safety screw. The two safety vents are positioned on the back casing, with diameter of 6mm.
Put the one way valve onto the cooker hood.

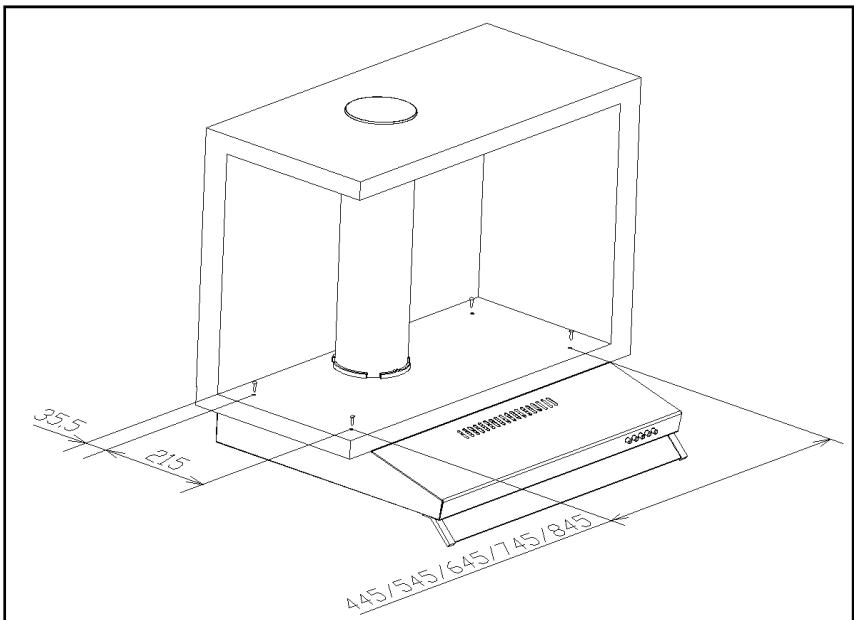

Way two:

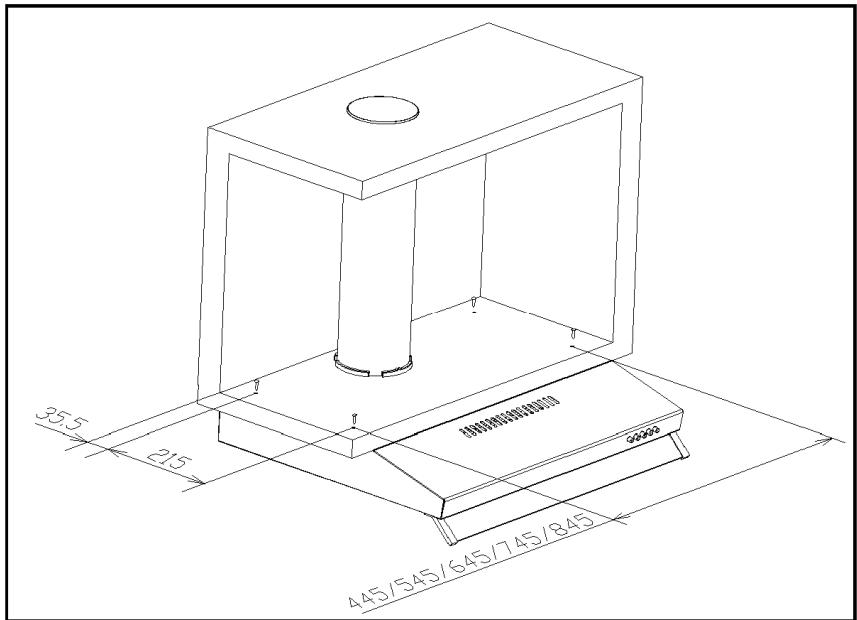

Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard
Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the hanging cupboard, tighten the hood with enclosed 4 screws.

Note:

1. The extensible pipe are optional accessory, not supplied.
2. Take off protection film before installation.

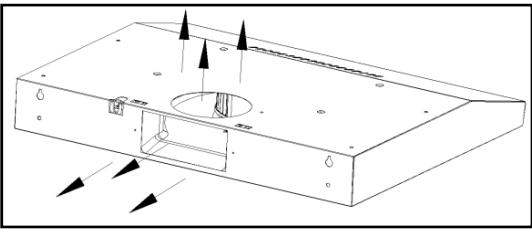

   3.There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

Vertical ventilation: See Pic A, please use tool take out the round cover before using, and the air can be vented from top

horizontal ventilation: See Pic B, please use tool take out the rectangular cover before using, and the air can be vented from back.

The rectangular air outlet for horizontal ventilation is not supplied.

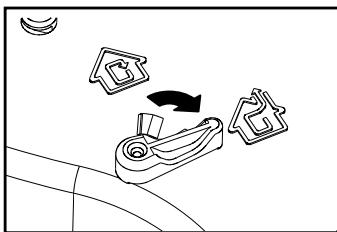

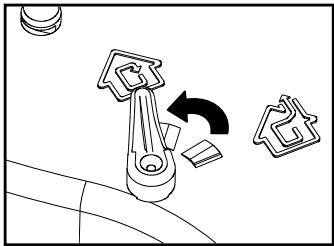

AIR VENTILATION SETTING

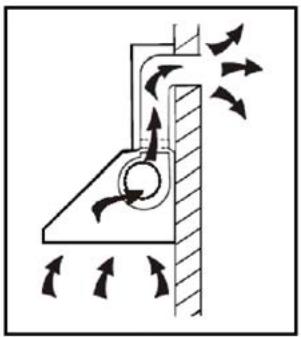

Outdoor exhausting: Turn the adjuster to outdoor position, install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

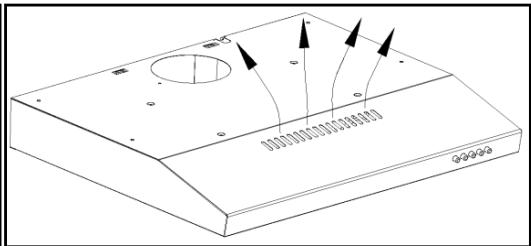

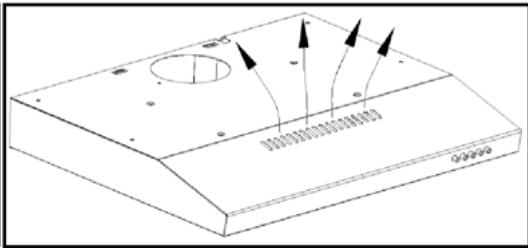

Recycling: the recycling mode with carbon filter, Turn the adjuster to indoor position, install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

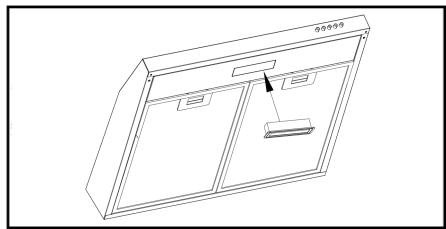

Note: The charcoal filter is mounted on the back of the grill and must be changed once three month.
Warning: the charcoal cannot be washed or recycled. It should be changed at most after 120 hours using. The carbon filter shouldn't be exposed to heat.

NOTE:

Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed buttom 1

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed buttom 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

① On/Off button

It's used for turning on/off the fan.

Speed plus button

For increasing the speed of the fan

+ Speed decrease button

For decreasing the speed of the fan.

Light button

8 Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press ① & - hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, Press ① to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

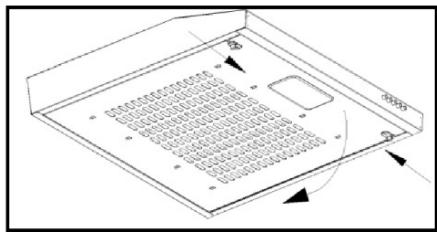

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust....so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

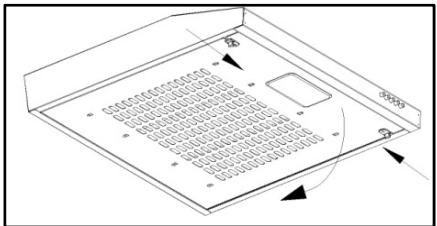

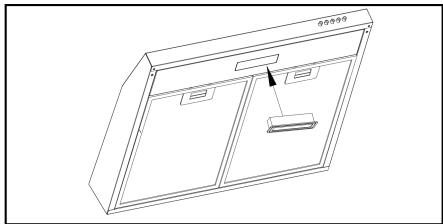

IV. Changing a light bulb

1. Switch the unit off and unplug the appliance.
   2.Remove the lamp cover by unscrewing the 2 screws.
2. Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5/2W)
3. Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch off the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

#

#
