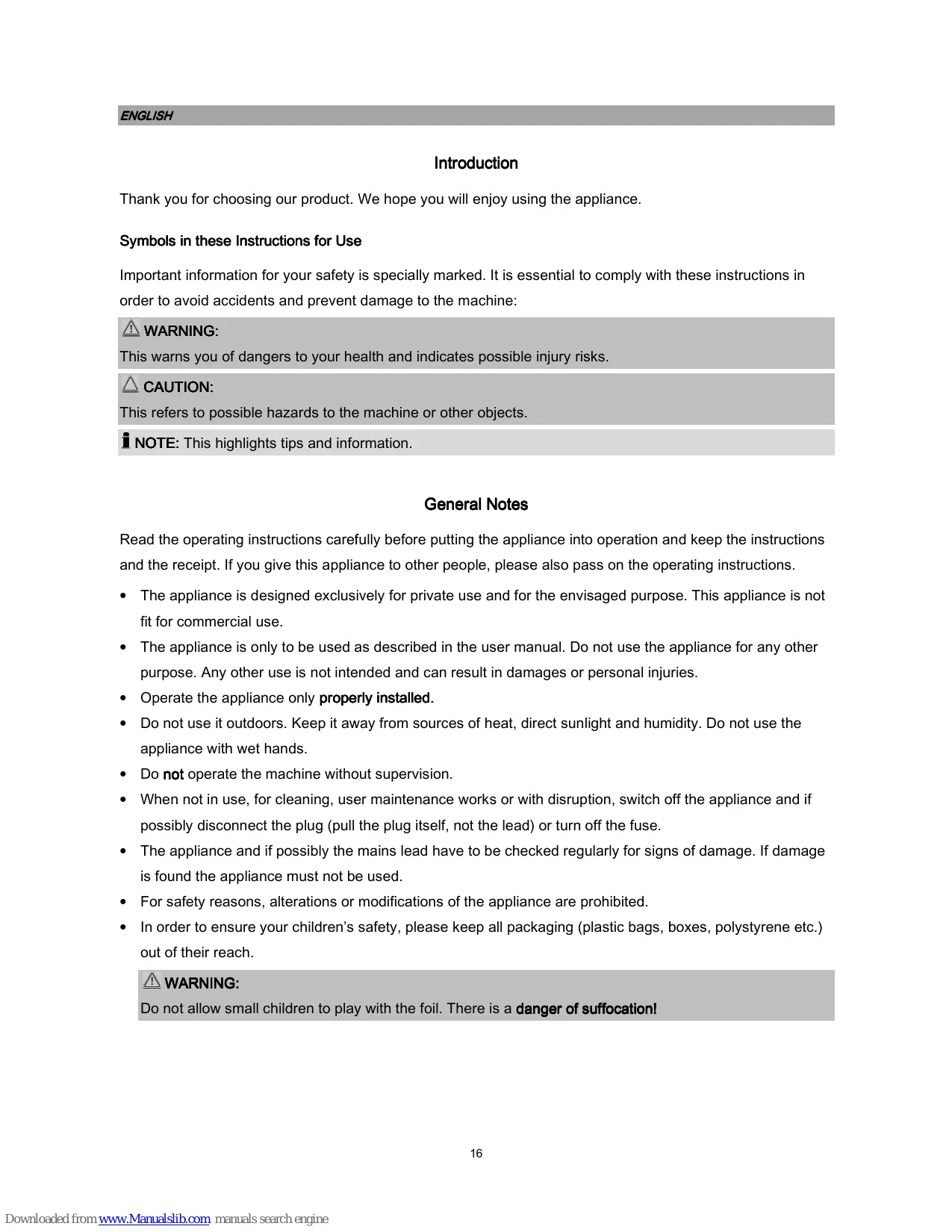

Downloaded from www.Manualslib.com manuals search engine ENGLISH Introduction Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine: WARNING

NING: This warns you of dangers to o your health and indicates possible injury risks. CAUTION: CAUTION: This refers to possible hazards to o the machine or other objects. NOTE: NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity. Do not use the appliance with wet hands.
• Do not operate the machine without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch switch off the appliance and if possibly disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possibly the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil. There is a danger of suffocation!

Downloaded from www.Manualslib.com manuals search engine Special safety Information for this Unit Unit

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• Attention! Accessible parts of the appliance may become hot when used with cooking utensils.
• Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.
• Open the gas supply at gas stoves only when cookware is on the stove. Risk of fire! The filter can be damaged.
• Food during frying should be constantly supervised. By overheated oil can arise a fire hazard. hazard
• Do not check the filter condition while the hood is in operation.
• NEVER use the appliance without fixed aluminum grease filter.
• If the cooker hood and other devices which are powered b other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa (4x10-5 bar).
• Regulations concerning the discharge of air have to be fulfilled.
• Follow the installation instructions. Note the instructions that we give you in the chapter “Installation”.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and Maintenance”. There is a risk of fire if cleaning is not carried out according to these instructions.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer customer service or by qualified person and with a cable of the same type. Unpacking the Appliance

1. Remove the appliance from its packaging.

2. Remove all packaging material, such as foils, filler, cable holder and cardboard packaging.

3. To prevent hazards, check the appliance for any transport damage.

4. In case of damage, do not put the appliance into operation. Contact your distributor.

NOTE: NOTE: Production residue or dust may have collected on the appliance. We recommend cleaning the appliance aca cording to chapter “Cleaning and Maintenance”. Maintenance Overview of the Appliance NOTE: NOTE: The original appliance may differ from the appliance pictured here.

Telescopic duct, 2-part

Aluminum um grease filter Supplied parts 1 x outer (lower) duct without ventilation slots 1 x connecting piece with non-return non valves 1 x inner (upper) duct with ventilation slots 1 x extraction hose Assembly material incl. drill template Installation There must be a safety distance between the hotplate of the cooking ing pot on the hob and the bottom part of the extractor hood: The distance must be between 60 – 75 cm. For gas appliances, the distance must be at least 65 cm. If the installation instructions for the gas cooker specify spe ify a greater distance, this distance must be taken into considconsi eration.

Downloaded from www.Manualslib.com manuals search engine Selecting the fume outlet You can operate the extractor hood in two modes: Extraction mode

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities. The hood has an upper air outlet to vent cooking odours to the outside.
• The extracted air is norno

• If there is a conduit in your mally vented vertically. If kitchen under the wall units, there is a suitable loft the extraction duct can be space above your kitchkitch routed so that the extracted en, the extracted air is vented through the wall air can be vented horizontally orizontally through the wall. units and the loft floor to the roof ridge. Recirculation mode If you do not have a direct extraction vent to the outside; side; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; side; the filtered air is released leased back into the room). In this case, two activated carbon filter as described scribed under “Installing the activated carbon bon filter for recirculation mode”, must be used. The activated carbon filter are not supplied. sup You can order the carbon bon filter from your dealer or in our online accessories shop, www.bomann.de. ber found under “Technical Data”. www.bomann.de. To order, use the reference number Assembly
• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock. shock CAUTION: CAUTION:
• Before mounting, check that the wall has sufficient load capacity to bear the extractor hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
• Make sure that the vents are clear of obstacles and are not covered.

Downloaded from www.Manualslib.com manuals search engine NOTE: NOTE: Recommendations Recommendations for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.
• Determine the position of the extractor hood centrally above the hob in conformance formance with the specified safety distances.
• Align the drill template horizontally and mark the necessary holes for the wall mounting. mountin Check them with a spirit level.

• Drill Ø 8 mm mounting holes into the wall and insert the dowel pins.
• Then rotate the mounting screws 2 x ST10*50 ST10 mm in the upper holes as far as these stick out about 20 mm from the wall. non return valves must be installed onto the
• Before suspending the hood, the connecting piece with the non-return extractor duct with the screws 4 x ST10*10 mm.
• Now secure the hood by fixing the mounting screws 2 x ST10*50 mm through the hood body in the lower holes. For extraction mode:
• Attach the supplied flexible extraction hose with an inner diameter of Ø 120 mm onto the connecting piece with non-return return valves. Connect it with the extraction outlet to the outside.

• Remove the protective plastic from the telescopic duct.
• Slide the inner (upper) duct along the slide fixture into the outer (lower) duct. Make sure that the inner duct is aligned with the vents (A) at the top.
• Put the duct cover on the hood. Determine the extension length of the duct cover by pulling up the inner duct or sliding back into the outer duct.
• Attach the mounting rail for the duct cover on the upper duct ending. ending Drill Ø 8 mm mounting holes into the wall and insert the dowel pins. Use the screws 2 x ST10*50 mm to secure the rail.
• For extraction mode, correctly position the flexible extraction hose.

• Pull the inner duct up and fasten the duct cover on the side to the previously mounted rail by screwing in the screws 2 x ST10*10 mm including washers. washers Installing the activated carbon carbon filter for recirculation mode
• Remove the aluminum um grease filter.
• Place the carbon filter onto the air intake of the extraction duct. Make sure that the mounting pins on the extraction duct engage the mounting slots of the carbon filter. Turn the respective filter clockwise until it clicks into place.
• Reinstall the aluminum um grease filter. NOTE: NOTE: The activated carbon filter absorbs odours and must be replaced at least every six months regardless of use. Electrical connection
• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock! shock!
• Do not modify the appliance plug. plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured in order to disconnect the appliance from the power supply in case of an emergency.
• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
• Connect the mains cable to a properly installed and earthed wall outlet. Startup / Operation The extractor hood is operated via pushbuttons.

Highest fan setting Lighting on or off

Power level: The motor begins to run at low speed. This setting is suitable for cooking on a low flame and for dishes which produce no or little steam, in order to circulate the air around the kitchen.

Power level: The motor runs at moderate speed. This setting is suitable for normal cooking.

Power level: The motor runs at high speed. The setting is suitable if large quantities of smoke ke and steam need to be extracted or filtered (e.g. when frying). NOTE: NOTE: If a lot of vapour is produced, the fan should be left running for a few minutes after cooking. Only leave the fan running if absolutely necessary, since otherwise unnecessary energy is consumed. Cleaning and Maintenance The appliance and the operation thereof there are best maintained by regular cleaning ing of your extractor hood as well as the filter. The extractor tractor hood and accessories should also be cleaned regularly for hygiene reasons.

• Before cleaning or maintenance work, the device should always turn off and disconnect connect the mains plug or switch off the fuse.
• Allow the unit to cool down before fore cleaning.
• Do not uses steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Hot steam could damage dam the plastic parts. The e device must be dry before restarting operaoper tion. CAUTION: CAUTION:
• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.
• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent vent scratching.
• The appliance can be used again after everything has dried properly.
• If you use your extractor tractor hood in recirculation mode, you must replace the activated vated carbon filter regularly (see “Replacing the activated carbon bon filter”). Cleaning the aluminum aluminum grease filter

WARNING: Risk of fire!

Grease residues in the aluminum aluminum grease filter may ignite on exposure to high temte peratures. It is therefore important that the grease filter is regularly cleaned / rer placed.

Downloaded from www.Manualslib.com manuals search engine Grease and vapours collect in the filter and may accumulate if not regularly cleaned. We recommend that you clean the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, cess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the grease filter in the solution.
• Then clean with a soft brush, rinse thoroughly with hot water and leave to dry.
• Alternatively, the grease filter can also be cleaned in the dishwasher (up to 60°C). Slight discoloration may occur in the dishwasher. This does not affect the function of the grease filter. Replacing the activated carbon filter The activated carbon filter absorbs odours and must be replaced at least every six months, depending on use. Order the carbon filter from your dealer or in our online accessories shop, www.bomann.de www.bomann.de. To order, use the reference number found under “Technical Data”.
• See “Installing the activated carbon filter for recirculation mode”.
• Remove the old carbon filter by turning the filter anti-clockwise. anti Replacing the lighting

Allow the lamps to cool before replacing placing the lighting. Risk of burns! CAUTION: Use only self shielded lamps in order to prevent excessive heating, fire hazards and exposure to UV radiation.

• Use the correct lighting: 2 x 1 W LED
• Carefully remove the lamp with a suitable tool.
• Pull out the lamp carefully and disconnect the lamp from the connecting cable.
• Connect the connector cable with the lamp. Replace the lamp.
• Connect the connecting necting cable to the lamp. Replace the lamp until it audibly bly clicks into the lamp socket. Repairs A wrong or improperly performed formed repair brings danger to the user. Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Downloaded from www.Manualslib.com manuals search engine Troubleshooting Before you contact an authorized specialist The following problems can be solved by you by checking for the possible cause. Problem Possible cause Solution The appliance is - Is the unit not connected to mains power? power - Insert the plug properly in the contact socksoc - Have you set the power level? - Check the setting. - Have you set the correct power level? - Check the setting. The kitchen is not properprope not working or does not work et. Check the fuse. properly The appliance does not run efficiently ly ventilated. - Is the grease filter dirty? - Clean the grease filter (see “Cleaning the aluminum grease filter”). - Are the carbon filter needed for recirculation (correctly) installed? - Check the carbon filter (see “Replacing the activated carbon filter”). - Is the air outlet required for extraction mode - Check the air outlet. clear? The lighting does The lighting is faulty, was incorrectly installed, Check the lighting (see “Replacing the lightligh not work lamp not secure in the fitting. ing”). Oil dripping from The grease filter is dirty. Clean the grease filter. filter the appliance NOTE: If a problem still persists after following the steps above, above, contact your trader or an authorized technician. Technical Data Model DU 654 G DU 655 G Glass capture panel 60 cm wide Glass capture panel 90 cm wide Power supply 220-240 V~, 50 Hz 220-240 V~, 50 Hz Lighting, LED 2x1W 2x1W Power rating 122 W 122 W

approx. 11.6 kg approx. 14.5 kg Wall flue Protection class Appliance dimensions H x W x D Duct dimensions H x W x D Net weight

Downloaded from www.Manualslib.com manuals search engine Overview of dimensions, figures in mm Activated carbon filter for recirculation KF 564 (Part no. 256 400) Set: 2 units mode (not supplied) The right to make technical and design modifications in the course of continuous product development remains reserved. Product data sheet for household cooker hoods According to (EU) No. 65/2014 and 66/2014 Symbol Model Value Unit DU 654 / 655 G Annual Energy Consumption AEChood

kWh/a Time increase factor

Fluid Dynamic Efficiency FDEhood

Energy Efficiency Index EEIhood

Measured airflow rate at the best efficency QBEP

Measured air pressure at the best efficiency point PBEP

m3/h Measured electric power input at best efficiency point WBEP

Nominal power of the lighting system

Average illumination of the lighting system on the cooking surface Emiddle

lux Measured power consumption on standby mode

Measured power consumption on off mode

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Downloaded from www.Manualslib.com manuals search engine Disposal Meaning of the “Dustbin” Symbol Protect our environment; do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment. Information on concerning where the equipment can be disposed of can be obtained from your local authority.

Remove or disable any existing snap and bolt locks, if you take the appliance out of operation or dispose it.
