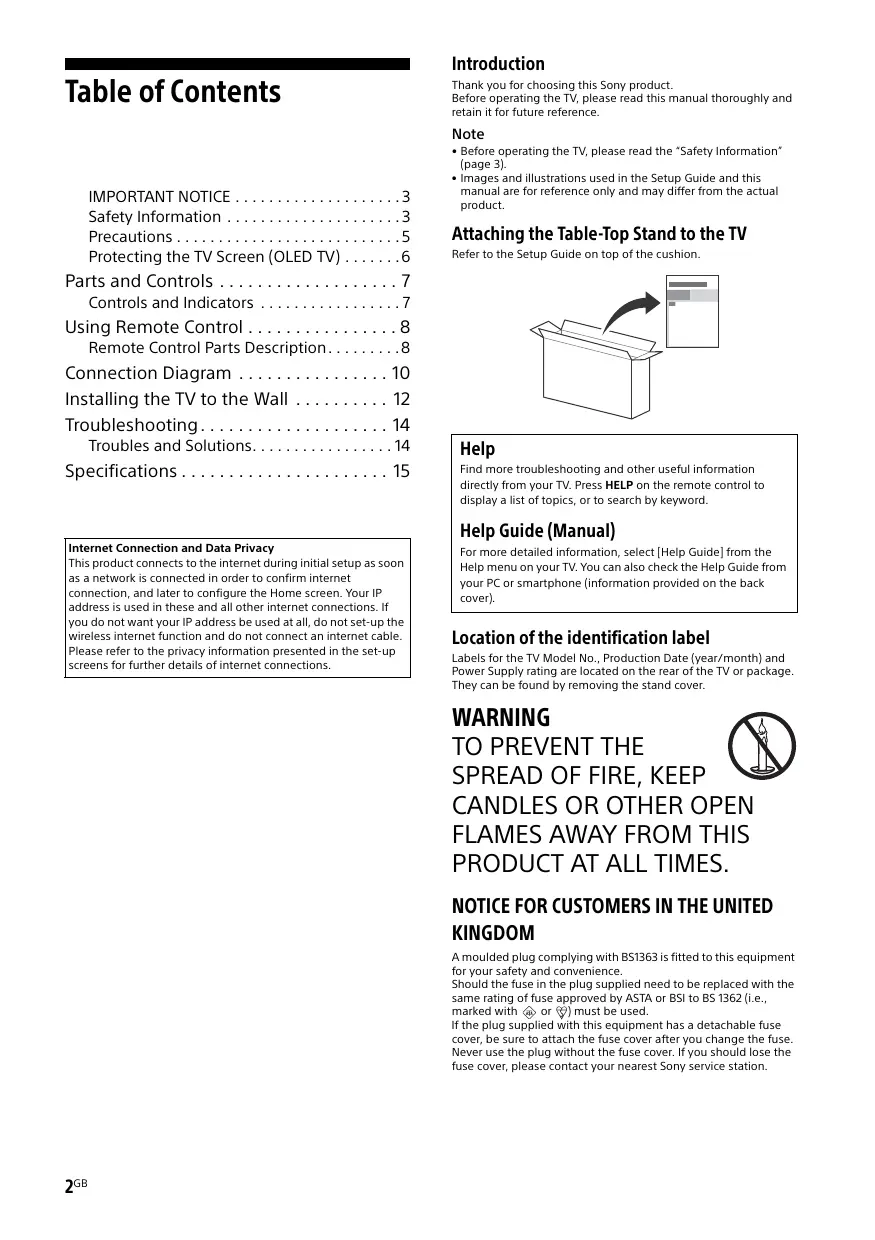

USER MANUAL KD-55AF8 SONY

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

• Before operating the TV, please read the “Safety Information”

(page 3). • Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

Attaching the Table-Top Stand to the TV Refer to the Setup Guide on top of the cushion.

Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword.

Internet Connection and Data Privacy This product connects to the internet during initial setup as soon as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable. Please refer to the privacy information presented in the set-up screens for further details of internet connections.

For more detailed information, select [Help Guide] from the

Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover).

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package. They can be found by removing the stand cover.

WARNING TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., or ) must be used. marked with If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

FUSE How to replace the fuse

Open the fuse compartment with a blade screwdriver, and replace the fuse. Please refer to the illustration that actually equipped with the product.

IMPORTANT NOTICE This product has been manufactured by or on behalf of Sony

Visual Products Inc. EU Importer: Sony Europe Limited. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium.

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Apparatus connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system therefore has to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

• The TV set should be installed near an easily accessible mains socket. • Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage. • Install the TV where it cannot be pulled, pushed, or knocked over. • Install the TV so that the TV bottom does not protrude out from the TV stand (not supplied). If the TV bottom protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Notice for Radio Equipment

Hereby, Sony Visual Products Inc. declares that the radio equipment types KD-65AF8, KD-55AF8 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/ This radio equipment can be operated in the EU without infringing applicable requirements on the use of radio spectrum. Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives. TV wireless system may be operated in following countries: AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo This equipment can be operated in other non-European countries.

WARNING Caution Risk of explosion if the battery is replaced by an incorrect type. Batteries must not be exposed to excessive heat such as sunshine, fire or the like or extremely low air pressure that can result in an explosion or leakage of flammable liquid or gas.

The television set may fall, causing serious personal injury or death. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. • Only using furniture that can safely support the television set. • Ensuring the television set is not overhanging the edge of the supporting furniture. • Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. • Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including:  Wall-Mount Bracket SU-WL450 • Be sure to use the screws supplied with the TV when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc. 10 mm - 14 mm

Wall-Mount Bracket TV’s rear cover

Installed with stand

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set. • When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen.

Leave at least this space around the set.

• To ensure proper ventilation and prevent the collection of dirt or dust:  Do not lay the TV set flat, install upside down, backwards, or sideways.  Do not place the TV set on a shelf, rug, bed or in a closet.  Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.  Do not install the TV set as shown below.

• When handling or mounting the

TV set, do not lay down the TV.

Air circulation is blocked.

• When transporting the TV set, do not subject it to jolts or excessive vibration.

• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

M4 screw (not supplied)

Do not block the air circulation area.

Screw (not supplied)

• Never cover the ventilation holes or insert anything in the cabinet. • Leave space around the TV set as shown below. • It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation.

Installed on the wall

Handle the mains lead and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries: • Use only mains leads supplied by Sony, not other suppliers. • Insert the plug fully into the mains socket. • Operate the TV set on a 220 V - 240 V AC supply only. • When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables. • Disconnect the mains lead from the mains socket before working on or moving the TV set. • Keep the mains lead away from heat sources. • Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

10 cm Leave at least this space around the set.

• Do not use the supplied mains lead on any other equipment.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken. • Do not modify the mains lead. • Do not put anything heavy on the mains lead. • Do not pull on the mains lead itself when disconnecting the mains lead. • Do not connect too many appliances to the same mains socket. • Do not use a poor fitting mains socket.

If the following problems occur...

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries.

Turn off the TV set and unplug the mains lead immediately if any of the following problems occur.

Ask your dealer or Sony service centre to have it checked by qualified service personnel.

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

• Mains lead is damaged.

• Poor fitting of mains socket. • TV set is damaged by being dropped, hit or having something thrown at it. • Any liquid or solid object falls through openings in the cabinet.

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms. • Install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam

(near cooking tables or humidifiers). Fire, electric shock, or warping may result. • Install the TV in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight. • Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on.

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury. • If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise this may cause an electric shock.

• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons. • As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains socket to disconnect the TV set completely. • Some TV sets may have features that require the TV set to be left in standby to work correctly.

• Do not allow children to climb on the TV set. • Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

About TV Temperature

When the TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand.

Viewing the TV • View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes. • When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

• Although the OLED screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (white, red, blue, or green) may appear constantly on the OLED screen. This is a structural property of the OLED screen and is not a malfunction. • Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the OLED screen may be damaged. • The screen and cabinet get warm when this TV set is in use. This is not a malfunction. • When disposing of your TV be sure to follow your local laws and regulations.

Handling and cleaning the screen surface/ cabinet of the TV set

Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning. To avoid material degradation or screen coating degradation, observe the following precautions. • To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution. • Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set. • Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material. • Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock. • Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation. • When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand.

• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur. • This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters.

• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a RF cable shorter than

30 meters for terrestrial/satellite/CATV terminal.

Recommendation of F type plug

Projection of the inner wire from the connection part must be less than 1.5 mm.

collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

Protecting the TV Screen (OLED TV)

1.5 mm max. (Reference drawing of the F type plug)

Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment. • Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result. • This equipment should be installed and operated keeping a separation distance of 20 cm or more between the antenna of this device and a person's body.

Caution about handling the remote control

• Observe the correct polarity when inserting batteries. • Do not use different types of batteries together or mix old and new batteries. • Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority. • Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it. • Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Disposal of the TV set

Disposal of old electrical & electronic equipment (applicable in the European Union and other countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries

(applicable in the European Union and other countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004 % lead. By ensuring that these batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the appropriate

6GB Precautions to Protect the Screen from

Damage Image retention OLED TV‘s are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition) • Static images such as photos. • Video games that might have static content in some part of the screen. • On-screen menus, programme guides, channel logos etc. • Static content from applications. • On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV. • Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal]. • Turn off the OSD (On Screen Display) by pressing the / button, and turn off the menus from connected equipment. For details, refer to the instruction manuals for the connected equipment. • Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen. • Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc. The TV has following features to help reduce/ prevent image retention.

Panel refresh will automatically run to adjust the uniformity of the TV screen after it has been in use for long periods of time. Panel refresh can also be performed manually and should only be used if image retention is very noticeable or you see the following message: [Panel refresh did not finish…]

• The Panel refresh function may affect the panel. As a reference, perform the Panel refresh only once a year, do not perform it more than once a year as it may affect the usable life of the panel. • Panel refresh takes about one hour to complete. • A white line may be displayed on the screen during the Panel refresh, this is not a malfunction of the TV. • Panel refresh will only work when the room temperature is between 10 ºC and 40 ºC.

Automatically moves the image on the screen to prevent image retention.

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

Controls and Indicators GB

When the TV is off, Press  to power on. When the TV is on, Press and hold  to power off. Press  repeatedly to change the function, then press + or - button to: • Adjust the volume. • Select the channel. • Select the input source of TV.

 Remote Control sensor* /

Light sensor* / Illumination LED The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide. * Do not place anything near the sensor.

7GB Using Remote Control

Remote Control Parts Description The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

Use Voice Search. (e.g., Search various content by voice.) EXT.BOX MENU Display the connected External Box (cable/satellite box) menu. • For models with supplied IR Blaster, connect and set up the IR Blaster (page 11). • The External Box menu may be displayed for some HDMI CEC compatible devices when the IR Blaster is not supplied/connected. //// (Navigation D-Pad) On screen menu navigation and selection. TV Switch to a TV channel or input and display the TV Menu Bar.

(Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

Turn on or turn off the TV (standby mode).

8GB EXIT Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

Switch between digital and analogue mode.

Display information.

Switch between TV or RADIO broadcasts.

Display text information.

Access the “Google Play” online service.

NETFLIX (Only on limited region/ country/TV model)

Access the “NETFLIX” online service.

 AUDIO Change the language for the programme currently being viewed.

Operate media contents on the TV and connected BRAVIA Sync-compatible device.

Execute corresponding function at that time.

Turn subtitles on or off (when the feature is available).

Display a list of contextual functions.

Display the digital programme guide.

Display the Help menu. Help Guide can be accessed from here.

 REC Access various services and applications.

Record the current programme with the USB HDD recording function.

Return to the previous screen.

HOME TITLE LIST Display the Title list.

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

Mute the sound. Press again to restore the sound.

In TV mode: Select the channel. In Text mode: Select the next () or previous () page.

9GB GB Connection Diagram

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

Access Module VCR/Video game equipment/DVD player/ Camcorder/External Box*1 Headphone/Audio System/Subwoofer IR Blaster

Digital still camera/

Camcorder/USB storage media

Antenna/ External Box

10GB Router Audio System with Optical

Audio HDMI System Device with

Digital still camera/

Camcorder/USB storage media/ USB HDD device

CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM. • Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer. • CAM is not supported in some countries/ areas. Check with your authorised dealer. • A CAM message may appear when you switch to a digital programme after using the Internet video.

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port. • Connect a USB HDD device to the USB 3 port (blue).

• HDMI interface can transfer the digital video and audio on a single cable. •

• For a composite connection, use an

Analogue Extension Cable (not supplied). •

• Supports 3-pole stereo mini jack only.

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings]  [Sound]  [Headphone/Audio out] and then select the desired item.

• Use your Sony remote control to control your External Box (cable/satellite box). Connect the IR Blaster Cable*2 to the IR Blaster port on your TV. Place one or both of the other two ends as shown below.

To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format]. For details of supported formats, refer to the “Specifications“ in this manual (page 15-17). • HDMI IN 3 ARC (Audio Return Channel) Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

• Connections for terrestrial/cable and satellite. Connection steps: SUB.  MAIN

 Antenna • For SUB. jack, connect only when you are using twin tuner mode except for Single Cable Distribution EN50494. *1 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor and Analogue Extension Cable.

• To perform IR Blaster setup, press HOME and select [Settings]  [External inputs]

 [IR Blaster setup].

*2 Only on limited region/country/TV model.

• You cannot attach the side cover while the cables are connected to side terminal. • Be sure to store the side cover in a safe place for future use.

11GB GB Installing the TV to the Wall

This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product. Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket. Be sure to use the black screws (supplied with the TV) for Wall-Mount Bracket SU-WL450 installation. Note • You can remove the foot parts and screws after the TV is completely installed to the wall.

Screw • Be sure to store the removed foot parts and screws in a safe place, keeping them away from children. • Be sure to attach the foot parts and screws at original position when using the Table-Top Stand. If using an electric screwdriver, set the torque at approximately 0.4 N·m {4 kgf·cm}.

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. www.sony.eu/support/

12GB Installing the TV to the Wall from Table-Top Stand

Remove the stand cover and terminal covers.

Remove the screws from the rear of the TV.

13GB Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the mains lead for three minutes and then plug it in again.

Refer to the Help menu by pressing HELP on the remote control.

Connect your TV to the Internet and perform a software update.

Visit Sony support website (information provided on the back cover).

When [A new TV system software update is available…] message is displayed.

Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating…] will appear and the illumination LED flashes white while software is updating.

Troubles and Solutions

When the illumination LED is flashing in red.  Count how many times it flashes (interval time is

Reboot the TV by disconnecting the mains lead for three minutes, then turn on the TV. If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes.

Terrestrial/cable service cannot be received.

 Check the antenna (aerial)/cable connection and

 Select terrestrial/cable service by pressing

DIGITAL/ANALOG on the remote control. If the broadcasting service is not displayed, press TV and then press DIGITAL/ANALOG.

 Terrestrial signal might be suppressed if there is a strong signal supplied nearby. Set [LNA (CH ---)] to [Off] in digital tuning settings.  After moving to a new house or trying to receive new services, attempt a service search by selecting [Digital Tuning].

Satellite service cannot be received.

 Check the satellite cable connection.  When [No signal. LNB overload detected…]

message is displayed, unplug the mains lead.

Then, ensure the satellite cable is not damaged and the satellite signal line is not short-circuited in the satellite connector.

The remote control does not function.

 Replace the batteries.

The EXT.BOX MENU button on the remote control does not work.

 Connect and set up the IR Blaster (models with

supplied IR Blaster only) (page 11).

 Connect HDMI CEC compatible device (except

Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes.

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again.

models with supplied IR Blaster) and change to that input.

The parental lock for broadcast password has been forgotten.

 Enter 9999 for the PIN code and select [Change

The TV surrounds become warm.

 When the TV is used for an extended period, the

TV surrounds become warm. You may feel hot when touching there by the hand.

The screen becomes darker while watching

TV.  If the whole image or part of the image remains

still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV. Note • Perform Panel refresh manually only when image retention is particularly noticeable. As a reference, perform it only once a year. Avoid performing it more than once a year because it may affect the usable life of the panel. • Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

A white line appears on the screen.

 Panel refresh automatically runs after the TV has

been used for long periods of time to reduce image retention. Panel refresh starts after the TV is turned off and takes about one hour to complete. A white line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV.

The message [Panel refresh did not finish…] is displayed.

Panel refresh automatically runs after the TV has been used for long periods of time to reduce image retention. If the TV is turned on, the mains lead is unplugged, or the room temperature falls outside of the range between 10 ºC and 40 ºC during the Panel refresh, the process will not be completed and this message will appear.

System Panel system OLED (Organic Light Emitting Diode) Panel Depending on your country/area selection/TV model Analogue: B/G, D/K, I Digital: DVB-T/DVB-C DVB-T2* Satellite*: DVB-S/DVB-S2

PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Depending on your country/area selection/TV model Analogue: UHF/VHF/Cable Digital: UHF/VHF/Cable Satellite*: IF Frequency 950-2,150 MHz

10 W + 10 W + 10 W + 10 W + 10 W Wireless technology

Protocol IEEE802.11ac/a/b/g/n (IEEE802.11ac may not be available depending on countries/regions.) Bluetooth Version 4.1

Wireless LAN (IEEE 802.11ac/a/b/g/n) Frequency range

 If Panel refresh started automatically, it will restart

when you turn off the TV with the remote control.

 If Panel refresh initiated manually, you must select it again.

RMF-TX220E Bluetooth

15GB Software version

TV: PKG_.____.____EUA Press HELP on the remote control to know the software version. Remote control: _._.__.___ Press HOME, then select [Settings]  [Voice Remote Control]  [Software version]. Any updates of software/firmware for this equipment/accessories/components will never affect its conformity to Directive 2014/53/EU in future. * Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF Satellite antenna

Female F Type Connector, 75 ohm. DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable Distribution EN50494.

/ AV IN HDMI IN 1/2/3/4 (Support 4K resolution, HDCP

2.2-compatible) Video: 4096 × 2160p (50, 60 Hz)*1*2, 4096 × 2160p (24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats*3 *1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2]. *2 HDMI IN 2/3 only. To support 18 Gbps, set [HDMI signal format] to [Enhanced format]. *3 Refer to the Help Guide for details. Audio: 5.1 channel linear PCM: 32/44.1/48/88.2/96/ 176.4/192 kHz 16/20/24 bits, Dolby Digital,

Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only)

(Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS)

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)

Headphone, Audio output, Subwoofer

CAM (Conditional Access Module) slot

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Optional accessories Wall-Mount Bracket: SU-WL450

3 USB HDD device for REC feature) USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB 3.1 Gen 1)

Operating temperature

0 ºC – 40 ºC Operating humidity

10 % – 80 % RH (non-condensing)

Power, Product Fiche and others

Power requirements 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-65AF8: B KD-55AF8: B Screen size (measured diagonally) (Approx.)

KD-65AF8: 163.9 cm / 65 inches KD-55AF8: 138.8 cm / 55 inches

Power consumption in [Standard] mode

KD-65AF8: 186 W KD-55AF8: 149 W in [Vivid] mode

KD-65AF8: 501 W KD-55AF8: 392 W Average annual energy consumption*2

KD-65AF8: 258 kWh KD-55AF8: 207 kWh

Standby power consumption*3*4

0.50 W (27 W in software/EPG update mode)

USB 1/2 5V , 500 mA MAX USB 3 5V

, 900 mA MAX Mass (Approx.) with Table-Top Stand

KD-65AF8: 28 kg KD-55AF8: 22.2 kg

without Table-Top Stand

KD-65AF8: 24.4 kg KD-55AF8: 18.7 kg *1 Only on limited region/country/TV model. *2 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. *3 Specified standby power is reached after the TV finishes necessary internal processes. *4 Standby power consumption will increase when your TV is connected to the network. Note • Optional accessories availability depends on countries/region/TV model/stock. • Design and specifications are subject to change without notice.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services. • This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/ HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. • Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. • “BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony Corporation. • Gracenote, the Gracenote logo and logotype, “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/ or other countries. • Vewd® Core. Copyright 1995-2017 Vewd Software AS. All rights reserved. • Google, Android TV, Google Play, Chromecast built-in, YouTube and other related marks and logos are trademarks of Google LLC. • Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance. • Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance. • The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance. • For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. • The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. • Netflix is a registered trademark of Netflix, Inc. • DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

• TUXERA is a registered trademark of Tuxera

Inc. in the US and other countries. • USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc. • All other trademarks are the property of their respective owners.

10 W + 10 W + 10 W + 10 W + 10 W ARC (Audio Return Channel) (HDMI IN 3 uniquement)

PAL/SECAM/NTSC3.58 (Solo video)/NTSC4.43

Dimensiones (Aprox.) (an × al × prf)

CAM (Conditional Access Module)

10 W + 10 W + 10 W + 10 W + 10 W ARC (Audio Return Channel) (alleen HDMI IN 3)

(Tweekanaals lineaire PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS)

CAM-sleuf (Conditional Access Module)

ARC (Audio Return Channel) (Apenas HDMI IN 3)

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Digital, DTS)

AUDIO OUT DIGITAL AUDIO OUT (OPTICAL)

10 W + 10 W + 10 W + 10 W + 10 W RMF-TX220E Bluetooth

ARC (Audio Return Channel) (Kun HDMI IN 3)

(tokanals lineær PCM: 48 kHz 16 biter, Dolby Digital, Dolby Digital Plus, DTS)

Tilleggsutstyr Veggmonteringsbrakett: SU-WL450

Mål (Ca.) (b × h × d)

RMF-TX220E Bluetooth

ARC (Audio Return Channel) (Cамо HDMI IN 3)

10 W + 10 W + 10 W + 10 W + 10 W

DIGITAL AUDIO OUT (OPTICAL)

Kulaklık, Ses Çıkışı, Subwoofer

© 2018 Sony Visual Products Inc.
