USER MANUAL LED24-SCP100HC SCHNEIDER

Safety Information. 2

Important Safety Precautions. 3

Installed And Connected TV

TV Bracket assemble 4

TV Buttons And Terminal Interface 5

External device connect ion diagram. 6

Install And Connect TV. 7

TV St and installation Instructions. 7

Remote Controller. 8

TV Menu

First Time Installation. 10

Channel Menu. 12

Picture Menu. 16

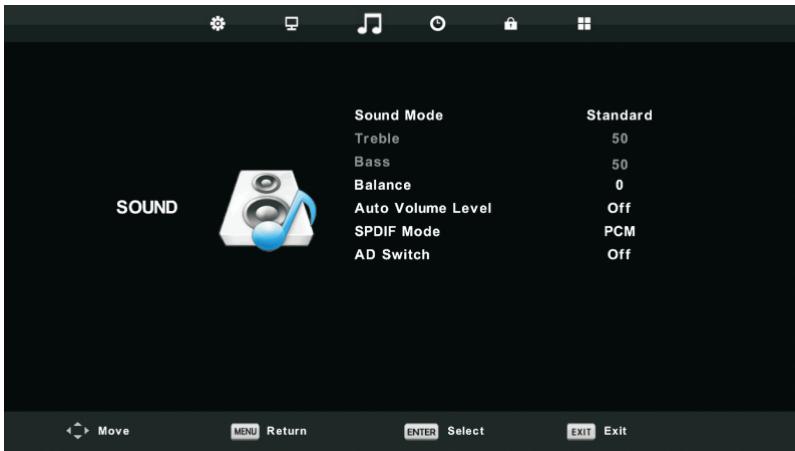

Sound Menu 18

Time Menu. 19

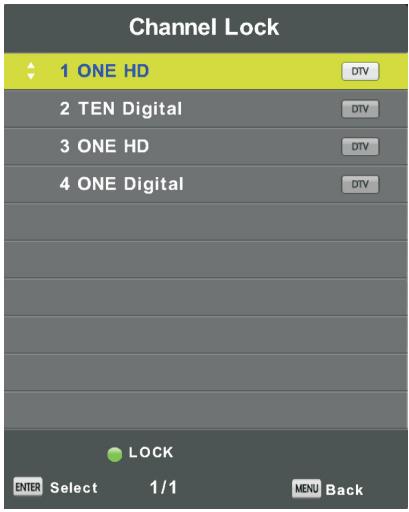

Lock Menu 22

Hotel Mode 23

Setup Menu 24

PC Menu

Screen Menu 27

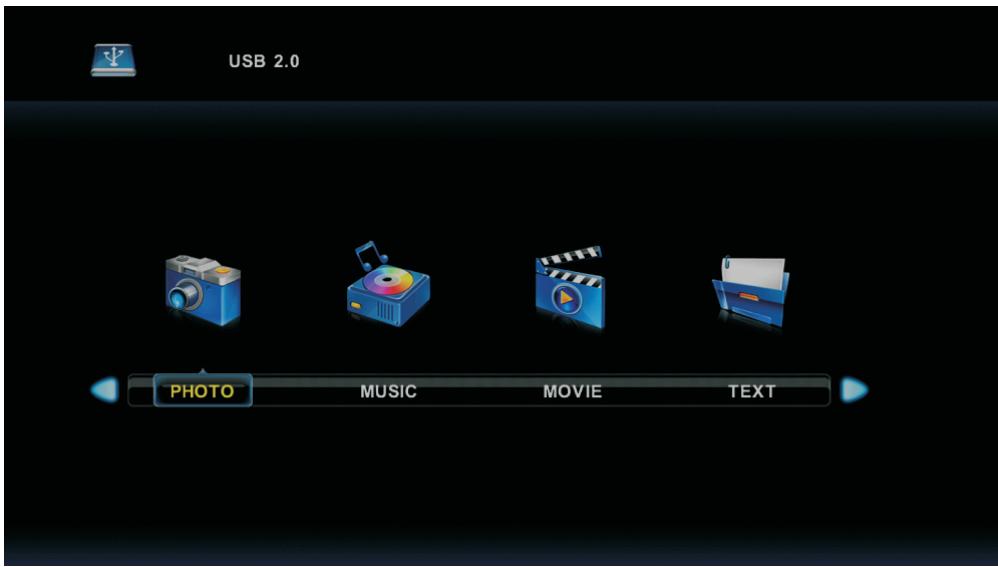

Media Menu

Media Operation 28

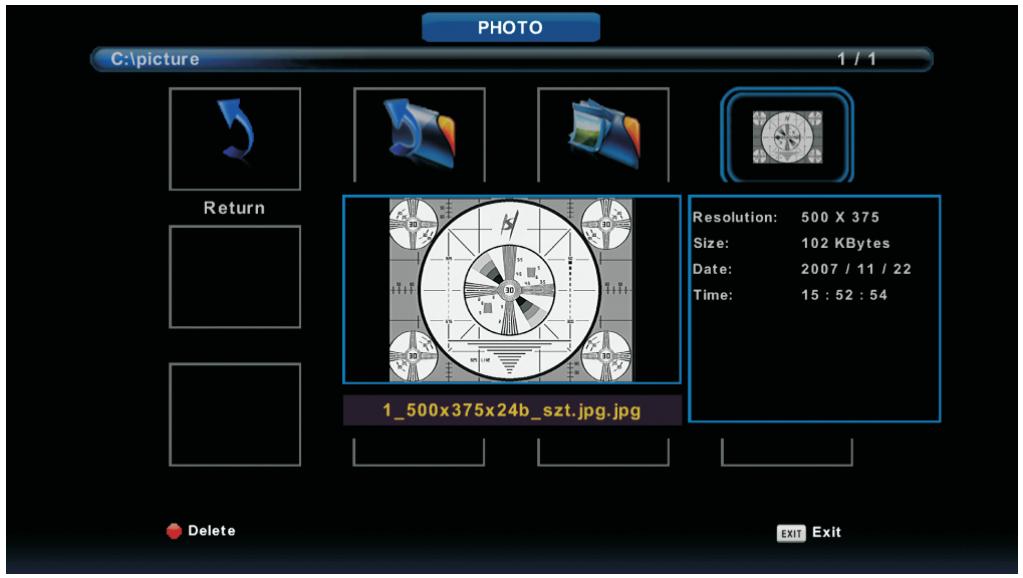

Photo Menu 29

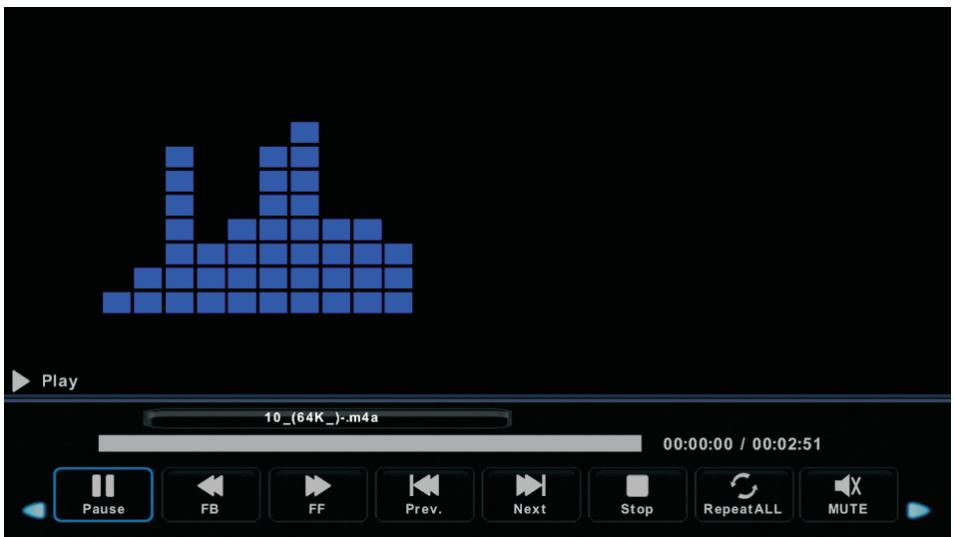

Music Menu 30

Movie Menu 31

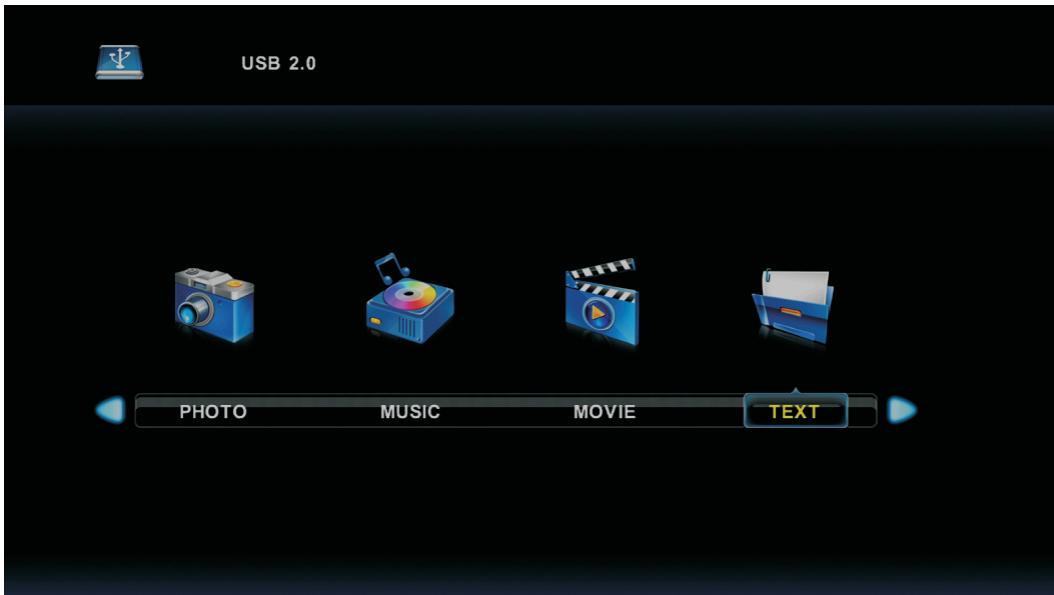

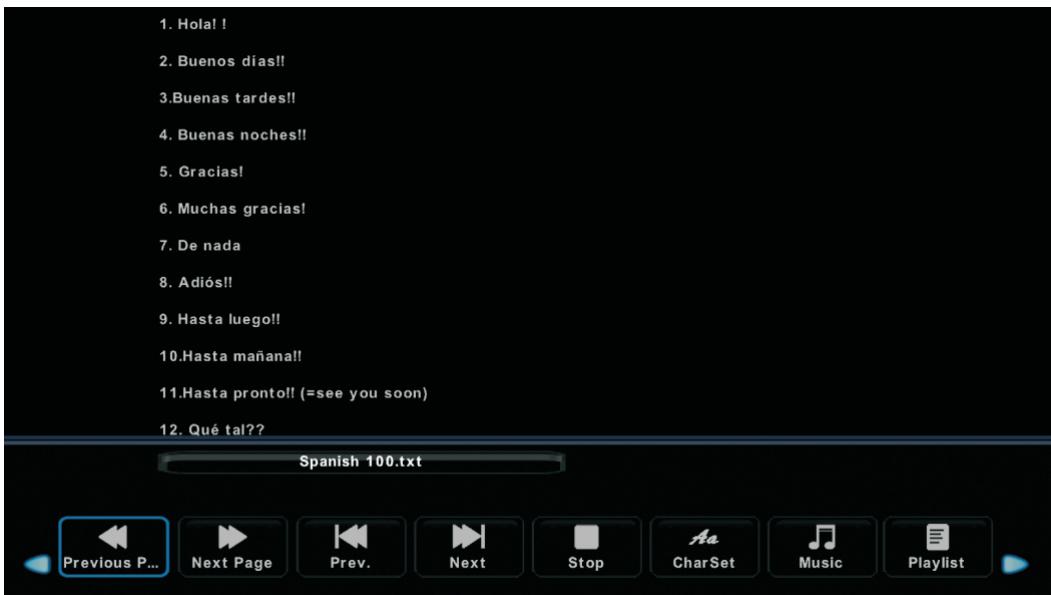

Text Menu 32

Other Information

Help. 33

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product.to reduce the risk of electric shock,do not remove cover of the cabinet, refer $ervicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments /accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
Caution:
14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
16) The socket-out shall be installed near the equipment and shall be easily accessible.
17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.
18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.
19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions. unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth
25) The maximum using environment temperature is 45 degrees.
The Maximum using altitude is 2000 meters

TV Bracket assemble

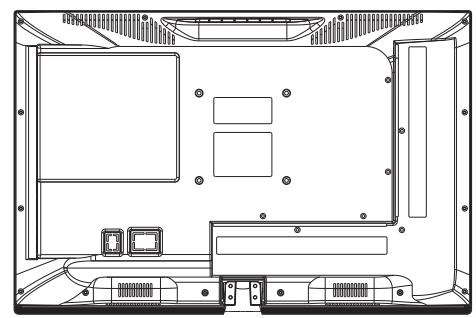

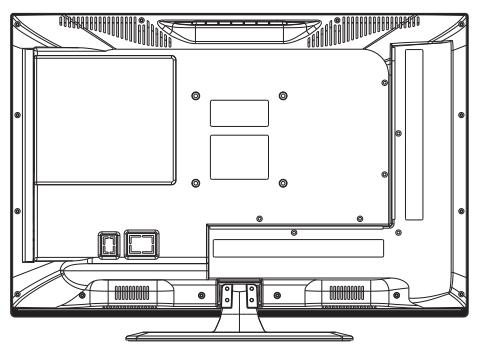

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1).And take off the bottom stand(please take off the screws and bottom stand carefully).

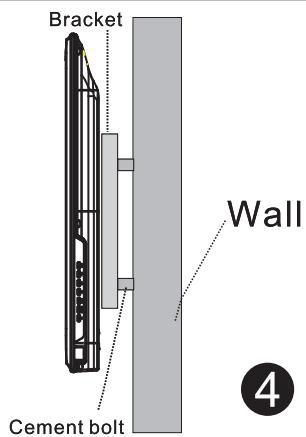

   3.Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.

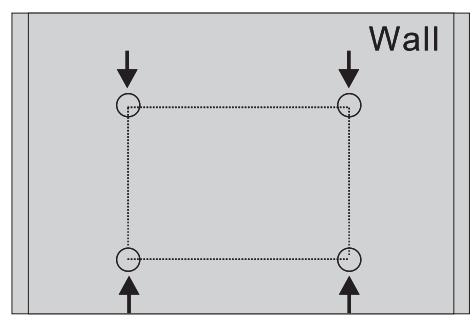

   4.Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts)
3. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

1

2

3

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL -

CH+

CH-

MENU

SOURCE

:Turn ON/OFF Power.

SOURCE:External Signal Input Selection.

MENU:Display Main MENU And Confirm MENU Item Selection.

CH+:/:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

INPUT VIDEO L R ●	AV input External AV Signal Input And Relevant Right/Left Sound Channel	EARPHONE	EARPHONE output When earphones are plugged in, speakers are disabled
CI	CI SLOT The card reader input CI(common interface) this requires CAM (conditional access module) used for pay TV.	USB	USB input Connect a USB device here to play its media files or to recordprograms via the PVR function.
PC AUDIO INPUT	PC AUDIO INPUT VGA input and audio input when VGA input	COAXIAL	COAXIAL Connect the SPDIF receiver.
HDMI	HDMI input Digital signal input from HDMI video connector.	VGA	VGA input PC analog signal input
ANT 75Ω	ANT 75 Connect the antennal/cadle tv input (75/VHF/UHF)	DC 12V	DC 12V DC 12V for car use only. A power converter/adapter for DC12V is not included and required to purchase by user

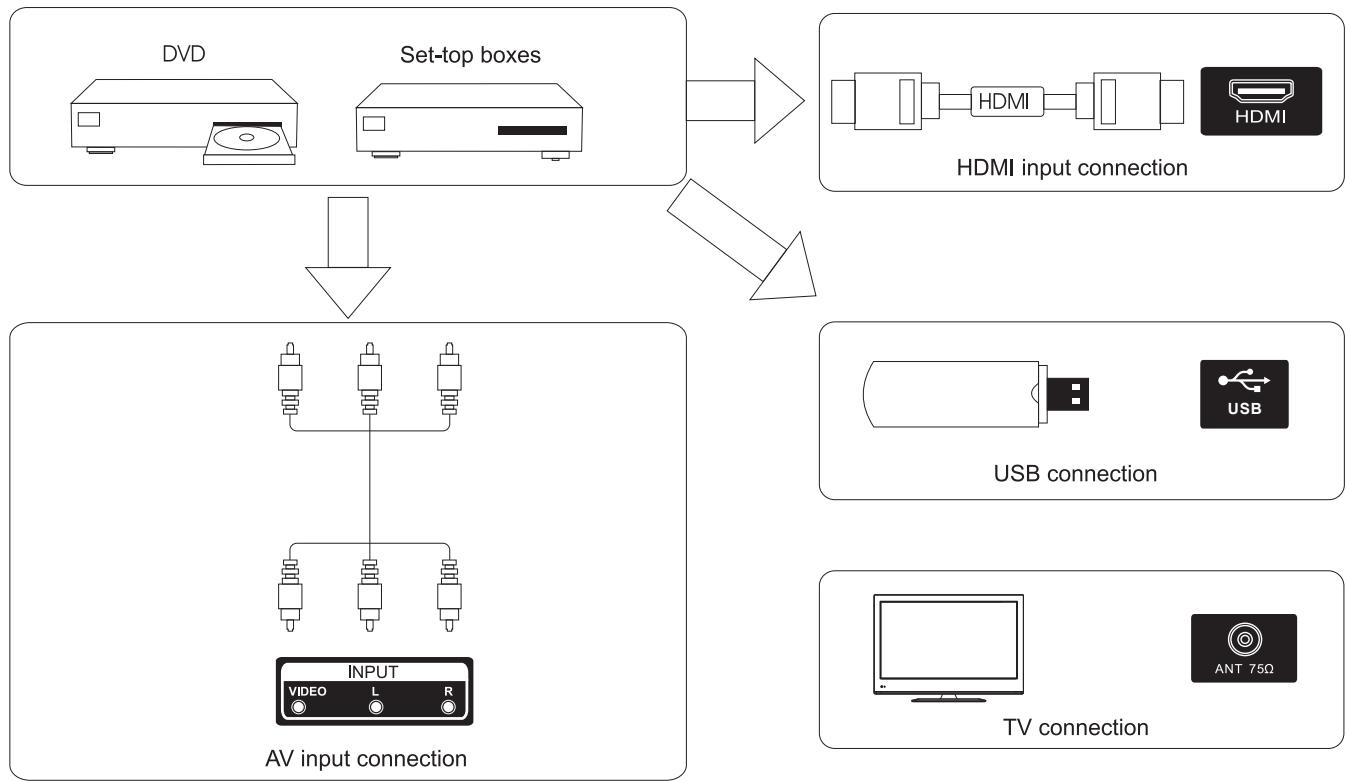

External device connection diagram

VGA input connection

AV input connection

AV output connection

Install And Connect TV

3
2
1

Set your TV

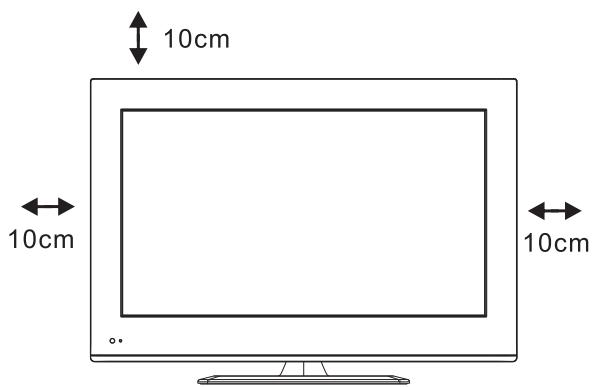

To put your TV in a firm place which can bear the weight of the TV.
To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine),do not block the ventilation at the back of TV.

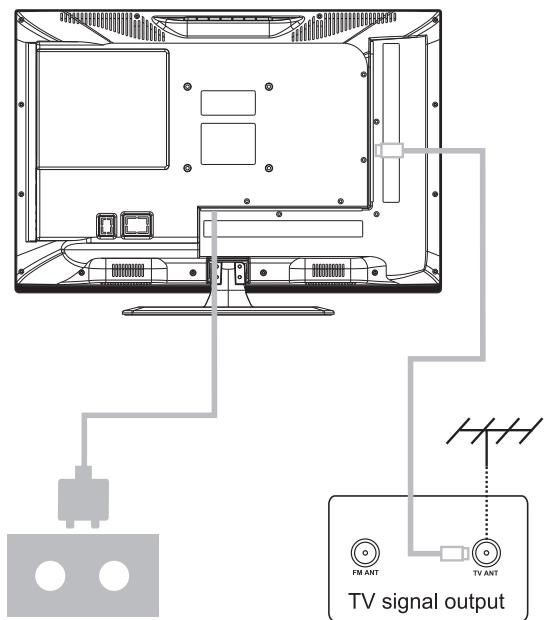

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
   2.To plug the power cord of TV.

Turn on TV

1. Connect the power supply, enter the standby mode (red light), press the power button of the TV or the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, facedown on a soft mattress, the base of the neck is fixed on the TV with screws.
   3.screw the base and connected to the TV.
3. the installation is complete.

Note:

Picture for reference purposes only.

Please prevail in kind

Suggestion: To make it more convenient for base installation and to avoid any risk of scratches and damage, we advise you using the type of PH2 screwdriver.

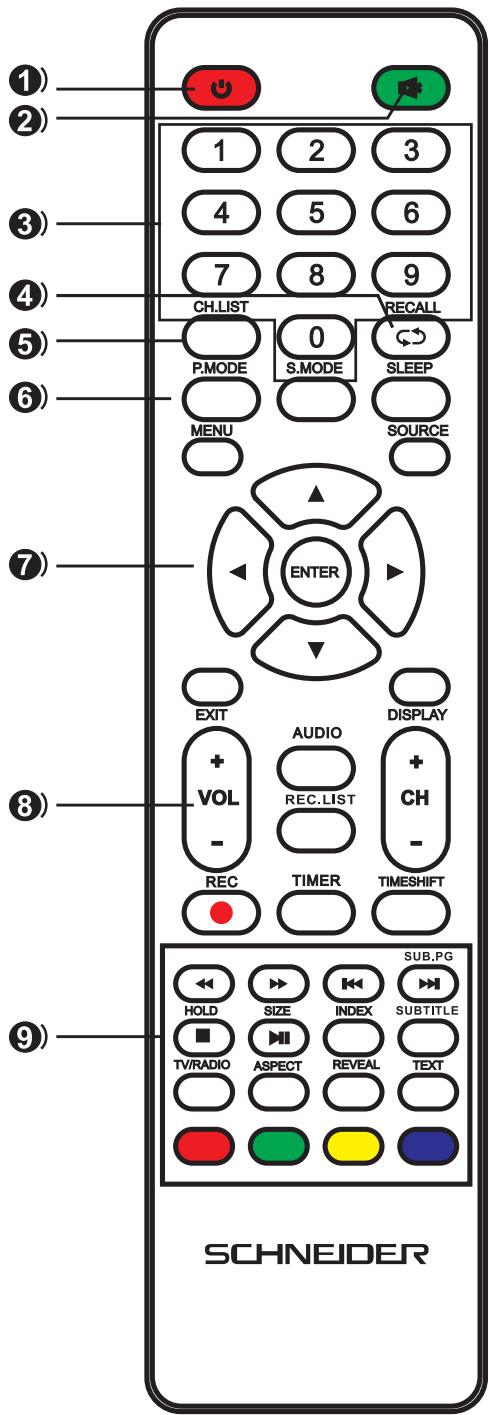

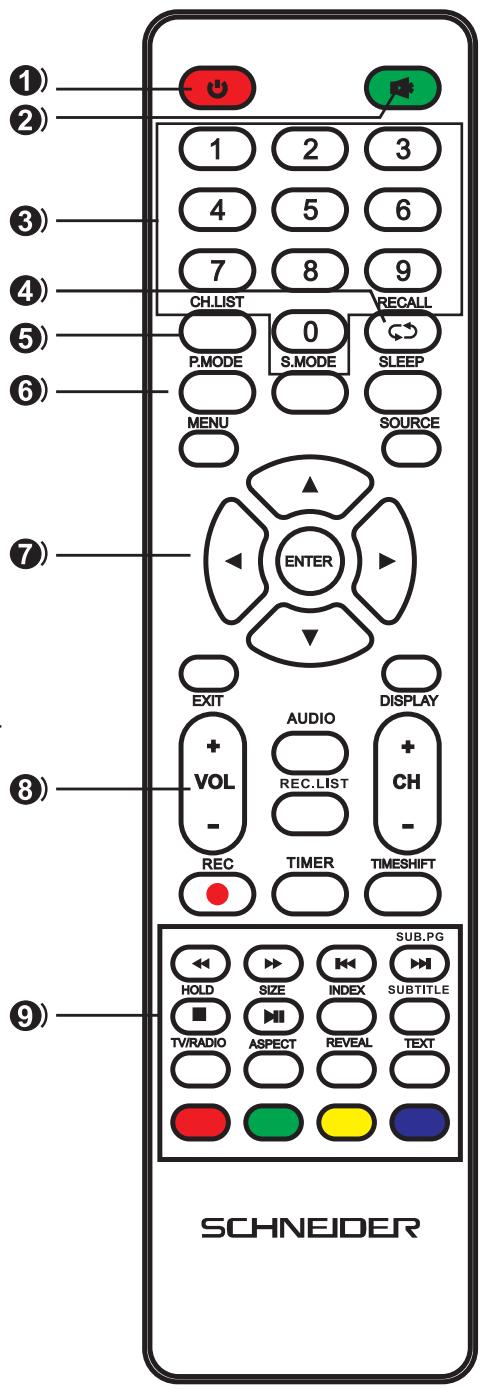

1) STANDBY Switches the set between ON and STANDBY.
MUTE Switches the sound on or off.
30-9 Figures 0-9 are used to directly input channel number.
4) RECALL Returns to the channel selected last time.
CH.LIST Press to show the channel list programme.
PIC.MODE Selects the different picture mode directly.

S.MODE Selects the different sound mode directly.

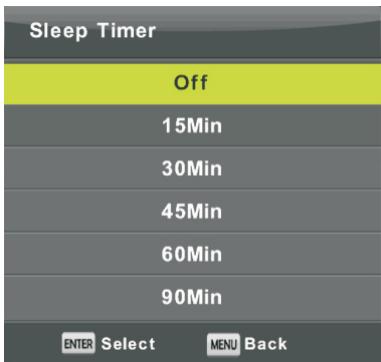

SLEEP Sleep time setting.

MENUs Selecta menu

SOURCE Displays the source list of input signal.

7 / Decrease/increase the option value. / Selects the previous/next function option.
ENTER Confirm your selection or displays the current mode.
EXIT Returns to TV viewing from any menu.
DISPLAY Display the system state information set by active user.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries.

Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

8

VOL+/VOL- Increase / decrease the sound level.

CH+/CH- Selects a program.

AUDIO Press AUDIO to change audio mode.

REC.LIST Displays the list of recorded programs.

REC Starts recording of the current DVB-T channel.

TIMER Enter the setup menu of time recorder.

TIMESHIFT Press the TIME SHIFT button when you want to pause.

TIMESHIFT Press the PLAY/PAUSE button to resume playback of the TV program.

9

HOLD Hold the current page and prevent again

SIZE Change the size of current page.

INDEX Ask for the list of main TV letter broadcast page number.

SUBTITLE Recalls your preferred subtitle in digital mode.

SUBPAGE Display the current sub-page.

TV/RADIO Switch between DVB-T and RADIO. (Digital radio is not available in countries such as France)

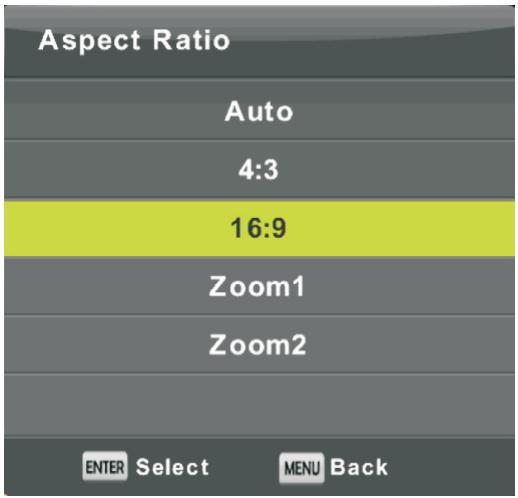

ASPECT Select the aspect format.

REVEAL Display the characters hidden.

TEXT Display the teletext on screen.

Play.

Pause.

Stop.

忍 Skip to previous track or chapter.

Skip to next track or chapter.

Fast reverse.

Fast forward.

RED

GREEN

YELLOW

CYAN

Available in the following modes:

teletext, DVB-T and TV.

First Time Installation

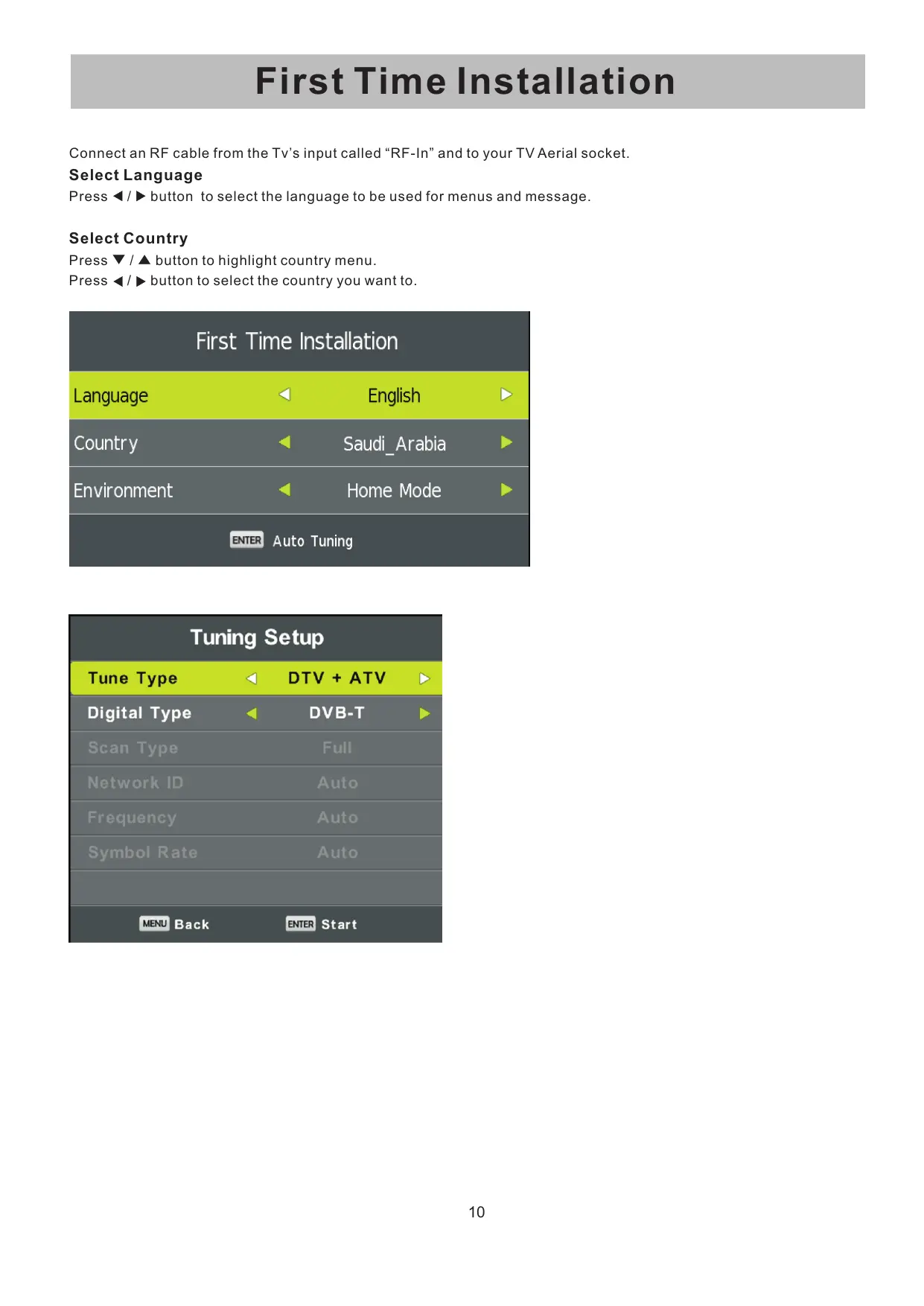

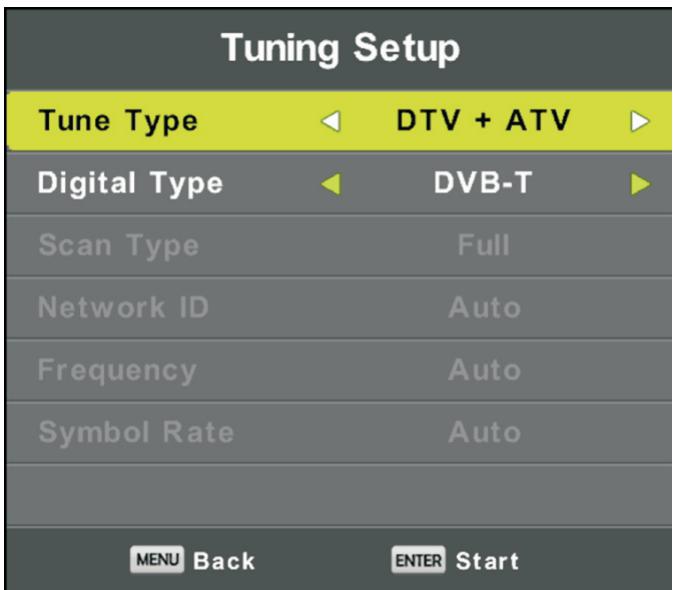

Connect an RF cable from the Tv's input called "RF-In" and to your TV Aerial socket.

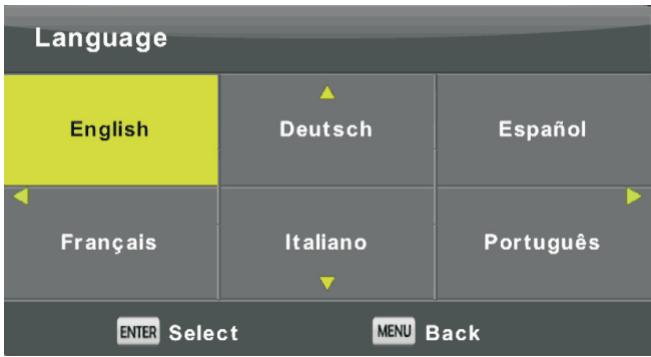

Select Language

Press / button to select the language to be used for menus and message.

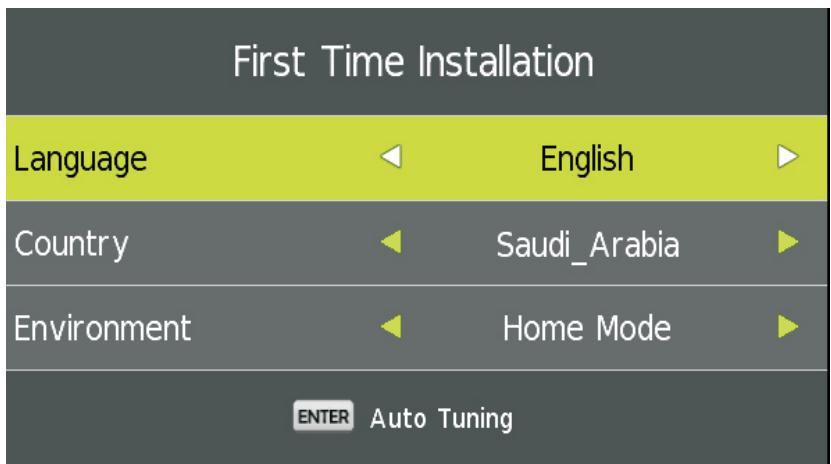

Select Country

Press / button to highlight country menu.

Press / button to select the country you want to.

Auto Tuning

First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuni

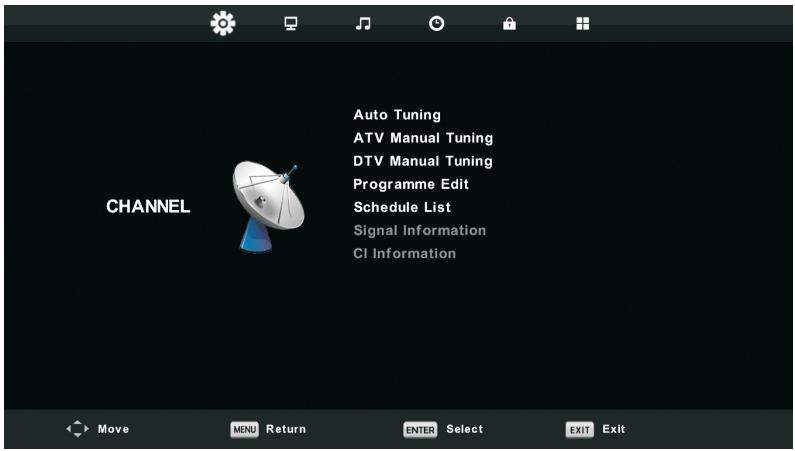

Channel Menu

Press MENU button to display the main menu.

Press / button to select CHANNEL in the main menu.

1. Press / button to select the option that you want to adjust in the CHANNEL menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

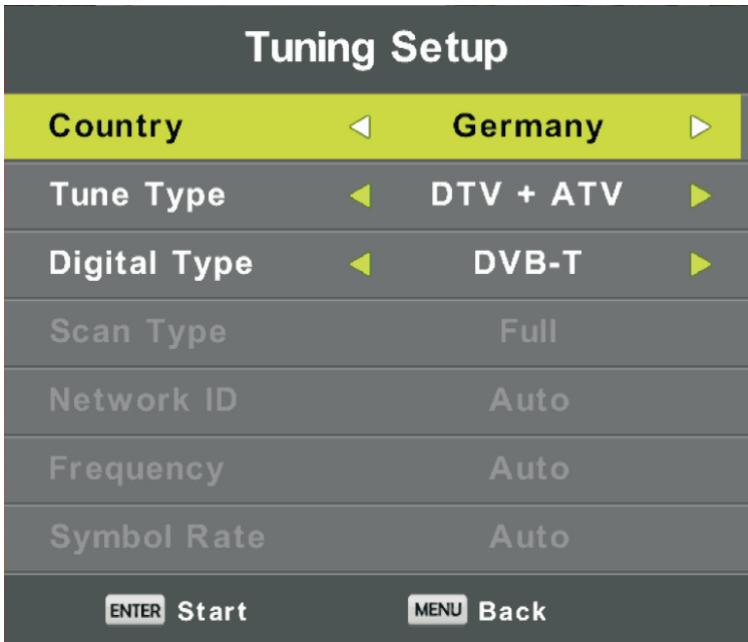

Auto Tuning

Press / button to select Auto Tuning, then press Enter/ button to enter.

Channel Tuning

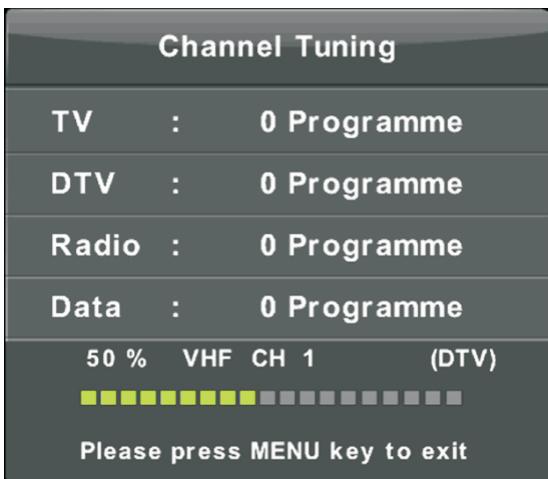

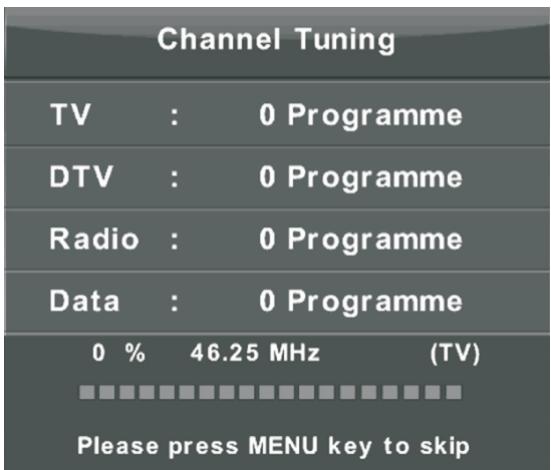

TV : 0 Programme

DTV 0Programme

Radio : 0 Programme

Data : 0 Programme

0 % 43.25 MHz (TV)

Please press MENU key to skip

Do you want to skip ATV tuning?

Yes

No

Channel Tuning

TV : 1 Programme

DTV 4Programme

Radio : 0 Programme

Data : 0 Programme

54% VHF CH 6 (DTV)

Please press MENU key to exit

Do you want to exit tuning?

Yes

No

ATV Manual Tuning

ATV Manual Tuning

Current CH 3

Color System Auto

Fine-Tune

Search

Frequency Unregistered

Move

Current CH

Set the channel number.

Color System

Select the color system

(Available System: AUTO, PAL, SECAM)

Sound System

Select the Sound system

Fine-Turn

Adjust the frequency of the channel finely.

Search

Start searching channel.

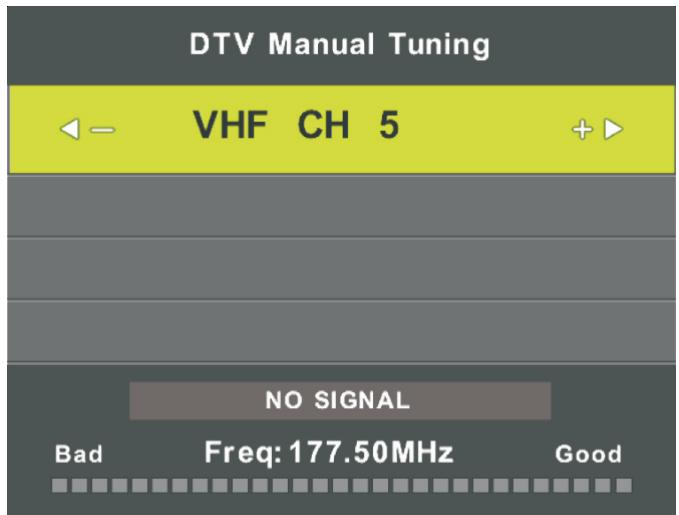

DTV Manual Tuning

Press / button to select DTV Manual Tuning, then press Enter button to enter sub-menu.

Press / button to select channel, then press Enter button to search program.

Program Edit

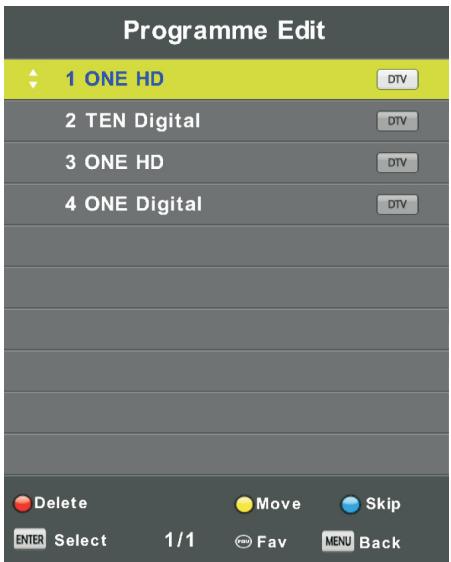

Press / button to select Program Edit, then press Enter button to enter sub-menu.

The three colored key is the shortcut key for programming the channel.

First press / to highlight the channel you want to select, then:

Press the Red button to delete the program in the list.

Press the Yellow button to move the channel in the list.

Press the Blue button to skip the selected channel.

Press Fav button to add or remote the channel to your favorite list.

(Your TV set will skip the channel automatically when using

CH + / - to view the channels.)

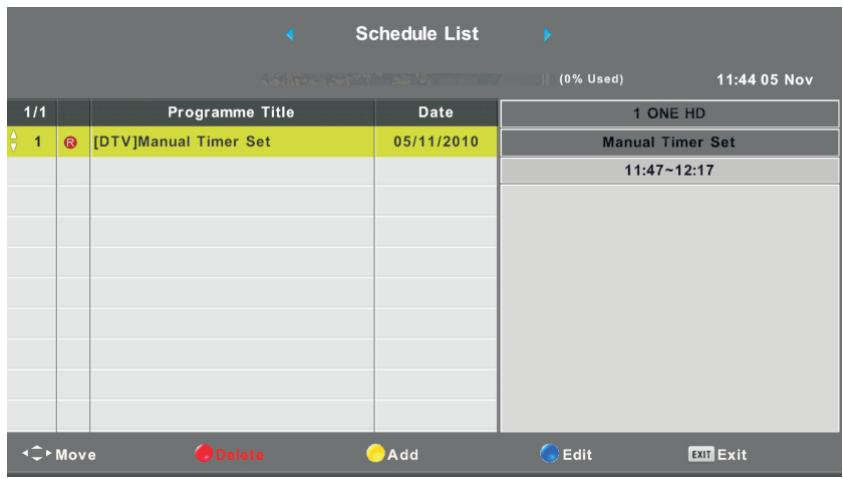

Schedule List

Press / button to select Schedule List, then press Enter button to enter sub-menu. It is available in DTV and satellite source.

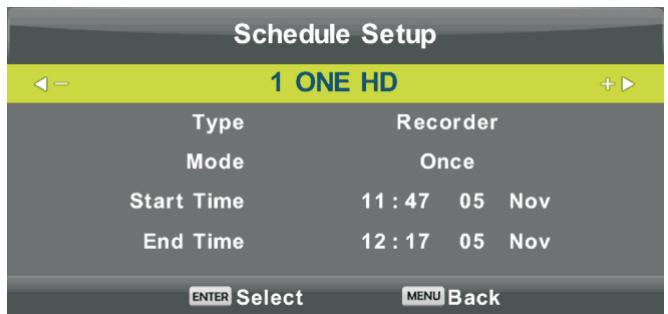

Press the YELLOW button to enter the interface below.

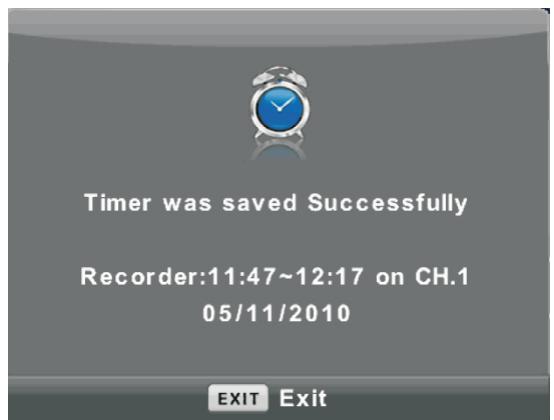

When the time appointment is conflict, it will produce a warning message.

Signal Information

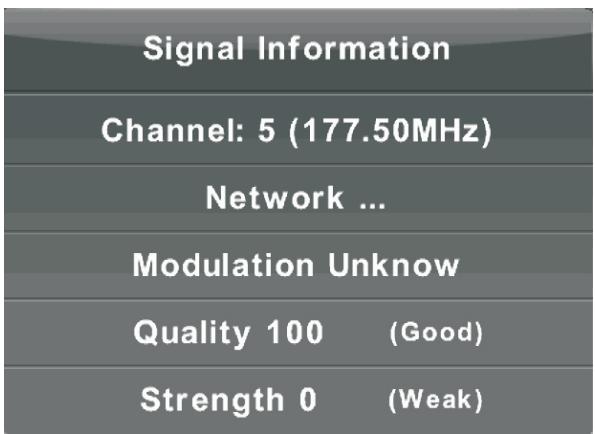

Press / button to select Signal Information, press the Enter button to see the detail information about the signal. Only available when there is signal in DTV.

CI Information (Need to support the CI function)

Press / button to select CI Information, then press the Enter button to display detail if you has inserted the CI card

Picture Menu

Press MENU button to display the main menu.

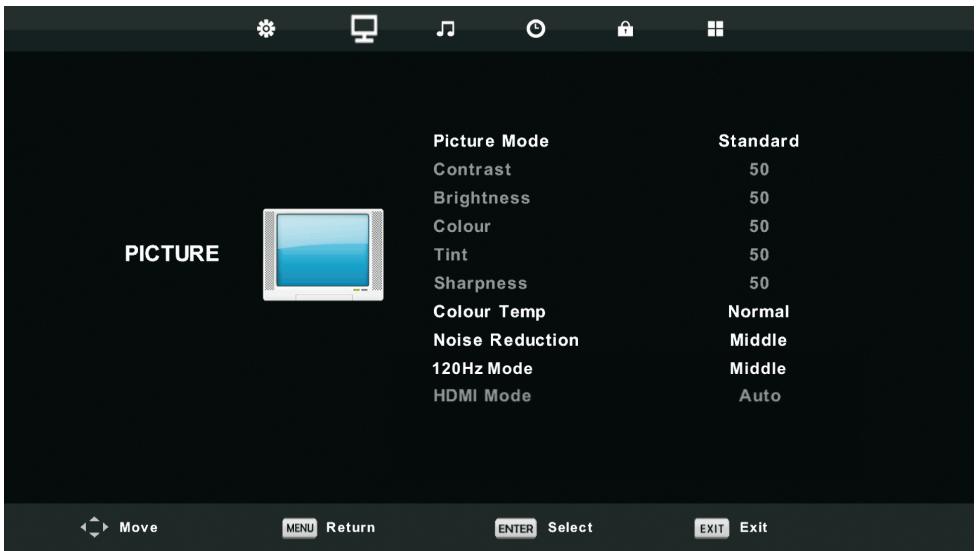

Press / button to select PICTURE in the main menu.

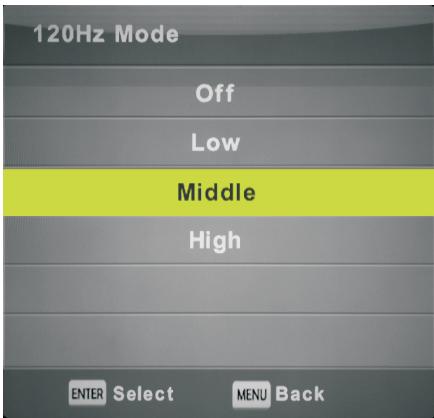

Note: 120Hz MODE Function only supported with UHD TV

1. Press / button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

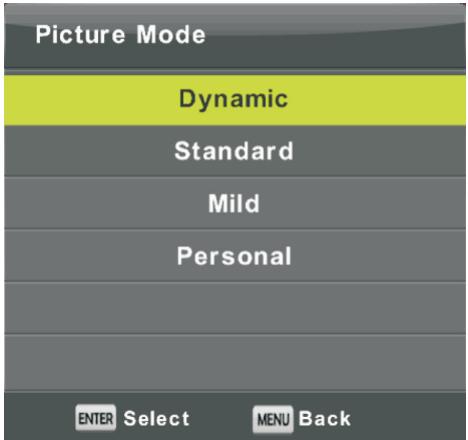

Picture Mode

Press / button to select Picture Mode, then press OK button to enter sub-menu.

You can change the value of contrast, brightness, color, sharpness and tint when the picture is in

Personal mode.

TIPS: You can press PMODE button to change the Picture Mode directly.

Contrast/ Brightness/ Color/ Tint / Sharpness

Press / button to select option, then press enter/ button to adjust.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Color Adjust the saturation of the color based on your own like.

Tint Use in compensating color changed with the transmission in the NTSC code.

Sharpness Aadjust the peaking in the detail of the picture.

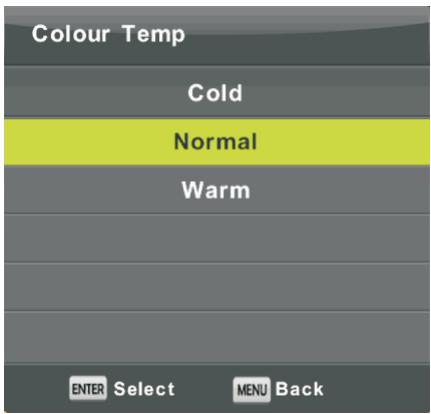

Color Temp

Change the overall color cast of the picture.

Press / button to select Color Temperature, then press OK button to enter sub-menu.

Press / button to select. (Available Picture mode: Cool, Medium, Warm).

Cold Increase the blue tone for the white.

Normal Increase the sex-linked colors for the white.

Warm Increase the red color for the white.

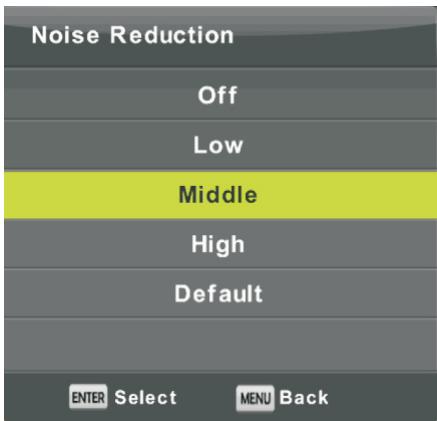

Noise Reduction

To filter out and reduces the image noise and improve picture quality.

Press / button to select Noise Reduction, then press OK button to enter sub-menu.

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

120Hz MODE (Only with UHD TV)

Adjust the motion compensation.

Higher setting may improve the motion performance when watching sports or playing games.

Press / button to select(Off/Low/Middle/High)

HDMI Mode

Press / button to select HDMI Mode, then press OK button to enter sub-menu.

Press / button to select. (Available Picture mode: Auto, Video, PC).

Sound Menu

Press MENU button to display the main menu. Press / button to select SOUND in the main menu.

1. Press / button to select the option that you want to adjust in the SOUND menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

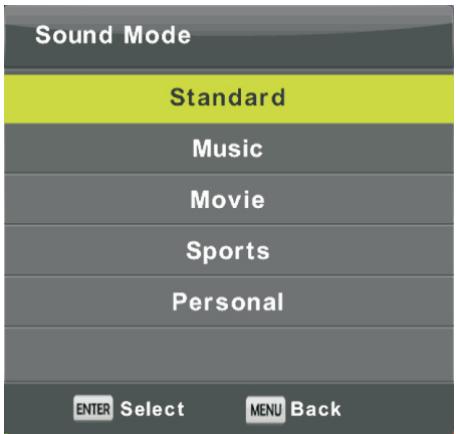

Sound Mode

Press / ▲ button to select Sound Mode, then press Enter button to enter sub-menu. Press / ▲ button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Standard

Produces a balanced sound in all environments.

Music

Preserves the original sound.Good for musical programs.

Movie

Enhances treble and bass for a rich sound experience.

Sports

Enhances vocals for sports.

Personal

Select to customize picture settings.

Note:The treble and bass are only available in personal mode,you can adjust them as you like.

Balance

Press / button to select option, Press / button to adjust.

Auto Volume level

Press / button to select Auto Volume Level, then press / button to select On or Off.

SPDIF Mode

Press / button to select SPDIF Mode, then press / button to select Off / PCM / Auto.

AD Switch

Press / button to select AD Switch, then press / button to select On or Off. Amblyopia function for the blind, the tracks will be mixed describe the current screen. It need codestream to support.

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position.

Auto Volume: This item is used for reducing the difference between channel and program's volume automatically.

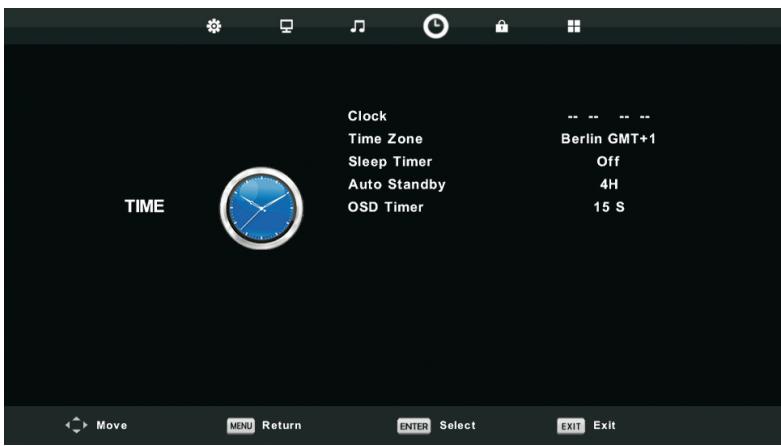

Time Menu

Press MENU button to display the main menu. Press / button to select TIME in the main me

1. Press / button to select the option that you want to adjust in the TIME menu.
2. Press Enter button I to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

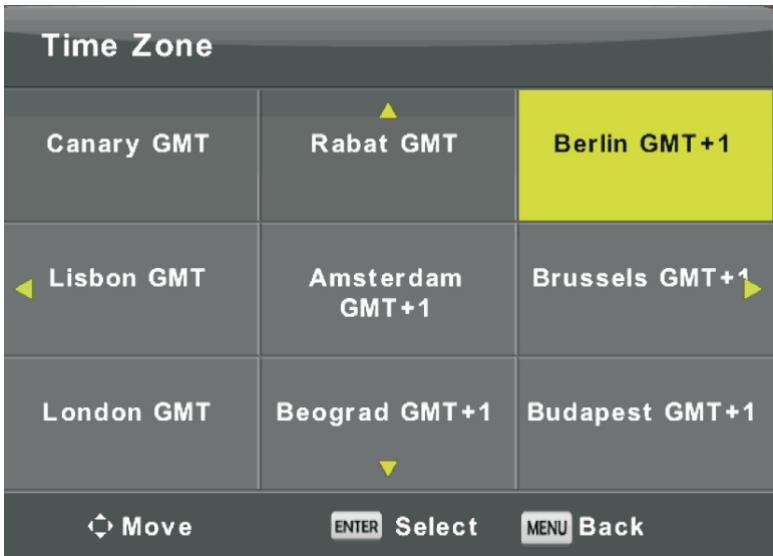

Time Zone Press / button to select Time Zone, then press Enter button to enter sub-menu.

Press / / / button to select time zone.

Sleep Timer

Press▼/▲ button to select Sleep Timer, then press Enter button to enter sub-menu.

Press / button to select.
(Available options are: Off, 15min, 30min, 45min, 60min, 90min, 120min, 240min).

Auto Standby

Press / button to select Auto Standby, then press Enter button to enter sub-menu.

Press / button to select.

Tips: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

OSD Timer

Press / button to select OSD Timer, then press Enter button to enter sub-menu.

Press / button to select.

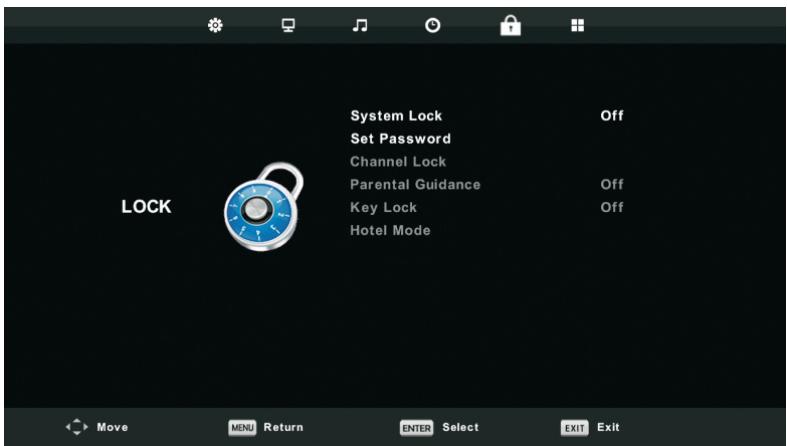

Lock Menu

Press MENU button to display the main menu. Press / button to select Lock in the main menu

1. Press / button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu

Lock System

Press / button to select System Lock, then press Enter button to make the following 3 options valid.

Default password is 0000/8888, and if forget what you set, please call the service center.

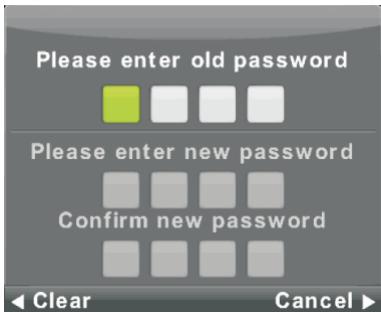

Set Password

Press / button to select Set Password, then press Enter button to enter sub-menu to set new password.

Channel Lock

Press / button to select Channel Lock then press Enter button to enter sub-menu to select. Press Green button to lock or unlock the channel.

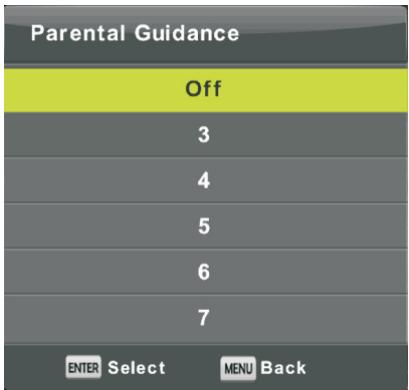

Parental Guidance

Press / button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children.

Key Lock

Press / button to select Key Lock, then press / button to select Off or On.

When Key Lock's statue is on, you can't use the Key panel button.

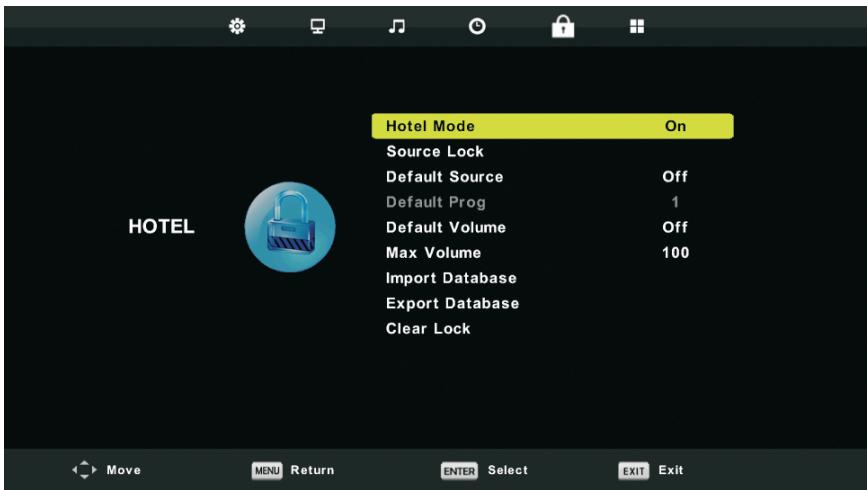

Hotel Mode (Need support the hotel mode)

1. Press / button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-menu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Hotel Mode

Press / button to select Hotel Mode, then press / button to select on or off.

Source Lock

Press / button to select Source Locke, then press Enter button to enter sub-menu to select.

Default Source

Press / button to select Default Source, then press Enter button to enter sub-menu to select.

DefaultProg

Press / button to select Default Prog, then press / button to adjust.

It is available when the default source is TV.

Max Volume

Press / button to select Max Volume, then press / button to adjust.

Clear Lock

Press / button to select Clear Lock, then press Enter button to clear the setting you have done before.

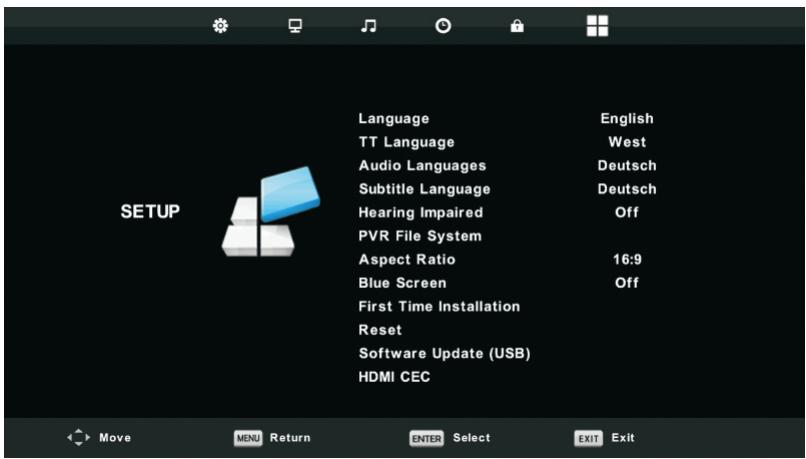

Setup Menu

Press MENU button to display the main menu. Press / button to select SETUP in the main menu.

1. Press / button to select the option that you want to adjust in the SETUP menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

OSD Language

Select an OSD menu language can be displayed.Default English is selected as menu language.

Press / / / button to select Menu Language.

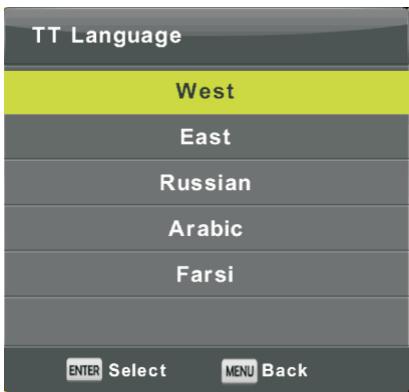

TT Language

Press / button to select TT Language, then press Enter button to enter sub-menu. Press / button to select TT language.

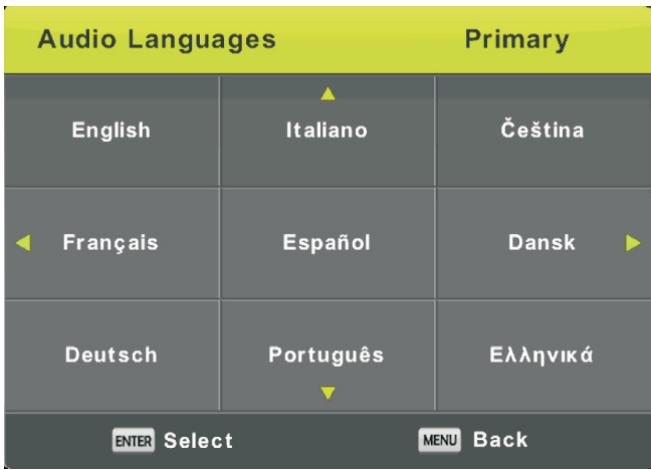

Audio Languages

Press / button to select Audio Languages, then press Enter button to enter sub-menu.
Press / button to select the primary of Audio Languages.
Press / / / button to select the Audio Languages.

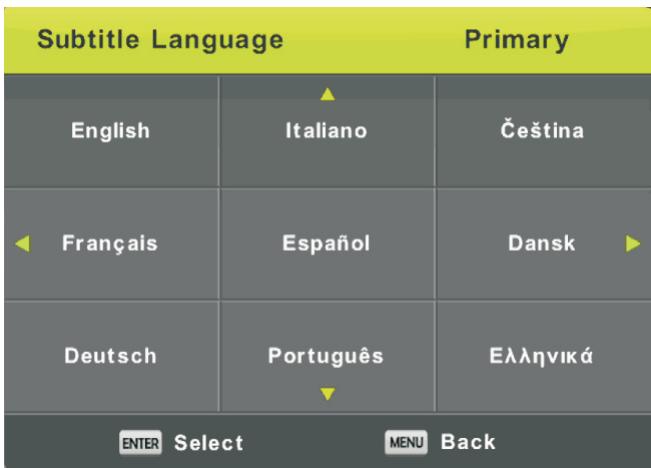

Subtitle Language

Press / button to select Subtitle Language, then press Enter button to enter sub-menu.
Press button to select the primary of Subtitle Language.
Press / / button to select the Subtitle Language.

Hearing Impaired

Press / button to select Hearing Impaired, then press Enter button to select On or Off.

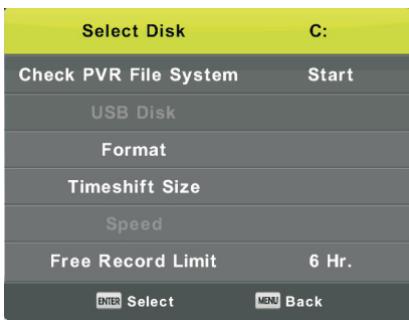

PVR File System

Press / button to select PVR File System, then press Enter button to enter sub-menu.

Press ▼ / ▲ button to select Check PVR File System ,

then press Enter button to enter. Then it will check the USB speed.

Aspect Ratio

Press / button to select Aspect Ratio, then press Enter button to enter sub-menu. Press / button to select aspect ratio. (Available options are: Auto, 4:3,16:9, Zoom1, Zoom2).

Blue Screen

Press / button to select Blue Screen, then press Enter button to select On or Off.

First Time Installation

Press / button to select First time installation, then press Enter button to enter.

Reset

Press / button to select Reset, then press Enter button to enter sub-menu.

Software Update(USB)

Press / button to select Software Update (USB), plug your USB device in the USB slot, then press Enter button to update the right software.

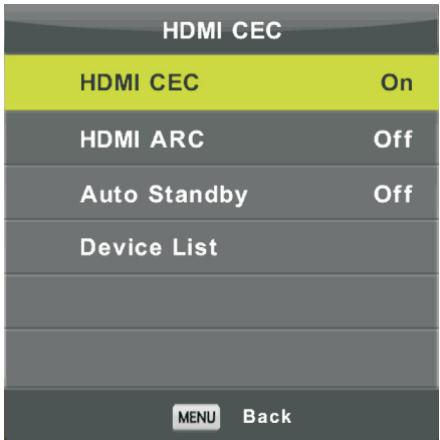

HDMI CEC(Need to support the HDMI CEC/ARC function)

Press / button to select HDMI CEC, then press Enter button to enter the sub-menu.

HDMI CEC Press / button to turn the HDMI CEC on or off.

HDMIARC Press / button to turn the HDMI ARC on or off.

Auto Standby Press / button to turn the Auto Standby on or off.

Device List Press Enter button to open the main menu of device.

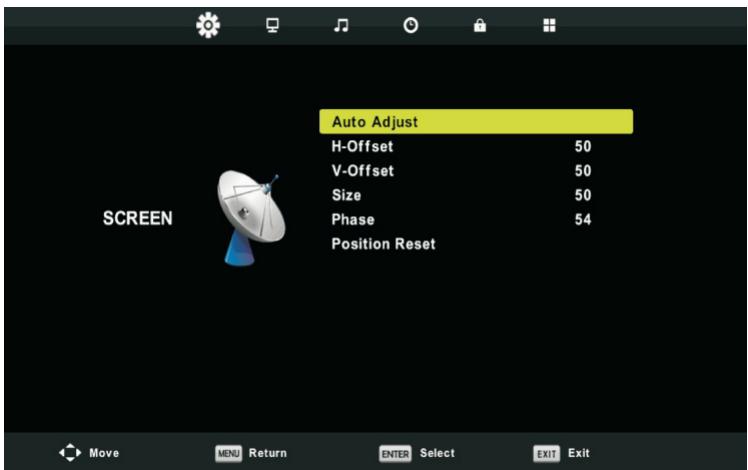

Screen Menu

Press MENU button to display the main menu.

Press / button to select SCREEN in the main menu.

1. Press / button to select the option that you want to adjust in the SCREEN menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Auto Adjust

Press Enter button to start adjusting H-Offset/V-Offset/Size/Phase automatically.

H-Offset.

Adjust the horizontal position of the picture.

Press / button to select H-Offset, then press Enter button to enter sub-menu.

V-Offset

Adjust the vertical position of the picture.

Press / button to select V-Offset, then press Enter button to enter sub-menu.

Size

Adjust the display size.

Press / button to select Size, then press Enter button to enter sub-menu.

Phase

Adjust the horizontal interfering lines.

Press / button to select Phase, then press Enter button to enter sub-menu.

Position Reset

Press / button to select Position Reset, then press Enter button to enter.

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. AD Switch in SOUND option is invalid.
3. TIME menu and description are the same as that for Air mode.
4. Block Program and Parental Guidance in LOCK option is invalid.
5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in SETUP option is invalid.
   6.PC mode has no CHANNEL menu.

Note: Before operating Media menu, Plug in USB device, then press Source button to set the Input Source to Media.

Press / button to select Media in the Source menu, then press Enter button to enter.

Press button to select the option you want to adjust in the main Media menu,

then press Enter button to enter.

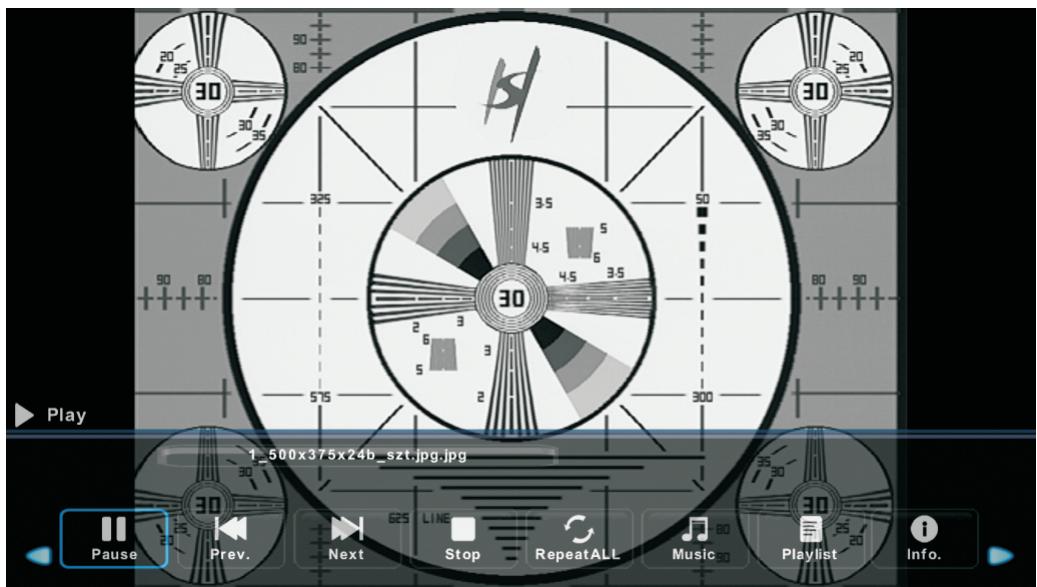

Photo Menu

Press / button to select PHOTO in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press / button to select the file you want to watch in the file selecting menu, then press enter button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

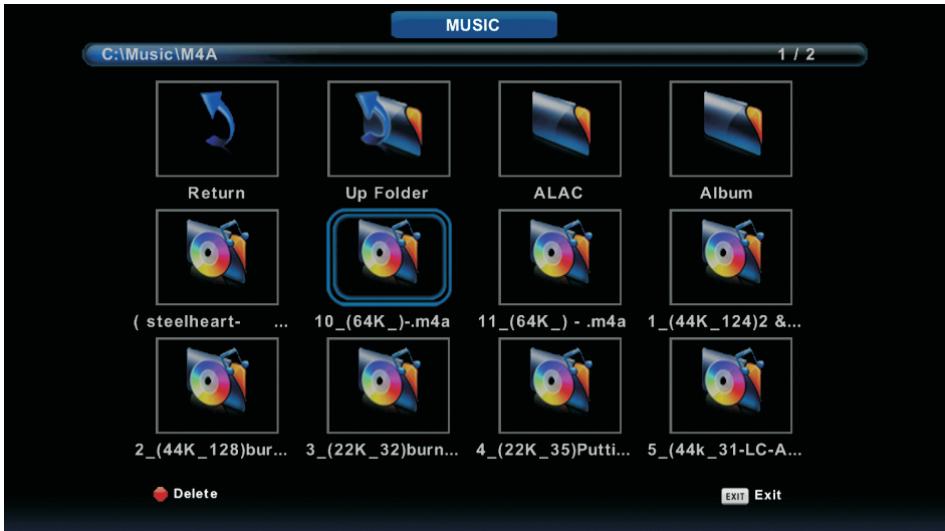

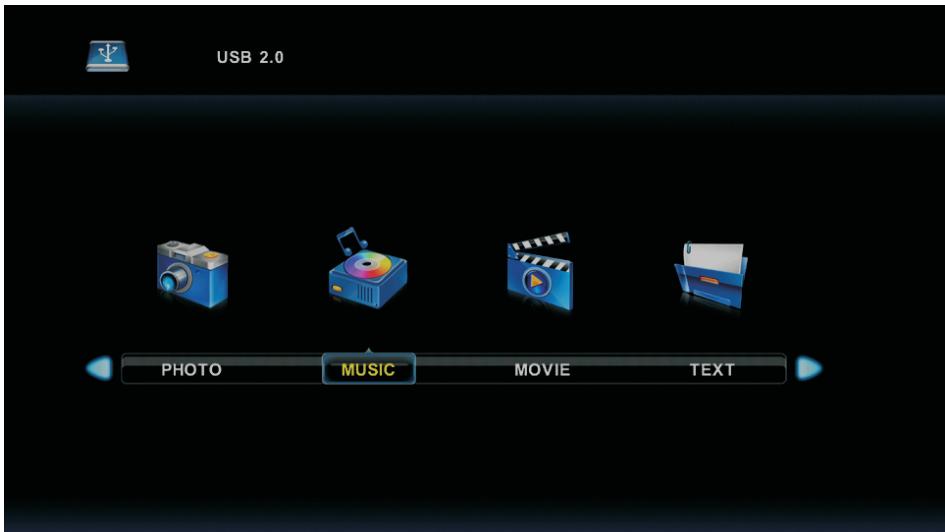

Music Menu

Press / button to select MUSIC in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press / button to select drive disk you want to watch, then press Enter button to enter.

Press / button to select return option to the previous menu.

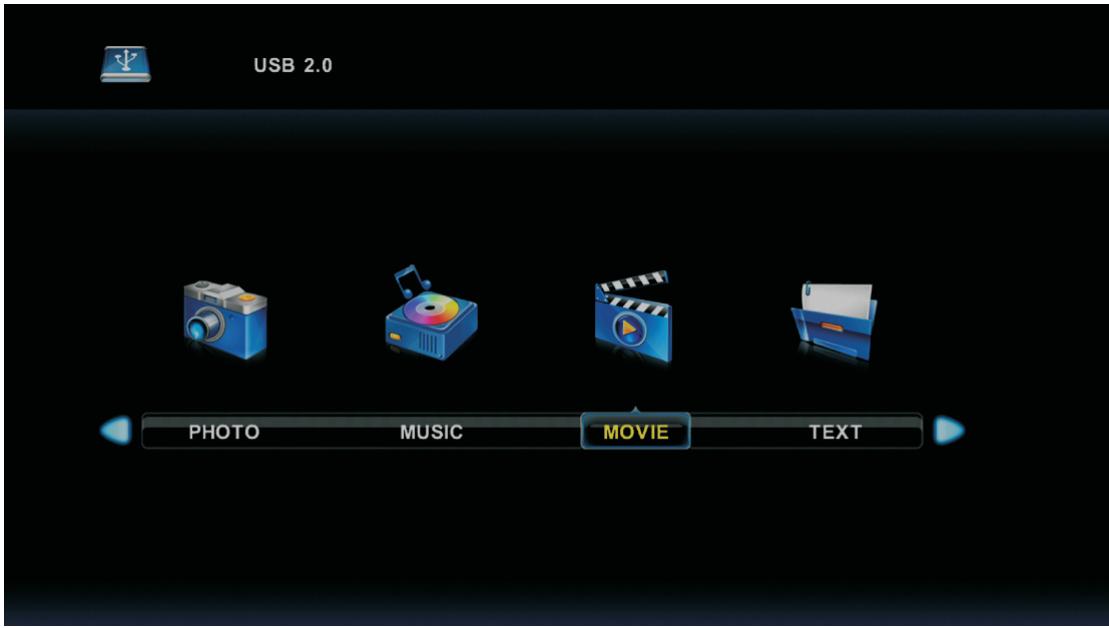

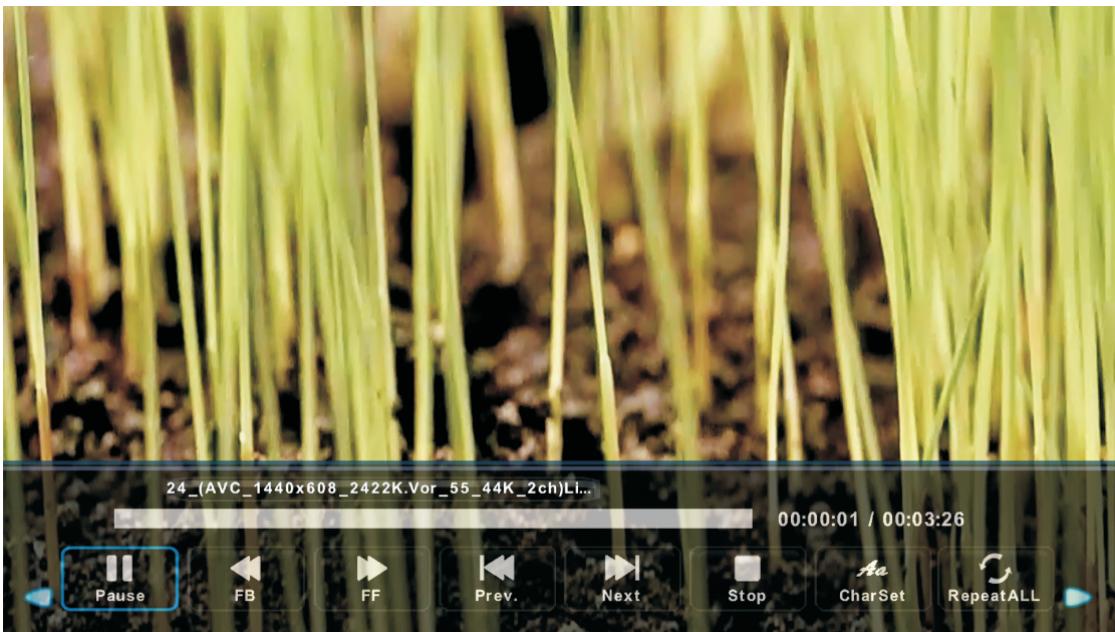

Movie Menu

Press / button to select MOVIE in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press / button to select drive disk you want to watch, then press Enter button to enter.

Press enter button to play the selected movie.

Press display button to select menu in the bottom you want to run, then press Enter button to operate.

Press Exit button to back to the previous menu and exit button to quit the entire menu.

Text Menu

Press / button to select TEXT in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

Press / button to select drive disk you want to watch, then press Enter button to enter.

Press / button to select return option to back to the previous menu.

Help

No power	·Check if the AC cord of TV is plugged in or not. If there's still no power, please disconnect the plug, and reconnect to the socket after 60 seconds. Turn the power back on.
Signal not received properly	·Double or phantom images may appear on your TV if there are high buildings or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna. ·If you use an indoor antenna, under certain circumstances signal reception may be more difficult. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna.
No picture	·Check if the antenna at the back of the TV is connected properly. ·View other channels to see if the problem still occurs.
Video appears with no audio	·Try increasing the volume. ·Check if the TV's sound is on mute or not.
Audio is present, but video does not appear or is discolored	·Try adjusting the contrast and brightness.
Static noise affects video and audio quality	·Check if the antenna at the back of the TV is connected properly.
Broken lines on screen	·Electrical appliances such as hair dryers or vacuums etc. may be interfering with your TV set. Switch these appliances off.
Remote doesn't work	·Make sure the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement of the batteries is correct, or try using new batteries with the remote control. ·The TV will go into Standby mode if it receives no response in a few minutes.
No video (PC mode)	·Please check if the cable is connected to the VGA port correctly, or if the cable is bent in some places.
Vertical line blinking (PC Mode)	·Enter the main menu, and adjust the vertical placement to eliminate the vertical line.
Horizontal tearing (PC Mode)	·Adjust the horizontal placement of the screen to clear any horizontal lines.
Screen is too bright or dark (PC Mode)	·Adjust the brightness or contrast in the main menu.
No response from the PC	·Check if the PC's display resolution is set to a compatible resolution for the TV.
Lines appearing when a device is connected to the RCA port	·Make sure you are using a cable of good quality.
Problems are unresolved	·Unplug the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindly contact the service center.

Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

Specifications

Screen Size	power Consumption	Main accessories
16"	24W	User's manual x1 Remote controller x1 Power cord x1
19"	36W/48W
22"	36W/48W
24"	36W/48W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

LIFE TIME : 60,000 Hrs

Note on Defective Pixels

Your product has been manufactured with great care. Nevertheless, it is possible that some pixels remain constantly on or unlit. Please refer to the table below about the tolerance level for defective pixels on this product.

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
24	1366x768	5	2	0

Information for Electronic Displays for Commission Regulation

2019/2013/EU

		Value	Unit
Model identification	LED24-SCP100HC
Manufacturer's name or trade mark	SCHNEIDER
Energy efficiency class for standard Dynamic Range (SDR)		F	A-G
On mode power demand for Standard Dynamic Range (SDR)		21	W
Energy efficiency class (HDR)		/	A-G
On mode power demand in High Dynamic Range (HDR) mode		/	W
Off mode, power demand		0	W
Standby mode power demand		<0.5	W
Networked standby mode power demand		/	W
Electronic display category		television	television/monitor/signage/other
Size ratio		16:9	Integer
Screen resolution (pixels)		1366*768	Pixels
Screen diagonal		61.0	cm
Screen diagonal		24	Inches
Visible screen area		1528.87	cm2
Panel technology used		LCD/DLED	E.g. LCD/LED LCD/QLED LCD/OLED/MicroLED/QDLE D/SED/FED/EPD, etc.
Automatic Brightness Control (ABC) available		No	Yes/No
Voice recognition sensor available		No	Yes/No
Room presence sensor available		No	Yes/No
Image refresh frequency rate		60	Hz
Power supply type:		External	Internal/External/Standardised external
External standardised power supply (included in the product box)	Standard name	JKY36-SP1203000	Model no.
	Input voltage	100-240	V
	Output voltage	12	V
External standardised suitable power supply (if not included in the product box)	Standard name
	Required output voltage		V
	Required delivered current		A
	Required current frequency		Hz

Note:

1. Energy efficiency class: A (most efficient) to G (lease efficient)
2. Annual energy consumption in kWh per 1000 hr, based on the power consumption of the television operating 1000 hours. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode...etc.

Product Information sheet according to EU Regulation No. 2019/2013 Energy labelling for Electronic Display & Television can be found be below URL or QR code indicated on Energy label URL: https://eprel.ec.europa.eu/qr/404159

ENERG

Schneider

LED24-SCP100HC

21 kWh/1000h

εT0Z/6T0Z

1. Scope of application

This specification applies to vehicle power supplies with input 12VDC and rated output 12V/3A.

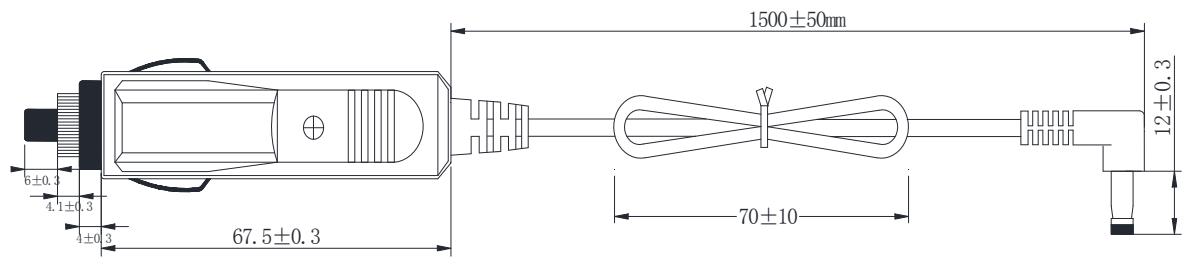

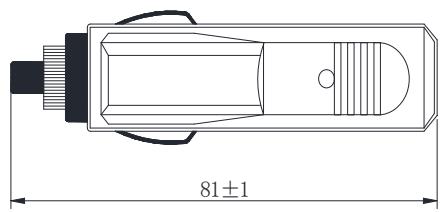

2. Product appearance:

Remarks: The shell is black.

3. The weight is approximately 50 grams

4. Steps for usage:

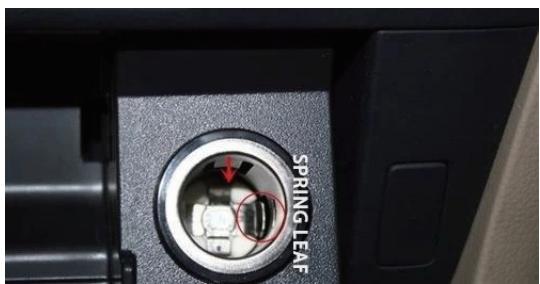

① Plug the bottom end of the car charger straight into the bottom of the cigarette lighter to use it. It should be noted that, since there are two springs in the cigarette lighter to fix the cigarette butt, you cannot insert it against the spring when the car charger is inserted into the cigarette lighter. This will damage the cigarette lighter and the car charger. Just insert it from the track next to the spring when using it.
②When the car charger has successfully contacted the cigarette lighter, the indicator light on the car charger will light up in redConnect the other end of the car charger

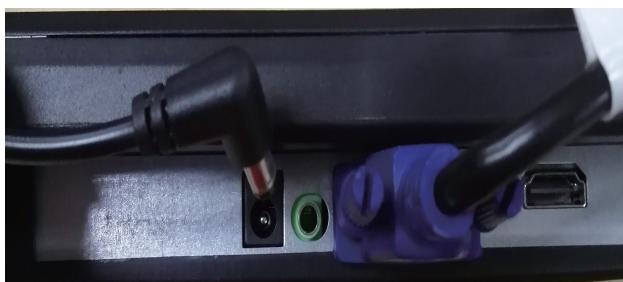

③Connect the other end of the car charger to the DC port of the TV.

Position: Quality Assurance Engineer

Signature:

Date: 19 Nov 2020

SCHNEIDER

(1)

FR - Manuel d'utilisation / Veuillez litre attentivement ce manuel avant de l'utiliser et conservez-le pour toute reférence ultérieure.
IT - Manuale d'uso / Si prega di leggere attendamente quello manuale prima dell'uso e di conservarlo per riferimento futuro.
ES - Manual del usuario / Por favor, lea estemanual cuidadosamente antes de uso y guardelo para futuras referencias.
PT - Manual do uso / Por favor, leia este manual cuidadosamente antes de usar, e guarde-o para referencia futura.
AL - Benutzerhandbuch /itte lessen Sie theseis Handbuch vor dem Gebrauch sorgfaltig durch und bewahren Sie es zum spateren Nachschlagen auf.
NL - Gebruiksaanwijzing / Lees deze handleiding zorgvuldig door voordat u hem gebruikt en bewaar hem voor toekomstig gebruik.
GR - Evyepidio xphonc / Diaβaote pnoektiká to npapov exyepidio npiu ano tn xpohn kai φuλεte to yia μeλovtikn avapopá.
