Product Type	OLED TV
Screen Size (Diagonal)	55" (138.8 cm), 65" (163.9 cm) or 77" (194.7 cm) depending on model
Display Resolution	3840 × 2160 pixels (4K UHD)
TV System	Analog B/G, D/K, I; Digital DVB-T/C/T2; Satellite DVB-S/S2
Color System	PAL, SECAM, NTSC3.58, NTSC4.43 (video only)
Audio Output Power	XR-77A8xJ: 20 W + 20 W + 10 W; XR-55/65A8xJ: 10 W + 10 W + 10 W
Wireless Connectivity	Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2
Power Supply	220 V - 240 V AC, 50 Hz
Energy Efficiency Class	XR-77A8xJ: A; XR-65A8xJ: A; XR-55A8xJ: B
Power Consumption (Standard Mode)	XR-77A8xJ: 198 W; XR-65A8xJ: 154 W; XR-55A8xJ: 122 W
Dimensions with Stand (W × H × D)	77": 172.2 × 102.2 × 36.7 cm; 65": 144.8 × 85.9 × 33.0 cm; 55": 122.7 × 73.5 × 33.0 cm
Weight with Stand	77": 30.1 kg; 65": 23.5 kg; 55": 19 kg
Weight without Stand	77": 28.9 kg; 65": 22.3 kg; 55": 17.8 kg
Main Features	Google TV, Google Assistant, Pixel Shift, Panel Refresh, eARC/ARC compatibility
HDMI Inputs	4 HDMI inputs (HDCP 2.3); HDMI 3 & 4 eARC/ARC
USB Ports	3 ports (USB 1/2: High Speed; USB 3: Super Speed)
Maintenance and Cleaning	Wipe the screen with a soft, dry cloth. Do not use chemical products.
Safety	Wall mounting recommended (optional bracket SU-WL850/SU-WL450); anti-tip prevention via strap
Spare Parts and Repairability	Optional accessories available (brackets, remote control); software update via Internet
General Information	Full manual available online; operating temp: 0 °C to 40 °C; humidity 10-80% RH

Frequently Asked Questions - BRAVIA XR-55A80J - BRAVIA XR-65A80J - XR-77A80J SONY

How to avoid image retention on the OLED screen?

To avoid image retention, avoid displaying static images (logos, black bars) for long periods. Use [Standard] mode and activate Pixel Shift and Panel Refresh functions at most once a year.

What to do if the remote control does not work?

Replace the batteries in the remote. Check that no obstacle is blocking the remote sensor. If the problem persists, restart the TV by holding down the Power button for 5 seconds.

I forgot the parental lock password. What to do?

Enter the default PIN code 9999 to access the settings, then set a new PIN code.

The screen is black or there is no sound. How to fix?

Check that the TV is turned on and cables are properly connected. Restart the TV by pressing the Power button for 5 seconds or unplugging the power cord for 2 minutes.

How to update the TV software?

Connect the TV to the Internet, go to Settings > System > Software update. Sony recommends regular updates for new features and performance.

Can this TV be mounted on the wall?

Yes, use the optional Wall Mount Bracket SU-WL850 or SU-WL450. Installation should be performed by a qualified professional to ensure safety.

How to use the TV as a center speaker?

Connect the TV to a compatible audio system via the S-CENTER SPEAKER IN connector and dedicated cable. Refer to the audio system manual for details.

When and how to perform panel refresh?

The panel refresh lasts about one hour and should only be performed once a year if image retention is visible. Access it via Settings > System > Panel Refresh. Caution: excessive use reduces panel lifespan.

How to connect the TV to the Internet?

Use the built-in Wi-Fi connection or the LAN Ethernet port. Go to Settings > Network > Network setup and follow the on-screen instructions.

How to safely clean the OLED screen?

Turn off the TV and let it cool. Gently wipe the screen with a soft, dry cloth (microfiber). Never use chemical products, water, or rough fabrics.

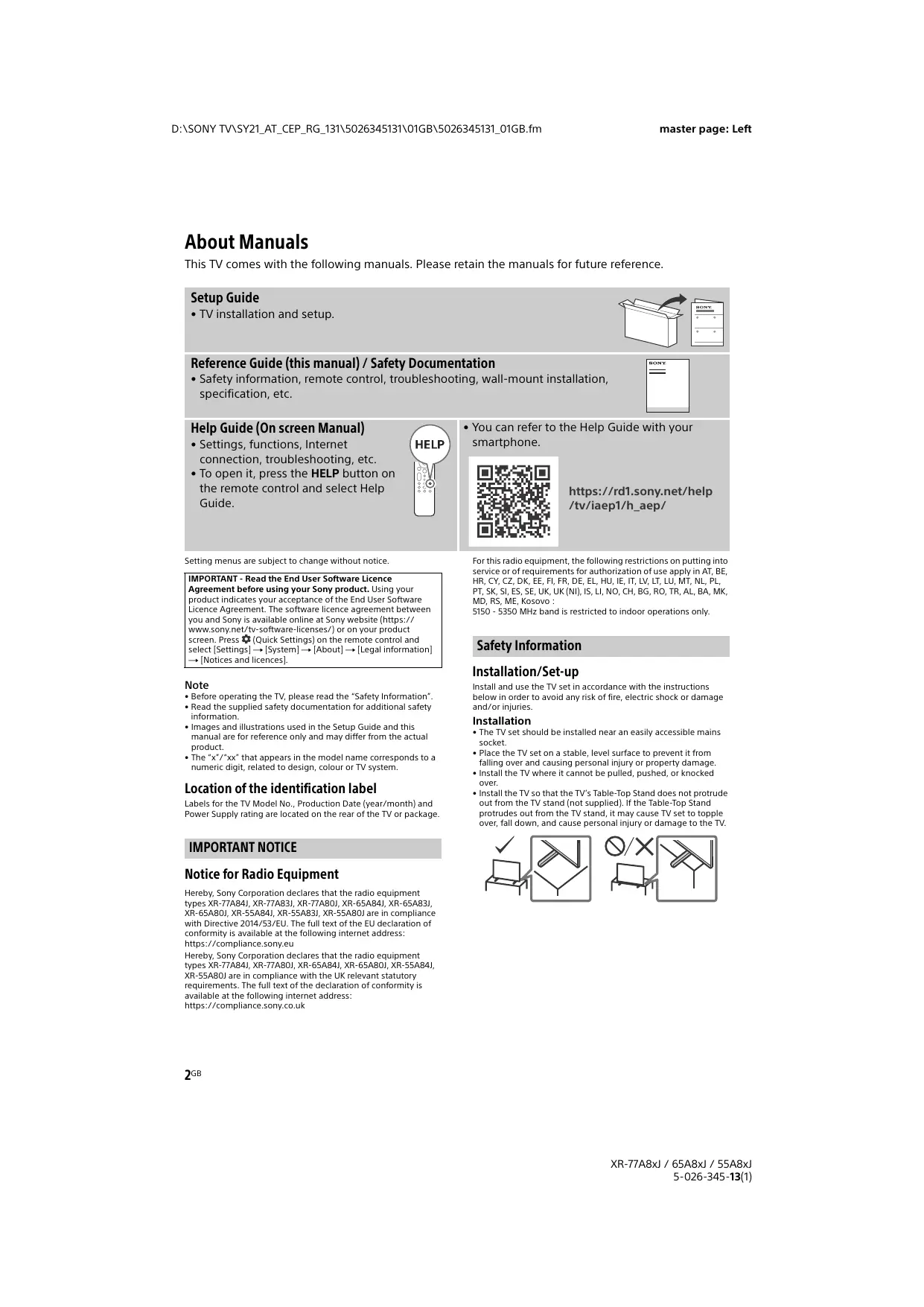

USER MANUAL BRAVIA XR-55A80J - BRAVIA XR-65A80J - XR-77A80J SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press the HELP button on the remote control and select Help Guide.

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/iaep1/h_aep/

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses/) or on your product screen. Press ⚙️ (Quick Settings) on the remote control and select [Settings] → [System] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types XR-77A84J, XR-77A83J, XR-77A80J, XR-65A84J, XR-65A83J, XR-65A80J, XR-55A84J, XR-55A83J, XR-55A80J are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types XR-77A84J, XR-77A80J, XR-65A84J, XR-65A80J, XR-55A84J, XR-55A80J are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo : 5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.

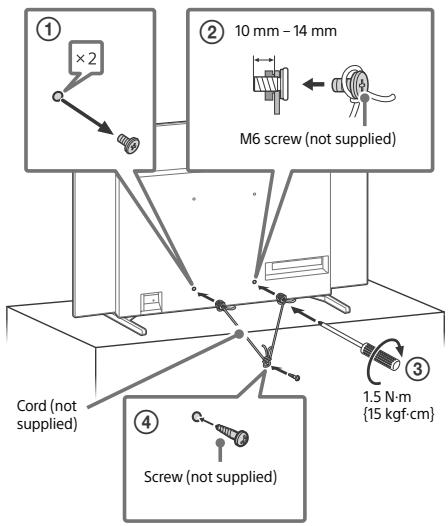

• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.

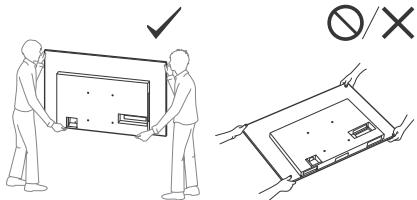

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen.

• When handling or mounting the TV set, do not lay down the TV.

Diagram of a device with no visible text, numbers, or symbols, including a prohibition symbol (no readable text or labels)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TV's are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
  • Static images such as photos.
  • Video games that might have static content in some part of the screen.
• On-screen menus, programme guides, channel logos etc.
  • Static content from applications.
• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.
• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing the ⓘ+/? (Info/Text reveal) button, and turn off the menus from connected equipment. For details, refer to the instruction manuals for the connected equipment.
• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.
• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc.

The TV has following features to help reduce/prevent image retention.

Panel refresh

A panel refresh will adjust the panel uniformity. Panel refresh can be performed and should only be used when image retention is very noticeable.

Caution:

• The Panel refresh function may affect the panel. Do not perform Panel refresh more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about one hour to complete.
• A white line may be displayed on the screen during the Panel refresh, this is not a malfunction of the TV.
• Panel refresh will only work when the room temperature is between 10 °C and 40 °C.

Pixel shift

Automatically moves the image on the screen to prevent image retention.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

Using TV as Part of Audio System

Note

• Before connecting cables, disconnect the mains lead of both TV and AV receiver.

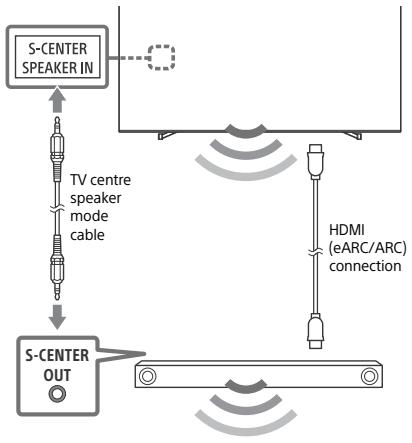

• Refer to the instruction manual of the Audio system with S-CENTER OUT terminal for detail.

Remote Control and TV

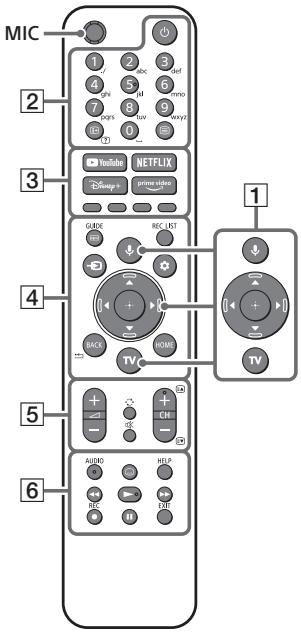

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings.

1 ↓ (Microphone) / ●: (Google Assistant): Use Google Assistant*1*2 or voice search*2. For hints on how to control your TV, press the microphone button on the remote control and say "voice hints".*1

▲/▼/◄/►/⊕: On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 ⏻ (Power)

Number buttons

i+/? (Info/Text reveal): Display information.

☐ (Text): Display text information.

③ YouTube™ / NETFLIX / Disney+ / Prime Video / Colour buttons
4 GUIDE/☐: Display the digital programme guide of TV or TV box*3.

REC LIST: Display the Rec list of USB HDD*4/DVR*3.

→ (Input select): Display and select the input source, etc.

(Quck settings): Display Quick Settings.

BACK/←

HOME

5 ∠+/- (Volume)

• (Jump)

呂 (Mute)^*5

CH +/-/☐/☐: Select the channel, or next (☐) / previous (☐) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

◀/▶/▶/II

● REC: Record the currently viewed programme on USB HDD*4/DVR*3.

EXIT

7 ⏻ (Power)
⑧ BUILT-IN MIC SWITCH*1: Turn on/off the built-in MIC.
Built-in MIC*1*2*6: To enable the built-in MIC, press the microphone button on the remote control and follow the on-screen instructions.
10 Remote Control sensor / Light sensor / LED

*1 Only on limited region/country/TV model/language.
*2 Google Assistant or voice search requires an Internet connection.
*3 [TV box setup] setting is required.
*4 Not available for Italy.
*5 Accessibility shortcut is available by pressing and holding ☐ (Mute).
*6 Power consumption will increase when the built-in MIC is enabled as it is always listening.

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

https://www.sony.eu/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL850 —Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
  * Only on limited region/country/TV model.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries.
  The parental lock password has been forgotten.
• Enter 9999 for the PIN and enter the new PIN.

The screen becomes darker while watching TV.

- If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV.

Note

• Perform Panel refresh only when image retention is particularly noticeable. Avoid performing Panel refresh more than once a year because it may affect the usable life of the panel.
• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

A white line appears on the screen.

- The Panel refresh has been performed. A white line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV. Panel refresh starts after the TV is turned off and takes about one hour to complete.

The message [Panel refresh did not finish...] is displayed.

When i) the TV is turned on, ii) the mains lead is unplugged, or iii) the room temperature falls outside of the range between 10 °C and 40 °C during the Panel refresh, the Panel refresh is not completed. Please avoid the above three conditions during the Panel refresh.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: OLED (Organic Light Emitting Diode) Panel

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: IF Frequency 950-2150 MHz

Sound output

XR-77A8xJ: 20 W + 20 W + 10 W

XR-65A8xJ / 55A8xJ: 10 W + 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range	Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth® (TV)
2400-2483.5 MHz	< 10.0 dBm
Bluetooth® (Remote control)
2400-2483.5 MHz	< 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

→ /→ AV IN / S-CENTER SPEAKER IN

Video/Audio input (mini jack)

S-centre speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz) ^12 , 4096 × 2160p (24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 480p, PC Formats ^3 3840 × 2160p (100, 120 Hz) ^2*4

Audio:

In eARC (Enhanced Audio Return Channel) mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (HDMI IN 3 only) ^*5

In eARC mode

Refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

USB device port (●→3 USB HDD device for REC feature)

USB port 1 and 2 support High Speed USB (USB 2.0)

USB port 3 supports Super Speed USB (USB 3.1 Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Energy Efficiency Class ^4

(Except Egypt)

XR-77A8xJ: A

XR-65A8xJ: A

XR-55A8xJ: B

(For Egypt only)

XR-77A80J: C

XR-65A80J: D

XR-55A80J: D

Screen size (measured diagonally) (Approx.)

(Except Egypt)

XR-77A8xJ: 194.7 cm / 77 inches

XR-65A8xJ: 163.9 cm / 65 inches

XR-55A8xJ: 138.8 cm / 55 inches

(For Egypt only)

XR-77A80J: 77 inches / 194.7 cm

XR-65A80J: 65 inches / 163.9 cm

XR-55A80J: 55 inches / 138.8 cm

Power consumption ^4

In [Standard] mode

(Except Egypt)

XR-77A8xJ: 198 W

XR-65A8xJ: 154 W

XR-55A8xJ: 122 W

(For Egypt only)

XR-77A80J: 182.0 W

XR-65A80J: 144.6 W

XR-55A80J: 122.0 W

Annual energy consumption ^*7

(Except Egypt)*8

XR-77A8xJ: 275 kWh per year

XR-65A8xJ: 214 kWh per year

XR-55A8xJ: 169 kWh per year (For Egypt only) ^*9

XR-77A80J: 505 kWh per year

XR-65A80J: 402 kWh per year

XR-55A80J: 339 kWh per year

Standby power consumption ^710*11

XR-77A8xJ: 0.50 W (29 W in software/EPG update mode)

XR-65A8xJ: 0.50 W (26 W in software/EPG update mode)

XR-55A8xJ: 0.50 W (27 W in software/EPG update mode)

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output rating

500 mA (for USB 1/2), 900 mA (for USB 3)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

Standard position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Narrow position:

XR-77A8xJ: 172.2 × 102.2 × 36.7

XR-65A8xJ: 144.8 × 85.9 × 33.0

XR-55A8xJ: 122.7 × 73.5 × 33.0

Sound bar position:

XR-77A8xJ: 172.2 × 107.1 × 36.7

XR-65A8xJ: 144.8 × 90.8 × 33.0

XR-55A8xJ: 122.7 × 78.4 × 33.0

without Table-Top Stand

XR-77A8xJ: 172.2 × 99.9 × 5.4

XR-65A8xJ: 144.8 × 83.6 × 5.3

XR-55A8xJ: 122.7 × 71.2 × 5.3

Stand width (Approx.) (cm)

Standard position: 103.4

Narrow position: 69.2

Sound bar position: 103.6

Mass (Approx.) (kg)

with Table-Top Stand

XR-77A8xJ: 30.1

XR-65A8xJ: 23.5

XR-55A8xJ: 19

without Table-Top Stand

XR-77A8xJ: 28.9

XR-65A8xJ: 22.3

XR-55A8xJ: 17.8

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 / SU-WL450

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % - 80 % RH

(non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Function not available in Italy.

*7 This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation.

*8 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*9 Energy consumption in kWh per year, based on the power consumption of the television operating 8 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*10 Specified standby power is reached after the TV finishes necessary internal processes.
*11 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2020 Dolby Laboratories. All rights reserved.

• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• Google TV and related logos are trademarks of Google LLC.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• All other trademarks are the property of their respective owners.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

XR-77A84J (421402), XR-77A83J (421401), XR-77A80J (421399), XR-65A84J (421398), XR-65A83J (421397), XR-65A80J (421394), XR-55A84J (416286), XR-55A83J (416282), XR-55A80J (416238).

https://rd1.sony.net/help/tv/iaep1/h_aep/

Transport

Diagram of a device with a prohibition symbol (no text or labels present)

https://www.sony.eu/support

—Support de fixation murale SU-WL850

—Support de fixation murale SU-WL450

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC*3

3840 × 2160p (100, 120 Hz)*2*4

Audio :

En mode eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*5

En mode eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Transporte

Technical line drawing of a rectangular electronic component with no visible text or symbols

https://www.sony.eu/support

Digital: UHF/VHF/Cable

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos de PC ^*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

En el modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sólo HDMI IN 3)*5

En el modo eARC

DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Transport

Diagram of a device with no visible text, numbers, or symbols, featuring a prohibition symbol (no readable text or labels)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formaten*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

In eARC (Enhanced Audio Return

Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3)*5

In eARC-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Afmetingen (ong.) (b × h × d) (cm)

met tafelstandaard

Standaardpositie:

XR-77A8xJ: 172,2 × 102,2 × 36,7

XR-65A8xJ: 144,8 × 85,9 × 33,0

XR-55A8xJ: 122,7 × 73,5 × 33,0

Smalle positie:

XR-77A8xJ: 172,2 × 102,2 × 36,7

XR-65A8xJ: 144,8 × 85,9 × 33,0

XR-55A8xJ: 122,7 × 73,5 × 33,0

Geluidsbalkpositie:

XR-77A8xJ: 172,2 × 107,1 × 36,7

XR-65A8xJ: 144,8 × 90,8 × 33,0

XR-55A8xJ: 122,7 × 78,4 × 33,0

https://rd1.sony.net/help/tv/iaep1/h_aep/

Pure electrical circuit lines without any symbols

Transport

Diagram of a device with no visible text, numbers, or symbols, featuring a prohibition symbol (no readable text or labels)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate ^4

3840 × 2160p (100, 120 Hz)*2*4

Audio:

Im eARC (Enhanced Audio Return

Channel)-Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*5

Im eARC-Modus

→ DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.1 Gen 1)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Pure electrical circuit lines without any symbols

Transporte

Diagram of a device with no visible text, numbers, or symbols, featuring a prohibition symbol (no readable text or labels)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC*3

3840 × 2160p (100, 120 Hz)*2*4

Áudio:

No modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3)*5

No modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Trasporto

Technical line drawing of a rectangular electronic component with no visible text or symbols

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formati PC*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*5

In modalità eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Pure electrical circuit lines without any symbols

Transport

I eARC (Enhanced Audio Return

Channel)-läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*5

I eARC-läge

→ DIGITAL AUDIO OUT (OPTICAL)

Soundbar-enhetens position:

XR-77A8xJ: 172,2 × 107,1 × 36,7

XR-65A8xJ: 144,8 × 90,8 × 33,0

XR-55A8xJ: 122,7 × 78,4 × 33,0

utan bordsstativ

https://rd1.sony.net/help/tv/iaep1/h_aep/

Pure electrical circuit lines without any symbols

Transport

Two people exchanging a large screen with a checkmark above (no text or symbols on the screen or figures)

Technical diagram of a device with no visible text, numbers, or symbols

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater*3

3840 × 2160p (100, 120 Hz)*2*4

Lyd:

I eARC (Enhanced Audio Return

Channel)-tilstand

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*5

I eARC-tilstand

→ DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

(Stereo-minijack)

Hovedtelefoner

1, 2, 3 (HDD REC)*6

USB-port (●→3 USB HDD-enhed for

REC-funktion)

I [Standard] tilstand

XR-77A8xJ: 198 W

XR-65A8xJ: 154 W

XR-55A8xJ: 122 W

500 mA (for USB 1/2), 900 mA (for USB 3)

Mål (Ca.) (b × h × d) (cm)

Inkl. TV-fod

Standardposition:

XR-77A8xJ: 172,2 × 102,2 × 36,7

XR-65A8xJ: 144,8 × 85,9 × 33,0

XR-55A8xJ: 122,7 × 73,5 × 33,0

Smal position:

XR-77A8xJ: 172,2 × 102,2 × 36,7

XR-65A8xJ: 144,8 × 85,9 × 33,0

XR-55A8xJ: 122,7 × 73,5 × 33,0

Soundbar-position:

XR-77A8xJ: 172,2 × 107,1 × 36,7

XR-65A8xJ: 144,8 × 90,8 × 33,0

XR-55A8xJ: 122,7 × 78,4 × 33,0

Uden TV-fod

https://rd1.sony.net/help/tv/iaep1/h_aep/

Technical diagram of a mechanical component with no visible text or symbols

eARC (Enhanced Audio Return Channel)-tilassa

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Innstillingsmenyer kan endres uten varsel.

Bæring

Technical diagram of a device with no visible text, numbers, or symbols

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

◀/▶/▶/II

- REC: Ta opp programmet som vises på USB HDD*4/DVR*3.

EXIT

https://www.sony.eu/support

I eARC (Enhanced Audio Return

Channel)-modus

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Audio, DTS)

○ (minijack, stereo)

Hodetelefon

1, 2, 3 (HDD REC)*6

500 mA (for USB 1/2), 900 mA (for USB 3)

Mål (ca.) (b × h × d) (cm)

med bordstativ

Standardplassering:

XR-77A8xJ: 172,2 × 102,2 × 36,7

XR-65A8xJ: 144,8 × 85,9 × 33,0

XR-55A8xJ: 122,7 × 73,5 × 33,0

Snever plassering:

XR-77A8xJ: 172,2 × 102,2 × 36,7

XR-65A8xJ: 144,8 × 85,9 × 33,0

XR-55A8xJ: 122,7 × 73,5 × 33,0

Lydplankens plassering:

XR-77A8xJ: 172,2 × 107,1 × 36,7

XR-65A8xJ: 144,8 × 90,8 × 33,0

XR-55A8xJ: 122,7 × 78,4 × 33,0

uten bordstativ

https://rd1.sony.net/help/tv/iaep1/h_aep/

Pure electrical circuit lines without any symbols

Transport

Technical diagram of a device with no visible text, numbers, or symbols

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formaty komputerowe*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

W trybie eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*5

W trybie eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Přeprava

Technical diagram of a device with no visible text, numbers, or symbols

https://www.sony.eu/support

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (pouze HDMI IN 3)*5

V režimu eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Preprava

Diagram of a device with no visible text, numbers, or symbols, including a prohibition symbol (no readable text or labels)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Len model HDMI IN 3)*5

V režime eARC

Podrobnosti nájdete v online Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Pure electrical circuit lines without any symbols

Szállítás

Diagram of a device with no visible text, numbers, or symbols, featuring a prohibition symbol (no readable text or labels)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formátumok*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC (Enhanced Audio Return Channel)

üzemmódban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (csak HDMI IN 3)*5

eARC üzemmódban

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

INFORMATIE IMPORTANTĂ

Transportul

Diagram of a device with no visible text, numbers, or symbols, featuring a prohibition symbol (no readable text or labels)

https://www.sony.eu/support

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM/NTSC3.58 (Numai video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit: Frecvență IF 950-2150 MHz

leşire audio

XR-77A8xJ: 20 W + 20 W + 10 W

XR-65A8xJ / 55A8xJ: 10 W + 10 W + 10 W

Tehnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth ^® versiunea 4.2

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Numai HDMI IN 3)*5

În modul eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

ВАЖНА ЗАБЕЛЕЖКА

Пренасяне

Diagram of a rectangular electronic component with a prohibition symbol (no text or labels present)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC формати*³

3840 × 2160p (100, 120 Hz)*2*4

Аудио:

В режим eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (camo HDMI IN 3)*5

В режим eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

ΣΗΜΑΝΤΙΚΗ ΣΗΜΕΙΩΣΗ

Μεταφορά

Diagram of a rectangular electronic component with internal components and a prohibition symbol (no text or labels)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Μορφές υπολογιστή*³

3840 × 2160p (100, 120 Hz)*2*4

'Ηχος:

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Nakliye

Technical diagram of a mechanical component with no visible text or symbols

Dijital: UHF/VHF/Kablolu

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sadece HDMI IN 3)*5

eARC modunda

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Перемещение

Diagram of a rectangular electronic component with a prohibition symbol (no text or labels)

https://www.sony.eu/support

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Транспортування

Diagram of a rectangular electronic component with a prohibition symbol (no text or labels present)

https://www.sony.eu/support

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

33.0 × 73.5 × 122.7 :XR-55A8xJ

موقع الم Desireق:

36.7 × 102.2 × 172.2 :XR-77A8xJ

33.0 × 85.9 × 144.8 :XR-65A8xJ

33.0 × 73.5 × 122.7 :XR-55A8xJ

موقع الساوند بار:

36.7 × 107.1 × 172.2 :XR-77A8xJ

33.0 × 90.8 × 144.8 :XR-65A8xJ

33.0 × 78.4 × 122.7 :XR-55A8xJ

5.3 × 71.2 × 122.7 :XR-55A8xJ

(ochaded Wood Soil Microscope CAM)

LAN

eARC/ARC (Enhanced Audio Return Channel/Audio Return

^5* (Eq. HDMI IN 3) (Channel

eARC في الوضع

DIGITAL AUDIO OUT (OPTICAL)

Isometric line drawing of a rectangular electronic component with internal components and mounting holes (no text or symbols)

النقل

Two people exchanging a large screen with a checkmark above (no text or symbols on the screen or surroundings)

Line drawing of two hands holding a rectangular device with internal components (no text or symbols)

Support / Assistance / Soporte / Ondersteuning / Unterstützung / Supporte / Supporto / Support / Support / Tuki / Brukerstøtte / Wsparcie / Podpora / Podpora / Támogatás / Asistență / Поддържа / Упостніріξη / Destek / Поддержка / Підтримка / الделام

https://www.sony.eu/support
