USER MANUAL WD1702RJV2 SAMSUNG

• Energy saving functions

• Language44 External equipment

• Operating with TV’s remote control

• Aspect Control Signal

• HDR Brightness Setting64
• Noise reduction settings

• Copy Adjustment74 For best audio

• Teletext Character Set92 Tuning and editing channels

• Channel List Editor94
• Update Channel List105

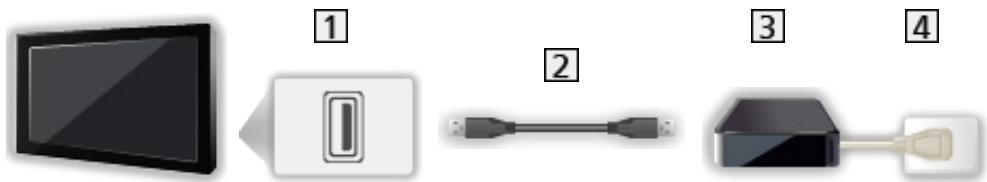

Recording USB HDD setup

Recording current programme

• Selecting device / mode

• Watching recorded TV

• Device handling caution

• Custom - Wireless166
• TV Remote App Settings174
• Network Link Settings176
• File Sharing Settings178
• Mirroring Settings179
• Control4 Settings180
• Terms of Service and Settings183 Photos

• Music Setup195 Supported format

• Summary of VIERA Link

• Using Common Interface

• Shipping Condition230 Updating the TV Software

• HDR Brightness Setting241
• Noise reduction settings

• TV Remote App Settings260

• No signal Power off270 Setup

• Other Settings284 Support Help menu

• Detailed information

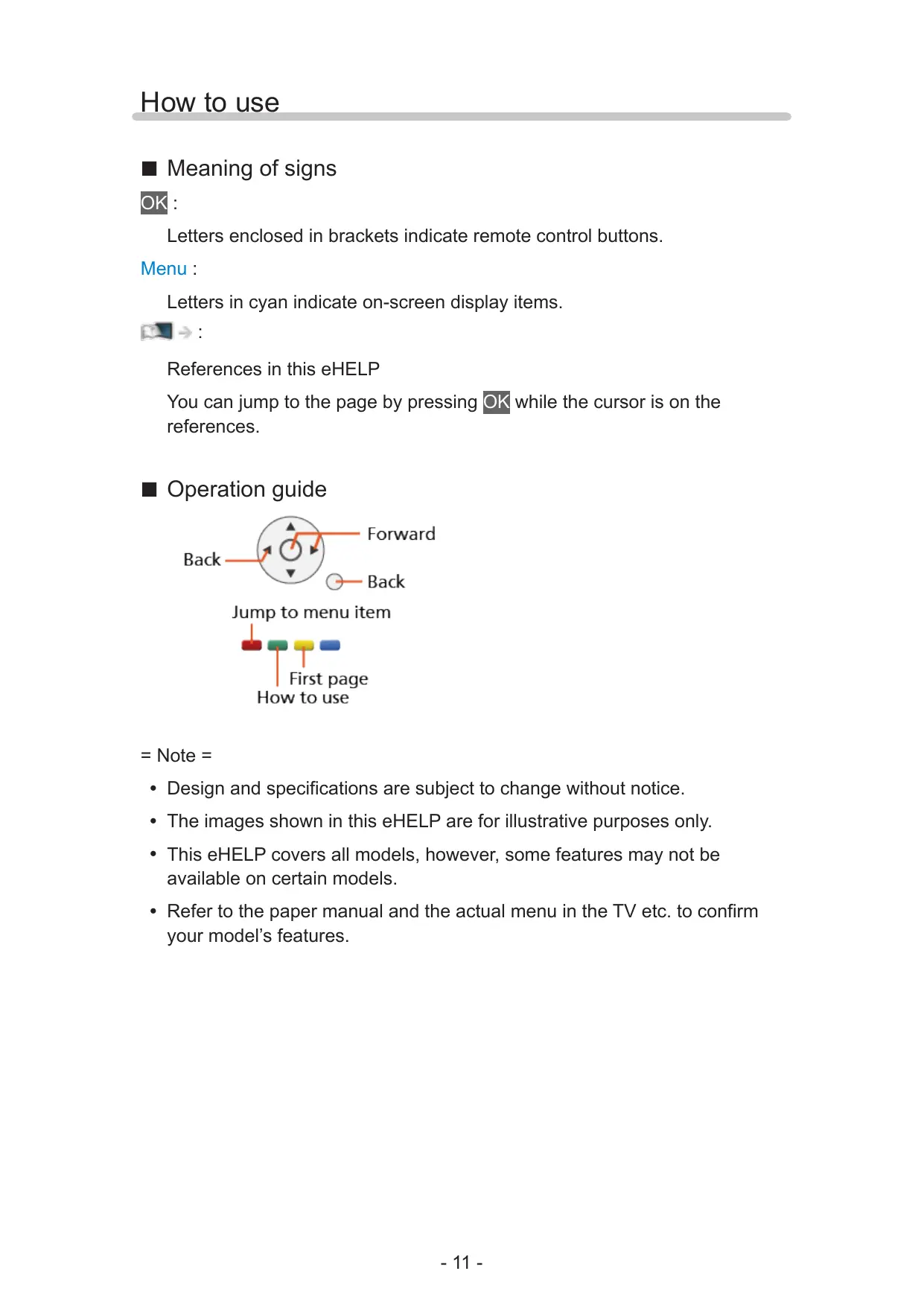

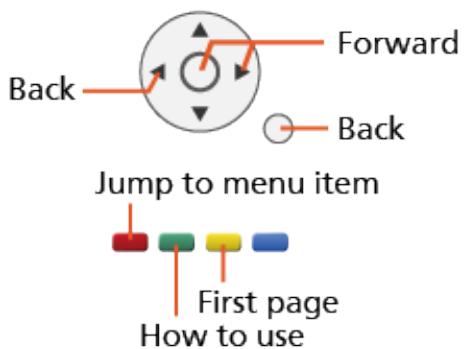

How to use ■■Meaning of signs OK : Letters enclosed in brackets indicate remote control buttons. Menu : Letters in cyan indicate on-screen display items. References in this eHELP You can jump to the page by pressing OK while the cursor is on the references. ■■Operation guide = Note =

Design and specifications are subject to change without notice.

The images shown in this eHELP are for illustrative purposes only.

This eHELP covers all models, however, some features may not be available on certain models.

Refer to the paper manual and the actual menu in the TV etc. to confirm your model’s features.

Read first Before use Licence Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected. DVB and the DVB logos are trademarks of the DVB Project. DiSEqC™ is a trademark of EUTELSAT. DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. HDAVI Control™ is a trademark of Panasonic Corporation. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Text-To-Speech Powered by Dragon 2002-2018 Nuance Communications, Inc. All rights reserved. “PlayReady” is a trademark registered by Microsoft. Please be aware of the following. (a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

(b) Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE Version 2.1 (LGPL V2.1), and/or, (5) open sourced software other than the software licensed under the GPL V2.0 and/or LGPL V2.1. The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the “Software Licence” menu on this product. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof. Contact Information: cdrequest@unipf.jp The source code and the copyright notice are also available for free in our website below. http://www.unipf.jp/dl/EUIDTV18/

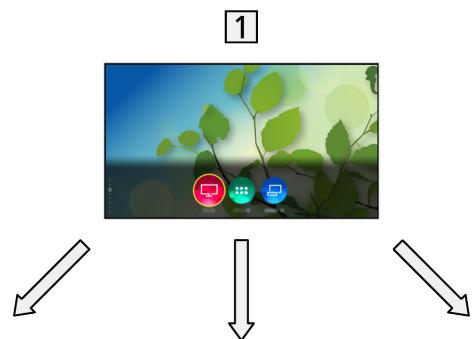

Features Home “Home” is a gateway to the TV programmes, applications and connected devices. It provides you an easy way to access all the features. Home > Home > Information

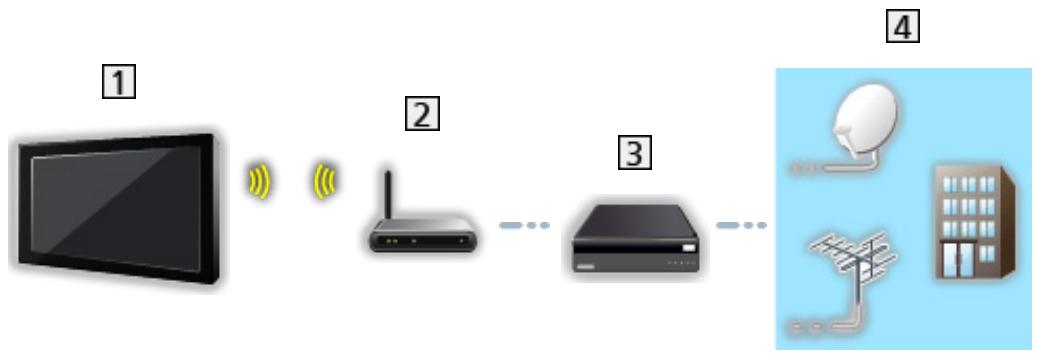

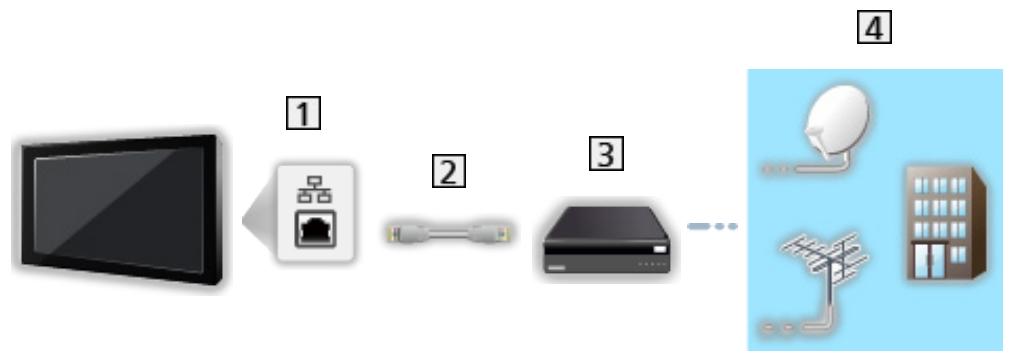

DVB-via-IP This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming. Functions > DVB-via-IP > DVB-via-IP client connection

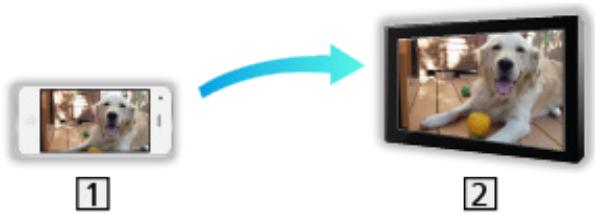

Easy Mirroring You can watch and display images of other devices (smartphone, etc.) on the TV screen using a mirroring function. You can also start the mirroring function from the other devices without operating the TV. Functions > Mirroring > How to use

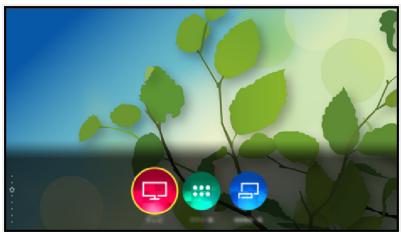

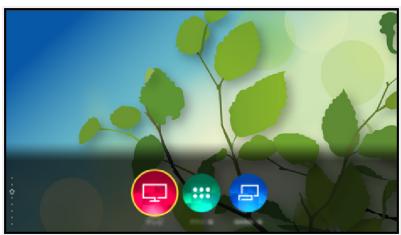

Home Home Information “Home” is a gateway to the TV programmes, applications and connected devices. Home is displayed by pressing HOME and it provides you an easy way to access all the features as shown below (example). Home Live TV – Gateway to TV programmes Home > Live TV Apps – Gateway to various applications (internet content, etc.) Home > Apps Devices – Gateway to connected devices (HDMI equipment, USB device, network device, etc.) Home > Devices

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use Home. You can update the software later manually. Network > Network settings > Software Update

How to use From Home, you can access all the features such as TV programmes, applications and connected devices.

1. Display Home with HOME.

Press to display the tabs which provide you with the relevant programme information, recommended content, etc.

A broadband network environment is required to use internet services. Network > Network connections > Internet connection

2. Select Live TV / Apps / Devices and press OK to access.

To watch full-screen TV, select Live TV. (Example) = Note =

Design and specifications are subject to change without notice. ■■Search You can search for content from various sources.

1. Display Home with HOME.

to select Search and press OK to access.

A search history may be displayed and you can select it for keyword search.

To delete the search history

1) Select Search or a keyword and press OPTION.

2) Select Delete all histories / Delete a history and press OK.

3. Follow the on-screen instructions.

■■Setting You can set up Home, tabs, etc.

1. Display Home with HOME.

repeatedly to display the setting tab.

3. Select one of the following items and press OK to access.

Tab Settings / Enable Auto Pin / Disable Auto Pin

4. Follow the on-screen instructions.

Tab Settings Edits the tabs of Home. Enable Auto Pin / Disable Auto Pin Selects whether to automatically add a shortcut for a feature frequently used on Home.

Pin to HOME You can add a shortcut for a frequently used feature on Home.

1. Display Home with HOME.

2. Select Live TV / Apps / Devices and press OK to access.

3. Select a feature (TV programme / application / device).

4. Display the option menu with OPTION.

5. Select Pin to HOME and press OK to set.

6. Select the position to add on Home.

2. Select one of the following items and press OK to access.

Unpin from HOME / Move

3. Set the item and press OK to store.

Unpin from HOME Removes a shortcut from Home. Move Arranges the position of the icons.

Live TV How to use Live TV is a gateway to the TV programmes.

1. Display Home with HOME.

3. Press OK to access.

For details of watching TV Watching > Basic

Display the image full-screen to use this function.

1. Display the option menu with OPTION.

2. Select one of the following items and press OK to access.

Pin to HOME / Voice Guidance Settings / Audio Type / Multi Video / Multi Audio / Dual Audio / Sub Channel / Subtitle Language / Teletext Character Set / Teletext Language / MPX / Volume Correction

The function items vary depending on the TV mode and country you select.

3. Set the item and press OK to store.

Pin to HOME Adds a shortcut for a frequently used feature on Home. Home > Home > Pin to HOME Voice Guidance Settings Guidance settings for visually impaired users Watching > For best audio > Voice Guidance Settings Audio Type Set to Audio Description if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen (if available).

This setting is not memorised and it returns to the default setting once you exit the current programme.

Multi Audio Selects between alternative language or Audio Description for sound tracks (if available).

This setting is not memorised and it returns to the default setting once you exit the current programme.

For DVB Subtitle Language Selects between alternative subtitle languages or types (if available).

This setting is not memorised and it returns to the default setting once you exit the current programme.

For DVB Teletext Character Set Sets the teletext language font. Watching > Teletext > Teletext Character Set Teletext Language Selects between alternative teletext languages (if available).

This setting is not memorised and it returns to the default setting once you exit the current programme.

Volume Correction Adjusts the volume of each individual channel or input mode.

Apps How to use Various applications (internet content, etc.) can be accessed easily from Apps.

1. Display Home with HOME.

2. Select Apps and press OK to access.

You can assign a favourite application to MY APP of the TV’s remote control. Home > Apps > Option menu

3. Select an application and press OK to access.

4. Follow the on-screen instructions.

Design and specifications are subject to change without notice.

Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time.

A broadband network environment is required to fully use this function.

1. Display the option menu with OPTION.

2. Select one of the following items and press OK to access.

Pin to HOME / Set as My App / Move / Lock / Unlock / Uninstall / Show Info.

3. Set the item and press OK to store.

Pin to HOME Adds a shortcut for a frequently used feature on Home. Home > Home > Pin to HOME Set as My App Assigns your favourite application to MY APP of the TV’s remote control. is displayed on the assigned application.

To change the assignment, set Set as My App while the cursor is on another application. Move Arranges the position of the applications. Lock, Unlock Locks / unlocks a specific application to restrict access (if available).

Child Lock PIN number is required to access to locked application. Functions > Child Lock > PIN number Uninstall Deletes an application from Apps (if available). Show Info. Displays the information about the selected application.

Devices How to use Connected devices (HDMI equipment, USB device, network device, etc.) can be accessed easily from Devices.

1. Display Home with HOME.

2. Select Devices and press OK to access.

To exit Devices EXIT

3. Select a device and press OK to access.

For external equipment Watching > External equipment

For USB device, network device for Media Player Media Player > Using Media Player

For network equipment for DLNA Network > DLNA

Design and specifications are subject to change without notice.

2. Select one of the following items and press OK to access.

Pin to HOME / Accessibility / Switch to Component / Switch to Video / Show Info.

3. Set the item and press OK to store.

Pin to HOME Adds a shortcut for a frequently used feature on Home. Home > Home > Pin to HOME Accessibility Guidance settings for visually impaired users Watching > For best audio > Voice Guidance Settings Switch to Component / Switch to Video You can select COMPONENT and VIDEO in AV. Show Info. Displays the information about the selected device.

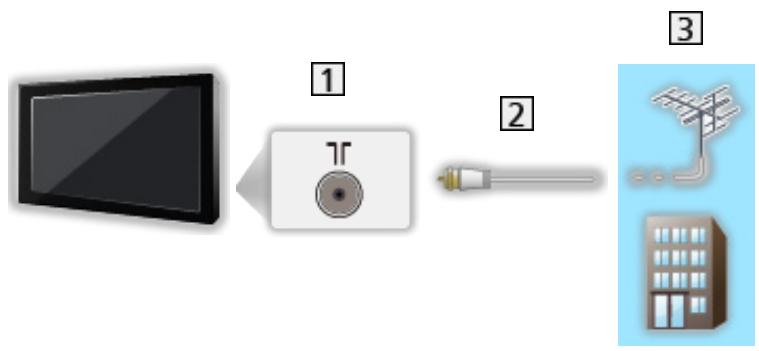

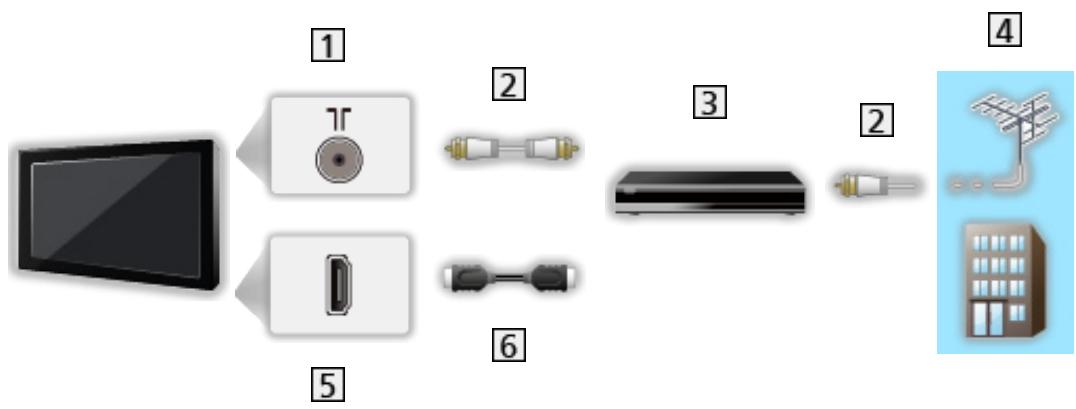

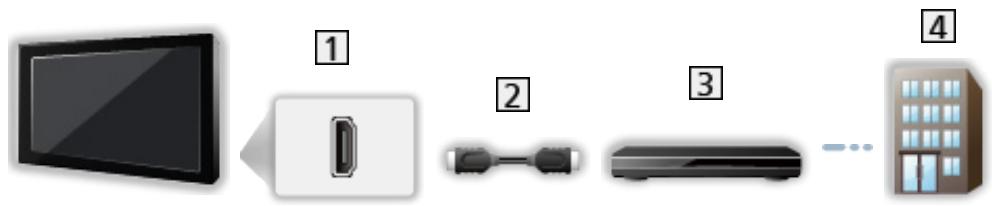

Watching Basic Basic connection Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.

External equipment and cables shown are not supplied with this TV. ■■Satellite dish Satellite terminal Satellite cable Satellite dish

To ensure your satellite dish is correctly installed, please consult your local dealer. Also consult the received satellite broadcasting companies for details.

Selectable satellites and dish alignment to tune DVB-S channels Watching > Tuning and editing channels > Selectable satellites

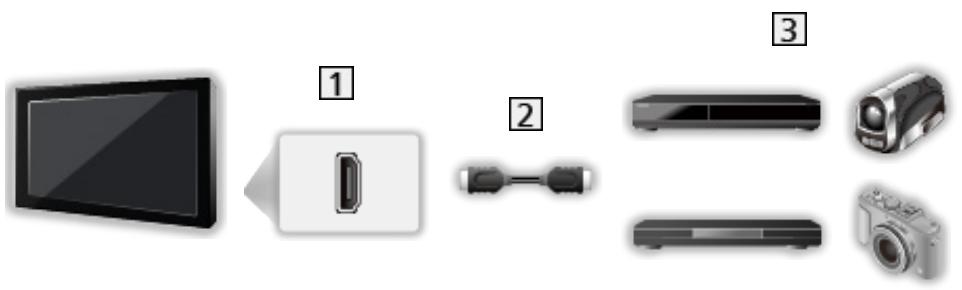

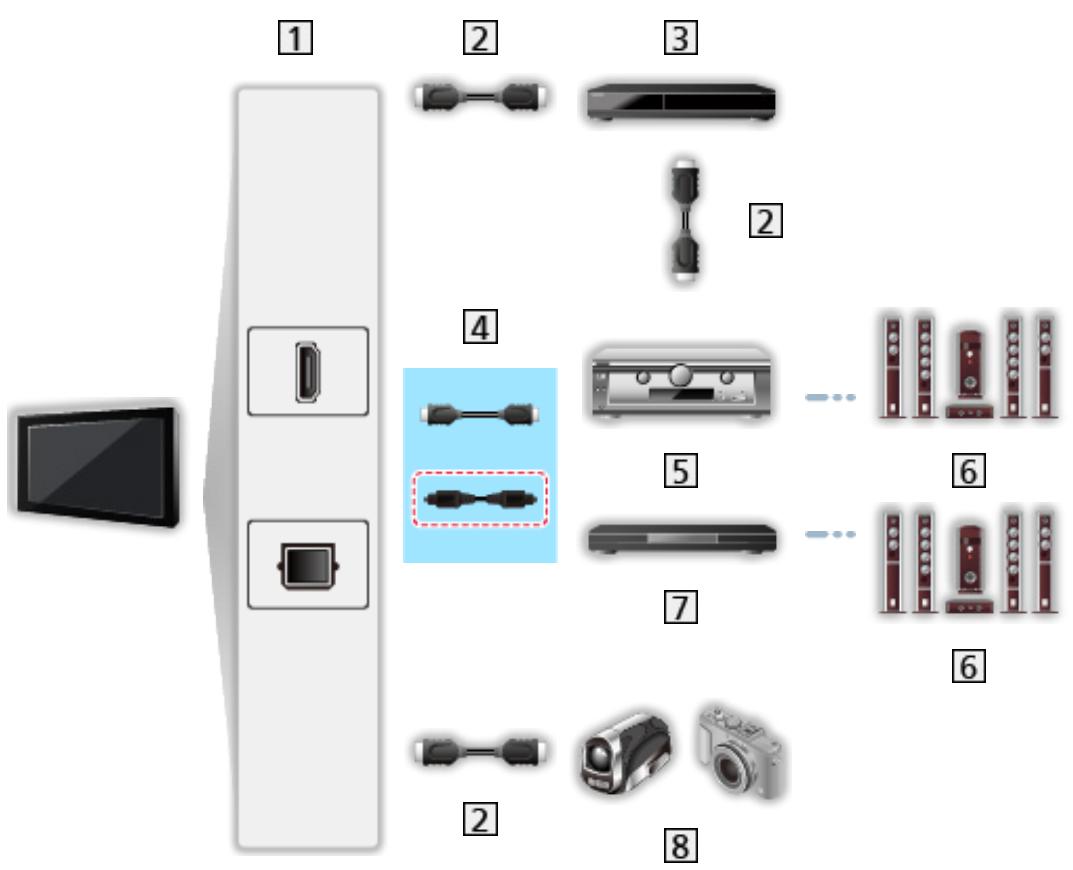

For details of VIERA Link connections Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

Please also read the manual of the equipment being connected.

Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.

Use a fully wired HDMI compliant cable.

Check the terminal type and cable plugs are correct for connection.

1. Select the mode with TV.

DVB-S / DVB-C / DVB-T / DVB-via-IP / Analogue

Selectable modes vary depending on the channels stored.

2. Select a channel with Channel Up / Down or Numeric buttons.

■■To select a channel from the channel list

1. Display the channel list with OK.

2. Select a channel from the list and press OK to watch.

To sort channel names in alphabetical order (red)

if it is not displayed.

2. Select a channel and press OK to watch while the banner is displayed.

Watching > Basic > Information banner ■■To select a channel using TV Guide

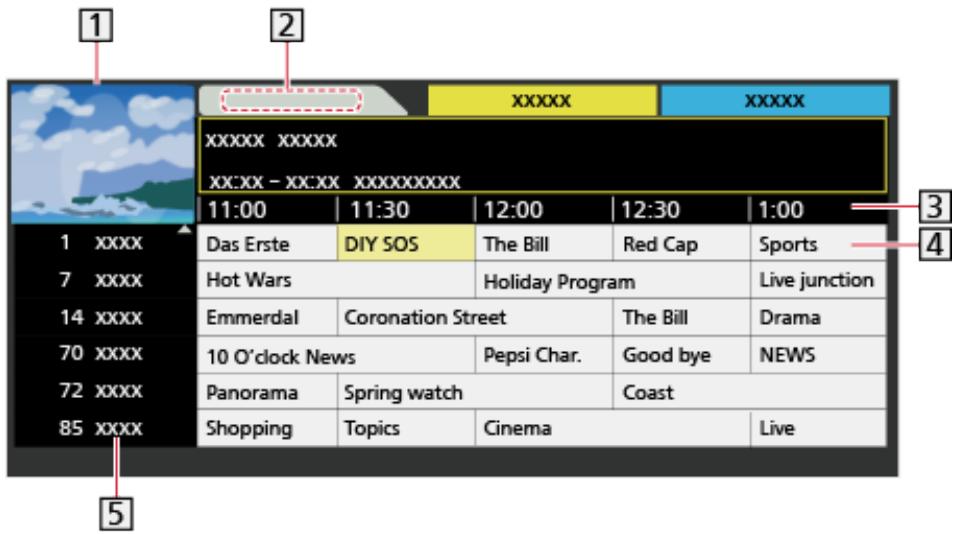

1. Display TV Guide with GUIDE.

2. Select the current programme and press OK to access.

– The current programme is displayed on the top left of the screen.

3. Select View and press OK to watch.

Watching > TV Guide > Using TV Guide

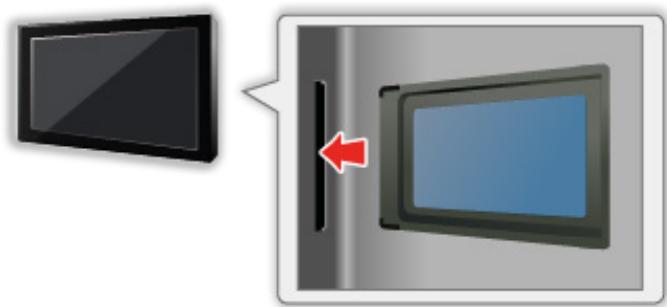

For details of the encrypted channels Functions > Common Interface > Using Common Interface

Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.

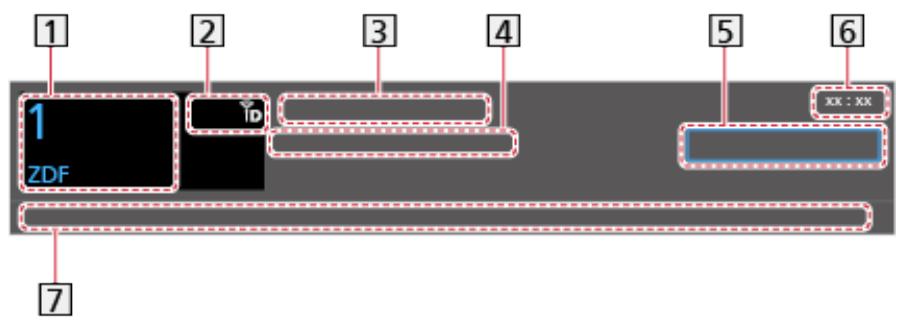

Also appears when changing a channel. (Example) Channel position and name Channel type (Radio, HDTV, etc.) / Encrypted channel (

) / TV mode ( Programme Start time / End time (except Analogue) Channel position, etc. (Analogue) Progress time indicator of the selected programme (except Analogue) Category

To change the category (DVB)

1) Display the category list with

2) Select the category and press OK to change.

Current time Features available / message meanings Bad signal: Poor quality TV signal DD, DD+, HE-AAC: Dolby Audio (Dolby Digital, Dolby Digital Plus) or HE-AAC audio track AD: Audio Description service available

This function can aid visually-impaired viewers by providing an additional audio track to describe events on screen. Watching > For best audio > Audio Description

Subtitle service available

Teletext service available Multiple audio available Multiple video available Multiple audio and video available Stereo, Mono: Audio mode Data service (Hybrid Broadcast Broadband TV application) available Functions > Data Service Application > Using Data Service Application 1 – 90: Off Timer remaining time Watching > Basic > Off Timer

To confirm another tuned channel

To watch the channel listed in the banner

Information on the next programme (DVB)

3) Select Standard / Hard of Hearing and press OK to set.

– Hard of Hearing provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).

Preferred Subtitles 1 / 2 in Language are given priority. Watching > Basic > Language = Note =

If you press STTL in Analogue, the TV switches to teletext service and calls up a favourite page. Press EXIT to return to TV mode.

Last view Switch to a previously viewed channel or input mode easily with LAST VIEW.

Press again to return to the current view. = Note =

Switching channel may not be available depending on the condition.

Watching less than 10 seconds is not reflected in the previously viewed channel or input mode.

1. Display the menu with MENU.

2. Select Timer > Off Timer and press OK to access.

3. Select the time in 15-minute increments and press OK to set.

90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)

To cancel, set to Off or turn the TV off.

The remaining time is displayed on the bottom right of the screen.

The remaining time will flash on the screen when less than 3 minutes.

Energy saving functions The TV can be eco-friendly using energy-saving functions. The TV goes into Standby mode in the following conditions:

Eco Navigation is set to Set to Eco.

Off Timer is active. Watching > Basic > Off Timer

No operation is performed for 4 hours while Auto Standby is set to On.

No signal is received and no operation is performed for 10 minutes while No signal Power off is set to On. = Note =

This function does not affect the recording. ■■Auto Standby

1. Display the menu with MENU.

2. Select Timer > Auto Standby and press OK to access.

3. Select On / Off and press OK to set.

Auto Standby (On / Off) Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.

Automatic input switching with the connected equipment affects this function and time-count resets.

A notification message will appear 3 minutes before going into Standby mode.

Changing the default configuration may result in higher energy consumption of the product.

■■No signal Power off

1. Display the menu with MENU.

2. Select Timer > No signal Power off and press OK to access.

3. Select On / Off and press OK to set.

No signal Power off (On / Off) Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes.

A notification message will appear 3 minutes before going into Standby mode. ■■Eco Navigation Automatically sets the TV to the most suitable energy-saving mode. The concerned items and their current settings are displayed. Select Set to Eco to set them to the energy-saving settings at once.

1. Display the menu with MENU.

2. Select Setup > Eco Navigation and press OK to access.

3. Select Set to Eco and press OK to set.

Auto Standby and No signal Power off are active when Eco Navigation is set to Set to Eco. ■■Radio Mode Sets the timer for turning off the screen automatically when a radio channel is selected.

1. Display the menu with MENU.

2. Select Setup > Display Settings > Radio Mode and press OK to access.

3. Select the time and press OK to set.

20 / 15 / 10 / 5 / Off (seconds)

Sound is active even if the screen is turned off. This function is effective in reducing power consumption when listening to a radio channel.

Press any buttons except Standby On / Off switch, Volume Up / Down and MUTE to turn the screen on.

Adjusting time Adjusts the time data.

1. Display the menu with MENU.

2. Select Timer > Time Zone and press OK to access.

3. Set the item and press OK to store.

The time data are corrected based on GMT.

The availability of this function depends on the country and TV mode you select.

1. Display the menu with MENU.

2. Select Setup > Language and press OK to access.

3. Select one of the following items and press OK to access.

OSD Language / Preferred Audio 1 / 2 / Preferred Subtitles 1 / 2 / Preferred Teletext

4. Set the item and press OK to store.

OSD Language Changes language for on-screen displays. Preferred Audio 1 / 2 Selects the first and second preferred language for DVB multi audio (depending on the broadcaster). Preferred Subtitles 1 / 2 Selects the first and second preferred language for DVB subtitles (depending on the broadcaster).

To display subtitles Watching > Basic > Subtitle Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster).

External equipment External connection These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment.

For details of basic connection Watching > Basic > Basic connection

Check the terminal type and cable plugs are correct for connection.

External equipment and cables shown are not supplied with this TV. ■■HDMI equipment HDMI terminal HDMI cable Recorder / Player / Set top box / Camcorder / Amplifier with speaker system = Note =

Use a fully wired HDMI compliant cable.

For details of VIERA Link connections Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

Use HDMI2 to connect the TV to an amplifier which has ARC (Audio Return Channel) function.

It is recommended to connect the device to the TV’s USB port directly.

You cannot use two or more of the same kind of USB devices simultaneously except USB Flash Memory or USB HDD.

Use USB 2 port for connecting the USB HDD.

Some USB devices or USB HUB may not be used with this TV.

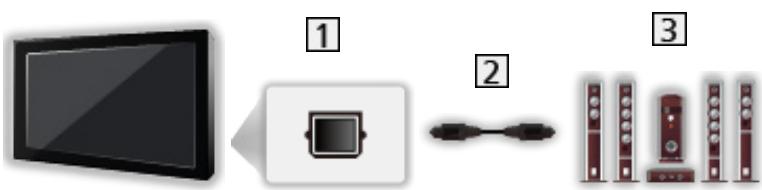

You cannot connect any devices by using USB card reader. ■■Listening with external speakers DIGITAL AUDIO Optical digital audio cable Amplifier with speaker system

To enjoy multi-channel sound from external equipment (e.g. Dolby Audio (Dolby Digital) 5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.

To select the sound output to adjust volume, set TV Speaker Setting. Watching > For best audio > Volume settings

■■Headphones Headphone jack

To select the sound output to adjust volume, set TV Speaker Setting. Watching > For best audio > Volume settings

Watching external input Connect the external equipment (VCR, DVD, etc.) and you can watch through the input.

1. Display the input selection menu with AV.

2. Select the input mode connected to the equipment and press OK to watch.

(The selected mode is displayed on the top left of the screen.)

You can also select the input pressing AV. Press repeatedly until the desired input is selected.

You can select COMPONENT and VIDEO in AV.

You can label or skip each input mode. Skipped inputs will not be displayed when AV is pressed. (Input Labels)

The remote control is capable of operating the content or external equipment. Watching > External equipment > Operating with TV’s remote control

If the external equipment has an aspect adjustment function, set it to 16:9.

For details, read the manual of the equipment or ask your local dealer. ■■Input Labels Accessing the input labels list allows you to change the input name or skip the input if unconnected, improving identification and selection in the Input Selection banner. Watching > Basic > Information banner

1. Display the menu with MENU.

2. Select Setup > Display Settings > Input Labels and press OK to access.

To skip the input mode, select Skip.

■■Playing Time Display Set to On to display a time period of continuous use in Game Mode on the top right of the screen every 30 minutes.

2. Select Setup > Display Settings > Playing Time Display and press OK to

3. Select On / Off and press OK to set.

This function is available when Game Mode is set to On.

Operating with TV’s remote control You can operate the content in Media Player / media server, recording functions or the connected equipment with the following buttons of this TV’s remote control. Playback (VCR / DVD / video content) Stop the operations Rewind, view the picture rapidly in reverse (VCR) Skip to the previous track, title or chapter (DVD / video content) Rewind, view the picture rapidly in reverse (VCR) Search backward (DVD / video content) Fast-forward, view the picture rapidly forward (VCR) Skip to the next track, title or chapter (DVD / video content) Fast-forward, view the picture rapidly forward (VCR) Search forward (DVD / video content) Pause / Resume Press and hold to play at slow speed (DVD) One Touch Recording Recording > Recording current programme > One Touch Recording ■■How to change the code Each Panasonic product has its own remote control code. Change the code according to the product for operation.

1. Press and hold Standby On / Off switch during the following operations.

2. Enter the appropriate code as follows with Numeric buttons.

Codes for each product and features 70: DVD Recorder, DVD Player, Blu-ray Disc Player 71: Player theatre, Blu-ray Disc theatre 72: VCR 73 (default): Using in USB HDD recording, Media Player, DLNA features or VIERA Link

Confirm if the remote control works correctly after changing the code.

The codes may be reset to defaults if batteries are replaced.

Some operations may not be available depending on the equipment.

HDMI features HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV to external equipment. HDMI-compatible equipment with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using a fully wired HDMI compliant cable. Watching > External equipment > External connection : The HDMI logo is displayed on HDMI-compliant equipment. ■■Applicable HDMI features

Input video signal: Matches the output setting of the digital equipment. Watching > External equipment > Valid input signals

Audio Return Channel – Audio Return Channel (ARC) is a function to send digital sound signals via an HDMI cable. – For HDMI2 ■■DVI connection If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor cable, connect the audio cable to the audio input terminal (use COMPONENT / VIDEO audio terminals).

Enquire HDMI adaptor cable at your local digital equipment retailer shop.

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

These HDMI connectors are “type A”.

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

Equipment having no digital output terminal may be connected to the input terminal of component or video to receive analogue signals.

2. Select Setup > HDMI HDR Setting and press OK to access.

3. Set the item and press OK to store.

HDMI HDR Setting (On / Off) Set to On when the HDR device is connected to the TV.

Please turn Off this function if the image looks unnatural. This may occur in some cases such as compatibility with the connected device or source images.

Image may disappear for a few seconds when the setting is changed.

Supporting HDR does not increase the peak brightness capabilities of the TV panel.

The ability to send a non 4K HDR signal via HDMI depends fully on the playback device.

The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV.

Signals other than above may not be displayed properly.

The above signals are reformatted for optimal viewing on your display.

For best picture Viewing Mode

1. Display the menu with MENU.

2. Select Picture > Viewing Mode and press OK to access.

3. Select the mode and press OK to set.

Viewing Mode (Dynamic / Normal / Cinema / True Cinema / Custom / Sport / Game) Selects your favourite picture mode for each input. Dynamic: Improves contrast and sharpness for viewing in a bright room. Normal: Normal use for viewing in a normal lighting condition. Cinema: Improves the performance of contrast, black and colour reproduction for watching a film in a darkened room. True Cinema: Reproduces the original image quality precisely without any revision. Custom: Adjusts each menu item manually to suit your favourite picture quality. Sport: Improves picture quality for watching sports, etc.

The sound mode is automatically set to Stadium when Viewing Mode is set to Sport. To cancel the linkage of the sound and viewing mode, set Sport Link to Off. Watching > For best audio > Basic settings Game: Improves picture quality for playing games, etc.

Game Mode is automatically set to On when Viewing Mode is set to Game. Watching > For best picture > Option Settings

The following items can be adjusted and stored for each mode. Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Adaptive Backlight Control / Ambient Sensor / HDR Brightness Setting / Noise Reduction / MPEG Remaster / Dynamic Range Remaster / Clear Motion

This function can be memorised respectively for input or TV mode. ■■To change the viewing mode with PICTURE You can change the viewing mode easily only by pressing PICTURE.

1. Display Viewing Mode with PICTURE.

2. Select the mode and press OK to set.

You can also change the mode by pressing PICTURE. (Press repeatedly until you reach the desired mode.)

To set the viewing mode selection

1) Display the menu with MENU.

2) Select Picture > PICTURE Button Setting and press OK to access.

3) Select the viewing mode to set.

Aspect Changes the aspect ratio (image size). ■■To change the aspect ratio manually

1. Display the menu with MENU.

2. Select Picture > Screen Settings and press OK to access.

3. Select Aspect and press OK to access.

4. Set the item and press OK to store.

Auto: The best ratio is selected automatically according to the “Aspect Control Signal”. Watching > For best picture > Aspect Control Signal 16:9: Directly displays the image at 16:9 without distortion (anamorphic). 4:3: Displays the image at the standard 4:3 without distortion. Zoom: Displays a 16:9 letterbox or 4:3 image without distortion. = Note =

Display the image full-screen to use this function completely.

Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.

Aspect cannot be changed in teletext service.

Aspect is fixed to 16:9 in the following conditions: – Game Mode is set to On.

Aspect Control Signal Programmes usually contain an “Aspect Control Signal”. (Widescreen signal, Control signal through HDMI terminal) In Auto mode, aspect mode will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through HDMI terminal is found. The aspect switches to the appropriate ratio. Watching > For best picture > Aspect ■■Available conditions ●● Satellite terminal (WSS only) Valid input signal format: DVB-S ●● Terrestrial / cable terminal (WSS only) Valid input signal format: DVB-C DVB-T / DVB-T2 PAL B, G, H, I, D, K SECAM B, G, L, L’, D, K Invalid input signal format: PAL 525/60 6.5 MHz PAL 525/60 6.0 MHz PAL 525/60 5.5 MHz M.NTSC 6.5 MHz M.NTSC 6.0 MHz M.NTSC 5.5 MHz ●● AV (VIDEO) terminals Valid input signal format: PAL SECAM PAL 525/60 M.NTSC NTSC : Control signal through HDMI terminal only

●● AV (COMPONENT) terminals (WSS only) Valid input signal format: 625 (576) / 50i, 50p Invalid input signal format: 525 (480) / 60i, 60p 750 (720) / 60p, 50p 1 125 (1 080) / 60i, 50i ●● HDMI terminal Valid input signal format: 525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1 125 (1 080) / 60i, 50i 1 125 (1 080) / 60p, 50p, 24p

HDMI terminal does not receive WSS signal. = Note =

If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. Read the manual of the VCR.

1. Display the menu with MENU.

2. Select Picture and press OK to access.

3. Select one of the following items and press OK to access.

Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Adaptive Backlight Control / Dynamic Range Remaster / Clear Motion

4. Set the item and press OK to store.

Backlight, Contrast, Brightness, Colour, Tint, Sharpness Adjusts the levels of these options according to your personal preference. Colour Temperature Sets the overall colour tone of the picture (bluer - redder). Vivid Colour (On / Off) Automatically adjusts colours to vivid ones. Adaptive Backlight Control Automatically controls the level of backlight according to the images. Dynamic Range Remaster (On / Off) Enhances bright areas of the image closer to the original luminance making improved picture impact.

Not valid in the following conditions: – Adaptive Backlight Control is set to Off. – Contrast Control is set to Off. – HDR video signal Clear Motion (On / Off) Makes the moving pictures clearer by controlling the level of backlight.

1. Display the menu with MENU.

2. Select Picture > Ambient Sensor and press OK to access.

3. Select On / Off and press OK to set.

Ambient Sensor (On / Off)

Automatic Brightness Control function Adjusts picture settings automatically depending on ambient lighting condition.

HDR Brightness Setting

1. Display the menu with MENU.

2. Select Picture > HDR Brightness Setting and press OK to access.

3. Select one of the following items and press OK to access.

HDR Auto Brightness / HDR Brightness Enhancer

4. Set the item and press OK to store.

HDR Auto Brightness (On / Off) Automatically enhances the luminance when watching an HDR video in a bright environment. HDR Brightness Enhancer Adjusts the luminance when watching an HDR video in a bright environment. = Note =

Supporting HDR does not increase the peak brightness capabilities of the TV panel.

The ability to send a non 4K HDR signal via HDMI depends fully on the playback device.

The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV.

Noise reduction settings

Noise Reduction (Auto / Max / Mid / Min / Off) Reduces unwanted picture noise.

Not valid in the following conditions: – 1080p Pixel Direct is set to On. – Game Mode is set to On. MPEG Remaster (Auto / Max / Mid / Min / Off) Reduces flicker noise in contoured parts of a picture and block noise.

Not valid in the following conditions: – 1080p Pixel Direct is set to On. – Game Mode is set to On.

Advanced Settings You can adjust and set up the detailed picture settings when Viewing Mode is set to Cinema, True Cinema or Custom. The settings in True Cinema or Custom can be stored for each input. Watching > For best picture > Viewing Mode

1. Select the input mode with AV or TV.

2. Display the menu with MENU.

3. Select Picture > Viewing Mode and press OK to access.

4. Select the mode and press OK to set.

Cinema / True Cinema / Custom ■■Adjust the detailed picture settings

1. Display the menu with MENU.

2. Select Picture > Advanced Settings and press OK to access.

3. Select one of the following items and press OK to access.

Contrast Control / Colour Gamut / White Balance / Colour Management / Gamma / Reset to Defaults

4. Set the item and press OK to store.

■■Contrast Control Contrast Control (Custom / Auto / Off) Automatically adjusts the detailed contrast settings. Select Custom to set Contrast Control Setting manually. Contrast Control Setting Adaptive Gamma Control: Adjusts the gamma curve to make the image brighter. Black Expander: Gradually adjusts the shades of black. Clear White Effect: Makes the white area clearer. Reset to Defaults: Resets items for Contrast Control Setting.

■■Colour Gamut Colour Gamut (Auto / Normal / Native) Reproduces image colour precisely according to the colour gamut standards. Auto: Automatically adjusts the colour gamut according to the input signal. Normal: Displays colours according to the colour gamut. Native: Displays deep colours by expanding the colour gamut to its maximum.

Not valid for photo content ■■White Balance R-Gain / G-Gain / B-Gain Adjusts the white balance of bright red / green / blue areas. R-Cutoff / G-Cutoff / B-Cutoff Adjusts the white balance of dark red / green / blue areas. More Detailed Adjustment Adjusts more detailed items for White Balance. Input Signal Level: Adjusts the input signal level. R-Gain / G-Gain / B-Gain: Adjusts the detailed white balance of bright red / green / blue areas. Reset to Defaults: Resets items for More Detailed Adjustment. Reset to Defaults Resets White Balance to the default settings.

■■Colour Management R-Hue / R-Saturation / R-Luminance Adjusts the picture hue / saturation / luminance of red areas. G-Hue / G-Saturation / G-Luminance Adjusts the picture hue / saturation / luminance of green areas. B-Hue / B-Saturation / B-Luminance Adjusts the picture hue / saturation / luminance of blue areas. More Detailed Adjustment Adjusts more detailed items for Colour Management. C-Hue / M-Hue / Y-Hue: Adjusts the picture hue of cyan / magenta / yellow areas. C-Saturation / M-Saturation / Y-Saturation: Adjusts the saturation of cyan / magenta / yellow areas. Reset to Defaults: Resets items for More Detailed Adjustment. Reset to Defaults Resets Colour Management to the default settings.

Please note the numerical values are reference for the adjustment. More Detailed Adjustment Adjusts more detailed items for Gamma. Input Signal Level: Adjusts the input signal level. Gain: Adjusts the gain of gamma for selected signal level. Reset to Defaults: Resets items for More Detailed Adjustment. Reset to Defaults Resets Gamma to the default settings. ■■Reset to Defaults Reset to Defaults Resets Advanced Settings to the default settings.

Option Settings Some features are not available on all models. Available menu items are displayed on your TV screen.

1. Display the menu with MENU.

2. Select Picture > Option Settings and press OK to access.

3. Select one of the following items and press OK to access.

Game Mode / Film Cadence Mode / 1080p Pixel Direct / HDMI Content Type / HDMI EOTF Type / EOTF Type / HDMI RGB Range / AV Colour System / 3D-COMB

4. Set the item and press OK to store.

Game Mode (On / Off) Provides suitable images for fast response signals when playing games.

To display a continuous record of time spent using Game Mode, set Playing Time Display. Film Cadence Mode (Auto / On / Off) Improves vertical resolution for movie images.

This function is available for interlaced signals (except in Network services or when Game Mode is set to On). 1080p Pixel Direct (On / Off) Reproduces the original image quality in detail for 1080p (HDMI) input signal.

HDMI Content Type (Graphics / Photos / Auto / Off) Adjusts the picture settings of each HDMI input according to the selected content type. Auto: Automatically adjusts the picture settings according to the received HDMI content if the connected equipment supports HDMI Content Type.

To set the availability of each content type for Auto mode, select Auto Detail Setting.

For HDMI EOTF Type (Auto / Traditional gamma / HLG / PQ) Selects the EOTF type of broadcast or video content. It works correctly only when the signal corresponds the each EOTF type. Set to Auto for general use.

Automatically switches to Auto for broadcast each time another input / channel is selected.

When the black level is not suitable, select Full.

3D-COMB (On / Off) Makes still or slow moving pictures more vivid.

Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to On to display sharper and more accurate colours.

For PAL / NTSC signal reception in TV mode or from composite connection

1. Display the menu with MENU.

2. Select Picture > Screen Settings and press OK to access.

3. Select one of the following items and press OK to access.

Aspect / 16:9 Overscan / Zoom Adjustments / Screen Display

4. Set the item and press OK to store.

Aspect Changes the aspect ratio (image size). Watching > For best picture > Aspect 16:9 Overscan (On / Off) Selects the screen area displaying the image for 16:9 aspect. On: Enlarges the image to hide the edge of the image. Off: Displays the image in the original size.

Set to On if noise occurs on the edge of the screen.

This function can be memorised for SD (Standard definition) and HD (High definition) signals respectively.

Not valid in the following conditions: – Photo content – Game Mode is set to On. Zoom Adjustments Adjusts the vertical position and size when aspect is set to Zoom. Screen Display (On / Off) Turns the screen off when you select Off.

This function is effective in reducing power consumption when listening to the sound without watching the TV screen.

Press any buttons (except Standby On / Off switch) to turn the screen on.

Copy Adjustment Copies the picture settings of True Cinema or Custom to those of the other input mode or Viewing Mode.

1. Display the menu with MENU.

2. Select Picture > Copy Adjustment > Destination Viewing Mode /

Destination Input and press OK to access.

3. Select the destination to copy to and press OK to set.

4. Select Copy Start and press OK to copy.

5. When a confirmation screen is displayed, select Yes and press OK to set.

Option Settings and Screen Settings are not copied.

1. Display the menu with MENU.

2. Select Sound > Mode and press OK to access.

3. Select the mode and press OK to set.

Mode (Standard / Music / Speech / Stadium / User) Selects your favourite sound mode for each input. Standard: Provides the suitable sound quality for all types of scenes. Music: Improves sound quality for watching music videos, etc. Speech: Improves sound quality for watching news, drama, etc. Stadium: Improves sound quality for watching sports, etc.

The sound mode is automatically set to Stadium when Viewing Mode is set to Sport. To cancel the linkage of the sound and viewing mode, set Sport Link to Off. Watching > For best audio > Basic settings User: Adjusts the sounds manually using the equaliser to suit your favourite sound quality.

The following items can be adjusted and stored for each mode. Bass / Treble / Surround / Bass Boost

For the User mode, Equaliser is available in the Sound Menu instead of Bass and Treble. Select Equaliser and adjust the frequency. Watching > For best audio > Basic settings

This function is effective only for the sound from TV speakers.

Basic settings Some features are not available on all models. Available menu items are displayed on your TV screen.

1. Display the menu with MENU.

2. Select Sound and press OK to access.

3. Select one of the following items and press OK to access.

Bass / Treble / Equaliser / Balance / Surround / Bass Boost / Sport Link

4. Set the item and press OK to store.

Bass Adjusts level to enhance or minimise lower, deeper sound output. Treble Adjusts level to enhance or minimise sharper, higher sound output. Equaliser Adjusts the frequency level to suit your favourite sound quality.

This function is available when Mode is set to User.

Select the frequency and adjust the frequency level.

To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency.

To reset the levels of each frequency to the default settings, select Reset to Defaults and press OK.

This function is effective only for the sound from TV speakers. Balance Adjusts volume level of right and left speakers. Surround (Cinema surround Pro / Cinema surround / Stadium surround / Off) Selects surround sound settings. Cinema surround Pro: Provides a more progressive sound for watching a film by improving spatial effects. Cinema surround: Provides a suitable sound for watching a film by improving spatial effects.

Stadium surround: Provides a dynamic sound for watching sports by improving spatial effects.

This function is effective only for the sound from TV speakers. Bass Boost (On / Off) Enhances the effect of bass sounds.

This function is effective only for the sound from TV speakers. Sport Link (On / Off) Automatically sets the sound mode to Stadium when Viewing Mode is set to Sport.

1. Display the menu with MENU.

2. Select Sound and press OK to access.

3. Select one of the following items and press OK to access.

Speaker Selection / TV Speaker Setting / Headphone Volume / Auto Gain Control / Volume Correction / Clear Sound Adjustment

4. Set the item and press OK to store.

Speaker Selection (TV / Home Cinema) Enables controlling the theatre speaker with this TV’s remote control by pointing at the TV’s signal receiver. TV: TV speakers are active. Home Cinema: The sound is delivered from theatre speakers. Player theatre, Bluray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.

The sound of TV speakers is mute. When the equipment is turned off, TV speakers will be activated.

You can use Volume Up / Down and MUTE. This function is available when the theatre speakers supporting VIERA Link function is connected to this TV. TV Speaker Setting (TV Speaker / Headphone / Off) Selects the sound output to adjust volume.

Sound from TV speaker turns off when Headphone or Off is selected. Headphone Volume Adjusts the volume of headphones.

Auto Gain Control (On / Off) Automatically regulates large sound level differences between channels and inputs. Volume Correction Adjusts the volume of each individual channel or input mode. Clear Sound Adjustment (On / Off) If the sound from TV speakers is unclear due to installation environment, On is recommended.

This function is effective only for the sound from TV speakers.

1. Display the menu with MENU.

2. Select Sound > Voice Guidance Settings and press OK to access.

3. Select one of the following items and press OK to access.

Voice Guidance / Speed / Volume / Language / User Level / Web Browser

4. Set the item and press OK to store.

Voice Guidance (On / Off) Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users. Speed (Fast / Normal / Slow) Selects the readout speed for the voice guidance. Volume (Max / Mid / Min) Selects the volume for the voice guidance. Language Changes language for the voice guidance.

All languages may not be available. When the selected language is not supported, Language is set to English automatically. User Level (Beginner / Expert) Selects the level of verbosity for the voice guidance. Web Browser (On / Off) Set to On to enable voice guidance of the network content in web browser function. = Note =

Voice guidance function may not correspond exactly.

1. Display the menu with MENU.

2. Select Sound > Audio Description and press OK to access.

3. Select one of the following items and press OK to access.

Preferred Audio Type / Volume

4. Set the item and press OK to store.

For DVB Preferred Audio Type (Audio Description / Standard) Narration settings for visually impaired users Set to Audio Description to activate the narration sound track when available on the broadcast.

The availability of audio description sound track is indicated by AD in the information banner. Volume Adjusts the volume for Audio Description.

1. Display the menu with MENU.

2. Select Sound and press OK to access.

3. Select one of the following items and press OK to access.

MPX / Audio Preference / SPDIF Selection / HDMI Audio Format / PCM Optical Level / SPDIF Delay / HDMI Input

4. Set the item and press OK to store.

MPX Selects multiplex sound mode (if available). Stereo: Use this normally. Mono: When stereo signal cannot be received M1 / M2: Available while mono signal is transmitted

For Analogue Audio Preference (Auto / Multichannel / Stereo / MPEG)

Selectable options vary depending on the country you select. Selects the initial setting for audio tracks. Auto: Automatically selects the audio tracks if a programme has two or more tracks. The priority is given in the following order - Dolby Audio (Dolby Digital Plus), HE-AAC, Dolby Audio (Dolby Digital), MPEG. Multichannel: The priority is given to multi-channel audio track. Stereo: The priority is given to stereo (2ch) audio track. MPEG: The priority is given to MPEG.

Dolby Audio (Dolby Digital, Dolby Digital Plus) is the method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.

HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission.

MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality.

Dolby Audio (Dolby Digital Plus) and HE-AAC are the technologies for HD (High definition) programmes.

For DVB SPDIF Selection (Auto / PCM / Dolby Audio) Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.

SPDIF is a standard audio transfer file format. Auto: Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multichannel are output as Dolby Digital Bitstream. MPEG is output as PCM. PCM: Digital output signal is fixed to PCM. Dolby Audio: Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

For DVB, video content Media Player > Playback > Audio output settings Network > Videos > Audio output settings HDMI Audio Format (Auto / Bitstream / PCM) Selects the audio format for the HDMI input signal. Auto: When the TV speakers are active, audio format is fixed to PCM. When the sound is delivered from theatre speakers, audio format is fixed to Bitstream. Bitstream: Dolby Audio (Dolby Digital, Dolby Digital Plus) is output as Dolby Audio Bitstream. Other digital audio output signals are output as PCM.

PCM: Digital audio signal is output as PCM. PCM Optical Level Adjusts the audio level of PCM output from DIGITAL AUDIO and HDMI2 (ARC function) terminals to equalise with that of the other audio types. SPDIF Delay Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image.

For DVB HDMI Input (Digital / Analogue) Selects to fit the input signal. Watching > External equipment > HDMI features Digital: When sound is carried via the HDMI cable connection Analogue: When sound is not carried via the HDMI-DVI adaptor cable connection

TV Guide Using TV Guide TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcaster).

Not valid in Analogue

1. Select the mode with TV.

DVB-S / DVB-C / DVB-T / DVB-via-IP

2. Display TV Guide with GUIDE.

Press OPTION to change the layout. (Landscape / Portrait) – View Landscape to see several channels. – View Portrait to see one channel by time. – The availability of this function depends on the country you select. (Example) TV screen Date Time Programme Channel position and name

To watch the programme

1) Select the current programme and press OK to access.

– The current programme is displayed on the top left of the screen.

2) Select View and press OK to watch.

– To use Timer Programming Watching > TV Guide > Timer Programming

To the previous day (red)

To the next day (green)

To search programme titles and view a list of the searched programmes (if available)

1) Display the search list with

2) Select Search and press OK to access.

(green) to start searching. – All the programme titles including the word you set are listed. – Searching without any characters lists all programmes including current programmes.

To view a channel list of the selected category

1) Display the category list with

2) Select the category and press OK to view.

– To list favourite channels, set Favourites Editor. Watching > Tuning and editing channels > Favourites Editor

To view more details of the programme

1) Select the programme.

to view. – Press again to return to TV Guide.

To exit TV Guide EXIT = Note =

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.

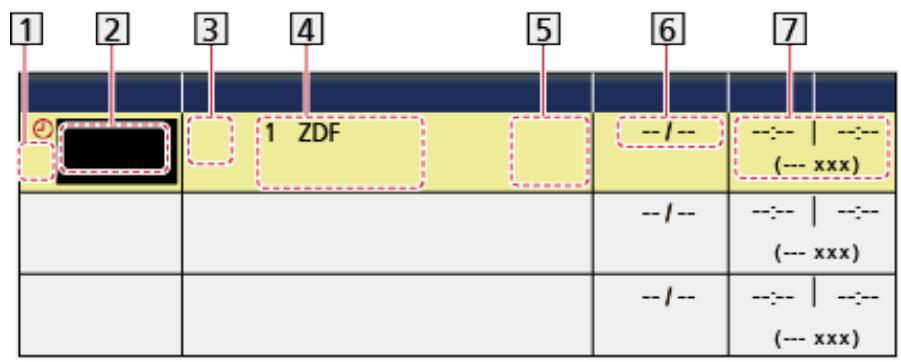

Timer Programming This function allows you to select programmes that you want to record to the USB HDD.

1. Display TV Guide with GUIDE.

2. Select the forthcoming programme and press OK to access.

You can also set a timer event pressing

To check / change / cancel a timer event

LED turns to orange in Standby mode when Timer Programming is set.

If you select the current programme, a confirmation screen asking whether you want to watch or record the programme appears. Select Timer Programming and press OK to set USB HDD Rec. to record from the time you finish the timer event setting.

is displayed on the TV Guide screen if Timer Programming is set from TV Guide.

Depending on the country you select, you can set Signal Supported Recording (see below). = Note =

Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.

No other channels can be selected while recording of Timer Programming is in progress.

When recording programmes to the USB HDD, be sure to format the USB HDD and enable it to record in USB Device Setup. Recording > USB HDD setup ■■Signal Supported Recording Signal Supported Recording is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer event will follow the change. Note that Signal Supported Recording only works reliably if correct information is received from broadcasters.

The availability of this function depends on the country and TV mode you select.

is displayed on the timer event if Signal Supported Recording is set. = Note =

If you edit the start time or end time of a signal supported recording event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.

Teletext Viewing Teletext

1. Switch to teletext with TEXT.

Displays the index page (content varies depending on the broadcaster).

Current / sub page numbers are displayed on the top left of the screen.

Time / date is displayed on the top right of the screen.

Colour bar is displayed on the bottom of the screen.

2) Adjust and press OK to set.

To exit teletext EXIT ■■Reveal hidden data

(red). Press again to hide. ■■To view a favourite page stored Press STTL to view a favourite page.

Call up the page stored on

Factory setting is “P103”. (blue). (List mode)

(green) to change the layout.

■■Watch TV and teletext in two windows at once

1. Press MENU twice.

2. Set Picture and text to On / Off.

Operations can be made only in teletext screen. ■■Store frequently viewed pages in the colour bar (List mode)

(coloured buttons) while the page is displayed.

2. Press and hold OK.

The stored page number changes to white.

(coloured buttons) to change.

2) Enter a new page number with Numeric buttons.

3) Press and hold OK.

■■View sub page The number of sub pages is displayed on the top of the screen. Press to view sub page. (Only when teletext has more than one page.)

The number of sub pages varies depending on the broadcaster (up to 79 pages).

Searching may take time while you are watching TV.

To view a specific sub page

Teletext mode Teletext services are the text information provided by the broadcaster.

The features may vary depending on the broadcaster.

1. Display the menu with MENU.

2. Select Setup > Display Settings > Teletext and press OK to access.

3. Select TOP (FLOF) / List and press OK to set.

■■TOP mode (For TOP text broadcasting) TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

Fast overview of the teletext information available

Easy to use step-by-step selection of the topical subject

Page status information on the bottom of the screen

Available page up / down (red) /

(green) To select among subject blocks (blue)

To select next subject within the subject block (yellow) (After the last subject, it moves to the next subject block.) ■■FLOF (FASTEXT) mode (For FLOF (FASTEXT) broadcasting) In FLOF mode, four differently coloured subjects are situated on the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown. ■■List mode In List mode, four differently coloured page numbers are situated on the bottom of the screen. Each of these numbers can be changed and stored in the TV’s memory. Watching > Teletext > Viewing Teletext

Teletext Character Set Selects teletext language font.

1. Display the menu with MENU.

2. Select Setup > Display Settings > Teletext Character Set and press OK to

3. Select the font and press OK to set.

West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc. East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Tuning and editing channels Setting menu You can retune channels, edit channel lists, create your favourite channel lists, etc.

1. Select the mode with TV.

DVB-S / DVB-C / DVB-T / DVB-via-IP / Analogue

2. Display the menu with MENU.

3. Select Setup > Tuning Menu and press OK to access.

DVB-S Tuning Menu / DVB-C Tuning Menu / DVB-T Tuning Menu / DVBvia-IP Tuning Menu / Analogue Tuning Menu

4. Select one of the functions and press OK to access.

Channel List Editor / Favourites Editor / Auto Setup / Manual Tuning / Update Channel List / Favourite Network / New Channel Message / Service Replacement / Signal Condition / Attenuator / Add TV Signal

The function items vary depending on the TV mode and country you select.

Channel List Editor ■■Edit DVB channels You can edit the list of All DVB Channels by adding / deleting and moving channels.

Channels not in all DVB channels list cannot be displayed except in this function.

1. Select Channel List Editor and press OK to access.

2) Set the new position with Cursor buttons or Numeric buttons, and

press (green) to store.

To delete the channel (blue)

To delete all channels (yellow)

1) Select a channel from Channels Found.

2) Press OK to add it to All DVB Channels.

To sort channel names in alphabetical order (red)

(green) to add all (depending on the broadcaster). To add consecutive channels to the list at once (if available)

2) Make the channel block and press OK to add.

To change the category of Channels Found (blue)

2. Press BACK/RETURN and OK to store.

To exchange channel list (DVB-S)

1) Display the menu with MENU.

2) Select Setup > Other Settings > Exchange Channel List and press OK

3) Follow the on-screen instructions.

– During the operation, remove USB devices other than the USB Flash Memory used for this function. Settings > Setup > Other Settings ■■Skip unwanted Analogue channels You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.

1. Select Channel List and press OK to access.

2. Select a channel.

3. Press OK to set Reveal / Hide (skip).

: Reveal : Hide (skip)

To reveal all channels (if available) (yellow) ■■Edit Analogue Channels

To retune each channel (Manual Tuning) (red)

To rename the channel name

2) Enter characters (maximum 5 characters) with Cursor buttons or

Numeric buttons, and press OK to set.

If a VCR is connected only with the RF cable in Analogue, edit VCR.

Favourites Editor ■■List favourite DVB channels Create your favourite channel lists from various broadcasters (up to 4: Favourites 1 to 4). The favourites lists are available for switching in the information banner and the TV Guide screen. Watching > Basic > Information banner Watching > TV Guide > Using TV Guide

1. Select Favourites Editor and press OK to access.

2. Select a channel to list from all DVB channels.

appears when the channel is encrypted. To display other favourites (green)

To sort channel names in alphabetical order (red)

To change the category (blue)

3. Press OK to add it to favourites list.

(green) to add all. To add consecutive channels to the list at once

2) Make the channel block and press OK to add.

4. Press BACK/RETURN and OK to store.

■■Edit DVB favourites list You can edit the favourites list while the cursor is on the channel in the favourites list.

1) Select the channel.

3) Select the new position with Cursor buttons.

(green) to store. To delete the channel

1) Select the channel.

(blue) to delete. – Press (yellow) to delete all channels. To name the favourites

2) Enter characters (maximum 10 characters) with Cursor buttons or

Numeric buttons, and press OK to set.

Auto Setup Automatically retunes the channels received in the area.

This function is available if channel tuning is already performed.

Only the selected mode is retuned. All the previous tuning settings are erased.

Child Lock PIN number is required to retune locked channels. Functions > Child Lock > PIN number

If tuning has not been done completely, set Manual Tuning. Watching > Tuning and editing channels > Manual Tuning ■■DVB-S

1. Select Antenna System and press OK to access.

2. Select One LNB / MiniDiSEqC / DiSEqC 1.0 / Single Cable and press OK

to set. One LNB: Compatible with single LNB. MiniDiSEqC: Up to 2 LNBs can be controlled. DiSEqC 1.0: Up to 4 LNBs can be controlled. Single Cable: When using the Single Cable router, up to 32 user bands are available.

You can receive several satellites if you have DiSEqC control antenna system.

This TV supports DiSEqC Version 1.0.

3. Select LNB Configuration and press OK to access.

4. Select LNB / Satellite and set.

– If you set to One LNB, LNB is not selectable. – If you set to MiniDiSEqC or Single Cable, select from LNB AA and AB. – If you set to DiSEqC 1.0, select from LNB AA, AB, BA and BB.

2) Set Satellite for the selected LNB.

– Select No Satellite if you do not know the connected satellite. (Available satellite is searched in Auto Setup.)

– Select User defined to set Test Transponder Frequency manually. – If you set to Single Cable, additional settings are required. Set SingleCable Version, User Band, User Band Frequency and PIN (depending on the Single Cable router you use). For details, read the manual of the Single Cable router. Watching > Tuning and editing channels > Selectable satellites

5. Press BACK/RETURN to store.

6. Select Auto Setup and press OK to access.

7. Select Search Mode / Scan Mode and press OK to access.

8. Set the item and press OK to store.

Scan Mode Quick: Scans the suitable frequency for the selected satellite. Full: Scans the whole frequency range.

After settings, select Start scan and press OK to search.

9. A confirmation screen is displayed and press OK to start Auto Setup.

(Settings are made automatically.)

When the operation is completed, the channel at the lowest position will be displayed. ■■DVB-C, DVB-T, Analogue

1. Select Auto Setup and press OK to access.

2. Set DVB-C Auto Setup Settings and press OK to store. (DVB-C)

Scan Mode Quick: Scans the suitable frequency in your country. Full: Scans the whole frequency range.

Normally set Frequency, Symbol Rate and Network ID to Auto. If Auto is not displayed or if necessary, enter each value specified by your cable provider with Numeric buttons.

After settings, select Start scan and press OK to search.

3. A confirmation screen is displayed and press OK to start Auto Setup.

(Settings are made automatically.)

When the operation is completed, the channel at the lowest position will be displayed. ■■DVB-via-IP

Ensure the network connections and network settings are completed. Functions > DVB-via-IP > DVB-via-IP client connection Network > Network settings

1. Select Auto Setup and press OK to access.

2. A confirmation screen is displayed and press OK to access.

3. Select a server from Server List.

4. Select Client Settings and press OK to access.

Select Unicast Environment to use in a home network.

Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)

5. Select Search Channels and press OK to access.

When the operation is completed, the channel at the lowest position will be displayed. ■■Auto Setup using the buttons on the TV

1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to

2. Set Auto Setup with following control panel buttons.

Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button

Normally use Auto Setup or Update Channel List to retune DVB channels.

If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function. (DVB)

All DVB channels found are added to Channel List Editor. ■■DVB-S

Please consult the received satellite broadcasting companies for the setting.

1. Select Transponder Frequency / Symbol Rate / Polarisation / Modulation /

Service ID and set with Cursor buttons or Numeric buttons.

2. Select Start scan and press OK to search.

1. Enter the frequency with Numeric buttons.

Normally set Symbol Rate and Service ID to Auto.

2. Select Start scan and press OK to search.

1. Select a channel and adjust frequency for each channel.

Set where the level of Signal Quality becomes the maximum.

2. Press OK to search.

■■Analogue Set Analogue channel manually after Auto Setup.

Set Sound System and Colour System, and then perform this function. Normally set Colour System to Auto. – SC1: PAL B, G, H / SECAM B, G

1. Select the channel position with Numeric buttons.

2. Select the channel with Channel Up / Down.

3. Set Manual Tuning.

4. Select Store and press OK to set.

Use Fine Tuning to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.).

If a VCR is connected only with the RF cable, select channel position 0. ■■DVB-via-IP (DVB-S)

Please consult the received satellite broadcasting companies for the setting.

1. Select Transponder Frequency / Symbol Rate / Polarisation / Modulation /

FEC / Service ID and set with Cursor buttons or Numeric buttons.

2. Select Start scan and press OK to search.

Service ID and set with Cursor buttons or Numeric buttons.

Normally set Symbol Rate to Auto.

2. Select Start scan and press OK to search.

■■DVB-via-IP (DVB-T)

1. Select Frequency / Bandwidth / Modulation / FEC / Service ID and set with

Cursor buttons or Numeric buttons.

2. Select Start scan and press OK to search.

Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)

Update Channel List By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically.

The channel list is updated while keeping your settings in Channel List Editor, Favourites Editor, Child Lock, etc.

Depending on the signal condition, the update may not work properly.

To update DVB-S channels, set Search Mode and Scan Mode before updating.

1) Select Search Mode / Scan Mode and press OK to access.

2) Set each item and press OK to store.

3) After settings, select Start scan and press OK to search.

Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)

Signal Condition Selects a channel and checks the signal condition with indicators.

A good Signal Strength is not an indication of suitable signal reception.

Vertical lines show the maximum signal value of the selected channel.

To change the channel

Other settings Favourite Network Selects your favourite network for each broadcaster (only available in some countries).

For DVB-C, DVB-T New Channel Message Selects whether to give a notification message when a new DVB channel is found or not.

When a notification message appears, you can perform Update Channel List pressing OK.

Not valid in DVB-via-IP Service Replacement (On / Off) Set to On to display a message to switch to the available service (only available in some countries).

For DVB-C, DVB-T Attenuator (On / Off) Automatically reduces the DVB-C signal to avoid the interference.

If the DVB-C signal is too strong, interference may occur. In this case, set to On to weaken the signal automatically. Add TV Signal Adds the TV mode.

Allows you to add any TV mode which was skipped during initial Auto Setup.

Selectable satellites ■■Selectable satellites and dish alignment to tune DVB-S channels To ensure your satellite dish is correctly installed, please consult your local dealer. Also please consult the received satellite broadcasting companies for details.

Intelsat at 85.2° East

Hot Bird at 13° East

Eutelsat at 10° East

Intelsat at 45° East

Eutelsat at 36° East Thor at 0.8° West / Intelsat at 1° West

Eutelsat at 33° East

Eutelsat at 25.5° East

Eutelsat at 12.5° West

Eutelsat at 21.5° East

Eutelsat at 16° East

Intelsat at 24.5° West

Hispasat at 30° West

Recording USB HDD setup Preparations You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

Prepare the USB HDD for the exclusive use of recording with this TV.

Connect the USB HDD to the USB 2 port with the USB cable.

Be sure to connect the USB HDD to the mains socket.

To remove the USB HDD safely from the TV, perform Safely remove USB in USB Device Setup. Recording > USB HDD setup > Setting for USB HDD

Check the terminal type and cable plugs are correct for connection. USB port USB cable USB HDD Mains socket = Caution =

All data in the USB HDD will be erased in the following cases: – When formatting the USB HDD with this TV Recording > USB HDD setup > Setting for USB HDD – When formatting the USB HDD to use on PC, etc.

When the TV is repaired due to a malfunction, you may have to format the USB HDD again with this TV to use it. (All data will be erased after formatting.)

To use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools may be necessary to format on your PC. For details, read the manual of the USB HDD.)

The data recorded on the USB HDD with this TV can only be played back on this TV. You cannot play back its content with another TV (including the TV of the same model number) or any equipment.

Do not turn the TV off, pull out the mains plug or remove the USB HDD during operation (formatting, recording, etc.). Doing so may cause malfunction of the device or damage the recorded data. (An electric outage may also be a cause of malfunction.) = Note =

Analogue TV programme cannot be recorded on the USB HDD.

The data broadcasting (MHEG, etc.), radio broadcasting are not recorded, and also the recording function does not work during the period without any signal.

Not all the programmes can be recorded depending on the broadcaster and service provider.

Depending on the network condition, recording function may not work properly in DVB-via-IP.

You cannot copy the recorded TV programmes of the USB HDD.

For details of the USB HDD Recording > Technical information > USB HDD

Setting for USB HDD Format and set up the USB HDD with this TV in order to use it for recording. All the USB devices recognised as a mass storage device are listed.

Please note that USB HDD will be formatted and all data in it will be erased after this setup.

Before setting, connect the USB HDD and be sure to turn on the USB HDD. Recording > USB HDD setup > Preparations

1. Display the menu with MENU.

2. Select Setup > USB Device Setup and press OK to access.

3. Select the USB HDD for recording and press OK to start setup.

Some USB HDD may not be displayed.

4. When the caution and confirmation screen for using USB HDD is

displayed, select Yes and press OK to proceed.

5. When a confirmation screen of USB HDD name is displayed, select Yes

and press OK to set.

The name for the USB HDD is created automatically. If you want to edit the name, select Yes.

1) Enter characters with Cursor buttons or Numeric buttons, and press

2) Press BACK/RETURN to store.

6. When a confirmation screen to enable USB HDD for recording is

displayed, select Yes and press OK to set.

If another formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording. Mode of the USB HDD : The USB HDD is available for recording / playing back. Only one USB HDD on the list is available for recording. : The USB HDD is available for playing back.

To remove the USB HDD safely from the TV (yellow) = Note =

You can only select one USB HDD for recording at a time.

You cannot change the settings for the USB HDD while recording is in progress.

Recording current programme One Touch Recording Records the current programme to the USB HDD immediately.

Confirm the remote control code is “73”. Watching > External equipment > Operating with TV’s remote control

1. Display the menu with MENU.

2. Select Setup > Recording Setup > One Touch Recording and press OK to

3. Select the maximum recording time 30 / 60 / 90 / 120 / 180 (minutes) and

press OK to set. ■■To start One Touch Recording Press

to start. Other channels cannot be selected while recording is in progress. ■■To stop recording in progress Press to stop. ■■To play back or delete the recorded content Recorded TV programmes can be played back in Media Player.

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select USB HDD for recording and press OK to access.

Media Player > Recorded TV mode

Even if One Touch Recording is in progress, you can play back all the content. (Depending on the USB HDD, playback may not be possible or the recording may not work properly during playback.)

Records the current programme to the USB HDD constantly within the maximum recordable time.

Confirm the remote control code is “73”. Watching > External equipment > Operating with TV’s remote control

1. Display the menu with MENU.

2. Select Setup > Recording Setup > REW LIVE TV and press OK to access.

3. Select Auto to start REW LIVE TV.

When you select Auto, recording will start automatically.

This recording may not start if another recording is in progress, TV signal condition is bad or there are no images displayed. ■■To operate REW LIVE TV

To search backward (up to 90 minutes)

1. Display the menu with MENU.

2. Select Setup > Recording Setup > REW LIVE TV and press OK to access.

3. Select Off to stop REW LIVE TV.

If you stop REW LIVE TV, the recorded content for REW LIVE TV will be deleted.

REW LIVE TV is stopped and the recorded content is deleted automatically in the following conditions: (Even if REW LIVE TV stops for the following conditions, as long as the setting is Auto, a new recording starts automatically in a condition that makes the recording available.) – Other channels selected – Locked channel selected – Invalid channel selected – No TV signal – External input selected – When the full-screen application (TV Guide, Media Player, eHELP, etc.) is launched – When the TV enters Standby or is turned off – When another recording starts

Timer Programming Setting Timer Programming This function allows you to select programmes that you want to record to the USB HDD.

Not valid in Analogue

1. Select the mode with TV.

DVB-S / DVB-C / DVB-T / DVB-via-IP

2. Display the menu with MENU.

3. Select Timer > Timer Programming and press OK to access.

4. Press OK to start making the settings.

USB HDD Rec.: Records the programme to the USB HDD.

5. Select and set the item (channel, date, start time, end time).

and can also be entered with Numeric buttons. (Example) !: Overlapped timer events Function (USB HDD Rec.) TV mode : DVB-S : DVB-C : DVB-T : DVB-via-IP – You cannot change the mode within the menu. Channel position, channel name, etc. : Signal Supported Recording (if available) Watching > TV Guide > Timer Programming Date – Daily Sun-Sat: Sunday to Saturday – Daily Mon-Sat: Monday to Saturday – Daily Mon-Fri: Monday to Friday – Weekly Sun / Mon / Tue / Wed / Thu / Fri / Sat: Same time on the same day every week Start time / End time / Duration (automatic display) : Signal Supported Recording (if available) Watching > TV Guide > Timer Programming

1. Display the menu with MENU.

2. Select Timer > Timer Programming and press OK to access.

3. Select the event.

To change a timer event – Correct as necessary. Recording > Timer Programming > Setting Timer Programming

To delete a timer event

2) Press OK to delete.

■■To play back or delete the recorded content Recorded TV programmes can be played back in Media Player.

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select USB HDD for recording and press OK to access.

Media Player > Recorded TV mode

TV Guide may also be used to set timer event. Watching > TV Guide > Timer Programming

Timer Programming can store up to 15 events.

Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.

For recording using Timer Programming, the TV must be either on or in Standby.

No other channels can be selected while recording of Timer Programming is in progress.

Recording an encrypted (copy-protected) programme may not be possible.

Depending on the network condition, recording function may not work properly in DVB-via-IP.

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the start time, a reminder message appears if you are watching TV. – To remove the message and start the programming, press OK. – To cancel the programming, press EXIT.

LED turns to orange in Standby mode when Timer Programming is set.

“!” identifies that two or more timer events are overlapped. As for the overlapped recording events, the first event starts and finishes as programmed. The next event can then start.

The recording of Timer Programming automatically changes the channel to the programmed channel a few seconds before the start time.

For details of the USB HDD Recording > Technical information

Technical information USB HDD ■■USB HDD (for recording the digital TV programmes with this TV)

The capacity of USB HDD that works with this TV is from 160 GB to 6 TB.

Connect the USB HDD to the mains socket to record and play back properly with this TV.

Use the USB HDD formatted with this TV. Recording > USB HDD setup > Setting for USB HDD

Regarding performance, not all USB HDDs are guaranteed. = Note =

Data modified with a PC may not be displayed.

Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.

Do not touch the pins on the device.

Do not subject the device to a high pressure or impact.

Insert the device in the correct direction. Otherwise this can damage the device or TV.

Electrical interference, static electricity, or erroneous operation may damage the data or device.

Media Player Using Media Player Information Media Player allows you to enjoy photo, video or music recorded on the USB Flash Memory / network device, and content recorded with this TV to the formatted USB HDD. (Example) Easy List View: Still pictures / moving pictures recorded with digital camera or digital video camera are played back. Mix Folder View: All files grouped by folder are displayed. Recorded TV mode: (For exclusive USB HDD) TV programmes recorded on the USB HDD with this TV are played back.

During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers. Functions > VIERA Link “HDAVI Control™”

Pictures may not appear correctly on this TV depending on the recording equipment used.

Displaying may take some time when there are many files and folders.

Partially degraded files may be displayed with reduced resolution.

Picture setting may not work depending on the condition.

Folder and file names may be different from those on the digital camera or digital video camera used.

■■To insert or remove the USB Flash Memory Ensure alignment is straight and complete when inserting or removing.

To remove the USB Flash Memory safely from the TV, perform Safely remove USB in USB Device Setup.

1) Display the menu with MENU.

2) Select Setup > USB Device Setup and press OK to access.

3) Select the device and press

(yellow) to set. = Note =

To connect the USB HDD Recording > USB HDD setup

Check the terminal type and devices are correct for connection.

For details of the devices Media Player > Connected device

For details of supported file formats Media Player > Supported format

Selecting device / mode

Media Player > Using Media Player > Information

To play back content in the USB HDD, ensure the connection and settings are completed. Recording > USB HDD setup

To play back content in the network device, ensure the connection and settings are completed. Media Player > Using Media Player > Network device

2. Display Home with HOME.

3. Select Devices and press OK to access.

4. Select the device (USB Flash Memory / USB HDD / network device) and

When a confirmation screen about the network device is displayed, enter User / Password to access.

5. Select Easy List View / Mix Folder View / Recorded TV and press OK to

access. Easy List View Media Player > Easy List View Mix Folder View Media Player > Mix Folder View Recorded TV Media Player > Recorded TV mode

6. The thumbnail view is displayed.

Recorded TV is available for content recorded on the USB HDD with this TV.

Select the appropriate device and content for playing back each file.

You can use the following buttons during playback. Confirm the remote control code is “73”. Watching > External equipment > Operating with TV’s remote control

Network device You can enjoy photo, video or music stored in the network devices.

To enable this function, connect this TV to your home network. Network > Network connections Network > Network settings ■■How to set User / Password

2. Select Network > File Sharing Settings > Network Device List and press

3. Select the network device and press OK to access.

Press BACK/RETURN to store.

To register the new network device, set Server Name / Shared Folder. For details, read the manual of the equipment.

5. Select Register and press OK to set.

To delete the registered device, select Delete and press OK to set. = Note =

Regarding performance, not all servers are guaranteed.

Up to 48 devices can be registered.

Easy List View Selecting file Still pictures / moving pictures recorded with digital camera or digital video camera are played back. Select the file in the thumbnail view and press OK to start playback.

If a file or folder is edited or renamed by digital camera, digital video camera, PC, etc., the thumbnail may not be displayed properly. : Error display

1) Display the option menu with OPTION.

2) Select Calendar and press OK to access.

The preview will start when the title / scene is highlighted in the thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.

1) Display the option menu with OPTION.

and press OK to access.

3) Select Video Setup > Video Preview and press OK to access.

4) Select On / Off and press OK to set.

– Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this. – This function is available in the thumbnail view.

For details of supported file formats Media Player > Supported format

and press OK to access.

3. Select one of the following items and press OK to access.

Play Select / Repeat / Shuffle

4. Set the item and press OK to store.

Play Select Settings for playback file selection

Repeat (Folder / File Repeat / Off) Playback repeat Folder: Playback repeat within the selected folder File Repeat: Playback repeat of the selected one file Shuffle (On / Off) Files are played back at random.

Filtering files You can filter the files as the content type. (Photo / Video)

1. Display the option menu with OPTION.

2. Select Filter and press OK to access.

3. Select Photo / Video and press OK to set.

4. Select OK and press OK to change.

Mix Folder View Selecting file Displays the thumbnail of all files which are grouped by folder. Select the folder / file and press OK to start playback. : Error display

The preview will start when the title / scene is highlighted in the thumbnail view if it supports a preview. To turn off the preview, set Video Preview to Off.

1) Display the option menu with OPTION.

and press OK to access.

3) Select Video Setup > Video Preview and press OK to access.

4) Select On / Off and press OK to set.

– Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this. – This function is available in the thumbnail view.

For details of supported file formats Media Player > Supported format

and press OK to access.

3. Select one of the following items and press OK to access.

Play Select / Repeat / Shuffle

4. Set the item and press OK to store.

Play Select Settings for playback file selection

Repeat (Folder / File Repeat / Off) Playback repeat Folder: Playback repeat within the selected folder File Repeat: Playback repeat of the selected one file Shuffle (On / Off) Files are played back at random.

Filtering files You can filter the files as the content type. (Photo / Video / Music)

1. Display the option menu with OPTION.

2. Select Filter and press OK to access.

3. Select Photo / Video / Music and press OK to set.

4. Select OK and press OK to change.

Sorting files You can sort the files in alphabetical / date order.

1. Display the option menu with OPTION.

2. Select Sort and press OK to access.

1) Display the time seek bar with OK.

2) While the time seek bar is displayed

Search approx. 10 seconds Press and hold

(red) : To the previous title / scene / track (green) : To the next title / scene / track Display / hide the operation guide. BACK/RETURN : Return to thumbnail. = Note =

To set Repeat / Shuffle for playback Media Player > Easy List View > Selecting file Media Player > Mix Folder View > Selecting file

1. Display the option menu with OPTION.

2. Select Slideshow Settings with OK.

3. Select one of the following items and press OK to access.

Screen Mode / Interval / Back Ground Music

4. Set the item and press OK to store.

Screen Mode (Normal / Zoom) Selects enlarged or normal viewing.

Depending on the photo size, the photo may not be fully enlarged to fill the screen (e.g. portrait style picture). Interval (Long / Normal / Short) Selects slideshow interval. Back Ground Music (Off / Type1 / Type2 / Type3 / Type4 / Type5 / User / Auto) Selects the background music during Photo mode. Type1 - 5: Music files installed on this TV at the factory settings are played back. Auto: Music files stored in the current device are played back.

If there is no available music data, no sound is played back. User: Music files in the device registered by yourself are played back.

If no music files have been registered or the device which had registered music files is removed, no sound is played back. ●● To register music

1) Select the music file and press OK to access.

Depending on the condition of the device, select folders until you reach the desired music file.

File: The selected music file is registered. Folder: All the music files in the folder which contains the selected music file are registered. = Note =

Picture quality may be degraded depending on the slideshow setting.

Picture setting may not work depending on the slideshow setting.

1. Display the option menu with OPTION.

2. Select Video Setup with OK.

3. Select one of the following items and press OK to access.

Multi Audio / Dual Mono Audio / Subtitle Settings

It may take several seconds to change the sound.

This function is available during playback. Subtitle Settings Sets the subtitle setting.

Audio output settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.

2. Select Sound > SPDIF Selection and press OK to access.

3. Select Auto / PCM / Dolby Audio and press OK to set.

SPDIF Selection (Auto / PCM / Dolby Audio) Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.

SPDIF is a standard audio transfer file format. Auto: Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multichannel are output as Dolby Digital Bitstream. MPEG is output as PCM. PCM: Digital output signal is fixed to PCM. Dolby Audio: Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

Recorded TV mode Selecting content

To play back content in the USB HDD, ensure the connection and settings are completed. Recording > USB HDD setup

1. Content list of the selected device is displayed in Recorded TV mode.

Remaining capacity of the selected device is displayed on the top right. (This value may not be accurate depending on the condition.)

Content list is displayed as All or Not Viewed. All: All the recorded TV programmes are listed. Not Viewed: Content not played back yet are listed.

Icons are displayed. : Content not played back yet (Once you play back the content, this icon will disappear.) : Protected content cannot be deleted. : Currently recording (You can play back this recording content.) : Group of content

2. Select the content and press OK to start playback.

If you have stopped the last playback halfway, a confirmation screen may be displayed to select whether to start from where you stopped last time or from the beginning.

If the content has multiple programmes with different parental ratings, the highest restriction is applied to the content. Once you unlock the restriction, all the programmes in the content can be played back. For details of supported file formats Media Player > Supported format > Video format

Watching recorded TV ■■Playback

To operate playback : Manual skip – Press to skip forward approx. 30 seconds. – Press and hold to skip backward approx. 15 seconds. : Rewind : Fast forward : Stop OK : Pause (displays the time seek bar) / Playback

To jump to the specified time point

1) Display the time seek bar with OK.

2) While the time seek bar is displayed

Search approx. 10 seconds Press and hold

To repeat between the starting point “A” and finishing point “B” (blue) (Set “A” and “B” in order.) – The points are reset by pressing again or by other operations.

To the previous / next chapter (red) / (green) – A recorded content is automatically divided into chapters (approx. 5 minutes for each).

To change aspect Watching > For best picture > Aspect

1. Select the content to edit and press

(blue) to tick in the content list.

2. Display the option menu with OPTION.

3. Select Create Group / Release Group / Exclude from Group / Change

Protect Status and press OK to set. Create Group: Create a group of content. Select and tick all the desired content, and then select Create Group. Release Group: Select the created group to release, and then select Release Group. (To release several groups at once, tick all the desired groups.) Exclude from Group: Select the group and press OK to display the grouped content. To exclude specific content from the group, tick it and then select Exclude from Group. (To exclude some of the content at once, tick all the desired content.) Change Protect Status: Select the content to protect from deletion, and then select Change Protect Status. Perform the same way to cancel the protection. (To change the status of some of the content at once, tick all the desired content.)

1. Select the content to edit and press

2. Delete the content with

(blue) to tick in the content list. (red).

3. When a confirmation screen is displayed, select Yes and press OK to set.

Chapter List You can start playback from the chapter list you select.

1. Display the chapter list with

2. Select the chapter and press OK to start playback.

The chapter list is not displayed while the selected content is being recorded.

Depending on the recorded programmes, some playback operations may not work properly.

Audio output settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.

2. Select Sound > SPDIF Selection and press OK to access.

3. Select Auto / PCM / Dolby Audio and press OK to set.

SPDIF Selection (Auto / PCM / Dolby Audio) Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.

SPDIF is a standard audio transfer file format. Auto: Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multichannel are output as Dolby Digital Bitstream. MPEG is output as PCM. PCM: Digital output signal is fixed to PCM. Dolby Audio: Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

Connected device Device handling caution

Data modified with a PC may not be displayed.

Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.

Do not touch the pins on the device.

Do not subject the device to a high pressure or impact.

Insert the device in the correct direction. Otherwise this can damage the device or TV.

Electrical interference, static electricity, or erroneous operation may damage the data or device.

Back up the recorded data at regular intervals to prevent data deterioration, data damage or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.

It is recommended to connect the device to the TV’s USB port directly.

Some USB devices or USB HUB may not be used with this TV.

USB HDDs formatted on a PC are not guaranteed to work in Media Player. ■■USB HDD

The capacity of USB HDD that works with this TV is from 160 GB to 6 TB.

Connect the USB HDD to the mains socket to record and play back properly with this TV.

Use the USB HDD formatted with this TV. Recording > USB HDD setup > Setting for USB HDD

Regarding performance, not all USB HDDs are guaranteed.

DCF and EXIF standards

Progressive JPEG is not supported. = Note =

Some files may not be played back even if they fulfil these conditions.

Some files may not be played back correctly depending on the resolution, etc.

Do not use multi-byte characters or other special codes for file names.

Connected devices may become unusable with this TV if the file or folder names are changed.

This TV supports this container recorded with Panasonic products. For details, read the manual of the products. ●● MKV (.mkv) Video codec:

Copy-protected files cannot be played back.

The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.

If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: “.srt”, “.sub”, “.txt”. = Note =

Some files may not be played back even if they fulfil these conditions.

Some files may not be played back correctly depending on the resolution, frame rate condition, etc.

Do not use multi-byte characters or other special codes for file names.

Connected devices may become unusable with this TV if the file or folder names are changed.

Supported formats are different in Media Player and media server.

Copy-protected files cannot be played back. ●● FLAC (.flac) ●● WMA / WMA Pro (.wma)

Copy-protected files cannot be played back. ●● LPCM (.wav) = Note =

Some files may not be played back even if they fulfil these conditions.

Do not use multi-byte characters or other special codes for file names.

Connected devices may become unusable with this TV if the file or folder names are changed.

Network Internet content Information You can access some specific websites supported by Panasonic, and enjoy internet content such as videos, games, communication tools, etc. from Apps. (Example)

A broadband network environment is required to use this function. Ensure the network connections and network settings are completed. Network > Network connections Network > Network settings

1. Display Apps with APPS.

For details of Apps Home > Apps

Depending on the usage conditions, it may take a while to read all the data.

2. Select the desired item and press OK to access.

You can connect a keyboard for character input in the applications. You can also use the keyboard for TV operation. Functions > Keyboard

If you cannot access the internet content, check the network connections and settings. Network > Network connections Network > Network settings

Design and specifications are subject to change without notice.

Not all the features of the websites are available.

Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use Apps. You can update the software later manually. Network > Network settings > Software Update

The services through Apps are operated by their respective service providers and such service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

Content may not be available depending on the country you select.

Content may be presented in specific languages.

Depending on the connection environment, the internet connection may be slow or may not be successful.

DLNA In-House streaming This TV is a DLNA Certified™ product. DLNA® (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org.

To enable this function, connect this TV to your home network. Network > Network connections Network > Network settings ■■Playback of sharing content stored in the media server Store photo, video or music content into the DLNA Certified media server connected to your home network. And then you can enjoy the content on this TV. (Example)

For details of watching and operating content on this TV Network > DLNA > Using DLNA

For details of supported file formats Network > Supported format

■■Playback of sharing content on this TV with the DMC (Digital Media Controller) network equipment You can enjoy content stored in the media server by controlling with the DMC network equipment connected to your home network.

To use this function with your smartphone or PC, set TV Remote App Settings of this TV. Network > Network settings > TV Remote App Settings And you need to install the application for controlling this TV on your smartphone. Support > FAQs > Detailed information For the operations, refer to the support information of the application. ■■Sharing the content of this TV with another piece of network equipment You can enjoy the content of this TV with another network equipment connected to your home network. Available content:

Photo, video or music content of this TV Available network equipment:

Smartphone, etc. To use this function with your smartphone, you need to install the application for controlling this TV on your smartphone. Support > FAQs > Detailed information For the operations, refer to the support information of the application.

To use this function with another DLNA Certified TV, set Network Link Settings of this TV. Network > Network settings > Network Link Settings

Only 1 piece of other equipment can share the content of this TV. = Note =

This function is not available when the TV is turned off with Mains Power On / Off switch.

Using DLNA To use DLNA® features, ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > In-House streaming Network > Network connections Network > Network settings

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select the media server and press OK to access.

To display / hide information of the highlighted media server

1) Display the option menu with OPTION.

2) Select Show Info. and press OK to access.

4. Select the file and press OK to access.

Depending on the condition of media server, you may need to select the folder before selecting the file.

Non-playable files are also listed but cannot be selected.

You can use the following buttons during playback. Confirm the remote control code is “73”. Watching > External equipment > Operating with TV’s remote control

Network connections Internet connection A broadband network environment is required to use internet services.

If you do not have any broadband network services, please consult your retailer for assistance.

Dial-up internet connections cannot be used.

Required speed (effective): at least 1.5 Mbps for SD (Standard Definition) and 6 Mbps for HD (High Definition) picture quality, respectively. If the transfer speed is not enough, content may not be played back properly. ■■Wireless connection Built-in wireless LAN (Rear of the TV) Access point Internet environment ■■Wired connection ETHERNET terminal LAN cable (Shielded)

Use Shielded Twist Pair (STP) LAN cable. Internet environment

DLNA connection To use DLNA features, you need a home network environment and you can operate the features without a broadband network environment.

A broadband network environment is required to use internet services. Network > Network connections > Internet connection ■■Wireless connection (For DLNA and internet service) Built-in wireless LAN (Rear of the TV) Access point Hub / Router Internet environment Smartphone, etc. DLNA Certified media server (PC, etc.)

■■Wired connection (For DLNA and internet service) ETHERNET terminal LAN cable (Shielded)

■■Wireless connection (For DLNA)

To use the TV as a wireless access point Network > Network settings > Custom - Wireless Access Point DLNA Certified media server (PC, etc.) Smartphone, etc.

Ensure to use a LAN straight cable.

Set up and connect equipment required for the network environment. You cannot make such settings on this TV. Read the manual of the equipment.

If your modem has no broadband router functions, use a broadband router.

If your modem has broadband router functions but there are no vacant ports, use a hub.

Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

If you use the equipment compatible only with 100BASE-TX, category 5 or later LAN cables are required.

Contact your Internet Service Provider (ISP) or telecommunications company for further assistance regarding the network equipment.

Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.

Turn the TV off with Mains Power On / Off switch, then turn it on again when changing or making the network connection again.

Depending on the network condition, the content may not be played back properly.

Network settings Network Connection Ensure the connections are completed before starting network setup. Network > Network connections ■■Quick setup - Wireless

1. Display the menu with MENU.

2. Select Network > Network Connection and press OK to access.

Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.

3. Select Quick setup and press OK to access.

When the LAN cable is connected, wired setup will be done automatically.

4. Select your desired access point and press OK to access.

Available Wireless Networks are displayed automatically. : Encrypted access point

For WPS(Push button)

1) Select Easy setup with Push button and press OK to access.

2) Press the WPS button on the access point until the light flashes.

3) Connect the TV with the access point with OK.

– WPS: Wi-Fi Protected Setup™ – If the connection fails, check the settings and positions of your access point. And then, follow the on-screen instructions.

It is recommended to select the encrypted access point.

5. Enter the encryption key of the access point and press OK to set.

You can set characters using Numeric buttons.

Press BACK/RETURN to store.

6. Automatically setup is done and Network Status is displayed.

Network > Network settings > Network Status

7. Select Exit and press OK to set.

■■Quick setup - Wired

1. Display the menu with MENU.

2. Select Network > Network Connection and press OK to access.

3. Select Quick setup and press OK to access.

4. Automatically setup is done and Network Status is displayed.

Network > Network settings > Network Status

5. Select Exit and press OK to set.

To set manually Network > Network settings > Custom - Wired = Note =

To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.

Custom - Wireless Ensure the connections are completed before starting network setup. Network > Network connections

Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.

3. Select your desired access point and press OK to access.

Available Wireless Networks are displayed automatically. : Encrypted access point

2) Press the WPS button on the access point until the light flashes.

3) Connect the TV with the access point with OK.

– WPS: Wi-Fi Protected Setup™ – If the connection fails, check the settings and positions of your access point. And then, follow the on-screen instructions.

2) Enter the PIN code to the access point.

3) Connect the TV with the access point with OK.

2) You can set up SSID, security settings and encryption key manually.

3) Follow the on-screen instructions and set manually.

To search access points again (blue)

It is recommended to select the encrypted access point.

4. Enter the encryption key of the access point and press OK to set.

You can set characters using Numeric buttons.

Press BACK/RETURN to store.

5. IP/DNS Settings is displayed.

Acquire IP Address / Acquire DNS Address

Auto is recommended.

Available settings are displayed automatically.

To set manually, select and set IP Address / Subnet Mask / Default Gateway / DNS Address. Proxy Settings

It is not required for normal household use.

Some internet services may not be available depending on the proxy setting. Proxy: This is the address of the relay server which is connected between the browser and the target server to send data to the browser.

1) Select Proxy and press OK to access.

2) Enter the address with Cursor buttons or Numeric buttons, and

Proxy Port: This number is also specified by the provider with the proxy address.

1) Select Proxy Port.

2) Enter the number with Numeric buttons.

6. Select Network Status and press OK to access.

Network > Network settings > Network Status

7. Select Exit and press OK to set.

Custom - Wired Ensure the connections are completed before starting network setup. Network > Network connections

1. Display the menu with MENU.

2. Select Network > Network Connection > Custom > Wired and press OK to

3. IP/DNS Settings is displayed.

Acquire IP Address / Acquire DNS Address

Auto is recommended.

Available settings are displayed automatically.

To set manually, select and set IP Address / Subnet Mask / Default Gateway / DNS Address. Proxy Settings

It is not required for normal household use.

Some internet services may not be available depending on the proxy setting. Proxy: This is the address of the relay server which is connected between the browser and the target server to send data to the browser.

1) Select Proxy and press OK to access.

2) Enter the address with Cursor buttons or Numeric buttons, and

Proxy Port: This number is also specified by the provider with the proxy address.

1) Select Proxy Port.

2) Enter the number with Numeric buttons.

4. Select Network Status and press OK to access.

Network > Network settings > Network Status

5. Select Exit and press OK to set.

To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired.

Custom - Wireless Access Point You can use the TV as a wireless access point and connect the network equipment without an access point.

Confirm the PIN code, network settings of the equipment before starting setup. For details, read the manual of the equipment.

1. Display the menu with MENU.

2. Select Network > Network Connection > Custom > Wireless Access Point

and press OK to access.

3. Select Connect to device in WPS and press OK to access.

To set manually, select Change settings (see below).

4. Select and set WPS(Push button) / WPS(PIN) and press OK to access.

WPS(Push button): Set up the equipment for WPS(Push button). For details, read the manual of the equipment. WPS(PIN): Enter the PIN code of the equipment.

If the connection fails, check the settings and positions of the equipment. And then, follow the on-screen instructions. ■■Change settings You can set up Network Name(SSID), Encryption key, Wireless type and Channel setting method manually. Follow the on-screen instructions and set manually.

Set Reset settings to reset the items for Change settings. = Note =

You cannot connect the internet service while the TV is set to Wireless Access Point.

You can connect up to 7 devices. But the transfer rate varies according to communication environment or the numbers of connected equipment.

Ensure the equipment to connect supports WPS for this setup.

WPS: Wi-Fi Protected Setup™

Network Status Displays and checks the network status (MAC Address, current network settings, etc.).

1. Display the menu with MENU.

2. Select Network > Network Status and press OK to access.

3. Automatically testing is done and Network Status is displayed.

Try Again: Performs automatic testing of the network connection for the TV and displays the current status again. Status Details: Displays the detailed network status (SSID, security settings, etc.).

For information about the network connection, select Help.

TV Name Sets your favourite name for this TV.

1. Display the menu with MENU.

2. Select Network > TV Name and press OK to access.

3. Enter characters and press OK to set.

This name is used as the name of this TV on the screen of the other network equipment.

When you use two or more TVs in your network environment, set the names of the TVs for each.

TV Remote App Settings Sets to control the TV with the equipment (smartphone, etc.) connected to your network.

1. Display the menu with MENU.

2. Select Network > TV Remote App Settings and press OK to access.

3. Select one of the following items and press OK to access.

TV Remote / Powered On by Apps / Networked Standby / Home Streaming / Device to upload contents / Delete All Pairings

4. Set the item and press OK to store.

TV Remote (On / Off) Enables controlling the TV from the network equipment (smartphone, etc.). Powered On by Apps (On / Off) Enables turning the TV on from the network equipment (smartphone, etc.).

Depending on the network condition, you may have to turn the TV on with Standby On / Off switch of the TV’s remote control.

Changing the default configuration may result in higher energy consumption of the product.

LED turns to orange in Standby mode when Powered On by Apps is set to On. Networked Standby (On / Off) Enables turning the TV on via the LAN cable or wireless LAN using a wake-up message sent from the network equipment in the home network.

Changing the default configuration may result in higher energy consumption of the product.

Home Streaming (Always / Only when powered on) Enables sharing the TV programme and content of this TV with the network equipment (smartphone, etc.) in the home network.

Changing the default configuration may result in higher energy consumption of the product.

LED turns to orange in Standby mode when Home Streaming is set to Always. Device to upload contents Selects device to upload content from the network equipment (smartphone, etc.). Delete All Pairings Delete the pairing information for all paired devices. = Note =

This function is not available when the TV is turned off with Mains Power On / Off switch.

You need to install the application for controlling this TV on your smartphone. Support > FAQs > Detailed information For the operations, refer to the support information of the application.

Depending on the network condition, this function may not be available.

Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

Network Link Settings Sets to control the TV with devices connected to the network.

1. Display the menu with MENU.

2. Select Network > Network Link Settings and press OK to access.

3. Select one of the following items and press OK to access.

DLNA Server / Registration Type / Remote Device List

4. Set the item and press OK to store.

DLNA Server (On / Off) Enables sharing the content of this TV with the network equipment (DLNA Certified TV, etc.).

To use this function with another TV, select the name of this TV from the DLNA server list of another TV, and then select the content to share. Also read the manual of another TV.

To use this function with your smartphone, you need to install the application for controlling this TV on your smartphone. Support > FAQs > Detailed information For the operations, refer to the support information of the application.

Changing the default configuration may result in higher energy consumption of the product.

LED turns to orange in Standby mode when DLNA Server is set to On. Registration Type (Auto / Manual) Selects the type to restrict the access to this TV for each piece of equipment on the home network. Auto: All available equipment on the home network is accessible (maximum 16 pieces of equipment). Manual: Sets the restrictions for each piece of equipment in Remote Device List. Remote Device List Lists the equipment accessible to this TV on the home network.

Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

File Sharing Settings Network Device List Lists the accessible network devices to play back the content in Media Player. Media Player > Using Media Player > Network device

Mirroring Settings Settings for the mirroring function Functions > Mirroring > Mirroring Settings

1. Display the menu with MENU.

2. Select Network > Control4 Settings and press OK to access.

3. Select Control4 Discovery / Send Identify and press OK to access.

4. Set the item and press OK to store.

Control4 Discovery (On / Off) Enables Control4 mode. Send Identify Sends identifying message to Control4 controller.

This function is available when Control4 Discovery is set to On. = Note =

For details of the settings and operations, consult your local Control4 dealer.

Software Update Accesses the specific website to update the TV’s software if any updates are available.

1. Display the menu with MENU.

2. Select Network > Software Update and press OK to access.

3. Follow the on-screen instructions.

A broadband network environment is required to use this function.

New Software Message Selects whether to give a notification message when new software is found via network or not.

1. Display the menu with MENU.

2. Select Network > New Software Message and press OK to access.

3. Select On / Off and press OK to set.

Terms of Service and Settings Displays the terms of service and settings.

1. Display the menu with MENU.

2. Select Network > Terms of Service and Settings and press OK to access.

3. Follow the on-screen instructions.

Photos Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > In-House streaming Network > Network connections Network > Network settings

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select the media server and press OK to access.

To display / hide information of the highlighted media server

1) Display the option menu with OPTION.

2) Select Show Info. and press OK to access.

4. Select the file and press OK to access.

Depending on the condition of media server, you may need to select the folder before selecting the file.

Non-playable files are also listed but cannot be selected.

To operate Single view : To the previous photo : To the next photo : Stop (return to list) OK : Slideshow

1. Select the file from the thumbnail of photos for the first view.

2. Start Slideshow with

To pause (return to Single view)

To return to list BACK/RETURN ■■Slideshow Settings Set up the settings for photo file operations on this TV.

1. Display the option menu with OPTION.

2. Select Slideshow Settings and press OK to access.

3. Select one of the following items and press OK to access.

Interval / Repeat / Back Ground Music

Videos Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > In-House streaming Network > Network connections Network > Network settings

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select the media server and press OK to access.

To display / hide information of the highlighted media server

1) Display the option menu with OPTION.

2) Select Show Info. and press OK to access.

4. Select the file and press OK to access.

Depending on the condition of media server, you may need to select the folder before selecting the file.

Non-playable files are also listed but cannot be selected.

Watching video ■■Playback If you have stopped the last playback halfway, a confirmation screen may be displayed to select whether to start from where you stopped last time or from the beginning.

To jump to the specified time point

1) Display the time seek bar with OK.

2) While the time seek bar is displayed

Search approx. 10 seconds Press and hold

To the previous content (red)

To the next content (green)

2) Select Picture > Screen Settings > Aspect and press OK to access.

3) Select the mode and press OK to set.

Aspect1: Displays the content in original size. Aspect2: Displays the content enlarged without distortion. – Aspect cannot be changed depending on the content.

Video Setup Set up the settings for video file operations on this TV.

1. Display the option menu with OPTION.

2. Select Video Setup and press OK to access.

3. Select one of the following items and press OK to access.

Video Preview / Multi Audio / Dual Audio / Dual Mono Audio / Repeat / Subtitle Settings

Video Preview (On / Off) Sets to start the preview of the title or scene in the thumbnail view.

Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this. Multi Audio, Dual Audio, Dual Mono Audio Selects for selectable sound tracks (if available).

It may take several seconds to change the sound.

This function is available during playback. Repeat (On / Off) Playback repeat within the selected file Subtitle Settings Sets the subtitle setting.

Subtitle Text Colour: Selects the colour of subtitles. Subtitle Text Position: Adjusts the position of subtitles on the screen. Subtitle Text Delay: Adjusts the delay time for the subtitles.

Audio output settings You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO or HDMI2 (ARC function) terminal.

2. Select Sound > SPDIF Selection and press OK to access.

3. Select Auto / PCM / Dolby Audio and press OK to set.

SPDIF Selection (Auto / PCM / Dolby Audio) Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.

SPDIF is a standard audio transfer file format. Auto: Dolby Audio (Dolby Digital, Dolby Digital Plus) and HE-AAC multichannel are output as Dolby Digital Bitstream. MPEG is output as PCM. PCM: Digital output signal is fixed to PCM. Dolby Audio: Dolby Audio (Dolby Digital, Dolby Digital Plus), HE-AAC and AAC are output as Dolby Digital Bitstream or Dolby Digital Plus Bitstream.

ARC (Audio Return Channel) is a function of digital audio output using HDMI cable. = Note =

During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers. Functions > VIERA Link “HDAVI Control™”

Music Selecting file Ensure the preparations of the media server, network connections and network settings are completed. Network > DLNA > In-House streaming Network > Network connections Network > Network settings

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select the media server and press OK to access.

To display / hide information of the highlighted media server

1) Display the option menu with OPTION.

2) Select Show Info. and press OK to access.

4. Select the file and press OK to access.

Depending on the condition of media server, you may need to select the folder before selecting the file.

Non-playable files are also listed but cannot be selected.

To jump to the specified time point

1) Display the time seek bar with OK.

2) While the time seek bar is displayed

Search approx. 10 seconds Press and hold

To the previous track (red)

To the next track (green)

Music Setup Set up the settings for music file operations on this TV.

1. Display the option menu with OPTION.

2. Select Music Setup > Repeat with OK.

3. Select Off / Folder / One and press OK to set.

Folder: Playback repeat within the selected folder One: Playback repeat of the selected one file

DCF and EXIF standards

Progressive JPEG is not supported. = Note =

Some files may not be played back even if they fulfil these conditions.

Do not use multi-byte characters or other special codes for file names.

Connected devices may become unusable with this TV if the file or folder names are changed.

This TV supports this container recorded with Panasonic products. For details, read the manual of the products. ●● MKV (.mkv) Video codec:

Copy-protected files cannot be played back.

The video file and subtitles text file are inside the same folder, and the file names are the same except for the file extensions.

If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority: “.srt”, “.sub”, “.txt”. = Note =

Some files may not be played back even if they fulfil these conditions.

Do not use multi-byte characters or other special codes for file names.

Connected devices may become unusable with this TV if the file or folder names are changed.

Supported formats are different in Media Player and media server.

Copy-protected files cannot be played back. ●● FLAC (.flac) ●● WMA (.wma)

Copy-protected files cannot be played back. ●● LPCM (.wav) = Note =

Some files may not be played back even if they fulfil these conditions.

Do not use multi-byte characters or other special codes for file names.

Connected devices may become unusable with this TV if the file or folder names are changed.

Functions Mirroring How to use You can watch and display images of other devices (smartphone, etc.) on the TV screen using a mirroring function. Smartphone, etc.

1. Display Home with HOME.

2. Select Devices and press OK to access.

3. Select Mirroring and press OK.

4. Follow the on-screen instructions.

Pairing information of the device (smartphone, etc.) is registered once you use this function. ■■Easy Mirroring You can also start the mirroring function from the other devices (smartphone, etc.) when Easy Mirroring is set to On. Functions > Mirroring > Mirroring Settings

You cannot use Easy Mirroring function while the TV is set to Wireless Access Point. Network > Network settings > Network Status = Note =

This function is available with the other devices (smartphone, etc.) supporting the mirroring function. For details, refer to the operating instructions of the devices.

Mirroring Settings You can set items for the mirroring function.

1. Display the menu with MENU.

2. Select Network > Mirroring Settings and press OK.

3. Select one of the following items and press OK to access.

Easy Mirroring / Powered On by Easy Mirroring / Delete All Pairings

4. Set the item and press OK to store.

Easy Mirroring (On / Off) Enables starting the mirroring function from the other devices (smartphone, etc.) without operating the TV.

To deactivate wireless, set Easy Mirroring to Off and confirm the network connection type is set to Wired. Network > Network settings > Network Status

Not valid when the TV is set to Wireless Access Point Powered On by Easy Mirroring (On / Off) Enables turning on the TV automatically when the mirroring function is activated from the other devices (smartphone, etc.).

Changing the default configuration may result in higher energy consumption of the product.

Use the mirroring function to turn on the TV only when you can see the status of the TV.

Register the devices (smartphone, etc.) before using this function.

LED turns to orange in Standby mode when Powered On by Easy Mirroring is set to On. Delete All Pairings Delete the pairing information for all paired devices.

DVB-via-IP DVB-via-IP client connection This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.

It is recommended to connect to DVB-via-IP server with a LAN cable. ■■Wired connection ETHERNET terminal LAN cable (Shielded)

■■Wireless connection Built-in wireless LAN (Rear of the TV) Access point DVB-via-IP server Satellite dish / Terrestrial aerial / Cable = Note =

External equipment and cables shown are not supplied with this TV.

Check the terminal type and cable plugs are correct for connection.

Due to network conditions or certain broadcaster restrictions, this function may not be available.

For information about the connections, read the manual of the DVB-via-IP server.

Ensure the network connections and network settings are completed. Functions > DVB-via-IP > DVB-via-IP client connection Network > Network settings

Ensure the server settings are completed. For details, read the manual of DVB-via-IP server. ■■DVB-via-IP Server Selection

1. Display the menu with MENU.

2. Select Setup > Tuning Menu > Add TV Signal and press OK to access.

3. Select DVB-via-IP and press OK to access.

4. Select Start Auto Setup and press OK to access.

5. Select a server from Server List and press OK to set.

6. Select Client Settings and press OK to access.

Select Unicast Environment to use in a home network.

Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)

7. Select Search Channels and press OK to access.

When the operation is completed, the channel at the lowest position will be displayed. = Note =

If tuning has not been done completely, set Manual Tuning. Watching > Tuning and editing channels > Manual Tuning

Due to network conditions or certain broadcaster restrictions, this function may not be available.

In case you install the DVB-via-IP client in multicast environment, please consult your professional dealer or server manufacturer.

Due to network conditions or certain broadcaster restrictions, this function may not be available.

This function is not available when the TV is turned off with Mains Power On / Off switch.

Please also read the manual of DVB-via-IP server.

VIERA Link “HDAVI Control™” Summary of VIERA Link Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control™” function. VIERA Link (HDAVI Control) connects the TV and the equipment with VIERA Link function, and enables easy control, playback, energy saving, creating home theatre, etc. without complicated settings. Connections to the equipment (DVD Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI cable allow you to interface them automatically. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

This TV supports “HDAVI Control 5” function.

Some functions are not available depending on the equipment’s version of HDAVI Control. Confirm the connected equipment’s version of HDAVI Control.

VIERA Link “HDAVI Control” is a unique function that we have developed and added based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control). As such, its operation with other manufacturers’ product that supports HDMI CEC cannot be guaranteed.

VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.

Please refer to individual manuals for other manufacturers’ product supporting VIERA Link function.

About applicable Panasonic product, consult your local Panasonic dealer.

Use a fully wired HDMI compliant cable.

Connect the equipment supporting VIERA Link to the TV’s HDMI terminal via an HDMI cable. About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment. HDMI terminal HDMI cable Equipment with VIERA Link function (DVD Recorder / DVD Player / Bluray Disc Player / HD Video Camera / LUMIX Camera) ■■Available features (HDMI connection) DVD Recorder / DVD Player / Blu-ray Disc Player

VIERA Link Control : For equipment which has “HDAVI Control 2 or later” function.

: For equipment which has “HDAVI Control 4 or later” function. ■■VIERA Link (HDMI and Audio out connections)

Use a fully wired HDMI compliant cable.

Connect the equipment supporting VIERA Link to the TV’s HDMI terminal via an HDMI cable.

Use the optical digital audio cable for audio output from the TV. HDMI terminal / DIGITAL AUDIO HDMI cable DVD Recorder with VIERA Link function HDMI cable (Optical digital audio cable ) Amplifier with VIERA Link function Speaker system Player theatre / Blu-ray Disc theatre with VIERA Link function HD Video Camera / LUMIX Camera with VIERA Link function : If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical digital audio cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

■■Available features (HDMI and Audio out connections) Player theatre

Speaker Selection Blu-ray Disc theatre

Speaker Selection Amplifier

Speaker Selection : For equipment which has “HDAVI Control 2 or later” function. : For equipment which has “HDAVI Control 4 or later” function. : While playing a disc : Except for watching a disc

■■VIERA Link Control of compatible equipment The following is the maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the TV. For example, DVD Player connected to Amplifier which is connected to the TV via an HDMI cable. Functions > VIERA Link “HDAVI Control™” > VIERA Link Control

Audio system: Maximum 1 (Player theatre, Blu-ray Disc theatre, Amplifier, etc.)

Connect the equipment supporting VIERA Link.

For details of VIERA Link connections Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

Use a fully wired HDMI compliant cable.

Set up the connected equipment. Read the manual of the equipment.

Set up the TV. After connection, turn the equipment on and then switch the TV on. Select the HDMI input from Input Selection with AV and make sure that an image is displayed correctly. (This setup should be done each time the following conditions occur.) – First time operation – Adding or reconnecting equipment – Changing setup

Easy playback Automatic input switching - When the connected equipment is operated, the input mode is switched automatically.

Power on Link Set Power on Link to On in VIERA Link Settings to use this function. When the connected equipment is operated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off Link Set Power off Link to On in VIERA Link Settings to use this function. When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function.

Standby Power Save Set Standby Power Save to On in VIERA Link Settings to use this function. The power consumption of the connected equipment in Standby mode is controlled higher or lower in synchronisation with the TV on / off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption of the connected equipment is automatically minimised. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to quickly start the connected equipment.

This function is effective if the connected equipment can change the power consumption in Standby mode and is set to higher consumption.

This function works when Power off Link is set to On.

Intelligent Auto Standby Set Intelligent Auto Standby to On in VIERA Link Settings to use this function. When the TV is on, non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI or when Speaker Selection is changed to TV (except for watching a disc).

This function may not work properly depending on the connected equipment. In this case, set to Off.

VIERA Link Control You can control some functions of the connected equipment with this TV’s remote control by pointing at the TV’s signal receiver.

1. Display Apps with APPS.

2. Select VIERA Link and press OK to access.

3. Select VIERA Link Control and press OK to access.

4. Select one of the following items and press OK to access.

Recorder / Player / Home Cinema / Video Camera / LUMIX / Digital Camera / Other (The menu of the accessed equipment is displayed. The input mode is changed automatically.)

The displayed item may vary depending on the connected equipment.

Home Cinema means Player theatre, Blu-ray Disc theatre or Recorder theatre.

Other means Tuner set top box.

5. Follow the on-screen instructions to operate the menu of the equipment.

Confirm the remote control code is “73”. Watching > External equipment > Operating with TV’s remote control

To display the operation guide OPTION (If other manufacturers’ product is accessed, Setup / Contents Selection menu may be displayed.)

Available TV’s remote control buttons depend on the connected equipment. ■■If multiple recorders or players are connected Each recorder / player is numbered. The number is given from the TV’s lower number of HDMI terminal connected to the same type of equipment. For example, when two recorders are connected to HDMI1 and HDMI2, the recorder connected to HDMI1 is displayed as Recorder1, and the recorder connected to HDMI2 is displayed as Recorder2. ■■If you access non-VIERA Link equipment The type of the connected equipment is displayed. Although you can access the connected equipment, you cannot operate it. Use the remote control of the connected equipment.

If you cannot operate the equipment, check the settings and the equipment. Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

Some operations may not be available depending on the equipment. In this case, use the remote control of the connected equipment.

For details of the operations for the connected equipment, read the manual of the equipment.

Speaker Selection You can control the theatre speaker with this TV’s remote control by pointing at the TV’s signal receiver.

1. Display Apps with APPS.

2. Select VIERA Link and press OK to access.

3. Select Speaker Selection and press OK to access.

4. Select TV / Home Cinema and press OK to set.

TV: TV speakers are active. Home Cinema: The sound is delivered from theatre speakers. Player theatre, Bluray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode.

The sound of TV speakers is mute. When the equipment is turned off, TV speakers will be activated.

You can use Volume Up / Down and MUTE. ■■Multi-channel sound If you want to enjoy the multi-channel sound (e.g. Dolby Audio (Dolby Digital) 5.1ch) via an Amplifier, connect it with an HDMI cable and Optical digital audio cable, and then select Home Cinema. If your Amplifier has the “HDAVI Control 5” function, you only need to connect it with an HDMI cable to the TV’s HDMI2 terminal. To enjoy multi-channel sound from DIGA Recorder, connect an HDMI cable from the DIGA Recorder to the Amplifier. = Note =

If you cannot operate the equipment, check the settings and the equipment. Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link

Some operations may not be available depending on the equipment.

These functions may not work properly depending on the connected equipment.

Image or sound may not be delivered for the first few seconds when the input mode is switched.

“HDAVI Control 5” is the newest standard for HDAVI Control compatible equipment. This standard is compatible with conventional HDAVI equipment.

To confirm the HDAVI Control version of this TV Support > Help menu > Using Help menu

Child Lock Using Child Lock You can lock specific channels / AV input terminals to restrict access to them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.

1. Display the menu with MENU.

2. Select Setup > Child Lock and press OK to access.

3. Enter the PIN number (4 digits) with Numeric buttons.

Enter the PIN number twice at first setting.

Make a note of the PIN number in case you forget it.

“0000” may be stored as the default PIN number depending on the country you select.

4. Select Child Lock List and press OK to access.

5. Select the channel / input and press OK to lock.

appears when the channel / input is locked.

1) Select the locked channel / input.

To sort channel names in alphabetical order (red)

To cancel all locks (yellow)

To jump to the head of the next channel / input group (blue) ■■Show Adult App Set to Off to lock specific applications to restrict access to them (if available). = Note =

PIN number You can change the PIN number.

1. Select Change PIN and press OK to access.

2. Enter a new PIN number twice with Numeric buttons.

Setting Shipping Condition erases the PIN number and all settings.

Parental Rating To watch the DVB programme that has rating information on the selected age, enter the PIN number (depending on the broadcaster).

1. Select Parental Rating and press OK to access.

2. Select an age for the restriction of programmes and press OK to set.

The availability of this function depends on the country you select. = Note =

Setting Shipping Condition erases the PIN number and all settings.

Data Service Application Using Data Service Application You can enjoy Hybrid Broadcast Broadband TV application that may be provided via digital broadcasting as interactive data services.

1. Display the menu with MENU.

2. Select Setup > Data Service Application > Service and press OK to

3. Select Auto Start / Manual Start / Off for each channel.

Auto Start: Automatically starts the application. Manual Start: Starts the application by pressing

(red). To sort channel names in alphabetical order (red)

To set Auto Start for all channels (green)

To disable the service for all channels (yellow)

To set Manual Start for all channels (blue)

4. Press BACK/RETURN to store.

A notification message will appear when the application is available. Follow the on-screen instructions.

is displayed on the information banner if the programme has Hybrid Broadcast Broadband TV application. Watching > Basic > Information banner

To terminate the running application. (The default application may start immediately.) EXIT

2. Select Setup > Data Service Application > Privacy Setting and press OK to

3. Select Low / High / Custom and press OK to set.

■■To change the privacy settings manually You can set up the detailed privacy settings when Privacy Setting is set to Custom. Store Cookie (On / Off) Enables storing the technical information that a data service application leaves into the TV in order to recognise to use it again. Delete Cookie Deletes all of technical information left by a data service application. Do Not Track Setting (Mode1 / Mode2 / Mode3) Sets to notify websites and some applications about tracking your browsing activities. Mode1: Notifies websites that you want to be tracked. Mode2: Notifies websites that you do not want to be tracked. Mode3: Sends no configuration information about tracking. Allow Unique Device ID (On / Off) Sends identifying ID of this TV for the data service application. Reset Unique Device ID Resets the identifying ID of this TV.

A broadband network environment is required to fully use Hybrid Broadcast Broadband TV application. Ensure the network connections and network settings are completed. Network > Network connections Network > Network settings

Not all the data services are available depending on the country, area and broadcaster.

Depending on the connection environment, the internet connection may be slow or may not be successful.

Operations may vary depending on the broadcaster. Follow the on-screen instructions.

On-screen instructions may not correspond to the remote control buttons.

Common Interface Caution If the encrypted message is displayed on the screen, the correct Common Interface (CI) Module and smart card that are required for this service are not inserted. ■■How to insert CI module and smart card

Turn the TV off with Mains Power On / Off switch whenever inserting or removing the CI module.

If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.

Insert or remove the CI module completely in the correct direction as shown.

Remove the CI module from the TV when placing the TV facing upward. This may cause damages to the CI module and CI slot. = Note =

There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.4 TV. In this case, please contact your content provider.

Using Common Interface The Common Interface Module menu provides access to software contained in Common Interface (CI) Modules.

This function may not be available in some countries or regions.

Video and audio signals may not be output depending on the broadcast or service. Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the broadcaster-approved CI module. Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services. ■■Insert the CI module (optional)

Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.) If encrypted channels do not appear, take the following steps.

For details, read the manual of the CI module, or check with the content provider.

1. Select the mode with TV.

DVB-S / DVB-C / DVB-T

2. Display the menu with MENU.

3. Select Setup > Common Interface and press OK to access.

4. Select Slot 1:, press OK and follow the on-screen instructions.

On-screen instructions may not correspond to the remote control buttons.

Shipping Condition Shipping Condition Resets the TV to its original condition (i.e. no channels tuned in). All settings other than USB Device Setup are reset (channels, picture, sound settings, etc.).

1. Display the menu with MENU.

2. Select Setup > System Menu > Shipping Condition and press OK to

Child Lock PIN number is required depending on the country. If you have forgotten your changed PIN, input “6969” as the PIN number. Functions > Child Lock > PIN number

3. When a confirmation screen is displayed, select Yes and press OK to set.

4. Follow the on-screen instructions.

Auto Setup automatically starts. = Note =

To retune TV channels only (e.g. after moving house), set Auto Setup. Watching > Tuning and editing channels > Auto Setup

Updating the TV Software Information A new version of software may be released for download to enhance the performance or operations of the TV. If there is an update available and the channel has the update information, a notification message is displayed.

To install new software, select Standby / Now and press OK to set. Standby: Installs new software in standby condition. Now: Installs new software now.

Auto update You can update new software automatically.

1. Display the menu with MENU.

2. Select Setup > System Menu > System Update > Auto Update Search in

Standby and press OK to access.

3. Select the time and press OK to set.

If any software updates are available, a notification message will appear. To install new software, select Standby / Now and press OK to set. Standby: Installs new software in standby condition. Now: Installs new software now.

If System Update is performed, the software will be updated (TV functions may be changed). If you do not want to do so, set Auto Update Search in Standby to Off.

The automatic updating cannot be performed in the following conditions: – TV turned off with Mains Power On / Off switch – Recording is in progress. – DVB-via-IP = Note =

Download may take a few hours.

During software download and update, DO NOT switch off the TV.

A notification message may be a reminder. In this case, schedule information (the date when the new version can be used) will appear. You can set the reservation for update. The update will not start when the TV is off.

Manual update You can update new software manually.

1. Display the menu with MENU.

2. Select Setup > System Menu > System Update > System Update Search

Now and press OK to access.

3. Searches for an update (for several minutes) and displays a corresponding

4. Download with OK.

Download may take a few hours.

During software download and update, DO NOT switch off the TV.

The character is set automatically if you leave for 1 second.

You can also set the character pressing OK or other Numeric buttons less than 1 second.

Keyboards requiring the drivers are not supported.

To change the language type, set USB Keyboard Layout.

2) Select Setup > System Menu > USB Keyboard Layout and press OK to

3) Select the language and press OK to set.

Characters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout setting.

Some of the keys of keyboards may correspond to the operation of the remote control. Keyboard Remote Control

Settings Setting menu How to use Various menus allow you to make settings for the picture, sound, and other functions.

2. Select the menu and press OK to access.

3. Select the items and press OK to access.

Only available items can be selected.

You can also access from eHELP pressing available). (red) at each item (if

You can select from among alternatives with

You can adjust using the slide bar with

You can go to the next screen with OK.

You can enter names or numbers freely for some items.

and press OK to set. and press OK to set.

1) Enter characters one by one with Cursor buttons and press OK to set.

– You can set characters using Numeric buttons. Functions > Setting characters > Using Numeric buttons

To return to the previous screen BACK/RETURN = Note =

Menu items and selectable options vary depending on the mode (TV mode, Media Player, Network services, etc.).

Depending on the model, the initial setting value of Viewing Mode may differ between Home and Shop even when selecting the same viewing mode. The setting value can be adjusted by pressing MENU and selecting Picture. ■■Using control panel buttons

1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to

2. Select and set with following control panel buttons.

Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button

Picture Viewing Mode Selects your favourite picture mode for each input. Watching > For best picture > Viewing Mode

Basic settings Backlight, Contrast, Brightness, Colour, Tint, Sharpness Adjusts the levels of these options according to your personal preference. Watching > For best picture > Basic settings Colour Temperature Sets the overall colour tone of the picture (bluer - redder). Watching > For best picture > Basic settings Vivid Colour Automatically adjusts colours to vivid ones. Watching > For best picture > Basic settings Adaptive Backlight Control Automatically controls the level of backlight according to the images. Watching > For best picture > Basic settings Dynamic Range Remaster Enhances bright areas of the image closer to the original luminance making improved picture impact. Watching > For best picture > Basic settings Clear Motion Makes the moving pictures clearer by controlling the level of backlight. Watching > For best picture > Basic settings

HDR Brightness Setting You can adjust and set up the details of HDR brightness. Watching > For best picture > HDR Brightness Setting

Noise reduction settings Noise Reduction Reduces unwanted picture noise. Watching > For best picture > Noise reduction settings MPEG Remaster Reduces flicker noise in contoured parts of a picture and block noise. Watching > For best picture > Noise reduction settings

Advanced Settings You can adjust and set up the detailed picture settings. Watching > For best picture > Advanced Settings

Option Settings Some features are not available on all models. Available menu items are displayed on your TV screen. Game Mode Provides suitable images for fast response signals when playing games. Watching > For best picture > Option Settings Film Cadence Mode Improves vertical resolution for movie images. Watching > For best picture > Option Settings 1080p Pixel Direct Reproduces the original image quality in detail for 1080p (HDMI) input signal. Watching > For best picture > Option Settings HDMI Content Type Adjusts the picture settings of each HDMI input according to the selected content type. Watching > For best picture > Option Settings HDMI EOTF Type Selects the EOTF type for each HDMI input. Set to Auto for general use. Watching > For best picture > Option Settings EOTF Type Selects the EOTF type of broadcast or video content. Watching > For best picture > Option Settings HDMI RGB Range Adjusts the black level of the image for each HDMI input. Watching > For best picture > Option Settings AV Colour System Selects optional colour system based on video signals. Watching > For best picture > Option Settings

Screen Settings Aspect Changes the aspect ratio (image size). Watching > For best picture > Aspect 16:9 Overscan Selects the screen area displaying the image for 16:9 aspect. Watching > For best picture > Screen Settings Zoom Adjustments Adjusts the vertical position and size when aspect is set to Zoom. Watching > For best picture > Screen Settings Screen Display Turns the screen off when you select Off. Watching > For best picture > Screen Settings

PICTURE Button Setting Sets the viewing mode selection when pressing PICTURE. Watching > For best picture > Viewing Mode

Copy Adjustment Copies the picture settings of True Cinema or Custom to those of the other input mode or Viewing Mode. Watching > For best picture > Copy Adjustment

Reset to Defaults Resets the current Picture Viewing Mode to the default settings.

Basic settings Bass Adjusts level to enhance or minimise lower, deeper sound output. Watching > For best audio > Basic settings Treble Adjusts level to enhance or minimise sharper, higher sound output. Watching > For best audio > Basic settings Equaliser Adjusts the frequency level to suit your favourite sound quality. Watching > For best audio > Basic settings Balance Adjusts volume level of right and left speakers. Watching > For best audio > Basic settings Surround Selects surround sound settings. Watching > For best audio > Basic settings Bass Boost Enhances the effect of bass sounds. Watching > For best audio > Basic settings Sport Link Automatically sets the sound mode to Stadium when Viewing Mode is set to Sport. Watching > For best audio > Basic settings

Volume settings Speaker Selection Enables controlling the theatre speaker with this TV’s remote control by pointing at the TV’s signal receiver. Watching > For best audio > Volume settings TV Speaker Setting Selects the sound output to adjust volume. Watching > For best audio > Volume settings Headphone Volume Adjusts the volume of headphones. Watching > For best audio > Volume settings Auto Gain Control Automatically regulates large sound level differences between channels and inputs. Watching > For best audio > Volume settings Volume Correction Adjusts the volume of each individual channel or input mode. Watching > For best audio > Volume settings Clear Sound Adjustment If the sound from TV speakers is unclear due to installation environment, On is recommended. Watching > For best audio > Volume settings

Voice Guidance Settings Voice Guidance Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users. Watching > For best audio > Voice Guidance Settings Speed Selects the readout speed for the voice guidance. Watching > For best audio > Voice Guidance Settings Volume Selects the volume for the voice guidance. Watching > For best audio > Voice Guidance Settings Language Changes language for the voice guidance. Watching > For best audio > Voice Guidance Settings User Level Selects the level of verbosity for the voice guidance. Watching > For best audio > Voice Guidance Settings Web Browser Set to On to enable voice guidance of the network content in web browser function. Watching > For best audio > Voice Guidance Settings

Advanced settings MPX Selects multiplex sound mode (if available). Watching > For best audio > Advanced settings Audio Preference Selects the initial setting for audio tracks. Watching > For best audio > Advanced settings SPDIF Selection Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals. Watching > For best audio > Advanced settings HDMI Audio Format Selects the audio format for the HDMI input signal. Watching > For best audio > Advanced settings PCM Optical Level Adjusts the audio level of PCM output from DIGITAL AUDIO and HDMI2 (ARC function) terminals to equalise with that of the other audio types. Watching > For best audio > Advanced settings SPDIF Delay Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image. Watching > For best audio > Advanced settings HDMI Input Selects to fit the input signal. Watching > For best audio > Advanced settings

Reset to Defaults Resets the current Sound Mode to the default settings.

Network Network Connection Sets the network setting to use this TV in your network environment. Network > Network settings > Network Connection

TV Name Sets your favourite name for this TV. Network > Network settings > TV Name

TV Remote App Settings Sets to control the TV from network equipment (smartphone, etc.). Network > Network settings > TV Remote App Settings

Network Link Settings Sets to control the TV with devices connected to the network. Network > Network settings > Network Link Settings

File Sharing Settings Network Device List Lists the accessible network devices to play back the content in Media Player. Media Player > Using Media Player > Network device

Mirroring Settings Settings for the mirroring function Functions > Mirroring > Mirroring Settings

Other settings Software Update Checks for available software updates from the Panasonic website. Network > Network settings > Software Update New Software Message Selects whether to give a notification message when new software is found via network or not. Network > Network settings > New Software Message Terms of Service and Settings Displays the terms of service and settings. Network > Network settings > Terms of Service and Settings

Timer Off Timer Sets the duration of time until the TV automatically goes into Standby mode. Watching > Basic > Off Timer

Timer Programming Sets a timer to record forthcoming programmes. Recording > Timer Programming > Setting Timer Programming

Auto Standby Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours. Watching > Basic > Energy saving functions

No signal Power off Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes. Watching > Basic > Energy saving functions

Setup Eco Navigation Automatically sets the TV to the most suitable energy-saving mode. Watching > Basic > Energy saving functions

USB Device Setup Formats the USB HDD or safely removes USB device. Recording > USB HDD setup > Setting for USB HDD

Recording Setup Settings for the recording feature of the USB HDD Recording > Recording current programme > One Touch Recording Recording > Recording current programme > REW LIVE TV

Child Lock Applies access control for channels or inputs to prevent unwanted access. Functions > Child Lock > Using Child Lock

Tuning Menu Channel List Editor You can edit the channel list by adding / deleting and moving channels. Watching > Tuning and editing channels > Channel List Editor Favourites Editor Creates a list of favourite channels. Watching > Tuning and editing channels > Favourites Editor Auto Setup Automatically searches for receivable channels. Watching > Tuning and editing channels > Auto Setup Manual Tuning Searches for channels manually. Watching > Tuning and editing channels > Manual Tuning Update Channel List Updates the channel list while keeping your settings. Watching > Tuning and editing channels > Update Channel List Favourite Network Selects your favourite network for each broadcaster (only available in some countries). Watching > Tuning and editing channels > Other settings New Channel Message Selects whether to give a notification message when a new channel is found or not. Watching > Tuning and editing channels > Other settings Service Replacement Set to On to display a message to switch to the available service (only available in some countries). Watching > Tuning and editing channels > Other settings

Signal Condition Checks the signal condition. Watching > Tuning and editing channels > Signal Condition Antenna System Sets the antenna system to use plural LNBs for receiving several satellites. Watching > Tuning and editing channels > Auto Setup LNB Configuration Selects the satellite for each LNB. Watching > Tuning and editing channels > Auto Setup Attenuator Automatically reduces the DVB-C signal to avoid the interference. Watching > Tuning and editing channels > Other settings Add TV Signal Adds the TV mode. Watching > Tuning and editing channels > Other settings = Note =

Language OSD Language Changes language for on-screen displays. Watching > Basic > Language Preferred Audio 1 / 2 Selects the first and second preferred language for DVB multi audio (depending on the broadcaster). Watching > Basic > Language Preferred Subtitles 1 / 2 Selects the first and second preferred language for DVB subtitles (depending on the broadcaster). Watching > Basic > Language Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster). Watching > Basic > Language

Display Settings Preferred Subtitle Type Selects the preferred subtitle type. Watching > Basic > Subtitle Teletext Selects teletext display mode. Watching > Teletext > Teletext mode Teletext Character Set Selects teletext language font. Watching > Teletext > Teletext Character Set Input Labels Accessing the input labels list allows you to change the input name or skip the input if unconnected, improving identification and selection in the Input Selection banner. Watching > External equipment > Watching external input Banner Display Timeout Sets how long the information banner stays on screen. Watching > Basic > Information banner Playing Time Display Set to On to display a time period of continuous use in Game Mode on the top right of the screen every 30 minutes. Watching > External equipment > Watching external input Radio Mode Sets the timer for turning off the screen automatically when a radio channel is selected. Watching > Basic > Energy saving functions Notification (On / Off) Displays a notification message.

HDMI HDR Setting Set to On when the HDR device is connected to the TV. Watching > External equipment > HDMI HDR Setting

Common Interface Sets to watch encrypted channels, etc. Functions > Common Interface > Using Common Interface

VIERA Link Settings VIERA Link Sets to use VIERA Link functions. Functions > VIERA Link “HDAVI Control™” > Preparations Power on Link Sets to use Power on Link functions. Functions > VIERA Link “HDAVI Control™” > Power on Link Power off Link Sets to use Power off Link functions. Functions > VIERA Link “HDAVI Control™” > Power off Link Standby Power Save Controls the connected equipment to reduce power consumption in Standby. Functions > VIERA Link “HDAVI Control™” > Standby Power Save Intelligent Auto Standby Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption. Functions > VIERA Link “HDAVI Control™” > Intelligent Auto Standby

Data Service Application Service Sets to use Hybrid Broadcast Broadband TV application. Functions > Data Service Application > Using Data Service Application Privacy Setting Settings for the privacy in the interactive data services Functions > Data Service Application > Privacy Setting

System Menu USB Keyboard Layout Selects the language that your USB Keyboard supports. Functions > Keyboard > Keyboard Shipping Condition Resets all settings to the original condition. Functions > Shipping Condition > Shipping Condition System Update Downloads new software to this TV. Functions > Updating the TV Software > Auto update Licence Menu Displays the software licence information.

Other Settings Power Save (On / Off) Reduces brightness of the picture to economise on power consumption. Exchange Channel List Exports / Imports DVB-S Channel List settings using the USB device to share the same settings with another TV which has the same function. Watching > Tuning and editing channels > Channel List Editor

2. Select Help and press OK to access.

3. Select TV Self Test / System Information / Device Information and press

OK to access. TV Self Test Makes a diagnosis of picture or sound problems. Follow the on-screen instructions. System Information Displays the system information of this TV. Device Information Displays the device information of this TV.

FAQs Picture Before requesting service or assistance, please follow these simple guides to solve the problem. Also makes a diagnosis of picture problem in TV Self Test. Support > Help menu > Using Help menu If the problem still persists, please contact your local Panasonic dealer for assistance. Auto aspect

Auto aspect is designed to provide you with the best ratio to fill the screen. Watching > For best picture > Aspect Control Signal

Set Aspect in the Picture Menu if you want to change the aspect ratio manually. Watching > For best picture > Aspect Black and white picture

Check that the output of the external equipment matches the input of the TV. Chaotic image, noisy

Set Noise Reduction and MPEG Remaster in the Picture Menu to remove noise. Watching > For best picture > Noise reduction settings

Check nearby electrical equipment (car, motorcycle, fluorescent lamp).

No image is displayed

Check the correct input mode is selected.

Check the setting of AV (COMPONENT / VIDEO) in Input Selection to match the signal being output by the external equipment. Watching > External equipment

Is Backlight, Contrast, Brightness or Colour in the Picture Menu set to the minimum? Watching > For best picture > Basic settings

Check all required cables and connections are firmly in place. Blurry or distorted image (no sound or low volume)

Reset channels. Watching > Tuning and editing channels > Auto Setup There may be red, blue, green and black spots on the screen

This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue or black. Please note this does not affect the performance of the panel.

Digital TV Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs / Some channels cannot be tuned

Check the position, direction and connection of the aerial or dish.

Check Signal Condition. If the level of Signal Quality is low, the DVB signal is weak. Connecting the aerial to the TV directly may improve signal quality than connecting the aerial through the equipment (Set top box, DVD, etc.). Watching > Tuning and editing channels > Signal Condition Watching > Basic > Basic connection

Weather conditions affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.

Turn the TV off with Mains Power On / Off switch, then turn it on again. DVB-S Auto Setup cannot be done completely

Check connections and dish alignment. Watching > Basic > Basic connection

If the problem persists, consult your local dealer.

Faulty dish message appears

The satellite cable may be short-circuited or there may be connection problems of the cable. Check the cable and connection and then turn the TV off with Mains Power On / Off switch, and turn it on again.

Adjust the direction of the aerial or dish to another transmitter installed nearby.

Analogue TV Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. White spots or shadow image (ghosting) occurs / Some channels cannot be tuned

Check the position, direction and connection of the aerial.

Weather conditions affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during good weather, the high pressure can cause poor reception of some channels.

Turn the TV off with Mains Power On / Off switch, then turn it on again.

If the problem persists, consult your local dealer or service provider for the availability of services.

Sound Before requesting service or assistance, please follow these simple guides to solve the problem. Also makes a diagnosis of sound problem in TV Self Test. Support > Help menu > Using Help menu If the problem still persists, please contact your local Panasonic dealer for assistance. No sound is produced

Is “Sound mute” active? Press MUTE to switch sound mute on or off.

Is the volume set to the minimum?

Check connections and setting of external equipment. Watching > External equipment

Ensure that Speaker Selection is set to TV. Watching > For best audio > Volume settings Functions > VIERA Link “HDAVI Control™” > Speaker Selection

Ensure that TV Speaker Setting is set to TV Speaker. Watching > For best audio > Volume settings Sound level is low or sound is distorted

Sound signal reception may be poor.

HDMI Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Sound is unusual

Check the setting of HDMI Audio Format in the Sound Menu to match the audio signal from the connected equipment. Watching > For best audio > Advanced settings

If digital sound connection has a problem, select analogue sound connection. Watching > External equipment > HDMI features Pictures from external equipment are unusual when the equipment is connected via HDMI

Check the HDMI cable is connected properly. Watching > External equipment > External connection

Turn the TV and equipment off, then turn them on again.

Check an input signal from the equipment. Watching > External equipment > Valid input signals

Use equipment compliant with EIA/CEA-861/861D.

Network Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Cannot connect to the network

Check the LAN cable or wireless LAN is connected properly. Network > Network connections

Check the connections and settings. Network > Network connections Network > Network settings

Check the network equipment and network environment.

The router may not be set to issue IP address automatically. If the network administrator prefers to allocate an IP address, set an IP address manually. Network > Network settings

The router may be using MAC address filtering (security setting). Confirm the MAC Address of this TV and set the router to use it. Network > Network settings > Network Status

If the problem persists, consult your Internet Service Provider or telecommunications company. Cannot select the file during DLNA operations

Is media server of the connected equipment prepared? Network > DLNA > In-House streaming

Check the settings of Network Link Settings. Network > Network settings > Network Link Settings

Check the connections and settings. Network > Network connections > Internet connection Network > Network settings

The server or connected line may be busy now.

Other Before requesting service or assistance, please follow these simple guides to solve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. VIERA Link function does not work and an error message appears

Turn the connected equipment on and then switch the TV on. Functions > VIERA Link “HDAVI Control™” Parts of the TV become hot

Parts of the TV may become hot. These temperature rises do not pose any problems in terms of performance or quality. Overcurrent error message appears

The connected USB device may cause this error. Remove the device and turn the TV off with Mains Power On / Off switch, then turn it on again.

Check foreign objects are not inside the USB port. An error message appears

If the problem persists, contact your local Panasonic dealer or the authorised service centre.

LED does not turn to red in Standby mode

LED turns to orange in Standby mode in the following conditions: – Recording is in progress. – Timer Programming is set. – DLNA Server is set to On. – Powered On by Apps is set to On. – Home Streaming is set to Always. – Powered On by Easy Mirroring is set to On. When pushed with a finger, the display panel moves slightly and makes a noise

There is a little gap around the panel to prevent damage to the panel. This is not a malfunction.

Detailed information Support information about the application, optional devices, operation, etc. may be found on the following website. http://panasonic.jp/support/global/cs/tv/ (English only)

Maintenance Care and Cleaning First, remove the mains plug from the mains socket. ■■Display panel, Cabinet, Pedestal Regular care: Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints. For stubborn dirt: (1) First clean the dust from the surface. (2) Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). (3) Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.) (4) Carefully wipe moisten and wipe away the stubborn dirt. (5) Finally, wipe away all the moisture. = Caution =

Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.

Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.

The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.

Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality. ■■Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
