USER MANUAL TQ507DF3 SIEMENS

Table of contents Safety 8 General information 8 Intended use 8 Restriction on user group 8 Safety information 9 Environmental protection and saving energy 12 Disposing of packaging 12 Tips for saving energy 12 Installation and connection 12 Scope of supply 12 Installing and connecting the appliance 12 Familiarising yourself with your appliance 13 Appliance 13 Controls 13 Display 13 Drinks overview 14 Accessories 15 Before using for the first time 15 Perform the initial start-up 15 Fill the water tank 15 Fill coffee bean container 15 Setting the language 16 Setting the water hardness 16 General information 16 Basic operation 17 Switching the appliance on and off 17 Dispensing drinks 17 Dispensing a coffee drink made from fresh beans 18 Dispensing a coffee drink made from ground coffee 18 Dispensing drinks with milk 18 1

Using the milk container 19 Dispensing coffee drink with milk 19 Dispensing special drinks 20 Dispensing milk froth 20 Dispensing hot water 20 Drink settings 20 Water filter 22 Childproof lock 22 Activating the childproof lock 23 Deactivating the childproof lock 23 Cup heater1 23 Basic settings 23 Overview of the basic settings 23 Changing the basic settings 24 Cleaning and servicing 24 Dishwasher-safe components 24 Cleaning agent 25 Cleaning the appliance 25 Cleaning the drip tray and coffee dregs container 26 Cleaning the ground coffee compartment 26 Cleaning the milk system 26 Cleaning the milk container 27 Cleaning brewing unit 28 Service programmes 28 Troubleshooting 32 Information on display panel 32 Malfunctions 34 Problem with results 35 Transportation, storage and disposal 38 Activate frost protection 38 Disposing of old appliance 38

Depending on the appliance specifications

Safety Please read the safety information to ensure that you use the appliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡ This manual is intended for the user of the appliance. ¡ Follow the safety instructions and warnings. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit. Intended use Please read the information on intended use to ensure you use the appliance correctly and safely. Only use this appliance: ¡ As specified in this instruction manual. ¡ for preparing hot drinks. ¡ In private households and in enclosed spaces in a domestic environment. ¡ Up to an altitude of max. 2000 m above sea level. Disconnect the appliance from the power supply when: ¡ cleaning the appliance. Restriction on user group Avoid risks to children and vulnerable persons.

Familiarising yourself with your appliance 2. Place the appliance on a level, wa-

ter-resistant surface that is capable of bearing its weight. 3. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance.

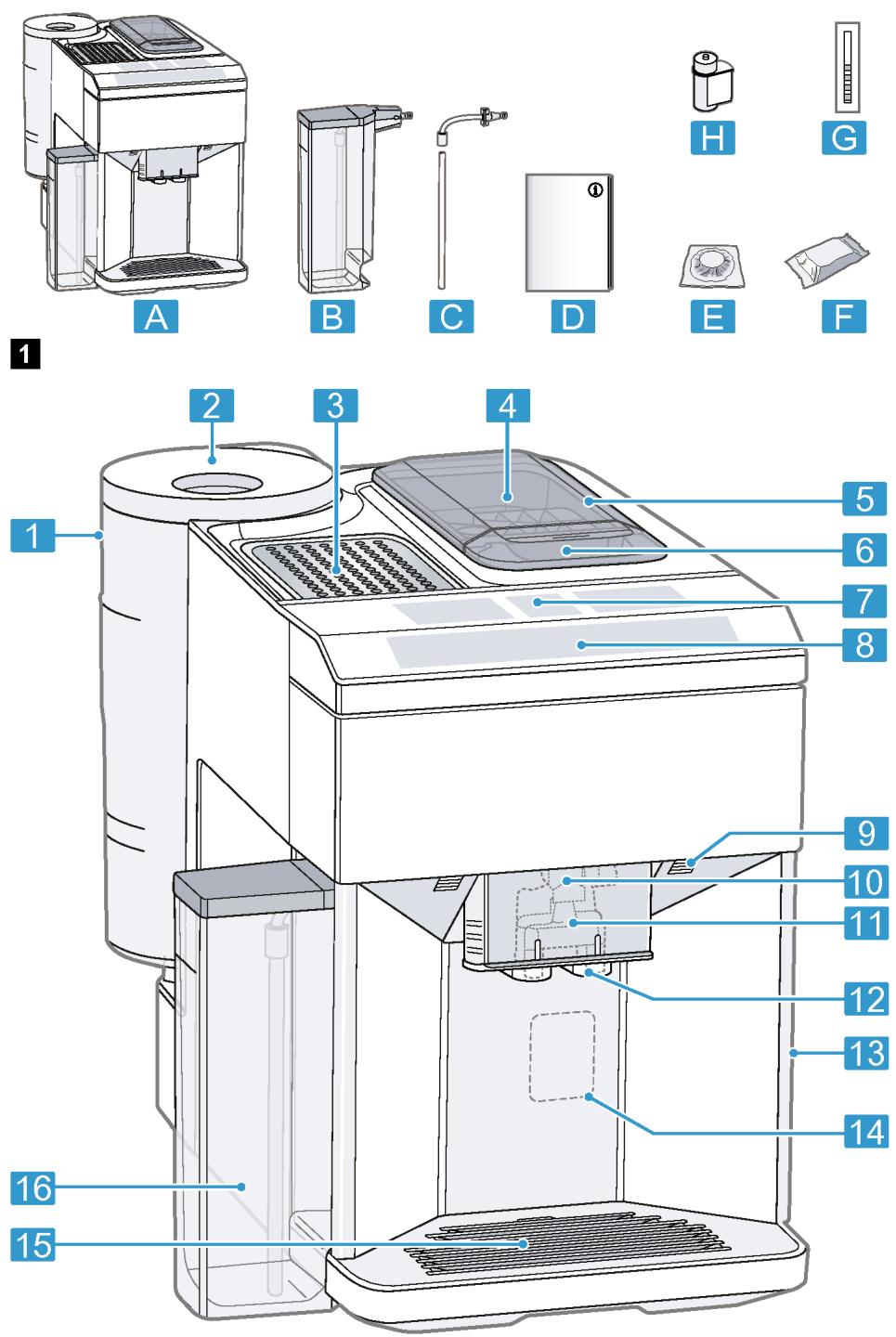

Appliance You can find an overview of the parts of your appliance here.

Brewing chamber door Rating plate Drip tray Milk container

Depending on the appliance specifications

Controls Here you can find an overview of the symbols on your appliance. Press the symbols to make a selection, start the dispensing process or make/adjust a setting. Symbol

Note: Individual details and colours may differ, depending on the appliance model. → Fig.

1 2 3 4 5 6 7 8 9 10 11 12 1

Water tank Cover for water tank Cup heater1 Aroma lid Bean container Ground coffee compartment

Explanation Switch appliance on/off Open menu/leave menu Note: The menu buttons are only visible when the menu is open. Navigate upwards in the menu Navigate downwards in the menu Confirm/save in the menu Go back in the menu Dispense two cups Select coffee strength Adjusting the amount Start/stop

The display shows the selected drinks, settings and setting options, as well as messages about the appliance’s operating status. The display shows additional information and action steps. The information is hidden after a short period, or by pressing a button. The action steps are hidden when they have been completed.

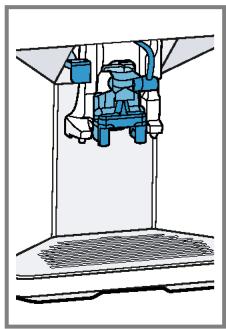

Cup lighting1 Cover Milk system Outlet system

Depending on the appliance specifications

en Before using for the first time 1. Open the lid. 2. Fill with the coffee beans.

The table shows the allocation of the levels to the different degrees of water hardness:

The appliance will adjust to the coffee beans with the next dispensing process. 3. Close the lid.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for a number of days without them losing their aroma.

Setting the language 1. Press

to switch the appliance on. a The display will show the language that is preset. 2. Press or until the display shows the desired language. 3. Press ⁠. Tip: You can change the language at any time. → "Overview of the basic settings", Page 23

Setting the water hardness It is important to set the water hardness correctly, so that the appliance indicates in good time that it needs descaling. You can use the enclosed test strip to determine the water hardness, or ask your local water company. 1. Briefly dip the test strip in fresh tap

2. Allow the water to drip off the test

strip. a The test strip will indicate the water hardness after 1 minute. 3. If a water softening system is installed in your house, select "Softening system". 4. Press or until the display shows the desired water hardness. 16

German de- Total hardgrees in °dH ness in (mmol/l) 1 1-7 0.18 - 1.25 2 8-14 1.42 - 2.49 3 15-21 2.67 - 3.74 41 22-30 3.92 - 5.34 1 Factory setting (may vary according to model) Press ⁠. Check whether the bean container has been filled. Press ⁠. The appliance now rinses itself. When the symbols for drink selection and the buttons light up on the operating panel, the appliance is ready for use.

Tip: You can change the water hardness at any time. → "Overview of the basic settings", Page 23

General information Please bear this information in mind so that you can get the best out of your appliance. Notes ¡ The appliance has been programmed at the factory with standard settings for optimum operation. ¡ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin with too little crema, you can adjust the grinding level when the grinder is running. → "Adjusting the grinding level", Page 21

Grinding level Fine grinding level for dark-roasted beans.

Setting Turn rotary selector counter-clockwise.

Coarse grinding level for light-roasted beans.

Turn rotary selector clockwise.

The setting only has an effect after the second cup of coffee.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level. If the coffee is too thin with too little crema, set a finer grinding level.

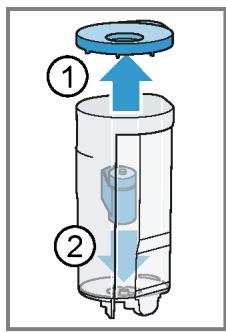

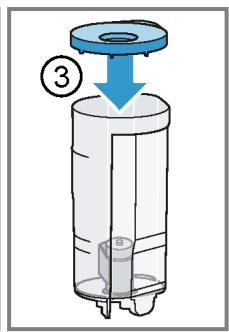

Water filter You can use a water filter to minimize limescale deposits and reduce impurities in the water.

Insert water filter ATTENTION! Possible damage to the appliance due to limescale build-up. ▶ Change the water filter in good time. ▶ Change the water filter after 2 months at the latest. Note: If "Replace water filter" is shown on the display, replace the water filter. If you are not inserting a new filter, select "No filter" and follow the instructions on the display. 1. Immerse the water filter in a glass of

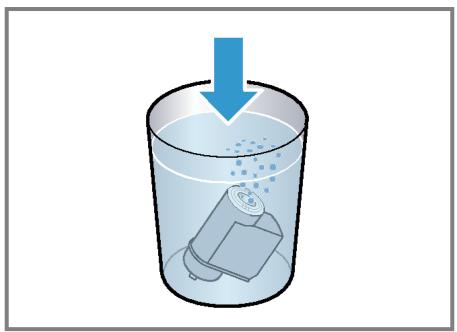

water until the air escapes. → Fig. 3 2. Press ⁠. 3. Press or "Water filter" and

or to select "New filter" or "Replace water filter" and press ⁠. Note: If you are not inserting a new filter, select "No filter" in the menu settings. Push the water filter firmly into the water tank and press ⁠. → Fig. 4 Fill the water tank up to the "max" mark and press ⁠. Remove the milk container on the left of the appliance. Place a container with a capacity of 1 litre under the outlet system and press ⁠. The filter will be rinsed and the following message displayed: "Rinsing complete.". The appliance is ready to use.

Tips ¡ You should also change your water filter for reasons of hygiene. ¡ With a water filter you need to descale your appliance less frequently. ¡ If your appliance has not been used for a long period, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water. ¡ The water filter can be purchased from retailers or Customer Service. → "Accessories", Page 15 ¡ Learn how to insert the water filter. → "Insert water filter", Page 22

Childproof lock You can lock the appliance, to protect children against scalding and burns.

en Cleaning and servicing

Setting Coffee temp.

Selection normal high max.

See options on the appliance.

See options on the appliance.

1 (soft) 2 (medium) 3 (hard) 4 (very hard)2 Water-softening system Key tones on 2 Key tones off Full reset? Continue: OK Cancel: ←

Switch the button tones on or off. Restore settings to the factory settings. Note: All individual settings will be deleted and reset to the factory settings.

Depending on the appliance specifications Factory setting (may vary according to model)

Changing the basic settings

Description Set the temperature for coffee drinks. Note: The setting is effective for all preparation types. Set menu language. Changes are immediately displayed. Set how long the appliance should wait after preparing the last drink before automatically switching itself off. Set the appliance to the local water hardness. → "Setting the water hardness", Page 16

or to select the desired basic setting and press ⁠. The display will show the setting options and the navigation symbols will light up. The display indicates the current setting. Use or to make the desired selection and press ⁠. The setting is now saved. Use to go back. Press to exit the menu.

Cleaning and servicing To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

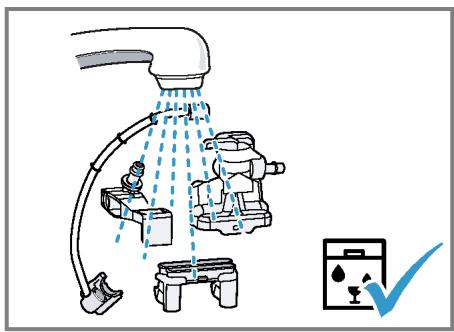

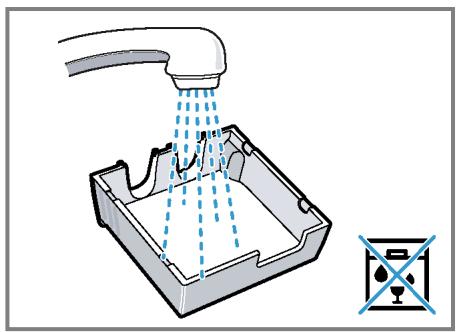

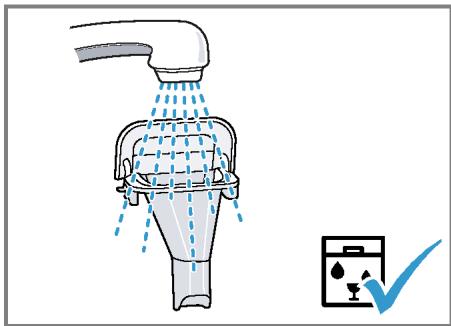

Dishwasher-safe components Find out which components can be cleaned in the dishwasher. ATTENTION! Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher. ▶ Follow the operating instructions of the dishwasher.

Cleaning and servicing

¡ If your appliance is not descaled in good time, the display will show the following message: "Descaling overdue. Appliance is locked. Please press menu for 3 sec.". ¡ If your appliance has been locked, you can only operate it again once the descaling process has been carried out. ¡ If you accidentally interrupt the service programme, you must reset it. → "Resetting service programmes", Page 29 Tips ¡ If you use a water filter, this prolongs the time interval until a service programmes needs to be performed. ¡ You can combine the cleaning and descaling programmes using the calc'nClean service programme. → "Using calc'nClean", Page 30 ¡ Clean your appliance with a soft, damp cloth immediately after a service programme to remove any descaling solution residues and prevent corrosion.

Resetting service programmes

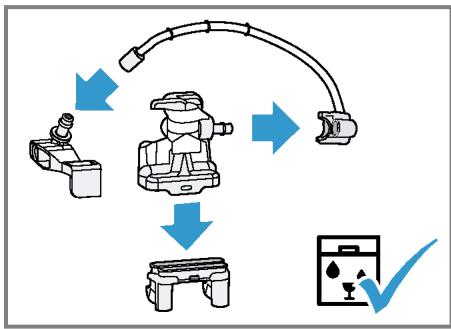

Using the milk system cleaning programme Rinse the milk system with water, if necessary. The rinsing process takes approx. 1 minute. 1. Press 2. Use 3. 4.

⁠. and to select "Cleaning and care" and press ⁠. Use and to select "Milk system" and press ⁠. To start the programme, press ⁠. The display will guide you through the programme. Remove and empty the milk container. Clean the milk container, milk tube and suction pipe. Fit the components and insert the milk container. Place an empty glass under the outlet system and press ⁠. The milk system will now clean itself automatically. The program has ended and the appliance is ready for operation.

Perform the following steps if a service programme is interrupted, e.g. due to a power failure.

Tip: If you want to clean the milk system particularly thoroughly, clean it regularly by hand. → "Cleaning the milk system", Page 26

1. Rinse out the water tank. 2. Fill the water tank with fresh, non-

Using the descaling programme

carbonated water up to the "max" marking. Press ⁠. The appliance will rinse itself for approx. 2 minutes. Empty and clean the drip tray. Insert the drip tray and close the door. Restart the service programme.

Run the descaling programme when your appliance prompts you. The process takes approx. 30 minutes. Requirement: The brewing unit is cleaned. → "Cleaning brewing unit", Page 28 1. Press 2. Use

⁠. and to select "Cleaning and care" and press ⁠. 3. Use and to select "Descale" and press ⁠.

en Cleaning and servicing 4. To start the programme, press ⁠. a The display will guide you through the programme. 5. Empty and insert the drip tray. 6. Remove and empty the milk container. 7. Clean the milk container, milk tube and suction pipe. 8. Fit the components and insert the milk container. 9. If there is a water filter, remove it. 10. Press ⁠. 11. Empty the water tank. 12. Fill a container with 0.5 l lukewarm water. 13. Add a Siemens descaling tablet to the water and stir until the tablet is fully dissolved. 14. Pour the descaling solution into the water tank up to the calc mark and press ⁠. 15. Place the empty container under the outlet system and press ⁠. a The descaling programme will run for approx. 20 minutes. 16. Rinse the water tank. 17. Press ⁠. 18. If there is a water filter, insert the water filter. → "Insert water filter", Page 22 19. Press ⁠. 20. Fill the tank with fresh water up to the "max" mark. 21. Press ⁠. a The descaling programme takes approx. 1 minute and rinses the appliance. 22. Empty and insert the drip tray. 23. Remove and empty the milk container. 24. Clean the milk container, milk tube and suction pipe.

25. Fit the components and insert the

milk container. a The program has ended and the appliance is ready for operation.

Using the cleaning programme Run the cleaning programme when your appliance prompts you. The process takes approx. 9 minutes. Requirement: The brewing unit is cleaned. → "Cleaning brewing unit", Page 28 1. Press 2. Use

⁠. and to select "Cleaning and care" and press ⁠. 3. Use and to select "Clean" and press ⁠. 4. To start the programme, press ⁠. a The display will guide you through the programme. 5. Empty and insert the drip tray. 6. Open the ground coffee compartment. 7. Place one Siemens cleaning tablet into the ground coffee compartment. 8. Close the ground coffee compartment and press ⁠. 9. Place a container with a capacity of min. 0.5 l under the outlet system and press ⁠. a The cleaning programme takes approx. 7 minutes. 10. Empty and insert the drip tray. a The program has ended and the appliance is ready for operation.

Using calc'nClean You can combine the cleaning and descaling programmes using the calc'nClean service programme. Run the calc'nClean programme when your appliance prompts you. The process takes approx. 43 minutes. Requirement: The brewing unit is cleaned. → "Cleaning brewing unit", Page 28

Cleaning and servicing 1. Press 2. Use

⁠. and to select "Cleaning and care" and press ⁠. 3. Use and to select "calc'nClean" and press ⁠. 4. To start the programme, press ⁠. a The display will guide you through the programme. 5. Empty and insert the drip tray. 6. Remove and empty the milk container. 7. Clean the milk container, milk tube and suction pipe. 8. Fit the components and insert the milk container. 9. If there is a water filter, remove it. 10. Press ⁠. 11. Empty the water tank. 12. Fill a container with 0.5 l lukewarm water. 13. Add a Siemens descaling tablet to the water and stir until the tablet is fully dissolved. 14. Pour the descaling solution into the water tank up to the calc mark and press ⁠. 15. Place the empty container under the outlet system and press ⁠. a The descaling programme will run for approx. 20 minutes. 16. Rinse the water tank. 17. Press ⁠. 18. If there is a water filter, insert the water filter. → "Insert water filter", Page 22 19. Press ⁠. 20. Fill the tank with fresh water up to the "max" mark. 21. Press ⁠. a The programme takes approx. 1 minute and rinses the appliance. 22. Empty and insert the drip tray. 23. Open the ground coffee compartment.

24. Place one Siemens cleaning tablet

into the ground coffee compartment.

25. Close the ground coffee compart-

26. Place a container with a capacity of

min. 0.5 l under the outlet system and press ⁠. a The cleaning programme takes approx. 7 minutes. 27. Empty and insert the drip tray. 28. Remove and empty the milk container. 29. Clean the milk container, milk tube and suction pipe. 30. Fit the components and insert the milk container. a The program has ended and the appliance is ready for operation.

Errors Display shows "Please refill water tank" despite the fact that the water tank is full.

Cause Limescale deposits in the water tank are blocking the system.

Display shows "Fill the bean container with coffee beans." despite the fact that the ban container is full.

Beans are too oily and are not ▶ Gently tap the bean container. falling into the grinder. ▶ Change the coffee variety. Do not use oily beans.

The grinder is not grinding any coffee beans despite full bean container. Display shows "Please clean brewing unit, replace and close door.".

Troubleshooting 1. Clean the water tank thoroughly. 2. Start the descaling programme. → "Using the descaling programme", Page 29

▶ Clean the empty bean container with

Brewing unit is soiled.

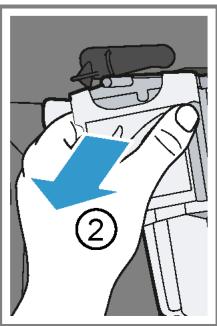

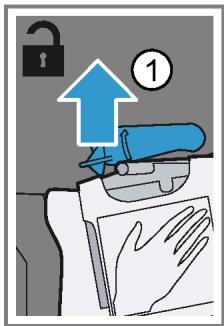

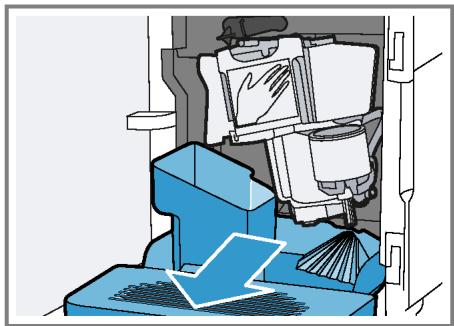

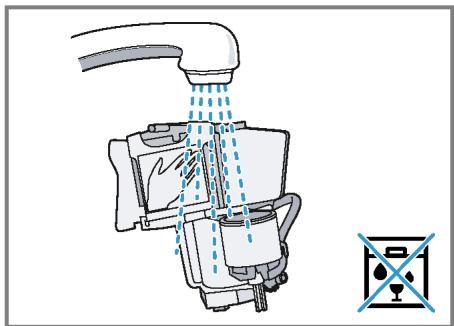

▶ Clean the brewing unit.

Mechanism of brewing unit is stiff.

▶ Clean the brewing unit.

Too much ground coffee in the brewing unit.

▶ Use no more than 2 level measuring

→ "Cleaning brewing unit", Page 28 → "Cleaning brewing unit", Page 28 spoons of ground coffee. → "Cleaning brewing unit", Page 28

Display shows "Voltage (V) in- Voltage in the house system is ▶ Only operate the appliance at 220 correct.". incorrect. 240 V. Display shows "Please restart Brewing unit is heavily soiled appliance.". or cannot be removed.

▶ Restart the appliance. ▶ Clean the brewing unit.

→ "Cleaning brewing unit", Page 28

Appliance has a fault.

1. Pull out the mains plug and wait

2. Re-insert the mains plug.

Display very frequently shows Water is too hard. "calc'nClean".

ness. → "Setting the water hardness", Page 16

Incorrect or too little descaling agent used.

▶ When descaling, only use suitable

▶ Reset the service programme. Service programme has not been carried out in its entirety. → "Resetting service programmes", Page 29

Malfunctions Errors Appliance no longer responds.

Cause Appliance has a fault.

Troubleshooting 1. Pull out the mains plug and wait 10 seconds. 2. Re-insert the mains plug.

Appliance only dispenses water, not coffee.

▶ Pour in coffee beans. Empty bean container is not detected by the appliance. Coffee shaft on brewing unit is ▶ Clean the brewing unit. blocked. → "Cleaning brewing unit", Page 28

Beans are too oily and are not ▶ Gently tap the bean container. falling into the grinder. ▶ Change the coffee variety. Do not use oily beans. ▶ Clean the empty bean container with

Appliance is not dispensing milk froth.

Brewing unit is not inserted properly. Milk system is soiled.

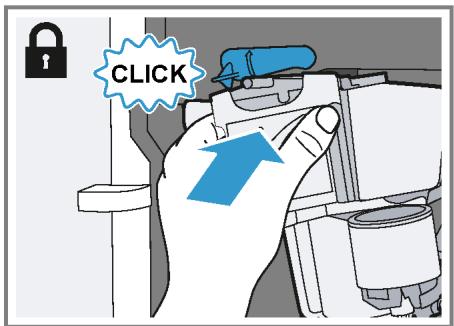

▶ Slide the brewing unit right back.

Milk tube not immersed in milk.

▶ Clean the milk system in the dish-

washer. → "Cleaning the milk system", Page 26

▶ Check whether the milk tube is im-

Heavy build-up of limescale in ▶ Descale the appliance. the appliance. → "Using the descaling programme", Page 29 No milk intake by the milk sys- The milk system is assembled ▶ Assemble the milk system correctly. tem. incorrectly. → "Cleaning the milk system", Page 26 Order for connecting the milk container and milk system is wrong. Milk tube not immersed in milk.

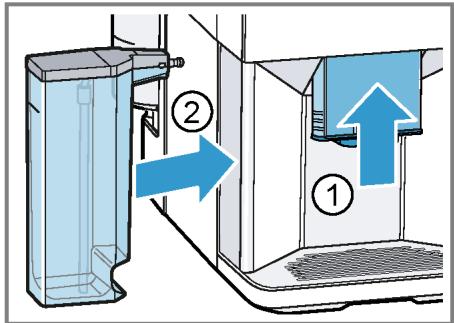

▶ First insert the milk system into the

outlet and then the milk container.

▶ Use more milk. ▶ Check whether the milk tube is im-

Milk froth is too cold.

▶ Use lukewarm milk.

Errors Appliance is not dispensing hot water.

Cause Milk system is soiled.

Troubleshooting ▶ Clean the milk system in the dishwasher. → "Cleaning the milk system", Page 26

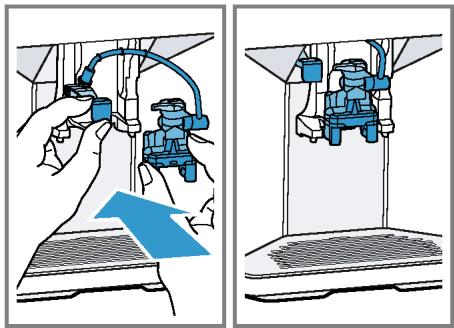

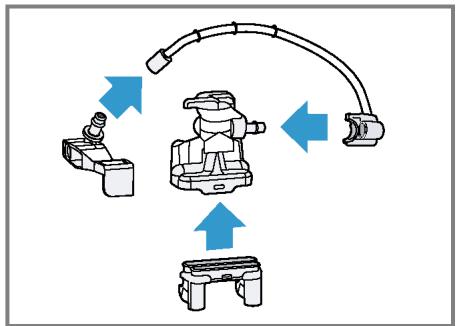

Milk system cannot be assembled or disassembled.

Order of assembly is wrong.

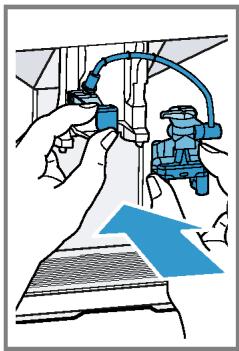

▶ First connect the milk system and

Appliance is not dispensing drinks.

Air is in the water filter.

1. Immerse the water filter in water with

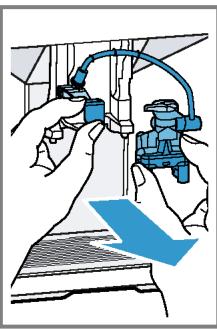

then the milk container. When disassembling, you must first remove the milk container and then the milk system.

the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. → "Insert water filter", Page 22 ▶ Firmly press the water filter straight

down into the tank connection.

Residues of limescale remover are blocking the water tank. There is dripping water on the Drip tray was removed too inner floor of the appliance. soon.

1. Remove the water tank. 2. Clean the water tank thoroughly.

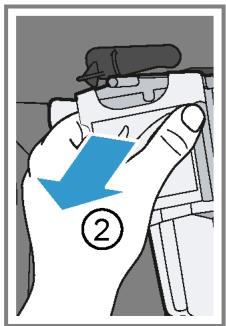

Brewing unit cannot be removed. Appliance cannot be operated.

▶ Switch the appliance back on.

Change displays. Grinder won't start.

Brewing unit is not in the removal position. Appliance is in demo mode.

▶ Wait a few seconds after the last

drink was dispensed before removing the drip tray.

1. Remove the water tank and fill with

2. Reinsert the water tank.

Appliance is too hot.

1. Disconnect the appliance from the

2. Wait 1 hour so the appliance can cool

Problem with results Errors Coffee or milk froth quality varies widely.

Cause Troubleshooting Build-up of limescale in the ap- ▶ Descale the appliance. pliance. → "Using the descaling programme", Page 29

Milk froth quality varies widely.

Milk froth quality depends on ▶ Optimise the result through the selecthe type of milk or plant-based tion of the milk or vegetable-based alternative used. drink type. 35

Errors Cause Coffee is not dispensed or has Grinding level is set too fine. slowed to a trickle. Set quantity is not reached.

Troubleshooting ▶ Set a coarser grinding level. → "Adjusting the grinding level", Page 21

Heavy build-up of limescale in ▶ Descale the appliance. the appliance. → "Using the descaling programme", Page 29 Air is in the water filter.

1. Immerse the water filter in water with

Appliance is soiled.

▶ Clean the brewing unit.

the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter. → "Insert water filter", Page 22

→ "Cleaning brewing unit", Page 28

▶ Descale and clean the appliance.

→ "Using calc'nClean", Page 30

Coffee has no crema.

Coffee strength is set too high.

▶ Reduce the strength of your coffee to

Type of coffee is not optimal.

▶ Use a coffee variety with a higher pro-

e.g. "regular". → "Adjusting the coffee strength", Page 20 portion of Robusta beans.

▶ Use beans with a darker roast.

Coffee is too acidic.

Beans are no longer fresh.

Grinding level is not appropriate for coffee beans.

▶ Adjust the grinder to a finer setting.

Grinding level is set too coarse.

▶ Adjust the grinder to a finer setting.

Type of coffee is not optimal.

▶ Use a coffee variety with a higher pro-

→ "Adjusting the grinding level", Page 21 → "Adjusting the grinding level", Page 21 portion of Robusta beans.

▶ Use beans with a darker roast.

Coffee is too bitter.

Coffee tastes burnt.

Grinding level is set too fine.

▶ Set a coarser grinding level.

Type of coffee is not optimal.

▶ Change the coffee variety.

Grinding level is set too fine.

▶ Set a coarser grinding level.

→ "Adjusting the grinding level", Page 21

→ "Adjusting the grinding level", Page 21

Errors Coffee tastes burnt.

Coffee grounds are not compact and are too wet.

Cause Type of coffee is not optimal.

Troubleshooting ▶ Change the coffee variety.

Coffee temperature setting is too high.

▶ Set the coffee temperature lower.

The grinding level is not set optimally.

▶ Adjust the grinder to a coarser or

Too little ground coffee.

▶ Use 2 level measuring spoons of

▶ Use a different type of bean.

→ "Overview of the basic settings", Page 23 finer setting. → "Adjusting the grinding level", Page 21 ground coffee.

en Transportation, storage and disposal

Transportation, storage and disposal You can find out here how to prepare your appliance for transportation and storage. You will also find out how to dispose of old appliances.

Activate frost protection Protect your appliance from frost during transport and storage. ATTENTION! Residues of liquid in the appliance may damage it during transport or storage. ▶ Empty the pipe system before transport or storage. Requirements ¡ The appliance is ready to use. ¡ The water tank has been filled. 1. Remove the milk container. 2. Clean the brewing unit.

→ "Cleaning brewing unit", Page 28 3. Place a large container under the outlet system. 4. Press repeatedly until the display shows "Milk froth". 5. Press repeatedly until the display shows 240 ml. 6. Press ⁠. 7. Wait until steam escapes from the appliance. 8. Remove the water tank. a The appliance drains itself automatically. 9. If the message "Please refill water tank" appears, ignore it. 10. Empty and clean the water tank and drip tray. 11. Insert the water tank and drip tray. 12. Switch the appliance off and disconnect it from the power supply.

Disposing of old appliance Valuable raw materials can be reclaimed by recycling. 1. Unplug the appliance from the

2. Cut through the power cord. 3. Dispose of the appliance in an envir-

onmentally friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. You can solve many problems yourself by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our Customer Service. We always find an appropriate solution. With any warranty claims we will make sure that your appliance is repaired by trained Customer Service technicians using genuine spare parts, including after the manufacturer's warranty has expired. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Technical specifications en

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge. Detailed information about the warranty period and terms of warranty in your country are available from Customer Service, your dealer or our website. When contacting Customer Service, you will need the product number (ENr.) and the production number (FD) of your appliance. The contact details for Customer Service can be found in the Customer Service directory at the end of the manual or on our website.

Product number (E-Nr.) and production number (FD)

Frequency Connection rating Maximum static pump pressure Maximum capacity of water tank (without filter) Maximum capacity of bean container Length of the power cable Appliance height Appliance width Appliance depth Weight, empty Type of grinder

50 Hz 1500 W 15 bar 1.7 l 270 g 100 cm 37.3 cm 24.9 cm 42.8 cm 8-9 kg Ceramic

The product number (E-Nr. ) and the production number (FD) can be found on the rating plate of the appliance. Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Warranty conditions You can make warranty claims for your appliance under the following conditions. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Technical specifications Facts and figures for your appliance can be found here. Voltage

Water is te kalkhoudend.

Apparaat is te heet.

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.
