Product type	Extractor hood
Brand	ROBLIN
Model	HARMONIE 600
Power supply	220-240 V ~ 50/60 Hz
Protection	Class 1
Motor power	4 speeds (including 1 intensive)
Lighting	LED module, 2 W, 4.5 W max, 6.43 V
Grease filters	Dishwasher safe (max 50°C), lifespan 10 years
Odor filters	Washable or activated carbon depending on version; replacement every 3 months (carbon) or cleaning every 2 months (washable)
CLEAN-R system	UV lamps lifespan 6000 h, associated catalyst
Evacuation type	Recirculation or external evacuation
Appliance dimensions	Not specified in the manual
Weight	Not specified in the manual
Power cord	H05VVF 3 x 0.75 mm² with 10/16 A earth plug
Warranty	2 years parts (excluding labor and travel), commercial warranty
Spare parts availability	10 years from date of purchase
Filter cleaning	Grease: once a month; washable odor filters: every 2 months
Body maintenance	Non-abrasive detergents, damp sponge; for stainless steel, product ref. 112 0172 941
Safety instructions	Never flame under the appliance; monitor frying; max depression 0.04 mbar
After-sales service	04 88 78 59 93

Frequently Asked Questions - HARMONIE 600 ROBLIN

How to clean the grease filters of my HARMONIE 600 hood?

The grease filters can be cleaned in the dishwasher at a maximum temperature of 50°C, once a month. Let them air dry. They have a lifespan of 10 years.

What to do if my hood stops working completely?

First check your main electrical panel and the power cord connection. If everything is correct and the problem persists, call an electrician or a specialized repair technician.

How to replace the LED bulbs of the hood?

Replacement of defective LEDs must be carried out exclusively by an approved professional specialist. Do not attempt to do it yourself.

What is the procedure to activate the intensive speed?

Press and hold (2 seconds) the third speed button. The fourth speed (intensive) starts with a 10-minute timer, after which the motor returns to the previous speed.

How to maintain the washable odor filters?

Clean them in the dishwasher at high temperature (without other utensils) every 2 months. Then dry them in the dishwasher or air dry for 30 minutes, then reactivate them in the oven at 100°C for 10 minutes.

My hood is noisy or vibrating, what to do?

Check the condition of the grease and odor filters, as well as their attachment. Clean or replace the filters if necessary. If the problem persists, call a specialized repair technician.

What is the power supply voltage of the hood?

The hood operates at a voltage of 220-240 V single-phase, 50/60 Hz. Check that your installation matches.

Can I use the hood without a grease filter?

No, it is essential to always use grease filters to protect the motor and avoid fire hazards. Clean them regularly.

How to contact ROBLIN after-sales service?

After-sales service can be reached at 04 88 78 59 93. Have the fault description, commercial reference, and serial number of the appliance, as well as a copy of the purchase invoice.

What is the warranty period of the hood?

The commercial warranty is 2 years parts (excluding labor and travel). Consumables (bulbs, filters) are not covered.

USER MANUAL HARMONIE 600 ROBLIN

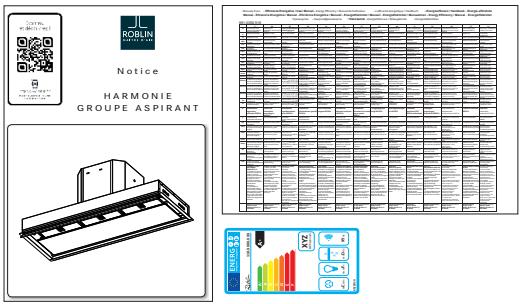

Notice

HARMONIE

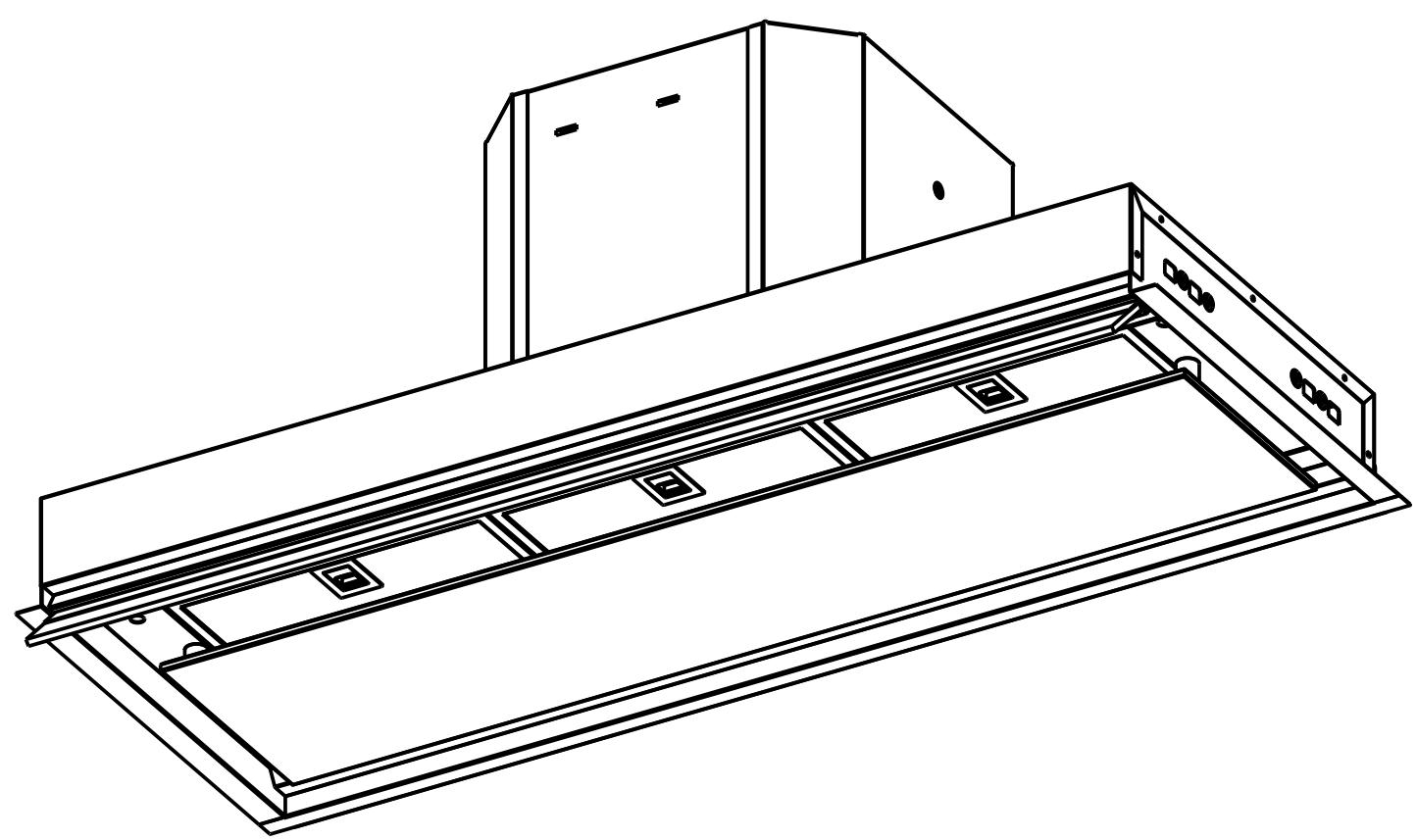

GROUPE ASPIRANT

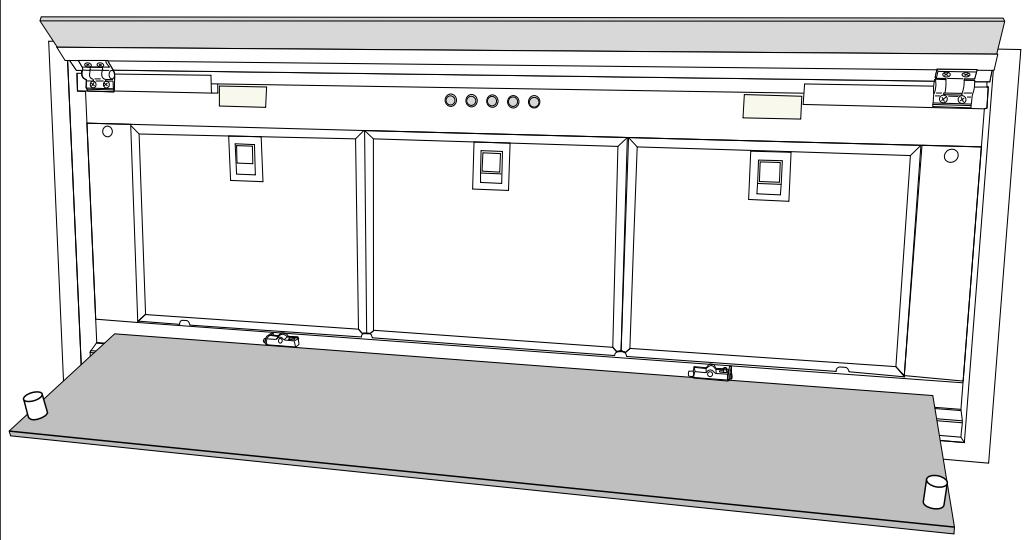

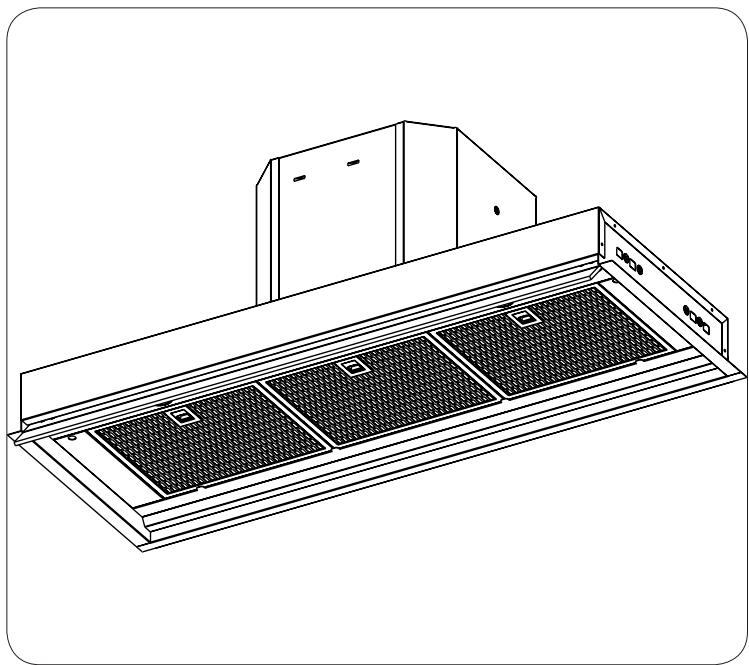

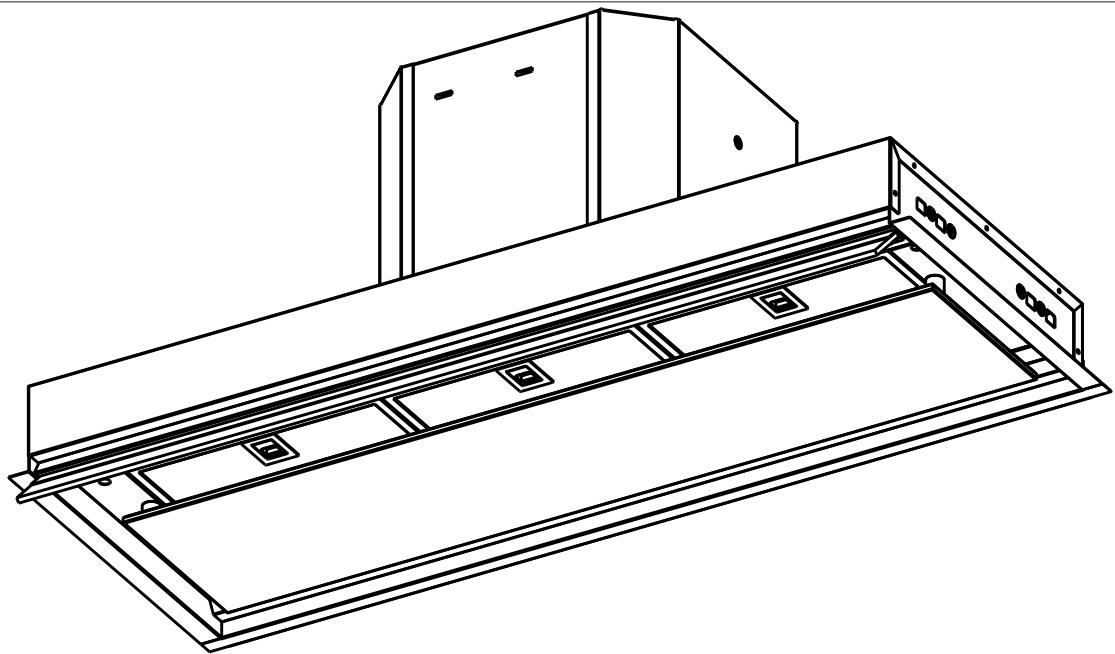

Technical line drawing of a mechanical assembly with mounting brackets and internal compartments (no text or symbols)

FR Mode d'emploi et d'installation P. 4
GB Instructions for installation and use P. 8
DE Gebrauchs- und Installationsanleitung P. 12
IT Istruzioni per l'installazione e l'uso P. 16
ES Manual de empleo e instalación P. 20
NL Gebruiksaanwijzing en installatie P. 24
CH Suisse, cordon d'alimentation P. 28

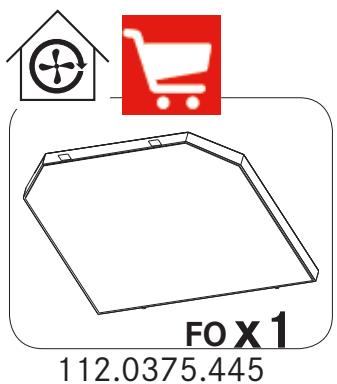

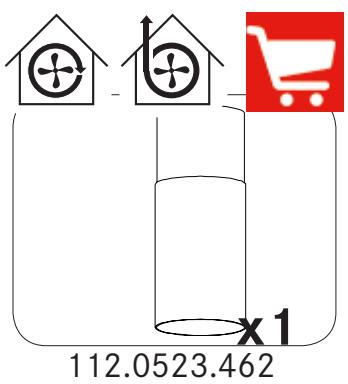

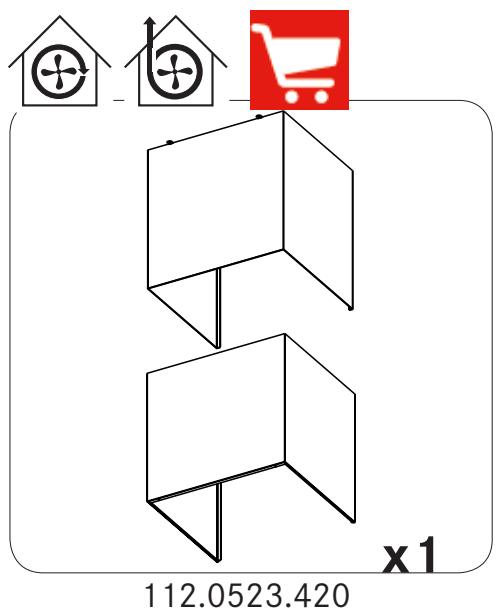

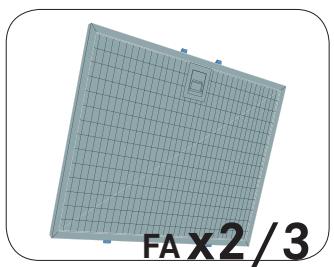

Composants, Components, Komponenten, Componenti, Componentes, Onderdelen P. 29 Shéma électrique, Electrical diagram, Stromlaufplan, Schema elettrico, Esquema eléctrico, Elektrisch schema P. 30 Dessin technique, Technical drawing, Technische Zeichnung, Disegno tecnico, Dibujo técnico, Technische tekening P. 31 Montage, Assembly, Montage, Montaggio, Montaje, Montage P. 34 Entretien, Maintenance, Instandhaltung, Manutenzione, Mantenimiento, Onderhoud P. 38 Commande, Controls, Bedienung, Comando, Mandos, Bediening, P. 42 Commande déportée, Remote controls, Hilfe bei der Diagnose, Comando deportato, Mando separado, Afstandsbediening P. -- Aide au diagnostic, Diagnostic aid, Zeichenerklärungen, Aiuto alla diagnostica, Ayuda a la diagnosis, Diagnosetabel P. 45 Légendes, Legends, Zeichenerklärungen, Legende, Leyendas, Legenda's P. 51

Version recyclage Recirculation version Umluftausführung Versione riciclo Versión recirculación Versie recirculatie

Version évacuation extérieure verticale Vertical exterior extraction version Vertikale Außenabluftausführung Versione evacuazione esterna e verticale Versión evacuación exterior vertical Versie verticale evacuatie naar buiten

Version évacuation extérieure horizontale Horizontal exterior extraction version Horizontale Außenabluftausführung Versione evacuazione esterna e orizzontale Versión evacuación exterior horizontal Versie horizontale evacuatie naar buiten

Version recyclage systeme «Clean-air» «Clean-air» system recirculation version Umluftausführung «Clean-air»-System Versione riciclo sistema «Clean-air» Versión sistema de recirculación «Clean-air» Versie “clean-air” recirculatie systeem

CET ÉQUIPEMENT EST CONFORME AUX NORMES SUIVANTES :

THIS EQUIPMENT IS COMPLIANT WITH THE FOLLOWING STANDARDS:

EN 60 335-1:2012+A11:2014, EN 60 335-2-31:2014, EN 62233:2008 + C1:2008, EN 61 000-3-2:2006 + A1/A2: 2009, EN

61 000-3-3:2008, EN 55 014-1:2006 + A1:2009 + A2:2011, EN 55 014-2:1997 + A1:2001 + A2:2008, EN 61591:1997/

A2:2011, EN 50564:2011, EN 50581:2012, 2014/35/CE relating to electrical safety, 2014/30/EC relating to electromagnetic compatibility, 2009/125/EC relating to ecodesign, 2011/65/EC relating to the limitation of the use of certain hazardous substances in electrical and electronic equipment and to the main requirements of European Directives 66/2014.

When the symbol of a crossed out wheelie bin is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Your product is designed and manufactured with materials and components of high quality that can be recycled and used again:

You should find out about the local system of separation of electrical and electronic waste,
You should act according to the local rules and not dispose of your used product with normal domestic waste,
Correct disposal of your old product will help prevent the potential negative consequences on the environment and human health.

This appliance must not be used by persons (including children) with diminished psychical, sensory or mental capacities, nor by persons not having the experience and knowledge of this type of appliance, unless they are under the control and the training of persons responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

ASSEMBLY RECOMMENDATIONS

Assembly and connection must be done by a qualified installer ^(1) .

Use suitable anchors for the support medium. Obtain information from the manufacturers; seal if necessary. The company disclaims any responsibility in case of faulty anchoring due to the hole or the anchor system.

The hood is equipped with a HO5VVF 3 x 0.75 mm ^2 power cable with a standard 10/16A plug with earth.

Mode of protection: class 1

Supply voltage: 220-240V single phase - 50/60Hz.

Check that the mains voltage is the same as the values indicated on the manufacturer's plate on the inside of the hood.

If the hood is connected directly to the mains (without a plug), an all-pole circuit breaker switch with a contact opening of 3 mm must be installed before the hood. The earth wire (yellow and green) must not be broken by this switch.

• Respect the diameter of the appliance output: the hood must not in any circumstances be connected to a controlled mechanical ventilation duct.
• If it releases the stale air into an outlet duct, it is essential to ensure that the latter is not already used to carry gas or smoke from appliances powered by energy other than electricity.
• Position the cooking surface as close as possible to the outlet and avoid the formation of elbows in the duct, to reduce pressure loss to the minimum.
• When installing situations, make sure that the air renewal in the kitchen is satisfactory. Be sure to create one or more air inlets with a section greater than or equal to the diameter of the outlet pipe in order not to create a vacuum in the kitchen.
• Make sure there is sufficient ventilation if a cooking or other appliance uses the ambient air of the room where the hood is installed at the same time.
• The maximum vacuum created in the room should be less than 0.04 mbar; this prevents return of the combustion gases.

• The appliance must be positioned in such a way that the power plug is accessible.

• Preferably use a low suction speed; only use the high speed if it is really necessary.

• A well ventilated kitchen makes hood operation more efficient.
• Clean the anti-grease filters regularly to maintain their efficiency.
• A saturated filter is not efficient and cannot be used for long.

RECOMENDATIONS FOR USE

NEVER FLAME DISHES UNDER THE APPLIANCE

Never leave open flames under the hood while it is operating.

Fried foods require a permanent monitoring, overheated oil may catch fire.

The accessible parts of the hood may become hot when it is used with cooking appliances.

To obtain maximum efficiency in the absorption of smoke or fumes, run the hood for approximately 5 minutes before and after cooking food:

• low speeds are recommended when cooking on a low heat and for sauces, simmering, etc.
  • intermediate speeds are recommended for fast cooking, and fried or grilled foods.
  • high speeds are recommended for cooking that creates a lot of fat or vapour.
  • the extra fast speed is recommended in cases of sudden excessive release of vapours and fumes.

Avoid fire risk by cleaning the hood according to the maintenance instructions :

Turn the hood off before any maintenance operation or electrical work. Wear gloves.

• Clean the bodywork regularly using non-abrasive detergent products and a slightly damp sponge.
  • To renovate external stainless steel parts (at intervals of one year minimum), it is preferable to use the product ref. 112.0172.941
  • Never use soaked sponges or rags..
• Do not insert any object, or your hands, into the opening serving for the extraction of the air.

- Clean the inside of the extraction body once per year.

- Check the flow of stale air every 6 months.

- Observe local regulatory requirements covering the extraction of stale air.

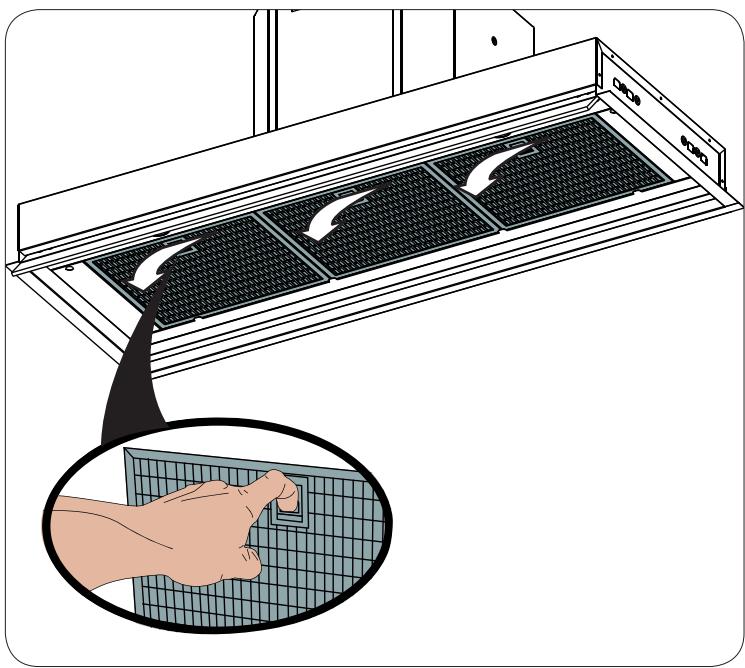

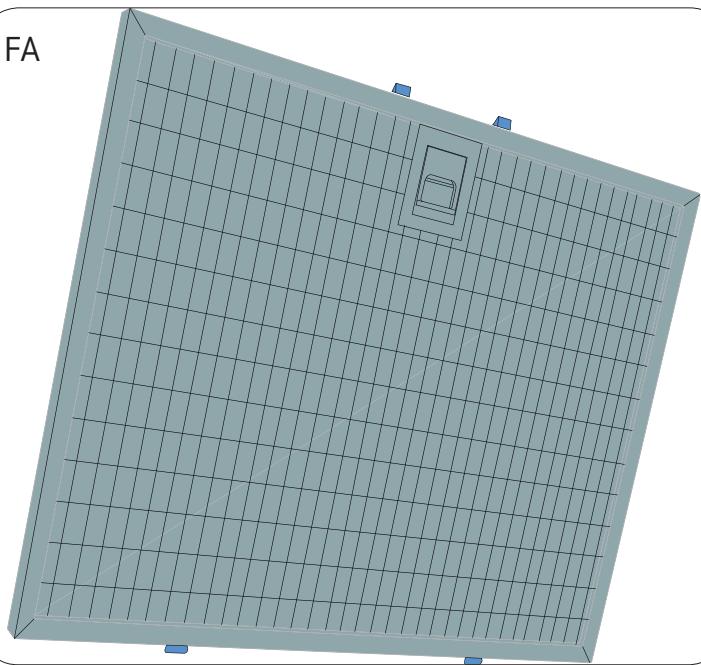

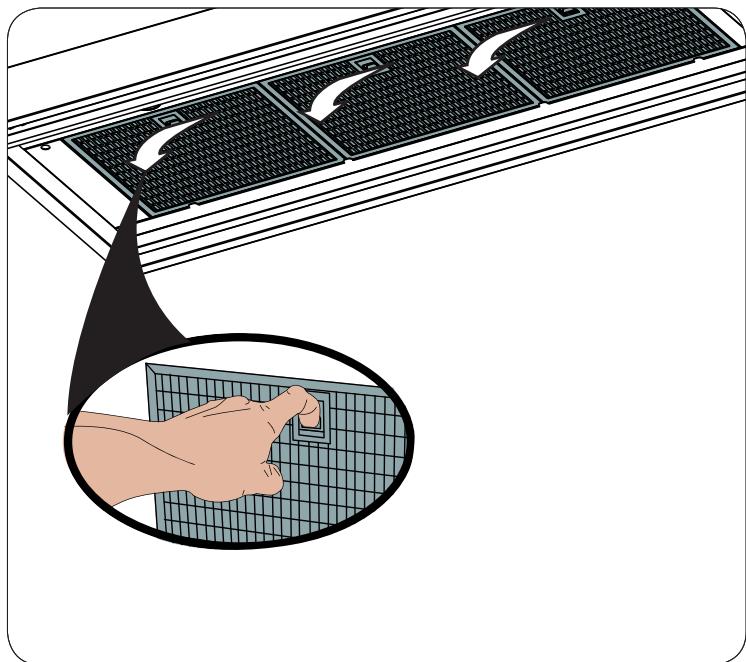

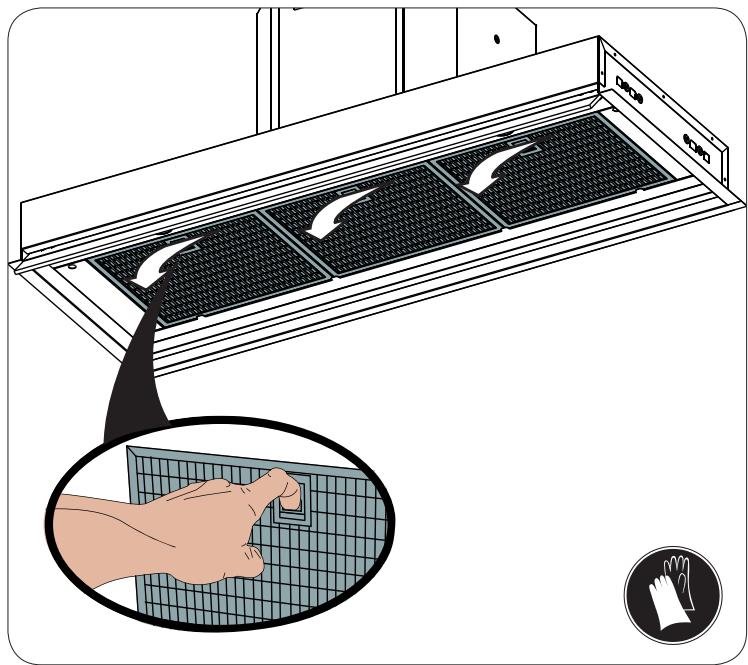

- It is essential to clean anti-grease filters in a dishwasher at a maximum temperature of 50^ C, once per month or according to the indications on the order (see order page). Allow the filters to dry in the open air. These filters have a service life of 10 years.

• If your hood is equipped with washable anti-odour filters ^(3) , they must be cleaned in a dishwasher at high temperature (without other kitchen utensils) every 2 months and dried by the dishwasher or in the open air for approximately 30 minutes.
• Once washed and dried, reactivate the washable anti-odour filters by placing them in an oven for 10 minutes at 100^ maximum. Cleaning of the washable anti-odour filters should systematically be accompanied by cleaning of the anti-fat filters.

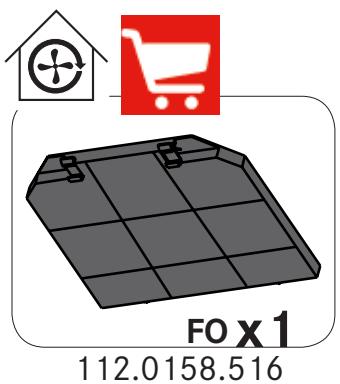

• Active charcoal ^(3) anti-odour filters need replacement at least every 3 months, or more often if the hood is used more than 3 hours per day. Or according to the indications of the order (see the order page). Replacement of the active charcoal anti-odour filters should systematically be accompanied by cleaning of the anti-fat filters.

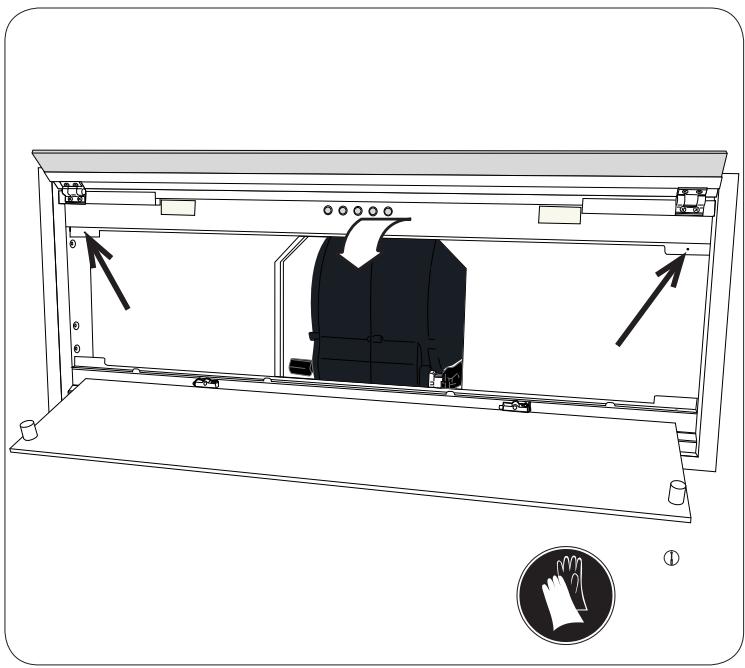

CLEAN-R

• The ultraviolet bulbs have a life expectancy of approximately 6000 hours. The life cycle of the clean-air filters (catalysts) follows that of the ultraviolet lamps.
• The replacement of an ultraviolet bulb (every 3 years) should systematically be accompanied by the replacement of the associated clean air filter.

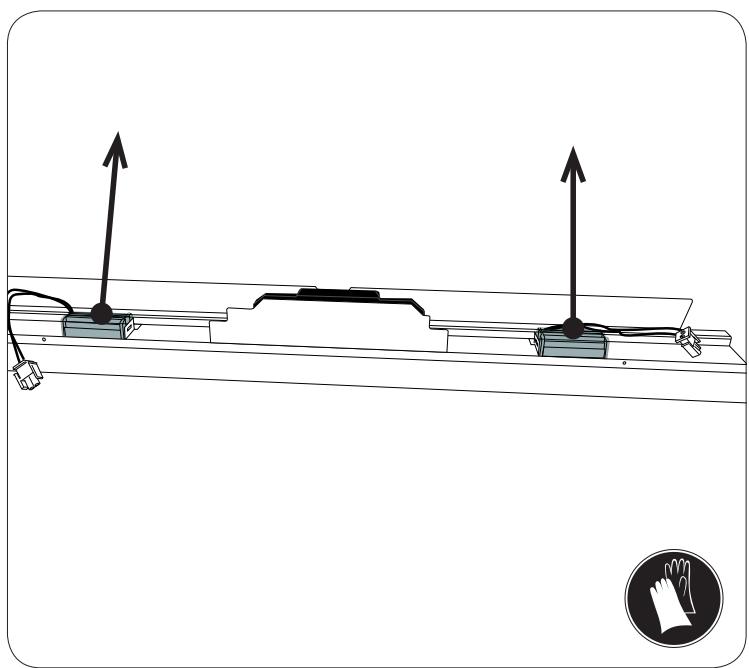

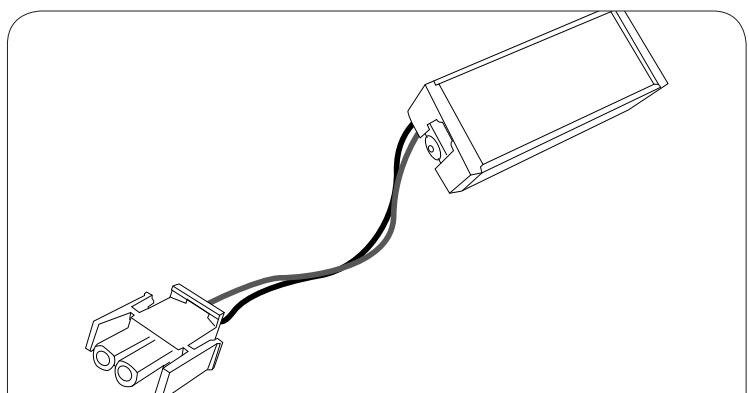

- The replacement of faulty LEDs should only be done by a certified professional specialist.

WARRANTY AND AFTER-SALES SERVICE

IF AN ELECTRIC COMPONENT IS DAMAGED IT CAN ONLY BE REPLACED BY A REPAIR SHOP APPROVED BY THE MANUFACTURER BECAUSE SPECIAL TOOLS ARE REQUIRED.

• In the event of faulty operation notify your installer who will check the appliance and its connection.
- Disconnect the appliance completely.
- Always require the use of genuine spare parts (non-compliance with this requirement can compromise the safety of the appliance).
- When ordering spare parts, quote the serial number of the appliance (see on the page opposite) on the plate located inside the hood.
- Only the purchase invoice of the appliance can serve as proof for the implementation of the contractual warranty (this warranty does not cover consumables such as: lighting, filters, LEDs, etc.).

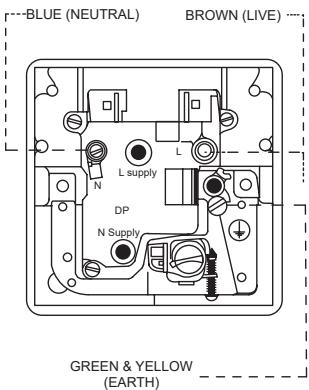

UK ELECTRICAL CONNECTION - ELECTRICAL REQUIREMENTS

Any permanent electrical installation must comply with the lastet I.E.E Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contactor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating inside the cooker hood.

This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply

via a double-pole switch having 3mm minimum contact gap on each pole. A switched Fuse Connection Unit to BS.1363 Part 4, fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure compliance with the Safety Requirements applicable to fixed wiring instructions.

The wires in this mains lead are coloured in accordance with the following code :

Green & yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit, proceed as follows :

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red.

BEFORE FITTING

Copy and keep the references below

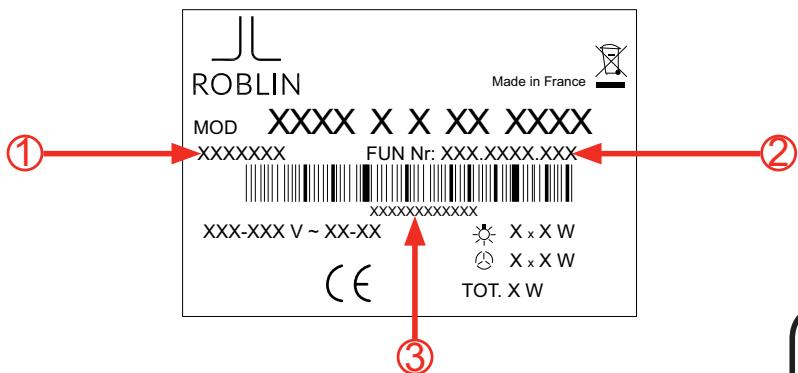

Check the label affixed to the body of the hood, inside, behind the filters. The information on this label is necessary for the After Sales Service assistance contact to provide technical assistance.

Assistance contact. Service Department: 04.88.78.59.93.

INFORMATION TO BE GIVEN TO THE SERVICE DEPT IN CASE OF NEED.

Simple geometric diagram of a triangle inside a rectangle (no text or symbols)

GLUE A COPY OF THE LABEL HERE

DE

Simple geometric diagram of a triangle inside a rectangle (no text or symbols)

INCOLLARE QUI IL DUPLICATO DELL'ETICHETTA SEGNALETICA

Simple geometric diagram of a triangle with two diagonal lines, no text or symbols present

ESTE EQUIPO ES CONFORME A LAS NORMAS SIGUIENTES:

Simple geometric diagram of a triangle inside a rectangle (no text or symbols)

PEGAR AQUIUNA COPIA DE LA PLACA DE CARACTERÍSTICAS

Simple geometric diagram of a triangle with two diagonal lines, no text or symbols present

Simple geometric diagram of a triangle inside a rectangle (no text or symbols)

PLAK HIER HET DUPLICAAT VAN HET IDENTIFICATIEPLAATJE

Simple geometric diagram of a triangle with two diagonal lines, no text or symbols present

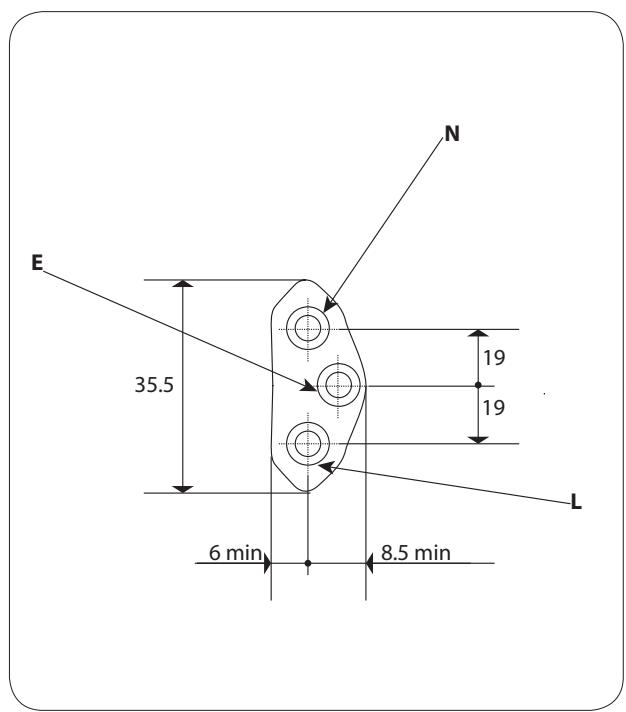

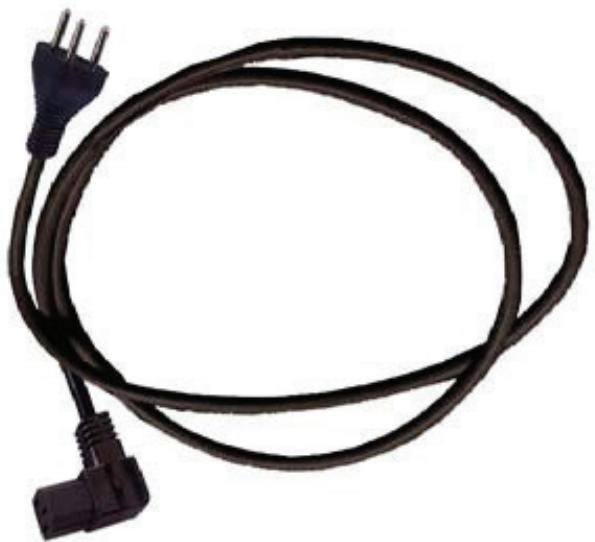

SEV 1011, SN416534-2, CH-Typ 12

Coiled black electrical plug with three terminal pins, isolated on white background (no text or symbols)

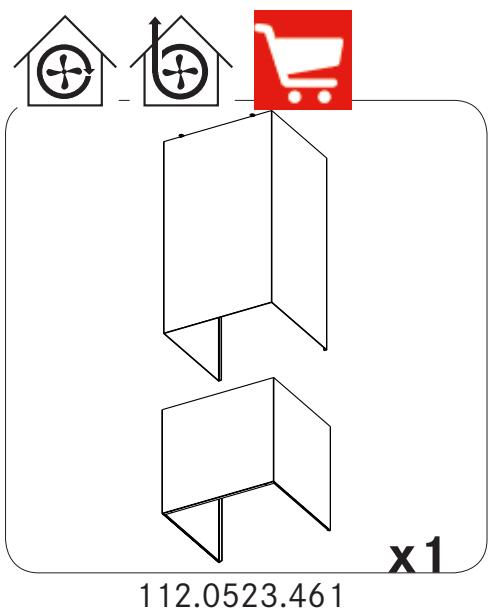

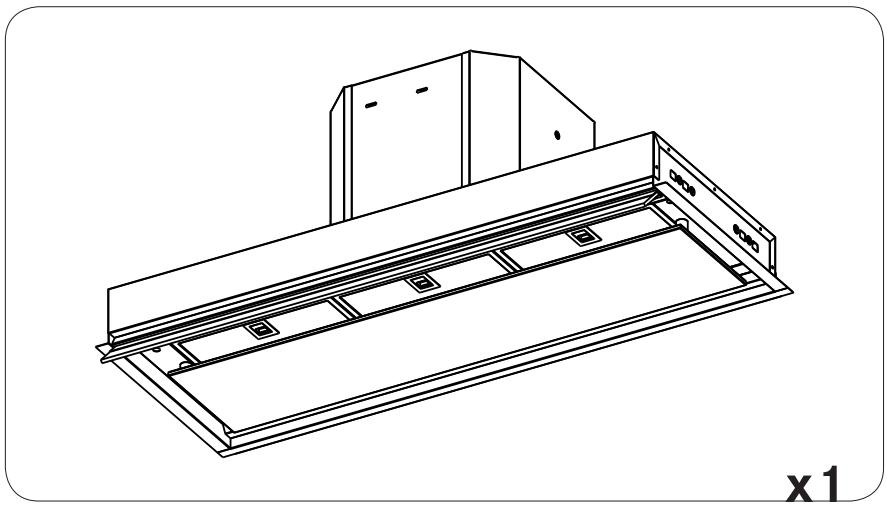

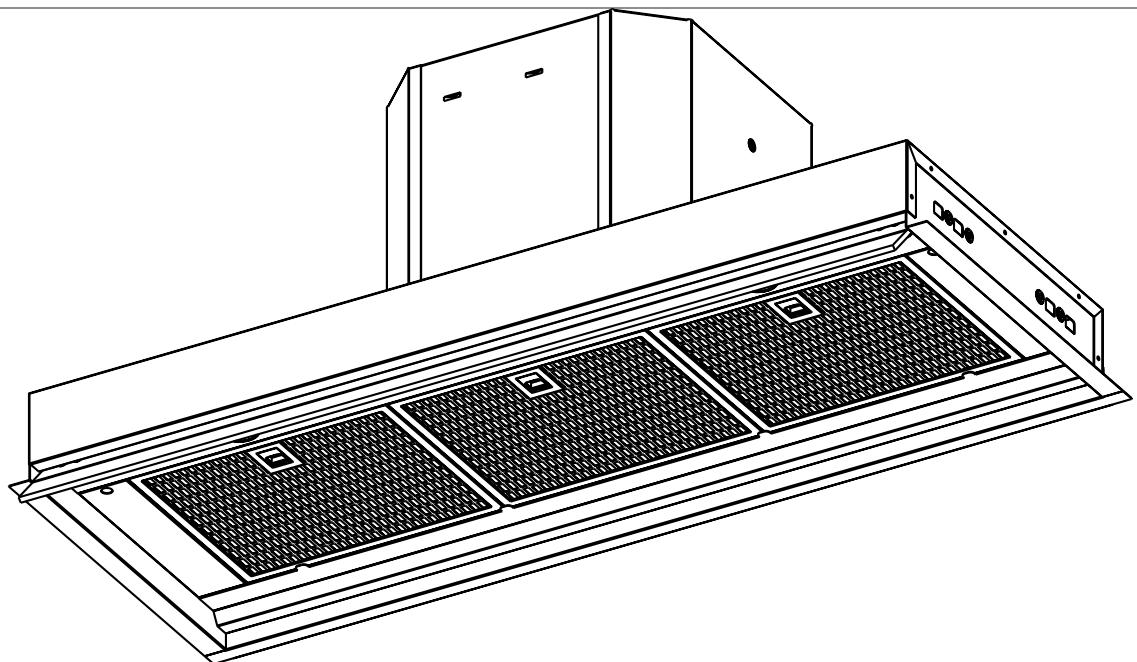

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

x1

Line drawing of a screw with threaded shaft and flanged end (no text or symbols)

3D model of a grid-patterned panel or panel with no visible text or symbols, labeled 'FA X2/3' at bottom (no other text or symbols)

Two semi-circular metal or ceramic flange components with mounting holes, labeled 'x1' (no text or symbols on the flange itself)

ROBLIN

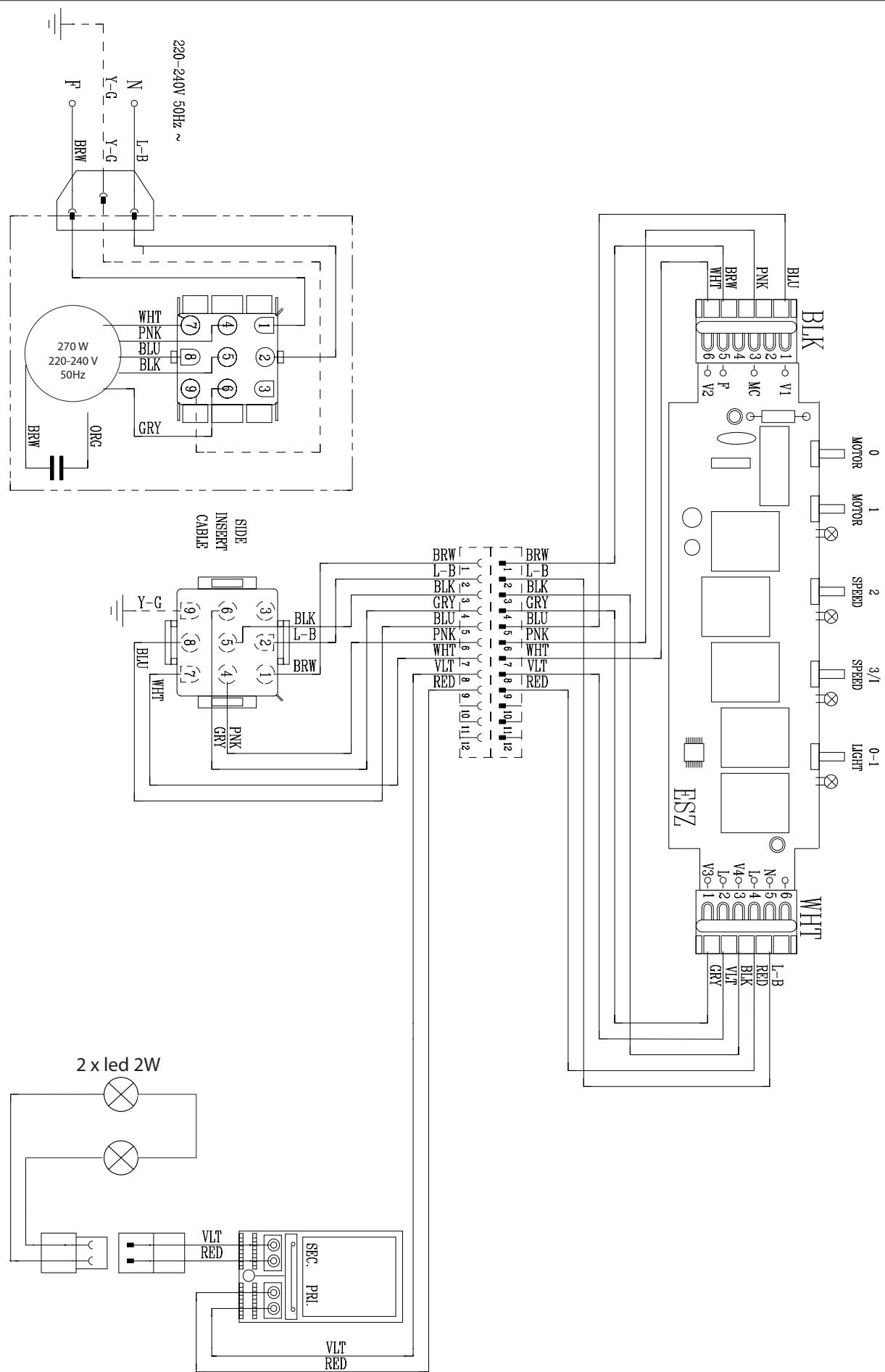

schéma électrique - electrical diagram - Stromlaufplan - Schema elettrico - esquema eléctrico - Elektrisch schema

A : azur, azur, azur blau / BK : black, noir, schwarz / B : blue, bleu, blau / Br : brown, brun, braun / G-Y : green-yellow, vert-jaune, grün-gelb / Gr : grey, gris, grau / LB : light blue, bleu clair, hell blau / P : pink, rose, rosa / V : purple, mauve, malver farbig / R : red, rouge, rot / W : white, blanc, weiss / W-P : white-pink, blanc-rose, weiss-rosa / Y : yellow, jaune, gelb

ROBLIN

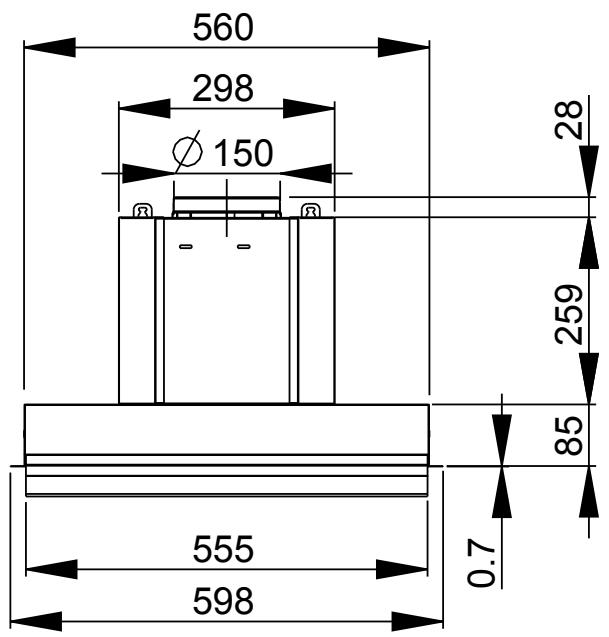

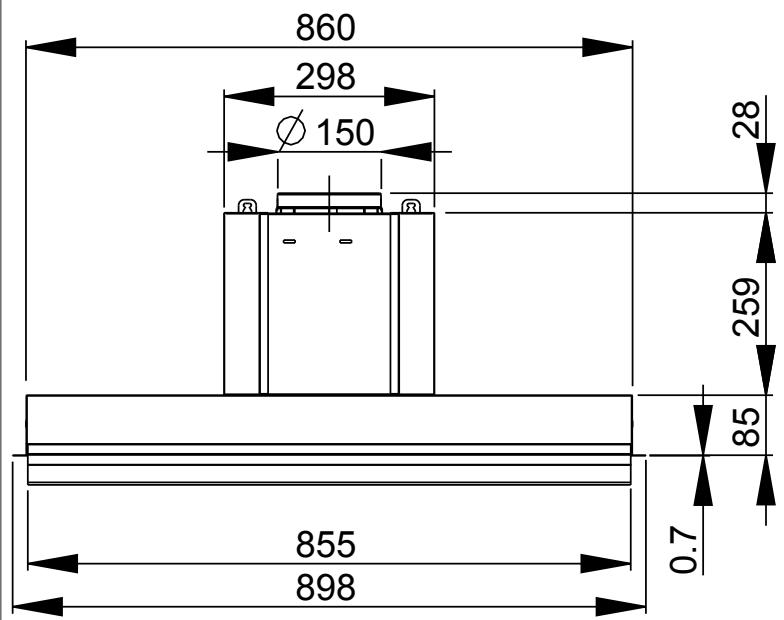

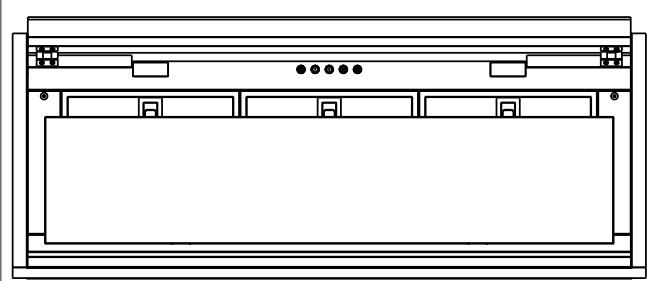

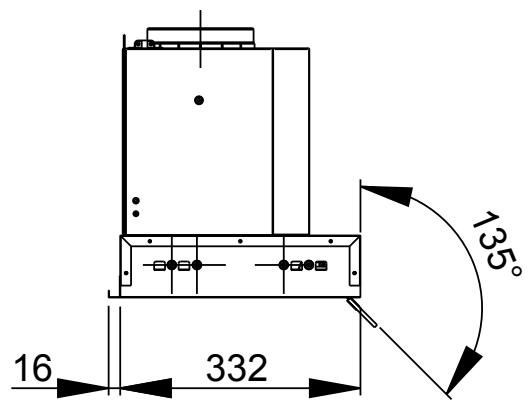

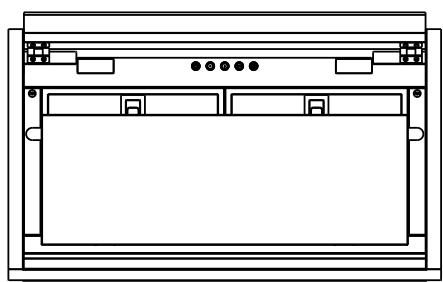

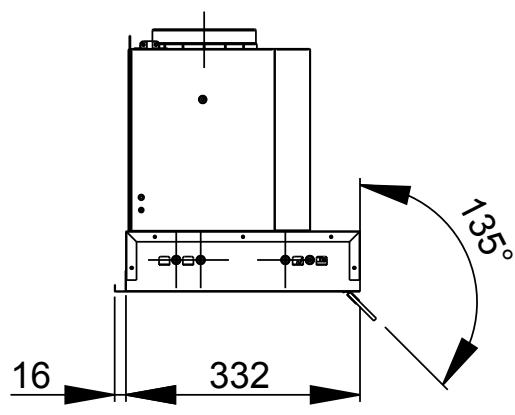

dessin technique - technical drawing - Technische Zeichnung - Disegno tecnico - plano técnico - Technische tekening

Technical line drawing of a rectangular electronic device with mounting brackets and internal compartments (no text or symbols)

ROBLIN

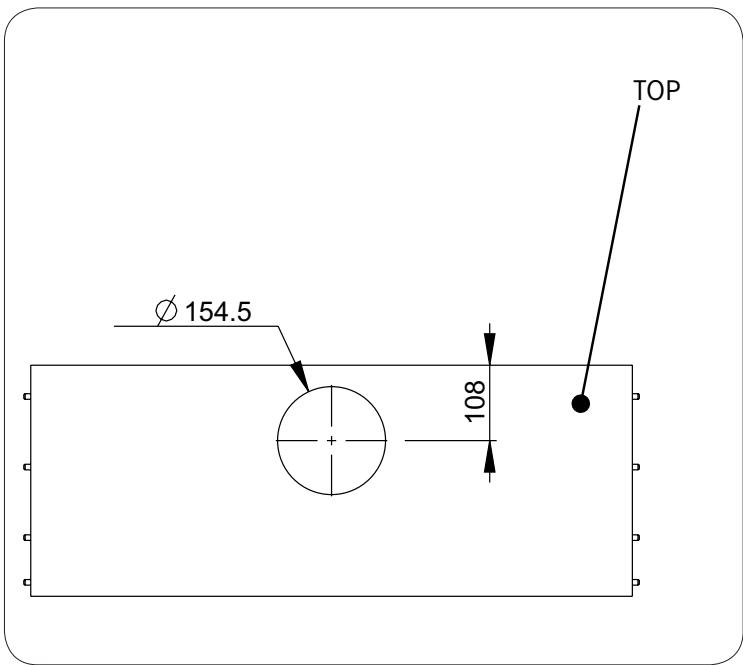

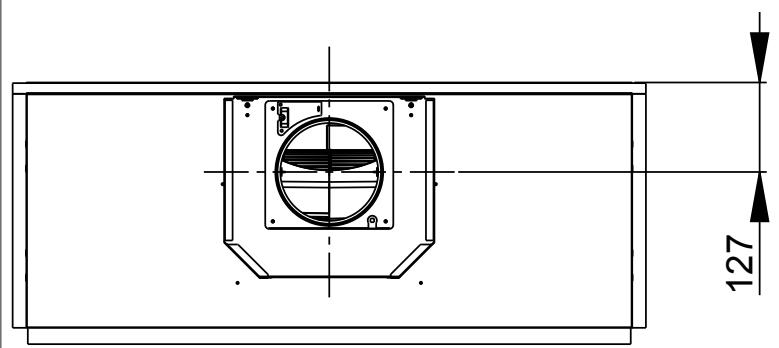

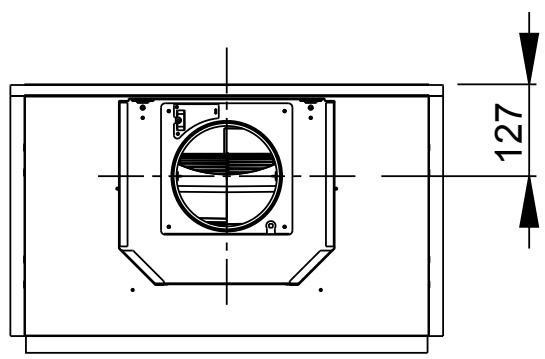

dessin technique - technical drawing - Technische Zeichnung - Disegno tecnico - plano técnico - Technische tekening

Pure technical line drawing of a rectangular enclosure or enclosure frame with no text, numbers, or symbols

ROBLIN

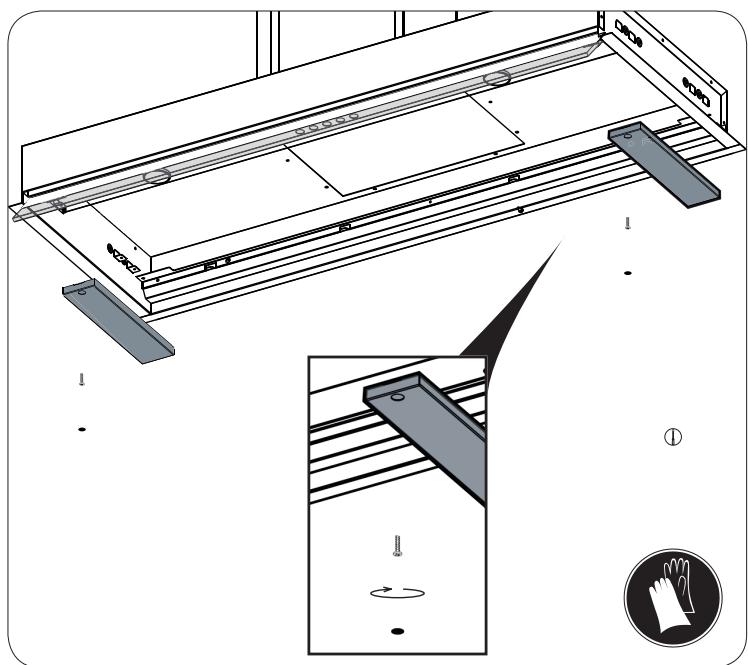

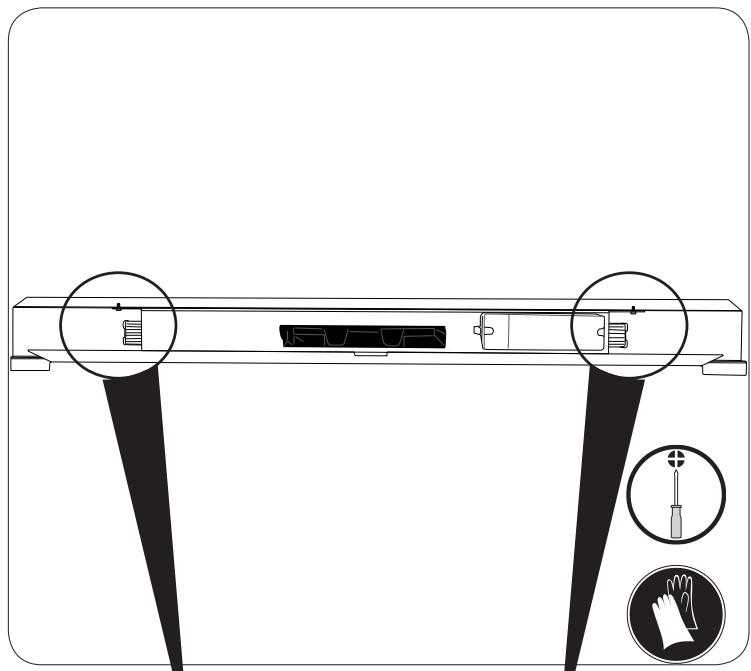

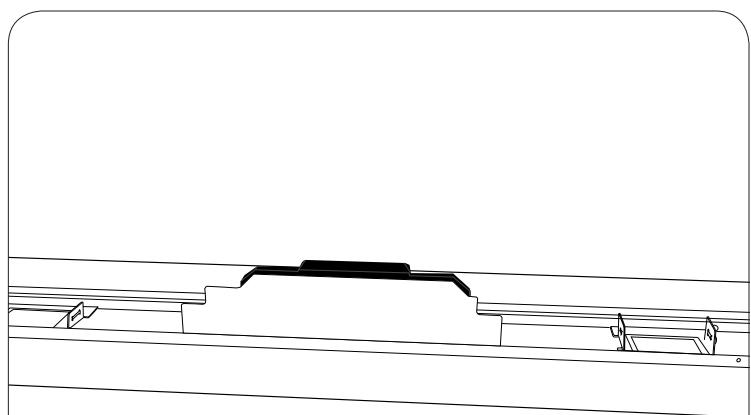

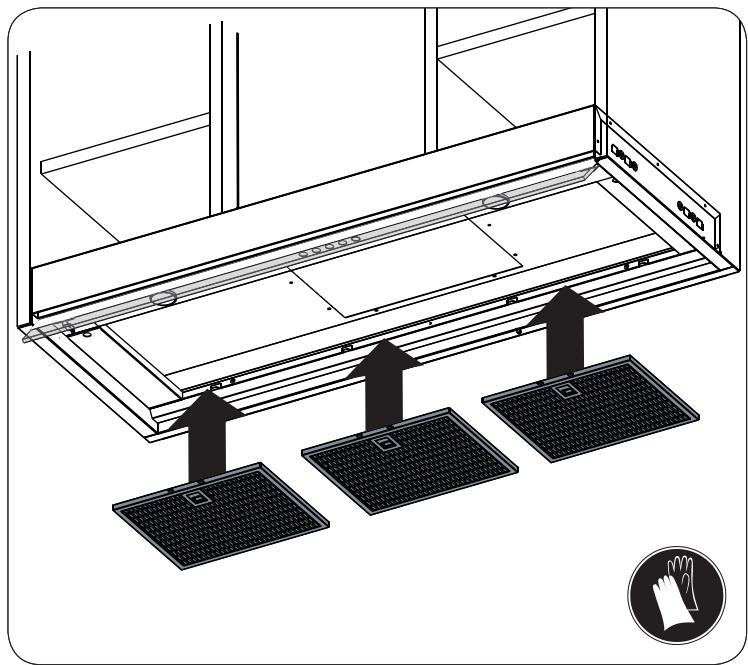

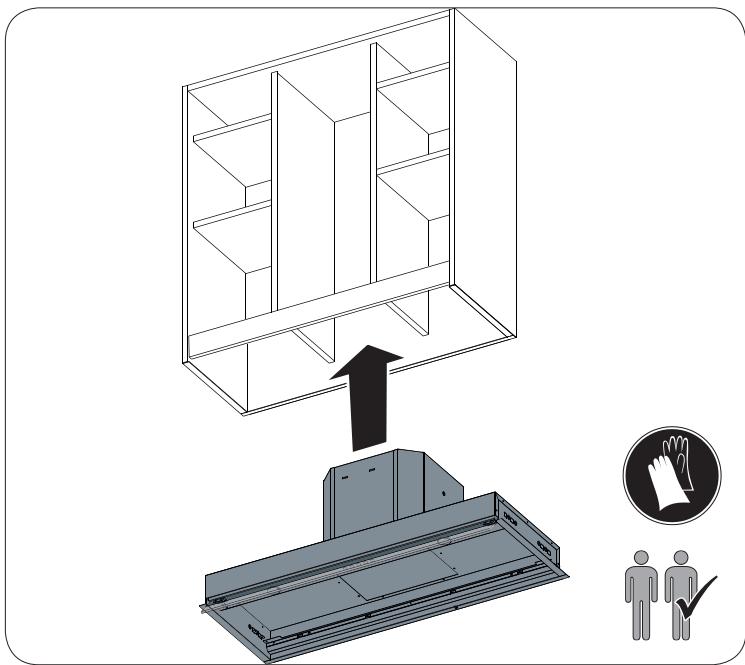

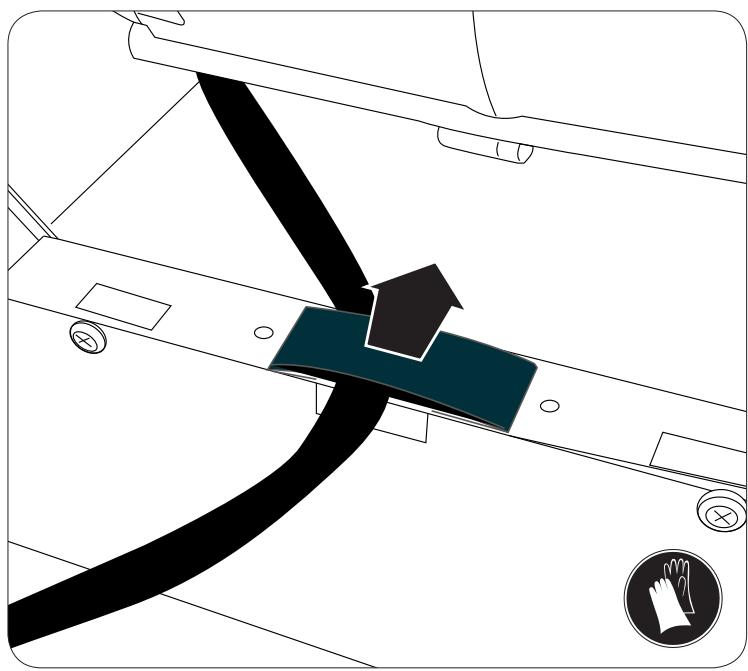

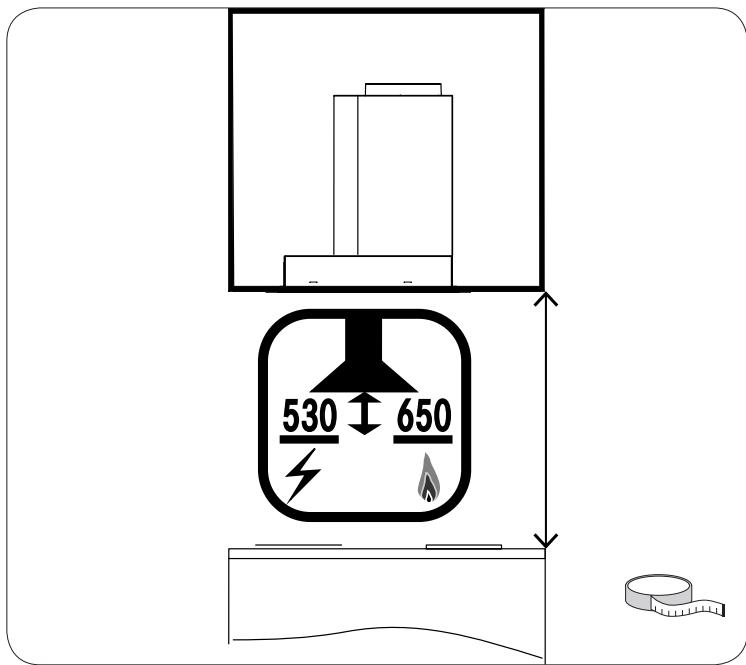

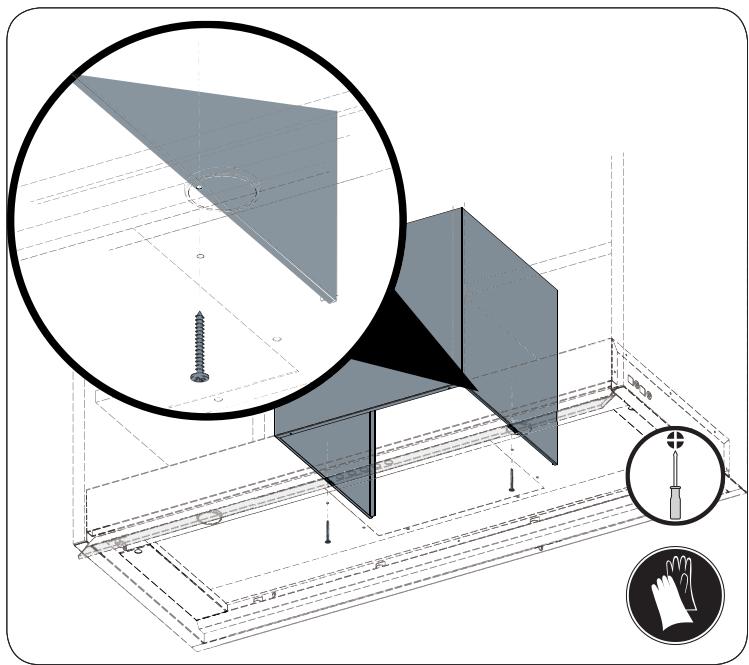

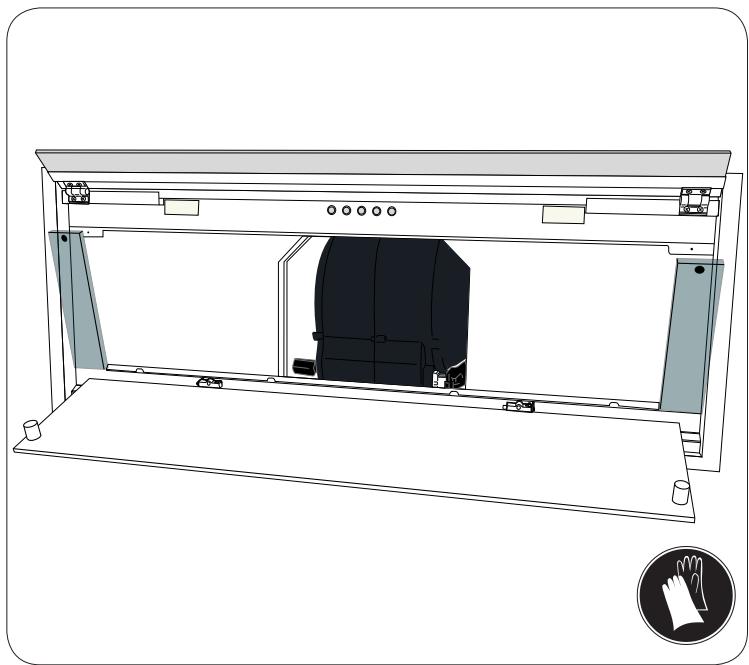

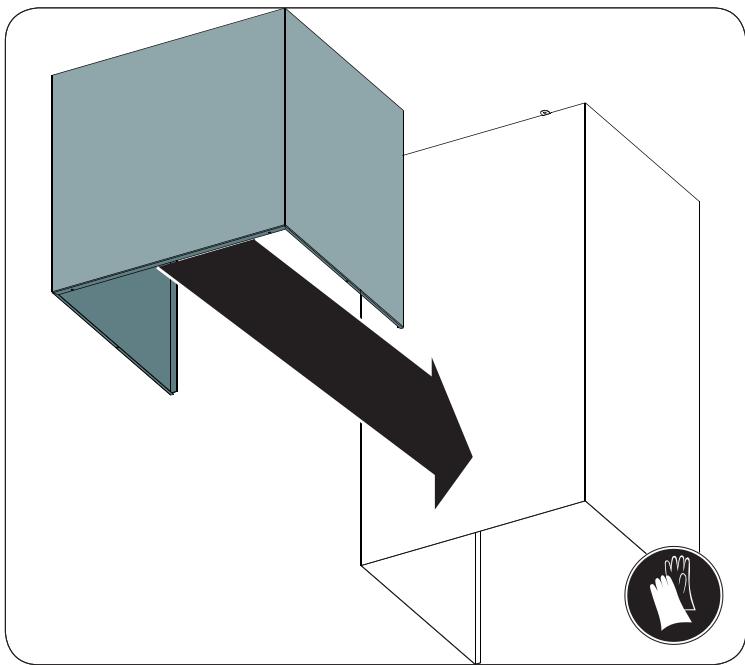

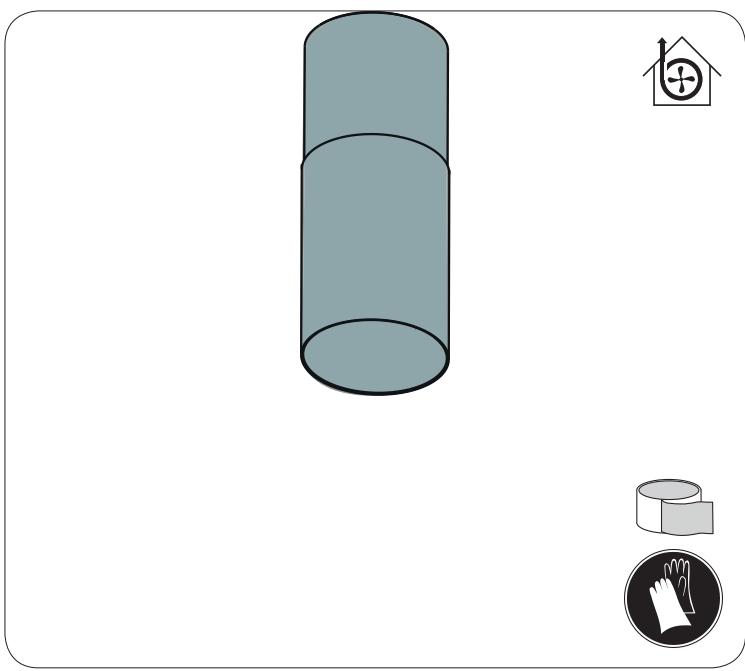

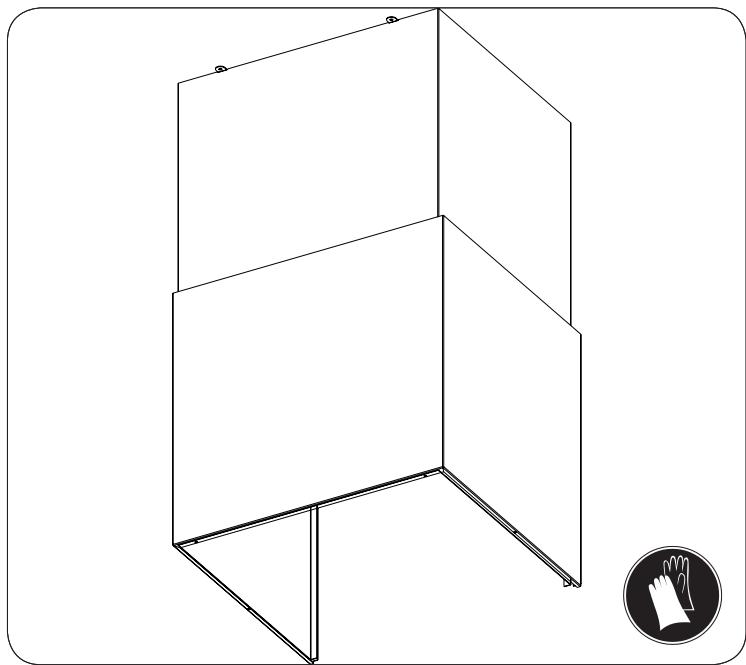

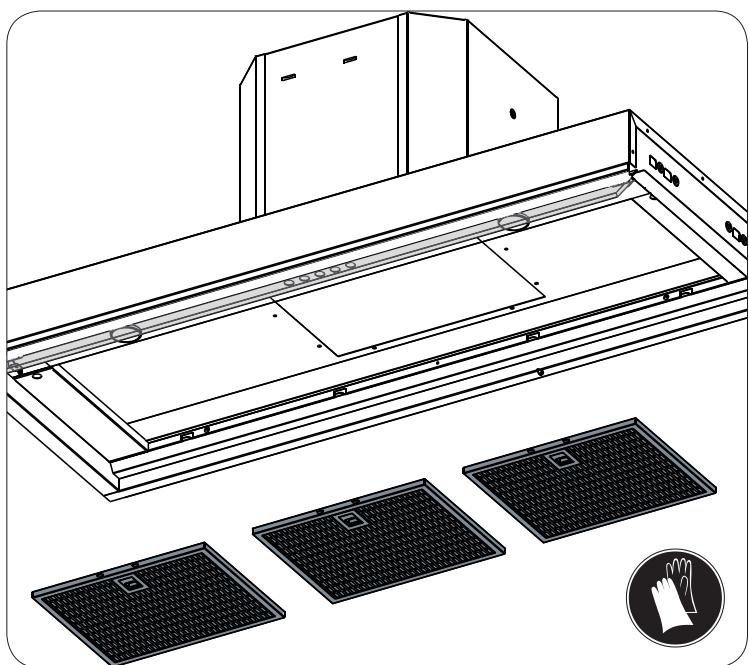

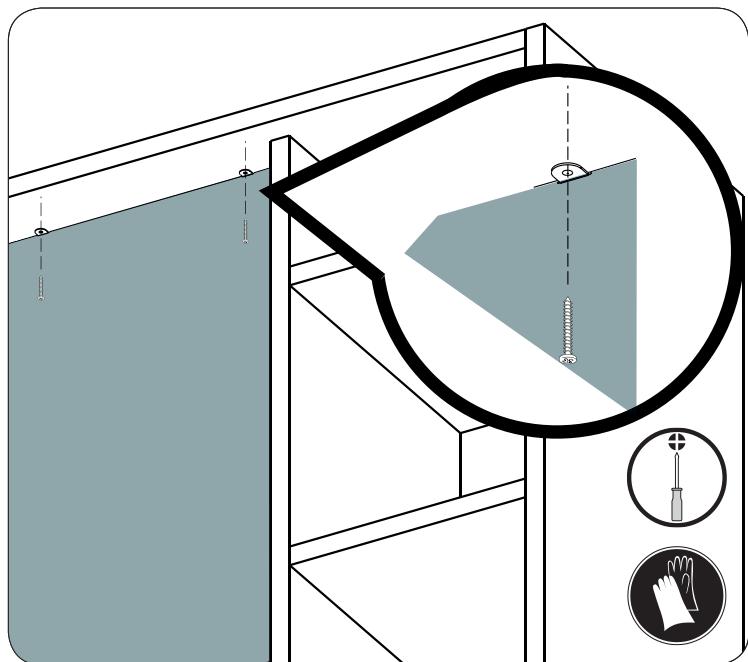

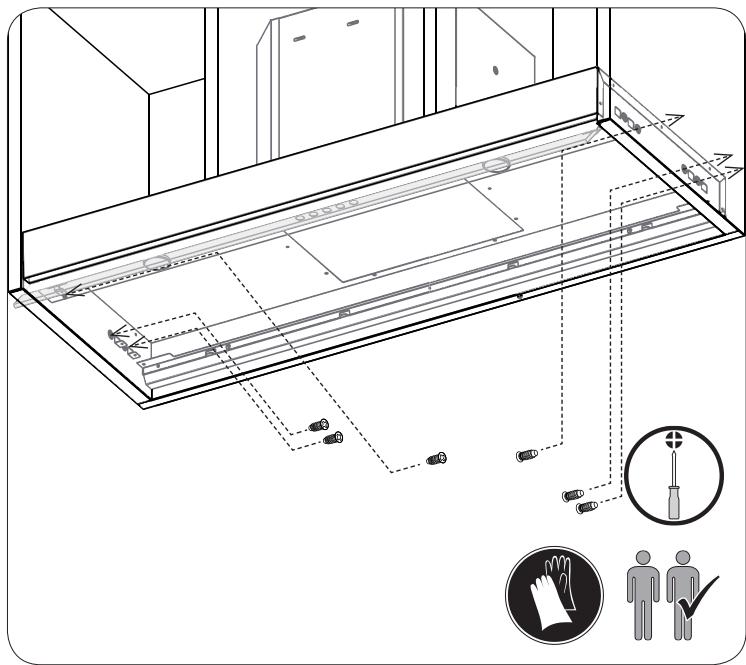

montage - fitting - Montage - montaggio - montaje - Montage

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of an electrical enclosure with three doors and mounting fixtures (no text or symbols)

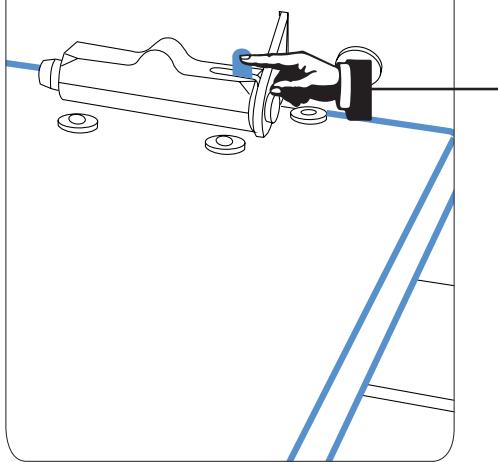

Line drawing of a hand using a tool to clean or install a cylindrical component on a flat surface (no text or symbols)

Technical line drawing of a multi-level industrial ventilation duct with heat sinks and mounting brackets (no text or symbols)

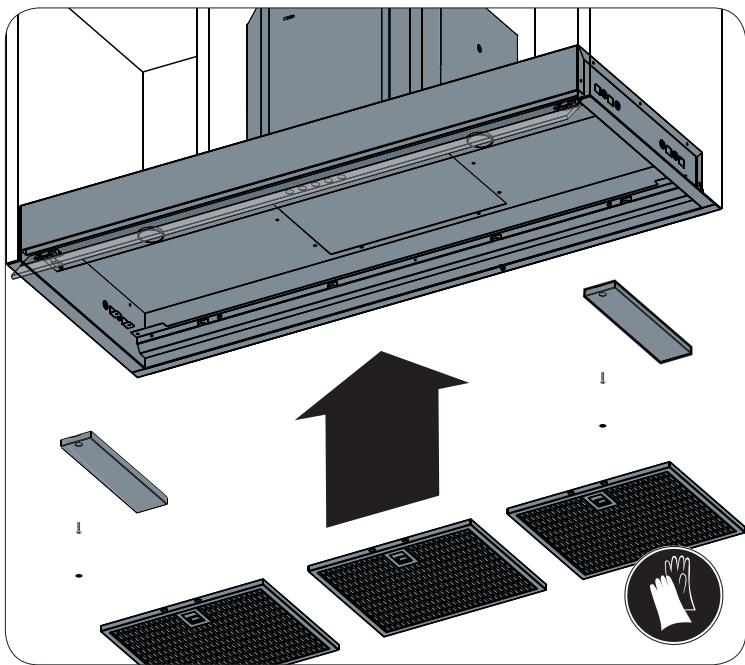

ROBLIN

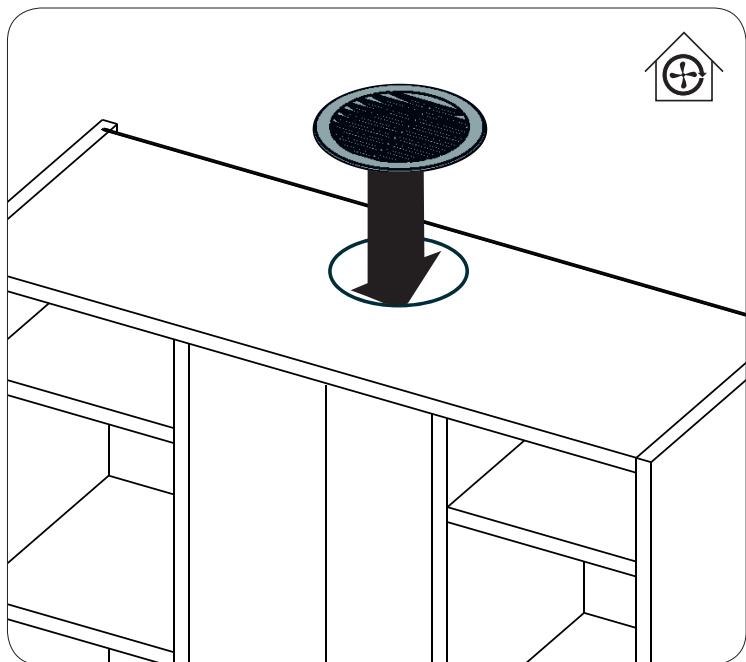

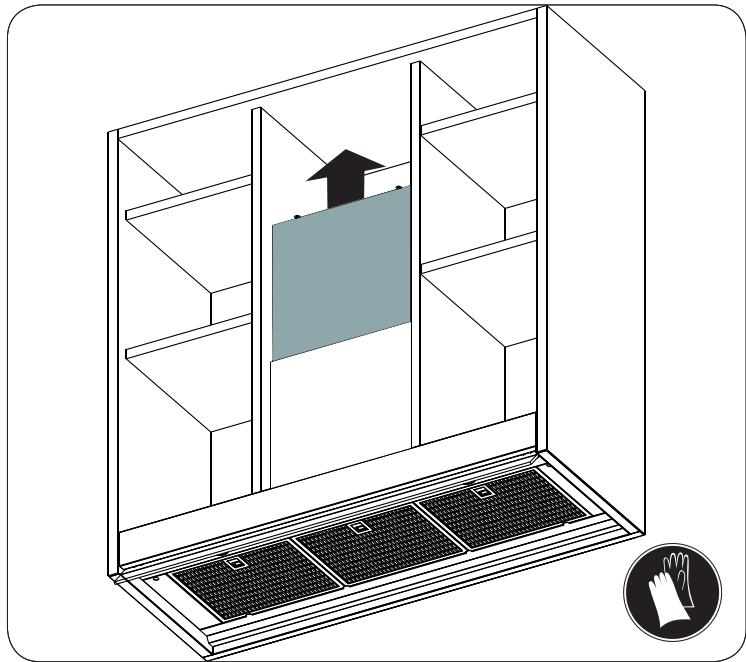

montage - fitting - Montage - montaggio - montaje - Montage

Technical line drawing of a ceiling-mounted air duct with multiple panels and ventilation slots (no text or symbols)

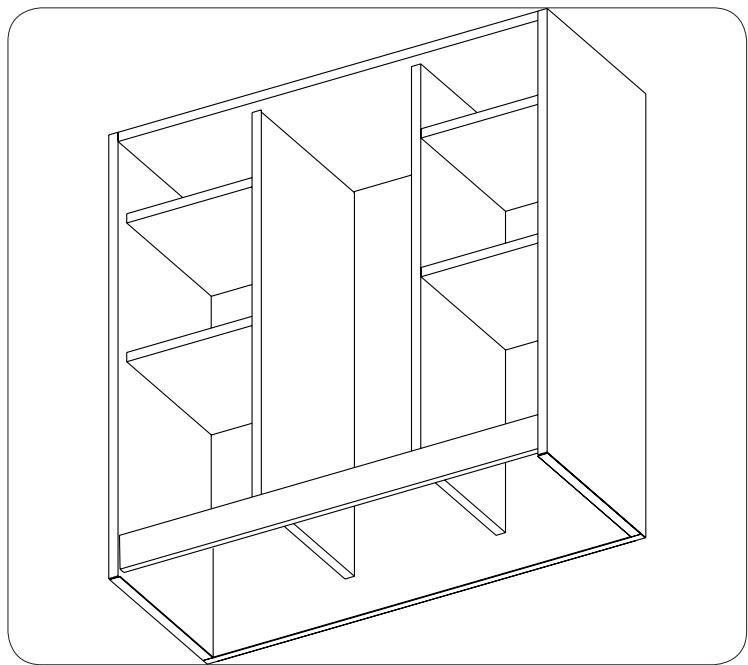

Line drawing of a multi-level shelving unit with shelves and legs (no text or symbols)

Illustration of a hand inserting a component into a grid-patterned rack (no text or symbols)

Technical line drawing of a modular electronic device with three labeled panels and mounting brackets (no text or symbols)

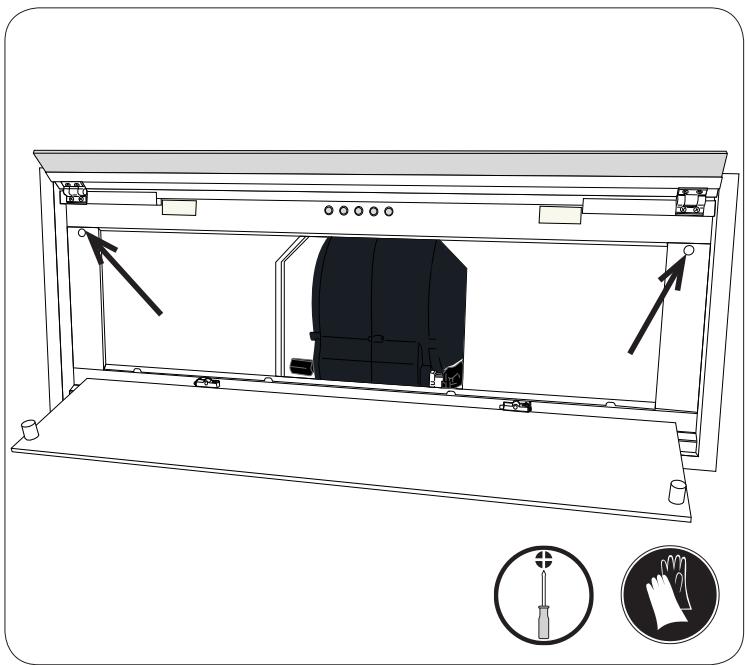

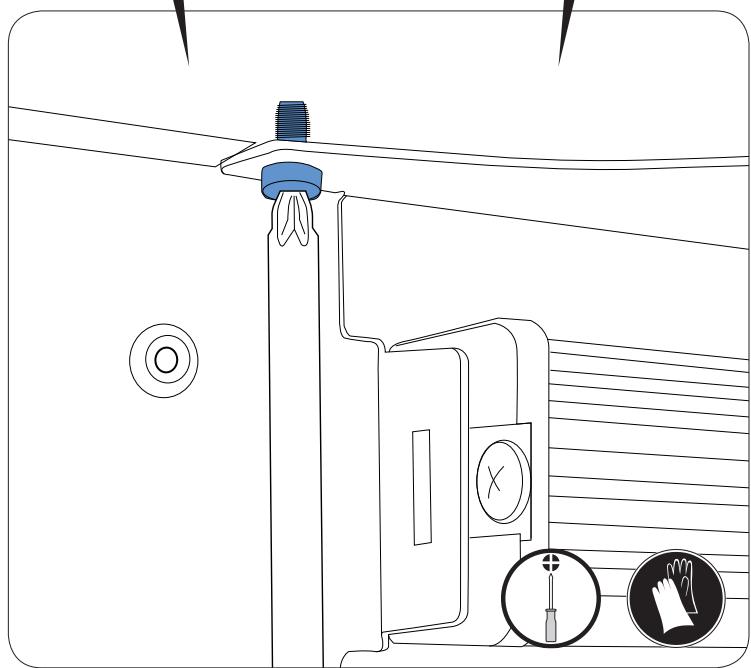

ROBLIN

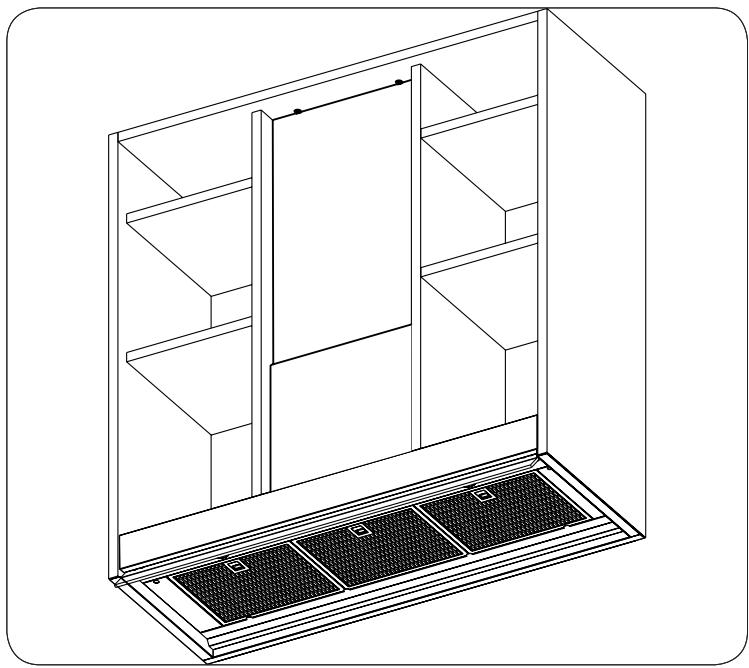

montage - fitting - Montage - montaggio - montaje - Montage

Illustration of a server rack with open panel and multiple screens, showing assembly and mounting features (no text or symbols)

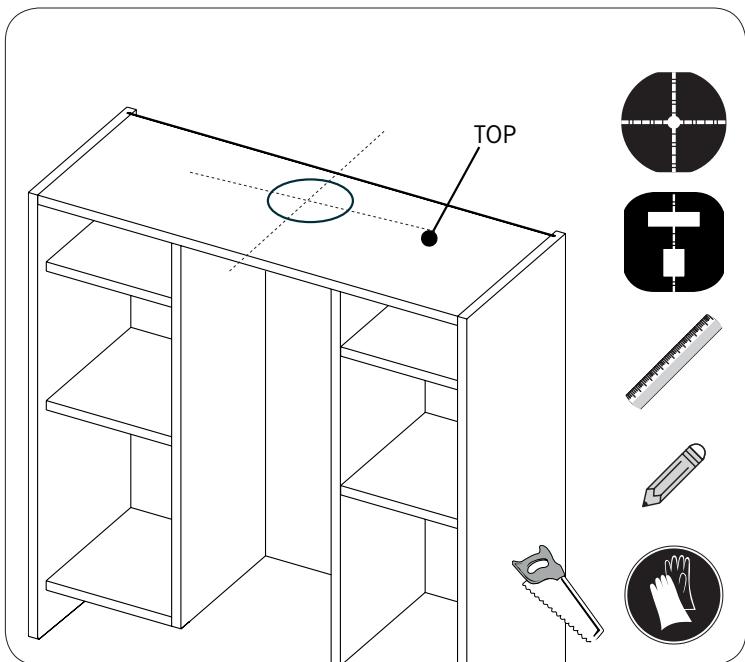

Isometric line drawing of a cabinet with a circular component on top, no text or symbols present

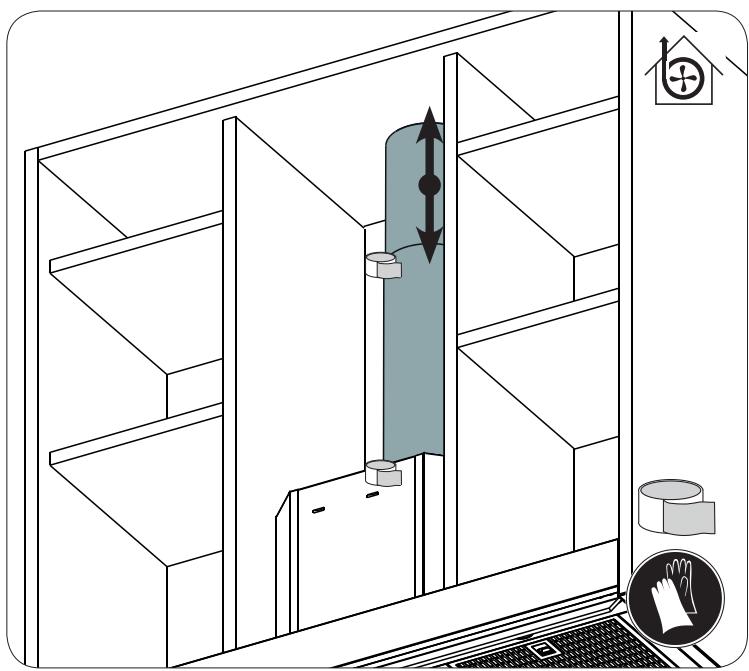

ROBLIN

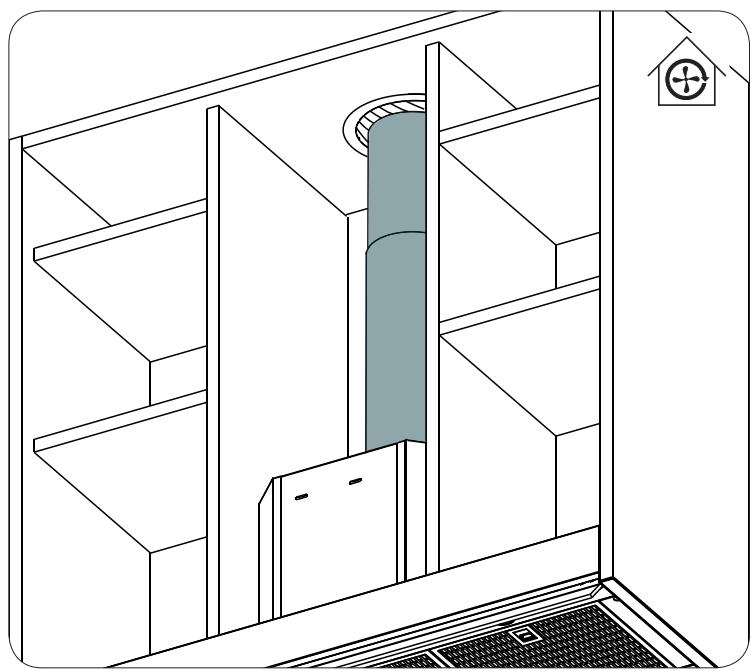

montage - fitting - Montage - montaggio - montaje - Montage

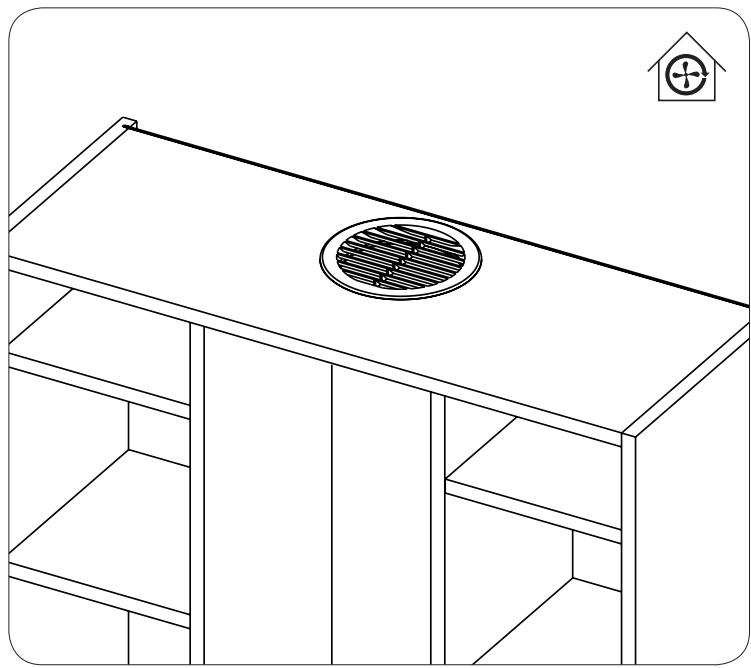

Line drawing of a cabinet with a circular vent on top, no text or symbols present

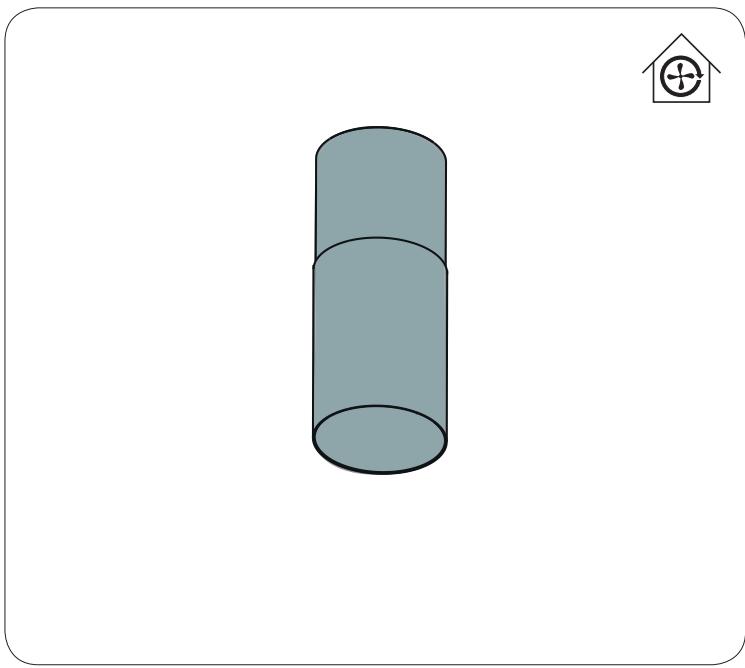

Simple 3D illustration of a cylinder with a house icon on the top right corner (no text or symbols on the cylinder itself)

Architectural line drawing of a multi-level storage cabinet with a central vertical cylinder and a wall-mounted base (no text or symbols)

Simple 3D diagram showing a cylinder and two icons: a house with plus sign and a hand holding a glove (no text or symbols on the cylinder itself)

Diagram of a cabinet interior with shelves, a vertical cylinder, and a door handle (no text or symbols)

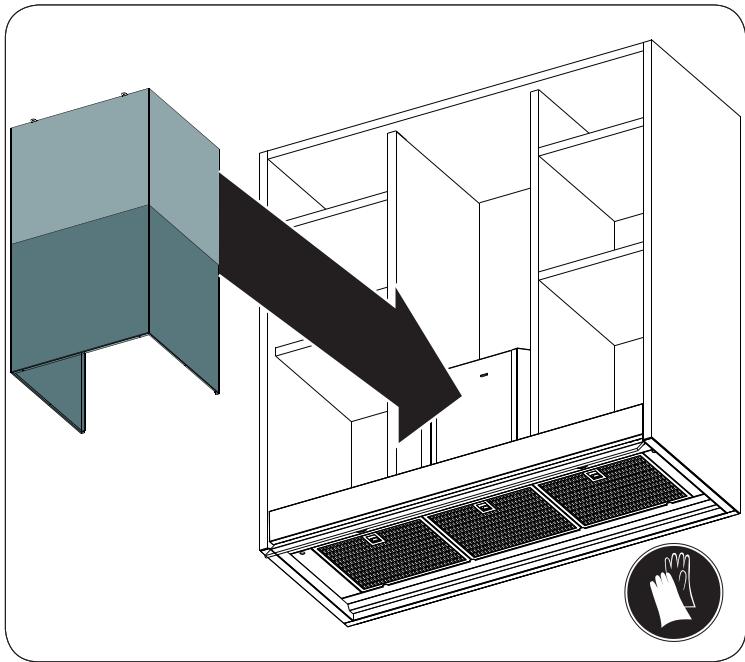

ROBLIN

montage - fitting - Montage - montaggio - montaje - Montage

Diagram showing a 3D object with a black arrow pointing downward, enclosed in a wireframe cube (no text or symbols)

Line drawing of a 3D geometric structure with a circular icon showing a gloves (no text or symbols)

Diagram showing a 3D cabinet with a black arrow pointing to a storage tray, no text or symbols present.

Diagram of a storage cabinet with heat exchanger and cooling panel (no text or symbols)

Illustration of a person adjusting a grid-patterned panel with a magnified inset showing the device (no text or symbols)

ROBLIN

montage - fitting - Montage - montaggio - montaje - Montage

Technical diagram of a mechanical assembly with orthographic views and labeled components (no readable text or symbols)

Isometric line drawing of a multi-level storage cabinet with shelves and a base panel (no text or symbols)

ROBLIN

entretien - maintenance - Instandhaltung - manutenzione - mantenimiento - Onderhoud

Illustration of a hand inserting a component into a grid-patterned device (no text or symbols)

FA

3D wireframe model of a rectangular panel with grid lines and a small inset component (no text or symbols)

FO: 112.0158.516 or 112.0375.445

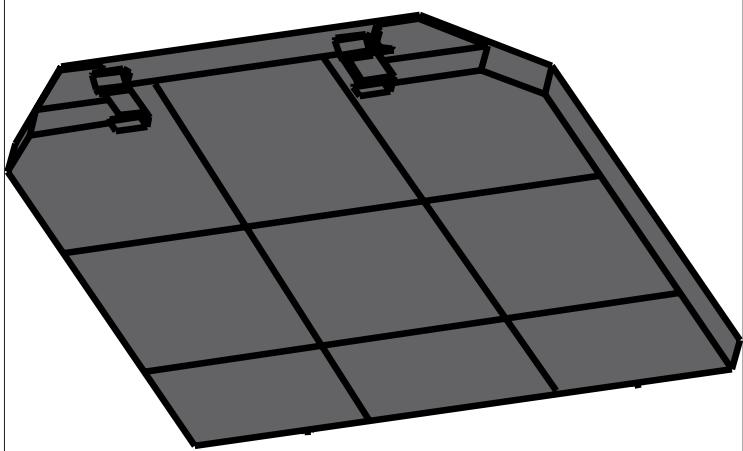

3D rendering of a gray rectangular metal tray or shelf with grid pattern and two side clips (no text or symbols)

ROBLIN

entretien - maintenance - Instandhaltung - manutenzione - mantenimiento - Onderhoud

Technical line drawing of a ceiling-mounted air duct with internal panels and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with labeled components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a curved road with directional arrows and a hand icon, no readable text or symbols present.

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

ROBLIN

entretien - maintenance - Instandhaltung - manutenzione - mantenimiento - Onderhoud

Diagram of a computer monitor with labeled parts and icons (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical assembly with two upward-pointing arrows and a circular icon (no text or symbols)

Architectural line drawing of a building facade with structural elements (no text or symbols)

Technical line drawing of a connector with two connectors and a cable, no text or symbols present

Please observe the recommendations previously cited in the MAINTENANCE and WARRANTY AND AFTER-SALES SERVICE PARAGRAPHES.

		Step 1	Step 2
Problems	Details and/or conditions of the problems	Checking operations	Action to be taken if «Step 1» has not helped to solve the problem or if it requires an additional maintenance operation.
The hood does not work.	No function operates (suction, lighting, etc.).	Check the general electrical distribution board.Check the connection of the power cable to the hood and its connection to the domestic electricity mains.	If you observe a fault in the electricity power supply (1 or 2) call in an electrician.If everything is OK but the problem persists, call in a specialized repairer
The hood does not answer to the remote control.		Check that the batteries are correctly positioned in the remote control unit.Check the state of charge of the remote control batteries.The distance between the hood and the remote control is too long or the direction (angle) of the remote control in relation to the hood is not good.The receiver is off.	Reposition the batteries.Change the batteries (2LR03 1.5 volts) in the remote controlChange the position of the remote control.Check the remote control.If everything is OK but the problem persists, call in a specialized repairer.
Noise, vibration or suction problem.	Recirculation version.	Check the condition of your filters (anti-odour).Check the positioning and fitting of the anti-odour filter.Check the condition of your anti-grease filters.	Clean or change the anti-odour filters.Replace the anti-odour filters.Clean your anti-grease filters.If everything is OK but the problem persists, call in a specialized repairer.
	External ventilating version, low suction despite satisfactory motor speed.	Check the condition of your anti-grease filters.Check the installation of the hood, (fume hood and outlet duct, valve, pipe length, number of elbows and pipe diameter).	Clean your anti-grease filters.If you observe faulty installation or fitting: call in your dealer / installerIf everything is OK but the problem persists, call in a specialized repairer.
Faulty lighting.		Check the condition of the light sources.	Change faulty bulbs.For LEDS call in a specialized repairer.

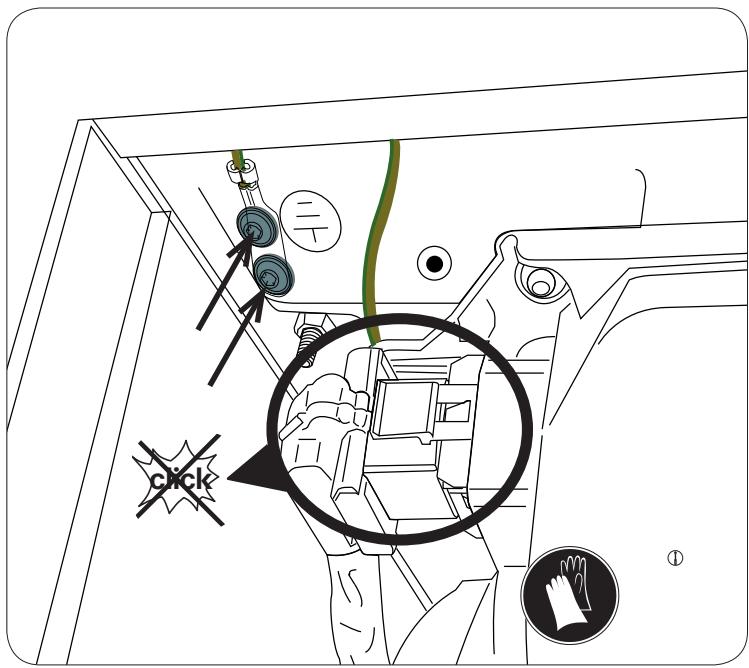

Déconnectez, disconnect, trennen, disconnect, desconectar, losmaken

Utilisez une clé, Use a wrench, Verwenden Sie einen Schraubenschlüssel, Utilizzare una chiave, Utilice una Ilave, Gebruik een sleutel

Équipez vous de gants de protection, Equip your protective gloves, Rüsten Sie Ihre Schutzhandschuhe, Dotare i guanti protettivi, Equipar sus guantes protectores, Rust uw beschermende handschoenen
