VRT 900 - Range hood FABER - Free user manual and instructions

Product type	Extractor hood
Brand	FABER
Model	VRT 900
Use	Domestic, kitchen odor removal
Minimum safety distance (cooking surface)	650 mm (or more according to the hob instructions)
Exhaust duct diameter	At least 120 mm
Electrical class	I (grounding required)
Power supply	Mains, voltage according to rating plate
Control functions	On/Off panel, speed adjustment (T2/T3), timer (T4), lighting (L)
Motor speeds	Adjustable via buttons T2 (decrease) and T3 (increase)
Timer (Delay)	Adjustable from 1 to 9 minutes, activation by long press on T4
Lighting	On/off via button L; replacement by after-sales service
Grease filter	Dishwasher safe, clean every 1 month (or more often if heavy use)
Charcoal filter	Not washable, replace every 4 months (or more often if heavy use)
Exterior cleaning	Damp cloth and neutral liquid detergent
Safety	Do not flambé under the hood; monitor deep fryers; adequate ventilation if used with gas appliances
Installation	By a competent technician; remove protective films before installation
Air exhaust	Do not connect to combustion flues
Maximum negative pressure	0.04 mbar when used simultaneously with non-electric appliances

Frequently Asked Questions - VRT 900 FABER

What is the minimum safety distance between the hood and the hob?

The minimum safety distance is 650 mm. If the gas hob instructions specify a greater distance, that must be followed.

How to clean the grease filters?

The grease filters should be cleaned every 1 month (or more often in case of heavy use). They are dishwasher safe.

When to replace the charcoal filter?

The active charcoal filter is not washable nor reusable. It should be replaced approximately every 4 months of operation, or more often in case of particularly heavy use.

How to use the timer (Delay) function?

To activate the Delay, press and hold (at least 3 seconds) the T4 button. The digit flashes, then set the delay time from 1 to 9 minutes using T2 or T3 buttons. Press T4 again to confirm. The timer stops the motor and lighting after the selected delay.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer or by an authorized after-sales service technician to avoid any danger.

Can I use the hood simultaneously with a gas appliance?

Yes, but you must ensure adequate ventilation of the room to avoid backflow of exhaust gases. Negative pressure must not exceed 0.04 mbar. Never exhaust air through a duct used for combustion fumes.

How to adjust the motor speed?

Use T2 button to decrease speed and T3 button to increase it. The selected speed is displayed.

How to turn off the lighting?

Press the L button to turn the lighting system on or off.

What to do if the buttons are not responding?

First check that the panel is active (press T1). If no button is pressed for 2 minutes, the panel turns off automatically. Reactivate it with T1. If the problem persists, contact the after-sales service.

Where to find after-sales service to replace the lighting?

For lighting replacement, contact the authorized after-sales service. The contact details are in the manual or on the manufacturer's website.

USER MANUAL VRT 900 FABER

Line drawing of a three-tiered cabinet or tower structure with a flat base and a small circular element at the bottom (no text or symbols)

EN USER MANUAL....3
FR MANUEL D'UTILISATION....7
DE GEBRAUCHSANLEITUNG 11
IT LIBRETTO DI USO 15
PL INSTRUKCJA UŻYTKOWANIA....19
GR OΔΗΓΙΕΣ ΧΡΗΣΗΣ 24

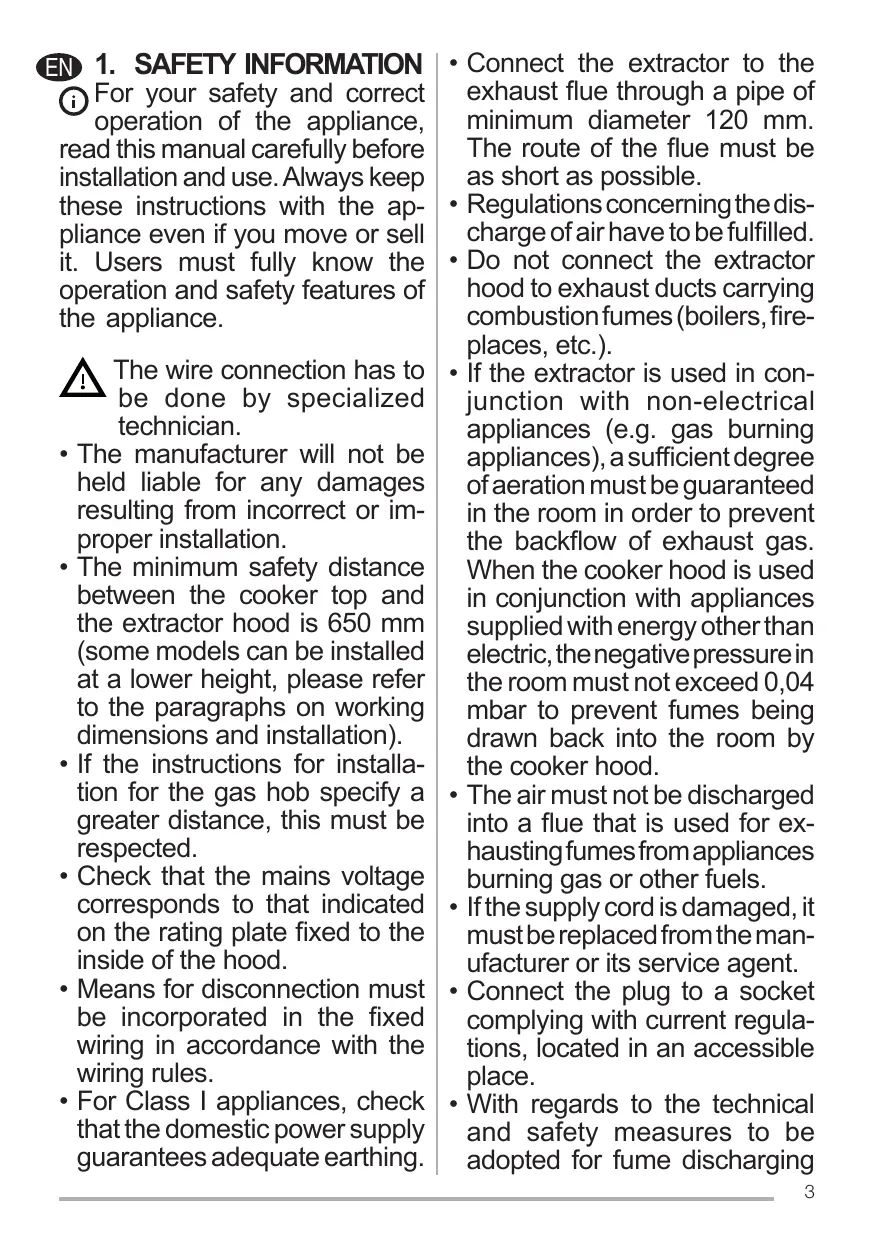

EN 1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

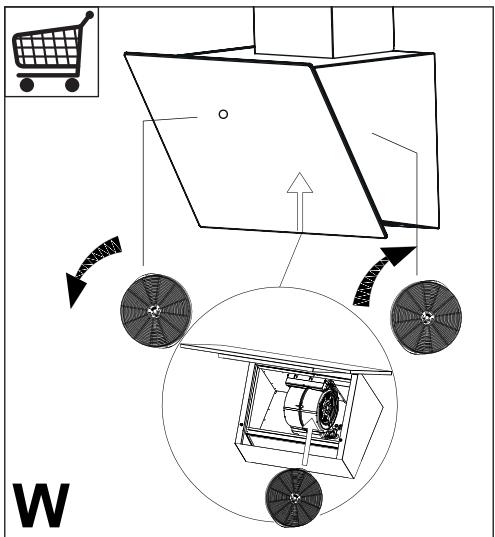

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

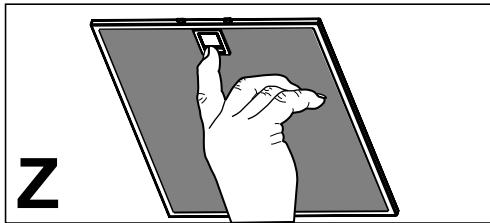

The Grease filters must be cleaned every 1 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a small object on a flat surface, with letter 'Z' and no visible text or symbols.

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

T4

T2

T1

T3

L

Button	Function	Led
T1	By pressing T1 Button the controls board are On and Off.After 2 minutes without button pressing, the control board turn Off.	Show 0
T2	Decreases the speed of the Motor.	Show the selected speed
T3	Increases the speed of the Motor.	Show the selected speed
T4	1) Press briefly:Activates/Deactivates the Delay2) Press and hold for at least 3 seconds: Activates the Delay settingsEnable shutdown with same minutes delay (Motor+Lights). It is possible to change the operating speed when this function is enabled.It's possible to choose the timing of Delay:Press for 3 seconds the button until the Digit flash. Within 10 seconds set from 1 to 9 the minutes of Delay by pressing T2 or T3 button. Press again the Button T4 to confirm.	Flash
L	Turns the Lighting System on and off.	On / Off

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
