USER MANUAL SEASHELL SHINY EICO

elica Y X

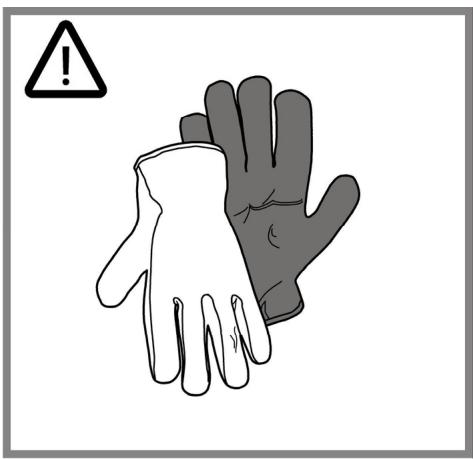

Warning symbol image showing a hand with an exclamation mark and a pair of gloves, indicating hazard or caution.

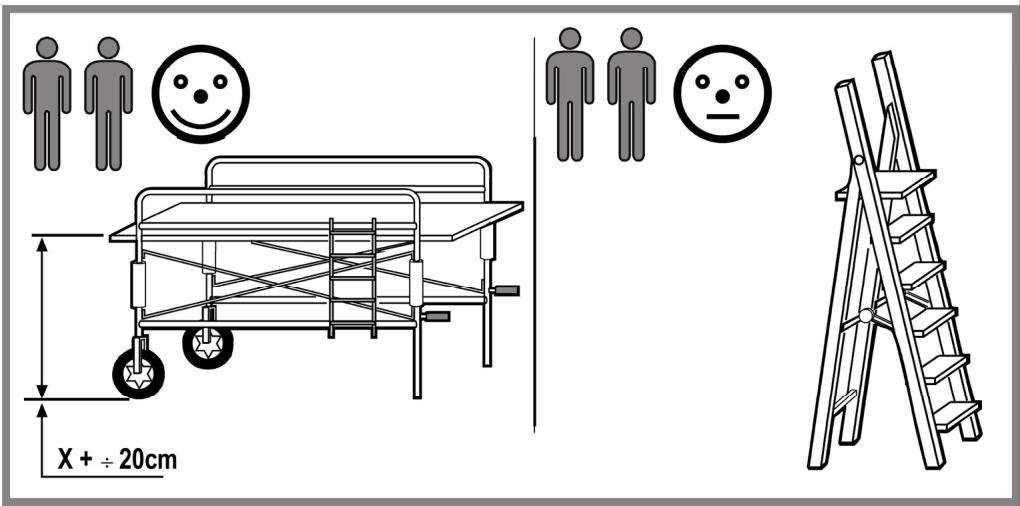

X + ÷ 20cm

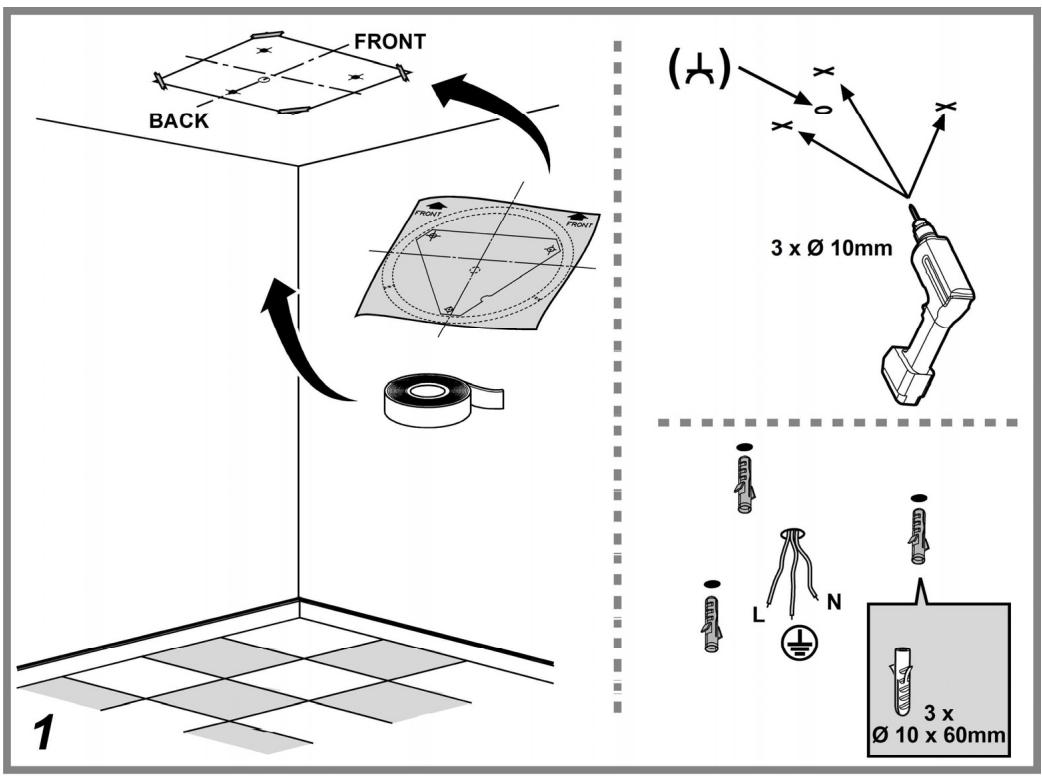

FRONT BACK FRONT FRONT 3 x Ø 10mm (Ø) L N 3 x Ø 10 x 60mm 1

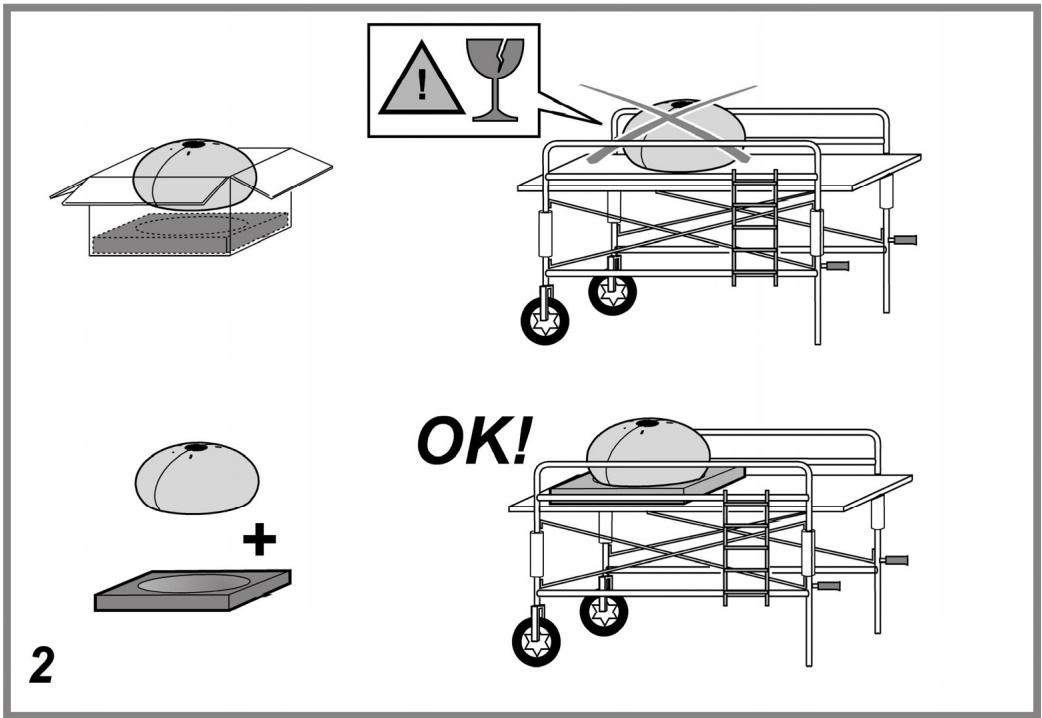

2 OK!

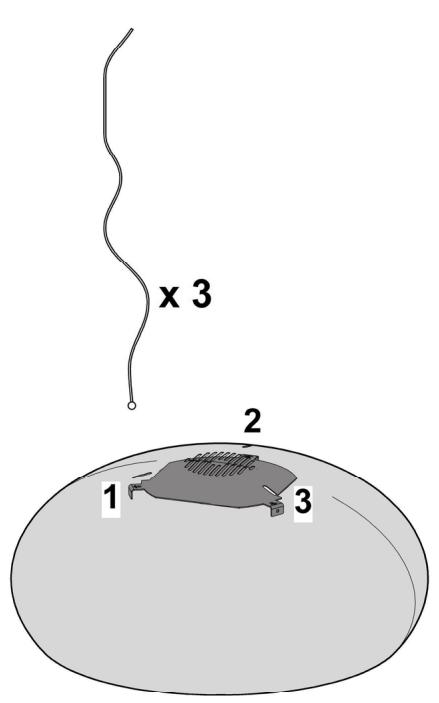

x 3 1 2 3

Simple line drawing of a mechanical component with a hanging rod and oval feature (no text or symbols)

Simple line drawing of a mechanical component with a spring and handle (no text or symbols)

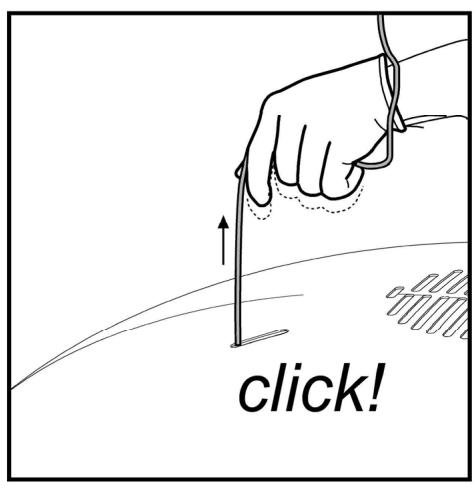

click!

Simple line drawing of a mechanical component with a spring and handle (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Pure mechanical diagram of a lever mechanism without any text, numbers, or symbols

Technical line drawing of a mechanical device with a handle and lever (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

3
click!

4.1

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

OK!

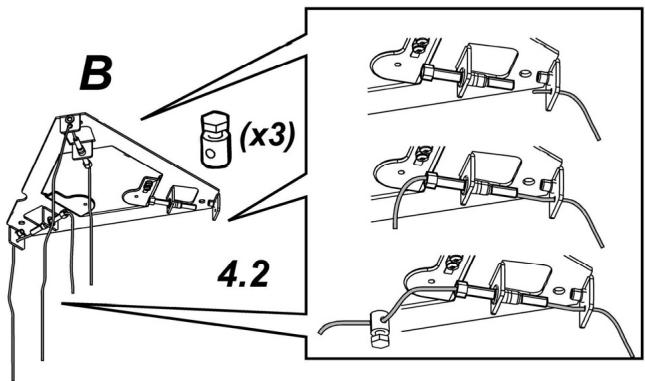

B (x3) 4.2

Y- 38,3 cm FRONT ± elica Y

4.3

Line drawing of a vintage-style oven with two top ovens and a front opening (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4
4.4

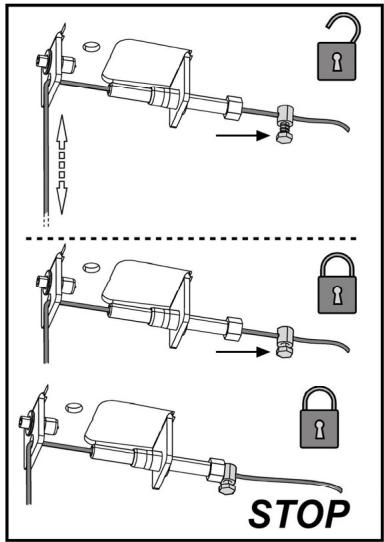

STOP

FRONT B BACK 3 x Ø 6 x 70mm 5 FRONT ± elica

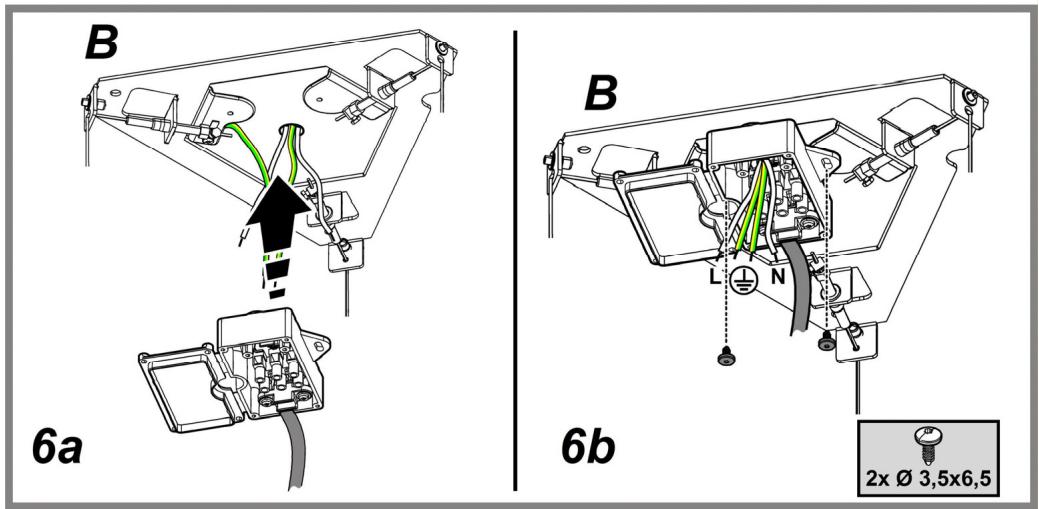

B 6a B L N 6b 2x Ø 3,5x6,5

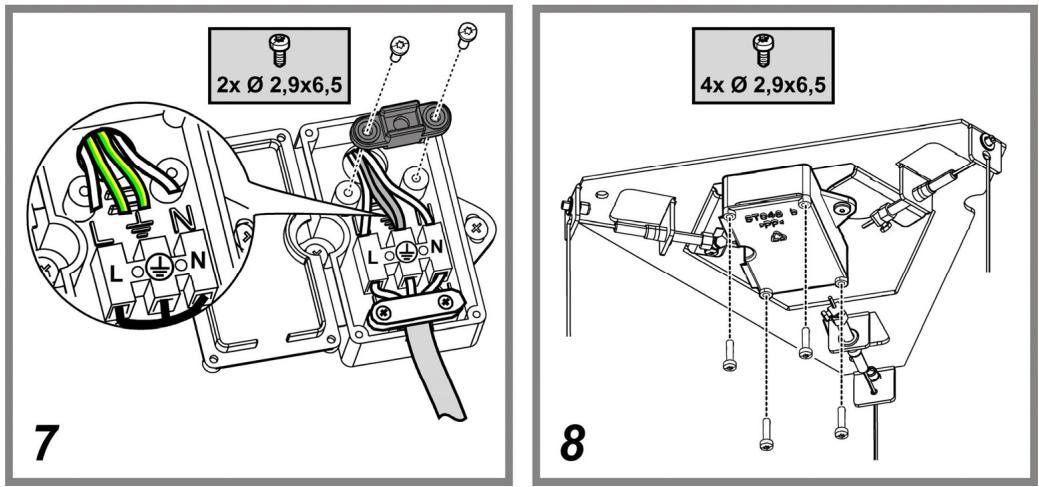

2x Ø 2,9x6,5 4x Ø 2,9x6,5 7 8

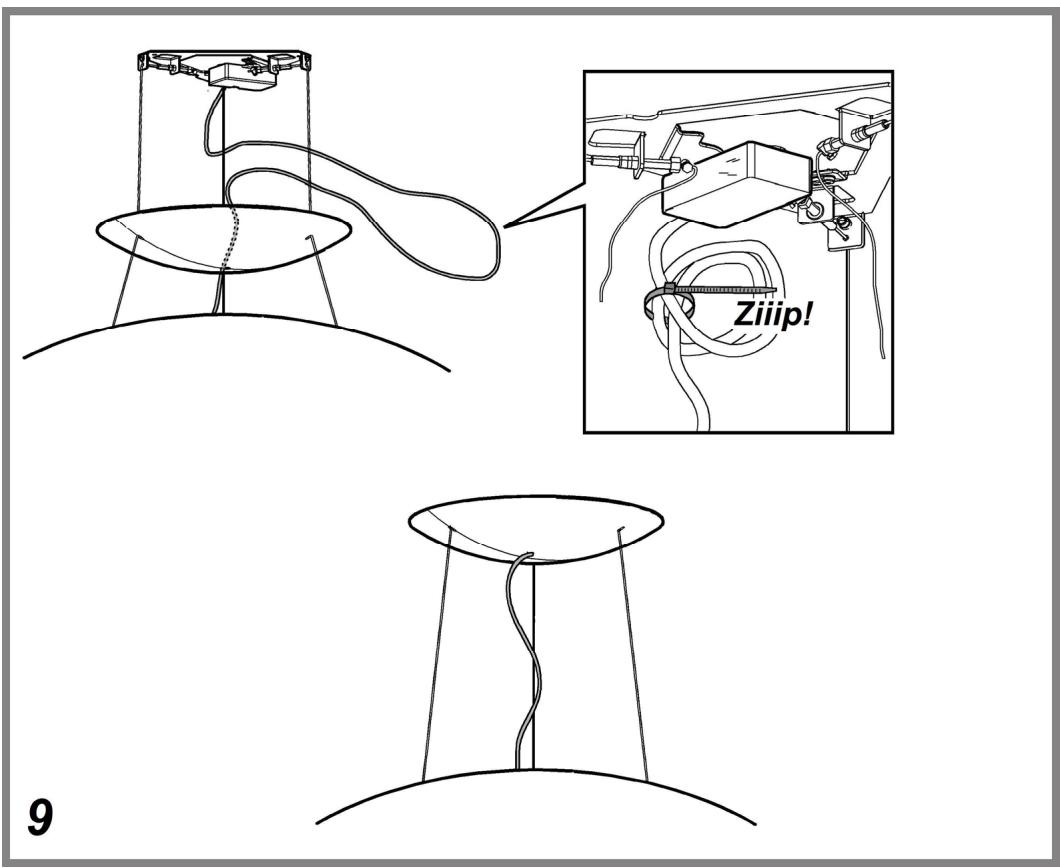

Technical line drawing of a ceiling-mounted device with internal components and a separate inset showing two rectangular components (no text or symbols)

12
OFF

Simple line drawing of a rectangular object with a shaded interior (no text or symbols)

ON

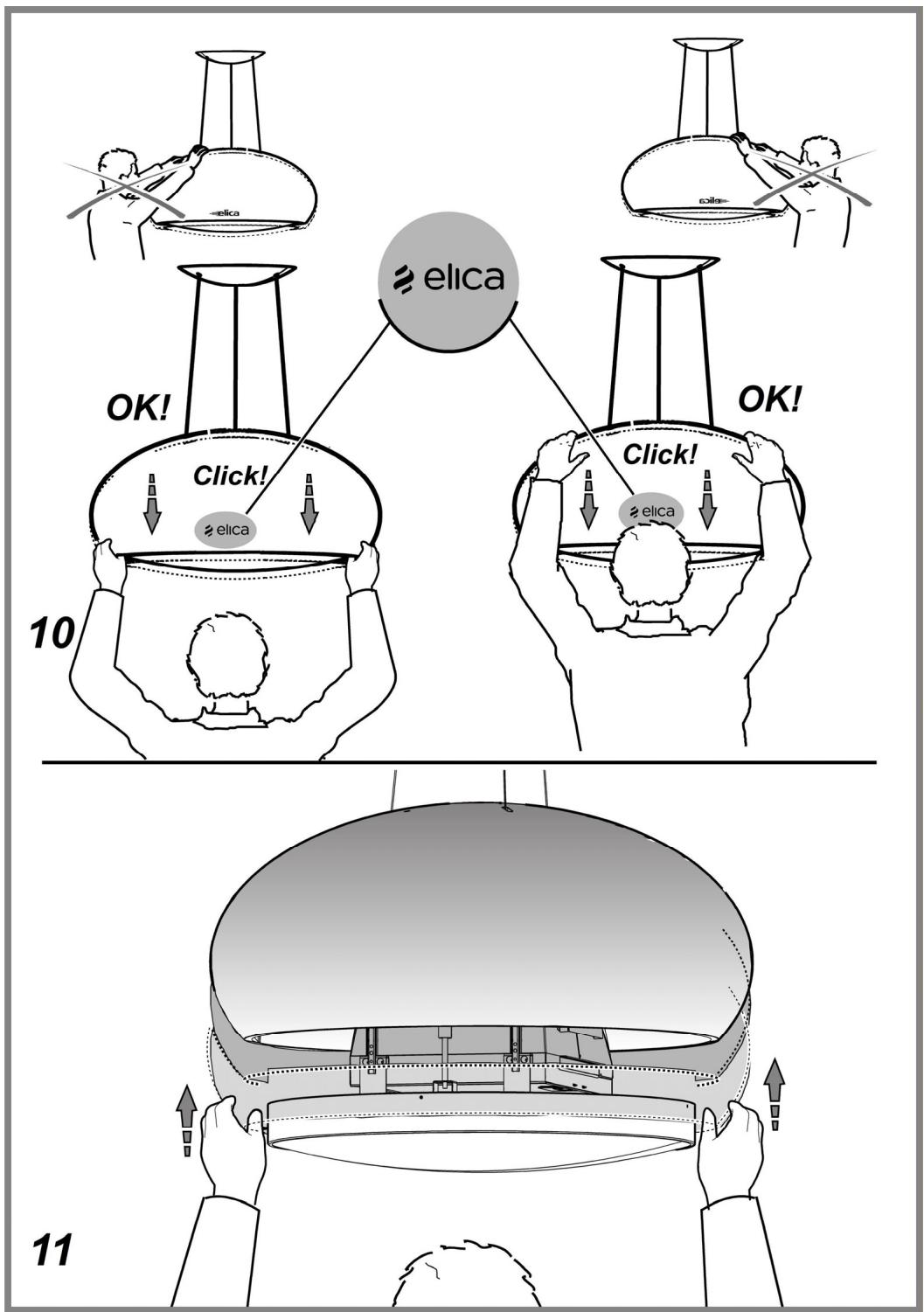

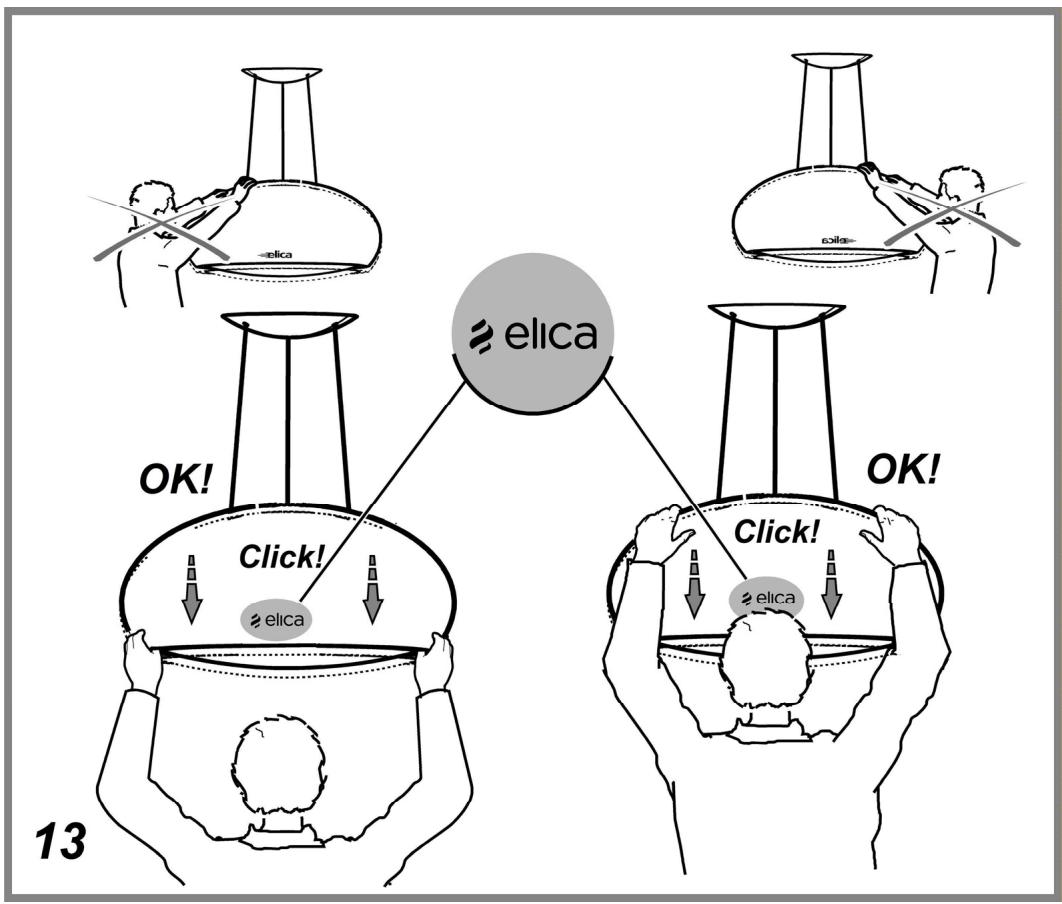

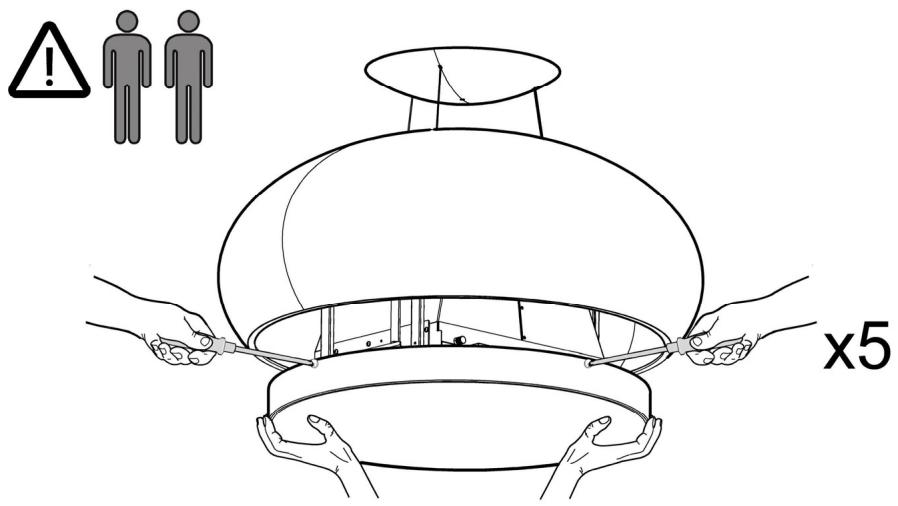

x5

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols present)

! ~ 4Kg

Simple line drawing of a circular object with a curved line inside, no text or symbols present.

Icon showing a speaker emitting wireless signals, no text or symbols present

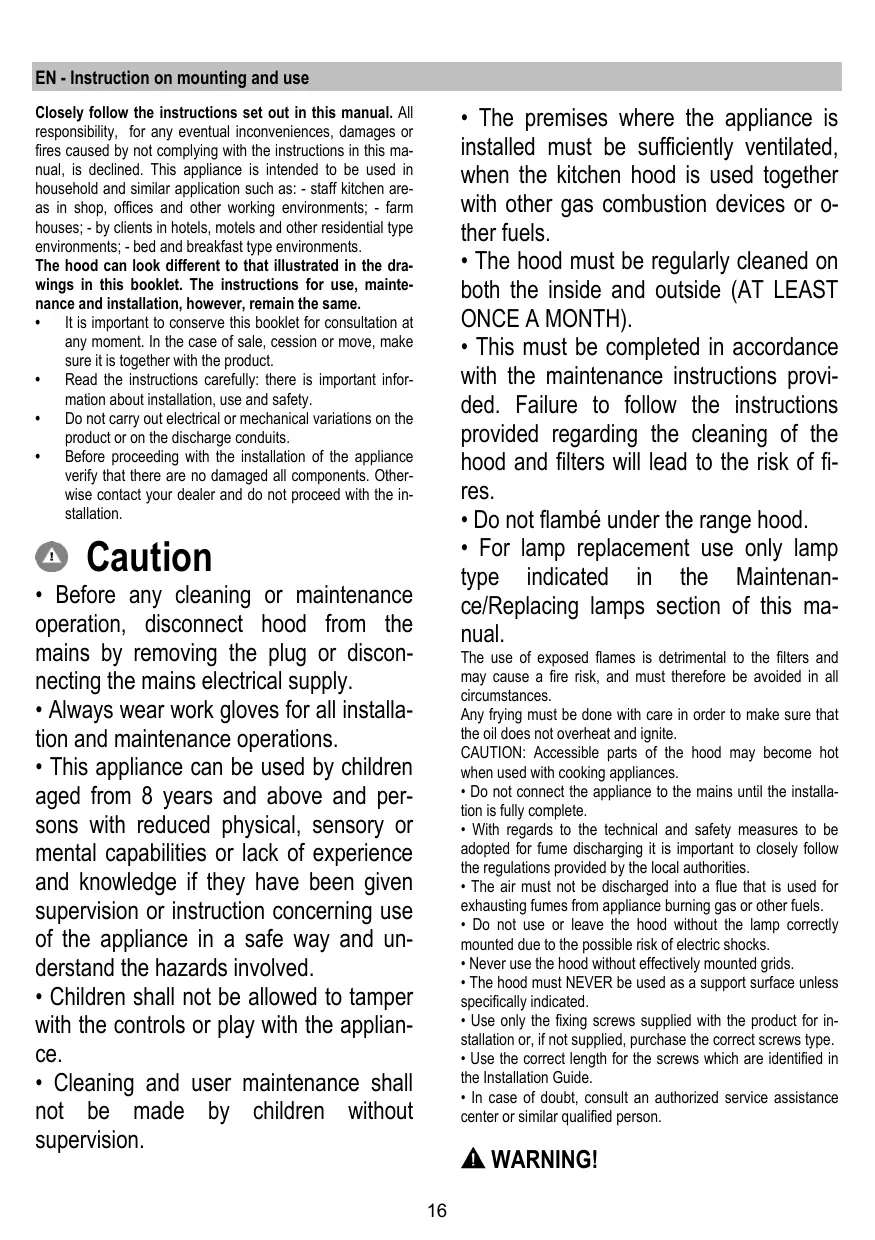

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood has been made for use in the internal recirculating filtering version.

Cooking fumes and steam are aspirated inside the hood, filtered and cleaned, passing through the fat filter/s and the carbon filter/s that MUST be supplied with the hood.

Installation

Specialised personnel must carry out both the electrical and the mechanical installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains tension must correspond to the tension shown on the characteristic label situated inside the hood.

The product is meant for connecting directly to the mains supply, therefore apply a regulation bipolar switch that ensures complete disconnection from the mains in the conditions of category III over-tension, conforming to the installation rules.

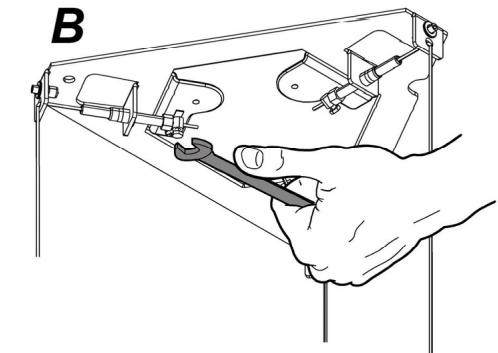

Warning! Detail B is equipped with a conductor (yellow-green) that must be connected to the earth of the domestic electrical plant. Fig. 6a-b

Warining! Changing the interconnection cable must be carried out by the authorised technical assistance service.

Mounting

This type of cooker hood must be fixed to the ceiling.

Very heavy product; hood handling and installation must be carried out by at least two persons.

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Icon showing a device emitting wireless signal, no text or symbols present

This product is designed to work with an Elica remote control, either supplied with the product or purchased separately as an optional.

To control the hood via remote control, the affiliation procedure must be carried out.

CAUTION!

To begin, the hood must be disconnected and then reconnected to the power supply and the affiliation procedure must be carried out within the first minute of connection to the power.

Read the instructions supplied with the remote control, which provide detailed instructions on affiliation and correct use.

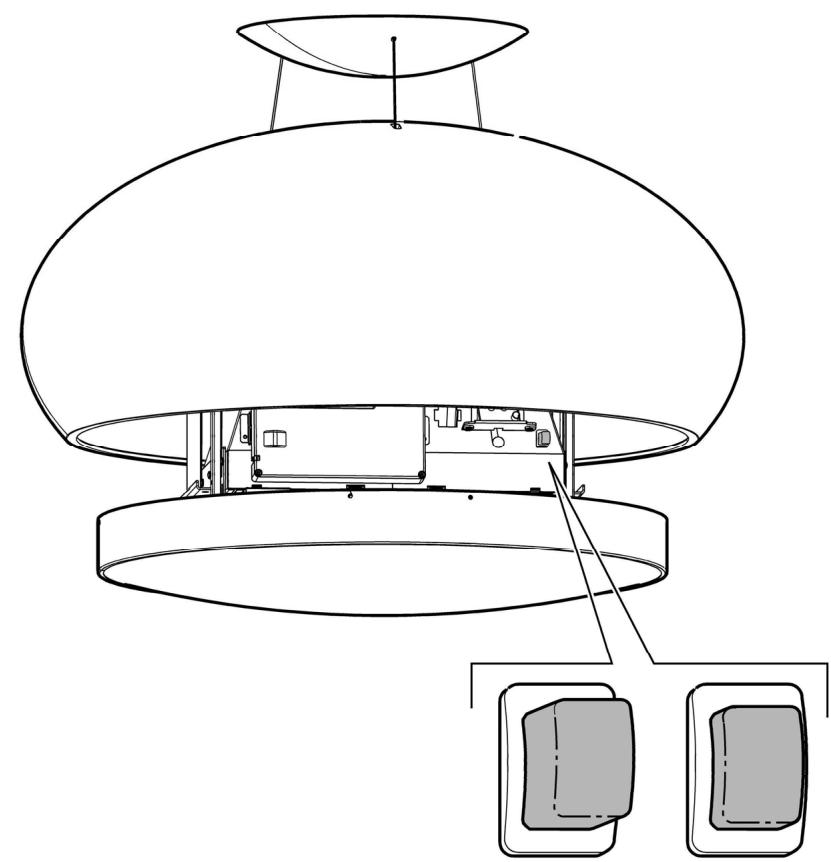

Note: if the hood does not work, make sure that it is ON by using the ON/OFF button. Fig. 12

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

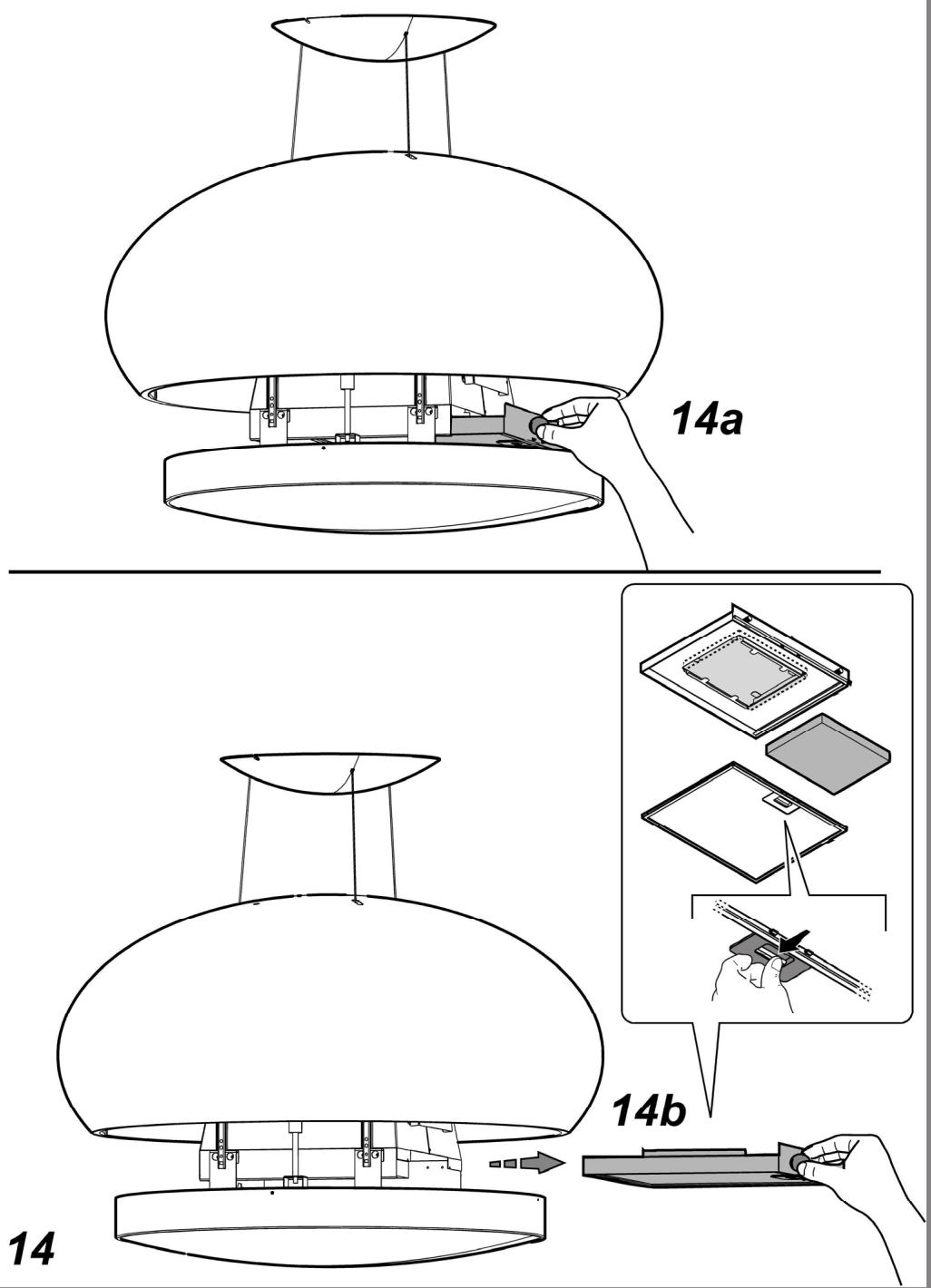

Grease filter Fig. 14

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

Charcoal filter (filter version only) Fig. 14 It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

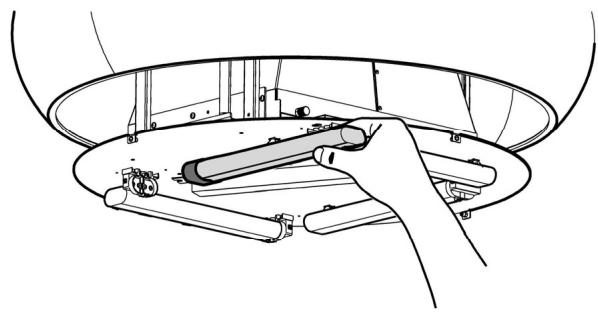

Replacing lamps

For replacement, contact the technical service.

Icon showing a device emitting wireless signal waves above a stylized 'T' (no text or symbols)

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signals, no text or symbols present

Icon showing a device emitting wireless signal waves, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device with wireless signal waves above it, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device with wireless signal waves and a stopper (no text or symbols)

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal waves, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal waves above a stylized 'T' (no text or symbols)

- Waste Electrical and Electronic Equipment (WEEE).

Icon showing a device with wireless signal waves above it, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal waves above a stylized 'T' (no text or symbols)

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal waves, no text or symbols present

Icon showing a device emitting wireless signal waves above a stopper (no text or symbols)

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal waves above a stylized 'T' (no text or symbols)

Ovaj proizvod je namenjen za rad sa daljinskim upravljačem, koji se isporučuje sa proizvodom ili se može kupiti posebno, kao opcija.

Za kontrolu aspiratora daljinskim upravljačem potrebno je pokrenuti postupak povezivanja.

PAŽNJA!

Icon showing a device emitting wireless signal, no text or symbols present

Icon showing a device emitting wireless signal, no text or symbols present

Ovaj proizvod je namijenjen za rad s daljinskim upravljačem Elica, koji se isporučuje s proizvodom ili se može kupiti zasebno, kao opcija.

Za kontrolu nape daljinskim upravljačem potrebno je pokrenuti postupak povezivanja.

PAŽNJA!
