Product type	Range hood
Brand	FABER
Model	TSP 900
Category	Range hood
Supply voltage	220-240 V ~ 50 Hz
Appliance class	Class I
Number of speeds	3
Lighting system	On/off control via L button
Control type	Touch
Delayed shut-off function	Yes, 5 minutes
Minimum distance from cooking surface	650 mm
Exhaust duct diameter	120 mm minimum
Grease filter	Washable (every 1 month, in dishwasher)
Charcoal filter	Not washable, replace every 4 months
Cleaning	Damp cloth and neutral liquid detergent
Usage	Household use
Safety	Do not flambé under the hood
Safety	Adequate ventilation if used with non-electric appliances
Safety	Earthing mandatory
Installation	By qualified technician
Repairability	Contact after-sales service for lighting replacement

Frequently Asked Questions - TSP 900 FABER

How to install the TSP 900 hood?

Installation must be carried out by a qualified technician. Maintain a minimum distance of 650 mm between the cooking surface and the hood. Use an exhaust duct of at least 120 mm diameter and ensure compliant earthing. Do not connect the hood to a chimney flue.

How to clean the grease filters?

The grease filters must be cleaned every 1 month (or more often with heavy use). They are dishwasher safe. Use a neutral detergent and a damp cloth.

When to replace the charcoal filter?

The activated charcoal filter is not washable and must be replaced every 4 months of operation (or more often with heavy use). Contact after-sales service for purchase.

What to do if the hood does not turn on?

First check the power supply and the power outlet. If the cord is damaged, have it replaced by the manufacturer or an authorized after-sales service. Make sure the T1 button is activated.

How to use the delayed shut-off function?

Press the T4 button to activate delayed shut-off. The hood (motor and lighting) will automatically turn off after 5 minutes. During this time, you can change the working speed.

Can I use the hood with a gas stove?

Yes, but maintain a minimum safety distance of 650 mm and ensure adequate ventilation of the room. The negative pressure must not exceed 0.04 mbar to prevent gas backflow.

How to adjust the motor speed?

Use the T2 button to decrease the speed and T3 to increase it. The control panel turns off after 2 minutes without pressing. Press T1 to reactivate it.

What to do if the lighting does not work?

If the lighting is defective, contact after-sales service for replacement. Do not attempt to replace it yourself.

Is the hood suitable for children?

This appliance can be used by children over 8 years old under supervision. Children must not clean or maintain the appliance without supervision. Ensure they do not play with it.

Can I exhaust the air into a chimney flue?

No, do not connect the hood to chimney flues or combustion fume exhaust ducts (boilers, fireplaces, etc.). Follow local regulations for air exhaust.

USER MANUAL TSP 900 FABER

Line drawing of a tall industrial chimney with a base and top plate (no text or symbols)

EN USER MANUAL....3
FR MANUEL D'UTILISATION....7
DE GEBRAUCHSANLEITUNG 11
IT LIBRETTO DI USO 15
PL INSTRUKCJA UŻYTKOWANIA 19
GR OΔΗΓΙΕΣ ΧΡΗΣΗΣ 24

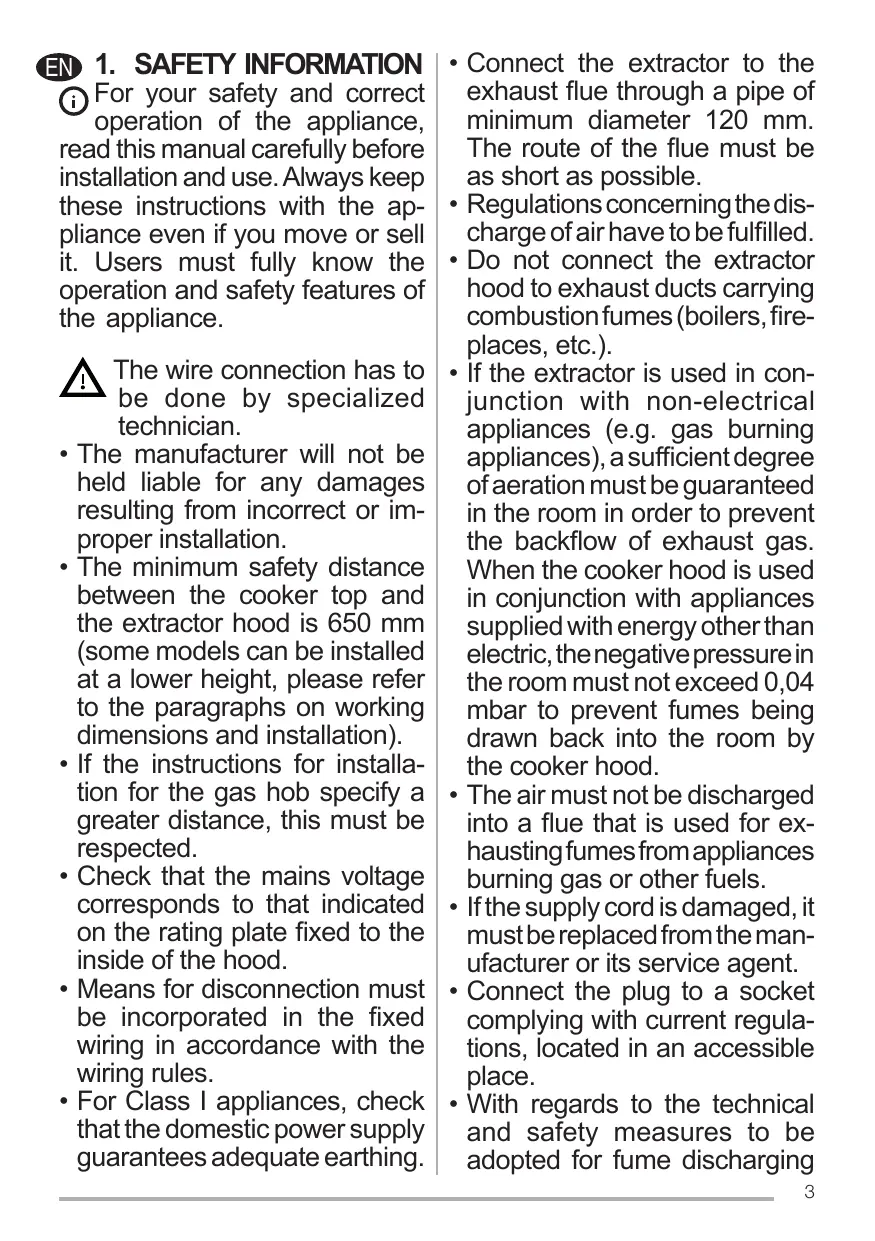

EN 1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

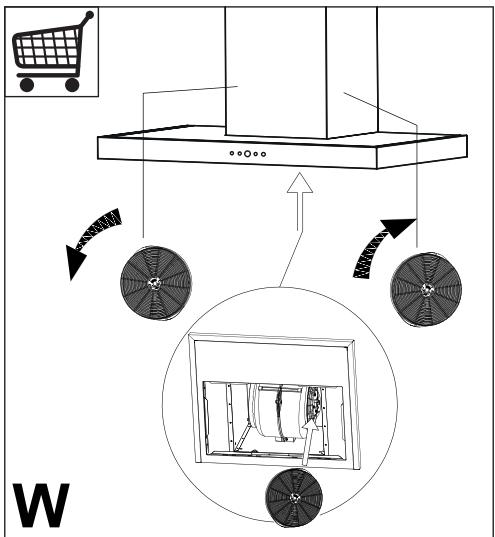

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

The Grease filters must be cleaned every 1 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a small object on a flat surface, with letter 'Z' and no visible text or symbols.

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

T4

T2

T1

T3

L

Button	Function	Led
T1	By pressing T1 Button the controls board are On and Off. After 2 minutes without button pressing, the control board turn Off.	All buttons are 50% lighting.
T2	Decreases the speed of the Motor.	100% lighting and T1 Flash
T3	Increases the speed of the Motor.	100% lighting and T1 Flash
T4	Enable shutdown with a 5 minute delay (Motor+Lights). It is possible to change the operating speed when this function is enabled.	Flash at 100% lighting and T1 Flash
L	Turns the Lighting System on and off.	100% lighting

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
