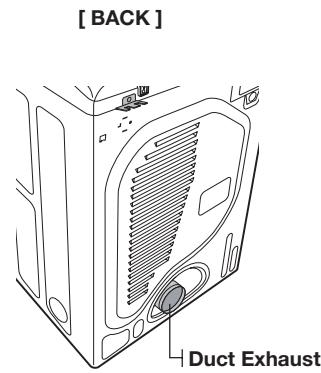

You can install the exhaust vent in the following four (4) positions: back, either side, bottom.

9. Smart Care [DV456 ONLY]

This function diagnoses problems by itself. You don’t need to call a service engineer or try to find the user manual whenever the product has a problem, as Smart appliances let you know how to deal via the problem through your smart phone. Features _3 safety instructions Congratulations on your new Samsung Dryer. This manual contains valuable information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefits and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, or operating your dryer. Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean: WARNING CAUTION Hazards or unsafe practices that may result in severe personal injury or death. Follow the information in this manual to minimize the risk of fire or explosion or to prevent property damage, personal injury, or death. Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance. Hazards or unsafe practices that may result in minor personal injury or property damage. Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. Read all instructions before using the appliance.

SAVE THESE INSTRUCTIONS

4_ safety instructions

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any flammable substance, such

as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may cause the fabric to catch fire by itself.

4. Do not store or use gasoline or other flammable vapors and liquids near this or any other

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with controls.

10.Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published userrepair instructions that you understand and have the skills to carry out. 11.Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product. 12.Clean the lint screen before or after each load. 13.Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials. 14.Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt. 15.The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel. 16.Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

SAVE THESE INSTRUCTIONS

safety instructions _5 safety instructions WARNING - Risk of Fire

WARNING Clothes dryer installation must be performed by a qualified installer. Install the clothes dryer according to the manufacturer’s instructions and local codes. Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire. To reduce the risk of severe injury or death, follow all installation instructions. To reduce the risk of fire or explosion:

WARNING Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode. Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed. There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers Items containing foam rubber (may be labeled latex foam) or similarly textured rubberlike materials must not be dried on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by spontaneous combustion. What to do if you smell gas:

Do not try to light any appliance. Do not turn on the appliance. Do not touch any electrical switch. Do not use any phone in your building. Clear the room, building or area of all occupants. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the fire department. Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

SAVE THESE INSTRUCTIONS

6_ safety instructions Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary when the appliance is used near children and pets. Before discarding or removing your dryer from service, remove the door to the drying compartment to prevent children or animals from becoming trapped inside. Do not reach into the appliance when the drum is moving. Do not install or store this appliance where it will be exposed to the weather. Do not tamper with controls. Do not repair, replace, or attempt to service any part of the appliance unless specifi cally instructed to in the user-repair instructions and you have the understanding and skills to carry out the procedure. Do not use fabric softeners or products to eliminate static unless the softener or product is recommended for dryer use by the manufacturer of the fabric softener or product. Clean the lint screen before or after each load. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel. This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. See installation instructions for information about grounding this appliance. Do not sit on top of the dryer. WARNING Ensure pockets are free from small, irregularly shaped hard objects, foreign material, etc. ie. coins, knives, pins, etc. These objects could damage your dryer. Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects. Gas leaks may occur in your system, resulting in a dangerous situation. WARNING Gas leaks may not be detected by smell alone. Gas suppliers recommend you purchase and install a UL-approved gas detector. Install and use in accordance with the manufacturer’s instructions. Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils. Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a fire hazard. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing these items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never remove these items from the dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never pile or stack these items when they are hot.

SAVE THESE INSTRUCTIONS

safety instructions _7 Unpacking your dryer Basic requirments Ducting requirements Important to installer Location considerations Alcove or closet installation Mobile home installation Exhausting Gas requirements Commonwealth of Massachusetts installation instructions Electrical requirements Grounding Electrical connections Installation - General procedure Final installation checklist Dryer Exhaust Tips Door Reversal

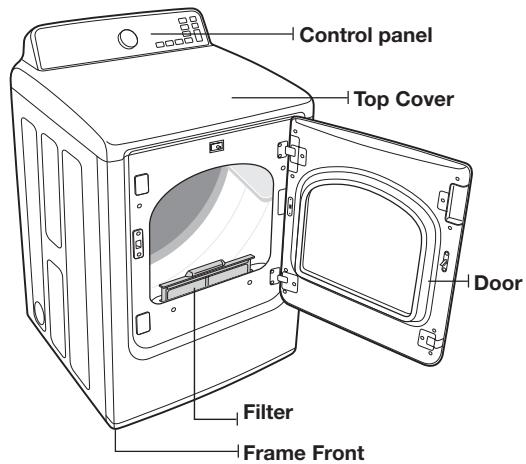

Overview of the control panel

OPERATING INSTRUCTIONS, TIPS

Child lock Drum Light (Only DV456*) Signal My Cycle

OPERATING INSTRUCTIONS, TIPS

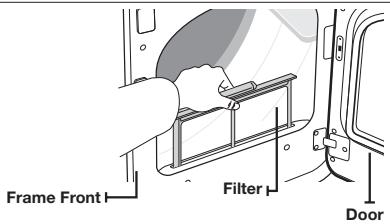

Clean the lint filter Load the dryer properly Getting started

CARE AND CLEANING

Control Panel Tumbler Powder Coated Tumbler Dryer Exterior Dryer Exhaust System Special laundry tips TROUBLESHOOTING

Fabric care chart Protecting the environment Declaration of conformity Specifications Cycle chart

OPERATING INSTRUCTIONS, TIPS

8_ Contents installing your dryer

UNPACKING YOUR DRYER

WARNING Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene, etc.) well out of childrens’ reach Control panel [ BACK ] Top Cover 01 installing your dryer Unpack your Dryer and inspect it for shipping damage. Make sure you have received all of the items shown below. If your Dryer was damaged during shipping, or you do not have all of the items, contact 1-800-SAMSUNG (726-7864). To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the dryer. Door Filter Duct Exhaust Frame Front Tools needed Pliers Cutting knife Pipe wrench (gas only) Nut drivers Level Phillips Screwdriver Duct tape Wrench BASIC REQUIRMENTS Make sure you have everything necessary for proper installation

• A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.
• A POWER CORD for electric dryers (except in Canada).
• GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes.
• EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting. installing your dryer _9 installing your dryer DUCTING REQUIREMENTS

Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct. Do not use a smaller duct. Ducts larger than 4 inches (10.2 cm) in diameter can cause increased lint accumulation. Lint accumulation should be cleaned regularly. If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply. Never install any type of flexible duct in walls, ceilings, or other concealed spaces. Keep the exhaust duct as straight and short as possible. Secure joints with duct tape. Do not use screws. Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer operation. Exhaust systems longer than recommended can extend drying times, affect machine operation, and may collect lint. The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and the entry of wildlife. Never use an exhaust hood with a magnetic damper. The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should point down. Never install a screen over the exhaust outlet. To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch. If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly down towards the exhaust hood to reduce condensation and lint buildup. Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before cleaning. Check frequently to be sure the exhaust hood damper opens and closes freely. Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then check ducting for obstructions. Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building, gas vent, or any other common duct or chimney. This could create a fire hazard from lint expelled by the dryer.

ELECTRIC AND GAS DRYER

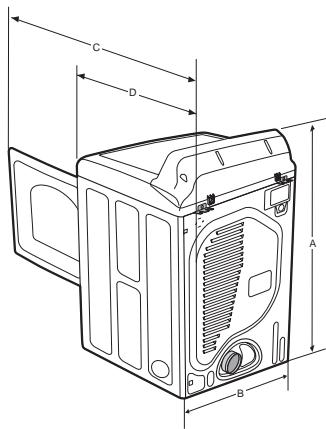

Recommended Use only for short-run installation 4” (10.2 cm) 2.5” (6.4 cm) No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*

80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)

68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)

57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)

47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m) Do not use non-metallic flexible duct. 10_ installing your dryer If the new dryer is being installed into an existing exhaust system, you must make sure: 01 installing your dryer

• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To Inspect and clean all lint buildup from inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely. The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than 0. This can be measured with the dryer running with a manometer at the point where the exhaust duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference. WARNING Remove the door from all discarded appliances to avoid the danger of a child suffocating. LOCATION CONSIDERATIONS Locate the dryer where there is enough space at the front for loading the dryer, and enough space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the right or the left (electric model only), use the accessory exhaust kit (sold separately). Instructions are included with the kit. It’s important to make sure the room has enough fresh air. The dryer must be located where there is no air-flow obstruction. On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air for combustion and proper dryer operation. Do not install or store the dryer in an area where it will be exposed to water and/or weather. Keep the dryer area clear of combustible materials, casoline, and other fl ammable vapors and liquids. A dryer produces combustible lint. The area around the dryer should be kept Lint-Free.

ALCOVE OR CLOSET INSTALLATION

You must exhaust the dryer to the outside to reduce the risk of fi re when installed in an alcove or closet. No other fuel-burning appliance should be installed in the same closet as the dryer.

WARNING: To reduce the risk of fi re, you must exhaust the dryer to the outdoors.

See Exhaust information section. Minimum clearances between the dryer and adjacent walls or other surfaces are: 2” in front, 17” on top, 1” on either side, and 5” in the back. The closet front must have two unobstructed air openings for a combined minimum total area of 72 in² with 3” minimum clearance on the top and bottom. A louvered door with equivalent space clearance is acceptable. installing your dryer _11 installing your dryer

MOBILE HOME INSTALLATION

The installation of the dryer in mobile homes must conform to the Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280 {formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada). When installing a dryer in a mobile home, you must make provisions for anchoring the dryer to the floor. Locate the dryer in an area that has adequate fresh air. A minimum of 72 in² (465 cm²) of unobstructed space is required. Call 1-800-SAMSUNG(726-7864) for information on purchasing the Floor Anchoring Kit as an accessory. All mobile home installations must be exhausted to the outside with the exhaust duct termination securely fastened to the mobile home structure, using materials that will not support combustion. The exhaust duct may not terminate underneath the mobile home. See Exhausting section for more information. EXHAUSTING Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room. In the United States:

All dryers must be exhausted to the outside. The required exhaust duct is 4 inches (10.2 cm) in diameter. Use only those foil-type fl exible ducts, if any, specifically identified for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject 2158A. Do not assemble the duct with screws or other fastening means that extend into the duct and catch lint. In Canada:

Use only those foil-type fl exible ducts, if any, specifically identified for use with the appliance by the manufacturer. All dryers must be exhausted to the outside. The exhaust duct should be 4 inches (10.2 cm) in diameter. Outside the U.S. and Canada:

Refer to the local codes. WARNING You must exhaust the dryer to the outside to reduce the risk of fi re when you install the dryer in an alcove or closet. NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT. If your existing ductwork is plastic, non-metal, or combustible, replace it with metal. Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air, heat, and lint. 12_ installing your dryer 01 installing your dryer Use only natural or LP (liquid propane) gases. THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA). Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician. A 1/2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8” (1 cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off valve be installed within 6” of your dryer. Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor. Additionally, a 1/8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge connection, must be installed immediately upstream of your dryer’s gas supply connection. Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system. DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas Association (CGA in Canada). Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas. As a courtesy, most local gas utilities will inspect a gas appliance installation. GAS IGNITION – Your dryer uses an automatic ignition system to ignite the burner. There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION

INSTRUCTIONS Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be installed in the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the connector can be no longer than 3’ (36”).

• Gas leaks may occur in your system, creating a dangerous situation. Gas leaks may not be detected by smell alone. WARNING •
• Gas suppliers recommend you purchase and install a UL-approved gas detector.
• Install and use in accordance with manufacturer’s instructions. installing your dryer _13 installing your dryer ELECTRICAL REQUIREMENTS Wiring diagram is located on the plate below the control panel or frame back. WARNING

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician. To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical services for your dryer. All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 – Latest Revision (for the U.S.) or CAN/CGA – B149 Installation Codes – Latest Revision (for Canada) and local codes and ordinances. GROUNDING This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk of electrical shock by providing a path of least resistance for the electrical current. Gas models WARNING Your dryer has a cord with an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician. Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes. Electric models WARNING Your dryer has a cord with an equipment-grounding conductor and a grounding plug, sold separately. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet installed by a qualified electrician. If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal. 14_ installing your dryer ELECTRICAL CONNECTIONS Before operating or testing, follow all grounding instructions in the Grounding section. An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD. A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is required. Electric models – U.S. only Most U.S. dryers require a 120 / 240 volt, 60 Hz AC approved electrical service. Some require 120 / 208 volt, 60 Hz approved electrical service. The electric service requirements can be found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOT provided with U.S. electric model dryers. 01 installing your dryer Gas models – U.S. and Canada IMPORTANT: When local codes allow, the dryer electrical supply may be connected by means of a new power supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use 4-prong plug for 4 wire receptacle, NEMA type 14-30R.) Electric models – Canada Only

A 120 / 240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required. All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle. It is not permissible to convert a dryer in Canada to 208 volts. installing your dryer _15 installing your dryer

INSTALLATION - GENERAL PROCEDURE

For proper installation, we recommend that you hire a qualified installer. Read these instructions completely before you begin the installation. To install the dryer, follow these steps: 1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer sideby-side so you have easy access to both appliances. To move the dryer easily, lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it lies across both cushion-tops. Push the dryer so that it is near its final location. Set your dryer upright. Leave enough room around the dryer so you can attach the duct work, power cord, etc.

2. If you need to change the direction of the door, go to Door Reversal on page . When done, return to

3. Review the Exhausting section before installing the exhaust system. Install the duct work from your

dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer. DO NOT use sheet metal screws when assembling ducting. These joints should be taped. Never use plastic flexible exhaust material. A tip for tight installations: Attach a section of the exhaust system to your dryer before putting it in place. Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the back of the dryer cabinet.

4. If you have an electric model, skip to Step 6. If you have a gas model, go to the next step.

5. Review the Gas Requirements section, then follow the lettered steps below.

a. Remove the pipe thread protective cap. b. Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections. The pipe joint compound must be resistant to the action of any liquefied petroleum gas. c. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4” (1.9 cm) female thread end of a flexible connector to the 3/8” (1 cm) male threaded end on the dryer. d. Securely tighten the gas line fitting over the threads. e. Turn on the gas supply. Check all gas connections for leaks using a soap solution. If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks. f. Go to Step 6 on the next page 16_ installing your dryer 01 installing your dryer

6. Review the Electrical Requirements section, then follow the 3 Wire system connection instructions (Step

7) or 4 Wire system instructions (Step 8) below.

7. Three Wire system instructions:

A. External ground connector B. Neutral grounding wire (green/yellow) C. Center silver-colored terminal block screw D. Neutral wire (white or center wire) E. ¾” (1.9 cm) UL-listed strain relief

1. Loosen or remove the center terminal block screw.

2. Connect the neutral wire (white or center wire) of the power

cord to the center, silver-colored terminal screw of the terminal block. Tighten screw.

3. Connect the other wires to outer terminal block screws. Tighten screws.

4. Tighten the strain relief screws.

5. Insert the tab of the terminal block cover into your Dryer’s rear panel slot.

Secure the cover with a hold-down screw. If converting from a 4-wire electrical system to a 3-wire, you must connect the ground strap to the terminal block support to ground the dryer frame to the neutral conductor. We recommend using Ring terminals. If you use Strap terminals, please ensure you install them perfectly.

8. Four Wire System instructions:

A. External ground connector B. Green or bare copper wire of power cord C. ¾” (1.9 cm) UL-listed strain relief D. Center silver-colored terminal block screw E. Neutral Grounding wire (green/yellow) F. Neutral wire (white or center wire)

1. Remove the External ground connector screw.

2. Connect the ground wire (green or unwrapped) of the

power cord to the external ground connector screw. If you want to connect B (Green or bare copper wire of power cord) to the Neutral Post without assembling with A (cabinet ground), call the service technician.

3. Loosen or remove the center terminal block screw.

4. Connect the neutral wire (white or center wire) of the power cord and the appliance ground

wire (green with yellow stripes) under the central screw of the terminal block.

5. Connect the other wires to the outer terminal block screws. Tighten screws.

6. Tighten the strain relief screws.

7. Insert the tab of the terminal block cover into your Dryer’s rear panel slot.

Secure the cover with a hold-down screw. We recommend using Ring terminals. If you use Strap terminals, please ensure you install them perfectly. installing your dryer _17 installing your dryer U.S. MODELS: IMPORTANT – All U.S. models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. If you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal block. Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near the terminal block. A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure they are tight. Use a 3/8” (1cm) deep well socket.

9. Connect the Water Inlet Hose. For instructions, go to Connecting the

10. To ensure that the dryer provides optimal drying performance, it must

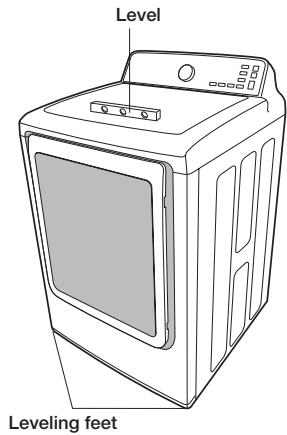

be level. To level the dryer, follow the lettered steps below: a. Using a level, check if the dryer is level side to side and then front to back. b. If the dryer is not level, adjust the leveling feet on the bottom of the dryer until the washer is level side to side and back to front. Turning the feet clockwise retracts the feet. Turning the feet clockwise loosens and extends them. Level To set the dryer to the same height as the washer, fully retract the leveling feet by turning them counterclockwise, then loosen the feet by turning them clockwise. Once the dryer is the same height as the washer, follow the directions above to level the dryer. Leveling feet Retract fully Then loosen Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

11. Make sure all gas connections (on gas models), exhaust, and electrical connections are complete. Plug

in your dryer, and then check its operation by using the checklist below.

12. For GAS MODELS ONLY

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the exhaust for heat. 18_ installing your dryer

FINAL INSTALLATION CHECKLIST

The dryer is plugged into an electrical outlet and grounded properly. The exhaust ductwork is hooked up and the joints are taped. You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct. The dryer is level and is sitting firmly on the floor. For gas models: The gas is turned on and there are no gas leaks. Start your dryer to confirm that it runs, heats, and shuts off. 01 installing your dryer

installing your dryer _19 installing your dryer

DRYER EXHAUST TIPS

Plastic or non-metal flexible duct presents a potential fire hazard. WARNING

1. Make sure your dryer is installed properly so it exhausts air

easily. Wall Dryer DUCT EXHAUST

2. Use 4” diameter rigid metal duct. Tape all joints, including at

the dryer. Never use lint-trapping screws. TAPE DUCT

3. Keep ducts as straight as possible.

4. Clean all old ducts before installing your new dryer.

Be sure the vent flap opens and closes freely. Inspect and clean the exhaust system annually. Don’t let a poor exhaust system slow drying by:

1. Restrict your dryer with a poor exhaust system.

2. Use a plastic, thin foil, or non-metal flexible duct.

3. Use unnecessarily long ducts that have many

4. Use crushed or clogged vent or ducts.

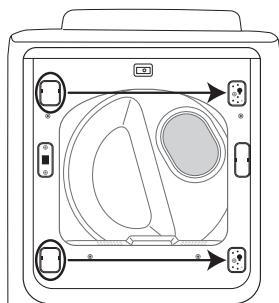

20_ installing your dryer DOOR REVERSAL

1. Unplug the power cord.

2. Remove the four hinge screws from the door

3. Remove the door by lifting it

01 installing your dryer

4. Remove the two screws from the holder-lever and then remove

5. Assemble the holder-lever on the opposite side using the screws

that were removed from the holder-lever-in Step 4.

6. Assemble the cover-holder on the opposite side.

7. Remove the two cover-hinges.

8. Assemble the two cover-hinges

on the opposite side. Use to remove cover-holder, cover-hinge with (-) driver

9. Remove the 14 screws.

Two screw(L) is different other screws. (longer than the other.)

installing your dryer _21 installing your dryer

10. Remove the holder-glass.

11. Change position with each other.

: Cover-hinge to handle-door : holder-hinge to guider-holder glass

12. Remove the hinge-door and then

assemble on the opposite side. Picture for you reference the process of assemble.

13. Remove the cover-hole(P1).

14. Assemble the holder glass and then fasten the 14 screws

that removed in step 9.

15. Attach the cover-hole.

Spare cover-hole into assy manual.

16. Install the door on the frame-front and then fasten the 4

screws that removed in step 2. Check position of screw that installed to hinge door. 22_ installing your dryer operating instructions, tips WARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. 02 operating instructions, tips

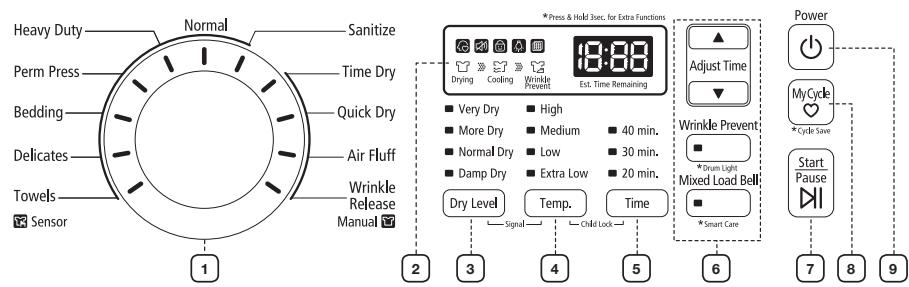

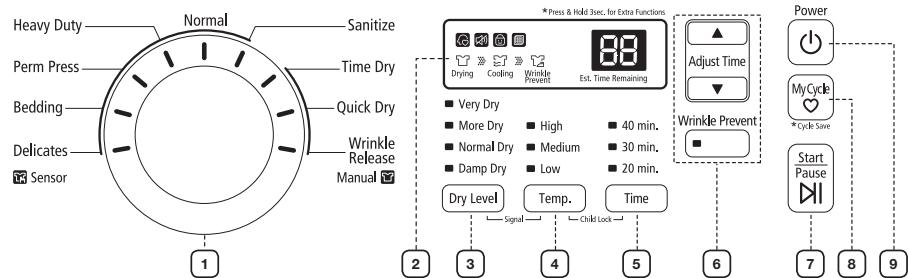

To select a cycle, rotate the Cycle Selector dial to the desired cycle. The indicator light by the cycle name will illuminate. The Nomal, Heavy Duty, Perm Press, Bedding, Delicates, Towels cycles are Sensor Dry cycles. Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the load reaches the dryness level you have selected with the Dry Level Selection Button (see below). Normal – Use this cycle to dry loads of cotton, underwear, and linen. Heavy Duty – Use this cycle to dry heavy fabrics such as jeans, corduroys, or work clothes with high temperature heat. Perm Press – Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics automatically. Bedding – For bulky items such as blankets, sheets and comforters. Delicates – The Delicates cycle is designed to dry heat-sensitive items at a low drying temperature. Towels (DV456*) - To dry bath towels and similar items. Sanitize – Sanitizes garments by infusing high temperature heat deep into the fabric during the drying cycle. Use this course to keep your bedding and curtains clean through sanitization. operating instructions, tips _23 operating instructions, tips Time Dry – Time Dry allows you to select the desired cycle time in minutes. Turn the Cycle Selector dial to Time Dry, then press the Adjust Time up arrow to set the drying time. Press the arrow repeatedly to scroll through the time settings. Quick Dry - Provides a 30 minute drying cycle. Air Fluff (DV456*) – The Air Fluff cycle tumbles the load at room temperature air. Wrinkle Release – The Wrinkle Release cycle will release wrinkles from items that are clean, dry, and only slightly wrinkled, such as clothes from a crowded closet, suitcase or items that have been in the dryer too long after the cycle has ended. Wrinkle Release can be used with any temperature selection. Digital Graphic Display The display window shows the estimated time remaining in the cycle after you have pressed the Start/Pause button. The estimated time remaining may fl uctuate as the cycle progresses. The Drying light will illuminate and remain lit until the cycle is complete. When your dryer is in the cool-down phase, the Cooling light will illuminate. When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will illuminate. When the cycle is complete, “End” will appear in the display panel until you push the Start/Pause button or the Power button. If your dryer is paused during a cycle, the indicator lights will blink until you press the Start/Pause button. Dry Level Selection Button To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles, press the Dry Level button. An indicator light will illuminate next to the dryness level you selected. Press the button repeatedly to scroll through the settings. Larger or bulkier loads may require the Very Dry or More Dry setting for complete dryness. Damp Dry is designed to partially dry items. Use for items that lay flat or hang to dry.

Temp Selection Button To select the temperature for the load, press the Temp button. An indicator light will illuminate next to the temperature you selected. Press the button repeatedly to scroll through the settings. High – For sturdy cottons or those labeled Tumble Dry. Medium – For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium. Low – For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm. Extra Low (DV456*) – Provides the lowest heated dry temperature possible.

Time Selection Button When using Manual Dry cycles, you can adjust the drying time by pressing the time selection button. During the Sensory Dry cycle, the time light indicator is off because exact drying times are determined by fluctuating humidity levels.

24_ operating instructions, tips Select Cycle Option

Start/Pause selection button Press to pause and restart programs.

My Cycle button Choose your favorite cycle including cycle, temp, dry level option, etc. (See page 27 for detail.)

Power button Press once to turn your dryer on, press again to turn it off. If you turn your dryer on and do not touch any buttons for 10 minutes, the power automatically turns off. 02 operating instructions, tips

Adjust Time – You can add or subtract time from the automatically set times in the Wrinkle Release cycle and the Manual Dry cycles (Time Dry, Quick Dry, or Air Fluff cycles.) To add or subtract time from the cycle, press the Adjust Time arrow pad up or down until the desired time is displayed. Wrinkle Prevent -Wrinkle Prevent provides approximately 180 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. Press the Wrinkle Prevent button to activate this feature. The indicator light above the pad will illuminate when you select Wrinkle Prevent. The load is dry and you can remove it at any time during the Wrinkle Prevent cycle. Mixed Load Bell (DV456*) - This is an alarm that notifies you when the average dry level of a mixed load with various types of cloth is damp dry (80 % dried). When this level is reached, an alarm sounds for five (5) seconds. After the alarm sounds, the dryer will continue to run until you turn it off or the clothes reach the level of dryness you selected at the start of the cycle. This function can only be selected in the Sensor Dry course, and the dry level can only be selected from among Normal Dry, More Dry, and Very Dry. Smart Care (DV456*)- Use this function to check if the Dryer is out of order using your smart phone when the Dryer malfunctions. This function is set if you press and hold the Mixed Load Bell key for 3 seconds within 10 seconds of turning the power on or when an error occurs. operating instructions, tips _25 operating instructions, tips CHILD LOCK A function to prevent children from playing with your dryer. Setting/Releasing If you want to set or release the Child Lock, press the Temp. and Time buttons simultaneously for 3 seconds. Child Lock Details

You can set Child Lock while your dryer is running. Once you turn Child Lock on, no button, except for the Power button, will respond until you release the Child Lock function. The Child Lock indicator will be lit. If you have not released Child Lock, and then turned the dryer off and on, the Child Lock function will still be on. To release Child Lock, follow the instructions above. When other buttons, except for the Power button, do not respond, check the Child Lock indicator. If Child Lock is on, follow the instructions above to turn Child Lock off. DRUM LIGHT (ONLY DV456*) Lights the dryer drum while the dryer is running. Turning On and Off Press and hold the Wrinkle Prevent button for 3 seconds or more. You can turn the Drum Light on and off while your dryer is running and when it is stopped. If you do not turn the Drum Light off 5 minutes after turning it on, the Drum Light automatically turns off. SIGNAL When the cycle is complete, a chime will sound. When you press and hold both the Dry Level and Temp buttons simultaneously for 3 seconds or more, the chime will sound intermittently. Adjust the volume of the chime or turn it off by pressing the Signal button. Press the button repeatedly to scroll through the choices. 26_ operating instructions, tips 02 operating instructions, tips

1. Users can only use this function when the product is turned on and in standby mode.

2. The My Cycle setting consists of a Save function and a Load function depending on how long the key is

held down. - Holding the key down for 3 seconds or more: The My Cycle Save function (the option setting sound is played) - Holding the key down for less than 3 seconds: The My Cycle Load function (the level changing sound is played.)

3. When configuring the My Cycle Load, and there is no saved course, the default course is set.

4. If the My Cycle key is held down, the My Cycle LED is turned on. (Only when the My Cycle LED exists.)

5. The items saved by the My Cycle function are the course, temperature and drying level.

6. If the My Cycle Save is configured, the currently configured course and option LEDs blink at 0.5 second

intervals for 3 seconds, and if the course and option settings are changed within those 3 seconds, the LEDs remain on.

7. In the paused state, the My Cycle Save function cannot be configured and if the user tries to configure

the My Cycle Save function, an error sound is played.

8. If the My Cycle Load function is configured while the course and option LEDs blink due to the

configuration of My Cycle Save function, the LEDs stop blinking and remain on.

9. If a saved option key is pressed or the course is changed when configuring the My Cycle Save, the My

Cycle LED is turned off.

10. The My Cycle function is released when the product enters the exit cycle or is turned off.

SMART CARE (DV456*) This function enables you to check the status of the washing machine using a smartphone.

1. To activate the Smart Care function, press the power button to turn the dryer on and then press and

hold the Mixed Load Bell button for 3 seconds. If you press a button other than the Mixed Load Bell button after turning the dryer on, you will not be able to activate the Smart Care function.

2. If the Smart Care function is activated, the lamp over the Mixed Load Bell button blinks for 2 or

3 seconds and then the Smart Care indicator is lit on the display.

3. Run the Smart Care app on your smart phone.

4. You can only use the Smart Care function using a Samsung Galaxy mobile.

5. Focus the smart phone’s camera on the display panel of the washing machine.

6. If the smart phone’s camera is focused on the display panel of the washing machine, the result is

automatically recognized and the error type and countermeasures are displayed on the smart phone.

7. If an error occurs more than once, please manually enter the error code displayed on the display panel

of the washing machine into the Smart Care app. Downloading the Smart Care app

Galaxy S Users: To download the application, select the Samsung AppStore menu in the Android Market (by pressing the Menu button in the Android Market) or connect to http://mobile. kr.samsungmobile.com/apps and install Samsung AppStore. Galaxy S2 Users: To download the application, run SamsungApps on the home screen of the smartphone and enter the Samsung AppStore. Using the application on the Galaxy S or S2 running android version 2.2 is recommended. Precautions when using Smart Care

If a lighting device (e.g. fluorescent or lamp) is reflected on the display panel of the washing machine, the result on the display panel may not be recognized easily. If an error occurs more than once, please manually enter the error code displayed on the display panel of the washing machine into the Smart Care app. If the angle of the smartphone camera and the display panel of the washing machine is incorrect, the error may not be recognized properly.Please try to hold the smart phone at an angle to the display panel as shown by the figure. operating instructions, tips _27 operating instructions, tips

CLEAN THE LINT FILTER

After each load. To shorten drying time. To operate more energy efficiently. Do not operate your dryer without the lint filter in place. Frame Front Filter Door Place only one washload in your dryer at a time. In mixed loads, heavy and lightweight fabrics will dry differently. This may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle. Add one or more additional similar items to your dryer when you are drying only one or two items. This improves the tumbling action and drying effi ciency. Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics. Load your dryer loosely – DO NOT overload. Close the door. Select the appropriate cycle and options for the load (see pages 23, 24, 25). Press the Start/Pause button. The dryer indicator light will illuminate. The estimated cycle time will appear in the display. The time may fluctuate as humidity levels fluctuate in the dryer.

When the cycle is complete, “End” will appear in the display. Pressing Power cancels the cycle and stops your dryer. The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the cycle. Do not place anything on top of your dryer while it is running. WARNING 28_ operating instructions, tips care and cleaning CONTROL PANEL TUMBLER Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an allpurpose cleaner. Tumble old towels or rags to remove any excess stain or cleaning substance. Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads. 03 care and cleaning Clean with a soft, damp cloth. Do not use abrasive substances. Do not spray cleaners directly on the panel. The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately.

POWDER COATED TUMBLER

To clean the powder coated tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for surfaces. Remove the cleaner residue and dry with a clean cloth. DRYER EXTERIOR Clean with a soft, damp cloth. Do not use abrasive substances. Protect the surface from sharp objects. Do not place any heavy or sharp objects or a detergent box on the dryer. They can scratch or damage the top cover of the dryer. Keep these items in the separately purchased pedestal or in a separate storage box. The entire dryer has a high-gloss finish. Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

Inspect and clean the dryer exhaust system yearly to maintain optimum performance. The outside exhaust hood should be cleaned more frequently to ensure proper operation. care and cleaning _29 special laundry tips Special laundry tips Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions are not available, use the following information as a guide. Bedspreads & Comforters

Follow the care label instructions or dry using the Bedding cycle. Make sure the item is thoroughly dry before using or storing. May require repositioning to ensure even drying. Blankets

Use the Normal cycle and dry only one blanket at a time for best tumbling action. Make sure the item is thoroughly dry before using or storing.

Curtains & Draperies

Use the Perm Press cycle and medium temperature to help minimize wrinkling. Dry these in small loads for best results and remove as soon as possible. Cloth Diapers

Use the Normal cycle and the High temperature settings for soft, fluffy diapers. Down–filled Items (jackets, sleeping bags, comforters, etc.)

Use the Normal cycle and medium temperature setting. Adding a couple of dry towels shortens drying time and absorbs moisture. Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)

DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat. Only DV456*). WARNING – Drying a rubber item with heat may damage it or create a fire hazard. Pillows

Plastics (shower curtains, outdoor furniture covers, etc.)

Use the Normal cycle. Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item. DO NOT dry kapok or foam pillows in the dryer. You can dry these items in the dryer as long as you use the air fluff cycle. Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra Low temperature settings depending on the care label instructions. THINGS TO AVOID :

• Fiberglass items (curtains, draperies, etc.).
• Woolens, unless recommended on the label.
• Items spotted or soaked with vegetable or cooking oils. 30_ special laundry tips troubleshooting

CHECK THESE POINTS IF YOUR DRYER…

SOLUTION Doesn’t run.

Make sure the door is latched shut. Be sure the power cord is plugged into a live electrical outlet. Check your home’s circuit breakers or fuses. Press the Start/Pause button again if the door is opened during the cycle. Doesn’t heat.

Check your home’s circuit breakers or fuses. Select a heat setting other than Air Fluff. On a gas dryer, check that the gas supply is on. Clean the lint filter and exhaust duct. Dryer may have moved into the cool-down phase of the cycle. Doesn’t dry.

Check all of the above, plus... Be sure the exhaust hood outside the home can open and close freely. Check the exhaust system for lint buildup. Ducting should be inspected and cleaned annually. Use a 4” rigid metal exhaust duct. Do not overload. 1 wash load = 1 dryer load. Sort heavy items from lightweight items. Large, bulky items like blankets or comforters may require repositioning to ensure even drying. Check that the washer is draining properly to extract adequate water from the load. Load may be too small to tumble properly. Add a few towels.

05 troubleshooting PROBLEM Check the load for objects such as coins, loose buttons, nails, etc. Remove promptly. It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle. Be sure the dryer is leveled properly as outlined in the installation instruction. It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system. Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. Select the Very Dry setting if desired. If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level. Sort heavy items from lightweight items for best drying results. Household odors from paint, varnish, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler, and exhausts it outside. When these odors linger in the air, ventilate the room completely before using the dryer. troubleshooting _31 Shuts off before load is dry

The dryer load is too small. Add more items or a few towels and restart the cycle. The dryer load is too large. Remove some items and restart the dryer.

Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle. Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that are lint trappers (for example, a pair of lack linen pants). Divide larger loads into smaller loads for drying Check pockets thoroughly before washing and drying clothes.

Garments still wrinkled after • Wrinkle-Care

Small loads of 1 to 4 items work best. Load fewer garments. Load similar-type garments. Odors remain in clothing after Refresh.

Fabrics containing strong odors should be washed in a normal cycle. Water drips from nozzle when Steam-Care starts

This is steam condensation. The dripping water will stop after a short time. Sprayed water is not visible during Steam-Care

Sprayed water is difficult to see when the door is closed INFORMATION CODES Information codes may be displayed to help you understand what is occurring with your Dryer better. ERROR DISPLAY MEANING SOLUTION

Clogged Lint Screen Vent is restricted Clean the screen or vent. If the problem continues, call for service.

Invalid heating Temp in running the dryer Call for service.

Running the dryer with door open Close the door and then restart. If the problem continues, call for service.

Door is not closing properly Call for service. bE2 Unit detects a button is being pressed for over 30secs or button is stuck Make sure a button is NOT being pressed continuously. Try restarting the cycle. If the problem continues, call for service.

Invalid power source Frequency Try restarting the cycle. If the problem continues, call for service.

Electronic Control Problem (Communication Error) Call for service.

(DV422,DV400) For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG) 32_ troubleshooting Warning Symbols for Laundering Normal Line Dry/ Hang to Dry Do Not Wash Do Not Tumble Dry High No Steam (added to iron) Hot Medium Do Not Iron Warm Low Cold Any Heat Dry Clean No Heat/Air Do Not Dry Clean Water Temperature** Bleach Any Bleach (when needed) Iron-Dry or Steam Temperatures Dryclean Line Dry/ Hang to Dry Only Non-Chlorine (color-safe) Bleach (when needed) High Drip Dry Tumble Dry Cycle Medium Dry Flat Normal 06 appendix The following symbols provide garment care directions. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. Low Permanent Press/ Wrinkle Resistant/ Wrinkle Control Gentle/ Delicates ** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 105° – 125 °F / 41° – 52 °C, for Warm 85° – 105 °F / 29° – 41 °C and for Cold 60° – 85 °F / 16 ° – 29 °C. (Wash water temperature must be a minimum of 60° F/16° C for detergent activation and effective cleaning.) appendix _33 appendix

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

DECLARATION OF CONFORMITY

This appliance complies with UL2158. SPECIFICATIONS

TYPE Div C. Depth with door open 90° D. Depth Functions Sensor Dry Level Cottons, Work clothes, Linen Normal dry Heavy Duty Heavy Fabrics such as jean, corduroys, heavy work clothes Normal dry Perm Press Shirts, Synthetic Fabrics, Knits, Wrinkle-free cottons, Permanent Normal dry Bedding Bulky items such as blankets, Sheets, Comforters, Pillows Normal dry Delicates Underwear, Blouses, Lingerie Normal dry Sanitize Bedding, Curtains, Children’ clothing Very dry (No change) Towel Bath towels and similar items Normal dry Air Fluff Foam, Rubber, Plastic

Quick Dry Small loads

Wrinkle Release Shirts, Trouser, Blouses

Sensor Dry 06 appendix Normal Manual Dry Functions Cycle Sensor Dry Options Temp Control High Medium Low Extra Low Normal

Time Wrinkle Prevent

Manual Dry Load Size Recommendations Large load : Fill the drum to about ¾ full. Do not add items over this level as they need to tumble freely. Medium load : Fill the drum to about ½ full. Small load : Fill the drum with 3~5 items, not more than ¼ full.

• For best results, follow the load size recommendations for each dry cycle. appendix _35 warranty SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year All Parts and Labor Two (2) Years Control Board Parts This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. 36_ warranty Except as set forth herein, there are no warranties on this product either express or implied, and samsung disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement or fitness for a particular purpose. No warranty or guarantee given by any person, firm, or corporation with respect to this product shall be binding on samsung. Samsung shall not be liable for loss of revenue or profits, failure to realize savings or thter benefits, or any other special, incidental or consequential damages caused by the use, misuse, or inability to use this product, regardless of the legal theory on which the claim is based, and even if samsung has been advised of the possibility of such damages. Nor shall recovery of any kind against samsung be greater in amount than the purchase price of the product sold by samsung and causing the alleged damage. Without limiting the foregoing, purchaser assumes all risk and liability for loss, damage, or injury to purchaser and purchaser’s property and to others and their property arising out of the use, misuse, or inability to use this product. This limited warranty shall not extend to anyone other than the original purchaser of this product, is nontransferable and states your exclusive remedy. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660 1-800-SAMSUNG(726-7864) www.samsung.com warranty _37 QUESTIONS OR COMMENTS? Country CALL Code No. DC68-03170A_EN
