USER MANUAL DO9124M DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

INFORMACION DE RECICLaje

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxemburg, France and Germany.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

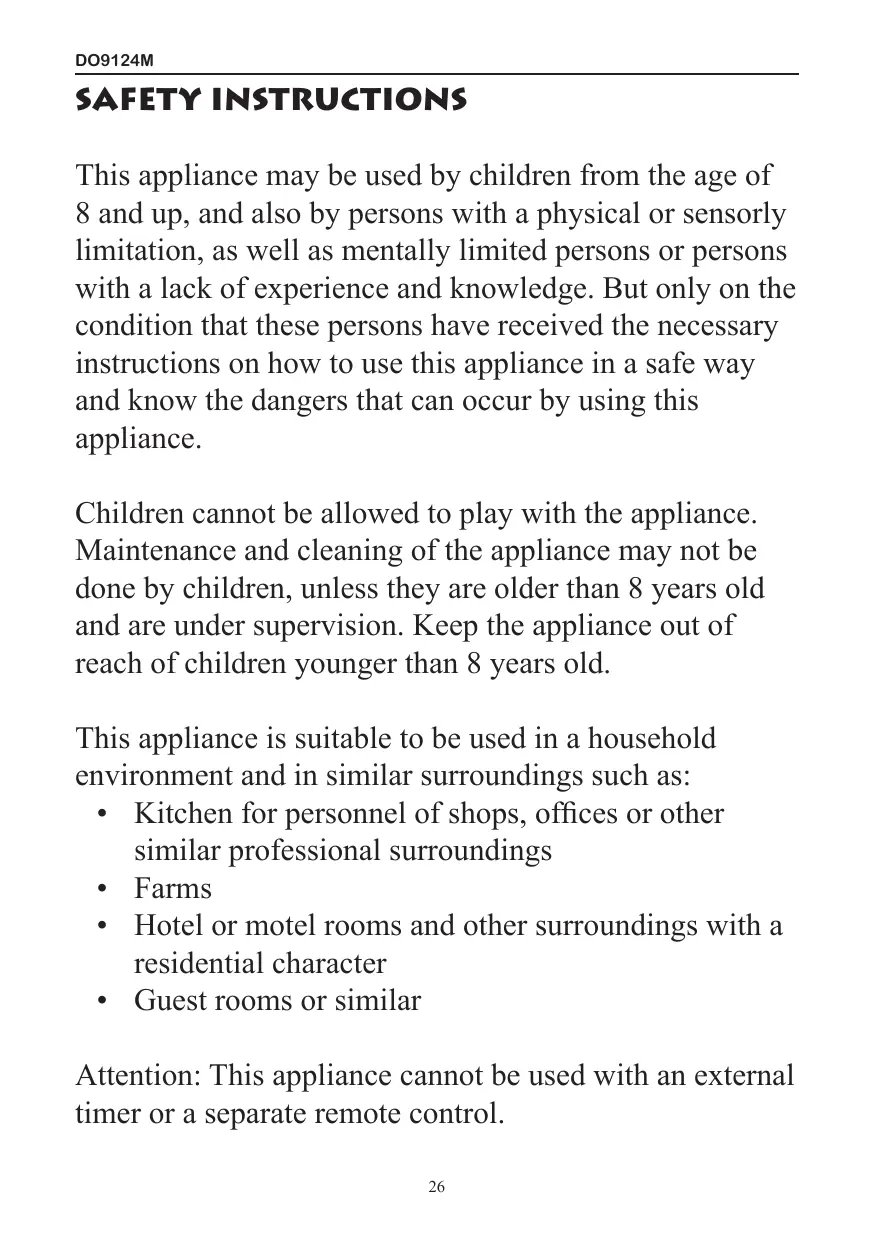

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Use short mix times. Never use the beaters or dough hooks for longer than 1 minute at full power. Afterwards, leave the device to cool off for a while.
• Avoid touching the moving parts. Keep your hands, clothes, spatulas and other kitchen utensils away from the beaters and dough hooks to prevent accidents from happening.
• Never eject the beaters or dough hooks from the device with the eject button while the device is still plugged in.

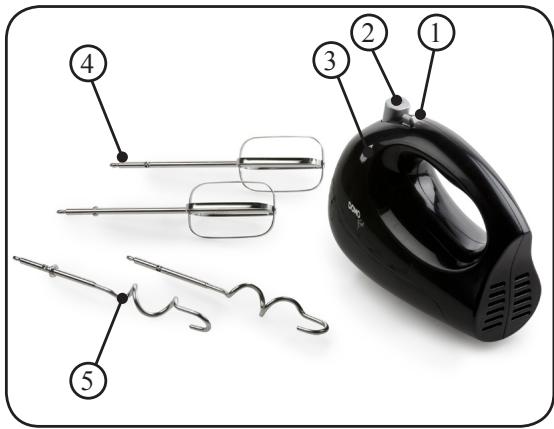

ONDERDELEN

1. Speed selection switch
2. Eject button
3. Turbo button
4. Beaters
5. Dough hooks

BEFORE USAGE

Clean your beaters and dough hooks before using them for the first time.

When you plug in the accessories into

the device, be sure the speed is set at 0 and the power supply cord is not plugged in.

USE

This device has two beaters and two dough hooks that both have a different function:

1. Beaters are used to beat or whisk. You can use these to mix (saues or batter), make frothy foods (beating egg whites or whipped cream) or combine (mixing of two fluids that will not bind on their own).
2. Dough hooks are used to knead dough. Important to note is how you place them into the device. One of the two dough hooks has a 'crown' at the end of its rod which makes it only fit into the large opening at the bottom of the device. Always plug in the dough hook with the crown into the large opening and the other dough hooks should be plugged into the small opening. This improves the way the dough is kneaded.

1. Place the power supply cord into the plug.
2. Place, depending on the quantities you are using, all ingredients into a big enough bowl, pot or measuring cup.
3. Immerse the beaters or dough hooks into the bowl and start the device by setting the speed selection switch in one of five positions.
4. The turbo button will give you full power immediately.
5. After using the device, return the speed selection switch to 0.

Attention: Use the device for max 5 minutes continuously and max 1 minute at full power. Otherwise, you might overheat the motor and the device might be damaged.

Attention: When kneading dough, you should start at a lower speed setting and

only gradually increase the speed until you reach the max speed.

1. Pull the power supply cord from the plug carefully.
2. Eject the beaters or dough hooks carefully by using the proper button.

Attention: You can only use the eject button when the speed is set at 0, this to prevent accidents from happening.

Attention: When ejecting the accessories, never aim the bottom side of the device at your or someone else's face, this again to prevent accidents from happening.

MAINTENANCE & CLEANING

• Pull the power supply cable from the plug in a careful manner and let the device cool off entirely before you start cleaning it.
• Remove all food rests from the device, the power supply cable and accessories.
  Always use a damp, moist cloth to clean the outside of the device before drying it off.
• Wash the dough hooks and beaters in warm soapy water and subsequently dry them off. The beaters and dough hooks may be washed and dried in the dishwasher.

Attention: Never immerse the device or power supply cable in water or any other liquid.

TIPS & TRICKS

• Ingredients that are stored away in the refridgerator, such as butter or eggs, are best mixed at room temperature. Therefore we advise you to remove them from your refridgerator in due time when you plan on mixing them later.
• To be sure you do not have any little pieces of egg shell in your batter or whisked eggs, break the eggs away from the bowl you will use later. Remove the egg shells there and only then mix the egg whites or yolks.
• Do not beat your ingredients too hard. Follow the recipes to the letter, making sure you always mix your ingredients at the right time/for the right duration.
• Always start mixing at the lower speeds to gradually increase the advised speed setting mentioned in the recipe.
