USER MANUAL DVR 508NHD VIVITAR

All manuals and user guides at all-guides.com Introduction Thank you for purchasing this digital camcorder. Everything you need to take quality digital videos and photos is included with your digital camcorder. Vivitar makes capturing those special moments as easy as possible. Note: Your digital camcorder needs an SD Memory card (up to 32GB) for normal use. SD Memory cards are not included and need to be purchased separately. Important: It is recommended to use a Class 4 SD card or higher SD card. Please read this manual carefully first in order to get the most out of your digital camcorder. What’s Included

Note: SD Memory card and batteries not included.

All manuals and user guides at all-guides.com Parts of the Digital Camcorder

19. Battery Compartment

Self-Timer LED Indicator Light

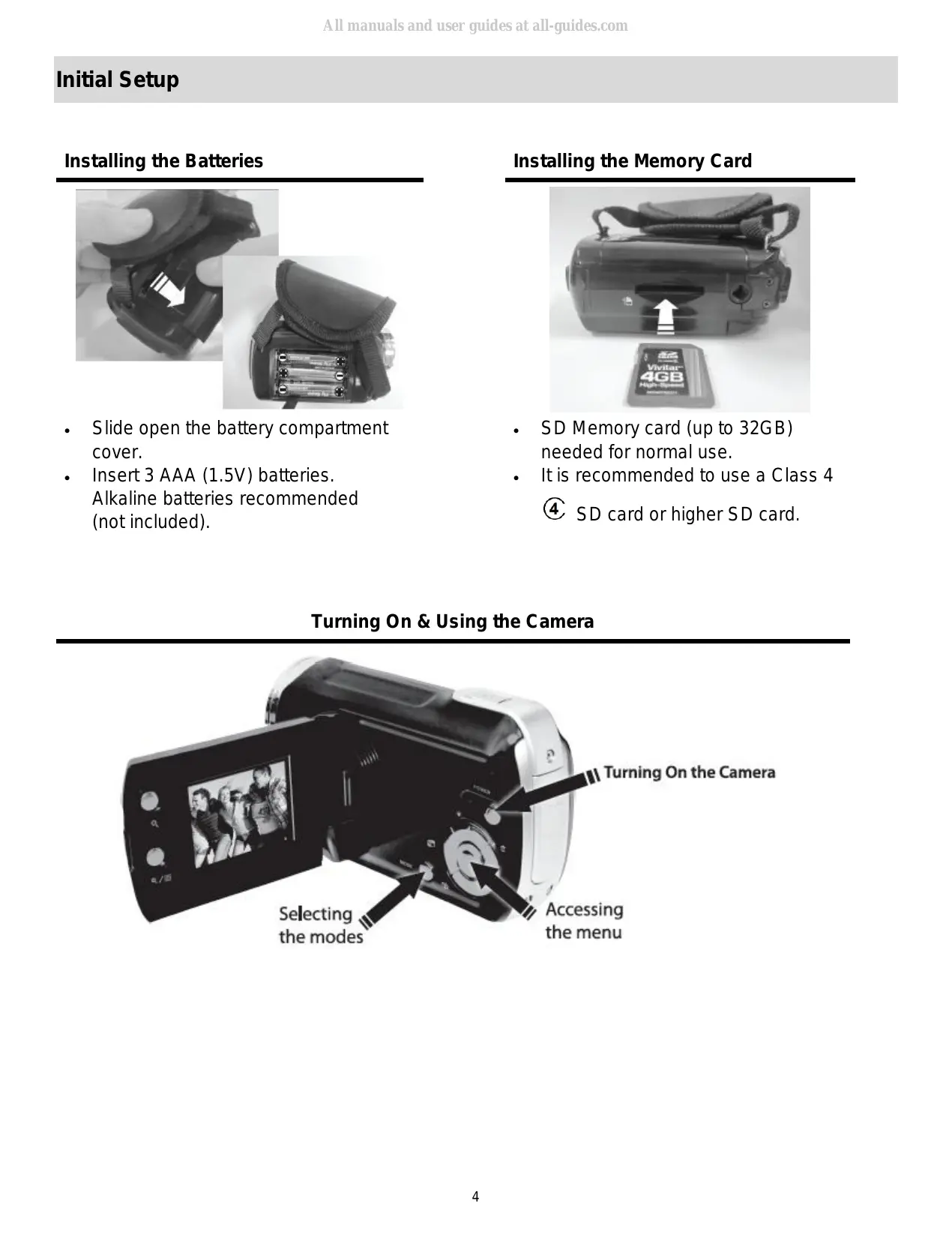

All manuals and user guides at all-guides.com Initial Setup Installing the Batteries

Installing the Memory Card Slide open the battery compartment cover. Insert 3 AAA (1.5V) batteries. Alkaline batteries recommended (not included).

SD Memory card (up to 32GB) needed for normal use. It is recommended to use a Class 4 SD card or higher SD card. Turning On & Using the Camera

All manuals and user guides at all-guides.com Flip open the LCD screen and power on the camera. When powering the camera ON for the first time the camera will take you through the initial camera setup. Powering the Camera ON

Installing the Batteries Remove the battery compartment cover. the battery compartment. Close the battery compartment cover securely.

Insert the batteries properly into your digital camcorder, according to the polarity shown inside .co Use 3 x AAA (1.5V) batteries. Alkaline batteries are recommended. (Batteries not included.) Note: Remove the batteries from the camera when not in use for an extended period.

Do not mix alkaline and non-alkaline batteries.

Some camera features (i.e. Flash) will not work if the battery power level is low.

When the battery power is low, the battery icon appears empty and ‘Battery Low’ appears on

the LCD screen. The camcorder automatically turns off a few seconds later. The energy status of the power is displayed on LCD as shown below: uid

Full battery power Medium battery power Low battery power

Make sure the SD Memory card (up to 32GB) has been properly inserted into your digital camcorder. SD card not included. To properly insert the SD Card: all - Push the SD card into the slot in the direction shown on the digital camcorder. - Push the SD card until you hear a slight clicking sound. This indicates the SD card has been inserted correctly. Note:

After the digital camcorder is powered on, an SD icon appears on the LCD display. If you do not see the SD icon on the display, please check if the card was inserted properly.

Make sure the SD card is not locked (check the lock switch on the side of the SD card). If the SD card is locked this will prevent the digital camcorder from saving captured photos to the SD card.

All manuals and user guides at all-guides.com

3) Powering ON the Digital Camcorder

Press the POWER button to turn on the digital camcorder. Setting the Digital Camcorder Language You will first be prompted to select a language for the digital camcorder. The Language selection menu appears.

1) Press the UP or DOWN button to select the language of your choice.

2) Press the OK/SET button to confirm the selection.

Setting the Date and Time The next step in the initial camcorder setup is to set the date and time.

1) Press the LEFT or RIGHT button to move between the date and time

settings. Press the UP or DOWN button to set the specific date and time.

2) Press the OK/SET button to confirm the date and time setting and to

continue with the camcorder setup. Setting the ViviLink Default Option Once the Date and Time have been set, you will be asked to set the default ViviLink destination for photos and videos taken with your digital camcorder. The ViviLink technology allows you to quickly and easily upload your camcorder’s photos and videos to the social networks of your choice with the accompanying Vivitar Experience Image Manager application.

1) First you will be asked to choose the default ViviLink social network for Videos. Use the UP and

DOWN buttons to highlight the desired default social network and press the OK/SET button to confirm the selection.

2) Next you will be asked to choose the default ViviLink social network for Photos. Use the UP and

DOWN buttons to highlight the desired default social network and press the OK/SET button to confirm the selection. Congratulations - your digital camcorder is now ready to use!

All manuals and user guides at all-guides.com Main Camcorder Modes Your digital camcorder has different modes for the various camera functions. You can switch modes by pressing the MODE button on your digital camcorder after the camcorder has been powered ON. Video Capture Mode Use this mode to capture videos with your digital camcorder. This is the default mode when the camcorder is powered ON. To take a video, aim your camcorder as desired and press the Shutter button to start recording. A red, blinking record indicator appears on the LCD screen while the recording is in progress. To stop the recording, press the Shutter button again. The video is automatically saved to your camera’s memory card. To access the various menus for the Video Capture mode, press the OK button while in the Video Capture mode. Photo Capture Mode Use this mode to capture pictures with your digital camcorder. After turning on your camcorder, press the MODE button once to open the Photo Capture mode. To take a picture, aim your camcorder as desired and press the Shutter button. The picture is automatically saved to your camera’s memory card. To access the various menus for the Photo Capture mode, press the OK button while in the Photo Capture mode. Playback Mode (Photos & Videos) Use this mode to view and manage the photos and videos on your digital camcorder. After turning on your camcorder, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you’ve captured to view, edit or delete them as desired. To access the various menus for the Playback ode for photos and videos, press the OK button while in the Playback mode.

All manuals and user guides at all-guides.com Camcorder Technical Specifications Image Sensor CMOS Sensor Image Resolution (5M) 2592x1944, (3M) 2048x1536, (1M) 1280x Video Resolution 1280x720 (HD), 640x480 (VGA), 320x240 (QVGA) File Format JPEG/AVI External Memory SD Card (up to 32GB) LCD Display 1.77”TFT Lens Focus Length 120CM-Infinity Zoom 4X Digital Zoom Exposure -3.0EV ~ +3.0EV White Balance Auto, Daylight, Cloudy, Incandescent, Fluorescent ISO Auto, 100, 200, 400 Auto, Scenery, Portrait, Night Scenery, Night Portrait, High Scene Sensitivity, Sport, Beach, Party Language English, French, Spanish, Portuguese, German, Italian, Russian, Greek, Polish Flash 2 LED lamps Self-Timer 2, 5 or 10 second delay Anti-Shake Yes Print Photos Yes Multi Snapshots (Burst) Yes Auto Power Off Yes - 1 minute, 3 minutes, 5 minutes, Disable Interface USB 2.0 Windows XP (SP 3), Vista (SP1) and 7 / System Requirements Mac OSX v10.5.x and above Battery 3x AAA (1.5V) batteries – Alkaline batteries recommended Working Temperature 0~40C

All manuals and user guides at all-guides.com Minimum System Requirements WINDOWS OS To be able to download photos and videos to your PC, you will need the following minimum configuration:

Pentium® 4 processor (or above)

1 GB of RAM, 250 MB available hard disk space

16-bit Color monitor, 1024 X 768 recommended screen resolution

Internet connection required MACINTOSH OS To be able to download photos and videos to your Macintosh, you will need the following minimum configuration:

Intel processor running Mac OS X v10.5.x or later

Internet connection required Note: Make sure the latest compatible Adobe® Flash® Player is installed on your computer.

All manuals and user guides at all-guides.com Powering ON/OFF Your Digital Camcorder

Make sure the batteries have been inserted properly into your digital camcorder.

Make sure an SD card (up to 32GB) has been inserted into your digital camcorder. Note: SD Card not included and batteries not included. Powering the Digital Camcorder ON Power button to turn your digital camcorder ON. Powering the Digital Camcorder OFF .co The camcorder will be in Video Capture mode to start.

Press the While the camcorder is on, you can press the Power button again at any point to turn your camcorder OFF. You will see a “Goodbye” splash screen and then the camcorder will power off

completely. Note: Your digital camcorder also has an Auto Power Off feature that automatically turns off your uid camera after a specific period of time that your camcorder is left idle. The Auto Power Off can be set

from the Auto Power Off settings menu. Changing Camcorder Mode Your camera has three main modes: all

1) Video Capture Mode - Use this mode to capture videos with your camera.

2) Photo Capture Mode - Use this mode to capture photos with your camera.

3) Playback Mode (for photos and videos) - Use this mode to view the photos and videos you have

already taken with your camera. When the camcorder is first powered ON, the Video Capture Mode will be active. The icons that appear on the LCD screen are the best default settings so that you can begin to capture and enjoy clear quality photos.

All manuals and user guides at all-guides.com To change the active camera mode, make sure the camera is powered ON and press the MODE button to toggle between the Video Capture Mode, Photo Capture Mode and Playback Mode. When in Video Capture Mode, this icon will display on the top-left corner of the LCD display When in Photo Capture Mode, this icon will display on the top-left corner of the LCD display When in Playback Mode, this icon will display on the top-left corner of the LCD display Navigating the Menus Each camcorder mode has a set of menus specific to that mode.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll between the various menus for the current mode.

3) Press the UP or DOWN button to highlight the desired menu setting option.

4) Press the OK/SET button to select and confirm the highlighted menu option.

5) If the selection can be remembered by the camera, a selection icon

appears to the right of the selected menu option. Changes made to these options will remain until you decide to change them again at a later time.

6) Some menu options are single-use functions that are not remembered by the camera and do not

display this icon when selected.

7) At any time you can press the MODE button to exit the menus and return to the previous screen.

All manuals and user guides at all-guides.com Video Capture Mode The Video Capture Mode allows you to capture videos with your digital camcorder. When the camera is first powered ON, the camcorder will be in Video Capture Mode. Taking a Video

1) While in Video Capture Mode use the LCD display to direct the camera at the scene you would like

Zoom In and Zoom Out buttons located to the left of the LCD screen to better set the camera display if desired. You can magnify your subject up to 4 times using the digital zoom.

Shutter button on top of the camcorder to START the video capture.

A red, blinking record indicator appears on the LCD screen while the recording is in progress.

The elapsed record time is also seen on the LCD screen.

The LED indicator light by the Power button turns red during the recording.

4) To STOP the video capture, press the

Shutter button again.

5) The video is automatically saved to the camera’s SD Memory card.

LED Flash Option The LED Flash lights allow you to add lighting to the scene you would like to capture.

To increase the lighting in dark situations, press the UP button to activate the 2 LED Flash Lights on the front of the camera below the lens.

Press the UP button again to turn the LED Flash Lights off.

All manuals and user guides at all-guides.com Video Capture Mode Quick Function Buttons Your digital camcorder has a four-directional control button that functions as Quick Function buttons. Quick Function Button Left

Function Scene Selection - Opens the Scene menu LED Lights – Turns on/off the LED lights Delete - Opens the ‘Delete This File’ option and allows you to Right Down view and delete the last captured image (video/photo) ViviLink - Opens the ViviLink for Videos menu Other Shutter STARTS/STOPS the video capture Opens the menu options for Video Capture Mode OK/SET Saves your selected menu option Note: To navigate through the Menus, use the UP / DOWN / LEFT / RIGHT buttons Toggles between the Video Capture, Photo Capture, and MODE Playback Modes Exits the menu screen Zooms In Zooms Out

All manuals and user guides at all-guides.com Video Capture Mode Menus The following are the menus that appear in your camcorder’s Video Capture Mode:

All manuals and user guides at all-guides.com Scene Menu The Scene Menu allows you to choose scene settings that let your camera to adapt properly to your current environment.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Scene’ menu.

selected option icon will appear on the selected item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

Image Resolution Menu

or restore the camcorder’s default factory settings. uid The Image Resolution menu allows you to choose the desired size of the images taken by your camcorder. Keep in mind that images with a higher resolution will also take up more of your camcorder’s memory.

1) Press the OK/SET button to open the menus for the current mode.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

All manuals and user guides at all-guides.com Image Quality Menu The Image Quality menu allows you to select the desired quality level of the images taken by your camcorder. Keep in mind that images with a higher image quality level will also take up more memory on your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Image Quality’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Anti-Shake Menu The Anti-Shake feature reduces image corruption that can be caused by movement of the camcorder while capturing the image.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Anti-Shake’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

All manuals and user guides at all-guides.com White Balance Menu The White Balance feature allows your camcorder to adjust the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Balance setting to match your current environment will allow the camcorder to properly balance the colors in the images that are taken with your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘White Balance’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Color Effect Menu You can choose to add a color effect to the images taken with your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Color Effect’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

All manuals and user guides at all-guides.com Image Sharpness Menu You can set the level of sharpness in the images taken with your camera. The sharpness level dictates if the edges of objects in the image are more or less distinct.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Image Sharpness’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Light Exposure Menu The Light Exposure setting helps you control the amount of light that enters your camcorder’s lens. This setting should be adjusted when the environment is lighter or darker than normal. When the environment has more light than is needed, reduce the exposure setting (by using the negative - count) to reduce the amount of light allowed into the lens by your camcorder. If the environment has less light (darker) than is needed, increase the exposure setting (by using the positive + count) to increase the amount of light allowed into the lens by your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Light Exposure’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

All manuals and user guides at all-guides.com ISO Menu The ISO menu allows you to set the level of sensitivity that your camcorder has to light in the surrounding environment. When the ISO level is increased, the image sensor in your camcorder will be more sensitive to light and allow you to capture images in lower-light situations. The higher sensitivity to light however, may reduce the quality of the images that are taken. When the ISO is reduced, the image sensor in your camera will be less sensitive to light and will optimize the image quality in environments with bright lighting.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘ISO’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Metering Menu The Metering setting will affect how your camera focuses when capturing an image. Depending on your selection, the camcorder will be more sensitive to focusing on particular areas in the display and adjust the image color and lighting accordingly. Center – Averages the light metered from the entire frame, but giving greater weight to the subject in the center Multi – Used in standard conditions the camcorder divides and adjusts the settings of the image into several zones for light metering such as complex light conditions, position of subject, brightness, background, direct light and scenes Spot – Meters the area within the spot point frame at the center of the LCD to set the exposure on the subject in the center of the monitor.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Metering’ menu.

All manuals and user guides at all-guides.com

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

.co or restore the camcorder’s default factory settings.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

Language Menu You can select your camcorder’s language setting by selecting the desired language from the Language menu.

1) Press the OK/SET button to open the menus for the current mode.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

all or restore the camcorder’s default factory settings. Date/Time Menu When you capture an image with your camcorder, the image will include a time stamp with the date and time that the image was taken. The Date/Time menu allows you to set your camcorder’s date and time as desired. You can also disable the timestamp for future images that will be taken with your camcorder. On – The timestamp will appear on images taken Off – The date stamp will not appear on images taken

All manuals and user guides at all-guides.com To Enable/Disable the Timestamp:

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Date/Time’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. To Set the Date and Time:

1) Press the MENU button to open the menus for the current mode.

OK/SET button to open the menu.

4) Scroll through the date and time menus with the RIGHT and LEFT direction buttons.

5) For each field in the menu, use the UP and DOWN direction buttons to set the specific date and

6) When you have finished setting the date and time, press the OK/SET button to save your settings

and return to the previous mode.

7) Press the MODE button to exit the menu without saving your settings and return to your previous

screen. Silent Mode Menu You have the option of activating the camcorder’s Silent mode to disable all of the sound effects (except for beeps heard during the Self-Timer countdown) that the camcorder emits when performing functions. Note: This menu does not affect the sound during video capture.

1) Press the OK/SET button to open the menus for the current mode.

All manuals and user guides at all-guides.com

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Auto Power Off Menu You can use the Auto Power Off feature in order to conserve you camcorder’s battery life. The designated time represents when your camcorder will automatically power off. When the camcorder sits idle for the designated period of time, the camcorder will shut off completely and will need to be turned on again with the Power button before the next use.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Auto Power Off’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Frequency Menu The options in the Frequency menu represent the frequency of the electrical current in fluorescent lighting sources in your locale. If your camcorder is set to a frequency that does not match your country’s electric current, you may see flickering or waves on the images taken by your camcorder. 50Hz – UK, Europe and Australia 60Hz – US, Canada and South America

All manuals and user guides at all-guides.com

1) Press the OK/SET button to open the menus for the current mode.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Format Memory Card Menu You can use the Format Memory Card menu to delete all of the content that is currently on your camcorder’s memory card. Keep in mind that formatting the memory card will permanently delete all of the content on your camcorder’s memory card. This option will delete all of the content at one time. If you would like to delete individual images, use the delete menu in the camcorder’s Playback mode.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Format Memory Card’ menu.

You will be asked to confirm the formatting of the memory card. Select “No” to exit without formatting. Select “Yes” and press the OK/SET button to begin. The memory card will be completely formatted. TV Out Menu TV Out menu allows you to select the TV option appropriate for you to view your captured images on your television. See “Connecting the Digital Camcorder to a TV” for further information on how to connect your digital camcorder to your television.

All manuals and user guides at all-guides.com NTSC – Television and video standard used in America, Canada PAL – Television and video standard used in Europe

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘TV Out’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings Firmware (Factory Default Settings) Menu Use this menu to view the Firmware version on your camera or to reset your camera settings to the Factory Default Settings.

Press the OK/SET button to open the menus for the current mode.

The “Restore Factory Settings” is selected.

Press the OK/SET button to reset the camcorder to the factory default settings.

You will be asked to confirm the resetting to the factory default settings. Select “No” and press the OK/SET button to exit the menu and return to the previous mode without resetting to the default settings. Select “Yes” and press the OK/SET button to proceed with the reset. You will then automatically exit the menu and return to the previous mode with the digital camcorder settings set to the Factory Default Settings. Note: After RESETTING to the default settings, it is recommended to select your system Language, Date/Time and ViviLink for Photos and Videos. If you do not, the next time your camera is powered on, you will be prompted to define those settings.

All manuals and user guides at all-guides.com Video Playback Mode The Playback Mode allows you to review and edit photos and videos that you’ve already taken with you camera.

When you first turn on the camera, the camera will be in Video Capture mode by default.

The latest captured image appears on the LCD screen.

If there are no images stored, a message (No File) appears.

Select your Video: .co Playing Videos on Your Camcorder Once in Playback mode, press the LEFT or RIGHT button to scroll through the images on your camcorder’s memory card until you find the video you would like to view. Each captured image (video and photo) is displayed on the LCD screen.

Play your selected video:

Videos appear with an ‘AVI’ icon on the top left of the LCD screen. Press the Shutter button to START playing the video. uid Press the Shutter button again to PAUSE the video and to continue playing and pausing as needed. To fully STOP the video and restore the icons to the LCD, press the UP button.

While the Video is playing all the icons on the top section of the LCD disappear. Thumbnail View all Easily navigate and select the image you wish to view by using the Thumbnail View. The images on your camera will be displayed in a 3 X 3 matrix where you can use the direction buttons to scroll and select images from the thumbnails.

2) All the images on your camera will appear in the Thumbnail View.

3) Press the UP / DOWN / LEFT / RIGHT buttons to scroll and select the image you wish to view.

4) Press the OK/SET button to enlarge the image full size.

5) Once the selected video is full size you can play and view the video.

All manuals and user guides at all-guides.com Video Playback Mode Quick Function Buttons Your digital camcorder has a four-directional direction control button that functions as Quick Function buttons. Quick Function Button Function Left Displays the PREVIOUS image

STOPS a playing video Right Down Displays the NEXT image ViviLink - Opens the ViviLink for Videos menu Other Shutter PLAYS and PAUSES a playing video Opens Thumbnail View

Zoom Out / Thumbnail To Navigate in the Thumbnail View: press the UP / DOWN / LEFT / RIGHT buttons To select an image in the Thumbnail View: press the OK/SET button Opens the menu options for Video Playback Mode OK/SET Saves your selected menu option Note: To navigate through the Menus, use the UP / DOWN / LEFT / RIGHT buttons Toggles between the Video Capture, Photo Capture, and Playback MODE Modes Exits the menu screen Video Playback Mode Menus The following are the menus that appear in your digital camcorder’s Video Playback Mode:

All manuals and user guides at all-guides.com Delete Menu While in the Playback mode, you can select to delete a single video or all images from your digital camcorder through the Delete menu.

1) View the image you would like to delete.

2) Press the OK/SET button to open the menus for the current mode.

3) Press the LEFT or RIGHT button to scroll and select the ‘Delete’ menu.

4) Press the UP or DOWN button to scroll through the menu options.

5) To delete this one video, select “Delete This Video”.

6) To delete all the images (including all unlocked photos and videos) on your camera’s memory card,

select “Delete All Images”.

7) Press the OK/SET button to select and confirm the desired option.

8) You will be asked to confirm your selection.

9) The videos will be deleted as desired.

Protect/Lock Menu Pictures and Videos taken with your camcorder can be protected or “locked” to prevent any deletion or alteration being made to the files.

Press the OK/SET button to open the menus for the current mode.

Press the UP or DOWN button to scroll through the menu options.

Press the OK/SET button to select and confirm the desired option.

Press the MODE button to exit the menu and return to your previous mode.

Any image that is locked will display a lock symbol on the LCD screen when viewing that image in the playback mode. Videos that are not locked will not display the lock symbol.

Remember that you cannot delete locked videos.

All manuals and user guides at all-guides.com Photo Capture Mode The Photo Capture mode allows you to capture pictures with your digital camcorder. When you power on your camcorder, it is by default in Video Capture Mode. To enter Photo Capture Mode, press the MODE button once to open the Photo Capture Mode. Taking a Picture

1) While in Photo Capture Mode use the LCD display to direct the camera at the scene you would like

Zoom In and Zoom Out buttons located to the left of the LCD screen to better set the camera display if desired. You can magnify your subject up to 4 times using the digital zoom.

3) Press the Shutter button to take the picture.

4) The picture is automatically saved to the camcorder’s SD memory card.

LED Flash Option The LED Flash lights allow you to add lighting to the scene you would like to capture.

To increase the lighting in dark situations, press the UP button to activate the 2 LED Flash Lights on the front of the camera below the lens.

Press the UP button again to turn the LED Flash Lights off.

All manuals and user guides at all-guides.com Photo Capture Mode Quick Function Buttons Your digital camcorder has a four-directional direction control button that functions as Quick Function buttons. Quick Function Button Left Function Scene Selection - Opens the Scene menu Turns the LED lights on and off.

Right Delete - Opens the ‘Delete This File’ option and allows you to view and delete the last captured image (video/photo) Down ViviLink - Opens the ViviLink for Photos menu Other Shutter Captures your photo Opens the menu options for Photo Capture Mode OK/SET Saves your selected menu option Note: To navigate through the Menus, use the UP / DOWN / LEFT / RIGHT buttons. Toggles between the Video Capture, Photo Capture, and MODE Playback Modes Exits the menu screen Zooms In Zooms Out

All manuals and user guides at all-guides.com Photo Capture Mode Menus all

The following are the menus that appear in your digital camcorder’s Photo Capture Mode:

All manuals and user guides at all-guides.com Scene Menu The Scene Menu allows you to choose scene settings that allow your camera to adapt properly to your current environment.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Scene’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Image Resolution Menu The Image Resolution menu allows you to choose the desired size of the images taken by your camcorder. Keep in mind that images with a higher resolution will also take up more of your camcorder’s memory.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Image Resolution’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Image Quality’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Self-Timer Menu The Self-Timer menu allows you to set a delay between the time that the camcorder’s Shutter button is pressed and the actual capture of the picture. This is an optimal feature if you don’t just want to take the picture but would also like to be in the picture yourself. Just set the desired Self-Timer delay, press the Shutter button on your camcorder and position yourself in front of the camcorder as desired.

Press the OK/SET button to open the menus for the current mode.

Press the UP or DOWN button to scroll through the menu options.

Press the SET button to select and save the desired option.

Press the MODE button to exit the menu and return to your previous mode.

An icon reflecting your selection will display on the LCD screen.

Remember that this setting will be saved by your camera until you manually change the setting or selected option icon will appear on the selected item. restore the camera’s default factory settings.

All manuals and user guides at all-guides.com Anti-Shake Menu The Anti-Shake feature reduces image corruption that can be caused by movement of the camcorder while capturing the image.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Anti-Shake’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. White Balance Menu The White Balance feature allows your camcorder to adjust the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Balance setting to match your current environment will allow the camcorder to properly balance the colors in the images that are taken with your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘White Balance’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

All manuals and user guides at all-guides.com Color Effect Menu You can choose to add a color effect to the images taken with your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Color Effect’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Multi SnapShots Menu When enabled, the Multi SnapShots feature allows you to take six rapid snapshots in a row with a single click of the Shutter button. This feature can be effective when trying to capture a particular moment in a sporting event or other scenes with quick movements.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Multi Snapshots’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camera until you manually change the setting or

restore the camera’s default factory settings.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Image Sharpness’ menu.

selected option icon will appear on the selected item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. uid The Light Exposure setting helps you control the amount of light that enters your camcorder’s lens. This setting should be adjusted when the environment is lighter or darker than normal. When the environment has more light than is needed, reduce the exposure setting (by using the negative - count) to reduce the amount of light allowed into the lens by your camcorder.

If the environment has less light (darker) than is needed, increase the exposure setting (by using the positive + count) to increase the amount of light allowed into the lens by your camcorder. all

1) Press the OK/SET button to open the menus for the current mode.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘ISO’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

1) Press the OK button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Metering’ menu.

All manuals and user guides at all-guides.com

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) An icon reflecting your selection will display on the LCD screen.

9) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Language Menu You can select your camcorder’s language setting by selecting the desired language from the Language menu.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Language’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. Date/Time Menu When you capture an image with your camcorder, the image will include a time stamp with the date and time that the image was taken. The Date/Time menu allows you to set your camcorder’s date and time as desired. You can also disable the timestamp for future images that will be taken with your camcorder. On – The timestamp will appear on images taken Off – The date stamp will not appear on images taken

All manuals and user guides at all-guides.com To Enable/Disable the Timestamp:

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Date/Time’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

or restore the camcorder’s default factory settings. To Set the Date and Time:

1) Press the MENU button to open the menus for the current mode.

OK/SET button to open the menu.

4) Scroll through the date and time menus with the RIGHT and LEFT buttons.

5) For each field in the menu, use the UP and DOWN buttons to set the specific date and time.

6) When you have finished setting the date and time, press the OK/SET button to save your settings

and return to the previous mode.

7) Press the MODE button to exit the menu without saving your settings and return to your previous

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Silent Mode’ menu.

All manuals and user guides at all-guides.com

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Auto Power Off’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

1) Press the OK/SET button to open the menus for the current mode.

All manuals and user guides at all-guides.com

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

You can use the Format Memory Card menu to delete all of the content that is currently on your camcorder’s memory card. Keep in mind that formatting the memory card will permanently delete all of the content on

your camcorder’s memory card. This option will delete all of the content at one time. If you would like to delete individual images, use uid the delete menu in the camcorder’s Playback mode.

1) Press the OK/SET button to open the menus for the current mode.

You will be asked to confirm the formatting of the memory card. all Select “No” to exit without formatting. Select “Yes” and press the SET button to begin. The memory card will be completely formatted. TV Out Menu TV Out menu allows you to select the TV option appropriate for you to view your captured images on your television. See “Connecting the Digital Camcorder to a TV” for further information on how to connect your digital camcorder to your television.

All manuals and user guides at all-guides.com NTSC – television and video standard used in America, Canada PAL – television and video standard used in Europe

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘TV Out’ menu.

selected option icon will appear on the selected item.

6) Press the LEFT or RIGHT button to select the next menu item.

7) Press the MODE button to exit the menu and return to your previous mode.

8) Remember that this setting will be saved by your camcorder until you manually change the setting

Press the OK/SET button to open the menus for the current mode.

The “Restore Factory Settings” is selected.

Press the SET button to reset the camcorder to the factory default settings.

All manuals and user guides at all-guides.com Photo Playback Mode The Playback Mode allows you to review and edit photos and videos that you’ve already taken with you camera.

When you first turn on the camera, the camera will be in Video Capture mode by default.

The latest captured image appears on the LCD screen. If there are no images stored, a message (No File) appears. Viewing Photos on Your Camera

Select your Photo: Once in Playback Mode, press the LEFT or RIGHT button to scroll through the images on your camera’s memory card until you find the image you would like to view. Each captured image (video and photo) is displayed on the LCD screen. Photos appear with a ‘JPG’ icon on the top left of the LCD screen.

Zooming In/Out of your selected Photo: Press the Zoom In button to Zoom In and magnify the selected photo. Use the UP / DOWN / LEFT / RIGHT buttons to navigate around the photo. Note: Press the OK/SET button to return to viewing the photo without magnification. Press the Zoom Out button to Zoom Out of the selected photo. Use the UP / DOWN / LEFT / RIGHT buttons to navigate around the photo. Thumbnail View Easily navigate and select the image you wish to view by using the Thumbnail View. The images on your camera will be displayed in a 3 X 3 matrix where you can use the direction buttons to scroll and select images from the thumbnails.

2) All the images on your camera will appear in the Thumbnail View.

3) Press the UP / DOWN / LEFT / RIGHT buttons to scroll and select the image you wish to view.

4) Press the OK/SET button to enlarge the image full size.

5) Once the selected photo is full size, you can Zoom In or Zoom Out of the photo.

All manuals and user guides at all-guides.com Photo Playback Mode Quick Function Buttons Your digital camcorder has a four-directional direction control button that functions as Quick Function buttons. Quick Function Button Left Function Displays the PREVIOUS image Views all the Photos as a Slide Show with 3, 5 or 10 second intervals

All manuals and user guides at all-guides.com Photo Playback Mode Menus The following are the menus that appear in your digital camcorder’s Photo Playback Mode: Delete Menu While in the Playback mode, you can delete images from your digital camcorder through the delete menu.

1) View the image you would like to delete.

2) Press the OK/SET button to open the menus for the current mode.

3) Press the LEFT or RIGHT button to scroll and select the ‘Delete’ menu.

4) Press the UP or DOWN button to scroll through the menu options.

5) To delete this one video, select “Delete This Photo?”

6) To delete all the images (including all unlocked photos and videos) on your camcorder’s memory

card, select “Delete All Images”.

7) Press the OK/SET button to select and save the desired option.

8) You will be asked to confirm your selection.

9) The images will be deleted as desired.

All manuals and user guides at all-guides.com Rotate Menu Use this menu to rotate the pictures that you’ve taken with your camcorder.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Rotate’ menu.

5) The selected picture will now appear rotated in the Playback mode – saved as a separate photo.

7) Press the MODE button to exit the menu and return to your previous mode.

Pictures and videos taken with your digital camcorder can be protected or “locked” to prevent any deletion or alteration being made to the files.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT button to scroll and select the ‘Protect/Lock’ menu.

3) Press the UP or DOWN button to scroll through the menu options.

4) Press the OK/SET button to select and save the desired option.

5) Press the LEFT or RIGHT button to select the next menu item.

6) Press the MODE button to exit the menu and return to your previous mode.

7) Any image that is locked will display a lock symbol on the LCD screen when viewing that image in

the playback mode. Images that are not locked will not display the lock symbol. all

8) Remember that you cannot delete locked images.

Print Photos Menu You can use the Print Photos menu to print the photos that are on your digital camcorder directly to a Pictbridge compatible printer.

1) Scroll through your pictures and find the one you would like to print.

2) Press the OK/SET button to open the menus for the current mode.

3) Press the LEFT or RIGHT button to scroll and select the ‘Print Photos’ menu.

All manuals and user guides at all-guides.com

4) Press the UP or DOWN button to scroll through the menu options.

5) Press the OK/SET button when highlighting the “Print This Photo” option to print the selected

6) You will be asked to connect the camera to the Pictbridge printer.

7) Connect the USB cable provided in the package from the camera to the Pictbridge port of the

8) Once connected, follow the instructions on the printer to proceed with the printing process.

9) It you do not want to print the photo, select the “Cancel” option to exit the menu and return to the

previous mode. Slide Show Menu You can view a Slide Show of all the pictures taken with your camera by pressing the UP Quick Function button while in Playback mode. The Slide Show menu allows you to set the interval length of time that each picture will display during the Slide Show.

1) Press the OK/SET button to open the menus for the current mode.

2) Press the LEFT or RIGHT buttons to scroll and select the ‘Slide Show’ menu.

3) Press the UP or DOWN button to scroll through the menu options.

4) Press the OK/SET button to select and save the desired option.

5) Press the LEFT or RIGHT button to select the next menu item.

6) Press the MODE button to exit the menu and return to your previous mode.

Note: While in Playback mode, press the UP Quick Function button to initiate the Slide Show. Press the UP button to pause the Slide Show. Press the Shutter to exit the Slide Show.

All manuals and user guides at all-guides.com Connecting the Digital Camcorder to a TV The digital camcorder has an AV slot that allows you to use your larger TV screen in place of the camera’s LCD screen. On plugging the TV Cable (supplied) to the camcorder’s AV slot and to the TV, the LCD screen turns blank. Use the digital camcorder normally to capture and playback photos and videos. The images will appear on the TV instead of on the digital video camera’s LCD screen. Note: The only limitation of using the TV screen is that the digital video camera is now not portable. How to Connect:

1) Connect the TV cable:

Connect the black jack into the digital video camera’s AV slot. Connect the yellow jack into the TV – Video port. Connect the white jack into the TV – Audio port.

2) Power on the TV and the digital video camera.

3) Set the TV to “AV” mode.

4) Set the TV format on the digital camcorder to suit the TV format of your TV set (NTSC or PAL).

In the Video and Photo Capture Menus, use the ‘TV Out’ Menu to select the appropriate TV format.

5) Use the camcorder to capture and view your videos and photos.

When the digital video camera is set to Video or Photo Capture mode, you can preview what you would like to record on the TV screen and view the images as you capture them on the TV. When the digital video camera is set to Playback mode, you can review all the captured photos and videos on the TV.

All manuals and user guides at all-guides.com Installing the Software You must be connected to the internet to install and run the Vivitar Experience Image Manager Software.

1) Insert the installation CD into your CD-ROM drive. The installation screen should automatically

2) On PC: The Vivitar Experience Image Manager Installer window appears. If the window does not

appear, open the application’s CD/DVD drive and click on “Setup.exe” to launch the installer.

3) On Macintosh: Click the icon that appears on the desktop to install the Vivitar Experience Image

4) If you do not have internet access at the time of inserting the CD-ROM, connect to the internet and

then click the “Install Vivitar Experience Image Manager” button to begin the installation. Note: If you do not have internet access, you can still download media from the camera. Click the “How to transfer photos and videos from my camera to my computer” button for instructions.

5) If you have internet access, the “Choose your language” window opens, choose your language and

click “Next” to open the next window.

All manuals and user guides at all-guides.com

6) Select your camera model from the list and click “Next” to open the next window.

7) Click “Next” to confirm your camera model selection and to install the application.

8) Please wait while the application is being installed on your computer.

9) Please review the license terms.

On PC and Macintosh: Click the “I accept the terms of this license agreement” and then click “Next” to continue.

10) On PC only: Let the “Vivitar Experience Image Manager” installer create the folder to where the

program will be installed, and then click “Install”.

11) Please wait while the application continues the installation process on your computer.

On Macintosh: If needed, please follow instructions to install the Adobe® Flash® Player. This requires Internet connection.

12) On PC: Click the “Close” button when the installation is complete.

The application will automatically open.

13) On Macintosh: Click the “Quit” button when the installation is complete.

Click the “Launch Vivitar Experience Image Manager” to open the application

14) If you close the application you can run the Vivitar Experience Image Manager from the Programs

(PC) or Application (Mac) menu on your computer. Connecting the Camcorder to the Computer

1) Use the supplied USB cable to connect your camcorder to your computer.

Insert the smaller end of the USB cable to the camcorder’s USB slot and the other end to the computer’s USB port.

2) Power the camera on.

3) The first time you connect the device to the computer you will have to wait a few seconds until the

computer recognizes the device.

All manuals and user guides at all-guides.com Getting Photos and Videos from Your Camcorder to Your Computer Please make sure the SD card is inserted in your camcorder. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer. uid

2) The “Get media from device” window opens.

3) You can select to download photos, videos or both.

4) Select your camera (removable disk) from the device window. If your camera is the only USB

device connected then it will be selected automatically.

5) Select a location on the computer where to place the new photo and video files.

6) Add the new photo and video files to albums if desired.

7) Select to remove the media files from the selected device (removable disk) after the import.

8) Click the “Get Media” button to transfer the photos and videos from your camera to your computer.

9) A media download progress bar appears on the bottom left showing the number of media files

downloading to your computer. A message appears when the download is complete.

10) The photo and video files that you selected are now downloaded to your computer to the selected

folder and albums ready for your use.

All manuals and user guides at all-guides.com Getting Started! Using the Vivitar Experience Image Manager, you can:

Upload and manage photos and videos to and from the most popular photo sharing and social networking sites - Facebook, Flickr, Picasa, MySpace, Photobucket, Twitpic, Twitgoo and YouTube

Seamlessly transfer photos and videos from one social network to another

Organize your images by creating offline and online albums

Use automatic “Geotagging” with built in Google Maps For more details on how to use the Vivitar Experience Image Manager open the ‘Help Guide’ from the Help menu or click the “Take a Tour” button on the application’s Home screen. Transferring Images from Your Camcorder to Your Computer Manually Transferring Photos and Videos: WINDOWS

Use the USB cable that came with your camera to connect your camera to your computer.

MSDC appears on the LCD.

A window appears with a list of options, select “Open folder to view files” and click OK.

Open the DCIM folder and the folder inside to view the media files.

Select the media and copy the files from this folder into your computer. Optionally, select the files and choose Copy from the Edit menu. Then select a folder and choose Paste from the Edit menu.

We recommend that you copy the images into the Pictures/My Pictures folder and the videos into the Videos/My Videos folder.

Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer. Transferring Photos and Videos: MACINTOSH

Use the USB cable that came with your camera to connect your camera to your computer.

MSDC appears on the LCD.

The camera’s device icon appears on the desktop.

All manuals and user guides at all-guides.com

Click on the device icon and open the DCIM folder and the folder inside to view the media files.

Select the files and drag them into your computer. Optionally, select the files and choose Copy from the Finder’s Edit menu. Then select a folder and choose Paste from the Edit menu.

We recommend that you copy the images into the Pictures folder and the videos into the Movies folder.

Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer. Transferring Photos and Videos: Apple iPad NOTE: Please check your device packaging for compatibility with the iPad. Apple iPad Camera Connection: For models that are compatible with the iPad, photos and videos can be imported from your digital camcorder to your iPad by following either one of the options below:

1) Connecting your digital camcorder to your iPad using an iPad Camera Connector:

Plug the Camera Connector into the dock connector port on your iPad, and then attach your digital camcorder using a USB cable (included) to the Camera Connector. NOTE: iPad Camera Connector not included. This may be purchased separately.

2) Using an iPad SD Card Reader:

Connect the SD Card Reader to your iPad, and then insert your digital camcorder's Micro SD Memory card into the slot to import photos and videos directly from your camera's SD card. NOTE: iPad SD Card Reader not included. This may be purchased separately. After you make the connection, your iPad automatically opens the Photos application, which allows you to choose which photos and videos to import, then organizes them into albums. Camcorder Maintenance The digital camcorder is a delicate device. Please handle your camcorder with care to avoid damaging it. Do not expose your digital camcorder to heat sources. Do not use your digital camcorder in wet or moist conditions.

All manuals and user guides at all-guides.com Sakar Warranty Card This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship will be repaired at no charge for parts or labor for a period of one year. What Is Not Covered By Warranty: Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but not limited to, repair by unauthorized parties, tampering, modification or accident. What To Do When Service Is Required: When returning your defective product (postage pre-paid) for service, your package should include:

1) Copy of original bill of sale.

2) A detailed written description of the problem.

3) Your return address and telephone number (Daytime).

MAIL TO ADDRESS BELOW: Sakar US Sakar International Attention: Service Department 195 Carter Drive Edison, NJ

Sakar UK/Europe Attention: Service Department 2D, Siskin Parkway East 4020 Middlemarch Business Park Coventry, CV3 4PE Sakar Australia Return faulty camera to the Refund Counter at the store where purchased Technical Support For technical support issues please visit our website at www.vivitar.com. You can find manuals, software and FAQ’s at the website. Can’t find what you are looking for? E-mail us at support@vivitar.com and one of our technical support team members will answer your questions. For phone support in the US please call 1-800-592-9541, in the UK call 0800 917 4831, in Australia call 1800-006-614. If you would like to call from anywhere else, please visit www.vivitar.com for your local toll free number.

All manuals and user guides at all-guides.com Troubleshooting Q: I have taken photos and selected the “Get Images” button. I get a message that the images were successfully transferred but the photos do not appear on my computer. What do I do? First ensure that you have in fact taken photos. Press the Shutter button to take some sample photos and then try downloading them again. With test photos if the camera powers off before you upload them to the computer the photos are not stored in the camera’s memory. These photos should be uploaded quickly before the camera powers off. If the photos are saved to the SD memory card then all the photos should appear. Q: How do I make sure I don’t lose important pictures? This camera requires an SD card for normal use. If the camera powers off nothing will happen to the images stored on the SD memory card. We recommend always downloading your photos to your computer as soon as possible to prevent unintentional data loss. Q: I deleted images using the Vivitar Experience Image Manager. The images were also deleted from my computer. How do I recover images that I accidently deleted? All images deleted using the Vivitar Experience Image Manager are sent to your computer’s Recycle or Trash Bin and can be retrieved from there.

Manual assistant

Waiting for your message

Product information

Brand : VIVITAR

Model : DVR 508NHD

Category : Video camera
