USER MANUAL KF7700 AEG-ELECTROLUX

PT MANUAL DE INSTRUÇÕES

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for nary appliances. Please spend a few minutes reading to get the very best from it. Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice Register your product for better service: www.registeraeg.com Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: - Model Number - PNC number - Serial number The information can be found on the rating plate.

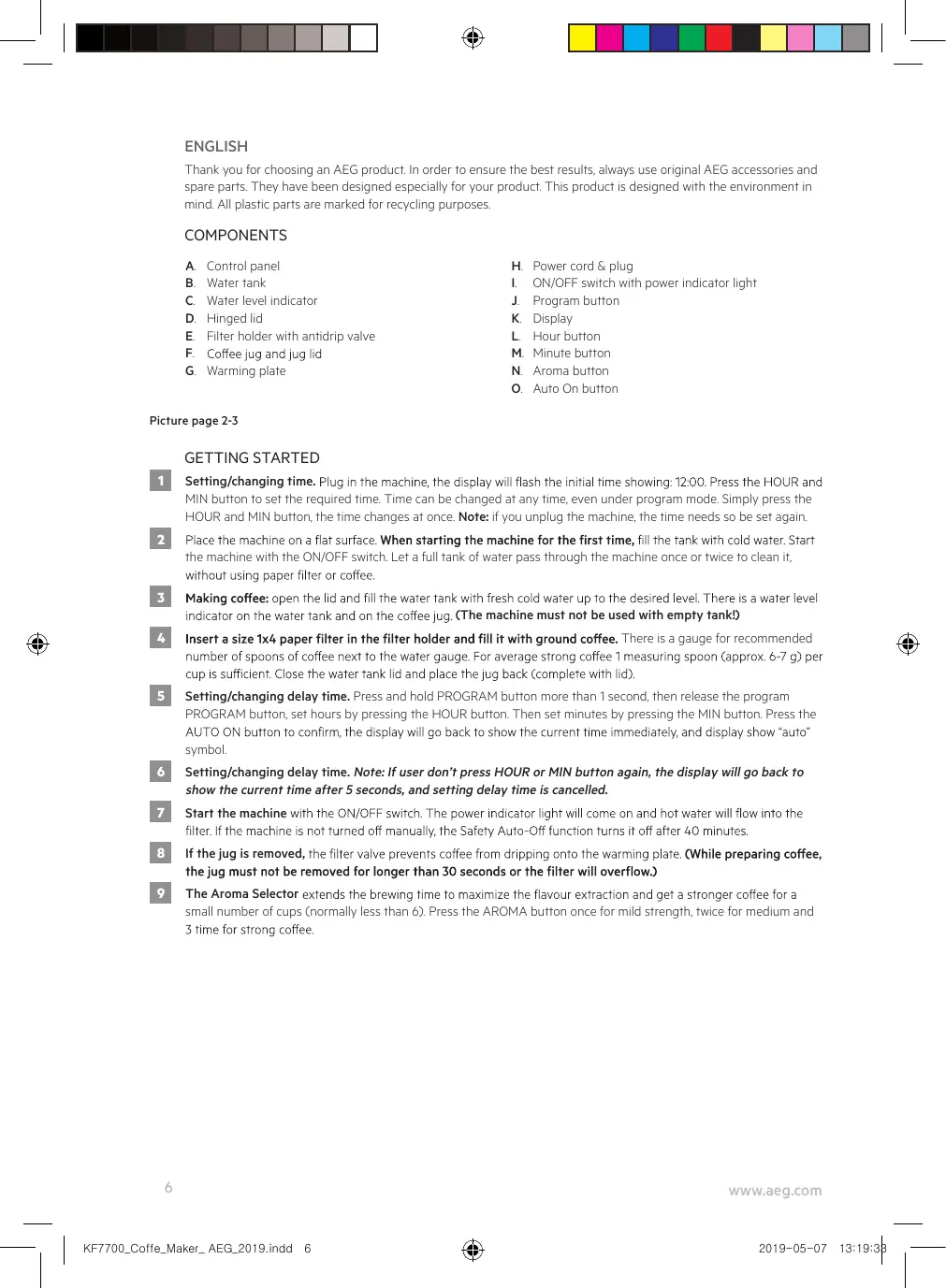

ENGLISH Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. COMPONENTS

Control panel Water tank Water level indicator Hinged lid Filter holder with antidrip valve Warming plate Power cord & plug ON/OFF switch with power indicator light Program button Display Hour button Minute button Aroma button Auto On button Picture page 2-3 GETTING STARTED

Setting/changing time. MIN button to set the required time. Time can be changed at any time, even under program mode. Simply press the HOUR and MIN button, the time changes at once. Note: if you unplug the machine, the time needs so be set again.

the machine with the ON/OFF switch. Let a full tank of water pass through the machine once or twice to clean it,

(The machine must not be used with empty tank!)

There is a gauge for recommended

Setting/changing delay time. Press and hold PROGRAM button more than 1 second, then release the program PROGRAM button, set hours by pressing the HOUR button. Then set minutes by pressing the MIN button. Press the symbol.

Setting/changing delay time. Note: If user don’t press HOUR or MIN button again, the display will go back to show the current time after 5 seconds, and setting delay time is cancelled.

If the jug is removed,

The Aroma Selector small number of cups (normally less than 6). Press the AROMA button once for mild strength, twice for medium and

CLEANING AND CARE

are dishwasher proof. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

As a precaution, we recommend descaling your product after using it 70 times. This coffee maker has a built-in reminder set up. When an alternating display of “dESC” & “-ALE” appears, you should: 1. Fill the water tank with water + vinegar (1:1) or water + decalcifier according to the decalcifier product instructions.

2. Place the filter inside the basket and keep it there through the whole process.

3. Place the coffee jug with the lid on the warming plate.

4. Leave the descaling solution to work for approximately 15 minutes.

5. Switch on the appliance.

6. Once the descaling solution has percolated through, switch the appliance off.

7. If necessary, repeat the descaling procedure.

8. Repeat the procedure at least twice using clean water.

9. To reset the descaling counter Press the “AUTO”&”PROG” buttons at same time.

on the warming plate. Allow the descaling solution to work for approximately 15 minutes, then switch on the appliprocedure. Repeat the procedure at least twice using clear water.

Activate the anti-drip valve several times as it is rinsed. Enjoy your new AEG product! SAFETY ADVICE Read the following instruction carefully before using the appliance for the

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and
• Never use or pick up the appliance if – the supply cord is damaged, www.aeg.com KF7700_Coffe_Maker_ AEG_2019.indd 7

2019-05-07 13:19:33 – the housing is damaged.

• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the avoid hazard.

• Never leave the appliance unattended while connected to the supply mains. time after use, before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• Do not immerse the appliance in water or any other liquid.
• Do not use or place the appliance on a hot surface or near source of heat.
• Warning: Avoid spillage on the connector.
• Attention: The heating element surface is subject to residual heat after use.
• The mains cable must not come into contact with any hot parts of the appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Never operate appliance with open lid. This appliances is intended to be used in household and similar applications such as: - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. DISPOSAL This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste. This symbol on the product or on its packaging indicates that the product may not be treated as household remove and recycle the battery and electric parts in a safe and professional way. Follow your country’s rules for the separate collection of electrical products and rechargeable batteries.

Printed on recycled paper Electrolux Hausgerate GmbH Further Strasse 246 D-90429 Nurnberg Germany 3481 A KF7700 02 01 0521 www.aeg.com/shop www.aeg.com
