USER MANUAL KF7700 AEG-ELECTROLUX

AEG coffee maker with digital display and control panel (no visible text or symbols on device body)

GB INSTRUCTION BOOK

Line drawing of a bucket with handle and labeled point E (no text or symbols on the object itself)

Line drawing of a kettle with handle and spout, labeled 'F' (no text or symbols on the object itself)

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

AROMA HOUR MIN 88:88° AUTO READY BRIWING 000 PROG AUTO ON ON OFF N M L K J O I

1 8:00 READY BREWING HOUR MIN 8:00 PROG AUTO ON ON OFF

Diagram showing a coffee maker with a digital display and power plug, highlighting the device's internal components.

3 500 2.5g 4g 6g 8g 10g 12g 14g 16g 18g 20g 22g 24g 26g 28g 30g 32g 34g 36g 38g 40g 42g 44g 46g 48g 50g 52g 54g 56g 58g 60g 62g 64g 66g 68g 70g 72g 74g 76g 78g 80g 82g 84g 86g 88g 90g

Illustration of a coffee maker with open lid and open lid, showing internal components (no text or symbols)

6 Aroma HOUR MIN 88:00 * AUTO AVOUR AVOURING PROG AUTO ON ON OFF

7 PRICE ON SLY

Diagram of a medical procedure showing an eye with a dashed circle highlighting the area (no text or labels)

9 AROMA HOUR MIN 88:00 ° AUTO ON PROG ON OFF

Illustration of a coffee maker with a magnified view showing a crossed-out rectangular block (no text or symbols present)

11

Illustration of a milk drier with a bottle beside it (no text or symbols)

Illustration of a coffee maker with blue liquid being poured into it, accompanied by a bottle (no text or symbols)

14

CONTENTS

ENGLISH	6	FRANÇAIS	15	NEDERLANDS	24
DEUTSCH	9	ΕΛΛΗΝΙΚΑ	18	PORTUGUÊS	27
ESPAÑOL	12	ITALIANO	21

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

Register your product for better service:

www.registeraeg.com

Buy accessories and consumables for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

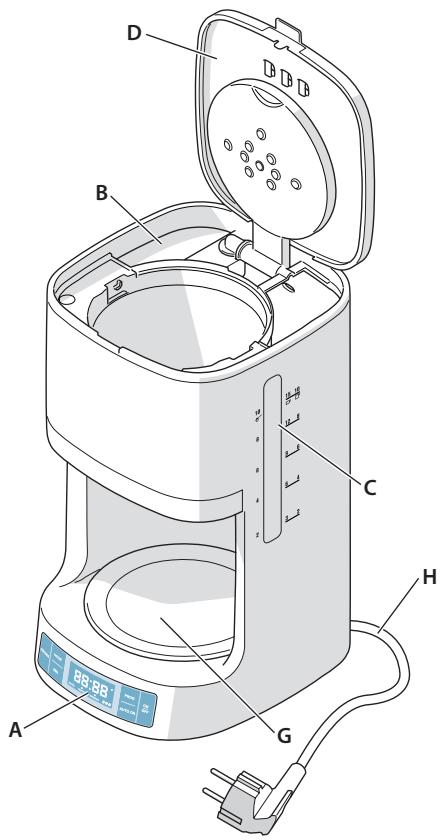

COMPONENTS

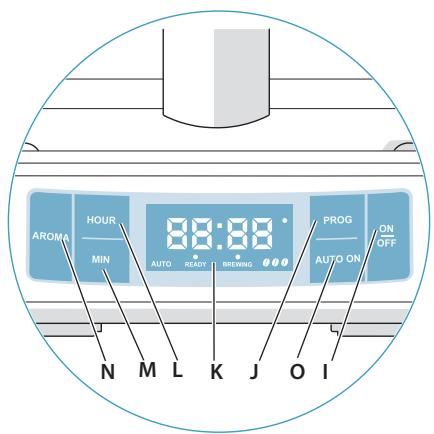

A. Control panel
B. Water tank
C. Water level indicator
D. Hinged lid
E. Filter holder with antidrip valve
F. Coffee jug and jug lid
G. Warming plate

H. Power cord & plug
I. ON/OFF switch with power indicator light
J. Program button
K. Display
L. Hour button
M. Minute button
N. Aroma button
O. Auto On button

Picture page 2-3

GETTING STARTED

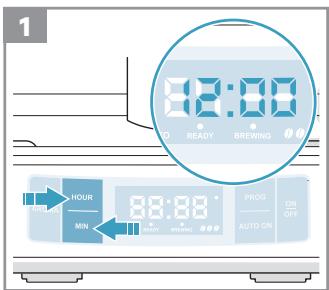

1 Setting/changing time. Plug in the machine, the display will flash the initial time showing: 12:00. Press the HOUR and

MIN button to set the required time. Time can be changed at any time, even under program mode. Simply press the HOUR and MIN button, the time changes at once. Note: if you unplug the machine, the time needs so be set again.

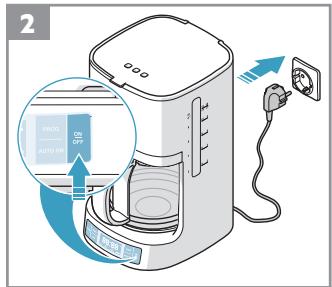

2 Place the machine on a flat surface. When starting the machine for the first time, fill the tank with cold water. Start

the machine with the ON/OFF switch. Let a full tank of water pass through the machine once or twice to clean it, without using paper filter or coffee.

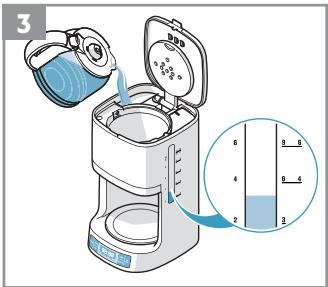

3 Making coffee: open the lid and fill the water tank with fresh cold water up to the desired level. There is a water level

indicator on the water tank and on the coffee jug. (The machine must not be used with empty tank!)

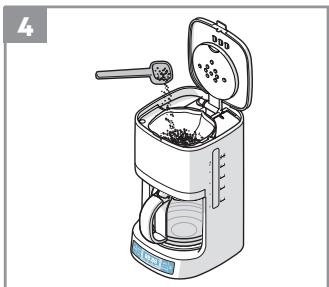

4 Insert a size 1x4 paper filter in the filter holder and fill it with ground coffee. There is a gauge for recommended

number of spoons of coffee next to the water gauge. For average strong coffee 1 measuring spoon (approx. 6-7 g) per cup is sufficient. Close the water tank lid and place the jug back (complete with lid).

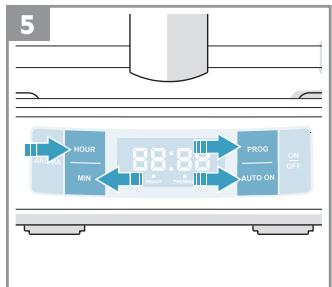

5 Setting/changing delay time. Press and hold PROGRAM button more than 1 second, then release the program

PROGRAM button, set hours by pressing the HOUR button. Then set minutes by pressing the MIN button. Press the AUTO ON button to confirm, the display will go back to show the current time immediately, and display show "auto" symbol.

6 Setting/changing delay time. Note: If user don't press HOUR or MIN button again, the display will go back to

show the current time after 5 seconds, and setting delay time is cancelled.

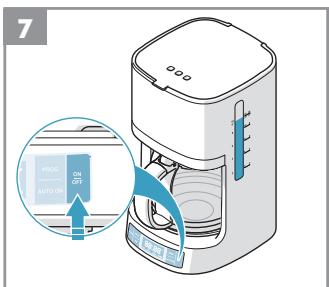

7 Start the machine with the ON/OFF switch. The power indicator light will come on and hot water will flow into the

filter. If the machine is not turned off manually, the Safety Auto-Off function turns it off after 40 minutes.

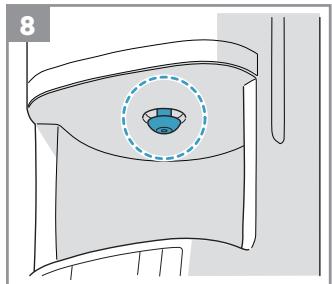

8 If the jug is removed, the filter valve prevents coffee from dripping onto the warming plate. (While preparing coffee,

the jug must not be removed for longer than 30 seconds or the filter will overflow.)

9 The Aroma Selector extends the brewing time to maximize the flavour extraction and get a stronger coffee for a

small number of cups (normally less than 6). Press the AROMA button once for mild strength, twice for medium and 3 time for strong coffee.

CLEANING AND CARE

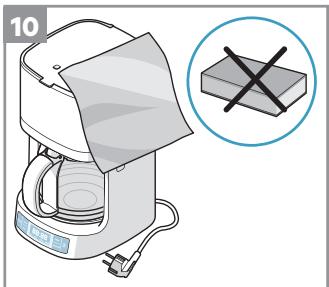

10 Turn the machine off and unplug the power cord. Wipe all outer surfaces with a damp cloth. Coffee jug and jug lid are dishwasher proof. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

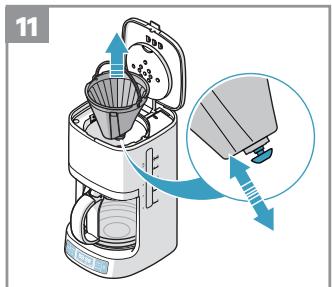

11 To clean the filter holder, lift up the handle and remove the filter holder. To clean the filter valve thoroughly, push it several times while it is being rinsed. The filter holder can also be washed in the dishwasher.

DECALCIFYING

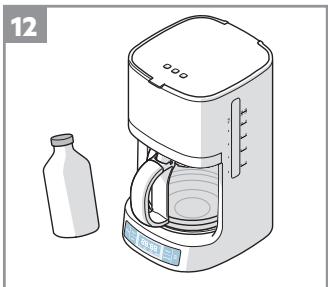

12 As a precaution, we recommend descaling your product after using it 70 times. This coffee maker has a built-in reminder set up. When an alternating display of "dESC" & "-ALE" appears, you should:

1. Fill the water tank with water + vinegar (1:1) or water + decalcifier according to the decalcifier product instructions.
2. Place the filter inside the basket and keep it there through the whole process.
3. Place the coffee jug with the lid on the warming plate.
4. Leave the descaling solution to work for approximately 15 minutes.
5. Switch on the appliance.
6. Once the descaling solution has percolated through, switch the appliance off.
7. If necessary, repeat the descaling procedure.
8. Repeat the procedure at least twice using clean water.
9. To reset the descaling counter Press the "AUTO"&"PROG" buttons at same time.

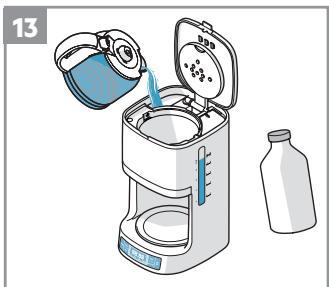

13 First fill the fresh water container with water and then add the descaling agent. Place the coffee jug with the lid on the warming plate. Allow the descaling solution to work for approximately 15 minutes, then switch on the appliance. Once the descaling solution has percolated through, switch the appliance off. If necessary, repeat the descaling procedure. Repeat the procedure at least twice using clear water.

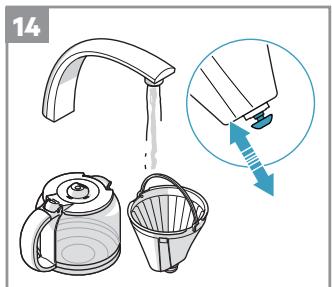

14 Rinse the coffee jug, jug lid and filter insert thoroughly under running water. Activate the anti-drip valve several times as it is rinsed.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged,

– the housing is damaged.

• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• Do not immerse the appliance in water or any other liquid.
• Do not use or place the appliance on a hot surface or near source of heat.
• Warning: Avoid spillage on the connector.
• Attention: The heating element surface is subject to residual heat after use.
• The mains cable must not come into contact with any hot parts of the appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Never operate appliance with open lid.

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and others working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
