USER MANUAL DJA200 LEXIBOOK

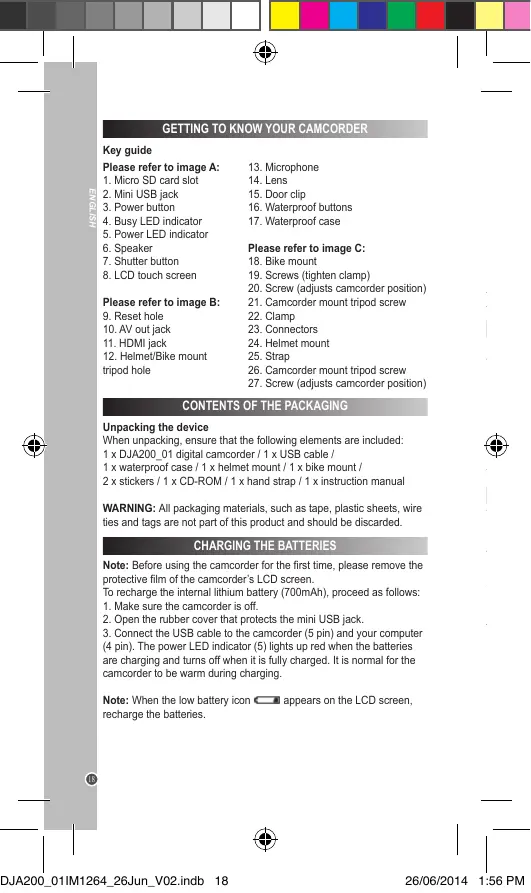

Key guide Please refer to image A: 1. Micro SD card slot 2. Mini USB jack 3. Power button 4. Busy LED indicator 5. Power LED indicator 6. Speaker 7. Shutter button 8. LCD touch screen Please refer to image B: 9. Reset hole 10. AV out jack 11. HDMI jack 12. Helmet/Bike mount tripod hole

14. Lens 15. Door clip 16. Waterproof buttons 17. Waterproof case Please refer to image C: 18. Bike mount 19. Screws (tighten clamp) 20. Screw (adjusts camcorder position) 21. Camcorder mount tripod screw 22. Clamp 23. Connectors 24. Helmet mount 25. Strap 26. Camcorder mount tripod screw 27. Screw (adjusts camcorder position)

CONTENTS OF THE PACKAGING Unpacking the device

When unpacking, ensure that the following elements are included: 1 x DJA200_01 digital camcorder / 1 x USB cable / 1 x waterproof case / 1 x helmet mount / 1 x bike mount / 2 x stickers / 1 x CD-ROM / 1 x hand strap / 1 x instruction manual WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

CHARGING THE BATTERIES Note: Before using the camcorder for the first time, please remove the protective film of the camcorder’s LCD screen.

To recharge the internal lithium battery (700mAh), proceed as follows: 1. Make sure the camcorder is off. 2. Open the rubber cover that protects the mini USB jack. 3. Connect the USB cable to the camcorder (5 pin) and your computer (4 pin). The power LED indicator (5) lights up red when the batteries are charging and turns off when it is fully charged. It is normal for the camcorder to be warm during charging. Note: When the low battery icon recharge the batteries.

appears on the LCD screen,

WARNING frequency function o

When you illuminates ready for u Press the melody wi Note: To s period of i (3) to reac time by se

To store p included)

1. Turn off 2. Open th 3. Insert th push firml 4. Turn the 5. To remo Notes: • Always t SD card. • To save card that h

ENGLISH The lithium battery is intended for use only with this product. Do not disassemble the battery. Do not dispose of the battery in fire or water.

To avoid risk of fire, burns, or damage to your battery, do not allow a metal object to touch the battery contacts. Handle a damaged or leaking battery with extreme care. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention. Do not charge the lithium battery pack if the ambient temperature exceeds 45°C (113°F). When discarding a battery pack, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries. Only use the supplied USB cable for charging. WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, reset the unit and turn it on again.

computer atteries for the

Press and hold the Power button (3) to turn the camcorder on.

When you turn the camcorder on, the green Busy LED indicator (4) illuminates. The LCD screen lights up to confirm the camcorder is ready for use. Press the Power button (3) once more to turn the camcorder off. A melody will sound and the screen will go blank. Note: To save battery power, the camcorder will auto standby after a period of inactivity (60 seconds approximately). Press the Power button (3) to reactivate the camcorder. You can change the auto power - off time by setting the function “Auto Power Off” (see the “Setup” section).

INSTALLING A MEMORY CARD To store pictures or videos, you need to insert a micro SD card (not included) into your digital camcorder so you can save your files.

To insert the memory card: 1. Turn off the camcorder. 2. Open the rubber cover that protects the micro SD card slot. 3. Insert the micro SD card carefully into the micro SD card slot and push firmly until you hear a “click” sound. 4. Turn the camcorder on. 5. To remove the card, push it in slightly to release it from the slot. Notes: • Always turn the camcorder off when you insert or remove the micro SD card. • To save your videos, we recommend that you purchase a micro SD card that has good quality and sufficient capacity.

To format the memory card:

If the card is new, unformatted or was previously formatted by another camcorder, format the card so that the file format is compatible with your camcorder. 1. Insert the card into the micro SD card slot. 2. Turn on the camcorder by pressing the Power button (3). 3. Touch the Settings icon and then touch the Menu icon. 4. Touch the Setup icon to enter the “Setup” menu. 5. Use your finger to scroll down through the options and “Format” to select it. 6. Touch “OK” to select it. 7. Touch the Back icon “LEFT” to go back to the previous screen or touch it repeatedly to go back to the main display. Notes: • Do not pull out the card when formatting to avoid any failure of the card. • Even if the card has been formatted before, we recommend you format it again to ensure that it will work properly. Caution: Formatting will delete all stored photos and videos. Download important files to your computer before formatting.

CHANGING MODES This camcorder has three modes:

Capture mode – takes photos Video mode – takes video files (default mode) Playback mode – displays videos and photos To change mode, turn the camcorder on and touch the Settings icon on the LCD touch screen. Select the mode you want by touching , or .

1. Turn the already in on the top 2. Press th is displaye 3. Press th automatic remaining of the scre 4. To zoom the Zoom

• If the me • You can on your co • The vide available o

1. Turn the 2. Touch t is displaye displayed, 3. Touch t through th 4. Touch t LCD scree 5. Touch t 6. Touch t 7. To exit another m

CAPTURING VIDEO CLIPS (Video mode)

Video recording 1. Turn the camcorder on by pressing the Power button (3). You are already in Video Mode (default mode) and the Video icon appears on the top left of the LCD screen. 2. Press the Shutter button (7) to start recording. The recording length is displayed on the top right of the LCD screen. 3. Press the Shutter button (7) again to stop recording and automatically save the video in AVI format. The video storage time remaining on the memory card is displayed in the upper right corner of the screen. 4. To zoom in, touch the Zoom in icon and to zoom out , touch the Zoom out icon .

• If the memory is full, the camcorder will stop recording automatically. • You can use Windows Media player and Quick time to play AVI files on your computer. • The video clip’s length may change according to the memory space available on the micro SD card. Playing video files (Playback) 1. Turn the camcorder on. 2. Touch the Playback icon to enter the Playback mode. is displayed on the top left of the LCD screen. If the Menu is not displayed, touch the Settings icon and it will appear. 3. Touch the screen from right to left or left to right to display and scroll through the videos saved. 4. Touch the Play icon (this icon appears at the bottom of the LCD screen to show that it is a video) to start playing the video. 5. Touch the Pause icon to pause the video. 6. Touch the Stop icon to stop playing the video. 7. To exit the Playback mode, touch the Settings icon and select another mode. Deleting video files See the section on “Taking Photos (Capture Mode) / Deleting pictures”.

Touch the Settings icon and then the Video icon to select

Video Mode. The Video icon is displayed in the top left of the LCD screen. Touch the Menu icon [MENU] to enter the “Video” menu.

Turn the c the camer displayed

The following settings are available in the “Video” menu: Size,

Exposure, White Balance, Color, Loop Recording, Motion Detection, Record Audio and Date Stamp.

1. Using th steady. 2. Press th appear br Notes: • In Photo memory c • When th sure you t • Do not ta saving the

1. Size The following options are available: 1080P, 720P, VGA and QVGA. 2. Exposure Sets the exposure value manually to compensate for unusual lighting conditions such as indirect indoor lighting, dark backgrounds and strong backlighting. The exposure value range is –2.0 to +2.0. 3. White Balance Adjusts the colour according to your light source: Auto, Daylight, Cloudy, Fluorescent, Incandescent. 4. Color Changes the video’s colour tone: Standard, Sepia, Monochrome, Vivid. 5. Loop Recording Set a time limit for a video recording and when the time is up it will start another video. The settings are: Off, 1 Minute, 3 Minutes, 5 Minutes. 6. Motion Detection You can leave the video camcorder filming but it will only record video when it automatically detects movement. The settings are: On, Off. 7. Record Audio Records audio sound when recording movie clips: Off, On. 8. Date Stamp Adds the recording date to your photos: Off, On. “Setup” menu For more information about the “Setup” menu, please consult the “Setup” menu section.

1. Turn the the camer

3. Use you touch to s 4. Touch “ 5. Touch t touch it re 6. The con of the LCD continuou

The camc 1. To zoom 2. To zoom The Zoom much zoo Note: Dig digital zoo

Turn the camcorder on and touch the Settings icon

. Then touch the camera icon to select Capture mode. The Capture icon is displayed on the top left of the LCD screen.

Taking a photo (single shooting)

1. Using the LCD screen (8) to frame your subject, hold the camcorder steady. 2. Press the Shutter button (7) to take a photo. The image taken will appear briefly on the LCD screen. Notes: • In Photo mode, the number of photos that can still be stored on the memory card is displayed in the upper right corner of the screen. • When the memory is full, “Card Full” will appear on the screen. Make sure you transfer your photos to your computer. • Do not take the memory card or batteries out when the camcorder is saving the image, otherwise, the image will not be saved completely.

Taking a photo (continuous shooting)

You can select the continuous shooting option to take six pictures continuously.

it will start inutes.

1. Turn the camcorder on and touch the Settings icon the camera icon to select Capture mode.

ENGLISH TAKING PHOTOS (Capture mode)

2. Touch the Settings icon and then touch the [MENU] icon.

3. Use your finger to scroll down the page to “Continue Shot” and touch to select. 4. Touch “On” to select this option. 5. Touch the Back icon “LEFT” to go back to the previous screen or touch it repeatedly to go back to the main display. 6. The continuous shooting icon is displayed on the top centre of the LCD screen. Press the Shutter button (7) to take six pictures continuously. Zoom The camcorder has a digital zoom on the LCD touch screen. 1. To zoom in, touch the Zoom in icon . 2. To zoom out, touch the Zoom out . The Zoom level icon on the right side of the LCD screen shows how much zoom you have selected. Note: Digital zoom may affect the image’s quality. The higher the digital zoom is, the lower the image quality.

1. Turn the camcorder on and touch the Settings icon the camera icon to select Capture mode.

2. Touch the Settings icon and then touch the [MENU] icon.

3. Touch “Capture Mode” to select. 4. Touch the desired setting: 2S Timer / 5S Timer / 10S Timer. 5. Touch the Back icon “LEFT” to go back to the previous screen or touch it repeatedly to go back to the main display. 6. The Self-timer icon is displayed on the top middle of the LCD screen. Press the Shutter button (7) to take a self-timed picture. Playing pictures (Playback) 1. Turn the camcorder on. 2. Touch the Settings icon . Then touch the Playback icon to enter the Playback mode. is displayed on the top left corner of the LCD screen. 3. Touch the screen from right to left or left to right to display and scroll through the pictures taken. 4. To zoom in, touch the Zoom in icon . You can slide your finger from left to right and up and down to see parts of the zoomed in picture. 5. To zoom out, touch the Zoom out icon . 6. To exit the Playback mode, touch the Settings icon another mode.

1. To delete pictures, enter Playback mode by touching the Settings icon

and then touching the Playback icon

2. Touch the Settings icon and then touch the Menu icon. Touch

“Delete” and then touch your desired setting: - “Delete Current Image” – to delete the picture showing on the LCD screen. - “Delete All Images” – to delete all pictures. - “Cancel” – to cancel and exit. 3. Touch “ok” to confirm the deletion.

If the Men will appea

The follow Mode, Re Color, ISO

1. Capture Please ref 2. Resolut There are (2592X19 3. Quality Adjusts th image size 4. Sharpn Adjusts th 5. Exposu Sets the e conditions strong bac 6. White B Adjusts th Cloudy, Fl 7. Color Changes Vivid. 8. ISO Changes the more l 9. Scene M Select the Scenery, P 10. Anti-S Stabilises 11. Contin Please ref page 21.

e LCD Touch the Settings icon and then the Camera icon to select

Capture mode. The Capture icon is displayed on the top left of the LCD screen. Touch the [MENU] icon to enter the “Image” menu. If the Menu icon is not displayed, touch the Settings icon and it will appear. The following settings are available in the “Image” menu: Capture Mode, Resolution, Quality, Sharpness, Exposure, White Balance, Color, ISO, Scene Mode, Anti-Shake and Continue Shot.

ENGLISH SETTINGS MENU (Capture mode)

1. Capture Mode Please refer to the “Taking Photos / Self-timer” section, page 22. 2. Resolution There are six options: 12M (4000x3000), 8M (3264X2448), 5M (2592X1944), 3M (2048X1536), 2M (1600x1200), VGA (640x480) 3. Quality Adjusts the resolution. Select a lower image quality to decrease the image size in order to capture more images: Super Fine, Fine, Normal. 4. Sharpness Adjusts the sharpness of a picture: Sharp, Normal, Soft. 5. Exposure Sets the exposure value manually to compensate for unusual lighting conditions such as indirect indoor lighting, dark backgrounds and strong backlighting. The exposure value range is: –2.0 to +2.0. 6. White Balance Adjusts the colour according to your light source: Auto, Daylight, Cloudy, Fluorescent, Incandescent. 7. Color Changes the image’s colour tone: Standard, Sepia, Monochrome, Vivid. 8. ISO Changes how sensitive the camcorder is to light. The higher the ISO the more light the camcorder takes in: Auto, 100, 200, 400. 9. Scene Mode Select the mode that is appropriate for your environment: Auto, Scenery, Portrait, Night Scenery, Night Portrait, High Sensitivity, Beach. 10. Anti-Shake Stabilises the picture to prevent blur: On, Off. 11. Continue Shot Please refer to the “Taking Photos / Continuous shooting” section, page 21. “Setup” menu For more information about the “Setup” menu, please consult the “Setup” menu section.

SETUP MENU (Capture and Video mode)

ENGLISH Capture mode and Video mode have the same “Setup” menu.

1. Turn the camcorder on. 2. Select the desired mode (Capture or Video). To switch between modes, touch the Settings icon and select the mode you want. 3. Touch the [MENU] icon and then touch the Setup icon to enter the “Setup” menu. If the [MENU] icon is not displayed, touch the Settings icon and it will appear. 4. Use your finger to scroll up or down through the options and touch your desired option to select it. 5. Touch the Back icon “LEFT” to go back to the previous screen or touch it repeatedly to go back to the main display. The following settings are available in the “Setup” menu: 1. Date Sets the camcorder date and time. Use your finger to scroll up and down each column to set hours, minutes, seconds, date, month and year. Line up your selected number in the row that appears as follows: 00:00:00 00/00/0000 . Once done, press “ok” to exit. 2. Auto Power Off Sets the camcorder “Auto Power Off”: 1 Minute, 3 Minutes, 5 Minutes, Off. 3. Beep Sets the beep sound when you press a button: On, Off. 4. Language Changes the language of the camcorder’s menus. Seven languages are available: English, French, Spanish, Portuguese, German, Dutch and Italian. 5. Frequency A higher frequency increases the camcorder shutter speed so the effect of light fluctuations from sources such as fluorescent lamps are reduced: 50Hz, 60Hz. 6. TV Mode To view playback on a TV, set your camcorder to either PAL or NTSC depending on your region. 7. Format Formats the micro SD memory card: Cancel, OK. 8. Default Setting Resets the camcorder to the factory’s default settings: Cancel, OK.

In order to under wat packaged mount (B)

Fix the sp 1. Choose bracket, th 2. Find the rubber pa 3. Choosin to the part

BIKE MOUNT (Assembly)

In order to use the camcorder more convenient in outdoor sports or in under water situations, we have provided two kinds of main mounts packaged in this camcorder. Mount (A) is used in fixing to a bike, and mount (B) is used in fixing to a helmet.

p and th and s follows:

The operating steps as follow.

Fix the sportive camcorder to a bike 1. Choose to put the camcorder into the water resistant case or the bracket, then lock it. 2. Find the mount (A), fix it to the handlebar of a bike by placing the rubber pad, and rotating screws. 3. Choosing connectors from the three given below, and then fix them to the part (1) of the main mount (A).

4. Fix the connector (2) that have a metal screw on it to the last connector.

5. Fix the tripod slot of the camcorder to the metal screw of the mount (2) respectively. 6. Adjust those screws to make the camcorder more steady and convenient.

3. Choose and then fi

4. Fix the connector 5. Fix the (2) respec 6. Adjust t convenien 7. After fix them to th Insert a st according

Attach the then stick and attach onto the h Note: Wh only use t of a strap. such activ

3. Choose (one, more, none) connector from the three given above , and then fix them to the connector (3).

4. Fix the connector (2) that have a metal screw on it to the last connector. 5. Fix the tripod slot of the camcorder to the metal screw of the mount (2) respectively. 6. Adjust those screws to make the camcorder more steady and convenient. 7. After fixing the camcorder to the mount correctly, using a strap to fix them to the helmet. Insert a strap into the two ends of the main mount (B), adjust length according to the helmet’s size, and tie the strap up to your helmet. Helmet mount without strap Attach the rubber sticker onto the back of the waterproof casing and then stick it onto your helmet. Or, attach the camcorder onto the tripod and attach the rubber sticker on the helmet mount and then stick it onto the helmet. Note: When engaging in extreme sports, it is not recommended to only use the sticker to attach the camera without the additional use of a strap. Alternatively, you can purchase a more durable sticker for such activities.

You can play your files on TV by connecting an AV cable (not included).

1. Connect the camcorder to the TV using an AV cable (not included) 2. Turn on the TV and set it “AV” mode. Note: Take care to properly match the colour. 3. Switch on the camcorder. 4. Set the camcorder to “record mode” (i.e. Camera or Video mode) to preview the subject that you want to record on the TV screen. 5. Set the camcorder to Playback mode to review your pictures and videos. Notes: • Use the supplied AV cable (not included) to connect your camcorder to the TV. • For a better image quality, set the TV system to PAL or NTSC (“TV Mode” in the “Setup” menu). • If the image does not display in the center of the TV screen, adjust the TV settings (refer to the TV instruction manual). • The batteries are also used when the camcorder is connected to the TV.

CONNECTING THE CAMCORDER TO AN HDTV You can play your files on TV by connecting an HDMI cable (not included).

1. Connect the camcorder to the TV using an HDMI cable (not included) 2. Turn on the HDTV and set it “HDMI” mode. 3. Switch on the camcorder. 4. Set the camcorder to Playback mode to review your pictures and videos. 5. Use the camcorder screen to select the photo or video you want to view.

USING YOUR CAMCORDER AS A WEBCAM

1. Connect your camcorder to your computer with the USB cable supplied. 2. Press and hold the Shutter button (7) for a few seconds and then press and hold the Power button (3) for a few seconds until “PC CAM” icon appears on the computer screen. 3. Click on “My Computer” and double click on the “USB video tool”. The camcorder will now work as a webcam.

1. There a your comp a. Connec b. Remov and insert

2. “Mass s 3. Now op this softwa computer’ and edit a 4. Open “M 5. A “Rem contents. 6. Double 7. Now yo computer.

1. Connec USB port. 2.Turn on connectio 3. Double pictures ta screen. 4. Press “ 5. You can

1. Using “ publish on 2. The sel 3. In the m other web media to F 4. The “Up fields (file 5. Click “U 6. Depend Facebook 7. Next fo uploading

1. There are two ways to connect the content of your camcorder to your computer: a. Connect the USB cable supplied to the PC and the camcorder. b. Remove the camcorder’s micro SD card and put it into a card reader and insert the card reader into your computer.

2. “Mass storage” will appear on the camcorder’s screen. 3. Now open either Quick Time Player (you may have to download this software from the internet if you do not already have it) or your computer’s photo software and you can import your pictures or videos and edit as you normally would using this software. 4. Open “My Computer” or “Windows Explorer” on your computer. 5. A “Removable Disk” will appear. Double click on it to view the contents. 6. Double click on the “DCIM” folder to view your photos and videos. 7. Now you can copy and save your photos and video files to your computer.

ENGLISH DOWNLOADING YOUR PHOTOS AND YOUR VIDEOS Using “MAGIX Photo Manager 10”:

1. Connect the supplied USB cable to the camera and the computer’s USB port. 2.Turn on the camera. “Mass storage” appears on the screen when connection to the computer has been successfully completed. 3. Double click on the shortcut “MAGIX Photo Manager 10”. The pictures taken with the camera automatically appear on the home screen. 4. Press “Import” button on the main menu (up left). 5. You can copy and paste the pictures into any directory you choose. Publishing your photos on social networking sites: 1. Using “Magix Photo Manager 10”, select the photo that you wish to publish on Facebook or Flickr. 2. The selected image appears in an orange frame. 3. In the menu bar, click the “Online” tab and select “Upload media to other web services” and then either “Upload media to Flickr” or “Upload media to Facebook”. 4. The “Upload” window will be displayed on screen. Fill in the various fields (file name, description, key words, etc.). 5. Click “Upload” to confirm. 6. Depending on your upload destination, you will either open the Facebook or the Flickr home page. 7. Next follow in the instructions displayed on the screen to finish uploading.

Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not expose the unit to direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit.

WARRANTY This product is covered by our 2-years warranty.

To make use of the warranty or the after-sales service, please contact your retailer and supply proof of purchase. Our warranty covers material or installation-related defects attributable to the manufacturer, with the exception of wear caused by failure to respect the instructions for use or any unauthorised work on the equipment (such as dismantling, exposure to heat or damp, etc). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information. Reference: DJA200_01 Designed in Europe – Made in China © 2014 Lexibook® United Kingdom & Ireland For any further information, please call our Helpline: 0808 1003015 www.lexibook.com

This product is not a toy.

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste ! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available). 32
