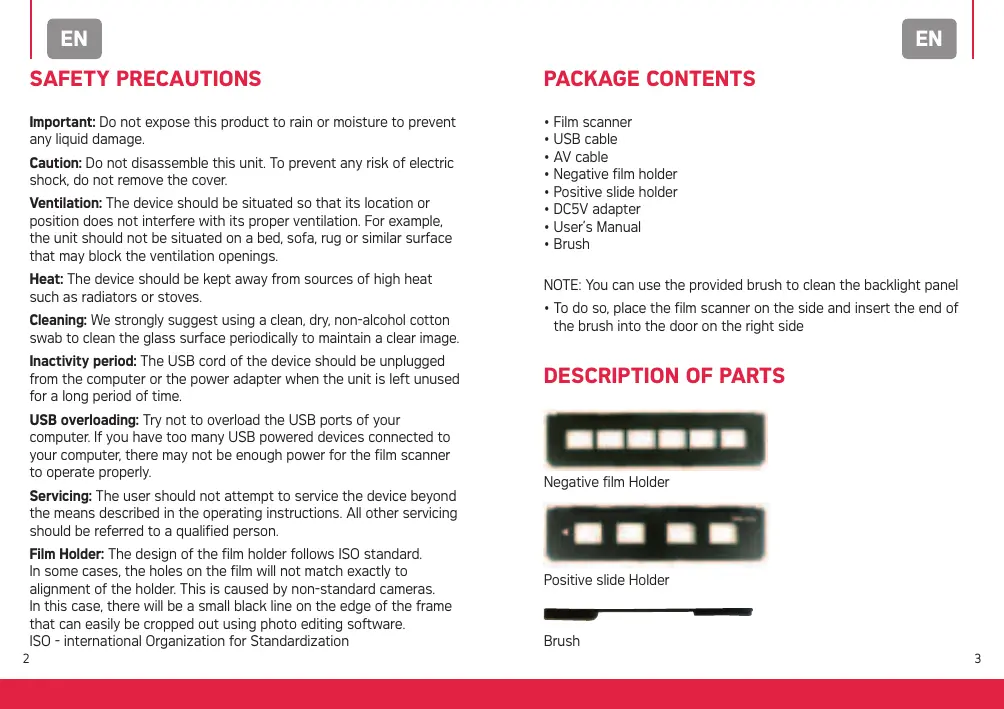

• Negative film holder
• Brush Caution: Do not disassemble this unit. To prevent any risk of electric shock, do not remove the cover. Ventilation: The device should be situated so that its location or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. Heat: The device should be kept away from sources of high heat such as radiators or stoves. Cleaning: We strongly suggest using a clean, dry, non-alcohol cotton swab to clean the glass surface periodically to maintain a clear image. Inactivity period: The USB cord of the device should be unplugged from the computer or the power adapter when the unit is left unused for a long period of time. USB overloading: Try not to overload the USB ports of your computer. If you have too many USB powered devices connected to your computer, there may not be enough power for the film scanner to operate properly. Servicing: The user should not attempt to service the device beyond the means described in the operating instructions. All other servicing should be referred to a qualified person. Film Holder: The design of the film holder follows ISO standard. In some cases, the holes on the film will not match exactly to alignment of the holder. This is caused by non-standard cameras. In this case, there will be a small black line on the edge of the frame that can easily be cropped out using photo editing software. ISO - international Organization for Standardization

NOTE: You can use the provided brush to clean the backlight panel

• To do so, place the film scanner on the side and insert the end of the brush into the door on the right side

Note: Handle slides and negatives with care. Any dust , scratch or fingerprint will be visible on your saved images. SLIDES Insert the negative or slide holder into the slot on the right side of the film scanner as shown on the picture. (1) (2)

PROPER OPERATION SEQUENCE

1. Open the film holder at the marked spot on the top and place the

slides into the dedicated slots, it should fit perfectly.

2. Close the slide holder and press the edges to lock it in place.

1. Load slides or negatives into the corresponding holder

2. Insert the holder into the scanner

3. Connect the scanner to a power source (PC or power adapter)

4. Press the power button to turn on the scanner

5. Press the Scan button to start scanning

6. When done using the scanner, take the storage card out

7. Pictures can also be viewed on a PC via USB Connection

1. Open the negative holder at the marked spot on the top. With

the negative holder laid open place the negative into the holder so the notches line up with the notches on the holder.

2. Close the negative holder and press the edges to lock it in place.

CAPTURE FUNCTIONS Capture Main Menu When you power on the device, it automatically goes into capture mode. Press the Menu button to access the main menu. In the main menu, you will find different modes and submenus: Language Setting Choose a language between English, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese and French. Press OK to confirm Select “Capture” to enter capture mode. Before entering capture mode, choose a film type or change the EV value. Press OK to confirm Exposure In “Capture” select EV to change the exposure value. Use the left and right arrows to adjust the EV. Press OK to confirm Film Type

Select “Resolution” to change the resolution.

Press OK to confirm In "Capture", select Film Type to choose a film type and press OK to confirm. Storage It will automatically enter Capture mode. To preview or copy pictures (saved on the SD card) to a PC, connect the scanner to a PC using a USB cable. Turn on the scanner, then from the main menu, select “USB MSDC”, the screen will turn black.

CAPTURE MODE PLAYBACK MODE Shooting mode 0000 - Scanning amount available 5M - Resolution Memory type From the main menu select “Playback” to view your saved photos. Use the left and right keys to browse through the photo gallery. In playback mode, press “Menu” to display more options, press it again to hide the options. Mirror Image/Rotation

Before scanning, if you need to invert or rotate your image, press the left or right keys to adjust it.

3. Delete: Delete picture

from the memory card

4. Exit: return to playback mode

6. Go back to capture mode

Press OK to confirm Press the left key to invert the image Delete/Return To delete a picture, select it and press “Menu”, then select the bin icon. Press OK to confirm. Leaving Playback mode To go back to the main menu, select the house icon, press OK to confirm and then press “Menu”. Press the right key to flip the image When you are satisfied with the image, press “Scan” to save it.
