Product type	Built-in induction hob
Brand	AIRLUX
Model	AV32H (ATI320MC)
Total power	3400 W
Number of cooking zones	2 (front Ø160 mm, rear Ø200 mm)
Appliance dimensions (W x D)	520 x 300 mm
Cutout dimensions	490 x 280 mm
Weight	Approximately 6 kg
Electrical supply	230 V ~ 50/60 Hz, single-phase
Required protection	Circuit breaker 16 A, cable 3 x 1.5 mm²
Booster function	Yes, up to 2000 W for 10 minutes
Pan detection	Automatic, minimum diameter 90 mm
Residual heat indicator	Yes (H symbol)
Control lock	Yes (L symbol)
Operating time limit	Yes (60 min for levels 1-5, 30 min for 6-9)
Ventilation	Automatic with two speeds
Surface material	Ceramic glass
Care and cleaning	Use a damp cloth and ceramic glass cleaner, avoid abrasives
Safety	Automatic shutoff, overheating detection, child safety
Spare parts and repairability	Contact authorized after-sales service; do not open the appliance yourself
Energy consumption	179.2 Wh/kg (according to EN 60350-2)
Warranty	Comply with usage conditions for validity

Frequently Asked Questions - AV32H AIRLUX

What types of pans can I use on this induction hob?

Use ferromagnetic bottom cookware: steel, cast iron, magnetic stainless steel. Check with a magnet. Avoid copper, aluminum, glass, and ceramic.

What to do if the [U] symbol appears?

This symbol indicates that no pan is detected or it is unsuitable. Place a compatible pan centered on the zone, or check its diameter (minimum 90 mm).

How to activate the control lock?

Turn both knobs simultaneously to the left to position [A] for 3 seconds. The [L] symbol appears. Repeat to unlock.

What does the [H] symbol mean?

It indicates residual heat: the cooking zone is still hot. Do not touch it and wait until the symbol disappears before cleaning.

How to use the Booster function?

Turn the knob of the desired zone to the right until it stops. The [P] symbol appears and maximum power is active for 10 minutes.

What to do if the hob does not turn on?

First check the circuit breaker and power outlet. Make sure the lock is not activated ([L] symbol). If the problem persists, contact after-sales service.

Why does the fan continue after shutdown?

This is normal: the fan cools the electronics. It stops automatically when the temperature is low enough.

What are the common error codes?

[E2]: overheating, let it cool. [E6]: network problem, check voltage/frequency. [E8]: air intake blocked, clear it. [e]: electronic fault, unplug/replug or contact after-sales service.

How to clean the ceramic glass?

Use a damp cloth with a little dish soap or a specific cleaner. Never use abrasive pads or metal scrapers.

What is the minimum distance between the hob and the hood?

Follow the hood manufacturer's instructions. If no indication, allow at least 760 mm between the hob and the hood.

USER MANUAL AV32H AIRLUX

Instruction of use and maintenance

Thank you for having chosen our induction ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

SUMMARY

SAFETY 17

PRECAUTIONS BEFORE USING 17
USING THE APPLIANCE 18
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 19
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 20
OTHER PROTECTIONS 20

DESCRIPTION OF THE APPLIANCE 21

TECHNICAL CHARACTERISTICS 21

USE OF THE APPLIANCE 21

DISPLAY 21
VENTILATION 21

STARTING-UP AND APPLIANCE MANAGEMENT 21

BEFORE THE FIRST USE 21
INDUCTION PRINCIPLE 22
STARTING-UP 22
PAN DETECTION 22
BOOSTER FUNCTION 23
CONTROL PANEL LOCKING 23
AUTOMATIC CUT-OFF 23

COOKING ADVICE 24

PAN QUALITY 24
PAN DIMENSION 25
EXAMPLES OF COOKING POWER SETTING 25

MAINTENANCE AND CLEANING 25

WHAT TO DO IN CASE OF A PROBLEM 26

ENVIRONMENT PRESERVATION 26

INSTALLATION INSTRUCTIONS 27

ELECTRICAL CONNECTION 28

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate can not be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
• Do not place any metallic object except heating containers. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children shall be kept away unless continuously supervised.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (3 cm). This is essential to guaranty a correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass hob since they can scratch the surface, which may result in shattering of the glass.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

Technical characteristics

Type	ATI320MC
Total power	3400 W
Energy consumption for the hob EChob**	179.2 Wh/kg
Front heating zone	Ø 160 mm
Minimum detection	Ø 90 mm
Nominal power*	1400 W
Booster power*	-
Standardised cookware category**	B
Energy Consumption ECw	177.3Wh/kg
Rear heating zone	Ø 200 mm
Minimum detection	Ø 90 mm
Nominal power*	1400 W
Booster power*	2000 W
Standardised cookware category**	C
Energy Consumption ECw	181 Wh/kg

• The given power may change according to the dimensions and material of the pan.
  ** calculated according to the method of measuring performance (EN 60350-2).

USE OF THE APPLIANCE

Display

Display	Designation	Function
0	Zero	The heating zone is activated.
1...9	Power level	Selection of the cooking level.
U	Pan detection	No pan or inadequate pan.
E	Error message	Electronic failure.
H	Residual heat	The heating zone is hot.
P	Booster	The boosted power is activated.
L	Locking	Control panel locking.

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
• Are excluded: cupper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware.... The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter.

If the pan is not adapted to the induction hob the display will show [] .

Starting-up

You must first switching on the hob, then the heating zone:

• Start-up / switch off a heating zone:

Action

To set

To stop

Control panel

Turn the knob to the right

Turn the knob to [0]

Display

[1]to [9]

[0] or [H]

Pan detection

The pan detection ensures a perfect safety. The induction doesn't work:

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [ ] . This symbol disappears when a pan is put on the heating zone.
• If the pan is removed from the heating zone the operation is stopped. The display shows [ ] . The symbol [ ] disappears when the pan is put back to the heating zone. The cooking continues with the power level setted before.

After use, switch the heat element off: don't let the pan detection [ ] active.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.

The symbol [ H ] disappears when the heating zones may be touched without danger.

As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Booster function

Booster [P] grant a boost to the heating zone.

When this function is activated, the heating zone work during 10 minutes at an ultra- high speed. This is meant to be used for heating up big quantities of water very quickly (for e.g. pasta).

• Start-up / Stop the Power:

Action	Control panel	Display
Start up the Booster	Turn the left knob to the right until the stop	[P]
Stop the Booster	Turn the knob	[9] to [0]

Control panel locking

To avoid modification of the setting of the cooking zone, the control panel can be locked.

Action	Control panel	Display
Lock the hob	Turn the two knobs to the left of position [ A ] during 3s	[L]
Unlock the hob	Turn the two knobs to the left of position [ A ] during 3s

Automatic cut-off

The table has a time limit of operation depending on the power level selected. Between 1 and 5, it switches off automatically after 60 minutes, and between 6 and 9 it switches off after 30 minutes.

Pan quality

Adapted materials:

steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

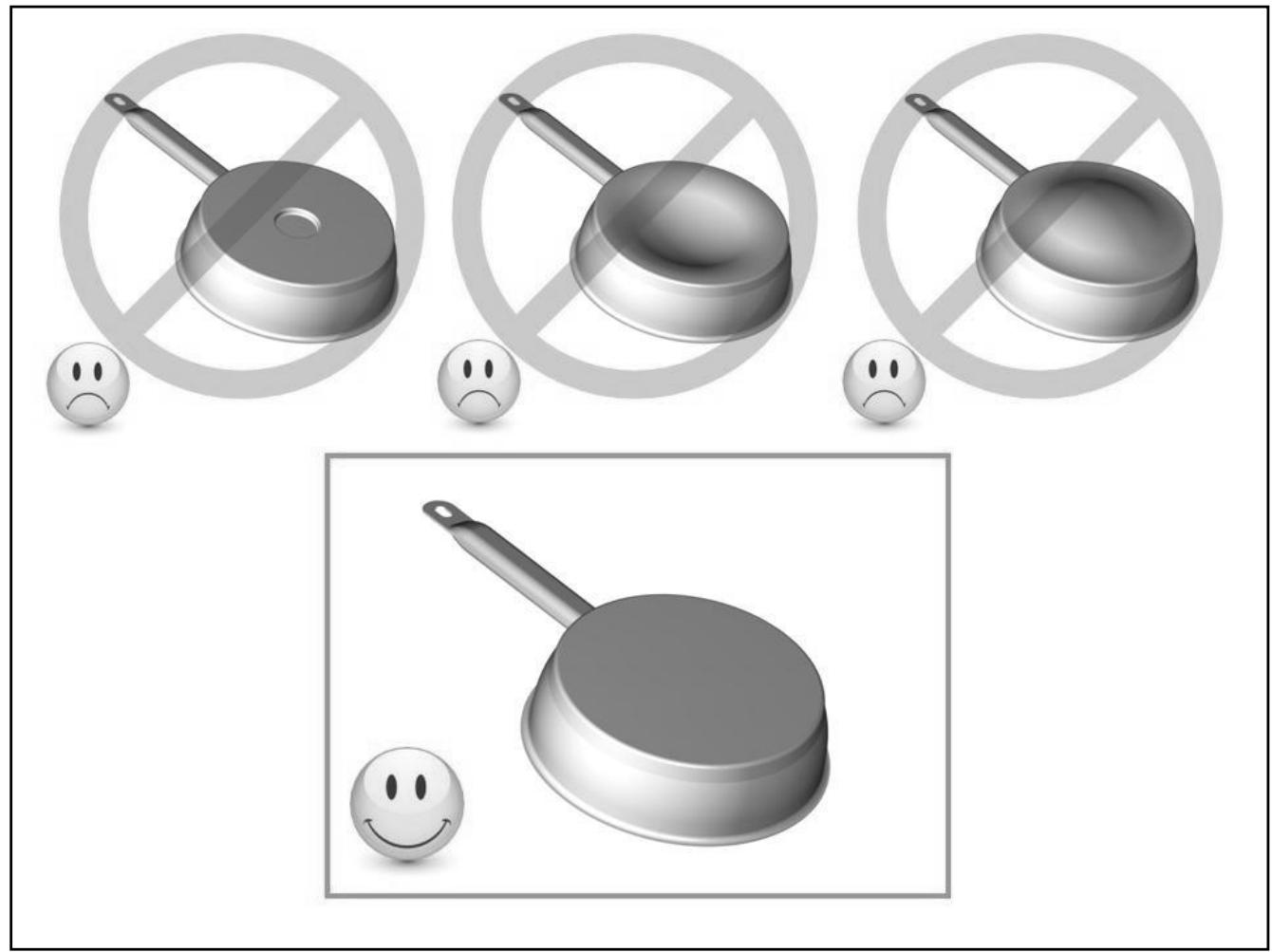

Not adapted materials:

aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible induction.

To check if pans are compatibles:

• Put a little water in a pan placed on an induction heating zone set at level [ 9]. This water must heat in a few seconds.
• A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Examples of cooking power setting

(the values below are indicative)

1 to 2	Melting Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking Simmering	Meat, lever, eggs, sausages Goulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting, boiling water	Steaks, omelettes, fried dishes, water
P	Frying, roosting Boiling water	scallops, steaks Boiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaning or pressure washer.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

The hob or the cooking zone doesn't start-up:

• The hob is badly connected on the electrical network.
• The protection fuse cut-off.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
  An object is put on a key.

The control panel displays [U]:

There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.

The control panel displays or [ E ]:

• Disconnect and replug the hob.
• Call the After-sales Service.

One or all cooking zone cut-off:

• The safety system functioned.
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.
• The pan is empty and its bottom overheated.
• The hob also has an automatic reduction of power level and breaking Automatic overheating

Continuous ventilation after cutting off the hob:

• This is not a failure, the fan continuous to protect the electronic device.
• The fan cooling stops automatically.

The control panel displays [E2] or [EH]:

The hob is overheated, let it cool and then turn it on again.

The control panel displays [E6]:

• Defective network. Control the frequency and voltage of the electrical network.

The control panel displays [E8]:

• The air inlet of the ventilator is obstructed, release it.

If one of the symbols above persists, call the SAV.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

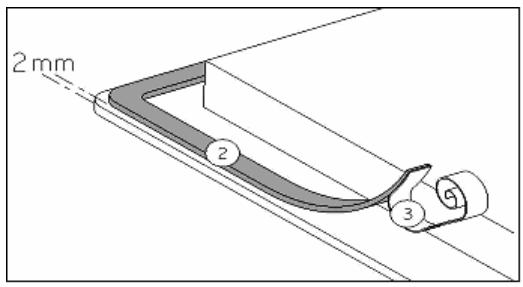

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

The cut out sizes are:

Glass size	Cut-size
520 x 300	490 x 280 mm

• Ensure that there is a distance of 50 ~mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• The mural rods of edge must be heat-resisting.
• Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20 ~mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .
• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.

• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V~ 50/60 Hz

Connect always the earth wire.

Respect the connection diagram.

Use the connecting cable that is attached to the device.

The green / yellow wire correspond to the earth wire, the blue wire correspond neutral wire and the brown wire correspond to the phase.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 x 1,5 mm²	H 05 VV - F H 05 RR - F	16 A *

• calculated with the simultaneous factor following the standard EN 60 335-2-6

Connection of the hob :

Monophase 230 ~V 1 P + N

Attach the earth to the terminal "earth", the neutral N to terminal N, the Phase L1 to terminal L1.

Caution! Ensure that you correctly attach the wires and the bridges and tighten the screws properly.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

Caro cliente,
