USER MANUAL GM2500B BRANDT

GM2500W/GM2500B 230V ~ 50 Hz 1 250 W 800 W 1000 W 23L 27 cm 485 x 400 x 293 mm 14 kg

Thank you for buying a BRANDT product and for your confidence in our company.

This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years. So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information. BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.

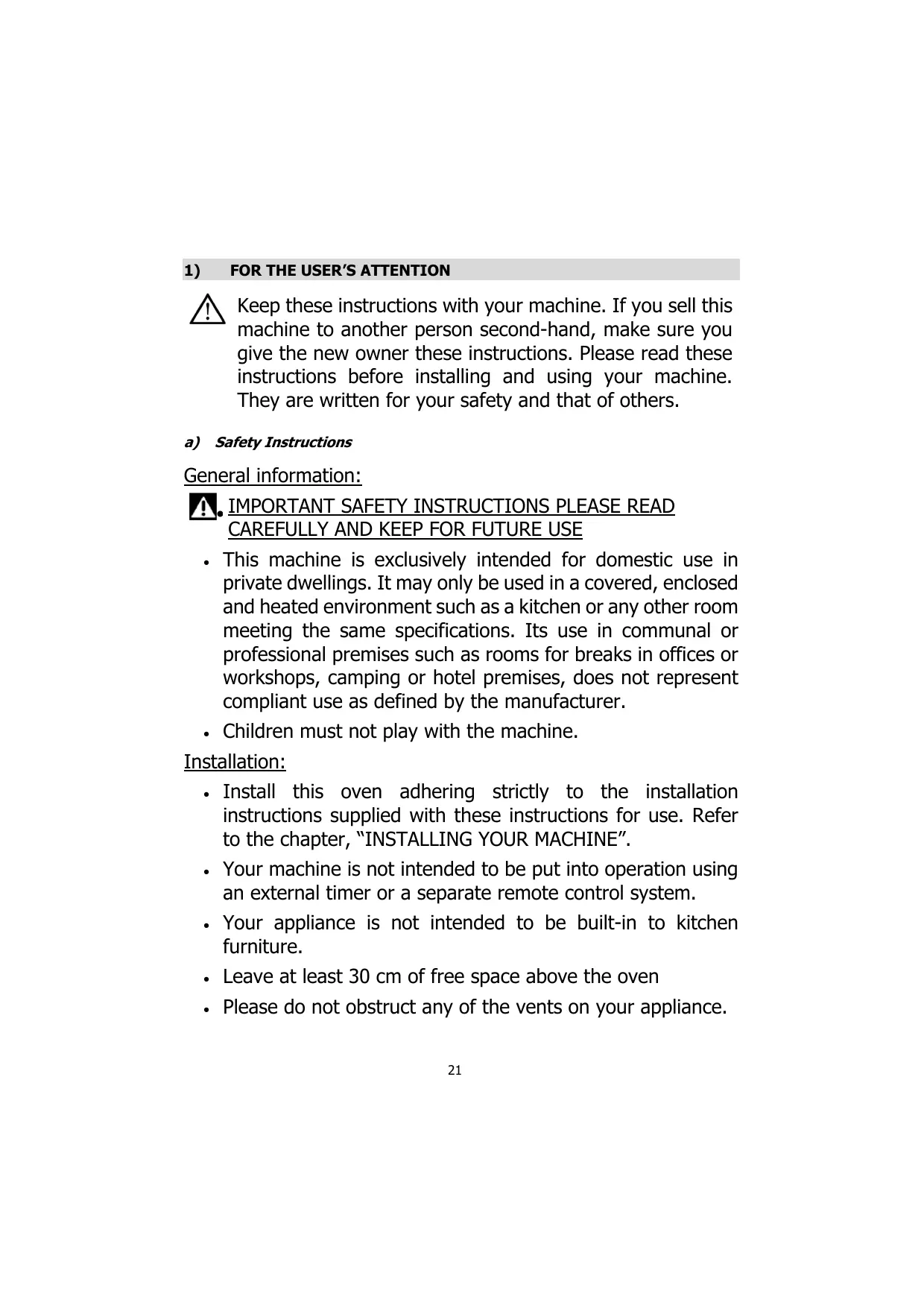

Keep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine.

They are written for your safety and that of others. a)

General information:

• IMPORTANT SAFETY INSTRUCTIONS PLEASE READ CAREFULLY AND KEEP FOR FUTURE USE

This machine is exclusively intended for domestic use in private dwellings. It may only be used in a covered, enclosed and heated environment such as a kitchen or any other room meeting the same specifications. Its use in communal or professional premises such as rooms for breaks in offices or workshops, camping or hotel premises, does not represent compliant use as defined by the manufacturer.

Children must not play with the machine.

Install this oven adhering strictly to the installation instructions supplied with these instructions for use. Refer to the chapter, “INSTALLING YOUR MACHINE”.

Your machine is not intended to be put into operation using an external timer or a separate remote control system. Your appliance is not intended to be built-in to kitchen furniture.

Leave at least 30 cm of free space above the oven

Please do not obstruct any of the vents on your appliance.

If this machine is covered or in contact with a flammable material including curtains, drapes and similar items, there is a fire risk when it is working.

Keep the power supply lead away from hot surfaces Keep the machine and its lead out of reach of children under the age of 8.

The appliance and its accessible parts become hot during use. This symbol means “Caution, hot surface”. Liquids and other foods should not be heated in sealed containers because they may explode. The temperature of accessible surfaces may be high when the appliance is in operation. •

This machine may be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or without experience or knowledge, if they are properly supervised or if they have been given instructions about using the machine safely and if they have understood the risks being run.

Children should be kept away if they are not continually supervised. Do not place anything on the machine when it is working. To avoid damaging your appliance, never operate it while empty or without the plate. Only use suitable utensils for use in microwave ovens.

Metal containers for food and drinks cannot be used for cooking in a microwave. Remove metal closing ties and metal handles from containers/bags before putting them in the oven.

Always use insulated gloves to remove dishes from the oven. Some dishes absorb the heat from the food and are therefore very hot. To avoid damaging your appliance, never operate it while empty or without the plate. If quantities are small, place a glass of water beside the food to increase the load. Heating drinks using microwaves can cause a sudden or delayed gush of boiling liquid. For this reason precautions must be taken when handling the container. In order to prevent burns, the contents of baby bottles and baby food pots should be stirred or shaken and the temperature should be checked before consumption. Heating eggs in their shells and whole hard-boiled eggs in a microwave oven is not recommended as they may explode, even when cooking has finished. Do not use aluminium cooking foil to cover food. Do not cover part of the oven with aluminium foil. When heating food in plastic or paper containers keep an eye on the oven in case something should catch fire. If smoke comes out of the appliance stop or disconnect the machine and keep the door closed to put out any possible flames.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface, that could adversely affect the life of the appliance and possibly result in a hazardous. Turn the oven off and remove the power plug from the wall socket before cleaning. Your machine produces microwaves and contains a high voltage circuit. Do not remove the casing. It is dangerous for any unqualified person to perform maintenance OR repair operations. •

Cleaning and maintenance by the user should not be carried out by children unless they are older than 8 and are supervised.

Cleaning the oven regularly and removing any food deposits is recommended. Your machine must be cleaned regularly. Food deposits must be removed.

Do not clean the machine with an abrasive sponge or a metal scraper.

The appliance must not be steam cleaned. The door seal and frame must be inspected regularly to ensure they are not damaged. If they are damaged, do not use the machine any more and have it checked by a specialist technician. Never pull the lead but disconnect the machine by holding the plug. If the mains lead is damaged it must be replaced by the manufacturer, its representative or any other qualified person to avoid any danger.

When you need to change the bulb in your microwave contact a specialist technician.

Removing the protective casing of the appliance may result in exposure to microwave energy. Removing the protective casing from the machine, even if it is disconnected, may cause electrocution from contact with the high voltage circuit.

The manufacturer denies all responsibility in the event of non-compliant use. Adhere to the general instructions for use and safety instructions listed in this chapter.

The use of accessories not recommended by the manufacturer of the machine may cause dangerous situations or injuries. The microwave oven is intended to heat food and drinks. Only use this appliance for the purposes described in this manual. This appliance is not intended for drying foodstuffs or washing, for warming slippers, heating pads, sponges, damp linen and any other similar articles. These uses may cause the risk of burns, catching fire or fire. Nor is it intended for sterilisation. Do not use the oven compartment for storage purposes. Do not place food such as bread, biscuits, etc. inside the oven.

Model Rated Voltage Rated Input Power(Microwave) Rated Output Power(Microwave) Grill power Capacity Turntable Diameter External Dimensions (L x W x H) Net Weight

230 V ~ 50 Hz 1250 W 800 W 1000 W 23 L 27 cm 485 x 400 x 293 mm 14 kg

The micro-waves used for cooking are electro-magnetic waves.

They are commonly found in our environment in the form of radio-electric waves, light or infrared rays. Their frequency is in the 2450 MHz range. Their behaviour: • • •

They are reflected by metals.

They travel through all other materials. They are absorbed by water, fat and sugar molecules.

When food is exposed to micro-waves, its molecules begin moving rapidly, which causes heating.

The penetration depth of waves into the food is approximately 2.5 cm; if the food is thicker, the core of the food will be cooked by conduction, as in traditional cooking.

Protecting the environment

It is valuable to note that the micro-waves trigger within the food a simple thermal phenomenon and that they are not harmful to one's health.

At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health

and the environment, and to recycle materials to save energy and significant resources.

A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product. Your appliance also contains various recyclable materials. Thus it is stamped with this logo to indicate to you that used appliances should be mixed with other waste. The recycling of appliances organised by your manufacturer will therefore be carried out in the best possible conditions, in compliance with the European directive in force concerning electrical and electronic equipment waste. Contact your Town Hall or your retailer to find out where the points for the collection of used machines nearest to your home are. Thank you for helping to protect the environment.

INSTALLING YOUR APPLIANCE Before Installation

Caution: Check that your machine has not been damaged during transport (door or seals distorted, etc.).

If you note any damage whatsoever before use, do not install the oven if it is damaged and contact your retailer.

Remove the packaging and put the accessories aside. Control Panel: Remove the protective film from the surface of the control panel. Do not remove the light brown Mica coating which is found in the cavity of the oven and which protects the magnetron.

1. This product must not be built in.

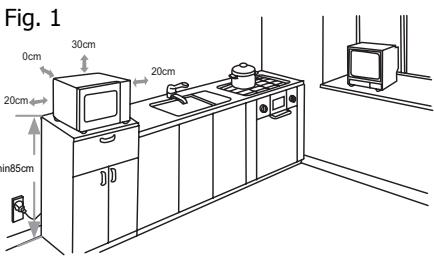

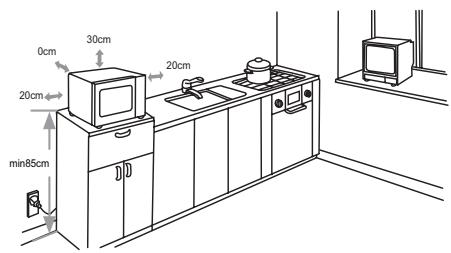

Leave at least 30 cm of free space above the oven and 20 cm at the sides (Fig 1). Do not take the feet off the oven. Do not obstruct the air vents as you risk early damage to your machine. Fig. 1 4Zd

Electrical Connection

It is essential to use a socket with an earthing terminal connected in compliance with the safety standards in force.

In your electrical installation provide a user-accessible device which must be able to separate the machine from the mains, the contact opening of which is at least 3 mm on all poles.

If the power cable is damaged it must be replaced by the manufacturer, its after-sales service or any other similarly qualified person to avoid any danger.

the power of the installation is sufficient.

the mains leads are in good condition.

the diameter of the wires complies with the installation rules.

your installation is fitted with 16 ampere heat protection.

If in doubt please consult your electrician.

The electrical connection must be carried out before placing the machine in its final position.

Electrical safety must be ensured by a correct connection. During maintenance operations the machine must be unplugged from the mains and the fuses must be cut off or removed. The machine must be connected with a standardised power cable with three 1.5 mm² conductors (1 live + 1 neutral + 1 earth) which must be connected to the 220-240V 50Hz single phase mains with a standardised electric socket CEI 60083 fitted with two pins and one earth in compliance with the installation rules in force. The Earth wire (green/yellow) is connected to the machine’s terminal and must be connected to the earth of your electrical installation. The Neutral wire (blue) must be connected to the mains neutral. The Live wire (red, black, or brown) must be connected to the mains live. The plug or any other electrical cut-off device must remain immediately accessible to allow an emergency stop. In your electrical installation also provide an accessible device which must be able to separate the machine from the mains, the contact opening of which is at least 3 mm on all poles. If the oven has any type of damage, unplug it or disconnect it from the mains. If the mains lead on your machine is damaged it must be replaced by the manufacturer, its aftersales service or any other similarly qualified person to avoid any danger. Caution: We cannot be held liable in the event of an accident or incident resulting from nonexistent, defective or incorrect earthing.

See the instructions on « Materials you can use in microwave oven or to be avoided in microwave oven.» There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. 2. Cook on maximum power for 1 minute. 3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. 4. Do not exceed 1 minute cooking time. Materials you can use in microwave oven Utensils Browning dish

Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Heat-resistant oven glassware only. Make sure there is no metallic trim.

Do not use cracked or chipped dishes.

Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

Paper plates and cups

Use for short-term cooking/warming only. Do not leave oven unattended while cooking.

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Use as a cover to prevent splattering or a wrap for steaming.

Microwave-safe only. Follow the manufacturer's instructions. Should be labeled « Microwave Safe « . Some plastic containers soften, as the food inside gets hot. « Boiling bags» and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Microwave-safe only. Use to cover food during cooking to retain moisture.

Do not allow plastic wrap to touch food.

Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood

May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

Description of your appliance

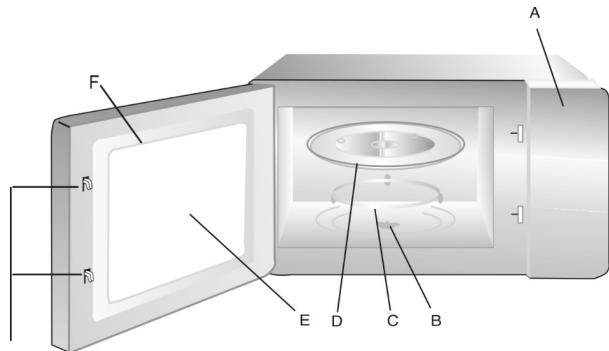

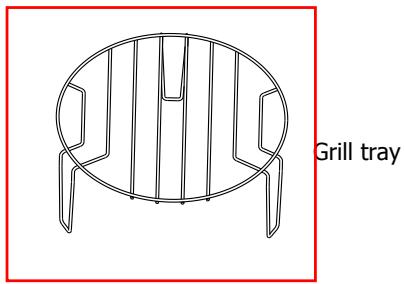

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. A) B) C) D) E) F) G)

Turntable shaft Turntable ring assembly Glass tray Observation window Door assembly Safety interlock system

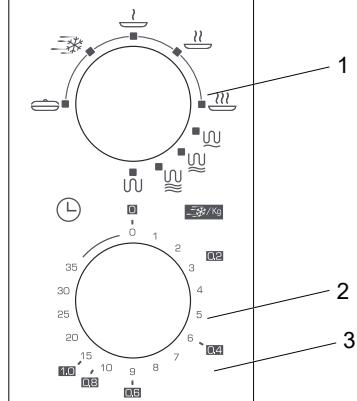

Used to set the cooking power by turning the thumb wheel to the required power.

Used to set the cooking duration by turning the thumb wheel to the duration indicated in your cooking guide.

• The microwave oven will automatically start cooking after the power and duration have been set. • When cooking has finished the appliance will sound to indicate this. • If you are not using your machine always set the duration to “0”.

Defrosting function: indicative weights are marked around the timer to enable you to set the right time (e.g. 0.2 kg = 3 minutes).

616 W Rice, fish, chickens, meat

800 W Grill /160 MW Combi 2

700 W Grill / 240 MW Combi 3

600 W Grill / 320 MW Grill

1000 W Reheating milk, boiling water, vegetables, drinks

Sausages, Lamb, Kebabs, Seafood, Steak Chicken pieces, Chicken breasts, Pork chops Whole chicken Cooking bread, sliced food

When you remove your food from the oven, check that the oven is turned off by turning the timer to 0 (zero). Otherwise, and if you operate your microwave oven empty, you risk causing overheating and damaging the appliance.

Turntable installation

Glass tray Turntable shaft Turntable ring assembly

Never place the glass tray upside down. The glass tray should never be restricted.

Both glass tray and turntable ring assembly must always be used during cooking.

All food and containers of food are always placed on the glass tray for cooking.

If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

CARING FOR AND CLEANING YOUR APPLIANCE It is recommended that you regularly clean your oven and remove any food build-up on the inside and outside of the appliance. Use a damp, soapy sponge. If the appliance is not cleaned regularly, its surface could become damaged, permanently affecting the appliance's lifespan and possibly causing a safety hazard. If the door or door hinge are damaged, the oven should not be used until it has been repaired by an authorised person.

Do not clean the appliance with a steam cleaner. The use of abrasive products, alcohol or thinner is not recommended; they may damage the appliance. In the event of odour or caked-on dirt, boil water with lemon juice and vinegar in a cup for two minutes and clean the insides with a bit of dishwashing liquid. The table can be removed to facilitate cleaning. To do this, handle it by the access zones provided for this purpose. If you remove the turning gear, do not let water penetrate into the motor axle hole. Don't forget to return the turning gear, wheel guide and turntable.

TROUBLESHOOTING If you have doubts about the proper functioning of your appliance, this does not necessarily mean it is broken. In any event, check the following items:

Check the electrical connection of your The appliance does not start. appliance. Ensure that your oven's door is fully closed. Clean the wheels and the rolling area under The appliance is noisy. the turntable. The turntable does not rotate properly. Ensure that the wheels are properly positioned. You see steam on the window. Wipe the condensation away with a cloth. Ensure that the cookware is suitable for Food is not heated during a microwave microwave ovens and that the power level is programme. appropriate. Thoroughly clean the appliance: remove grease, cooking particles, etc. The appliance is creating sparks. Remove any metal items from the walls of the oven. Never use metal items with the grid. Call a qualified professional from a dealer for The bulb doesn't work. the brand to replace the bulb. Warning: Be careful, this appliance is equipped with a high tension circuit. Do not make yourself any repairing inside the oven.

BRANDT FRANCE - Simplified Joint Stock Company with capital of 100,000,000 Euros

89/91 Boulevard Franklin Roosevelt - 92854 Rueil-Malmaison (France) 33

230 V ~ 50 Hz 1 250 W 800 W 1000 W 23L 27 cm 485 x 400 x 293 mm 14 Kg

Combi 2 Combi 3 Parrilla

600 W Parrilla / 320 MW Pollo entero

1000 W GM2500W/GM2500B

230V ~ 50 Hz 1 250 W 800 W 1000 W 23L 27 cm 485 x 400 x 293 mm 14 kg

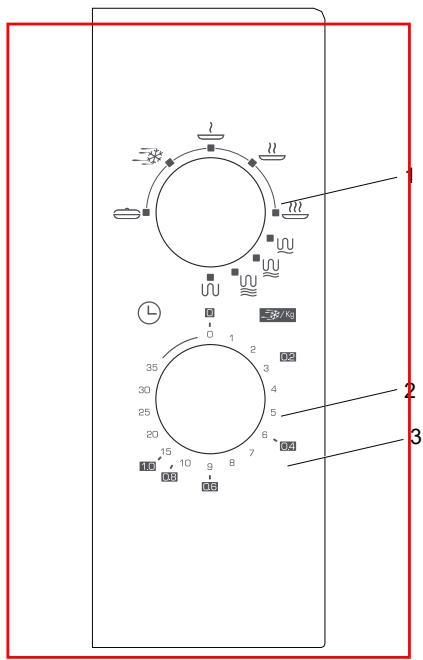

INSTALLATIE VAN UW APPARAAT
