Normes de sécurité

No.	Spare part	No.	Spare part	No.	Spare part
1	WIRING CONNECTION OF THE DISPLAY	4	AMBIENT TEMPERATURE PROBE	8	STARTING CAPACITOR 0,5 μF 450 VAC

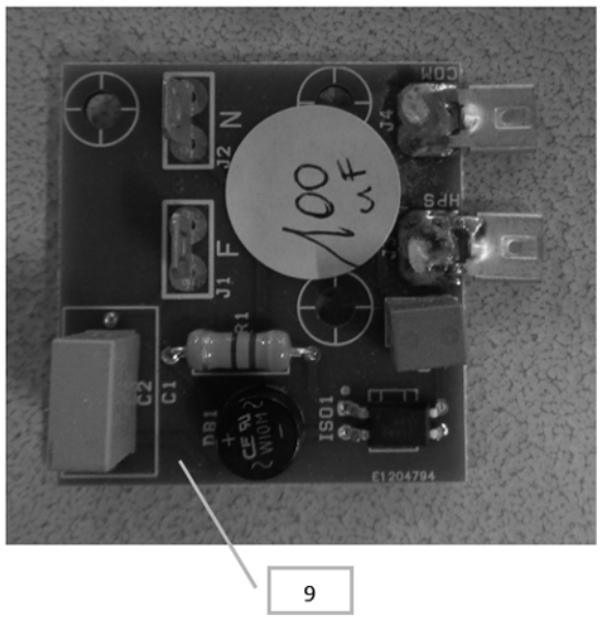

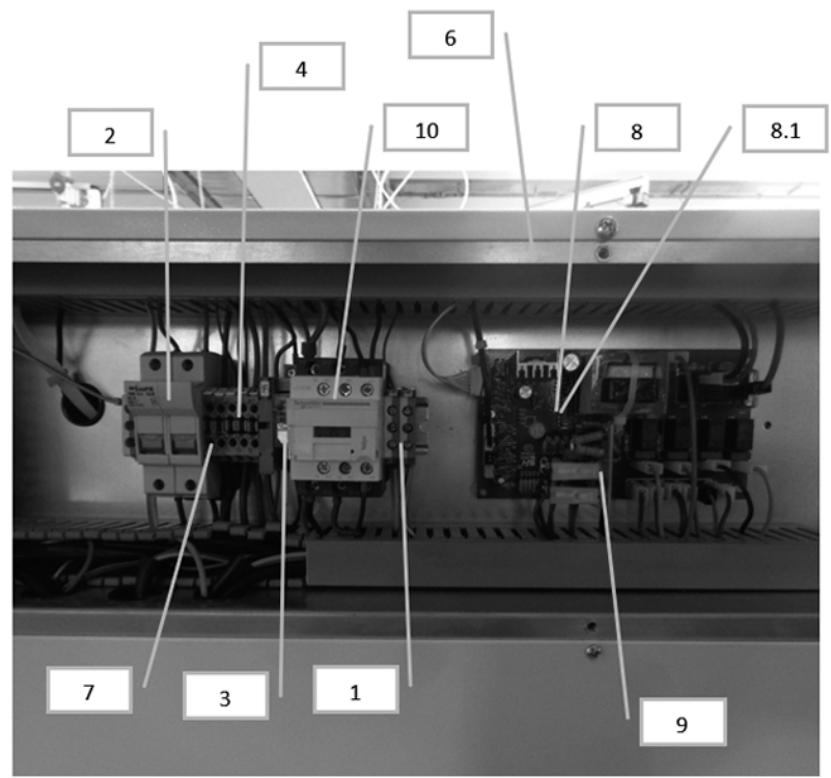

2	CONTROL PCB (up to S.N. 1140007079)	5	FUSE HOLDERS + FUSES 16A	9	PCB FOR NEW HPS LOGIC (from S.N. 1140007080)
2.1	CONTROL PCB (from S.N. 1140007080)	6	ELECTRICAL VANE	10	CONTACTORS
3	WATER OUTLET PROBE	7	RUNNING CAPACITOR 2 uF

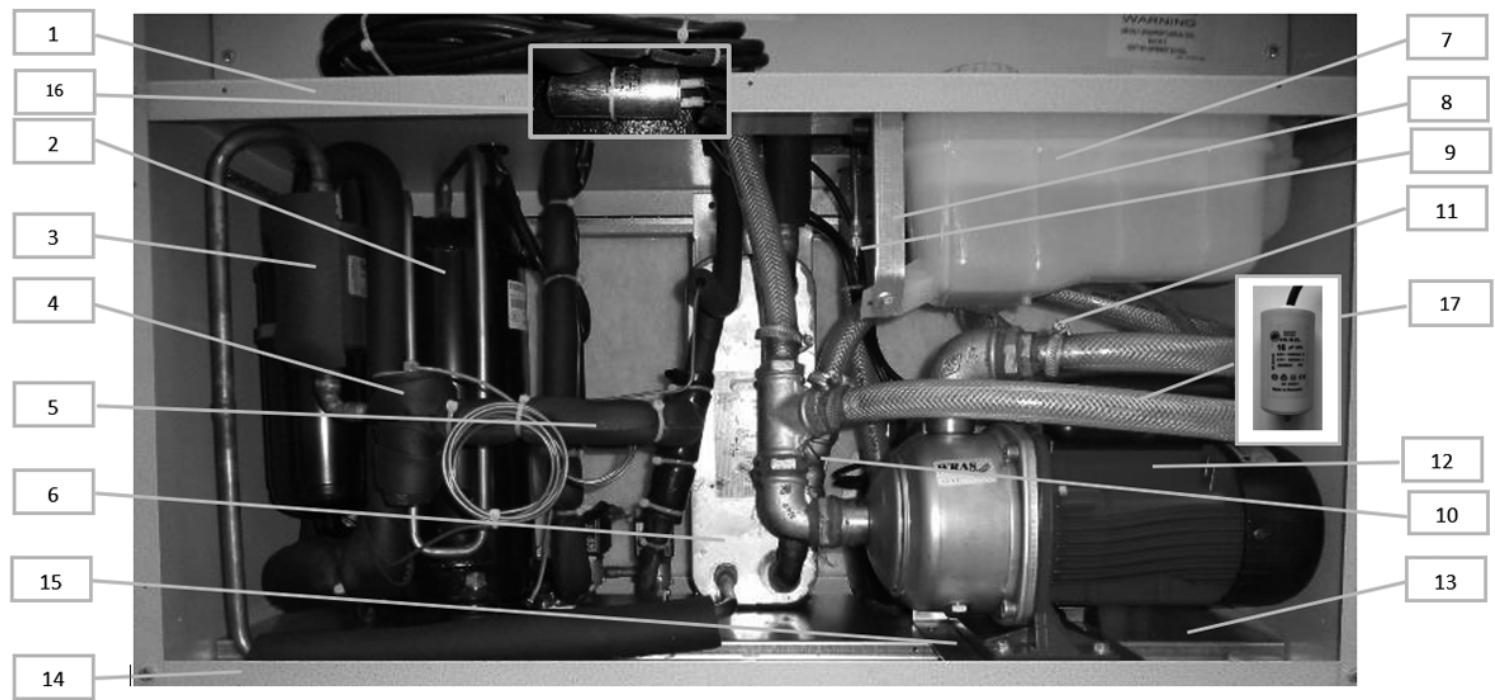

PT 4500 S - Part 3 :

No.	Spare part	No.	Spare part	No.	Spare part

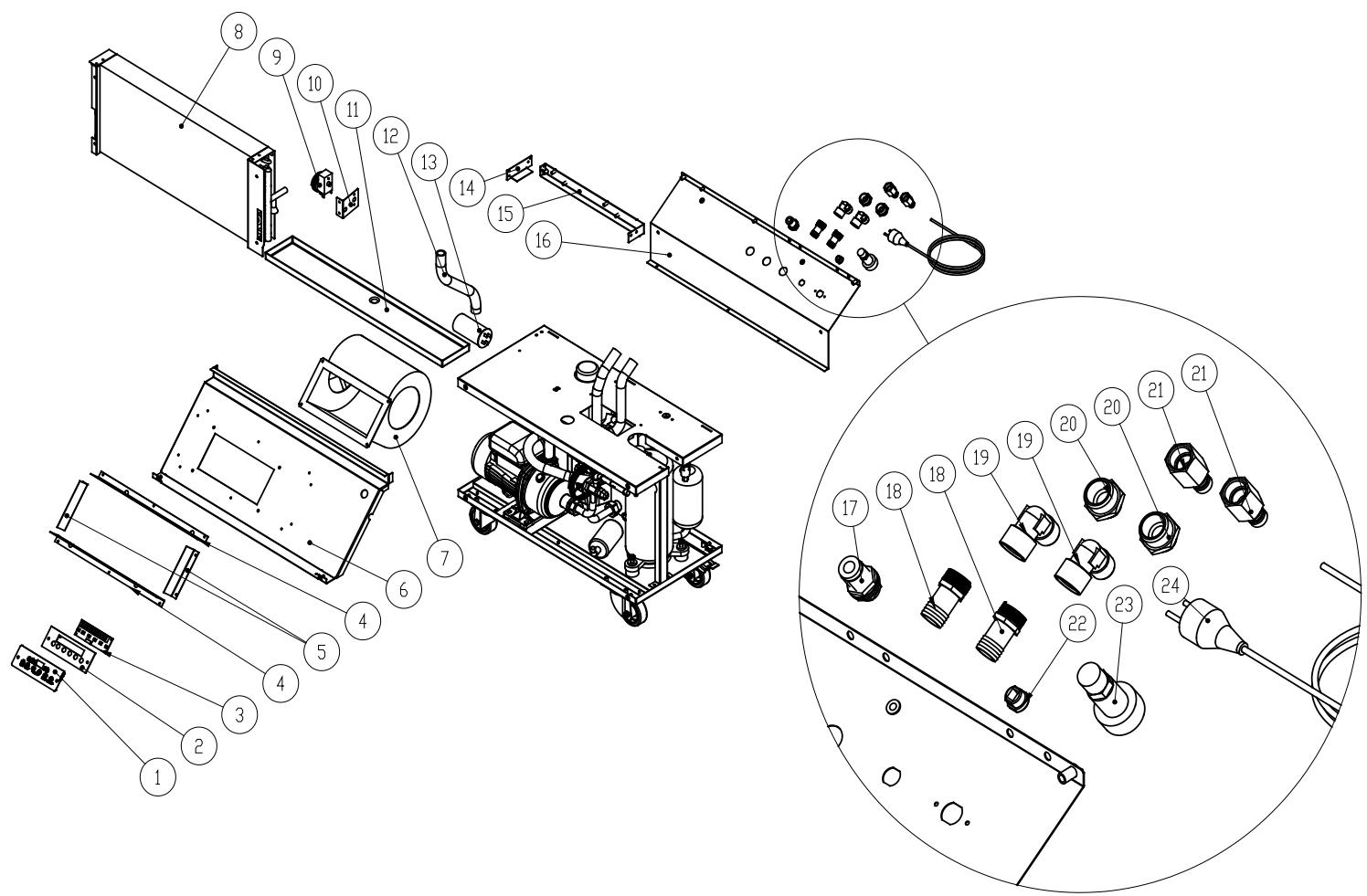

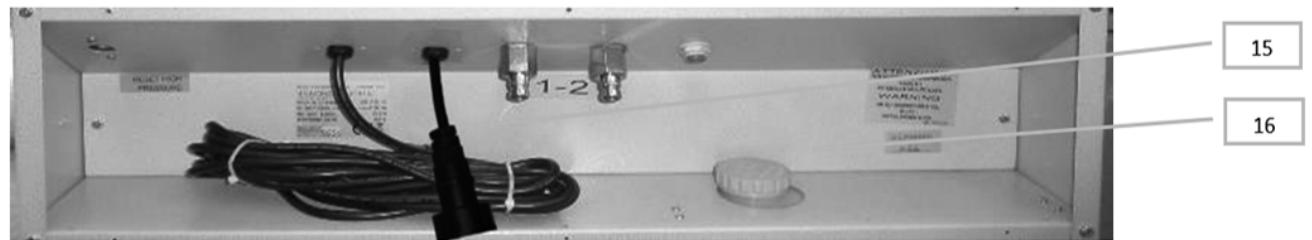

1	DISPLAY LABEL	9	THERMOSTAT WITH KNOB	17	CONNECTOR FOR CONDENSED WATER DRAINAGE
2	DISPLAY SUPPORT	10	DEFROST THERMOSTAT SUPPORT	18	RUBBER HOLDER
3	DISPLAY DIGIT FOR NEW PCB WITHOUT CUT BUTTONS	11	CONDENSATE TRAY	19	FITTING M-F 1/2
4	LOW DELIVERY DUCT	12	DRAINPIPE	20	CYLINDRICAL EXTENSION 1/2 X 1/2
5	DELIVERY SIDE DUCT	13	COMPRESSOR CAPACITOR	21	WATER CONNECTOR MALE
6	FAN COMPARTMENT	14	FAN COMPARTMENT SIDE SUPPORT	22	GLAND
7	FAN	15	ELECTRIC VANE SIDE STRUCTURAL SUPPORT	23	FLYING SOCKET CONNECTOR (FEMALE)
8	EVAPORATOR COIL WITH REFRIGERANT DISTRIBUTOR	16	REAR PANEL CONNECTOR HOLDER RAL9010 BUCC.	24	SHUKO PLUG

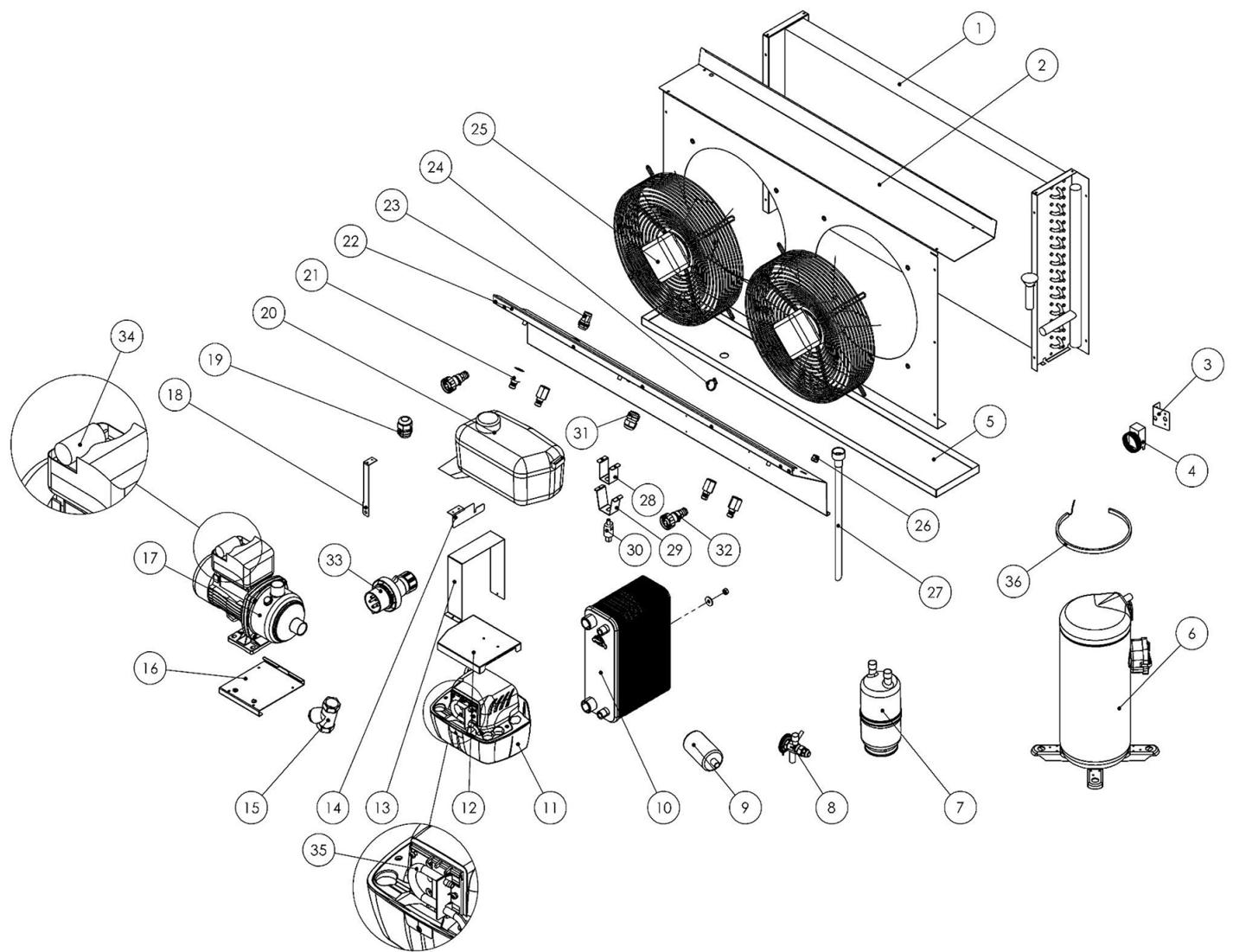

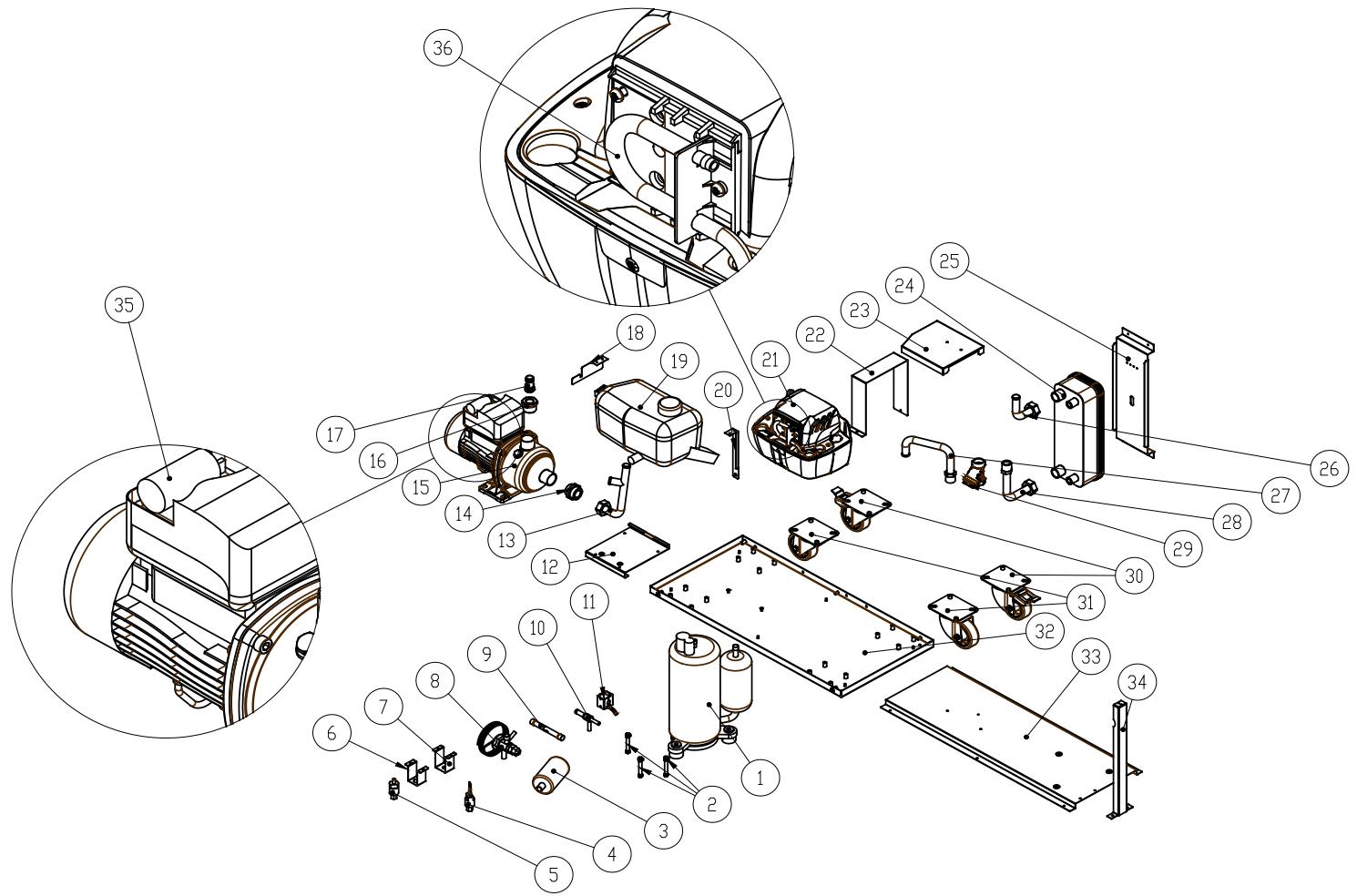

PT 4500 S - Part 4 :

No.	Spare part	No.	Spare part	No.	Spare part

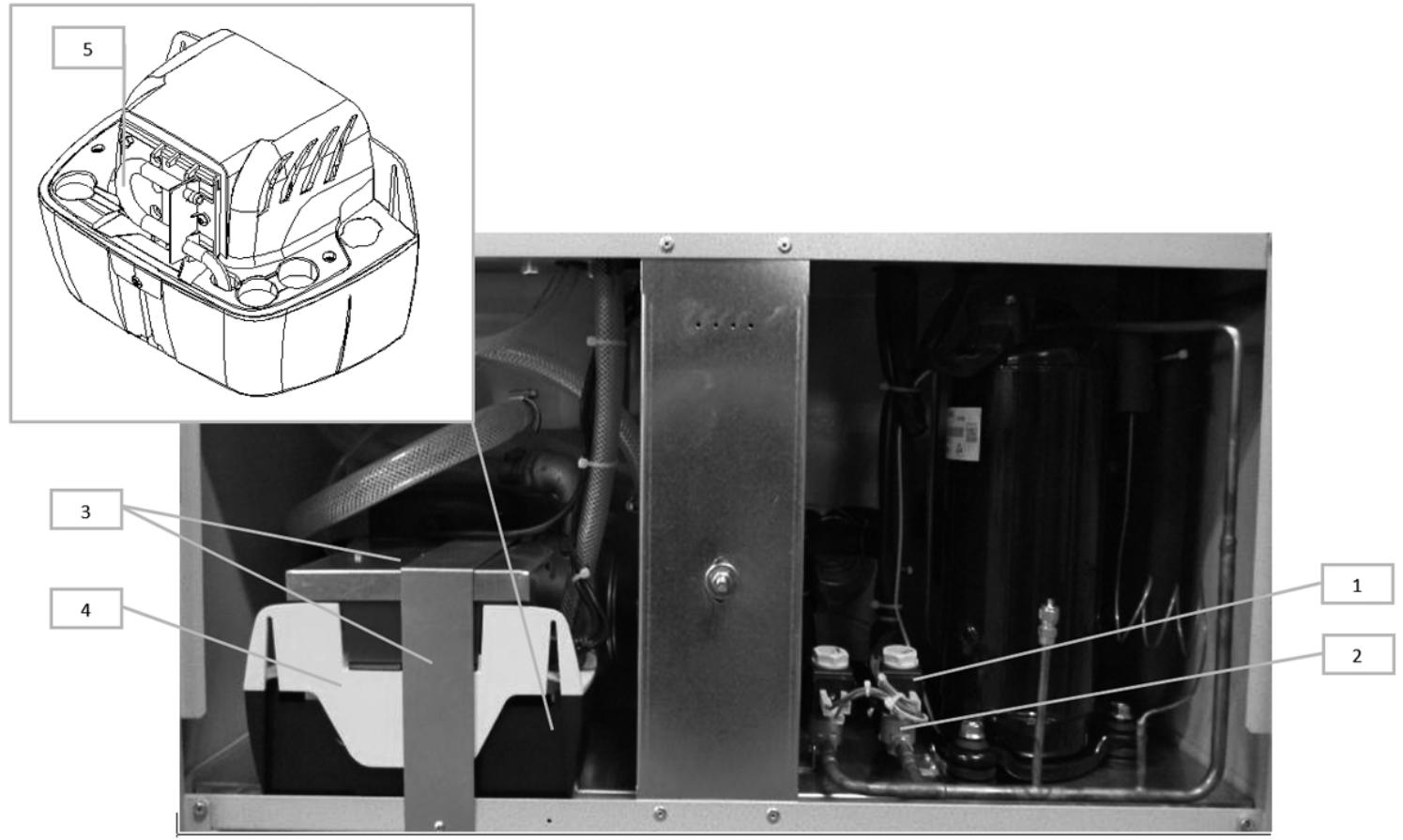

1	COMPRESSOR *	13	PUMP ASPIRATION WATER PIPE	25	SUPPORT PLATE CONDenser
2	COMPRESSOR FIXING PIN	14	NIPPLE 1”	26	PLATE CONDenser WATER OUTLET TUBE
3	DEHYDRATOR FILTER	15	CIRCULATING PUMP	27	PUMP DELIVERY WATER TUBE
4	LOW PRESSURE SWITCH	16	REDUCTION M-F 1”- 1/2”	28	PLATE CONDenser INLET WATER PIPE
5	HIGH PRESSURE SWITCH (MANUAL RESET) R410A	17	RUBBER HOLDER	29	1' WATER FILTER
6	LOWER OMEGA FOR PRESSOSTAT	18	RESERVOIR BRACKET KIT	30	PIVOTING WHEEL Ø80 WITH BRAKE
7	UPPER OMEGA FOR PRESSOSTAT	19	WATER RESERVOIR	31	PIVOTING WHEEL Ø80
8	THERMOSTATIC VALVE	20	RESERVOIR BRACKET KIT	32	BOTTOM RAL9010 BUCC.
9	CHECK VALVE	21	CONDENSED WATER PUMP WITH TANK +09 -16	33	BOTTOM OMEGA
10	SOLENOID VALVE	22	CONDENSED WATER PUMP BAND	34	STRUCTURAL UPRIGHT
11	COIL OF SOLENOID VALVE	23	CONDENSED WATER PUMP METAL TOP	35	CIRCULATING PUMP CAPACITOR 16 μF
12	PUMP SUPPORT FOR NEW PCB	24	PLATE CONDenser R410A	36	SUBSTITUTION PIPE KIT FOR PERISTALTIC PUMP

• COMPRESSOR + FILTER + COMPRESSOR CAPACITOR

PT 4500 S - Part 5 :

No.	Spare part	No.	Spare part	No.	Spare part

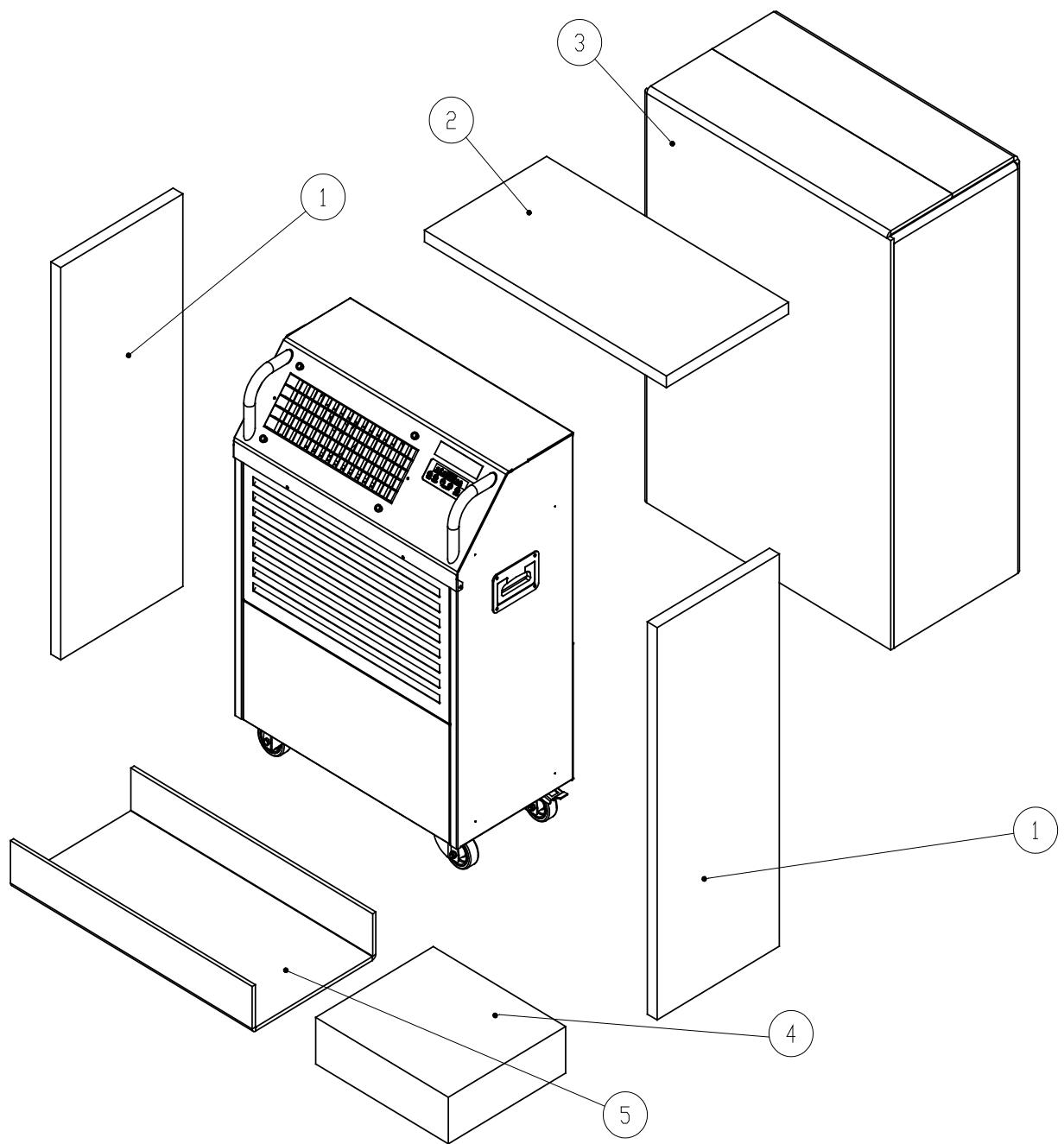

1	SIDE PSE	3	PACKING BOX	5	SOLE BOTTOM
2	SUPERIOR PSE	4	BOTTOM PSE

PT 6500 S - PICT 01 :

No.	Spare part	No.	Spare part
1	Metal Front grille Panel (Air outlet) RAL9010 BUCC.	8	Air drainage valve
2	Metal Back Panel (Air Inlet) RAL 9010 BUCC.	9	Water connector (female)
3	Side Panels (right and left) RAL 9010 BUCC.	10	Rotating Connector fitting
4	Suspending fitting 2 pcs	11	Condensed draining water connector
5	Motor Fan with grille	12	Condenser (coil)
6	Foot U.E. Facsw RAL9010 BUCC.	13	Outdoor unit propylene glycol
7	Plug 3 pin for panel

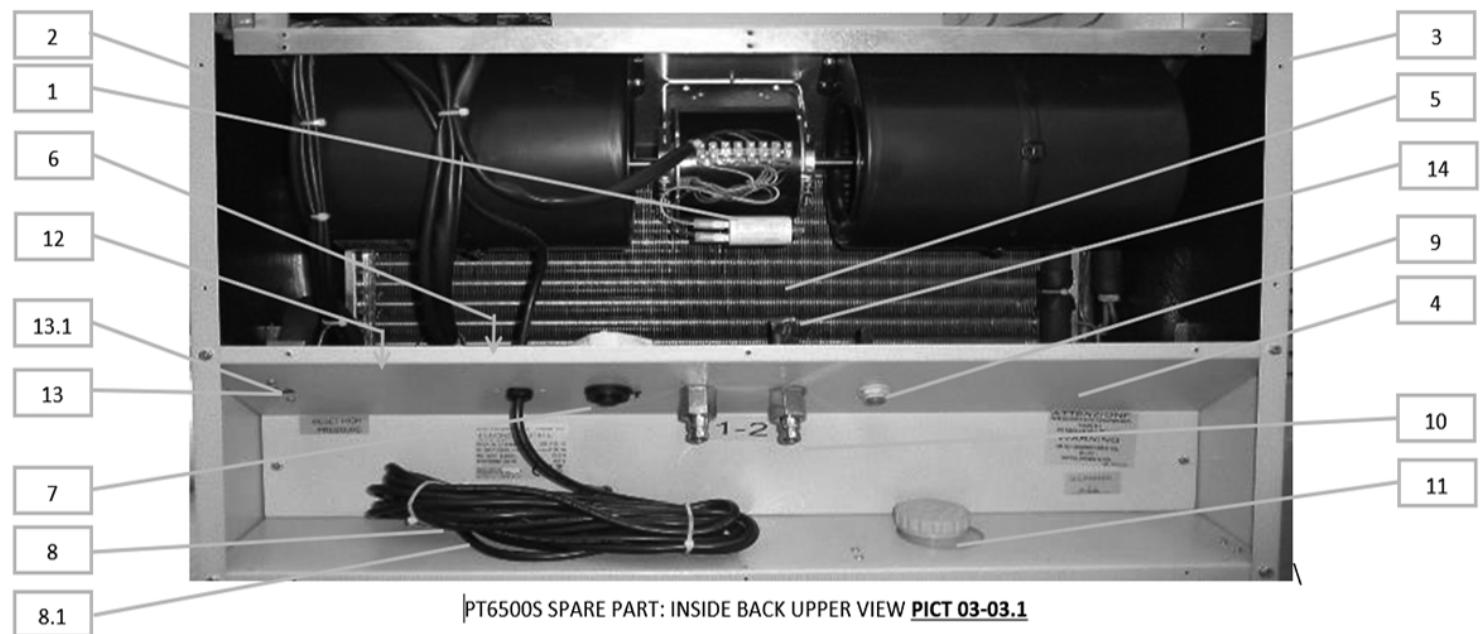

PT 6500 S - PICT 03 :

No.	Spare part	No.	Spare part
1	Complete Centrifugal motor fan of the Indoor Unit	10	Connector for condensed water drainage
2	Right (from the front sight) side panel RAL9010 BUCC.	11	Water male connector
3	Left (from the front sight) side Panel RAL9010 BUCC.	12	Cap of the Water reservoir
4	Rear panel connector holder RAL 9010 BUCC.	13	Low pressure switch (automatic reset) R407C – R410A
5	Evaporator coil with refrigerant distributor R410A	14	High pressure switch (manual reset) R407C
6	Condensed water tray (of the evaporator)	15	High pressure switch (manual reset) R410A
7	Special socket (female)	16	Air drainage small plastic pipe with metal belt
8	Power Supply Cable with UK PLUG	17	Flying socket connector (female)
9	Power Supply Cable with SCHUKO PLUG	18	Rear panel flying connector RAL9010 BUCC.

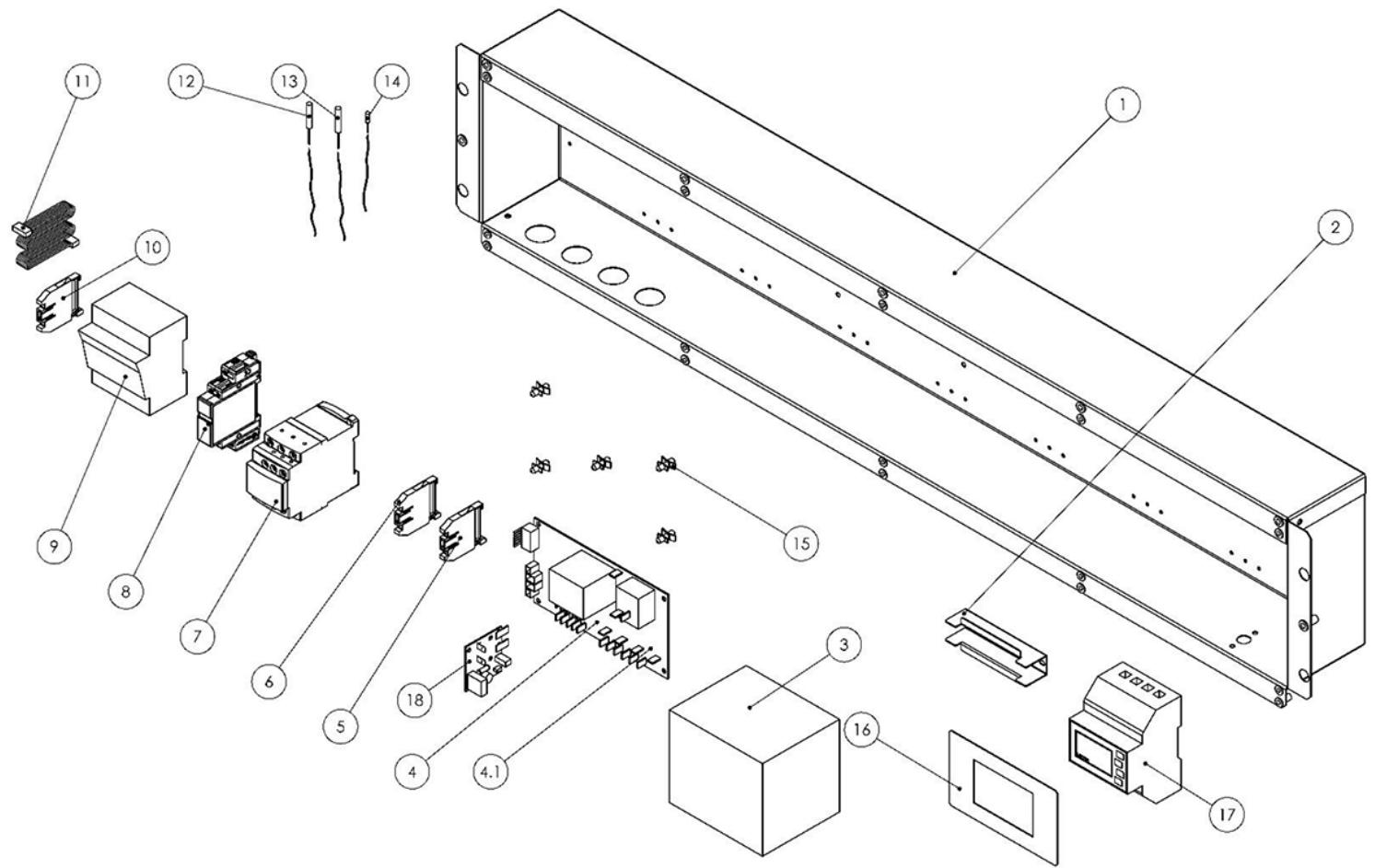

PT 6500 S - PICT 04 :

No.	Spare part	No.	Spare part
1	Earth terminal board	7	Terminal board blue color
2	Main switch with fuses (16A)	8	CONTROL PCB (up to S.N. 1140006913)
3	Relay with support	9	CONTROL PCB (from S.N. 1140006914)
4	Terminal board grey color	10	PCB FOR NEW HPS LOGIC (from S.N. 1140006914)
5	Defrost Thermostat	11	CONTACTORS
6	Metal case of Electric panel

PT 6500 S - PICT 05 :

No.	Spare part	No.	Spare part
1	First floor horizontal Panel RAL 9010 BUCC.	10	3¼” water filter
2	Compressor R410A *	11	Iron clamp (4 pcs)
3	Refrigerant filter R407C - R410A	12	Circulating pump
4	Thermostatic Valve R410A	13	Metal support for compressor and pump
5	Check valve	14	Metal bottom RAL 9010 BUCC.
6	Plate Condenser R410A	15	Pump Support for new pump
7	Water reservoir	16	Capacitor of compressor R410A
8	Reservoir bracket	17	Circulating pump capacitor 16 μF
9	Shraeder valve

• In case of replacement of the compressor it is recommended to replace the refrigerant filter (Code ACS02.013)

PT 6500 S - PICT 06 :

No.	Spare part	No.	Spare part
1	Coil of solenoid valve	4	Condensed water pump with tank
2	Body of solenoid valve	5	Substitution pipe kit for peristaltic pump
3	Condensed water pump metal top	6

PT 6500 S - PICT 07 :

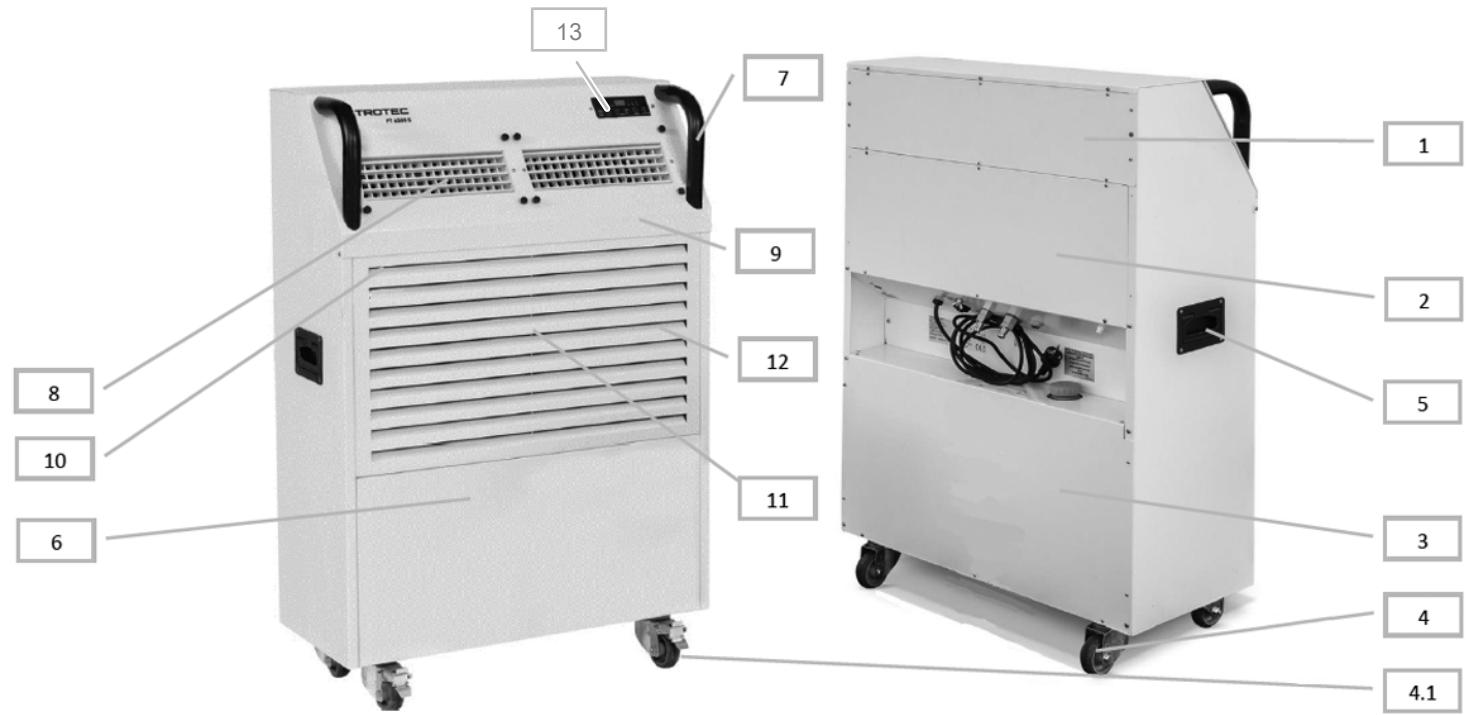

No.	Spare part	No.	Spare part

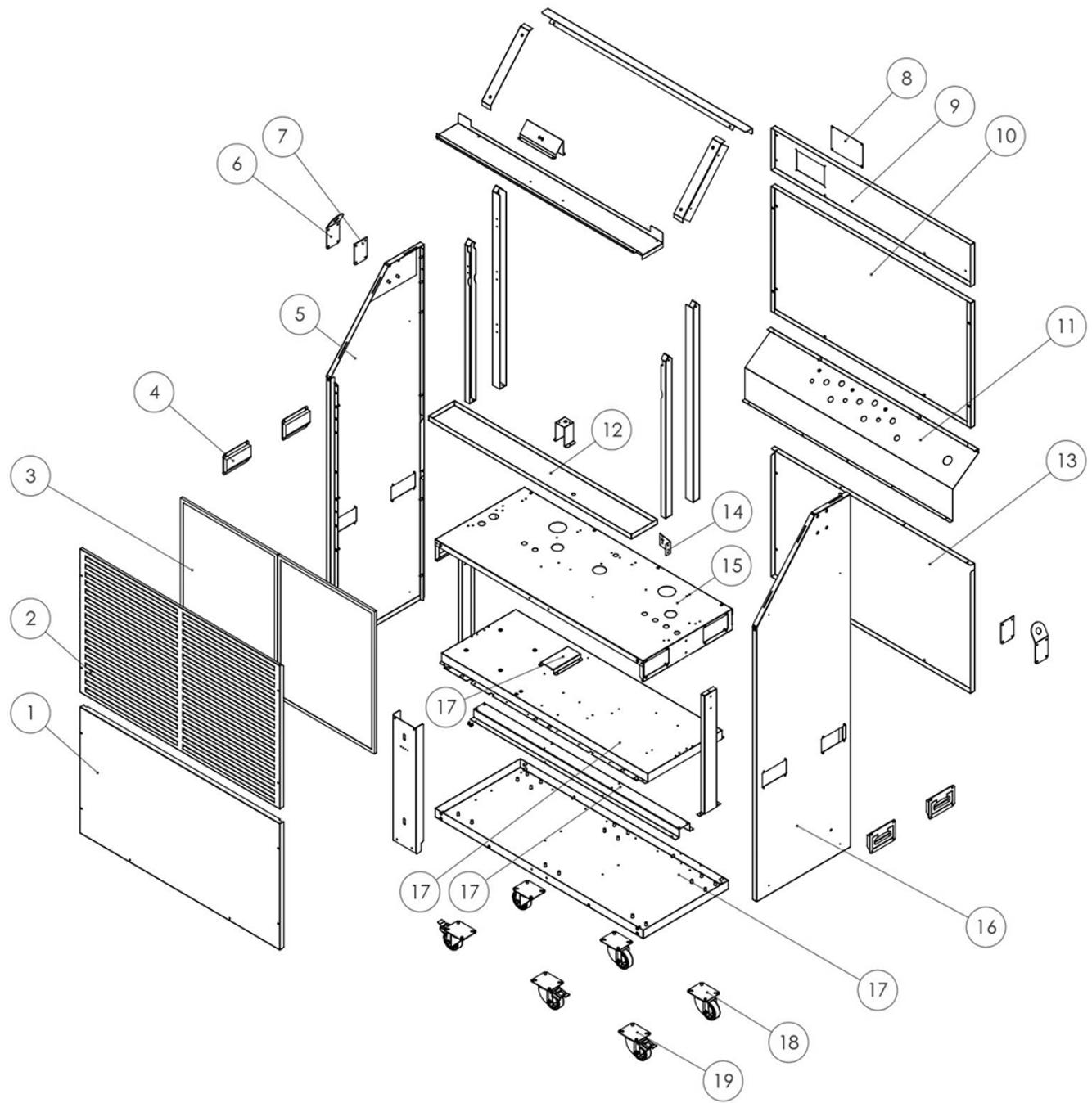

1	Electric panel metal cover RAL 9010 BUCC.	7	Slimline handle
2	Rear Metal cover of motorfan vane RAL 9010 BUCC.	8	Aluminium Supply grille
3	Rear Metal cover of compressor vane RAL 9010 BUCC.	9	Front Cover RAL9010 BUCC.
4	Pivoting wheel Ø 80	10	Front Cover RAL9010 BUCC.
5	Plastic handle	11	Front Suction Grille RAL 9010 BUCC.
6	Front metal cover of compressor vane RAL 9010 BUCC.	12	Air filter (inside the grille)
13	Display digit for new PCB

PT 15000 S - Part 01 :

No.	Spare part	No.	Spare part

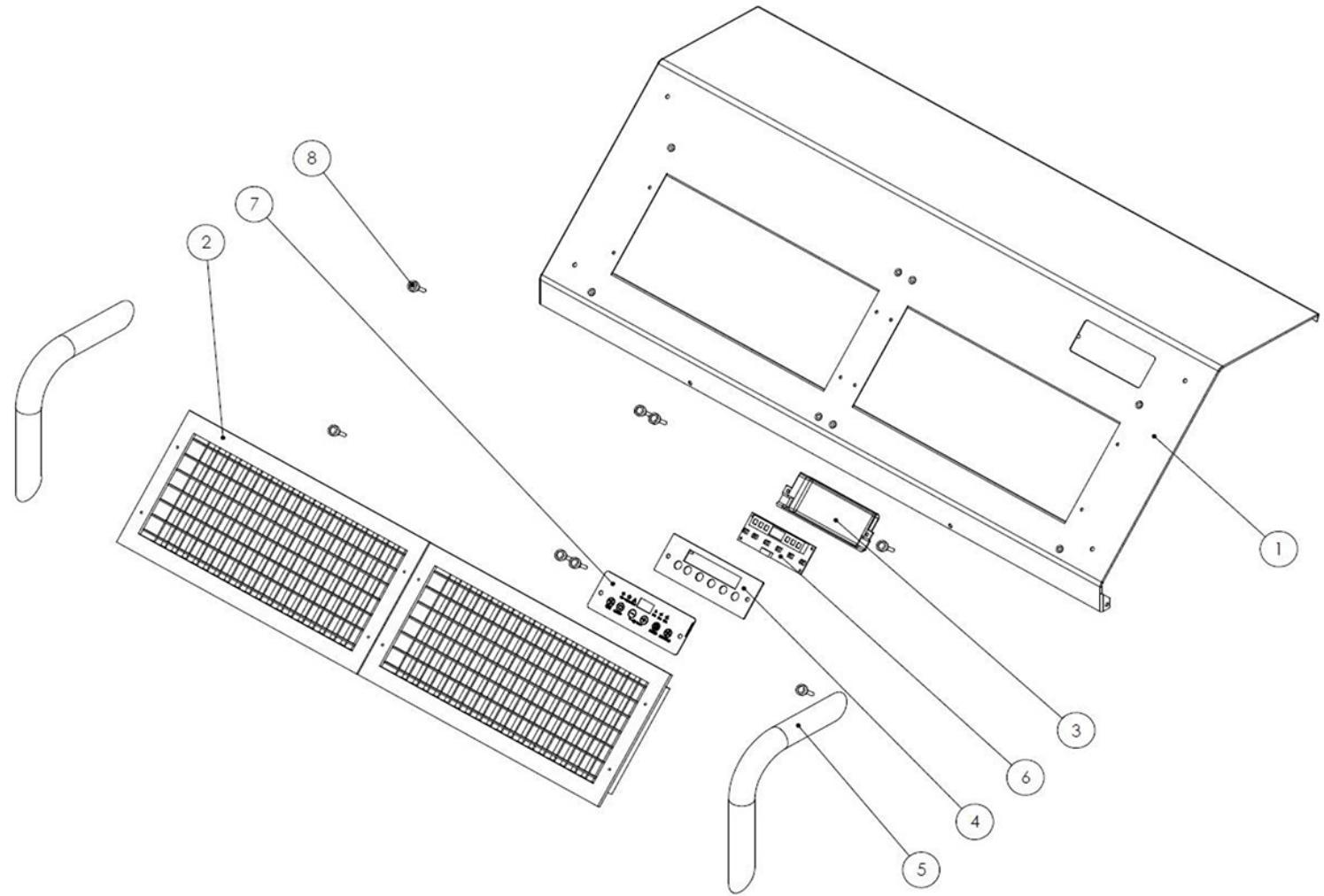

1	FRONT COVER RAL9010 BUCC.	5	TUBULAR HANDLES RAL9005
2	ALUMINIUM SUPPLY GRILLE RAL9010 BUCC.	6	DISPLAY DIGIT FOR NEW PCB WITHOUT CUT BUTTONS
3	DISPLAY PROTECTION	7	DISPLAY LABEL
4	DISPLAY SUPPORT	8	KIT FIXING SCREWS FOR PIPE

PT 15000 S - Part 02 :

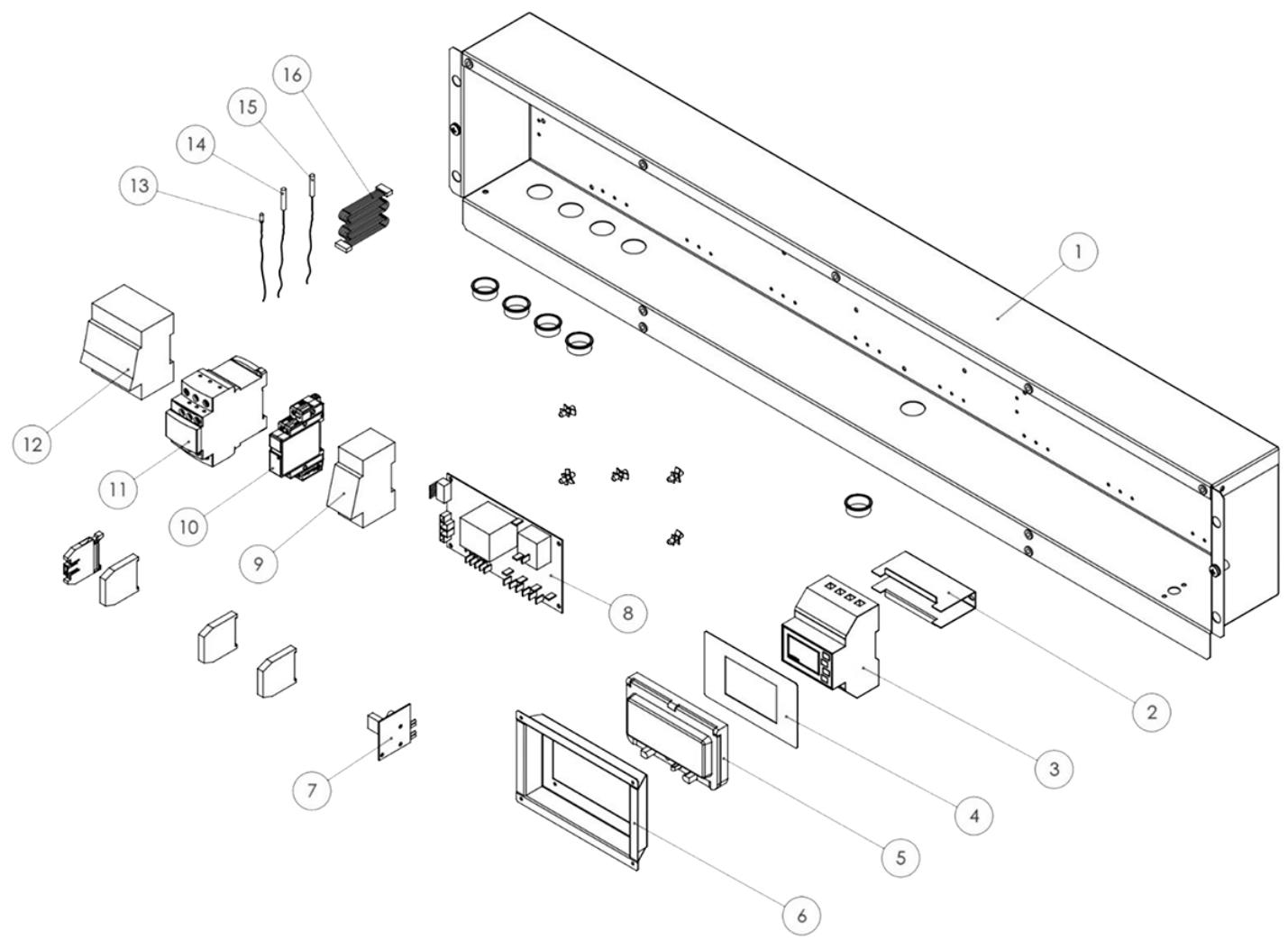

No.	Spare part	No.	Spare part	No.	Spare part
1	ELECTRICAL VANE	7	CONTACTORS	14	ENVIRONMENT PROBE STANDARD 2 m
2	ENERGY METER FIXING BAR	8	PHASE CONTROL	15	SPACER CARD KIT 20 PCS
3	ELECTRIC TRANSFORMER	9	GENERAL SWITCH	16	ENERGY METER MASK
4	CONTROL PCB (up to S.N. 1130021966)	10	EARTH TERMINAL BOARD	17	ENERGY METER
4.1	CONTROL PCB (from S N. 1130021967)	11	WIRING CONNECTION OF THE DISPLAY	18	PCB FOR NEW HPS LOGIC (from S N. 1130021967)
5	TERMINAL BOARD BLUE COLOR	12	BLACK TEMPERATURE PROBE T1 1.8 m
6	TERMINAL BOARD GREY COLOR	13	GREY TEMPERATURE PROBE T2 1.8 m

PT 15000 S - Part 03 :

No.	Spare part	No.	Spare part	No.	Spare part
1	EVAPORATOR COIL WITH REFRIGERANT DISTRIBUTOR	13	CONDENSED WATER PUMP BAND	25	FAN
2	PLENUM FAN	14-18	RESERVOIR BRACKET KIT	26	CABLE STEP
3	DEFROST THERMOSTAT SUPPORT	15	1' WATER FILTER	27	DRAIN PIPE TRAY-PUMP
4	THERMOSTAT WITH KNOB	16	PUMP SUPPORT FOR NEW PCB	28-29	LOWER OMEGA FOR PRESSOSTAT
5	INOX TRAY	17	CIRCULATING PUMP	29-28	UPPER OMEGA FOR PRESSOSTAT
6	COMPRESSOR R410A	18-14	RESERVOIR BRACKET KIT	30	HIGH PRESSURE SWITCH (MANUAL RESET) R410A
7	LIQUID SEPARATOR	19	CABLE GLAND PG21	31	CABLE GLAND PG16
8	THERMOSTATIC VALVE R410A	20	WATER RESEROIR	32	FLYING SOCKET CONNECTOR (FEMALE)
9	REFRIGERANT FILTER R407C - R410A	21	WATER CONNECTOR MALE	33	PLUGS WITH PHASE INVERTER
10	PLATE CONDenser R410A	22	REAR PANEL CONNECTOR HOLDER RAL9010 BUCC.	34	CIRCULATING PUMP CAPACITOR 16 μF
11	CONDENSED WATER PUMP WITH TANK +09 -16	23	CONNECTOR FOR CONDENSED WATER DRAINAGE	35	SUBSTITUTION PIPE KIT FOR PERISTALTIC PUMP
12	CONDENSED WATER PUMP METAL TOP	24	IRON CLAMP (4 PCS)	36	COMPRESSOR CRANKCASE HEATER

PT 15000 S - Part 04 :

No.	Spare part	No.	Spare part

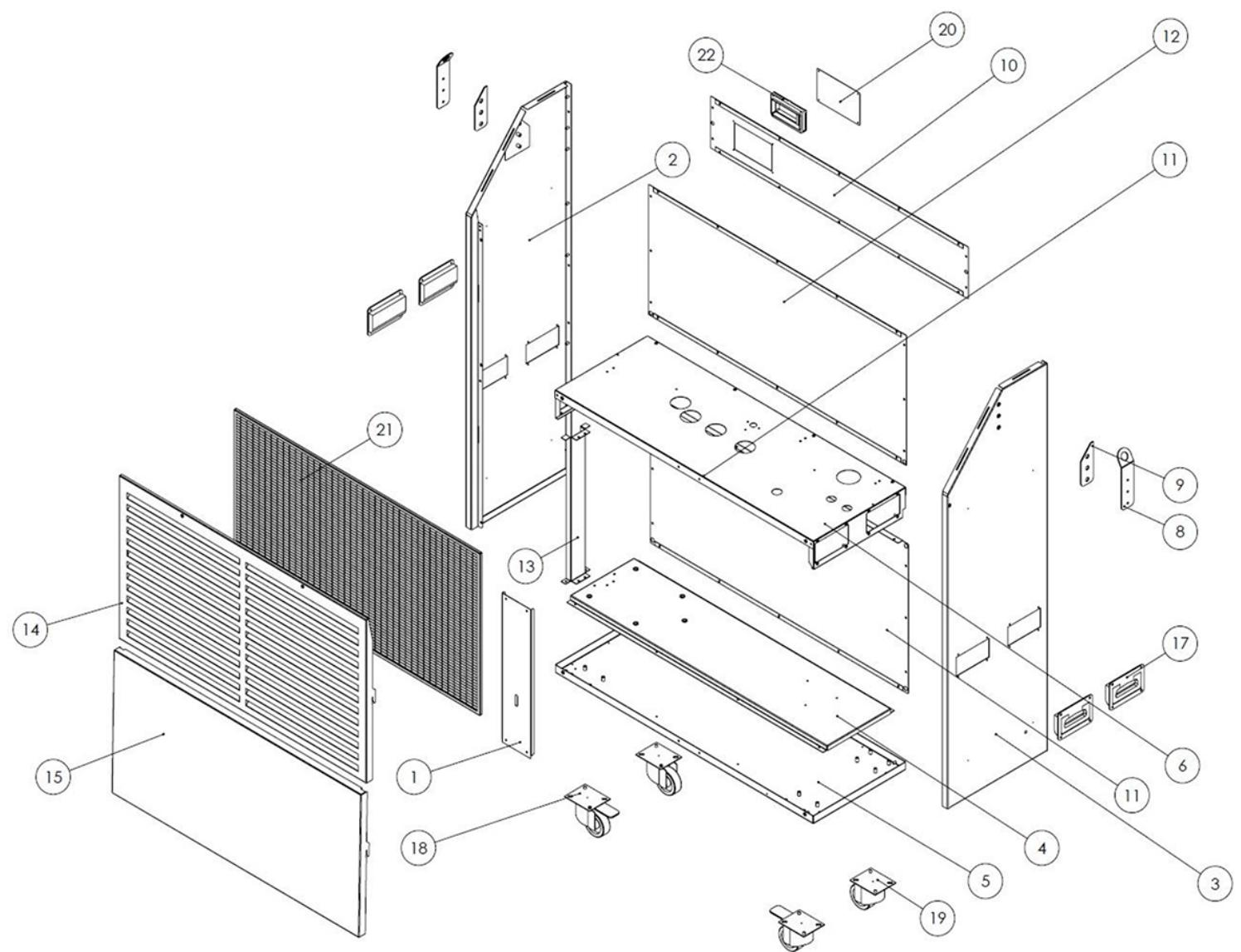

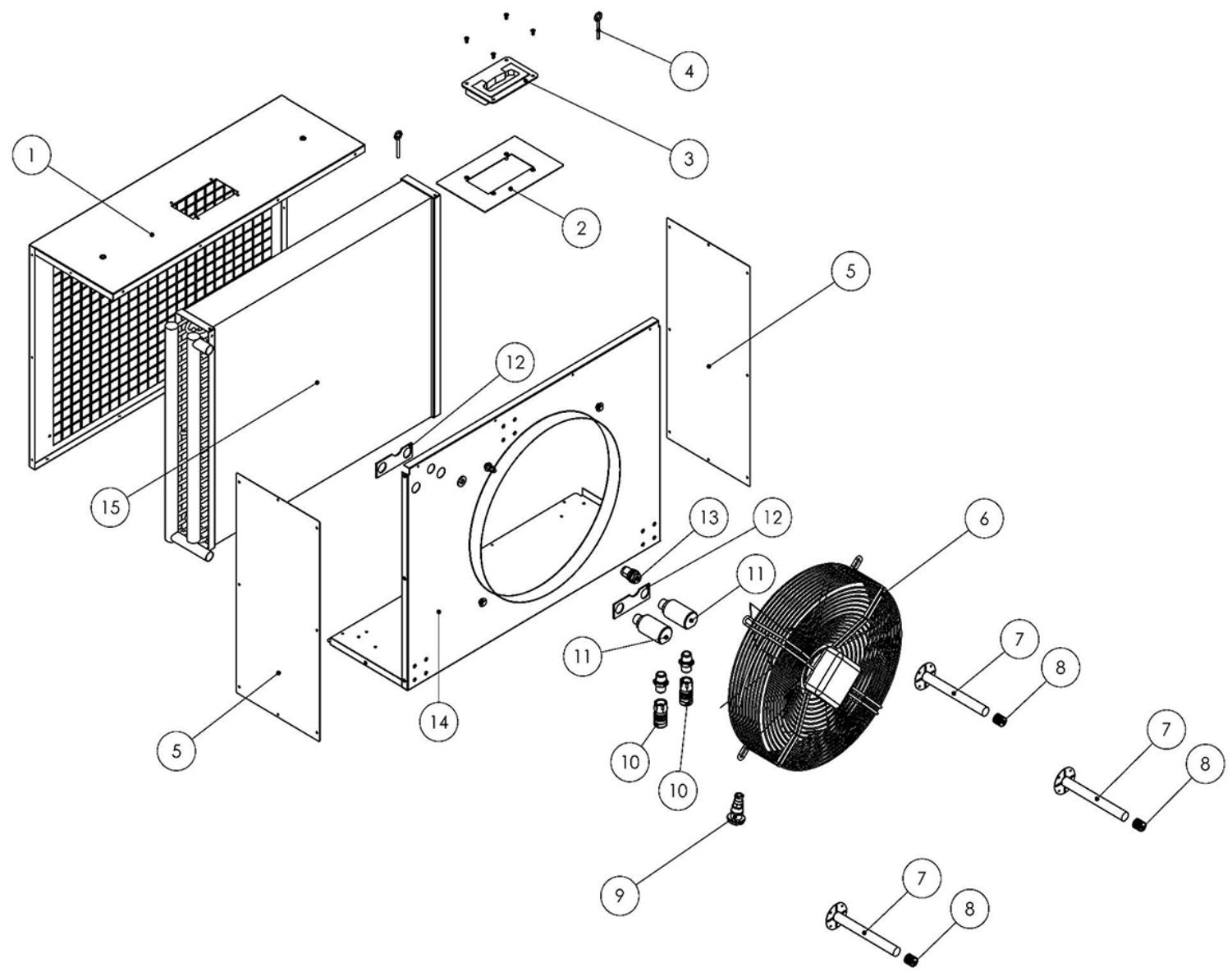

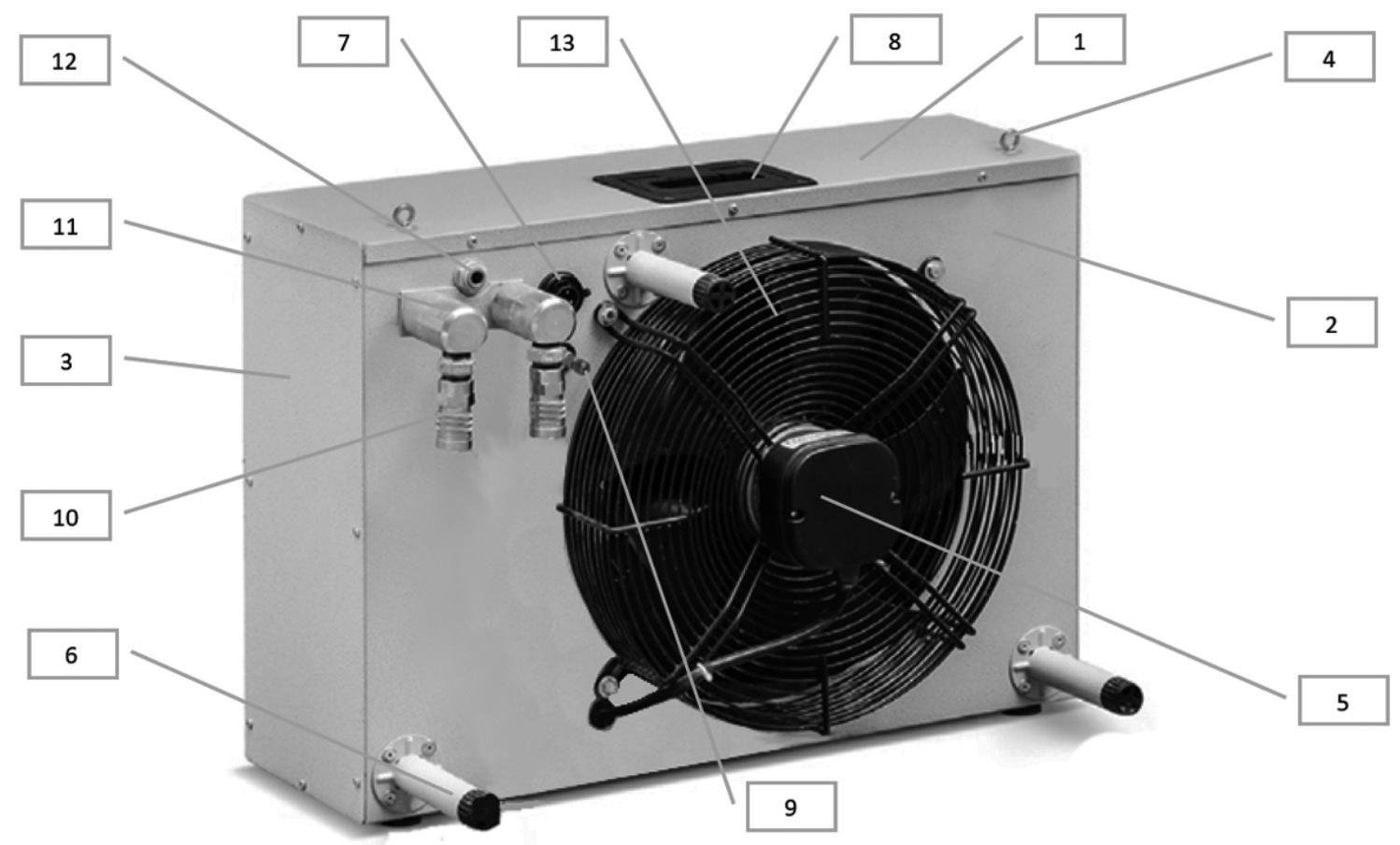

1	PLATE CONDenser SUPPORT	12	REAR METAL COVER OF MOTORFAN VANE RAL9010 BUCC.
2	RIGHT SIDE PANEL RAL9010 BUCC.	13	LEG HOLD UP
3	LEFT SIDE PANEL RAL9010 BUCC.	14	FRONT SUCTION GRILLE RAL9010 BUCC.
4	METAL SUPPORT FOR COMPRESSOR AND PUMP	15	FRONT METAL COVER OF COMPRESSOR VANE RAL9010 BUCC.
5	METAL BOTTOM RAL9010 BUCC.	17	PLASTIC HANDLE
6	FIRST FLOOR HORIZONTAL PANEL RAL9010 BUCC.	18	PIVOTING WHEEL Ø80 WITH BRAKE
8	EYEBOLT (OPTIONAL)	19	PIVOTING WHEEL Ø80
9	EYEBOLT SUPPORT (OPTIONAL)	20	ELECTRIC VANE CAP RAL9010 BUCC.
10	REAR ELECTRIC PANEL METAL COVER RAL9010 BUCC.	21	AIR FILTER
11	REAR METAL COVER OF COMPRESSOR VANE RAL9010 BUCC.	22	ENERGY METER DOOR

PT 15000 S - Part 05 :

No.	Spare part	No.	Spare part	No.	Spare part
1	FRONTAL PANEL RAL9010 BUCC.	6	BLOWER FAN Ø 400	11	PIVOTING JOINT
2	SUPPORT HANDLE	7	SPACER 200mm E.U. MDB	12	SUPPORT FOR PIVOTING JOINT
3	PLASTIC HANDLE	8	SPACER REGULATOR CAP	13	CONNECTOR FOR CONDENSED WATER DRAINAGE
4	EYE SCREW M6X45	9	IP 68 PLUG CONNECTOR BULGIN 3 PIN (UE)	14	REAR PANEL U.E. MDB RAL9010 BUCC.
5	LATERAL PANEL RAL9010 BUCC.	10	WATER CONNECTOR FEMALE	15	WATER COOLER DOUBLE BLOCK 650X550

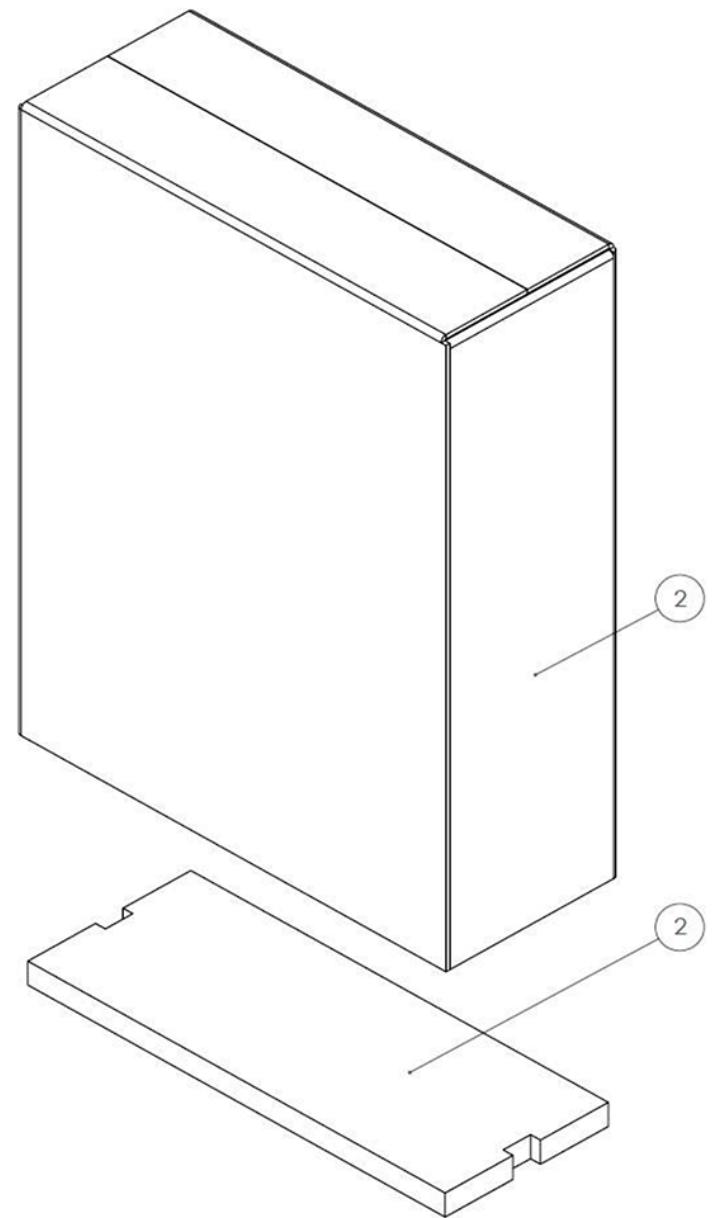

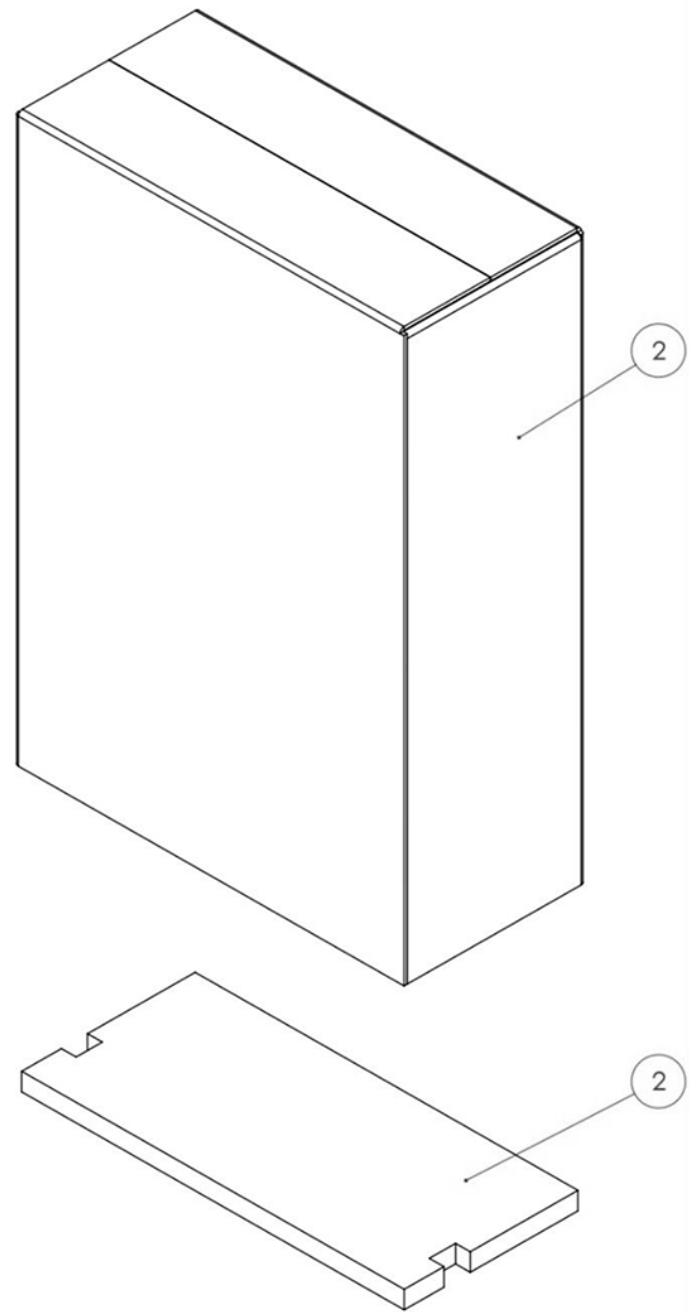

PT 15000 S - Part 06 :

No.	Spare part	No.	Spare part

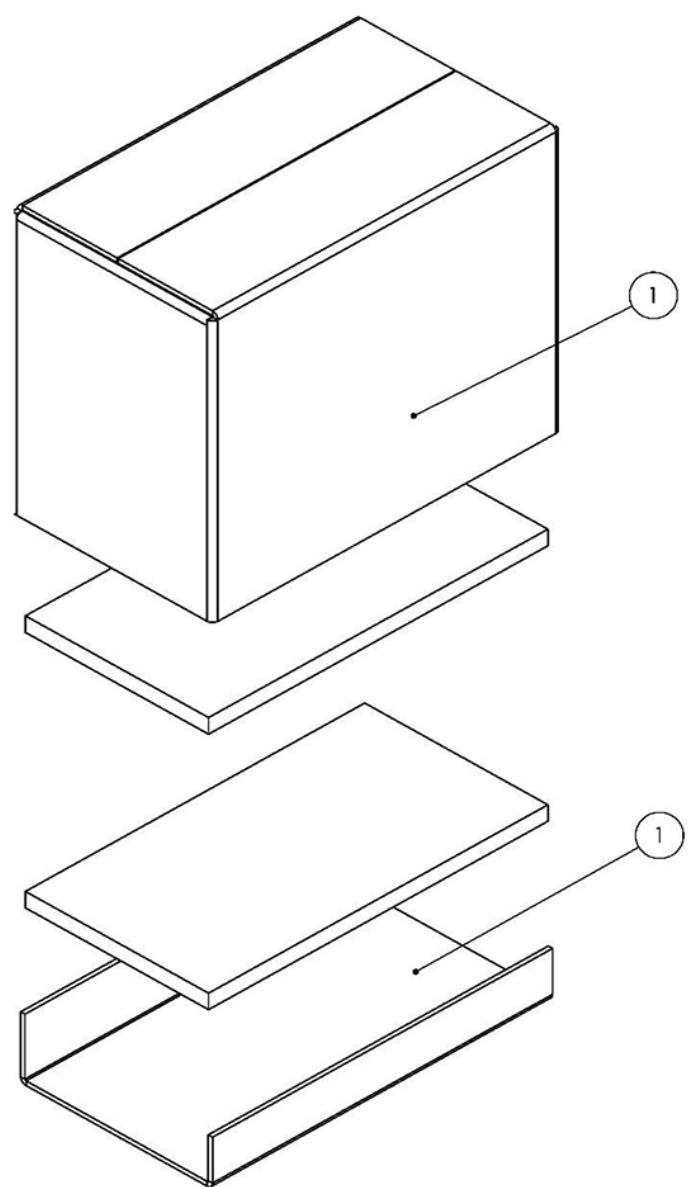

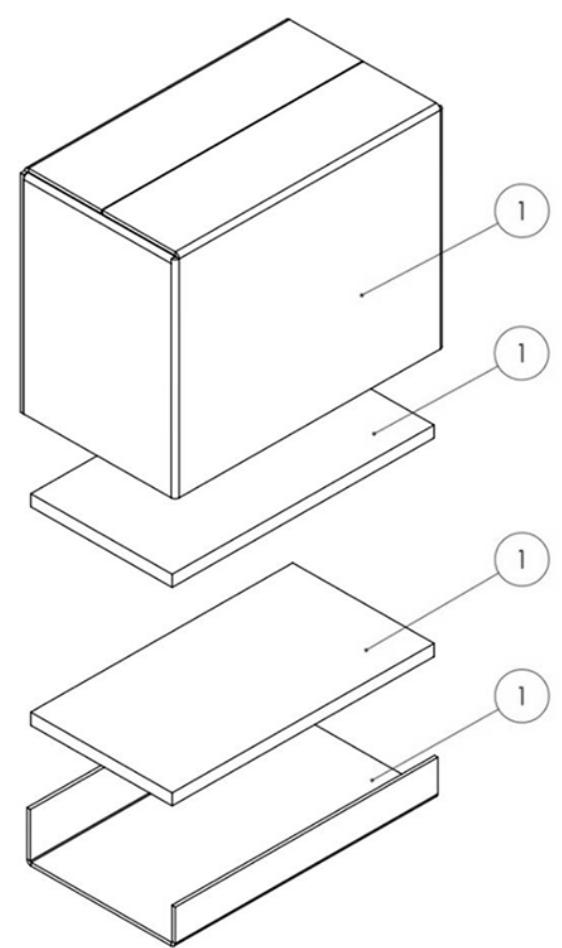

1	KIT IMBALLO U.E. MDB.	6	PACKING KIT E.U. MDB
2	KIT IMBALLO U.I.	7	PACKING KIT I.U.

PT 23000 S - Part 1 :

No.	Spare part	No.	Spare part

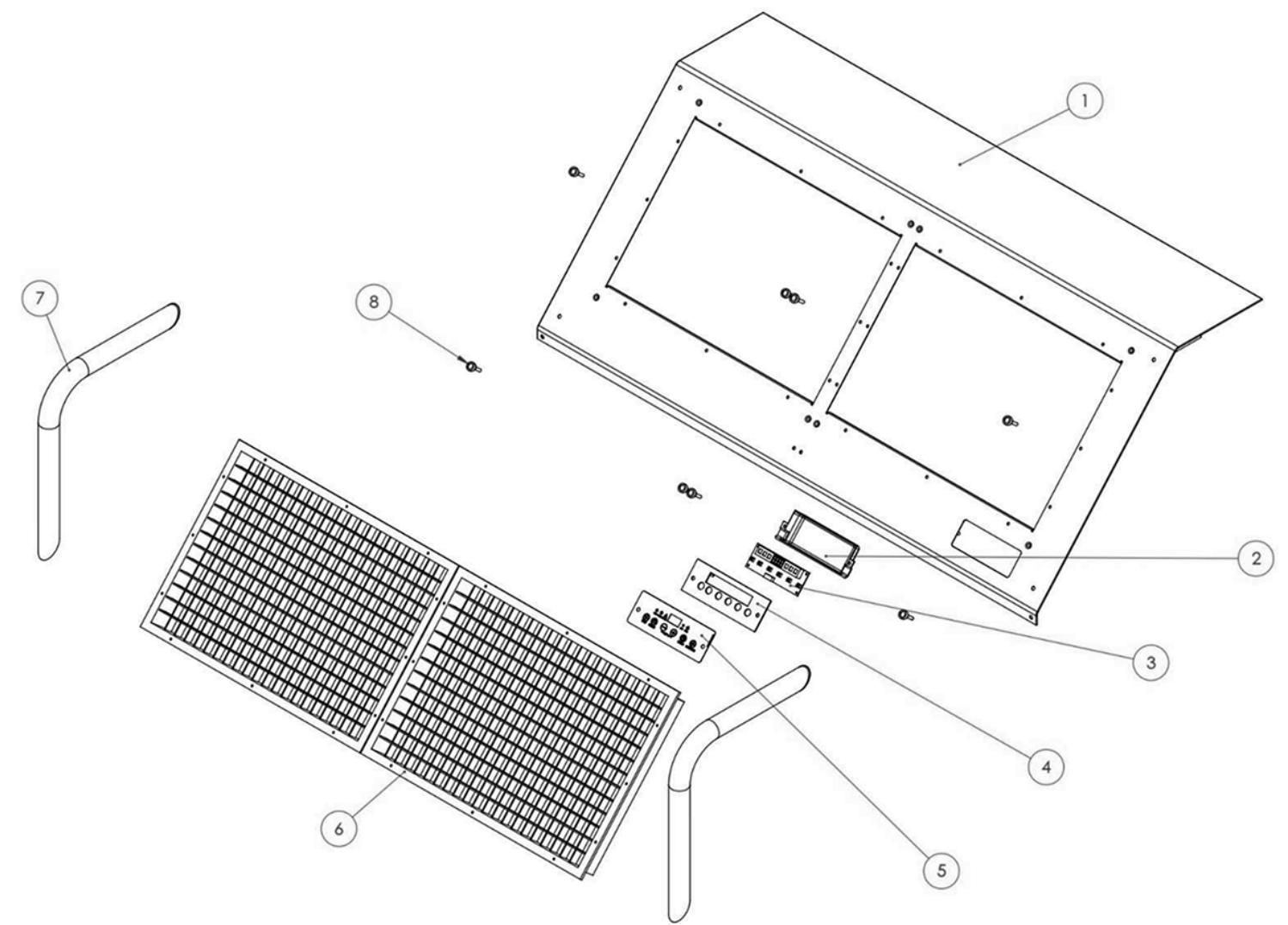

1	FRONT COVER RAL9010 BUCC.	5	DISPLAY LABEL
2	DISPLAY PROTECTION	6	ALUMINIUM SUPPLY GRILLE RAL9010 BUCC..
3	DISPLAY DIGIT FOR NEW PCB WITHOUT CUT BUTTONS	7	TUBULAR HANDLES RAL9005
4	DISPLAY SUPPORT	8	KIT FIXING SCREWS FOR PIPE

PT 23000 S - Part 2 :

No.	Spare part	No.	Spare part
1	ELECTRICAL VANE	9	2-POLE SWITCH
2	ENERGY METER FIXING BAR	10	PHASE CONTROL
3	ENERGY METER	11	CONTACTORS
4	ENERGY METER MASK	12	GENERAL SWITCH
5	ENERGY METER DOOR	13	ENVIRONMENT PROBE STANDARD 2 m
6	ENERGY METER FRAME	14	GREY TEMPERATURE PROBE T2 1.8 m
7	PCB FOR NEW HPS LOGIC	15	BLACK TEMPERATURE PROBE T1 1.8 m
8	CONTROL PCB	16	WIRING CONNECTION OF THE DISPLAY

PT 23000 S - Part 3 :

No.	Spare part	No.	Spare part	No.	Spare part
1	FAN	11	CIRCULATING PUMP CAPACITOR 16 μF	21	FLYING SOCKET CONNECTOR (FEMALE)
2	EVAPORATOR COIL WITH REFRIGERANT DISTRIBUTOR	12	CONDENSED WATER PUMP WITH TANK +09 -16	22	WATER CONNECTOR MALE

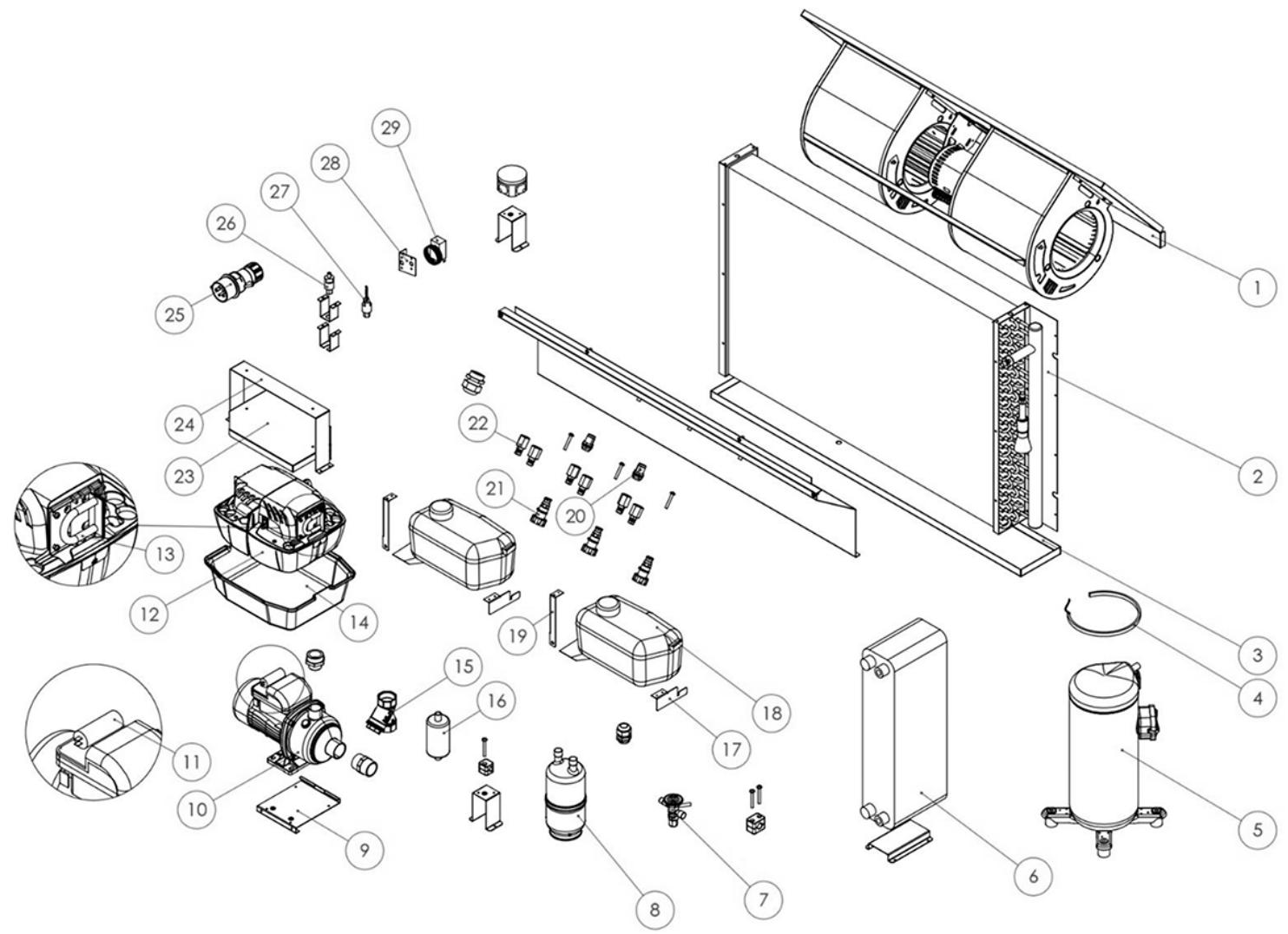

3	INOX TRAY	13	SUBSTITUTION PIPE KIT FOR PERISTALTIC PUMP	23-24	CONDENSED WATER PUMP METAL TOP
4	COMPRESSOR CRANKCASE HEATER	14	CONDENSATE PUMP TRAY	24-23	CONDENSED WATER PUMP BAND
5	COMPRESSOR R410A	15	1” ¼ WATER FILTER	25	PLUGS WITH PHASE INVERTER
6	PLATE CONDenser R410A	16	REFRIGERANT FILTER R407C - R410A	26	HIGH PRESSURE SWITCH (MANUAL RESET) R410A
7	THERMOSTATIC VALVE R410A	17-19	RESERVOIR BRACKET KIT	27	LOW PRESSURE SWITCH R410A
8	LIQUID SEPARATOR	18	WATER RESEROIR	28	DEFROST THERMOSTAT SUPPORT
9	PUMP SUPPORT FOR NEW PCB	19-17	RESEROIR BRACKET KIT	29	THERMOSTAT DEFROST
10	CIRCULATING PUMP	20	CONNECTOR FOR CONDENSED WATER DRAINAGE

PT 23000 S - Part 4 :

No.	Spare part	No.	Spare part	No.	Spare part
1	FRONT METAL COVER OF COMPRESSOR VANE RAL9010 BUCC.	8	ELECTRIC VANE CAP RAL9010 BUCC.	15	FIRST FLOOR HORIZONTAL PANEL RAL9010 BUCC.
2	FRONT SUCTION GRILLE RAL9010 BUCC.	9	REAR ELECTRIC PANEL METAL COVER RAL9010 BUCC.	16	LEFT SIDE PANEL RAL9010 BUCC.
3	AIR FILTER	10	REAR METAL COVER OF MOTORFAN VANE RAL9010 BUCC.	17	METAL BOTTOM KIT RAL9010 BUCC.
4	PLASTIC HANDLE	11	REAR PANEL CONNECTOR HOLDER RAL9010 BUCC.	18	PIVOTING WHEEL Ø80
5	RIGHT SIDE PANEL RAL9010 BUCC.	12	INOX TRAY	19	PIVOTING WHEEL Ø80 WITH BRAKE
6	EYEBOLT (OPTIONAL)	13	REAR METAL COVER OF COMPRESSOR VANE RAL9010 BUCC.
7	EYEBOLT SUPPORT (OPTIONAL)	14	DEFROST THERMOSTAT SUPPORT

PT 23000 S - Part 5 :

No.	Spare part	No.	Spare part	No.	Spare part

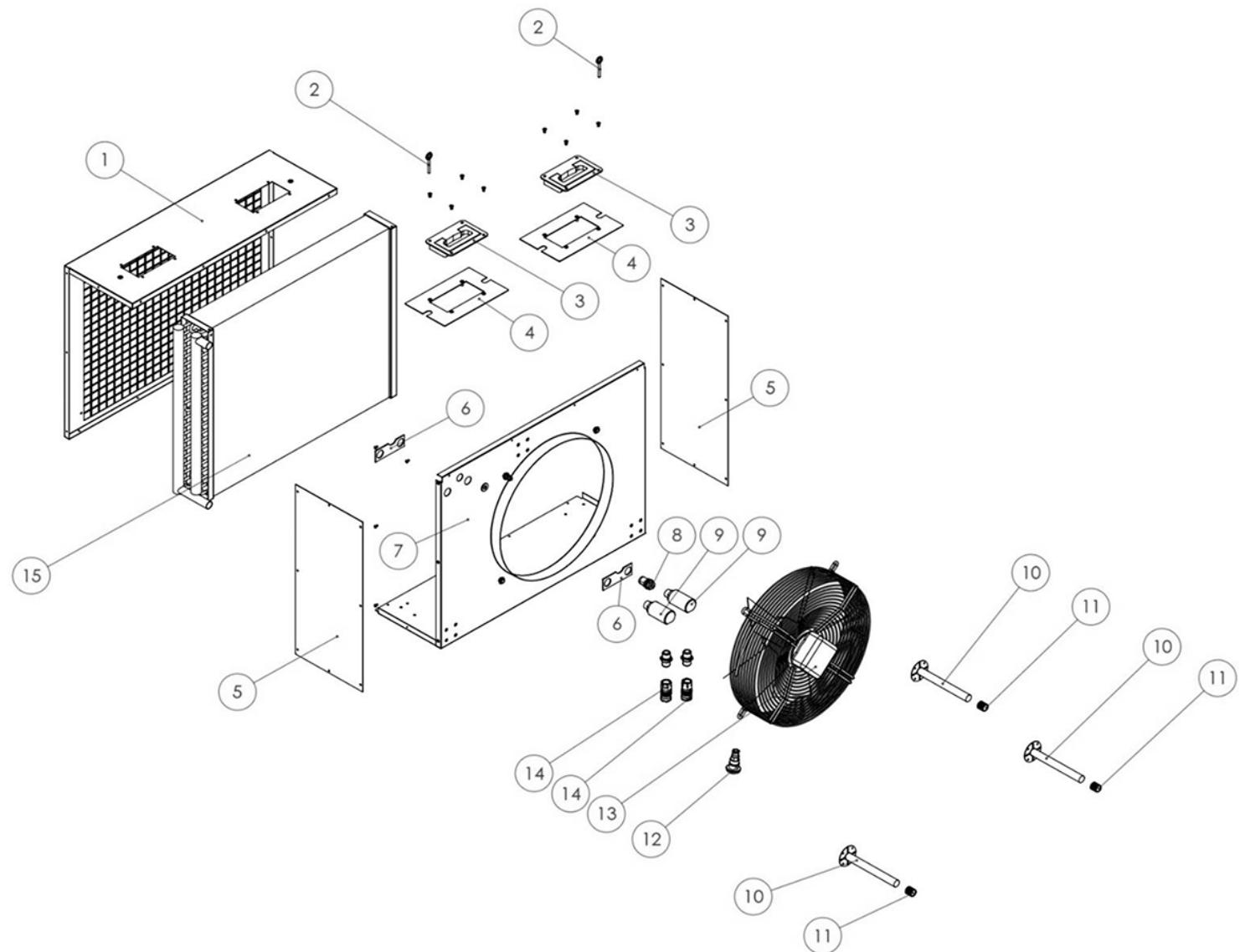

1	FRONTAL PANEL RAL9010 BUCC.	6	SUPPORT FOR PIVOTING JOINT	11	SPACER REGULATOR CAP
2	EYE SCREW M6X45	7	REAR PANEL U.E. MDB RAL9010 BUCC.	12	IP 68 PLUG CONNECTOR BULGIN 3 PIN (UE)
3	PLASTIC HANDLE	8	CONNECTOR FOR CONDENSED WATER DRAINAGE	13	BLOWER FAN Ø 400
4	SUPPORT HANDLE	9	PIVOTING JOINT	14	WATER CONNECTOR FEMALE
5	LATERAL PANEL RAL9010 BUCC.	10	SPACER 200mm E.U. MDB	15	WATER COOLER DOUBLE BLOCK 650X550

PT 23000 S - Part 6 :

No.	Spare part	No.	Spare part
1	KIT IMBALLO U.E. MDB	6	PACKING KIT E.U. MDB
2	KIT IMBALLO U.I.	7	PACKING KIT I.U..
