USER MANUAL ASH-VC-01 - ASH-VC-01 VALBERG

Line drawing of a hand holding a tool above a pile of food (no text or symbols)

Illustration of a hand cleaning a container with a can, no text or symbols present

< 50°C

12 X

13

Diagram of a portable air purifier with attached hose and base (no text or symbols)

Illustration showing two buckets of water being poured into a container and a tap, labeled with numbers 1 and 2.

Diagram showing two steps of a hairdryer tool: first with brush, second with water level indicator

CONDITION DE GARANTIE

FR

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required.

GARANTIEVOORWAARDEN

NL

Technical diagram of a vacuum cleaner with labeled components including hose, plug, and housing parts

Line drawing of a cylindrical industrial vessel with a top dome and side connectors, connected to an electrical outlet (no text or symbols)

Diagram showing a device with a lid and an electrical outlet, labeled with number 2 and an upward arrow.

Diagram of a mechanical component with a central hub and upward arrow, no text or symbols present

Line drawing of a cylindrical device with a top panel and power plug, no text or symbols present

Diagram of a flexible hose with a black arrow indicating direction (no text or symbols)

Line drawing of a portable spray gun with hose and valve (no text or symbols)

Diagram of a plug inserted into a socket, showing internal wiring and a pull (no text or symbols)

Line drawing of a hand pressing a button on a square device (no text or symbols)

Merci !

Thank you for choosing this VALBERG product.

VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

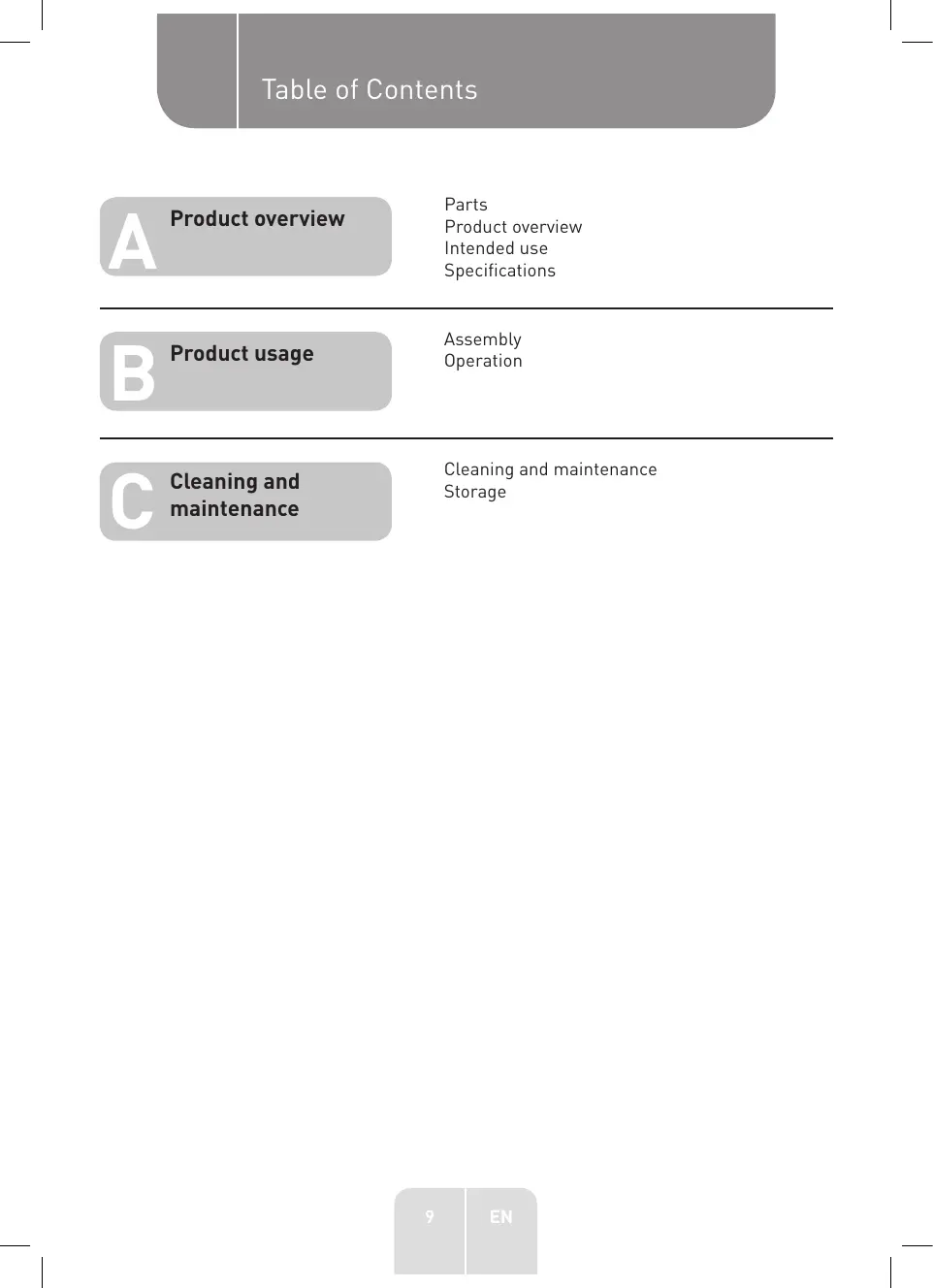

Table of Contents

Product overview

Parts

Product overview

Intended use

Specifications

Product usage

Assembly

Operation

Cleaning and maintenance

Cleaning and maintenance

Storage

Parts

Handle

Metal hose

Power switch

Aluminium tube

Lid

HEPA filter

Air inlet hole

Power cable

Tank

Product overview

• Unpack the product. Check that the unit is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This unit is an ash vacuum cleaner that has been designed for household use and not for industrial or professional use. Never use the vacuum cleaner outdoors or in a garage. Any other use could damage the unit or cause injury.

Specifications

Model:	970394 - OPTIFIRE
Rated voltage:	220- 240 V ~, 50/60 Hz
Rated power:	1000 W
Protection class:	Class II

Assembly

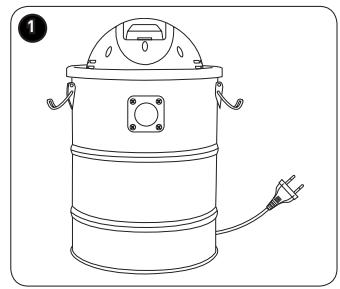

1 Release the latches.

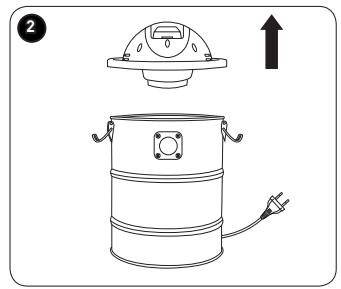

2 Remove the lid from the container.
3 Attach the filter to the lid.

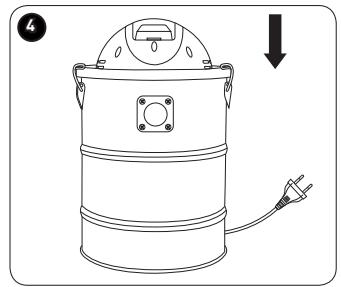

4 Reattach the lid to the container.
5 Insert the aluminium tube into one end of the metal hose.

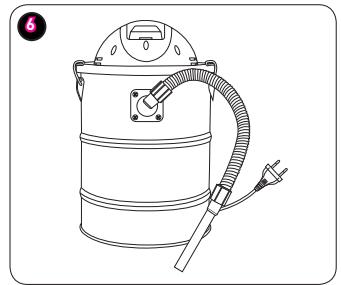

6 Insert the other end of the metal hose into the air inlet hole.

Operation

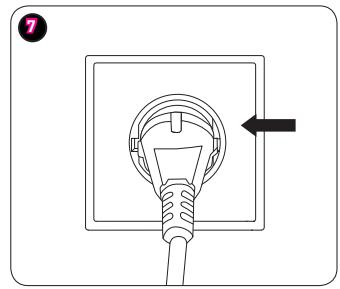

7 Connect the power cable's plug to a mains socket.
8 Switch on the unit.
9 Vacuum the ashes (hot or cold) from your fireplace.

Warning

10 Please clean the filter whenever the container is full, or the unit stops working properly.

11

Warning

The temperature of the ashes must never exceed 50^ C.

12

Warning

Never vacuum ashes when the fire is still burning (it must be completely out)!

Cleaning and maintenance

Before cleaning

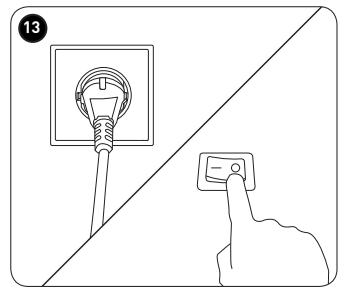

13 Unplug the power plug.

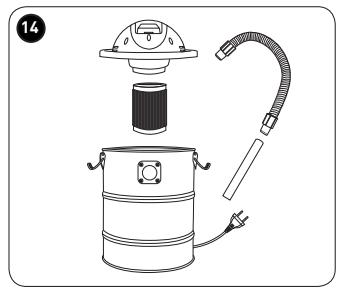

14 Remove the container lid, filter and metal hose.

Cleaning

Part	Cleaning

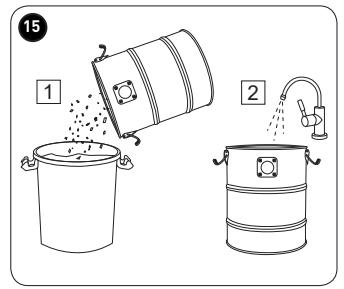

Container	Empty the container and then clean it.

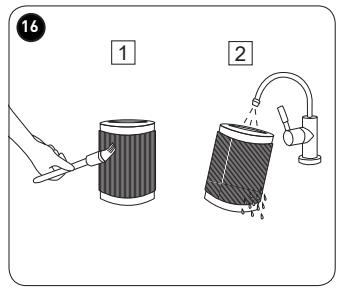

Filter	Use a brush to clean the outside of the filter. Rinse the inside of the filter with clean water, then dry it.

Storage

• Always unplug the unit before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
