DHS8412PA0 - Tumble drier BEKO - Free user manual and instructions

Product type	Condenser tumble dryer
Brand	Beko
Model	DHS8412PA0
Load capacity	8 kg
Energy efficiency class	A++
Annual energy consumption	235 kWh
Height	84.6 cm
Width	59.8 cm
Depth	59.7 cm
Net weight	48 kg
Power supply	230 V, 50 Hz
Power consumption	2500 W
Main functions	Condensation drying, humidity sensor, anti-crease, delayed start, delayed end
Drying programs	10 programs including cotton, synthetic, delicate, sports, quick 40 min
Noise level	65 dB (A)
Drying system	Heat pump
Maintenance and cleaning	Removable lint filter, self-cleaning condenser, water tank to empty
Safety	Child lock, automatic shut-off, anti-foam protection
Spare parts and repairability	Filter, condenser, belt, heating element, drain pump
Warranty	2 years

Frequently Asked Questions - DHS8412PA0 BEKO

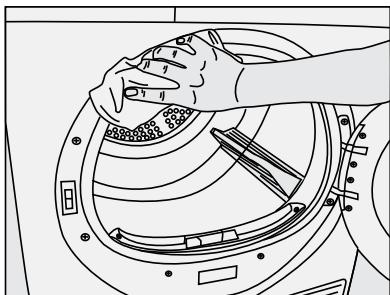

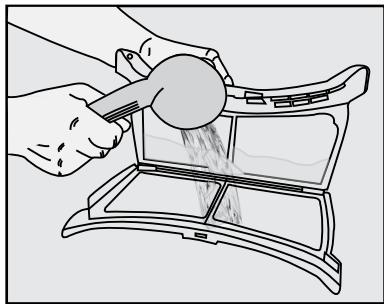

How to clean the lint filter?

Open the door, remove the filter located at the bottom of the opening, remove lint by hand or with a vacuum cleaner, rinse if necessary, then put it back. Perform this operation after each cycle.

What to do if drying takes too long?

Check that the lint filter and condenser are clean. Make sure the load is not too large and that the selected program is suitable for the type of laundry. The noise level or display may indicate a fault.

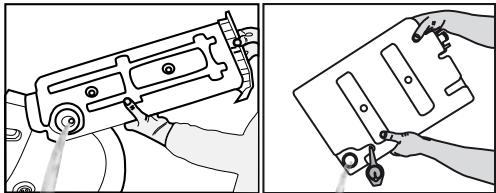

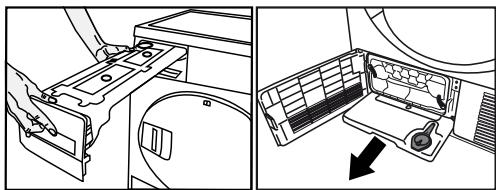

How to empty the water tank?

The tank is usually located at the bottom right. Pull it out, remove the cover, empty the water into a sink or drain, then put it back. The indicator warns you when it is full.

My dryer stops mid-cycle, what to do?

This may be due to overheating, a blocked filter, or a malfunction. Check the filter, condenser, and tank drainage. Consult the manual for error codes. If the problem persists, contact customer service.

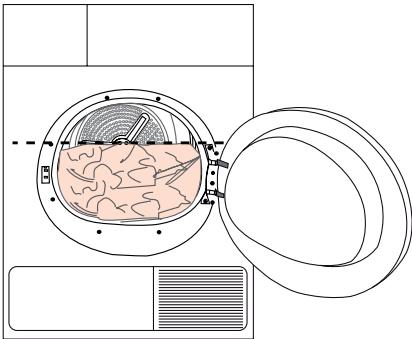

What is the maximum capacity of this appliance?

The maximum capacity is 8 kg for the cotton program. For synthetics, it is reduced to about 4 kg.

Is this model compatible with direct drainage?

This model is a condenser tumble dryer with heat pump, it does not require direct drainage. The water is collected in the built-in tank.

How to activate the child lock?

Press and hold the corresponding button (often a padlock) for a few seconds until the symbol appears. To deactivate, repeat the same procedure.

Can I dry shoes or delicate items?

Yes, use the Delicate or Shoes program (depending on models). Place shoes in a washing net. Follow the care instructions of the clothes.

How to reduce energy consumption?

Use the program suitable for the load, clean the filter and condenser regularly, and spin the laundry well before drying. The A++ class ensures good efficiency.

What to do in case of an error code?

Consult the manual for the meaning of the code (e.g., E01 = drainage problem). Turn off the appliance, unplug it, check the indicated points. If the code persists, contact technical service.

USER MANUAL DHS8412PA0 BEKO

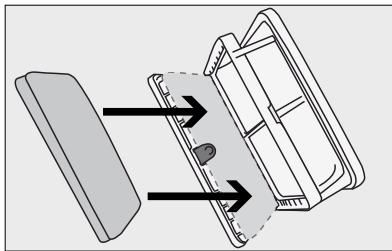

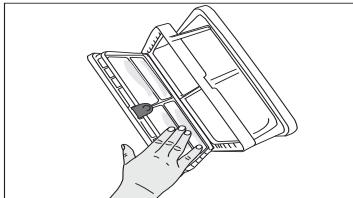

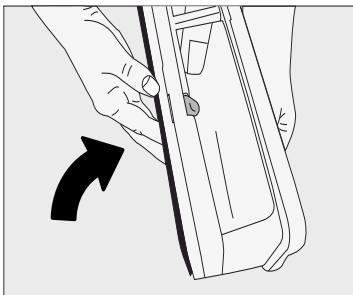

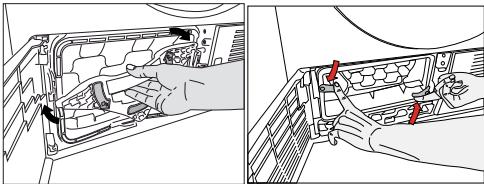

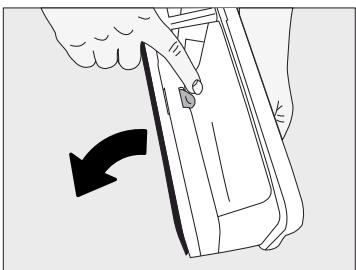

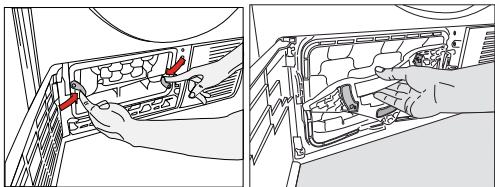

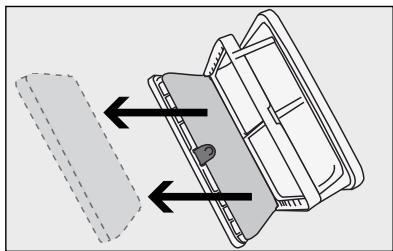

• Replace the filter drawer and tighten the cap turning the filter drawer lock turning it in the arrow direction.

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

i	Important information or useful hints about usage.
!	Warning for hazardous situations with regard to life and property.
4	Warning against electric shock.
SSS	Warning against hot surfaces.
	Warning against fire hazard.
	Warning against scalding hazard.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions shall void any warranty.

1.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children of less than 3 years should be kept away unless continuously supervised.
• Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
• Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

For the products with a steam function:

• Use only distilled water or water condensed in the water tank of the machine in steam programs. Do not use mains water or additives. When using condensed water in the water tank, it should be filtered and cleared of fibres.
• Do not open the door when steam programs are running. Hot water may be expelled.

Important instructions for safety and environment

• Before putting laundry in a steam program, stains on it should be removed.
• You may only put laundry that is not dirty or stained but permeated with unpleasant odour in steam (odour removal) program.
• Do not use any dry cleaning sets or additional materials in a steam program or in any program.

1.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.

Important instructions for safety and environment

• Power cable plug must be easily accessible after installation.

4	Damaged mains cable should be changed notifying the Authorized Service.
3	If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

1.1.2 Product safety

Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. ·Unwashed laundry items ·Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer. For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.

Important instructions for safety and environment

Below specified laundry or items must not be dried in the dryer due to the fire hazard: ·Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads. ·Clothing cleaned with industrial chemicals. Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer. Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

• You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

!	Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
i	Use softeners and similar products in accordance with the instructions of their manufacturers.
i	Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

Important instructions for safety and environment

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
  Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Fabric softeners, or similar products should be used as specified by the fabric softener instructions.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.

Important instructions for safety and environment

• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	50 cm	49 cm	45 cm	40 cm
54 cm	Can be installed					Can be installed	Cannot be installed
60 cm	Can be installed					Cannot be installed

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Important instructions for safety and environment

Child-proof lock is on the control panel. (See Child lock)

• Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE regulation and disposing of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important instructions for safety and environment

1.8 Technical Specifications

EN

Height (Min. / Max.)	84,6 cm / 86,6 cm*
Width	59,7 cm
Depth	56,8 cm
Capacity (max.)	8 kg**
Net weight (± 4 kg)	46 kg
Width	See type label***
Voltage
Rated power input

• Min. height: Height with adjustable feet are closed.
  Max. height: Height with adjustable feet are opened maximum.
  ^ Dry laundry weight before washing.
  *** Type label is located behind the loading door.

i	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
i	Figures in this manual are schematic and may not match the product exactly.
i	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

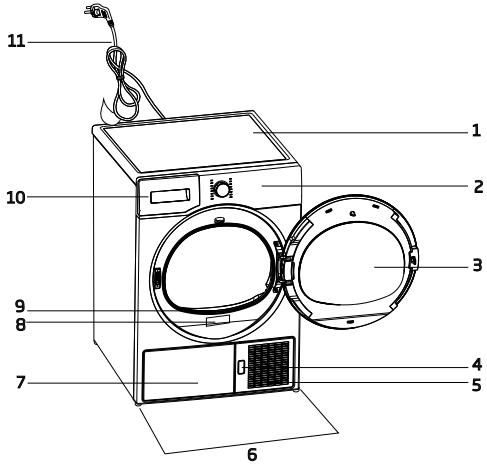

2.1 Overview

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
   8.Type label
8. Lint filter
9. Water tank drawer
10. Power cord

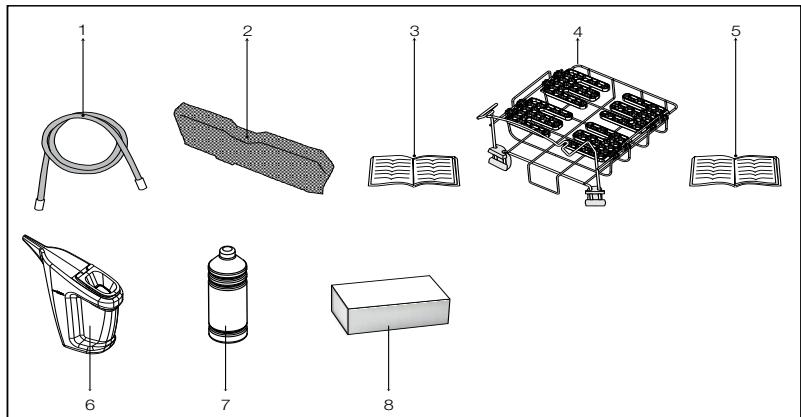

2.2 Package Contents

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
6. Water Filling Container*
7. Pure Water*
8. Fragrance Capsules Group*

*It can be supplied with your machine depending on its model.

3 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

i	Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.
!	Prior to installation, visually check if the dryer has any defects on it. If the drier is damaged, do not have it installed. Damaged products cause risks for your safety.
!	Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface. Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1cm away from the edges of other furniture.

• Your dryer can be operated at temperatures between +5^ C and +35^ C . If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.

• The rear surface of the tumble dryer shall be placed against a wall.

Do not place the dryer on the power cable.

3.2 Removing the transportation safety assembly

! Remove the transportation safety assembly before using the dryer for the first time.

3.3 Connecting to the drain

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.
3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.
4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Water drain hose should be attached to a height of maximum 80 cm.

Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

If there is an accessories pack supplied with your product, please see the detailed description.

3.4 Adjusting the feet

• Turn the feet to left or right until the dryer stands level and firmly.

3.5 Transportation of the dryer

Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

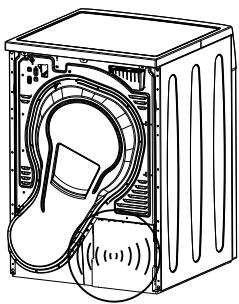

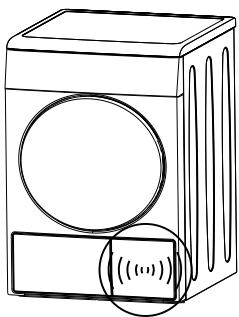

3.6Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

3.7 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer.To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service.The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50^

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

Do not dry with dryer	At high temperature	At medium temperature	At low temperature

4.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

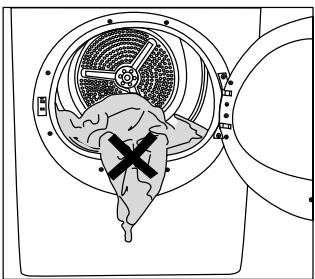

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
  Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and tableclothes dries earlier than thick bathroom towels.
• Follow the instructions in the user manual for programme selection.

• Do not open the loading door of the machine during drying unless necessary. If you must open the loading door, do not keep it open for a long time.

• Do not add wet laundry while the dryer is in operation

• For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly.
• For models with heat pump unit: clean the filter drawer periodically when there is a visible accumulation of fluff or when the filter drawer cleaning indicator «» lights up.
• For models with flue unit: comply with the flue connection instructions and clean the flue.
  During the drying process, air the room well where your tumble dryer is operating.

4.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

Preparation

Following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quilt covers (double)	1500
Cotton quilt covers (single)	1000
Bed sheets (double)	500
Bed sheets (single)	350
Large tablecloths	700
Small tablecloths	250
Tea napkins	100
Bath towels	700
Hand towels	350
Blouses	150
Cotton shirts	300
Shirts	250
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

*Dry laundry weight before washing.

5 Operating the product

5.1 Control Panel

1. On/Off/Program selection button
2. Start/Stand-by button
3. End Time button
4. Drying Level Button
5. Buzzer volume/Time programs selection button

5.2 Symbols

Tank full

Filter cleaning

Filter drawer / Child-proof Heat exchanger lock

ld-proof lock

Mute

Volume up

Express

Delicates

Shirts

Sport

Freshen Up

Cottons

Mix

Daily

End/anti- creasing

On/Off

Timer Delay

Dryness Level

Cupboard Dry

Iron Dry

Jeans

BabyProtect

Extra dry

Cupboard dry plus

Start pause cancel

Synthetics

Trying Rack/ TimeDry

Express 30^

5.3. Preparation of drying machine

Plug the drying machine.
- Open the loading door.
- Place the laundry to the drying machine without jamming them.
- Push and close the loading door.

Ensure that no laundry is jammed to the loading door.

Select the desired program using the On/Off/Program selection knob, the machine will turn on.

Selecting a program using the On/Off/Program selection button does not mean that the program started. Press the Start / Stand-by button to start the program.

Operating the product

5.4 Program selection and consumption chart

EN
Programmes	Programme Description	Capacity (kg)	Spin speed in washing machine (rpm)	Drying Time (minutes)
Cotton Iron Dry	You may dry your cotton laundry to be ironed in this programme to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	8	1000	145
Cotton Cupboard Dry	You may dry all your cotton laundry in this programme. (T-shirt, pants, pyjamas, baby clothes, underwear,linen, etc.) You can put your laundry in the wardrobe without ironing.	8/4	1000	197/115
Cotton Extra Dry	You may dry your thick cotton laundry in this programme such as towels, bathrobe, etc. You can put your laundry in the wardrobe without ironing.	8	1000	210
Synthetic Iron Dry	You may dry your synthetic laundry to be ironed in this programme to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	4	800	60
Synthetic Cupboard Dry	You may dry all your synthetic laundry in this programme. (Shirt, T-shirt, underwear, tablecloth, etc.) You can put your laundry in the wardrobe without ironing.	4	800	70
Daily	You can dry both cotton and synthetic laundry with this programme.	4	1000	125
Sport	You may dry your sports clothes that are appropriate for tumble drying in this programme.	4	1000	135
Freshen up	It just provides airing for 10 minutes without any hot air. You can air the cotton and linen laundry that have been stored for a long time, and eliminate the odour in them.	-	-	10
Drying Rack/ TimeDry	You may select from time programmes between 10 and 160 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for the set time independently from the dryness of laundry. This product is available to be used with a drying basket as option. For products that are sold without a basket, you can obtain a basket from an authorized service and use the drying programs specified above. For details of use, see the drying basket user guide.	-	-	-
Delicates	You can dry your delicates suitable for drying or laundry that is recommended to hand wash (silk blouses, thin underwear etc.) in low temperature.	2	600	70

Operating the product

Mix	Use this programme to dry non-pigmenting synthetic and cotton laundry items together.	4	1000	95
Babyprotect	Program used for baby clothing with can be dried approval on the label.	3	1200	85
Jeans	You may dry denim pants, skirts, shirts or jackets in this programme.	4	1200	150
Gentle Care / Shirts	It dries the shirts in a more sensitive manner, and causes less creasing and easier ironing.	1,5	1200	60
Express Super Short	Dries shirts more delicately and thus causes less wrinkles for easy ironing.	0,5	1200	30
Energy consumption values
Programmes	Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cotton cupboard dry*	8/4	1000	60%	1,95/1,06
Cotton Iron dry	8	1000	60%	1,5
Synthetic cupboard dry	4	800	40%	0,75
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)				0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)				1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. R134a / 0,30 kg - GWP:1430 - 0,429 tCO2e Hermetically sealed.
	"Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

*: Energy Label standard program (EN 61121:2012) All values in the table are determined according to EN 61121:2012 standard. Consumption values may vary from the values in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels.

Operating the product

5.5 Auxiliary functions

Buzzer / time

Drying machine makes an audible warning when the program is completed. If you don't want the machine to make an audible warning, press the "Buzzer / Time" button. When you press the Buzzer/Time button, a light will illuminate and no audible warning will be made when the program ends.

You can select this function before or after the program starts.

Buzzer/Time button is used to adjust program duration while the Rack/Time programs are selected.

Drying Level

Drying Level button is used for adjusting to desired dryness level. Program duration may change depending on the selection.

You can activate this function only prior to start of program.

End time

You can delay the end time of the program up to 24 hours with End time function.

1. Open the loading door and place the laundry.
2. Select the drying program.
3. Press the End Time selection button and set the delay time you wish. End Time LED will illuminate. (When pressed and hold the button, End Time proceeds non-stop).
4. Press the Start / Stand-by button. End Time countdown starts. ::" Separator in the middle of displayed delay time flashes.

You can add or remove laundry within end time. Displayed time is the sum of normal drying time and end time. End Time LED will turn off at the end of countdown, drying starts and drying LED will illuminate.

Changing the end time

If you want to change the duration during the countdown:

Cancel the program by turning the On/Off/ Program selection knob. Select the program you want and repeat the End Time selection process.

Cancelling the end time function If you want to cancel the end time countdown and start the program immediately:

Cancel the program by turning the On/Off/ Program selection knob. Select the program you want and press the Start/Stand-by button.

5.6 Warning indicators

Warning indicators may vary depending on the model of your dryer.

Filter cleaning

When the program is completed, the warning indicator for filter cleaning turns on.

Water tank

When the program is completed, the warning indicator to empty the water tank turns on. If the water tank fills up while the program continues, the warning indicator starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. Warning indicator turns off and program resumes.

5.7 Starting the program

Press the Start/Stand-by button to start the program.

Start/Stand-by and Drying indicators will illuminate to indicate that program started.

Operating the product

5.8 Child Lock

The drying machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. When the child lock is activated, all buttons on the panel except the On/Off/Program selection knob are deactivated.

Press the Drying Level and Buzzer buttons simultaneously for 3 buttons to activate the child lock.

The child lock has to be deactivated to be able to start a new program after the current program is finished or to be able to interfere with the program. To deactivate the child lock, keep the same buttons pressed for 3 seconds.

i	When the child lock is activated, the child lock warning indicator on the screen turns on.
i	Child lock deactivates when the drying machine is turned off and on by the On/Off/Cancel knob.

When the child lock is active:

When the drying machine runs, or in standby, the indicator symbols won't change upon changing the position of the program selection knob.

i

When the drying machine runs and the child lock is active, it beeps twice when the program selection knob is turned. If the child lock is deactivated without returning the program selection knob to its previous position, program will terminate due to the change in the program selection knob position.

5.9 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the drying machine starts running

• For instance, select Extra Dry program by turning the On/Off/Program selection knob to select Extra Dry instead of Iron Dry.
• Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by

If you want to add or remove clothes to/from the drying machine after the drying program starts:

• Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

i	Adding laundry after the drying operation starts may cause the dried laundry inside the machine to mix with wet laundry and leave the laundry damp at the end of operation.
i	Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.
i	If a new program is selected by turning the program selection knob while the drying machine is in stand-by, the running program terminates.
	Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

Operating the product

5.10 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, turn the On/Off/Cancel knob, the program will be cancelled.

The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refresh program to allow it to cool down.

5.11 End of program

When the program ends, the Fibre Filter Cleaning and Water Tank warning symbols on the program observation indicator turn on. Loading door may be opened and the dryer machine becomes ready for another run. Bring the On/Off/Program selection knob to On/Off position to turn the drying machine off.

If the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The program tumbles the laundry with 10-minute intervals to prevent them from wrinkling.

6 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

6.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

i	Such fiber and lint are generally formed during wearing and washing.
!	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
i	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

• Open the loading door.
• Remove the lint filter by pulling it up and open the lint filter.
  Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

• A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

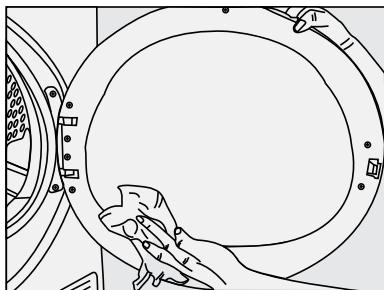

Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

Maintenance and cleaning

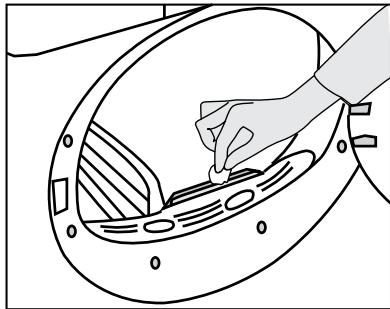

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not. To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

Clean metal surfaces of the sensors 4 times a year.

Do not use metal tools when cleaning metal surfaces of the sensors.

Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arises accumulates in the water tank. Drain the water tank after each drying cycle.

Condensed water is not drinkable!

Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank:

1. Remove the water tank in the drawer or container carefully.

2. Drain the water in the tank.

If there is lint accumulation in the funnel of the water tank, clean it under running water.
- Place the water tank into its seat.

If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Clean the filter periodically when there is visible air collection on it or when the symbol lights up, if there is a filter drawer cleaning warning symbol «» available.

There is an one stage filter. This one stage filter is from sponge

To clean the filter drawer:

Maintenance and cleaning

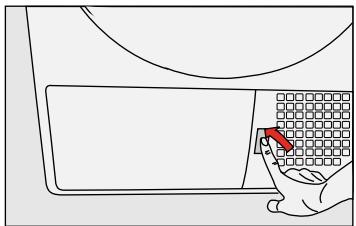

• Press the kick plate button to open the kick plate.

• Open the filter drawer cap turning the cap lock on it and pull it out..

• Open the filter drawer by pressing the red button.

Take out the filter drawer sponge.

Clean the fluff and lint over the filter sponge washing it with your hands. Remove the moisture squeezing the sponge with your hands after washing it.
Clean the fluff, lint and cotton pellets with your hands or with a soft cloth.

If you observe a layer over the filter which can block the filter, remove the layer washing with a water and then cleaning it. Dry the filter cloth properly before replacing the filter drawer.

There may be no cloth in the filter cassette of your drying machine, depending on its model.

• Place the sponge back into its place.

i Please place the sponge carefully inside the frame of the filter cassette shown by arrows in order to avoid squeezing when filter drawer closed":

Maintenance and cleaning

• Close the filter drawer as to lock the red button.

• Replace the filter drawer and tighten the cap turning the filter drawer lock turning it in the arrow direction.

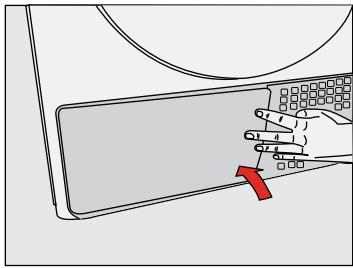

• Close the kick plate cover.

!	Drying without the filter drawer sponge in place will damage the machine!
i	A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

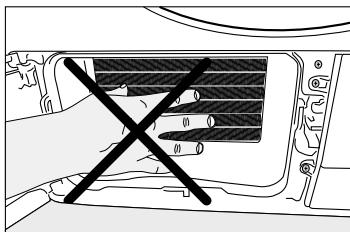

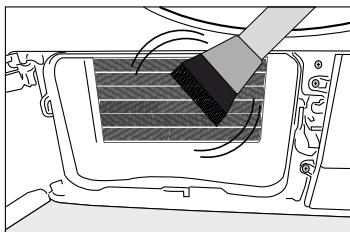

6.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

7 Troubleshooting

Drying operation takes too long.

• Fibre filter pores might be clogged. >> > Wash the filter with warm water. • Filter drawer might be clogged. >> > Clean the sponge and filter cloth (if any) in the filter drawer. (for the products with a heat pump) • The condenser might be blocked. >> > Wash the condenser.(for the products with a condenser ) • The ventilation grills in front of the machine may be closed. >> > Remove any objects in front of the ventilation grills that blocks air. • Ventilation may be inadequate because the area the machine is installed in is too small. >> > Open the door or windows to prevent the room temperature from rising very high. • A lime layer may have accumulated on the humidity sensor. >> > Clean the humidity sensor. • Excessive amount of laundry might be loaded. >> > Do not load the drying machine excessively. • Laundry might not have been wrung adequately. >> > Perform a higher speed wringing on the washing machine.

Clothes come out damp after drying.

• A program not suitable for the laundry type may have been used. >> > Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra. • Fibre filter pores might be clogged. >> > Wash the filter with warm water. • The condenser might be blocked. >> > Wash the condenser. (for the products with a condenser ) • Filter drawer might be clogged. >> > Clean the sponge and filter cloth (if any) in the filter drawer.(For the products with a heat pump) • Excessive amount of laundry might be loaded. >> > Do not load the drying machine excessively. • Laundry might not have been wrung adequately. >> > Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured.

• Power plug might be unplugged. >> > Make sure the power cord is plugged in. • Loading door might be open. >> > Ensure that the loading door is properly closed. • A program might not be set or Start/Stand-by button might not be pressed. >> > Check that the program is set and it is not in Stand-by position. • Child lock may be activated. >> > Turn off the child lock.

Program terminated prematurely for no reason.

• Loading door might not be closed completely. >> > Ensure that the loading door is properly closed. • There might be a power outage. >> > Press the Start/Stand-by button to start the program. • Water tank may be full. >> > Empty the water tank.

Troubleshooting

Clothes have shrunk, hardened or spoiled.

A program not suitable with the laundry type might have been used. >> Check the maintenance labels on the clothes and select a program suitable for the clothes.

The lighting inside the drying machine does not turn on. (For models with a lamp)

Drying machine might not be turned on with the On/Off button or program might not be selected for machines without an On/Off button. >> Make sure that the drying machine is turned on.

Lamp might be malfunctioning. >> Contact Authorized Service to replace the lamp.

Filter cleaning warning symbol/LED is on/flashing.

Fibre filter might not be cleaned. >> Clean the filter.

The filter slot might be clogged with lints. >> Clean the filter slot.

A layer of fluff might have accumulated clogging up the lint filter pores. >> Wash the filter with warm water.

The condenser might be blocked. >> Wash the condenser.

Water drips from the loading door.

Fibres might have gathered on the inner sides of the loading door and the loading door gasket. >> Clean the inner surfaces of the loading door and the loading door gasket surfaces.

Loading door opens by itself.

Loading door might not be closed completely. >> Push the loading door until the closing sound is heard.

Water tank warning symbol / led is on/flashing.

Water tank may be full. >> Empty the water tank.

Water discharge hose might have collapsed. >> If the product is connected directly to the water drain check the water discharge hose.

Steam symbol is flashing.(For the products with a steam function)

Steam tank may be empty = Fill the steam tank with distilled or condensed water.

Steam programs do not start (For the products with a steam function)

Steam tank may be empty, steam tank warning icon may light up on the screen = Fill the steam tank until the steam icon goes off.

Wrinkles are not removed with wrinkle removing program. (For the products with a steam function)

Excess amount of laundry may have been placed = Place specified amount of laundry.

Steam application time may be selected in low level = Choose a program with high amount of steam.

After completion of the program, the laundry may have stayed in the machine for a long time = Take the laundry out as soon as the program finishes, and hang it out.

Laundry odour not lessened with the odour removal program.(For the products with an odour removal program)

Excess amount of laundry may have been placed = Place specified amount of laundry.

Steam application time may be selected in low level = Choose a program with high amount of steam.

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		BEKO
Model name		DHS8412PAO
Rated capacity (kg)		8
Type of Tumble Dryer	Air Vented	-
	Condenser	●
Energy efficiency class (1)		A++
Annual Energy Consumption (kWh) (2)		235
Type of Control	Automatic	●
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		1,95
Energy consumption of the standard cotton programme at partial load (kWh)		1,06
Power consumption of the off-mode for the standart cotton programme at full load, P0(W)		0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL(W)		1,0
The duration of the left on mode (min)		30
Standard cotton programme (3)
Programme time of the standard cotton programme at full load, Tdry(min)		197
Programme time of the standard cotton programme at partial load, Tdry1/2(min)		115
Weighted programme time of the standard cotton programme at full and partial load (Tt)		150
Condensation efficiency class (4)		B
Average condensation efficiency of the standard cotton programme at full load, Cdry		86%
Average condensation efficiency of the standard cotton programme at partial load, Cdry1/2		86%
Weighted condensation efficiency of the standard cotton programme at full load and partial load, Ct		86%
Sound power level for the standard cotton programme at full load (5)		65
Built-in		-

(1) Scale from A + + + ( most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton
(4) Scale from G (least efficient) to A (most efficient)
(5) Weighted average value — LWA expressed in dB(A) re 1 pW

:Yes -No
