Please read this user manual first!

Dear Customer,

We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure.

Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use. In case of transferring the product to someone else, give the manual as well.

The user manual will help you use your product in a fast and safe way.

• Read the user manual before installing and starting your product.
  • Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Read also the other documents supplied with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Read the instructions.

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Warning for fire hazard.

Warning for hot surfaces.

1 Important safety instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

General safety

• Never place the product on a carpet-covered floor; otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.
• Do not operate the product if the power cable / plug is damaged. Call the Authorized Service Agent.
• Do not make any changes on the plug supplied with the product. If it is not compatible with the socket, have a qualified electrician change the socket with a suitable one.
• Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Connect the product to a grounded outlet protected by a fuse of suitable capacity as stated in the technical specifications table.
• Power cable of this product is equipped with a conductor and a grounding plug that allows for grounding the product. This plug must be inserted into a socket which is installed and grounded in accordance with the local laws and regulations. Grounding installation decreases the risk of electric shock by opening a path with low resistance for the electricity flow in case of a malfunction or failure. Do not neglect to have the grounding installation made by a qualified electrician. If you have any suspect about the grounding installation, have it checked by a qualified electrician or the Authorized Service Agent. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.
• The product should not be plugged in during installation, maintenance, cleaning and repair works.
• Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Do not use electrical devices in the product.
• Do not connect the air exit of the product to the chimney holes which are used for the exhaust fumes of the devices operating with gas or other types of fuel.
• You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.
  • Pay attention that the air inlet openings are

unobstructed

• Items cleaned or washed with gasoil/fuel oil, dry-laundry solvents and other combustible or explosive materials as well as the items that are contaminated or spotted with such materials should not be dried in the product since they emit flammable or explosive vapor.
• Do not dry the laundry cleaned with industrial chemicals in the dryer.
• Underwear that contains metal reinforcements should not be dried in the dryer. Dryer can get damaged if metal reinforcements come loose and break off during drying.
• Never attempt to repair the product yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• For failures that you cannot remedy by applying the procedures in safety instructions, turn off and unplug the product and call the Authorized Service Agent.
• Do not reach into the machine when the drum is spinning.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!

The final step of the drying programme, namely the cool-down step is performed without applying heat to ensure that the laundry items are kept at a temperature that will not damage them. If you open the loading door before the cool-down step completes, hot vapour will come out.

⚠️ Never stop the dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to a suitable place to dissipate the heat.

• Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.
• Clean inside and exhaust duct of the product regularly. Do not allow fibre, dust and dirt accumulation around the exhaust exit and at adjacent areas.
• Power cable plug must be within easy reach after installation.
• Do not dry unwashed items in the dryer.
• Items soiled with cooking oils, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin and paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.
  • Garments or pillows bolstered with rubber foam

(latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads should not be dried in the dryer.

• Do not use fabric softeners and anti-static products unless they are recommended by the manufacturers of the relevant product.
• Use softeners, anti-static products and etc. in accordance with the instructions of their manufacturers.
• Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.
• Do not install or leave the dryer in places where it will be exposed to outdoor conditions.
• Your product can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the product will be adversely affected and it can get damaged.
• Do not tamper with the controls.
  • Unplug the product when it is not in use.
• Remove the loading door of the drying compartment before decommissioning or disposing of the product.
• Check all garments before loading and make sure that there is no any lighters, coins, metal pieces, needles, and etc. in their pockets or on them.
• Make sure that the pets do not enter into the product. Check the drum of the product before using it.
• Make sure that original spare parts and accessories are used during maintenance works.
• Do not lean on the loading door when it is open. The product may tip over.
• When your machine is not in use or when you unload the laundry after completion of drying process, turn the machine off with the On/Off button. In cases where the On/Off button is in On position (while the machine is energized), keep the loading door closed.

Intended use

• This product has been designed for domestic use. It should not be used for other purposes.
• Product must only be used for drying of textiles that are marked accordingly.
• Dry only those articles in your product that are stated in this manual.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.

Children's safety

• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the product.
• Do not allow children sit/climb on or enter in the

product.

• Do not forget to close the loading door when leaving the room where the product is located.
• Packaging materials are dangerous to children. Keep the packaging materials out of reach of children or dispose them by classifying according to waste directives.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Installation

Refer to the nearest Authorized Service Agent for installation of the product. To make the product ready for use, make sure that the electricity and water drainage system are appropriate before calling the Authorized Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

i Preparation of the product's location as well as the electrical and waste water installations is under customer's responsibility.
Installation and electrical connections of the product must be carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
⚠️ Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.
⚠️ Let your dryer wait for 12 hours before starting to use it.

Appropriate installation location

• Install the product on a stable and level surface.
• Dryer is heavy. Do not move it by yourself.
- Operate your product in a well ventilated, dust-free environment.
- Do not block the air ducts in front of and under the product with materials such as long pile rugs, wooden blocks and bands.
- Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.
- Once the product is installed, it should stay at the same place where its connections have been made. When installing the product, make sure that the rear wall of it does not touch anywhere (tap, socket, etc.). Also pay attention to select an installation location which you will not be required to change afterwards.
- Place the product at least 1.5 cm away from the edges of other furniture.

Do not place the product on the power cable.

Removing the transportation safety assembly

⚠️ Remove the transportation safety assembly before using the product for the first time.

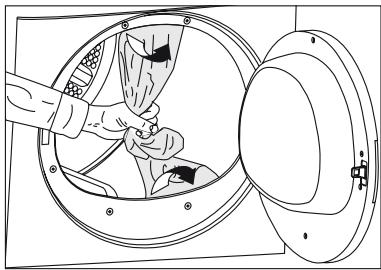

1. Open the loading door.
2. There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
3. Pull the nylon towards yourself and remove the transportation safety assembly.

Line drawing of a hand cleaning a circular mechanical component with a lid open (no text or symbols)

⚠️ Make sure that no part of the transportation safety assembly remains inside the drum.

Under counter installation

• This product can be installed under a counter if the height of the counter is sufficient.
  While using undercounter dryer, it should never be operated without undercounter installation part.

Dryer Depth	60 cm	54 cm
Stock number of under-bench installation part	2979700100	2973600100

- Leave at least 3 cm of space around the sides and the rear wall of the product when installing it under a counter or in a cupboard.

Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fixing device (2977200100 white/2977200400 grey) must be installed by the Authorized Service Agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Technical diagram of a mechanical or electrical component with coiled tubing and mounting brackets (no text or symbols)

Connecting the water drain hose

1. Pull hose in the product by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.
2. Connect one end of the drain hose supplied separately with the product to the connection point from where you removed the hose of the product in previous step.
3. Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

⚠️ Hose must be fixed in every type of connection. Your house will be flooded if the hose comes loose during water discharge.

Water drain hose should be attached to a height of maximum 80 cm.

i Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

Adjusting the feet

In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.

Turn the feet to left or right until the machine stands level and firmly.

Pure technical line drawing of a mechanical assembly with no text or symbols

i Never remove the adjustable feet from their housings.

Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.
- Power cable plug must be within easy reach after installation.
- The voltage and allowed fuse or breaker protection are specified in the “Technical specifications” section. If the current value of the fuse or breaker in the house is less than 10 Amps, have a qualified electrician install a 10 Amp fuse.
- The specified voltage must be equal to your mains voltage.
- Do not make connections via extension cables or multi-plugs.
- The main fuse and switches must have a contact distance of minimum 3 mm.

Damaged power cable must be replaced by the Authorized Service Agent.

If the product is faulty, it must not be operated unless it is repaired! There is the risk of electric shock!

First use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections “Important safety instructions” and “Installation”.

Transportation of the product

1. Unplug the product before transporting it.
2. Remove the water drain (if any) and chimney connections.
3. Drain the water in the product completely.

⚠️ We recommend carrying the product in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front. After the product is moved to its new place, you should wait for 12 hours before starting it.

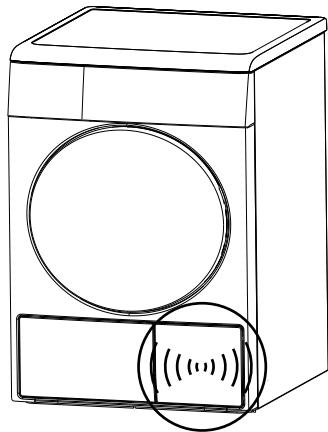

Warnings about sounds

i It is normal to hear metallic noise from the compressor sometimes during operation.

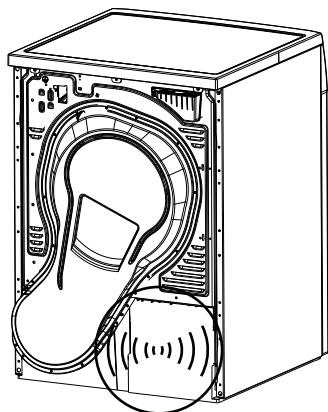

Line drawing of a washing machine with a circular vent and a rectangular base, showing internal components (no text or symbols)

i Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

Technical line drawing of a washing machine interior showing internal components and sound waves (no text or symbols)

Technical specifications
EN

Height (adjustable)	84,6 cm
Width	59,5 cm
Depth	59,8 cm
Capacity (max.)	7 kg
Net weight (plastic front door usage)	49 kg
Net weight (glass front door usage)	51,5 kg
Voltage	See type label
Rated power input
Model code

Type label is located behind the loading door.

3 Preparations for drying

Things to be done for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product at a capacity suitable for the program you have selected and pay attention not to overload.
• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
  • Dry the same type of laundry together.
• Follow the instructions in the user manual for programme selection.
• Leave sufficient clearance at the front and rear side of the dryer for air circulation. Do not block the ventilation grills at the front side of the product.
• Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.
  • Do not add new (wet) laundry during drying.
• Lint and fibres released from the laundry to the air during the drying cycle are collected in the Lint Filter. Clean the lint filter before or after each drying cycle.
• Clean the filter drawer regularly either when the Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles
• Ventilate the room, where the dryer is located, well during drying.
• For models with lamp, keep the door closed if the On/Off button is pressed (if the machine is energized) when machine is not in use.

Laundry suitable for drying in the machine

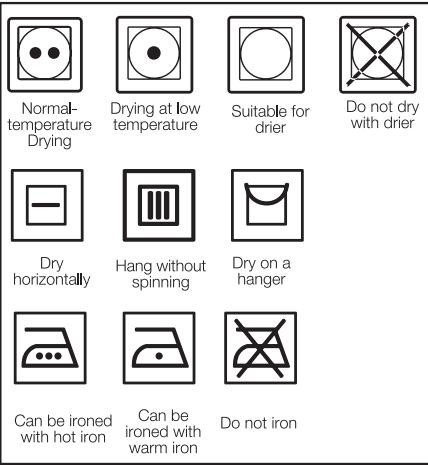

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

Normal- temperature Drying Drying at low temperature Suitable for drier Do not dry with drier Dry horizontally Hang without spinning Dry on a hanger Can be ironed with hot iron Can be ironed with warm iron Do not iron

Laundry unsuitable for drying in the machine

• Laundry and items stated below are not suitable for drying in a dryer:
• Laundry items with metal attachments such as metal buttons, metal reinforcements or belt buckles.
• Woolen or silk garments, nylon stockings, delicate embroidered fabrics and sleeping bags.
  • Garments made of delicate and valuable fabrics.
• Tulle curtains.
• Items made of hermetic fibres such as pillows and quilts.
  • Very wet laundry items.
  • Unwashed dirty laundry items.
• Laundry items containing rubber foam or rubber. Items cleaned, washed or spotted with gasoil/fuel oil, dry-laundry solvents, industrial chemicals or other combustible or explosive materials should not be dried in the dryer.
  Items soiled with cooking oils, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin and paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

Preparing laundry for drying

• Check all garments before loading and make sure that there is no any lighters, coins, metal pieces, needles, and etc. in their pockets or on them.
• Laundry may be tangled after washing. Separate the laundry items before placing them into the dryer.
• Sort the laundry according to their types and thicknesses. Dry the same type of laundry together. For instance, thin kitchen towel and table cloths get dry earlier than the thick bath towels.

i Laundry must be spun at the highest spin speed that the washing machine allows on basis of the fabric type.

Correct load capacity

Line drawing of a washing machine with clothes being washed out, showing a basket of clothes inside (no text or symbols)

Follow the instructions in the “Programme selection and consumption table”. Do not load more than the capacity values stated in the table.

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Home articles	Approximate weights (g)
Cotton quit covers (double)	1500
Cotton quit covers (single)	1000
Bed sheets (double)	500
Bed sheets (single)	350
Large tablecloths	700
Small tablecloths	250
Tea napkins	100
Bath towels	700
Hand towels	350
Garments	Approximate weights (g)
Blouses	150
Cotton shirts	300
Shirts	200
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

Loading the laundry

1. Open the loading door.
2. Place the laundry in the machine without compressing.
3. Push the loading door to close.

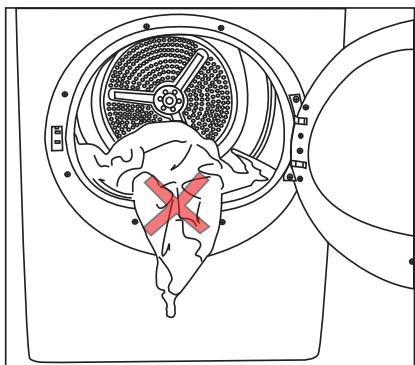

   ⚠ Ensure that no items are caught in the door.

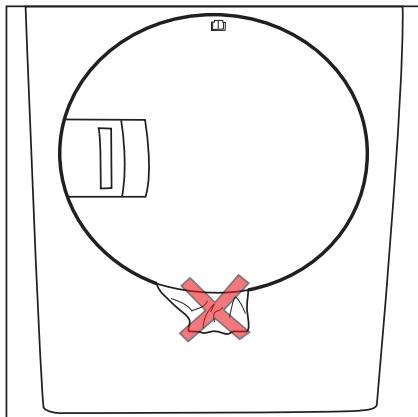

Diagram of a device with a circular vent and red X marks indicating a warning or hazard (no text or symbols present)

Simple line drawing of a basketball hoop with a red X marking at the base (no text or symbols)

4 Selecting a Programme and Operating Your Machine

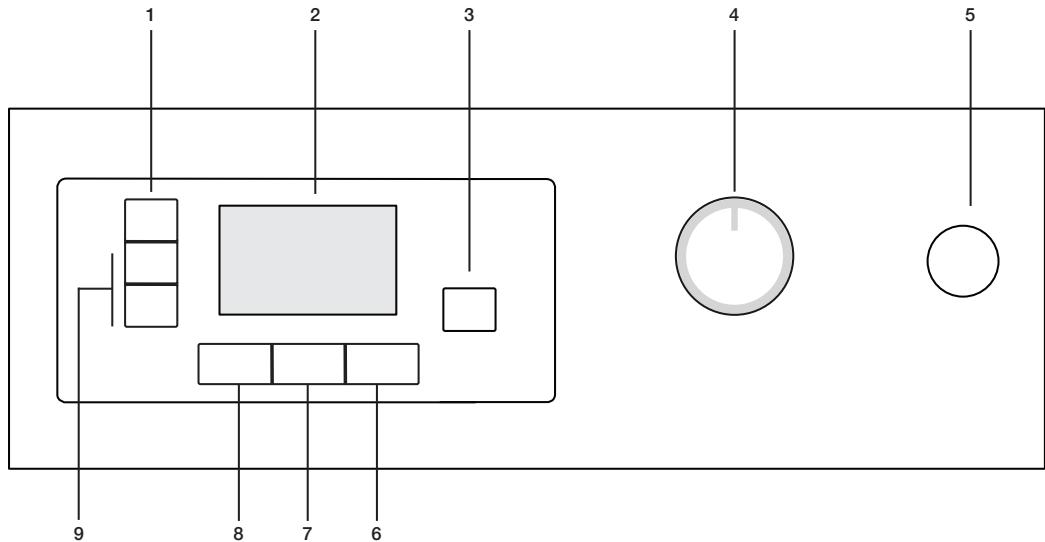

Control panel

1 2 3 4 5 6 7 8 9

1. Washing Machine Spin Speed / Timer Programme
   Selection button
2. Display
3. Start / Pause / Cancel button
4. Programme Selection knob
5. On / Off button
6. Anti-creasing button
7. Dryness Level button
8. Cancel Audio Warning button
9. Time Delay buttons

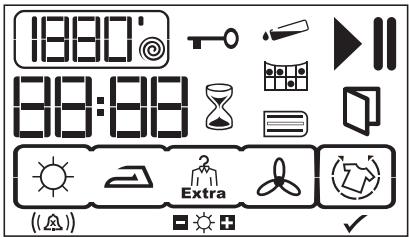

18:00 30:00 ( (A) ) Extra ✓

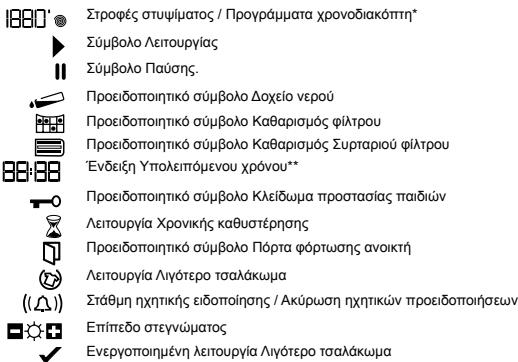

Spin speed / Timer programs*

Operation symbol

Pause symbol

Water Tank warning symbol

Filter cleaning warning symbol

Filter Drawer Cleaning warning symbol

Remaining Time indicator**

Child-proof Lock warning symbol

Time Delay mode

Loading door open warning symbol

Anti-creasing mode

Audio Warning Level / Cancel Audio Warning

Dryness Level

Anti-creasing is activated

* Spin speed is used to show the remaining time more accurately. It does not affect the performance of your machine.
** Time that appears on display indicates the remaining time until the end of the programme and changes according to the dampness level of the laundry.

Cottons

Synthetics

Xpress

Timer program mes

Freshen Up

Anti reasing

Iron Dry

Extra dry

Cupboard Dry

Filter cleaning

Jeans

Shirts

Buzzer/cancel

On/Off

Start pause cancel

Tank full

Child-proof lock

Daily

BabyProtect

Sport

Spin

Mix

Timer Delay

Wool Refresh

Drying Rack

Dryness Level

Delicates

Preparing the machine

1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the On / Off button.

i Pressing the On / Off button does not necessarily mean that the programme has started. Press Start / Pause / Cancel button to start the programme.

Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.
2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Iron Dry	Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see “Programme selection and consumption table”.

Main programmes

Depending on the fabric type, the following main programmes are available:

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

- Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

Additional programmes

For special cases, following additional programmes are available in the machine.

i Additional programs may differ according to the features of your machine.

- Express

You can use this program to dry your cotton laundry that you have spun at high speeds in your washing machine. This program dries 1 kg cotton laundry (3 Shirts/3T-shirts) in 45 minutes.

To obtain better results from your dryer, your laundry must be washed at suitable programs and spun at the recommended speed in the washing machine.

- Shirt

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Mixed

Use this programme to dry non-pigmenting synthetic and cotton laundry items together.

- Sport

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

- Wool Refresh

You can use this program to ventilate and soften your woolen laundry that can be washed in the washing machine. Do not use this program to dry your laundry completely. Take out your laundry and ventilate them immediately after the program is over.

• Daily

This program is used to dry cottons and synthetics daily, and lasts for 1.5 hour.

- BabyProtect

This program is used for baby clothes that bear machine dryable approval on its label.

- Delicates

You can dry your highly delicate laundry that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

It is recommended to use a cloth bag to prevent certain delicate laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the program is over in order to prevent them from getting creased.

- Ventilation

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodourise unpleasant odours thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

60' 00:60 ((Ω)) ★

Programme selection and consumption table
EN

Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
[W240]	Extra dry	7	1000	% 60	175
[HOT3]	Cupboard dry	7	1000	% 60	156
[W3V]	Iron dry	7	1000	% 60	125
BabyProtect		3	1000	% 60	80
Shirt		1.5	1200	%50	50
Jeans		4	1200	%50	120
Daily		4	1200	%50	90
Mixed		4	1000	%60	115
Sport		4	1000	%60	105
Express		1	1200	%50	45
Delicates		2	600	%40	55
Wool Refresh		1.5	600	%50	8
Synthetics
[=V42]	Cupboard dry	3.5	800	% 40	62
[SRV2]	Iron dry	3.5	800	% 40	50
Energy consumption values
Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cupboard dry for cottons*		7	1000	% 60	2.15
Iron dry for cottons		7	1000	% 60	1.8
Cupboard dry for synthetics		3.5	800	% 40	0.8
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.R407c / 0,320 kg

* : Energy Label standard programme (EN 61121:2012)
All values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

Auxiliary functions

Audio Warning

The machine will give an audio warning when the programme comes to an end. If you do not want the machine give an audio warning, press the Volume Level button repeatedly until "x" appears on the display. Use the same button to adjust the volume level.

You can activate this function either before or after the programme starts.

Cancel audio warning

Audio warning level 1

Audio warning level 2

Audio warning level 3

Dryness level

Used to adjust the required dryness level. More drying is performed compared to the default settings when “+” sign appears and less drying is performed when “-” sign appears. Programme duration can change depending on the selection.

You can activate this function only before the programme has started.

Anti-creasing

You can use Anti-creasing function to prevent laundry from creasing if you will not take the laundry out after the program has come to an end. This program rotates the laundry in every 240 second for 2 hours to prevent creasing.

Anti-creasing is activated but the programme is still running in the first display image below. Drying cycle is completed and the Anti-creasing step has started in the second display image.

(△) Extra (△) Extra (△) Extra

i Press Anti-creasing button to activate this function.

Changing the contrast

Adjust the display contrast in order to make the symbols on the display appear clearer. It may particularly be necessary to change the contrast setting of the display when the dryer is installed over a washing machine. Press and hold the Spin Speed / Timer Programme button for 3 seconds.

When the contrast is changed, all symbols on the display will appear for 3 seconds in order to indicate that the process is complete.

i Perform the same procedure to revert back to the previous contrast setting.

Warning symbols

i Warning symbols may differ according to the model of your machine.

Lint filter cleaning

When the programme is completed, a warning symbol will appear to remind that the filter needs to be cleaned.

If the Filter Cleaning symbol flashes continuously, refer to “Troubleshooting” section.

Water tank

When the programme is completed, a warning symbol will appear to remind that the water tank needs to be drained.

If the water tank becomes full while the programme is running, the warning symbol will start to flash and machine will pause. Drain the water in the water tank and press Start / Pause / Cancel button to resume the programme. The warning symbol turns off and the programme resumes operating.

Cleaning of filter drawer

Warning symbol flashes with certain intervals to remind that the filter drawer needs to be cleaned.

Loading door open

This warning symbol appears when the loading door of the dryer is open.

Time Delay

Time Delay function allows you to delay the startup of the programme up to 24 hours.

1. Open the loading door and put the laundry in.
2. Select the drying programme, spin speed and, if required, the auxiliary functions.
3. Press Time Delay buttons + and - to set the desired time delay. The Time Delay symbol will flash.
4. Press Start / Pause / Cancel button. The Time Delay starts to count down. The Time Delay symbol lights up. Start symbol appears. The “:” in the middle of the displayed delay time will start flashing.

Additional laundry may be loaded / taken out during the Time Delay period. At the end of the Time Delay countdown process, Time Delay symbol disappears, drying process starts and the programme duration is displayed. The time on the display is the total of normal drying time and delay time.

10:00 08:30 (△)

Time Delay is activated by pressing the Start / Pause / Cancel button in the above display image.

Changing the delay time

If you want to change the time during countdown:

1. Press Start / Pause / Cancel button for 3 seconds to cancel the programme. Repeat the Time Delay procedure for the desired time.
2. Set the desired delay time with Time Delay + and - buttons. The Time Delay symbol will flash.
3. Press Start / Pause / Cancel button. The Time Delay starts to count down. The Time Delay symbol lights up. Pause symbol disappears. Start symbol appears.
4. The “:” in the middle of the displayed delay time will start flashing.

Cancelling the Time Delay

If you want to cancel the Time Delay countdown and start the programme immediately:

1. Press Start / Pause / Cancel button for 3 seconds to cancel the programme.
2. Press Start / Pause / Cancel button to start the programme you have previously selected.

Starting the programme

Press Start / Pause / Cancel button to start the programme.

Start / Pause symbol will light up to indicate that the programme has started and “:” symbol between the remaining time will continue flashing.

Progress of programme

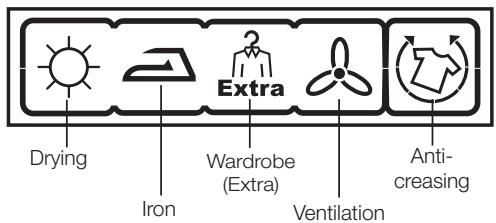

Drying Iron Extra Wardrobe (Extra) Ventilation Anti- creasing

Progress of a running programme is indicated on the display by means of a set of symbols. At the beginning of each programme step, the relevant symbol in the series of symbols will light up and thus, at the end of the programme, all symbols will remain lit up. The rightmost symbol on the display indicates the step being carried out.

Drying

Drying symbol lights up in all programmes apart from ventilation.

Iron Dry

Starts to illuminate when the dryness level reach Iron Dry step.

Cupboard Dry

Starts to illuminate when the dryness level reach Cupboard Dry step.

Extra dry

Starts to illuminate when the dryness level reach Wardrobe Dry Extra step.

Ventilation

Ventilation symbol illuminates when the programme comes to an end.

Anti-creasing symbol will illuminate at the end of the programme if Anti-creasing function is activated.

Child-proof Lock

Machine is equipped with a Childproof Lock which prevents interfering with the current programme flow by pressing any button. All buttons except the On / Off button on the control panel are deactivated when the Child-proof Lock is active.

In order to activate the Childproof Lock, press Audio Warning and Anti-Creasing buttons simultaneously for 3 seconds.

To start a new programme after the current programme is over or to interrupt the current programme, the Child-proof Lock should be deactivated. Press the same buttons for 3 seconds again to deactivate the Child-proof Lock.

i Lock symbol will appear on the display when the Child-proof Lock is activated.

i Child-proof Lock is deactivated when the machine is switched off and on with On / Off button.

When the Child-proof Lock is activated:

• Display symbols will not change even if the position of Programme Selection knob is changed while the machine is running or in halt.
• If the Child-proof Lock is deactivated after changing the position of the Programme Selection knob while the machine is running, the machine stops and new programme information is displayed.

Changing the programme after it has started

After the machine starts, you can change the selected programme and dry your laundry in a different programme.

1. If you want to select Extra Dry programme instead of Iron Dry programme, press and hold the Start / Pause / Cancel button for 3 seconds to cancel the programme.
2. Select Extra Dry programme by turning the Programme Selection knob.
3. Press Start / Pause / Cancel button to start the programme.

You can also select a new programme by turning the Programme Selection knob while the machine is operating. In this case, current programme is aborted and the new programme information appears on the display.

0 1:28

Adding / removing laundry in Pause mode

In order to add or take out laundry after the drying programme has started:

1. Press Start / Pause / Cancel button to switch the machine to Pause mode. Drying process will stop.
2. While in Pause mode, open the loading door, add or take out laundry and close the loading door.
3. Press Start / Pause / Cancel button to start the programme.

i Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.

If you select a new programme by turning the Programme Selection knob while your machine is in Pause mode, then the current program is aborted and new programme information is displayed.

Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Surfaces of the drum are hot.

Canceling the programme

If you want to stop drying and cancel the programme for any reason after the machine has started to run, press and hold the Start / Pause / Cancel button for 3 seconds. Lint Filter Cleaning and Water Tank warning symbols light up and "End" label appears on the display as a reminder at the end of this period.

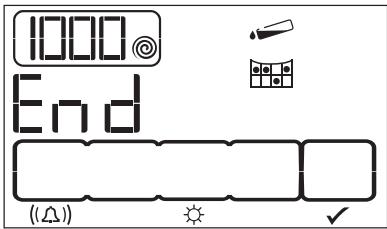

1000 End (△)

As the inside of the machine will be excessively hot when you cancel the programme while the machine is running, activate the ventilation program to cool it down.
Machine will stop if you turn the Programme Selection knob while it is operating. In this case, current programme is aborted and the new programme information appears on the display.

End of programme

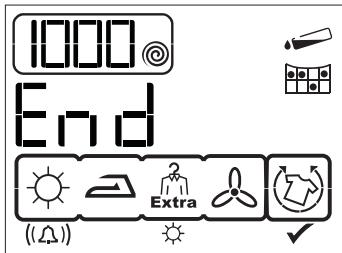

Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator and “End” label appears on the display when the programme comes to an end. The loading door can be opened and the machine becomes ready for a second cycle. Press On / Off button to switch off the machine.

1000 End ((△)) Extra √

If Anti-creasing function is activated and the laundry is not taken from the machine at the end of the programme, 2-hours Anti-creasing programme is activated.
i Clean the lint filter after each drying. (See “Lint Filter / Loading Door Inner Surface”)
i Drain the water tank after each drying cycle. (See "Draining the water tank")

5

Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

This product must be unplugged during maintenance and cleaning works (control panel, body, etc.).

Lint Filter / Loading Door Inner

Surface

Lint and fibres released from the laundry to the air during the drying cycle are collected in the Lint Filter.

Technical diagram of a mechanical device with internal components and a red arrow indicating a specific part (no text or symbols present)

Illustration of hands holding a coiled device with red arrows indicating force or movement (no text or symbols)

Line drawing of a hand holding a curved object with a handle, no text or symbols present

Line drawing of a hand pressing down on a car air conditioner cover (no text or symbols)

i *Such fibre and lint are generally formed during wearing and washing.

Always clean the lint filter and the inner surfaces of the loading door after each drying process.

You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

1. Open the loading door.
2. Remove the lint filter by pulling it up and open the lint filter.

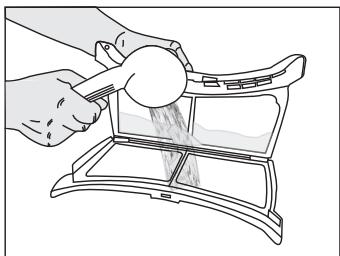

3. Clean lint, fibre, and cotton raveling by hand or with a soft piece of cloth.
4. Close the lint filter and place it back into its housing.

A layer can build up on the lint filter pores that can cause clogging of the lint filter after using the machine for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Illustration of hands using a tool to clean or store items on a tray (no text or symbols visible)

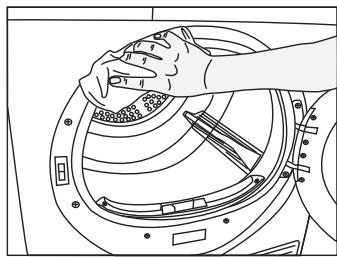

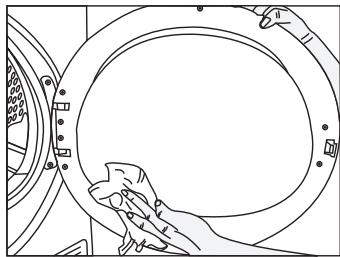

i Clean the entire inner surface of the loading door and loading door gasket.

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand adjusting a circular component with tools, no text or symbols present

Cleaning the sensors

Line drawing of a hand inserting a component into a circular housing (no text or symbols)

There are dampness sensors in the machine that detect whether the laundry is dry or not.

To clean the sensors:

1. Open the loading door of the machine.
2. Allow the machine to cool down if it is still hot due to the drying process.

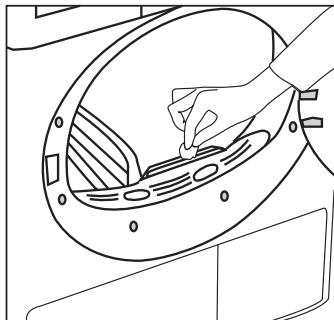

3. Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

i Clean metal surfaces of the sensors 4 times a year.

Do not use metal tools when cleaning metal surfaces of the sensors.

⚠️ Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

Condensed water is not potable!

Never remove the water tank when the programme is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause / Cancel button to resume the drying cycle.

To drain the water tank:

1. Pull the drawer and remove the water tank carefully.

Line drawing of a hand inserting a device into a machine (no text or symbols)

1. Drain the water in the tank.

Line drawing of a mechanical component with a tool inserted, no text or symbols present

1. If there is lint accumulation in the funnel of the water tank, clean it under running water.

2. Place the water tank into its seat.

Cleaning the filter drawer

Lint and fibre that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 5 drying cycles as a reminder.

There is a two-level filter in the filter drawer. The first level is the filter drawer sponge and the second level is the filter cloth.

To clean the filter drawer:

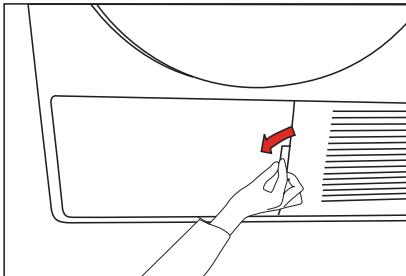

1. Press the kick plate button to open the kick plate.

Line drawing of a hand holding a tool near a window with a red arrow indicating direction (no text or symbols)

1. Remove the filter drawer cover by turning it in the direction of arrow.

Line drawing of a hand inserting or adjusting a component into a vehicle's door panel (no text or symbols visible)

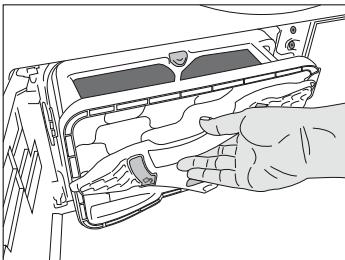

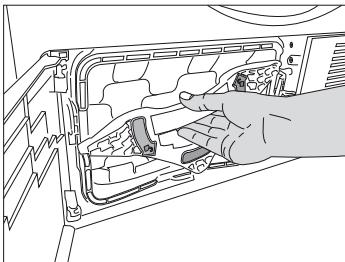

1. Pull out the filter drawer.

Line drawing of a hand inserting a component into a device panel (no text or symbols)

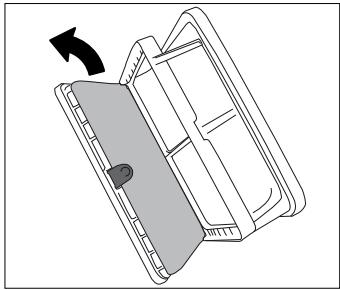

1. Open the filter drawer by pressing the red button.

Line drawing of a hand holding a small object over a rectangular panel (no text or symbols)

1. Take out the filter drawer sponge.

Diagram of a door handle mechanism with an arrow indicating rotation (no text or symbols)

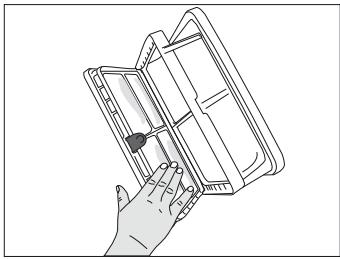

1. Clean lint, fibre, and cotton raveling on the filter cloth by hand or with a soft piece of cloth.

Line drawing of a hand holding an open notebook or folder (no text or symbols visible)

When you notice a layer that may lead clogging on filter cloth, please clean the layer by washing in warm water. Let the filter cloth dry thoroughly before installing back the filter drawer.

1. Hand-wash the filter drawer's sponge to remove hair and lint on it. Squeeze the sponge by hand to remove excessive water.

i It is not necessary to clean the sponge if lint and fibre accumulation on it is not significant.

1. Place the sponge back into its place.

Diagram of a folded notebook or binder with a black arrow indicating rotation (no text or symbols present)

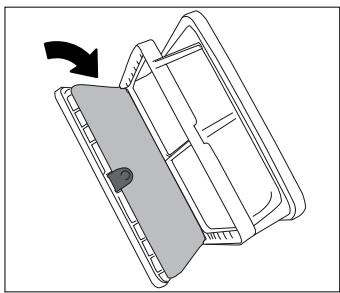

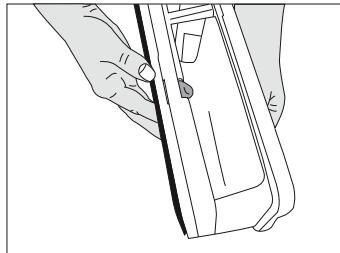

1. Close the filter drawer as to lock the red button.

Line drawing of a hand holding a tool, partially cut off a mechanical component (no text or symbols visible)

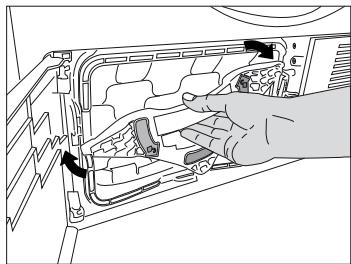

1. Place the filter drawer back into its place, turn the filter drawer cower clockwise making sure that it is closed securely.

Hand inserting a component into a vehicle's door panel (no text or symbols visible)

1. Close the kick plate cover.

Line drawing of a hand pressing down on a device component (no text or symbols)

Drying without the filter drawer sponge in place will damage the machine!

A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

A layer can build up on the lint filter pores that can cause clogging of the lint filter after using your machine for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before using it.

Cleaning the evaporator

Clean the lints accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

Diagram of a device interior with a hand crossed out, showing no text or symbols

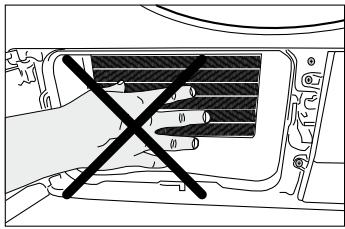

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands.

6 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

i After drying, the hot clothes feel damper than their actual dampness level.

• It is likely that the selected programme did not suit the laundry type.>>>Checking the care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
  • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It is not plugged in. >>> Make sure that the machine is plugged in.
  • The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

• Loading door is ajar. >>> Make sure that the loading door is closed securely.
  • There was a power failure. >>> Press Start / Pause / Cancel button to start the programme.
  • Water tank is full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

- A programme suitable for the laundry type is not used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is switched on.
• Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.

End/Anti-creasing symbol is on.

- Anti-creasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry.

End symbol is on.

- Programme is over. Turn off the dryer and take out the laundry.

Lint Filter Cleaning symbol is on.

- Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

Filter housing is clogged with lints. >>> Clean the lint filter housing.A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.

Water leaks from the loading door

Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

Water tank is full. >>> Drain the water tank.Water draining hose is bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Filter Drawer Cleaning warning symbol is flashing.

Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter drawer.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

Line drawing of a hand cleaning a large circular device with a lid open (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical or electrical component with coiled tubing and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a washing machine with a circular vent and sound wave indicator (no text or symbols)

Technical line drawing of a front-loading washing machine with internal components and ventilation duct (no text or labels)

Line drawing of a washing machine with clothes being lifted by a basket (no text or symbols)

Diagram showing a device with red X marks indicating failure or hazard, enclosed in a circular housing with labeled parts and arrows.

Simple line drawing of a circular object with a red X mark at the base, no text or symbols present.

18:00 88:88 ( (A) ) Extra ✓

60' 00:60 ((Δ)) ★

(10) Extra ✓

(!!) Extra ✓

1000 End ((△)) Extra (○) (○)

Technical diagram of a mechanical device with internal components and a red arrow indicating a specific part (no text or symbols present)

Illustration of hands holding a grid device with red arrows indicating rotation or movement (no text or symbols)

Diagram of a person sitting on a bench inside a storage tray, with no visible text or symbols

Line drawing of a hand pressing down on a car air conditioner cover (no text or symbols)

Illustration of hands using a tool to clean or store items on a tray (no text or symbols visible)

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand adjusting a circular component with tools, no text or symbols present

Line drawing of a hand placing a component into a circular housing (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand holding a mechanical component with a tool, no text or symbols present

Line drawing of a hand pressing down on a computer monitor with a red arrow pointing to the screen (no text or symbols)

Line drawing of a hand inserting or adjusting a component into a vehicle's door panel (no text or symbols visible)

Line drawing of a hand inserting a component into a device panel (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a hand holding an open notebook or notebook device (no text or symbols visible)

Diagram of a folding or folding device with a black arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Hand inserting a component into a vehicle's door panel (no text or symbols visible)

Line drawing of a hand pressing down on a device component (no text or symbols)

Diagram of a hand opening a refrigerator with a black X mark indicating the window (no text or symbols present)
