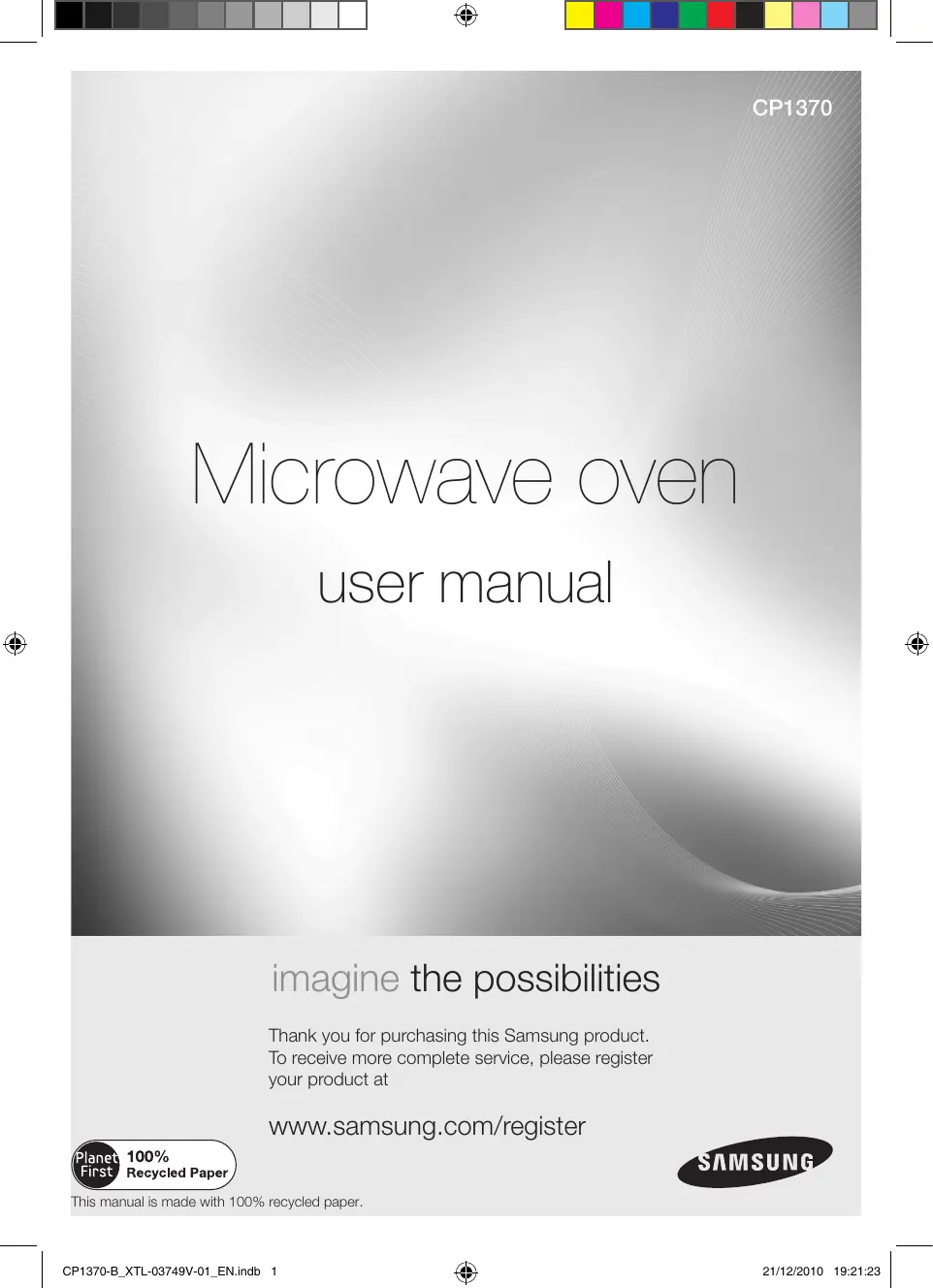

ICrowave ovef | user manual

imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at Www.samsung.com/register [Planet GST Recycied Paper This manual is made with 100% recycled paper. | CHAT XTLaGTAO ENinas 1 & minopoio 102123 |

Thank you for purchasing a SAMSUNG microwave oven Your Owners Manual contains important safety instructions and essential information on using and caring for your new microwave oven Before using your oven, important safety instructions read carefuly and keep it for future reference. Ahandy quick guide explaining basic cooking operations is provided inside the front cover for your convenience. safety information + _ Before operating the appliance, please read this manual thoroughly and retain it at a safe place near the appliance for your future reference. + _ Use this appliance only for its intended purpose as described in this instruction manual. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance. + _ Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at MAMW.Samsung.com. Important safety symbols and precautions. The following symbols are used in the text of this Owner's Manual: ÂÀ Hazards or unsafe practices that may result in severe personal WARNING | injury or death. Hazards or unsafe practices that may result in minor personal CAUTION | injury or property damage. A To reduce the risk of fire, explosion, electric shock, or personal injury when using your microwave oven, follow these basic safety CAUTION precaution 2_ using this manual CP1870-8_XTL-03749V-01 ENindb 2 & 21/12/2010 19:21:23

Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. es] Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note (S)] Important À, Severe warning signs for installation (@ The installation of this appliance must be performed by a qualfied microwave service technician trained by the manufacturer. Please see the section “Installing your Microwave Oven”. Plug the power cord into the proper wall socket or higher and use the socket for this appliance only. Plug the power plug into the wall socket firmiy. In addition, do not use an extension cord. -_ Fallure to do so and sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire. = Do not use an electric transformer. It may result in electric shock or fire. The installation of this appliance must be performed by a qualified technician or service company. -_ Faïing to do so may result in electric shock, fire, an explosion, problems with the product, or injury. It should allow to disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. @ Do not instal this appliance near a heater, inflammable material Do not install this appliance in a humid, olly or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location where gas may leak. -_ This may result in electric shock or fire. The appliance is not intended for installng in road vehicles, caravans and similar vehicles etc. @ This appiiance must be propery grounded Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line -_ This may result in electric shock, fire, an explosion, or problems with the product. = Never plug the power cord into a socket that is not grounded correctiy and make sure that it is in accordance with local and national codes. safety instructions _3 CP1870-B_XTL-03749V-01 ENindb 3 & 21/12/2010 19:21:24

À, Caution signs for installation @ This appliance should be positioned in such a way that it is accessible to the power plug, -_ Failure to do so may result in electric shock or fire due to electric leakage. Install your appliance on a level and hard floor that can support its weight. -_ Failure to do so may result in abnormal vibrations, noise, or problems with the product. Install the appliance while maintaining the proper distance from the wall -_ Failure to do so may result in fire due to overheating The minimum height of free space necessary above the top surface of the oven. Le Severe warning signs for electric @ Remove al foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. = Unplug the power plug and clean it with a dry cloth. -_ Failure to do so may result in electric shock or fire. Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor. -_ If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire. @ Plug the power plug into the wall socket firmiy. Do not use a damaged power plug, damaged power cord or loose wall socket. -_ This may result in electric shock or fire. Do not pull or excessively bend the power cord Do not twist or tie the power cord. Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. -_ This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug = Unplug the power plug by holding the plug. -_ Failure to do so may result in electric shock or fire When the appliance or the cord is damaged, contact your nearest service centre. AL, Caution signs for electric Unplug the power plug when the appliance is not being used for long periodis of time or during a thunder/lightning storm. -_ Failure to do so may result in electric shock or fire. À. Severe warning signs for using In the event of a gas leak (such as propane gas, LP gas, etc), ventilate immediately without touching the power plug. Do not touch the appliance or power cord = Do not use a ventilating fan = A spark may result in an explosion or fire. Take care that the door, heater or any of the other parts do not come into contact with the body while cooking or just after cooking -_ Failure to do so may result in burns. 4_ safety instructions CP1870-B_XTL-03749V-01 ENindb 4 & 21/12/2010 19:21:24

(@) During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. When moving heating elements, make sure to use the equipment designed to move heating element while wearing safety gloves provided with the product, and see if temperature drops sufficientiy (at least 10 minutes after grill or combination cooking operation) after operation. ALWAYS use oven gloves when removing a dish from the oven to avoid unintentional burn. Stand at arms length from the oven when opening the door. Reason : The hot air or steam released may cause scalding, Microwave heating of beverages can result in delayed eruptive boling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions: -_ Immerse the scalded area in cold water for at least 10 minutes. = Cover with a clean, dry dressing. = Do not apply any creams, oils or lotions. - Contact a doctor Ifthe supply cord is damaged, it must be replaced by the manufacturer, its service agent or similany qualfied persons in order to avoid a hazard. Children should be supervised to ensure that they do not play with the appliance. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

WARNING : The contents of feeding bottles and baby food jars shall be stirred or shaken and

the temperature checked before consumption, in order to avoid burns.

WARNING : Only allow children to use the oven without supervision when adequate

instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING : When the applance is operated in the combination mode, children should only.

use the oven under adult supervision due to the temperatures generated. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

WARNING : Accessible parts may become hot during use. To avoid burns young children

should be kept away.

WARNING : Ensure that the appliance is switched off before replacing the lamp to avoid the

possibilty of electric shock. Do not touch the power plug with wet hands. -_ This may result in electric shock. Do not turn the appliance off by unplugging the power plug while an operation is in progress: = Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire. Keep al packaging materials well out of the reach of children, as packaging materials can be dangerous to children: -_lfa child places a bag over its head, it may result in suffocation. safety instructions _5 CP1870-B_XTL-03749V-01 ENindb 5 & 21/12/2010 19:21:24

& CR | mi @ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -_ Faïlng to do so may result in electric shock, burns or injury: Never use the multi-purpose pan for the microwave oven or the defrosting function. = This may result in sparks or fre. Never use this appliance for purposes other than cooking. -_ Failure to do so may result in fire. Open sealed containers (baby bottes, milk bottles, etc.) and make a hole in food items such as shells or nuts (eggs, chestnuts, etc) with a knife, before cooking them. -_ Failure to do so may result in burns or injury due to the item bursting Do not touch the inside of the appliance immediately after cooking, because the inside of the appliance is hot after being heated for a long time or heating a small amount of food. -_ Failure to do so may result in burns. Do not use aluminium fil, metal objects (such as containers, forks, etc.) or containers with golden or silver trims. = This may result in sparks or fre. Never heat plastic or paper containers and do not use them with the oven function -_ Failure to do so may result in fire. Take care that food does not come into contact with the heater when cooking food with the oven. = This may result in fire. Do not over-heat food. = This may result in fire. Do not heat food wrapped in paper such as magazines or newspaper. = This may result in fire. Do not use or place inflammable sprays or objects near the oven. = This may result in fire or an explosion: Do not open the door when the food in the cooking compartment is burning. -_ If you open the door, an inflow of oxygen occurs and this may result in fire. Do not insert fingers, foreign substances or metal objects such as pins or needles into the inlet, outlet and holes. If foreign substances are inserted into any of these holes, unplug the power plug from the wall socket and contact your product provider or nearest service centre. -_ Failure to do so may result in electric shock or injury. NEVER fil the container to the top and choose a container that is wider at the top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated NEVER heat a babys bottle with the teat on, as the bottle may explode if overheated. DO NOT touch heating elements or interior oven walls until the oven be cooled down. Do not immerse the power cable or plug in water and keep the power cable away from heated surfaces. Do not operate this appliance if it has a damaged power cable or plug. 6_ safety instructions CP1870-8_XTL-03749V-01 ENindb 6 & 21/12/2010 19:21:24

& CR | mi DO NOT operate the microwave oven when it is empty. The power will be cut off automatically for safety. You can operate normally after letting it stand for over 30 minutes. It is best to leave a glass of water inside the oven at all times. The water will absorb the microwaves energy if the oven accidently started.

WARNING : If the door or door seals are damaged, the oven must not be operated until it has

been repaired by a competent person

WARNING : Liquids and other foods must not be heated in sealed containers since they are

liable to explode. Ifthe appliance is flooded cut the power immediately and please contact your nearest service centre. -_ Failure to do so may result in electric shock or fire. Ifthe appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre. -_ Failure to do so may result in electric shock or fire. $9 Do not attempt to repair, disassemble, or modify the appliance yourself. -_ Since a high voltage current enters the product chassis, it may result in electric shock or fire. -_ You may be exposed to electromagnetic waves. = When repairing the appliance is required, contact your nearest service centre.

WARNING : It is hazardous for anyone other than a competent person to carry out any service

or repair operation that invoives the removal of a cover which gives protection against exposure to microwave energy. (@ !fany foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre. -_ Failure to do so may result in electric shock or fire. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames: À, Caution signs for using @ On use utensils that are suitable for use in microwave ovens; DO NOT use any metallc containers, Dinnenware with gold or silver timmings, Skewers, forks, etc. Remove wire twist ties from paper or plastic bags. Reason : Electric arcing or sparking may occur and may damage the oven. When heating food in plastic or paper containers, keep an eye on the oven due to the possibiity of ignition: Small amounts of food require shorter cooking or heating time. If normal times are allowed they may overheat and burn. You may notice a Clicking sound during operation (especially when the oven is defrosting). Reason : This sound is normal when the electrical power output is changing, Young children should NEVER be allowed to use or play with the microwave oven. Nor should they be left unattended near the microwave oven when it is in use. Items of interest to children should not be stored or hidden just above the oven. Children should be supervised to ensure that they do not play with the appliance. @ Take care as beverages or food may be very hot after heating, -_ Especially when feeding a child, check that it has cooled suficientiy. safety instructions _7 CP1870-8_XTL-03749V-01 ENindb 7 & 21/12/2010 19:21:24

& CR | mi @ Take care when heating lquids such as water or other beverages. = Make sure to stir during or after cooking. = Avoid using a sippery container with a narrow neck. -_ Remove the container at least 30 seconds after heating. -_ Faïlng to do so may result in an abrupt overflow of the contents and cause burns. Do not hold food or any part there of during or immediately after cooking. -_ Use cooking gloves because it may be very hot and you could burn yourself. -_ If you pull the ceramic dish or well-being multi-purpose pan fonwards, food may spill and this may result in burns. When the surface is cracked, tum the power switch of the appliance off. -_ Failure to do so may result in electric shock. Do not scratch the glass of the oven door with a sharp object. -_ This may result in the glass being damaged or broken Do not stand on top ofthe appliance or place objects (such as laundry, oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. -_ Items, such as a cloth, may be caught in the door. -_ This may result in electric shock, fie, problems with the product, or injury. Do not operate the appliance with wet hands. = This may result in electric shock Do not spray volatile material such as insecticide onto the surface of the appliance. -_ As well as being harmful to human, it may also result in electric shock, fire or problems with the product. Do not apply excessive pressure or impact to the door or to the inside of the appliance. -_ This may result in deformation to the product or injury due to electric wave leakage. = Hanging onto the door may result in the product falling and causing injury. -_Ifthe door is damaged, do not use the appliance and contact your nearest service centre. Do not place the appliance over a fragile object such as a sink or glass object. = This may result in damage to the sink or glass object. Use the appliance only after closing the door. -_ If you use the appliance when it is contaminated by foreign substances such as food waste, it may result in problems with the appliance. Take care when removing the wrapping from food that has just been taken out of the appliance. -_Ifthe food is hot, hot steam may be emitted abruptiy when removing the wrapping and you may burn yourself. Do not unplug the appliance by pulling at the power cord, always grip plug fmiy and pull straight out from the outlet. - Damage to the cord may cause short-circuit, fire and/or electric shock. Do not put your face or body close to the appliance while cooking or when opening the door just after cooking. -_ Take care that children do not come close to the appliance. -_ Failure to do so may result in burns from the heat. Do not place food or heawy objects over the door when opening the door. -_ The food or object may fall and this may result in burns or injury. 8_ safety instructions CP1870-B_XTL-03749V-01 ENindb 8 & 21/12/2010 19:21:24

Do not abruptiy cool the door the inside of the appliance, or the dish by pouring water over it during or just after cooking. -_ This may result in damage to the appliance. The steam or water spray may result in burns or injury. Appliances are not intended to be operated by means of an external timer or separate remote- control system. &, Severe warning signs for cleaning ( Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance. - This may result in discoloration, deformation, damage, electric shock or fire. Before cleaning or performing maintenance, unplug the appliance from the wall socket and remove food waste from the door and cooking compartment. -_ Failure to do so may result in electric shock or fire. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Do not use your microwave oven to dry papers or clothes. For your safety, do not use high-pressure water cleaners or steam jet cleaners. during cleaning conditions the surfaces may get hotter than usual and children should be kept away. (cleaning model only) excess spilage must be removed before cleaning and shall specify which utensils can be left in the oven during cleaning. (cleaning model only) EN Caution signs for cleaning @ The oven should be cieaned regulary and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. @ Take care not to hurt yourself when cleaning the appliance (externalinternal) = You may hurt yourself on the sharp edges of the appliance. Do not clean the appliance with a steam cleaner. -_ This may result in corrosion. safety instructions _9 CP1870-B_XTL-03749V-01 ENindb 9 & 21/12/2010 19:21:24

Failure to observe the following safety precautions may result in harmful exposure to microwave energy. {a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes. {b) Do not place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. {e) Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the: {1) Door (bent) {2) Door hinges (broken or loose) (8) door seals and sealing surfaces (a) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer. This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. &

TROUBLESHOOTING AND ERROR CODE TECHNICAL DATA CP1370-8_XTL-03749V-01_ENindb 11 12 _Installing your oven Checking the product and parts Accessories Checking the control panel Setting the clock Using convection mode Using grill mode Using grill combi mode Using convection combi mode Using auto cook mode Using the crusty cook mode Using memory mode Using power defrost mode Using the keep warm mode How a microwave oven works Using microwave mode Switching off the beeper Child safety lock Fast preheating the oven Cleaning your oven Storing and repairing your microwave oven Troubleshooting Error codes Technical data contents _11 21/12/2010 19:21:24

nstaling your microwave oven

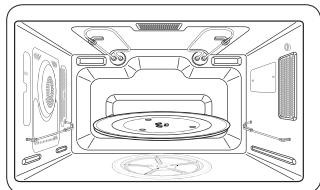

INSTALLING YOUR OVEN

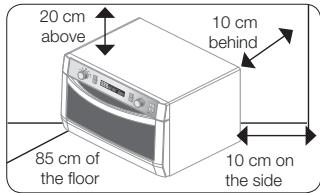

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven + When you install your oven, make sure there is 20cm 10 cm adequate ventilation for your oven by leaving at moe benind least 10 cm (4 inches) of space behind and, on RS the sides of the oven and 20 cm (8 inches) of RES space above. — 65 cm of 10cm on (_1ne foor : imesie —_) + _ Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely. This microwave oven has to be positioned so that plug is accessible. +_ Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time. +_ Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time. 12_ installing the oven CP1870-8_XTL-03749V-01 ENindb 12 & 21/12/2010 19:21:25

CHECKING THE PRODUCT AND PARTS

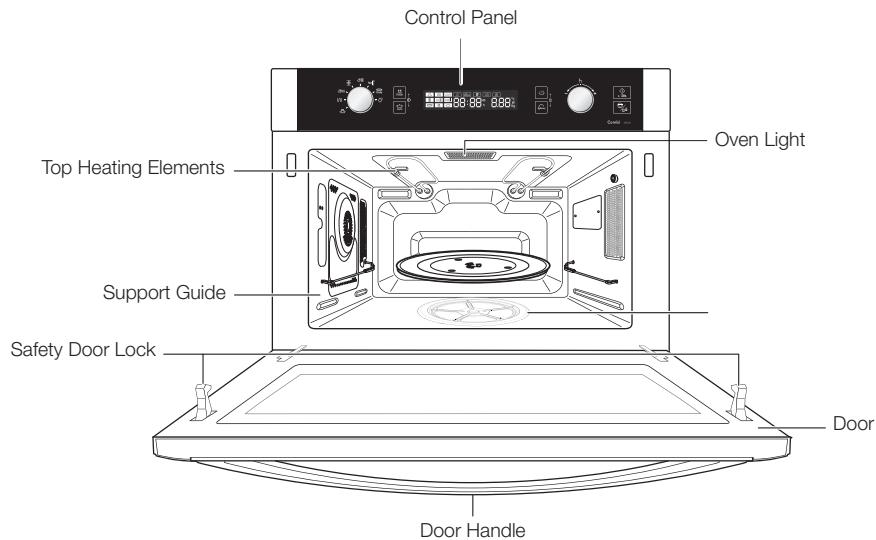

Control Panel Top Heating Elements Support Guide Safety Door Lock +— Oven Light [es Door Handle The Support Guide are mainly used for convection function. CP1870-8_XTL-03749V-01 ENindb 13 & S34n1v34 N3AO 20 Door oven features _13 21/12/2010 19:21:26

ACCESSORIES The following accessories are provided with your microwave oven:

1. Coupler, to be placed correctly over the motor

shaft in the base of the oven. + _ The coupler rotates the turntable.

2. Roller Ring, to be placed in the center of the

oven + _ The roller ring supports the turntable.

3. Turntable, to be placed on the roller ring with

the center fitting on to the coupler. + _ The turntable serves as the main cooking surface; it can be easily removed for cleaning.

4. Metal Racks (High rack, Low rack), to be

placed on the turntable. +_ The metal racks can be used to cook two dishes at the same time. À small dish may be placed on the turntable and a second dish on the rack. + The metal racks can be used in grill, convection and combination cooking,

+ _ The Crusty plate is used to brown bottom of food by using the microwave + grill mode or microwave + convection mode and to keep pastry and pizza dough crisp.

Do not use for Microwave (4: canon), Microwave+Grill (4,11) and Microwave+Convection (45%) Modes for spark prevention.

7. Clean water bowl, to be placed in the right

5. Microwave+Convection Mode

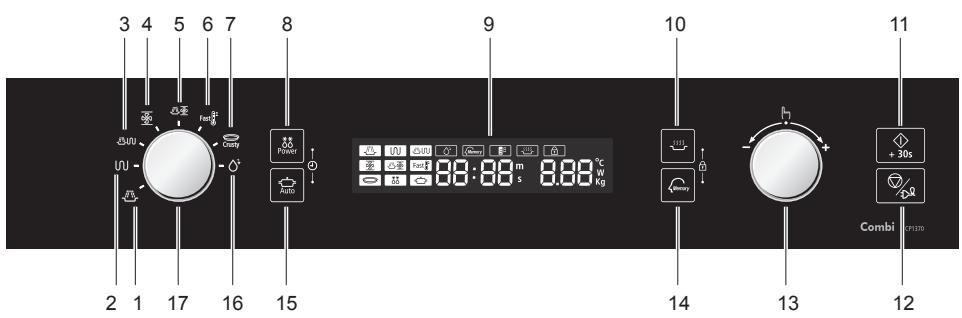

When power is supplied, “12:00” is automatically displayed on the display. Please set the current time. Setting the clock

1. Turn Multi Function Selector to set hour.

3. Turn Multi Function Selector to set minute.

4. Press Selector Button again. The clock sets

by itself within 5 seconds. 16_ before you begin CP1870-8_XTL-03749V-01 ENindb 16 & 21/12/2010 19:21:28

Re-setting the clock

8. Turn Multi Function Selector to set hour.

5. Turn Multi Function Selector to set minute.

6. Press Selector Button again. The clock sets

by itself within 5 seconds. before you begin _17 CP1870-8_XTL-03749V-01 ENindb 17 & 21/12/2010 19:21:28

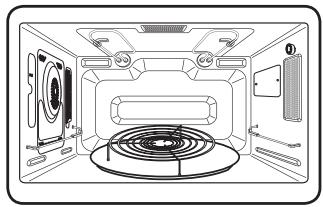

USING CONVECTION MODE

Food is heated by two heating elements on top of cavity and one convection heating element, while the fan from side distributes the hot air evenly. Low rack or Low rack+Crusty plate are placed on the turntable. Square tray is placed on Support guide. Low rack Low rack + Crusty plate Square tray Convection setting

1. Turn Mode Selector dial to Convection mode

2. Turn Multi Function Selector Dial to desired

3. Press Selector Button to set desired

temperature. (40-230 °C) 7.

4. Set the cooking time by turning the Multi h

+ _ The temperature (°C) indicator on display will [&] be lit and the indicator will blink and beep 4 } times after the temperature is reached. D) 18_ oven use CP1370-8_XTL-03749V-01_ENindb 18 rs 21/12/2010 19:21:30

& CR | mi During cooking, Cook Time and Temperature are available to change the setting. + Cooking time : Just turn Multi Function Selector. + Temperature: Press Selector Button and then turn Multi Function Selector. In Convection Mode settings, the top and Convection heating elements switch off and on throughout cooking to regulate the temperature. SG] Important

1. Always use oven gloves when touching the recipients in the oven, as they will

2. When using Convection Mode, be sure glass baking dishes are suitable for 40-

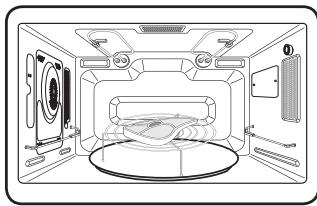

Food is heated by the top heating elements. (horizontal position) For grilling, open the door and place the food on the rack. 3SN N3AO +0 High rack High rack + Crusty plate The grill enables you to heat and brown food quickly, without using microwaves.

1. Turn Mode Selector dial to Grill mode

2. Set the cooking time by turning the Multi

(The maximum cooking time is 90 minutes.) | #

1. Always use oven gloves when touching the recipients in the oven, as they will

2. Check that the heating element is in the horizontal position.

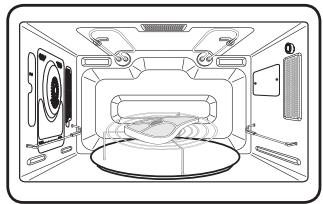

Food is heated by the top heating elements combined with a cycle of microwave energy. For grilling, open the door and place the food on the rack. Do not use Square tray for Grill combi mode. High rack High rack + Crusty plate ÂÀ Square tray Grill combi (1) setting You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

1. Turn Mode Selector dial to Gill Combi mode

2. Set the cooking time by turning the Multi h

Function Selector. D” _Y (The maximum cooking time is 90 minutes.) 1 dé

8. lf you want to change power level; Press the G

Result : When cooking has finished, the oven will beep and flash “End” four times. D The oven will then beep one time per minute. = You can chage the cooking time and power level during the cook. + Cooking time : Just turn Multi Function Selector. +_ Power level : Press Selector Button and then turn Multi Function Selector. Important

1. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic

dishes are ideal as they allow the microwaves to penetrate the food evenly.

2. ALWAYS use oven gloves when touching the recipients in the oven, as they will

3. Check that the heating element is in the horizontal position.

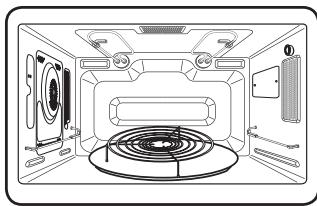

Food is heated by dual grill and one convection heating element, combined with a cycle of microwave energy, while one fan from side distributes the hot air evenly. Low rack or Low rack+Crusty plate are placed on the turntable. Do not use Square tray for Convection combi mode. 3SN N3AO +0 Low rack Low rack + Crusty plate À Square tray Convection combi (::#) setting

1. Turn Mode Selector dial to Convection

Combi mode position. le F

2. Set the cooking time by turning the Multi

Function Selector. Ÿ (The maximum cooking time is 90 minutes.) #

8. If you want to change power level; Press the

Selector Button and then select appropriate à h æ | © power level by turning the Multi Function , \ | )) Selector. + Default : 600 W + 600, 450, 300, 180, 100 W

4. If you want to change temperature; Press the RS ES

(Z) Resuit : When cooking has finished, the Ÿ D à oven will beep and flash “End” four times. The oven will then beep one time per minute.

You can chage the cooking time and power level during the cook. + Cooking time : Just turn Multi Function Selector. +_ Power level : Press Selector Button and then turn Multi Function Selector. +_ Temperature : Press Selector button and then turn Multi Function Selector. oven use _21 CP1870-8_XTL-03749V-01 ENiindb 21 & 21/12/2010 19:21:32

1. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic

dishes are ideal as they allow the microwaves to penetrate the food evenly.

2. ALWAYS use oven gloves when touching the recipients in the oven, as they will

3. Check that the heating element is in the horizontal position.

USING AUTO COOK MODE

The twenty Auto Cook features include/provide pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the Auto Cook Mode by turning the Multi Function Selector. (1-20)

2. Select the type of food that you are cooking by

turning the Multi Function Selector. (1-20) 7 b)

8. lf you want to change serving size; Press

the Selector Button and then select size of PAN e) the serving by turning the Multi Function Selector.

4. Press Start button.

e Result : Auto cooking starts. When cooking [&] has finished, the oven will beep and flash ) E “End” four times. The oven will then beep D. \ one time per minute. 22_ oven use CP1870-8_XTL-03749V-01 ENindb 22 & 21/12/2010 19:21:32

Auto Cook Features The following table presents 20 Auto Cook Programmes. lt contains its quantities, standing times after cooking and appropriate recommendations. Cooking times and power levels are pre-programmed for your convenience. Use oven gloves while taking out! Code Food Serving size (kg) Standing time Accessory Recommendations Drinks Coffee, milk, tea, water (room temperature)

(1 mug) (2 mugs) 1-2 Microwave safe dish Pour the liquid into ceramic mugs and reheat uncovered. Place one mug in the center, place 2 mugs opposite to each other in the area of roller ring on turntable. Leave them to stand in the microwave oven: Stir drinks before and after standing time. Be careful while taking the cups out (see safety instructions for liquid). 3SN N3AO +0 Plated meal (chilled)

0.3-0.35 0.4-0.45 Microwave safe dish Put meal on a ceramic plate and cover with microwave cling film. & Put plate in the center of turntable. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish Ike potatoes, rice or pasta). Frozen Ready Meal (18°C) xxx 0.3-0.35 0.4-0.45

Microwave safe dish Pierce film of frozen ready meal. Put meal in the center of turntable. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish Ike potatoes, rice or pasta). CP1370-8_XTL-03749V-01_ENindb 23 oven use _23 21/12/2010 19:21:33

Code Food Serving size (kg) Standing time {min.) Accessory Recommendations 4 | Soup/Sauce (chilled)

0.2-0.25 0.4-0.45 2-3 Microwave safe dish Pour into à deep ceramic plate or bowil and cover with plastic lid during heating Put soup in the center of turntable. Stir carefully before and after standing time. 5 |Stew (chilled) sis 0.2-0.25 0.4-0.45 2-3 Microwave safe dish Pour into à deep ceramic plate or bowil and cover with plastic lid during heating Put soup in the center of turntable. Stir carefully before and after standing time. 6 |Fresh vegetables

0.3-0.35 0.5-0.55 Microwave safe dish Weigh the vegetables after washing, cleaning and cutting into similar size. Put them into a glass bowi with lid. Add 45 ml water (8 tablespoons). Put bowi in the center of turntable. & Cook covered. Stir after cooking. 7 | Peeled potatoes

0.5-0.55 0.7-0.75 2-3 Microwave safe dish Weigh the potatoes after peeling, washing and cutting into a similar size. Put them into a glass bowi with lid. Add 45-60 mi (8-4 tablespoons) water. Put boul in the center of turntable. Cook covered. 8 |Baked potatoes 0.2-0.4 0.8-1.0 Wash and clean potatoes and pierce with a fork Brush skin with olive oil and spices. Put potatoes, each about 200 g side by side on the low rack. Set rack on crusty plate. 24_ oven use CP1370-8_XTL-03749V-01_ENindb 24 21/12/2010 19:21:33

Code Food Serving size (kg) Standing time Accessory Recommendations 9 White rice

5-10 Microwave safe dish Weigh parboiled white rice and add double quantity of cold water. For example: when cooking 0.25 Kg rice, add 2 liter cold water. Use glass pyrex bowi with lid. Put bowi in the center of turntable. Cook covered. 10 |Steaks

0.3-0.6 0.6-0.8 Put steaks side by side on the high rack. Set rack on crusty plate. Turn over as soon as the oven beeps. Push start button to continue process. The first setting is for thin steaks, the second setting is for thick steaks. 3SN N3AO +0 11 | Chicken pieces

0.5-0.6 11-12 Brush chilled chicken pieces with oil and spices. Put skin-side down on the high rack. Set rack on crusty plate. Turn over, as soon as the oven beeps. Push start button to continue process. 12 | Roast fish

0.5-0.6 0.7-0.8 Brush skin of whole fish with oil and add herbs and spices. Put fish side by side, head to tail, on the high rack. Set rack on crusty plate. Turn over, as soon as the beep sounds. Push start button to continue process. 13 | Roast chicken

Brush chilled chicken with oil and spices. Put breast-side-down, in the middle of the low rack. Set rack on crusty plate. Turn over, as soon as the oven beeps. Push start button to continue process. CP1370-8_XTL-03749V-01_ENindb 25 oven use _25 21/12/2010 19:21:34

Code | Food Serving | Standing | Accessory | Recommendations size time (kg) {min.) 14 |Roastmeat | 10-12 | 5-10 Brush the meat/lamb with /Lamb 13-15 oil and spices (pepper = LE > only, salt should be added after roasting). Put it on the low rack with the fat-side down. Set rack on crusty plate. Turn over, when the oven beeps. After roasting and during standing time it should be wrapped in aluminium foil. 15 0.1-0.2 - Put frozen mini-pizza 0.3-04 snack in a circle on the low rack. 16 | Frozen 0.4-0.5 3-4 Microwave | Put frozen lasagne into à lasagne 0.9-1.0 safe dish | suitable sized glass pyrex (18°C) LS, | 0 ceramie dish, Set dish > on the low rack.

17 | Frozen 0.1-0.2 3-5 Put frozen bread rolls in a bread rolls | 0.3-0.4 circle on the low rack. (18°C)

18 | Frozen cake | 0.4-0.6 | 5-25 Put one frozen cake in the (18°C) 10-12 center, put frozen cake nn pieces side by side on the ES low rack. By the help of convection heat the cake will be warmed and crisp up. This programme is suitable for cake (round) and cake pieces, such as fruit cake with crumble topping, streusel cake or cake with poppy seeds. Itis not suitable for cake with cream filing and cake with chocolate topping 26_ oven use

Code| Food | Serving | Standing | Accessory | Recommendations size time (kg) 19 0.7-08 | 5-10 Put dough into suitable sized rectangular metal baking dish. Put dish on the low rack. This programme is suitable for batter, such as lemon cake, hazelnut cake and marble cake. 20 | Muftins 0.3-0.4 5 We recommend to preheat

3SN N3AO +0 the oven with fast preheat function to 180 °C Put muffin dough into metal muffin dish, suitable for 6 muffins. Set dish in the middle of the low rack. CP1370-8_XTL-03749V-01_ENindb 27 oven use _27 21/12/2010 19:21:35

Normally when cooking in microwave oven, using grill or microwave mode in grill/ convection ovens, foods like pastries and pizza become soggy from bottom side. Using the Samsung Crusty plate helps to gain a crispy cooked result of your food. The crusty plate can also be used for bacon, eggs, sausages, etc.

Crusty plate on turntable Crusty plate + High rack

1. Preheat the crusty plate, as described above.

Before using the crusty plate, preheat it by selecting the combination mode for 3 to 5 minutes: + Combination of convection (180 °C) and microwaves. (600 W power level). + Combination of grill and microwaves (600 W power level). Use oven gloves at all times as the crusty plate will become very hot.

2. Brush the plate with oil if you are cooking food, such as bacon and eggs, in

order to brown the food nicely. + _ Please note that the crusty plate has a teflon layer which is not scratch- resistant. Do not use any sharp objects like a knife to cut on the crusty plate. + _ Use plastic accessories to avoid scratches on the surface of the crusty plate or remove the food from the plate before cutting.

8. Place the food on the crusty plate.

+ _ Do not place any recipients on the crusty plate that are not heat-resistant {plastic bowis for example).

4. Place the crusty plate on the metal rack(or turntable) in the microwave.

+ Never place the crusty plate in the oven without the turntable.

5. Turn Mode Selector dial to Auto Crusty

6. Select the type of food by turning the Multi

Function Selector. (1-5)

7. lf you want to change serving size; Press

the Selector Button and then select size of the serving by turning the Multi Function Selector. 3SN N3AO +0

8. Press the Start button.

( Result : Crusty cooking starts. When cooking has finished, the oven will beep and } flash “End” four times. The oven will then D) beep one time per minute. How to clean the Crusty plate Clean the crusty plate with warm water and detergent and rinse off with clean water. Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged. The crusty plate is not dishwasher-safe. oven use _29 CP1870-8_XTL-03749V-01 ENindb 29 & 21/12/2010 19:21:35

Auto Crusty Cook Features The following table presents 5 Auto Crusty Cook Programmes. It contains its quantities, standing times after cooking and appropriate recommendations Cooking times and power levels are pre-programmed for your convenience. When using programme 1-3 you do not need to preheat the crusty plate, before using programme 4 and 5 please follow preheating advice in the table. Always place crusty plate and rack in the middle of the oven. Use oven gloves while taking out! Code| Food | Serving | Standing | Accessory Recommendations size time (kg) .) 1 [Frozen | 03-04 - Put pizza on crusty plate on Pizza 0.4-0.5 ——> | the high rack in the middle of #4 0.5-0.6 _ the turntable. 2 |Frozen | 02-08 - Distribute oven chips evenly oven 0.4-0.5 on crusty plate on the high chips rack in the middle of the un tumtable. S Turn chips over, a soon as the oven beeps. Push star to continue process. 3 |Potato | 02-08 1-2 Cut potatoes into wedges or wedges | 0.4-0.5 > cubes. Brush with olive oil, salt and spices. % Put potato wedges evenly on crusty plate on the high rack in the middle of the turntable. Turn wedges over, a soon as the oven beeps. Push start to continue process. 4 [Quiche | 0.6-0.8 | 5-10 Preheat the crusty plate using 0.8-1.0 =? | 600 W+ 180 *C for 5 min. on Susr turntable. Add quiche dough and filing, Put it on the low rack in the middle of the turntable. Push start to continue process. 30_ oven use CP1370-8_XTL-03749V-01_ENindb 30 21/12/2010 19:21:36

Code| Food | Serving | Standing | Accessory Recommendations size time (Kg) | (min) 5 |Cookies/ | 0.1-0.2 | 2-5 Preheat the crusty plate using Biscuits | 0.2-0.3 € > | 600 W + 180 °C for 3 min. on ES T | tumtabie Add cookies/ biscuits and put it on the low rack in the middle of the turntable. The first setting is for thin biscuits (3-5 mm), the second setting is for thick biscuits (5-7 mm). 3SN N3AO +0 oven use _31 CP1870-8_XTL-03749V-01 ENindb 31 & 21/12/2010 19:21:36

You can memorize your favorite cooking recipes for later use. To save your recipe to memory:

1. Turn the Mode Selector dial to select a mode

and enter the steps required before pressing the Start button. (Do not press the Start button yet.) (For input, refer to the applicable pages for each function.)

2. When finished with your input, press the

Memory button to select a memory number (1-3) and press the Selector Button. (8) Resuit

1. Your input will be saved with a one second

2. When finished, you will return to the

selected mode. & + You can save up to three recipes to memory and add or change them at any time later. +_lfa selected memory number is flashing, this indicates that no recipe is stored for that memory number. Whereas, a solid sign indicates that the number contains a stored recipe. +_lf you unplug the power cord, your input is deleted accordingly. To run a memorized recipe:

Setting power defrost mode Choose from five pre - programmed microwave settings for defrosting. Defrosting time and power level are automatically set. Simply select the setting and weight to start defrosting. Open the door. Place the frozen food in the center of the turntable. Close the door.

2. Select the type of food that you are cooking by

turning the Multi Function Selector. (1-5) DEN Refer to the table on the following page for a r | description of the various pre-programmed settings.

8. If you want to change serving size; Press

the Selector Button and then select size of G k 7” 7 Ÿ the serving by turning the Multi Function L We Selector. N N

4. Press Start button to start cooking.

77 Result : + _ Defrosting begins. |

+_ The oven beeps half way through defrosting to remind you to turn the food EE over. After you turn over the food, Press start button again. SG] Important : + Use only containers that are microwave - safe. + You can also defrost food manually. To do so, select the microwave function With a power level of 180 W. Refer to the section entitled “Defrosting” on page 48 to 49 for further details. Guide to power defrost programmes The following table presents 5 Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kind of package material before defrosting. oven use _33 CP1870-8_XTL-03749V-01 ENindb 33 & 21/12/2010 19:21:37

Place frozen meat, poultry, fish and vegetables on a flat glass dish or ceramic plate on turntable. (Refer to page 39 for safety) No | Frozen food (18°C) Serving size (kg) Standing time (min) Recommendations 1 | Meat 0.2-2.0 20-120 Always shield the edges with aluminium foi. Turn the meat over, as soon as the oven beeps. This programme is suitable for lamb, pork, steaks, chops, minced meat. 2 |Pouitry 0.2-2.0 20-120 Always shield the leg and wing tips with aluminium foil. Turn the poultry over, as soon as the oven beeps. This programme is suitable for whole chicken as well as for chicken portions. 3 |Fish 0.2-2.0 20-110 Always shield the tail of a whole fish with aluminium fol, Turn the fish over, as soon as the oven beeps. This programme is suitable for whole fishes as well as for fish filets. 4 | Bread/Cake

0.1-1.0 10-60 Put bread horizontally, lengthways to the door, on a piece of kitchen paper on the turntable. Turn over, as soon as the oven beeps. Place cake on ceramic tray and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread roll side by side. This programme is suitable for all kinds of veast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping, 5 | Vegetables

0.1-0.8 Spread vegetables evenly into a flat glass pyrex dish. This programme is suitable for vegetables such as peas, broccoli florets, carrot siices, caulflower florets and spinach cubes. G] Important : The Power Defrost Mode uses microwave energy to heat food. Therefore guidelines for cookware and other microwave safety precautions must be strictly observed when using this mode. 34_ oven use CP1370-8_XTL-03749V-01_ENindb 34 21/12/2010 19:21:37

USING THE KEEP WARM MODE

8. Select the item of food that you are keeping warm by turnning the Multi

Result : Keep warm starts. lt operate for 30 minutes. When keep warm has finished, the oven will beep and flash “End” four times. The oven will them beep one time per minute. oven use _35 CP1870-8_XTL-03749V-01 ENindb 35 & 21/12/2010 19:21:38

keep warm Features The following table presents 4 Keep warm Programmes. It contains which type of food / ovenware is suitable in each programmes. The time and temperature are pre-programmed for your convenience. The convection heater operates only and it will cycle on and off to keep food warm. Use oven gloves while taking out! Code Item Temperature | Time Recommendations 1 |Food 80°C 30 min | This setting is suitable for keeping EAN warm roast meat, chicken, gratin, pizza, potatoes and plated meal. 2 |Drink 80°C 30 min | This setting is suitable for keeping & warm water, milk and coffee. 3 |Bread and 60 °C 30 min | This setting is suitable for keeping pastries warm bread, toast, rolls, muffins & and cake. 4 |Dishes/ 70°C 30 min | This setting is suitable for Crockery preheating cup and ovenware. 7 Distribute the crockery over the & whole area of turn table. Do not overload the oven. (Maximum load 7 Kg) G] Important : + Do not use this function to reheat cold foods.This programmes are for keeping food warm that has just been cooked. +_ Do not recommend food being kept warm for too long (more than 1 hour), as it will continue to cook. Warm food spoils more quickly. + _ Cover liquids and foods which are high moisture contents. But if you want to keep crisp roast or fried foods, do not cover it. 36_ oven use CP1870-8_XTL-03749V-01 ENindb 36 & 21/12/2010 19:21:38

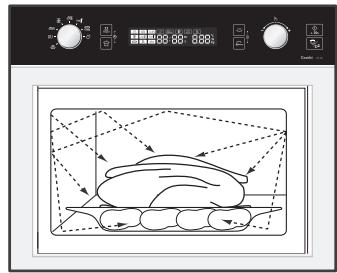

Microwaves are high - frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave to: + Defrost + Cook Cooking principle

1. The microwaves generated by the

magnetron are distributed uniformly by using a stirrer distribution system. The food is thus cooked evenly.

2. The microwaves are absorbed by the food

up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.

8. Cooking times vary according to the

container used and the properties of the food: + Quantity and density + Water content +_ Initial temperature (Refrigerated or not) 3SN N3AO +0 Important : As the center of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure. + Even cooking of the food right to the center +_ The same temperature throughout the food oven use _37 CP1870-8_XTL-03749V-01 ENindb 37 & 21/12/2010 19:21:38

Microwaves are high frequency electromagnetic waves. In microwave cooking, microwave energy penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. Setting microwave setting

1. Turn Mode Selector to microwave position.

Time and power level will appear on display.

2. Turn Multi Function Selector to set desired

and turn Multi Function Selector to desired D power level. Refer to Cooking Guides (pages Là 41 to 56) for guidelines on appropriate cooking times and power levels.

4. Press Start button to start cooking,

Result : + Cooking starts and when it has finished. # + The oven will beep and flash “End” four. The oven will then beep one time per minute. You can chage the cooking time and power level during the cook. + Cooking time : Just turn Multi Function Selector. + Power level : Press Select (|) button and then turn Multi Function Selector. Quick start : +_lf you want to heat a dish for a short period of time at maximum power (900 W), you can also simply press the Start button once for each 30 seconds of cooking time. The oven starts immediately. (Mode Selector has to be located to Microwave) 38_ oven use CP1370-8_XTL-03749V-01_ENindb 38 rs 21/12/2010 19:21:39

Guide to microwave power levels 3SN N3AO +0

POWER LEVEL | PERCENTAGE OUTPUT REMARK

(%) POWER (W) HIGH 100 900 For heating up liquids. HIGH LOW 83 750 For heating up and cooking food MEDIUM HIGH 67 600 For heating up and cooking food CENT 50 450 For cooking meat and BUALON 3 300 heating up delicate foods. DEFROST 20 180 For defrosting and continued cooking. Low “1 100 For defrosting delicate foods. Microwave cookware guide Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves. Therefore, do not use cookware made of metallic materials. Cookware marked microwave - safe is always safe for use. For additional information on appropriate cookware refer to the following guide and place a glass of water or some food on the turntable. Cookware Microwave- Comments Safe Aluminium Foil vx Can be used in small quantities to protect areas against overcooking. Arcing can oceur if the foil is too close to the oven wall or if too much foil is used Crusting Plate Do not preheat for more than 8 minutes. China and Earthenware Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim. Disposable Polyester Y Some frozen foods are packaged in these Cardboard Dishes dishes. Fast - Food Packaging + Polystyrene cups Y Can be used to warm food. Overheating containers may cause the polystyrene to melt + Paper bags or x May catch fire. newspaper oven use _39

CP1370-8_XTL-03749V-01_ENindb 39 21/12/2010 19:21:39

Cookware Microwave- Comments Safe + Recycled paper or x May cause arcing metal trims Glassware + Oven-to-table ware Ÿ Can be used, unless decorated with a metal trim. Can be used to warm foods or + Fine glassware Ÿ liquids. Delicate glass may break or crack if heated suddenly. «Glass jars Ÿ Must remove the lid. Suitable for warming only Metal

• Dishes x May cause arcing or fire. « Freezer bag twist ties x Paper + Plates, cups, napkins Ÿ For short cooking times and warming. Also and Kitchen paper to absorb excess moisture. + Recycled paper x May cause arcing Plastic LA + Containers Ÿ Particulany if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic. + Cling fim Ÿ Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape. + Freezer bags vx Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary. Wax or Grease-proof Ÿ Can be used to retain moisture and Paper prevent spattering. “Arcing” is the microwave term for sparks in the oven. *_: Recommended x: Use Caution x: Unsafe 40_ oven use CP1370-8_XTL-03749V-01_ENindb 40 rs 21/12/2010 19:21:39

& CR | mi Microwave cooking guide Microwaves Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. Cooking Cookware for microwave cooking: Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers. Always use the turntable, when using microwave mode. Put dishes and food on the turntable. 3SN N3AO +0 Food suitable for microwave cooking: Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example, see the chapter with quick & easy tips at the end of guide. Covering during cooking To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film. Standing times After cooking is over food the standing time is important to allow the temperature to even out within the food. oven use _41 CP1870-8_XTL-03749V-01 ENiindb 41 & 21/12/2010 19:21:39

Cooking Guide for frozen vegetables Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time. Food Portion | Power | Time | Standing Instructions (g) (W) .) time {min.) Spinach 150 | 600 | 57 23 |Add15mi(t tablespoon) cold water. Broccoli 300 | 600 | 8-10 2-3 | Add 30 mi(2 tbep) cold water. Peas 300 | 600 | 7-9 23 | Add 15 mi{t tbsp) cold water. Green Beans 300 | 600 |7%-9% | 2-8 | Add 30 mi (2 tbsp) cold water. Mixed Vegetables | 300 | 600 | 7-9 23 | Add 15 mi{t tbsp) cold (Carrots/Peas/ water. Com) Mixed Vegetables | 300 | 600 |7%-9%| 23 |Add15mi(t tbsp) cold & (Chinese Style) water. 4 Cooking guide for fresh vegetables Use a suitable glass pyrex bowl with lid. Add 30-45 mi cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes. Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook. 42_ oven use CP1370-8_XTL-03749V-01_ENindb 42 rs 21/12/2010 19:21:39

All fresh vegetables should be cooked using full microwave power (900 W) Food |Portion| Time | Standing Instructions (g) | (min) | time (min) Broccoli 250 3-4 3 Prepare even sized florets. Arrange 500 67 the stems to the center. Brussels 250 5-6 3 Add 60-75 mi (5-6 tbsp.) water e Sprouts ë Carrots 250 | 45 8 Cut carrots into even sized sices. ñ Cauliflower | 250 45 3 Prepare even sized florets. Out big c 500 78 florets into halves. Arrange stems to e the center. Courgettes | 250 3-4 3 Cut courgettes into slices. Add 30 mi (2 tbsp.) water or a knob of buïter, Cook untl just tender. Egg Plants 250 3-4 3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice. Leeks 250 3-4 3 Cut leeks into thick slices. Mushrooms | 125 1-2 3 Prepare small whole or sliced 250 3 mushrooms. Do not add any water. Sprinke with lemon juice. Spice with salt and pepper. Drain before senving. Onions. 250 45 3 Cut onions into slices or halves. Add oniy 15 ml (1 tbsp.) water. Pepper 250 45 3 Cut pepper into small sices. Potatoes 250 45 3 Weigh the peeled potatoes and cut 500 7-8 them into similar sized halves or quarters. Tumip 250 5-6 3 Cut turip cabbage into small Cabbage cubes. oven use _43

CP1370-8_XTL-03749V-01_ENindb 43 21/12/2010 19:21:39

Cooking guide for rice and pasta Rice — Use a large glass pyrex bowil with lid — rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. The rice may not have absorbed all water after the cooking time is finishedi. Pasta - Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards. Food Portion | Power Instructions (g) [LU] White Rice 250 | 590 Add 500 mi cold water. (Parboilec) 375 Add 750 m1 cold water Brown Rice 250 | 990 Add 500 m1 cold water. (Parboilec) 375 Add 750 m1 cold water Mixed Rice (Nice + Wild 250 | 900 | 17-19 Add 500 m1 cold water. Rice) Mixed Gorn 250 900 | 19-20 Add 400 m1 cold water. ice + Grain) Pasta 250 | 900 | 11-18 Add 1000 mi hot water. 44_ oven use

CP1370-8_XTL-03749V-01_ENindb 44 21/12/2010 19:21:39

Reheating Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7°C. Arranging and covering Avoid reheating large items such as joint of meat — they tend to overcook and dry out before the center is piping hot. Reheating small pieces will be more successful. 3SN N3AO +0 Power levels and stirring Some foods can be reheated using 900 W power while others should be reheated using 750 W, 600 W, 450 W or even 300 W. Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example). Stir well or turn food over during reheating for best results. When possible, stir again before serving. Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. Itis preferable to underestimate cooking time and add extra heating time, if necessary. Heating and standing times When reheating food for the first time, it is helpful to make a note of the time taken — for future reference. Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out. The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart. Take particular care when heating liquids and baby food. See also the chapter with the safety precautions. oven use _45 CP1870-8_XTL-03749V-01 ENindb 45 & 21/12/2010 19:21:40

Reheating liquids Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating Reheating Liquids and Food Use the power levels and times in this table as a guide lines for reheating. Food | Portion | Power| Time | Standing Instructions (min) | time {min Drinks 250m | 900w | 14-2 1-2 | Pourinto mugs and reheat (coffee, tea | (1 mug) uncovered: 1 cup in the and water) | 500 ml 334 center, 2 cups side by side. Keep in microwave oven (2 mugs) during standing time and stir well Soup 250g |ooow| 34 2-3 | Pourinto a deep ceramic (chilles) 450g 45 plate or deep ceramic bowl Cover with plastic lid Stir well after reheating. Stir again before serving, Stew 450g | 600W | 5%-6% 2-3 | Putstewin a deep ceramic (chilled) plate. | Cover with plastic lid Stir occasionally during reheating and again before standing and serving. Pasta with | 3509 |600W | 4%-5% 3 Put pasta (8.9. spaghetti or sauce egg noodies) on a flat ceramic (chilles) plate. Cover with microwave Gling film. Stir before serving. Filled 350g | 600W | 5%-6% 3 Put filed pasta (8.9. raviol, pasta with tortelln) in a deep ceramic plate. Cover with plastic x ld. Stir occasionally during (chillec) reheating and again before standing and serving. sauce Plated 850g |6oow| 56 3 | Plate a mealof 2-8 chiled Meal components on a ceramic ë dish. (cilec) Cover with microwave cling- film: 46_ oven use CP1870-8_XTL-03749V-01 ENindb 46 & 21/12/2010 19:21:40

Reheating baby food Baby Food Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheatingl Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C. Baby Milk Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37°C. REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating. Reheating Baby Food and Milk Use the power levels and times in this table as guide lines for reheating. 3SN N3AO +0 Food |Portion | Power| Time | Standing Instructions {min.) time {min.) Baby food | 190g | 600W | 30 sec. 2-3 | Emptyinto ceramic deep {vegétables plate. + meat) Cook covered. Stir after cooking time. Stand for 2-8 minutes. Before serving, stir well and check the temperature carefully. Baby 190g |600w | 20sec. 2-3 | Emptyinto ceramic deep porridge plate. | (grain + Cook covered. Stir after milk + fruit) cooking time. Stand for 2-8 minutes. Before serving, stir well and check the temperature carefull. Baby milk | 100 mi | 300 W | 30-40 sec. | 2-3 | Stiror shake well and pour into a sterlized glass bottle. 200 mi 4 min. to Place into the center of 4 min, 10 turn-table. Cook uncovered. Sec. Shake well and stand for at least 8 minutes. Before serving, shake well and check the temperature carefully. oven use _47 CP1870-8_XTL-03749V-01 ENindb 47 & 21/12/2010 19:21:40

Defrosting Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up. Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible. Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below. Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food. For defrosting of frozen food with a temperature of about -18 to - 20 °C, use the following table as a guide. 48_ oven use CP1870-8_XTL-03749V-01 ENindb 48 & 21/12/2010 19:21:40

All frozen food should be defrosted using defrosting power level (180 W). Food Portion | Time | Standing Instructions {min.) | time (min) Meat Minced Meat 2509 | 46 15-30 | Place the meat on the ceramic 500g | 9-11 plate. Shield thinner edges with < Pork Steaks 2509 | 7-8 aluminium foil 2 Turn over after half of defrosting s time! Zz Poutry ÿ Chicken Pieces | 500g | 12-14 | 15-60 | First, put chicken pieces first @ pcs) skin-side down, whole chicken first breast-side-down on ceramic Whole Chicken | 1200g | 28-32 plate. Shield the thinner parts like wings and ends with aluminium fol. Turn over after half of defrosting time! Fish Fish Filets 2009 | 67 10-25 | Put frozen fish in the middle of ceramic plate. Whole Fish 4009 | 11-18 Arrange the thinner parts under the thicker parts. & Shield narrow ends of fllets and $ tail of whole fish With aluminium foil Turn over after half of defrosting time! Fruit Berries 3009 | 67 5-10 | Spread fruit on a flat, round glass dish (with a large diameter) Bread Bread Rolls 2pcs | 1-12 5-20 | Arange roll in a circle or bread Œachca.50g) | 4pes | 24-38 horizontally on Kitchen paper on . the ceramic plate. Toast/Sandwich | 250g | 4-4% Turn over after half of defrosting German bread 500 g 79 time! {wheat + rye flour) CP1370-8_XTL-03749V-01_ENindb 49 oven use _49 21/12/2010 19:21:40

GRILL The grill-heating elements are located underneath the ceiling of the cavity. They operate while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 2-3 minutes will make the food brown more quickly. Cookware for grilling: Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt. Food suitable for grilling: Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings. IMPORTANT REMARK: Whenever the grill only mode is used, please remember that food must be placed on the high rack, unless another instruction is recommended. MICROWAVE + GRILL This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. lt operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Five combination modes are available with this model: 600 W + Grill, 450 W + Grill, 300 W + Grill, 180 W + Grill and 100 W + Grill. Cookware for cooking with microwaves + grill Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt. Food suitable for microwaves + grill cooking: Food suitable for combination mode cooking include all kKinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details. IMPORTANT REMARK: Whenever the combination mode (microwave + grill) is used, the food should be placed on the high rack, unless another instruction is recommended. Please refer to the instructions in the following chart. The food must be turned over, if it is to be browned on both sides. Grill Guide Preheat the grill with the grill-function for 2-3 minutes. Use the power levels and times in this table as guide lines for grilling. Use oven gloves when taking out. 50_ oven use CP1370-8_XTL-03749V-01 ENindb 50 & 21/12/2010 19:21:40

Fresh Food | Portion | Power | 1. Side | 2. Side Instructions Time | Time {min) | (min) Toast Slices | 4pcs Grill | 2-8 2%: | Put toast slices side by side each 25 g) | only on the high rack Grilled 400g |300W | 5-6 - ut tomatoes into halves Tomatoes (2 pos) + Grill Put some cheese on top. £ Arrange in à circle in a flat o glass pyrex dish. Place it on É îhe low rack. Stand for 2-3 minutes. Zz Tomato- Apcs |180W | 5-6 - | Toast the bread siices first. ca Cheese (009) | + Gil Put the toast with topping Toast on the high rack Stand for 2-8 minutes Toast 4pcs | 300W | 5-6 - | Toast the bread slices first. Hawaï (ham, | (500g) | + Gr Put the toast with topping pineapple, on the high rack Cheese Stand for 2-8 minutes. slices) Baked 5009 | 450W | 14-16 - Cut potatoes into halves. Potatoes + Grill Put them in a circle on the high rack with the cut side to the grill. Gratin 450g |450W | 9-11 - Put the fresh gratin into a Potatoes/ + Grill small glass pyrex dish. Put vegetables the dish on the low rack. (chilled) After cooking stand for 2-3 minutes. Baked 2 apples | 300W | 6-7 - Gore the apples and fil them Apples (ca.400 9) | + Gril with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the low rack. Chicken 500g | 300W | 9-11 | 8-10 | Brush chicken pieces with Pieces @pcs) | + Gril oil and spices. Put them in à circle on the high rack. After griling stand for 2-3 minutes. Steaks 400 g Grill | 8-12 | 6-10 | Brush the steaks with oil (medium) @ pcs) only Lay them in a circle on the high rack. Aller grling stand for 2-3 minutes. Roast Fish | 400-500 g |300W | 6-8 |5%-6% | Brush skin of whole fish + Grill with oil and add herbs and spices. Put two fish side by side {head 10 tai) on the high rack After gring stand for 2-3 minutés. CP1370-8_XTL-03749V-01_ENindb 51 oven use _51 21/12/2010 19:21:40

Crusty Plate Guide We recommend to preheat crusty plate directly on the turntable. Preheat crusty plate for 3-4 min. and follow the times and instructions in the table. Use oven gloves while taking out. Food |Portion| Preheat Cooking Instructions Mode | Time | Mode | Time {min.) {min.) Bacon 46 |600w| 3 [6oow| 3-4 |Preheat crusty plate. Put siices | + Gril + Grill slices side by side on (80 o) crusty plate. Put plate on high rack. Grilled 200g |[600w] 3 [300W]) 3%- | Preheat crusty plate. Cut Tomatoes + Grill + Grill | 4% | tomatoes in halves. Put some cheese on top Arrange in a circle on plate and set on high rack. Potato 250g |600wW] 4 [450W! 8-10 | Rinse and clean potatoes. Wedges + Grill + Grill Cut into wedges or cubes. Brush with olve oil, herbs and spices. Distribute cubes evenly on plate. Put plate on high rack. Turn over after 5-7 minutes. Grilled 250g |600wW] 4 [450W| 5-7 |Preheat crusty plate and Vegetables + Grill + Grill brush with 1 tbsp. oil. Put fresh sliced vegetables on plate e.g. pieces of pepper, onions, courgette slices and mushrooms. Put plate on high rack. Frozen 350g |[600w] 4 [450 W | 10-12 | Preheat crusty plate. Put Pizza +180 + 200 the frozen pizza on crusty °C °C plate. Put plate on high rack. Frozen 250g |[600w] 3 | 180W | 10-12 | Preheat crusty plate. Put Baguettes +180 + 200 the two frozen aguettes °C °C with topping (e.g. vegetables, ham and chéese) on plate. Put plate on high rack. Frozen 250g |[600w] 4 |180W | 12-14 | Preheat crusty plate. Oven Chips +180 + 200 Distrbute oven chips °C °C evenly on crusty plate. Put plate on high rack. Turn over after half of cooking time. Chicken 300g |[600wW] 4 [6oow| 6-8 | Preheat crusty plate. Brush Nuggets + Grill + Grill plate with 1 tbsp. oil. Put Chicken nuggets on crusty plate. Put plate on the high rack. Turn over after 5-6 minutes. 52_ oven use CP1370-8_XTL-03749V-01_ENindb 52 21/12/2010 19:21:40

CONVECTION Cooking with convection is the traditional and well known method of cooking food in a traditional oven with hot air. The heating element and the fan position is at the side-wall, so that the hot air is circulating. Cookware for convection cooking: All conventional ovenproof cookware, baking tins and sheets - anything you would normally use in a traditional convection oven -— can be used. Food suitable for convection cooking: All biscuits, individual scones, rolls and cakes should be made by this mode as well as rich fruit cakes, choux pastry and soufflés. MICROWAVES +CONVECTION This mode combines the microwave energy with the hot air and is therefore reducing the cooking time while giving the food a brown and crispy surface. Cooking with convection is the traditional and well known method of cooking food in an oven with hot air, circulated by a fan at the left side of cavity. Five combination modes are available with this model: 600 W + Convection, 450 W + Convection, 300 W + Convection, 180 W + Convection and 100 W + Convection. 3SN N3AO +0 Cookware for cooking with microwaves + convection: Should be able to let the microwaves pass through. Should be ovenproof (like glass, pottery or china without metal trims); similar to the cookware described under MW + Grill. Food suitable for microwave + convection cooking: All kinds of meats and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones and breads. oven use _53 CP1870-8_XTL-03749V-01 ENindb 53 & 21/12/2010 19:21:40

Convection guide Preheat the convection with the fast pre-heat function to the desired temperature. Use the power levels and times in this table as guide lines for convection cooking. Use oven gloves when taking out. Fresh Food | Portion | Power | Time Instructions PIZZA 300-4009 |450W+|] 7-9 | Placethe pizza onthelow Frozen Pizza 200 °C rack. After baking stand for 2-3 (ready baked) minutes PASTA 4009 |450W+ | 16-18 | Putinto a suitable sized glass Fast 200 °C pyrex dish or leave in the original Lasagne packaging (take care that this is 9 suitable for microwaves and oven heat). Put frozen lasagne on the low rack. After cooking stand for 2-3 minutes. MEAT 1000-1200 g | 450W+ | “side | Brush meat /lamb with oil and Roast Meat/ 160°C | 15-17 | spice it with pepper, salt and si aprika. pozs amp 26% | Put ion the low rack, first wat (mean) 14 line fat side down After cooking wrap in aluminium foil and stand for 10-15minutes. Roast 1100-1200 g | 450W+ | 1*side | Brush chicken with oil and spices. Gen 90° | 15-17 | Put chicken first breast side 24 side | down, second side breast side up 438 [on the low rack. -15 | After cooking stand for 5 minutes. BREAD 6pcs 100W+] 68 |Putbreadrolsina circle onthe Frozen Bread (850 g) 160 °C low rack. Rolls Stand 2-3 minutes. Gariic Bread 200 g 180W+/] 68 |Putthe chiled baguette on (chilled, pre- (1 pc) 220 °C baking paper on the low rack. baked) After baking stand for 2-3 minutes. CAKE 700g [Onÿ180] 70-80 | Putthe fresh doughin a small Marble Cake °c rectangular black metal baking dish (length 25 cm). (fresh dough) Put the dish on the low rack After baking stand for 5-10 minutes. Muffins (fresh 6x45 g On | 20-25 |Filthe fresh dougheveniyina dough) (850-400 9 | 175°C black metal dish for 6 muffins. Put the dish on the low rack. After baking stand for 5 minutes. Croissants/ 200-2509 |Oniy200 | 13-18 | Put the chilled croissants or Bread Rolls ec bread rolls on baking paper on (fresh dough) the low rack. Frozen Cake 1000g |180W+ 1] 16-18 | Put the frozen cake directly on 160 °C the low rack. After defrost and warming keep standing for 15-20 minutes. 54_ oven use CP1370-8_XTL-03749V-01_ENindb 54 21/12/2010 19:21:40

Square tray guide Use square tray accessory only with convection or grill mode. Insert the square tray into the support guide. Preheat the oven with the fast preheat function to the desired temperature, unless it is not recommended - see table. When using grill only function, preheat the grill for 3-4 minutes. Use the cooking times and instructions in this table as guide lines for convection baking. Always use oven gloves, while taking out. Fresh Food Portion Preheat Power Time {min.) Instructions Toast bread

Grill Grill 8-10 Put Toast bread on square tray. Turn over, after 4-5 minutes. Cheese toast 250 g Grill Grill

Toast bread and put tomato slces and cheese on top. Put cheese toasts side by side on square tray. Grilled vegetables 500 g Grill Grill 15-20 Put marinated vegetables, such as small tomatoes, courgette slices, pepper slices and mushrooms on the square tray. Frozen pizza 350 g 200 °C 200 °C 15-20 Put frozen pizza in the center on square tray. Homemade pizza 800 g 210 °C 210 °C 20-25 Put fresh pizza dough (400

9) flat on square traÿ using

kitchen paper. Pierce dough with a fork Distribute topping e.g. tomato sauce, vegetables and grated cheese evenly on top. Frozen oven chips 500 g 220 °C 220 °C 23-26 Distrbute oven chips evenly on square tray. Loaf cake 700 g 160 °C 55-65 Put fresh dough into a rectangular black metal dish (length 25 cm). Set dish Widihways on square tray. Sponge cake 700 g 160 °C 40-50 Put the fresh dough in a round black metal dish Put cake in the center of square tray. Cookies 200 g 180 °C 8-12 Distrbute cookies eveniy on square tray. Muffins 600 g 175°C 20-25 Put the fresh dough into black metal baking dish for 12 muffins. Insert muffin dish on square tray or directly on support guide into oven. CP1370-8_XTL-03749V-01_ENindb 55 oven use _55 21/12/2010 19:21:40 3SN N3AO +0

Quick & Easy MELTING BUTTER Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 900 W, until butter is melted. MELTING CHOCOLATE Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted. MELTING GELATINE Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting. COOKING GLAZE/ICING (FOR CAKE AND GATEAUX) Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 372 to 472 minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking. COOKING JAM Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Empty directly into small jam glasses with twist- off lids. Stand on lid for 5 minutes. COOKING PUDDING Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6/2 to 7%2 minutes using 900 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 372 to 42 minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

SWITCHING OFF THE BEEPER

You can switch the beeper off whenever you want.

The oven's Child Safety Lock allows you to lock the control panel to protect the oven against unintended use. To lock oven

1. Press Keep warm and Memory button at the

same time and hold for 3 seconds. 3SN N3AO +0

2. Lock symbol appears on display indicating all

functions locked. To unlock oven

1. Press Keep warm and Memory button at the

same time and hold for 3 seconds.

2. Lock symbol disappears indicating functions

For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. When the oven reaches the requested temperature, it is maintained for approximately 10 minutes; it is then switched off automatically. Check that the heating element is in the correct position for type of cooking that you require.

1. Turn Mode Selector dial to Fast Preheat

2. Turn Multi Function Selector Dial to desired

temperature. (Default : 180 °C)

3. Press Selector Button to set desired

Result : The oven is preheated to the requested temperature. + The display times are 8 seconds. EX) In fast preheat mode at 180 °C. + Upon arrival at the preset temperature, the oven beeps 4 times and the temperature is kept for 10 minutes. + _ After 10 minutes, the beeps 4 times and the operation stops. In case the inner temperature has reached the preset temperature, the beeps 4 times when temperature and the preset temperature is kept for 10 minutes. 58_ oven use CP1870-8_XTL-03749V-01 ENindb 58 & 21/12/2010 19:21:42

Using the steam clean feature The steam provided by steam clean system will soak the cavity surface. After using steam clean function, you can easily clean the cavity of oven. ©] Important: +_ Use this function only after the oven has completely cooled. (Room temperature) +_ Use normal water only,and no distiled water. 34v9 GNY ONINV379 0

2. Fill with water following guide line inside the

water bowl. + _ The line is about 30 mil.

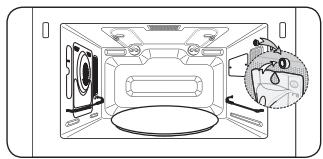

8. Please attach the water bowi in right side of the

5. Turn mode Selector Dial to Steam Clean

7. Please clean cavity of oven with dried

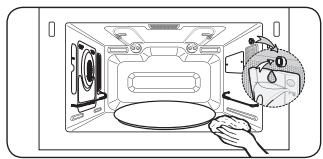

dishtowel. Remove the turntable and only under rack with kitchen paper. 14 +_ Water Bowl only can be use during “Steam Clean” mode. + When cooking non-liquid items, remove water bowi because It will damage and cause fire to the microwave oven. Cleaning your microwave oven Clean your oven regularly to prevent grease and food particles from building up, especially on inside and outside surfaces, door and door seals.

1. Clean outside surfaces with a soft cloth and warm soapy water Rinse and dry.

2. Remove any splashes or stains on inside surfaces with a soapy cloth Rinse

8. To loosen hardened food particles and remove smells, place a cup of diluted

lemon juice on the floor of the empty oven and heat for ten minutes at maximum power.

e Important + _ Take special care NOT to spill water in the vents. + NEVER use abrasive products or chemical solvents. + ALWAYS ensure that door seals are clean to prevent particles from building up so that the door can close properly. 60_ cleaning and care CP1870-8_XTL-03749V-01 ENindb 60 & 21/12/2010 19:21:44

Repairs should only be made by a qualified service technician. If oven requires servicing, unplug the oven and contact the nearest Samsung Customer Service Center. When calling, please have the following information ready: +_ The model number and serial number (Can be found at rear of the oven.) + _ Warranty details + Clear description of the problem If oven must be temporarily stored, choose a clean dry place as dust and dampness can cause damage. TROUBLESHOOTING If you have problems with your oven, try the solutions suggested below. They may save you the time and inconvenience of an unnecessary service call. Food remains uncooked. + Ensure timer has been set correctly and Start button pressed. + _ Firmly close door. +_ Make sure you have not blown a fuse or triggered a circuit breaker. Food is either overcooked or undercooked. + _ Make sure appropriate cook time was used. + Make sure appropriate power level was used.

3009 HOHH3 ANV ONILOOHSTIHNOHL 90

Sparking and cracking (arcing) occur inside the oven. + _ Make sure you are using proper cookware without metal trimmings. + Make sure no forks or other metal utensils have been left inside the oven. +_lfusing aluminum foil, make sure it is not too close to inside wall. The oven causes interference with radios or televisions. + Slight interference on televisions or radios may occur when the oven is operating. To minimize this effect, try to install oven away from televisions, radios and aerials. troubleshooting and error code _61 CP1370-8_XTL-03749V-01 ENiindb 61 & 21/12/2010 19:21:44

Electronic interference causes display to be reset. + _ Disconnect the power plug and reconnect it. Reset the time. Condensation appears inside the oven. + _Thisis a normal occurrence. Simply wipe away after cooking. The fan continues to operate after the oven has been turned off. + _Thisis a normal occurrence. Cooling fan may continue to operate for up to three minutes after oven has been turned off. Air flow is detected around the door and outer casing. + _Thisis a normal occurrence. Light reflection around the door and outer casing. + _Thisis a normal occurrence. Steam escapes from around the door or vents. + _Thisis a normal occurrence. A clicking sound occurs while the oven is operating, especially in defrosting mode. + _Thisis a normal occurrence. ERROR CODES Error Code General Functions

€ e l In case the value of the temperature sensor is more than 250 °C during operation / cancellation.

€ ee In case the value of the temperature sensor is less than 5 °C during operation / cancellation. OVER 230 °C DURING OPERATION OF MWO MODE £ 25 In case the temperature rises over 230 °C during operation of mwo mode (fire sensed).

Samsung strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice:

QUESTIONS OR COMMENTS
