USER MANUAL GMI 2141 X GRUNDIG

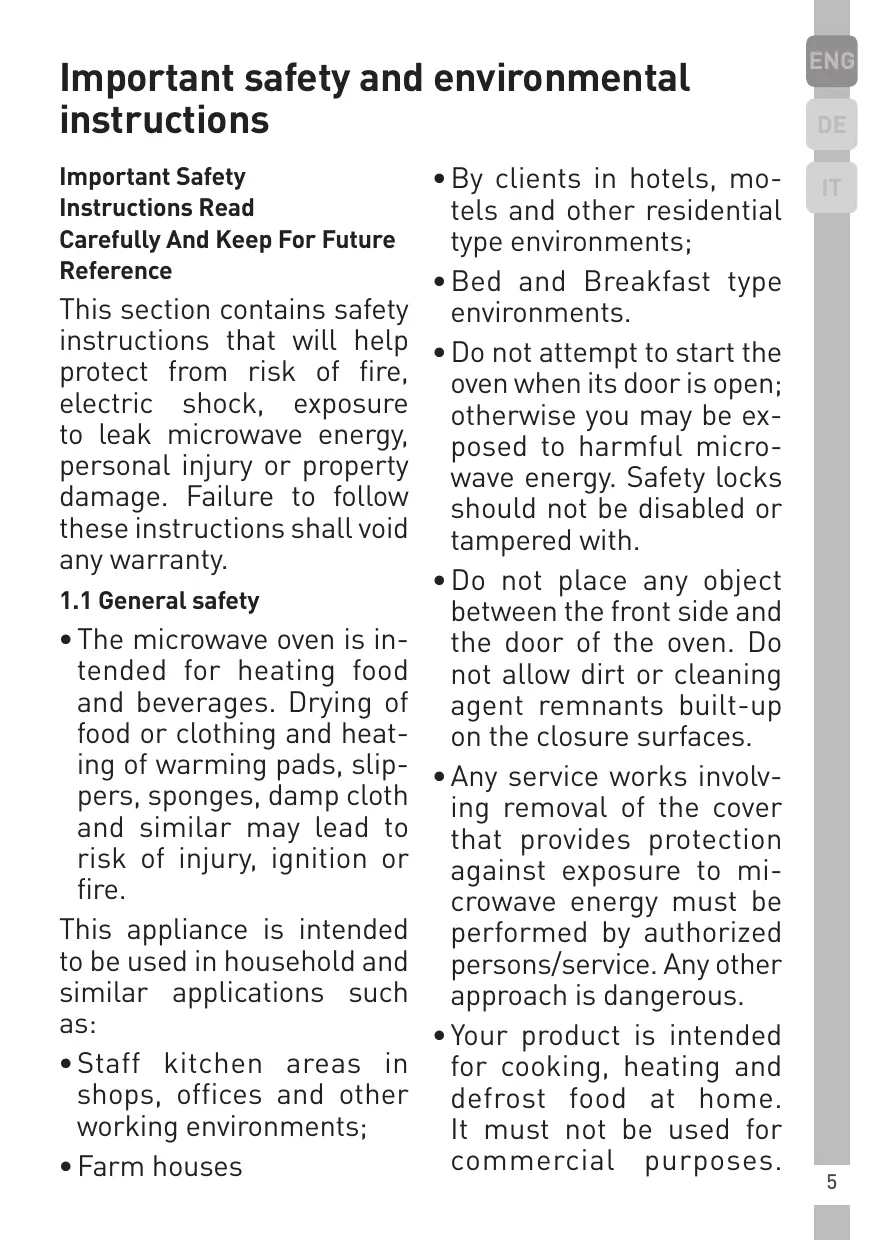

Important safety and environmental instructions Important Safety Instructions Read Carefully And Keep For Future Reference

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety

••The microwave oven is in-

tended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. This appliance is intended to be used in household and similar applications such as: ••Staff kitchen areas in shops, offices and other working environments; ••Farm houses

••By clients in hotels, mo-

tels and other residential type environments; ••Bed and Breakfast type environments. ••Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with. ••Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants built-up on the closure surfaces. ••Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous. ••Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes.

Important safety and environmental instructions Manufacturer shall not be held liable for damages that have arisen from misuse. ••Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet. ••No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance. ••Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling. ••Only use the original parts or parts recommended by the manufacturer. ••Do not leave this appliance unattended while it is in use. ••Always use the appliance on a stable, flat, clean dry, and non-slip surface. 6

••The appliance should not

be operated with an external clock timer or separate remote control system. ••Before using the appliance for the first time, clean all parts. Please see the details given in the "Cleaning and Maintenance" section. ••Operate the appliance for its intended purpose only as described in this manual. Do not use abrasive chemicals or steam on this appliance. This oven is particularly intended for heating and cooking the food. ••It is not intended for industrial or laboratory use. ••Do not use your appliance to dry clothes or kitchen towels. ••Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven. ••Your oven is not designed to dry any living being. ••Do not operate the oven empty.

Important safety and environmental instructions ••Only use utensils that are ••The appliance and its ac-

suitable for use in microwave ovens. ••Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil. ••Utensils shall be checked to ensure that they are suitable for use in microwave ovens. ••Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void. ••Microwave oven must not be placed in a cabinet that is not in compliance with the installation instructions. ••Steam may come out while opening the covers or the foil after cooking the food. ••Use gloves while taking any kind of heated food out.

cessible surfaces may be very hot when the appliance is in use. ••Door and outer glass may be very hot when the appliance is in use.

1.1.1 Electrical safety

••If the supply cord is dam-

aged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ••Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

Important safety and environmental instructions ••Make sure that your mains ••Make sure that there is

power supply complies with the information supplied on the rating plate of the appliance. The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet. ••Use the appliance with a grounded outlet only. ••Never use the appliance if the power cable or the appliance itself is damaged. ••Do not use this appliance with an extension cord. ••Never touch the appliance or its plug with damp or wet hands. ••Place the appliance in a way so that the plug is always accessible. ••Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame. 8

no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use. ••Unplug the appliance before each cleaning and when the appliance is not in use. ••Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance. ••Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water. ••When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. ••Remove the wire strings and/or metal handles of paper or plastic bags before placing bags suitable for use in microwave oven to the oven.

Important safety and environmental instructions ••If smoke is observed, ••Class B equipment is suit-

switch off or unplug the appliance and keep the door closed in order to stifle any flames. ••Do not use inside of the oven to store something. Do not leave paper items, cooking material or food inside the oven when it is not being used. ••The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature shall be checked before consumption, in order to avoid burns. ••This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

able for use in domestic establishments and establishments directly connected to a low voltage power supply network. ••Door or outer surface of the appliance may become hot when it is in use.

1.1.2 Product safety

••Heating the beverages

with microwave may cause them to boil by splashing around after they have been taken out of the oven; so be careful when you are holding the containers. ••Do not roast anything in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns. ••Pierce food with thick crust such as potatoes, zucchinis, apples and chestnuts. ••Appliance must be placed so that the rear side is facing the wall. 9

Important safety and environmental instructions ••Before moving the appli- ••Cleaning the door seals

ance, please secure the and adjacent parts: Use turntable to prevent dam- hot soapy water. age to it. ••Clean with a dish cloth, do not scour. Do not use a ••Eggs in their shell and whole hard-boiled eggs metal or glass scraper for must not be heated in mi- cleaning. crowave ovens since they ••WARNING: If the door or may explode, even after door seals are damaged, microwave heating has the oven must not be opended. erated until it has been repaired by a competent ••Never remove the parts at the rear and sides of the person. appliance, which protect ••WARNING: It is hazardthe minimum distances ous for anyone other than between the cabinet walls a competent person to and the appliance in order carry out any service or to allow for the required repair operation which air circulation. involves the removal of a cover which gives protec••All food and containers of food must always place on tion against exposure to microwave energy. the glass tray for cooking. ••WARNING: Liquids and 1.2 Intended use other foods must not be ••Failure to maintain the oven in a clean condition heated in sealed containcould lead to deterioration ers since they are liable to of the surface that could explode. adversely affect the life of ••Microwave oven is inthe appliance and possibly tended for built-in use result in a hazardous situ- only. ation.

Important safety and environmental instructions ••Do not use the appliance ••This appliance can be used

for anything other than its intended use. ••Do not use the appliance as a heat source. ••Microwave oven is intended to thaw, cook and stew food only. ••Do not over-cook foods; otherwise, you may cause a fire. ••Do not use steam assisted cleaners to clean the appliance. 1.3 Children’s safety

••Extreme caution is ad-

vised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders. ••Danger of choking! Keep all the packaging materials away from children. ••Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the microwave oven in a safe way and understands the hazards of improper use.

Important safety and environmental instructions ••Due to excessive heat that ••WARNING: Only allow

arises in grill and combi- children to use the oven nation modes, children without supervision when should only be allowed to adequate instructions use these modes under have been given so that supervision of an adult. the child is able to use the oven in a safe way and un••Keep the product and its power cable so that they derstands the hazards of are inaccessible by chil- improper use. dren under 8 years old. 1.4 Compliance with the WEEE ••The appliance and its ac- Directive and disposal of waste cessible surfaces may be products This product does not invery hot when the appliclude harmful and prohibance is in use. Keep chilited materials specified in dren away. the “Regulation for Supervision of the Waste ••The appliance is not inElectric and Electronic Appliances” tended for use by persons issued by the Ministry of (including children) with Environment and Urban Planning. reduced physical, sen- Complies with the WEEE Directive. sory or mental capabili- This product has been manufacties, or lack of experience tured with high quality parts and materials which can be reused and and knowledge, unless are suitable for recycling. they have been given su- Therefore, do not dispose the prodpervised or instruction uct with normal domestic waste at concerning use of the ap- the end of its service life. Take it to pliance by a responsible a collection point for the recycling of electrical and electronic equipperson for their safely. ment. Ask the local authority in your ••Young children should be area for these collection points. supervised to ensure that Help protect the environment and natural resources by recycling used they do not play with the products. appliance.

Important safety and environmental instructions 1.5 Package information

ENG DE IT Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical specifications 1. 2. 3. 4. 5. 6. 7.

Door Safety Interlock System Oven Window Turntable shaft Turntable support Door opening button Control Panel Wave Guide (please do not remove the mica plate that covers the wave guide) 8. Glass Tray 9. Grill heater 10.Grill

2.1. Technical data This appliance complies with the European Directives 2004/108/EC, 2006/95/EC, 2009/125/ EC and 2011/65/EU.

900 W Operating frequency

Internal dimensions of the oven

Markings on the appliance or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 240 V.

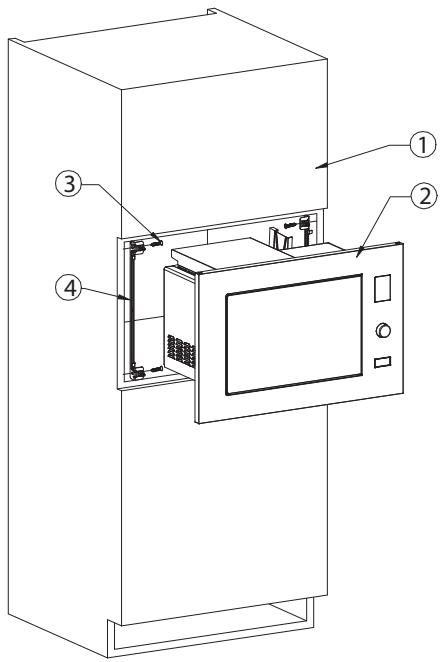

ENG Installation 3.1. Installation •• Installation should be performed by authorised service personnel. •• Make sure that all packing materials inside the door are removed. •• This appliance should be placed on a level surface that could bear the weight of the oven and the heaviest food that may be cooked inside the oven. •• Do not put the appliance in places with moisture or high humidity or near inflammable materials. •• Do not operate the oven without placing the turntable support to the correct position. •• Make sure that power cable is not damaged and not passed under the appliance or over any hot or sharp surfaces. •• Power outlet should be on an easily accessible position, so you can unplug the appliance easily in case of an emergency. •• Do not use the appliance outdoors.

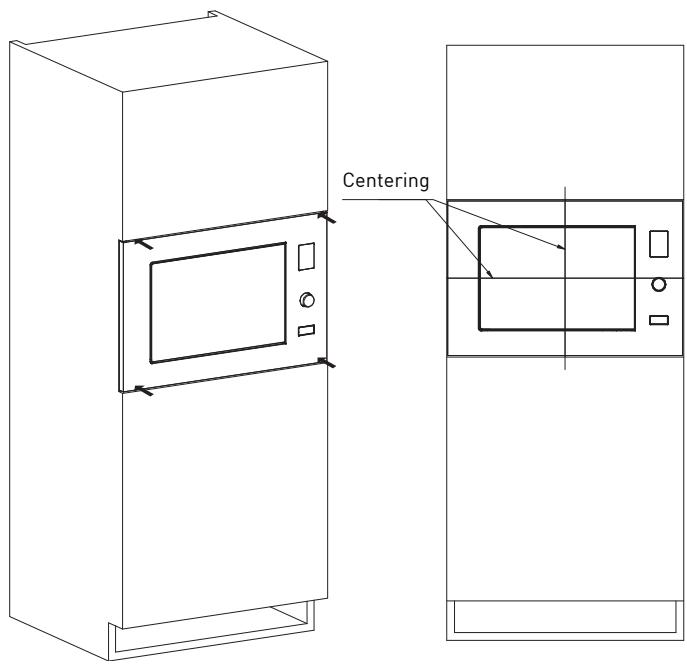

Align the frame brackets within the inner part of the cabinet

Align the frame brackets within the inner part of the cabinet

Secure the brackets with 4 screws (Ø 4 x 16).

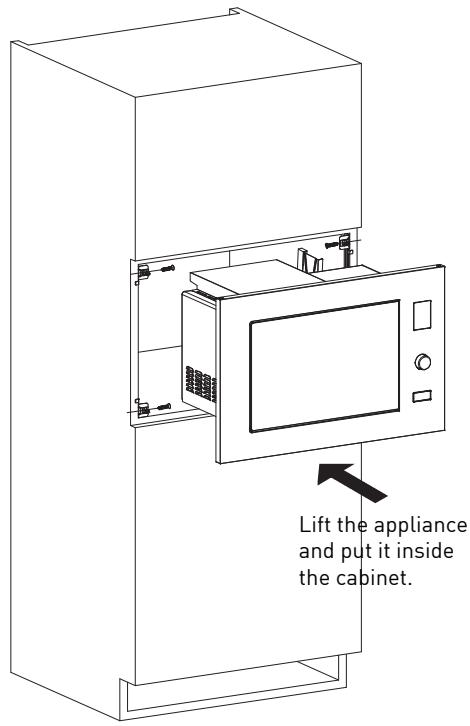

DE IT Lift the appliance and put it inside the cabinet.

After locating the appliance inside the cabinet, press the 4 corners of the frame to have the tabs on the brackets seated on the frame.

Installation 3.2 Radio interference Operation of the microwave oven may cause interference on radios, TVs and similar appliances. In case of any interference, it may be reduced or eliminated by taking the precautions given below: •• Clean the door and sealing surface of the appliance. •• Set the antenna direction of the radio or TV again. •• Reposition the appliance based on the location of the receiver. •• Place the appliance away from the receiver. •• Plug the appliance in another outlet; thus, the microwave oven and the receiver will be on different lines.

3.3 Microwave cooking principles •• Prepare the food carefully. Place the thick parts towards the outside of the dish. •• Pay attention to the cooking duration. Cook the meal with the shortest time specified and add some more time if required. Overcooked food may cause smoke or catch fire. •• Cover the food while cooking. Covering the food prevents any splashing and helps ensure that the food is cooked evenly.

•• Turn over food such as poultry and hamburgers once while cooking them in a microwave oven in order to accelerate the cooking processes of these kinds of food. Larger food such as roast must be turned over at least once. •• Turn food such as meatballs upside down in the middle of the cooking process and change their places from the centre of the dish towards the outside.

3.4 Grounding instructions This appliance should certainly be grounded. This appliance has a grounding cable with a grounded plug. The appliance must be plugged into a wall outlet installed and grounded correctly. Grounding system allows a leak wire for the electrical current in case of a short circuit and reduces the risk of electric shock. It is recommended to use an electrical circuit dedicated to this appliance. Operating with high voltage is dangerous and may cause fire or other accidents that would cause damage to the appliance. Warning: Misuse of grounding plug may cause electric shock. Note: If you have any questions regarding the grounding and electrical instructions, please consult a qualified electric technician or service personnel.

Installation Note: Manufacturer and/or dealer would not accept any responsibility for injuries or damages on the oven that may occur when electrical connection procedures are not followed. Cores inside the power cable are colour-coded as follows:

Green and Yellow = GROUND Blue = NEUTRAL Brown = LIVE ENG DE IT

3.5 Oven wares •• Ideal material for the microwave oven wares are materials that conduct microwave, these materials allows energy to get through the oven ware and allows the food to be heated. •• Microwave cannot penetrate through metals; therefore, metal or metal ornamented oven wares must not be used. •• Do not use recycled paper products for microwave cooking as they may include small metallic parts that may cause sparks and/ or fire. •• It is recommended to use round/ oval dishes instead of square/rectangular dishes as the food on the edges may be overheated. •• You may use narrow aluminium foil straps in order to prevent the exposed pieces from being overcooked. However, please be careful! Do not use it excessively and keep a distance of 2.5 cm (1 inch) between the foil and inner surface of the appliance.

Installation Following list is a general guide that would help you select the right ware.

Heat-resistant glass

Non-heat-resistant glass

Heat-resistant ceramics

Plastic dish suitable for microwave oven

Aluminium foil and foil wares

ENG Operation 4.1 Control panel

Press this key to defrost the food as per its weight.   Cooking Delay Press this key to set a pre-set cookMenu ing programme. operation

  Stop/Cancel display Press this key to cancel a setting or to reset the appliance before setting a cooking programme. Press this key once to stop cooking temporarily or twice to cancel it completely. It is also used to set the child lock.

Microwave Key Press this key a few times to set the level of microwave cooking. Grill/Combination Press this key to select one of the grill or combination cooking programs.

Date / Time Press this key to set the time.

Rotate this button in order to set the time, cooking time, menu or weight. Press the button to start a cooking programme. If this button is pressed a couple of times to set a cooking duration, the appliance will operate in full power. Automatic cooking function selection is made with turning the button in counter-clockwise direction.

4.2 Setting the oven controls Appliance gives an audible signal during the adjustments. One beep: The appliance has accepted the entry. Two beeps: The appliance has not accepted the entry. Check and try again.

Operation 4.2.1 Setting the digital clock If you want to set the appliance time to 08:30: •• While in standby mode, press the DURATION/TIME key and set the time to 24-hour cycle. •• Turn the START button and set the hour section to 8. •• Press the “DURATION/TIME” key once. •• Turn the START button and set the minute section to 8:30. •• Press the DURATION/TIME key once to approve the setting. Note: You can check the time setting while cooking by pressing the DURATION/ TIME key once.

4.2.2 Cooking with microwave The longest cooking duration for microwave is 95 minutes. You can set the power level by pressing the MICROWAVE key repeatedly. •• For example, if you want to cook for 5 minutes with 60% microwave power: •• Press the STOP/CANCEL key. •• Press the POWER LEVEL key repeatedly to select the power level.

•• Turn the START button until 5:00 is displayed on the screen. •• Press the START button. Note: You can check the cooking power while cooking by pressing the MICROWAVE key. Note: Oven gives a signal sound when cooking/defrosting time is completed and “End” message is displayed on the display; clear the display by pressing the STOP/CANCEL key or opening the door before setting another function. (It can be used for the following cooking functions.)

4.2.3 Quick start This feature is used for operating the appliance quickly. The longest cooking duration is 10 minutes. To set the cooking duration while in the standby mode, press the START button repeatedly in a quick manner; the appliance immediately starts operating with full power.

4.2.4 Defrosting by weight The appliance can defrost food depending on the weight you enter. After the weight has been set, duration and defrosting power are automatically set. Food weight varies between 100 g and 1.800 g. If you want to defrost 600 g of shrimps: •• Place the shrimps to be defrosted into the appliance and close the door. •• Press the STOP/CANCEL key.

ENG Operation •• Press the DEFROST key once. •• Turn the START button until 600 g is displayed. •• Press the START button. Note: During the defrosting process, the system pauses and gives an audible signal to remind you to turn over the food; press the START button in order to continue.

4.2.5 Cooking delay Cooking delay function enables the appliance to operate at a later time. For example, the current time is 9:00 and you want the appliance to start cooking at 11:30. •• Set a cooking programme. •• Press the MICROWAVE key repeatedly to select the power level. •• Turn the START button until the desired time is displayed. •• Press the COOKING DELAY key. •• Turn the START button and set the hour section to 11. •• Press the COOKING DELAY key. •• Turn the START button and set the minute section to 30. •• Press the START button to approve the setting. Note: You may check the presetting time by pressing the COOKING DELAY key when you have set the function. To cancel this feature, press the COOKING DELAY key , and then press the STOP/CANCEL key.

Note: When the cooking delay time is reached, audible signals indicating that the pre-set cooking programme is starting is heard. Note: Presetting is not possible for Defrosting and Quick Start functions

4.2.6 Queued Cooking (Multifunctional cooking) You can programme 3 automatic cooking queues on your appliance. Let's assume that you want to set the following cooking program: 1 min. cooking at 60% power level, and 2 min. cooking at 100% power level. •• Press the STOP/CANCEL key. •• Press the MICROWAVE key repeatedly until P60 code is displayed on the screen. •• Turn the START button until 1 min. is displayed on the screen. •• Press the MICROWAVE key repeatedly until P100 code is displayed on the screen. •• Turn the START button until 2 min. is displayed on the screen. •• Press the START button. Note: Quick Start, Menu and Defrosting by Weight cannot be set in multistep cooking mode. Relevant lights are illuminated in order to show the operating stage of the appliance. 23

Operation 4.2.7 Automatic cooking For foods and following cooking mode, setting the duration or cooking power is not necessary. You may just enter the type of the food and the weight of that food. You may have to turn over the food in the middle of cooking period in order to achieve an even cooking. Example: Cooking 400 g. of fish •• Press the STOP/CANCEL key. •• Rotate the START button counterclockwise to select the food code. Selected symbol on the screen will be illuminated. •• Press the START button. •• Enter 400 g. for weight by rotating the START button. •• Press the START button.

Automatic Cooking Menu Code Food/cooking mode

Milk/Coffee (200 ml/cup)

Potatoes (230 g/piece)

For milk/coffee and potatoes, number of the servings should be entered; not the food weight. There is only one option for pop-corn. The result of automatic cooking depends on factors such as voltage fluctuation, shape and size of the food, your personal choice on the cooking level of specific food, and even how well you have placed the food in the appliance. If you have not found the result satisfactory, please set the cooking time more appropriately for your choice.

Operation 4.2.8 Grill The longest cooking duration is 95 minutes for grill cooking. •• For example, let's assume that you want to cook for 5 minutes in grill mode. •• Press the STOP/CANCEL key. •• Select the grill mode by pressing the Grill/Combination key once. •• Turn the start button until 5:00 is displayed on the screen. •• Press the START button.

ENG DE IT Note: You should pause the programme and turn the food over in order that both sides of the food are cooked evenly in the Grill/Combination cooking modes.

4.2.9 Combination The longest cooking duration is 95 minutes for combination cooking. •• For example, let's assume that you want to cook for 12 minutes in Combination mode. •• Press the STOP/CANCEL key. •• Select one of the combination modes in the table below by pressing the Grill/Combination key 2 or 3 times. •• Turn the start button until 12:00 is displayed on the screen. •• Press the start button.

Operation Number of pressings for the Grill/ Combination key

4.2.10 Child lock Use this feature to prevent unattended children from operating the appliance. Child lock symbol is displayed and the appliance cannot be operated while the Child Lock is set. To set: When the oven is in the standby or presetting mode, press and hold the STOP/CANCEL key for 3 seconds; a beep is heard and the lock symbol is illuminated. All buttons are deactivated in the lock mode. To cancel: Press and hold the STOP/ CANCEL key for 3 seconds until the lock symbol on the display goes off.

Cleaning and maintenance 5.1 Cleaning Warning: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance. Warning: Never immerse the appliance or its power cable in water or in any other liquid 1.Switch off and unplug the appliance. 2.Wait for the appliance to cool completely. 3.Keep the inside of the oven clean. Wipe with a damp cloth when splashed food or spilled liquids stick on the walls of the appliance. A mild detergent may be used if the appliance gets very dirty. Avoid using sprays and other harsh cleaning agents as they may cause stains, marks, and opaqueness on the door surface. 4.Outer surfaces of the appliance must be cleaned with a damp cloth. Do not allow water ingress from ventilation openings to prevent damage to the operating parts in the appliance. 5.Wipe both sides of the door and the glass, door gaskets and parts near the gaskets frequently with a damp cloth in order to remove the overflowing and splashing stains. Do not use abrasive cleaning agents.

6. Do not allow control panel to get wet. Clean with a soft damp cloth. Leave the door of the appliance open to prevent inadvertent operation while cleaning the control panel.

7. If mist accumulates inside or around the appliance door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. This is normal. 8. In some cases, you may need to remove the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher. 9. The roller ring and appliance floor should be cleaned regularly to avoid excessive noise. It would be sufficient to wipe the lower surface of the appliance with a mild detergent. 10. Roller ring may be washed in warm soapy water or in a dishwasher. When you remove the roller ring from the appliance internal floor for cleaning, ensure that you install it in the correct position while replacing it. 11. In order to remove the bad odours in your appliance, put a glass of water and juice and rind of a lemon into a deep bowl suitable for use in microwave and operate the appliance for 5 minutes in the microwave mode. Wipe thoroughly and dry with a soft cloth. 27

Cleaning and maintenance 12. Please contact the authorized service when the appliance lamp needs to be replaced. 13. The appliance should be cleaned regularly and any food deposits should be removed. If the appliance is not kept clean, this may cause surface defects that would affect the life-cycle of the appliance negatively and that would possibly cause risks. 14. Please do not dispose this appliance with household waste; old ovens shall be disposed to special waste centres provided by the municipalities. 15. When the appliance is used in grill function, a small amount of smoke and odour may occur which will disappear after a certain time of usage.

5.2 Storage •• If you do not intend to use the appliance for a long time, please store it carefully. •• Please make sure that the appliance is unplugged, cooled and totally dry. •• Store the appliance in a cool and dry place. •• Keep the appliance out of the reach of children.

5.3 Handling and transportation

•• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

•• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged. •• Dropping the appliance may render it non-operational or cause permanent damage.
