USER MANUAL B901GMXI9 SMEG

1.1 General safety instructions 50
1.2 Manufacturer liability 54
1.3 Appliance purpose 55
1.4 Identification plate 55
1.5 This user manual 55
1.6 Disposal 55
1.7 How to read the user manual 56

2 Description 57

2.1 Cooking hob 58
2.2 Control panel 58
2.3 Other parts 59
2.4 Available accessories 60

3 Use 61

3.1 To save energy 63
3.2 Using the accessories 63
3.3 Using the hob 64
3.4 Using the storage compartment 65
3.5 Using the oven 65
3.6 Cooking advice 67

4 Cleaning and maintenance 70

4.1 Cleaning the hob 71
4.2 Cleaning the door 72
4.3 Cleaning the oven cavity 74
4.4 Vapor Clean 75
4.5Extraordinary maintenance 76

5 Installation 78

5.1 Gas connection 78
5.2 Adaptation to different types of gas 81
5.3 Positioning 86
5.4 Electrical connection 91
5.5 Instructions for the installer 93

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

We advise you to read this manual carefully, as it contains all the instructions for maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its accessible parts become very hot. Never touch the heating elements during use.
• Protect your hands by wearing oven gloves when moving food inside the oven.
• Never try to put out a fire or flames with water: turn off the appliance and smother the flames with a fire blanket or other appropriate cover.
• This appliance may be used by children aged at least 8 and by people of reduced physical, sensory or mental capacity, or lacking in experience in the use of electrical appliances, provided that they are supervised or instructed by adults who are responsible for their safety.
• Children must not play with the appliance.

• Keep children under the age of 8 at a safe distance unless they are constantly supervised.

• Keep children under the age of 8 away from the appliance when it is in use.

• Cleaning and maintenance must not be carried out by unsupervised children.

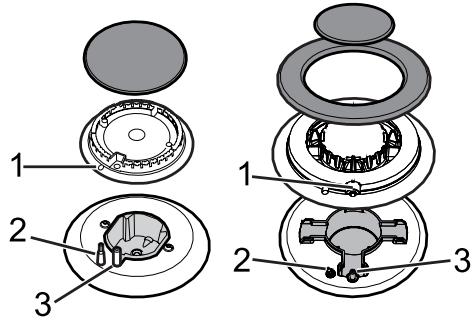

• Make sure that the flame-spreader crowns are correctly positioned in their seats with their respective burner caps.
• Be aware of how rapidly the cooking zones heat up. Do not place empty pans on the heat. Danger of overheating.
• Fats and oils can catch fire if they overheat. Do not leave the appliance unattended while preparing foods containing oils or fats. If fats or oils catch fire, never put water on them. Place the lid on the pan and turn off the relevant cooking zone.
• The cooking process must always be monitored. A short cooking process must be continuously surveyed.

While cooking do not place metal objects, such as cutlery or dishes on the hob surface as they may overheat.
- Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance.
- Do not pour water directly on very hot trays.
- Keep the oven door closed during cooking.
- If you need to move food or at the end of cooking, open the door 5 ~cm for a few seconds, let the steam come out, then open it fully.
- Do not open the storage compartment (where present) when the oven is on and still hot.
- The items inside the storage compartment could be very hot after using the oven.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE STORAGE COMPARTMENT (IF AVAILABLE) OR NEAR THE APPLIANCE.

DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE.
- Switch off the appliance immediately after use.
DO NOT MODIFY THIS APPLIANCE.
- Always use any necessary/ required personal protective equipment (PPE) before performing any work on the appliance (installation, maintenance, positioning or movement).
- Before performing any operation on the appliance, switch off the power supply.
- Have qualified personnel carry out installation and assistance interventions according to the standards in force.
- Do not try to repair the appliance yourself or without the intervention of a qualified technician.
- Do not pull the cable to remove the plug.
- If the power supply cable is damaged, contact technical support immediately and they will replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be inserted as far as they will go into the side guides. The mechanical safety locks that prevent them from being removed must face downwards and towards the back of the oven cavity.
• Do not sit on the appliance.
• Do not use steam jets to clean the appliance.
• Do not obstruct ventilation openings and heat dispersal slots.
• Never leave the appliance unattended during cooking operations where fats or oils could be released, as these could then heat up and catch fire. Be very careful
• Never leave objects on the cooking surface.

DO NOT USE THE APPLIANCE TO HEAT ROOMS FOR ANY REASON.
- Do not spray any spray products near the oven.
- Do not use plastic cookware or containers for cooking.
- Do not place sealed tins or containers in the oven cavity.
- Remove all trays and racks which are not required during cooking.
- Do not cover the bottom of the oven cavity with aluminium or tin foil sheets.
- Do not place pans or trays directly on the bottom of the oven cavity.
- If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.
- Do not use the open door to place pans or trays on the internal glazing pane.
- Cooking vessels or griddle plates should be placed inside the perimeter of the hob.

• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill, remove the excess from the hob.
  Take care not to spill acid substances such as lemon juice or vinegar on the hob.
• Do not put empty pans or frying pans on switched on cooking zones.
• Do not use steam jets to clean the appliance.
• Do not use rough or abrasive materials or sharp metal scrapers.
• Do not use cleaning products containing chlorine, ammonia or bleach on parts made of steel or that have metallic surface finishes (e.g. anodizing, nickel- or chromium-plating).

• Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.

• Do not wash the removable components such as the hob grids, flame-spreader crowns and burner caps in a dishwasher.

• Never use the oven door to lever the appliance into place when fitting.
• Avoid exerting too much pressure on the door when open.
• Do not use the handle to lift or move this appliance.

Installation

• THIS APPLIANCE MUST NOT BE INSTALLED IN A BOAT OR CARAVAN.
• The appliance must not be installed on a pedestal.
• Position the appliance into the cabinet cut-out with the help of a second person.
• To prevent any possible overheating, the appliance should not be installed behind a decoration door or a panel.

• Have the gas connection performed by authorised staff.

• Installation using a hose must be carried out so that the length of the hose does not exceed 2 metres when fully extended for steel hoses and 1.5 metres for rubber hoses.

• The hoses should not come into contact with moving parts and should not be crushed in any way.
• If required, use a pressure regulator that complies with current regulations.
  After carrying out any operation, check that the tightening torque of gas connections is between 10 Nm and 15 Nm.
• At the end of the installation, check for any leaks with a soapy solution, never with a flame.
• Have the electrical connection performed by authorised technicians.
• The appliance must be connected to ground in compliance with electrical system safety standards.
• Use cables withstanding a temperature of at least 90^ C .
• The tightening torque of the screws of the terminal board leads must be 1.5 - 2 Nm .
• Before installation, make sure that the local distribution conditions (nature and pressure of the gas) and the adjustment of the

appliance are compatible;

• The adjustment conditions for this appliance are shown on the gas setting label.
• This appliance is not connected to an exhaust system for combustion products. It must be installed and connected in compliance with the current installation regulations.

Special attention should be paid to the relevant requirements as for ventilation.

For this appliance

• Ensure that the appliance is switched off before replacing the bulb.
• Do not rest any weight or sit on the open door of the appliance.
• Take care that no objects are stuck in the doors.

1.2 Manufacturer liability

The manufacturer declines all liability for damage to persons or property caused by:

• Use of the appliance other than that specified;
• failure to comply with the instructions in the user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.

1.3 Appliance purpose

• This appliance is intended for cooking food in the home environment. Every other use is considered inappropriate.
• The appliance is not designed to operate with external timers or with remote-control systems.

1.4 Identification plate

The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason.

1.5 This user manual

This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the user's reach for the whole working life of the appliance.

Read this user manual carefully before using the appliance.

1.6 Disposal

This appliance must be disposed of separately from other waste (Directives /95/EC, 2002/96/EC, /108/EC). The appliance not contain substances in ties sufficient to be considered dous to health and the nment, in accordance with t European directives.

To dispose of the appliance:

• Cut the power supply cable and remove it along with the plug.

Power voltage Danger of electrocution

• Disconnect the mains power supply.
• Unplug the appliance.

Instructions

• Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste, or return it to the retailer when purchasing an equivalent product, on a one for one basis.

Our appliances are packaged in non-polluting and recyclable materials.

• Deliver the packing materials to the appropriate recycling centre.

Plastic packaging Danger of suffocation

• Do not leave the packaging or any part of it unattended.
• Do not let children play with the plastic bags.

1.7 How to read the user manual

This user manual uses the following reading conventions:

Instructions

General information on this user manual, on safety and final disposal.

Description

Description of the appliance and its accessories.

Use

Information on the use of the appliance and its accessories.

Cleaning and maintenance

Information for proper cleaning and maintenance of the appliance.

Installation

Information for the qualified technician: Installation, operation and inspection.

Safety instructions

Information

Advice

1. Use instruction sequence.

2. Standalone instruction.

2 Description

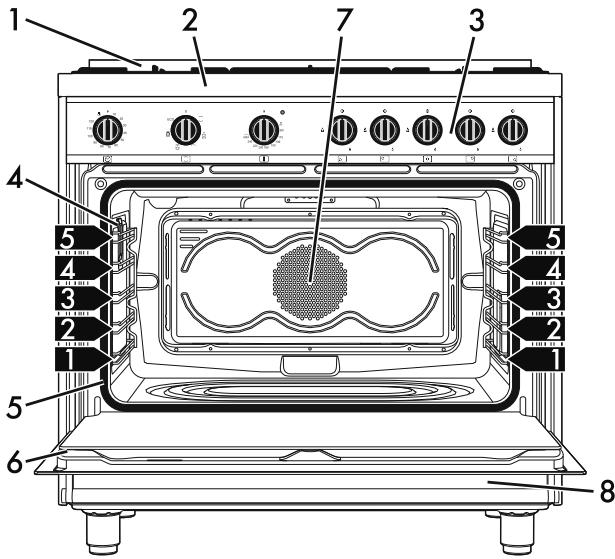

General Description

1 Upstand
2 Cooking hob
3 Control panel
4 Left bulb
5 Seal

6 Door
7 Fan
8 Storage compartment

1,2,3.

Rack/tray support frames

2.1 Cooking hob

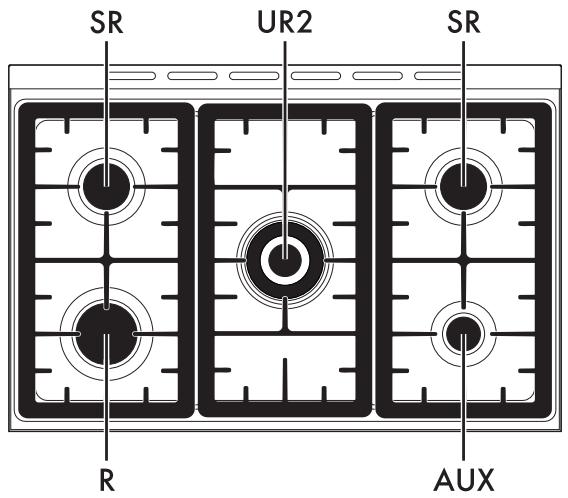

AUX = Auxiliary burner

SR = Semi-rapid burner

R = Rapid burner

UR2 = Ultra-rapid burner

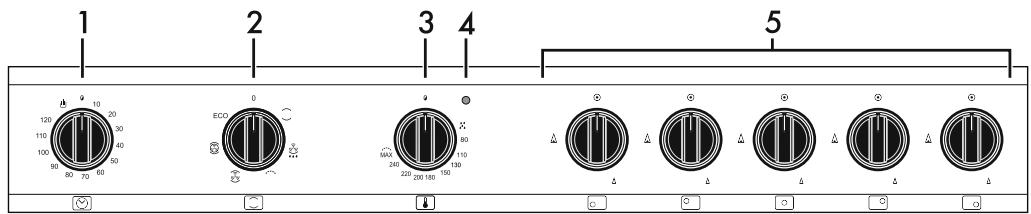

2.2 Control panel

1 Timer knob

Allows you to set manual cooking or a timer with automatic oven switch off at the end of cooking.

2 Function knob

The oven's various functions are suitable for different cooking methods. After selecting the required function, set the cooking temperature using the temperature knob.

3 Temperature knob

This knob allows you to select the cooking temperature.

Turn the knob clockwise to the required value, between the minimum and maximum setting.

4 Indicator light

The indicator light comes on to indicate that the oven is heating up. It turns off as soon as it reaches the set temperature. It flashes regularly to indicate that the temperature set inside the oven is kept constant.

Hob burner knobs

For lighting and adjusting the hob burners. Press and turn the knobs anti-clockwise to

in order to light the relative burners.

Turn the knobs to the zone between the maximum and minimum setting to adjust the flame.

Return the knobs to the position to turn off the burners.

2.3 Other parts

Shelves

The appliance features shelves to position trays and racks at different heights. The insertion heights are indicated from the bottom upwards (see General Description).

Interior lighting

The appliance's interior lighting comes on:

• When the door is opened.
• When any function is selected, apart from the ECO function.

When the door is open, it is not possible to turn off the interior lighting.

Cooling fan

The fan cools the ovens and comes into operation during cooking.

The fan causes a steady outflow of air that exits from the rear of the appliance and which may continue for a brief period of time even after the appliance has been turned off.

Do not obstruct ventilation openings and heat dispersal slots.

2.4 Available accessories

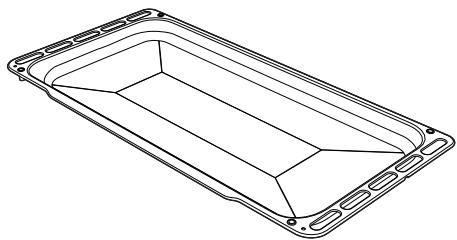

Deep tray

Useful for collecting fat from foods placed on the rack above.

Tray rack

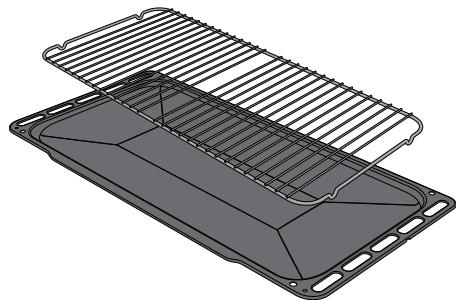

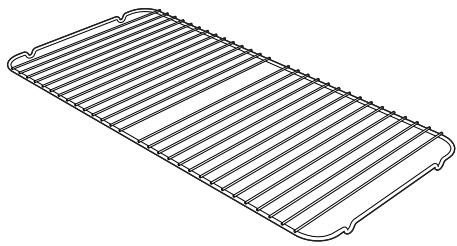

To be placed over the top of the oven tray; for cooking foods which may drip.

Rack

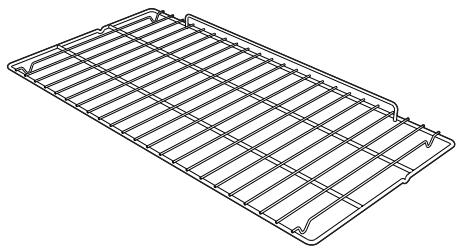

Used for supporting containers with food during cooking.

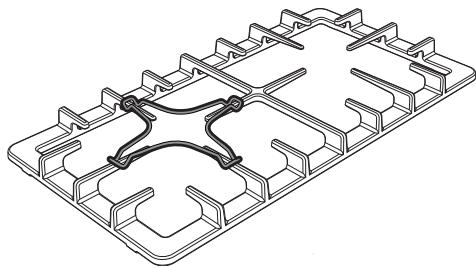

Ring reducer

Useful when using small cookware.

Not all accessories are available on some models.

The oven accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation.

Original supplied and optional accessories can be requested to Authorised Assistance Centres. Use only original accessories supplied by the manufacturer.

3 Use

Instructions

High temperature inside the oven during use Danger of burns

• Keep the oven door closed during cooking.
• Protect your hands wearing heat resistant gloves when moving food inside the oven.
• Do not touch the heating elements inside the oven.
• Do not pour water directly on very hot trays.
• Keep children under the age of 8 away from the oven when it is in use.
• If you need to move food or at the end of cooking, open the door 5 ~cm for a few seconds, let the steam come out, then open it fully.

Improper use Danger of burns

• Make sure that the flame-spreader crowns are correctly positioned in their seats with their respective burner caps.
• Oils and fats could catch fire if overheated. Be very careful.

High temperature inside the storage compartment Danger of burns

• Do not open the storage compartment when the appliance is on and still hot.
• The items inside the storage compartment could be very hot after using the appliance.
• It must not be used to store flammable materials, cloths or paper.

Improper use Risk of damage to surfaces

• Do not cover the bottom of the oven cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven cavity.
• Do not place pans or trays directly on the bottom of the oven cavity.
• Do not use the open door to place pans or trays on the internal glazing pane.
• Do not pour water directly on very hot trays.
• Cooking vessels and griddle plates should be placed inside the perimeter of the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill, remove the excess from the hob.

High temperature inside the storage compartment Danger of fire or explosion

• Do not spray any spray product near the appliance.
• Do not use or leave flammable materials near the appliance or the storage compartment.
• Do not use plastic cookware or containers for cooking.
• Do not place sealed tins or containers in the oven cavity.
• Do not leave the appliance unattended during cooking operations where fats and oils could be released.
• Remove all trays and racks which are not required during cooking.

Precautions

A gas leak can cause an explosion.

If you smell gas or there are faults in the gas system:

• Immediately turn off the gas supply or close the valve on the gas cylinder.
• Extinguish all naked flames and cigarettes.
• Do not turn on power switches or appliances and do not remove plugs from power sockets. Do not use phones or mobile phones inside the building.
• Open the window in order to ventilate the room.
• Call customer assistance services or your gas supplier.

Malfunctions

Any of the following indicate a malfunction and you should contact a service centre:

• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance is in use.
  It is difficult to turn the gas valves.

If the appliance does not work properly, contact your local Authorised Service Centre.

First use

1. Remove any protective film from the outside or inside of the appliance, including accessories.
2. Remove any labels (apart from the technical data plate) from the accessories and from the oven cavity.
3. Remove and wash all the appliance's accessories (see 4 Cleaning and maintenance).
4. Heat the empty oven at the maximum temperature to burn off any residues left by the manufacturing process.

3.1 To save energy

• Preheat the appliance only if the recipe requires it.
• Unless differently stated on the package, defrost frozen food before placing it in the cooking compartment.
• In case of multiple cooking, it is recommended to cook food one after the other to exploit the already hot cooking compartment.
• Use dark metal moulds: They help to absorb the heat better.
• Remove all trays and racks which are not required during cooking.
• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Keep the cooking compartment clean at all times.

3.2 Using the accessories

Ring reducers

The ring reducers must be placed on the hob grids. Make sure they are placed properly.

Tray rack

The tray rack has to be inserted into the tray. In this way fat can be collected separately from the food which is being cooked.

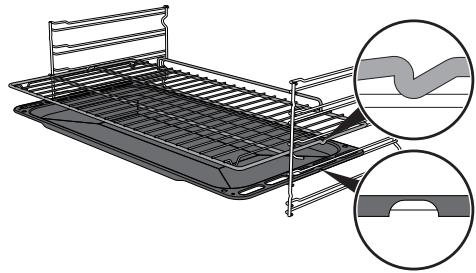

Racks and trays

Racks and trays have to be inserted into the side guides until they come to a complete stop.

The mechanical safety locks that prevent the rack from being taken out accidentally have to face downwards and towards the oven back.

Gently insert racks and trays into the oven until they come to a stop.

Clean the trays before using them for the first time to remove any residues left by the manufacturing process.

3.3 Using the hob

All the appliance's control and monitoring devices are located together on the front panel. The burner controlled by each knob is shown next to the knob. The appliance is equipped with an electronic ignition device. Simply press the knob and turn it anticlockwise to the maximum flame symbol, until the burner ignites. If the burner does not light in the first 15 seconds, turn the knob to

and wait 60 seconds before trying again. After lighting, keep the knob pressed in for a few seconds to allow the thermocouple to heat up. The burner may go out when the knob is released: In this case, the thermocouple has not heated up sufficiently.

Wait a few moments and repeat the operation. Keep the knob pressed in longer.

In case of an accidental switching off, a safety device will be tripped, cutting off the gas supply, even if the gas cock is open. Return the knob to and wait at least 60 seconds before lighting it again.

Correct positioning of the flame-spreader crowns and burner caps

Before lighting the hob burners, make sure that the flame-spreader crowns are correctly positioned in their housings with their respective burner caps. Make sure that the holes 1 of the flame-spreader crowns are aligned with the thermocouples 2 and igniters 3.

Practical tips for using the hob

For better burner efficiency and to minimise gas consumption, use pans with lids and of suitable size for the burner, so that flames do not reach up the sides of the pan.

Once the contents come to the boil, turn down the flame far enough to ensure that the liquid does not boil over.

Pan diameters:

AUX: 12 - 14 cm.
- SR: 16 - 24 cm.
R:18-26cm.
- UR2: 18 - 28 cm.

3.4 Using the storage compartment

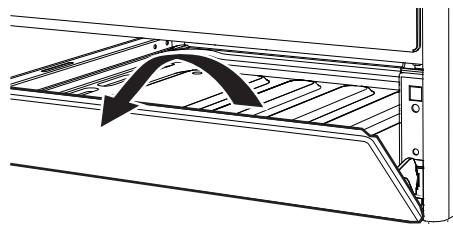

The storage compartment is at the bottom of the cooker. To open it, pull the handle towards you. It can be used to store cookware or metallic objects necessary when using the appliance.

3.5 Using the oven

Switching on the oven

To switch on the oven:

1. Select manual cooking or set the cooking duration using the timer knob. Adjustment is progressive so that the time can also be set to any intermediate value between these numbers.
2. Select the temperature using the temperature knob.
3. Select the cooking function using the function knob.
4. At the end of timed cooking, a buzzer sounds that stops automatically after a few seconds.

Functions list

Static

As the heat comes from above and below at the same time, this system is particularly suitable for certain types of food. Traditional cooking, also known as static cooking, is suitable for cooking just one dish at a time. Perfect for all types of roasts, bread and cakes, and in any case, particularly suitable for fatty meats such as goose and duck.

Fan + lower element

The combination of the fan with just the lower heating element allows cooking to be completed more rapidly. This system is recommended for sterilising or for finishing off the cooking of foods which are already well-cooked on the surface, but not inside, which therefore need a little more heat. Perfect for any type of food.

Grill

The heat coming from the grill element gives perfect grilling results above all for thin and medium thickness meat and, in combination with the rotisserie (where fitted), gives the food an even browning at the end of cooking. Perfect for sausages, spare ribs and bacon. This function enables large quantities of food, particularly meat, to be grilled evenly.

Fan assisted

The operation of the fan, combined with traditional cooking, ensures consistent cooking even with complex recipes. Perfect for biscuits and cakes, even when simultaneously cooked on several levels. (For multiple-level cooking, we recommend using the 2nd and 4th shelf).

Turbo

The combination of fan assisted cooking and traditional cooking allows different foods to be cooked on several levels extremely quickly and efficiently, without odours and flavours mingling. Perfect for large volumes that call for intense cooking.

ECO

Eco

This function is particularly suitable for cooking on a single shelf with low energy consumption.

Ideal for cooking meat, fish and vegetables. It is not recommended for leavened foods.

To obtain maximum energy savings and reduce cooking times, it is recommended to place food in the oven without preheating.

When using the ECO function, avoid opening the door during cooking.

Cooking (and preheating) times are longer with the ECO function.

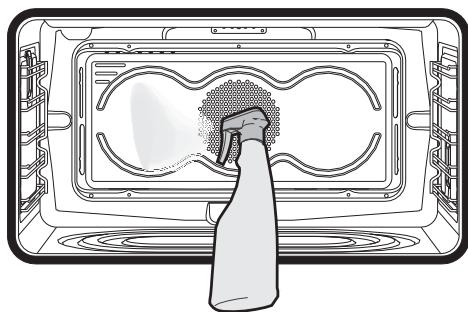

Vapor Clean

This function makes cleaning easier using the steam produced by a small quantity of water poured onto the appropriate groove placed on the bottom.

3.6 Cooking advice

General advice

• Use a fan assisted function to achieve consistent cooking at several levels.
• It is not possible to shorten cooking times by increasing the temperature (the food could be overcooked on the outside and undercooked on the inside).

Advice for cooking meat

• Cooking times vary according to the thickness and quality of the food and to consumer taste.
• Use a meat thermometer when roasting meat, or simply press on the roast with a spoon. If it is hard, it is ready; If not, it needs another few minutes cooking.

Advice for cooking with the Grill and the Fan with grill

• Meat can be grilled even when it is put into the cold oven or into the preheated oven if you wish to change the effect of the cooking.

• With the Fan with grill function, we recommend that you preheat the oven before grilling.
  We recommend placing the food at the centre of the rack.

• With the Grill function, we recommend that you turn the temperature knob to the maximum value near the symbol to optimise cooking.

• Foods should be seasoned before cooking. Foods should also be coated with oil or melted butter before cooking.
• Use the oven tray on the first bottom shelf to collect liquids produced by grilling.

Advice for cooking desserts/pastries and biscuits

• Use dark metal moulds: They help to absorb the heat better.
• The temperature and the cooking time depend on the quality and consistency of the dough.
• To check whether the dessert is cooked right through: At the end of the cooking time, put a toothpick into the highest point of the dessert. If the dough does not stick to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10^ C , selecting a longer cooking time if necessary.
  While cooking desserts or vegetables, excessive condensation may form on the glass. In order to avoid this, open the door very carefully a couple of times while cooking.

Advice for defrosting and proving

• Place frozen foods without their packaging in a lidless container on the first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on the second level and a tray on the first level. In this way, the liquid from the defrosting food drains away from the food.
• The most delicate parts can be covered with aluminium foil.
• For successful proving, a container of water should be placed in the bottom of the oven.

To save energy

• Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven.
• Reduce any opening of the door to a minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at all times.

Cooking information table

Food	Weight (kg)	Function	Shelf	Temperature (°C)	Time (minutes)
Lasagne	3 - 4	Static	1	220 - 230	45 - 50
Pasta bake	3 - 4	Static	1	220 - 230	45 - 50
Roasted veal	2	Turbo/Round	2	180 - 190	90 - 100
Pork loin	2	Turbo/Round	2	180 - 190	70 - 80
Sausages	1.5	Fan with grill	4	MAX	15
Roast beef	1	Turbo/Round	2	200	40 - 45
Roast rabbit	1.5	Round	2	180 - 190	70 - 80
Turkey breast	3	Turbo/Round	2	180 - 190	110 - 120
Roast pork neck	2 - 3	Turbo/Round	2	180 - 190	170 - 180
Roast chicken	1.2	Turbo/Round	2	180 - 190	65 - 70
					1ndsurface	2ndsurface
Pork chops	1.5	Fan with grill	4	MAX	15	5
Spare ribs	1.5	Fan with grill	4	MAX	10	10
Bacon	0.7	Grill	5	MAX	7	8
Pork fillet	1.5	Fan with grill	4	MAX	10	5
Beef fillet	1	Grill	5	MAX	10	7
Salmon trout	1.2	Turbo/Round	2	150 - 160	35 - 40
Delicate fish	1.5	Turbo/Round	2	160	60 - 65
Flounder	1.5	Turbo/Round	2	160	45 - 50
Pizza	1	Turbo/Round	2	MAX	8 - 9
Bread	1	Round	2	190 - 200	25 - 30
Focaccia	1	Turbo/Round	2	180 - 190	20 - 25
Ring cake	1	Round	2	160	55 - 60
Tart	1	Round	2	160	35 - 40
Ricotta cake	1	Round	2	160 - 170	55 - 60
Jam tarts	1	Turbo/Round	2	160	20 - 25
Chiffon cake	1.2	Round	2	160	55 - 60
Profiteroles	1.2	Turbo/Round	2	180	80 - 90
Sponge cake	1	Round	2	150 - 160	55 - 60
Rice pudding	1	Turbo/Round	2	160	55 - 60
Brioches	0.6	Round	2	160	30 - 35

The times indicated in the table do not include preheating times and are provided only as a guide.

4 Cleaning and maintenance

Instructions

Improper use

Risk of damage to surfaces

• Do not use steam jets to clean the appliance.
• Do not use cleaning products containing chlorine, ammonia or bleach on parts made of steel or that have metallic surface finishes (e.g. anodizing, nickel- or chromium-plating).
• Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.
• Do not use rough or abrasive materials or sharp metal scrapers.
• Do not wash the removable components such as the hob grids, flame-spreader crowns and burner caps in a dishwasher.

We recommend the use of cleaning products distributed by the manufacturer.

Cleaning the surfaces

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

Ordinary daily cleaning

Always use specific products only that do not contain abrasives or chlorine-based acids.

Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Food stains or residues

Do not use steel sponges and sharp scrapers as they will damage the surface. Use normal, non-abrasive products and a wooden or plastic tool, if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.

Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

After cleaning, dry the appliance thoroughly to prevent water or detergent drips from interfering with its operation or creating unsightly marks.

4.1 Cleaning the hob

Cooking hob grids

Remove the grids and clean them in lukewarm water and non-abrasive detergent. Make sure to remove any encrustations. Dry them thoroughly and return them to the hob.

The continuous contact between the grids and the flame can cause modifications to the enamel over time in those parts exposed to heat. This is a completely natural phenomenon which has no effect on the operation of this component.

Flame-spreader crowns and burner caps

For easier cleaning, the flame-spreader crowns and the burner caps can be removed. Wash them in hot water and non-abrasive detergent. Carefully remove any encrustation, then wait until they are perfectly dry. Refit the flame-spreader crowns making sure that they are correctly positioned in their housings with their respective burner caps.

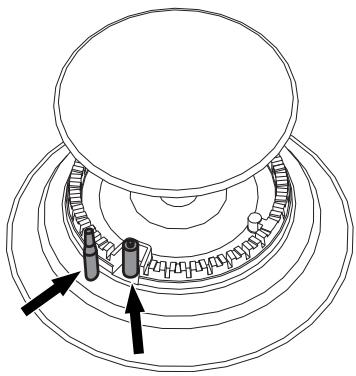

Igniters and thermocouples

For correct operation the igniters and thermocouples must always be perfectly clean. Check them frequently and clean them with a damp cloth if necessary. Remove any dry residues with a wooden toothpick or a needle.

Knobs

Do not use aggressive products containing alcohol or products for cleaning steel and glass when cleaning the knobs, as these products could cause permanent damage.

The knobs should be cleaned with a soft cloth dampened with warm water, then dried carefully. They can be removed by pulling them out of their housing.

4.2 Cleaning the door

Removing the door

For easier cleaning it is recommended to remove the door and place it on a tea towel.

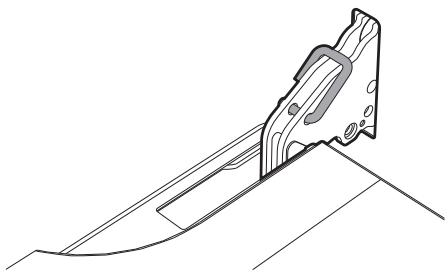

To remove the door proceed as follows:

1. Open the door completely and insert two pins into the holes on the hinges indicated in the figure.

1. Grasp the door on both sides with both hands, lift it forming an angle of around 30^ and remove it.

1. To reassemble the door, put the hinges in the relevant slots in the oven, making sure that grooved sections A are resting completely in the slots. Lower the door and once it is in place remove the pins from the holes in the hinges.

Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and an ordinary detergent.

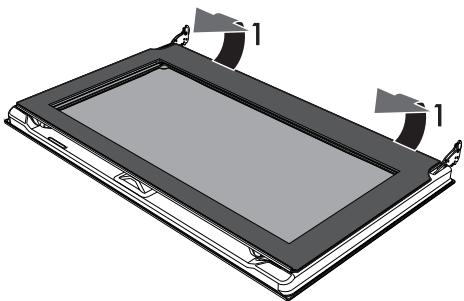

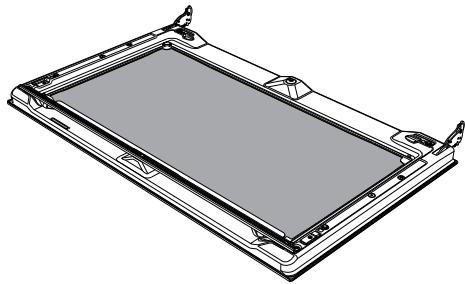

Removing the internal glass panes

For easier cleaning the internal glass panes of the door can be removed.

1. Open the door.
2. Position the locking hooks in the hinge holes to prevent accidental closing of the door.

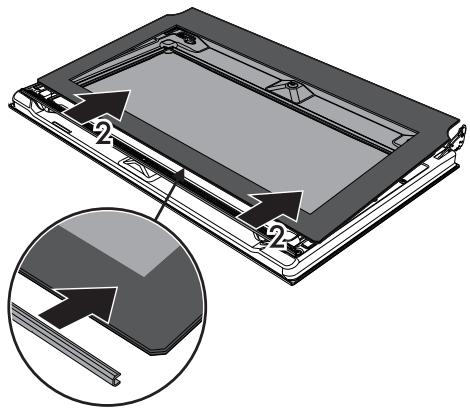

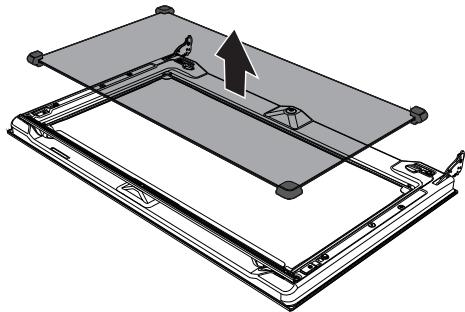

3. Remove the internal glazing pane by pulling the rear part gently upwards, following the movement indicated by the arrows (1).

1. Pull the internal glazing pane from the front strip (2) to remove it from the door.

1. Remove the intermediate glass pane by lifting it upwards.

1. Clean the external glass pane and the panes removed previously. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and neutral detergent.

1. When you have finished cleaning,
   reinsert the intermediate glass pane in its housing in the door.
2. To reposition the internal glazing pane, slide the upper part into the door strip and insert the two rear pins into their seats by pressing lightly.

4.3 Cleaning the oven cavity

In order to keep your oven in the best possible condition, clean it regularly after letting it cool down.

Avoid letting food residue dry inside the oven cavity, as this could damage the enamel.

Take out all removable parts before cleaning.

For easier cleaning, it is recommended to remove:

the door

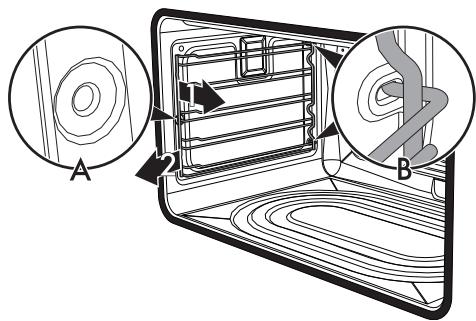

- The rack/tray support frames
The seal.

In the event you are using specific cleaning products, we recommend running the oven at maximum temperature for 15-20 minutes in order to eliminate any residue.

Removing racks/trays support frames

Removing the rack/tray support frames enables the sides to be cleaned more easily.

To remove the rack/tray support frames:

Pull the frame towards the inside of the oven to unhook it from its groove A, then slide it out of the seats B at the back.

• When cleaning is complete, repeat the above procedures to put the rack/tray support frames back in.

4.4 Vapor Clean

Vapor Clean is an assisted cleaning procedure which facilitates the removal of dirt. Thanks to this process, it is possible to clean the inside of the oven very easily. The dirt residues are softened by the heat and water vapour for easier removal afterwards.

Improper use Risk of damage to surfaces

• Remove any food residues or large spills from previous cooking operations from the inside of the oven.
• Carry out assisted oven cleaning operations only when the oven is cold.

Preliminary operations

Before starting the Vapor Clean cycle:

• Remove all accessories from inside the oven cavity.

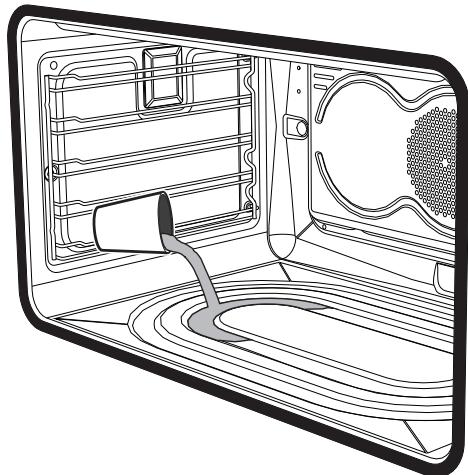

• Pour approximately 40~cc of water into the tray. Make sure it does not overflow out of the cavity.

• Spray a water and washing up liquid solution inside the oven using a spray nozzle. Direct the spray against the side walls, upwards, downwards and towards the deflector.

• Close the door.

We recommend spraying approx. 20 times at the most.

Vapor Clean cycle setting

1. Turn the function knob to the symbol and the temperature knob to the symbol
2. Set a cooking time of 18 minutes using the programmer clock.

The Vapor Clean cycle starts a few seconds after the last press on the programmer clock keys.
3. At the end of the Vapor Clean cycle, the timer will deactivate the oven heating elements, the buzzer will start to sound and the numbers on the programmer clock dial will flash.

End of the Vapor Clean cycle

1. Open the door and wipe away the less stubborn dirt with a microfibre cloth.
2. Use a non-scratch sponge with brass filaments on hard to remove deposits.
3. In case of grease residues use specific oven cleaning products.
4. Remove the water left inside the oven.

For improved hygiene and to avoid food being affected by any unpleasant odours, we recommend that the oven is dried using a fan assisted function at 160^ for approximately 10 minutes.

We recommend wearing rubber gloves for these operations.

For easier manual cleaning of parts that are difficult to reach, we recommend removing the door.

4.5 Extraordinary maintenance

Replacing the internal light bulb

Live parts Danger of electrocution

• Unplug the appliance from the mains.

The oven is fitted with a 40W light bulb.

1. Completely remove all accessories from inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g. a screwdriver).

Take care not to scratch the enamel of the oven cavity wall.

Cleaning and maintenance

1. Slide out and remove the light bulb.

Do not touch the halogen light bulb directly with your fingers, use an insulating material.

1. Fit the new light bulb.

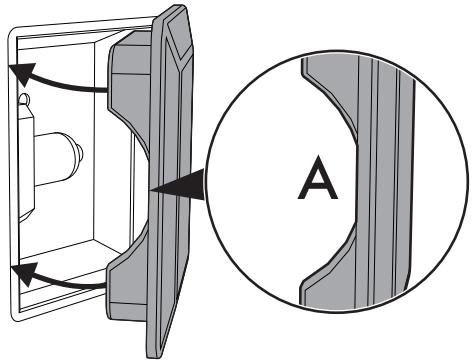

2. Refit the cover. Ensure the moulded part of the glass (A) is facing the door.

1. Press the cover completely down so that it attaches perfectly to the bulb support.

Installing and removing the seal

To remove the seal:

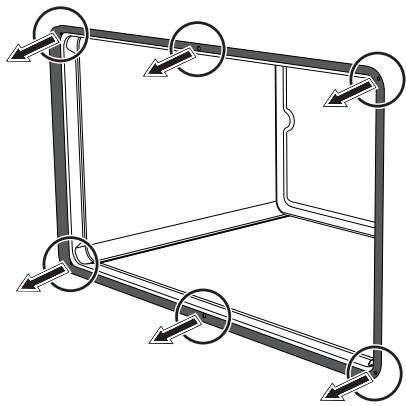

• Unhook the clips located in the 4 corners and in the centre, then pull the seal outwards.

To refit the seal:

• Hook the clips located in the 4 corners and in the centre onto the seal.

Seal maintenance tips

The seal should be soft and elastic.

• To keep the seal clean, use a non-abrasive sponge and wash with lukewarm water.

5 Installation

5.1 Gas connection

Gas leak Danger of explosion

After carrying out any operation, check that the tightening torque of gas connections is between 10Nm and 15Nm .
- If required, use a pressure regulator that complies with current regulations.
- At the end of the installation, check for any leaks with a soapy solution, never with a flame.
- Installation using a hose must be carried out so that the length of the hose does not exceed 2 metres when fully extended for steel hoses and 1.5 metres for rubber hoses.
- The hoses should not come into contact with moving parts and should not be crushed in any way.
- The adjustment conditions for this appliance are shown on the gas setting label.

General information

Connection to the gas mains can be made using a continuous wall steel hose in compliance with the guidelines established by the standards in force. The appliance is preset for natural gas G20 (2H) at a pressure of 20 mbar. For supplying it with other types of gas, see chapter "5.2 Adaptation to different types of gas". The gas inlet connection is threaded 12 " external gas (ISO 228-1).

Connection with a rubber hose

Verify that all following conditions are met:

• The hose is attached to the hose connector with safety clamps.
• No part of the hose is in contact with hot walls (max. 50^ ).
• The hose is not under traction or tension and has no kinks or twists.
• The hose is not in contact with sharp objects or sharp corners.
• If the hose is not perfectly airtight and leaks gas, do not try to repair it; replace it with a new hose.
• verify that the hose is not past its expiry date (serigraphed on the hose itself).

Make the connection to the gas mains using a rubber hose whose specifications comply with current standards (verify that the reference standard is stamped on the hose).

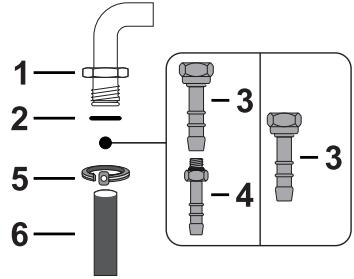

Carefully screw the hose connector 3 to the appliance's gas connector 1 (12'' thread ISO 228-1), placing the seal 2 between them. The hose connector 4 can also be screwed to the hose connector 3, depending on the diameter of the gas hose used. After having tightened the hose connector(s), push the gas hose 6 onto the hose connector and secure it with the clamp 5 that is compliant with the standard in force.

Connection using a rubber hose complying with current standards is only permitted if the hose can be inspected along its entire length.

The inside diameter of the hose must be 8mm for LPG and 13mm for Natural gas and Town gas.

Connection with a steel hose

Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard.

Carefully screw the connector 3 to the gas connector 1 of the appliance, placing the seal 2 between them.

Connection with a steel hose with bayonet fitting

Carry out the connection to the gas mains using a steel hose with bayonet fitting compliant with B.S. 669. Apply insulating material to the thread of the gas hose connector 4 and then tighten the adapter 3. Screw the assembly to the movable connector 1 of the appliance, placing the supplied seal 2 between them.

Connection to LPG

Use a pressure regulator and make the connection on the gas cylinder following the guidelines set out in the standards in force.

The supply pressure must comply with the values indicated in the table in "Gas types and Countries".

Connection with a steel hose with conical fitting

Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard.

Carefully screw the hose connector 3 to the appliance's gas connector 1 (12'' thread ISO 228-1), placing the supplied seal 2 between them. Apply insulating material to the thread of connector 3, then tighten the steel hose 4 to the connector 3.

Room ventilation

The appliance should be installed in rooms that have a permanent air supply in accordance with the standards in force. The room where the appliance is installed must have enough air flow for the regular combustion of gas and the necessary air change in the room itself. The air vents, protected by grilles, must be the right size to comply with current regulations and positioned so that no part of them is obstructed, not even partially.

The room must be kept adequately ventilated in order to eliminate the heat and humidity produced by cooking: In particular, after prolonged use, you are recommended to open a window or to increase the speed of any fans.

Extraction of the combustion products

This appliance is not connected to an exhaust system for combustion products. It must be installed and connected in compliance with the current installation regulations. Special attention should be paid to the relevant requirements as for ventilation.

The combustion products may be extracted by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction. An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and clearances indicated by the applicable standards.

When the job is complete, the installer must issue a certificate of conformity.

1 Extraction using a hood
2 Extraction without a hood

A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-mounted extractor fan
D Directly outdoors through wall

Air
Combustion products
Extractor fan

5.2 Adaptation to different types of gas

In case of operation with other types of gas, the burner nozzles must be changed and the minimum flame adjusted on the gas cocks.

Replacing nozzles

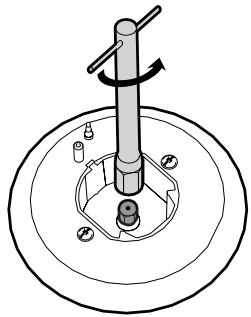

1. Remove the grids, burner caps and flame-spreader crowns to access the burner cups.

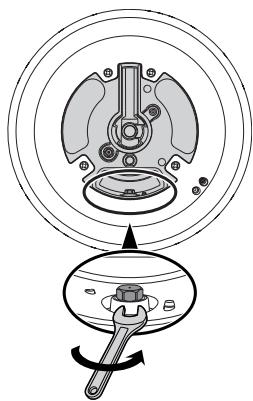

2. Replace the nozzles using a 7 mm socket wrench according to the gas to be used (see "Gas types and Countries").

1. Replace the burners in their respective housings.

Adjusting the minimum setting for natural or town gas

Light the burner and turn it to the minimum position. Extract the gas cock knob and turn the adjustment screw next to the tap rod (depending on the model) until the correct minimum flame is achieved.

Refit the knob and verify that the burner flame is stable. Turn the knob rapidly from the maximum to the minimum setting: The flame should not go out. Repeat the operation on all gas cocks.

Adjusting the minimum setting for LPG

Tighten the screw located at the side of the tap rod clockwise all the way.

Following adjustment to a gas other than the one originally set in the factory, replace the gas setting label on the appliance with the one corresponding to the new gas. The label is inserted inside the nozzle pack (where present).

Lubricating the gas cocks

Over time the gas taps may become difficult to turn and get blocked. Clean them internally and replace the lubrication grease.

Lubrication of the gas cocks should be performed by a specialised technician.

Gas types and Countries

Gas types

IT

GB-IE

FR-BE

DE

AT

NL

ES

PT

SE

RU

DK

PL

HU

1 Natural gas G20

G20

20 mbar

●

●

●

●

●

●

●

●

●

●

G20/25

20/25 mbar

●

2 Natural gas G20

G20

25 mbar

●

3 Natural gas G25

G25

25 mbar

●

G25.3

25 mbar

●

4 Natural gas G25.1

G25.1

25 mbar

●

5 Natural gas G25

G25

20 mbar

●

6 Natural gas G2.350

G2.350

13 mbar

●

7 LPG G30/31

G30/31

28/37 mbar

●

●

●

●

G30/31

30/37 mbar

●

●

G30/31

30/30 mbar

●

●

●

8 LPG G30/31

G30/31

37 mbar

●

9 LPG G30/31

G30/31

50 mbar

●

●

10 Town gas G110

G110

8 mbar

●

●

●

It is possible to identify the available gas types based on the country the appliance is to be installed in. Refer to the heading number to identify the correct values in the "Gas types and Countries".

Burner and nozzle characteristics tables

1 Gas Metano G20	AUX	SR	R	UR2
Portata termica nominale (kW)	1.0	1.8	3.0	4.2
Diametro ugello (1/100 mm)	72	97	120	145
Precamera (stampata su ugello)	(X)	(Z)	(H9)	(F3)
Portata ridotta (W)	400	500	800	1400
2 Gas Metano G20	AUX	SR	R	UR2
Portata termica nominale (kW)	1.1	1.8	3.0	4.2
Diametro ugello (1/100 mm)	72	94	110	145
Precamera (stampata su ugello)	(X)	(Z)	(H8)	(H3)
Portata ridotta (W)	400	500	800	1400
3 Gas Metano G25	AUX	SR	R	UR2
Portata termica nominale (kW)	1.0	1.8	3.0	4.2
Diametro ugello (1/100 mm)	72	94	121	143
Precamera (stampata su ugello)	(F1)	(Y)	(F2)	(F2)
Portata ridotta (W)	400	500	800	1400
4 Gas Metano G25.1	AUX	SR	R	UR2
Portata termica nominale (kW)	1.1	1.8	3.0	4.2
Diametro ugello (1/100 mm)	77	100	134	152
Precamera (stampata su ugello)	(F1)	(Y)	(F3)	(F3)
Portata ridotta (W)	400	500	800	1400
5 Gas Metano G25	AUX	SR	R	UR2
Portata termica nominale (kW)	1.0	1.8	3.0	4.0
Diametro ugello (1/100 mm)	77	100	134	165
Precamera (stampata su ugello)	(F1)	(Y)	(F3)	(H3)
Portata ridotta (W)	400	500	800	1400
6 Gas Metano G2.350	AUX	SR	R	UR2
Portata termica nominale (kW)	1.0	1.8	2.9	3.8
Diametro ugello (1/100 mm)	94	120	165	190
Precamera (stampata su ugello)	(Y)	(Y)	(F3)	(F3)
Portata ridotta (W)	400	500	800	1400
7 LPG G30/31	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	4.0
Nozzle diameter (1/100 mm)	50	65	85	100
Pre-chamber (printed on nozzle)	-	-	-	-
Reduced flow rate (W)	400	500	800	1400
Rated flow rate G30 (g/h)	73	131	218	291
Rated flow rate G31 (g/h)	71	129	214	286
8 LPG G30/31	AUX	SR	R	UR2
Rated heating capacity (kW)	1.1	1.9	3.0	4.1
Nozzle diameter (1/100 mm)	50	65	81	95
Pre-chamber (printed on nozzle)	-	-	-	-
Reduced flow rate (W)	450	550	900	1400
Rated flow rate G30 (g/h)	80	138	218	298
Rated flow rate G31 (g/h)	79	136	214	293
9 LPG G30/31	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	3.0	4.1
Nozzle diameter (1/100 mm)	43	58	74	80
Pre-chamber (printed on nozzle)	(H2)	(M)	(Z)	(F4)
Reduced flow rate (W)	400	500	1000	1500
Rated flow rate G30 (g/h)	73	131	218	298
Rated flow rate G31 (g/h)	71	129	214	293
10 Town gas G110	AUX	SR	R	UR2
Rated heating capacity (kW)	1.0	1.8	2.8	3.4
Nozzle diameter (1/100 mm)	145	185	260	340
Pre-chamber (printed on nozzle)	(/8)	(/2)	(/3)	0190
Reduced flow rate (W)	400	500	800	1200

The nozzles not provided are available at Authorised Service Centres.

5.3 Positioning

Heavy appliance.
Crushing hazard

• Position the appliance into the cabinet cut-out with the help of a second person.

Pressure on the open door Risk of damage to the appliance

• Never use the oven door to lever the appliance into place when fitting.
• Avoid exerting too much pressure on the door when open.

Heat production during appliance operation Risk of fire
- Veneers, adhesives or plastic coatings on adjacent furniture should be temperature-resistant (not less than 90^ ).

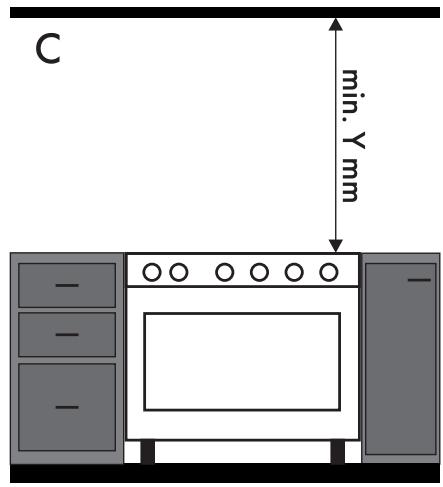

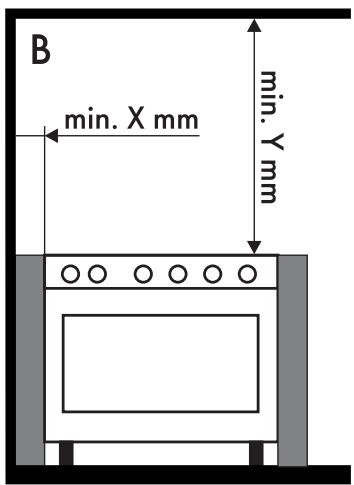

This appliance may be installed next to walls, one of which must be higher than the worktop, at a minimum distance of X mm from the side of the appliance, as shown in figures "A" and "C" relative to the installation classes.

Any wall units positioned above the worktop of the appliance must be at a minimum distance of at least Y mm . If a hood is installed above the hob, refer to the hood instruction manual to ensure the correct clearance is left.

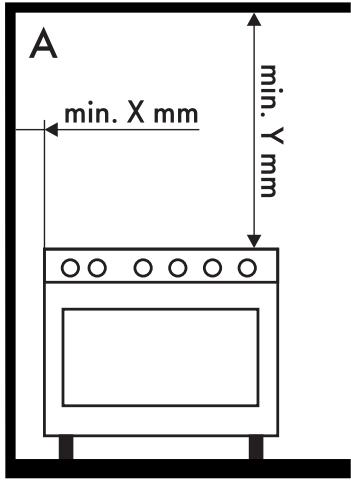

X	150 mm
Y	750 mm

Depending on the type of installation, this appliance belongs to classes:

A - Class 1
(Free-standing appliance)

B - Class 2 subclass 1 (Built-in appliance)

C - Class 2 subclass 1 (Built-in appliance)

The appliance must be installed by a qualified technician and according to the regulations in force.

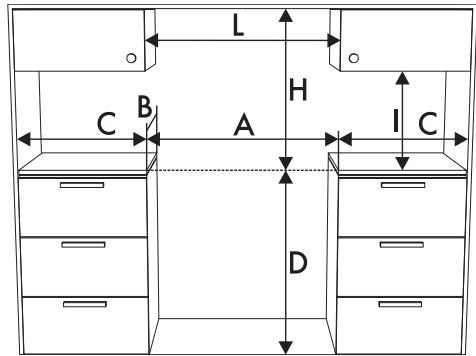

Appliance overall dimensions

A	900 mm
B	600 mm
C¹	min. 150 mm
D	900 - 915 mm
H	750 mm
I	450 mm
L²	900 mm

1 Minimum distance from side walls or other flammable material.
2 Minimum cabinet width (= A)

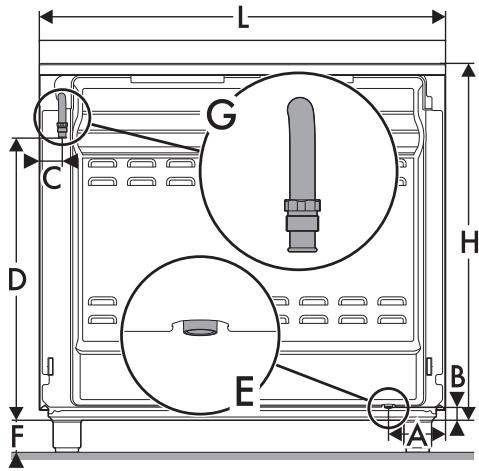

Dimensions of the appliance: locations of gas and electric connections (mm)

A	124
B	38
C	42
D	634
F	min 70 - max 110
H	809
L	898

E = Electrical connection

G = Gas connection

Positioning and levelling

Heavy appliance Risk of damage to the appliance

• Insert the front feet first and then the rear ones.

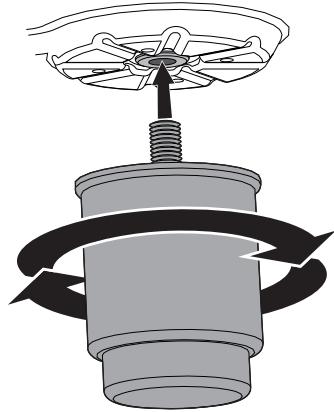

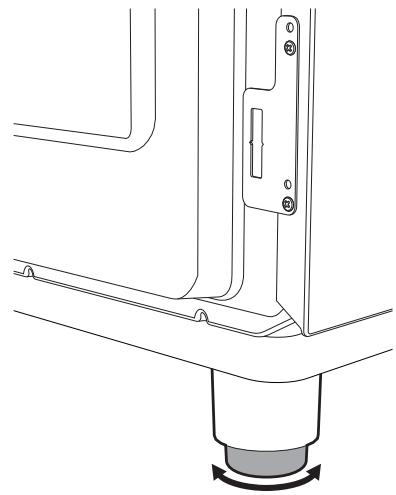

After making the electrical and/or gas connections, screw the four adjustable feet supplied with the appliance.

The appliance must sit level on the floor to ensure stability.

Screw or unscrew the bottom part of the foot until the appliance is stable and level on the floor.

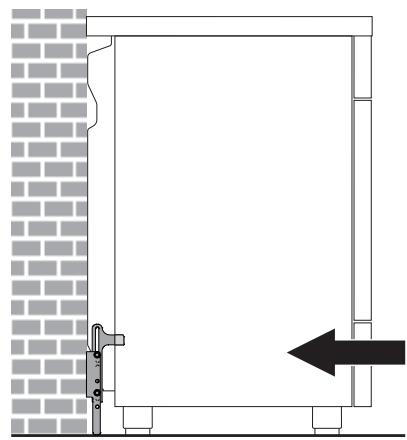

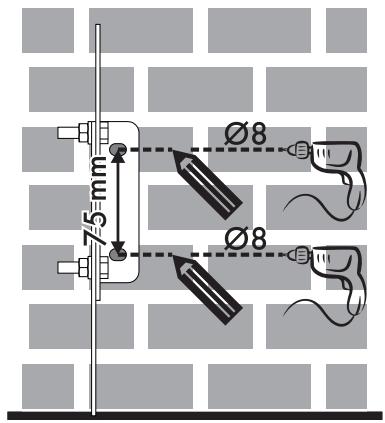

Fastening to the wall

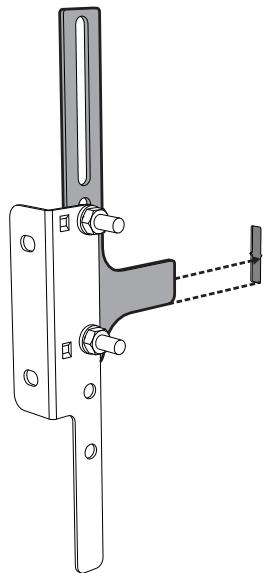

The anti-tip devices must be installed in order to prevent the appliance from tipping over.

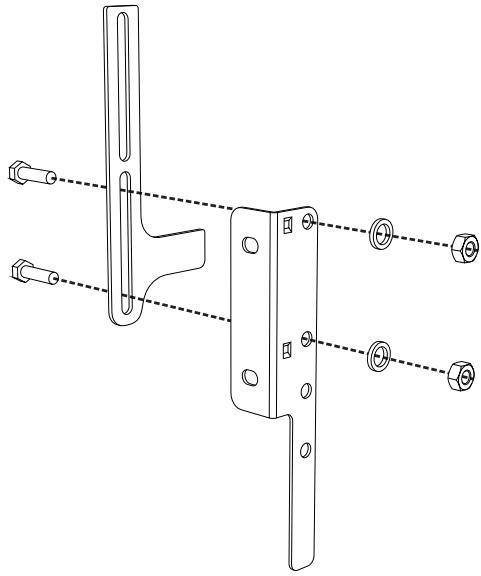

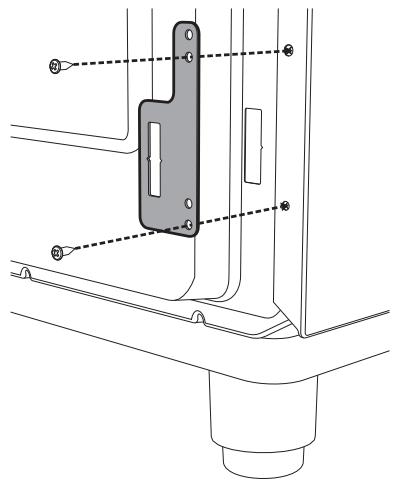

1. Screw the wall fastening plate to the rear of the appliance.

1. Adjust the height of the 4 feet.

1. Assemble the fastening bracket.

1. Align the base of the hook on the fastening bracket with the base of the slot on the wall fastening plate.

1. Align the base of the fastening bracket with the ground and tighten the screws to fix the measurements.

1. Use 50~mm for the distance from the side of the appliance to the bracket holes.

1. Move the bracket onto the wall and mark the position of the holes to be drilled in the wall.

1. After drilling the holes in the wall, use wall plugs and screws to fasten the bracket to the wall.
2. Push the cooker towards the wall, and at the same time, insert the bracket in the plate fastened to the rear of the appliance.

Assembling the upstand

The upstand provided is an integral part of the product; it must be fastened to the appliance prior to installation.

The upstand must always be positioned and secured correctly on the appliance.

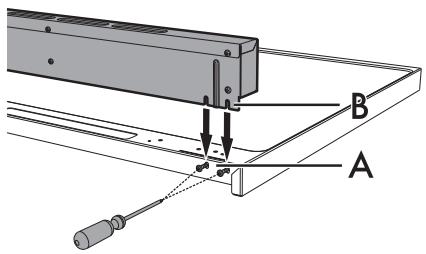

1. Loosen the 4 screws (A) on the back of the hob (2 for each side) using a screwdriver.
2. Place the upstand on the worktop.
3. Align the slots of the upstand (B) with the screws (A).

1. Secure the upstand to the worktop by tightening the 4 screws previously loosened.

5.4 Electrical connection

Power voltage Danger of electrocution

• Have the electrical connection performed by authorised technicians.
• Use personal protective equipment.
• The appliance must be connected to ground in compliance with electrical system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the plug.
  Use cables withstanding a temperature of at least 90^
• The tightening torque of the screws of the terminal board leads must be 1.5 - 2Nm .

General information

Check the mains characteristics against the data indicated on the plate.

The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance.

Do not remove this plate for any reason.

Perform the ground connection using a wire that is 20mm longer than the other wires.

The appliance can work in the following modes:

220-240 V 1N~

3 × 1.5 ~mm^2 three-core cable.

The values indicated above refer to the cross-section of the internal lead.

The aforementioned power cables are sized taking into account the coincidence factor (in compliance with standard EN 60335-2-6).

Fixed connection

Fit the power line with an all-pole disconnection switch, with at least 3mm between its contacts, in compliance with installation regulations.

The circuit breaker should be located near the appliance and in an easily reachable position.

Connection with plug and socket

Make sure that the plug and socket are of the same type.

Avoid using adapters, gang sockets or extensions as these could cause overheating and a risk of burns.

5.5 Instructions for the installer

• The plug must be accessible after installation. Do not bend or trap the power cable.
• The appliance must be installed according to the installation diagrams.
• Do not try to unscrew or force the threaded elbow of the fitting. You may damage this part of the appliance, which may void the manufacturer's warranty.
• Use soap and water to check for gas leaks on all connections. DO NOT use naked flames when looking for leaks.
• Turn on all the burners separately and at then all together to make sure that the gas valve, burner and ignition are working properly.
• Turn the burner knobs to the minimum position and check that the flame is stable for each individual burner and all the burners together.
• If the appliance does not work correctly after having carried out all the checks, contact your local Authorised Service Centre.
• Once the appliance has been installed, please explain to the user how to use it correctly.
