Inhaltsverzeichnis

1 Sicherheit 7

1.1 General information 33
1.2 Intended use 33
1.3 Restriction on user group..... 33
1.4 Safe transport 33
1.5 Safe installation 34
1.6 Safe use 35
1.7 Damaged appliance 37

2 Preventing material damage .... 38

3 Environmental protection and saving energy 38

3.1 Disposing of packaging 38
3.2 Saving energy 38

4 Installation and connection..... 39

4.1 Scope of delivery 39
4.2 Criteria for the installation location 39
4.3 Installing the appliance 40
4.4 Preparing the appliance for the first time 40
4.5 Connecting the appliance to the electricity supply 40

5 Familiarising yourself with your appliance. 40

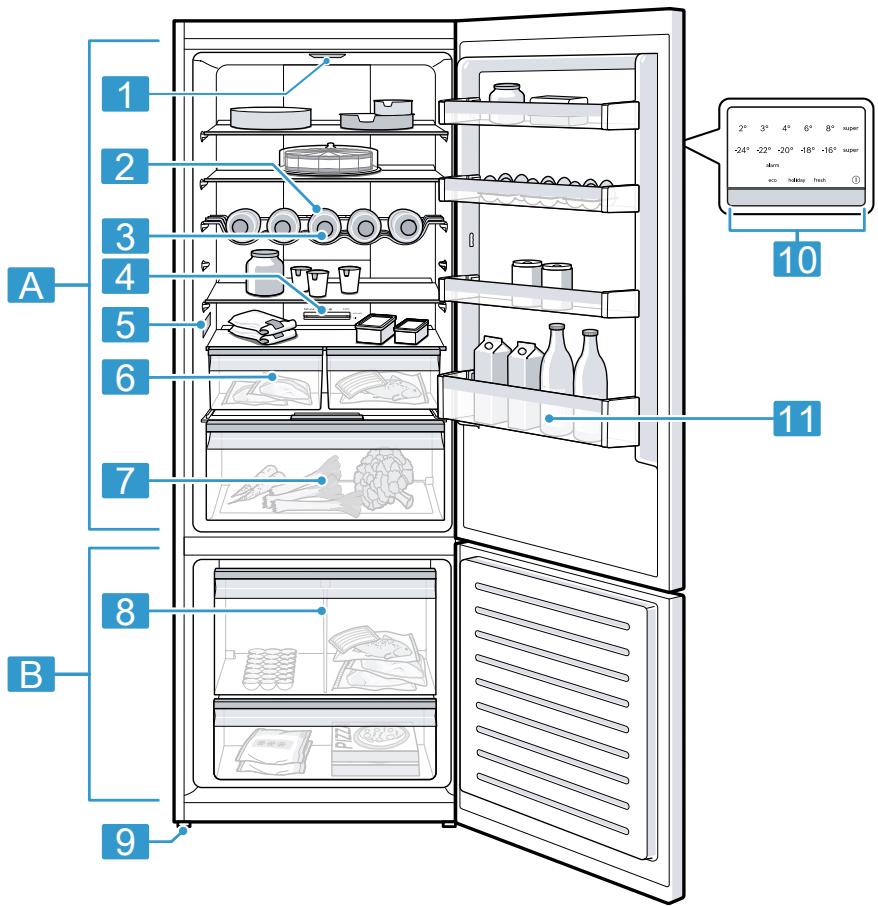

5.1 Appliance 40

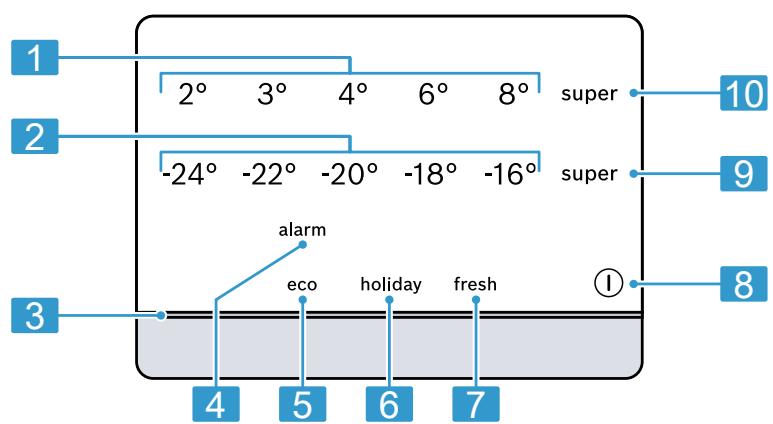

5.2 Control panel 41

6 Features. 41

6.1 Shelf. 41
6.2 Bottle shelf. 41
6.3 Storage container 41

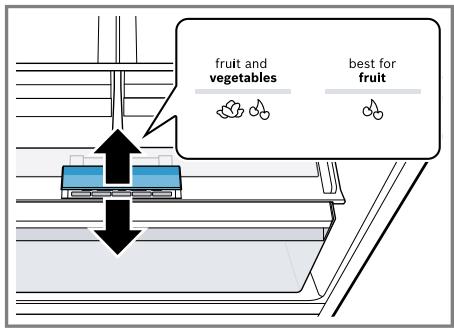

6.4 Fruit and vegetable container with humidity control .... 41

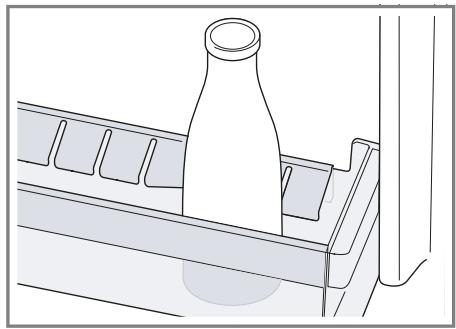

6.5 Door rack.. 42
6.6 Accessories 42

7 Basic operation 42

7.1 Switching on the appliance..... 42
7.2 Operating tips 43

7.3 Switching off the appliance..... 43
7.4 Setting the temperature 43

8 Additional functions 43

8.1 Super cooling 43
8.2 Super freezing 43
8.3 Holiday mode 44
8.4 Energy-saving mode 44
8.5 Freshness mode 44

9 Alarm. 45

9.1 Door alarm 45
9.2 Temperature alarm 45

10 Refrigerator compartment..... 45

10.1 Tips for storing food in the refrigerator compartment 45
10.2 Chill zones in the refrigerator compartment 46

11 Freezer compartment. 46

11.1 Freezing capacity 46
11.2 Fully utilising the freezer compartment volume 46
11.3 Tips for storing food in the freezer compartment 46
11.4 Tips for freezing fresh food .... 47
11.5 Shelf life of frozen food at -18 °C.... 47
11.6 Defrosting methods for frozen food 47

12 Defrosting 48

12.1 Defrosting in the refrigerator compartment 48
12.2 Defrosting in the freezer compartment 48

13 Cleaning and servicing 48

13.1 Preparing the appliance for cleaning 48
13.2 Cleaning the appliance 48
13.3 Removing the fittings.. 49

en

14 Troubleshooting 50

14.1 Power failure 53
14.2 Conducting an appliance self-test 53

15 Storage and disposal 53

15.1 Taking the appliance out of operation 53
15.2 Disposing of old appliance .... 54

16 Customer Service 54

16.1 Product number (E-Nr.) and production number (FD)……… 55
17 Technical data 55

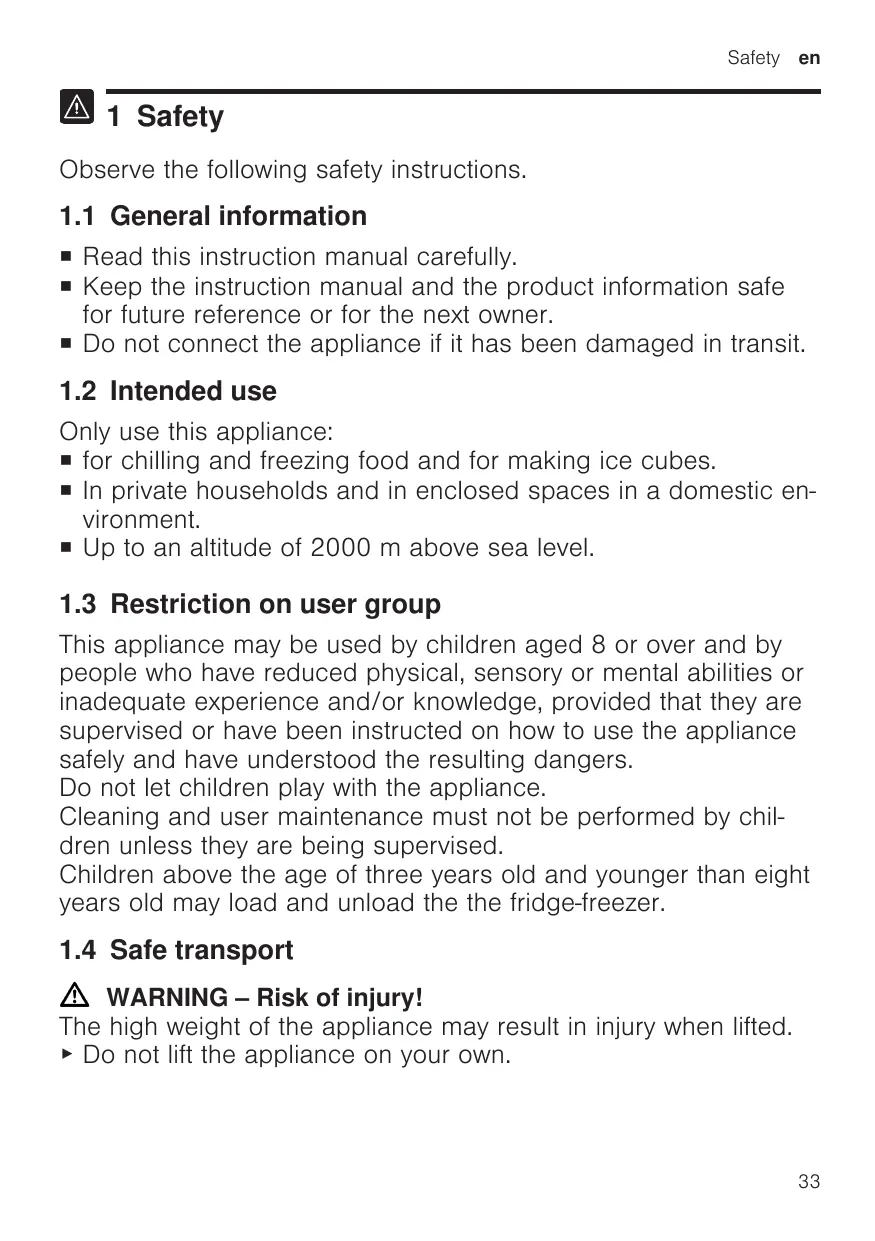

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

for chilling and freezing food and for making ice cubes.
- In private households and in enclosed spaces in a domestic environment.
Up to an altitude of 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer.

1.4 Safe transport

WARNING - Risk of injury!

The high weight of the appliance may result in injury when lifted.

Do not lift the appliance on your own.

1.5 Safe installation

WARNING - Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
• Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.
• When installing the appliance, check that the power cable is not trapped or damaged.

If the insulation of the power cord is damaged, this is dangerous.
- Never let the power cord come into contact with heat sources.

WARNING - Risk of explosion!

If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING - Risk of fire!

It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
  If the power cord is too short, contact Customer Service.
• Only use adapters approved by the manufacturer.

Portable multiple socket strips or portable power supply units may overheat and cause a fire.

• Do not place portable multiple socket strips or power supply units on the back of the appliance.

1.6 Safe use

WARNING - Risk of electric shock!

An ingress of moisture can cause an electric shock.

• Only use the appliance in enclosed spaces.
• Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
• Do not let children play with small parts.

WARNING - Risk of explosion!

If the cooling circuit is damaged, flammable refrigerant may escape and explode.

To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer.
- If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon.

Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

WARNING - Risk of fire!

Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

• Do not operate electrical devices within the appliance.

WARNING - Risk of injury!

Containers that contain carbonated drinks may burst.

• Do not store containers that contain carbonated drinks in the freezer compartment.

Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

• Do not damage the tubes of the refrigerant circuit or the insulation.

The appliance may tip.

Do not stand or support yourself on the base, runners or doors.

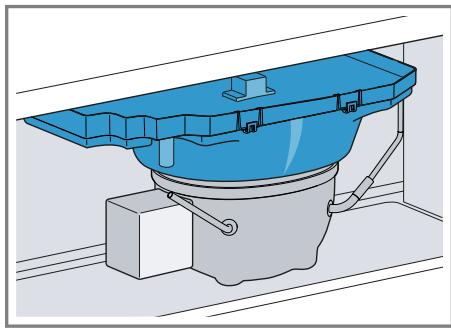

WARNING - Risk of burns!

Individual parts on the back of the appliance become hot during operation.

• Never touch these hot parts.

WARNING - Risk of cold burns!

Contact with frozen food and cold surfaces may cause burns by refrigeration.

• Never put frozen food straight from the freezer compartment into your mouth.
• Avoid prolonged contact of the skin with frozen food, ice and surfaces in the freezer compartment.

CAUTION - Risk of harm to health!

To prevent food from being contaminated, you must observe the following instructions.

• If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.
  Regularly clean the surfaces that may come into contact with food and accessible drain systems.
• Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food.
• If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould.

Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food.

Do not consume soiled food.

1.7 Damaged appliance

WARNING - Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

• Never operate a damaged appliance.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Call customer services. Page 54 Incorrect repairs are dangerous.
  Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

WARNING - Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Keep naked flames and ignition sources away from the appliance.
• Ventilate the room.
  Switch off the appliance. Page 43
• Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  ▶ Call after-sales service. → Page 54

2 Preventing material damage

ATTENTION!

If not rolling freely, the appliance's castors may damage the floor when the appliance is moved.

Transport the appliance using a sack truck.
- Use floor protection when moving the appliance, and do not move it in a zigzag fashion.

Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.
- Do not stand or support yourself on the base, runners or doors.

Contamination with oil or fat may cause plastic parts and door seals to become porous.

• Keep plastic parts and door seals free of oil and grease.
  Metal or metal-style parts in the appliance may contain aluminium. Aluminium reacts when it comes into contact with acidic foods.
• Do not store unpackaged food in the appliance.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Selecting the installation location

• Keep the appliance out of direct sunlight.
  Install the appliance as far away as possible from heating elements, cookers and other heat sources:

• Maintain a 30 mm clearance to electric or gas cookers.

• Maintain a 300 mm clearance to oil or solid-fuel cookers.

Make sure there is a small gap between the side wall and the appliance.
- Never cover or block the external ventilation openings.

Saving energy during use

Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

• Open the appliance only briefly and then close it carefully.
• Never cover or block the interior ventilation openings or the exterior ventilation openings.
• Transport purchased food in a cool bag and place in the appliance quickly.
• Allow warm food and drinks to cool down before storing them.
  Thaw frozen food in the refrigerator compartment to utilise the low temperature of the food.
  Always leave some space between the food and to the back panel.

Standby mode

If the appliance is not being used, the display automatically switches to standby mode.

In standby mode, the brightness of the control panel is reduced and the light bar lights up.

Standby mode is deactivated as soon as you operate the display or open the door.

You can switch off the light bar in standby mode.

Switching on the light bar

Press and hold 2^ + 8^ for 3 seconds until an audible signal sounds.

Switching off the light bar

Press and hold 2^ + 8^ for 3 seconds until an audible signal sounds.

4 Installation and connection

4.1 Scope of delivery

After unpacking all parts, check for any transport damage and for completeness of delivery.

If you have any complaints, contact your dealer or our after-sales service Page 54.

The delivery consists of the following:

Free-standing appliance
Equipment and accessories
Installation instructions
- User manual
Customer service directory
Warranty enclosure
Energy label
Information on energy consumption and noises

4.2 Criteria for the installation location

WARNING

Risk of explosion!

If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

• Only install the appliance in a space with a volume of at least 1m^3 per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. Fig. 1/5

The weight of the appliance ex works may be up to 100kg depending on the model.

The subfloor must be sufficiently stable to bear the weight of the appliance.

Permitted room temperature

The permitted room temperature depends on the appliance's climate class.

The climate class can be found on the rating plate. Fig. 1/5

Climate class	Permitted room temperature
SN	10 °C to 32 °C
N	16 °C to 32 °C
ST	16 °C to 38 °C
T	16 °C to 43 °C

The appliance is fully functional within the permitted room temperature.

If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5^ .

Over-and-under and side-by-side installation

If you want to install 2 refrigerating appliances one over the other or side by side, you must maintain a clearance of at least 150~mm between the appliances. Selected appliances can be installed without a minimum clearance. Ask your dealer or kitchen planner about this.

4.3 Installing the appliance

Install the appliance in accordance with the enclosed installation instructions.

4.4 Preparing the appliance for the first time

1. Remove the informative material.
2. Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
3. Clean the appliance for the first time. Page 48

4.5 Connecting the appliance to the electricity supply

1. Insert the mains plug of the appliance's power cable in a socket nearby.
   The connection data of the appliance can be found on the rating plate. Fig. 1/5
2. Check the mains plug is inserted properly.
3. The appliance is now ready for use.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

Fig. 1

A	Refrigerator compartment → Page 45
B	Freezer compartment → Page 46
1	Lighting
2	Interior ventilation opening
3	Bottle shelf → Page 41

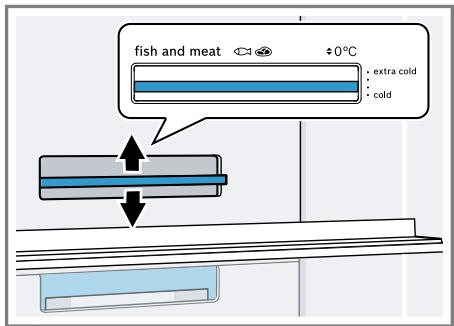

4	Temperature controller (storage container) → Page 43
5	Rating plate → Page 55
6	Storage container → Page 41
7	Fruit and vegetable container with humidity control → Page 41
8	Frozen food container → Page 49
9	Screw foot
10	Control panel
11	Door storage compartment for large bottles → Page 42

Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.

5.2 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Fig. 2

1	Displays the set temperature for the refrigerator compartment in °C.
2	Displays the set temperature for the freezer compartment in °C.
3	The light bar provides visual feedback.
4	alarm switches the warning signal off.
5	eco switches energy-saving mode on or off.
6	holiday switches holiday mode on or off.
7	fresh switches freshness mode on or off.
8	① switches the appliance on or off.
9	super (Freezer compartment) switches Super freezing on or off.
10	super (Refrigerator compartment) switches Super cooling on or off.

6 Features

The features of your appliance depend on the model.

6.1 Shelf

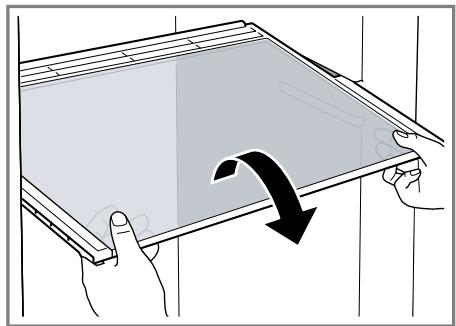

To vary the shelf as required, you can remove the shelf and re-insert it elsewhere.

"Removing the shelf", Page 49

6.2 Bottle shelf

Store bottles securely on the bottle shelf.

To vary the bottle shelf as required, you can remove the bottle shelf and re-insert it elsewhere.

"Removing the shelf", Page 49

6.3 Storage container

The temperatures in the storage container are lower than in the refrigerator compartment. Temperatures below 0^ may occur occasionally. In order to reach temperatures close to 0^ in the storage container, set the refrigerator compartment temperature to 2^. Page 43

Use the lower temperatures in the storage container to store highly perishable food, e.g. fish, meat and sausages.

6.4 Fruit and vegetable container with humidity control

Store fresh fruit and vegetables loose in the fruit and vegetable container.

Cover any chopped fruit and vegetables, or store in air-tight packaging.

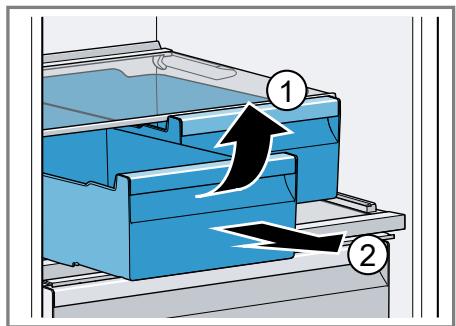

You can adjust the humidity in the fruit and vegetable container using the humidity controller. This allows

fresh fruit and vegetables to be stored for longer than with conventional storage.

→ Fig. 3

The air humidity in the fruit and vegetable container can be set according to the type and amount of food to be stored by moving the humidity controller:

• Low humidity & required when primarily storing fruit or mixed items, or if the appliance is very full.
• High humidity required when primarily storing vegetables or when the appliance is not very full.

Condensation may form in the fruit and vegetable container depending on the food and quantity stored.

Remove the condensation with a dry cloth and adjust the air humidity in the vegetable container using the humidity controller.

To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approx. 8^ to 12^ , e.g. pineapple, bananas, citrus fruits, cucumbers, courgettes, peppers, tomatoes and potatoes.

6.5 Door rack

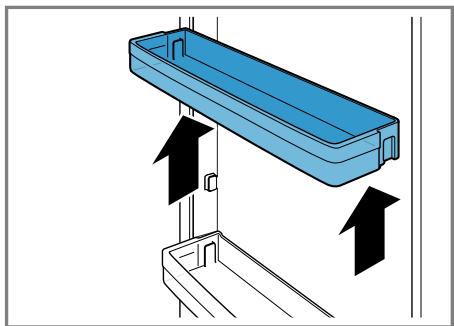

To adjust the door racks as required, you can remove the door rack and re-insert elsewhere.

"Removing door rack", Page 49

6.6 Accessories

Use original accessories. These have been made especially for your appliance.

The accessories for your appliance depend on the model.

Egg tray

Store eggs safely on the egg tray.

Bottle holder

The bottle holder prevents bottles from falling over when the appliance door is opened and closed.

Fig. 4

Ice cube tray

Use the ice cube tray to make ice cubes.

Making ice cubes

Use only drinking water to make ice cubes.

1. Fill the ice cube tray with drinking water up to 3 / 4 and place in the freezer compartment.
   If the ice cube tray is stuck to the freezer compartment, loosen it with a blunt implement only (e.g. spoon handle).
2. To loosen the ice cubes, twist the ice cube tray slightly or hold it briefly under flowing water.

7 Basic operation

7.1 Switching on the appliance

1. Electrically connect the appliance. Page 40

Note: If the appliance has been previously switched off using the control panel, press and hold ① for three seconds.

• The appliance begins to cool.
  A warning signal sounds and the temperature display flashes because the freezer compartment is still too warm.

• Switch off the warning tone using alarm.
  ^+ alarm goes out as soon as the set temperature has been reached.

• Set the required temperature.

Page 43

7.2 Operating tips

• Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appliance until the set temperature has been reached.
• The front panels of the housing are temporarily heated slightly. This prevents condensation in the area of the door seal.
• When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset.

7.3 Switching off the appliance

Press and hold ① for three seconds.

7.4 Setting the temperature

Setting the refrigerator compartment temperature

Press the required temperature.

To reach the set temperature, slide the temperature controller for the storage container to a position that is one third from the bottom.

Page 43

The recommended temperature in the refrigerator compartment is 4^ .

Setting the storage container temperature

1. To reduce the temperature, slide the temperature controller in the extra cold direction.

2. To increase the temperature, slide the temperature controller in the cold direction.
   Fig. 5

Setting the freezer compartment temperature

Press the required temperature. The recommended temperature in the freezer compartment is -18^

8 Additional functions

8.1 Super cooling

With Super cooling, the refrigerator compartment cools as cold as possible.

Switch on Super cooling before placing large quantities of food.

Note: When Super cooling is switched on, increased noise may occur.

Switching on Super cooling

Press super (Refrigerator compartment).
super (Refrigerator compartment) lights up.

Note: After approx. 6 hours, the appliance switches to normal operation.

Switching off Super cooling

Press super (Refrigerator compartment).

8.2 Super freezing

With Super freezing, the freezer compartment cools as cold as possible. Switch on Super freezing four to six hours before placing food weighing 2kg or more into the freezer compartment.

In order to utilise the freezer capacity, use Super freezing.

"Prerequisites for freezing capacity", Page 46

Note: When Super freezing is switched on, increased noise may occur.

Switching on Super freezing

Press super (Freezer compartment).
super (Freezer compartment) lights up.

Note: After approx. 54 hours, the appliance switches to normal operation.

Switching off Super freezing

Press super (Freezer compartment).

8.3 Holiday mode

If you are going to be away for a long time, you can switch on energy-saving holiday mode on the appliance.

CAUTION

Risk of harm to health!

The refrigerator compartment heats up while the holiday mode is switched on. The increased temperature may cause bacteria to increase and spoil the food.

• When the holiday mode is switched on, do not store any food in the refrigerator compartment.

The appliance automatically sets the temperatures.

Refrigerator compartment	14 °C
Freezer compartment	Temperature remains unchanged

Switching on holiday mode

Press holiday.
holiday lights up.

Switching off holiday mode

Press holiday.

8.4 Energy-saving mode

You can set the appliance to save energy with the energy-saving mode. The appliance automatically sets the temperatures.

Refrigerator com- 8^ partment

Freezer compa- -16 °Cment

Switching on energy-saving mode

Press eco.
eco lights up.

Switching off energy-saving mode

Press eco.

8.5 Freshness mode

In order to keep the food fresh for longer, you can switch on the freshness mode on the appliance.

The appliance automatically sets the temperatures.

Refrigerator compartment	2 °C
Freezer compartment	Temperature remains unchanged

Switching freshness mode on

Press fresh.
fresh lights up.

Switching off freshness mode

Press fresh.

9 Alarm

9.1 Door alarm

If the appliance door is open for a while, the door alarm switches on. A warning tone sounds, alarm flashes, the light bar flashes and the temperature display for the affected compartment flashes.

Switching off the door alarm

• Close the appliance door or press alarm.
  The warning tone is switched off.

9.2 Temperature alarm

If the freezer compartment becomes too warm, the temperature alarm is switched on.

A warning tone sounds and the set temperature (freeze compartment), alarm and the light bar flash.

CAUTION

Risk of harm to health!

During the thawing process, bacteria may multiply and spoil the frozen food.

• Do not refreeze food after it has been defrosted or started to defrost.
• Refreeze food only after cooking.
  These items should no longer be stored for the maximum storage period.

The temperature alarm can be switched on in the following cases:

• The appliance is switched on.
  Do not store any food until the appliance has reached the set temperature.
  Large quantities of fresh food are being placed inside.

Switch on Super freezing before placing large quantities of food in the appliance.

• The freezer compartment door is open for too long. Check whether the frozen food has defrosted or thawed.

Switching off the temperature alarm

Press alarm.
The warning tone is switched off.

10 Refrigerator compartment

You can keep meat, sausage, fish, dairy products, eggs, prepared meals and pastries in the refrigerator compartment.

The temperature can be set from 2^ to 8^ .

The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the longer the food remains fresh.

10.1 Tips for storing food in the refrigerator compartment

• Only store food when fresh and undamaged.
• Store food covered or in air-tight packaging.
• To avoid impeding the circulation of air and to prevent food from freezing, do not place food in front of the inner ventilation openings or directly against the back wall.
• Allow hot food and drinks to cool down first before placing in the appliance.

en Freezer compartment

• Observe the best-before date or use-by date specified by the manufacturer.

10.2 Chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

Coldest zone

The coldest zone is in the storage container.

Tip: Store highly perishable food such as fish, sausages and meat in the coldest zone.

Warmest zone

The warmest zone is at the very top of the door.

Tip: Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread.

11 Freezer compartment

You can store frozen food, freeze food and make ice cubes in the freezer compartment.

The temperature can be set from -16^ to -24^ .

Long-term storage of food should be at -18^ or lower.

The freezer compartment can be used to store perishable food long-term. The low temperatures slow down or stop the spoilage.

11.1 Freezing capacity

The freezing capacity indicates the quantity of food that can be frozen right through to the centre within a specific period of time. Information on freezing capacity can be found on the rating plate.

Fig. 1/5

Prerequisites for freezing capacity

1. Approx. 24 hours before placing fresh food in the appliance, switch on Super freezing.

"Switching on Super freezing", Page 44

1. Place food in the bottom frozen food container first.

11.2 Fully utilising the freezer compartment volume

Learn how to store the maximum amount of frozen food in the freezer compartment.

1. Remove all fittings from the freezer compartment. Page 49
2. Store food directly on the shelves and on the floor of the freezer compartment.

11.3 Tips for storing food in the freezer compartment

Store food in air-tight packaging.
- Do not bring food which is to be frozen into contact with frozen food.
- Place the food over the whole area of the frozen food containers.
- To quickly and gently freeze larger quantities of fresh food, place this in the bottom frozen food container.
To ensure that the air can circulate freely in the appliance, push the frozen food containers in as far as they will go.

11.4 Tips for freezing fresh food

• Freeze fresh and undamaged food only.
  Freeze food in portions.
  Cooked food is more suitable than food that can be eaten raw.
  Vegetables: Wash, chop up and blanch before freezing.
  Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.
• Food that is suitable for freezing includes baked items, fish and seafood, meat, game, poultry, eggs without shells, cheese, butter and quark, ready meals and leftovers.
• Food that is unsuitable for freezing includes lettuce, radishes, eggs in shells, grapes, raw apples and pears, yoghurt, sour cream, crème fraîche and mayonnaise.

Packing frozen food

If you select suitable packaging material and the correct type of packaging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.
2. Squeeze out the air.
3. Pack food airtight to prevent it from losing flavour and drying out.
4. Label the packaging with the contents and the date of freezing.

11.5 Shelf life of frozen food at -18^ C

Food	Storage time
Fish, sausages, pre-pared meals and baked goods	up to 6 months
Poultry, meat	up to 8 months

Food	Storage time
Vegetables, fruit	up to 12 months

The imprinted freezer calendar indicates the maximum storage duration in months at a constant temperature of -18^ .

11.6 Defrosting methods for frozen food

CAUTION

Risk of harm to health!

During the thawing process, bacteria may multiply and spoil the frozen food.

• Do not refreeze food after it has been defrosted or started to defrost.
• Refreeze food only after cooking.
  These items should no longer be stored for the maximum storage period.
• Defrost animal-based food, such as fish, meat, cheese, quark, in the refrigerator compartment.
• Defrost bread at room temperature.
  Prepare food for immediate consumption in the microwave, in the oven or on the hob.

12 Defrosting

12.1 Defrosting in the refrigerator compartment

The refrigerator compartment in your appliance defrosts automatically.

12.2 Defrosting in the freezer compartment

The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is not required.

13 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.

13.1 Preparing the appliance for cleaning

1. Switch off the appliance. Page 43
   2 Disconnect the appliance from the power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
2. Take out all of the food and store it in a cool place. Place ice packs (if available) onto the food.
3. Remove all fittings and accessories from the appliance. Page 49

13.2 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

• Do not use steam- or high-pressure cleaners to clean the appliance.
  Liquid in the lighting, controls or inner ventilation openings can be dangerous.
  The rinsing water must not drip into the lighting, controls or inner ventilation openings.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appliance.

• Do not use hard scouring pads or cleaning sponges.
• Do not use harsh or abrasive detergents.
• Do not use cleaning products with a high alcohol content.

If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour.

• Never clean fittings and accessory in the dishwasher.

1.Prepare the appliance for cleaning. Page 48
2. Clean the appliance, the fittings, the accessories and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.
3. Dry thoroughly with a soft, dry cloth.
4. Insert the fittings.
5. Electrically connect the appliance. Page 40
6. Putting the food into the appliance.

13.3 Removing the fittings

If you want to clean the fittings thoroughly, remove these from your appliance.

Removing the shelf

Pull out and remove the shelf.

Fig. 6

Removing door rack

• Lift the door rack and remove it.

Fig. 7

Removing the storage container

1. Pull out the storage container as far as it will go.
2. Lift the storage container at the front ① and remove it ②

Fig. 8

Removing the fruit and vegetable container

1. Pull out the fruit and vegetable container as far as it will go.

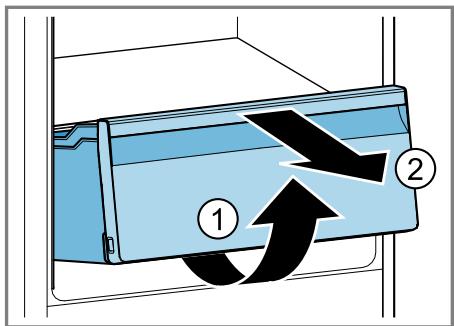

2. Lift the fruit and vegetable container at the front ① and remove it ②

Fig. 9

Removing the frozen food container

1. Take out the frozen food container as far as it will go.

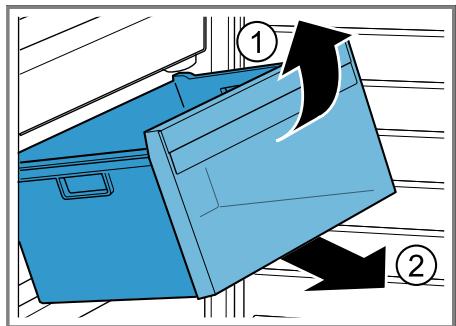

2. Lift the frozen food container at the front ① and remove it ②.

Fig. 10

Removing the front of the container

You can remove the front of the fruit and vegetable container to facilitate cleaning.

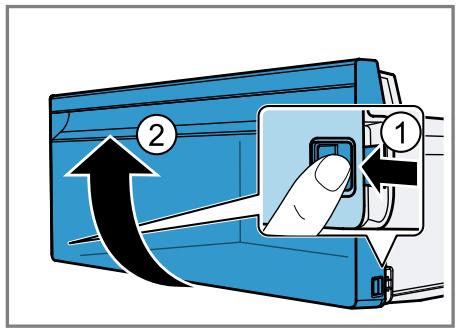

Press in the snap-in hooks on the side of the container ① and remove the front from the container in a turning motion ②.

Fig. 11

14 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault	Cause and troubleshooting
The appliance is not cooling, the displays and lighting are lit.	Showroom mode is switched on. 1. Press and hold super (Refrigerator compartment) for 9–11 seconds until an audible signal sounds. 2. After a short time, check whether your appliance is cooling.
The LED lighting does not work.	Different causes are possible. • Call customer service. The customer service number can be found in the enclosed customer service directory.
Side panels of the appliance are warm.	Not a fault. The side panels contain pipes which heat up during the cooling process. Units touching the appliance will not be damaged by the heat. No action required.
A warning tone sounds and the temperature display (refrigerator compartment), alarm and the light bar flash. The door alarm is switched on.	The refrigerator compartment door is open. • Close the refrigerator compartment door.
A warning tone sounds and the temperature display (freezer compartment), alarm and the light bar flash. The door alarm is switched on.	The freezer compartment door is open. • Close the freezer compartment door.
A warning tone sounds and the set temperature (freezer compartment), alarm and the light bar flash. The temperature alarm is switched on.	Different causes are possible. • Press alarm. • The alarm is switched off.
	External ventilation openings are covered up. • Remove any obstructions from in front of the external ventilation openings.
	Larger quantities of fresh food have been put in. • Do not exceed the max. freezing capacity. → "Freezing capacity", Page 46
The set temperature is not reached. Fully automatic de-frosting no longer works.	The freezer compartment door was open for a long time. The evaporator (refrigeration unit) in the noFrost system is heavily iced up. Requirement: Store the frozen food well insulated in a cool place. 1. Switch off the appliance. → Page 43 2. Disconnect the appliance from the mains. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. 3. Move the appliance away from the wall. 4. Leave the appliance door open. • After approx. 20 minutes, the condensation starts to run into the evaporation pan at the rear of the appliance. → Fig. 12 5. To prevent the evaporation pan from overflowing, mop up the condensation water with a sponge. The evaporator is defrosted if no more condensation water runs into the evaporation pan. 6. Clean the interior of the appliance. → Page 48 7. Switch the appliance back on. → Page 42
The temperature dif-fers greatly from the setting.	Different causes are possible. 1. Switch off the appliance. → Page 43 2. Switch the appliance back on after five minutes. → Page 42 - If the temperature is too warm, check the temper-ature again after a couple of hours. - If the temperature is too cold, check the temper-ature again on the following day.
Condensation accu-mulates on the sur-face of the appliance and on the shelves in-side.	The water contained in warm and humid air condenses on the colder surfaces of the appliance. 1. Wipe away the water with a soft, dry cloth. 2. Open the appliance as briefly as possible. 3. Ensure that the appliance is always closed properly.
The appliance hums, bubbles, buzzes, gaggles, clicks or crackles.	Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. Automatic defrosting is running. No action required.
The appliance makes noises.	The appliance is not level. ► Align the appliance using a spirit level and the screw feet.
	The appliance is not free-standing. ► Observe the minimum clearances for the appliance.
	Fittings wobble or stick. ► Check the removable fittings and, if required, replace these.
	Bottles or containers are touching. ► Move the bottles or containers away from each other.
	Super freezing is switched on. No action required.

14.1 Power failure

During a power failure, the temperature in the appliance rises; this reduces the storage time and the quality of the frozen food.

On the website for your appliance, the technical data provides you with the storage times for frozen food in the event of a fault.

Notes

• Open the appliance as little as possible during a power failure and do not place any other food in the appliance.
  Check the quality of the food immediately after a power failure.

• Dispose of any frozen food that has defrosted and is hotter than 5^ C .

• Cook or fry slightly thawed frozen food, and then either consume it or freeze it again.

14.2 Conducting an appliance self-test

1. Switch off the appliance. Page 43
2. Disconnect the appliance from the power supply.

Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

1. Electrically reconnect the appliance after five minutes. Page 40
2. Within the first 10 seconds after connecting to the power supply, press and hold super (Refrigerator compartment) for three to five seconds until an audible signal sounds.
   If, at the end of the appliance self-test, two audible signals sound and the temperature display indic

ates the set temperature, your appliance is OK. The appliance switches to normal operation.
- If, at the end of the appliance self-test, 5 audible signals sound and the temperature display LEDs light up with a different brightness, inform customer service. The LEDs provide customer service with information about this fault.

15 Storage and disposal

You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances.

15.1 Taking the appliance out of operation

1. Switch off the appliance.
   → Page 43
2. Disconnect the appliance from the power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Remove all of the food.
4. Clean the appliance. Page 48
5. To guarantee the ventilation inside the appliance, leave the appliance open.

15.2 Disposing of old appliance

Valuable raw materials can be reused by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

• Leave shelves and containers inside the appliance to prevent children from climbing in.
• Keep children away from the redundant appliance.

WARNING

Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Do not damage the tubes of the refrigerant circuit or the insulation.

• Unplug the appliance from the mains.

• Cut through the power cord.
• Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

16 Customer Service

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum duration of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

16.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Fig. 1/5

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

17 Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

→Fig. 1/5

This product contains a light source from energy efficiency class F. The light source is available as a spare part and should only be replaced by trained specialist staff.

You can find more information about your model online at https://eprel.ec.europa.eu/1. This web address is linked to the official EU EPREL product database. Please then follow the instructions on searching for the model. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

Table des matieres

1 Sécurité 58

11 Compartment congestion.....74

activer Super-congélation

désactiver Super-congélation

Appuyer sur holiday.

Compartment ré- frigération	8 °C
Compartment	-16 °C
congélation

fr Compartiment congélation

11 Compartment condélation

1.1 Advertencias de character general

Pulsar holiday.
Se enciende holiday.

WAARSCHUWING - Kans op verstikking!

WAARSCHUWING - Kans op brand!

WAARSCHUWING - Kans op letsel!

WAARSCHUWING Kans op explosie!

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

8001235803 (020222)

de, en, fr, es, nl

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
