Product type	Microwave with grill
Brand	SHARP
Model	YC-MG81ES
Capacity	28 liters
External dimensions (W x H x D)	512 x 300 x 396 mm
Net weight	≈ 15.8 kg
Power supply	230-240 V, 50 Hz, single phase
Recommended fuse / circuit breaker	10 A minimum
Total power consumption	1450 W
Microwave power	900 W
Grill power	1100 W
Microwave frequency	2450 MHz
Microwave power levels	11 (including 0P for ventilation only)
Turntable diameter	315 mm
Cooking functions	Microwave, Grill, Combi (C-1, C-2), Defrost by weight and by time, Auto Menu (7 programs)
Special functions	Sequence cooking (2 stages), +30s, Kitchen timer, Child lock, Eco mode, 24h clock
Display	LED
Interior light	LED 1.5 W
Supplied accessories	Glass tray, rolling ring, coupler, metal rack (for grill only)
Maintenance and cleaning	Clean after each use with a soft damp cloth. Do not use abrasive products or oven cleaners. The waveguide cover is fragile.
Safety	Door safety lock, automatic shutdown in case of overheating, child lock, cut-off switch
General information	Household use only. Do not operate empty. Do not repair yourself. Follow disposal instructions (crossed-out wheelie bin symbol).

Frequently Asked Questions - YC-MG81ES SHARP

How to set the clock on the SHARP YC-MG81ES microwave?

Press the SET CLOCK button once. 00:00 flashes. Use the 10 min button for hours and 1 min/10 s buttons for minutes. Press SET CLOCK again to confirm.

What types of containers are suitable for microwave cooking?

Use containers made of glass, porcelain, ceramic (without metallic decoration) and microwave-safe plastic. Do not use metal (except small pieces of aluminum foil to shield). Avoid tightly sealed containers.

How to use the weight defrost function?

Press DEFROST BY WEIGHT (dEF1). Enter the weight of the food (0.1 to 2 kg in increments of 0.1 kg) using the WEIGHT/SERVING buttons. Press START/+30s. The power level is preset to 30P.

Why does condensation form around the door?

This is normal. The steam produced by the food condenses on the cooler surfaces of the oven. Wipe with a soft cloth. Since the door is not airtight, some humidity may seep out.

How to effectively clean the inside of the microwave?

Place half a lemon in 300 ml of water and heat at 100% for 10-12 minutes. Then wipe with a dry soft cloth. For stubborn stains, use a mild soap and rinse. Never remove the waveguide cover.

How to activate the child lock?

Press and hold the STOP button for 3 seconds. A long beep sounds and the display shows LOC. To deactivate, repeat the same operation.

What to do if the oven does not heat or works abnormally?

Check that the door is properly closed, that the fuse has not blown, and that the oven is plugged in. If the problem persists, contact a SHARP authorized technician. Never attempt to repair yourself.

What are the different microwave power levels available?

There are 11 levels: 100% (High), 90%, 80%, 70%, 60%, 50%, 40%, 30%, 20%, 10% and 0% (ventilation only). Use the MICROWAVE POWER LEVEL buttons to select.

Can I use the metal rack with the microwave function?

No, the rack is intended for the Grill or Combi function only. Never use it in microwave-only mode, as it may cause arcing.

How to use the auto menu for jacket potatoes?

Press the Jacket Potato button (Auto Menu). Select the number of potatoes (1 to 3) using the WEIGHT/SERVING buttons or by pressing the same button again. Start with START/+30s. The weight is preset to approximately 230 g per potato.

USER MANUAL YC-MG81ES SHARP

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.conformity.com

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product.

Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not insert anything between the oven front face and the door or allow debris or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door closes properly and that there is no damage to the door, hinges, latches or door seals and sealing surfaces.
4. Do not attempt to repair or adjust the oven.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 3 INSTALLATION 10 SPECIFICATIONS 11 OVEN AND ACCESSORIES 12 CONTROL PANEL. 13 BEFORE OPERATION 14 SETTING THE CLOCK. 14 MICROWAVE POWER LEVEL 15 MANUAL OPERATION 16 MICROWAVE COOKING 17 GRILL COOKING/MIX GRILL COOKING* 18 OTHER CONVENIENT FUNCTIONS 19 TIME DEFROST AND WEIGHT DEFROST OPERATION 20 AUTO MENU OPERATION 21 AUTO MENU CHART 22 SUITABLE OVENWARE 23 CLEANING AND CARE 24 MICROWAVE COOKING ADVICE 25 DEFROSTING ADVICE 27 REHEATING ADVICE 28 TROUBLESHOOTING 29 BEFORE CALLING FOR ASSISTANCE 30

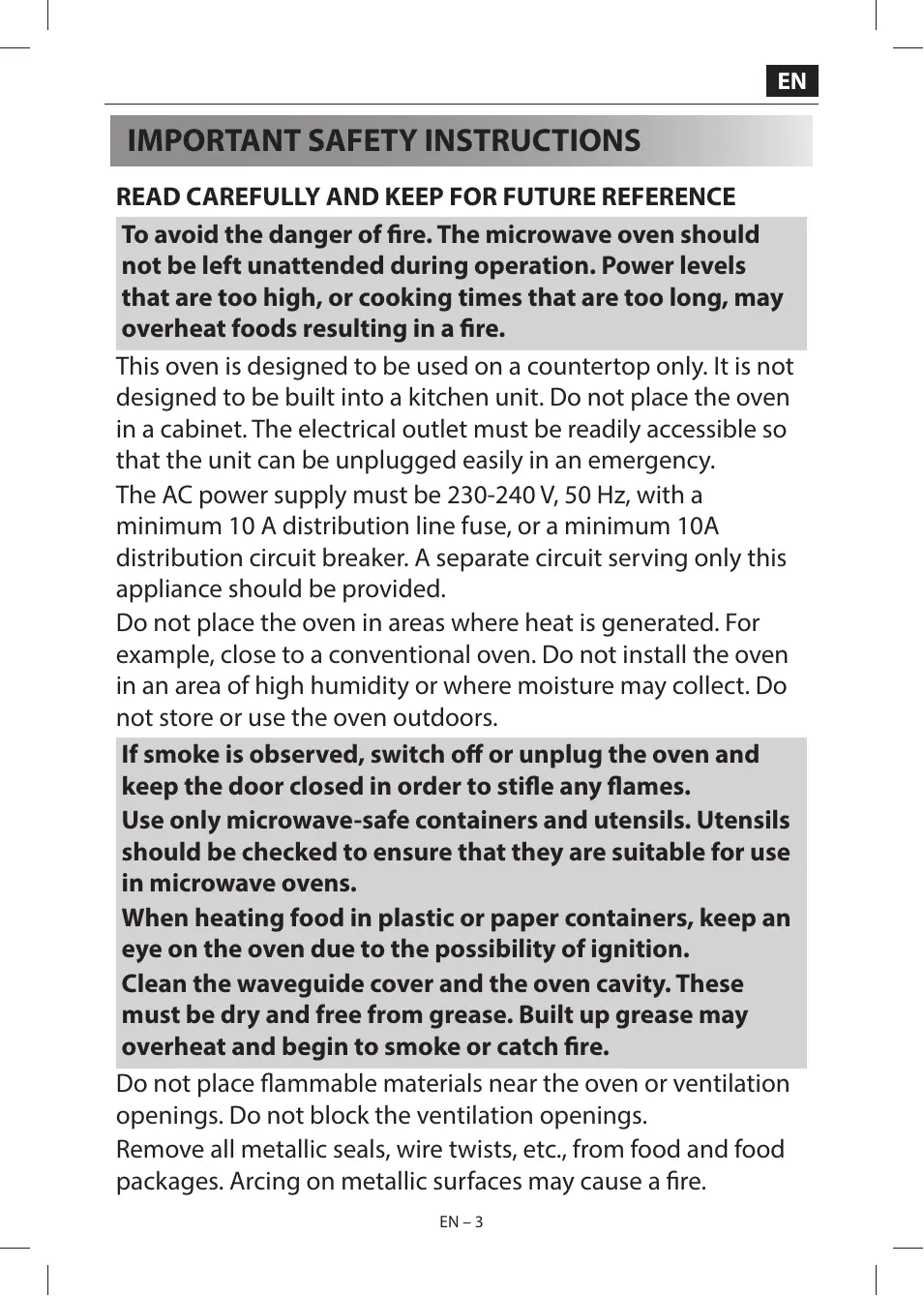

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid the danger of fire, the microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

This oven is designed to be used on a countertop only. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.

The AC power supply must be 230-240 V, 50 Hz, with a minimum 10 A distribution line fuse, or a minimum 10A distribution circuit breaker. A separate circuit serving only this appliance should be provided.

Do not place the oven in areas where heat is generated. For example, close to a conventional oven. Do not install the oven in an area of high humidity or where moisture may collect. Do not store or use the oven outdoors.

If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any flames.

Use only microwave-safe containers and utensils. Utensils should be checked to ensure that they are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

Clean the waveguide cover and the oven cavity. These must be dry and free from grease. Built up grease may overheat and begin to smoke or catch fire.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings.

Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.

Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

To make popcorn, use only special microwave popcorn makers.

Do not store food or any other items inside the oven.

Check the settings after you start the oven to ensure the oven is operating as desired.

Do not leave the oven unattended while it is operating.

To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar or fat content, for example, sausage rolls, pies, or Christmas pudding. See the corresponding hints in the user manual.

To avoid the possibility of injury. WARNING:

Do not operate the oven if it is damaged or malfunctioning.

Check the following before use:

a) Make sure the door closes properly and ensure it is not misaligned or warped. b) Check to make sure the hinges and safety door latches are not broken or loose. c) Ensure that the door seals and sealing surfaces have not been damaged. d) Make sure inside the oven cavity or on the door there are no dents. e) Ensure that the power supply cord and plug are not damaged.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

Never adjust, repair, or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an

object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Clean the oven at regular intervals and remove any food deposits.

Follow the instructions for "Care and Cleaning". Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor on the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock.

• Under no circumstances should you remove the outer cabinet.
• Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately, and call an authorized SHARP service agent.
• Do not immerse the power supply cord or plug in water or any other liquid.
• Do not let the power supply cord hang over the edge of a table or work surface.
• Keep the power supply cord away from heated surfaces, including the rear of the oven.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorized by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorized SHARP service agent.
• If the power supply cord is damaged, it must be replaced by an authorized SHARP service agent.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. Microwave heating of beverages can result in delayed eruptive boiling; therefore, care must be taken when handling the container. To avoid the possibility of explosion and sudden boiling:

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build-up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide mouthed container to allow bubbles to escape.

Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Do not use excessive amount of time.
2. Stir liquid prior to heating/reheating.
3. It is advisable to insert a glass rod or similar (not metal) into the liquid whilst reheating.
4. Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells, and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

WARNING: The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Use

pot holders or oven gloves when removing food from the oven to prevent burns. To avoid the possibility of burns:

• Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns and eruption of boiling. To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Accessible parts may become hot during use. Young children should be kept away.
• Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.
• Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.
• Slice stuffed baked foods after heating to release steam and avoid burns.
• Keep children away from the door to prevent them burning themselves.

WARNING: Only allow children aged from 8 years and above to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

When the appliance is operated in the GRILL, MIX GRILL, CONVECTION, MIX CONVECTION and AUTO MENU mode (mode applicable to model), children should only use the oven under adult supervision due to the temperature generated.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible

for their safety.

Children should be supervised to ensure that they do not play with the appliance. Cleaning by children should be monitored.

Models with an electronic touch panel are equipped with a child lock mode.

Do not lean on or swing on the oven door. Do not play with the oven or use it as a toy.

Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings - paying special attention to packaging (e.g., self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way.

Do not move the oven while it is in operation.

This appliance is intended for household use. This oven is for home food preparation and may only be used for cooking food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage.

Never operate the oven when it is empty. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the oven base due to heat stress. The preheating time specified in the dish's instructions must not be exceeded.

Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

To prevent the turntable or base of the oven breaking:

a) Before cleaning with water, leave to cool. b) Do not put hot or cold foods or hot utensils on a cold

turntable/oven base.

c) Do not place anything on the outer cabinet during operation.

NOTE:

Do not use plastic containers for microwaving if the oven is still hot from using a combination mode (oven model dependant) because they may melt.

Plastic containers must not be used during above modes unless the container manufacturer says they are suitable.

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure.

Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

This appliance is intended for use in household and similar applications such as; Kitchen areas reserved for staff in stores, offices and other professional environments / Farms / Use by clients of hotels, motels and other residential type environments / Bed and breakfast type environments.

This symbol means that the surfaces are liable to get hot during use.

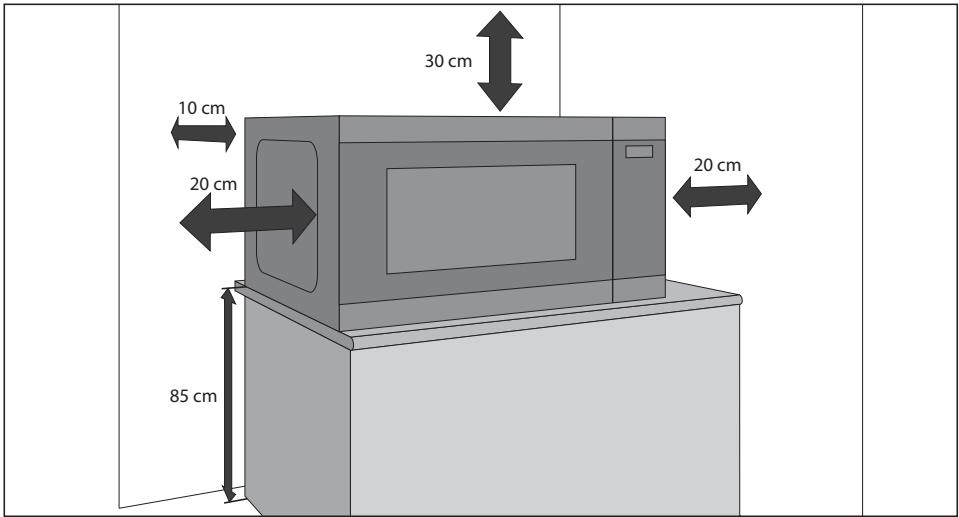

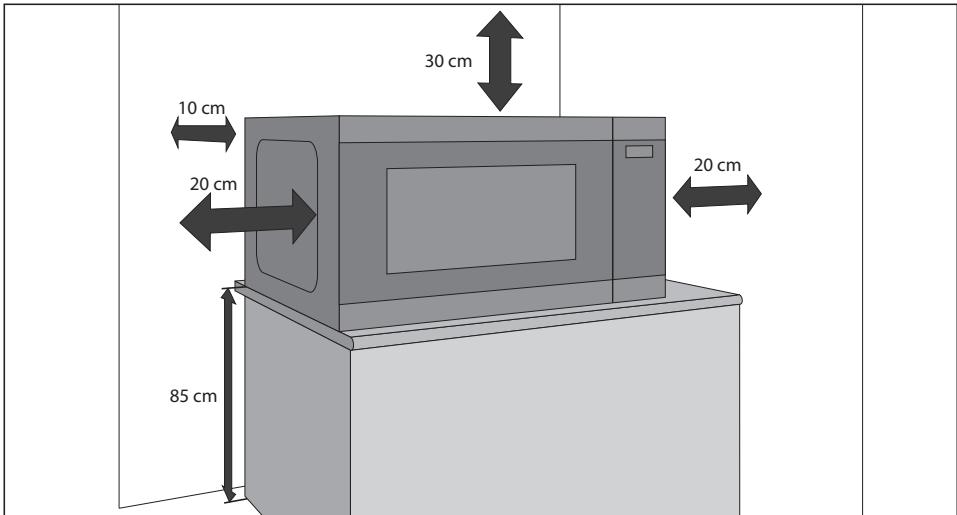

INSTALLATION

1. Remove all packing materials from the inside of the oven cavity and remove any protective film found on the microwave oven cabinet surface.
2. Check the oven carefully for any signs of damage.
3. Place the oven on a secure, level surface, strong enough to take the oven weight, plus the heaviest item likely to be cooked in the oven. Do not place the oven in a cabinet.
4. Select a level surface that provide enough open space for the intake and/or outlet vents. See picture on the first page. The rear surface of appliance can be placed against a wall.
5. The minimum installation height is 85 cm.
6. A minimum space of 20 cm is required between the sides of the microwave oven and any adjacent walls or objects.
7. Leave a minimum space of 30 cm above the oven.
8. Do not remove the feet from the bottom of the oven.
9. Blocking the intake and/or outlet openings can damage the oven.
10. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet.

WARNING:

Do not place the oven where heat, moisture or high humidity are generated, (for example, near or above a conventional oven) or near combustible materials (for example, curtains).

Do not block or obstruct air vent openings.

Do not place objects on top of the oven.

Do not touch the exterior of the microwave oven during or shortly after operation as it will be hot.

SPECIFICATIONS

Model name		YC-MS02E	YC-MG02E	YC-MS51E	YC-MG51E	YC-MG81E
AC Line Voltage		230 V/50 Hz single phase
Distribution line fuse/circuit breaker		10 A	10 A	10 A	10 A	10 A
AC Power required		1270 W	1270 W	1450 W	1450 W	1450 W
Output power:	Microwave	800 W	800 W	900 W	900 W	900 W
	Grill		1000 W		1000 W	1100 W
	Standby	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W
	Energy Save Mode	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W
Microwave Frequency		2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*
Outside Dimensions (W) x (H) x (D) mm		440 x 258 x 324	440 x 258 x 324	513 x 306 x 394	513x 306 x 394	512 x 300 x 396
Cavity Dimensions (W) x (H) x (D)** mm		306 x 205 x 304	306 x 205 x 304	328 x 206 x 368	328 x 206 x 368	348 x 240 x 356
Oven Capacity		20 litres**	20 litres**	25 litres**	25 litres**	28 litres**
Grill Rack Size (Diameter x Height in mm)		315 x 308	315 x 308	315 x 308	315 x 308	315 x 308
Turntable (Diameter in mm)		255	255	315	315	315
Weight (kg)		approx. 11,3 kg	approx. 11,9 kg	approx. 14,5 kg	approx. 15,4 kg	approx. 15,8 kg
Oven Bulb (LED type)		1,5 W	1,5 W	1,5 W	1,5 W	1,5 W

• This Product fulfils the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments. **- Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less. AS PART OF A POLICY OF CONTINUOUS IMPROVEMENT, WE RESERVE THE RIGHT TO ALTER DESIGN AND SPECIFICATIONS WITHOUT NOTICE.

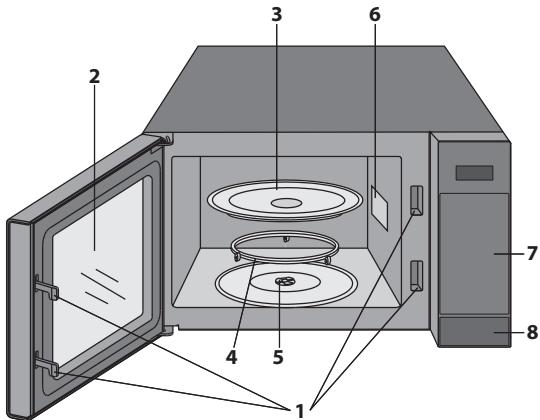

OVEN AND ACCESSORIES

1. Door Safety Lock System
2. Oven Window
3. Glass Tray
4. Roller Ring
5. Turntable Coupling
6. Waveguide Cover (Do Not remove)
7. Power and Time controls
8. Door opening button
9. Ventilation openings
10. Outer cabinet
11. Power supply cord 12.Grill rack

Check to make sure the following accessories are provided: Roller Ring, Turntable Coupling and Glass Tray

Grill ovens only:

• Grill Rack - for use when cooking on the grill function only.
• The Grill Rack is designed for use with grill ovens only. DO NOT use the rack when using the microwave function.
• For use of the Grill Rack refer to the GRILL sections of this User Manual.

Never touch the grill when it is hot.

NOTE: When you order accessories, please mention two items: part name and model name.

NOTES:

• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not damaged.
• After cooking fatty foods without a cover, always clean the cavity and especially the grill heating element thoroughly, these must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.
• Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough, even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage to the oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the oven. This does not affect cooking performance.

WARNING:

This symbol means that the surfaces are liable to get hot during use. The door, outer cavity, accessories and dishes will become very hot during operation. To prevent burns, open gloves.

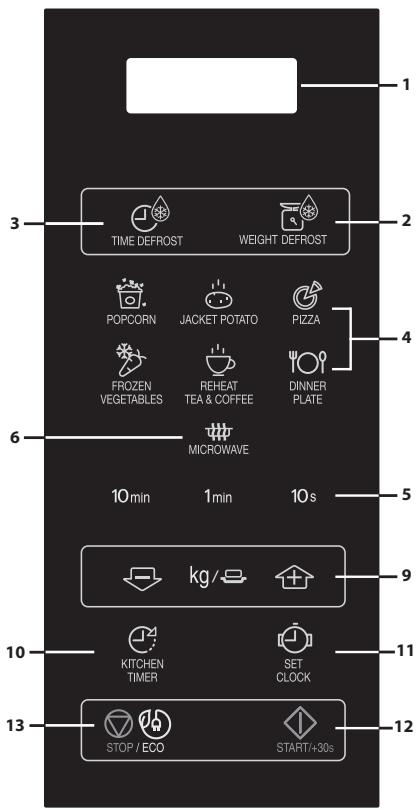

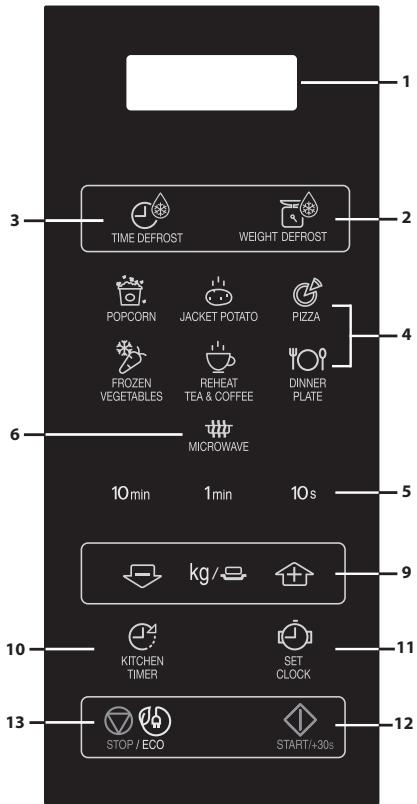

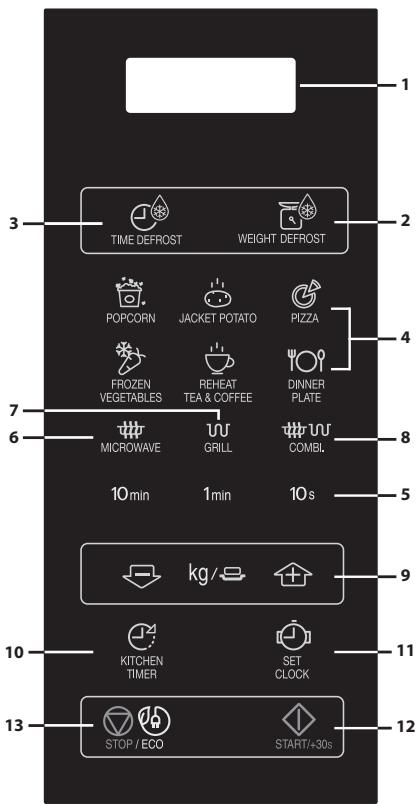

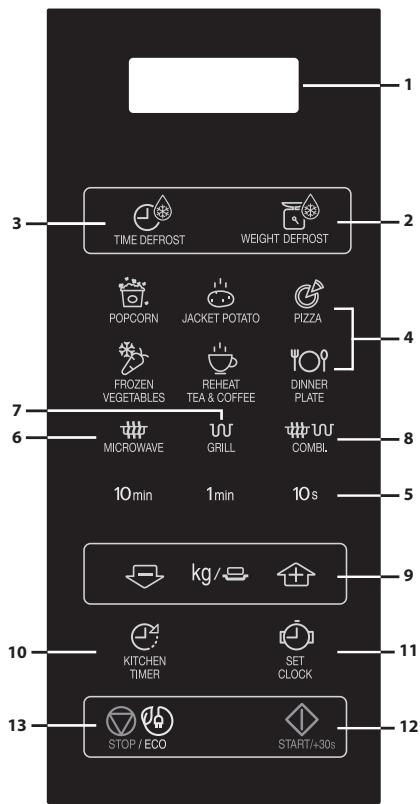

CONTROL PANEL

1. DISPLAY - Cooking time, power, indicators and clock time are displayed.
2. WEIGHT DEFROST - Press once to defrost based on weight.
3. TIME DEFROST - Press to select defrosting by time.
4. AUTO MENU - Press to select auto cooking menu.
5. TIME - Set the clock and timer.
6. MICROWAVE POWER LEVEL - Press to select microwave power level.
7. GRILL - Press to set grill cooking program.
8. COMBI. - Press to set up combination (Microwave and Grill) cooking.
9. WEIGHT/PORTION - Use these buttons to select weight or portions.
10. KITCHEN TIMER - Press to use as a minute timer, or to programme standing time.
11. SET CLOCK - Use to set clock time.
12. START/+30s - Start button. Press once to cook for 30 seconds on full power.
13. STOP/ECO - Press once to pause cooking or twice to cancel operation. Also used to set ECO mode.

microwave solo

microwave + grill

BEFORE OPERATION

• Plug in the oven. The oven display will display: "0:00", an audible signal will sound once.
• This model has a clock function and the oven uses less than 1.0W in stand by mode. To set the clock, see below.

SETTING THE CLOCK

Your oven has a 24 hour clock mode.

1. Press the CLOCK SET key once and "00:00" will flash.
2. Press the time keys and enter the current time. Enter the hours by pressing the 10 min key and enter the minutes by pressing the 1 min and 10 s keys.
3. Press the CLOCK SET key to finish clock setting.

NOTES:

• If the clock is set, when cooking is complete, the display will show the correct time of day. If the clock has not been set, the display will only show "0:00" when cooking is complete.
• To check the time of day during a cooking process, press CLOCK SET key and the LED will display the time of day for 2-3 seconds. This does not affect the cooking process.
• While in the clock setting mode, if the STOP key is pressed or if there is no operation within 1 minute, the oven will go back to the former setting.
• If the electrical power supply to your microwave oven is interrupted, the display will intermittently show "0:00" after the power is reinstated. If this occurs during cooking, the programme will be erased. The time of day will also be erased.

• Your oven has 11 power levels, as shown.
• To change the power level for cooking, press the MICROWAVE POWER LEVEL key until the display indicates the desired level. Set up the desired cooking time by pressing time keys. Press the START key to start the oven.
• To check the power level during cooking, press the MICROWAVE POWER LEVEL key.

As long as your finger is pressing the MICROWAVE POWER LEVEL key the power level will be displayed. The oven continues to count down although the display will show the power level.

• If "0P" is selected, the oven will work with fan for no power. You can use this level to remove any odours.

Generally the following recommendations apply:

100P/90P - (HIGH) used for fast cooking or reheating e.g. for casseroles, hot beverages, vegetables etc.

80P/70P - (MEDIUM HIGH) used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as sponge cakes. At this reduced setting, the food will cook evenly without over cooking at the sides.

60P/50P - (MEDIUM) for dense foods which require a long cooking time when cooked conventionally, e.g. beef casserole, it is advisable to use this power setting to ensure the meat will be tender.

40P/30P - (MEDIUM LOW) to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.

20P/10P - (LOW) For gentle defrosting, e.g. cream, gateaux, or pastry.

MANUAL OPERATION

Opening the door:

To open the oven door, press door opening button.

Starting the oven:

Prepare and place food in a suitable container onto the turntable or place directly onto the turntable.

Close the door and press the START/◇ +30s key after selecting the desired cooking mode. You may extend the desired cooking time during manual cooking by pressing TIME keys or START/◇ +30s key.

START/+30s

Once the cooking programme has been set and the START/◇+30s key is not pressed in 1 minute, the setting will be cancelled.

The START/+30s key must be pressed to continue cooking if the door is opened during cooking. The audible signal will sound once when the button is pressed in the correct manner.

Use the STOP key to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, press the STOP key twice.
4. To set and to cancel the child lock.

STOP / ECO

NOTE

• If the Microwave is not used for a period of 5 minutes (and the door is closed) the safety lock will automatically activate. The keypad will no longer operate. To turn the safety lock off simply open the door to the Microwave and the keypad will become active again.

MICROWAVE COOKING

Your oven can be programmed for up 99 minutes 50 seconds (99.50).

MANUAL COOKING/MANUAL DEFROSTING

• Enter the cooking time and use microwave power levels 100P to 10P to cook or defrost.
• Stir or turn the food, where possible, 2 - 3 times during cooking. After cooking, cover the food and leave to stand, where recommended.
• After defrosting, cover the food in foil and leave to stand until thoroughly defrosted.

Example:

To cook 2 minutes and 30 seconds on 70% microwave power.

1. Input the power level by pressing the MICROWAVE POWER LEVEL key 4 times for 70 P.	2. Enter the cooking time by pressing the 1 min key twice and then the 10 s key 3 times.	3. Press the START/◇ +30s key to start the timer. (The display will count down through the set cooking/defrosting time.)
7:0P	2:30	2:30

NOTE:

• When the oven starts, the oven lamp will light and the turntable will rotate clockwise or anticlockwise.
• If the door is opened during cooking/defrosting to stir or turn over food, the cooking time on the display stops automatically. The cooking/defrosting time starts to count down again when the door is closed and the START key is pressed.
• When cooking/defrosting is complete, open the door or press STOP key and the time of day will reappear on the display, if the clock has been set.
• If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL key. As long as your finger is pressing the MICROWAVE POWER LEVEL key, the power level will be displayed.

IMPORTANT:

• Close the door after cooking/defrosting. Please note that the light will remain on when the door is open, this is for safety reason to remind you to close the door.
• If you cook food for more than the standard time (see chart below) using the same cooking mode, the oven's safety mechanisms automatically activate. The microwave power level will be reduced or the grill heating element will turn on and off.

Cooking Mode	Standard time
Microwave 100 P	30 minutes
Grill cooking*	Intermittent operation, temperature controlled
Mix grill cooking*	99 mins 50 sec

The grill at the top of the oven cavity has one power setting only. The grill is assisted by the turntable which rotates simultaneously to ensure even browning. Use the rack for grilling small items of food such as bacon, gammon and teacakes. Food can be placed either directly onto the rack, or into a flan dish/heat-resistant plate on the rack.

Example:

To grill for 20 minutes, using GRILL key.

1. Press GRILL key once. ∞ x1	2. Enter the required heating time by pressing the 10 min key twice.	3. Press the START/◇ +30s key to start the grilling. (The display will count down through the set grilling time.)
G	20:00	20:00

MIX GRILL combines microwave power with the grill. MIX means to cook by Microwave power and Grill power alternately.

The combination of microwave power with the grill reduces cooking time and provides a crisp, brown finish.

There are 2 choices for the combination:

COMBINATION 1 (Display: C-1)

55% time for microwave power, 45% time for grill cooking. Use for fish and au gratin.

COMBINATION 2 (Display: C-2)

36% time for microwave cooking, 64% time for grill cooking. Use for pudding omelets, and poultry.

Example:

To cook for 15 minutes, using MIX GRILL with 55% time microwave power and 45% grill power (C-1).

1. Press MIX GRILL key once. ∞ x1	2. Enter the required heating time by pressing the 10 min key once and the 1 min key 5 times.	3. Press the START/◇ +30s key to start the cooking. (The display will count down through the set cooking time.)
C-1	15:00	15:00

NOTES for GRILL and MIX GRILL COOKING:

It is not necessary to preheat the grill. - When browning foods in a deep container, place on the turntable. - You may detect smoke or a burning smell when using the grill for the first time. This is normal and not a sign that the oven is faulty. To avoid this problem, when first using the oven, heat the oven without food for 20 minutes on grill.

IMPORTANT: During operation, to allow smoke or smells to disperse open a window or switch the kitchen ventilation on.

NOTE: When using the grill function, the grill will turn on and off at regular intervals to prevent overheating.

WARNING: The door, outer cabinet, oven cavity and accessories will become very hot during operation. To prevent burns, always use thick oven gloves.

• Only for models with Grill.

OTHER CONVENIENT FUNCTIONS

1. SEQUENCE COOKING

This function allows you to cook using up to 2 different stages which can include manual cooking time and mode and/or time defrost as well as weight defrost function. Once programmed there is no need to interfere with the cooking operation as the oven will automatically move onto the next stage. The audible signal will sound once after the first stage.

Note: Auto menu cannot be set as one of the multiple sequences.

Example: If you want to defrost the food for 5 minutes, then to cook with 80P microwave power for 7 minutes.

The steps are as follows:

1. Press the TIME DEFROST key once, in the LED display will appear dEF2.
2. Enter the cooking time by pressing the 1 min key 5 times.
3. Input the power level (80P) by pressing the MICROWAVE POWER LEVEL key 3 times.
4. Enter the cooking time by pressing the 1 min key 7 times.
5. Press the START key once to start cooking.

2. +30s FUNCTION (Auto-start)

The +30s key allows you to operate the two following functions:

a. Direct start

You can directly start cooking on 100 P microwave power level for 30 seconds by pressing the +30s key.

b. Extend the cooking time

You can extend the cooking time during manual cooking, time defrost and auto menu operation for multiples of 30 seconds if the +30s key is pressed while the oven is in operation. You may extend the desired cooking time also by pressing TIME keys "10min", "1min", "10s". During the weight defrost, the cooking time cannot be increased.

NOTE: The cooking time may be extended to a maximum of 99 minutes 50 seconds.

3. KITCHEN TIMER FUNCTION:

You can use the kitchen timer for timing where microwave cooking is not involved, for example to time boiled eggs cooked on a conventional hob or to monitor the standing time for cooked/defrosted food.

Example:

To set the timer for 5 minutes.

1. Press the KITCHEN TIMER key once.

2. Enter the desired time by pressing the 1 min key 5 times.

3. Press the START/◇ +30s key to start the timer.

4. Check the display. (The display will count down through the set cooking/defrosting time.)

When the timer time arrives, the audible signal will sound 5 times and the LED will display the time of day.

You can enter any time up to 99 minutes, 50 seconds. To cancel the KITCHEN TIMER whilst counting down, simply press the STOP key.

NOTE: The KITCHEN TIMER function cannot be used whilst cooking.

4. CHILD LOCK:

Use to prevent unsupervised operation of the oven by little children.

a. To set the CHILD LOCK:

Press and hold the STOP key for 3 seconds, a long bleep will be heard and the display will indicate "LOC". The oven is now in the CHILDLOCK mode. While in this mode, the display will show the clock, if any key is pressed or the door is opened, "LOC" will be seen for ten seconds.

b. To cancel the CHILD LOCK:

Press and hold the STOP key for 3 seconds until a long beep sound.

5. ECO MODE:

In standby mode, press the "ECO" button once, the LED display will turn off and the microwave oven will enter ECO mode. Any operation can light the LED display again, and the microwave oven will return to standby mode.

STOP / ECO

TIME DEFROST AND WEIGHT DEFROST OPERATION

1. TIME DEFROST

This function quickly defrosts food while enabling you to choose a suitable defrost period, depending on the food type. Follow the example below for details on how to operate this function. The time range is 0:10 - 99:50.

Example: To defrost the food for 10 minutes.

1. Select the menu required by pressing the TIME DEFROST key once. x1	2. Enter the cooking time by pressing the 10 min key once.	1. Press the START/◇+30s key to start the defrosting.
the display will show: dEF2	10:00

Notes for Time Defrost:

• After cooking, the audible signal will sound five times and the LED will display the time of day, if the clock has been set. If the clock has not been set, the display will only show "0:00" when cooking is complete.
• The preset microwave power level is 30P and cannot be changed.

2. WEIGHT DEFROST

The microwave oven is pre-programmed with a time and power level so that the following food is defrosted easily: Pork, beef and chicken. The weight range for this food is from 0.1 kg to 2 kg in 0.1 kg steps.

Follow the example below for details on how to operate these functions.

Example: To defrost a meat joint weighing 1.2 kg using WEIGHT DEFROST.

Place the meat in a flat dish or microwave oven defrost rack on the turntable.

1. Select the menu required by pressing the WEIGHT DEFROST key once. x1	2. Enter the weight by pressing the WEIGHT/PORTION keys until the desired weight is displayed	3. Press the START/◇ +30s key to start the defrosting. (The display will count down through defrosting time)
the display will show: dEF1	kg/◇ display: 1.2

Frozen foods are defrosted from -18°C

NOTES FOR WEIGHT DEFROST:

• Before freezing foods, ensure food is fresh and of good quality.
• Food weight should be rounded up to the nearest 0.1 kg, for example, 0.65 kg to 0.7 kg.
• If necessary, shield small areas of meat or poultry with flat pieces of aluminium foil. This will prevent the areas from becoming warm during defrosting. Ensure the foil does not touch the oven walls.

AUTO MENU OPERATION

The AUTO MENU keys automatically work out the correct cooking mode and cooking of the foods. Follow the example below for details on how to operate this function.

Example: To cook two jacket potatoes (0.46 kg) by using the AUTO MENU function.

1. Select the menu required by pressing the Jacket Potato key once. x1	2. Press WEIGHT/PORTION UP/DOWN keys or continue to press the Jacket Potato key to choose the required number of potatoes (up to 3).	3. Press the START/◇ +30s key to start the cooking. (The display will count down through cooking time)
the display will show: 1	kg/2 display: 2

NOTES:

• The weight or quantity of the food can be input by pressing the WEIGHT/PORTION UP/DOWN keys until the desired weight/quantity is displayed. Enter the weight of the food only. Do not include the weight of the container.
• For food weighing more or less than the weights/quantities given in the AUTO MENU chart.

AUTO MENU CHART

Auto Menu	WEIGHT/ PORTION / UTENSILS	Procedure
Popcorn	0.05kg, 0.1kg	Place the popcorn bag directly on the turntable. (Please see the note below: 'Important Information About Microwave Popcorn Feature')
Jacket Potato	1, 2, 3 potatoes (pieces) 1 potato = approx. 0.23kg (initial temp. 20°C)	Please use potatoes with a similar size of approx. 230g. Pierce each potato in several places and place towards the edge of the turntable. Turn over and re-arrange halfway through cooking. Stand for 3 - 5 minutes before serving.
Pizza	0.1kg, 0.2kg, 0.4kg (initial temp 5°C) Plate	Place the Pizza on a plate in the centre of the turntable. Do not cover.
Frozen vegetable e.g. Brussel sprouts, green beans, peas, mixed vegetables, broccoli	0.15kg, 0.35kg, 0.5kg (initial temp -18°C) Bowl and lid	Place vegetables in a suitable container. Add 1 tbsp of water per 100g of vegetables, cover the dish and place on the turntable. Stir halfway through cooking and after cooking.
REHEAT TEA & Coffee (120ml/ cup)	1, 2, 3 (initial temp. 5°C) Cup	Place the cup(s) on the turntable and stir after heating.
Dinner Plate	0.25kg, 0.35kg, 0.5kg (initial temp. 5°C) Plate	Place the plate in the centre of the turntable. Do not cover. Stir after cooking.

Notes:

• The final temperature will vary according to the initial food temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking manually.
• The results when using auto cook depend on variances such as the shape and size of the food and your personal preference as regards cooking results. If you are not satisfied with the programmed result, please adjust the cooking time to match your requirement.

Important Information about Microwave Popcorn Feature:

1. When selecting 100 grams of popcorn, it is suggested that you fold down a triangle on each corner of the bag before cooking. Refer to the picture at right.
2. If/When the popcorn bag expands and no longer rotates properly, please press STOP key once and open the oven door and adjust the bag position to ensure even cooking.

SUITABLE OVENWARE

To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety of cookware can be used as listed below.

Cookware	Microwave Safe	Grill	Comment
Aluminium foil Foil Containers	✓/×	✓	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer, e.g. Microfoil®, follow instructions carefully.
Browning dishes	✓/×	×	Always follow the manufacturers instructions. Do not exceed heating times given. Be very careful as these dishes become very hot.
China and ceramics	✓/×	×	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex®	✓	✓	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	×	✓	It is not recommended to use metal cookware as it will arc, which can lead to fire.
Plastic/Polystyrene e.g fast food containers	✓	×	Care must be taken as some containers warp, melt or discolour at high temperatures.
Cling film	✓	×	It should not touch the food and must be pierced to let the steam escape.
Freezer/Roasting bags	✓	×	Must be pierced to let steam escape. Ensure bags are suitable for microwave use.
Paper - Plates, cups and kitchen paper	✓	×	Do not use plastic or metal ties, as they may melt or catch fire due to the metal 'arcing'.
Straw and wooden Containers	✓	×	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Recycled paper and newspaper	×	✓	Always attend the oven when using these materials as overheating may cause fire. May contain extracts of metal which will cause 'arcing' and may lead to fire.

NOTE: Do not leave your oven unattended while in use.

WARNING: When heating food in plastic or paper containers, monitor the oven due to the possibility of ignition.

CLEANING AND CARE

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

Before cleaning, make sure the oven cavity, door, oven cabinet and accessories are completely cool. CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS - Keep the oven clean, or the oven could lead to a deterioration of the surface. This could adversely affect the life of the appliance and possibly result in a hazardous situation.

NOTE: When cooking, condensation can build up inside the oven cavity, cavity face and door. The amount of condensation will depend upon the temperature of the oven surfaces and the moisture content of the food being microwaved. Ensure that when you have finished cooking that any moisture which collects on these surfaces are wiped away with a soft, moisture absorbent cloth.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel

Open the door before cleaning to de-activate the control panel. Care should be taken in cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean.

Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven Interior

1. For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm.

For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed.

Built-up splashes may overheat and begin to smoke or catch fire, and cause arcing. Do not remove the waveguide cover.

1. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.
2. Do not use spray type cleaners on the oven interior.
3. Heat up your oven regularly by using the grill and heat the oven without food for 20 minutes on grill. Remaining food or fat splashed can cause smoke or bad smell.

Keep the waveguide cover clean at all times.

The waveguide cover is constructed from a fragile material and should be cleaned with care (follow the cleaning instructions above).

NOTE: Excessive soaking may cause disintegration of the waveguide cover.

The waveguide cover is a consumable part and without regular cleaning, will need to be replaced.

Accessories

The accessories like turntable, turntable support and rack should be washed in a mild washing up liquid solution and dried. They are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and adjacent parts with a soft, damp cloth. Do not use abrasive cleaner.

NOTE: A steam cleaner should not be used.

Cleaning tip - For easier cleaning of your oven:

Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% for 10 - 12 minutes. Wipe the oven clean using a soft, dry cloth.

Microwaves cook food faster than conventional cooking. It is therefore essential that certain techniques are followed to ensure good results. Many of the following techniques are similar to those used in conventional cooking.

WARNING: Liquids and foods must not be heated in sealed containers or jars/containers with lids on, as pressure will build up inside and may cause the jar/container to explode.

COOKING ADVICE NOTES:

Always attend the oven when in use. - Ensure that the utensils are suitable for use in a microwave oven. - Refer to the charts in the cookbook section for recommended cooking times and power levels. - Only use microwave popcorn within the recommended packaging (follow the manufacturers instructions). Never use oil unless specified by the manufacturer and never cook for longer than instructed.

WARNING: Follow instructions in the SHARP operation manual at all times. If you exceed recommended cooking times and use power levels that are too high, food may overheat, burn and, in extreme circumstances, catch fire and damage the oven.

Arrange

Place the thickest parts of food towards the outside of the dish. e.g. Chicken drumsticks.

Foods that are placed towards the outside of the dish will receive more energy, so cook quicker, than those in the centre.

Cover

Certain foods benefit from being covered during microwave cooking.

Use vented microwave cling film or a suitable lid.

Pierce

Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode. e.g. Potatoes, Fish, Chicken, Sausages.

NOTE: Eggs should not be heated using microwave power as they may explode, even after cooking has ended. e.g. poached, fried, hard boiled.

Stir, turn and rearrange

For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange from the outside towards the centre.

Stand

Standing time is necessary after cooking so it enables the heat to disperse equally throughout the food.

Food Characteristics
Composition	Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Bones in food conduct heat, making the food cook more quickly. Care must be taken so that the food is cooked evenly.
Density	Food density will affect the amount of cooking time needed. Light porous foods, such as cakes or bread, cook more quickly than heavy, dense foods, such as roasts and casseroles.
Quantity	The number of microwaves in your oven remains the same regardless of how much food is being cooked. The cooking time must be increased as the amount of food placed in the oven increases. e.g. Four potatoes will take longer to cook than two.
Size	Small foods and small pieces cook faster than large ones, as microwaves can penetrate from all sides to the centre. For even cooking make all the pieces the same size.
Shape	Foods which are irregular in shape, such as chicken breasts or drumsticks, take longer to cook in the thicker parts. For even cooking, place the thickest parts to the outside of the dish where they will receive more energy. Round shapes cook more evenly than square shapes when microwave cooking.
Temperature of food	The initial temperature of food affects the amount of cooking time needed. Chilled foods will take longer to cook than food at room temperature. The temperature of the container is not a true indication of the temperature of the food or drink. Cut into foods with fillings, for example jam doughnuts, to release heat or steam.

WARNING: Face & Hands: Always use oven gloves to remove food or cookware from the oven. Stand back when opening the oven door to allow heat or steam to disperse. When removing covers (such as cling film), opening roasting bags or popcorn packaging, direct steam away from face and hands.

WARNING: Check the temperature of food and drink, stir before serving. Take special care when serving to babies, children or the elderly. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption to avoid burns.

DEFROSTING ADVICE

Using your microwave oven is the quickest defrosting method. It is a simple process but the following instructions are essential to ensure the food is thoroughly defrosted.

• Remove all packaging and wrapping before defrosting.
• To defrost food, use the Medium/Low or Defrost microwave power setting.
• Please refer to the further information below.

Rearrange

Foods that are placed towards the outside of the dish will defrost quicker than foods in the centre. It is therefore essential that the food is rearranged up to 4 times during defrosting.

Move closely packed pieces from the outside to the centre and rearrange overlapping areas.

This will ensure that all parts of the food defrost evenly.

Separate

Foods may be stuck together when removed from the freezer. It is important to separate foods as soon as it is possible during defrosting.

e.g. bacon rashers, chicken fillets.

Shield

Some areas of food being defrosted may become warm. To prevent them becoming warmer and starting to cook, these areas can be shielded with small pieces of foil, which reflect microwaves, e.g. legs and wings on a chicken.

Stand

Standing time is necessary to ensure food is thoroughly defrosted.

Defrosting is not complete once the food is removed from the microwave oven. Food must stand, covered, for a length of time to ensure the centre has completely defrosted.

Turn over

It is essential that all foods are turned over up to 4 times during defrosting.

This is important to ensure thorough defrosting.

REHEATING ADVICE

For the reheating of foods, follow the advice and guidelines below to ensure food is thoroughly reheated before serving.

Plated meals

Remove any poultry or meat portions, reheat these separately, see below.

Place smaller items of food to the centre of the plate, larger and thicker foods to the edge. Cover with vented microwave cling film and reheat on the Medium/Low microwave power level stir/rearrange halfway through reheating.

NOTE: Ensure the food is thoroughly reheated before serving.

Sliced meat

Cover with vented microwave cling film and reheat on the Medium/Low microwave power level. Rearrange at least once to ensure even reheating.

NOTE: Ensure the meat is thoroughly reheated before serving.

Poultry portions

Place thickest parts of the portions to the outside of the dish, cover with vented microwave cling film and reheat on the Medium microwave power level.

Turn over halfway through reheating.

NOTE: Ensure the poultry is thoroughly reheated before serving.

Casseroles

Cover with vented microwave cling film or a suitable lid and reheat on the Medium/Low microwave power level. Stir frequently to ensure even reheating.

NOTE: Ensure the food is thoroughly reheated before serving.

To achieve the best results when reheating, select a suitable microwave power level appropriate to the type of food. For example, a bowl of vegetables can be reheated using the High microwave power level, while a lasagne which contains ingredients that cannot be stirred should be reheated using the Medium/Low microwave power level.

NOTES:

• Remove food from foil or metal containers before reheating.
• Reheating times will be affected by the shape, depth, quantity and temperature of food together with the size, shape and material of the container.

WARNING: Never heat liquids in narrow-necked containers, as this could result in the contents erupting from the container and may cause burns.

• To avoid overheating and fire, special care must be taken when reheating foods with a high sugar or fat content, e.g. mince pies or Christmas pudding.
• Never heat oil or fat for deep frying as this may lead to overheating and fire.
• Canned potatoes should not be heated in the microwave oven; follow the manufacturer's instructions on the can.

WARNING: The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption to avoid burns.

TROUBLESHOOTING

If you think the oven is not working properly, there are some simple checks you can carry out yourself before calling an engineer. This will help prevent unnecessary service calls if the fault is something simple.

Follow this simple check below:

Place half a cup of water on the turntable and close the door. Set the timer to cook for 1 minute using the High microwave power level.

1. Does the oven lamp come on when it is cooking?
2. Does the cooling fan work? (Check by placing your hand above the air vent openings).
3. After 1 minute does the audible signal sound?
4. Is the water in the cup hot?

If you answer "NO" to any question first check that the oven is plugged in properly and the fuse has not blown. If there is no fault with either, check against the troubleshooting chart below.

WARNING: Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a SHARP trained engineer to carry out servicing or repairs. This is important as it may involve the removal of covers that provide protection against microwave energy.

• The door seal stops microwave leakage during oven operation, but does not form an airtight seal. It is normal to see drops of water, light or feel warm air around the oven door. Food with a high moisture content will release steam and cause condensation inside the door which may drip from the oven.
• Repairs and Modifications: Do not attempt to operate the oven if it is not working properly.
• Outer Cabinet & Lamp Access: Never remove the outer cabinet. This is very dangerous due to high voltage parts inside which must never be touched, as this could be fatal.

Your oven is not fitted with a lamp access cover. If the lamp fails, do not attempt to replace the lamp yourself, call a SHARP approved service facility.

TROUBLESHOOTING CHART

QUERY	ANSWER
Draught circulates around the door.	When the oven is working, air circulates within the cavity. The door does not form an airtight seal so air may escape from the door.
Condensation forms in the oven, and may drip from the door.	The oven cavity will normally be colder than the food being cooked, and so steam produced when cooking will condense on the colder surface. The amount of steam produced depends on the water content of the food being cooked. Some foods, such as potatoes have a high moisture content. Condensation trapped in the door glass should clear after a few hours.
Flashing or arcing from within the cavity when cooking.	Arcing will occur when a metallic object comes into close proximity to the oven cavity during cooking. This may possibly roughen the surface of the cavity, but would not otherwise damage the oven.
Arcing potatoes.	Ensure all "eyes" are removed from the potatoes and that they have been pierced, place directly onto the turntable or in a heat resistant flan dish or similar.
Oven does not work when the timer control is turned away from 0.	Check the door is closed properly.
Oven cooks too slowly.	Ensure correct power level has been selected.
Oven makes a noise.	The microwave energy pulses ON and OFF during cooking/defrosting.
Outer cabinet is hot.	The cabinet may become warm to the touch - keep children away.

BEFORE CALLING FOR ASSISTANCE

Before asking for service, please check each item below:

• Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure that the power and timer knobs are set correctly.
• Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Attention:

www.sharpconsumer.com/support/

www.conformity.com

www.sharpconsumer.com/support/

www.conformity/

CLEANING AND MAINTENANCE

ATTENTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE OR ROUGH PRODUCTS, THOSE CONTAINING SODIUM HYDROXIDE OR SCRUBBING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

www.sharpconsumer.com/support/

www.conformity.com

Remove, turn, and replace

www.sharpconsumer.com/support/

www.conformity/

A. Information on disposal for users (private households)

1. EU

SPECIFICATIONS

Modelavn		YC-MS02E	YC-MG02E	YC-MS51E	YC-MG51E	YC-MG81E
Vekselstrømsspænding		230 V~, 50 Hz, enkelfaset
Strømsikring/overstrømsbeskyttelse		10 A	10 A	10 A	10 A	10 A
Krævet vekselstrømseffekt		1270 W	1270 W	1450 W	1450 W	1450 W
Udgangseffekt:	Mikrobølge	800 W	800 W	900 W	900 W	900 W
	Grill		1000 W		1000 W	1100 W
	Standby	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W
	Energisparetilstand	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W
Mikrobølgefrekvens		2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*
Udvendige mål (B) x (H) x (D) mm		440 x 258 x 324	440 x 258 x 324	513 x 306 x 394	513 x 306 x 394	512 x 300 x 396
Ovnummets mål (B) x (H) x (D)** mm		306 x 205 x 304	306 x 205 x 304	328 x 206 x 368	328 x 206 x 368	348 x 240 x 356
Ovnkapacitet		20 liter**	20 liter**	25 liter**	25 liter**	28 liter**
Grillrist størrelse (Diameter x højde i mm)		315 x 308	315 x 308	315 x 308	315 x 308	315 x 308
Drejetallerken (Diameter i mm)		255.	255.	315.	315.	315.
Vægt (kg)		ca. 11,3 kg	ca. 11,9 kg	ca. 14,5 kg	ca. 15,4 kg	ca. 15,8 kg
Ovnlampe (LED-type)		1,5 W	1,5 W	1,5 W	1,5 W	1,5 W

MANUAL PREPARATION/MANUAL DEFROSTING

1. DEFROSTING BY TIME

GOOD ADVICE ON DEFROSTING

www.sharpconsumer.com/support/

www.conformity/

MANUAL OPERATION

www.sharpconsumer.com/support/

www.conformity/

2. +30s FUNCTION (Auto-start)

BEFORE CALLING FOR SERVICE

Before you call for service, check each item below:

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

www.sharpconsumer.com/support/

www.conformity.com

MICROWAVE COOKING

MANUAL COOKING / MANUAL DEFROSTING

1. COOKING WITH GRILL ONLY

www.sharpconsumer.com/support/

www.conformity/

MANUAL COOKING / MANUAL DEFROSTING

• Enter the cooking time and use microwave power level 100P to 10P to cook or defrost. Stir or turn the food 2-3 times during the cooking time where possible.
• Cover the food and let it rest after cooking where recommended.
• After defrosting, cover the food with foil and let it stand until completely thawed.

Example:

2. +30s FUNCTION (Auto-start)

DEFROSTING BY TIME OR BY WEIGHT

1. DEFROSTING BY TIME

This function quickly defrosts food while allowing you to select a suitable defrosting period, depending on the type of food. Follow the example below for details on how to use this function. The time range is 0.10 - 99.50.

Example: To defrost food for 10 minutes.

1. Velg ønsket meny ved ø trykke TINING PÅ TID-tasten en gang. x1	2. Still inn tilberedningstiden ved ø trykke 10 min-tasten en gang.	1. Trykk START/◇+30s-tasten for ø starte oppitiningen.
Displayet vil vise: dEF2	10:00

2. DEFROSTING BY WEIGHT

CLEANING AND MAINTENANCE

Warning: Do not use commercial oven cleaners, steam cleaners, abrasive, harsh cleaning agents, detergents containing sodium hydroxide, or steel wool on any part of the microwave oven.

For cleaning, make sure that the oven cavity, door, oven cabinet, and other accessories are completely cooled down. CLEAN THE OVEN REGULARLY AND REMOVE FOOD RESIDUES - Keep the oven clean. Otherwise, the surfaces may be damaged. This can negatively affect the oven's lifespan and lead to dangerous situations.

NOTE: Steam cleaners may be used.

www.sharpconsumer.com/support/

www.conformity/

OTHER HANDY FUNCTIONS

1. COOKING IN STAGES

2. +30s FUNCTION (Auto-start)

3. KITCHEN TIMER FUNCTION:

www.sharpconsumer.com/support/

www.conformity.com

MANUAL DEFROSTING

www.sharpconsumer.com/support/

www.conformity.com

GENERAL SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

www.sharpconsumer.com/support/

www.conformity.com

www.sharpconsumer.com/support/

www.conformity.com

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE USE

To avoid fire, do not leave the microwave oven unattended during operation. Too high power or too long cooking time may overheat food, which can result in fire.

www.sharpconsumer.com/support/

www.conformity/

www.sharpconsumer.com/support/

www.sharperconsumer.com/documents-of-conformity/

A. Information for users (households)

1. In the European Union

Attention: If you wish to dispose of this product, do not dispose of it with normal household waste.

Used electrical and electronic equipment must be disposed of separately, in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the practice of member states, households in the EU can return their used electrical and electronic equipment to designated collection points free of charge.

In some countries, your local retailer may also take back your old product free of charge when you purchase a new one.

*) For more information, please contact your local authorities. If your electrical and electronic equipment has batteries or accumulators, they must be removed and disposed of separately, in accordance with local requirements. By properly disposing of this product, you help to ensure the processing, recovery and recycling of waste materials. This helps to prevent potential negative effects on the environment and human health, which could otherwise be caused by inappropriate waste handling.

2. In countries outside the EU

If you wish to dispose of this product, please contact your local authorities and ask for the correct disposal method.

For Switzerland: Used electrical and electronic equipment can be returned to the retailer free of charge, even without purchasing a new product.

Further information on collection points can be found on the homepage of www.swico.ch or www.sens.ch.

5. Information on disposal and recycling for professional users

1. B Ebponeeckna cbl03

If the product has been used for household purposes and you wish to dispose of it:

For information on how to return and recycle the product, please contact your local dealer or SHARP. You may be charged for the costs of returning and recycling. Small products (in small quantities) may be taken back by your local collection point.

For example: if you are connected to the collection system, please contact your local authorities for the return of your used products.

2. Waste from EU countries

If you wish to dispose of this product, please contact your local authorities to learn about the correct disposal regulations.

SAFETY PRECAUTIONS AGAINST MICROWAVE ENERGY LEAKAGE

1. Do not operate the oven with the door open. This may lead to microwave energy leakage. Keep the safety interlocks in good condition and do not tamper with them.
2. Do not place anything between the oven front face and the door; do not allow soil or cleaner residue to accumulate on the sealing surfaces.
3. Do not use the oven if it shows signs of malfunction. The oven door must close properly and be in good condition, along with the hinges, locking mechanism, and sealing surfaces.
4. Do not attempt to repair or modify the oven yourself.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 11 SPECIFICATIONS 12 OVEN AND ACCESSORIES 13 CONTROL PANEL 14 BEFORE OPERATION 15 SETTING THE CLOCK 15 MICROWAVE POWER LEVELS 16 DEFROST MODE 17 MICROWAVE COOKING 18 COOKING WITH GRILL/COMBI GRILL 19 OTHER FUNCTIONS 20 TIMER AND DELAYED START FUNCTIONS 21 AUTO MENU MODE 22 AUTO MENU TABLE 23 RECIPES 24 CARE AND MAINTENANCE 25 MICROWAVE COOKING UTENSILS 26 TROUBLESHOOTING 28 REPAIR SERVICE 29 ERROR CODES 30 CONTACT FOR ASSISTANCE 31

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Do not install the grill near other heat sources, for example a conventional grill. Do not install the grill in places with high humidity or in places where moisture can collect. Do not store or use the grill outdoors.

If you notice the grill, remove the grill from storage and do not open the vents, to prevent the accumulation of acid fumes.

Never attempt to repair or modify the grill yourself. Any repair work, including replacing the cord, must be carried out by an authorized service center, as it is dangerous due to microwave energy.

Do not operate the grill with the door open and do not tamper with the interlocks in any way. Do not use the grill if the door is damaged, or if there is any object between the door and the sealing surface.

Do not allow the door seals and adjacent parts to become dirty or greasy. Clean the grill regularly and remove any food residues.

Follow the instructions in the "Care and Cleaning" section. Improper cleaning may damage the surfaces, which could adversely affect the life of the appliance and lead to dangerous situations.

People with pacemakers should consult their doctor or the pacemaker manufacturer regarding the precautions to take in relation to microwave ovens.

Risk of electric shock

Never immerse the power cord in water.

• Never insert or place objects in the locking openings or ventilation openings. In case of insertion, immediately unplug the grill and contact an authorized SHARP service center. Do not place the power cord or plug in water or moisture. Do not allow the power cord to hang over the edge of a table or work surface.
• Keep the power cord away from hot surfaces and from the hot parts of the grill.
• Keep the grill and its cord out of reach of children under 8 years of age. Do not attempt to replace the grill's lamp yourself and do not allow anyone who is not an electrician authorized by SHARP to do so. If the lamp burns out, consult your dealer or an authorized SHARP service center. If the power cord is damaged, it must be replaced by an authorized service center.

Do not touch or move the grill while it is in use. Do not play with the grill or use it as a toy.

All important safety instructions must be explained to children, namely: use of oven mitts, careful handling of food containers - special attention to plastic containers (e.g., self-heating materials) intended to keep food warm, as they can become very hot.

Other regulations.

Never immerse the appliance, cord or plug in water or other liquids.

Do not operate the appliance while it is still hot.

This product is intended for household use only. This appliance is intended solely for domestic food preparation. Heating food and liquids, as well as heating of leftovers, tubes, jars, wet towels, etc., may lead to a risk of fire. Use in commercial or laboratory conditions is not recommended.

Do not place the appliance near heat sources or in high humidity (e.g., near or on a convection oven); do not place it directly on heat-sensitive materials (e.g., curtains).

Do not block the ventilation openings.

Do not place objects on top of the appliance.

The outer surfaces of the microwave oven may become hot during operation. Be careful when touching them to avoid burns.

SPECIFICATIONS

Наименованные на мобеля		YC-MS02E	YC-MG02E	YC-MS51E	YC-MG51E	YC-MG81E
ПROMENЛВО Мразково наразожени		230 V/50 Hz монофазно
Линецн поедлaitentel/празьсвач		10 A	10 A	10 A	10 A	10 A
Избкваня за пROMENЛВOTOKOBа моши noctot:		1270 W	1270 W	1450 W	1450 W	1450 W
Изхочиma мош noct:	Бezорасни за	800 W	800 W	900 W	900 W	900 W
	Грил		1000 W		1000 W	1100 W
	В рекIM на ratов noctot		< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W
	В рекIM за пес themselves na eнергия	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W
Мinkroвл_NOВа чебота		2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*
Външи разmersи (ширINA) x (Височиа) x (Дълбочиа) мм		440 x 258 x 324	440 x 258 x 324	513 x 306 x 394	513 x 306 x 394	512 x 300 x 396
Вътressesни разmersи (ширINA) x (Височиа) x (Дълбочиа)** мм		306 x 205 x 304	306 x 205 x 304	328 x 206 x 368	328 x 206 x 368	348 x 240 x 356
КалцитET на Фунatable		20 петра**	20 петра**	25 петра**	25 петра**	28 петра**
Разmersи на поставку за з рIGNI (Длиаметрь x Височиа в мм)		315 x 308	315 x 308	315 x 308	315 x 308	315 x 308
Въrtяба симпя (длиаметрь в мм)		255	255	315	315	315
Тergл (kg)		прибл. 11,3 кг	прибл. 11,9 кг	прибл. 14,5 кг	прибл. 15,4 кг	прибл. 15,8 кг
Вътешно LED осв点亮eningе за Фурна		1,5W	1,5W	1,5W	1,5W	1,5W

* - This product complies with the requirements of the European standard EN55011. According to this standard, the product is classified as Group 2, Class B equipment. Group 2 means that the device emits radio frequency energy for the purpose of heating food. Class B equipment is suitable for use in domestic environments. **We reserve the right to make changes without prior notice. The actual appearance of the product may differ from the illustrations. As part of our policy of continuous improvement, we reserve the right to make changes to the specifications without prior notice.

APPLIANCE AND ACCESSORIES

1. Safety locking system
2. Window
3. Glass tray
4. Water tank
5. Light
6. The lid is an accessory (do not throw away)
7. Accessories for microwave cooking
8. Button for opening the lid
9. Ventilation openings
10. Outer bowl 11. Cable storage 12. Power supply for grill

Make sure all accessories are in place: inner bowl, grill rack, lid

Only for use with the grill function:

• Grill rack - used exclusively for grilling with the grill function. The grill rack is designed for use only with the grill function. DO NOT USE for microwave cooking. For more information on using the grill rack, refer to the relevant sections of the manual.

Never touch the grill while it is hot.

CAUTION: When cleaning

the surfaces, the appliance may be

hot. Wait for it to cool down before cleaning.

CAUTION:

• The lid is fragile. Care must be taken not to damage the inside of the bowl. After cooking with oil without the lid, clean the kitchen carefully, especially the elements that must be clean and dry without oil under them. The oil under them may overheat, ignite, or cause a fire. When working with the fryer with the basket correctly placed, the unit and the basket. This helps with cooking. If the basket is not placed correctly, it may tip over, not turn properly, and cause damage to the fryer. - When cooking all types of food with the basket, place the food on the basket. The basket can be turned clockwise or counterclockwise. The direction of turning can be changed before starting the fryer. This is related to the cooking of the food.

WARNING: This symbol indicates that surfaces (doors, housings, interiors of the bowl and accessories) may become hot during operation. To prevent burns, use oven mitts or gloves when handling.

CONTROL PANEL

1. DISPLAY - Shows cooking time, power, indicators and time of day.
2. WEIGHT DEFROST (Defrosting by weight) - Press briefly to select the defrost by weight function.
3. TIME DEFROST (Defrosting by time) - Press briefly to select the defrost by time function.
4. AUTO MENU - Selection of automatic menu for cooking.
5. TIME - Setting the time of day and timer.
6. MICROWAVE POWER LEVEL - Selection of microwave power.
7. GRILL (Grill) - Setting for grilling. 8.COMBI. (Combination cooking) - Program for combination cooking with microwave energy and grill.
8. TURBO/NOTION - Button for selection of turbo or motion.
9. KITCHEN TIMER (Kitchen timer) - Can be used as a minute timer or for programming standing time.
10. SET CLOCK (Clock) - Setting the time of day.
11. START/+30s - Button to start a program. Press briefly for cooking with a duration of 30 seconds at full power.
12. STOP/ECO (Stop / Energy saving mode) - With a brief press the program is paused; after two presses the program is cancelled. Also used for setting the energy saving mode.

STANDALONE MICROWAVE COOKING/DEFROSTING

MICROWAVE COOKING + GRILL

PEDIA WORK SUREDA

The oven is on. The display shows "0:00" and no audible signal sounds. This means the clock is not set, so the energy consumption during standby is higher than 1 W. For more information about the clock, see below.

SETTING THE CLOCK

Your oven has a 24-hour clock.

1. Press the CLOCK SET button [I] once. The display will show "0:00".
2. Set the exact time using the corresponding buttons - 10 min for hours and 1 min and 10 sec for minutes.
3. Press the CLOCK SET button again to confirm the setting.

NOTE:

If the clock is set, after the oven is switched on, the display will show the correct time. Otherwise, after the oven is switched off, the display will show "0:00". To check the correct time during cooking, press the CLOCK SET button. The correct time will be displayed on the display for 2-3 seconds. This does not affect the cooking process. - If during the setting of the clock the STOP button or any other button is pressed for more than one minute, the oven will return to the previous settings. If the electrical supply is interrupted, after the supply is restored, the display will show "0:00". If this happens during cooking, the program will be erased. The time of day will also be erased.

MICROWAVE POWER LEVEL

After the cooking program has been set, if the START/ +30s button is not pressed within 1 minute, the setting will be cancelled.

If the door is opened during cooking, the START/ +30s button must be pressed to continue the program. When the button is pressed, a short audible signal will sound.

The STOP button can be used for:

1. Erasing the settings during setting. 2. Temporarily stopping the oven during cooking. 3. To cancel the program during cooking, press the STOP button twice. 4. Setting and cancelling the child safety lock function.

STOP / ECO

If the microwave is not used for more than 5 minutes, and the door is closed, the child safety lock function is activated automatically. The digital keypad will stop being active. To unlock the function, it is necessary to open and close the door. After this action, the digital keypad can be used again.

MICROWAVE COOKING

Your oven can be programmed for up to 99 minutes and 50 seconds (99.50).

COOKING / REHEATING

Set the cooking time and power from 100P to 10P for cooking or reheating. Stir and turn the food when possible, 2-3 times during cooking. After cooking, cover the food and let it stand, when recommended. - For reheating, cover the food with foil and let it stand until fully reheated.

Example:

To cook for 2 minutes 30 seconds at microwave power 70%

For cooking mushrooms and continuing for 20 minutes with the GRILL button.

1. Hatис Hedge ednokpaTHO 6byToH GRILL. ∞x1	2. Бъединения Нeo6хoДМOTO врeme 3a награване чрз дуКраТно натискане на 6byToH 10 min.	3. Hatис Hedge 6byToH START/+ +30s, за ст装配е р胤ь. (Bьрух дисплег щe 6ьдe показано образно овsprяванe на зада徳�TO врeme.)
G	20:00	20:00

1. Press the KITCHEN TIMER button once.

1. Set the desired time by pressing the 1 min button 5 times.
2. Press the START/+30s button to start the timer.

4. Press the button. (The first display shows the countdown of the set time for cooking/reheating.)

At the set time, a beep will sound and the LED will show the time.

You can set the time up to 99 minutes and 50 seconds. To cancel the countdown timer, while it is running, press the STOP button.

NOTE: The countdown timer function cannot be used during cooking.

4. CHILD SAFETY LOCK:

Used to prevent accidental activation without parental control.

a. Activating Child Safety Lock:

Press and hold the STOP button for 3 seconds. A long beep will sound, and the display will show "LOC". The mode is activated. In this mode, the display will show the time. After pressing any button or opening the door, "LOC" will be displayed for 10 seconds.

b. Deactivating Child Safety Lock:

Press and hold the STOP button for 3 seconds until a long beep sounds.

5. ECO MODE:

In standby mode, press the "ECO" button once. The display will dim and the oven will enter ECO mode. The display can be activated by any action, and the microwave will return to standby mode.

DEFROSTING BY TIME AND DEFROSTING BY WEIGHT

1. DEFROSTING BY TIME

This function defrosts food quickly, allowing you to select the appropriate time for defrosting, depending on the

type of food. Follow the examples below to see how this function works. The time range is: 0:10-99:50.

Defrosting time for storage: 10 minutes.

1. Изберете Нжното мени, натукайки ведьх 6утон Быр3О PA3MPA3ЯBAHE. x1	2. Въединения вретмашие за говtrightе чyperе сднократуни натускане на 6утон 10 min.	1. Натиchnete 6утон START/ +30s, за стартупате ралмразявано.
Диаспей-byт ще пokамke: dEF2	dEF2

Notes regarding defrosting time:

When the first beep sounds, the LED stops emitting sound and the time is displayed, if the timer is set. If the timer is not set, the display will show only "0:00" when the defrosting is finished. - The set time is 30 minutes and cannot be changed.

2. DEFROSTING BY WEIGHT

The oven has pre-set programs, including various time settings and power levels, so that meat, fish, and poultry can be defrosted easily. The weight range can vary from 0.1 kg to 2 kg in intervals of 0.1 kg.

The following examples are for your convenience regarding the operation of these functions.

Example: Defrosting meat with a weight of 1.2 kg using the DEFROST BY WEIGHT function.

Place the meat together with the defrosting tray on the turntable.

1. Изберете необхимото мени чес сеньокатно наимскаце на 6уто PA3MPA3ЯBAHE СПРЯМО TEГЛ.O. x1	2. Вьberete TEглOTO, наимскайки 6уто TEГЛО/ПОЛЦМ, дOKATO Желанота сстюст ce поны Върух дисплия.	3. наимснete 6уто START/ +30s, за ссторiate pa3mpa3яBAHe. (Bьрух дисплия有很大 б自由贸易ю образно otбожаве на зааденото В徕е за ралмогаиме.)
Диаспей-byт有很大 пооче: dEF1	kg/1-	1.2

Frozen food should be defrosted at -18°C.

NOTES ON DEFROSTING BY WEIGHT:

• The food should be covered with a lid or placed in a suitable container, e.g., 0.650 kg to 0.7 kg. If necessary, protect the food with aluminum foil to prevent it from drying out. This will prevent the food from burning during cooking. Make sure the foil does not touch the oven walls.

AUTO MENU MODES

Using the AUTO MENU button, the oven automatically selects the correct modes and cooking times for roasting. Follow the examples below for more detailed information on how this function works.

Example: Roasting a whole chicken (0.46 kg) using the AUTO MENU function.

1. Изберете необховимо мени чес有很大оградно на заимскане на 6утон Jacket Potato (Пылен kapтоф).	2. Наточete 6утони TEGЛО/ ПОЛЦИ HAOPE/HАДOLЛУ пли пожддеге на заимскате 6уто Jacket Potato за на里斯berете небороте 6roduя картофи (до 3).	3. Наточete 6утон START/ +30s, за ст装配е rotbehе. (Bырух дис停留 по б自由贸易ю образно otspravenе на заадаенот врeme за rotbehе.)
Диаспейьт ще рокаме:	ka/2	dис停留:

NOTES:

• The weight and quantity of food can be entered using the INCREASE/DECREASE buttons for temperature/weight, until the desired value (in grams or milliliters) is displayed on the screen. It is necessary to enter the actual weight of the food, without including the container.
• Foods that weigh more or less than the values listed in the AUTO MENU table below should be cooked using the manual mode.

AUTO MENU TABLE

Cleaning the oven interior

The interior of the oven should be cleaned carefully with a soft cloth and water. Make sure the cloth is wrung out well and then dry the surfaces.

Control panel

Open the door and clean the control panel carefully, paying attention to not damage it. Use only a soft cloth, carefully wipe the panel with a damp cloth. Avoid using excessive water. Do not use any chemical or abrasive cleaners.

Before first use, clean the appliance.

1. Before use - remove all packaging and any stickers. Wipe the outside with a damp cloth before every use, while the oven is still warm.

After use, unplug the appliance and let it cool down. Remove any food residues. Wipe the outside several times until the residue is removed. Leave the door open to let it dry, to prevent odors, or to let it cool. Do not pour water into the oven.

1. Be careful not to let water or cleaning agents enter the ventilation openings. This could cause damage. 3. Do not use abrasive cleaning agents for the interior of the oven.
2. Heat the oven empty for 20 minutes using the grill function. Any food residues or grease may start to smoke or ignite.

Check the power cord regularly. The power cord is made of a special material and must be replaced if damaged (see instructions for replacement above).

CAUTION: Excessive heating may cause the power cord to become damaged.

The power cord is non-replaceable and without regular cleaning, it must be replaced.

Accessories

Accessories such as the rotisserie spit and the grill rack must be cleaned with mild cleaning agents or washed. They are dishwasher safe.

Door

Clean the door regularly, both sides, the hinges, the space around the hinges, and the glass parts with a mild and damp cloth. Do not use abrasive cleaning agents.

CAUTION: Do not clean with steam.

Tips for cleaning your oven:

Put lemon slices in a cup, add 300 ml of water and heat at 100% power for 10-12 minutes.

Use a microwave-safe container with a lid.

MICROWAVE OVEN AND MICROWAVE COOKING

When using a microwave oven, food is cooked faster compared to conventional cooking.

It is important to follow the principles for microwave cooking to get good results. Many of these principles are similar to conventional cooking.

CAUTION: Liquids and food should not be heated in sealed containers or containers with lids, as there is a possibility of explosion due to the pressure that builds up.

MICROWAVE COOKING TIPS:

When using the oven, follow these tips. - Make sure the food is suitable for microwave cooking. See the table in the section on recommended cooking times and power levels for cooking food. - Use only microwave-safe cookware with the recommended lid (follow the manufacturer's instructions. Never use metal, except as specified by the manufacturer, and never cook longer than the recommended time.

CAUTION: Follow all the instructions in the manual for using the SHARP. If you exceed the recommended cooking time or use excessively high power levels, the food may overcook, burn, or catch fire and damage the oven.

Correcting

Arrange the thicker parts of the food (e.g., chicken legs) away from the center of the dish. Food placed away from the center of the dish receives more microwave energy, i.e., it cooks faster than the rest.

Covering

Some foods cook better in a microwave oven if they are covered. Use a ventilated microwave-safe lid or microwave-safe plastic wrap.

Piercing

Food with skin, peel, or membrane (e.g., potatoes, fish, sausages, egg yolks) should be pierced in several different places before cooking or before serving, as steam forms and the pressure can cause the food to explode.

• Remove the food from its packaging before cooking.

Before filling, do not forget the format, dimensions, quantity and temperature of the food, as well as the size, format and material of the container.

WARNING: Never fill the oven with hot food, as this may cause burns from steam.

To avoid excessive fire, great care must be taken when heating foods with high fat or sugar content, for example jam or cured meat. - Never fill this appliance with oil for frying, as this may cause a fire or burns. Preserved potatoes should not be filled in the microwave oven. Follow the manufacturer's instructions, indicated on the packaging.

WARNING: To be safe, it is essential that the food and glass containers are placed before use, and the temperature checked.

TROUBLESHOOTING

If you have problems, the appliance does not work properly, perform some simple checks before contacting specialized help. This can prevent unnecessary calls to technical service.

Perform the following elementary check:

Place half a glass of water in the oven and close the door. Using the timer control, set cooking for 1 minute at high microwave power.

1. Does the interior lighting of the oven activate during cooking?
2. Do the cooling fans activate? (Check by placing your hand over the ventilation openings).
3. After 1 minute, does a loud signal sound?
4. Is the water hot?

If you answer "NO" to any of the above questions, check that the oven is plugged into the electrical outlet correctly, as well as the circuit breaker. If both are in order, check the troubleshooting table below.

WARNING: Never perform corrections, repairs or modifications on the oven yourself. Performing repairs by unauthorized persons is dangerous, unless performed by technicians trained by SHARP. This is of particular importance, as it involves removing the protective cover against microwave radiation.

• The door seals prevent microwave leakage, but do not provide hermetic insulation. It is normal for water drops, light, or air to be felt around the oven door. Foods with high water content release steam that condenses on the inside of the door. This condensation may drip from the oven.
• WARNING: Do not attempt to operate the oven if it malfunctions or does not operate correctly. Spilled food should be cleaned before next use: never spill liquids. This is very dangerous, as the hot steam can cause high pressure, and if it never happens to be covered, there is a probability of serious consequences.

The oven must not be operated with the door open. If the door is damaged, do not attempt to repair it yourself, but contact a service technician approved by SHARP.

TROUBLESHOOTING TABLE

www.sharpconsumer.com/support/

www.conformity.com

A. Information on disposal for users (private households)

1. In the European Union

Attention: if you wish to dispose of this equipment, please do not use a regular trash bin!

Used electrical and electronic equipment must be disposed of separately in accordance with regulations that require proper use, repair, and recycling of used electrical and electronic equipment.

As in Member States, private households within EU countries can return their used electrical and electronic equipment to authorized collection points for this equipment free of charge*.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Avoid risk of fire. The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat food and lead to fire.

This oven is designed for use only on a work surface. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet. The electrical outlet must be accessible so that the unit can be unplugged easily in case of emergency.

The AC power supply must be 230-240 V, 50 Hz, with a fuse of 10 A for the distribution line, or a distribution circuit breaker of at least 10 A. A separate circuit serving only this appliance must be provided.

Do not place the oven in areas where heat accumulates. For example, near a conventional oven. Do not install the oven in areas of high humidity or where moisture can collect. Do not store or use the oven outdoors.

www.sharpconsumer.com/support/

www.conformity/

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TROUBLESHOOTING TABLE

www.sharpconsumer.com/support/

www.conformity/

www.sharpconsumer.com/support/

www.conformity/

Do not use the oven door as a shelf or lean on it. Do not play with it or use it as a toy.

It is necessary to familiarize children with all safety rules: use oven mitts when handling hot cookware, carefully remove lids from products, pay special attention to packaging materials (for example, materials capable of self-ignition), intended for storing food products, as they may be very hot.

Storage

Do not attempt to repair the oven yourself.

Do not move the oven during operation.

The symbol indicates that the surface heats up during appliance operation.

INSTALLATION

1. Remove all packaging materials from the inside of the chamber and remove the protective film from the surface of the microwave oven body.
2. Carefully inspect the appliance for any damage.
3. Place the appliance on a stable horizontal surface, strong enough to support the weight of the appliance together with the heaviest item that can be heated in it. Do not place the appliance in a recess.
4. Choose a horizontal surface with enough space for the required clearance around the inlet and/or outlet ventilation openings. See the figure on the first page. The appliance can also be placed on a shelf. The minimum installation height is 85 cm. The distance between the side walls of the microwave oven and adjacent walls or other objects must be at least 20 cm. The height of the free space above the appliance must be at least 30 cm.
5. Do not leave the appliance unattended.
6. Blocking the inlet and/or outlet openings may cause damage to the appliance.
7. Place the appliance away from radio and television receivers. Using the microwave oven may cause interference with radio and television reception.

1. Connect the appliance plug to a standard grounded household electrical outlet.

WARNING!

Do not place the appliance near heat sources, water, or in wet places (for example, near a sink), as well as near flammable materials (for example, curtains).

Do not cover the ventilation openings.

Do not place objects on the appliance.

During operation and for some time after the microwave oven is turned off, do not touch its casing: it may be hot.

TECHNICAL SPECIFICATIONS

Do not touch the device during operation.

NOTE: Before use, read the name of the part and model carefully.

NOTES:

Clean the device thoroughly, especially the inside, to avoid damaging the microwave door. After cleaning, carefully wipe the interior chamber and the heating element. They must be kept clean. Improper cleaning may lead to damage. - Before using this device, make sure that the turntable and its support are correctly installed. This ensures proper and even cooking. Incorrectly installed turntable may cause noise, poor rotation, or even damage. - For cooking food and containers with it, place them on the turntable. - The turntable rotates clockwise and counterclockwise. The rotation direction changes each time you turn it on. This does not affect the cooking process.

AND DAMAGE: The label indicates that surfaces may become hot during operation. During operation, the outer casing, inner chamber, accessories, and dishes may become very hot. To avoid burns, use thick gloves.

CONTROL PANEL

1. DISPLAY - Shows cooking time, power level, and indicators.
2. DEFROST BY WEIGHT - Press once to defrost by weight.
3. DEFROST BY TIME - For defrosting by time.
4. AUTO MENU - Select automatic cooking menu.
5. TIME - Select timer and temperature.
6. MICROWAVE (MICROWAVE POWER LEVEL) - Select microwave power level.
7. GRILL (GRILL) - Set grilling program. 8. COMBI (COMBI) - Select combined cooking mode (microwave and grill).
8. WEIGHT/AMOUNT - Select weight or quantity of food.
9. KITCHEN TIMER (KXYOHHNI TAIMEP) - KHONika Do3BOLJIe KOPINCTyBaTnCSa TIaMePOM 3aDaTIc npInroTyaBHnA.
10. SET CLOCK (HAJAWTYBATN FOINHHNK) - KONka DO3BOJAE HanaWtYBaTn Yac 3a FOINHHNKOM.
11. START/+30s (CTAPT/+30cek) - KhoNka nycky. HaTncHyBn Odn pa3, moXHa roTyBaTn npotrrom 30 ha nobHi nOtuyxHocti.
12. STOP/ECO (CTON/EKO): OJHOKpaTHe HaTNCaHHa D03BOJIa TUMcAOBo PpINnHInTn PpIroTyBaHHa, aDbOKpaTHe —ckacybTaN Ioro. TaKoX BVKOpncSTOByETcbdIra HanaHTyBaHHa peXmMy eKOHOMii eheprii.

JIiue mikpoxBnIbOba nii

Mikpoxbilboba niu i3 rpiinem

ПЕPS HIX PO3ПОЧАТЕКСПЛУATAЦИ

• Ybimkhitb niu. Ha dincnnie 3'raBntbcyaac "0:00", i niu BnuDactb OndHopaOBOB 3ByKOBn CnHaJ.
• Lma moelb maé yhkuio roHHnka, a B pexmi ouikybaHn cnoxnbAe MeHs k 1,0 Bt. Ipo hanauTyBaHHraoHHnka dNB. HNkye.

HAJIASTYBAHHI ROINHHNKA

TodHHNK nei npaioe B 24-ToDHHOMy pexmi.

1. HataHcHb Odn Ha3 KhoNky «3AaTn YAc» [O] Yac «00:00» NoUHe 6JImaTn.
2. HATNCKAQUH KONKN HAJIaSTyBaHHaCay, BBeiTb IOTouHn qac. BBeiTb roHN, HATNCKAQUH KNONKY 10 min, Ta XBNJINH, HATNCKAQUH KONKN 1 min Ta 10 s.
3. HataChiB KhoNkUe 3AADTu YAC), 106 3aKiHUnHaJaawTbAHnroDHHnka.

ПРМITКИ:

• If the appliance is not calibrated, the cooking time display may not be correct. If the appliance is not calibrated, the cooking time display will show 0:00.
• To set the cooking time, press the button on the appliance - the cooking time will appear on the display for 2-3 seconds. This does not affect the cooking process. If you press the button again or if no button is pressed for 1 minute, the display will return to the previous setting.
• In case of a power outage, the display will show the message "0:00". If this happens during cooking, the program will be cancelled. The cooking time will also be reset.

POWER LEVEL OF MICROWAVE

Ровенnotужност	НатOMICities Kholectional NOTUJXHOCTI MIKPOXBUNBOOIEHEPPII.	Диagsпел Пюцент
ВИСOKИ	x1	100P
	x2	90P
ПОМIPНО ВИСOKИ	x3	80P
	x4	70P
CEРДИ	x5	60P
	x6	50P
ПОМIPНО ИЗБКА (POЗМОРОЖУBAHЯ)	x7	40P
	x8	30P
ИЗБКА	x9	20P
	x10	10P
	x11	0P

• As shown, there are 11 power levels. To select the power level for cooking, press the "POWER LEVEL" button until the desired power level is displayed. Enter the desired cooking time by pressing the button to set the cooking time. To start cooking, press the "START" button.
• To check the power level during cooking, press the "POWER LEVEL" button. While the button is pressed, the power level will be displayed on the screen. At the same time, the remaining cooking time will be displayed.
• If you select the "0P" level, the appliance will operate with the fan on but with zero power. This mode can be used for defrosting.

It is recommended to use the following power levels for different types of food:

100P/90P (HIGH) - Used for quick cooking or reheating, for example, drinks, soups, and other foods.

80P/70P (MEDIUM HIGH) - Used for cooking products of medium consistency, such as minced meat, meatloaf, and dishes in plates, as well as for lower dishes, for example, biscuits. All modes with reduced power are suitable for gentle cooking without stirring.

If you set a cooking program but do not press the "START/+30sec" button within 1 minute, the setting will be cancelled.

The "START/+30sec" button must be pressed if the door is opened during cooking. If the button is pressed correctly, it will be accompanied by a single beep.

Use the "STOP" button to:

1. Correct a mistake during programming;
2. Pause cooking for a short time.
3. Press the "STOP" button to stop the program.
4. To turn off the microwave oven, press the "STOP" button.

STOP / ECO

NOTE:

- If the microwave oven is not used for 5 minutes (and the door is closed), the child lock will automatically turn on. To turn off the child lock, simply press the "STOP" button - then the keypad will work again.

TROUBLESHOOTING

www. sharpconsumer.com/ support/

www.conformity.com

www. sharpconsumer.com/ support/

www.conformity.com

www. sharpconsumer.com/ support/

www.sharperconsumer.com/ documents-of-conformity/

MICROWAVE POWER LEVEL

www. sharpconsumer.com/ support/

www.conformity.com

Sharp Consumer Electronics Poland sp. z o.o.

Ostaszewo 57B, 87-148 Lysomice, Poland

SHARP CORPORATION

1 Takumi-cho, Sakai-ku

Sakai City, Osaka

590-8522, Japan

SDA/MAN/0213
