USER MANUAL HOT3161BI/E HOOVER

- When you open the door after you have finished cooking, a few drops of water may come out of the door. It depends on the type of food you have cooked.

- During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

- Cook the vegetables in a container with a lid instead of an open tray.

- Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

- WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

- WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe distance.

- WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

- WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.

- Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.

• Children should not play with the appliance.

- The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

- Cleaning and maintenance should not be carried out by unsupervised children.

- Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to

shatter.

- The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.

- Only use the meat probe recommended for this oven.

- Do not use a steam cleaner for cleaning operations.

- Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

- The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

- If the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.

- Failure to comply with the above can

compromise the safety of the appliance and invalidate the guarantee.

- Any excess of spilled material should be removed before cleaning.

- A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity.

- WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

- WARNING: Never remove the oven door seal.

- CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

General Instructions

5

1.1 Safety indications
1.2 Electrical safety
1.3 Recommendations
1.4 Installation
1.5 Waste management
1.6 Declaration of compliance

Product Description

6

2.1 Overview
2.2 Accessories
2.3 First use

Use of the Oven

7

3.1 Display description
3.2 Cooking modes

Oven Cleaning and Maintenance

10

4.1 General notes on cleaning
4.2 Hydro Easy Clean Function
4.3 Maintenance

• Instruction for removal and cleaning of the side racks
• Removal of the oven window
• Removal and cleaning of the glass door

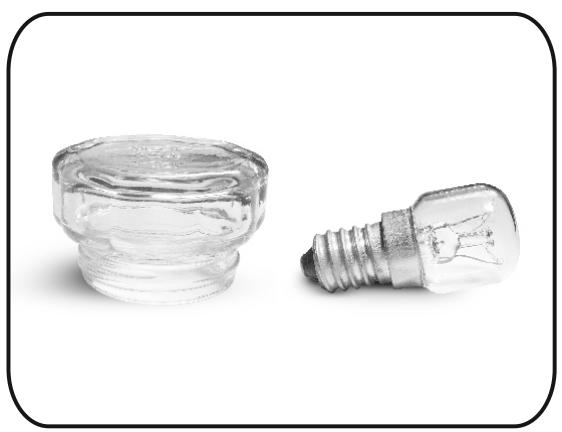

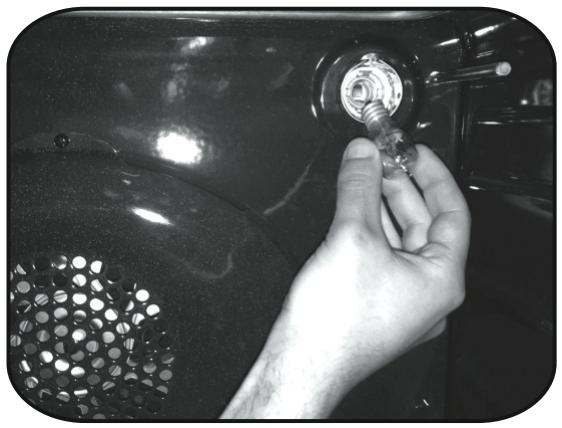

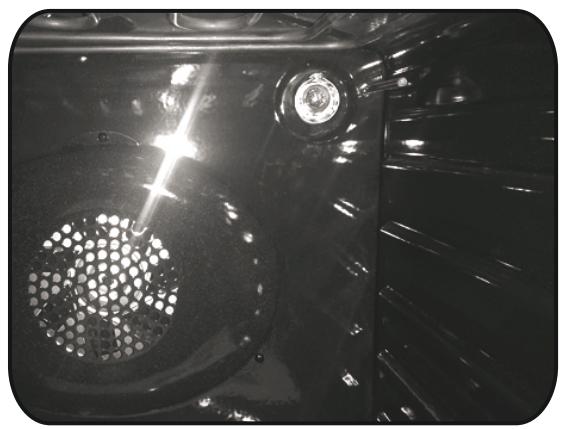

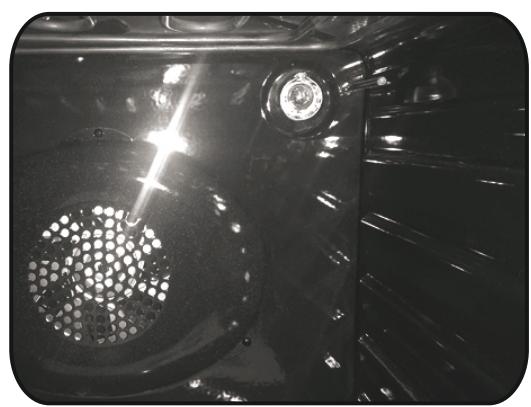

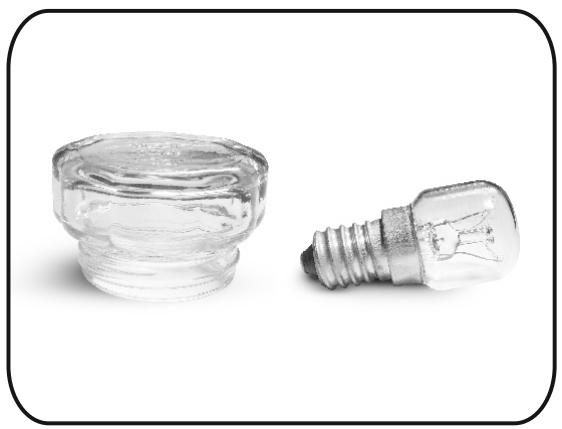

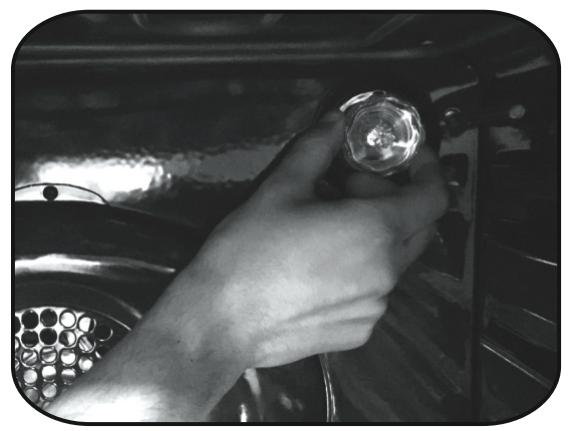

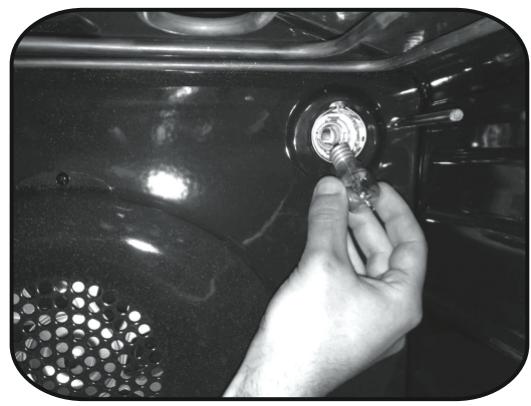

• Changing the bulb

Troubleshooting

12

5.1 F.A.Q.

1. General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed.

NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

Exterior view of a modern kitchen oven with ventilation grilles and ventilation duct (no text or symbols visible)

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage. The use of any electrical appliance implies the observance of some fundamental rules:

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

CONNECTION

The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check:

1.3 Recommendations

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.

1.4 Installation

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on

the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste;

- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs.

• do not pull on the power cable to disconnect the plug from the socket;
• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension cables is not recommended;
• in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

- power voltage indicated on the gauge;

- the setting of the disconnector.

The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply.

WARNING

Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot.

1.6 Declaration of compliance

- By placing the C€ mark on the appliance, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

- Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.candy-group.com.

2. Product Description

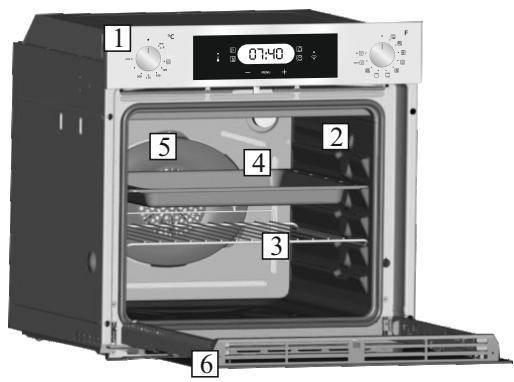

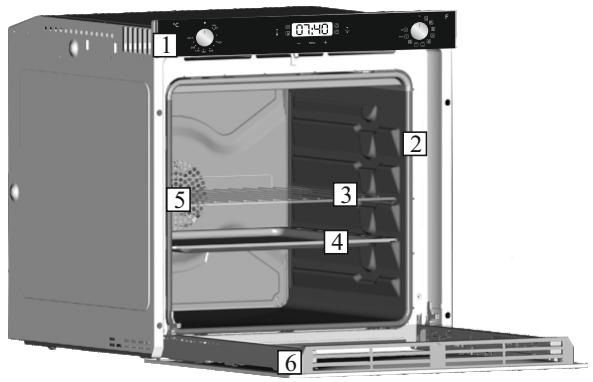

2.1 Overview

07:40 1 2 3 4 5 6

1. Control panel
2. Shelf positions
   (lateral wire grid if included)
3. Metal grill
4. Drip pan
5. Fan (behind the steel plate)
6. Oven door

01:40 1 2 3 4 5 6

2.2 Accessories (According to model)

1 Drip pan

3D rendering of a gray rectangular tray with cutouts, no text or symbols visible

Collects the residues that drip during the cooking of foods on the grills.

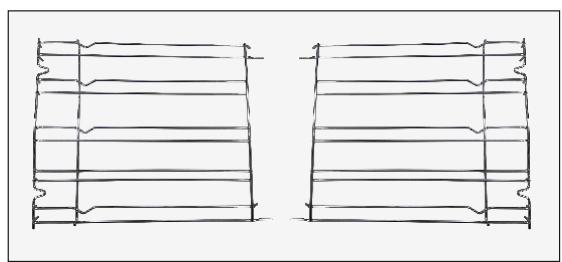

3 Lateral wire grids

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

It located at both sides of the oven cavity. It holds metal grills and drip pans.

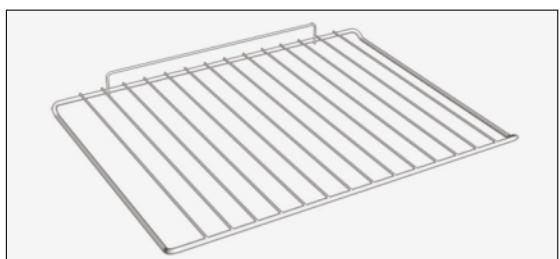

2 Metal grill

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

Holds baking trays and plates.

2.3 First Use

PRELIMINARY CLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

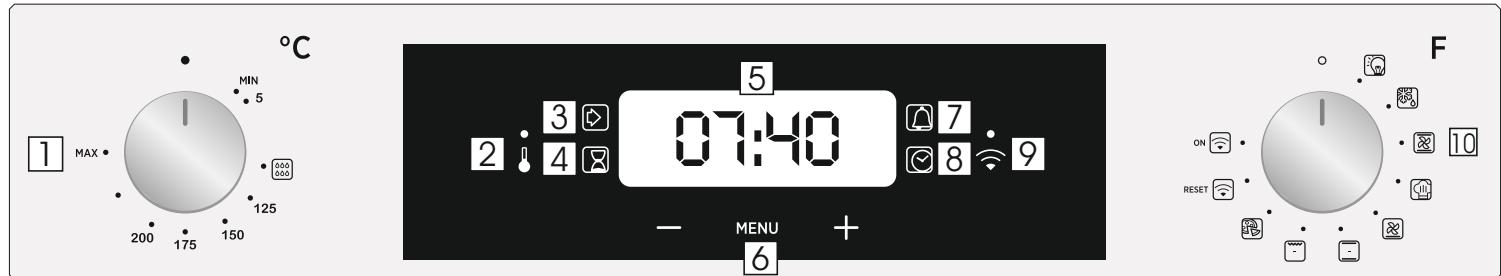

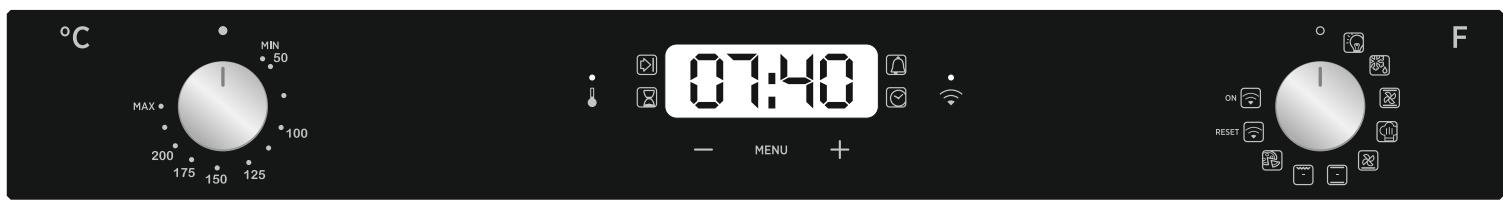

3.1 Display description

°C MIN 50 MAX 100 200 175 150 125 07:40 - MENU + F ON RESET

1 MAX MIN 5 125 200 175 150 °C 5 2:3 07:40 7 2:4 8 9 - MENU + 6 F ON RESET 10

1. Thermostat selector knob
2. Thermostat signal lamp
3. End of cooking
4. Cooking time
5. Temperature or clock display
6. LCD display adjustment controls
7. Minute minder
8. Clock setting
9. Wifi signal lamp
10. Function selector knob

WARNING : the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing 12:00 ) is setting the correct time. The bottom right LED flashes at the same time ( ⏻ ). This is achieved as follows.

• Set time with "-" "+" buttons.
• Push the Menu button or wait 5 seconds than the clock is set.

ATTENTION: The oven will only operate setting the clock

FUNCTION	HOW TO USE	HOW TO DEACTIVATE	WHAT IT DOES	NOTE
KEY LOCK	Child Lock function is activated by touching Set (+) for a minimum of 5 seconds. From this moment on all other function are locked and the display will flash 3 sec intervals STOP and preset time intermittently.	Child Lock function is deactivated by touching touchpad Set (+) again for a minimum of 5 seconds. From this moment on all functions are selectable again.
MINUTE MINDER	Push the central button 3 timesPress the buttons "-" "+" to set the required timeRelease all the buttons	When the set time has elapsed, an audible alarm is full stop after activated this alarm will stop on its own, however it can be stopped immediately by pressing any button.	Sounds an alarm at the end of the set time.During the process, the display shows the remaining time.	Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operating the oven)
COOKING TIME	Select the cooking function with the oven function knob, the temperature you want to cook with the thermostat knob.Push the central button 1 timesPress the buttons "-" or "+" to set the lenght of cooking requiredRelease all buttonsNOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.	Push any button to stop the signal. Push the central button to return to the clock function.	It allows to preset the cooking time required for the recipe chosen.To check how long is left to run press the MENU button 1 time.To alter/change the preset time press MENU and "-" "+" buttons.	At the end of the program the program gives 3 warning signals and "End" appears on the display.Set the function selector switch to "0" to return to the clock function.
END OF COOKING	Select the cooking function with the oven function knob, the temperature you want to cook with the thermostat knob.Push the central button 2 timesPress the buttons "-" "+" to set the time at which you wish the oven to switch offRelease the buttonsNOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.	At the time set, the oven will switch off. To switch off manually, turn the oven function selector to position O.	Enables you to set the end of cooking timeTo check the preset time push the central button 2 timesTo modify the preset time press buttons MENU + "-" "+"NOTE: Delayed cooking feature is not available for following cooking modes: Fan Grill & Grill	This function is typically used with "cooking time" function.For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to 12:30.At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of-cooking-time, when the oven will switch itself off automatically.

WIRELESS PARAMETERS

Technology	Wi-Fi	Bluetooth
Standard	IEEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401-2483	2402-2480
Maximum Power [mW]	100	10

PRODUCT INFORMATION FOR NETWORKED EQUIPMENT

- Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 W

How to activate wireless network port:

• If the WiFi led blinks it means that the WiFi module is On.
• If already enrolled: turn the knob to WiFi On.
• If not enrolled: follow procedure for enrolling.

How to deactivate wireless network port:

• If the WiFi led is Off it means that the WiFi module is Off.
• If the oven is enrolled: turn the knob to WiFi reset position and then to Off position within 30 sec.
• If the oven is not enrolled WiFi is Off.

Oven enrollment on app

ON THE SMARTPHONE

Step 1

- Download hOn app.

QR code image containing encoded data, no visible human-readable text

Available on the App Store GET IT ON Google Play EXPLORE IT ON AppGallery

Step 2

- Log in or sign up.

hOn Email Password LOGIN EDRIGOY YOUR SIGN PASSWORD2 UP?

Step 3

- Add new appliance

Select your appliance category Washer Dryer Fridge Oven

Step 4

- Scan the QR code or insert the serial number.

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference.

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number QR code: $370 2000 2001 2002 MCC/Plus, FCT4819 MR07 TYPE/Term Term MR07 SCAN MANUAL Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines QR INSERT MANUALLY

ON THE APPLIANCE

Step 5

- Turn the cooking functions knob on a program (No "light" or "0").

ON RESET

Step 6

- Turn the functions knob to the WI-FI RESET program and wait 30 seconds.

ON RESET

Step 7

- When the WiFi LED starts blinking, you can proceed with pairing within 5 minutes.

Remote control mode

Step 1

- Turn the knob to the WI-FI program.

ON RESET

Step 2

- The WiFi LED switches on.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.candy-group.com

3.2 Cooking Modes

Function Dial	T °CSuggested	T °C Range	Function (Depends on the oven model)
			LAMP:Turns on the oven light.
			DEFROST:When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.
[SH34]	180	50 ÷ MAX	FAN COOKING:We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed. Allow about ten minutes extra when cooking foods at the same time.
*[S833]	190	50 ÷ MAX	MASTER BAKE:This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result.
	210	50 ÷ MAX	FAN + LOWER ELEMENT:The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position.
*[S52Y]	220	50 ÷ MAX	CONVENTIONAL:Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.
	230	50 ÷ MAX	GRILL:use the grill with the door closed.The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W
	220	50 ÷ MAX	PIZZA:With this function hot air circulated in the oven to ensure perfect result for dishes such as pizza or cake.
C [HB56]			WIFI ON:Oven allows wifi connection.
RESET			WIFI RESET:It allows wifi connection to be restarted.

Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia).

GLASS PARTS

It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

OVEN WINDOW SEAL

If dirty, the seal can be cleaned with a slightly damp sponge.

4.2 Hydro Easy Clean Function

ACCESSORIES

Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents.

DRIP PAN

After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid.

If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercial oven detergent. Never put a dirty pan back into the oven.

The HYDRO EASY CLEAN procedure uses steam to help remove remaining fat and food particles from the oven.

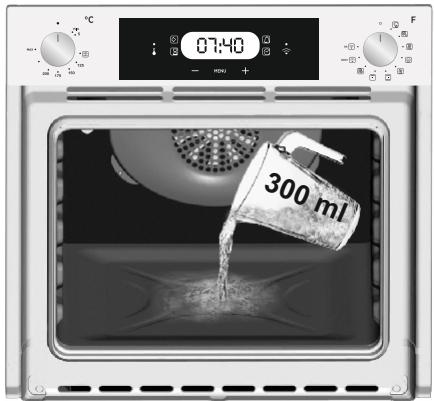

1. Pour 300 ml of water into the HYDRO EASY CLEAN container at the bottom of the oven.
2. Set the oven function to Static (☐) or Bottom (☐) heater

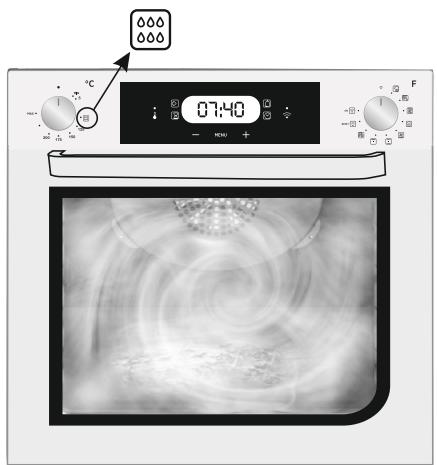

3. Set the temperature to the HYDRO EASY CLEAN icon
4. Allow the program to operate for 30 minutes.
5. After 30 minutes switch off the program and allow the oven to cool down.
6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning: Make sure that the appliance is cool before you touch it.

Care must be taken with all hot surfaces as there is a risk of burns.

Use distilled or drinkable water.

07:40 300 ml

07:40 - NCM + F

4.3 Maintenance

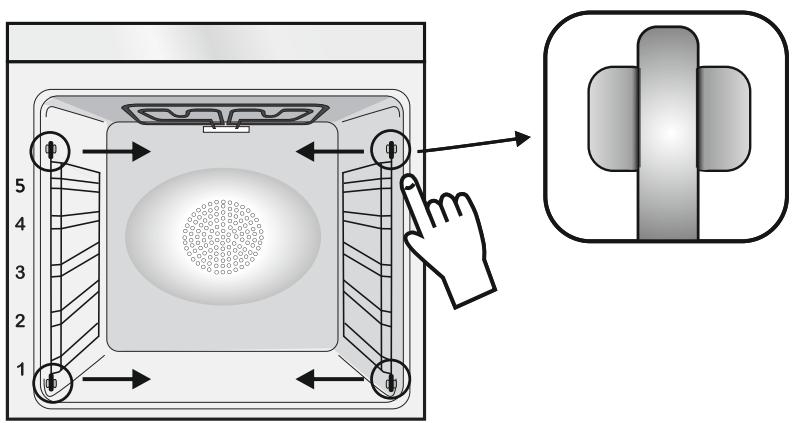

INSTRUCTION FOR REMOVAL AND CLEANING OF THE SIDE RACKS

1. Remove the wire racks by pulling them in the direction of the arrows (see below)
2. To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the wire racks in reverse order.

Diagram showing a device interior with numbered components and a hand interacting with a button, alongside a close-up of the button's view.

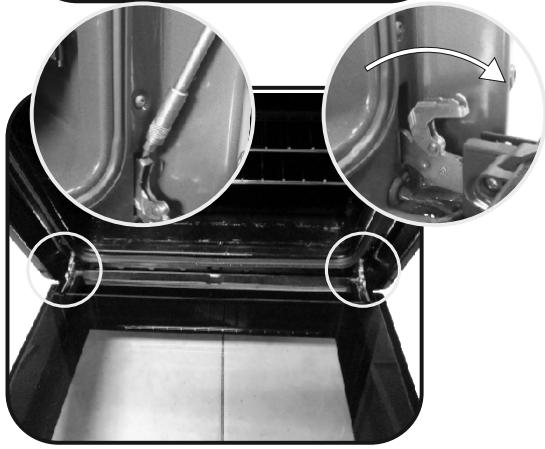

REMOVAL OF THE OVEN WINDOW

1. Open the front window.

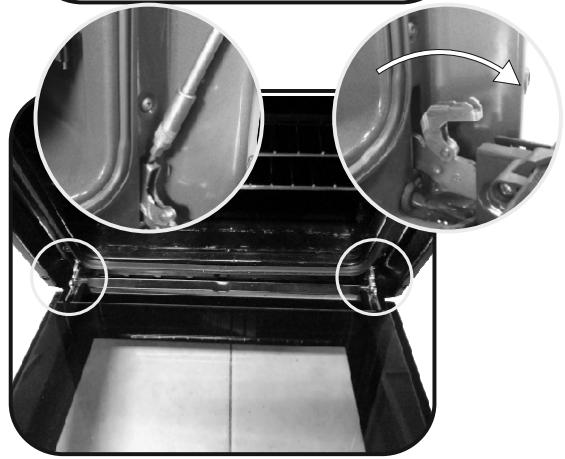

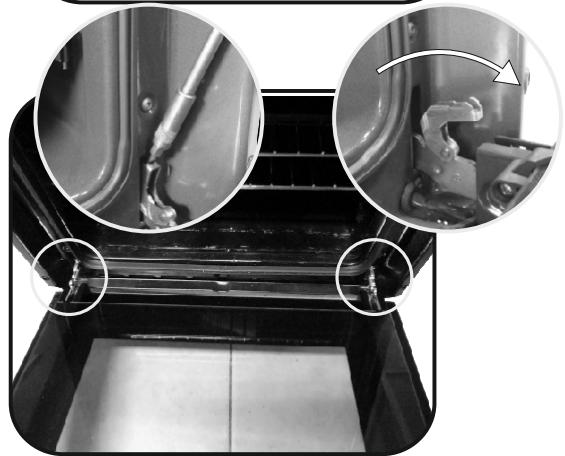

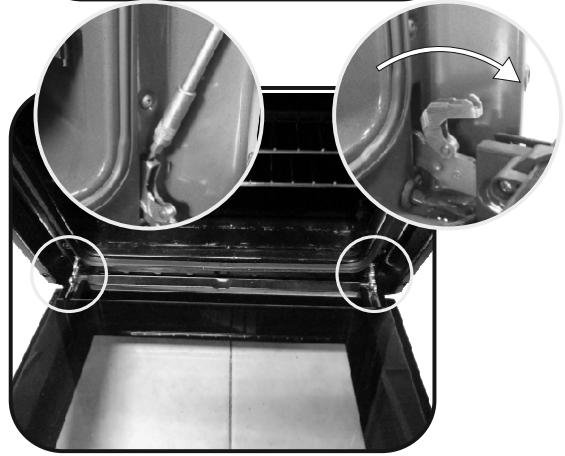

2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them downwards.
3. Replace the window by carrying out the procedure in reverse.

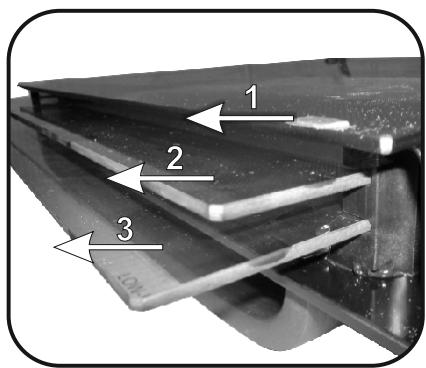

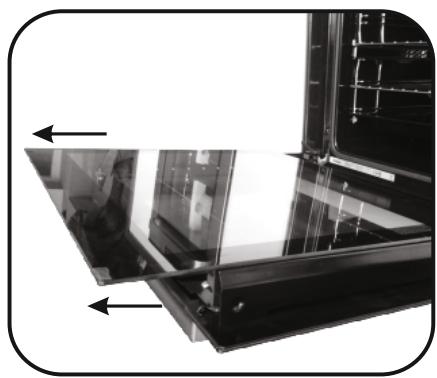

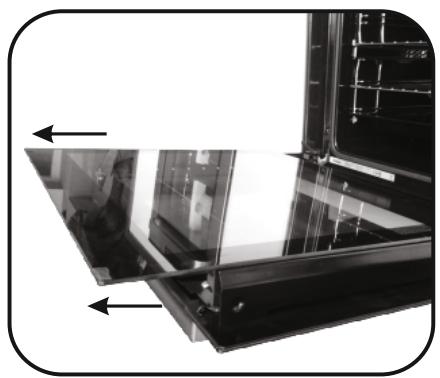

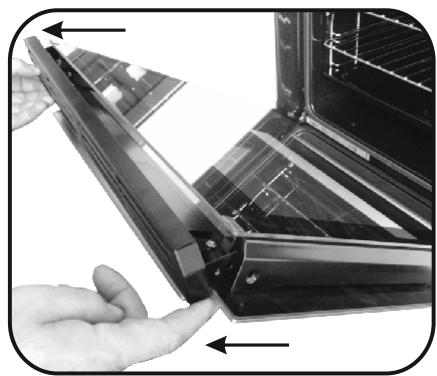

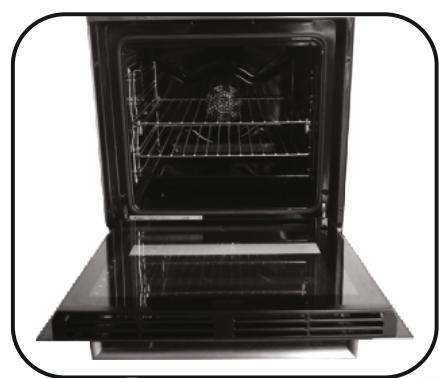

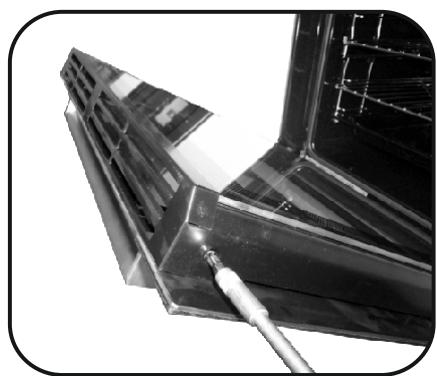

REMOVAL AND CLEANING OF THE GLASS DOOR

1. Open the oven door.

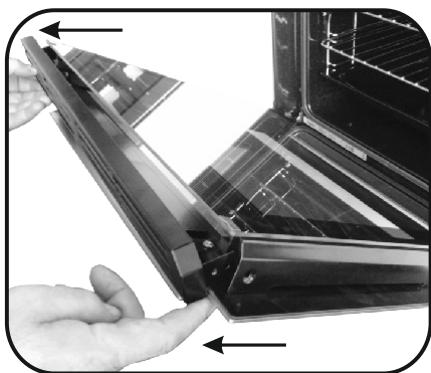

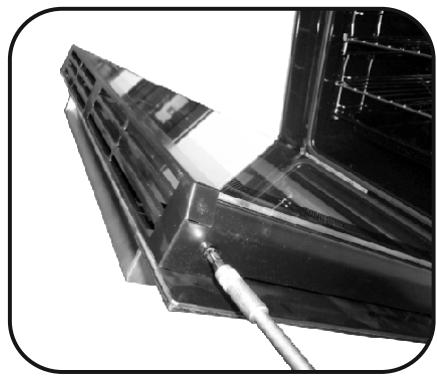

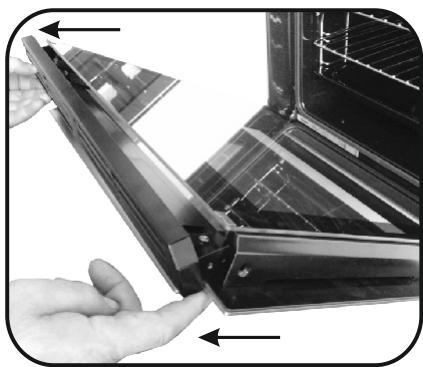

2.3.4. Lock the hinges, remove the screws and remove the upper metal cover by pulling it upwards.

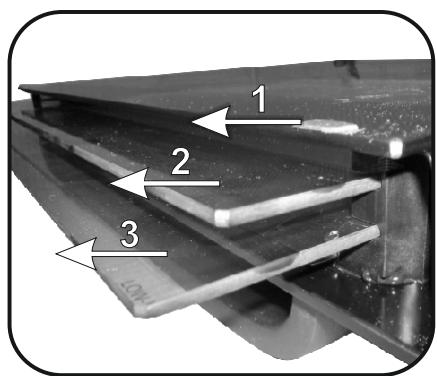

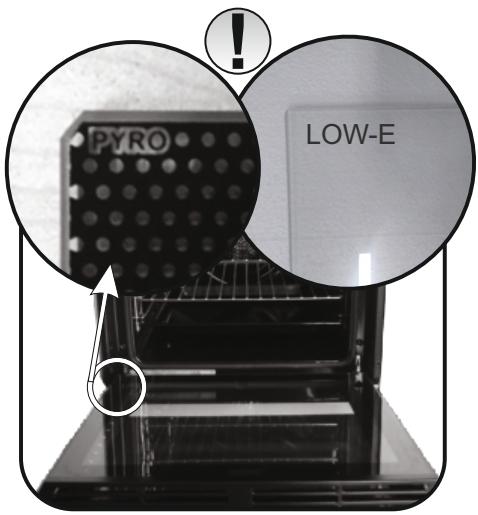

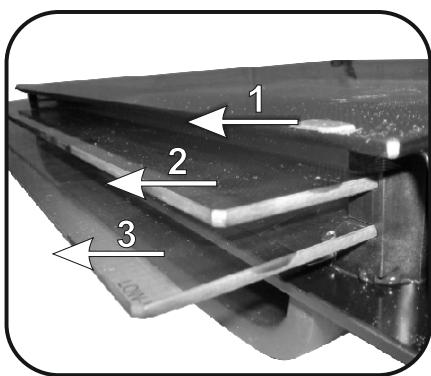

5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the second and third glass (if present)).

1. At the end of cleaning or substitution, reassemble the parts in reverse order.

On all glass, the indication "Low-E" must be legible and positioned on the left side of the door, close to the left-hand lateral hinge. In this way, the printed label of the first glass will be inside the door.

1.

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass oven with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

CHANGING THE BULB

1. Disconnect the oven from the mains supply.
2. Undo the glass cover, unscrew the bulb and replace it with a new bulb of the same type.
3. Once the defective bulb is replaced, replace the glass cover.

Close-up of a hand holding a small transparent object inside a vehicle hood (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a mounted head (no visible text or symbols)

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

5. Troubleshooting

5.1 FAQ

PROBLEM	POSSIBLE CAUSE	SOLUTION
The oven does not heat up	The clock is not set	Set the clock
The oven does not heat up	A cooking function and temperature has not been set	Ensure that the necessary settings are correct
No reaction of the touch user interface	Steam and condensation on the user interface panel	Clean with a microfiber cloth the user interface panel to remove the condensation layer

Interior view of a modern kitchen oven with ventilation grilles and a tray (no text or symbols visible)

3D rendering of a gray rectangular baking tray with side grout (no text or symbols)

Two identical hand-drawn vertical panels with horizontal lines, no text or symbols present

Line drawing of a rectangular metal tray with vertical slats (no text or symbols)

Select your appliance category Washer Dryer Fridge Oven

Adım 4

Empty white rectangle with black border (no text or symbols)

Tell us your appliance serial number You will find your serial number attached on the aplacians. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines. OR INSERTMANUALLY

CİHAZDA

Adım 5

Diagram showing a device interior with numbered zones and a hand interacting with a button, alongside a close-up of the button.

FIRIN KAPAĞININ SÖKÜLMESİ

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass door frame with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components inside a vehicle cabin, showing structural details and mounting brackets (no visible text or symbols)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal screw inserted, showing internal structure and wiring (no text or symbols visible)

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a white background (no text or symbols visible)

5. Sorun Giderme

5.1 Sorun giderme

Tel: [phone] • Fax: [phone]

www.candy-group.com

GARANTI BELGESI

ANKASTRE FIRIN

Interior view of a modern kitchen oven with open door and ventilation slots (no visible text or labels)

3D rendering of a gray rectangular tray with cutouts, no text or symbols visible

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

Select your appliance category Washer Dryer Fridge Oven

Étape 7

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number QIR 3270 2000 2001 2002 MUSC/Therap, FACTOR 1984 TYPE/Tan: Tom MR07 SCAN MANUAL Scan the QR code serial number: The QR code is automatically detected patient's placed within the guidelines. OR INSERT MANUALLY

Diagram showing a door panel with numbered positions and a hand interacting with the door, alongside a close-up of the door handle.

RETRAIT DE LA PORTE DU FOUR

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass appliance with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

REMPLACEMENT DE L'AMPOULE

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

5. Dépannage

5.1 FAQ

Interior view of a modern oven with open door and ventilation grilles (no text or symbols visible)

3D rendering of a gray rectangular tray with side holes (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Available on the App Store GET IT ON Google Play EXPLORE IT ON AppGallery

Fase 2

Select your appliance category Washer Dryer Fridge Oven

Fase 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to feel it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines. OR INSERT MANUALLY

SULL'ELETTRODOMESTICO

Fase 5

Diagram showing a device interior with numbered components and a hand interacting with a button, illustrating a finger movement.

RIMOZIONE DELLO SPORTELLO DEL FORNO

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass appliance with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic bulbs, one with a hollow lid and the other with a metallic screw head (no text or symbols visible)

Exterior view of a modern kitchen oven with open door and ventilation slots (no text or symbols visible)

3D rendering of a gray rectangular tray or baking tray with side holes (no text or symbols)

Two identical hand-drawn vertical panels with horizontal lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

Select your appliance category Washer Dryer Fridge Oven

Paso 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number IN: 3270 000 000 000 MROCHINA: FCT819 VWP1 TYPE/ Text Text: MR07 SCAN MANUAL Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERT MANUALLY

DESDE EL ELECTRODOMÉSTICO

Paso 5

Diagram showing a device with numbered components and a hand interacting with a button, illustrating a finger movement or adjustment mechanism.

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass door with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of a mechanical component with three circular insets showing internal components and a curved arrow indicating rotation (no text or symbols present)

1.

1 2 3

1.

Close-up of a metallic panel or bracket with a tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand installing or adjusting a flexible panel on an open oven (no text or symbols visible)

Close-up of a hand holding a small metallic object inside a vehicle hood (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic bulbs, one with a hollow lid and the other with a metallic screw head (no text or symbols visible)

Interior view of a modern oven with open door and tray (no visible text or symbols)

3D rendering of a gray rectangular tray with side holes (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

INFORMACJE O PRODUKCIE DOT. URZĄDZEŃ SIECIOWYCH

QR code image containing encoded data, no visible human-readable text

Available on the App Store GET IT ON Google Play EXPLORE IT ON AppGallery

Krok 2

Select your appliance category Washer Dryer Fridge Oven

Krok 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERT MANUALLY

NA URZĄDZENIU

Krok 5

*Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

Diagram showing a door panel with numbered positions and a hand interacting with the interior, alongside a close-up of the door handle.

WYJMOWANIE DRZWICZEK PIEKARNIKA

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass oven with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

WYMIANA ŻARÓWKI

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

Interior view of a modern kitchen oven with open door and ventilation grilles (no text or symbols visible)

1.6 Declaration of compliance

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

Select your appliance category Washer Dryer Fridge Oven

Passo 4

- Digitalize o código QR ou insira o número de série.

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERT MANUALLY

NO APARELHO

Passo 5

Diagram showing a door panel with numbered positions and a hand interacting with the right side of a button, illustrating a finger movement.

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass oven with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal screw inserted, showing internal structure and wiring (no text or symbols visible)

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

MUDANDO O BULBO

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

Interior view of a modern oven with open lid and ventilation grilles (no text or symbols visible)

3D rendering of a gray rectangular tray with cutouts, no text or symbols visible

Two identical hand-drawn vertical panels with horizontal lines and wavy top/bottom edges, no text or symbols present.

Line drawing of a rectangular metal rack with vertical slats (no text or symbols)

How to deactivate wireless network port:

QR code image containing encoded data, no visible human-readable text

Available on the App Store GET IT ON Google Play EXPLORE IT ON AppGallery

Schritt 2

Select your appliance category Washer Dryer Fridge Oven

Schritt 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines. OR INSERT MANUALLY

AM GERÄT

Schritt 5

Diagram showing a door panel with numbered positions and a hand interacting with the door, alongside a close-up of the door handle.

ENTFERNEN DES BACKOFENFENSTERS

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass door frame with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components inside a vehicle cabin, showing structural details and mounting brackets (no visible text or symbols)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal screw inserted, showing internal structure and wiring (no text or symbols visible)

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

WECHSELN DER GLÜHBIRNE

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

5. Fehlerbehebung

Exterior view of a modern kitchen oven with ventilation grilles and ventilation duct (no text or symbols visible)

3D rendering of a gray rectangular baking tray with cutouts (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Available on the App Store GET IT ON Google Play EXPLORE IT ON AppGallery

Stap 2

Select your appliance category Washer Dryer Fridge Oven

Stap 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines. OR INSERT MANUALLY

OP HET APPARAAT

Stap 5

Diagram showing a door panel with numbered positions and a hand interacting with the interior, alongside a close-up of the door handle.

VERWIJDEREN EN REINIGEN VAN DE ZIJLINGSE ROOSTERS

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass door with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of a mechanical component with three circular insets showing internal components and a white arrow indicating rotation (no text or symbols present)

1.

1 2 3

1.

Close-up of a metallic panel or bracket with a tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand installing or adjusting a flexible panel on an open oven (no text or symbols visible)

HET LAMPJE VERVANGEN

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic bulbs, one with a hollow lid and the other with a metallic screw head (no text or symbols visible)

5. Problemen oplossen

5.1 FAQ

Exterior view of a modern kitchen oven with open door and ventilation grilles (no text or symbols visible)

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Available on the App Store GET IT ON Google Play EXPLORE IT ON AppGallery

Krok 2

Select your appliance category Washer Dryer Fridge Oven

Krok 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERTMANUALLY

NA SPOTŘEBIČI

Krok 5

Diagram showing a door panel with numbered positions and a hand interacting with the interior, alongside a close-up of the door handle.

DEMONTÁŽ OKNA TROUBY

Interior view of an oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of mechanical components inside a vehicle chassis, showing pipe fittings and structural details (no text or symbols visible)

3.

Close-up of a metallic tool interacting with a black panel or bracket (no visible text or symbols)

1.

Close-up of a hand holding a flexible panel or bracket component, with arrows indicating direction (no text or symbols visible)

1.

Close-up of a glass appliance with internal components and directional arrows indicating movement (no text or symbols)

1.

1 2 3

1.

PYRO LOW-E

VÝMĚNA ŽÁROVKY

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

5. Rešení potíží

Exterior view of a modern kitchen oven with open door and ventilation grilles (no text or symbols visible)

1.6 Declaration of compliance

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal rack with vertical slats (no text or symbols)

Select your appliance category Washer Dryer Fridge Oven

4. Korak

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERT MANUALLY

NA NAPRAVI

5. Korak

- Obrnite gumb s funkcijami kuhanja na program (Ne na “lahko” niti na “0”).

ON RESET

6. Korak

- Gumb s funkcijami obrnite na program WI-FI RESET in počakajte 30 sekund.

ON RESET

7. Korak

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass appliance with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of mechanical components inside a vehicle chassis, showing three views of a bracket assembly (no text or symbols visible)

1.

1 2 3

1.

Close-up of a black plastic panel with a metal screw inserted, showing internal structure and wiring (no text or symbols visible)

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

ZAMENJAVA ŽARNICE

1. Pečico izključite iz napajanja.
2. Odvijte stekleni pokrov, odvijte žarnico in jo nadomestite z novo žarnico istega tipa.
3. Ko ste pokvarjeno žarnico zamenjali, znova namestite stekleni pokrov.

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

Exterior view of a modern kitchen oven with ventilation grilles and door panel (no text or symbols visible)

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Line drawing of a rectangular metal grate with evenly spaced vertical bars (no text or symbols)

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Select your appliance category Washer Dryer Fridge Oven

Βήμα 7

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERT MANUALLY

Βήμα 2

Diagram showing a door panel with numbered positions and a hand interacting with the door, alongside a close-up of the door handle.

Interior view of a black oven with visible grating and ventilation duct (no text or symbols)

1.

Close-up of a glass door frame with two arrows pointing to the side panel (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a curved bracket (no text or symbols visible)

1.

1 2 3

1.

Close-up of a metallic panel or bracket with a tool inserted, showing internal structure and no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand installing or adjusting a flexible panel on an open oven (no text or symbols visible)

Close-up of a hand holding a small transparent object inside a vehicle intake chamber (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a dark vehicle (no visible text or symbols)

Close-up of a black industrial vent with a circular perforated grille and a circular headlamp, no visible text or symbols.

Two transparent plastic components: a cylindrical cap and a standard incandescent light bulb, both shown against a plain white background (no text or symbols visible).

Exterior view of a modern kitchen oven with open door and ventilation grilles (no text or symbols visible)

3D rendering of a gray rectangular tray with cutouts, no text or symbols visible

Obsahuje plechy na pečenie a platne.

Two identical hand-drawn grid-like structures with wavy lines, no text or symbols present

Line drawing of a rectangular metal grate with evenly spaced vertical slats (no text or symbols)

Obsahuje plechy na pečenie a platne.

2.3 Prvé použitie

PREDČISTENIE

Select your appliance category Washer Dryer Fridge Oven

Krok 4

Tell us your appliance serial number You will find your serial number attached on the appliance. Check your specific model to know where to find it. OK FOUND

Tell us your appliance serial number Scan the QR code serial number The QR code is automatically detected when it's placed within the guidelines OR INSERT MANUALLY

NA SPOTREBIČI

Krok 5

Diagram showing a device interior with numbered zones and a hand interacting with a button, alongside a close-up of the button's view.

ODSTRAŇOVANIE RÚRY OKNA

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a glass door frame with internal components and directional arrows indicating movement (no text or symbols)

1.

Close-up of a mechanical component with three circular insets showing close-ups of internal parts (no text or symbols visible)

1.

1 2 3

1.

Close-up of a mechanical component with a tool inserted, showing no visible text or symbols.

1.

PYRO LOW-E

1.

Close-up of a hand inserting a flexible plastic panel into an oven (no text or symbols visible)

ZMENA ŽIAROVKY

Close-up of a hand holding a small glass bulb inside a vehicle hood (no visible text or symbols)

Close-up of a hand inserting a small component into a car engine compartment (no visible text or symbols)

Close-up of a mechanical component with a perforated circular grille and a central hub, no visible text or symbols

Two small glass components: a cylindrical container and a standard light bulb, both on a plain background (no text or symbols visible)

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

TR
