USER MANUAL GSPE 7415 VI E BOMANN

HOUSEHOLD BUILT-IN DISHWASHER

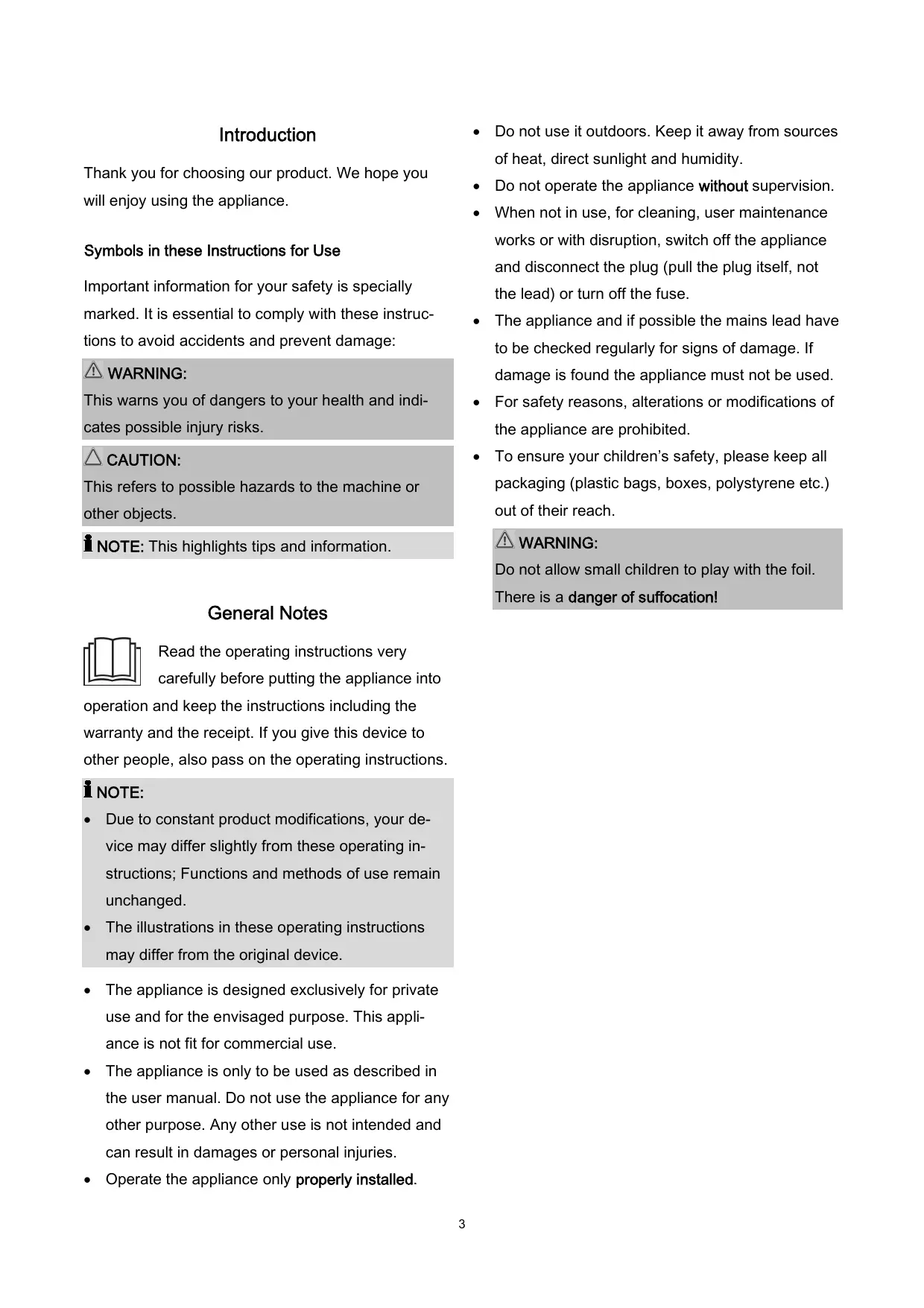

Do not use it outdoors. Keep it away from sources Introduction of heat, direct sunlight and humidity. Thank you for choosing our product. We hope you Do not operate the appliance without supervision. will enjoy using the appliance. When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance Symbols in these Instructions for Use and disconnect the plug (pull the plug itself, not Important information for your safety is specially the lead) or turn off the fuse. marked. It is essential to comply with these instruc- The appliance and if possible the mains lead have tions to avoid accidents and prevent damage: to be checked regularly for signs of damage. If

damage is found the appliance must not be used. This warns you of dangers to your health and indi- For safety reasons, alterations or modifications of cates possible injury risks. the appliance are prohibited. To ensure your children’s safety, please keep all CAUTION: This refers to possible hazards to the machine or packaging (plastic bags, boxes, polystyrene etc.) other objects. out of their reach.

NOTE: This highlights tips and information. Do not allow small children to play with the foil. There is a danger of suffocation! General Notes Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions. NOTE: Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged. The illustrations in these operating instructions may differ from the original device. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries. Operate the appliance only properly installed.

Special safety Information for this Unit The maximum number of place settings to be washed is 9. This unit is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - in farm houses. The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused. The maximum permissible inlet water pressure is 1 Mpa. The minimum permissible inlet water pressure is 0.04 Mpa. In the appliance bottom are located ventilation openings (depending on model). These may not be clogged e.g. by carpet. Pay attention to a proper loading of the appliance. Follow the instructions in the chapter “Loading the Dishwasher”. Knives and other utensils with sharp points must be loaded with their points down in the cutlery basket (depending on model) or placed in a horizontal position in the dishwasher basket. The door should not be left open as this could increase the risk of tripping. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children who are younger than 8 years must be kept away from the device. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children, unless they are older than 8 years and are supervised. Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Unpacking the Appliance Remove the appliance from its packaging. 1 Lower spray arm 4 Salt container 2 Filter system 5 Inner pipe 3 Dispenser Remove all packaging material, such as foils, filler Delivery scope and cardboard packaging. To prevent hazards, check the appliance for any 2x dish basket, 1x cutlery basket, 1x cutlery rack, transport damage. 1x cup shelf, 1x salt funnel tube, 1x inlet hose safety In case of damage, do not put the appliance into system, installation material operation. Contact your distributor. NOTE: Installation Production residue or dust may have collected on the

appliance. We recommend cleaning the appliance The unit must not be connected to the mains during according to chapter “Cleaning and Maintenance”. installing. Otherwise there is danger to life or electric shock hazard! Appliance Equipment CAUTION: Appliance Overview For a correct operation the appliance must be connected properly. The specifications for water supply and drain as well as the electrical connection must fulfill the required criteria. Installation location The site should be located near the water inlet and outlet, as well as near a properly grounded

Unit mm power socket. Arrange a place in the cabinet under the sink for the cable and hoses. Consider the necessary installation dimensions (see “Installation steps”). Take care of a solid and horizontal position of the appliance. If the appliance is not horizontally leveled, adjust the feet accordingly. Power cord and water hoses may not kinked or squashed. Avoid the installation:

If the appliance is installed at the corner of the cabi- near heaters, next to a stove, direct sunlight or net, there must remain enough space to open the any other heat sources;

appliance door. at locations with high humidity (e.g. outdoors), as metal parts would be susceptible to corro- 1 Kitchen furniture sion under such circumstances; 2 Dishwasher in rooms where the temperature could drop 3 Appliance door below freezing. Do not expose the appliance any weather;

Unit mm near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.). Dimension and preparation of the decoration panel Prepare the wooden decorative panel according to Installation steps the dimensional drawing: Attach the condensation strip Unit mm Attach the strip under the wooden worktop to prevent it from damages of ascending water vapor. First clean and dry the concerned area of the worktop thoroughly. Remove the protective foil from the condensation strip and stick it flush with the worktop edge. Cabinet opening Prepare the cabinet opening according the drawing. Align the drilling template and mark the necessary holes. Check this with a spirit level. Drill holes of Ø 2 mm and 8 mm depth at the premarked positions in the panel.

Fixing the decoration panel Installation to the power supply Consider the instructions that we give you under "Electrical connection". Adjusting the feet Place the appliance in its proper position and take care that it is leveled solid and horizontal. Check this with a spirit level. Insert the brackets into the holes of the decorative panel and turn the screws in. The maximum adjust- Hook the decorative panel with the brackets into ment height of the feet the provided slots on the appliance front. is 50 mm. Align the panel and the appliance front against You can adjust the back foot by the adjusting each other and fix the panel on the unit door. screw (a) at the center of the appliance plinth front First remove the factory-mounted short screws with an Allen key. (4xS1) from the door inside. Adjust the front feet (b) with a screw-wrench until Screw the supplied long screws (4xS2). the dishwasher is leveled. Adjusting of the door spring tension Fixing the dishwasher After fixing the decoration panel, the door spring Fix the appliance by tighten the screws from the ap- tension must be adjusted accordingly. pliance inside to the provided holes accordingly. Turn the adjusting screws as needed in the clockwise or counterclockwise direction. The steel cable tightens or loosens. A. If the worktop made of wood, fasten the appliance Check the door spring tension. If the door remains to the worktop. fully open horizontally and can still be easily B. If the worktop made of marble or granite, fasten closed, the tension is correct. Otherwise do the the appliance sideways with the housing unit. Put adjusting again. the screw covers on. Connection to the water supply Connect the water inlet hose as well as the water drain hose properly. Follow the instructions that we give you under "Water connection".

Water connection Connect the water drain hose NOTE: CAUTION: The drain hose has a length of approx. 1.5 m and The Installation of the water supply must conform can extend with a suitable hose and connecting to the local laws and regulations. piece to a length of max. 4 m. The appliance is not suitable for hot water supply. CAUTION: Use the new supplied hose set to connect the appliance to the water supply. Do not reuse old or To prevent backflow of contaminated water, the free used connection sets. end of the hose must not come under the water level of the drain. If the water pipe is new or long time not used, ensure before connecting to the water system, that the water is clear and free from contamination. Notes on inlet hose safety system (delivery scope depending on model) The safety system consists of a double-walled inlet hose. It guarantees to cut off the water supply when leakage of the inner hose. Switching off the water supply leads over an electronic contact. Connect the drain hose to a drainpipe (B) with a If necessary, you can order an inlet hose safety sys- minimum diameter of 40 mm; alternatively, the tem from your dealer or in our online accessories drain hose can be fixed directly to the sink (A). Always make sure that the hose is not bent or shop, www.bomann-germarny.de. To order, use the squeezed. reference number found under “Technical Data”. The drain hose may only install maximal up to a Connect the water inlet hose (cold water connection) height of 1000 mm above the rinsing floor. NOTE: Secure the drain hose securely to avoid a change The water pressure must be between 0.04-1.0 MPa. in position and with it a water leakage. With higher pressure: use a pressure regulator. Electrical connection Connect the water inlet hose to a water thread with ¾“. Screw the

hose firmly in the direction of the The installation to the mains supply must conform screw thread; pay attention for a to the local standards and regulations. tight fit. Improper connection may cause to an electric Connect the other end of the inlet shock! hose to the inlet valve on the ap- Do not use multiple sockets or extension cords. pliance back; pay attention for a It is not allowed to modify the plug provided with tight fit too. the appliance! If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

Adjusting the salt consumption The accessibility of the power plug must always The salt consumption can be adjusted according to be ensured to disconnect the device from the your water hardness and therefore optimally regulat- power supply in case of an emergency. ed. Turn on the appliance. Make sure that the voltage supply matches the Press the Program selection button for more than specifications on the rating label (door frame) be- 5 seconds, the setting mode is now activated for fore connecting. approx. 60 seconds. Connect the mains cable to a properly installed By repeatedly pressing the Program selection and earthed wall outlet. button the water hardness can be selected: If the plug after installation is not accessible, a corresponding disconnect device must be availa- H1->H2->H3->H4->H5->H6. The control lamps ble to meet the relevant safety regulations. indicate the selection (see below table). The setting is automatically saved after a few seconds; alternatively end the setup with the Prior Using for the first Time Power button. Before using your dishwasher for the first time: Water hardness Set- Control lamp Salt cons. B. Fill the rinse aid dispenser °dH Mmol/l ting lights brightly / cycle C. Fill in detergent 0-5 0-0.94

ECO 60 g A. Filling salt into the salt container (water softener) Use only salt, rinse aid and detergent for dishwashers. Other products may damage the appliance. Always consider the dosage and storage recommendations on the sales packaging. ECO 20 g NOTE:

*Factory setting | °dH: German degree of hardness Keep salt, rinse aid and detergent out of reach for children. Fill in the salt CAUTION: A. Filling salt into the salt container (water softener) Only refill the salt container when the salt warning Water softener lamp is lighting. The water hardness varies regionally. If hard water is During filling the salt container, salt and water can used in the dishwasher, deposits form on the dishes escape. Start a program immediately after you and kitchen utensils. The appliance is equipped with have filled the container to prevent corrosion. a water softener, that removes lime and minerals from the water by using water softening in the salt container. Your local water authority can advise you on the hardness of the water in your area. Remove the lower basket and unscrew the lid of the salt container.

Add about 1.5 kg of salt by using the supplied NOTE: funnel tube. Remove spilled rinse aid with an absorbent cloth to Full fill the salt container with water (just before avoid excessive foaming during the next rinse. the first use). Adjusting the rinse aid dosage Screw the lid firmly on again after filling the con- When forming spots and the dishes dries poorly, tainer. increase the added amount of rinse aid. You can set Depending on salt resolution, the warning lamp the amount of addition between level 1 (min.) and usually disappears immediately after filling. level 6 (max.). B. Fill the rinse aid dispenser Take off the lid of the rinse aid dispenser and adjust the dial to the de- Function of rinse aid sired level. The factory setting is “4”. The rinse aid is automatically added during the final NOTE: rinse, ensuring thorough rinsing and a spot and Increase the dosage if there are drops of water or streak free drying. lime spots on the dishes after rinsing. Reduce the When to refill the rinse aid dispenser dosage if there are sticky whitish stains on dishes or If the corresponding message a bluish film on glassware or knife blades. does not light up in the display, C. Fill in detergent you can estimate the amount of remaining rinse aid to the Function of detergent optical level indicator (D) next to the dispenser. Detergents with its chemical ingredients are neces- When the rinse aid dispenser is full, the indicator is sary to remove dirt, crush dirt and transport it out of completely dark. If the rinse aid diminishes, the size the dishwasher. The most commercially, high-quality of the black dot changes as shown below. To avoid cleaning agents are suitable for this purpose. spotting, the rinse aid level must not drop below ¼. full ¾ full ½ full ¼ full Detergent empty Normally new pulverized detergent is without phosphate. Thus, the water softener function of phos- Fill in the rinse aid phate is not given. In this case we recommend filling salt in the salt container even when the hardness of water is only 6°dH. If detergents without phosphate To open the dispenser, screw the lid counter- are used in the case of hard water often white spots clockwise to the open position and remove the lid. appear on dishes and glasses. In this case add more Add the rinse aid into the dispenser, being careful detergent to reach better results. Detergents without not to overfill. The dispenser contains approx. chlorine do only bleach a little. Strong and colored 110 ml. spot will not be removed completely. In this case Before closing the appliance door, put on the lid in choose a program with a higher temperature. the open position back and turn it clockwise to the Detergent tablets (Tabs) closed position. Dishwasher tablets from different manufacturers dissolve at different rates. It is possible that they will

not fully dissolve in programs with short running time Loading the Dishwasher and low water temperature and thus does not reach CAUTION: their full productive efficiency. To ensure the com- Only rinse such dishes and cutlery in the dishwasher, plete removal of detergent residues, we recommend which is expressly marked as "dishwasher resistant". choosing rinse programs with long running times and NOTE: high-water temperature. Always follow the manufac- Remove gross scraps of food and soak burnt turer's instructions! leftovers. Pre-rinse under running water is not Fill in the detergent necessary. NOTE: Do not overload! This is important for adequate Always add the detergent just before starting the cleaning results and reasonable energy consump- rinse cycle, otherwise it could get damp and will tion. not dissolve properly. Very small items should not be rinsed in the ap- You’ll find information about the amount of deter- pliance, as they could easily fall out of the bas- gent for the respective programs in the “Program kets. table“. Note that depending on the degree of soil- For rinsing in the dishwasher the following cutlery ing and water hardness differences are possible. and dishes.. At the end of the rinse cycle the detergent dis- ..are not suitable: penser must be empty.

The dispenser must be refilled before the start of Cutlery with hand pieces of wood, porcelain mother of pearl each rinse cycle according to the instructions in the "Program table".

Plastic items that are not heat resistant

Older cutlery with glued parts that are not temperature resistant

Bonded cutlery items or dishes

Pewter or cooper items Press the release button to open the dispenser.

Crystal glass A Chamber of detergent in powder form for the

Steel items subject to rusting

Items made from synthetic fibres main rinse B Chamber of detergent for the pre-rinse / Chamber for detergent in tablet form ..are limited suitable: The main rinse chamber must be filled at least up

some types of glasses can become dull after many washes to the marking MIN. Add with heavily soiled dishes an additional dose

silver and aluminum parts tend to discolor during washing of detergent in the chamber for the pre-rinse. Close the dispenser. Make sure that the lid locks

Glazed patterns may fade if machine washed frequently into place.

Recommendations for loading Arrange sensitive, light tableware items such as glasses, coffee and teacups in the upper basket. Place large items that are most difficult to clean in the lower basket. 1 Cups 6 Glass bowl 2 Saucers 7 Dessert plates 3 Glasses 8 Dinner plates 12 Oval platter 4 Mugs 9 Soup plates 13 Small pot 5 Dessert 10 Malamine 14 Cutlery bowls Make sure that the tableware is placed securely dessert plates 11 Melamine bowl basket Loading lower basket Place all items so, that the spray arms can rotate freely during rinsing. Arrange all items with openings facing down. Curved items, or ones with recesses, should be loaded aslant so that water can drain off. Make sure that glasses do not touch each other. acc. EN60436 and cannot tip over. Set the dishes and cutlery not into each other or covering each other. Rack shelves Arrange cutlery in the cutlery basket. Store long as well as sharp cutlery horizontally in the dishwasher basket. Methods for loading normal dishware To create a better arrangement for bulky dishes, the Loading the upper basket rack shelves can be folded. Lift the racks slightly and On the upper basket only small and medium items fold them down. should be loaded. Load e.g. glasses, cups, saucers Cup shelf and small bowls. Loading the lower basket Because of the particularly intense cleaning action of the lower spray arm the lower basket is suitable for If necessary, fold down or remove the cup shelf. heavily soiled dishes. Load e.g. pots and plates. The height of the upper basket can be adjusted by placing the wheels on rails of different heights. This acc. EN60436 Loading upper basket Adjusting the upper basket will create more space for large items in the upper as well as in the lower basket. Pull out the basket guides. Remove the basket out of the guides.

Depending on the desired setting, insert the upper Cutlery basket or lower pair of wheels into the guide; both sides The basket is equipped with grid inserts in which the should always be located at the same height. cutlery is arranged uniformly and with the handles downwards. Cutlery basket / cutlery rack

WARNING: Risk of injury!

Cutlery must not protrude above the cutlery basket base. Knives and other utensils with sharp points must be placed with the tip down in the cutlery basket or Cutlery rack in a horizontal position in the dishwasher basket Use the shelf in the upper basket for long cutlery and/or on the cutlery rack. types, such as serving cutlery, salad servers and NOTE: kitchen knives. If necessary, remove the basket and/or the rack to create more space for large dishware. 1 Soup spoon 4 Teaspoon 7 Serving fork 2 Fork 5 Dessert spoon 8 Gravy ladle 3 Knife 6 Serving spoon Startup / Operation Program table The values listed are guide values and recommendations under normal conditions and therefore not binding. Select a suitable program depending on dishes and degree of soiling. Program Program selection information Program sequence Detergent Time Energy Water pre/main (g) (Min) (kWh) (l)

Pre-rinse (50°C) Main rinse (65°C) Intensive heavily soiled dishes Rinse 4/13 and dried leftovers Rinse (or Tab) Rinse (65°C) Drying

(or Tab) Drying Main rinse (60°C) 90 Min. for lightly soiled dishes

NOTE: *ECO program is the test cycle. The information for comparability test in accordance with EN60436. General information! The ECO program is suitable for cleaning normally soiled dishes, which is the most efficient program in terms of combined energy and water consumption. The program is used to check compliance with EU ecodesign legislation.

• Informationen for the comparability test: Capacity: 9 settings; Position of upper basket: lower position; Rinse aid setting: Max; Softener setting: H3 Loading the domestic dishwasher to the specified capacity helps to save energy and water. Manual pre-washing of the dishes leads to higher water and energy consumption! Washing dishes in a household dishwasher generally uses less energy and water than hand washing, provided the dishwasher is used according to the instructions. Control panel

Power: button to turn on/off the power supply.

Delay: button to select the start delay of 3, 6, Forgot to add a dish?

Open the door very carefully during operation, there or 9 hours. Select the operating conditions and is a risk of water squirting out. close the device door. The device starts automati- Dishware can be added any time before the deter- cally after the selected time has elapsed. gent dispenser opens. 4 The control lamps indicate the program selection. 5 The control lamps indicate the start delay selection. Control lamp: lights up when rinse aid must be

Carefully open the appliance door a little. Once added. the spray arms stop working, you can fully open the door. Control lamp: lights up when dishwasher salt Add forgotten dishware. needs refilling. Close the appliance door, the operation will con- Starting a program tinue after approx. 10 seconds. The water supply must be opened to the maxi- At the end of program mum pressure. CAUTION: Load the dishwasher baskets. Fill in the detergent. Allow the appliance to cool down a bit after the pro- Turn on the appliance. gram has ended before you open it. This avoids that Set the required program options. steam escapes that causing long-term damages to Start the operation by closing the appliance door. your furniture. At the end of the rinse cycle will sound a series of Changing the program signals; then the unit goes into standby mode. CAUTION: If no operation takes place within 15 minutes, the A program change should be done only a short time device switches off automatically - energy-saving! after starting the program. Otherwise, maybe detergent has been released and already drained rinse Turn off water. Turn off the appliance. Close the water supply, if necessary! Remove the dishes after cooling (see "Unloading the dishwasher").

To make a program change, carefully open the Leave the appliance door slightly open until the appliance door so that you can operate the control next rinse cycle to avoid odors. panel. If the appliance is not in use for an extended peri- Press the Program selection button for more than od, disconnect it from the power supply! 3 seconds. Select a new program and close the appliance door.

Unloading the dishwasher NOTE: Dirty filters and clogged spray arms degrade the CAUTION: Let the dishware cool down for about 15 minutes rinsing. Regularly check the filter and spray arms and before unloading. Hot dishes are sensitive to knocks. clean them if necessary. NOTE: Filter system At the end of program there could be still water drops The three-part filter system pre- inside the appliance. vents larger amounts of food or Open the appliance door and pull out the basket. other objects from getting inside To avoid water dripping from the upper basket the pump. onto the dishes in the lower basket, it is advisable to unload the appliance from the bottom up. 1 Main filter: food and soil particles trapped in this filter are pulverized by a special jet on the lower Energy saving tips spray arm and washed down to drain. Always try to operate the dishwasher when it is 2 Coarse filter: filters out larger items such as pieces fully loaded. of bone or glass shards that could block the drain- Do not rinse the dishes in advance under running age. water. 3 Micro filter: filters dirt and food residues in the Use for each type of load the most appropriate sump area and prevents it from being redeposited on rinse program. the dishware during rinse cycle. Do not perform a pre-rinse (depending on model), if not necessary. Cleaning the filter system CAUTION: The dishwasher must never be used without the Cleaning and Maintenance filter.

Improper replacement of the filter can reduce Always turn off the appliance and disconnect it performance and damage the appliance. from the power supply before cleaning and user Do not knock out the filter for cleaning to avoid maintenance. possible deformations of the filters. Allow the appliance to cool down enough before NOTE: cleaning. Check after each rinsing the filter for residues. Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The appliance must be dry before restarting operation. Turn the coarse filter counterclockwise and remove the whole filter system upwards. CAUTION: Remove the coarse as well as the micro filter from Do not use a wire brush or other sharp, abrasive the main filter. items. Do not use any acidic or abrasive detergents.

Remove leftover food and clean the filter under Dry the outer surfaces thoroughly before taking in running water. Use a soft brush for the coarse and operation again. micro filter, if necessary. Antifreeze protection Put the filter system properly in reverse order together and reinstall in its provided position. Fix If the unit is out of operation and exposed to temper- the entire system, by tightening the filter unit atures below zero, observe the following precautions: clockwise. Disconnect the mains plug. Close the water supply and remove the inlet hose Cleaning the spray arms from the water valve. Lime and impurities from the rinsing water can block Drain the water from the inlet hose and the water nozzles and bearings of the spray arms. Check the valve. outlet nozzles of the spray arms regularly for block- Reconnect the inlet hose to the water valve. ages. Turn off the lid of the salt container and take off the filter system. Remove the remaining water in the sump with an absorbent sponge. Unscrew the securing nut of the upper spray and Troubleshooting pull off the arm downwards. Before you contact an authorized specialist

Pull off the lower spray arm upwards.

Clean the arms under running water; if neces- Problem Possible cause / Action sary, use a soft brush for the nozzles. Unit doesn’t ∙ Check the power supply. ∙ Is the Insert the spray arms again until they click into start unit turned on and the door securely

closed? ∙ Is a program selected? place and tighten the nut of the upper spray arm. ∙ Is the water supply properly con- Maintenance of the dishwasher nected and the water supply opened? CAUTION: Never use spray cleaners to clean the door panel, this may damage the door lock and electrical compo- Water is not ∙ Check the drain hose. ∙ Are the drained off filters or the kitchen sink clogged? Noise ∙ Make sure that all dishes are secured in the dishwasher. ∙ Place the nents. parts so that the spray arms can Clean the appliance outer surfaces and the door rotate freely. sealing thoroughly with a soft, damp cloth. Use Foaming only mild cleaning agent. Use only special dishwasher detergent to avoid foaming. If this occurs, Use to remove stains inside the appliance a open the door and let suds evapo- dampened cloth with a little white vinegar or a rate. Add a bit of cold water to the special detergent for dishwashers. If necessary, tub. Start a short rinse cycle to drain fill detergent in and start the appliance without out the water. dishware in the program with the highest rinse Flat table- ∙ Select a stronger program. temperature. ware is not ∙ Make sure that the spray arms are clean not blocked by large dishes.

CAUTION: Problem Possible cause / Action Spots and ∙ Extremely hard water ∙ low inlet filming temperature ∙ overloading the bas- an overfilling or a small leak, remove this water kets, improper loading ∙ old or damp before restarting the appliance. If there is water in the lower housing part due to detergent ∙ incorrect dosage of de- NOTE: tergent Cloudiness Use less detergent if you have soft glassware water and select a shortest cycle to If a problem persists after following the steps above, please contact your distributor or an authorized technician. rinse and clean glassware. Black or Aluminum utensils have rubbed grey marks against dishware. Use a mild abra- Technical Data sive cleaner to eliminate those marks. Stains on Only use detergents without color- inner sur- ants. Electrical connection / Water supply………....……….. Connection voltage: …..…..……..220-240 V~ / 50 Hz Rated power: …………..……….…..….1760 – 2100 W face Rated current: ………………………..…………….10 A White film Hard water minerals: clean the interi- on inside or by using a damp sponge with surface dishwasher detergent. Wear rubber Dimension H x W x D / Weight..……...……………….. gloves. Unit size: ………………..…....…81.5 x 44.8 x 55.0 cm Unsatisfac- ∙ Improper loading ∙ dishes are re- Net weight: ……..…...…….……..………....ca. 31.0 kg tory drying moved too soon ∙ wrong program has result been selected ∙ use of cutlery with a Water pressure: ………………….....……0.04 – 1 Mpa Available accessory…………………………………….. Inlet hose safety system: ………….Art.-No. 8900 410 low-quality coating For more information about the product, scan the QR Error codes code on the supplied energy label and/or visit the For some malfunctions, flashing control lamps will official website of the product data bank: show the following disfunction to warn you: Control lamps https://eprel.ec.europa.eu Meaning / possible cause The right to make technical and design modifications Water inlet fault! Faucet not open, during continuous product development remains inlet blocked or water pressure too reserved. low. This appliance has been tested according to all rele- Malfunction of heating element. ECO ECO vant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has Overflow / water leakage! been constructed in accordance with the latest safety regulations. Failure of communication between main PCB with display PCB. CAUTION: If overflow occurs, turn off the main water supply before calling an authorized technician.

Disposal Meaning of the “Dustbin” Symbol Protect our environment; do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment. Information concerning where these can be disposed of can be obtained from your local authority.

Remove or disable any existing snap and bolt locks if you take the unit out of operation or dispose it.
