Product type	Refrigerator with freezer compartment
Brand	Zanussi
Model	ZRT27100WA
Height	1590 mm
Width	545 mm
Depth	604 mm
Power supply	230 V ~ 50 Hz
Operating autonomy	20 hours
Climate class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Refrigerant gas	R600a (isobutane)
Refrigerator defrost	Automatic
Freezer defrost	Manual (when frost layer reaches 3 to 5 mm)
Interior lighting	Replaceable bulb (max power indicated on the diffuser)
Shelves	Glass, adjustable in height
Door balconies	Adjustable in height
Vegetable bin	Yes
Number of doors	2
Installation	Dry, well-ventilated indoor room, away from heat sources
Cleaning	Hot water and mild detergent; do not use abrasive products
Safety	Door lock (remove device); flammable gas R600a
Repairability	Replaceable bulb; maintenance of refrigeration circuit by a professional

Frequently Asked Questions - ZRT27100WA ZANUSSI

How to set the temperature?

Turn the thermostat knob to the right to switch on the appliance and set the temperature. The numbers on the knob correspond to different cold levels. We recommend a medium setting for optimal operation.

What to do if water flows inside the refrigerator?

Check that the drain hole (located at the back of the refrigerator) is not blocked. Clean it if necessary with the provided tool. Make sure no food or packaging blocks water flow to the evaporation tray.

How to clean the appliance?

Before any operation, turn off the appliance and unplug it. Clean the interior and accessories with hot water and a mild detergent, then dry thoroughly. Never use abrasive products, scouring pads, solvents, or steam cleaners.

The bulb does not light up, what to do?

Unplug the appliance. Remove the diffuser screw, then the diffuser. Replace the bulb with a new one of the same type (max power indicated on the diffuser). Reassemble the diffuser and plug the appliance back in.

The compressor runs continuously, why?

Several possible causes: set the thermostat to a lower position; check that the door is properly closed; avoid opening too often; do not put hot food in; ensure the ambient temperature is not too high.

How to defrost the freezer?

When the frost layer reaches 3 to 5 mm, turn off the appliance, remove the food (wrapped in newspaper), and leave the door open until defrosting is complete. Do not use metal tools. Clean and dry thoroughly before restarting.

Can I freeze fresh food immediately?

Yes, but for quick freezing, set the thermostat to a higher position. The rating plate indicates the maximum amount that can be frozen in 24 hours. Do not introduce other food during this period.

How to save energy?

Avoid opening the door too frequently; do not put hot food in; ensure the door closes properly; regularly clean the condenser grille at the back; do not overload the appliance.

Where to install the appliance?

Install the appliance in a dry, well-ventilated indoor room, away from heat sources (radiator, cooker, etc.) and direct sunlight. Respect the ambient temperature ranges of the climate class (see rating plate). Wait at least 4 hours before plugging in.

What to do in case of a power outage?

Do not open the doors. The operating autonomy is 20 hours. If the power cut exceeds this time, consume or cook the thawed food immediately. Never refreeze a food that has already been thawed.

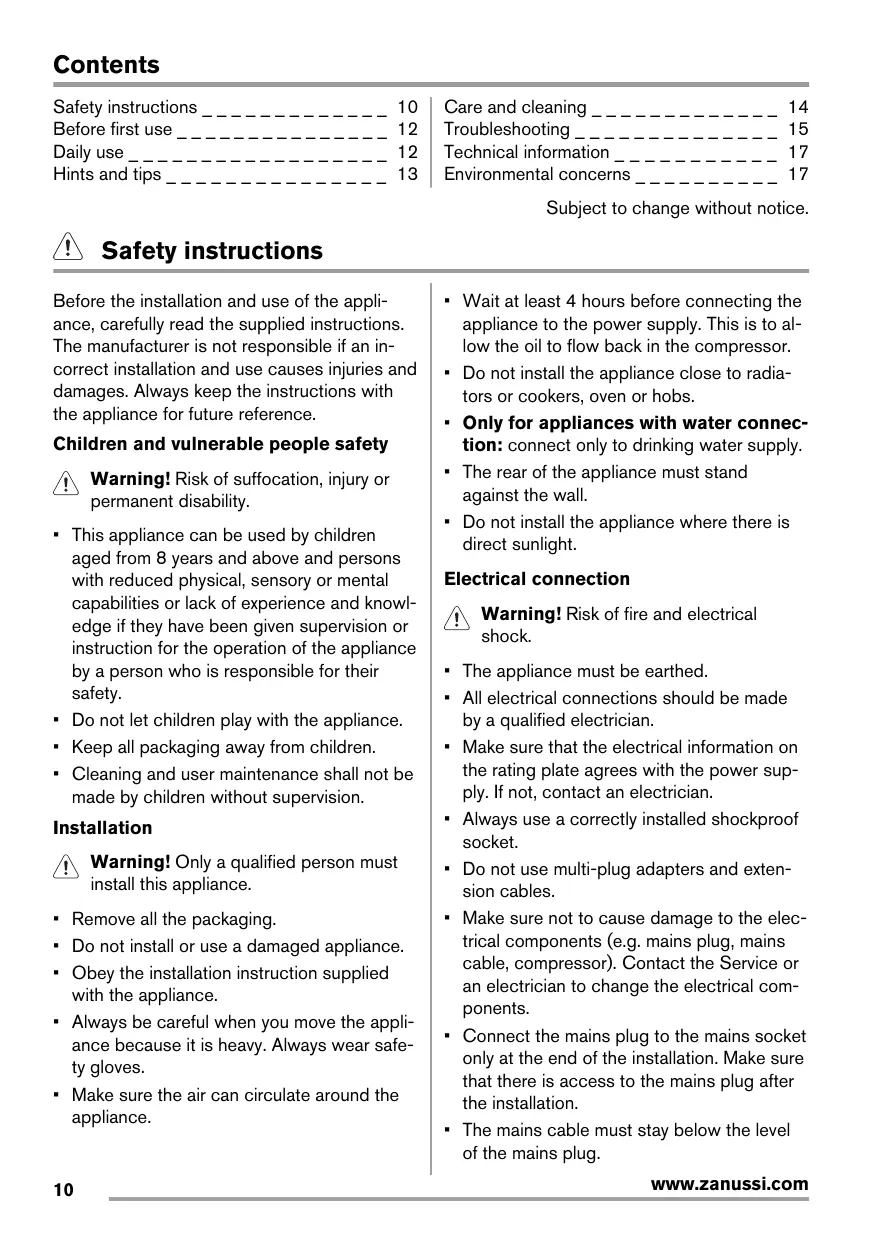

USER MANUAL ZRT27100WA ZANUSSI

Safety instructions 10

Before first use 12

Daily use 12

Hints and tips 13

Care and cleaning 14

Troubleshooting 15

Technical information 17

Environmental concerns 17

Subject to change without notice.

Safety instructions

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Cleaning and user maintenance shall not be made by children without supervision.

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance. Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• Only for appliances with water connection: connect only to drinking water supply.
• The rear of the appliance must stand against the wall.
• Do not install the appliance where there is direct sunlight.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
• All electrical connections should be made by a qualified electrician.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• The mains cable must stay below the level of the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

• This appliance is intended to be used only in domestic households and similar applications, such as:
• Staff kitchen areas, rest areas in shops, offices, or other working environments.
• In farmhouses and by clients in hotels, motels, bed and breakfasts, and other residential-type environments.

Warning! Risk of injury, burns, electrical shock, or fire.

• Do not change the specification of this appliance.
• Do not place electrical appliances (e.g., ice cream makers) inside the appliance unless they are stated as applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, ensure there are no flames or sources of ignition in the room. Ventilate the room.
• Do not let hot items touch the plastic parts of the appliance.
• Do not put fizzy drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas or liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near, or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• When you remove an ice lolly from the appliance, do not eat it immediately. Wait a few minutes.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

Care and Cleaning

Warning! Risk of injury and damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Regularly examine the drain of the refrigerator and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

Internal light

• The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets from being closed in the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.
• Clean the inner parts of the appliance and all the accessories with warm water and neutral detergent.
• Make sure that the appliance and the accessories are fully dry.
• Connect the mains plug to the mains socket.
• Activate the appliance and set the temperature.

Do not use abrasive products, abrasive cleaning pads or solvents to clean the appliance and the accessories.

Activating the appliance and setting the temperature

Turn the temperature knob clockwise to activate the appliance and, at the same time, to set the temperature.

The numbers on the knob refer to different cold temperatures.

Daily use

Freezing fresh food

The freezer is suitable for freezing fresh food and for storing frozen and deep-frozen food.

If the temperature knob is set to a medium position, it is not necessary to change the setting.

If you want to freeze food more quickly, set the temperature knob to a higher position. In this condition, the temperature of the fridge can drop to 0°C or lower. If this occurs, set the temperature knob to a lower position.

Turn the temperature knob to lower settings to obtain the minimum cold temperature.

Turn the temperature knob to higher settings to obtain the maximum cold temperature.

We recommend that you set a medium cold temperature.

The following conditions can affect the temperature setting.

• The room temperature and the location where the appliance is installed.
• How frequently the appliance door is opened.
• The quantity of food stored in the appliance.

Storage of frozen food

Do not put immediately frozen food in the freezer if the appliance is new or was deactivated for a period of time.

Set the temperature knob at the highest position and let the appliance operate for minimum 2 hours.

A power failure can cause the defrosting of the freezer.

If the power was off, for a period of time longer than the "Rising Time" value, you must use or cook immediately the defrosted food. Refer to "TECHNICAL INFORMATION" for the value. You can freeze the cooked food when it becomes cool.

Thawing

Before you cook frozen food or deep-frozen food, thaw the food in the fridge or at room temperature.

It is possible to cook small quantities of frozen food directly from the freezer, but this increases the cooking time.

Glass shelves

You can put the glass shelves at different heights.

Hints and tips

Energy saving

• Do not open the door of the fridge or of the freezer frequently.
• Do not keep the door of the fridge or of the freezer open for more than the necessary time.
• If the appliance operates continuously and there is frost on the internal rear part, the cause can be:
• The temperature knob is set at the lowest position.
• The room temperature, where the appliance is installed, is too warm.
• The appliance is full. Set the temperature knob at a higher position. The automatic defrosting starts and the energy consumption decreases.

Positioning the door shelves

You can put the door shelf at different heights.

1. Pull the shelf in the direction of the arrow until it disengages.
2. Put the shelf in the new position.

Refrigeration

• Do not put hot food in the fridge. Wait until it becomes cool.
• Do not put in the fridge liquids that evaporate.
• Put all the food, that has a strong flavour or odour, in containers.
• Make sure that there is air circulation around the food.
• Put all types of meat in polythene bags. Put them on the glass shelf above the vegetable drawer. Do not keep the meat in the fridge for more than 2 days.
• Put a cover on cooked food and cold dishes and put them on one of the shelves.
• Wash fruit and vegetables and put them in the vegetable drawer.
• Put butter and cheese in special airtight containers, aluminium foil or polythene bags.
• Make sure that milk bottles have a cap and put them in the bottle shelf on the appliance door.
• Do not keep in the fridge bananas, potatoes, onions and garlic that are without packaging.

Freezing

• The rating plate gives the indication of the maximum quantity of food that the freezer can freeze in 24 hours.
• The freezing of the food is completed in 24 hours. Do not put other food in the freezer during this time.
• Put the food in small quantities in the freezer. This helps to freeze quickly the food and to thaw only the necessary quantity.
• Wrap the food in aluminium foil or put it in polythene bags. Make sure that the packaging is airtight.

Care and cleaning

• Do not put fresh food together with frozen food. This to prevent the temperature of the frozen food to increase.
• The storage time for fat food is shorter than for non-fat food or for low-fat food. The salt decreases the storage time of the food.
• We recommend that you write, on each packaging, the date of when the food was frozen.

Storage of the frozen food

• When you buy frozen food, make sure that you put it in the freezer in a very short time.
• When you thaw frozen food, you must cook it in a very short time. It is not possible to freeze again food that was frozen before.
• Make sure that the use-by date is not expired. You can find the information on the packaging of the food.

!Caution! Before maintenance, disconnect the mains plug from the mains socket.

Cleaning

• Clean the appliance and the accessories regularly.
• Clean all the parts of the appliance and all the accessories only with warm water and neutral detergent. Make sure that the appliance and the accessories are fully dry.
• Clean the gasket of the door regularly. To replace a damaged gasket, contact the Service.
• Clean the grill of the condenser and the compressor, that are behind the appliance, with a brush. This helps to decreases the energy consumption and keeps the appliance in good conditions.

Important!

• Be careful not to pull, move or to cause damage to the pipes or the cables.
• Be careful not to cause damage to the cooling unit.
• Do not clean the appliance with abrasive products, abrasive cleaning pads, solvents, detergents with perfume or wax polish.

After maintenance, connect the mains plug to the mains socket.

Automatic defrosting of the fridge

The removal of frost occurs automatically when the motor compressor stops during operation.

The water drains out through the drain hole and collects in the water container where it evaporates.

The water container is behind the appliance, above the motor compressor.

The drain hole is in the fridge on the rear part. To prevent water from collecting in other parts of the fridge, make sure that the drain hole is always clean. Use the cleaning tool that is in the drain hole.

Defrosting of the freezer

There can be frost on the freezer shelves and around the top compartment.

Defrost the freezer when the layer of frost has a thickness of 3 or 5 mm.

Caution! Do not use sharp metal tools to remove the frost.

Do not use mechanical devices to defrost the freezer.

1. Deactivate the appliance.
2. Remove all the food from the freezer. Wrap the food in newspaper and keep it at a cold temperature.
3. Keep the appliance door open until defrosting is completed.
4. Clean and fully dry the freezer.
5. Connect the mains plug to the mains socket.
6. Activate the appliance.
7. Set the temperature knob at the highest position and let the appliance operate for 2 or 3 hours with this setting.
8. Put back the food in the freezer.

Troubleshooting

Warning! Disconnect the mains plug from the mains socket before you do the check.

When the appliance is not used for long periods

1. Deactivate the appliance and disconnect the mains plug from the mains socket.
2. Remove all the food.
3. Defrost the appliance.
4. Fully clean and dry the appliance and all the accessories.
5. Keep the doors open to prevent unpleasant smells.

Replacing the lamp

1. Disconnect the mains plug from the mains socket.
2. Remove the screw from the lamp cover.
3. Remove the lamp cover
4. Replace the old lamp with a new one. Use only lamps for household appliances. The lamp cover shows the maximum power of the lamp.
5. Install again the lamp cover.
6. Connect the mains plug to the mains socket.

The type of light bulb or halogen lamp used for this appliance is only for household appliances. Do not use it for house lighting.

For problems that are not in the table, contact the Service.

Problem	Possible solution
The appliance makes noise during operation.	Some sounds are normal when the appliance is operating. Refer to the leaflet supplied with the appliance.
The appliance does not operate.	Make sure that the appliance is activated.
	Make sure that the mains plug is connected to the mains socket.
	Do a check and see if there is voltage. Connect a different appliance to the same mains socket. To repair a mains socket, contact a qualified electrician.
The lamp does not come on.	Close and open the door to make sure that the lamp is not in stand-by.
	The lamp is defective. Replace the lamp.
The compressor operates continuously.	Set the temperature knob at a lower position.
	Make sure that the appliance door is closed.
	Make sure not to open and close the appliance door too frequently.
	Make sure not to put hot food in the appliance. Wait until it becomes cool.
	Make sure that the room temperature is not too warm.
Water collects on the rear plate of the fridge.	It is normal that this occurs when the automatic defrosting operates.
Water collects in the fridge.	Make sure that the drain hole is not clogged.
	Make sure that food or packaging do not prevent the water to collect in the water container.
There is water on the floor.	The melting water outlet does not flow in the evaporative tray above the compressor. Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too cold	Set the temperature knob to a lower position.
The temperature in the appliance is not sufficiently cold.	Set the temperature knob to a higher position.
	Make sure that the appliance door is closed.
	Make sure not to put hot food in the appliance. Wait for the food to become cool.
	Make sure that the appliance is not too full.
The temperature in the fridge is not sufficiently cold.	Make sure that there is cold air circulation.
There is too much frost.	Make sure that the food is closed in special containers or packaging.
	Make sure that the appliance door is closed.
	Set the temperature knob to a lower position.

Positioning

This appliance can be installed in a dry, well-ventilated indoor area where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to + 32°C
N	+16°C to + 32°C
ST	+16°C to + 38°C
T	+16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service, or to the nearest Service Centre.

Technical data

Dimensions	Height	1590 mm
	Width	545 mm
	Depth	604 mm
Rising Time		20 h
Voltage		230 V
Frequency		50 Hz

For more information, refer to the rating plate and to the energy label.

Environmental concerns

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and

electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Switch on the appliance and set the temperature.

Turn the temperature regulator clockwise to switch on the appliance and set the temperature accordingly. The indicator light shows the selected temperature.

Set the temperature regulator to the lower values to obtain the minimum temperature.

Set the temperature regulator to the upper values to obtain the maximum temperature.

It is recommended to set the temperature regulator to the middle position.

The above factors can influence the set temperature.

The temperature inside the appliance depends on: - Frequency of opening the appliance door. - Quantity of products in the appliance.

Freezing fresh products

The freezer compartment is intended for freezing fresh products and storing frozen products and products for deep freezing.

If the temperature regulator is set to the middle position, there is no need to change the setting. If you want to freeze products faster, set the temperature regulator to a higher position. Under such conditions, the temperature in the refrigerator may drop to 0°C or lower. If this happens, set the temperature regulator to a lower position.

Storing frozen products

Do not put frozen products immediately into the freezer if they are new or have been at room temperature for some time. Set the temperature regulator to the highest position and then put the products in, waiting at least 2 hours.

Power failure may cause defrosting of the freezer.

If there was a power failure during a period, before using the appliance again, it is necessary to immediately consume or prepare the defrosted products. These products can be identified in the section "TECHNICAL INFORMATION".

When cooked dishes cool down, they can be frozen.

Defrosting

Prepared frozen products or products for deep freezing

Install the rollers on the door.

The rollers on the door can be installed at different heights.

1. Insert the roller into the indicated direction until it is fully seated.
2. Install the roller in the new position.
3. Do not keep the refrigerator or freezer in a damp or wet place; it is necessary to avoid this.
4. If the appliance operates continuously and the internal temperature is too low, this may be due to the following reasons:
5. The temperature regulator is set to the coldest position.
6. The temperature in the room where the appliance is installed is very high. - The appliance is completely filled.

Set the temperature regulator to a warmer position. The appliance will defrost automatically and consume less electricity.

Cooling

Do not place hot food in the refrigerator. Wait until they cool down. Do not place in the refrigerator dishes that evaporate. Store all products with strong odor or aroma in containers. - Remember that the refrigerator should be able to circulate air freely. Store meat in sealed packages. Place them on the glass shelf above the vegetable drawer. Do not keep meat in the refrigerator for more than 2 days. - Cover cooked dishes and cold dishes with lids and place them on one of the shelves. - Wash fruits and vegetables and store them in the vegetable drawer. Store butter in special airtight containers, wrapped in foil or plastic bags. - Make sure that milk bottles are closed with caps and store them on the door shelves. Do not store bananas, potatoes, onions, and garlic in the refrigerator without packaging.

3amopoxyBaHHa

The table with technical data indicates the maximum amount of food that the freezer can freeze within 24 hours. Freezing products requires 24 hours. Do not place fresh products in the freezer during this period. - Place products in the freezer in small quantities. This allows you to quickly freeze products and thaw only the required amount. Wrap products in aluminum foil or place them in plastic bags. Make sure the packaging is airtight. - Do not place fresh products together with frozen products. This will prevent the temperature of frozen products from rising. - The shelf life of frozen products is short, especially for products without fat or with low fat content. Salt reduces the shelf life of products. - It is recommended to write the date when the products were frozen on each package.

Storage of frozen products

• When purchasing frozen products, they should be placed in the freezer as quickly as possible.
• Thawed products should be cooked immediately. Thawed products must not be refrozen.
• Make sure that the expiration date has not passed. The expiration date is indicated on the product packaging.

! Caution! Before cleaning, unplug the appliance from the power outlet.

Cleaning

• Regularly clean the appliance and all accessories.
• Clean all internal parts and the appliance with warm water and a mild detergent. Make sure the appliance and accessories are completely dry. Regularly clean the appliance to maintain its efficiency. To avoid damage, contact a service center.
• The condenser grille and compressor, located behind the appliance, should be cleaned with a brush. This helps reduce energy consumption and keeps the appliance in good condition.

Important!

Do not bend, twist, or damage the tubes and cables. - Make sure the cooling unit is not damaged. - Do not use abrasive substances, abrasive sponges, solvents, scented cleaning agents, or floor wax for cleaning.

Defrosting the freezer

On the walls of the freezer and around the top seal, frost may form. When the frost layer reaches approximately 3-5 mm, defrost the freezer.

Do not use sharp metal objects to remove ice from the freezer.

Do not use mechanical devices to defrost the freezer.

1. Turn off the appliance.
2. Remove the products from the freezer. Wrap the products in newspaper and store them in a cool place.
3. Keep the appliance door open until defrosting is complete. 4. Clean and dry the freezer thoroughly.
4. Plug the plug into the socket.
5. Turn on the appliance.
6. Set the temperature regulator to the maximum position and let the appliance run for 2-3 hours with the door closed.
7. Place the food in the freezer.

When the appliance is

Use the appliance for a long time

1. Turn off the appliance and remove the plug from the socket.
2. Remove all products from it.
3. Defrost the appliance.
4. Fully clean and dry the appliance and all accessories.
5. To avoid the formation of unpleasant odors, ensure proper ventilation.

Replacing the lamp

1. Disconnect the appliance from the power supply.
2. Unscrew the screw from the lamp cover.
3. Remove the lamp cover
4. Replace the old lamp with a new one. Use only lamps for household appliances. The maximum lamp wattage is indicated on the lamp cover.
5. Install the lamp cover.
6. Plug the appliance back into the power supply.

The electric or halogen lamp used in your appliance is intended solely for household appliances. Do not use it for room lighting.

Troubleshooting

! Warning! Before any checks, disconnect the appliance from the power supply.

For problems not listed in this table, contact the service center.

www.zanussi.com/shop
