BRB260087WW - Fridge SAMSUNG - Free user manual and instructions

Product Type	Refrigerator Freezer
Brand	Samsung
Model	BRB260087WW
Climate Class	SN, N, ST, T
Ambient Temperature Range	+10 °C to +43 °C according to class
Recommended Refrigerator Temperature	3 °C
Recommended Freezer Temperature	-19 °C
Fast Cool Function	Yes, duration 2h30
Fast Freeze Function	Yes, duration 50h, activate 20h before
Adjustable Shelves	Yes
Sealed Vegetable Drawers	Yes, with humidity control
Ice Cube Tray	Yes
Defrost Type	Automatic (No Frost)
Power Supply	220-240 V, 50 Hz
Availability of Spare Parts (thermostats, sensors, circuits)	7 years
Availability of Door Seals	10 years
Manufacturer Warranty	24 months
Support Page	http://www.samsung.com/support

Frequently Asked Questions - BRB260087WW SAMSUNG

How to correctly install my Samsung BRB260087WW refrigerator?

Place the appliance in a well-ventilated area, away from direct sunlight and heat sources. Leave at least 5 cm of space around for air circulation. Ensure that the climate class (SN, N, ST, T) corresponds to the room temperature.

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature is 3 °C for the refrigerator and -19 °C for the freezer. These settings optimize food preservation and energy consumption.

How to activate the Fast Cool function?

Press the corresponding key (usually marked 'Fast Cool' or 'Refroidissement rapide'). The fan runs at maximum speed for 2h30, then automatically returns to the previous temperature. This speeds up cooling after loading a lot of food.

How to use the Fast Freeze function?

Activate the Fast Freeze function at least 20 hours before placing a large amount of fresh food in the freezer. It lasts 50 hours before returning to the set temperature. Remember to deactivate it after use to save energy.

Where to store fruits and vegetables for best preservation?

Use the sealed vegetable drawers. Adjust the humidity control: high humidity for vegetables, low for fruits. Cover foods to avoid odors and evaporation.

How to clean my refrigerator?

Unplug the appliance. Remove shelves and drawers and wash them with warm soapy water. Clean the interior with a soft cloth and mild detergent. Rinse and dry. Do not use abrasive products.

What to do if the appliance makes an unusual noise?

Check that the appliance is level. Ensure it is not touching a wall or cabinet. The noise may be normal (refrigerant gas circulation, fan). If the noise persists, contact after-sales service.

Why does the door not close properly?

Check that nothing is blocking the door (food, drawers). Ensure the door seals are clean and intact. If the seal is worn, order a replacement (available for 10 years).

How to order spare parts?

Go to http://www.samsung.com/support. Search for your model BRB260087WW to find parts such as shelves, drawers, seals, thermostats. Parts are available for 7 to 10 years depending on type.

Where to find the energy label and EPREL identifier?

The energy label is on the appliance or in the manual. To access EPREL data, go to https://eprel.ec.europa.eu and enter the model identifier shown on the label.

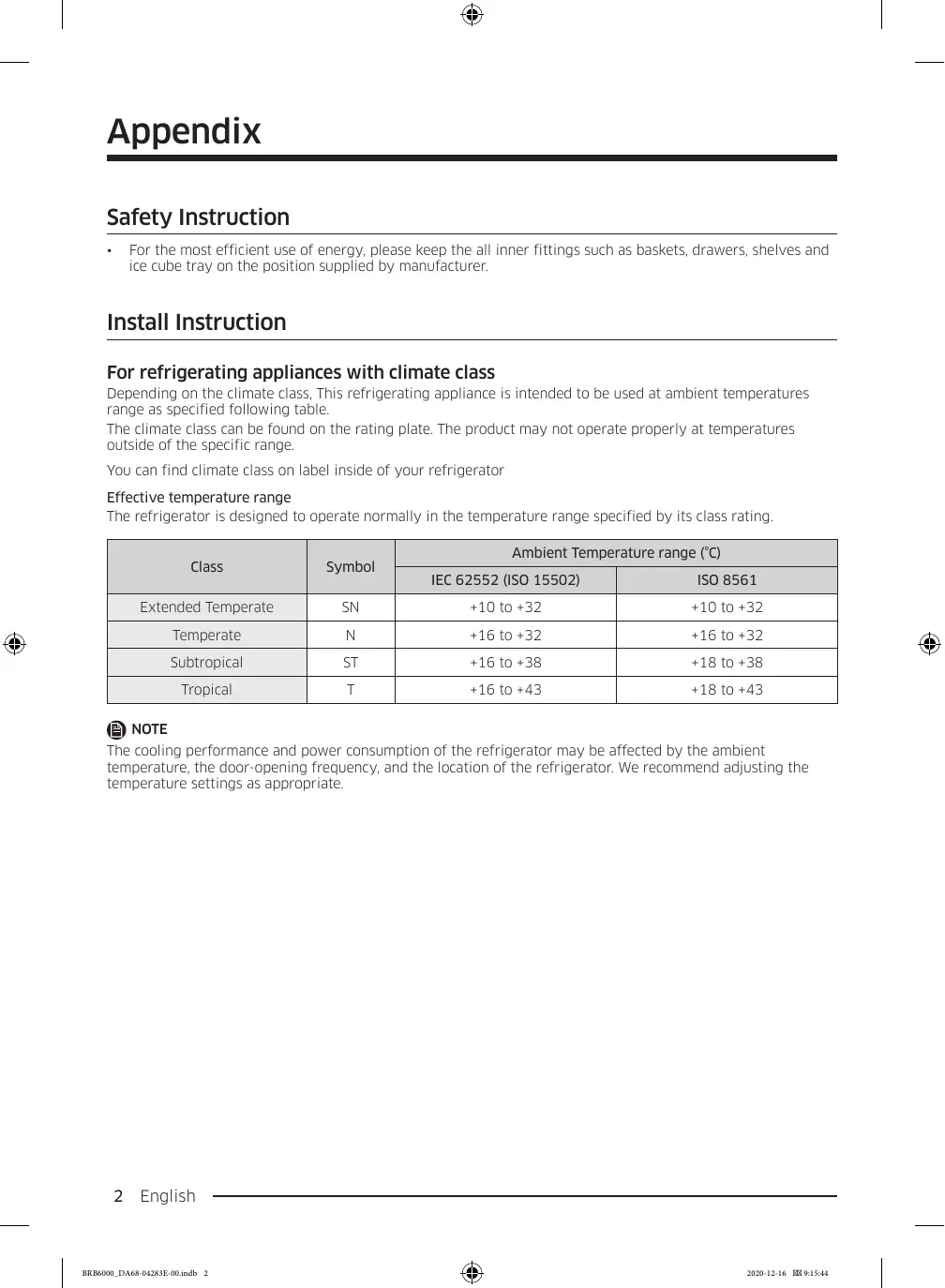

USER MANUAL BRB260087WW SAMSUNG

- For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer.

Install Instruction

For refrigerating appliances with climate class

Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.

The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.

You can find climate class on label inside of your refrigerator

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class	Symbol	Ambient Temperature range (°C)
		IEC 62552 (ISO 15502)	ISO 8561
Extended Temperate	SN	+10 to +32	+10 to +32
Temperate	N	+16 to +32	+16 to +32
Subtropical	ST	+16 to +38	+18 to +38
Tropical	T	+16 to +43	+18 to +43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

2 English

Temperature Instruction

Recommended Temperature

The optimal temperature setting for food storage:

• Fridge: 3 °C
• Freezer: -19 °C

NOTE

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C .

Power Cool

Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don't need it and return the freezer to your original temperature setting.

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating.

Placement of Foods

Shelves	Shelves should be adjustable to accommodate a variety of packages.
Specialized compartment (applicable models only)	Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions.Crispers are equipped with controls devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.
Stored on the door	Don't store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment	You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Appendix

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Milk products

Product	Refrigerator	Freezer
Milk	1 week	1 month
Butter	2 weeks	12 months
Ice cream	-	2-3 weeks
Natural cheese	1 month	4-6 months
Cream cheese	2 weeks	Not recommended
Yogurt	1 month	-

Meat

Product	Refrigerator	Freezer
Fresh roasts, steaks, chops	3-4 days	2-3 months
Fresh ground meat, stew meat	1-2 days	3-4 months
Bacon	7 days	1 month
Sausage, Raw from pork, beef, turkey	1-2 days	1-2 months

Poultry / Eggs

Product	Refrigerator	Freezer
Fresh poultry	2 days	6-8 months
Poultry salad	1 day	-
Eggs, Fresh in shell	2-4 weeks	Not recommended

Fish / Seafood

Product	Refrigerator	Freezer
Fresh fish	1-2 days	3-6 months
Cooked fish	3-4 days	1 month
Fish salad	1 day	Not recommended
Dried or pickled fish	3-4 weeks	-

Fruits

Product	Refrigerator	Freezer
Apples	1 month	-
Peaches	2-3 weeks	-
Pineapple	1 week	-
Other fresh fruit	3-5 days	9-12 months

Vegetables

Product	Refrigerator	Freezer
Asparagus	2-3 days	-
Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days	-
Cabbage, cauliflower, celery, cucumbers, lettuce	1 week	-
Carrots, beets, radishes	2 weeks	-

Information for model and ordering spare parts

Model information

To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. Energy Labelling information of the model is shown

Part information

• The minimum period during which spare parts, necessary for the repair of the appliance, are available
• 7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers)
• 10 Years door gaskets
• The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.
• Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative
• You can find professional repair information on http://samsung.com/support. You can find user servicing manual on http://samsung.com/support.
