Product type	Built-in refrigerator with fresh food compartment
Brand	NEFF
Model	KI8818D40
Niche dimensions (W x D x H)	Min. width 56 cm, min. depth 55 cm, height not specified
Maximum weight	76 kg
Electrical supply	220-240 V, 50 Hz, fuse 10-16 A
Climate class	SN, N, ST, T (ambient temperature from +10 °C to +43 °C depending on class)
Refrigerant	R600a (flammable, quantity indicated on the rating plate)
Usable volume	Not specified, indicated on the rating plate
Temperature setting	Refrigerator compartment: +3 °C to +8 °C; fresh food compartment: close to 0 °C (adjustable in 3 levels)
Super cooling	Yes, activation by Super button; automatic return after 15 h
Lighting	LED, maintenance-free (repair by after-sales service only)
Defrosting	Automatic (refrigerator compartment)
Door alarm	Yes, audible, deactivation by Alarm button
Vegetable drawer	With adjustable humidity regulator
Fresh food compartment	0 °C, ideal for fish, meat, cold cuts
Included accessories	Sliding shelf, butter/cheese compartment, bottle holder, vegetable drawer, fresh drawer
Cleaning	Soft cloth, warm water, pH-neutral dish soap; do not use abrasives or dishwasher for shelves
Child safety	Lock (key out of reach), supervision recommended for children and vulnerable persons
Self-diagnosis	Built-in program accessible via Super button when switching on
After-sales service	Contact after-sales service for repairs; original spare parts

Frequently Asked Questions - KI8818D40 NEFF

How to adjust the temperature of the refrigerator compartment?

Press the / button repeatedly until the desired temperature is displayed (adjustable from +3 °C to +8 °C).

What to do if the appliance does not cool even though the lights are on?

The appliance may be in Exhibition mode. Run the self-diagnosis program: turn off the appliance, wait 5 minutes, turn it on again, then within 10 seconds, press and hold the Super button for 3 to 5 seconds until a sound signal. The program runs and the appliance returns to normal mode.

How to activate super cooling?

Press the Super button. The indicator lights up. Super cooling automatically deactivates after 15 hours.

Why does the audible alarm sound?

The door alarm triggers if the door is left open too long. Close the door or press the Alarm button to turn it off.

How to clean the interior of the refrigerator?

Turn off the appliance, remove food, wait for frost to melt (if any), then clean with a soft cloth, warm water, and pH-neutral dish soap. Rinse and dry thoroughly. Do not let water enter the lighting or the drain hole.

Which foods to store in the fresh food compartment?

The fresh food compartment (close to 0 °C) is ideal for fresh fish, meat, cold cuts, and seafood. It keeps food fresh up to three times longer than a standard refrigerator.

How to prevent unpleasant odors?

Pack strong-smelling foods airtight, clean the interior regularly, and check that expired foods are removed. If odors persist, do a thorough cleaning and leave the appliance off and open for a few hours.

Can I install the appliance in an unheated garage?

It depends on the climate class. For a class SN appliance, the minimum ambient temperature is +10 °C. Below that, the appliance may be damaged. Check the rating plate.

What to do if the display shows 'e...'?

An electronic fault is detected. Note the code and contact after-sales service. Do not attempt to repair yourself.

How to adjust the humidity of the vegetable drawer?

Use the humidity regulator located on the partition. For fruits, set a lower humidity; for vegetables, a higher humidity.

USER MANUAL KI8818D40 NEFF

Störungen, was tun? 15

Kundendienst 16

Safety instructions 18

About these instructions. 18

Risk of explosion 18

Risk of electric shock. 18

Risk of injury. 18

Fire hazard/Danger due to refrigerants 19

Fire hazard 19

Avoiding placing children and vulnerable people at risk 19

Damage to property 20

Weight 20

Intended use. 20

Green living 20

Packaging. 20

Old appliances 20

Installation and connection . .21

Scope of supply 21

Technical specifications 21

Installing the appliance. 21

Cavity dimensions. 21

Tips for saving energy 22

Before using the appliance for the first time 23

Electrical connection. 23

Getting to know your appliance 23

Appliance 23

Controls 24

Features 24

Operating the appliance .25

Switching on the appliance. 25

Switching off and disconnecting the appliance 25

Setting the temperature 25

Super cooling. 25

Alarm 26

Door alarm 26

Refrigerator compartment . 26

Note when storing food. 26

Note the chill zones in the refrigerator compartment. 26

Cool-fresh compartment. 27

Vegetable container 27

Coolfresh container 27

Storage times at 0^ 27

Defrosting 28

Refrigerator compartment. 28

Cleaning 28

Cleaning the equipment 28

Odours 29

Lighting 29

Noises. 29

Normal noises. 29

Preventing noises 29

What to do in the event of a fault 30

Customer Service 31

Appliance self-test. 31

Obtaining advice and ordering repairs if a fault occurs 31

Guarantee 31

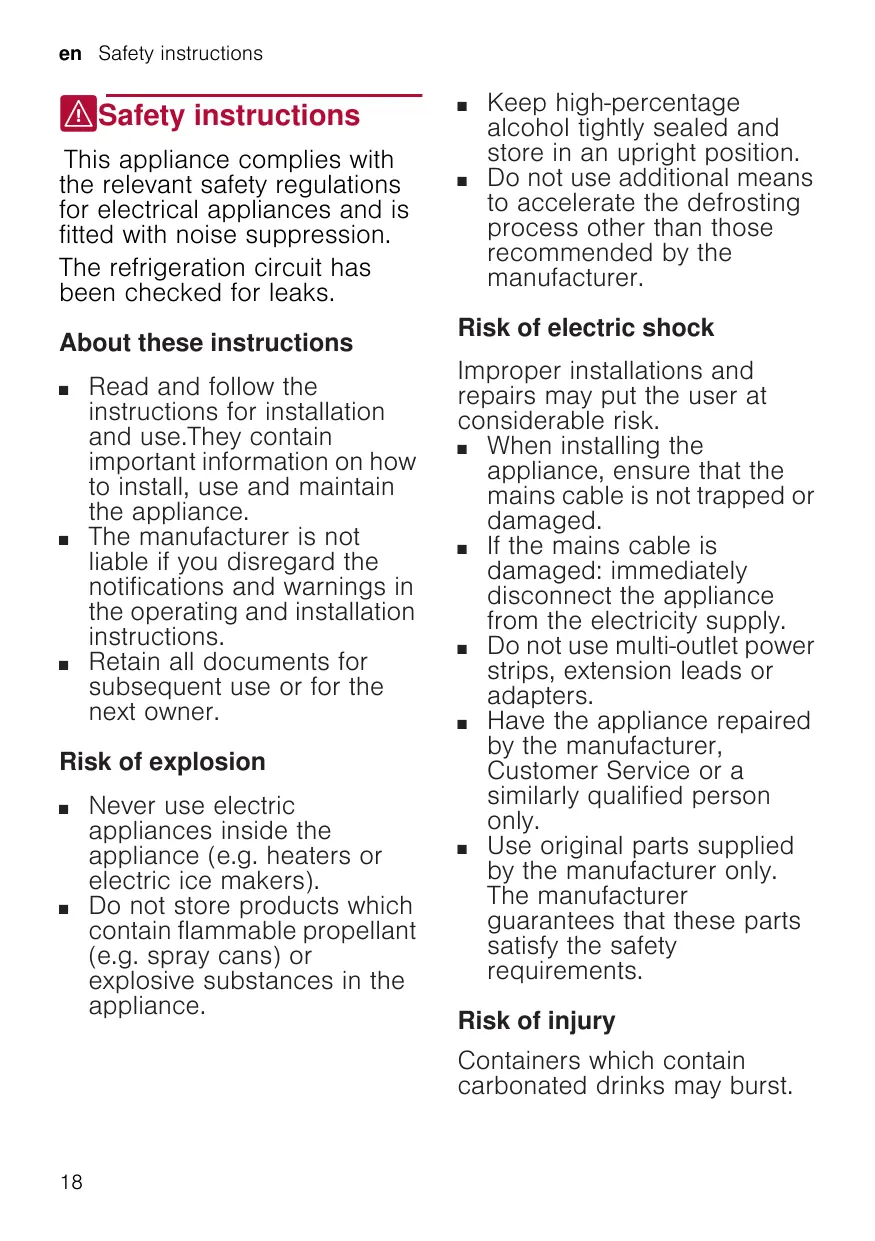

Safety instructions

This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression.

The refrigeration circuit has been checked for leaks.

About these instructions

• Read and follow the instructions for installation and use. They contain important information on how to install, use and maintain the appliance.
• The manufacturer is not liable if you disregard the notifications and warnings in the operating and installation instructions.
• Retain all documents for subsequent use or for the next owner.

Risk of explosion

• Never use electric appliances inside the appliance (e.g. heaters or electric ice makers).

• Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance.

• Keep high-percentage alcohol tightly sealed and store in an upright position.

• Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer.

Risk of electric shock

Improper installations and repairs may put the user at considerable risk.

• When installing the appliance, ensure that the mains cable is not trapped or damaged.
  If the mains cable is damaged: immediately disconnect the appliance from the electricity supply.
• Do not use multi-outlet power strips, extension leads or adapters.
• Have the appliance repaired by the manufacturer, Customer Service or a similarly qualified person only.
• Use original parts supplied by the manufacturer only. The manufacturer guarantees that these parts satisfy the safety requirements.

Risk of injury

Containers which contain carbonated drinks may burst.

Fire hazard/Danger due to refrigerants

The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not contribute to the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

• Do not damage the tubes.

If the tubes are damaged:

• Keep naked flames and ignition sources away from the appliance.
• Ventilate the room.
• Switch off the appliance and pull out the mains plug.
  Please contact Customer Service.

Fire hazard

Portable multi-outlet power strips or power supplies may overheat, causing a fire. Never leave portable multi-outlet power strips or portable power supplies behind the appliance.

Avoiding placing children and vulnerable people at risk

At risk here are:

Children,
People with limited physical, mental or sensory abilities,
People who have inadequate knowledge concerning safe operation of the appliance.

Measures:

• Ensure that children and vulnerable people have understood the hazards.
  A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.
• Only children aged 8 years and above may use the appliance.
  Supervise children who are cleaning and maintaining the appliance.
• Never allow children to play with the appliance.

Risk of suffocation

If the appliance features a lock: keep the key out of the reach of children.
- Keep children away from the packaging and its parts.

Damage to property

To prevent damage to property:

• Do not stand or support yourself on the base, runners or doors.
• Keep plastic parts and door seals free of oil and grease.
  Pull on the mains plug - not the power cord.

Weight

When installing and transporting the appliance, note that it may be very heavy. "Installation location" on page 21

Intended use

Use this appliance

only for refrigerating food.
Only in the home and in the home environment.
Only according to this user manual.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Green living

Packaging

All materials are environmentally safe and recyclable:

• Dispose of packaging in an environmentally friendly manner.
  Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling old appliances.

Warning

Children may become locked in the appliance and suffocate!

• Leave shelves and containers in the appliance to prevent children from climbing in.
• Keep children away from the redundant appliance.

Caution!

Refrigerant and harmful gases may escape.

Do not damage the tubes of the refrigerant circuit or the insulation.

1. Pull out the mains plug.
2. Cut through the power cable.
3. Have the appliance disposed of properly.

This appliance is labelled in accordance with European Directive 2012/19/EU on waste electrical and electronic.
ment (WEEE).

This Directive provides an EU-wide framework for returning and recycling old appliances.

Installation and connection

Scope of supply

After unpacking all parts, check for any damage in transit.

If you have any complaints, contact the dealer from whom you purchased the appliance or our Customer Service.

→ "Customer Service" on page 31

The delivery consists of the following parts:

Built-in appliance
Interior fittings (depending on model)
Installation material
User manual
Installation instructions
Customer service booklet
Warranty enclosure
Information on the energy consumption and noises

Technical specifications

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

"Getting to know your appliance" on page 23

Installing the appliance

Installation location

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. In rooms which are too small leaking refrigerant can form a flammable gas-air mixture.

Per 8 g of refrigerant the room must be at least 1m^3 in size. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

"Getting to know your appliance" on page 23

The weight of the appliance may be up to 76 kg depending on the model.

Permitted room temperature

The permitted room temperature depends on the climate class of the appliance.

Information on the climate class can be found on the rating plate.

"Getting to know your appliance" on page 23

Climate class	Permitted room temperature
SN	+10°C ... 32°C
N	+16°C ... 32°C
ST	+16°C ... 38°C
T	+16°C ... 43°C

The appliance is fully functional within the permitted room temperature.

If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of +5^ .

Cavity dimensions

Cavity depth

A cavity depth of 56 cm is recommended for the appliance. If the cavity depth is smaller - at least 55~cm - the energy consumption increases slightly.

Cavity width

An inside cavity width of at least 56~cm is required for the appliance. If this is not the case, problems may occur when installing the appliance.

Tips for saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the features does not affect the energy consumption of the appliance.

Installing the appliance
Keep the appliance out of direct sunlight.	The appliance must cool less frequently at low ambient temperatures and therefore consumes less power.
Install the appliance as far away as possible from heating elements, cooker and other heat sources: 3 cm to electric or gas cookers. 30 cm to an oil or solid-fuel cooker.
Select an installation location at a room temperature of approx. 20 °C.
Use a cavity depth of 56 cm. Caution! Risk of burns! Individual parts of the appliance become hot during operation. Touching these parts may result in burns.	The air on the rear panel of the appliance does not warm up so intensely. The appliance consumes less power if the warm air can escape.
Do not cover or block the ventilation openings.
Ventilate the room daily.

Using the appliance
Open the appliance door only briefly.	The air in the appliance does not warm up so intensely. The appliance must cool less frequently and therefore consumes less power.
Transport purchased food in a cool bag and place quickly in the appliance.
Allow warm food and drinks to cool down before placing in the appliance.
Thaw frozen food in the refrigerator compartment in order to utilise the low temperature of the frozen food.
Always leave a space between the food and the rear panel.	The air can circulate and the air humidity will remain constant. The appliance must cool less frequently and therefore consumes less power.
Pack food airtight.
Do not cover or block the ventilation openings.	The air on the rear panel of the appliance does not warm up so intensely. The appliance consumes less power if the warm air can escape.

Before using the appliance for the first time

1. Remove information material, adhesive tape and protective film.
2. Clean the appliance.

"Cleaning" on page 28

Electrical connection

Caution!

Do not connect the appliance to electronic energy saver plugs.

Note: You can connect the appliance to mains-controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic systems which are directly connected to the national grid.

Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, which are not directly connected to the national grid.

1. After installing the appliance, wait at least 1 hour before connecting it to avoid damaging the compressor.
2. Connect the appliance to a correctly installed socket.

The socket must comply with the following data:

Socket with 220 V ... 240 V

Protective 50 Hz conductor

Fuse 10 A ... 16 A

Outside Europe: Check whether the indicated current type of the appliance corresponds with the values of your power supply. The appliance specifications are specified on the rating plate. "Getting to know your appliance" on page 23

1. Connect the appliance to a socket near the appliance.

The socket must also be freely accessible after installation of the appliance.

Warning

Risk of electric shock!

If the length of the mains cable is insufficient, do NOT use multi-outlet power strips or extension leads. Instead, please contact Customer Service for alternative solutions.

Getting to know your appliance

Fold out the last page with the diagrams. The appliance and diagrams may differ according to features.

Appliance

Fig. 1

• Not all models.

A

Refrigerator compartment

Cool-fresh compartment

1...6

Controls

7

Lighting

8

Extendable shelf

9

Partition with humidity controller

10

Vegetable container

11

Cool-fresh container

12

Rating plate

13*

Butter and cheese compartment

14

Shelf for large bottles

en Getting to know your appliance

Controls

Fig. 2

1 Button ①

Switches the appliance on or off.

2 Button Super refrigerator

compartment

Switches Super cooling on or off.

3 Button / refrigerator

compartment

Sets the temperature of the

refrigerator compartment.

4 Refrigerator compartment temperature display

Indicates the set temperature in ^ C

5 Button Alarm

Switches the warning signal off.

6 0°C

Lights up when the appliance is in operation.

Features

(not all models)

Shelf

Fig. 3

You can vary the shelf:

Pull out and remove the shelf.

Vario shelf

Fig. 4

You can store tall items (e.g. cans or bottles):

Take out the front part of the shelf and push under the rear part.

Bottle shelf

Fig. 5

Bottles can be stored securely on the bottle shelf.

You can vary the shelf:

Pull out and remove the shelf.

Extendable shelf

Fig. 6

You can give yourself a better overview:

Pull out the shelf.
You can completely remove the shelf:
Pull out the shelf, lower and swing out to the side.

Container

Fig. 7

You can remove the container:
- Lift the container at rear and remove.
You can insert the container:
- Place the container on the telescopic rails and push into the appliance.

Butter and cheese compartment

→Fig. 8

The compartment is easy to open:

Lightly press the flap below in the middle.

The compartment opens downwards. The flap is pushed under the compartment.

Storage compartment

Fig. 9

You can remove the storage compartment:

• Lift up storage compartment and remove.

Bottle holder

Fig. 10

When you open and close the door:

The bottle holder prevents the bottles from overturning.

Operating the appliance

Switching on the appliance

1. Press the ① button.
   The appliance begins to cool.
2. Set the required temperature.
   "Setting the temperature" on page 25

Operating tips

After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put in any food until the selected temperature has been reached.
- The sides of the housing are heated slightly in certain areas. This prevents condensation in the area of the door seal.

Switching off and disconnecting the appliance

Switching off the appliance

Press the ① button.

The appliance no longer cools.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Press the ① button.
   The appliance no longer cools.
2. Pull out the mains plug or switch off the fuse.
3. Clean the appliance.
4. Leave the appliance open.

Setting the temperature

Recommended temperature

Refrigerator compartment: +4^ C

Refrigerator compartment

• Keep pressing the button / until the display indicates the required temperature.

Cool-fresh compartment

The temperature in the cool-fresh compartment is kept at around 0^ C .

Note: If frost forms on the food items in the coolfresh compartment, set a higher temperature. "What to do in the event of a fault" on page 30

Super cooling

Super cooling cools the refrigerator compartment to make it as cold as possible.

Switch on super cooling mode, e.g.:

Before placing large quantities of food in the compartment
For cooling beverages quickly

Note: When super cooling is switched on, increased operating noises may occur.

After 15 hours the appliance switches to normal operation.

Switching Super cooling on/off:

Press the Super button. The button is lit when Super cooling is switched on.

Alarm

Door alarm

If the appliance door is open for a while, the door alarm switches on.

The warning signal is switched off.

Refrigerator compartment

The refrigerator compartment is suitable for storing dairy products, eggs, cooked meals, pastries, preserves once opened and hard cheese.

The temperature can be set from

$$ + 3 ^ {\circ} \mathrm {C} \dots + 8 ^ {\circ} \mathrm {C}. $$

The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the slower the enzymatic and chemical processes and deterioration by microorganisms. A temperature of +4^ or lower ensures optimum freshness and safety of the stored foods.

Note when storing food

Store fresh, undamaged food.

The quality and freshness will then be retained for longer.

In the case of ready products and

bottled goods do not exceed the minimum sell-by date or use-by-date indicated by the manufacturer.

To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance.
This avoids transference of flavours and discolouration of the plastic parts.
- Leave warm food and drinks to cool down before placing them in the refrigerator compartment.

Note the chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

Coldest zone

The coldest zone is on the partition and in the storage area for large bottles.

Warmest zone

The warmest zone is at the very top of the door.

Notes

Store e.g. hard cheese and butter in the warmest zone. Cheese can then continue to release its aroma and the butter will still be easy to spread.
Store perishable food such as fish, sausages and meat in the cool-fresh compartment. "Cool-fresh compartment" on page 27

Cool-fresh compartment

The temperature in the cool-fresh compartment is kept at around 0^ C .

The low temperature and the optimum moisture provide ideal storage conditions for fresh food.

With cool-fresh storage, you can keep fresh foodstuffs fresh for up to three times longer than in the refrigerator compartment – for even longer freshness, nutrient retention and better flavour.

Vegetable container

Fig. 11

The vegetable container is the best storage location for fresh fruit and vegetables. You can adjust the humidity in the vegetable container via the humidity controller of the division plate and a special seal.

The humidity in the vegetable container can be set according to the type and amount of products to be stored:

Mainly fruit as well as for a large load - set lower air humidity
Mainly vegetables as well as for a mixed or small load - set higher air humidity

Notes

Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, courgettes, peppers, tomatoes and potatoes) should be stored outside the appliance at temperatures of approx. +8^ ... +12^ for optimum preservation of quality and flavour.
- Condensation may form in the vegetable container depending on the food and quantity stored. Remove condensation with a dry cloth and adjust the humidity in the vegetable container with the humidity controller.

Cool-fresh container

Fig. 1/11

The storage climate in the cool-fresh container offers ideal conditions for the storage of fish, meat and sausage.

Storage times at 0 °C

The storage times are dependent on the original quality.

Fresh fish, seafood:	up to 3 days
Poultry, meat (boiled/fried):	up to 5 days
Beef, pork, lamb, sausage products (cold meat):	up to 7 days
Smoked fish, broccoli:	up to 14 days
Salad greens, fennel, apricots, plums:	up to 21 days
Soft cheese, yoghurt, quark, buttermilk, cauliflower:	up to 30 days

Defrosting

Refrigerator compartment

The defrost process is performed automatically.

Cleaning

Caution!

Avoid damaging the appliance and the fittings.

• Do not use abrasive, chloride or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. Metallic surfaces may corrode.
• Never clean shelves or containers in the dishwasher. These parts may become deformed.

Proceed as follows:

1. Switch off the appliance.
2. Pull out the mains plug or switch off the fuse.
3. Take out the food and store in a cool location. If present: place ice pack on the food.
4. If present: wait until the layer of frost has thawed.
5. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.

Caution!

The rinsing water must not run into the light or through the drainage hole into the evaporation area.

1. Wipe door seal with clear water and dry thoroughly with a cloth.
2. Reconnect and switch on appliance and put in food.

Cleaning the equipment

To clean, take the variable parts out of the appliance.

"Features" on page 24

Partition and vegetable container cover

Taking out the partition

Fig. 12

• Remove glass plate, press levers on the underside on both sides, pull partition forwards, lift and swivel out to the side.

Taking out the vegetable container cover

• Lift cover, pull forwards and swivel out to the side.

Inserting vegetable container cover and partition

Fig. 14

1. Insert vegetable container cover.
2. Insert partition.
3. Insert glass plate.

Telescopic rails

Fig. 13

Removing telescopic rails

1. Pull out telescopic rail.
2. Push lock in the direction of the arrow.
3. Detach telescopic rail from the rear pin.
4. Push telescopic rail together, push backwards above the rear pin and disengage.

Installing telescopic rails

1. Place the extended telescopic rail on the front pin.
2. Pull the telescopic rail forwards slightly until it engages.
3. Insert telescopic rail on the rear pin.
4. Push lock backwards.

Odours

If you experience unpleasant odours:

1. Switch off the appliance with the On/Off button ①.
2. Take all food out of the appliance.
3. Clean the inside. "Cleaning" on page 28
4. Clean all packages.
5. Seal strong smelling food in order to avoid odours from forming.
6. Switch the appliance on again.
7. Store food in the appliance.
8. Check whether the formation of odours is still occurring after 24 hours.

Lighting

Your appliance features a maintenance-free LED light.

Only Customer Service or authorised technicians may repair the light.

Noises

Normal noises

Droning: A motor is running, e.g. refrigerating unit, fan.

Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.

Clicking: The motor, switches or solenoid valves are switching on and off.

Cracking: Automatic defrosting is running.

Preventing noises

Appliance is not level: Align appliance using a spirit level. If required, place a little packing underneath.

Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required.

Bottles or receptacles are touching each other: Move bottles or receptacles away from each other.

What to do in the event of a fault

Before you call Customer Service, use this table to check whether you can rectify the fault yourself.

Temperature differs greatly from the set value.

Switch off appliance for 5 minutes. → "Switching off and disconnecting the appliance" on page 25 If the temperature is too warm, check temperature again after a couple of hours. If the temperature is too cold, check temperature again on the following day.

Displays do not illuminate.

The mains plug has not been inserted properly. Connect mains plug.

The fuse has been tripped. Check the fuses.

The power has failed. Check whether the power is on.

Display shows E....

Electronics have detected a fault. Call Customer Service.

"Customer Service" on page 31

Appliance is not cooling, display and lighting are lit.

Showroom mode switched on. Start the appliance self-test.

"Appliance self-test" on page 31

When the programme has ended, the appliance switches over to normal operation.

It is too warm or too cold in the cool-fresh compartment.

The standard setting has been set too high or low (e.g. frost in the cool-fresh compartment).

You can set the temperature in the cool-fresh compartment to be 3 settings warmer or colder. If the temperature in the refrigerator compartment is set to setting 0, the cool-fresh compartment has a temperature of around 0^ .

1. Press and hold the refrigerator compartment Super button until the display temperature refrigerator compartment flashes.
2. Press I button to change the setting. Setting -3 corresponds to the coldest setting. Setting +3 corresponds to the warmest setting. The selected setting is saved after one minute.

Customer Service

If you are unable to rectify the fault, please contact our Customer Service. We will always find a suitable solution to avoid unnecessary visits by technicians.

The contact information for your nearest Customer Service office can be found here or on the enclosed Customer Service list.

When calling, please state the product number (E-Nr.) and the production number (FD), which can be found on the rating plate.

"Getting to know your appliance" on page 23

You can trust in the manufacturer's expertise. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your home appliances.

Appliance self-test

Your appliance features a self-test programme; this displays the fault which your Customer Service team can rectify.

1. Switch off the appliance and wait 5 minutes.
2. Switch on the appliance.
3. Within the first 10 seconds after switching on, press and hold the Super refrigerator compartment button for 3-5 seconds until an audible signal sounds. The self-test programme starts. While the self-test is running, a long audible signal sounds in the meantime.

If 2 audible signals sound after the end of the self-test and the set temperature is displayed, your appliance is OK.
If, at the end of the self-test, 5 audible signals sound and the Super freezer compartment button flashes for 10 seconds, inform customer service.

When the programme has ended, the appliance switches over to normal operation.

Obtaining advice and ordering repairs if a fault occurs

Contact information for all countries can be found on the enclosed Customer Service list.

GB	0344 892 8989	Calls charged at local or mobile rate.
IE	01450 2655	0.03 € per minute at peak. Off peak 0.0088 € per minute.

Guarantee

Detailed information on the warranty period and warranty conditions in your country are available from your customer service, your dealer and on our website.

fr Table des matieres

Clayette coulissante

Fig. 6

Compartment fraîcheur

Compartment fraîcheur
