Product type	Freestanding dishwasher
Brand	Teka
Model	LP2 400
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	45 kg
Power supply	230 V ~ 50 Hz, 10 A
Water consumption	10 L per cycle
Energy consumption	0.92 kWh per cycle
Capacity	12 place settings
Number of programs	5 programs (Eco, Intensive, Quick, Normal, Pre-wash)
Special functions	Delayed start, Half-load, Turbo drying
Noise level	49 dB(A)
Energy class	A+
Safety	Child lock, Overflow protection, Door lock
Maintenance and cleaning	Regular cleaning of filters, spray arms and door seal
Spare parts and repairability	Parts available on request, repair possible by a professional
General information	User manual in French, English, Spanish, Portuguese

Frequently Asked Questions - LP2 400 TEKA

How to properly install the Teka LP2 400 dishwasher?

Make sure the appliance is level and stable. Connect the cold water supply (pressure 0.3-10 bar) and the drain. Plug into a 230 V grounded outlet. Refer to the manual for more details.

Which detergents should I use?

Use regenerating salt, rinse aid, and detergent in powder, gel or tablet form. Follow the indicated doses and the manufacturer's recommendations.

How to load the dishes for optimal cleaning?

Place large plates at the bottom, glasses and cups on top. Tilt hollow surfaces. Avoid blocking the spray arms. Refer to the basket and loading guide.

What to do if the dishwasher does not start?

Check that the door is properly closed, the power is connected, and a program is selected. If the problem persists, check the fuse or circuit breaker.

Why is the dishes not clean after the cycle?

This may be due to incorrect loading, a blocked filter, insufficient detergent, or a blocked spray arm. Clean the filters and check the detergent dose.

How to clean the dishwasher filters?

Unscrew the cylindrical filter and remove the flat filter. Rinse them under running water and reassemble. Perform this operation regularly to avoid bad odors.

What to do in case of water leakage under the appliance?

Turn off the water supply and unplug the appliance. Check the inlet and drain connections, as well as the door seal. If the leak persists, contact a technician.

How to activate the child lock?

Press the corresponding buttons simultaneously (see manual) for a few seconds until the lock symbol appears. To deactivate, repeat the operation.

What is the duration of a normal cycle?

The normal cycle lasts about 2 hours. Eco cycles are longer (up to 3h30) while the quick cycle lasts about 30 minutes.

Where to find spare parts for the LP2 400?

Spare parts are available from authorized Teka dealers or online. Have the full model number ready when ordering.

USER MANUAL LP2 400 TEKA

Use and Maintenance Manual

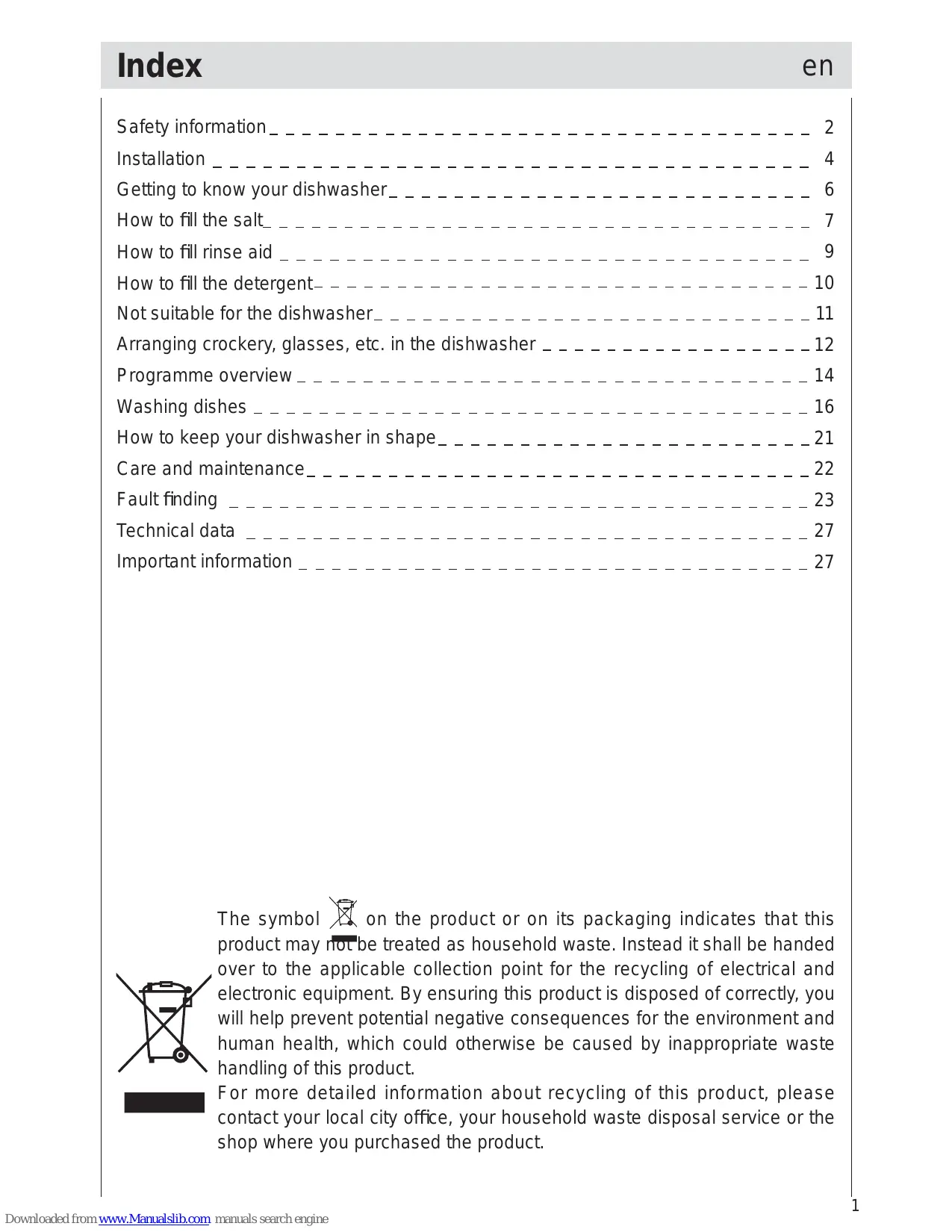

Safety information 2
Installation 4
Getting to know your dishwasher 6
How to fill the salt 7
How to fill rinse aid 9
How to fill the detergent- 10
Not suitable for the dishwasher 11
Arranging crockery, glasses, etc. in the dishwasher 12
Programme overview 14
Washing dishes 16
How to keep your dishwasher in shape 21
Care and maintenance 22
Fault finding 23
Technical data 27
Important information 27

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

At time of delivery

• Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay.
• Please dispose of packaging materials properly.

During installation

• Place the dishwasher and connect it up in accordance with the installation instructions.
• The dishwasher must not be connected to the electricity supply while installation is being carried out.
• Ensure that the domestic wiring is properly earthed.
• The mains electricity supply must conform to the details shown on the dishwasher nameplate.
• Do not connect the dishwasher to the electricity supply via an extension cable.
• Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
• After the appliance has been installed, the mains plug should still be easily accessible.
• The plastic housing on the water inlet contains an electrically operated valve. The connecting wires are inside the inlet hose. Do not cut through this hose and do not immerse the plastic housing in water. During installation, the power supply cord must not be excessively or dangerously bent or flattened.
  For Switzerland only:

There are no restrictions on installing the appliance between wooden or plastic walls as part of a fitted kitchen. If the appliance is not plugged into a wall socket, it must be connected to the mains via a separator for all poles within the domestic wiring system. This device must have a gap of at least 3mm between open contacts, in order to conform with relevant safety regulations.

During normal use

• The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.
• This appliance cannot be installed outdoor, not even if the area in which it is installed is covered by a roof; it is also very dangerous to leave it exposed to the rain and elements.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
• The water inside the dishwasher is not suitable for drinking.
• Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger.
• Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

Do not touch the heating element during or after a wash cycle.

Fundamental rules to follow when using the appliance:

• Never touch the dishwasher when barefoot or with wet hands or feet;
• We discourage the use of extension cords and multiple sockets;
• If the appliance is not operating properly or maintenance must be performed, disconnect the appliance from the power supply.

If your family includes children

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they to not play with the appliance.
• Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open.

If a fault occurs

• If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the wall socket. Then, consult the section entitled, "Fault finding". If you cannot solve the problem, contact a service center.
• Only specialised personnel are authorised to make repairs.
• If the supply cord is damaged, it must be replaced by the manufacture, its service agent of similarly qualified persons in order to avoid a hazard.
• To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• call only the Service Centers authorized by the manufacturer.
• always use original Spare Parts.

When disposing of old appliances

• Appliances which are no longer being used must be made inoperable by cutting the power supply cord and removing the door lock.

Take the appliance to a designated waste disposal center.

Dangerous voltage

Warning

Children could get locked in the appliance (risk of suffocation) or get stuck in other positions. Therefore: Remove the mains plug, cut the mains wire and set aside. Damage the door lock so that the door can no longer be closed.

Positioning the appliance

Change the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

Levelling the appliance

Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level. In any case, the appliance should not be inclined more than 2^ . If the appliance is levelled, it will help ensure proper performance.

Cold water connection

Connect the water supply hose to a threaded 3/4 (gas) connector, making sure that it is fastened tightly in place (see fig.A).

Some models are fitted with an "Aquastop" water supply hose (see fig.B) in which the small filter is already housed in the threaded end.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Warning

The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused.

Anti-Flooding protection

If dishwasher is equipped with a system that stops the supply of water in the event of a problem with the water supply hose, or leaks within the unit, in order to prevent damage to your home. If for any reason the box containing the electrical components happens to get damaged, remove the plug for the appliance from the socket immediately. In order to guarantee that the anti-flooding feature operates properly, the "A" box with water supply hose must be attached to the water supply tap as shown in fig.B. No other type of connection is acceptable. The water supply hose must not, under any circumstances, be cut, as it contains electrical parts which are live. If the length of the hose is not adequate to make a proper connection, the hose must be replaced with one which is long enough. This hose is available upon request from specialised retailers and service center.

Drain hose connection

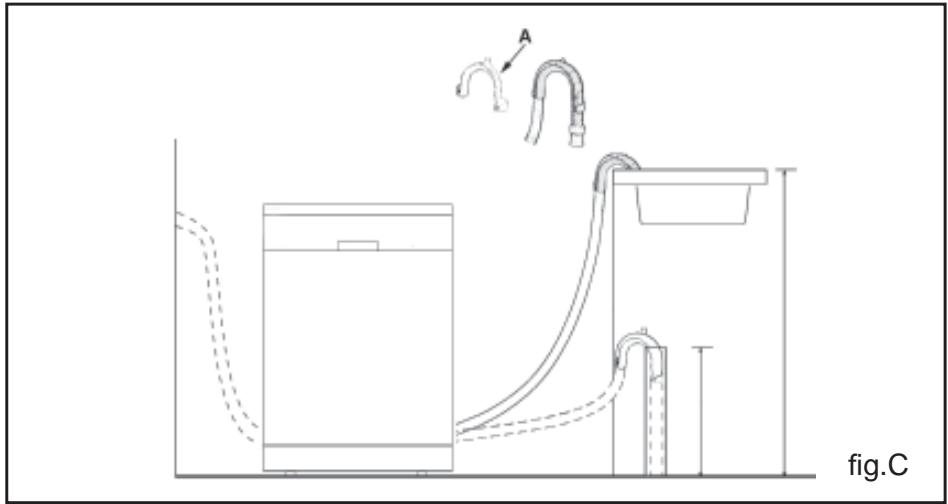

Insert the drain hose into a drain pipe with a minimum diameter of 4cm , or let it run into the sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (fig.C). The free end of the hose must be at a height between 40 and 100cm and must not be immersed in water.

Attention:

The connecting piece for syphon trap (U-bend) must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Electrical Connection

After making sure that the voltage and frequency values for the current in the home correspond to those on the rating plate (located on the stainless steel inner door of the appliance) and that the electrical system is correct for the maximum voltage on the rating plate, insert the plug into an electrical socket which is earthed properly (the earthing of the appliance is a safety requirement mandated by law).

If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the whole cable, rather than using adaptors or the similar like as they could cause overheating and burns.

Caution:

The dishwasher plug must be accessible even when the appliance is installed as a built-in unit so that maintenance can be done safely.

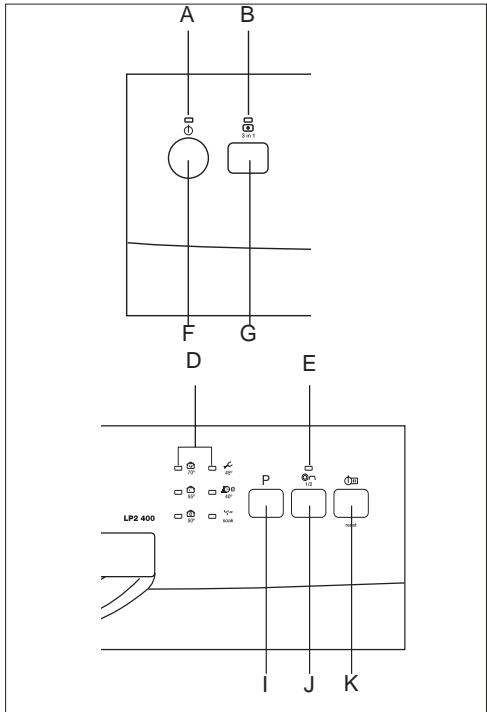

Close-up view (control panel)

A On-Off Indicator
B " 3 in 1" indicator
C Low Rinse Aid Indicator
D Programme Indicator
E 1/2 Indicator
F On-Off Button

G "3 in 1" indicator
H Low Salt indicator
Programme Button
J 1/2 Button
K Start/Pause button

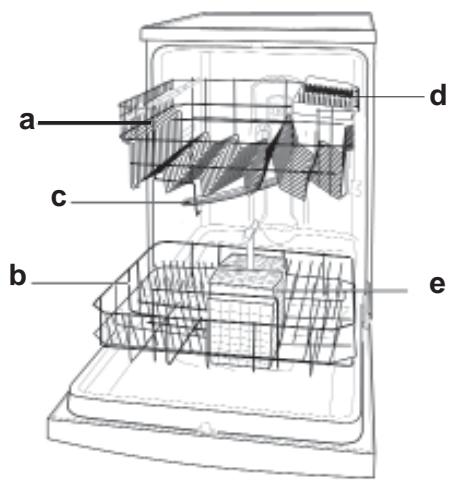

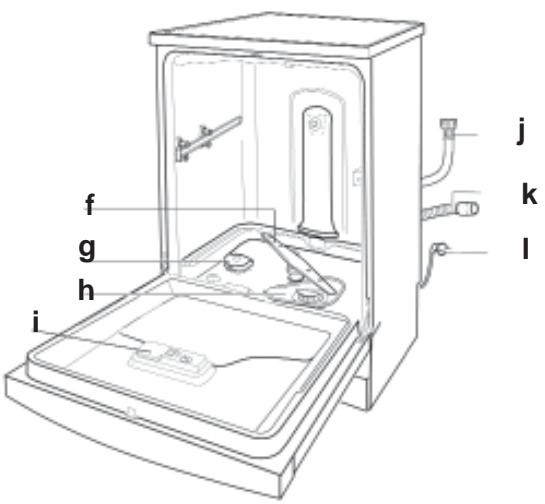

Dishwasher interior

a Upper Rack
b Lower Rack
c Top Spray Arm
d Knife Rack
e Silverware Basket
Bottom Spray Arm

Salt Container Cap
h Washing Filter
Detergent and Rinse Aid Dispenser
Water Inlet Hose
K Drain Hose
Power Supply Cord

Salt

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

Loading the salt into the container

Always use salt intended for use with dishwashers.

The salt container is located beneath the lower rack and should be filled as follows:

• When the low salt indicator “H” lights, you must fill the salt.
• Remove the lower rack and then unscrew and remove the cap from the salt container;
• If you are filling the container for the first time, fill it with water;
• Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is normal for a small amount of water to come out of the salt container.
• Carefully screw the cap back on.

Important

To prevent the formation of rust, load the salt just before beginning a wash cycle.

Adjusting salt consumption

The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that it remains at a minimum.

To adjust salt consumption, proceed as follows:

• Unscrew the cap from the salt container;

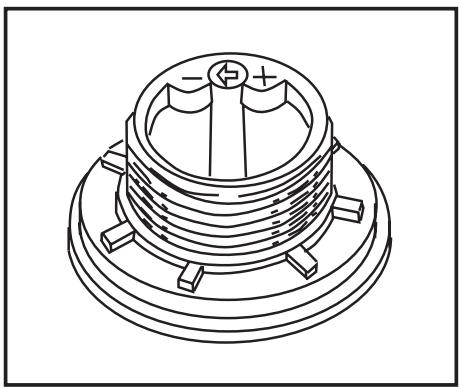

• There is a ring on the container with an arrow on it (see figure to the side),
• If necessary, rotate the ring in an anticlockwise direction from the "- " setting towards the "+" sign, based on the hardness of the water being used.

It is recommended that adjustments be made in accordance with the following table:

Water Hardness
Level	Clarke degrees	°dH	mmol/l	Selector position	Salt consumption (Grams/cycle)	Autonomy (cycles/2kg)
1	0 - 14	0 - 17	0 - 1,7	/	0	/
2	14 - 36	18 - 44	1,8 - 4,4	"- "	20	60
3	36 - 71	45 - 89	4,5 - 8,9	middle	40	40
4	>71	>89	>8,9	"+ "	60	25

Rinse aid

This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door .

When the low rinse aid indicator “ C ” lights , youmust load rinse aid .

Loading the rinse aid

Regardless of the type of detergent dispenser installed on your appliance, you must proceed as indicated below when loading the rinse aid.

To open the dispenser, turn the "1" cap in an anticlockwise direction and then pour in the rinse aid, making sure not to overfill. The amount of rinse aid used for each cycle can be regulated by turning the "2" dose adjuster, located beneath the "1" cap, with a screwdriver.

There are 6 different settings; the normal dosage setting is 3.

Important

Proper dosage of the rinse aid improves drying.

If drops of water remain on the dishes or spotting occurs, the dosage adjuster should be turned to a higher setting.

If the dishes have white streaks, turn the dosage adjuster to a lower setting.

Detergent

Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Programme overview". The detergent dispenser is located on the inside panel of the door.

Loading the detergent

• To open the " 3 " cover on the dispenser, press the " 4 " button.

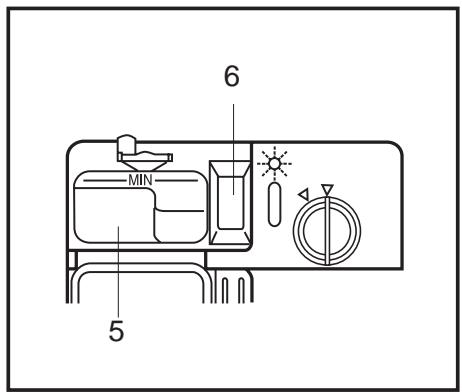

• The detergent for the wash cycle should be poured into the "5" compartment.
• The detergent for the pre-wash cycle should be poured into the "6" compartment.
• After the detergent has been placed in the dispenser, close the cover and press down until it clicks in place.

Notice:

To facilitate closing the cover, remove any excess of detergent on the edges of the dispenser.

Notice:

The usage of 3 in 1 or similar tablets is forbidden when Heat wash, Rapid Wash and Soak programmes are selected.

What you should not put into the dishwasher

Cutlery and tableware manufactured in whole or part from wood. They become faded and unsightly in appearance. Furthermore, the adhesives that are used are not suitable for the temperature that occur inside the dishwasher.Delicate decorative glassware and vases, special antique or irreplaceable china. The decorative patterns on such items will not be dishwasher-proof.

Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable. Decorative patterns printed or painted onto the surface of crockery, glasses, etc., aluminium and silver items tend to become discoloured or faded if washed in the dishwasher. Some types of glass can become opaque in appearance after they have been washed many times in a dishwasher. Highly absorbent materials, such as sponges and towels, should never be placed in the dishwasher.

Our recommendation

In future, only purchase table or kitchenware that has been confirmed as being dishwasher-proof.

Important

Dishes or cutlery that have been soiled by tobacco ash, wax, lubricating grease or paint, should not be put in the dishwasher.

Damage to glassware and other dishes

Possible causes

• type of glass or manufacturing process
• chemical composition of detergent
• water temperature and duration of dishwasher programme.

Suggested remedy

• Use glassware or porcelain dishes that have been marked 'dishwasher-proof' by the manufacturer.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.
• Select a programme with a low temperature and a short duration as possible.
• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Loading crockery, glasses, etc. in the dishwasher

Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from becoming clogged, which results in reduced performance.

If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed. This will eliminate the need for extra wash cycles.

Pull out the rack to load the dishwasher.

How to use the lower rack

We recommend that you place the most difficult to clean items on the bottom rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.

It is preferable to place serving dishes and lids on the sides of the racks in order to avoid blocking the rotation of the top spray arm.

• Pots, serving bowls, etc. must always be placed face down.(see fig.C)
• Deep pots should be slanted to allow the water to flow out.
• Large pots should be placed at an angle to allow the water to flow out.

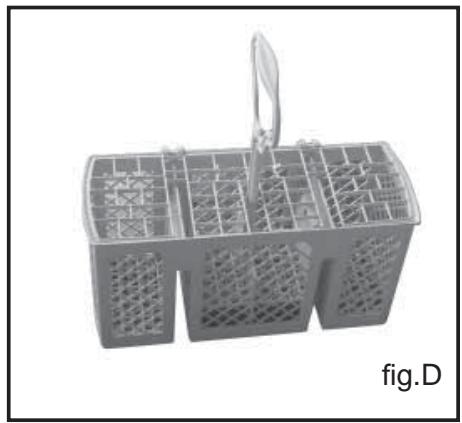

• The cutlery basket cannot be separated (see Fig. D).

Normal daily load

Warning

Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

How to use the upper rack

The upper rack is designed to hold more delicate and lighter dishware, such as glasses, cups and saucers, plates, small bowls and shallow pans (as long as they are not too dirty).

• Position the dishes and cookware so that they do not get moved by the spray of water.

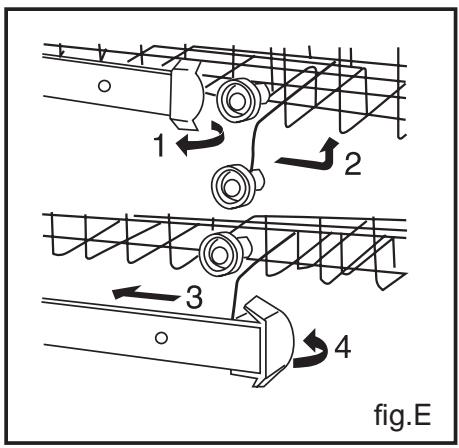

• The upper rack can be adjusted for height by using the knobs located on both sides of the rack itself (see fig.E).

Adjust the upper basket to the higher level and you have more space to accommodate those taller pans and trays in the bottom basket.

Shelf

Lean tall glasses and those with long stems against the shelf-not against other items to be washed.

Place glasses, cups and small bowls on the additional cup rack. The additional cup rack can be swivelled in or out as required(see fig.F).

Wash programme	Type of crokery (e.g.china, pots/pans, cutlery, etc)	Type of food remains	Amount of food remains	Condition of food remains	Description of cycle	1/2 Load	3 in 1
70° Intensive Wash	Non-delicate	Soups, casseroles, sauces, potatoes, pasts, rice, eggs, roast or fried food.	a lot	stuck on hard	Pre-wash with hot water. Extended wash at 70°C. Rinses with cold water. Rinse with hot water. Drying.	-	●
						●	●
55° Normal Wash					Pre-wash use cold water. Extended wash at 55°C. Rinse with cold water. Rinse with hot water. Drying.	-	●
						●	●
50° Light Wash (EN50242)	Mixed	Soups, potatoes, pasta, rice, eggs, roast or fried food.	a little	loosely attached	Pre-wash use cold water. Extended wash at 50°C. Rinse with cold water. Rinse with hot water. Drying.	-	●
						●	●
45° Glass ware		Coffee,cakes, milk, sausage, cold drinks, salads	Very little	loosely attached	Wash at 45°C. Rinse with cold water. Hot rinse. Drying.	-	●
						●	●
40° Rapid wash					Short wash at 40°C. Cold rinse.	-	-
						●	-
‘’‘’ soak Soak		Rinse off if the dishes have been stacked for several days in the dishwasher prior to washing.			Short cold wash to prevent food residue from drying on the dishes.	-	-
						●	-

Laboratory measured valve in accordance with European Standard EN50242

Delayed Start

Detergent

Extended Wash

Prewash

Rinse Aid

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

-

-

10g

15g

10g

15g

15g

25g

25g

25g

5g

25g

5g

●

●

●

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Duration in minutes	Energy consumption in kWh/cycle	Water consumption in litres
112	1.44	18
94	1.25	16
102	1.11	15
90	1.00	14
162	0.81	15
140	0.76	13
92	1.01	12
32	0.40	9
28	0.30	8

Programme selection

The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the wash cycle table. The corresponding programme sequence, duration and consumption details are shown in the right half of the overview.

For example:

Use the "normal" 55° programme for dishes and utensils which have plenty of food remains stuck on hard.

Earn savings

If only a small number of dishes have been loaded into the dishwasher, selecting a programme that operates at the next lowest temperature will usually be sufficient.

Programme data

The stated programme data are based on standard operating conditions. The values can vary considerably according to:

• different amounts of dishes
• temperature of mains water supply
• pressure of mains water supply
• ambient temperature
• fluctuations in mains voltage
• machine-related factors (e.g. temperature, water volume,...)

Switching the dishwasher ON

• Load the appliance and turn on the tap.
• Close the door, and set On-Off button "F" to On and then the On-Off indicator "A" light.
• Press the programme button "I" to select the programme you wish, and the corresponding programme indicator "D" light.
• Press the Start/Pause button "K", then the dishwasher will start immediately, and the programme indicator "D" is flashing.

End of programme

• Six beeps will indicate that the wash cycle has finished, the programme indicator light.

Switching the dishwasher OFF

Several minutes after the programme has ended:

• Set On-Off button to Off
• Open the door.
• Remove dishes, etc. when they have cooled down.
• Turn the water tap off.

Interrupting the programme

• Open the door.

Caution! There is a risk of water squirting out from inside the appliance. Do not open the door fully until spray arm has stopped rotating..

• If the appliance has already heated up or the hot water was switched ON and then the appliance door opened, leave the door ajar for several minutes and then close. Otherwise, the appliance door may open due to expansion.
• Close the door. After 30 seconds the programme will start from the point it was interrupted.

Notice:

When the appliance is already underway press the On-Off button for 3 seconds, all of the settings will be cancelled.

Note:

Interrupt or cancel a programme in progress ONLY when absolutely necessary.

Cancelling or modifying a cycle

• A cycle that is underway can be modified if it has only been running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the paragraph entitled, "Loading the detergent").
• To modify a cycle that is already underway, follow the instructions contained in the paragraph entitled "Reset drain function", and select the programme you wish (see the paragraph entitled, "Switching the dishwasher ON").

1/2 Load Button

This button "I" (see" Close-up View (Control Panel) ) makes it possible to wash dishes using only the upper rack if there are not enough dishes for a full load. This will allow you to save on water and energy consumption.

To select 1/2 load:

• Select the programme (see the paragraph entitled "Switching the dishwaher ON")
• Press the 1/2 load button "I", 1/2 load indicator "E" lights.
• Close the door and then press the start/Pause button "K", then the programme starts automatically.

To cancel the 1/2 load while underway

• Press start/pause button “ K ” and hold it for 3 seconds.

• Please keep in mind that the amount of detergent should also be adapted to the 1/2 load.

Use of “3 in 1”/ Combi-Detergent Tablets

General Advice

1. Before using these products you should first check that the water hard-ness in your supply is compatible with the use of these products as per the detergent manufacturers instructions (on the product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
3. If you encounter problems when using "3 in1" products for the first time then please contact the detergent manufacturers care line (the telephone number is given on the product packaging).

Special Advice

When using combination products, the rinse-aid and salt lights are no longer useful. It may be helpful to select the lowest possible setting for water hardness.

To select "Combi-Detergent tablets" function:

1. Close the door. Select the programme and then press the Combi-Detergent button "G" until the Combi-Detergent tablets indicator "B" light.
2. Press the Start/Pause button "K", then the dishwasher will start immediately, and the programme indicator and the Combi-Detergent tablets indicator "B" blinks.

To cancel "Combi-Detergent tablets" function:

Follow the "Cancelling or modifying a cycle while underway" instructions.

If you decide to switch to the use of a standard detergent system we advise that you:

1. Refill both the salt and rinse aid compartments.
2. Switch the water hardness setting to the highest possible position and run for three normal cycles without a load.
3. Readjust the water hardness setting again according to the conditions for your region (For more information please refer to your instruction manual).

Warning:

Do not place the tablets in the tub or the cutlery basket as this will result in poorer wash results. The tablets should be placed in the detergent doser.

Notice:

The usage of 3 in 1 or similar tablets is forbidden when Rapid Wash and Soak programmes are selected.

Reset drain function

You can use Reset drain function to stop the washing cycle under running by pressing the Reset Button “K” for 3 seconds to reset, and the appliance will stop after a few minutes drain phase.

After Every Wash

After every wash, set the main switch "I" to off and leave the door slightly ajar so that moisture and odors are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

No solvents or Abrasive Cleaning Products

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little while vinegar, or cleaning product made specifically for dishwashers.

Moving the Appliance

If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

The door should not be left in the open position since this could present a tripping hazard.

When You Go on Holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

Regular inspection and maintenance of your appliance helps to prevent problems from occurring. This saves time and aggravation. You should therefore carefully inspect the inside of your dishwasher from time to time.

Overall condition of appliance

• Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits:
• Clean the interior of the dishwasher thoroughly with a detergent solution.

Rinse-aid

Check the LOW RINSE AID indicator “C”, on the front panel. Top up with rinse-aid, if required.

Dishwasher salt

Check the LOW SALT indicator “H”. Top up with salt, if required.

Filters

The filters “7”, “8” prevent larger particles of food in the water from reaching the pump. These particles may occasionally block the filters.

• When the appliance has finished washing, check the filters for particles of food and, if required, clean.

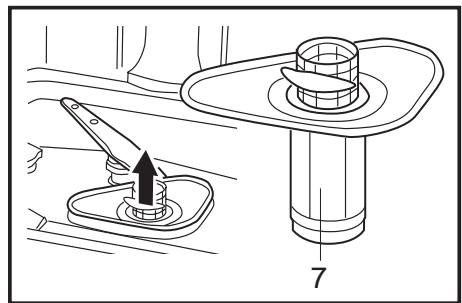

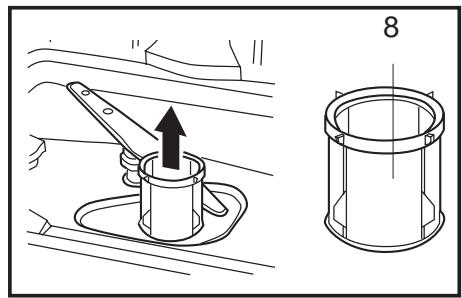

• After undoing the coarse micro-filter “7”, the filter unit “8” can be removed. Remove any particles of food and rinse the filters under running water.
• Insert the filter unit “ 8 ” and tighten the coarse micro-filter.

Spray arms

Lime and remnants of food in the washing water can block the nozzles in the spray arms “ 9 ” and “ 10 ” and the arm mountings.

• Inspect the nozzles in the spray arms for blocked holes due to remnants of food.
• If necessary, pull the lower arm “ 10 ” upwards and lift it off.
• Unscrew the upper spray arm " 9".
• Clean both spray arms under running water.
• Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed tight.

Resolving minor problems yourself

Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer. Not only does this save costs, but it also means that the appliance is available for use again that much sooner. The following list of common occurrences and their remedies should help you identify the causes of most problems.

Problems...

...when the appliance is switched on. Appliance does not start up

• Fault with fuse in mains electricity supply.
• Plug not inserted in wall socket.
• Appliance door not closed properly.
• Programme button has not been pressed.
  Water tap not turned on.

• Restricted strainer in water intake hose.

• The strainer is situated in the Aquastop or supply-hose connection.

Caution

Do not forget that repairs should only be carried out by a qualified specialist. Improper repairs can lead to considerable equipment damage as well as danger to the user.

...with the appliance itself

Error display on the time-remaining indicator

When “ 70^ & 55^ ” cycle indicator blinks. Have you checked whether:

the door is closed properly.

When “ 70^ & 50^ ” indicator blinks. Have you checked whether:

• the drain hose is too low.

When “ 70° 50° ” indicators blinks.

Have you checked whether:

• the drain hose is crimped or bent.
• the drain hose is too high.

When “ 70° 55° 50° ” indicators blinks.

Have you checked whether:

• the water is turned on and the hose is connected properly;
• the water supply to the house is on and has sufficient pressure;
• the water supply hose is crimped or bent;
• the filter for the water supply hose is clogged.
  the drain hose is too low.

If you take all these checks and the dishwasher still does not function or your dishwasher have any other error display, you can power the dishwasher OFF, and wait a few minutes. You can power the dishwasher on, try it again , if the dishwasher still does not function and/or the problem persists, contact the nearest authorised service center and provide them with the following information:

the nature of the problem.
- the model type number (Mod...) And the serial number (S/N...), which are indicated on the plate located on the side of the inner part of the door.

Lower spray arm rotates with difficulty

• Spray arm is blocked by small items or food remains.

Lid in detergent compartment cannot be closed

• Detergent compartment has been overfilled.
• Mechanism is clogged with remnants of detergent.

Remnants of detergent stuck inside dispenser

• Compartment was damp when it was filled up with detergent. Compartment must be dry before detergent is added.

Water remains inside appliance after programme has ended

• Blockage or kind in drainage hose.
• Pump is jammed.
• Filters are blocked.
• The programme is still running. Wait for the programme to end.

...during washing

Unusual amount of foam is creased

• Normal washing up liquid has been poured into the rinse-aid container.
• Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle.

Appliance stops suddenly while washing is taking place

• Cut off electricity supply to appliance.
  Water supply has been interrupted.

Knocking sound can be heared while washing is taking place

• A spray arm is knocking against the dishes inside the appliance.

Rattling sound can be heared while washing is taking place

• Crockery has not been stacked properly inside the appliance.

Knocking sound coming from inlet valves

• This is caused by the way the water pipes have been laid and it has no effect upon the way the appliance functions. There is no remedy for this.

...with the dishes, cutlery, etc.

Remnants of food are stuck to the dishes, cutlery,etc.

• Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, etc.
• Too many items in the rack.
• Items in the rack were touching each other.
• Not enough detergent was added to dispenser.
• Selected wa-sh programme was not intensive enough.
• Rotation of spray arm was obstructed by dishes, etc.
• Nozzles in spray arm are blocked by remnants of food.
• Filters are blocked.
• Filters have been incorrectly fitted.
• Waste-water pump is jammed.

Plastic items are discoloured

• Not enough detergent was added to dispenser.
• Detergent has insufficient bleaching properties. Use a detergent containing a chemical bleaching agent.

White stains are left on crockery, glasses have a milky appearance

• Not enough detergent was added to dispenser compartment.
• Amount of rinse-aid was set too low.
• Although water is quite hard, no salt has been put in appliance.
  Water softener was set too low.
• Lid on salt container is not screwed tight.
• If you used a phosphate-free detergent, try a detergent containing phosphates and compare results.

Dishes,cultlery,etc.have not been dried

• Selected programme did not include drying function.
• Amount of rinse-aid was set too low.
• Items were removed from dishwasher too soon.

Glasses have a dull appearance

• Amount of rinse-aid was set too low.

Tea stains or traces of lipstick have not been completely removed

• Detergent does not have a sufficient bleaching effect.
• Washing temperature was set too low.

Traces of rust on cutlery

• Cutlery is not sufficiently rustproof.

• Salt content in washing water is too high.

• Lid on salt container is not screwed tight.

• Too much salt was spilt while filling container.

Glasses become clouded and discoloured; coating cannot be wiped off

• Unsuitable detergent was used.
• Glasses are not dishwasher-proof.

Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance

• Amount of rinse-aid set too high.

Width 45 cm

Depth 65 cm

Height 85 cm

Capacity 9 standard place settings

Mains water pressure 0.03-1.0MPa

Power voltage 220-240V~/50Hz

Maximum current intensity 13A

Total absorbed power 1950W

Important information

Notes on waste disposal

Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

When an appliance has reached the end of its working life, unplug it from the mains. Cut through the mains cable and dispose of it together with the plug.

Destroy the door locking mechanism. This will ensure that children at play cannot become locked inside and are not exposed to the risk of suffocation.

Your new appliance was protected by suitable packaging while it was on its way to you. All materials used for this purpose are environment-friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately.

Do not allow children to play with any parts of the packaging. There is a risk of suffocation by the cardboard boxes and the plastic wrapping.

Up-to -date information concerning options for disposal can obtained from your retailer or local municipal administration.

General information

Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards.

Information on comparability tests implemented in compliance with EN 50242

Appliance loaded in accordance with standard specifications.

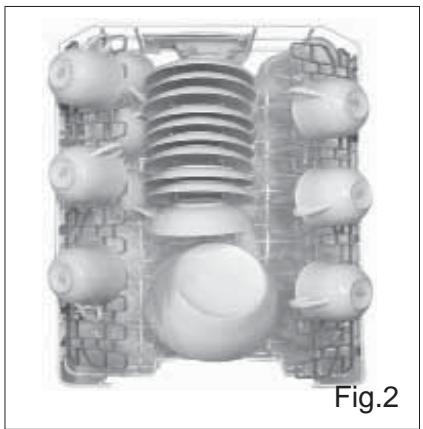

Example of loaded dishwasher: See Fig 1 and Fig.2

Capacity: 9 place settings

Comparability programme: Light wash

Rinse-aid setting: 5

Detergent: 5 ~g + 22 ~g

Height-adjustable top-basket must be inserted in the uppermost position.

If the comparability tests do not comply fully with EN 50242, e.g., degree of soiling, type of dishes and cutlery, etc., contact the appliance manufacturer before starting the test.
