USER MANUAL SPIN AX-2200 AXIS

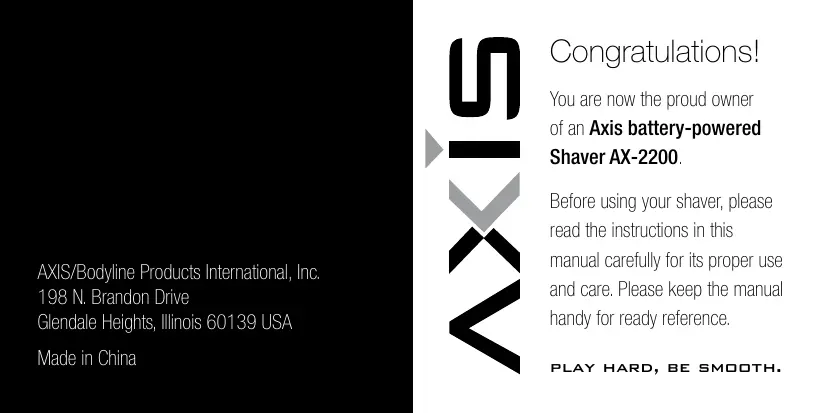

AXIS SHAVERS INSTRUCTION MANUAL Congratulations!

You are now the proud owner of an Axis battery-powered Shaver AX-2200.

AXIS/Bodyline Products International, Inc.

198 N. Brandon Drive

Glendale Heights, Illinois 60139 USA Before using your shaver, please read the instructions in this manual carefully for its proper use and care. Please keep the manual handy for ready reference.

play hard, be smooth.

IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using your shaver. WARNING > Always provide close adult supervision when using your shaver near children or the disabled. > Follow all instructions in this manual carefully. Do Axis Spin || English

not use attachments with your shaver that have not been specifically recommended by us.

> Do not use a unit that is not operating normally, has been immersed in water or other liquid. > Never operate your shaver outdoors. Avoid use in the vicinity of aerosol products or where oxygen is being administered. Also, keep the cord away from heated surfaces. > Do not insert foreign objects into any of the openings in the unit. Axis Spin || English

> Avoid exposing the unit to direct sunlight or ambient temperatures above 140°F (60°C).

> To avoid injury to the face, do not use the unit if the cutters or head assembly have been damaged. > For home use only.

PARTS OF YOUR SHAVER head guard floating heads assembly

SAVE THESE INSTRUCTIONS

on/off switch battery compartment

Axis Spin || English

Axis Spin || English

Your shaver is designed and manufactured to exacting standards in order to provide you with years of close, comfortable shaves.

Feeling for your shaver It normally takes about three weeks for your skin to adjust to a new electric shaver. As you use your shaver, you will develop a shaving style that is most comfortable and effective for you. This “breaking in” period may be somewhat longer for those with sensitive skin or those who vary their shaving techniques. To repeat, for a closer and more comfortable Axis Spin || English

shave, you must allow yourself those 3 weeks for your beard and skin to adjust to the electric shaver.

Upon unpacking your shaver, you may notice a white/gray powder on the inner cutters and surface of the heads. This is a factory-applied lubricant that will help ease the breaking in period and disappear with normal use.

Axis Spin || English

1. Keep the unit clean and dry at all times. 2. Wash and dry your face thoroughly prior to shaving and wait at least 15 minutes after getting up before shaving. 3. Turn your shaver on and then let the 2 floating heads follow the contours of your face to give you a smooth, close, comfortable shave. 4. Stretch your skin with your free hand while using straight or circular strokes. This will make the hairs stand out from your face and allow the inner cutters Axis Spin |10| English

to reach them more easily. Shave against the grain for optimum results.

5. To ease the cutting and avoid floating head wear, do not apply the shaver to your skin with high pressure. Apply soft, gentle strokes while shaving. 6. The normal replacement period for the 2 floating heads and 2 inner cutters is about one year; In order to maintain maximum shaving performance and comfort, replace the heads and cutters once a year. To order replacement parts, please refer to the “Ordering Replacement Parts” section of this manual. Axis Spin |11| English

To Insert the Batteries

1. Slide the On/Off Switch down to the “Off” position. 2. Remove the battery compartment cover by pulling it straight down from the shaver body. 3. Insert 2 “AA” alkaline batteries. Be sure to orient the batteries properly to the (+) and (-) indicators. Caution: When your device requires new batteries, please insert fig.1 only 2 new AA Axis Spin |12| English

alkaline batteries. You must not combine one old or used battery with one new battery as serious leakage will occur and thus damage the unit.

USING YOUR SHAVER To maximize shaving comfort and closeness, periodically remove the head assembly to determine if your shaver needs cleaning, particularly if you have a heavy beard and use the shaver daily. If you routinely check the Axis Spin |13| English

amount of shaven hairs under the head and clean the entire head assembly when necessary, your shaver will always run at peak performance.

1. Remove the protective plastic head guard. 2. Ensure that the floating heads and inner cutter assembly are not damaged. Replace damaged parts before using. To obtain replacement parts, refer to the “Ordering Replacement Parts” section of this manual. 3. To turn shaver on, slikd the On/Off switch up to the “on” position. Axis Spin |14| English

4. Gently stretch the skin of your face with your free hand while moving the shaver slowly and smoothly against the grain of your beard. Hold the shaver at a 90° angle to your face while maintaining contact with the floating heads.

5. To shave the chin area, gently pull the skin upward and slide the shaver in an easy upward motion. To avoid damaging the floating heads, press lightly, not too hard. 6. Turn shaver off and replace protective head guard. Axis Spin |15| English

CLEANING YOUR SHAVER Before cleaning, switch off the product by sliding the switch downwards.

Wet cleaning 1. Slide the switch to off position 2. Remove the floating heads assembly by holding the body in one hand and pulling out the cutter assembly by the other. 3. Switch on the product and wash Axis Spin |16| English

the blades in cold or warm water.

4. After washing, switch off the product, wipe dry with a soft cloth and leave it in an airy place until fully dried. 5. Attach the floating heads assembly properly to the body to ensure smooth operation. Using the cleaning brush 1. Slide the switch to off position. Remove the floating heads assembly by holding the body infig.4one hand and pulling out the cutter Axis Spin |17| English

assembly by the other.

3. Remove inner cutter assembly by pushing down and turning counter clockwise the srew knob in the center, then pull upwards away from the outer cutter assembly. fig.5

4. Clean hairs off with brush supplied.

To maximize shaving comfort and closeness, periodically remove the head assembly to determine if your shaver needs cleaning, particularly if fig.6

Axis Spin |18| English

you have a heavy beard and use the shaver dairy.

If you routinely check the amount of shaver hairs under the head and clean the entire head assembly when necessary, your shaver will always run at peak performance. After cleaning, replace the inner cutter assembly back into place. Important! Make sure that the center knob is locked into place by pushing down and turning clockwise. 5. After cleaning, always replace the plastic head guard to protect the floating heads. Axis Spin |19| English

NOTE: To avoid damage, be sure to thoroughly wipe pre-shave lotion or shaver oil from the shaver’s body.

REPLACING THE BATTERIES If you use your shaver daily, the alkaline batteries will provide approximately 3 hours of shaving operation time. If the operating power seems low, replace the batteries. Please refer to the “To Insert the Batteries” section of this manual.

Axis Spin |20| English

STORING THE SHAVER If the shaver is to remain unused for a long period of time, remove the batteries and store the unit in a cool, dry place.

Important! For optimum shaving performance and results, we recommends that you replace your shaver’s floating heads and inner cutters once a year.

Axis Spin |21| English

To remove floating heads and inner cutter assembly

To replace floating heads and inner cutters, please refer to the “Ordering Replacement Parts” section). Skin irritation or a deterioration of shaving performance typically indicates that your cutting heads need to be replaced. Replacement intervals will vary with individual use and different beard types. Axis Spin |22| English

1. Grasp the floating head assembly and gently lift it off from the shaver. (figure 8)

2. Detach the inner cutter assembly (figure 9) by pushing down and turning counter clockwise the screw knob in the center (figure 9), then pull upwards away from the outer cutter assembly.

3. Then, remove outer cutter assembly. (figure 10)

To replace floating heads and inner cutter assembly

1. First, insert the new outer cutter assembly into

Axis Spin |23| English

the frame, then insert the new inner cutter assembly back into the housing and lock in place by pushing down and turning clockwise the screw knob located in the center. Please make sure that the locating hole (figure 10) is lined up with the pin as seen in figure 9.

2. Please make sure that the floating head and inner cutter assembly is secure before attaching floating head and inner cutter assembly to shaver. 3. Always keep protective head guard attached when shaver is not in use. This will assure that the floating heads will not be damaged. Axis Spin |24| English

Ordering replacement parts

Please contact Axis/BPI at 1-877-263-9500 to order replacement parts for your Axis shaver. Please refer to the following part number.frame, outer foil frame and inner blade. Part Number: AS-1 Description: Replacement Rotary Heads and Rotary Blades Assembly for AX-2200 > The above parts are available at the retailer from whom your shaver was purchased. Axis Spin |25| English

If your shaver requires service

Call Axis at 1-877-263-9500. To assist us in serving you, please have the model number and date of purchase for your shaver available. AXIS / Bodyline Products International, Inc. 1-YEAR LIMITED WARRANTY AXIS / Bodyline Products International, Inc. (BPI) warrants that your product, except as noted below, is on the date of purchase free from defect in material and workmanship for a period of one year. In the event of a defect in material or workmanship, AXIS / Axis Spin |26| English

BPI will repair or replace this product with new parts, free of charge as follows:

1. The warranty is extended only to the original purchaser. A purchase receipt or other proof of date of the original purchase is required for service and parts replacement under this warranty. 2. Do not return the product to the retailer from whom this product was purchased. 3. Contact AXIS / BPI toll-free at 1-877-263-9500 to obtain authorization during the warranty period to return the defective product by mail, postage prepaid. Axis Spin |27| English

LIMITATIONS AND EXCLUSIONS There are no express warranties except as listed above.

This warranty only covers failures due to defects in materials or workmanship that occur during normal use. It does not cover foils, blades, cutters, or attachments or damage that occurs in shipment, or failures that are caused by products not supplied by AXIS / Bodyline Products International, Inc., or failures that result from accident, misuse, abuse, and neglect from mishandling, misapplication, improper maintenance, improper cleaning, alteration, modifica-

tion, line power surge, or commercial use of the product, such as hotel, office or rental use of the product, or service by anyone other than AXIS /

Bodyline Products International, Inc., or damage that is attributable to acts of God.

Axis Spin |28| English

Axis Spin |29| English

AXIS / BODYLINE PRODUCTS INTERNATIONAL,

INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTIES OF MERCHANDISE AND FITNESSS FOR A PARTICULAR PURPOSE,

ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions and limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

Axis Spin |30| English

AXIS/Bodyline Products International, Inc.

198 N. Brandon Drive, Glendale Heights, Illinois 60139 USA Made in China

Axis Spin |31| English

Fabricado para Axis/Bodyline Products Inc.

198 N. Brandon Drive

Glendale Heights, IL 60139 USA AXIS/Bodyline Products International, Inc.

198 N. Brandon Drive Glendale Heights, Illinois 60139 USA Toll-free: 1-877-263-9500 www.bodylineproducts.com
