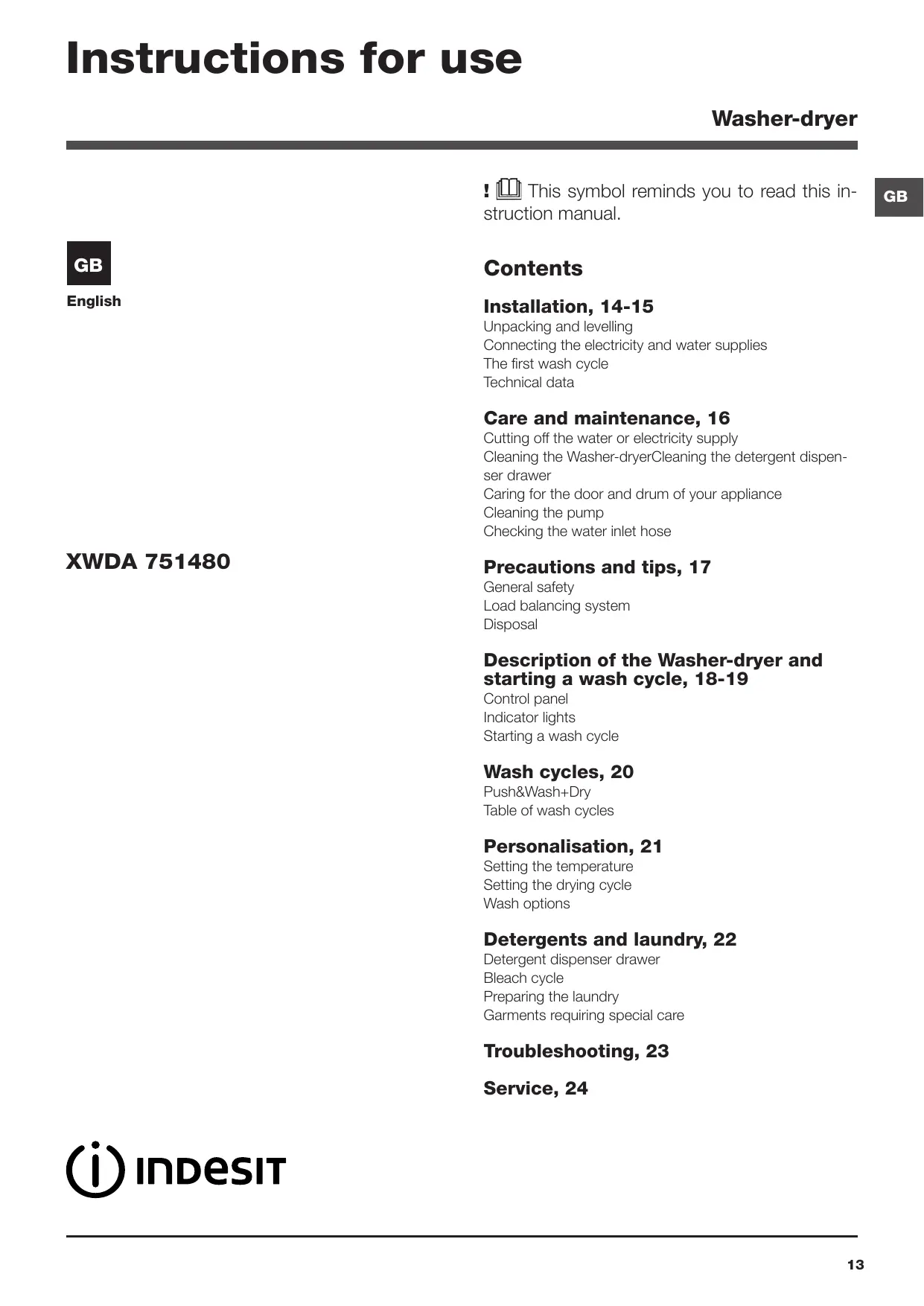

Instructions for use Washer-dryer This symbol reminds you to read this instruction manual. English Contents Installation, 14-15 Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data Care and maintenance, 16 Cutting off the water or electricity supply Cleaning the Washer-dryerCleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose XWDA 751480 Precautions and tips, 17 General safety Load balancing system Disposal Description of the Washer-dryer and starting a wash cycle, 18-19 Control panel Indicator lights Starting a wash cycle Wash cycles, 20 Push&Wash+Dry Table of wash cycles Personalisation, 21 Setting the temperature Setting the drying cycle Wash options Detergents and laundry, 22 Detergent dispenser drawer Bleach cycle Preparing the laundry Garments requiring special care Troubleshooting, 23 Service, 24

! This instruction manual should be kept in a safe place for future reference. If the Washerdryer is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features. ! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance. Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the Washer-dryer. Unpacking and levelling Connecting the water inlet hose Unpacking

1. Remove the Washer-dryer from its packaging.

2. Make sure that the Washer-dryer has not

been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 4 protective screws (used

during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs

5. Keep all the parts in a safe place: you will

need them again if the Washer-dryer needs to be moved to another location. ! Packaging materials should not be used as toys for children. Levelling

1. Install the Washer-dryer on a flat sturdy floor, without resting it up against walls, furniture

cabinets or anything else.

2. If the floor is not

perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°.

Connecting the electricity and water supplies

1. Connect the inlet

hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet

hose to the Washerdryer by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over

or bent. ! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page). ! If the inlet hose is not long enough, contact a specialised shop or an authorised technician. ! Never use second-hand hoses. ! Use the ones supplied with the machine. Connecting the drain hose

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor; alternatively, placed it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. ! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electrical connections Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the Washer-dryer. If this is not the case, replace the socket or the plug. ! The Washer-dryer must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions. ! When the Washer-dryer has been installed, the electricity socket must remain within easy reach. ! Do not use extension cords or multiple sockets. ! The cable should not be bent or compressed. ! The power supply cable must only be replaced by authorised technicians. Warning! The company shall not be held responsible in the event that these standards are not observed. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle “Auto Clean” (see “Cleaning the Washer-dryer”). Technical data Model Dimensions Capacity XWDA 751480 width 59.5 cm height 85 cm depth 54 cm from 1 to 7 kg for wash programme from 1 to 5 kg for the drying programme Electrical please refer to the technical connections data plate fixed to the machine maximum pressure 1 MPa (10 bar) Water conminimum pressure nections

drum capacity 52 litres Spin speed up to 1400 rotations per minute wash: programme 8; temperature 60°C; using a load of 7 kg. Energy radrying: the smaller load ted (2kg) must be dried by seprogrammes lecting the “ ” dryness leaccording to vel. The load must consist of regulations 2 sheets, 1 pillowcase and 2 EN 50229 hand towels; the remainder of the load must be dried by selecting the “ ” dryness level. This appliance conforms to the following EC Directives: - 2004/108/EC (Electromagnetic Compatibility) - 2006/95/EC (Low Voltage)

Care and maintenance

Cutting off the water and electricity supplies Caring for the door and drum of your appliance

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the Washer-dryer and help to prevent leaks.
• Unplug the Washer-dryer when cleaning it and during all maintenance work.

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming. Cleaning the Washer-dryer
• The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.
• The Washer-dryer has a “Auto Clean” programme for its internal parts that must be run with no load in the drum. For maximum performance you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special additives to clean the Washer-dryer. We recommend running a cleaning programme every 40 wash cycles. To start the programme press buttons A and B simultaneously for 5 seconds (see figure). The programme will start automatically and will last approximately 70 minutes. To stop the cycle press the START/PAUSE button.

Cleaning the detergent dispenser drawer

To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure). Wash it under running water; this procedure should be repeated frequently. Cleaning the pump The Washer-dryer is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump. ! Make sure the wash cycle has finished and unplug the appliance. To access the pre-chamber:

1. Take off the cover

panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures).

by rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal.

3. Clean the inside thoroughly.

4. Screw the lid back on.

5. Reposition the panel, making sure the hooks

are securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. ! Never use second-hand hoses. Precautions and tips ! This washer-dryer was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully. General safety

• This appliance was designed for domestic use only.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Do not dry unwashed items in the tumble dryer. - Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. - Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. - Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. - The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

WARNING: Never stop a tumble dryer before

the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.

• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washer-dryer, make sure the drum is empty.
• During the drying phase, the door tends to get quite hot.

• Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g. trichlorethylene).
• Do not use the appliance to dry foam rubber or similar elastomers.
• Make sure that the water tap is turned on during the drying cycles.

• Children of less than 3 years should be kept away from the appliance unless continuously supervised.
• Remove all objects from pockets such as lighters and matches. Load balancing system Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the Washer-dryer performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load. Disposal
• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2012/19/EU (WEEE) on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Description of the Washer-dryer and starting a wash cycle

button OPTION indicator light TEMPERATURE button LEVEL-BASED DRYING button TIME-BASED DRYING button Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and laundry”). ON/OFF button: switches the Washer-dryer on and off. PUSH&WASH+DRY button: (see “Wash cycles”). WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move. OPTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit. TEMPERATURE button: sets the temperature or the cold wash cycle (see “Personalisation”). TIME-BASED DRYING button: press to select the desired drying time. The selected drying time is shown bythe indicator lights above. LEVEL-BASED DRYING button: press to select the desired drying level. The selected drying level is shown by the indicator lights above. WASH CYCLE PROGRESS indicator lights: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page). START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles. N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED indicator light is switched off, the door may be opened (wait approximately 3 minutes). To start the wash cycle from the point at which it was interrupted, press this button again. Standby mode This Washer-dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again. Consumption in off-mode: 0,5 W Consumption in Left-on: 8 W Indicator lights The indicator lights provide important information. This is what they can tell you: Wash cycle phase indicator lights Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress. Door locked indicator light When the indicator light is on, the porthole door is locked to prevent it from being opened; make sure the indicator light is off before opening the door (wait approximately 3 minutes). To open the door during a running wash cycle, press the START/PAUSE button; the door may be opened once the DOOR LOCKED indicator light turns off. Wash Rinse Spin/Drain Drying End of wash cycle FIN Function buttons and corresponding indicator lights When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated. If the selected option is not compatible with another previously selected option, the indicator light will flash accompanied by a buzzer (3 beeps), and only the latter option will be activated; the indicator light corresponding to the activated option will turn on Starting a wash cycle Rapid programming

1. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes and wash cycles on the following page.

2. ADD THE DETERGENT. Pull out the detergent

dispenser drawer and pour the detergent into the relevant compartments as described in “Detergents and laundry”.

4. Press the “Push&Wash+Dry” button to start the

programme. Traditional programming

1. Turn the Washer-dryer on by pressing the ON/OFF

button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the drying cycle if necessary (see “Personalisation”).

6. Measure out the detergent and washing additives (see

“Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE

button and the corresponding indicator light will remain lit in a fixed manner in green. To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the FIN indicator light

will switch on. The door can be opened once the DOOR LOCK indicator light turns off (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the Washer-dryer off by pressing the ON/OFF button.

Wash cycles Push&Wash+Dry This function makes it possible to start an automatic wash and drying cycle either when the machine is off without having to press the ON/OFF button in advance, or after switching on the machine without having activated any button and/or selector (otherwise the Push&Wash+Dry function will be deactivated). To start the Push&Wash+Dry cycle press and hold the button for 2 seconds. The indicator lights up to show that the cycle has started. The wash and drying cycle is ideal for cotton or synthetic fabrics, as it washes them at a temperature of 30° and a maximum spin speed of 1000 rpm. During the drying cycle the maximum temperature is 60°C. At the end of the cycle the residual humidity will be the same as for the “ ” level. Max recommended load 2,5 kg. (Cycle duration 210’). How does it work?

1. Load the laundry (cotton and/or synthetic garments) and close the door.

2. Pour the detergent and/or additives.

3. Start the cycle by pressing and holding the Push&Wash+Dry button for 2 seconds. The relevant indicator light will turn green and the door will lock (the DOOR LOCKED symbol is lit). NB: starting the cycle through the Push&Wash+Dry button activates an automatic non-customisable wash and drying cycle recommended for cotton and synthetic fabrics.

4. The automatic cycle can be used only for washing, excluding the drying phase. Press the Push&Wash+Dry button and

then the drying button : the drying icon of the “ ” level will switch off. Maximum load for washing-only is 3,5 kg (Cycle duration 50’). The cycle cannot be customised further. To open the door while an automatic cycle is under way, press the START/PAUSE button. If the DOOR LOCKED symbol is off, the door may be opened only during the washing phase. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

5. Once the programme is finished, the FIN indicator light turns on.

Max. speed (rpm) Maximum load for drying (Kg) Prewash Wash Fabric softener Bleach Maximum load for washing (Kg) Duration of wash cycle Description of the wash cycle Max. temp. (°C) Drying Table of wash cycles Wash cycles

30° 30° 60° 40° 30° 40° 30°

Sport Dark Anti-odour (Cotton) Anti-odour (Synthetic) Delicate Wool: for wool, cashmere, etc. Rapid 30’ Standard 7 Cottons with Pre-wash: extremely soiled whites.

Cotton Standard 60° (1): heavily soiled whites and resistant colours. Synthetic: heavily soiled resistant colours. Coloured (2) Eco Cotton 20°: lightly soiled whites and delicate colours. Eco Synthetic Automatic 13 Wash&Dry 45’ 14 AirFresh Partials Rinse/Bleach Spin + Drain The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected. For all Test Institutes:

1) Test wash cycle in compliance with regulations EN 50229: select wash cycle 8 with a temperature of 60°C.

2) Long wash cycle for cottons: select wash cycle 10 with a temperature of 40.

Personalisation Setting the temperature Press the TEMPERATURE button to set the wash temperature (see Table of wash cycles). The temperature may be lowered, or even set to a cold wash . The Washer-dryer will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle. ! Exception: if the 8 programme is selected, the temperature can be increased up to a value of 90°C. Setting the drying cycle Table of drying times (guideline values) Two different types of drying are possible: time-based and Max. Cupboard Hanger Iron level-based. Fabric Load type load type Press the TIME-BASED DRYING button to set the desired (kg) drying duration: 40’- 90’- 120’ - 150’- 180’. Clothing of different When the button is pressed for the first time, the selected time Cotton

sizes, Terry towels will be the minimum time allowed for the set cycle. When the machine has started the drying phase, press the TIME- Synthe- Sheets, Shirts, Py3

jamas, socks, etc. BASED DRYING button again to reduce the drying duration that tics was set previously. The indicator lights will show the new drying Knitwear, Pullovers. Wool 1,5

duration selected and the time remaining will consider the time etc. that has elapsed. Press the LEVEL-BASED DRYING button to set the desired drying level: Cupboard : suitable for laundry which can be put back in a cupboard without being ironed. Hanger : ideal for clothes which do not need to be dried fully. Iron : suitable for clothes which will need ironing afterwards. the remaining dampness softens creases, making them easier to remove. If your laundry load to be washed and dried is much greater than the maximum stated load (see adjacent table of wash cycles), perform the wash cycle, and when the cycle is complete, divide the garments into groups and put some of them back in the drum. At this point, follow the instructions provided for a “Drying only” cycle. Repeat this procedure for the remainder of the load. A cooling-down period is always added to the end of each drying cycle. Note: if all the drying indicator lights are off, the machine will not perform the drying cycle. Drying only Press button to perform the drying-only cycle. After selecting the desired cycle (compatible with the type of garments), press button to exclude the washing phase and start the drying phase at the maximum level for the selected cycle. The drying level and duration can be set and changed by pressing the drying buttons

(Not compatible with cycles 13 and 14). Wash options The various wash options available with this Washer-dryer will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: - If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated. - If the selected option is not compatible with another previously selected option, the indicator light will flash accompanied by a buzzer (3 beeps), and only the latter option will be activated; the indicator light corresponding to the activated option will turn on Sport his option allows for selecting the most suitable programme for any type of sports clothing, and is designed to remove dirt while optimally preserving the technical features of the garments. The various Sport option levels offer the following wash cycles: Sport Shoes, a cycle designed to safely wash up to 2 pairs of sports shoes simultaneously. N.B.: to dry 1 pair of shoes, we recommend setting drying time to 120’; to dry 2 pairs set it to 180’. Gym Kit, a cycle designed to simultaneously wash any type of sports clothing together with gym towels (Temperature 40°). Technical Wear, designed for specifically washing waterproof garments or clothing with special technical fibres like GoreTex, so as to optimise washing performance while preserving their technical properties over time. Do not use fabric softeners for garments with technical fibres. Press this button to reduce the spin speed. Extra Rinse By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

Detergents and laundry

Detergent dispenser drawer Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution. ! Do not use hand washing detergents because these create too much foam. ! Use powder detergent for white cotton garments, for prewashing, and for washing at temperatures over 60°C. ! Follow the instructions given on the detergent packaging. Open the detergent dispenser drawer and pour in the detergent or washing additiB 4 ve, as follows.

Compartment 1: Pre-wash detergent (powder) Before pouring in the detergent, make sure that extra compartment 4 has been removed. Compartment 2: Washing detergent (powder or liquid) If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot B. Compartment 3: Additives (fabric softeners, etc.) The fabric softener must not exceed the “max” level indicated on the central pin. Extra compartment 4: Bleach Bleach cycle Insert the additional compartment 4 (provided) into compartment 1. In pouring the bleach do not exceed the “max” level indicated on the central pin. Perform bleaching by pouring the bleach into additional compartment 4 and set the programme ! Traditional bleach should be used on resistant white fabrics, and delicate bleach for coloured and synthetics fabrics and for wool. Preparing the laundry

• Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry. How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1.200 g 1 towel 150-250 g Garments requiring special care Sport (programme 1) is designed for washing lightly soiled sports clothing (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the “Table of wash cycles”. We recommend using liquid detergent, and adding the amount suitable for a half-load. Dark: use programme 2 to wash dark-coloured garments. This programme is designed to maintain dark colours over time. We recommend using a liquid detergent for the best results when washing dark-coloured garments.

When you select the drying function, at the end of the washing cycle the machine will automatically perform a delicate drying cycle that preserves the colours of the garments. The display will show the level “ ”. Max. load: 2,5 kg. Anti-odour: use programme 3 for washing garments with bad odours (e.g. smoke, sweat, fried food). The programme is designed to remove bad odours while preserving the fabric fibres. Synthetics fabrics or mixed loads should be washed at 40°, and resistant cotton fabrics at 60°. Delicate: use programme 4 to wash very delicate garments. It is advisable to turn the garments inside out before washing them. For best results, use liquid detergent on delicate garments. When selecting an exclusively time-based drying function, a drying cycle is performed at the end of the wash cycle that is particularly delicate, thanks to light handling and appropriate temperature control of the water jet. The recommended durations are: 1 kg of synthetic garments --> 150 min 1 kg of synthetic and cotton garments --> 180 min 1 kg of cotton garments --> 180 min The degree of dryness depends on the load and fabric composition. Wool: the wool wash programme of this machine has been tested and approved by The Woolmark Company for the washing of wool containing garments labelled as “hand wash” provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washer-dryer. (M1126) In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark. Rapid 30’ (programme 6) this programme is designed to wash lightly soiled garments at 30° (excluding wool and silk) with a 3 kg maximum load in a short time: it only lasts 30 minutes and allows for saving time and energy Coloured: use this programme 10 to wash bright coloured clothes. The programme is designed to maintain bright colours over time. Eco Cotton 20° (programme 11) ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks. Eco Synthetic (programme 12) ideal for mixed loads (cotton and synthetics) with a normal soil level. The effective performance levels achieved at cold temperatures are guaranteed by a mechanical action which operates at varying speed, across set average intervals. Wash&Dry 45’ select programme 13 for washing and drying lightly soiled garments (Cotton and Synthetic) in a short time. This cycle may be used to wash and dry a laundry load of up to 1 kg in just 45 minutes. To achieve optimum results, use liquid detergent and pre-treat cuffs, collars and stains. AirFresh (programme 14) ideal cycle to refresh garments and remove bad odours, in particular smoke, from cotton and synthetic items in 30’ (max 1.5kg) without the washing phase. Troubleshooting Your Washer-dryer could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be solved easily using the following list.

Problem: Possible causes / Solutions: The Washer-dryer does not switch on.

• The appliance is not plugged into the socket fully, or is not making contact.
• There is no power in the house. The wash cycle does not start.

The Washer-dryer door is not closed properly. The ON/OFF button has not been pressed. The START/PAUSE button has not been pressed. The water tap has not been opened. The Washer-dryer does not take in water (the indicator light for the first wash cycle stage flashes rapidly).

The water inlet hose is not connected to the tap. The hose is bent. The water tap has not been opened. There is no water supply in the house. The pressure is too low. The START/PAUSE button has not been pressed. The Washer-dryer continuously takes in and drains water.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor (see “Installation”).
• The free end of the hose is under water (see “Installation”).
• The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the Washer-dryer to fill with water and drain continuously. Special antidraining valves are available in shops and help to avoid this inconvenience. The Washer-dryer does not drain or spin.

• The wash cycle does not include draining: some wash cycles require the drain phase to be started manually.
• The drain hose is bent (see “Installation”).
• The drainage duct is clogged. The Washer-dryer vibrates a lot during the spin cycle.

• The drum was not unlocked correctly during installation (see “Installation”).
• The Washer-dryer is not level (see “Installation”).
• The Washer-dryer is trapped between cabinets and walls (see “Installation”). The Washer-dryer leaks.

• The water inlet hose is not screwed on properly (see “Installation”).
• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).
• The drain hose is not fixed properly (see “Installation”). The “Options” indicator lights and the “start/pause” indicator light flash, while one of the “phase in progress” indicator lights and the “door locked” indicator light will remain lit in a fixed manner.

• Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service. There is too much foam.

• The detergent is not suitable for machine washing (it should display the text “for Washer-dryers” or “hand and machine wash”, or the like).
• Too much detergent was used. Push&Wash+Dry does not activate.

• After switching on the machine a control other than Push&Wash+Dry was activated. Switch the machine off and press the Push&Wash+Dry button. The washer-dryer does not dry.

The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance door is not shut properly. All the drying indicator lights are off.

Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate. ! Always request the assistance of authorised technicians. Have the following information to hand:
• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N). This information can be found on the data plate applied to the rear of the Washer-dryer, and can also be found on the front of the appliance by opening the door. Indesit Company Spa Viale Aristide Merloni, 47 60044 Fabriano (AN) Italy www.indesit.com
